DVD/CD RECEIVER

KD-ADV5580/KD-DV5500

ENGLISHESPAÑOLFRANÇAIS

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

RECEPTOR CON DVD/CD

RÉCEPTEUR DVD/CD

For canceling the display demonstration, see page 11. Para cancelar la demostración en pantalla, consulte la página 11. Pour annuler la démonstration des affichages, référez-vous à la page 11.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

KD-ADV5580/KD-DV5500

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

EN, SP, FR

1108DTSMDTJEIN

GET0587-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

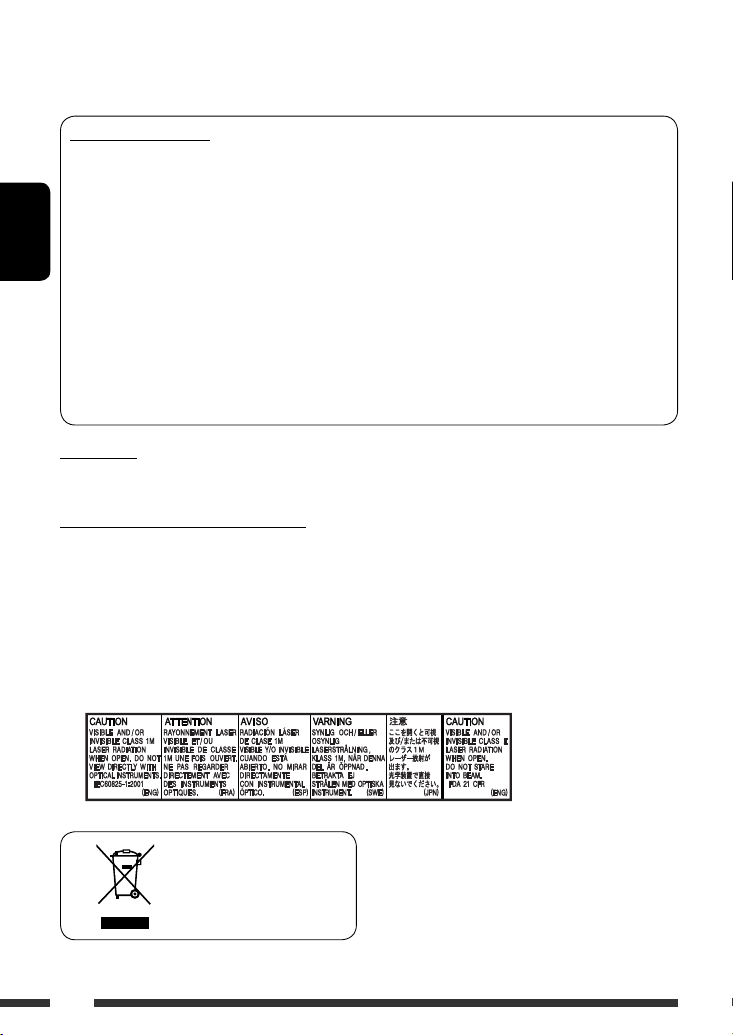

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

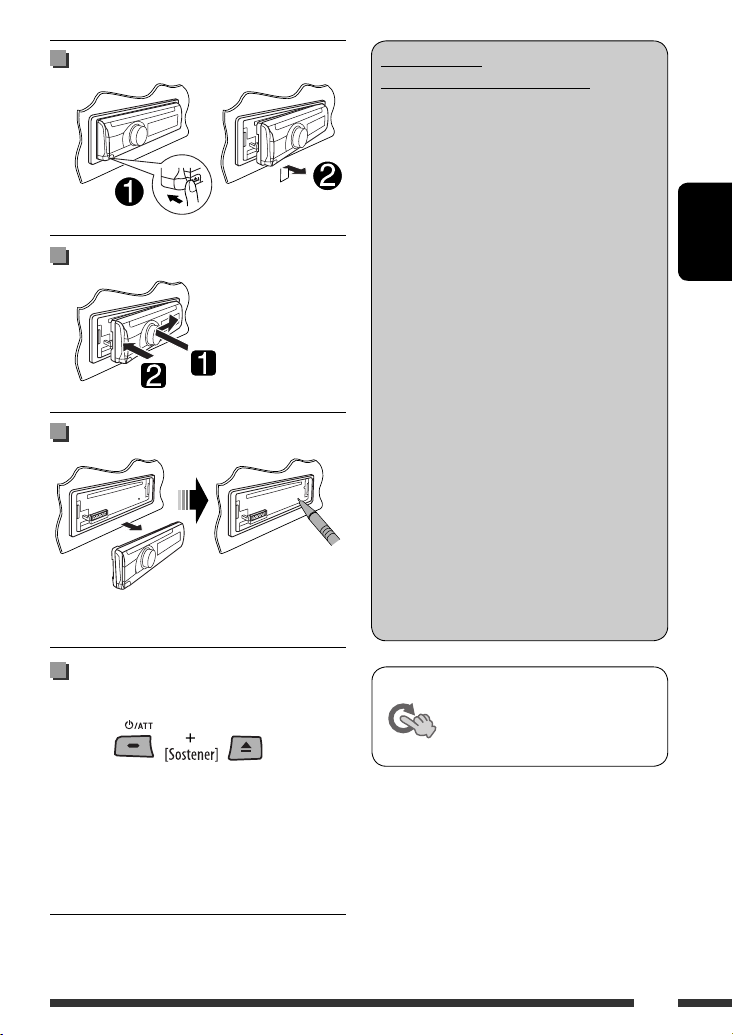

Detaching the control panel

Attaching the control panel

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

WARNINGS: (To prevent accidents and damage)

• DO NOT install any unit or wire any cable in a location where;

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety

devices such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

• If you need to operate the unit while driving, be sure to look around carefully.

• The driver must not watch the monitor while driving.

If the parking brake is not engaged, “DRIVER

MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown.

– This warning appears only when the

parking brake lead is connected to the parking brake system built in the car (refer to the Installation/Connection Manual).

This mark is used to indicate...

Turn the control dial to make a selection, then press to confirm the selection.

ENGLISH

• You can forcibly eject the loaded disc even if the disc is

locked. To lock/unlock the disc, see page 13.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Indication language:

In this manual, English indications are used for purposes of explanation. You can select the indication language on the monitor on the “LANGUAGE” setting (see page 33).

ENGLISH

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

KD-ADV5580 is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Caution on volume setting

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

CONTENTS

Detaching the control panel ...................................................................................................... 3

Attaching the control panel ...................................................................................................... 3

How to reset your unit .............................................................................................................. 3

How to forcibly eject a disc ........................................................................................................ 3

INTRODUCTIONS

Playable disc type ..................................................................................................................... 6

OPERATIONS

Basic operations ........................................................................................................................ 7

• Using the control panel .................................................................................................................... 7

• Using the remote controller (RM-RK255) ......................................................................................... 8

Preparation ............................................................................................................................... 11

Listening to the radio ................................................................................................................ 11

Disc operations .......................................................................................................................... 13

• Operations using the control panel .................................................................................................. 14

• Operations using the remote controller (RM-RK255) ....................................................................... 16

EXTERNAL DEVICES

Listening to the CD changer ...................................................................................................... 22

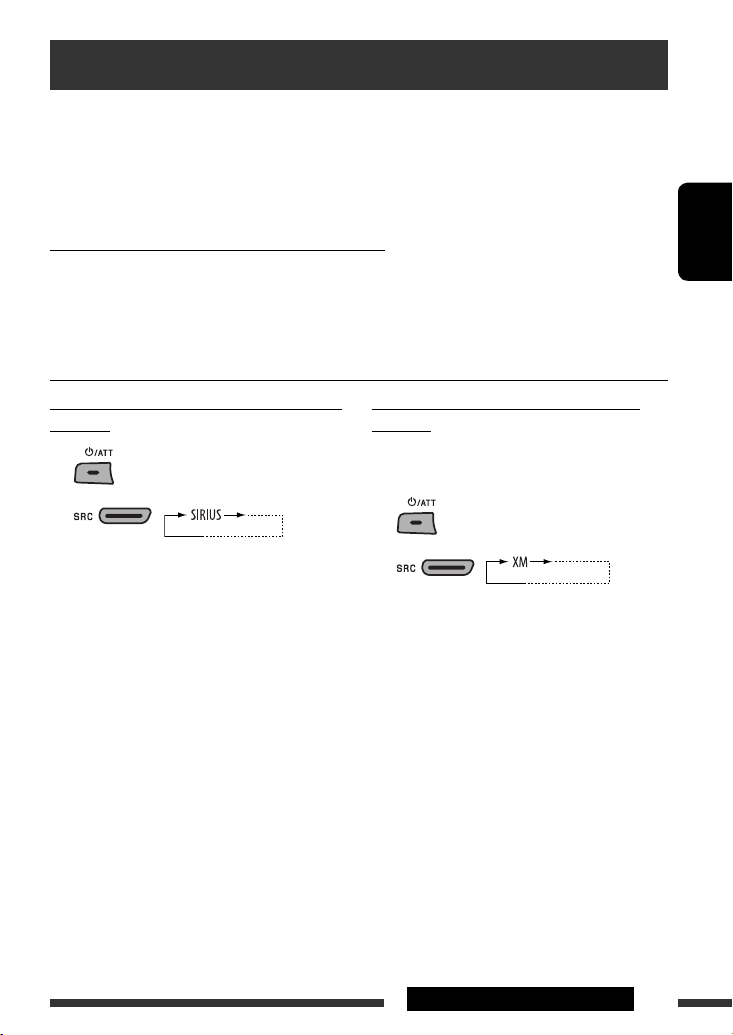

Listening to the satellite radio .................................................................................................. 23

Listening to the iPod ................................................................................................................. 25

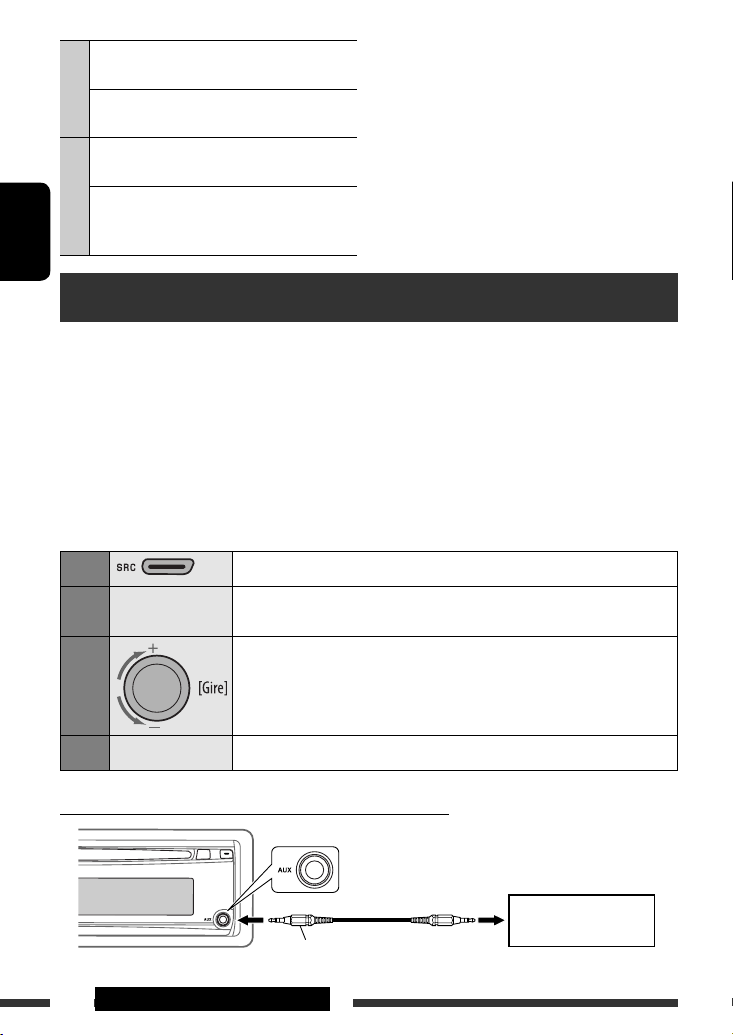

Listening to the other external components ............................................................................. 26

ENGLISH

SETTINGS

Selecting a preset sound mode ................................................................................................. 27

Menu operations ....................................................................................................................... 29

Title assignment ....................................................................................................................... 32

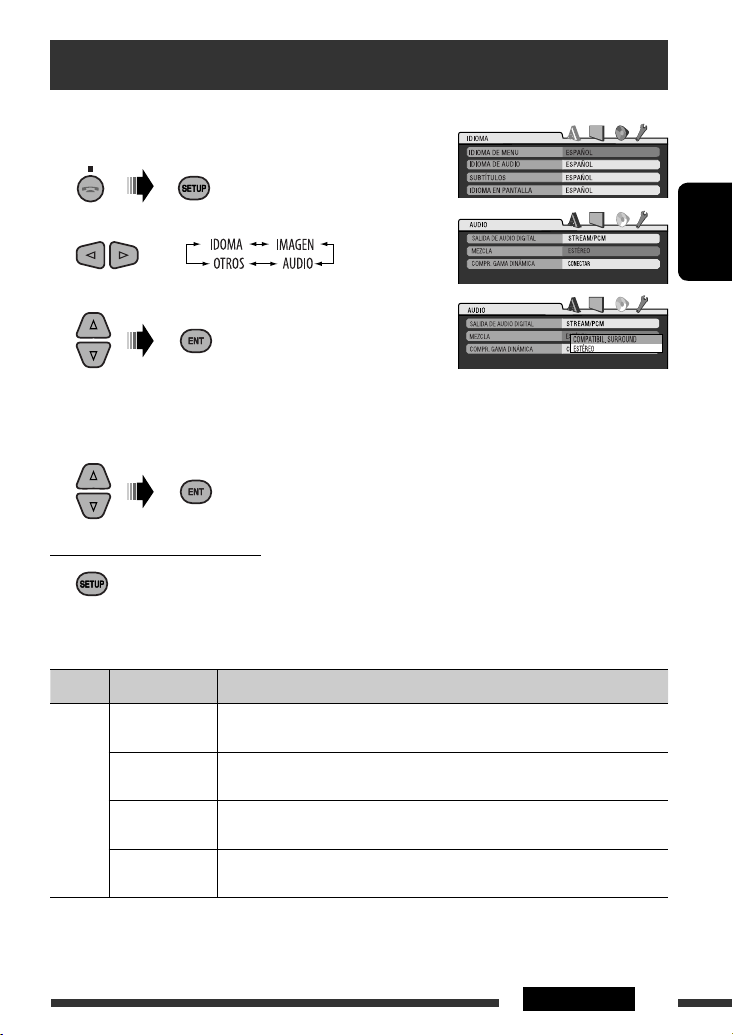

Disc setup menu ........................................................................................................................ 33

REFERENCES

More about this unit ................................................................................................................. 35

Maintenance ............................................................................................................................. 39

Troubleshooting ........................................................................................................................ 40

Specifications ............................................................................................................................ 44

Playable disc type

Disc type Recording format, file type, etc Playable

DVD DVD-Video (Region Code: 1) *

ENGLISH

DVD-Audio/DVD-ROM

DVD Recordable/Rewritable (DVD-R/-RW *2, +R/+RW *3)

• DVD Video: UDF bridge

• DVD-VR

• MPEG-1/MPEG-2/MP3/WMA/ WAV: ISO 9660 level 1, level 2, Romeo, Joliet

Dual Disc DVD side

CD/VCD Audio CD/CD Text (CD-DA)

CD Recordable/Rewritable (CD-R/-RW)

• ISO 9660 level 1, level 2, Romeo, Joliet

*1 If you insert a DVD Video disc of an incorrect Region Code, “REGION CODE ERROR” appears on the monitor. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not

playable.

*3 It is possible to play back finalized +R/+RW (Video format only) discs. +RW double layer discs are not playable.

DVD-Video DVD-VR MPEG1/MPEG2 MP3/WMA/WAV AAC/JPEG/MPEG4/DivX/DVD+VR/DVD-RAM

Non-DVD side

VCD (Video CD) DTS-CD/SVCD (Super Video CD)/CD-ROM/

CD-I (CD-I Ready) CD-DA VCD (Video CD) MPEG1/MPEG2 MP3/WMA/WAV AAC/JPEG/MPEG4/DivX

6 INTRODUCTIONS

Basic operations

Using the control panel

ENGLISH

1 • FM/AM: Select preset station.

• SIRIUS/XM: Select category.

• DISC: Select title/program/playlist/folder.

• CD-CH: Select folder.

• IPOD: Enter the main menu/Pause playback/

Confirm selection.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

3 Select the source.

FM = AM *2 = SIRIUS *3/XM *3 = DISC *3 =

CD-CH *3/IPOD *3 (or EXT INPUT) = AUX IN *2

= (back to the beginning)

4 • Enter list operations.

• Enter Menu setting [Hold].

5 • Control the volume *

• Confirm the selection [Press].

or select items [Turn].

• FM: Enter SSM preset mode [Hold].

• DISC: Pause/resume playback *4 [Press].

• DISC/CD-CH/IPOD: Enter playback mode [Hold].

6 Loading slot 7 Display window 8 Eject disc. 9 Select the sound mode. p Detach the panel.

q • Change the display information (if the power is

turned on).

• Check the current clock time (if the power is

turned off). *

w • FM/AM/SIRIUS/XM: Search for station/channel.

• DISC: Select chapter/track.

• CD-CH/IPOD: Select track.

e Return to the previous menu. r Remote sensor t AUX (auxiliary) input jack

*1 Also known as “Control dial” in this manual. *2 You cannot select these sources if they were disabled

in the Menu (see “SRC SELECT” in “Menu operations” on page 31).

*3 You cannot select these sources if they are not ready

or not connected.

*4 You can still adjust the volume during pause when

the selected source is DISC. Before resume playback, check to be sure that you have not raise the volume level too much.

*5 The current clock time is displayed if “CLOCK

DISP” is set to “CLOCK OFF” (see page 29).

Continued on the next page

7OPERATIONS

Display window

ENGLISH

1 Tr (track) indicator 2 Source display / Track number / Folder number /

Disc number / Title number / PBC indicator / Time countdown indicator

3 Playback source indicators—CH (CD changer), DISC 4 Sound mode indicators —CLASSIC, HIP HOP, JAZZ,

ROCK, POPS, USER

5 Playback mode / item indicators— RND (random),

(disc), (folder), RPT (repeat)

6 EQ (equalizer) indicator 7 LOUD (loudness) indicator 8 Disc information indicators—

TAG (Tag information), (track/file), (folder)

9 Main display (Time, menu, playback information) p Tuner reception indicators—ST (stereo),

MO (monaural)

Using the remote controller (RM-RK255)

Installing the batteries

R03/LR03/AAA

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly.

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

1 button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5/∞ buttons

• FM/AM: Selects the preset stations.

• SIRIUS/XM: Selects the categories.

• DISC:

– DVD-Video: Selects the title. – DVD-VR: Selects the program/playlist. – MPEG Video/MP3/WMA/WAV: Selects the

folders if included.

• IPOD: – 5 : Enters the main menu (then 5 / ∞ /

4 / ¢ work as menu

selecting buttons.) 5 : Returns to the previous menu. ∞ : Confirms the selection.

∞ : Pauses or resumes playback.

– 4 / ¢ buttons

• FM/AM: – Searches for stations automatically if pressed

briefly.

– Searches for stations manually if pressed and

held.

• SIRIUS/XM: – Changes the channels if pressed briefly. – Changes the channels rapidly if pressed and

held.

• DISC/CD-CH: – Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed and

held.

• IPOD: – Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed and

held. In menu selecting mode: – Selects an item if pressed briefly. (Then, press

∞ to confirm the selection.)

– Skips 10 items at a time if pressed and held.

3 VOL (volume) + / – buttons

• Adjusts the volume level.

2nd VOL (volume) buttons

• Not applicable for this unit.

4 * ASPECT button

• Not applicable for this unit.

5 PHONE button

• Not applicable for this unit.

6 * SETUP button

• Enters disc setup menu (during stop).

ENGLISH

Continued on the next page

9OPERATIONS

7 * TOP MENU button

• DVD-Video: Shows the disc menu.

• DVD-VR: Shows the Original Program screen.

• VCD: Resumes PBC playback.

8 * OSD (on-screen display) button

ENGLISH

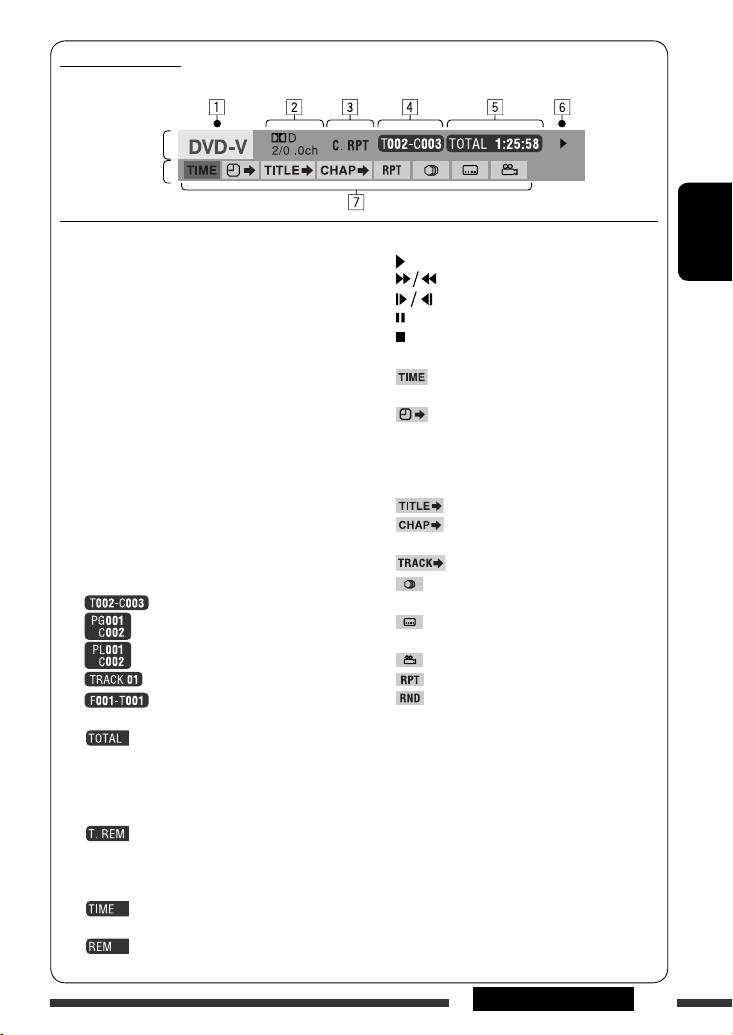

• Shows the on-screen bar.

9 SHIFT button

• Functions with other buttons.

p DISP (display) button

• Changes the display information (if the power is turned on).

• Checks the current clock time (if the power is turned off).

q 1 / ¡ buttons

• DVD-Video: Slow motion playback (during pause).

• DVD-VR/VCD: Forward slow motion playback (during pause).

• MPEG Video/MP3/WMA/WAV: Reverse search/ forward search.

w SOURCE button

• Selects the source.

e 3 (play) / 8 (pause) button

• DISC: Starts/pauses playback.

r (end call) button

• Not applicable for this unit.

7 (stop) buttons

• DISC: Stops playback.

t * RETURN button

• VCD: Returns to the PBC menu.

y * DVD MENU button

• DVD-Video: Shows the disc menu.

• DVD-VR: Shows the Playlist screen.

• VCD: Resumes PBC playback.

u * % / ﬁ buttons

• DVD-Video: Makes selection/settings.

• CD-CH: Changes discs in the magazine.

@ / # buttons

• DVD-Video: Makes selection/settings.

• MPEG Video: Skips back or forward by about five minutes.

ENT (enter) button

• Confirms selection.

i * DUAL button

• Not applicable for this unit.

o DIRECT button

• DISC: Enters direct search mode for chapter/ title/program/playlist/folder/track when pressed with SHIFT button (see page 17 for details).

CLR (clear) button

• DISC: Erases the misentry when pressed with SHIFT button.

* Functions as number buttons/* (asterisk)/# (hatch)

when pressed with SHIFT button. – DISC: Enters chapter/title/program/playlist/folder/

track number after entering search mode by pressing SHIFT and DIRECT (see page 17 for details).

Preparation

Canceling the display demonstration and setting the clock

• See also page 29.

Turn on the power.

ENGLISH

Press and hold until the main menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK” = “CLOCK SET.” Adjust the hour, then press control dial once to proceed to

adjust the minute.

• To return to the previous menu, press BACK.

Listening to the radio

1 2

Changing the display information

Frequency = Clock = Station name * = (back to the beginning)

* If no title is assigned to a station, “NO NAME” appears. To assign a title to a station, see page 32.

Select “FM” or “AM.”

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.

Continued on the next page

11OPERATIONS

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• See also page 30.

ENGLISH

Local FM stations with the strongest signals are

searched and stored automatically.

• To stop searching, press

To preset other 6 stations, repeat from step 1 again.

4 /¢ .

[Turn] = [Press]

Reception improves, but stereo effect will be lost.

• The MO indicator lights up on the display.

To restore the stereo effect, repeat the same procedure to select “MONO OFF.” The MO indicator goes off.

Storing stations in memory

Automatic presetting (FM)— SSM (Strongstation Sequential Memory)

You can preset up to 18 stations for FM.

1 While listening to a station...

2 Select the preset number range you want to

store.

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM. Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

2 Select preset number “04.”

Selecting preset station

[Turn] = [Press]

Disc operations

Before performing any operations...

Turn on the monitor to watch the playback picture. If you turn on the monitor, you can also control playback of other discs by referring to the monitor screen. (See pages 18 – 21.) The disc type is automatically detected, and playback starts automatically (for DVD: automatic start depends on its internal program). If the current disc does not have any disc menu, all tracks will be played repeatedly until you change the source or eject the disc.

” appears on the monitor when pressing a button, the unit cannot accept the operation you have tried to

If “ do.

• In some cases, without showing “ ,” operations will not be accepted.

ENGLISH

Stop playing and ejecting the disc

• “NO DISC” appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Turn on the power.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Selecting a track/folder (MP3/WMA/WAV/CD)

[Turn] = [Press]

• For MP3/WMA/WAV discs, select the desired folder, then the desired track by repeating the control dial procedures.

• To return to the previous menu, press BACK.

Continued on the next page

13OPERATIONS

Changing the display information

Current chapter number and Elapsed playing time = Current chapter number and Clock =

ENGLISH

Current title and chapter number

= (back to the beginning)

Current chapter number and Elapsed playing time = Current chapter number and Clock = Current program (or playlist) number and chapter number = (back to the beginning)

Elapsed playing time = Folder number and Clock = Folder name = Track title = (back to the beginning)

Current track number and Elapsed playing time = Current track number and Clock = (back to the beginning)

Current track number and Elapsed playing time = Current track number and Clock = Album name/performer (folder name *1) = Track title (file name *1) = (back to the beginning)

Current track number and Elapsed playing time = Current track number and Clock = Disc title/performer *2 = Track title *2 = (back to the beginning)

If the file does not have Tag information or “ TAG DISPLAY” is set to “ TAG OFF” (see page 30), folder name

and file name appear. TAG indicator will not light up.

*2 “NO NAME” appears for an audio CD.

Operations using the control panel

Pressing (or holding) the following buttons allows you to...

Disc type

– *2: See page 15.

[Press] Select chapter [Hold] Reverse/fast-forward

chapter *

[Press] Select chapter [Hold] Reverse/fast-forward

chapter *

[Press] Select track [Hold] Reverse/fast-forward

track *

Select title [Press] Pause/resume

playback

Select program number/ playlist number

[Press] Pause/resume

playback

Select folder [Press] Pause/resume

playback

Disc type

Search speed:

[Press] Select track [Hold] Reverse/fast-forward

track *

[Press] Select track [Hold] Reverse/fast-forward

track *

[Press] Select track [Hold] Reverse/fast-forward

track *

—

Select folder [Press] Pause/resume

—

[Press] Pause/resume

playback

[Press] Pause/resume

playback

*2 Search speed:

Selecting the playback modes

You can use only one of the following playback modes at a time.

1 23

[Turn] = [Press]

REPEAT Ô RANDOM

Disc type REPEAT RANDOM

CHAPTER RPT: Repeat current chapter TITLE RPT: Repeat current title

CHAPTER RPT: Repeat current chapter PROGRAM RPT: Repeat current program

(not available for Playlist Playback)

TRACK RPT: Repeat current track FOLDER RPT: Repeat current folder

TRACK RPT: Repeat current track (PBC not

in use)

FOLDER RND: Randomly play all tracks of

current folder, then tracks of next folders

ALL RND: Randomly play all tracks ALL RND: Randomly play all tracks (PBC not

in use)

[Turn] = [Press]

—

ENGLISH

Continued on the next page

15OPERATIONS

Disc type REPEAT RANDOM

TRACK RPT:Repeat current track FOLDER RPT: Repeat current folder

ENGLISH

TRACK RPT: Repeat current track ALL RND: Randomly play all tracks

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

FOLDER RND: Randomly play all tracks of

ALL RND: Randomly play all tracks

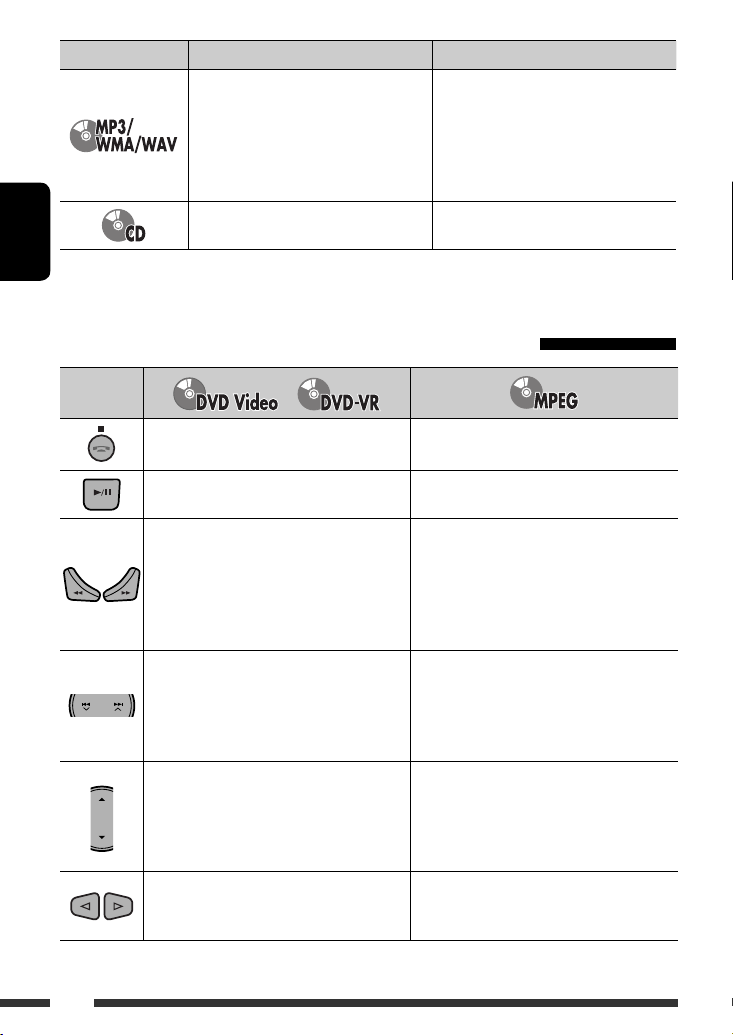

Operations using the remote controller (RM-RK255)

current folder, then tracks of next folders

Button

– *5: See page 17.

Stop play Stop play

Start play/Pause (if pressed during play) Start play/Pause (if pressed during play)

• Reverse/forward chapter search *1 (No sound

can be heard.)

• Slow motion *2 during pause (No sound can

be heard.)

– DVD-VR: Reverse slow motion does not work.

[Press] Select chapter (during play or pause) [Hold] Reverse/fast-forward chapter search *

• DVD-Video: Select title (during play or pause)

• DVD-VR: Select program Select playlist (during play or pause)

—

Reverse/forward track search *4 (No sound can be heard.)

[Press] Select track

[Hold] Reverse/fast-forward track search *5 (No

sound can be heard.)

Select folder

• Skip back or forward the scenes by about five minutes

• Select chapter

Button

Stop play Stop play Stop play

Start play/Pause (if pressed during play)

Reverse/forward track search *

Start play/Pause (if pressed during play)

Reverse/forward track search *1Reverse/forward track search *

Start play/Pause (if pressed during play)

• Forward slow motion *2

during pause (No sound can be heard.)

– Reverse slow motion does not

work.

[Press] Select track [Hold] Reverse/fast-forward

track search *3 (No

[Press] Select track [Hold] Reverse/fast-forward

track search *

[Press] Select track [Hold] Reverse/fast-forward

track search *

sound can be heard.)

Select folder

—

Search speed:

—

*2 Slow motion speed: *3 Search speed: *4 Search speed: *5 Search speed:

Searching for chapter/title/program/playlist/folder/track directly (DVD/MPEG Video/MP3/ WMA/WAV/CD)

1 While holding SHIFT, press DIRECT repeatedly to select the desired search mode.

DVD-Video:

ENGLISH

DVD-VR:

MPEG Video:

MP3/WMA/WAV:

CD:

2 While holding SHIFT, press the number buttons (0 – 9) to enter the desired number. 3 Press ENT (enter) to confirm.

Continued on the next page

17OPERATIONS

• For MPEG Video/MP3/WMA/WAV, track is searched within the same folder.

• For DVD-VR, program/playlist search is possible during Original program playback (PG)/Playlist playback (PL).

• To erase a misentry, press CLR (clear) while holding

ENGLISH

SHIFT.

• To return to the previous screen, press RETURN.

Using menu driven features... (DVD-Video/ DVD-VR)

1 Press TOP MENU/DVD MENU to enter the menu

screen.

2 Press % / ﬁ / @ / # to select an item you want to

start play.

3 Press ENT (enter) to confirm.

Canceling the PBC playback... (VCD)

1 During stop, press DIRECT while holding SHIFT. 2 Hold SHIFT, then press the number buttons (0 – 9)

to enter the desired number.

3 Press ENT (enter) to confirm.

• To resume PBC, press TOP MENU/DVD MENU.

Operations using the

on-screen bar

(DVD/DVD-VR/MPEG Video/VCD)

These operations are possible on the monitor using the remote controller.

1 Show the on-screen bar (see page 19).

(twice)

2 Select an item.

3 Make a selection.

If pop-up menu appears...

• To cancel pop-up menu, press RETURN.

• For entering time/numbers, see the following.

Entering time/numbers

Press % / ﬁ to change the number, then press @ / # to move to the next entry.

• Each time you press decreases by one value.

• After entering the numbers, press ENT (enter).

• It is not required to enter the zero and tailing zeros (the last two digits in the example below).

% / ﬁ, the number increases/

Ex.: Time search DVD: _:_ _:_ _ (Ex.: 1:02:00) Press % once, then # twice to go to the third entry, % twice, then press ENT (enter).

Removing the on-screen bar

On-screen bar

Ex.: DVD-Video

Information

Operation

1 Disc type 2 • DVD-Video: Audio signal format type and

channel

• VCD: PBC

3 Playback mode *

DVD-Video: T. RPT: Title repeat C. RPT: Chapter repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat MPEG Video: T. RPT: Track repeat F. RPT: Folder repeat A. RND: All random F. RND: Folder random VCD *2: T. RPT: Track repeat A. RND: All random

4 Playback information

Current title/chapter

5 Time indication

Current program/chapter Current playlist/chapter

Current track

Current folder/track

Elapsed playing time of the disc

(For DVD-Video, elapsed playing time of the current title/program/ playlist.)

DVD-Video/DVD-VR: Remaining

title/program/playlist time VCD: Remaining disc time Elapsed playing time of the current

chapter/track *

Remaining time of the current

chapter/track *

6 Playback status

Play Forward/reverse search Forward/reverse slow-motion Pause Stop

7 Operation icons

Change time indication (see 5) Time Search (Enter the elapsed

playing time of the current title/

program/playlist or of the disc.) Title Search (by its number) Chapter Search (by its number) Track Search (by its number) Change the audio language or

audio channel Change or turn off the subtitle

language Change the view angle Repeat play * Random play *

*1 For repeat play/random play, see also pages 15 and

16.

*2 While PBC is not in use. *3 Not applicable for DVD-VR.

ENGLISH

19OPERATIONS

Operations using the control

screen

(MPEG Video/MP3/WMA/WAV/CD)

These operations are possible on the monitor using the remote controller.

ENGLISH

1 Show the control screen.

MPEG Video: Press 7 during play. MP3/WMA/WAV/CD: Automatically appear during

play.

6 Current track number/total number of tracks in the

current folder (total number of tracks on the disc)

7 Track information 8 Track list with the current track selected

Selecting a playback mode

• See also pages 15 and 16.

1 While control screen is displayed...

2 Select “Folder” column or “Track” column

(except for CD).

3 Select a folder or track.

4 Start playback.

MPEG Video: Press ENT (enter) or 3/8. MP3/WMA/WAV/CD: Playback starts automatically.

Control screen

Ex.: MP3/WMA/WAV disc

1 Current folder number/total folder number 2 Folder list with the current folder selected 3 Selected playback mode 4 Elapsed playing time of the current track 5 Operation mode icon ( 3, 7, 8, ¡, 1 )

Playback mode selection screen appears on the

folder list section of the control screen.

2 Select a playback mode.

3 Select an item.

REPEAT:

RANDOM:

* Not selectable for CD.

Mode Playback function

F. RPT

(folder repeat):

T. RPT

(track repeat):

A. RND

(all random):

F. RND

(folder random):

4 Confirm the selection.

Repeat current folder

Repeat current track

Randomly play all tracks

Randomly play all tracks of current folder, then tracks of next folders

Operations using the list

screen

(DVD-VR/MPEG Video/MP3/WMA/WAV)

These operations are possible on the monitor using the remote controller. Before playing, you can display the folder list/track list to confirm the contents and start playing a track.

1 Display the folder list while stop.

2 Select an item from the folder list.

• Track list of the selected folder appears.

• To go back to the folder list, press RETURN.

3 Select a track to start playing.

• MP3/WMA/WAV: Control screen appears (see page 20).

List screen (MPEG Video/MP3/WMA/WAV)

Ex.: Folder list

1 Current folder number/total folder number 2 Current track number/total number of tracks in the

current folder

3 Current page/total number of the pages included

in the list

4 Current folder/track (highlighted bar)

List screen (DVD-VR)

You can use ORIGINAL PROGRAM or PLAY LIST screen anytime while playing DVD-VR with its data recorded.

1 Select a list screen.

1 Program/playlist number 2 Recording date 3 Recording source (TV station, the input

terminal of the recording equipment, etc.)

4 Start time of recording 5 Title of the program/playlist * 6 Current selection (highlighted bar) 7 Creating date of playlist 8 Number of chapters 9 Playback time

* The title of the original program or playlist may

not be displayed depending on the recording equipment.

2 Select an item from the list.

ENGLISH

21OPERATIONS

Listening to the CD changer

It is recommended to use a JVC MP3-compatible CD changer (not supplied) with your unit. You can connect a CD changer to the CD changer jack on the rear of the unit.

• You can only play conventional CDs (including CD Text) and MP3 discs.

ENGLISH

Preparation: Make sure “CH/IPOD” is selected in the “SRC SELECT”

1 2

Select “CD-CH.”

Enter the list mode.

= “EXT IN” setting, see page 31.

[Turn] = [Press]

• To select another folder/track while playing (for MP3 discs), repeat steps 2 and 3 above until the desired folder/

track is selected. The selection always start from disc number first.

• To change the display information, see page 14.

MP3: Select folders

[Press] Select track [Hold] Reverse/fast-forward track

Selecting the playback modes

[Turn] = [Press]

REPEAT Ô RANDOM

Select a disc, folder, then the track.

Playback starts automatically.

• If there is no disc on the selected tray, the unit beeps.

TRACK RPT : Repeats current track FOLDER RPT : MP3: Repeats all tracks of

REPEAT

DISC RPT : Repeats all tracks of the

FOLDER RND : MP3: Randomly plays all tracks

DISC RND : Randomly plays all tracks of

RANDOM

ALL RND : Randomly plays all tracks of

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

current folder

current disc

of the current folder, then tracks of the next folder

current disc

the discs in the magazine

[Turn] = [Press]

Listening to the satellite radio

Before operating, connect either one of the following (not supplied) to the CD changer jack on the rear of this unit.

• JVC SIRIUS satellite radio System, SC-C1 and KS-SRA100, PnP, SC-VDOC1 and KS-SRA100, for listening to the

SIRIUS Satellite radio.

• XM satellite radio System, JVC Smart Digital Adapter–XMDJVC100, CNP2000UC and CNPJVC1 for listening to

the XM Satellite radio.

GCI (Global Control Information) update

• If channels are updated after subscription, updating starts automatically. The following appears and no sound can be heard: – For SIRIUS Satellite radio: “UPDATE XX%” – For XM Satellite radio: “UPDATING”

• Update takes a few minutes to complete.

• During update, you cannot operate your satellite radio.

ENGLISH

Activate your SIRIUS subscription after connection

SIRIUS Satellite radio starts updating all the SIRIUS

channels.

Once completed, SIRIUS Satellite radio tunes in to

the preset channel, CH184.

3 Check your SIRIUS ID, see page 30.

4 Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“SUB UPDT PRESS ANY KEY” scrolls on the display

once subscription has been completed.

Activate your XM subscription after connection

• Only Channel 0, 1, and 247 are available before activation.

XMDirect ™ Tuner Box or XMDirect2 Tuner System

starts updating all the XM channels. “Channel 1” is tuned in automatically.

3 Check your XM Satellite radio ID labelled

on the casing of the XMDirect ™ Tuner Box or XMDirect2 Tuner System, or tune in to “Channel 0” (see page 24).

4 Contact XM Satellite radio on the internet

at <http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XM-RADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the

available channels (Channel 4 or higher).

Continued on the next page

23EXTERNAL DEVICES

1 2

Select “SIRIUS” or “XM.”

Select a category.

SIRIUS: If you select “ALL,” you can tune in to all the channels of all categories.

ENGLISH

Changing the display information

Category name = Channel name = Artist name = Composer name * = Song/program name/title = Clock = (back to the beginning)

* Only for SIRIUS Satellite radio.

Storing channels in memory

You can preset up to 18 channels for both SIRIUS and XM.

Ex.: Storing channel into preset number “04.”

1 Tune in to a channel you want to store (see

steps 1 – 3 above).

2 Select preset number “04.”

Select a channel to listen.

• Holding the button changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped. XM: If you do not select a channel within 15 seconds, category selected in step 2

is canceled. You can select all channels of all categories now (including noncategorised channels).

Checking the XM Satellite radio ID

While selecting “XM,” select “Channel 0.”

The display alternately shows “RADIO ID” and the 8-digit (alphanumeric) ID number.

To cancel the ID number display, select any channel other than “Channel 0.”

Selecting SIRIUS/XM preset station

[Turn] = [Press]

Listening to the iPod

Before operating, connect the Interface adapter for iPod, KS-PD100 (not supplied) to the CD changer jack on the rear of the unit.

Preparation: Make sure “CH/IPOD” is selected in the “SRC SELECT”

Select “IPOD.”

1 2

Changing the display information

Folder name = Track name = Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

Select a song.

Playback starts automatically.

= “EXT IN” setting, see page 31.

ENGLISH

Pause/resume playback

[Press] Select tracks [Hold] Reverse/fast-forward track

Selecting a track from the menu

1 Enter the main menu.

This mode will be canceled if no operations are

done for about 5 seconds.

2 Select the desired menu.

PLAYLISTS Ô ARTISTS Ô ALBUMS Ô

SONGS Ô GENRES Ô COMPOSERS Ô (back

to the beginning)

3 Confirm the selection.

• To return to the previous menu, press 5.

• If a track is selected, playback starts

automatically.

Selecting the playback modes

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

Continued on the next page

25EXTERNAL DEVICES

ONE RPT : Functions the same as “Repeat

One” of the iPod.

ALL RPT : Functions the same as “Repeat

REPEAT

ALBUM RND * : Functions the same as

ENGLISH

SONG RND : Functions the same as

RANDOM

All” of the iPod.

“Shuffle Albums” of the iPod.

“Shuffle Songs” of the iPod.

* Functions only if you select “ALL ALBUMS” in “ALBUMS”

of the main menu.

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

Listening to the other external components

You can connect an external component to:

• EXT INPUT: CD changer jack on the rear of this unit using the following adapters (not supplied): – KS-U57: For connecting the component with pin jacks – KS-U58: For connecting the component with stereo mini jack Preparation: Make sure “EXT INPUT” is selected in the “SRC SELECT” = “EXT IN” setting, see page 31.

• AUX IN: AUX (auxiliary) input jack on the control panel. Preparation: Make sure “AUX ON” is selected in the “SRC SELECT” = “AUX IN” setting, see page 31.

1 2

—

Select “EXT INPUT” or “AUX IN.”

Turn on the connected component and start playing the source.

Adjust the volume.

Connecting an external component to the AUX input jack

—

Adjust the sound as you want (see pages 27 and 28).

3.5 mm (3/16”) stereo mini plug (not supplied)

26 EXTERNAL DEVICES

Portable audio player, etc.

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

• See also page 29.

Preset value setting for each sound mode

Selecting from Menu.

• See page 28 for “USER” settings.

ENGLISH

[Turn] = [Press]

Sound

mode

USER 60 Hz 00 Q1.0 1.0 kHz 00 Q1.0 10.0 kHz 00 Q1.25 ROCK 100 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +02 Q1.25 CLASSIC 80 Hz +01 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +03 Q1.25 POPS 100 Hz +02 Q1.0 1.0 kHz +01 Q1.25 10.0 kHz +02 Q1.25 HIP HOP 60 Hz +04 Q1.0 1.0 kHz –02 Q1.0 10.0 kHz +01 Q1.25 JAZZ 80 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +03 Q1.25

Freq.: Frequency Q: Q-slope

BASS MIDDLE TREBLE LOUD

Freq. Level Q Freq. Level Q Freq. Level Q

Preset value

(loudness)

OFF

27SETTINGS

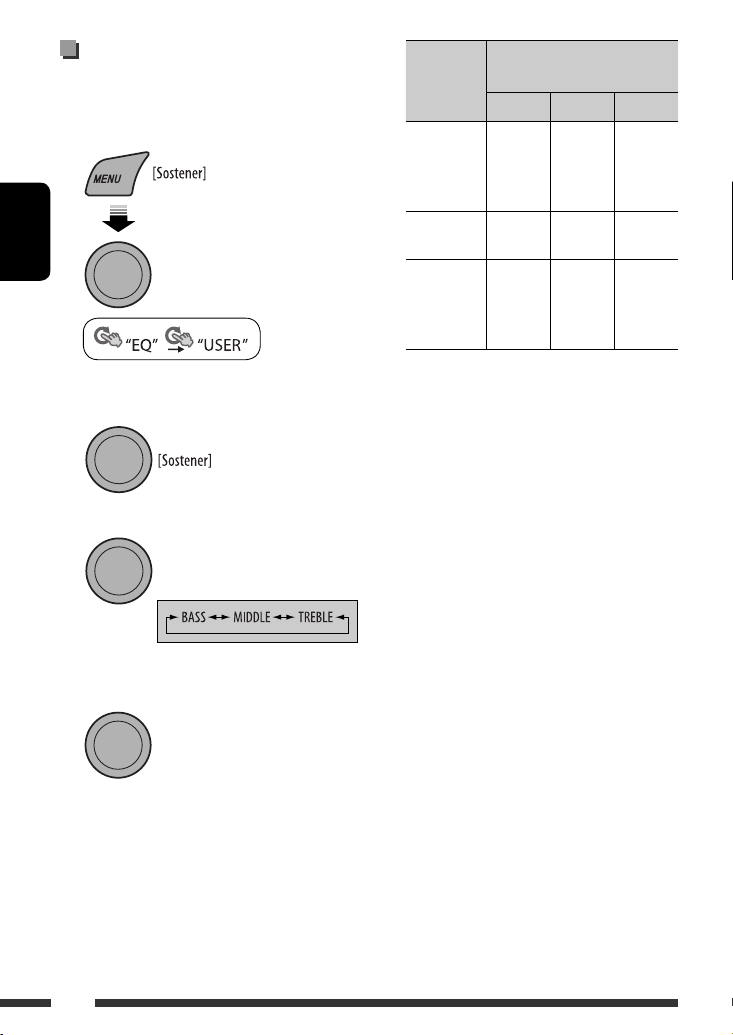

Storing your own sound mode

You can store your own adjustments in memory.

1 Select “USER.”

ENGLISH

[Turn] = [Press]

Sound

element

Frequency 60 Hz

Level –06 to

Q Q0.5

Range/selectable item

BASS MIDDLE TREBLE

80 Hz 100 Hz 120 Hz

+06

Q1.0 Q1.5 Q2.0

0.5 kHz

1.0 kHz

1.5 kHz

2.5 kHz –06 to

+06 Q0.75

Q1.0 Q1.25 Q1.5

7.5 kHz

10.0 kHz

12.5 kHz

15.0 kHz –06 to

+06 Q0.75

Q1.25

2 While “USER” is shown on the display...

3 Select a tone.

[Turn] = [Press]

4 Adjust the sound elements of the selected

tone.

[Turn] = [Press]

1 Adjust the frequency. 2 Adjust the level. 3 Adjust the Q-slope.

5 Repeat steps 3 and 4 to adjust other sound

characteristics.

The adjustment made will be stored automatically.

Menu operations

1 Call up the menu. 2 Select the desired item. 3 Repeat step 2 if necessary.

• To return to the previous menu,

[Turn] = [Press]

Category Menu item Selectable setting, [reference page]

DEMO

Display

DEMO

demonstration

CLOCK DISP *

Clock display

CLOCK SET

Clock setting

CLOCK ADJ *

Clock adjustment

CLOCK

TIME ZONE *

Time zone

2, *3

DST *

Daylight savings time

Equalizer

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select

“CLOCK OFF” to save the car’s battery.

*2 Displayed only when SIRIUS Satellite radio or XM Satellite radio is connected. *3 Displayed only when “CLOCK ADJ” is set to “AUTO.”

• DEMO ON

: Display demonstration will be activated automatically if

no operation is done for about 20 seconds, [11].

• DEMO OFF

• CLOCK ON

: Cancels. : Clock time is shown on the display at all times when the

power is turned off.

• CLOCK OFF

: Cancels; pressing DISP will show the clock time for about

5 seconds when the power is turned off.

: Adjust the hour, then the minute, [11]. (Initial: 1:00)

• AUTO

: The built-in clock is automatically adjusted using the

clock data provided via the satellite radio channel.

• OFF

2, *3

: Select your residential area from one of the time zones for clock adjustment.

: Cancels.

EASTERN, ATLANTIC, NEWFOUND, ALASKA, PACIFIC, MOUNTAIN,

CENTRAL

• DST ON

: Activates daylight savings time if your residential area is

subject to DST.

• DST OFF

: Cancels.

: Select a preset sound mode suitable to the music genre. USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

press BACK.

• To exit from the menu, press DISP or MENU.

Initial: Underlined

ENGLISH

Continued on the next page

29SETTINGS

Category Menu item Selectable setting, [reference page]

ENGLISH

DISPLAY

DIMMER

Dimmer

SCROLL *

Scroll

• DIMMER ON

• DIMMER OFF

• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

: Dims the display and button illumination. : Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

Pressing DISP for more than one second can scroll the display regardless of the setting.

TAG DISPLAY

Tag display

AREA

Tuner channel interval

• TAG ON

• TAG OFF

• AREA US

• AREA EU

: Shows the Tag information while playing MP3/WMA/WAV

tracks.

: Cancels. : When using in North/Central/South America. AM/FM

intervals are set to 10 kHz/200 kHz.

: When using in any other areas. AM/FM intervals are set to

9 kHz/50 kHz (100 kHz during auto search).

• AREA SA

: When using in South American countries where FM

interval is 100 kHz. AM interval is set to 10 kHz.

MONO *

Monaural mode

TUNER

SID *

SIRIUS ID

IF BAND

Intermediate frequency band

• MONO ON

: Activate monaural mode to improve FM reception, but

stereo effect will be lost, [12].

• MONO OFF

: Restore the stereo effect.

: Your SIRIUS identification number scrolls on the display 5 seconds after “SID”

is selected, [23].

• AUTO

: Increases the tuner selectivity to reduce interference

noises between adjacent stations. (Stereo effect may be lost.)

• WIDE

: Subject to interference noises from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

Some characters or symbols will not be shown correctly (or will be blanked) on the display.

* *5 Displayed only when the source is “FM.” *6 Displayed only when SIRIUS Satellite radio is connected.

+ 103 hidden pages
