JVC KD-ADV5380J, KD-DV4306A, KD-DVH426UN Service Manual

SERVICE MANUAL

DVD/CD RECEIVER

MA30820073SERVICE MANUAL

KD-ADV5380J,KD-DV5300J,KD-DV5301E,KD-DV5301EU,

KD-DV5302E,KD-DV5302EU,KD-DV5304UI,KD-DV5305U,

KD-DV5305UN,KD-DV5305UT,KD-DV5305A,KD-DV5306U,

KD-DV5306UN,KD-DV5306UT,KD-DV5306A,KD-DV5307EE,

KD-DV5308EE,KD-DV5388UF,KD-DV4304UI,KD-DV4305U,

KD-DV4305UN,KD-DV4305UT,KD-DV4305A,KD-DV4306U,

KD-DV4306UN,KD-DV4306UT,KD-DV4306A,KD-DV4388UF,

KD-DVH426UN

except

KD-DVH426

only for

KD-ADV5380

KD-DV5300

KD-ADV5380/KD-DV5300/KD-DV5306
KD-DV5305/KD-DV5304/KD-DV5303

COPYRIGHT © 2007 Victor Company of Japan, Limited

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)

KD-DV5308/KD-DV5307/KD-DV5302
KD-DV5301/KD-DV4306/KD-DV4305
KD-DV4304/KD-DV4303

KD-DVH426

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-40

only for
KD-DV5308
KD-DV5307
KD-DV5302
KD-DV5301

COPYRIGHT © 2007 Victor Company of Japan, Limited

No.MA308

2007/3

SPECIFICATION

KD-ADV5380/KD-DV5300

AUDIO AMPLIFIER SECTION

Power Output 20 W RMS × 4 Channels at 4 Ω and - 1% THD+N
Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω)
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range Bass ±12 dB at 100 Hz

Treble ±12 dB at 10 kHz

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm

Output level: -21 dBm to -15 dBm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ

Color system NTSC

Video Output (composite) 1 Vp-p/75 Ω

Other Terminal CD changer, AUX (auxiliary) input jack

TUNER SECTION

Frequency Range FM (with channel interval set to 100 kHz or 200 kHz) 87.5 MHz to 107.9 MHz

FM (with channel interval set to 50 kHz) 87.5 MHz to 108.0 MHz

AM (with channel interval set to 10 kHz) 530 kHz to 1 710 kHz

AM (with channel interval set to 9 kHz) 531 kHz to 1 602 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 35 dB

AM Tuner Sensitivity/Selectivity 20 µV/35 dB

DVD/CD PLAYER SECTION

Signal Detection System Non-contact optical pickup (semiconductor laser)

Number of Channels 2 channels (stereo)

Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz

Dynamic Range 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter Less than measurable limit

DivX/MPEG Video Video Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate DivX: 32 kbps - 320 kbps

Sampling Frequency DivX: MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

GENERAL

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm (7-3/16" × 2-1/16" × 6-1/4")

Panel Size (approx.) 187 mm × 58 mm × 13 mm (7-3/8" × 2-5/16" × 9/16")

Mass (approx.) 1.6 kg (3.6 lbs) (excluding accessories)

720 × 576 pixels (25 fps)

MPEG Video: 32 kbps - 384 kbps

DivX: MPEG-2: 16 kHz, 22.05 kHz, 24 kHz
MPEG Video: 32 kHz, 44.1 kHz, 48 kHz

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

Design and specifications are subject to change without notice.

1-2 (No.MA308)

KD-DV5302/KD-DV5301

AUDIO AMPLIFIER SECTION

Maximum Power Output Front/Rear 50 W per channel

Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total

harmonic distortion

Load Impedance 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range Bass ±12 dB at 100 Hz

Treble ±12 dB at 10 kHz

Signal to Noise Ratio 70 dB

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm

Output level: -21 dBm to -15 dBm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ

Color system PAL

Video Output (composite) 1 Vp-p/75 Ω

Other Terminal CD changer, LINE IN, Steering wheel remote input

TUNER SECTION

Frequency Range FM 87.5 MHz to 108.0 MHz

AM (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB

MW Tuner Sensitivity/Selectivity 20 µV/35 dB
LW Tuner Sensitivity 50 µV

DVD/CD PLAYER SECTION

Signal Detection System Non-contact optical pickup (semiconductor laser)

Number of Channels 2 channels (stereo)

Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz

Dynamic Range 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter Less than measurable limit

DivX/MPEG Video Video Max. Resolution 720 × 480 pixels (30 fps)

720 × 576 pixels (25 fps)

Audio Bit Rate DivX: 32 kbps - 320 kbps

MPEG Video: 32 kbps - 320 kbps

Sampling Frequency DivX: MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

DivX: MPEG-2: 16 kHz, 22.05 kHz, 24 kHz
MPEG Video: 32 kHz, 44.1 kHz, 48 kHz

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

GENERAL

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 187 mm × 58 mm × 13 mm

Mass (approx.) 1.6 kg (excluding accessories)

Design and specifications are subject to change without notice.

(No.MA308)1-3

KD-DV5304/KD-DV4304

AUDIO AMPLIFIER SECTION

Maximum Power Output Front/Rear 50 W per channel

Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8%

total harmonic distortion

Load Impedance 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range Bass ±10 dB at 100 Hz

Treble ±10 dB at 10 kHz

Signal to Noise Ratio 70 dB

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm

Output level: -21 dBm to -15 dBm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ

Color system PAL/NTSC

Video Output (composite) 1 Vp-p/75 Ω

Other Terminal KD-DV5304 : CD changer, LINE IN, AUX (auxiliary) input jack

KD-DV4304 : CD changer

TUNER SECTION

Frequency Range FM 87.5 MHz to 108.0 MHz

AM 531 kHz to 1 602 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB

AM Tuner Sensitivity/Selectivity 20 µV/35 dB

DVD/CD PLAYER SECTION

Signal Detection System Non-contact optical pickup (semiconductor laser)

Number of Channels 2 channels (stereo)

Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz

Dynamic Range 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter Less than measurable limit

DivX/MPEG Video Video Max. Resolution 720 × 480 pixels (30 fps)

720 × 576 pixels (25 fps)

Audio Bit Rate DivX: 32 kbps - 320 kbps

MPEG Video: 32 kbps - 384 kbps

Sampling Frequency: DivX MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

Sampling Frequency: MPEG Video 32 kHz, 44.1 kHz, 48 kHz

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

GENERAL

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 187 mm × 58 mm × 13 mm

Mass (approx.) 1.6 kg (excluding accessories)

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

Design and specifications are subject to change without notice.

1-4 (No.MA308)

KD-DV5306/KD-DV5305/KD-DV4306/KD-DV4305

AUDIO AMPLIFIER SECTION

Maximum Power Output Front/Rear 50 W per channel

Continuous Power Output
(RMS)

Load Impedance 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range Bass ±12 dB at 100 Hz

Signal to Noise Ratio 70 dB

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm

Color system PAL/NTSC

Video Output (composite) 1 Vp-p/75 Ω

Other Terminal KD-DV5306/KD-DV5305 : CD changer, LINE IN, AUX (auxiliary) input jack

Frequency Range FM 87.5 MHz to 108.0 MHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

AM Tuner Sensitivity/Selectivity 20 µV/35 dB

Signal Detection System Non-contact optical pickup (semiconductor laser)

Number of Channels 2 channels (stereo)

Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz

Dynamic Range 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter Less than measurable limit

DivX/MPEG Video Video Max. Resolution 720 × 480 pixels (30 fps)

MP3 Bit Rate

WMA Bit Rate 32 kbps - 320 kbps

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Mass (approx.) 1.6 kg (excluding accessories)

Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total har-

monic distortion

Treble ±12 dB at 10 kHz

Output level: -21 dBm to -15 dBm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ

KD-DV4306/KD-DV4305 : CD changer

TUNER SECTION

AM 531 kHz to 1 602 kHz

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB

DVD/CD PLAYER SECTION

CD, fs=44.1 kHz 16 Hz to 20 000 Hz

720 × 576 pixels (25 fps)

Audio Bit Rate DivX: 32 kbps - 320 kbps

MPEG Video: 32 kbps - 384 kbps

Sampling Frequency: DivX MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

Sampling Frequency: MPEG Video 32 kHz, 44.1 kHz, 48 kHz

32 kbps - 320 kbps

Sampling Frequency

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

Panel Size (approx.) 187 mm × 58 mm × 13 mm

MPEG-1: 32 kHz, 44.1 kHz, 48 kHz
MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

GENERAL

Design and specifications are subject to change without notice.

(No.MA308)1-5

KD-DV5308/KD-DV5307

AUDIO AMPLIFIER SECTION

Maximum Power Output Front/Rear 50 W per channel

Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total

harmonic distortion

Load Impedance 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range Bass ±12 dB at 100 Hz

Treble ±12 dB at 10 kHz

Signal to Noise Ratio 70 dB

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm

Output level: -21 dBm to -15 dBm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ

Color system PAL

Video Output (composite) 1 Vp-p/75 Ω

Other Terminal CD changer

TUNER SECTION

Frequency Range FM1/FM2 87.5 MHz to 108.0 MHz

FM3 65.00 MHz to 74.00 MHz

AM (MW) 522 kHz to 1 620 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB

MW Tuner Sensitivity/Selectivity 20 µV/35 dB
LW Tuner Sensitivity 50 µV

DVD/CD PLAYER SECTION

Signal Detection System Non-contact optical pickup (semiconductor laser)

Number of Channels 2 channels (stereo)

Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz

Dynamic Range 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter Less than measurable limit

DivX/MPEG Video Video Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate DivX: 32 kbps - 320 kbps

Sampling Frequency DivX: MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 187 mm × 58 mm × 13 mm

Mass (approx.) 1.6 kg (excluding accessories)

(LW) 144 kHz to 279 kHz

720 × 576 pixels (25 fps)

MPEG Video: 32 kbps - 320 kbps

DivX: MPEG-2: 16 kHz, 22.05 kHz, 24 kHz
MPEG Video: 32 kHz, 44.1 kHz, 48 kHz

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

GENERAL

Design and specifications are subject to change without notice.

1-6 (No.MA308)

KD-DV5388/KD-DV4388

AUDIO AMPLIFIER SECTION

Maximum Power Output Front/Rear 50 W per channel

Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8%

total harmonic distortion

Load Impedance 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range Bass ±12 dB at 100 Hz

Treble ±12 dB at 10 kHz

Signal to Noise Ratio 70 dB

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm

Output level: -21 dBm to -15 dBm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ

Color system PAL/NTSC

Video Output (composite) 1 Vp-p/75 Ω

Other Terminal KD-DV5388 : CD changer,LINE IN, AUX (auxiliary) input jack

KD-DV4388 : CD changer

TUNER SECTION

Frequency Range FM 87.5 MHz to 108.0 MHz

AM 531 kHz to 1 602 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB

MW Tuner Sensitivity/Selectivity 20 µV/35 dB

DVD/CD PLAYER SECTION

Signal Detection System Non-contact optical pickup (semiconductor laser)

Number of Channels 2 channels (stereo)

Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz

Dynamic Range 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter Less than measurable limit

DivX/MPEG Video Video Max. Resolution 720 × 480 pixels (30 fps)

720 × 576 pixels (25 fps)

Audio Bit Rate DivX: 32 kbps - 320 kbps

MPEG Video: 32 kbps - 384 kbps

Sampling Frequency : DivX MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

Sampling Frequency : MPEG Video 32 kHz, 44.1 kHz, 48 kHz

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

GENERAL

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 187 mm × 58 mm × 13 mm

Mass (approx.) 1.6 kg (excluding accessories)

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

Design and specifications are subject to change without notice.

(No.MA308)1-7

KD-DVH426

AUDIO AMPLIFIER SECTION

Maximum Power Output Front/Rear 50 W per channel

Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total

harmonic distortion

Load Impedance 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range Bass/Treble ±10 dB at 100 Hz/±10 dB at 10 kHz

Frequency Response 40 Hz to 20 000 Hz

Signal-to-Noise Ratio 70 dB

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm

Output level: -21 dBm to -15 dBm

Line-Out Level/Impedance 2.0 V/20 kΩ load (full scale)
Output Impedance 1 kΩ

Color System PAL/NTSC

Video Output (composite) 1 Vp-p/75 Ω

Other Terminal CD changer

TUNER SECTION

Frequency Range FM 87.5 MHz to 108.0 MHz

AM 531 kHz to 1 602 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB

AM Tuner Sensitivity/Selectivity 20 µV/35 dB

DVD/CD PLAYER SECTION

Signal Detection System Non-contact optical pickup (semiconductor laser)

Number of Channels 2 channels (stereo)

Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz

DVD, fs=96 kHz 16 Hz to 44 000 Hz

VCD/CD/MP3/WMA 16 Hz to 20 000 Hz

Dynamic Range 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter Less than measurable limit

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency 48 kHz, 44.1 kHz, 32 kHz

WMA Bit Rate 32 kbps - 192 kbps

Sampling Frequency MPEG-1: 48 kHz, 44.1 kHz, 33 kHz

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 188 mm × 58 mm × 11 mm

Mass (approx.) 1.6 kg (excluding accessories)

MPEG-2: 24 kHz, 22.05 kHz, 16 kHz

GENERAL

Design and specifications are subject to change without notice.

1-8 (No.MA308)

1.1 Safety Precautions

SECTION 1

PRECAUTION

!

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.

(No.MA308)1-9

1.2 Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

1.2.1 Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.

(1) Ground the workbench

Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.

(2) Ground yourself

Use an anti-static wrist strap to release any static electricity built up in your body.

(caption)
Anti-static wrist strap

1M

Conductive material
(conductive sheet) or iron plate

(3) Handling the optical pickup

• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)

• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.

1.3 Handling the traverse unit (optical pickup)

(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the

replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a

time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

1.4 Attention when traverse unit is decomposed

*Please refer to "Disassembly method" in the text for the pickup unit.

• Apply solder to the short land before the card wire is disconnected from the connector on the pickup unit.
(If the card wire is disconnected without applying solder, the pickup may be destroyed by static electricity.)

• In the assembly, be sure to remove solder from the short land after connecting the card wire.

[except KD-DVH426] [for KD-DVH426]

Flexible wire

Flexible wire

CN101

Short-circuit points

1-10 (No.MA308)

Mechanism control board

CN101

Short-circuit points

Mechanism control board

1.5 Important for laser products

1.CLASS 1 LASER PRODUCT

2.CAUTION :

(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.

3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.

4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.

5.CAUTION : If safety switches malfunction, the laser is able
to function.

6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.

!

Please use enough caution not to

see the beam directly or touch it

in case of an adjustment or operation

check.

REPRODUCTION AND POSITION OF LABELS and PRINT

WARNING LABEL and PRINT

(No.MA308)1-11

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

1-12 (No.MA308)

3.1 Main body

3.1.1 Removing the Bottom chassis
(See Fig.1)

(1) Disengage the five hooks a engaged bottom chassis.

SECTION 3

DISASSEMBLY

3.1.2 Removing the Heat sink
(See Fig.2)

(1) Remove the two screws A and three screws B attaching

the Heat sink.

a

a

a

a

a

Fig.1

A

3.1.3 Removing the Front chassis assembly
(See Fig.3)

(1) From the both side of Front chassis, remove the two

screws C attaching the Front chassis.

(2) Disengage the both side of four hooks b engaged Front

chassis.

B

Fig.2

b

C

b

Fig.3

(No.MA308)1-13

3.1.4 Removing the Main board assembly
(See Fig.4 and 5)

(1) Remove the three screws D attaching the Main board as-

sembly. (See Fig.4)

(2) Remove the three screws E attaching Rear bracket. (See

Fig.5)

(3) Disconnect the connector CN961

anism assembly. (See Fig.4)

connected to DVD mech-

CN961

D

D

Fig.4

E

Fig.5

1-14 (No.MA308)

3.1.5 Removing the DVD mechanism assembly

(See Fig.6 and 7)

(1) Remove the three screws F attaching the DVD mechanism

assembly. (See Fig.6)

(2) Remove the two screws G attaching the DVD bracket. (See

Fig.7)

F

F

Fig.6

3.1.6 Removing the Switch board assembly

(See Fig.8)

(1) Remove the Volume knob from Front panel assembly.
(2) Remove the five screws H attaching the Back cover.
(3) Disengage the fourteen hooks c engaged Back cover.

G

G

Fig.7

HH

cccc

cc

HHH

cc

Fig.8

(No.MA308)1-15

3.2 DVD mechanism assembly (except KD-DVH426)

3.2.1 Removing the mechanism control board
(See Fig.1)

Caution:

Before disconnecting the flexible wire extending from the DVD
pickup, solder the short-circuit point on the flexible wire using
a grounding soldering iron. If you do not follow this instruction,
the DVD pickup may be damaged.
(1) Turn over the body, and solder the short-circuit points on

the flexible wire extending from the DVD pickup.

(2) Disconnect the flexible wire from connector CN101

mechanism control board.

(3) Disconnect the card wire from connector CN201

mechanism control board.

(4) Disconnect the flexible wire from connector CN202

mechanism control board.

(5) Unsolder two soldered points a on the mechanism control

board and remove the wire extending from the feed motor.
(6) Remove the screw A attaching the lug wire.
(7) Remove the two screws B and screw C attaching the

mechanism control board.

Caution:

• As the flexible wire to be connected to CN101

attach it to the mechanism control board using a double
tape.

• After reassembling, unsolder the short-circuit points.

on the

on the

on the

, make sure to

Flexible wire

Double tape

CN101

B

Short-circuit points

A

Lug wire

B

CN201

Feed motor

a

C

CN202

Mechanism control board

Fig.1

1-16 (No.MA308)

3.2.2 Removing the top cover
(See Fig.2)

(1) Remove the two screws D attaching the top cover on the

back of the body.

(2) Remove the top cover upward.

Reference:

When reassembling, set part b of the top cover under the
bending part c of the chassis frame.

3.2.3 Removing the mechanism section
(See Fig.2 to 4)

• Remove the top cover.

(1) From the bottom of the body, remove the screw E attaching

the lug wire. (See Fig.2.)

(2) Remove the two screws F attaching the right and left stop-

pers on the front side. (See Fig.2.)

(3) Remove the two floating springs on the bottom of the body.

(See Fig.3.)

(4) Move the mechanism section upward and remove from the

chassis frame.
The three damper springs come off from the dampers.
(See Fig.4.)

Caution:

• When reassembling, reattach the damper spring to the
damper respectively and insert the three shafts on the bot­tom of the mechanism to the dampers.

• Before inserting the shaft to the dampers, apply IPA to the
hole of damper.

Floating spring

Fig.3

Mechanism section

Stopper

F

Top cover

Stopper

F

D

D

b

c

E

Lug wire

Damper SP.(F)

(Silver)

Damper (F)
(Black)

Damper SP.(F)

(Silver)

Damper (F)
(Black)

Fig.4

Damper SP.(R)

(Red)

Damper (R)
(Purple)

Chassis frame

Fig.2

(No.MA308)1-17

3.2.4 Removing the clamper unit
(See Fig.5 to 7)

• Remove the top cover and the mechanism section.

(1) Remove the clamper2 spring on the bottom of the mecha-

nism section. (See Figs.5.and 6.)

(2) Release the part d of the clamper spring from the bending

part of the chassis base assembly. (See Fig.7.)

(3) Move the clamper unit in the direction of the arrow and turn.

Release the two joints e and f, then remove the clamper
unit upward. (See Fig.6.)

3.2.5 Reattaching the clamper unit
(See Fig.5 to 9)

(1) Attach the clamper spring to the clamper unit. (See Fig.8.)
(2) Move the clamper unit to set the side joints e and f to each

boss of the chassis base assembly. Make sure that part g
is inserted to the notch of the chassis base assembly. (See
Figs.5 and 9.)

(3) Move the part d of the clamper spring to the outside of the

bending part of the chassis base assembly. (See Fig.7.)

(4) Attach the clamper2 spring to the chassis base assembly.

(See Figs.5 and 6.)

Caution:

When reattaching, temporarily hook the end of the clamper
spring as shown in the figure to make the work easy. (See
Fig.8.)

Clamper unit

Clamper2 spring

Chassis base assembly

Fig.6

Clamper spring

Clamper spring

f

Clamper2 spring

Chassis base assembly

g

d

Chassis base assembly

Fig.7

e

Fig.5

1-18 (No.MA308)

Clamper unit

Clamper unit

Clamper spring

Fig.8

Fig.9

g

Notch

(No.MA308)1-19

3.2.6 Removing the front unit
(See Fig.10 to 12)

• Remove the top cover and the mechanism section.

(1) Disconnect the flexible wire from connector CN202 on the

mechanism control board at the bottom of the body. (See
Fig.10.)

(2) Remove the screw G attaching the front unit on the top of

the body. (See Fig.11.)

(3) Move the front unit toward the front to release joint h, and

release two joints i and j on the right side of the chassis
base assembly. Then remove the front unit upward. (See
Figs.11 and 12.)

(4) Remove the two screws H attaching the switch board. (See

Fig.12.)

Reference:

You can remove the switch board only without removing the
front unit.

Caution:

When reassembling, attach the flexible wire extending from
the switch board using the double tape. (See Figs.10 and 12.)

Mechanism control board

G

Front unit

h

Fig.11

CN202

Double tape

Fig.10

Flexible wire

Double tape

j

i

H

Switch board

Front unit

G

1-20 (No.MA308)

h

Fig.12

3.2.7 Removing the loading arm assembly

(See Fig.13 , 14)

• Remove the top cover, the mechanism section and the front

unit.
(1) From the top of the body, move the loading arm assembly

from the front side upward, and release the bosses from
the right and left joints k and m of the chassis base assem­bly.

(2) Release the boss from notch n of the connect arm on the

right side of the body, and release the boss from notch p of
the slide cam assembly on the left side.

m

Loading arm assembly

Side cam
assembly

p

m

k

Fig.13

Loading arm assembly

k

n

n

Connect arm

Fig.14

(No.MA308)1-21

3.2.8 Removing the rod (L)(R)/roller assembly
(See Fig.15 and 16)

• Remove the top cover, the mechanism section, the front unit

and the loading arm assembly.
(1) Release the rod (L) and (R) from the joints q at the bottom

of the loading arm assembly (See Fig.15.)

(2) Remove the roller assembly from the loading arm assem-

bly. (See Fig.16.)

(3) Remove the two collars and washer from the roller assem-

bly. (See Fig.16.)

Caution:

After attaching the loading arm assembly to the roller assem­bly, attach the rod (L) and (R). Attach the rods to the right and
left collars of the roller. (See Fig.15.)
When reattaching the rod (L) and (R) to the loading arm as­sembly, engage each joint as shown in Fig.15. As joints q of
the rod (L), let the rod through q before reattaching it.

Collar

Collar

Rod(R) Rod(L)

q

q

q

Collar

Rod(L)

Rod(R)

q

Loading arm assembly

Fig.15

Roller assembly

Loading arm assembly

q

Rod(L)

q

Collar

Washer

Rod(R)

1-22 (No.MA308)

Fig.16

3.2.9 Removing the DVD pickup assembly

(See Fig.17 to 19)

• Remove the mechanism control board.

(1) From the bottom of the body, turn the feed gear in the di-

rection of the arrow to move the DVD pickup outwards.
(See Fig.17.)

(2) Remove the screw J attaching the thrust spring. (See

Fig.17.)

(3) Remove the DVD pickup assembly upward on the L.S.gear

side and release from sub shaft at joint r. Move the lead
screw of the DVD pickup assembly in the direction of the
arrow to release from joint s. (See Fig.18.)

Caution:

• When releasing the lead screw at joint s, the L.S.collar
comes off at the end of the lead screw. When reas­sembling, reattach the L.S.collar to the lead screw and
engage joint s. (See Fig.18.)

• When reattaching the L.S.collar, reattach it to the point
s of the lead screw, and to the rod (M). Make sure that
the L.S.collar is set on the rod (M) spring. (See Fig.18.)

(4) Remove the screw K attaching the rack spring/ rack plate

on the DVD pickup. (See Fig.19.)

(5) Pull out the lead screw. (See Fig.19.)

Caution:

Perform adjustment after replacing the pickup.

DVD Pickup assembly

DVD Pickup assembly

Feed gear

J

Thrust spring

Fig.17

s

L.S.collar

Rod(M)

Lead screw

Sub shaft

L.S.collar

r

L.S.gear

Fig.18

K

Rack spring

Lead screw

Rack plate

DVD Pickup

Fig.19

(No.MA308)1-23

3.2.10 Removing the spindle motor

r

(See Fig.20)

• Remove the mechanism control board.
Remove the two screws L attaching the spindle motor on the
bottom of the body.

Caution:

Perform adjustment when reattaching the spindle motor.

3.2.11 Removing the feed motor assembly

(See Fig.21 and 22)

• Remove the mechanism control board.
(1) Remove the feed TRI. spring on the bottom of the body.

(See Fig.21.)

(2) Remove the two screws M attaching the feed motor as-

sembly. (See Fig.21.)

(3) Remove the slit washer from the motor H. assembly and

pull out the worm wheel. (See Fig.22.)
Remove the two screws N attaching the feed motor. (See
Fig.22.)

Spindle motor

Feed TRI. spring

L

Fig.20

M

Feed motor assembly

1-24 (No.MA308)

Slit washer

Worm wheel

N

Motor H. assembly

Fig.21

Feed moto

Fig.22

3.3 DVD mechanism assembly (for KD-DVH426)

3.3.1 Removing the mechanism control board
(See Fig.1)

Caution:

Before disconnecting the flexible wire extending from the DVD
pickup, solder the short-circuit point on the flexible wire using
a grounding soldering iron. If you do not follow this instruction,
the DVD pickup may be damaged.
(1) Turn over the body, and solder the short-circuit points on

the flexible wire extending from the DVD pickup.

(2) Disconnect the flexible wire from connector CN101

mechanism control board.

(3) Disconnect the card wire from connector CN201

mechanism control board.

(4) Disconnect the flexible wire from connector CN202

mechanism control board.

(5) Unsolder two soldered points a on the mechanism control

board and remove the wire extending from the feed motor.
(6) Remove the screw A attaching the lug wire.
(7) Remove the two screws B and screw C attaching the

mechanism control board.

Caution:

• As the flexible wire to be connected to CN101

attach it to the mechanism control board using a double
tape.

• After reassembling, unsolder the short-circuit points.

on the

on the

on the

, make sure to

Flexible wire

Double tape

CN101

B

Short-circuit points

A

Lug wire

B

CN201

Feed motor

a

C

CN202

Mechanism control board

Fig.1

(No.MA308)1-25

3.3.2 Removing the top cover
(See Fig.2)

(1) Remove the two screws D attaching the top cover on the

back of the body.

(2) Remove the top cover upward.

Reference:

When reassembling, set part b of the top cover under the
bending part c of the chassis frame.

3.3.3 Removing the mechanism section
(See Fig.2 to 4)

• Remove the top cover.

(1) From the bottom of the body, remove the screw E attaching

the lug wire. (See Fig.2.)

(2) Remove the two screws F attaching the right and left stop-

pers on the front side. (See Fig.2.)

(3) Remove the two floating springs on the bottom of the body.

(See Fig.3.)

(4) Move the mechanism section upward and remove from the

chassis frame.
The three damper springs come off from the dampers.
(See Fig.4.)

Caution:

• When reassembling, reattach the damper spring to the
damper respectively and insert the three shafts on the bot­tom of the mechanism to the dampers.

• Before inserting the shaft to the dampers, apply IPA to the
hole of damper.

Floating spring

Fig.3

Mechanism section

Stopper

F

Top cover

Stopper

F

D

D

b

c

E

Lug wire

Damper SP.(F)

(Silver)

Damper (F)
(Black)

Damper SP.(F)

(Silver)

Damper (F)
(Black)

Fig.4

Damper SP.(R)

(Red)

Damper (R)
(Purple)

Chassis frame

Fig.2

1-26 (No.MA308)

3.3.4 Removing the clamper unit
(See Fig.5 to 7)

• Remove the top cover and the mechanism section.

(1) Remove the clamper2 spring on the bottom of the mecha-

nism section. (See Figs.5.and 6.)

(2) Release the part d of the clamper spring from the bending

part of the chassis base assembly. (See Fig.7.)

(3) Move the clamper unit in the direction of the arrow and turn.

Release the two joints e and f, then remove the clamper
unit upward. (See Fig.6.)

3.3.5 Reattaching the clamper unit
(See Fig.5 to 9)

(1) Attach the clamper spring to the clamper unit. (See Fig.8.)
(2) Move the clamper unit to set the side joints e and f to each

boss of the chassis base assembly. Make sure that part g
is inserted to the notch of the chassis base assembly. (See
Figs.5 and 9.)

(3) Move the part d of the clamper spring to the outside of the

bending part of the chassis base assembly. (See Fig.7.)

(4) Attach the clamper2 spring to the chassis base assembly.

(See Figs.5 and 6.)

Caution:

When reattaching, temporarily hook the end of the clamper
spring as shown in the figure to make the work easy. (See
Fig.8.)

Clamper unit

Clamper2 spring

Chassis base assembly

Fig.6

Clamper spring

Clamper spring

f

Clamper2 spring

Chassis base assembly

g

d

Chassis base assembly

Fig.7

e

Fig.5

(No.MA308)1-27

Clamper unit

Clamper unit

Clamper spring

Fig.8

g

Fig.9

1-28 (No.MA308)

Notch

3.3.6 Removing the front unit
(See Fig.10 to 12)

• Remove the top cover and the mechanism section.

(1) Disconnect the flexible wire from connector CN202

mechanism control board at the bottom of the body. (See
Fig.10.)

(2) Remove the screw G attaching the front unit on the top of

the body. (See Fig.11.)

(3) Move the front unit toward the front to release joint h, and

release two joints i and j on the right side of the chassis
base assembly. Then remove the front unit upward. (See
Figs.11 and 12.)

(4) Remove the two screws H attaching the switch board. (See

Fig.12.)

Reference:

You can remove the switch board only without removing the
front unit.

Caution:

When reassembling, attach the flexible wire extending from
the switch board using the double tape. (See Figs.10 and 12.)

Mechanism control board

on the

G

Front unit

h

Fig.11

CN202

Double tape

Fig.10

Flexible wire

Double tape

j

i

H

Switch board

Front unit

G

h

Fig.12

(No.MA308)1-29

3.3.7 Removing the loading arm assembly
(See Fig.13 , 14)

• Remove the top cover, the mechanism section and the front

unit.
(1) From the top of the body, move the loading arm assembly

from the front side upward, and release the bosses from
the right and left joints k and m of the chassis base assem­bly.

(2) Release the boss from notch n of the connect arm on the

right side of the body, and release the boss from notch p of
the slide cam assembly on the left side.

m

Loading arm assembly

Side cam
assembly

p

m

k

Fig.13

Loading arm assembly

k

n

n

Connect arm

1-30 (No.MA308)

Fig.14

3.3.8 Removing the rod (L)(R)/roller assembly

(See Fig.15 and 16)

• Remove the top cover, the mechanism section, the front unit

and the loading arm assembly.
(1) Release the rod (L) and (R) from the joints q at the bottom

of the loading arm assembly (See Fig.15.)

(2) Remove the roller assembly from the loading arm assem-

bly. (See Fig.16.)

(3) Remove the two collars and washer from the roller assem-

bly. (See Fig.16.)

Caution:

After attaching the loading arm assembly to the roller assem­bly, attach the rod (L) and (R). Attach the rods to the right and
left collars of the roller. (See Fig.15.)
When reattaching the rod (L) and (R) to the loading arm as­sembly, engage each joint as shown in Fig.15. As joints q of
the rod (L), let the rod through q before reattaching it.

Collar

Collar

Rod(R) Rod(L)

q

q

q

Collar

Rod(L)

Rod(R)

q

Loading arm assembly

Fig.15

Roller assembly

Loading arm assembly

q

Rod(L)

q

Collar

Washer

Rod(R)

Fig.16

(No.MA308)1-31

3.3.9 Removing the DVD pickup assembly
(See Fig.17 to 19)

• Remove the mechanism control board.

(1) From the bottom of the body, turn the feed gear in the di-

rection of the arrow to move the DVD pickup outwards.
(See Fig.17.)

(2) Remove the screw J attaching the thrust spring. (See

Fig.17.)

(3) Remove the DVD pickup assembly upward on the L.S.gear

side and release from sub shaft at joint r. Move the lead
screw of the DVD pickup assembly in the direction of the
arrow to release from joint s. (See Fig.18.)

Caution:

• When releasing the lead screw at joint s, the L.S.collar
comes off at the end of the lead screw. When reas­sembling, reattach the L.S.collar to the lead screw and
engage joint s. (See Fig.18.)

• When reattaching the L.S.collar, reattach it to the point
s of the lead screw, and to the rod (M). Make sure that
the L.S.collar is set on the rod (M) spring. (See Fig.18.)

(4) Remove the screw K attaching the rack spring/ rack plate

on the DVD pickup. (See Fig.19.)

(5) Pull out the lead screw. (See Fig.19.)

Caution:

Perform adjustment after replacing the pickup.

DVD Pickup assembly

DVD Pickup assembly

Feed gear

J

Thrust spring

Fig.17

s

L.S.collar

Rod(M)

Lead screw

Sub shaft

L.S.collar

r

L.S.gear

Fig.18

K

Rack spring

Lead screw

Rack plate

DVD Pickup

Fig.19

1-32 (No.MA308)

3.3.10 Removing the spindle motor

r

(See Fig.20)

• Remove the mechanism control board.
Remove the two screws L attaching the spindle motor on the
bottom of the body.

Caution:

Perform adjustment when reattaching the spindle motor.

3.3.11 Removing the feed motor assembly

(See Fig.21 and 22)

• Remove the mechanism control board.
(1) Remove the feed TRI. spring on the bottom of the body.

(See Fig.21.)

(2) Remove the two screws M attaching the feed motor as-

sembly. (See Fig.21.)

(3) Remove the slit washer from the motor H. assembly and

pull out the worm wheel. (See Fig.22.)
Remove the two screws N attaching the feed motor. (See
Fig.22.)

Spindle motor

Feed TRI. spring

L

Fig.20

M

Feed motor assembly

Slit washer

Worm wheel

N

Motor H. assembly

Fig.21

Feed moto

Fig.22

(No.MA308)1-33

SECTION 4

ADJUSTMENT

4.1 Test instruments required for adjustment

(1) Digital oscilloscope (100MHz)
(2) Jitter meter
(3) Digital tester
(4) Electric voltmeter
(5) Tracking offset meter
(6) Test Disc : VT501 or VT502
(7) Extension studs : STDV001-3P
(8) Extension cable : EXTDV002-30P

4.3 Connection method

Connection procedure

(1) Attach the front chassis assembly to the main board.
(2) Connect the front panel assembly to the main board.
(3) Attach the heat sink and rear bracket to the main board.
(4) Attach the extension studs to the DVD mechanism assembly.
(5) Connect the DVD mechanism assembly and the main board with a extension cable.

4.2 Standard measuring conditions

Power supply voltage : DC14.4V(11V to 16V)

Load impedance : 4Ω(2 Speakers connection)
Line output : 20kΩ

Caution:

Be sure to attach the heat sink and rear bracket onto the power
amplifier IC and regulator IC respectively, before supply the
power.
If voltage is applied without attaching these parts, the power
amplifier IC and regulator IC will be destroyed by heat.

Extension cable
EXTDV002-30P

Heat sink

Rear bracket

Main board

Extension stud
STDV001-3P

Extension studs
STDV001-3P

1-34 (No.MA308)

4.4 Adjustment method for jitter

After replacing the pickup, set the unit in the service mode to display a jitter value on the LCD.
Confirm that the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD.
If it is within 12%, then adjustment is not necessary.
If the measured jitter value is outside the 12% tolerance range, perform the following adjustments.

4.4.1 Adjustment procedure

(1) Set the unit to the service mode and display a jitter value (hex data) on the LCD.
(2) Turn each of the screws a, b and c, by a half-turn per step, in the direction that reduces the jitter value in order to minimize it.

(Do not turn a screw more than a half turn at a time, but adjust the screws in the cycle of the same level is turned in the pair of

b+c and the same level is turned in the pair of a+b.)

(3) After completing the adjustment, secure the screws with screw lock paint.

c

b

a

Jitter value adjustment procedure (Pickup horizontal level adjustment relative to the DVD recording surface)
(For the adjustment tool use a 3 mm wrench and not a screwdriver, this procedure will make the adjustment easier.)

3 mm wrench

(1) Set the unit to the service mode and display a jitter value (hex data) on the LCD.
(2) Turn each of the screws a, b and c, by a half-turn per step, in the direction that reduces the jitter value in order to minimize it.

(Do not turn a screw more than a half turn at a time, but adjust the screw in the cycle of same level turn by pair of b+c → pair of

a+b.)

(3) After completing the adjustment, secure the screws with screw lock paint.

(No.MA308)1-35

4.5 Jitter value conversion table

Load the test DVD and set the unit to the service mode. A jitter value converted to the hex value is displayed on the LCD.
Refer to the corresponding decimal notation value shown in the following Jitter Conversion Table.
The adjustment is OK if the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD.
If the measured jitter value is outside the 12% tolerance range, adjust it to minimize the difference between the measured value and
the displayed value.

Indicated

on the LCD

EF56
EF22
EEEE
EEBA
EE86
EE52
EE1E
EDEA
EDB6
ED82
ED4E
ED1A
ECE6
ECB2
EC7E
EC4A
EC16
EBE2
EBAE
EB7A
EB46
EB12
EADE
EAAA
EA76
EA42
EA0E
E9DA
E9A6
E972
E93E
E90A
E8D6
E8A2
E86E
E83A
E806
E7D2

Jitter value

(%)

4.7

4.8

4.9

5.0

5.1

5.2

5.3

5.4

5.5

5.6

5.7

5.8

5.9

6.0

6.1

6.2

6.3

6.4

6.5

6.6

6.7

6.8

6.9

7.0

7.1

7.2

7.3

7.4

7.5

7.6

7.7

7.8

7.9

8.0

8.1

8.2

8.3

8.4

Indicated

on the LCD

E79E
E76A
E736
E702
E6CE
E69A
E666
E632
E5FE
E5CA
E596
E562
E52E
E4FA
E4C6
E492
E45E
E42A
E3F6
E3C2
E38E
E35A
E326
E2F2
E2BE
E28A
E256
E222
E1EE
E1BA
E186
E152
E11E
E0EA
E0B6
E082
E04E
E01A

Jitter value

(%)

8.5

8.6

8.7

8.8

8.9

9.0

9.1

9.2

9.3

9.4

9.5

9.6

9.7

9.8

9.9

10.0

10.1

10.2

10.3

10.4

10.5

10.6

10.7

10.8

10.9

11.0

11.1

11.2

11.3

11.4

11.5

11.6

11.7

11.8

11.9

12.0

12.1

12.2

Indicated

on the LCD

DFE6
DFB2
DF7E
DF4A
DF16
DEE2
DEAE
DE7A
DE46
DE12
DDDE
DDAA
DD76
DD42
DD0E
DCDA
DCA6
DC72
DC3E
DC0A
DBD6
DBA2
DB6E
DB3A
DB06
DAD2
DA9E
DA6A
DA36
DA02
D9CE
D99A
D966
D932
D8FE
D8CA
D896
D862

Jitter value

(%)

12.3

12.4

12.5

12.6

12.7

12.8

12.9

13.0

13.1

13.2

13.3

13.4

13.5

13.6

13.7

13.8

13.9

14.0

14.1

14.2

14.3

14.4

14.5

14.6

14.7

14.8

14.9

15.0

15.1

15.2

15.3

15.4

15.5

15.6

15.7

15.8

15.9

16.0

Calculation

Indicated on the LCD

E9A6 7.5

1-36 (No.MA308)

Jitter (%)

4.6 Operation procedures

Keep this state more than 2 seconds while
continuing pressing the [SEL] button, [SOURCE]
button and [STANDBY/ON ATTENUATOR]
button sequentially.

The unit enters the service mode.

"INIT ALL" is Initialize all data to the factory setting

indicated on the LCD.

"VERSION" is Microcomputer version display

indicated on the LCD.

"AREA/RGN" is Destination area/region display

indicated on the LCD.

"VIDEO" is Setting of NTSC or PAL

indicated on the LCD.

"CLR ERR" is Clear loading/ejection error history

indicated on the LCD.

Press the [SEL] key

:The system control EEPROM is
initialized entirely.

Press the [SEL] key

S-XXX-YY System control CPU

version/ROM correction version

DVD-XXXX DVD version
*Exchanging it operate each indication with the
[DISC UP] button and [DISC DOWN] button.

Press the [SEL] key

STS-X XX System control destination
DVD-X XX DVD unit destination
DVDRGN X DVD unit region
*Exchanging it operate each indication with the
[DISC UP] button and [DISC DOWN] button.

Press the [SEL] key

"NTSC" or "PAL" are indicated on the LCD.
*Exchanging it operate each indication with the
[DISC UP] button and [DISC DOWN] button.

Note:
There is the model that is not equipped with
this mode by a version.

Press the [SEL] key

:The error history stored in the EEPROM is
cleared.

"CD ERROR" is Read loading and ejection error history
indicated on the LCD.

Error code (1 byte)

First byte [01] Eject error

A B

Press the [SEL] key

[02] Loading error

: The error history saved in the system control

is read and displayed.

TOT-xxxx : Total error count.

Total error count
(A figure between 0 and 9999 is

displayed. 10000 or more is also

Enyyzzzz: Latest three error code.

0nyyzzzz: First five error code

*Exchanging it operate each indication with the

[DISC UP] button and [DISC DOWN] button.

displayed as 9999.)

Detailed error code
Error code

Counter

Detailed error code
Error code
Counter

(No.MA308)1-37

A B

"DVD-TEMP" is
indicated on the LCD.

Detailed error code (2 bytes)

First byte Higher 4 bits Route NO. (Process of error occurrence)

Lower 4 bits Error type

. . . .

Refer to charts 1.1 and 1.2.

. . . .

*Displayed with loading/ejection error only.

[1] Time out
[2] Switch status error
[3] Swinging error

Second byte bit7

(Example) When a switch status error occurs during loading route 3 and

the switch status is L/L/H/H/H (00111B = 07H), the error code

. . . .

Disc type (0: 12 cm. 1: 8 cm)
bit6,5
bit4
bit3
bit2
bit1 SW 1 status
bit0 RESET SW status

. . . .

. . . .

. . . .

. . . .

. . . .

. . . .

Fixed at 0
SW 1 status
SW 2 status
SW 3 status

and detailed error code become: [09 3207].

Route No.(EJECT route No.)

-

1(2)

1(2)

2(2)

2(2)

2(2)

2(2)

3(1)

3(1)

SW1/2/3/4 [Rest SW] Loading Eject Reload

1,1,1,1 [0] No Disc No Disc

0,1,1,1 [0] Disc insert Disc push in

0,0,1,1 [0] Eject

0,0,0,1 [0] Reload start

0,0,1,1 [0]

0,1,1,1 [0]

1,1,1,1 [0]

1,1,1,0 [0]

1,1,1,0

[1]

detection

completion

Load completion Eject start Load completion

Chart 1.1 12cm Disc switch status transition

Route No.(EJECT route No.)

-

1(2)

1(2)

2(2)

2(2)

3(1)

3(1)

SW1/2/3/4 [Rest SW] Loading

1,1,1,1 [0] No Disc No Disc Disc push in

0,1,1,1 [0] Disc insert Eject

0,0,1,1 [0] Reload start

0,1,1,1 [0]

1,1,1,1 [0]

1,1,1,0 [0]

1,1,1,0 [1] Load completion Eject start Load completion

*

detection completion

Eject Reload

*Transition in the center loading (Similar to 12cm in the side loading)

Chart 1.2 8cm Disc switch status transition

Press the [SEL] key

Thermistor's temperature data readout
: Data in the temperature sensor in the DVD unit
is read every 5 seconds and displayed in hex numbers.

"SYS-TEMP" is

Press the [SEL] key

indicated on the LCD.

"CHK MODE" is
indicated on the LCD.

"RUNNING" is
indicated on the LCD.

"MEMCHECK" is
indicated on the LCD.

"INIT" is
indicated on the LCD.

1-38 (No.MA308)

Press the [SEL] key

Press the [SEL] key

Press the [SEL] key

Press the [SEL] key

Thermistor's temperature data readout
: Data in the temperature sensor in the system control
is read every 5 seconds and displayed in hex numbers.

DVD unit check mode
(See section "DVD unit check mode" for details.)

Running mode: For use in running tests.

Memory check
: The remaining data capacity of the disc is
displayed on the LCD.

Initialize user set data
: The system control EEPROM is initialized except
for the loading/ejection error history.

4.7 DVD unit check mode

Change LCD indication with a [FF ] button and a [REW ] button.

Check item list

No. A/D key DVD unit operation Indication contents

1 [1] Start at normal speed NORMPLAY

2 [2] Tracking off on the outermost position of CD EF-BAL

3 [3] Tracking off on the innermost position of CD EF-BAL

4 [4] CD_LD lights and laser current is displayed CDLD ON

5 [5] DVD_LD lights and laser current is displayed DVDLD ON

6 [6] DVD x1 jitter measuring mode DVDx1JIT

7 [DISP] Indication of EEPROM contents ROM DATA

8 [SOURCE] Initialization of EEPROM contents ROMCLEAR

9 [SEL] Indication of temperature TEMP

10 [MODE] Search & jitter measurement to an appointed DVD JIT

11 [BAND] Setting of MONITOR terminal MONITOR

12 [DISC UP

13 [DISC DW

Example of

LCD indication

(After start, it is measured JITTER on the CUR Laser current value
internal position) JIT Jitter value

(for use in mechanism measurement) CUR Laser current value

position of DVD PLC (Position measured with

]

DVDx1 double speed start PLAY
(After start, it is measured JITTER on the CUR Laser current value

internal position) JIT Jitter value

]

Disc stopped & LD-OFF STOP

* * * *

* * * *

OUTTROFF For EF phase error

INNTROFF For EF phase error

CUR Laser current value

* * * *

JIT Jitter value

* * * *

CUR Laser current value

* * * *

JIT Jitter value

* * * *

* * * *

JIT Jitter value

* * * *

ADDR EEPROM address

* * * *

DATA EEPROM contents

* * * *

TEMP Temperature

* * * *

* * * *

JIT VT-501 jitter value)

* * * *

M1

* * * *

M2

* * * *

* * * *
* * * *

.

Note In the case of the jitter measurement: Begin a service mode after insert a disc.

.

Press key [1] of No.1 before an item in which the No.2 or 3 key is pressed.

.

Press key [1] of No.1 or key [12] of No.12 before an item in which the No.10 key is pressed and confirm

the indication of jitter value on the LCD.

.

No.6 starts only a DVD1 layer disc. Even other discs start DVD1 layer.

.

When No.1 and No.12 are pushed after jitter indication, a focus jump is executed. (only DVD2 layer)

.

Stop a disc before OPEN, CLOSE by all means.(OPEN and CLOSE are not executed in a disc turn.)

.

The check mode can be exited either by pressing the [POWER] key or by resetting the unit.

(No.MA308)1-39

SECTION 5

TROUBLESHOOTING

5.1 16PIN CORD DIAGRAM (for KD-ADV5380, KD-DV5300)

GN

8

7

6

5

4

3

2

1

GN/BK

VI/BK

BL/WH

VI

NC

RD

BK

WH

WH/BK

GY/BK

GY

NC

YG

NC

YL

9

10

11

12

13

14

15

16

BK

RD

BL

WH

Black

Red

Blue

White

GN

VI

GY

YL

YG

Green

Violet

Gray

Yellow

Yellow Green

1 BK

16 YL

2 RD

9 WH

10 WH/BK

12 GY

11 GY/BK

8 GN

7 GN/BK

5 VI

6 VI/BK

3 BL/WH

14 YG

GND

MEMORY

ACC

FL+

FL-

FR+

FR-

RL+

RL-

RR+

RR-

REMOTE

PARKING

GND

PARKING
BRAKE

RR

FR

FL

RL

REMOTE

Rear Right

Front Right

Front Left

Rear Left

Remote

1-40 (No.MA308)

ACC

GND

MEMORY

PARKING

ACC Line

Ground

Memory Backup Battery+

Parking Brake

5.2 16 PIN CORD DIAGRAM (for KD-DV5301, KD-DV5302, KD-DV5307, KD-DV5308)

8

7

6

5

4

3

2

1

16 YL

13 BR

10 WH/BK

14 YG

GN

GN/BK

VI/BK

VI

NC

BL/WH

RD

BK

7 RD

1 BK

3 BL/WH

8 GN

7 GN/BK

5 VI

6 VI/BK

9 WH

12 GY

11 GY/BK

WH

WH/BK

GY/BK

GY

BR

YG

NC

YL

9

10

11

12

13

14

15

16

ACC

MEMORY

GND

REMOTE

TEL

RL+

RL-

RR+

RR-

FL+

FL-

FR+

FR-

PARKING

BK

RD

BL

WH

BR

Black

Red

Blue

White

Brown

GN

VI

GY

YL

YG

TEL MUTING

Green

Violet

Gray

Yellow

Yellow Green

RD

1

3

5

7

RD 7

YL 4

NC

NC

BL/WH

RD

8

5

2

7

8

1

2

5

6

3

4

BR

YL

NC

BK

2

4

6

8

PARKING
BRAKE

RR

FR

FL

RL

REMOTE

Rear Right

Front Right

Front Left

Rear Left

Remote

ACC

TEL

GND

MEMORY

PARKING

ACC Line

Telephone Muting

Ground

Memory Backup Battery+

Parking Brake

VI/BK

GY/BK

WH/BK

GN/BK

2

4

6

8

VI

1

3

GY

5

WH

GN

7

(No.MA308)1-41

5.3 16PIN CORD DIAGRAM (for KD-DV5304, KD-DV5305, KD-DV5306, KD0DV4304, KD-DV4305, KD-DV4306)

GN

8

7

6

5

4

3

2

1

GN/BK

VI/BK

BL/WH

VI

BL

RD

BK

WH

WH/BK

GY/BK

GY

NC

YG

NC

YL

10

11

12

13

14

15

16

9

BK

RD

BL

WH

Black

Red

Blue

White

GN

VI

GY

YL

YG

Green

Violet

Gray

Yellow

Yellow Green

1 BK

16 YL

2 RD

9 WH

10 WH/BK

12 GY

11 GY/BK

8 GN

7 GN/BK

5 VI

6 VI/BK

3 BL/WH

4 BL

14 YG

GND

MEMORY

ACC

FL+

FL-

FR+

FR-

RL+

RL-

RR+

RR-

REMOTE

ANT

PARKING

REMOTE OUT

POWER ANTENNA

GND

PARKING
BRAKE

RR

FR

FL

RL

REMOTE

Rear Right

Front Right

Front Left

Rear Left

Remote

1-42 (No.MA308)

ACC

GND

MEMORY

PARKING

ANT

ACC Line

Ground

Memory Backup Battery+

Parking Brake

Auto Antenna

5.4 16 PIN CORD DIAGRAM (for KD-DV5388, KD-DV4388)

WH

GN

8

7

6

5

4

3

2

1

GN/BK

VI/BK

VI

BL

BL/WH

RD

BK

WH/BK

GY/BK

GY

NC

YG

NC

YL

10

11

12

13

14

15

16

9

BK

RD

BL

WH

BR

Black

Red

Blue

White

Brown

GN

VI

GY

YL

YG

Green

Violet

Gray

Yellow

YellowGreen

1

NC

NC

3

5

BL

7

RD

NC

YL

NC

BK

2

4

6

8

2

16

1

4

8

7

5

6

9

10

12

11

14

RD1

YL1

BK

BL

GN

GN/BK

VI

VI/BK

WH

WH/BK

GY

GY/BK

YG

RD3

RD2

YL 2

7

4

8

5

7

8

1

2

5

6

3

4

BL/WH

3

VI/BK

GY/BK

WH/BK

GN/BK

2

4

6

8

VI

1

3

GY

5

WH

GN

7

(No.MA308)1-43

5.5 16 PIN CORD DIAGRAM (for KD-DVH426)

8

7

6

5

4

3

2

1

14

1

16

2

15

9

10

12

11

5

6

8

7

GN

GN/BK

VI/BK

VI

BL

BL/WH

RD

BK1

YG

BK

YL

RD

OR/WH

WH

WH/BK

GY

GY/BK

VI/BK

GN

GN/BK

WH

WH/BK

GY/BK

GY

BR

YG

OR/WH

YL

10

11

12

13

14

15

16

BK

RD

BL

WH

BR

OR

Black

Red

Blue

White

Brown

Orange

GN

VI

GY

YL

YG

Green

Violet

Gray

Yellow

YellowGreen

9

9

BK2

YL

RD

OR/WH

WH

WH/BK

GY

GY/BK

VI VI

VI/BK

GN

GN/BK

NC

8

GN/BK

WH/BK

7

6

NC

NC

5

NC

4

3

GY/BK

2

VL/BK

BK2

1

1

10

13

17

15

7

12

3

11

2

15

8

OR/WH

GN

WH

NC

RD

GY

VI

YL

17

16

15

14

13

12

11

10

BL/WH

3

BR

13

BL

4

1-44 (No.MA308)

BK

BL

(No.MA308)1-45

Victor company of Japan, Limited
Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,Gumma-ken, 371-8543,Japan

(No.MA308)

Printed in Japan

VPT

3-1

PARTS LIST

* All printed circuit boards and its assemblies are not available as service parts.

- Contents -

Exploded view of general assembly and parts list (Block No.M1)

Exploded view of general assembly and parts list (Block No.M2)

DVD mechanism assembly and parts list (Block No.MJ)
DVD mechanism assembly and parts list (Block No.MU)
Electrical parts list (Block No.01~12)
Packing materials and accessories parts list (Block No.M3)

KD-ADV5380J,KD-DV5300J,KD-DV5301E

KD-DV5301EU,KD-DV5302E,KD-DV5302EU

KD-DV5304UI,KD-DV5305U,KD-DV5305UN

KD-DV5305UT,KD-DV5305A,KD-DV5306U

KD-DV5306UN,KD-DV5306UT,KD-DV5306A

KD-DV5307EE,KD-DV5308EE,KD-DV5388UF

KD-DV4304UI,KD-DV4305U,KD-DV4305UN

KD-DV4305UT,KD-DV4305A,KD-DV4306U

KD-DV4306UN,KD-DV4306UT,KD-DV4306A

KD-DV4388UF,KD-DVH426UN

3- 2
3- 6
3- 9
3-12
3-15
3-48

MA308

3-2

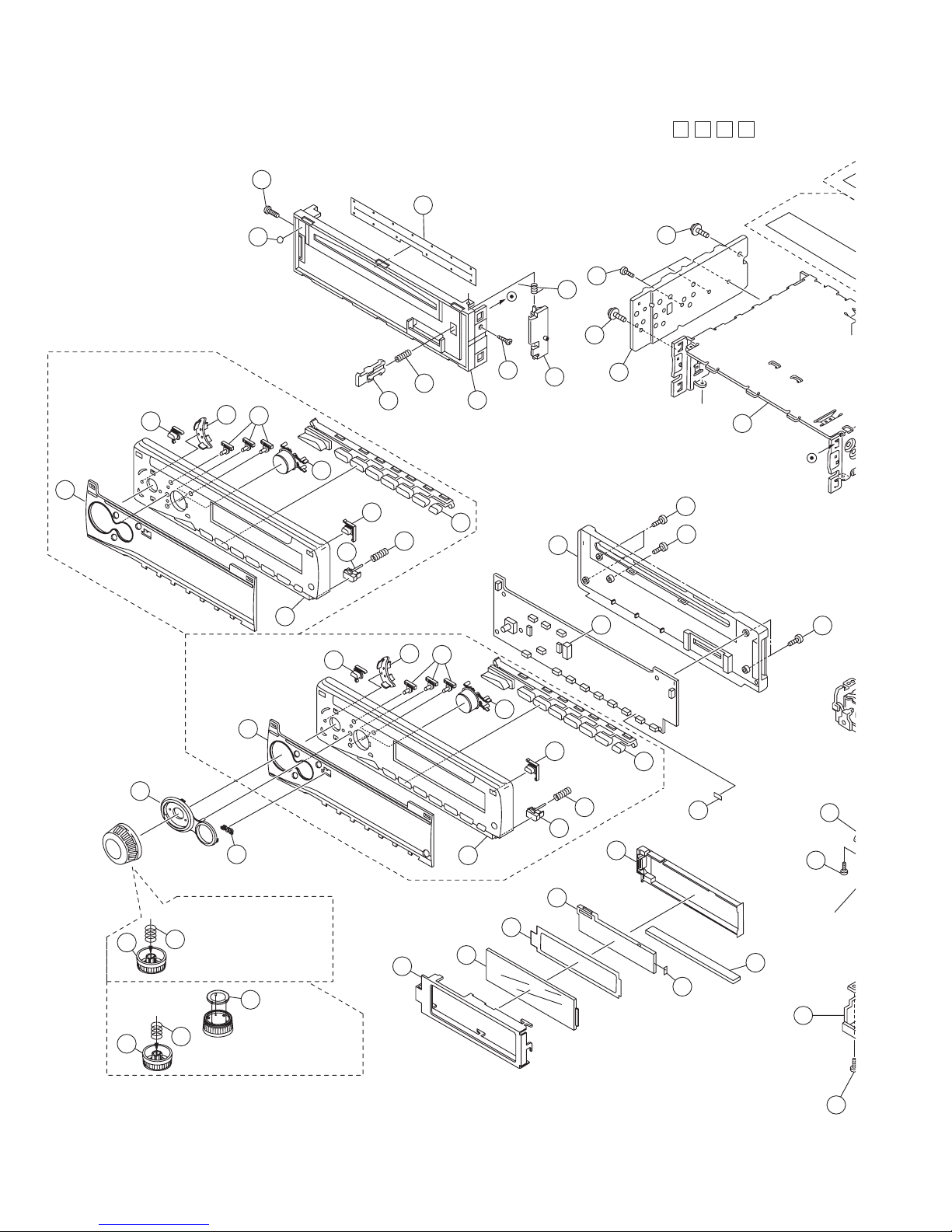

Exploded view of general assembly and parts list

Block No.

M

M

M

1

Main sub board

B

Switch

board

only J

DV5301,DV5302,
DV5306,DV5307,DV5308,
DV4304,DV4305,DV4388,

ADV5380,DV5300,

DV,5304,DV5305,

DV5306,DV5388,

ADV5380,DV5300,

DV5301,DV5302,DV5304,

DV5305,DV5306,DV5307,DV5308,

DV5388,DV4304,DV4305,
DV4306,DV4388,

(Except DVH426)

19

20

22

21

18

23

24

42

42

42

39

40

38

32

36

26

37

41

27

34

25

35

31

28

29

30

33

44

52

47

45

46

51

43

11

11

2

7

7

10

14

5

13

3

67

1

31

29

33

28

35

34

25

26

27

30

39

40

3-3

.

M

M

M

1

Main sub board

Main board

A

B

G

D

E

H

F

B

A

D

F

E

H

G

only J

only UT

58

61

64

63

62

56

60

60

57

59

65

66

42

42

42

37

52

47

8

8

9

9

9

7

54

14

5

5

5

15

6

6

13

3

3

4

4

53

16

17

12

50

69

68

55

49

48

1

70

71

ADV5380J,

DV5301,DV5302,

DV5305,DV5306,

DV5301,DV5302,

DV5304,DV5388,

3-4

General Assembly(Except DVH426)

Block No. [M][1][M][M]



Symbol No. Part No. Part Name Description Local

1 LV10774-009A TOP CHASSIS
2 LV34061-001A SIDE HEAT SINK
3 QYSDST2003ZA TAP SCREW M2 x 3mm(x2)
4 QYSDST2606ZA TAP SCREW M2.6 x 6mm(x2)
5 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
6 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2)
7 GE40377-001A SCREW (x2)
8 GE40377-002A SCREW (x3)
9 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
10 LV41200-005A SCREW (x3)
11 QYSDST2004ZA TAP SCREW M2 x 4mm(x2)
12 LV34460-001A INSULATOR
13 GE40311-002A SUP BRACKET
14 GE20192-001A DUST COVER
15 GE40218-034A SHEET
16 GE40278-001A SHEET
17 GE40278-002A SHEET
18 GE10138-002A FRONT CHASSIS
19 GE32335-001A LOCK LEVER
20 GE40269-001A TORSION SPRING
21 GE31978-001A RLS KNOB
22 GE30999-003A COMP.SPRING
23 GE40294-002A BLIND
24 FSYH4036-098 SHEET
25 GE10185-002A FRONT PANEL ADV5380J
25 GE10185-001A FRONT PANEL DV5300J

25 GE10185-004A FRONT PANEL

DV5301E,DV5301EU,DV5304UI,DV5305U,DV53
05UN,DV5305UT,DV5305A,DV5308EE,DV4304U
I,DV4305U,DV4305UN,DV4305UT,DV4305A

25 GE10185-003A FRONT PANEL

DV5302E,DV5302EU,DV5306U,DV5306UN,DV5
306UT,DV5306A,DV5307EE,DV5388UF,DV4306

U,DV4306UN,DV4306UT,DV4306A,DV4388UF
26 GE32341-015A FINDER ASSY ADV5380J
26 GE32341-016A FINDER ASSY DV5300J
26 GE32633-018A FINDER ASSY DV5301E,DV5301EU
26 GE32633-016A FINDER ASSY DV5302E,DV5302EU
26 GE32341-020A FINDER ASSY DV5304UI
26 GE32341-017A FINDER ASSY DV5305U,DV5305UN,DV5305UT,DV5305A
26 GE32341-018A FINDER ASSY DV5306U,DV5306UN,DV5306UT,DV5306A
26 GE32633-015A FINDER ASSY DV5307EE
26 GE32633-023A FINDER ASSY DV5308EE
26 GE32341-014A FINDER ASSY DV5388UF
26 GE32633-020A FINDER ASSY DV4304UI
26 GE32633-021A FINDER ASSY DV4305U,DV4305UN,DV4305UT,DV4305A
26 GE32633-022A FINDER ASSY DV4306U,DV4306UN,DV4306UT,DV4306A
26 GE32633-017A FINDER ASSY DV4388UF
27 GE32344-001A POWER BTN
28 GE32346-001A EJECT BTN
29 GE32342-001A PUSH BTN (x3)
30 GE32340-001A NAVI BTN
31 GE32338-001A RIM LENS

32 GE32339-005A RIM COVER

ADV5380J,DV5302E,DV5302EU,DV5306U,DV53

06UN,DV5306UT,DV5306A,DV5307EE,DV5388U

F,DV4306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF

32 GE32339-002A RIM COVER

DV5300J,DV5301E,DV5301EU,DV5304UI,DV53

05U,DV5305UN,DV5305UT,DV5305A,DV5308EE

,DV4304UI,DV4305U,DV4305UN,DV4305UT,DV

4305A

33 GE20211-001A PRESET BTN

ADV5380J,DV5302E,DV5302EU,DV5306U,DV53

06UN,DV5306UT,DV5306A,DV5307EE,DV5388U

F,DV4306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF
33 GE20211-004A PRESET BTN DV5300J

33 GE20211-003A PRESET BTN

DV5301E,DV5301EU,DV5304UI,DV5305U,DV53

05UN,DV5305UT,DV5305A,DV5308EE,DV4304U

I,DV4305U,DV4305UN,DV4305UT,DV4305A

34 GE32345-004A DETACH BTN

ADV5380J,DV5302E,DV5302EU,DV5306U,DV53

06UN,DV5306UT,DV5306A,DV5307EE,DV5388U

F,DV4306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF
34 GE32345-006A DETACH BTN DV5300J

34 GE32345-003A DETACH BTN

DV5301E,DV5301EU,DV5304UI,DV5305U,DV53

05UN,DV5305UT,DV5305A,DV5308EE,DV4304U

I,DV4305U,DV4305UN,DV4305UT,DV4305A
35 GE40202-017A COMP.SPRING
36 GE40347-001A JVC BADGE

3-5

37 FSYH4036-069 SHEET

38 GE40370-001A VOL TOP ASSY

ADV5380J,DV5300J,DV5301E,DV5301EU,DV53
02E,DV5302EU,DV5304UI,DV5305U,DV5305UN
,DV5305UT,DV5305A,DV5306U,DV5306UN,DV5
306UT,DV5306A,DV5307EE,DV5308EE

39 GE40127-001A KNOB SPRING

40 GE32337-003A VOL KNOB

ADV5380J,DV5302E,DV5302EU,DV5306U,DV53
06UN,DV5306UT,DV5306A,DV5307EE

40 GE32337-004A VOL KNOB

DV5300J,DV5301E,DV5301EU,DV5304UI,DV53
05U,DV5305UN,DV5305UT,DV5305A,DV5308EE

40 GE32330-001A VOL KNOB

DV5388UF,DV4306U,DV4306UN,DV4306UT,DV
4306A,DV4388UF

40 GE32330-002A VOL KNOB

DV4304UI,DV4305U,DV4305UN,DV4305UT,DV4

305A
41 GE10186-001A REAR COVER
42 VKZ4777-010 MINI SCREW (x5)
43 GE32349-001A LCD CASE
44 GE32472-001A LENS CASE
45 GE32473-001A LENS
46 GE40378-001A LIGHTING SHEET
47 FSYH4036-069 SHEET
48 LV34058-003A BOTTOM COVER
49 GE32174-001A INSULATOR
50 GE32609-001A NAME PLATE ADV5380J
50 GE32606-001A NAME PLATE DV5300J
50 GE32597-001A NAME PLATE DV5301E,DV5301EU
50 GE32600-001A NAME PLATE DV5302E,DV5302EU
50 GE32625-001A NAME PLATE DV5304UI
50 GE32614-001A NAME PLATE DV5305U,DV5305UN,DV5305UT
50 GE32620-001A NAME PLATE DV5305A
50 GE32617-001A NAME PLATE DV5306U,DV5306UN,DV5306UT
50 GE32621-001A NAME PLATE DV5306A
50 GE32603-001A NAME PLATE DV5307EE
50 GE32793-001A NAME PLATE DV5308EE
50 GE32628-001A NAME PLATE DV5388UF
50 GE32591-001A NAME PLATE DV4304UI
50 GE32552-001A NAME PLATE DV4305U,DV4305UN,DV4305UT
50 GE32612-001A NAME PLATE DV4305A
50 GE32555-001A NAME PLATE DV4306U,DV4306UN,DV4306UT
50 GE32613-001A NAME PLATE DV4306A
50 GE32594-001A NAME PLATE DV4388UF
51 QLD0459-001 LCD MODULE
52 QNZ0827-001 RUBBER CONN
53 QUQP05-4510BB-E FFC WIRE 45pin 10cm

54 QAM0685-001 CAR CABLE

DV5301E,DV5301EU,DV5302E,DV5302EU,DV5

304UI,DV5305U,DV5305UN,DV5305UT,DV5305

A,DV5306U,DV5306UN,DV5306UT,DV5306A,DV

5388UF

55 VYTA500-001 PIN CAP (x2)

DV5301E,DV5301EU,DV5302E,DV5302EU,DV5

304UI,DV5305U,DV5305UN,DV5305UT,DV5305

A,DV5306U,DV5306UN,DV5306UT,DV5306A,DV

5388UF



56 QMFZ039-150-T FUSE 15A
57 QAR0353-001 COOLING FAN
58 GE31994-003A REAR BRACKET
59 GE40324-002A FAN BRACKET
60 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2)
61 QYSDST2606ZA TAP SCREW M2.6 x 6mm
62 GE40377-002A SCREW
63 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
64 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
65 LV43349-002A POWER IC BKT
66 LV43373-002A REGULATOR BKT
67 GE30854-001A LED HOLDER
68 GE31574-067A UT LABEL DV5305UT
68 GE31574-068A UT LABEL DV5306UT
68 GE31574-065A UT LABEL DV4305UT
68 GE31574-066A UT LABEL DV4306UT
69 GE40387-003A DTS LABEL ADV5380J,DV5300J

70 QAM0991-001 CAR CABLE

ADV5380J,DV5301E,DV5301EU,DV5302E,DV53

02EU

71 QYSDST2604ZA TAP SCREW M2.6 x 4mm

ADV5380J,DV5301E,DV5301EU,DV5302E,DV53

02EU



Symbol No. Part No. Part Name Description Local

3-6

Exploded view of general assembly and parts list

Switch
board

Block No.

M

M

M

2

Main sub board

B

(Only DVH426)

12

8

11

24

7

16

15

6

44

50

45

49

42

36

27

26

30

34

35

14

4

4

17

51

5

5

40

41

64

39

28

37

38

22

23

19

12

20

21

3

8

31

29

41

41

1

13

18

43

32

33

25

3-7

ck No.

M

M

M

2

Main sub board

Main board

A

B

D

D

B

A

8

1

9

47

46

48

6

6

7

7

16

15

6

4

50

14

4

4

17

51

5

5

40

41

64

9

55

61

62

52

2

20

41

59

58

10

54

56

57

56

10

10

60

53

1

13

18

43

63

3-8

General Assembly(Only DVH426)

Block No. [M][2][M][M]



Symbol No. Part No. Part Name Description Local

1 LV10774-008A TOP CHASSIS
2 LV40848-044A SPACER(P)
3 LV34061-001A SIDE HEAT SINK
4 QYSDST2003ZA TAP SCREW M2 x 3mm(x2)
5 QYSDST2606ZA TAP SCREW M2.6 x 6mm(x2)
6 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
7 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2)
8 GE40377-001A SCREW (x2)
9 GE40377-002A SCREW (x3)
10 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
11 LV41200-005A SCREW (x3)
12 QYSDST2004ZA TAP SCREW M2 x 4mm(x2)
13 LV34460-001A INSULATOR
14 GE40255-001A SUPPORT BRACKET
15 GE20180-001A DUST COVER
16 GE40218-034A SHEET
17 GE40278-001A SHEET
18 GE40278-002A SHEET
19 GE10138-002A FRONT CHASSIS
20 GE31569-002A LOCK LEVER
21 GE40269-001A TORSION SPRING
22 GE31978-001A RLS KNOB
23 GE30999-003A COMP.SPRING
24 GE40294-002A BLIND
25 FSYH4036-098 SHEET
26 GE10144-014A FRONT PANEL
27 GE31985-048A FINDER ASSY
28 GE31968-002A POWER BUTTON
29 GE31993-003A SRC BUTTON
30 GE32000-003A DISP BUTTON
31 GE20191-003A PRESET BUTTON
32 GE40218-046A SHEET
33 GE31991-006A EJECT BUTTON
34 GE31990-001A DETACH BUTTON
35 GE40202-017A COMP.SPRING
36 GE40315-001A VOL KNOB ASSY
37 GE31989-001A NAVI BASE
38 GE40127-002A COMP.SPRING
39 GE40316-007A NAVI BTN ASSY
40 GE10146-001A REAR COVER
41 VKZ4777-010 MINI SCREW (x4)
42 GE31995-001A LCD CASE
43 GE31998-001A LENS CASE
44 GE31999-001A LCD LENS
45 GE40300-001A LIGHTING SHEET
46 LV34058-003A BOTTOM COVER
47 GE32174-001A INSULATOR
48 GE32803-001A NAME PLATE
49 QLD0502-001 LCD MODULE
50 QNZ0827-001 RUBBER CONN
51 QUQP05-4510BB-E FFC WIRE 45pin 10cm
52 QAR0353-001 COOLING FAN



53 QMFZ039-150-T FUSE 15A
54 GE31994-003A REAR BRACKET
55 GE40324-002A FAN BRACKET
56 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2)
57 QYSDST2606ZA TAP SCREW M2.6 x 6mm
58 GE40377-002A SCREW
59 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
60 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
61 LV43349-002A POWER IC BKT
62 LV43373-002A REGULATOR BKT
63 VMA4652-001SS EARTH PLATE
64 GE30854-001A LED HOLDER

3-9

DVD mechanism assembly and parts list

=

JC-803B

=

MOBIL-1

=

1401C

= FG-87HS

=

JVG-31N

=

JVS-1003

Grease

B

D

E

F

G

H

K

J

A

B

C

E

G

H

K

J

F

a

b

a

FMU-JD8-1D

c

Block No.

M

M

M

J

The parts without symbol number are not service.

A

c

INSIDE

OUTSIDE

AFTER SET PICK UP SA.
APPLY GREASE

48

BACK SIDE

INSIDE

D

(Except DVH426)

74

67

17

85

76

97

31

59

58

77

86

86

73

72

45

62

56

54

50

3

34

91

32

35

33

23

43

65

38

3

53

55

61

70

21

78

69

2

71

26

83

86

80

66

1

4

16

68

82

24

49

63

51

52

20

42

41

18

93

30

29

28

29

34

22

19

27

44

46

7

47

96

92

95

87

89

64

79

81

5

11

12

8

9

1

25

40

39

43

18

14

15

36

94

90

37

98

60

57

75

12

10

8

10

17

13

16

10

5

6

84

88

3-10

DVD mechanism(Except DVH426)

Block No. [M][J][M][M]



Symbol No. Part No. Part Name Description Local

1 VKZ4539-056 MINI SCREW (x2)
2 QYSPSFT2040ZA TAP SCREW M2 x 4mm
3 LV43481-001A COOLING RUBBER (x2)
4 LV10674-001A CHASSIS FRAME
5 LV30225-0J6A SPACER (x2)
6 VKZ4539-056 MINI SCREW
7 VYSA1R4-056 SPACER
8 LV35272-001A DAMPER(F) (x2)
9 LV35273-001A DAMPER(R)
10 QYSDST2005ZA TAP SCREW M2 x 5mm(x3)
11 LV43039-001A DAMPER SP.(R)
12 LV43849-001A DAMPER SP(F2) (x2)
13 LV43041-001A FLOATING SPRING (x2)
14 LV10675-002A TOP COVER
15 LV30225-0J5A SPACER
16 VKZ4539-056 MINI SCREW (x2)
17 LV33669-001A STOPPER (x2)
18 VKZ4539-056 MINI SCREW (x2)
19 LV21297-004A CHAS. BASE ASSY
20 LV33608-003A GEAR HOLDER
21 VKZ4539-056 MINI SCREW
22 LV43561-002A ABSORBER
23 LV30225-0J5A SPACER
24 LV36831-001A SLIDE CAM ASSY2
25 LV33610-002A FLOATING ARM
26 LV33611-001A CONNECT ARM
27 LV33678-003A LOADING A. ASSY
28 LV43049-001A LOADING SHAFT
29 LV43052-003A ROLLER (x2)
30 LV33612-001A LOADING GEAR
31 QYWFM124013 WASHER 4mm/1.2mm x 0.13mm
32 LV43053-002A ROD(L)
33 LV43054-003A ROD(R)
34 LV43001-001A COLLAR (x2)
35 LV21285-003A PROTECTOR
36 LV43055-001A PROTECTOR SP.
37 QAR0373-002 MOTOR
38 LV43002-002A WORM GEAR
39 QYSPSPT2025MA SCREW M2 x 2.5mm(x2)
40 LV33679-002A MOTOR H. ASSY
41 LV33614-003A WORM WHEEL
42 QYWDL1230250 SLIT WASHER 3mm/1.2mm x 0.25mm
43 VKZ4539-056 MINI SCREW (x2)
44 LV33615-001A GEAR 2
45 LV43057-004A IDLER ARM ASSY
46 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
47 LV21286-001A CONTROL CAM
48 QYWDL1230196 SLIT WASHER 3mm/1.2mm x 0.19mm
49 LV33616-003A LOAD LOCK LEV
50 LV43060-001A CAM SPRING
51 LV43005-001A GEAR 4
52 LV43006-003A GEAR 5
53 LV33617-003A GEAR 6
54 LV33618-002A LOADING G. ARM
55 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
56 LV43007-003A GEAR 7
57 LV33619-002A GEAR 8
58 LV42132-001A E RING
59 QYWFM215013 WASHER 5mm/2.1mm x 0.13mm
60 LV33620-001A GEAR 9
61 LV43008-001A GEAR10
62 LV43061-001A LOAD SPRING
63 LV33621-001A FEED GEAR
64 LV33622-003A TRIGGER ARM
65 LV43062-001A FEED TRI.SPRING
66 QAR0240-002 SPINDEL MOTOR
67 LV21287-003A SPINDLE BASE
68 LV44169-001A SPECIAL SCREW (x2)
69 VKZ4539-056 MINI SCREW (x2)
70 QAL0901-001 PICK UP
71 LV34583-002A CD RACK PLATE
72 LV34579-001A CD RACK SPRING
73 LV43903-002A MINI TAP SCREW
74 LV43037-001A LEAD SCREW

3-11

75 LV43010-001A L.S.GEAR
76 LV43063-001A L.S.COLLAR
77 LV43011-001A THRUST SPRING
78 QYSPSFT2040ZA TAP SCREW M2 x 4mm
79 LV33624-001A HOLDER(M)
80 VKZ4539-056 MINI SCREW (x2)
81 LV22130-001A HOLDER(S) 2
82 VKZ4539-056 MINI SCREW (x2)
83 LV43064-001A ROD(M)
84 LV43065-001A ROD(S)
85 LV43066-001A SUB SHAFT
86 VKZ4730-003 SPECIAL SCREW (x3)
87 LV21298-008A CLAMPER UNIT
88 LV43070-001A CLAMPER SPRING
89 LV43355-001A CLAMPER2 SPRING
90 LV30225-0J6A SPACER
91 LV22185-002A FRONT UNIT (C)
92 VKZ4539-056 MINI SCREW
93 LVB30012-002A SW FPC
94 NSW0187-001 SWITCH S1
95 NSW0187-001 SWITCH S1
96 NSW0187-001 SWITCH S1
97 VKZ4539-055 MINI SCREW (x2)
98 VYSA1R3-035 SPACER



Symbol No. Part No. Part Name Description Local

3-12

DVD mechanism assembly and parts list

=

JC-803B

=

MOBIL-1

=

1401C

= FG-87HS

=

JVG-31N

=

JVS-1003

Grease

B

D

E

F

G

H

K

J

A

B

C

E

G

H

K

J

F

a

b

a

FMU-JD5-2D

c

Block No.

M

M

M

U

The parts without symbol number are not service.

A

c

INSIDE

OUTSIDE

AFTER SET PICK UP SA.
APPLY GREASE

48

BACK SIDE

INSIDE

D

(Only DVH426)

74

67

17

85

76

97

31

59

58

77

86

86

73

72

45

62

56

54

50

3

34

91

32

35

33

23

43

65

38

3

53

55

61

70

21

78

69

2

71

26

83

86

80

66

1

4

16

68

82

24

49

63

51

52

20

42

41

18

93

30

29

28

29

34

22

19

27

44

46

7

47

96

92

95

87

89

64

79

81

5

11

12

8

9

1

25

40

39

43

18

14

15

36

94

90

37

60

57

75

12

10

8

10

17

13

16

10

5

6

84

88

3-13

DVD mechanism(Only DVH426)

Block No. [M][U][M][M]



Symbol No. Part No. Part Name Description Local

1 VKZ4539-056 MINI SCREW (x2)
2 QYSPSFT2040ZA TAP SCREW M2 x 4mm
3 LV43481-001A COOLING RUBBER (x2)
4 LV10674-001A CHASSIS FRAME
5 LV30225-0J6A SPACER (x2)
6 VKZ4539-056 MINI SCREW
7 VYSA1R4-056 SPACER
8 LV35272-001A DAMPER(F) (x2)
9 LV35273-001A DAMPER(R)
10 QYSDST2005ZA TAP SCREW M2 x 5mm(x3)
11 LV43039-001A DAMPER SP.(R)
12 LV43849-001A DAMPER SP(F2) (x2)
13 LV43041-001A FLOATING SPRING (x2)
14 LV10675-001A TOP COVER
15 LV30225-0J5A SPACER
16 VKZ4539-056 MINI SCREW (x2)
17 LV33669-001A STOPPER (x2)
18 VKZ4539-056 MINI SCREW (x2)
19 LV21297-004A CHAS. BASE ASSY
20 LV33608-002A GEAR HOLDER
21 VKZ4539-056 MINI SCREW
22 LV43561-002A ABSORBER
23 LV30225-0J5A SPACER
24 LV36831-001A SLIDE CAM ASSY2
25 LV33610-002A FLOATING ARM
26 LV33611-001A CONNECT ARM
27 LV33678-003A LOADING A. ASSY
28 LV43049-001A LOADING SHAFT
29 LV43052-003A ROLLER (x2)
30 LV33612-001A LOADING GEAR
31 QYWFM124013 WASHER 4mm/1.2mm x 0.13mm
32 LV43053-002A ROD(L)
33 LV43054-003A ROD(R)
34 LV43001-001A COLLAR (x2)
35 LV21285-003A PROTECTOR
36 LV43055-001A PROTECTOR SP.
37 QAR0373-001 MOTOR
38 LV43002-002A WORM GEAR
39 QYSPSPT2025MA SCREW M2 x 2.5mm(x2)
40 LV33679-001A MOTOR H. ASSY
41 LV33614-003A WORM WHEEL
42 QYWDL1230250 SLIT WASHER 3mm/1.2mm x 0.25mm
43 VKZ4539-056 MINI SCREW (x2)
44 LV33615-001A GEAR 2
45 LV43057-004A IDLER ARM ASSY
46 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
47 LV21286-001A CONTROL CAM
48 QYWDL1230196 SLIT WASHER 3mm/1.2mm x 0.19mm
49 LV33616-002A LOAD.LOCK LEVER
50 LV43060-001A CAM SPRING
51 LV43005-001A GEAR 4
52 LV43006-002A GEAR 5
53 LV33617-002A GEAR 6
54 LV33618-002A LOADING G. ARM
55 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
56 LV43007-002A GEAR 7
57 LV33619-002A GEAR 8
58 LV42132-001A E RING
59 QYWFM215013 WASHER 5mm/2.1mm x 0.13mm
60 LV33620-001A GEAR 9
61 LV43008-001A GEAR10
62 LV43061-001A LOAD SPRING
63 LV33621-001A FEED GEAR
64 LV33622-002A TRIGGER ARM
65 LV43062-001A FEED TRI.SPRING
66 QAR0240-002 SPINDLE MOTOR
67 LV21287-002A SPINDLE BASE
68 LV44169-001A SPECIAL SCREW (x2)
69 VKZ4539-056 MINI SCREW (x2)
70 QAL0742-001 DVD PICK UP
71 LV34583-002A CD RACK PLATE
72 LV34579-001A CD RACK SPRING
73 LV43903-002A MINI TAP SCREW
74 LV43037-001A LEAD SCREW

3-14

75 LV43010-001A L.S.GEAR
76 LV43063-001A L.S.COLLAR
77 LV43011-001A THRUST SPRING
78 QYSPSFT2040ZA TAP SCREW M2 x 4mm
79 LV33624-001A HOLDER(M)
80 VKZ4539-056 MINI SCREW (x2)
81 LV22130-001A HOLDER(S) 2
82 VKZ4539-056 MINI SCREW (x2)
83 LV43064-001A ROD(M)
84 LV43065-001A ROD(S)
85 LV43066-001A SUB SHAFT
86 VKZ4730-002 SPECIAL SCREW (x3)
87 LV21298-007A CLAMPER UNIT
88 LV43070-001A CLAMPER SPRING
89 LV43355-001A CLAMPER2 SPRING
90 LV30225-0J6A SPACER
91 LV22185-001A FRONT UNIT (C)
92 VKZ4539-056 MINI SCREW
93 LVB30012-002A SW FPC
94 NSW0187-001 SWITCH S1
95 NSW0187-001 SWITCH S1
96 NSW0187-001 SWITCH S1
97 VKZ4539-055 MINI SCREW (x2)



Symbol No. Part No. Part Name Description Local

3-15

Electrical parts list

Main board(ADV5380,DV5300)

Block No. [0][1]



Symbol No.

Part No. Part Name Description Local

IC101 HA17558AF-X IC
IC151 TC4066BFT-X IC
IC161 NJW1192V-X IC



IC301 TB2904HQ IC
IC401 TC7SET08F-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC



IC721 UPD78F1166GC1C IC(PROGRAMD)
IC731 IC-PST3433U-X IC
IC731 or S-80833CNNB-G-W IC
IC801 HD74HC126FP-X IC



IC911 R2S25400DS-E IC
IC921 BA33BC0FP-X IC
IC922 LA5777MP-X IC
IC961 TC74LCX32FT-F-X IC
IC962 TC74VHCT32AFT-X IC

Q1 RT1N141C-X DIGI TRANSISTOR
Q1 or UN2211-X TRANSISTOR
Q151 RT1N141C-X DIGI TRANSISTOR
Q151 or UN2211-X TRANSISTOR
Q152 RT1N141C-X DIGI TRANSISTOR
Q152 or UN2211-X TRANSISTOR
Q301 RT1N441C-X TRANSISTOR
Q301 or UN2213-X DIGI TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q302 or UN2113-X TRANSISTOR
Q303 RT6N430C-X TRANSISTOR
Q344 RT6N430C-X TRANSISTOR
Q354 RT6N430C-X TRANSISTOR
Q821 UN2211-X TRANSISTOR
Q821 or RT1N141C-X DIGI TRANSISTOR
Q822 UN2111-X TRANSISTOR
Q822 or RT1P141C-X DIGI TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q861 UN2111-X TRANSISTOR
Q861 or RT1P141C-X DIGI TRANSISTOR
Q862 UN2111-X TRANSISTOR
Q862 or RT1P141C-X DIGI TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q885 or UN2211-X TRANSISTOR
Q911 RT1P141C-X DIGI TRANSISTOR
Q911 or UN2111-X TRANSISTOR
Q912 RT1N141C-X DIGI TRANSISTOR
Q912 or UN2211-X TRANSISTOR
Q921 RT1N141C-X DIGI TRANSISTOR
Q921 or UN2211-X TRANSISTOR
Q971 2SA1530A/R/-X TRANSISTOR
Q971 or 2SB709A/R/-X TRANSISTOR
Q972 RT1N141C-X DIGI TRANSISTOR
Q972 or UN2211-X TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q976 or UN2213-X DIGI TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
Q977 or 2SB709A/R/-X TRANSISTOR

D1 1SS355W-X DIODE
D1 o r MA 111 - X SI DI O DE
D2 1SS355W-X DIODE
D2 o r MA 111 - X SI DI O DE
D301 UDZW11B-X Z DIODE
D301 or MA8110/M/-X Z DIODE
D302 1SS355W-X DIODE
D302 or MA111-X SI DIODE
D303 or CRS03-W SB DIODE
D303 MA22D23-X SB DIODE
D303 or RB160M-30-X SB DIODE
D304 or CRS03-W SB DIODE
D304 MA22D23-X SB DIODE
D304 or RB160M-30-X SB DIODE
D344 1SS355W-X DIODE
D344 or MA111-X SI DIODE

D354 1SS355W-X DIODE
D354 or MA111-X SI DIODE
D401 or RB160M-30-X SB DIODE
D401 MA22D23-X SB DIODE
D401 or CRS03-W SB DIODE
D710 UDZW6.2B-X Z DIODE
D710 or MA8062/M/-X Z DIODE
D711 UDZW6.2B-X Z DIODE
D711 or MA8062/M/-X Z DIODE
D712 UDZW6.2B-X Z DIODE
D712 or MA8062/M/-X Z DIODE
D713 UDZW6.2B-X Z DIODE
D713 or MA8062/M/-X Z DIODE
D731 1SS355W-X DIODE
D731 or MA111-X SI DIODE
D801 or RB160M-30-X SB DIODE
D801 MA22D23-X SB DIODE
D801 or CRS03-W SB DIODE
D821 UDZW12B-X Z DIODE
D821 or MA8120/M/-X Z DIODE

D831 UDZW6.2B-X Z DIODE

ADV5
380J

D831 or MA8062/M/-X Z DIODE

ADV5

380J
D861 MA111-X SI DIODE
D861 or 1SS355W-X DIODE
D862 MA111-X SI DIODE
D862 or 1SS355W-X DIODE
D863 MA8110/M/-X Z DIODE
D863 or UDZW11B-X Z DIODE
D885 1SS355W-X DIODE
D885 or MA111-X SI DIODE



D901 1N5401-TU-15 SI DIODE



D901 or 1N5401-F64 SI DIODE
D902 GS1J-X DIODE
D911 1SS355W-X DIODE
D9 11 or MA 111 - X SI DI O DE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D971 or CRS03-W SB DIODE
D971 MA22D23-X SB DIODE
D971 or RB160M-30-X SB DIODE
D972 or CRS03-W SB DIODE
D972 MA22D23-X SB DIODE
D972 or RB160M-30-X SB DIODE
D973 or CRS03-W SB DIODE
D973 MA22D23-X SB DIODE
D973 or RB160M-30-X SB DIODE
D974 UDZW5.1B-X SB DIODE
D974 or MA8051/M/-X Z DIODE
D981 or RB160M-30-X SB DIODE
D981 MA22D23-X SB DIODE
D981 or CRS03-W SB DIODE
D982 or RB160M-30-X SB DIODE
D982 MA22D23-X SB DIODE
D982 or CRS03-W SB DIODE

C1 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C4 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C7 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C81 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C91 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C103 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C109 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C113 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C151 QTE1C57-106Z E CAPACITOR 10uF 16V
C152 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C164 QTE1C57-106Z E CAPACITOR 10uF 16V
C171 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C172 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C173 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M



Symbol No.

Part No. Part Name Description Local

3-16

C174 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C175 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C176 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C177 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C178 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C179 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C180 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C181 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C182 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C183 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C184 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C185 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C186 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C187 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C188 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C189 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C190 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C304 QERF1HM-475Z E CAPACITOR 4.7uF 50V M
C305 QTE1C57-476Z E CAPACITOR 47uF 16V
C306 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C307 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C309 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C328 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C329 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C331 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C338 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C339 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C349 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C359 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C401 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C402 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C403 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C406 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C701 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C702 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C703 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C704 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C705 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C706 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C731 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C732 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C743 NDCA1HJ-270W C CAPACITOR 27pF 50V J
C744 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C751 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C752 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C753 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C754 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C755 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C756 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C757 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C761 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C801 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C802 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C803 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C804 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C805 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C806 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCBA1CK-103W C CAPACITOR 0.01uF 16V K

C831 NDCA1HJ-101W C CAPACITOR 100pF 50V J

ADV5

380J
C861 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C862 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C901 QEZ0768-278 E CAPACITOR 2700uF



Symbol No.

Part No. Part Name Description Local

C902 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C903 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C913 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C914 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C915 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C916 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C917 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C919 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C920 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C923 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C924 NBZ0009-127X E. CAPACITOR 120uF
C925 QEZ0595-477Z E CAPACITOR 470uF 25V M
C926 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C961 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C963 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C964 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C971 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C972 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C973 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C974 NDCA1HJ-102W C CAPACITOR 1000pF 50V J
C975 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C981 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

R1 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R3 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R4 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R5 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R6 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R7 NRS181J-120X MG RESISTOR 12Ω 1/8W J
R8 NRS181J-120X MG RESISTOR 12Ω 1/8W J
R9 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J
R11 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R12 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R81 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R82 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J
R91 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R92 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J
R102 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R103 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R104 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R105 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R106 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R107 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R108 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R112 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R113 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

R114 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R115 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R116 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R117 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R118 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R151 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J

R152 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J
R171 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R174 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R175 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R181 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R184 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R185 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R302 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R303 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R304 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R305 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R327 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R329 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R330 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R337 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J

R339 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J
R340 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R343 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

R345 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J
R346 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R347 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J

R349 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J
R350 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R353 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

3-17

R355 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R356 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R357 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R359 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R360 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R401 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R402 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R403 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R404 NRSA6AJ-1R0W MG RESISTOR 1Ω 1/16W J
R412 NRSA6AD-682W MG RESISTOR 6.8kΩ 1/16W D
R413 NRSA6AD-181W MG RESISTOR 180Ω 1/16W D
R414 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R415 NRSA6AJ-750W MG RESISTOR 75Ω 1/16W J
R416 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R417 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R701 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R702 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R703 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R704 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R705 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R706 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R707 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R725 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R726 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R728 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R729 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R731 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R732 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R733 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R735 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R736 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R737 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R738 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R740 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R741 NRSA6AJ-106W MG RESISTOR 10MΩ 1/16W J
R742 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R743 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R745 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R746 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R747 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R748 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R761 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R762 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R763 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R764 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R765 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R766 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R767 NRSA6AJ-331W MG RESISTOR 330

Ω

1/16W J

R769 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J

R770 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J

ADV5
380J

R771 NRSA6AJ-333W MG RESISTOR 33k

Ω

1/16W J

R772 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R773 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R774 NRSA6AJ-562W MG RESISTOR 5.6k

Ω

1/16W J

R775 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R778 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R779 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R780 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R781 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R782 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R783 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R784 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R785 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R786 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R787 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R788 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R789 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R793 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R794 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J

R795 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R796 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R797 NRSA6AJ-392W MG RESISTOR 3.9k

Ω

1/16W J

R798 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R801 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R802 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R803 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R804 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R805 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R806 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J
R807 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R808 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R809 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R810 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R821 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R822 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R823 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J

R832 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J

ADV5
380J

R833 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53

00J
R861 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R885 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R886 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R887 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R901 QRE142J-102X C RESISTOR 1kΩ 1/4W J
R902 NRSA6AJ-912W MG RESISTOR 9.1kΩ 1/16W J
R911 NRSA6AJ-682W MG RESISTOR 6.8kΩ 1/16W J
R912 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R913 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J
R914 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R922 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R961 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R962 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R963 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R971 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R972 NRS181J-221X MG RESISTOR 220Ω 1/8W J
R973 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R974 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R976 NRSA6AJ-563W MG RESISTOR 56kΩ 1/16W J
R977 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J
R981 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
R982 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
RA763 NRZ0065-222X NET RESISTOR 2.2k

Ω

L1 QQL244J-4R7Z P COIL 4.7uH J
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X INDUCTOR 47uH K
L752 QQL244J-470Z COIL 47uH J
L901 QQR1378-002 COIL
L911 NQL56CK-220X COIL 22uH K
L921 NQL56CK-220X COIL 22uH K
L922 NQLB7GM-100X COIL 10uH M
L923 NQL71EM-330X COIL 33uH M

CN701 QGZ1601J1-15 CONNECTOR (1-15)
CN821 QGA2001C1-02 CONNECTOR W-B (1-2)

CN831 QGA2001F1-02 CONNECTOR W-B (1-2)

ADV5

380J
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2044M1-30 CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR FFC/FPC (1-45)
CN963 QGB2043L1-30X CONNECTOR B-B (1-30)
J1 QNB0190-001 CAR ANT JACK

J331 QNN0771-001 3P PIN JACK

ADV5

380J

J331 QNN0770-001 3P PIN JACK

DV53

00J
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS

K831 NQR0007-002X FERRITE BEADS

ADV5

380J

PP1 QZW0010-001 STYLE PIN

ADV5

380J
S731 QSW0648-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k

Ω



TU1 QAU0484-001 TUNER PACK
X721 QAX0401-001 CRYSTAL 32.768KHz
X722 QAX0916-001Z CRYSTAL



Symbol No.

Part No. Part Name Description Local

3-18

Switch board(ADV5380,DV5300)

Block No. [0][2]

Main board
(DV5301,DV5302,DV5307,DV5308)

Block No. [0][3]



Symbol No.

Part No. Part Name Description Local

IC661 PT6523LQ-L LCD DRIVER
IC681 RPM7338-V4 RM.RECEIVER

D630 SML-310LT/MN/-X LED
D631 SML-310LT/MN/-X LED
D632 SML-310LT/MN/-X LED
D633 SML-310LT/MN/-X LED
D634 SML-310LT/MN/-X LED
D635 SML-310LT/MN/-X LED
D636 SML-310LT/MN/-X LED
D637 SML-310LT/MN/-X LED
D638 SML-310LT/MN/-X LED
D639 SML-310LT/MN/-X LED
D640 SML-310LT/MN/-X LED
D641 SML-310LT/MN/-X LED
D642 SML-310LT/MN/-X LED
D643 SML-310LT/MN/-X LED
D644 SML-310LT/MN/-X LED
D645 SML-310LT/MN/-X LED
D646 SML-310LT/MN/-X LED
D647 SML-310LT/MN/-X LED
D648 SML-310LT/MN/-X LED
D649 SML-310LT/MN/-X LED
D650 NSPW310BS/B2RST LED
D651 NSPW310BS/B2RST LED
D661 1SS355W-X DIODE
D661 or MA111-X SI DIODE
D662 UDZW5.1B-X SB DIODE
D662 or MA8051/M/-X Z DIODE

C620 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C661 NCB21AK-105X C CAPACITOR 1uF 10V K
C662 NCS31HJ-681X C CAPACITOR 680pF 50V J
C663 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C682 NCB31HK-103X C CAPACITOR 0.01uF 50V K

R601 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R602 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R603 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R604 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R605 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R606 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R607 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R608 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R609 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J
R610 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R611 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J

R612 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J
R613 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R614 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

R615 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J
R616 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R617 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R620 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R621 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R622 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R623 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R624 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R630 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R632 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R634 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R636 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R638 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R640 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R642 NRSA63J-561X MG RESISTOR 560

Ω

1/16W J

R644 NRSA63J-561X MG RESISTOR 560

Ω

1/16W J
R646 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R648 NRSA63J-561X MG RESISTOR 560

Ω

1/16W J
R650 NRSA63J-561X MG RESISTOR 560

Ω

1/16W J
R652 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R654 NRSA02J-271X MG RESISTOR 270

Ω

1/10W J
R657 NRSA02J-181X MG RESISTOR 180

Ω

1/10W J
R660 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R661 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J

R662 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R663 NRSA63J-225X MG RESISTOR 2.2MΩ 1/16W J
R664 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R665 NRSA63J-513X MG RESISTOR 51kΩ 1/16W J
R666 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R667 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R668 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R681 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

CJ601 QGZ1601K1-15S CONNECTOR (1-15)
J601 QNS0215-001 3.5 JACK
JS686 QSW1219-001 ROTARY ENCODER
S601 NSW0124-001X TACT SW
S602 NSW0124-001X TACT SW
S603 NSW0124-001X TACT SW
S604 NSW0124-001X TACT SW
S605 NSW0124-001X TACT SW
S606 NSW0124-001X TACT SW
S607 NSW0124-001X TACT SW
S608 NSW0124-001X TACT SW
S609 NSW0124-001X TACT SW
S610 NSW0124-001X TACT SW
S611 NSW0124-001X TACT SW
S612 NSW0124-001X TACT SW
S613 NSW0124-001X TACT SW
S614 NSW0124-001X TACT SW
S615 NSW0124-001X TACT SW
S616 NSW0124-001X TACT SW
S617 NSW0124-001X TACT SW
S618 NSW0124-001X TACT SW



Symbol No.

Part No. Part Name Description Local



IC71 LC72725KM-X IC

IC101 HA17558AF-X IC

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

IC151 TC4066BFT-X IC

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

IC161 NJW1192V-X IC



IC301 TB2904HQ IC
IC401 TC7SET08F-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC



IC721 UPD78F1166GC1D IC(PROGRAMMED)
IC722 S-24CS16A0I-G-X IC
IC731 IC-PST3433U-X IC
IC731 or S-80833CNNB-G-W IC
IC801 HD74HC126FP-X IC



IC911 R2S25400DS-E IC
IC921 BA33BC0FP-X IC
IC922 LA5777MP-X IC
IC961 TC74LCX32FT-F-X IC
IC962 TC74VHCT32AFT-X IC

Q1 RT1N141C-X DIGI TRANSISTOR
Q1 or UN2211-X TRANSISTOR



Symbol No.

Part No. Part Name Description Local

3-19

Q151 RT1N141C-X DIGI TRANSISTOR

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

Q151 or UN2211-X TRANSISTOR

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

Q152 RT1N141C-X DIGI TRANSISTOR

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

Q152 or UN2211-X TRANSISTOR

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
Q301 RT1N441C-X TRANSISTOR
Q301 or UN2213-X DIGI TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q302 or UN2113-X TRANSISTOR
Q303 RT6N430C-X TRANSISTOR
Q344 RT6N430C-X TRANSISTOR
Q354 RT6N430C-X TRANSISTOR
Q821 UN2211-X TRANSISTOR
Q821 or RT1N141C-X DIGI TRANSISTOR
Q822 UN2111-X TRANSISTOR
Q822 or RT1P141C-X DIGI TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q861 UN2111-X TRANSISTOR
Q861 or RT1P141C-X DIGI TRANSISTOR
Q862 UN2111-X TRANSISTOR
Q862 or RT1P141C-X DIGI TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q885 or UN2211-X TRANSISTOR
Q891 UN2211-X TRANSISTOR
Q891 or RT1N141C-X DIGI TRANSISTOR
Q892 UN2211-X TRANSISTOR
Q892 or RT1N141C-X DIGI TRANSISTOR
Q911 RT1P141C-X DIGI TRANSISTOR
Q911 or UN2111-X TRANSISTOR
Q912 RT1N141C-X DIGI TRANSISTOR
Q912 or UN2211-X TRANSISTOR
Q921 RT1N141C-X DIGI TRANSISTOR
Q921 or UN2211-X TRANSISTOR
Q971 2SA1530A/R/-X TRANSISTOR
Q971 or 2SB709A/R/-X TRANSISTOR
Q972 RT1N141C-X DIGI TRANSISTOR
Q972 or UN2211-X TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q976 or UN2213-X DIGI TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
Q977 or 2SB709A/R/-X TRANSISTOR

D1 1SS355W-X DIODE
D1 o r MA 111 - X SI DI O DE
D2 1SS355W-X DIODE
D2 o r MA 111 - X SI DI O DE
D301 UDZW11B-X Z DIODE
D301 or MA8110/M/-X Z DIODE
D302 1SS355W-X DIODE
D302 or MA111-X SI DIODE
D303 or CRS03-W SB DIODE
D303 MA22D23-X SB DIODE
D303 or RB160M-30-X SB DIODE
D304 or CRS03-W SB DIODE



Symbol No.

Part No. Part Name Description Local

D304 MA22D23-X SB DIODE
D304 or RB160M-30-X SB DIODE
D344 1SS355W-X DIODE
D344 or MA111-X SI DIODE
D354 1SS355W-X DIODE
D354 or MA111-X SI DIODE
D401 or RB160M-30-X SB DIODE
D401 MA22D23-X SB DIODE
D401 or CRS03-W SB DIODE
D731 1SS355W-X DIODE
D731 or MA111-X SI DIODE
D801 or RB160M-30-X SB DIODE
D801 MA22D23-X SB DIODE
D801 or CRS03-W SB DIODE
D821 UDZW12B-X Z DIODE
D821 or MA8120/M/-X Z DIODE

D831 UDZW6.2B-X Z DIODE

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

D831 or MA8062/M/-X Z DIODE

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
D861 MA111-X SI DIODE
D861 or 1SS355W-X DIODE
D862 MA111-X SI DIODE
D862 or 1SS355W-X DIODE
D863 MA8110/M/-X Z DIODE
D863 or UDZW11B-X Z DIODE
D885 1SS355W-X DIODE
D885 or MA111-X SI DIODE
D891 MA152WA-X DIODE
D891 or MC2836-X DIODE



D901 1N5401-TU-15 SI DIODE



D901 or 1N5401-F64 SI DIODE
D902 GS1J-X DIODE
D911 1SS355W-X DIODE
D9 11 or MA 111 - X SI DI O DE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D971 or CRS03-W SB DIODE
D971 MA22D23-X SB DIODE
D971 or RB160M-30-X SB DIODE
D972 or CRS03-W SB DIODE
D972 MA22D23-X SB DIODE
D972 or RB160M-30-X SB DIODE
D973 or CRS03-W SB DIODE
D973 MA22D23-X SB DIODE
D973 or RB160M-30-X SB DIODE
D974 UDZW5.1B-X SB DIODE
D974 or MA8051/M/-X Z DIODE
D981 or RB160M-30-X SB DIODE
D981 MA22D23-X SB DIODE
D981 or CRS03-W SB DIODE
D982 or RB160M-30-X SB DIODE
D982 MA22D23-X SB DIODE
D982 or CRS03-W SB DIODE

C1 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C4 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C7 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C71 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C72 NDCA1HJ-331W C CAPACITOR 330pF 50V J
C73 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C74 NCBA1HK-561W C CAPACITOR 560pF 50V K
C75 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C76 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C77 NDCA1HJ-330W C CAPACITOR 33pF 50V J



Symbol No.

Part No. Part Name Description Local

3-20

C78 NDCA1HJ-330W C CAPACITOR 33pF 50V J
C81 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C91 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M

C103 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C109 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C113 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C141 NCBA1EK-472W C CAPACITOR 4700pF 25V K

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C142 NCBA1EK-472W C CAPACITOR 4700pF 25V K

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C143 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C145 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C146 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C147 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

C151 QTE1C57-106Z E CAPACITOR 10uF 16V

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U



Symbol No.

Part No. Part Name Description Local

C152 NCBA1CK-103W C CAPACITOR 0.01uF 16V K

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C164 QTE1C57-106Z E CAPACITOR 10uF 16V
C171 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C173 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C174 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C175 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C176 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C177 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C178 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C179 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C180 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C181 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C183 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C184 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C185 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C186 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C187 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C188 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C189 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C190 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C304 QERF1HM-475Z E CAPACITOR 4.7uF 50V M
C305 QTE1C57-476Z E CAPACITOR 47uF 16V
C306 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C307 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C309 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C328 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C329 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C331 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C338 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C339 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C349 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C359 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C401 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C402 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C403 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C406 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C701 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C702 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C721 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C731 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C732 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C743 NDCA1HJ-270W C CAPACITOR 27pF 50V J
C744 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C751 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C752 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C753 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C754 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C755 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C756 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C757 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C761 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C801 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C802 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C803 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C804 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C805 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M



Symbol No.

Part No. Part Name Description Local

3-21

C806 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCBA1CK-103W C CAPACITOR 0.01uF 16V K

C831 NDCA1HJ-101W C CAPACITOR 100pF 50V J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
C861 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C862 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C892 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C901 QEZ0843-278 E CAPACITOR 2700uF
C902 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C903 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C913 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C914 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C915 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C916 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C917 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C919 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C920 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C923 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C924 NBZ0009-127X E. CAPACITOR 120uF
C925 QEZ0595-477Z E CAPACITOR 470uF 25V M
C926 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C961 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C963 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C964 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C971 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C972 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C973 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C974 NDCA1HJ-102W C CAPACITOR 1000pF 50V J
C975 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C981 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

R1 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R3 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R4 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R5 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R6 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R7 NRS181J-120X MG RESISTOR 12Ω 1/8W J
R8 NRS181J-120X MG RESISTOR 12

Ω

1/8W J

R9 NRSA6AJ-332W MG RESISTOR 3.3k

Ω

1/16W J
R11 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R12 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J

R71 NRSA6AJ-101W MG RESISTOR 100

Ω

1/16W J
R72 NRSA6AJ-202W MG RESISTOR 2kΩ 1/16W J
R73 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R81 NRSA6AJ-123W MG RESISTOR 12k

Ω

1/16W J
R82 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J
R91 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J
R92 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J

R102 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R103 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U



Symbol No.

Part No. Part Name Description Local

R104 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R105 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R106 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R107 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R108 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R112 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R113 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R114 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R115 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R116 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U



Symbol No.

Part No. Part Name Description Local

3-22

R117 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R118 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R143 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R144 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R145 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R146 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R147 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R151 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R152 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
R171 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R174 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R175 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J

R181 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J
R184 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R185 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R302 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J
R303 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R304 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

R305 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R327 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R329 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R330 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R337 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J



Symbol No.

Part No. Part Name Description Local

R339 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R340 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R343 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R345 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R346 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R347 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R349 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R350 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R353 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R355 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R356 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R357 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R359 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R360 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R401 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R402 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R403 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R404 NRSA6AJ-1R0W MG RESISTOR 1Ω 1/16W J
R412 NRSA6AD-682W MG RESISTOR 6.8kΩ 1/16W D
R413 NRSA6AD-181W MG RESISTOR 180Ω 1/16W D
R414 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R415 NRSA6AJ-750W MG RESISTOR 75Ω 1/16W J
R416 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R417 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R701 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R702 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R703 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R721 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R722 NRSA6AJ-432W MG RESISTOR 4.3kΩ 1/16W J
R723 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R725 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R726 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R727 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R728 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R729 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R730 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R731 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R732 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R733 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R735 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R736 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R737 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R738 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R740 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R741 NRSA6AJ-106W MG RESISTOR 10MΩ 1/16W J
R742 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R743 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R745 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J

R746 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R747 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R748 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

R761 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R762 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R763 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R764 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J
R765 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R766 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R767 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R768 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J

R769 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E
U

R770 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
R771 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J
R772 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R773 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R774 NRSA6AJ-562W MG RESISTOR 5.6kΩ 1/16W J
R775 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

3-23

R778 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R779 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R780 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R781 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R782 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R783 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R784 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R785 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R786 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R787 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R788 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R789 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J

R791 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
R793 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R794 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R795 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R796 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R797 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J

R798 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53

07EE,

DV53

08EE
R801 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R802 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R803 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R804 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J
R805 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R806 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J
R807 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R808 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R809 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R810 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R821 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R822 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R823 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J

R832 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J

DV53

01E,D

V5301

EU,D

V5302

E,DV5

302E

U
R861 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R885 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R886 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J

R887 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R891 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R892 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J

R893 NRSA6AJ-332W MG RESISTOR 3.3k

Ω

1/16W J
R901 QRE142J-102X C RESISTOR 1kΩ 1/4W J
R902 NRSA6AJ-912W MG RESISTOR 9.1kΩ 1/16W J
R911 NRSA6AJ-682W MG RESISTOR 6.8kΩ 1/16W J
R912 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R913 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J
R914 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R922 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R961 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R962 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R963 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R971 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R972 NRS181J-221X MG RESISTOR 220Ω 1/8W J
R973 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R974 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

R976 NRSA6AJ-563W MG RESISTOR 56k

Ω

1/16W J
R977 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J
R981 NRS181J-222X MG RESISTOR 2.2k

Ω

1/8W J

R982 NRS181J-222X MG RESISTOR 2.2k

Ω

1/8W J

RA763 NRZ0065-222X NET RESISTOR 2.2k

Ω

L1 QQL244J-4R7Z P COIL 4.7uH J
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X INDUCTOR 47uH K



Symbol No.

Part No. Part Name Description Local

L752 QQL244J-470Z COIL 47uH J
L901 QQR1378-002 COIL
L911 NQL56CK-220X COIL 22uH K
L921 NQL56CK-220X COIL 22uH K
L922 NQLB7GM-100X COIL 10uH M
L923 NQL71EM-330X COIL 33uH M

CN141 QGA2006C1-04 CONNECTOR W-B (1-4)

DV53
01E,D
V5301
EU,D
V5302
E,DV5
302E

U
CN701 QGZ1601J1-15 CONNECTOR (1-15)
CN821 QGA2001C1-02 CONNECTOR W-B (1-2)

CN831 QGA2001F1-02 CONNECTOR W-B (1-2)

DV53

01E,D

V5301

EU,D

V5302

E,DV5

302E

U
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2044M1-30 CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR FFC/FPC (1-45)
CN963 QGB2043L1-30X CONNECTOR B-B (1-30)
J1 QNB0190-001 CAR ANT JACK
J331 QNN0770-001 3P PIN JACK
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS

K831 NQR0007-002X FERRITE BEADS

DV53

01E,D

V5301

EU,D

V5302

E,DV5

302E

U

PP1 QZW0010-001 STYLE PIN

DV53

01E,D

V5301

EU,D

V5302

E,DV5

302E

U

PP2 QZW0010-001 STYLE PIN

DV53

01E,D

V5301

EU,D

V5302

E,DV5

302E

U
S731 QSW0648-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k

Ω



TU1 QAU0484-001 TUNER PACK

DV53

01E,D

V5301

EU,D

V5302

E,DV5

302E

U



TU1 QAU0485-001 TUNER PACK

DV53

07EE,

DV53

08EE
X71 QAX0263-001Z CRYSTAL 4.332MHz
X721 QAX0401-001 CRYSTAL 32.768KHz
X722 QAX0916-001Z CRYSTAL



Symbol No.

Part No. Part Name Description Local

3-24

Switch board
(DV5301,DV5302,DV5307,DV5308)

Block No. [0][4]

Main board
(DV5304,DV5305,DV5306,DV4304,DV430
5,DV4306)

Block No. [0][5]



Symbol No.

Part No. Part Name Description Local

IC661 PT6523LQ-L LCD DRIVER
IC681 RPM7338-V4 RM.RECEIVER

D630 SML-310LT/MN/-X LED
D631 LSQ971/KL/-X LED
D632 LSQ971/KL/-X LED
D633 LSQ971/KL/-X LED
D634 LSQ971/KL/-X LED
D635 LSQ971/KL/-X LED
D636 LSQ971/KL/-X LED
D637 LSQ971/KL/-X LED
D638 LSQ971/KL/-X LED
D639 LSQ971/KL/-X LED
D640 LSQ971/KL/-X LED
D641 LSQ971/KL/-X LED
D642 LSQ971/KL/-X LED
D643 LSQ971/KL/-X LED
D644 LSQ971/KL/-X LED
D645 LSQ971/KL/-X LED
D646 LSQ971/KL/-X LED
D647 LSQ971/KL/-X LED
D648 LSQ971/KL/-X LED
D649 LSQ971/KL/-X LED
D650 NSPW310BS/B2RST LED
D651 NSPW310BS/B2RST LED
D661 1SS355W-X DIODE
D661 or MA111-X SI DIODE
D662 UDZW5.1B-X SB DIODE
D662 or MA8051/M/-X Z DIODE

C661 NCB21AK-105X C CAPACITOR 1uF 10V K
C662 NCS31HJ-681X C CAPACITOR 680pF 50V J
C663 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C682 NCB31HK-103X C CAPACITOR 0.01uF 50V K

R601 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R602 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R603 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R604 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R605 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R606 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R607 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J

R608 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J
R609 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R610 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J
R611 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J
R612 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R613 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R614 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J
R615 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R616 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R617 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R630 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R632 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R634 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R636 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R638 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R640 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R642 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R644 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R646 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R648 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R650 NRSA63J-561X MG RESISTOR 560

Ω

1/16W J

R652 NRSA02J-621X MG RESISTOR 620

Ω

1/10W J
R654 NRSA02J-271X MG RESISTOR 270Ω 1/10W J
R657 NRSA02J-181X MG RESISTOR 180

Ω

1/10W J
R660 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R661 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R662 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R663 NRSA63J-225X MG RESISTOR 2.2M

Ω

1/16W J
R664 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R665 NRSA63J-513X MG RESISTOR 51kΩ 1/16W J

R666 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R667 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R668 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R681 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

CJ601 QGZ1601K1-15S CONNECTOR (1-15)
JS686 QSW1219-001 ROTARY ENCODER
S601 NSW0124-001X TACT SW
S602 NSW0124-001X TACT SW
S603 NSW0124-001X TACT SW
S604 NSW0124-001X TACT SW
S605 NSW0124-001X TACT SW
S606 NSW0124-001X TACT SW
S607 NSW0124-001X TACT SW
S608 NSW0124-001X TACT SW
S609 NSW0124-001X TACT SW
S610 NSW0124-001X TACT SW
S611 NSW0124-001X TACT SW
S612 NSW0124-001X TACT SW
S613 NSW0124-001X TACT SW
S614 NSW0124-001X TACT SW
S615 NSW0124-001X TACT SW
S616 NSW0124-001X TACT SW
S617 NSW0124-001X TACT SW
S618 NSW0124-001X TACT SW



Symbol No.

Part No. Part Name Description Local

IC101 HA17558AF-X IC

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

IC111 TC4053BFT-X IC

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

3-25

IC151 TC4066BFT-X IC

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

IC161 NJW1192V-X IC



IC301 TB2904HQ IC
IC401 TC7SET08F-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC



IC721 UPD78F1166GC1C IC(PROGRAMD)
IC731 IC-PST3433U-X IC
IC731 or S-80833CNNB-G-W IC
IC801 HD74HC126FP-X IC



IC911 R2S25400DS-E IC
IC921 BA33BC0FP-X IC
IC922 LA5777MP-X IC
IC961 TC74LCX32FT-F-X IC
IC962 TC74VHCT32AFT-X IC

Q1 RT1N141C-X DIGI TRANSISTOR
Q1 or UN2211-X TRANSISTOR

Q121 RT1N141C-X DIGI TRANSISTOR

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

Q121 or UN2211-X TRANSISTOR

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

Q151 RT1N141C-X DIGI TRANSISTOR

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

Q151 or UN2211-X TRANSISTOR

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

Q152 RT1N141C-X DIGI TRANSISTOR

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

Q152 or UN2211-X TRANSISTOR

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
Q301 RT1N441C-X TRANSISTOR
Q301 or UN2213-X DIGI TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q302 or UN2113-X TRANSISTOR
Q303 RT6N430C-X TRANSISTOR
Q344 RT6N430C-X TRANSISTOR
Q354 RT6N430C-X TRANSISTOR
Q821 UN2211-X TRANSISTOR
Q821 or RT1N141C-X DIGI TRANSISTOR
Q822 UN2111-X TRANSISTOR
Q822 or RT1P141C-X DIGI TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q861 UN2111-X TRANSISTOR
Q861 or RT1P141C-X DIGI TRANSISTOR
Q862 UN2111-X TRANSISTOR
Q862 or RT1P141C-X DIGI TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q885 or UN2211-X TRANSISTOR
Q911 RT1P141C-X DIGI TRANSISTOR
Q911 or UN2111-X TRANSISTOR
Q912 RT1N141C-X DIGI TRANSISTOR
Q912 or UN2211-X TRANSISTOR
Q921 RT1N141C-X DIGI TRANSISTOR
Q921 or UN2211-X TRANSISTOR
Q971 2SA1530A/R/-X TRANSISTOR
Q971 or 2SB709A/R/-X TRANSISTOR
Q972 RT1N141C-X DIGI TRANSISTOR
Q972 or UN2211-X TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q976 or UN2213-X DIGI TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
Q977 or 2SB709A/R/-X TRANSISTOR

D1 1SS355W-X DIODE
D1 or MA111-X SI DIODE



Symbol No.

Part No. Part Name Description Local

3-26

D2 1SS355W-X DIODE
D2 or MA111-X SI DIODE
D301 UDZW11B-X Z DIODE
D301 or MA8110/M/-X Z DIODE
D302 1SS355W-X DIODE
D302 or MA111-X SI DIODE
D303 or CRS03-W SB DIODE
D303 MA22D23-X SB DIODE
D303 or RB160M-30-X SB DIODE
D304 or CRS03-W SB DIODE
D304 MA22D23-X SB DIODE
D304 or RB160M-30-X SB DIODE
D344 1SS355W-X DIODE
D344 or MA111-X SI DIODE
D354 1SS355W-X DIODE
D354 or MA111-X SI DIODE
D401 or RB160M-30-X SB DIODE
D401 MA22D23-X SB DIODE
D401 or CRS03-W SB DIODE

D710 UDZW6.2B-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

D710 or MA8062/M/-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

D711 UDZW6.2B-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

D711 or MA8062/M/-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

D712 UDZW6.2B-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

D712 or MA8062/M/-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

D713 UDZW6.2B-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

D713 or MA8062/M/-X Z DIODE

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
D731 1SS355W-X DIODE
D731 or MA111-X SI DIODE
D801 or RB160M-30-X SB DIODE
D801 MA22D23-X SB DIODE
D801 or CRS03-W SB DIODE
D821 UDZW12B-X Z DIODE
D821 or MA8120/M/-X Z DIODE
D851 or RB160M-30-X SB DIODE
D851 MA22D23-X SB DIODE
D851 or CRS03-W SB DIODE
D852 or RB160M-30-X SB DIODE
D852 MA22D23-X SB DIODE
D852 or CRS03-W SB DIODE
D861 MA111-X SI DIODE
D861 or 1SS355W-X DIODE
D862 MA111-X SI DIODE
D862 or 1SS355W-X DIODE
D863 MA8110/M/-X Z DIODE
D863 or UDZW11B-X Z DIODE
D885 1SS355W-X DIODE
D885 or MA111-X SI DIODE



Symbol No.

Part No. Part Name Description Local

3-27



D901 1N5401-TU-15 SI DIODE



D901 or 1N5401-F64 SI DIODE
D902 GS1J-X DIODE
D911 1SS355W-X DIODE
D9 11 or MA 111 -X SI DI O DE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D971 or CRS03-W SB DIODE
D971 MA22D23-X SB DIODE
D971 or RB160M-30-X SB DIODE
D972 or CRS03-W SB DIODE
D972 MA22D23-X SB DIODE
D972 or RB160M-30-X SB DIODE
D973 or CRS03-W SB DIODE
D973 MA22D23-X SB DIODE
D973 or RB160M-30-X SB DIODE
D974 UDZW5.1B-X SB DIODE
D974 or MA8051/M/-X Z DIODE
D981 or RB160M-30-X SB DIODE
D981 MA22D23-X SB DIODE
D981 or CRS03-W SB DIODE
D982 or RB160M-30-X SB DIODE
D982 MA22D23-X SB DIODE
D982 or CRS03-W SB DIODE

C1 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C4 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C7 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C81 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C91 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M

C103 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C109 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C113 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

C121 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C141 NCBA1EK-472W C CAPACITOR 4700pF 25V K

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C142 NCBA1EK-472W C CAPACITOR 4700pF 25V K

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C143 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C145 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

3-28

C146 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C147 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C151 QTE1C57-106Z E CAPACITOR 10uF 16V

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C152 NCBA1CK-103W C CAPACITOR 0.01uF 16V K

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C164 QTE1C57-106Z E CAPACITOR 10uF 16V
C171 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C172 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C173 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C174 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C175 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C176 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C177 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C178 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C179 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C180 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C181 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C182 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C183 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C184 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C185 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C186 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C187 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C188 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M



Symbol No.

Part No. Part Name Description Local

C189 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C190 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C304 QERF1HM-475Z E CAPACITOR 4.7uF 50V M
C305 QTE1C57-476Z E CAPACITOR 47uF 16V
C306 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C307 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C309 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C328 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C329 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C331 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C338 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C339 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C349 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C359 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C401 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C402 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C403 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C406 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C701 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C702 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

C703 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C704 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

C705 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

3-29

C706 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
C731 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C732 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C743 NDCA1HJ-270W C CAPACITOR 27pF 50V J
C744 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C751 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C752 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C753 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C754 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C755 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C756 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C757 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C761 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C801 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C802 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C803 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C804 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C805 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C806 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C851 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C861 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C862 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C901 QEZ0768-278 E CAPACITOR 2700uF
C902 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C903 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C913 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C914 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C915 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C916 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C917 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C919 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C920 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C923 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C924 NBZ0009-127X E. CAPACITOR 120uF
C925 QEZ0595-477Z E CAPACITOR 470uF 25V M
C926 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C961 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C963 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C964 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C971 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C972 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C973 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C974 NDCA1HJ-102W C CAPACITOR 1000pF 50V J
C975 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C981 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

R1 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R3 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R4 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R5 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R6 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J

R7 NRS181J-120X MG RESISTOR 12

Ω

1/8W J
R8 NRS181J-120X MG RESISTOR 12Ω 1/8W J
R9 NRSA6AJ-332W MG RESISTOR 3.3k

Ω

1/16W J

R11 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J
R12 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R81 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J
R82 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J
R91 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R92 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J

R102 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R103 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R104 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R105 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R106 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

3-30

R107 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R108 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R112 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R113 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R114 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

R115 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R116 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R117 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R118 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R121 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

3-31

R143 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R144 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R145 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R146 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R147 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

R151 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R152 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
R171 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R174 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R175 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R181 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R184 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R185 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R302 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R303 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R304 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R305 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R327 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R329 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R330 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R337 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R339 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R340 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R343 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R345 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R346 NRSA6AJ-101W MG RESISTOR 100

Ω

1/16W J

R347 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J
R349 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R350 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J

R353 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J
R355 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R356 NRSA6AJ-101W MG RESISTOR 100

Ω

1/16W J
R357 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J
R359 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R360 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J

R401 NRSA6AJ-471W MG RESISTOR 470

Ω

1/16W J
R402 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R403 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R404 NRSA6AJ-1R0W MG RESISTOR 1Ω 1/16W J
R412 NRSA6AD-682W MG RESISTOR 6.8kΩ 1/16W D
R413 NRSA6AD-181W MG RESISTOR 180Ω 1/16W D
R414 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R415 NRSA6AJ-750W MG RESISTOR 75Ω 1/16W J
R416 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R417 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R701 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R702 NRSA6AJ-271W MG RESISTOR 270

Ω

1/16W J
R703 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J



Symbol No.

Part No. Part Name Description Local

3-32

R704 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R705 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R706 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R707 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R725 NRSA6AJ-224W MG RESISTOR 220k

Ω

1/16W J
R726 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R728 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R729 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R731 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R732 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R733 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R735 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R736 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R737 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R738 NRSA6AJ-224W MG RESISTOR 220k

Ω

1/16W J
R740 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R741 NRSA6AJ-106W MG RESISTOR 10MΩ 1/16W J
R742 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J
R743 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J
R745 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R746 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J

R747 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R748 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R761 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R762 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R763 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R764 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R765 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R766 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R767 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R771 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J
R772 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R773 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R774 NRSA6AJ-562W MG RESISTOR 5.6kΩ 1/16W J
R775 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R778 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R779 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R780 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R781 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R782 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R783 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R784 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R785 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R786 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R787 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R788 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R789 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R791 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R793 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R794 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R795 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R796 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R797 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J

R798 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
R801 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R802 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R803 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R804 NRSA6AJ-104W MG RESISTOR 100k

Ω

1/16W J

R805 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R806 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J
R807 NRSA6AJ-331W MG RESISTOR 330

Ω

1/16W J
R808 NRSA6AJ-223W MG RESISTOR 22k

Ω

1/16W J
R809 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R810 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J
R821 NRSA6AJ-100W MG RESISTOR 10

Ω

1/16W J
R822 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R823 NRSA6AJ-223W MG RESISTOR 22k

Ω

1/16W J

R851 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R861 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R885 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R886 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R887 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R901 QRE142J-102X C RESISTOR 1kΩ 1/4W J
R902 NRSA6AJ-912W MG RESISTOR 9.1kΩ 1/16W J
R911 NRSA6AJ-682W MG RESISTOR 6.8kΩ 1/16W J
R912 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R913 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J
R914 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R922 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R961 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R962 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R963 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

R971 NRSA6AJ-101W MG RESISTOR 100

Ω

1/16W J
R972 NRS181J-221X MG RESISTOR 220Ω 1/8W J
R973 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J

R974 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J
R976 NRSA6AJ-563W MG RESISTOR 56kΩ 1/16W J
R977 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J
R981 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
R982 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J



Symbol No.

Part No. Part Name Description Local

3-33

Switch board
(DV5304,DV5305,DV5306,DV4304,DV430
5,DV4306)

Block No. [0][6]

RA763 NRZ0065-222X NET RESISTOR 2.2k

Ω

L1 QQL244J-4R7Z P COIL 4.7uH J
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X INDUCTOR 47uH K
L752 QQL244J-470Z COIL 47uH J
L901 QQR1378-002 COIL
L911 NQL56CK-220X COIL 22uH K
L921 NQL56CK-220X COIL 22uH K
L922 NQLB7GM-100X COIL 10uH M
L923 NQL71EM-330X COIL 33uH M

CN141 QGA2006C1-04 CONNECTOR W-B (1-4)

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
CN701 QGZ1601J1-15 CONNECTOR (1-15)
CN821 QGA2001C1-02 CONNECTOR W-B (1-2)
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2044M1-30 CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR FFC/FPC (1-45)
CN963 QGB2043L1-30X CONNECTOR B-B (1-30)
J1 QNB0190-001 CAR ANT JACK
J331 QNN0770-001 3P PIN JACK
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS

PP2 QZW0010-001 STYLE PIN

DV53

04UI,

DV53

05U,D

V5305

UN,D

V5305

UT,DV

5305A

,DV53

06U,D

V5306

UN,D

V5306

UT,DV

5306A
S731 QSW0648-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k

Ω



TU1 QAU0484-001 TUNER PACK
X721 QAX0401-001 CRYSTAL 32.768KHz
X722 QAX0916-001Z CRYSTAL



Symbol No.

Part No. Part Name Description Local

IC661 PT6523LQ-L LCD DRIVER
IC681 RPM7338-V4 RM.RECEIVER

D630 SML-310LT/MN/-X LED
D631 SML-310LT/MN/-X LED
D632 SML-310LT/MN/-X LED
D633 SML-310LT/MN/-X LED



Symbol No.

Part No. Part Name Description Local

D634 SML-310LT/MN/-X LED
D635 SML-310LT/MN/-X LED
D636 SML-310LT/MN/-X LED
D637 SML-310LT/MN/-X LED
D638 SML-310LT/MN/-X LED
D639 SML-310LT/MN/-X LED
D640 SML-310LT/MN/-X LED
D641 SML-310LT/MN/-X LED
D642 SML-310LT/MN/-X LED
D643 SML-310LT/MN/-X LED
D644 SML-310LT/MN/-X LED
D645 SML-310LT/MN/-X LED
D646 SML-310LT/MN/-X LED
D647 SML-310LT/MN/-X LED
D648 SML-310LT/MN/-X LED
D649 SML-310LT/MN/-X LED
D650 NSPW310BS/B2RST LED
D651 NSPW310BS/B2RST LED
D661 1SS355W-X DIODE
D661 or MA111-X SI DIODE
D662 UDZW5.1B-X SB DIODE
D662 or MA8051/M/-X Z DIODE

C620 NCB31HK-473X C CAPACITOR 0.047uF 50V K

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
C661 NCB21AK-105X C CAPACITOR 1uF 10V K
C662 NCS31HJ-681X C CAPACITOR 680pF 50V J
C663 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C682 NCB31HK-103X C CAPACITOR 0.01uF 50V K

R601 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R602 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R603 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R604 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

R605 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J
R606 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R607 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J

R608 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J
R609 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R610 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J
R611 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J
R612 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R613 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R614 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J
R615 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R616 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R617 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R620 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A



Symbol No.

Part No. Part Name Description Local

3-34

Main board(DV5388,DV4388)

Block No. [0][7]

R621 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R622 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R623 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R624 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV
5306A

R630 NRSA02J-621X MG RESISTOR 620

Ω

1/10W J
R632 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R634 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R636 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R638 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R640 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R642 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R644 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R646 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R648 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R650 NRSA63J-561X MG RESISTOR 560

Ω

1/16W J
R652 NRSA02J-621X MG RESISTOR 620

Ω

1/10W J
R654 NRSA02J-271X MG RESISTOR 270Ω 1/10W J
R657 NRSA02J-181X MG RESISTOR 180

Ω

1/10W J
R660 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R661 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R662 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R663 NRSA63J-225X MG RESISTOR 2.2M

Ω

1/16W J
R664 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R665 NRSA63J-513X MG RESISTOR 51kΩ 1/16W J
R666 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R667 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R668 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R681 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

CJ601 QGZ1601K1-15S CONNECTOR (1-15)

J601 QNS0215-001 3.5 JACK

DV53
04UI,
DV53
05U,D
V5305
UN,D
V5305
UT,DV
5305A
,DV53
06U,D
V5306
UN,D
V5306
UT,DV

5306A
JS686 QSW1219-001 ROTARY ENCODER
S601 NSW0124-001X TACT SW
S602 NSW0124-001X TACT SW
S603 NSW0124-001X TACT SW
S604 NSW0124-001X TACT SW
S605 NSW0124-001X TACT SW
S606 NSW0124-001X TACT SW
S607 NSW0124-001X TACT SW
S608 NSW0124-001X TACT SW
S609 NSW0124-001X TACT SW
S610 NSW0124-001X TACT SW
S611 NSW0124-001X TACT SW
S612 NSW0124-001X TACT SW
S613 NSW0124-001X TACT SW
S614 NSW0124-001X TACT SW
S615 NSW0124-001X TACT SW
S616 NSW0124-001X TACT SW
S617 NSW0124-001X TACT SW
S618 NSW0124-001X TACT SW



Symbol No.

Part No. Part Name Description Local

IC101 HA17558AF-X IC

DV53

88UF

IC111 TC4053BFT-X IC

DV53

88UF

IC151 TC4066BFT-X IC

DV53

88UF
IC161 NJW1192V-X IC



IC301 TB2904HQ IC
IC401 TC7SET08F-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC



IC721 UPD78F1166GC1C IC(PROGRAMD)
IC731 IC-PST3433U-X IC
IC731 or S-80833CNNB-G-W IC
IC801 HD74HC126FP-X IC



IC911 R2S25400DS-E IC
IC921 BA33BC0FP-X IC
IC922 LA5777MP-X IC
IC961 TC74LCX32FT-F-X IC
IC962 TC74VHCT32AFT-X IC

Q1 RT1N141C-X DIGI TRANSISTOR
Q1 or UN2211-X TRANSISTOR

Q121 RT1N141C-X DIGI TRANSISTOR

DV53

88UF

Q121 or UN2211-X TRANSISTOR

DV53

88UF

Q151 RT1N141C-X DIGI TRANSISTOR

DV53

88UF



Symbol No.

Part No. Part Name Description Local

3-35

Q151 or UN2211-X TRANSISTOR

DV53
88UF

Q152 RT1N141C-X DIGI TRANSISTOR

DV53
88UF

Q152 or UN2211-X TRANSISTOR

DV53

88UF
Q301 RT1N441C-X TRANSISTOR
Q301 or UN2213-X DIGI TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q302 or UN2113-X TRANSISTOR
Q303 RT6N430C-X TRANSISTOR
Q344 RT6N430C-X TRANSISTOR
Q354 RT6N430C-X TRANSISTOR
Q821 UN2211-X TRANSISTOR
Q821 or RT1N141C-X DIGI TRANSISTOR
Q822 UN2111-X TRANSISTOR
Q822 or RT1P141C-X DIGI TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q861 UN2111-X TRANSISTOR
Q861 or RT1P141C-X DIGI TRANSISTOR
Q862 UN2111-X TRANSISTOR
Q862 or RT1P141C-X DIGI TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q885 or UN2211-X TRANSISTOR
Q911 RT1P141C-X DIGI TRANSISTOR
Q911 or UN2111-X TRANSISTOR
Q912 RT1N141C-X DIGI TRANSISTOR
Q912 or UN2211-X TRANSISTOR
Q921 RT1N141C-X DIGI TRANSISTOR
Q921 or UN2211-X TRANSISTOR
Q971 2SA1530A/R/-X TRANSISTOR
Q971 or 2SB709A/R/-X TRANSISTOR
Q972 RT1N141C-X DIGI TRANSISTOR
Q972 or UN2211-X TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q976 or UN2213-X DIGI TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
Q977 or 2SB709A/R/-X TRANSISTOR

D1 1SS355W-X DIODE
D1 o r MA 111 - X SI DI O DE
D2 1SS355W-X DIODE
D2 o r MA 111 - X SI DI O DE
D301 UDZW11B-X Z DIODE
D301 or MA8110/M/-X Z DIODE
D302 1SS355W-X DIODE
D302 or MA111-X SI DIODE
D303 MA22D23-X SB DIODE
D303 or CRS03-W SB DIODE
D303 or RB160M-30-X SB DIODE
D304 MA22D23-X SB DIODE
D304 or CRS03-W SB DIODE
D304 or RB160M-30-X SB DIODE
D344 1SS355W-X DIODE
D344 or MA111-X SI DIODE
D354 1SS355W-X DIODE
D354 or MA111-X SI DIODE
D401 MA22D23-X SB DIODE
D401 or RB160M-30-X SB DIODE
D401 or CRS03-W SB DIODE

D710 UDZW6.2B-X Z DIODE

DV53

88UF

D710 or MA8062/M/-X Z DIODE

DV53

88UF

D711 UDZW6.2B-X Z DIODE

DV53

88UF

D711 or MA8062/M/-X Z DIODE

DV53

88UF

D712 UDZW6.2B-X Z DIODE

DV53

88UF

D712 or MA8062/M/-X Z DIODE

DV53

88UF

D713 UDZW6.2B-X Z DIODE

DV53

88UF

D713 or MA8062/M/-X Z DIODE

DV53

88UF
D731 1SS355W-X DIODE
D731 or MA111-X SI DIODE
D801 MA22D23-X SB DIODE



Symbol No.

Part No. Part Name Description Local

D801 or RB160M-30-X SB DIODE
D801 or CRS03-W SB DIODE
D821 UDZW12B-X Z DIODE
D821 or MA8120/M/-X Z DIODE
D851 MA22D23-X SB DIODE
D851 or RB160M-30-X SB DIODE
D851 or CRS03-W SB DIODE
D852 MA22D23-X SB DIODE
D852 or RB160M-30-X SB DIODE
D852 or CRS03-W SB DIODE
D861 MA111-X SI DIODE
D861 or 1SS355W-X DIODE
D862 MA111-X SI DIODE
D862 or 1SS355W-X DIODE
D863 MA8110/M/-X Z DIODE
D863 or UDZW11B-X Z DIODE
D885 1SS355W-X DIODE
D885 or MA111-X SI DIODE



D901 1N5401-TU-15 SI DIODE



D901 or 1N5401-F64 SI DIODE
D902 GS1J-X DIODE
D911 1SS355W-X DIODE
D9 11 or MA 111 - X SI DI O DE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D971 MA22D23-X SB DIODE
D971 or CRS03-W SB DIODE
D971 or RB160M-30-X SB DIODE
D972 MA22D23-X SB DIODE
D972 or CRS03-W SB DIODE
D972 or RB160M-30-X SB DIODE
D973 MA22D23-X SB DIODE
D973 or CRS03-W SB DIODE
D973 or RB160M-30-X SB DIODE
D974 UDZW5.1B-X SB DIODE
D974 or MA8051/M/-X Z DIODE
D981 MA22D23-X SB DIODE
D981 or RB160M-30-X SB DIODE
D981 or CRS03-W SB DIODE
D982 MA22D23-X SB DIODE
D982 or RB160M-30-X SB DIODE
D982 or CRS03-W SB DIODE

C1 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C4 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C7 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C81 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C91 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M

C103 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M

DV53
88UF

C109 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

DV53
88UF

C113 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M

DV53
88UF

C121 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

DV53
88UF

C141 NCBA1EK-472W C CAPACITOR 4700pF 25V K

DV53
88UF

C142 NCBA1EK-472W C CAPACITOR 4700pF 25V K

DV53
88UF

C143 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z

DV53
88UF

C145 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
88UF

C146 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
88UF

C147 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
88UF

C151 QTE1C57-106Z E CAPACITOR 10uF 16V

DV53
88UF

C152 NCBA1CK-103W C CAPACITOR 0.01uF 16V K

DV53

88UF
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C164 QTE1C57-106Z E CAPACITOR 10uF 16V
C171 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C172 QTE1H54-225Z E CAPACITOR 2.2uF 50V



Symbol No.

Part No. Part Name Description Local

3-36

C173 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C174 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C175 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C176 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C177 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C178 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C179 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C180 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C181 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C182 QTE1H54-225Z E CAPACITOR 2.2uF 50V
C183 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C184 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C185 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C186 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C187 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C188 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C189 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C190 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C304 QERF1HM-475Z E CAPACITOR 4.7uF 50V M
C305 QTE1C57-476Z E CAPACITOR 47uF 16V
C306 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C307 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C309 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C328 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C329 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C331 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C338 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C339 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C349 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C359 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C401 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C402 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C403 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C406 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C701 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C702 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

C703 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

DV53
88UF

C704 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
88UF

C705 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53
88UF

C706 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M

DV53

88UF
C731 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C732 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C743 NDCA1HJ-270W C CAPACITOR 27pF 50V J
C744 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C751 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C752 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C753 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C754 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C755 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C756 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C757 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C761 NDCA1HJ-471W C CAPACITOR 470pF 50V J
C801 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C802 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C803 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C804 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C805 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C806 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C851 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C861 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M



Symbol No.

Part No. Part Name Description Local

C862 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C901 QEZ0768-278 E CAPACITOR 2700uF
C902 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C903 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C913 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C914 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C915 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C916 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C917 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C919 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C920 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C923 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C924 NBZ0009-127X E. CAPACITOR 120uF
C925 QEZ0595-477Z E CAPACITOR 470uF 25V M
C926 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C961 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C963 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C964 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C971 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C972 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C973 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C974 NDCA1HJ-102W C CAPACITOR 1000pF 50V J
C975 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C981 NCBA1AK-104W C CAPACITOR 0.1uF 10V K

R1 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R3 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R4 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R5 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R6 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R7 NRS181J-120X MG RESISTOR 12Ω 1/8W J
R8 NRS181J-120X MG RESISTOR 12Ω 1/8W J
R9 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J
R11 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R12 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R81 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J
R82 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J
R91 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J
R92 NRSA6AJ-512W MG RESISTOR 5.1kΩ 1/16W J

R102 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R103 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R104 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
88UF

R105 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R106 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
88UF

R107 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
88UF

R108 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J

DV53
88UF

R112 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J

DV53
88UF

R113 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R114 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R115 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R116 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R117 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53
88UF

R118 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J

DV53
88UF

R121 NRSA6AJ-222W MG RESISTOR 2.2k

Ω

1/16W J

DV53
88UF

R143 NRSA6AJ-471W MG RESISTOR 470

Ω

1/16W J

DV53
88UF

R144 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
88UF

R145 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53
88UF

R146 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53
88UF



Symbol No.

Part No. Part Name Description Local

3-37

R147 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53
88UF

R151 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J

DV53
88UF

R152 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J

DV53

88UF
R171 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R174 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R175 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R181 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R184 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J
R185 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R302 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R303 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R304 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R305 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R327 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R329 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R330 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R337 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R339 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R340 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R343 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R345 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R346 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R347 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R349 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R350 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R353 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R355 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R356 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R357 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R359 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R360 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R401 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R402 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R403 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R404 NRSA6AJ-1R0W MG RESISTOR 1Ω 1/16W J
R412 NRSA6AD-682W MG RESISTOR 6.8kΩ 1/16W D
R413 NRSA6AD-181W MG RESISTOR 180Ω 1/16W D
R414 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R415 NRSA6AJ-750W MG RESISTOR 75Ω 1/16W J
R416 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R417 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R701 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R702 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J
R703 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

R704 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53

88UF

R705 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J

DV53

88UF

R706 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53

88UF

R707 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J

DV53

88UF
R725 NRSA6AJ-224W MG RESISTOR 220k

Ω

1/16W J
R726 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R728 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R729 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R731 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R732 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R733 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R735 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R736 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R737 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R738 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J
R740 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R741 NRSA6AJ-106W MG RESISTOR 10MΩ 1/16W J
R742 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R743 NRSA6AJ-0R0W MG RESISTOR 0

Ω

1/16W J

R745 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R746 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R747 NRSA6AJ-472W MG RESISTOR 4.7k

Ω

1/16W J
R748 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R761 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R762 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R763 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R764 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J
R765 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R766 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R767 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R771 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J
R772 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R773 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R774 NRSA6AJ-562W MG RESISTOR 5.6kΩ 1/16W J
R775 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R778 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R779 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R780 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R781 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R782 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R783 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R784 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J
R785 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R786 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R787 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R788 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R789 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R791 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R793 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R794 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R795 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R796 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J
R797 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J

R798 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J

DV53

88UF
R801 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R802 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R803 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R804 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J
R805 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R806 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J
R807 NRSA6AJ-331W MG RESISTOR 330Ω 1/16W J
R808 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R809 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J
R810 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R821 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J
R822 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R823 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J
R851 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R861 NRSA6AJ-471W MG RESISTOR 470Ω 1/16W J
R885 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R886 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R887 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R901 QRE142J-102X C RESISTOR 1k

Ω

1/4W J

R902 NRSA6AJ-912W MG RESISTOR 9.1k

Ω

1/16W J
R911 NRSA6AJ-682W MG RESISTOR 6.8kΩ 1/16W J
R912 NRSA6AJ-102W MG RESISTOR 1k

Ω

1/16W J

R913 NRSA6AJ-123W MG RESISTOR 12k

Ω

1/16W J
R914 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J
R922 NRSA6AJ-473W MG RESISTOR 47k

Ω

1/16W J
R961 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R962 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J
R963 NRSA6AJ-103W MG RESISTOR 10k

Ω

1/16W J
R971 NRSA6AJ-101W MG RESISTOR 100

Ω

1/16W J
R972 NRS181J-221X MG RESISTOR 220Ω 1/8W J
R973 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J
R974 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J
R976 NRSA6AJ-563W MG RESISTOR 56kΩ 1/16W J
R977 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J
R981 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
R982 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
RA763 NRZ0065-222X NET RESISTOR 2.2k

Ω

L1 QQL244J-4R7Z P COIL 4.7uH J
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X INDUCTOR 47uH K
L752 QQL244J-470Z COIL 47uH J
L901 QQR1378-002 COIL
L911 NQL56CK-220X COIL 22uH K
L921 NQL56CK-220X COIL 22uH K
L922 NQLB7GM-100X COIL 10uH M
L923 NQL71EM-330X COIL 33uH M

CN141 QGA2006C1-04 CONNECTOR W-B (1-4)

DV53
88UF

CN701 QGZ1601J1-15 CONNECTOR (1-15)



Symbol No.

Part No. Part Name Description Local

3-38

Switch board(DV5388,DV4388)

Block No. [0][8]

Main board(Only DVH426)

Block No. [0][9]

CN821 QGA2001C1-02 CONNECTOR W-B (1-2)
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2044M1-30 CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR FFC/FPC (1-45)
CN963 QGB2043L1-30X CONNECTOR B-B (1-30)
J1 QNB0190-001 CAR ANT JACK
J331 QNN0770-001 3P PIN JACK
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS

PP2 QZW0010-001 STYLE PIN

DV53

88UF
S731 QSW0648-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k

Ω



TU1 QAU0484-001 TUNER PACK
X721 QAX0401-001 CRYSTAL 32.768KHz
X722 QAX0916-001Z CRYSTAL



Symbol No.

Part No. Part Name Description Local

IC661 PT6523LQ-L LCD DRIVER
IC681 RPM7338-V4 RM.RECEIVER

D630 SML-310LT/MN/-X LED
D631 SML-310LT/MN/-X LED
D632 SML-310LT/MN/-X LED
D633 SML-310LT/MN/-X LED
D634 SML-310LT/MN/-X LED
D635 SML-310LT/MN/-X LED
D636 SML-310LT/MN/-X LED
D637 SML-310LT/MN/-X LED
D638 SML-310LT/MN/-X LED
D639 SML-310LT/MN/-X LED
D640 SML-310LT/MN/-X LED
D641 SML-310LT/MN/-X LED
D642 SML-310LT/MN/-X LED
D643 SML-310LT/MN/-X LED
D644 SML-310LT/MN/-X LED
D645 SML-310LT/MN/-X LED
D646 SML-310LT/MN/-X LED
D647 SML-310LT/MN/-X LED
D648 SML-310LT/MN/-X LED
D649 SML-310LT/MN/-X LED
D650 NSPW310BS/B2RST LED
D651 NSPW310BS/B2RST LED
D661 1SS355W-X DIODE
D661 or MA111-X SI DIODE
D662 UDZW5.1B-X SB DIODE
D662 or MA8051/M/-X Z DIODE

C620 NCB31HK-473X C CAPACITOR 0.047uF 50V K

DV53

88UF
C661 NCB21AK-105X C CAPACITOR 1uF 10V K
C662 NCS31HJ-681X C CAPACITOR 680pF 50V J
C663 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C682 NCB31HK-103X C CAPACITOR 0.01uF 50V K

R601 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R602 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R603 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R604 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J
R605 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R606 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J

R607 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J
R608 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R609 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

R610 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J
R611 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R612 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R613 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R614 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R615 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R616 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R617 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R620 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

DV53
88UF

R621 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

DV53
88UF

R622 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J

DV53
88UF

R623 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J

DV53
88UF

R624 NRSA63J-471X MG RESISTOR 470Ω 1/16W J

DV53

88UF
R630 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R632 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R634 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R636 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R638 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R640 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R642 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R644 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R646 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R648 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R650 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R652 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R654 NRSA02J-271X MG RESISTOR 270Ω 1/10W J
R657 NRSA02J-181X MG RESISTOR 180Ω 1/10W J
R660 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R661 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R662 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R663 NRSA63J-225X MG RESISTOR 2.2MΩ 1/16W J
R664 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R665 NRSA63J-513X MG RESISTOR 51kΩ 1/16W J
R666 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R667 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R668 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R681 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

CJ601 QGZ1601K1-15S CONNECTOR (1-15)

J601 QNS0215-001 3.5 JACK

DV53

88UF
JS686 QSW1219-001 ROTARY ENCODER
S601 NSW0124-001X TACT SW
S602 NSW0124-001X TACT SW
S603 NSW0124-001X TACT SW
S604 NSW0124-001X TACT SW
S605 NSW0124-001X TACT SW
S606 NSW0124-001X TACT SW
S607 NSW0124-001X TACT SW
S608 NSW0124-001X TACT SW
S609 NSW0124-001X TACT SW
S610 NSW0124-001X TACT SW
S611 NSW0124-001X TACT SW
S612 NSW0124-001X TACT SW
S613 NSW0124-001X TACT SW
S614 NSW0124-001X TACT SW
S615 NSW0124-001X TACT SW
S616 NSW0124-001X TACT SW
S617 NSW0124-001X TACT SW
S618 NSW0124-001X TACT SW



Symbol No.

Part No. Part Name Description Local

IC161 NJW1192V-X IC



IC301 TB2904HQ IC
IC401 SN74AHCT1G08V-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC



IC721 UPD784218AGC347 IC(PROGRAMD)
IC722 BR24L16F-W-X IC(DIGITAL)
IC723 S-80833CNNB-G-W IC



Symbol No.

Part No. Part Name Description Local

3-39

IC723 or IC-PST3433U-X IC
IC801 SN74AHC126NS-X IC



IC901 R2S25400DS-E IC



IC921 BA33BC0FP-X IC



IC922 BD9778HFP-W IC
IC961 SN74LVC32APW-X IC
IC962 SN74HCT32APW-X IC

Q2 RT1N141C-X DIGI TRANSISTOR
Q2 or UN2211-X TRANSISTOR
Q301 RT1N441C-X TRANSISTOR
Q301 or UN2213-X DIGI TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q302 or UN2113-X TRANSISTOR
Q303 RT1N141C-X DIGI TRANSISTOR
Q303 or UN2211-X TRANSISTOR
Q344 KTD1304-X TRANSISTOR
Q354 KTD1304-X TRANSISTOR
Q781 RT1P141C-X DIGI TRANSISTOR
Q781 or UN2111-X TRANSISTOR
Q783 RT1P141C-X DIGI TRANSISTOR
Q783 or UN2111-X TRANSISTOR
Q821 RT1N141C-X DIGI TRANSISTOR
Q821 or UN2211-X TRANSISTOR
Q822 RT1P141C-X DIGI TRANSISTOR
Q822 or UN2111-X TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q885 or UN2211-X TRANSISTOR
Q903 2SA1530A/R/-X TRANSISTOR
Q903 or 2SB709A/R/-X TRANSISTOR
Q904 RT1N141C-X DIGI TRANSISTOR
Q904 or UN2211-X TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q976 or UN2213-X DIGI TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
Q977 or 2SB709A/R/-X TRANSISTOR

D1 1SS355W-X DIODE
D1 o r MA 111 - X SI DI O DE
D2 1SS355W-X DIODE
D2 o r MA 111 - X SI DI O DE
D301 UDZW11B-X Z DIODE
D301 or MA8110/M/-X Z DIODE
D302 1SS355W-X DIODE
D302 or MA111-X SI DIODE
D305 CRS03-W SB DIODE
D305 or RB160M-30-X SB DIODE
D308 CRS03-W SB DIODE
D308 or RB160M-30-X SB DIODE
D344 1SS355W-X DIODE
D344 or MA111-X SI DIODE
D354 1SS355W-X DIODE
D354 or MA111-X SI DIODE
D401 CRS03-W SB DIODE
D401 or RB160M-30-X SB DIODE
D411 UDZW12B-X Z DIODE
D411 or MA8120/M/-X Z DIODE
D731 1SS355W-X DIODE
D731 or MA111-X SI DIODE
D781 1SS355W-X DIODE
D781 or MA111-X SI DIODE
D782 1SS355W-X DIODE
D782 or MA111-X SI DIODE
D783 UDZW11B-X Z DIODE
D783 or MA8110/M/-X Z DIODE
D801 CRS03-W SB DIODE
D801 or RB160M-30-X SB DIODE
D821 UDZW12B-X Z DIODE
D821 or MA8120/M/-X Z DIODE
D851 CRS03-W SB DIODE
D851 or RB160M-30-X SB DIODE
D852 CRS03-W SB DIODE
D852 or RB160M-30-X SB DIODE
D885 1SS355W-X DIODE
D885 or MA111-X SI DIODE



D901 1N5401-F64 SI DIODE



D901 or 1N5401-TU-15 SI DIODE



Symbol No.

Part No. Part Name Description Local

D903 1SS355W-X DIODE
D903 or MA111-X SI DIODE
D906 UDZW5.1B-X SB DIODE
D906 or MA8051/M/-X Z DIODE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D923 CRS03-W SB DIODE
D923 or RB160M-30-X SB DIODE
D924 CRS03-W SB DIODE
D924 or RB160M-30-X SB DIODE
D925 CRS03-W SB DIODE
D925 or RB160M-30-X SB DIODE
D981 CRS03-W SB DIODE
D981 or RB160M-30-X SB DIODE
D982 CRS03-W SB DIODE
D982 or RB160M-30-X SB DIODE

C2 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C4 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C6 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C8 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C9 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C83 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C93 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C164 QTE1C57-106Z E CAPACITOR 10uF 16V
C169 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C171 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C173 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C174 NCS31HJ-471X C CAPACITOR 470pF 50V J
C175 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C176 NCB31HK-472X C CAPACITOR 4700pF 50V K
C177 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C178 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C179 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C180 QTE1H57-475Z E CAPACITOR 4.7uF 50V
C181 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C183 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C184 NCS31HJ-471X C CAPACITOR 470pF 50V J
C185 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C186 NCB31HK-472X C CAPACITOR 4700pF 50V K
C187 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C188 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C189 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C190 QTE1H57-475Z E CAPACITOR 4.7uF 50V
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C311 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C312 QTE1C57-476Z E CAPACITOR 47uF 16V
C313 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C314 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C315 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C316 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C328 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C329 NCS31HJ-101X C CAPACITOR 100pF 50V J
C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C338 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C339 NCS31HJ-101X C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C349 NCS31HJ-101X C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C359 NCS31HJ-101X C CAPACITOR 100pF 50V J
C401 NCS31HJ-220X C CAPACITOR 22pF 50V J
C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NCS31HJ-220X C CAPACITOR 22pF 50V J
C406 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z



Symbol No.

Part No. Part Name Description Local

3-40

C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C415 NCS31HJ-101X C CAPACITOR 100pF 50V J
C416 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C721 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C722 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C723 NCS31HJ-471X C CAPACITOR 470pF 50V J
C724 NCS31HJ-471X C CAPACITOR 470pF 50V J
C725 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C726 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C727 NDC31HJ-270X C CAPACITOR 27pF 50V J
C728 NDC31HJ-270X C CAPACITOR 27pF 50V J
C729 NDC31HJ-220X C CAPACITOR 22pF 50V J
C730 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C731 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C732 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C733 NCS31HJ-471X C CAPACITOR 470pF 50V J
C781 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C783 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C801 NCS31HJ-220X C CAPACITOR 22pF 50V J
C802 NCS31HJ-220X C CAPACITOR 22pF 50V J
C803 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C804 NCS31HJ-220X C CAPACITOR 22pF 50V J
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C851 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C889 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C901 QEZ0722-338 E CAPACITOR 3300uF 160V M
C902 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C903 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C904 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C905 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C906 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C909 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C911 NCB31HK-102X C CAPACITOR 1000pF 50V K
C912 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C913 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C925 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C926 QEXF1AM-476Z E CAPACITOR 47uF 10V M
C927 QEZ0595-477Z E CAPACITOR 470uF 25V M
C928 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C929 NCB31HK-472X C CAPACITOR 4700pF 50V K
C931 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C962 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C963 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C966 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C968 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C969 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C981 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C999 NCS31HJ-101X C CAPACITOR 100pF 50V J

R1 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R3 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R4 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R5 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R6 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R7 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R8 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R9 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R10 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R11 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R12 NRS181J-4R7X MG RESISTOR 4.7

Ω

1/8W J
R13 NRS181J-6R8X MG RESISTOR 6.8Ω 1/8W J
R14 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

R15 NRSA63J-202X MG RESISTOR 2k

Ω

1/16W J
R19 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R81 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

R82 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J
R91 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R92 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R171 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J
R172 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R173 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R181 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J
R182 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R183 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R302 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R304 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R305 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R306 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J
R307 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R327 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R329 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R330 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R337 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R339 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R340 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R343 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R344 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R345 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R346 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R347 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R349 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R350 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R353 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R354 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R355 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R356 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R357 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R359 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R360 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R401 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R402 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R403 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R404 NRSA63J-1R0X MG RESISTOR 1Ω 1/16W J
R412 NRSA63D-682X MG RESISTOR 6.8kΩ 1/16W D
R413 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R414 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R415 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R416 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R417 NRSA63D-181X MG RESISTOR 180Ω 1/16W D
R704 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R705 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R706 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R707 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R713 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R714 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R715 NRSA63J-271X MG RESISTOR 270

Ω

1/16W J

R716 NRSA63J-271X MG RESISTOR 270

Ω

1/16W J
R717 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R718 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J
R719 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J
R720 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R721 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R722 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J
R725 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R726 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R727 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R728 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R729 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R733 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R735 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R736 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R737 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R738 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R739 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R743 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R744 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R745 NRSA63J-106X MG RESISTOR 10M

Ω

1/16W J
R746 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R749 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R750 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R751 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J
R755 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R756 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R757 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R758 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R759 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

3-41

Switch board(Only DVH426)

Block No. [1][0]

R760 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R761 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R762 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R763 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R765 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R766 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R767 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R768 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R771 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R774 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R775 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R776 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R777 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R779 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R781 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R801 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R802 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R803 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R804 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R805 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R806 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R807 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R808 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R809 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R810 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R821 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R822 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R823 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R841 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R844 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R846 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R847 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R848 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R851 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R885 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R886 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R887 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R901 QRE142J-102X C RESISTOR 1kΩ 1/4W J
R902 NRSA63J-912X MG RESISTOR 9.1kΩ 1/16W J
R903 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R909 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R910 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R914 NRS181J-221X MG RESISTOR 220Ω 1/8W J
R924 NRSA63J-394X MG RESISTOR 390kΩ 1/16W J
R927 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R928 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J
R929 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R930 NRSA63J-154X MG RESISTOR 150k

Ω

1/16W J

R962 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J
R973 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R974 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J
R975 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J
R976 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R977 NRSA63J-183X MG RESISTOR 18k

Ω

1/16W J
R981 NRS181J-222X MG RESISTOR 2.2k

Ω

1/8W J
R982 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
RA723 NRZ0065-103X NET RESISTOR 10kΩ 1/16W J
RA962 NRZ0065-222X NET RESISTOR 2.2k

Ω

L1 NQL334J-4R7X COIL 4.7uH J
L2 NQL093K-R22X COIL 0.22uH K
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X INDUCTOR 47uH K
L721 NQL38DK-330X COIL 33uH K
L722 QQL244J-470Z COIL 47uH J
L901 QQR1378-002 COIL
L902 NQL56CK-220X COIL 22uH K
L924 NQL56CK-220X COIL 22uH K
L925 NQL71EM-330X COIL 33uH M
L927 NQLB7GM-100X COIL 10uH M

CN701 QGZ1601J1-15 CONNECTOR (1-15)
CN821 QGA2001C1-02 CONNECTOR W-B (1-2)
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2027M3-30S CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR FFC/FPC (1-45)
CN963 QGB2027L9-30X CONNECTOR B-B (1-30)
J1 QNB0190-001 CAR ANT JACK



Symbol No.

Part No. Part Name Description Local

J331 QNN0770-001 3P PIN JACK
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS
S723 QSW1049-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k

Ω



TU1 QAU0443-002 TUNER PACK
X721 QAX0617-001Z CRYSTAL 12.500MHz
X722 QAX0401-001 CRYSTAL 32.768KHz



Symbol No.

Part No. Part Name Description Local

IC661 PT6523LQ-L LCD DRIVER
IC681 RPM7338-V4 RM.RECEIVER

Q670 2SA1365/F/-X TRANSISTOR
Q671 RT1N141C-X DIGI TRANSISTOR
Q671 or UN2211-X TRANSISTOR

D630 SML-310LT/MN/-X LED
D631 SML310BA1T/HJ-X LED
D632 SML310BA1T/HJ-X LED
D633 SML310BA1T/HJ-X LED
D635 SML310BA1T/HJ-X LED
D637 SML310BA1T/HJ-X LED
D638 SML310BA1T/HJ-X LED
D639 SML310BA1T/HJ-X LED
D640 SML310BA1T/HJ-X LED
D641 SML310BA1T/HJ-X LED
D642 SML310BA1T/HJ-X LED
D643 SML310BA1T/HJ-X LED
D644 SML310BA1T/HJ-X LED
D645 SML310BA1T/HJ-X LED
D646 SML310BA1T/HJ-X LED
D647 SML310BA1T/HJ-X LED
D648 SML310BA1T/HJ-X LED
D649 SML310BA1T/HJ-X LED
D650 SML310BA1T/HJ-X LED
D651 SML-310VT/JK/-X LED
D652 SML-310VT/JK/-X LED
D653 NSPW310BS/B2RST LED
D654 NSPW310BS/B2RST LED
D661 1SS355W-X DIODE
D661 or MA111-X SI DIODE
D662 UDZW5.1B-X SB DIODE
D662 or MA8051/M/-X Z DIODE
D681 UDZW6.2B-X Z DIODE
D681 or MA8062/M/-X Z DIODE

C661 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C662 NCS31HJ-681X C CAPACITOR 680pF 50V J
C663 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C664 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C681 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C682 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C686 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C687 NCB31CK-223X C CAPACITOR 0.022uF 16V K

R410 NRSA02J-181X MG RESISTOR 180Ω 1/10W J
R420 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R430 NRSA63J-181X MG RESISTOR 180

Ω

1/16W J

R601 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J
R602 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R603 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R604 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J
R605 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R606 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J

R607 NRSA63J-821X MG RESISTOR 820

Ω

1/16W J
R608 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R609 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

3-42

Front end board(Except DVH426)

Block No. [1][1]

R610 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R611 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R612 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R613 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R614 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R615 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R625 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R627 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R630 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R631 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R633 NRSA63J-511X MG RESISTOR 510Ω 1/16W J
R635 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R637 NRSA63J-511X MG RESISTOR 510Ω 1/16W J
R639 NRSA63J-511X MG RESISTOR 510Ω 1/16W J
R641 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R643 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R645 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R649 NRS181J-391X MG RESISTOR 390Ω 1/8W J
R650 NRS181J-391X MG RESISTOR 390Ω 1/8W J
R661 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R662 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R663 NRSA63J-184X MG RESISTOR 180kΩ 1/16W J
R664 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R665 NRSA63J-513X MG RESISTOR 51kΩ 1/16W J
R666 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R667 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R668 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R670 NRS181J-471X MG RESISTOR 470Ω 1/8W J
R671 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R672 NRS181J-102X MG RESISTOR 1kΩ 1/8W J
R681 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R686 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R687 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R688 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J

CJ601 QGZ1601K1-15S CONNECTOR (1-15)
JS686 QSW0976-001 ROTARY ENCODER
S601 NSW0124-001X TACT SW
S602 NSW0124-001X TACT SW
S603 NSW0124-001X TACT SW
S604 NSW0124-001X TACT SW
S605 NSW0124-001X TACT SW
S606 NSW0124-001X TACT SW
S607 NSW0124-001X TACT SW
S608 NSW0124-001X TACT SW
S609 NSW0124-001X TACT SW
S610 NSW0124-001X TACT SW
S611 NSW0124-001X TACT SW
S612 NSW0124-001X TACT SW
S613 NSW0124-001X TACT SW
S614 NSW0124-001X TACT SW
S615 NSW0124-001X TACT SW
S616 NSW0124-001X TACT SW
S617 NSW0124-001X TACT SW
S618 NSW0124-001X TACT SW



Symbol No.

Part No. Part Name Description Local

IC201 BA5835FM-X IC
IC251 BD6671FM-X IC



IC301 MN2DS0009AA IC
IC302 BA00HC5WF-X IC
IC398 SG32A90TFIR34H IC(PROGRAMED)
IC399 K4S281632I-UC75 IC (DIGITAL)
IC399 or EDS1216AGTA-75 IC(DIGITAL)
IC401 AK4385ET-X IC
IC411 NJM4580V-X IC
IC481 BR24L16F-W-X IC(DIGITAL)

Q101 2SB1424/R/-W TRANSISTOR



Symbol No.

Part No. Part Name Description Local

Q102 2SC4617/R/-X TRANSISTOR
Q103 2SB1424/R/-W TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q105 2SC4617/R/-X TRANSISTOR
Q106 2SK3019-X MOS FET
Q107 2SK3019-X MOS FET
Q231 RT1N141U-X TRANSISTOR
Q301 RT1N441U-X TRANSISTOR
Q302 RT1N441U-X TRANSISTOR

C1 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C3 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C7 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C9 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C11 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C12 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C13 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C14 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C15 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C16 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C17 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C18 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C105 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C106 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C108 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C111 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C112 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C201 NEAF1CM-107X E CAPACITOR 100uF 16V M
C202 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C203 NCB31HK-271X C CAPACITOR 270pF 50V K
C204 NDC31HJ-151X C CAPACITOR 150pF 50V J
C205 NCB31HK-681X C CAPACITOR 680pF 50V K
C206 NCB31HK-561X C CAPACITOR 560pF 50V K
C211 NEAF1CM-107X E CAPACITOR 100uF 16V M
C212 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C213 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C221 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C222 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C251 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C252 NEAF1CM-107X E CAPACITOR 100uF 16V M
C253 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C254 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C255 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C256 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C257 NCB31HK-102X C CAPACITOR 1000pF 50V K
C258 NCB31HK-102X C CAPACITOR 1000pF 50V K
C259 NCB31HK-102X C CAPACITOR 1000pF 50V K
C264 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C265 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C266 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C267 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C268 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C301 NEAF0JM-227X E CAPACITOR 220uF 6.3V M
C302 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C308 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C310 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C311 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C312 NCB21CK-105X C CAPACITOR 1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31CK-105X C CAPACITOR 1uF 16V K
C317 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K



Symbol No.

Part No. Part Name Description Local

3-43

C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB21CK-105X C CAPACITOR 1uF 16V K
C325 NDC31HJ-120X C CAPACITOR 12pF 50V J
C326 NDC31HJ-120X C CAPACITOR 12pF 50V J
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C336 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31HK-183X C CAPACITOR 0.018uF 50V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C340 NCB21CK-105X C CAPACITOR 1uF 16V K
C341 NCB21CK-105X C CAPACITOR 1uF 16V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C358 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C359 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C364 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C365 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C366 NCB21CK-105X C CAPACITOR 1uF 16V K
C369 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C371 NCB21CK-105X C CAPACITOR 1uF 16V K
C380 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C381 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C382 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C383 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C391 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C393 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C394 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C396 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C397 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C401 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C402 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C403 NCB31HK-331X C CAPACITOR 330pF 50V K
C404 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C411 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C412 NBE41CM-336X TA E CAPACITOR 33uF 16V M
C421 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C422 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C431 NCB31HK-332X C CAPACITOR 3300pF 50V K
C432 NCS31HJ-471X C CAPACITOR 470pF 50V J
C433 NCS31HJ-471X C CAPACITOR 470pF 50V J
C451 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C453 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C454 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C491 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C521 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C522 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C531 NCB31HK-332X C CAPACITOR 3300pF 50V K
C532 NCS31HJ-471X C CAPACITOR 470pF 50V J
C533 NCS31HJ-471X C CAPACITOR 470pF 50V J

R101 NRSA63J-910X MG RESISTOR 91Ω 1/16W J
R102 NRSA63J-910X MG RESISTOR 91Ω 1/16W J
R103 NRSA63D-432X MG RESISTOR 4.3kΩ 1/16W D
R104 NRSA63D-242X MG RESISTOR 2.4kΩ 1/16W D
R105 NRS125J-120X MG RESISTOR 12Ω 1/2W J
R106 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R107 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R108 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R109 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R110 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R111 NRSA63D-432X MG RESISTOR 4.3k

Ω

1/16W D
R112 NRSA63D-242X MG RESISTOR 2.4kΩ 1/16W D
R113 NRS125J-120X MG RESISTOR 12

Ω

1/2W J

R114 NRSA63J-2R2X MG RESISTOR 2.2

Ω

1/16W J
R115 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R116 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R117 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J
R118 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R119 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J



Symbol No.

Part No. Part Name Description Local

R120 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R122 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R123 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R125 NRS125J-1R0X MG RESISTOR 1Ω 1/2W J
R126 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
R127 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R128 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R129 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R201 NRS125J-1R0X MG RESISTOR 1Ω 1/2W J
R202 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R203 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R204 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R205 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R206 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R207 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R208 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J
R209 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R211 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R219 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R220 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R221 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R222 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R223 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R224 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R231 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R232 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R233 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R234 NRSA63J-394X MG RESISTOR 390kΩ 1/16W J
R235 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R251 NRS125J-R47X MG RESISTOR 0.47Ω 1/2W J
R252 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R253 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R254 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R255 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J
R256 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R257 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R258 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R259 NRSA63D-103X MG RESISTOR 10kΩ 1/16W D
R260 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R300 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R301 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R303 NRSA63J-270X MG RESISTOR 27Ω 1/16W J
R304 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R306 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R307 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R308 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R309 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R310 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R312 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R313 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R314 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R315 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R316 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R317 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R318 NRSA63D-332X MG RESISTOR 3.3k

Ω

1/16W D
R319 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R320 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R323 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R325 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R332 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R333 NRSA63D-162X MG RESISTOR 1.6kΩ 1/16W D
R334 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R335 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R336 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R337 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R338 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R339 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R340 NRSA63D-303X MG RESISTOR 30kΩ 1/16W D
R345 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R346 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R347 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R348 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R349 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R351 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R352 NRSA63J-105X MG RESISTOR 1M

Ω

1/16W J

R353 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J
R354 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R357 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J



Symbol No.

Part No. Part Name Description Local

3-44

Front end board(Only DVH426)

Block No. [1][2]

R358 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R361 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R362 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R363 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R364 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R365 NRSA63D-911X MG RESISTOR 910Ω 1/16W D
R366 NRSA63D-202X MG RESISTOR 2kΩ 1/16W D
R370 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R371 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R372 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R373 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R374 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R380 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R384 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R385 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R386 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R390 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R396 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R399 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R401 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R402 NRSA63J-4R7X MG RESISTOR 4.7Ω 1/16W J
R403 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R404 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R411 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R421 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R422 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R431 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R432 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R433 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R434 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R435 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R436 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R437 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R438 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R441 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R442 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R481 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R491 NRSA63D-472X MG RESISTOR 4.7kΩ 1/16W D
R492 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R521 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R522 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R531 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R532 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R533 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R534 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R535 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R536 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R537 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R538 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R621 NQL093K-1R8X COIL 1.8uH K

L303 NQL044K-100X COIL 0.26Ω 10uH K
L305 NQL093K-1R8X COIL 1.8uH K
L306 NQL093K-1R8X COIL 1.8uH K
L307 NQL093K-1R8X COIL 1.8uH K
L451 NQL044K-100X COIL 0.26Ω 10uH K

CN101 QGF0501F8-30X CONNECTOR FFC/FPC (1-30)
CN201 QGF1038F2-11X CONNECTOR FFC/FPC (1-11)
CN202 QGF0523F2-05W CONNECTOR FFC/FPC (1-5)
CN402 QGF0522F3-06W CONNECTOR FFC/FPC (1-6)
CN403 QGF0534F3-45X CONNECTOR FFC/FPC (1-45)
K101 NQR0007-002X FERRITE BEADS
K102 NQR0007-002X FERRITE BEADS
K301 NQR0502-001X FERRITE BEADS
K311 NQR0129-002X FERRITE BEADS
K399 NQR0502-001X FERRITE BEADS
K401 NQR0022-005X FERRITE BEADS
K402 NQR0022-005X FERRITE BEADS
K404 NQR0022-005X FERRITE BEADS
K405 NQR0022-005X FERRITE BEADS
K406 NQR0022-005X FERRITE BEADS
K407 NQR0022-005X FERRITE BEADS
K425 NQL093K-1R8X COIL 1.8uH K
K435 NQR0022-005X FERRITE BEADS
K441 NQR0022-005X FERRITE BEADS
K442 NQR0022-005X FERRITE BEADS
K443 NQR0022-005X FERRITE BEADS



Symbol No.

Part No. Part Name Description Local

K444 NQR0022-005X FERRITE BEADS
K445 NQR0022-005X FERRITE BEADS
K451 NQR0022-005X FERRITE BEADS
K452 NQR0022-005X FERRITE BEADS
K601 NQR0022-005X FERRITE BEADS
SW4 NSW0184-001X DETECT SW
SW5 NSW0183-001X DETECT SW
TH491 NAD0025-103X N THERMISTOR 10k

Ω

X351 NAX0741-001X CRYSTAL 27.000MHz



Symbol No.

Part No. Part Name Description Local

IC201 BA5835FM-X IC
IC251 BD6671FM-X IC



IC301 MN2DS0003AA-H IC
IC302 BA00HC5WF-X IC
IC304 S-80827CNNB-G-W IC
IC398 SG32A90TFIR32C IC(PROGRAMED)
IC399 K4S281632F-UC75 IC(DIGITAL)
IC399 or EDS1216AATA-75 IC(DIGITAL)
IC401 AK4385ET-X IC
IC411 NJM4580V-X IC
IC481 BR93L66F-W-X IC(DIGITAL)

Q101 2SB1424/R/-W TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 2SB1424/R/-W TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q105 2SK3019-X MOS FET
Q106 2SK3019-X MOS FET
Q107 2SC4617/R/-X TRANSISTOR
Q231 DTC114EE-X DIGI TRANSISTOR
Q301 DTC144EE-X DIGI TRANSISTOR
Q302 DTC144EE-X DIGI TRANSISTOR

C1 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C3 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C7 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C9 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C10 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C11 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C12 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C13 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C14 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C15 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C16 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C17 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C18 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C19 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C20 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C21 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C105 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C106 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C108 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C111 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C112 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C113 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C201 NEAF1CM-107X E CAPACITOR 100uF 16V M
C202 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C203 NCS31HJ-271X C CAPACITOR 270pF 50V J
C204 NDC31HJ-151X C CAPACITOR 150pF 50V J
C205 NCB31HK-681X C CAPACITOR 680pF 50V K
C206 NCB31HK-561X C CAPACITOR 560pF 50V K



Symbol No.

Part No. Part Name Description Local

3-45

C211 NEAF1CM-107X E CAPACITOR 100uF 16V M
C212 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C213 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C221 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C222 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C251 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C252 NEAF1CM-107X E CAPACITOR 100uF 16V M
C253 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C254 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C255 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C256 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C257 NCB31HK-102X C CAPACITOR 1000pF 50V K
C258 NCB31HK-102X C CAPACITOR 1000pF 50V K
C259 NCB31HK-102X C CAPACITOR 1000pF 50V K
C264 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C265 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C266 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C267 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C268 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C301 NEAF0JM-227X E CAPACITOR 220uF 6.3V M
C302 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C307 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C308 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C310 NCB31HK-102X C CAPACITOR 1000pF 50V K
C311 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C312 NCB21CK-105X C CAPACITOR 1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C317 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB21CK-105X C CAPACITOR 1uF 16V K
C325 NDC31HJ-100X C CAPACITOR 10pF 50V J
C326 NDC31HJ-100X C CAPACITOR 10pF 50V J
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C336 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31HK-183X C CAPACITOR 0.018uF 50V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C340 NCB21CK-105X C CAPACITOR 1uF 16V K
C341 NCB21CK-105X C CAPACITOR 1uF 16V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C356 NCB21CK-105X C CAPACITOR 1uF 16V K
C358 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C359 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C364 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C365 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C366 NCB21CK-105X C CAPACITOR 1uF 16V K
C369 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C371 NCB21CK-105X C CAPACITOR 1uF 16V K
C380 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C384 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C391 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C393 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C395 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C396 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C397 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C398 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C399 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C401 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C402 NBE41AM-476X TA E CAPACITOR 47uF 10V M



Symbol No.

Part No. Part Name Description Local

C403 NCB31HK-331X C CAPACITOR 330pF 50V K
C404 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C411 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C412 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C421 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C422 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C431 NCB31HK-332X C CAPACITOR 3300pF 50V K
C432 NCS31HJ-471X C CAPACITOR 470pF 50V J
C433 NCS31HJ-471X C CAPACITOR 470pF 50V J
C451 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C453 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C454 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C491 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C492 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C521 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C522 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C531 NCB31HK-332X C CAPACITOR 3300pF 50V K
C532 NCS31HJ-471X C CAPACITOR 470pF 50V J
C533 NCS31HJ-471X C CAPACITOR 470pF 50V J

R101 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R103 NRSA63D-242X MG RESISTOR 2.4kΩ 1/16W D
R104 NRSA63D-302X MG RESISTOR 3kΩ 1/16W D
R105 NRS125J-120X MG RESISTOR 12Ω 1/2W J
R106 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R107 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R108 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R109 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R110 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R111 NRSA63D-242X MG RESISTOR 2.4kΩ 1/16W D
R112 NRSA63D-302X MG RESISTOR 3kΩ 1/16W D
R113 NRS125J-120X MG RESISTOR 12Ω 1/2W J
R114 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R115 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R116 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R117 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R118 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R119 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R120 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R122 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R123 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R125 NRS125J-1R0X MG RESISTOR 1Ω 1/2W J
R126 NRSA63J-910X MG RESISTOR 91Ω 1/16W J
R127 NRSA63J-910X MG RESISTOR 91Ω 1/16W J
R128 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R129 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R130 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J
R201 NRS125J-1R0X MG RESISTOR 1Ω 1/2W J
R202 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R203 NRSA63J-303X MG RESISTOR 30k

Ω

1/16W J
R204 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R205 NRSA63J-273X MG RESISTOR 27k

Ω

1/16W J
R206 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R207 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R208 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J
R209 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R211 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R219 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R220 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R221 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R222 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R223 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R224 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R231 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R232 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R233 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R234 NRSA63J-394X MG RESISTOR 390k

Ω

1/16W J

R235 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J
R251 NRS125J-R47X MG RESISTOR 0.47Ω 1/2W J
R252 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R253 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R254 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R255 NRSA63J-203X MG RESISTOR 20k

Ω

1/16W J

R256 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J
R257 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R258 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

3-46

R259 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R260 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R300 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R301 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R303 NRSA63J-270X MG RESISTOR 27Ω 1/16W J
R306 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R307 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R308 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R309 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R310 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R312 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R313 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R314 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R315 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R316 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R317 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R318 NRSA63D-332X MG RESISTOR 3.3kΩ 1/16W D
R319 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R321 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R322 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R323 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R325 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R326 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R327 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R328 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R329 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R332 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R333 NRSA63D-162X MG RESISTOR 1.6kΩ 1/16W D
R334 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R335 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R336 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R337 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R338 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R339 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R340 NRSA63D-303X MG RESISTOR 30kΩ 1/16W D
R345 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R346 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R347 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R348 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R349 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R350 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R351 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R352 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R353 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R354 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R355 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R356 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R357 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R358 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R359 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R360 NRSA63J-181X MG RESISTOR 180

Ω

1/16W J
R361 NQL093K-1R8X COIL 1.8uH K
R362 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R363 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J
R364 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J
R365 NRSA63D-911X MG RESISTOR 910Ω 1/16W D
R366 NRSA63D-202X MG RESISTOR 2kΩ 1/16W D
R370 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R372 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R373 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R380 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R384 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R385 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R386 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R390 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R392 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R393 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R394 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R396 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J
R399 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R401 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R402 NRSA63J-4R7X MG RESISTOR 4.7

Ω

1/16W J

R403 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J
R404 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R411 NRSA63J-100X MG RESISTOR 10

Ω

1/16W J

R421 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J
R422 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R431 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J



Symbol No.

Part No. Part Name Description Local

R432 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R433 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R434 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R435 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R436 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R437 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R438 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R441 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R442 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R481 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R491 NRSA63D-103X MG RESISTOR 10kΩ 1/16W D
R492 NRSA63D-512X MG RESISTOR 5.1kΩ 1/16W D
R493 NRSA63D-223X MG RESISTOR 22kΩ 1/16W D
R521 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R522 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R531 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R532 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R533 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R534 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R535 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R536 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R537 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R538 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R605 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R606 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

L303 NQL044K-100X COIL 0.26Ω 10uH K
L305 NQL093K-1R8X COIL 1.8uH K
L306 NQL093K-1R8X COIL 1.8uH K
L307 NQL093K-1R8X COIL 1.8uH K
L451 NQL044K-100X COIL 0.26Ω 10uH K

CN101 QGF0501F8-30X CONNECTOR FFC/FPC (1-30)
CN201 QGF1038F2-11X CONNECTOR FFC/FPC (1-11)
CN202 QGF0523F2-05W CONNECTOR FFC/FPC (1-5)
CN402 QGF0522F3-06W CONNECTOR FFC/FPC (1-6)
CN403 QGF0534F3-45X CONNECTOR FFC/FPC (1-45)
K101 NQR0007-002X FERRITE BEADS
K102 NQR0007-002X FERRITE BEADS
K301 NQR0502-001X FERRITE BEADS
K311 NQR0129-002X FERRITE BEADS
K399 NQR0502-001X FERRITE BEADS
K401 NQR0022-005X FERRITE BEADS
K402 NQR0022-005X FERRITE BEADS
K403 NQR0022-005X FERRITE BEADS
K404 NQR0022-005X FERRITE BEADS
K405 NQR0022-005X FERRITE BEADS
K406 NQR0022-005X FERRITE BEADS
K407 NQR0022-005X FERRITE BEADS
K425 NQL093K-1R8X COIL 1.8uH K
K441 NQR0022-005X FERRITE BEADS
K442 NQR0022-005X FERRITE BEADS
K443 NQR0022-005X FERRITE BEADS
K444 NQR0022-005X FERRITE BEADS
K445 NQR0022-005X FERRITE BEADS
K451 NQR0022-005X FERRITE BEADS
K452 NQR0022-005X FERRITE BEADS
K601 NQR0022-005X FERRITE BEADS
SW4 NSW0184-001X DETECT SW
SW5 NSW0183-001X DETECT SW
TH491 NAD0025-103X N THERMISTOR 10k

Ω

X351 NAX0730-001X CRYSTAL 27.000MHz



Symbol No.

Part No. Part Name Description Local

3-47

Packing materials and accessories parts list

Block No.

M

M

M

3

No additional / supplemental order of WARRANTY CARDs are available

The parts without symbol number are not service.

DV5305UN,UT,A,

ADV5380J,DV5300J

DV5306UN,UT,A,

DV4305UN,UT,A,

DV4306UN,UT,A,

DV4388UF,

DV5305U,
DV5306U,
DV4305U,
DV4306U,

DV5301,
DV5302,

DV5305U,
DV5306U,
DV4305U,
DV4306U,

DV4304UI,

DV5304UI,

DV5301EU,
DV5302EU,

DV5301E,
DV5302E,

DV5308EE,
DV5307EE,

DVH426UN,

except DVH426UN

only DVH426UN

except DVH426UN

only DVH426UN

P4

P2

P1

P7

P6

P5

P4

A6

A5

A16

A13

A7,

A8, A9,

KIT :

A10,

A11,

A15

A12

A14

A2

P3

A1

A3

P3

P3

P3

A1
A3
A17
A18
A19

A17

A1 A3
A4

A20

P3

A1 A3
A4

A21

P3

A1
A3

A17

A21

P7

A22,

A23,

KIT :

A24

3-48

Packing and Accessories

Block No. [M][3][M][M]



Symbol No. Part No. Part Name Description Local

A 1 GET0444-001A INST BOOK ENG FRE SPA ADV5380J,DV5300J
A 1 GET0442-002A INST BOOK SPA ITA SWE POR DV5301E,DV5302E
A 1 GET0442-003A INST BOOK ENG FRE DV5301EU,DV5302EU
A 1 GET0440-001A INST BOOK ENG DV5304UI,DV4304UI
A 1 GET0439-001A INST BOOK ENG CHI(TAIWAN) DV5305U,DV5306U,DV4305U,DV4306U

A 1 GET0439-003A INST BOOK ENG INA

DV5305UN,DV5306UN,DV4305UN,DV430
6UN

A 1 GET0439-004A INST BOOK ENG CHI(TAIWAN)

DV5305UT,DV5306UT,DV4305UT,DV4306

UT
A 1 GET0439-005A INST BOOK ENG DV5305A,DV5306A,DV4305A,DV4306A
A 1 GET0443-001A INST BOOK ENG RUS UKR DV5307EE,DV5308EE
A 1 GET0441-001A INST BOOK CHI(PEKIN) DV5388UF,DV4388UF
A 1 GET0473-001A INST BOOK ENG DVH426UN
A 2 GET0442-001A INST BOOK ENG GER FRE DUT DV5301E,DV5302E
A 2 GET0442-004A INST BOOK SPA TUR PER DV5301EU,DV5302EU
A 2 GET0439-002A INST BOOK KOR THA ARA PER DV5305U,DV5306U,DV4305U,DV4306U
A 3 GET0444-002A INSTALL MANUAL ENG FRE SPA ADV5380J,DV5300J
A 3 GET0442-005A INSTALL MANUAL ENG GER FRE DUT DV5301E,DV5302E
A 3 GET0442-007A INSTALL MANUAL ENG FRE DV5301EU,DV5302EU
A 3 GET0440-002A INSTALL MANUAL ENG DV5304UI,DV4304UI

A 3 GET0439-006A INSTALL MANUAL ENG CHI(TAIWAN)

DV5305U,DV5305UT,DV5306U,DV5306UT,

DV4305U,DV4305UT,DV4306U,DV4306UT

A 3 GET0439-008A INSTALL MANUAL ENG INA

DV5305UN,DV5306UN,DV4305UN,DV430

6UN
A 3 GET0439-009A INSTALL MANUAL ENG DV5305A,DV5306A,DV4305A,DV4306A
A 3 GET0443-002A INSTALL MANUAL ENG RUS UKR DV5307EE,DV5308EE
A 3 GET0441-002A INSTALL MANUAL CHI(PEKIN) DV5388UF,DV4388UF
A 4 GET0442-006A INSTALL MANUAL SPA ITA SWE POR DV5301E,DV5302E
A 4 GET0442-008A INSTALL MANUAL SPA TUR PER DV5301EU,DV5302EU
A 4 GET0439-007A INSTALL MANUAL KOR THA ARA PER DV5305U,DV5306U,DV4305U,DV4306U

A 5 GE20204-008A TRIM PLATE

ADV5380J,DV5302E,DV5302EU,DV5306U

,DV5306UN,DV5306UT,DV5306A,DV5307

EE,DV5388UF,DV4306U,DV4306UN,DV43

06UT,DV4306A,DV4388UF
A 5 GE20204-011A TRIM PLATE DV5300J

A 5 GE20204-010A TRIM PLATE

DV5301E,DV5301EU,DV5304UI,DV5305U,

DV5305UN,DV5305UT,DV5305A,DV5308E

E,DV4304UI,DV4305U,DV4305UN,DV4305

UT,DV4305A
A 5 GE20204-001A TRIM PLATE DVH426UN

A 6 GE20137-003A MOUNTING SLEEVE

ADV5380J,DV5300J,DV5301E,DV5301EU,

DV5302E,DV5302EU,DV5304UI,DV5305U,

DV5305UN,DV5305UT,DV5305A,DV5306U

,DV5306UN,DV5306UT,DV5306A,DV5307

EE,DV5308EE,DV5388UF,DV4304UI,DV43

05U,DV4305UN,DV4305UT,DV4305A,DV4

306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF
A 6 GE32259-001A TRIM PROTECTOR DVH426UN

A 7 VKZ4027-202 PLUG NUT

ADV5380J,DV5300J,DV5301E,DV5301EU,

DV5302E,DV5302EU,DV5304UI,DV5305U,

DV5305UN,DV5305UT,DV5305A,DV5306U

,DV5306UN,DV5306UT,DV5306A,DV5307

EE,DV5308EE,DV5388UF,DV4304UI,DV43

05U,DV4305UN,DV4305UT,DV4305A,DV4

306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF

A 8 VKH4871-003 MOUNT BOLT

ADV5380J,DV5300J,DV5301E,DV5301EU,

DV5302E,DV5302EU,DV5304UI,DV5305U,

DV5305UN,DV5305UT,DV5305A,DV5306U

,DV5306UN,DV5306UT,DV5306A,DV5307

EE,DV5308EE,DV5388UF,DV4304UI,DV43

05U,DV4305UN,DV4305UT,DV4305A,DV4

306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF

A 9 VKZ4328-003 LOCK NUT

ADV5380J,DV5300J,DV5301E,DV5301EU,

DV5302E,DV5302EU,DV5304UI,DV5305U,

DV5305UN,DV5305UT,DV5305A,DV5306U

,DV5306UN,DV5306UT,DV5306A,DV5307

EE,DV5308EE,DV5388UF,DV4304UI,DV43

05U,DV4305UN,DV4305UT,DV4305A,DV4

306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF

3-49

A10 QYWWS53A008ZA WASHER 0mm/5.3mm x

ADV5380J,DV5300J,DV5301E,DV5301EU,
DV5302E,DV5302EU,DV5304UI,DV5305U,
DV5305UN,DV5305UT,DV5305A,DV5306U
,DV5306UN,DV5306UT,DV5306A,DV5307
EE,DV5308EE,DV5388UF,DV4304UI,DV43
05U,DV4305UN,DV4305UT,DV4305A,DV4
306U,DV4306UN,DV4306UT,DV4306A,DV
4388UF

A11 GE40130-002A HOOK (x2)

ADV5380J,DV5300J,DV5301E,DV5301EU,
DV5302E,DV5302EU,DV5304UI,DV5305U,
DV5305UN,DV5305UT,DV5305A,DV5306U
,DV5306UN,DV5306UT,DV5306A,DV5307
EE,DV5308EE,DV5388UF,DV4304UI,DV43
05U,DV4305UN,DV4305UT,DV4305A,DV4
306U,DV4306UN,DV4306UT,DV4306A,DV
4388UF

A12 LV41478-001A CORD CONNECTER

ADV5380J,DV5300J,DV5301E,DV5301EU,
DV5302E,DV5302EU,DV5304UI,DV5305U,
DV5305UN,DV5305UT,DV5305A,DV5306U
,DV5306UN,DV5306UT,DV5306A,DV5307
EE,DV5308EE,DV5388UF,DV4304UI,DV43
05U,DV4305UN,DV4305UT,DV4305A,DV4
306U,DV4306UN,DV4306UT,DV4306A,DV
4388UF

A13 GE32320-001A HARD CASE ASSY

A14 RM-RK241 REMOTE CONTROL UNIT

ADV5380J,DV5300J,DV5301E,DV5301EU,
DV5302E,DV5302EU,DV5304UI,DV5305U,
DV5305UN,DV5305UT,DV5305A,DV5306U
,DV5306UN,DV5306UT,DV5306A,DV5307
EE,DV5308EE,DV5388UF,DV4304UI,DV43
05U,DV4305UN,DV4305UT,DV4305A,DV4
306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF
A14 RM-RK230 REMOCON UNIT DVH426UN
A15 ------------ BATTERY 3V



A16 QAM0842-001 POWER CORD ADV5380J,DV5300J



A16 QAM0841-001 POWER CORD

DV5301E,DV5301EU,DV5302E,DV5302EU

,DV5307EE,DV5308EE



A16 QAM0843-001 POWER CORD

DV5304UI,DV5305U,DV5305UN,DV5305U

T,DV5305A,DV5306U,DV5306UN,DV5306

UT,DV5306A,DV4304UI,DV4305U,DV4305

UN,DV4305UT,DV4305A,DV4306U,DV430

6UN,DV4306UT,DV4306A



A16 QAM0982-001 POWER CORD DV5388UF,DV4388UF



A16 QAM1025-001 POWER CORD DVH426UN
A17 ------------ WARRANTY CARD BT-51029-3 ADV5380J
A17 ------------ WARRANTY CARD BT-51018-5 DV5300J
A17 ------------ WARRANTY CARD BT-54031-1 DV5301E,DV5302E,DV5307EE,DV5308EE
A18 ------------ WARRANTY CARD BT-52006-2 ADV5380J,DV5300J
A19 BT-51041-1 REGIS. CARD BT-51041-1 ADV5380J,DV5300J
A20 VND3050-002 IDENTITY CARD DV5301E,DV5302E
A21 VND3046-001 SERIAL TICKET DV5301E,DV5302E,DV5307EE,DV5308EE
A22 QYSDSP5008ZA SCREW M5 x 8mm(x4) DVH426UN
A23 QYSSSP5008ZA SCREW M5 x 8mm(x4) DVH426UN
A24 GET0475-001A ERRATA SHEET ADV5380J,DV5300J

KIT SRW-AVX11J SCREW PARTS KIT A7 A8 A9 A10 A11 A12

ADV5380J,DV5300J,DV5301E,DV5301EU,

DV5302E,DV5302EU,DV5304UI,DV5305U,

DV5305UN,DV5305UT,DV5305A,DV5306U

,DV5306UN,DV5306UT,DV5306A,DV5307

EE,DV5308EE,DV5388UF,DV4304UI,DV43

05U,DV4305UN,DV4305UT,DV4305A,DV4

306U,DV4306UN,DV4306UT,DV4306A,DV

4388UF
KIT SRW-424 SCREW PARTS KIT A22 A23 DVH426UN
P 1 GE32610-001A CARTON ADV5380J
P 1 GE32607-001A CARTON DV5300J
P 1 GE32598-002A CARTON DV5301E,DV5301EU
P 1 GE32601-002A CARTON DV5302E,DV5302EU
P 1 GE32626-002A CARTON DV5304UI
P 1 GE32615-002A CARTON DV5305U,DV5305UN,DV5305UT,DV5305A
P 1 GE32618-002A CARTON DV5306U,DV5306UN,DV5306UT,DV5306A
P 1 GE32604-002A CARTON DV5307EE
P 1 GE32794-001A CARTON DV5308EE
P 1 GE32629-001A CARTON DV5388UF
P 1 GE32592-002A CARTON DV4304UI
P 1 GE32553-002A CARTON DV4305U,DV4305UN,DV4305UT,DV4305A
P 1 GE32556-002A CARTON DV4306U,DV4306UN,DV4306UT,DV4306A
P 1 GE32595-001A CARTON DV4388UF
P 1 GE32804-001A CARTON DVH426UN
P 2 QPC03004315P POLY BAG 30cm x 43cm



Symbol No. Part No. Part Name Description Local

3-50

P 3 FSPG4002-001 POLY BAG

ADV5380J,DV5300J,DV5304UI,DV5305UN
,DV5305UT,DV5305A,DV5306UN,DV5306
UT,DV5306A,DV5307EE,DV5308EE,DV53
88UF,DV4304UI,DV4305UN,DV4305UT,DV
4305A,DV4306UN,DV4306UT,DV4306A,D
V4388UF,DVH426UN

P 3 FSPG4002-001 POLY BAG (x2)

DV5301E,DV5301EU,DV5302E,DV5302EU

,DV5305U,DV5306U,DV4305U,DV4306U
P 4 GE10191-001A EPS CUSHION(L)
P 5 QPA01003003 POLY BAG 10cm x 30cm
P 6 QPC01002515 POLY BAG 10cm x 25cm
P 7 QPA00801205 POLY BAG 8cm x 12cm



Symbol No. Part No. Part Name Description Local

3-51

<MEMO>

SCHEMATIC DIAGRAMS

DVD/CD RECEIVER

KD-ADV5380J,KD-DV5300J,KD-DV5301E

KD-DV5301EU,KD-DV5302E,KD-DV5302EU

KD-DV5304UI,KD-DV5305U,KD-DV5305UN

KD-DV5305UT,KD-DV5305A,KD-DV5306U

KD-DV5306UN,KD-DV5306UT,KD-DV5306A

KD-DV5307EE,KD-DV5308EE,KD-DV5388UF

KD-DV4304UI,KD-DV4305U,KD-DV4305UN

KD-DV4305UT,KD-DV4305A,KD-DV4306U

KD-DV4306UN,KD-DV4306UT,KD-DV4306A

KD-DV4388UF,KD-DVH426UN

CD-ROM No.SML200703

KD-ADV5380/KD-DV5300/KD-DV5306
KD-DV5305/KD-DV5304/KD-DV5303

KD-DV5308/KD-DV5307/KD-DV5302
KD-DV5301/KD-DV4306/KD-DV4305
KD-DV4304/KD-DV4303

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)

Contents

Block diagram
Standard schematic diagrams
Printed circuit boards

KD-DVH426

except

KD-DVH426

2-1
2-2
2-12 to 14

only for

KD-ADV5380

KD-DV5300

only for
KD-DV5308
KD-DV5307
KD-DV5302
KD-DV5301

COPYRIGHT 2007 Victor Company of Japan, Limited.

No.MA308SCH

2007/3

Safety precaution

!

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.

2-1

SW1, SW4

Used for
KD-DV5304, KD-DV5305
KD-DV5306, KD-DV5388

Used for
KD-DV5301
KD-DV5302

Used for
KD-DV4304, KD-DV4305
KD-DV4306, KD-DV4388
KD-DV5307, KD-DVH426

Used for
KD-ADV5380
KD-DV5300

Block diagram

IC681

REMOCON

IC661

LCD DRIVER

REMOCON

KEY0
KEY1
KEY2

S601 to S618

KEY MATRIX

LCD & Key switch section

LCDDA
LCDCL
LCDCE

LCD1

LCD DISPLAY

S1 to S52
COM1 to COM3

JS686

ENCODER

D630

POWER LED

ENC1
ENC2

AUX.L/R

D631 to D633

D635

D637 to D654

LIGHTING DISPLAY

Q670,Q671

DIMMER

CONT

DIMOUT

ACC5V

D631 to D651

LIGHTING DISPLAY

AUX
INPUT

ILMI.10V

ILMI.10V

CN101

D1.2V

D2V

IC201

DRIVER

MA0 to MA11
MDQ0 to MDQ15
DQM0 to DQM1
BA0, BA1, MCK
NWE, NCSM
NCAS, NRAS

IC399

SDRAM

DVD section

PICK UP

IC301

DV3.2

(DV2.1)

UCS
SCS
SCLK
U2SDT
S2UDT
CPURST
LRMUTE
TX
DAC4OUT

FOCUS

&

TRACKING

COIL

A, B, C, D, E, F, RF+/­LPC1, LPC2, HAGUP

CD/DVD

CD VR, DVD VR

Q101
Q102

Q105 to Q107

LPCO1
DVDLDCUR

DVD LD

Q103
Q104

LPCO2
CDLDCUR

CD LD

F+/­T+/-

M

M

M

LOAD

&

FEED

MOTOR

IC251

SP MOTOR

DRIVER

FLM+/-

H1+/-, H2+/­H3+/-, VH
SM1 to SM3

SW1

to

SW3

SW2
SW3

SW4,SW5

L-END SW

REST SW

TRVSW

SW1

/DRVMUTE
TRDRV
FODRV
TRSDRV
DRVCONT

SPDRV
/SPMUTE
FG

EXADT0 to EXADT15
EXADR16 to EXADR20
EXDAT0 to EXDAT15
NEXOE, NEXCE
NEXWE, /FL_RST

IC398

FLASH ROM

SW1
SW4

IC481

EPROM

IC302

2V to

1.2V REG.

EPDIO
EPSK
EPCS

IC304

RESET

CPURST

IC401

DAC

PCMCLK
BCK
AOUT3
LRCLK
DACPDN
DACOCS
DCLK
DDATA

IC411

L.P.F.

L-CH
R-CH

AOUTL+/­AOUTR+/-

LM

LDIN

Q301

Q302

SW4

Q231

CN403

CJ601

CN701

J601

CN202

SPINDLE
MOTOR

CN201

X351

27.000MHz

Used for
KD-ADV5380, KD-DV5300, KD-DV5304, KD-DV5305, KD-DV5306, KD-DV5388

Used for KD-DVH426

Used for
KD-DV4304, KD-DV4305
KD-DV4306, KD-DV4388
KD-DV5304, KD-DV5305
KD-DV5306, KD-DV5388
KD-DVH426

Used for except KD-DVH426

Main amplifier & System control section

TU1

FM/AM TUNER

IC721

CPU

IC161

E.VOLUME

Q861(Q781)

MUTE

IC71

RDS DETECTOR

D851
AUTO

ANTENNA

IC301

POWER

AMP.

TU.L/R

RL, RR

FL, FR

IN3L/R

FRONT L+/­FRONT R+/­REAR L+/­REAR R+/-

VOLDA
VOLCLK

UCS
SCS
SCLK
U2SDT
S2UDT
LRMUTE
CPURST

UCS
SCS
SCLK
U2SDT
S2UDT
LRMUTE
CPURST

J1
ANT

SPK
BATTERY

CN901

FSU, SSTOP, TUSDA, TUSCL, Q-OUT, AFS

RDSDA
RDSSCK

MPX

CHL/R

OUT1/3

AUTO ANT

ACC, EXT

MEMORY

ANT

ANTCONT, POWERON

IC801

JVC BUS

BUSSI
BUSSO
BUSIO
BUSINT
BUSSCK

SCK, BUSSI

LINEIN_L/R

IN3_L/R

A/L

A/L/CH

J801 CN141

CN831

JVC BUS

J331

Q976,Q977

PS2

PS2

IC731,S731

(IC723,S723)

RESET

RESET

MUTING

MUTE

PBRK

TEL

ILM.AJ

PARK

DIM

Q911,Q912

Q885

TELMUTE
TELCONT

Q891,Q892

TEL MUTE

DOUTMUTE

IC401

DIGITAL OUT

Q303

Q821 to Q823

FAN

CONTROL

FAN

CN821

FAN
MOTOR

IC402

DIGITAL
OUT

COMPOSITE(DAC4OUT)

IC911

(IC901)

REGULATOR

MEMORY

EACH BLOCK

VDD, SW5V, ACC5V
9V, CD8V, ILMI.10V

CN961

CN962

CN963

X722 20MHz

(X721 12.5MHz)

X71

4.332MHz

X721(X722)

32.768kHz

Used for
KD-DV5301, KD-DV5302, KD-DV5307

DVD.L/R

TX

SWREG

DVDSW

D3.3V,S3.3V

Q971,Q972

(Q903,Q904)

DVD SW

A5V,A9V

9V

D5V,M5V,S5V

IC921

3.3V REG.

IC922

5V REG.

MEMORY

KEY0 to KEY2
DIMOUT
LCDCL
LCDDA
LCDCE
ENC1,ENC2
REMOCON

OE
REMOTE

STEERING

Used For
KD-DV5301, KD-DV5302, KD-ADV5380

Used For KD-DVH426

Used For
KD-DV5301
KD-DV5302
KD-DV5307
KD-DVH426

IC961

IC962
LEVEL
CONV.

Used for
except KD-DVH426

Used for
KD-DV5301
KD-DV5302
KD-DV5307

Used for
KD-ADV5380
KD-DV5300
KD-DV5301
KD-DV5302
KD-DV5304
KD-DV5305
KD-DV5306
KD-DV5388

Used for
KD-DV5301
KD-DV5302
KD-DV5304
KD-DV5305
KD-DV5306
KD-DV5388

NOTES: Ref No.'s ( ) indicate a "Used for KD-DVH426"

AUX.L/R

REAR L/R

LINE OUT

LINE IN

VMUTE

VIDEO OUT

VIDEO-OUT

IC411

VIDEO

AMP

Q344,Q354

LINE OUT

MUTING

IC111,Q121

AUX/LINEIN

SW

IC101

AUX/LINEIN AMP.

IC151

Q151,Q152

AUX_LINEIN/CH SW

SCL
SDA

IC722

EPROM

NOTES:
Ref No.'s ( ) indicate a "Used for KD-DVH426"
