DVD/CD RECEIVER

RECEPTOR CON DVD/CD RÉCEPTEUR DVD/CD

KD-ADV49/KD-AVX44

For canceling the display demonstration, see page 7. Para cancelar la demonstración en pantalla, consulte la página 7. Pour annuler la démonstration des affichages, référez-vous à la page 7.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

ENGLISH

ESPAÑOL

FRANÇAIS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT1797-001B

[J/C]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

ENGLISH

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

Caution

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

[European Union only]

WARNINGS: To prevent accidents and damage

• DO NOT install any unit or wire any cable in a location where; – it may obstruct the steering wheel and gearshift

lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be

sure to look around carefully.

• The driver must not watch the monitor while driving.

• The driver must not put on the headphones while driving.

Cautions on the monitor:

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• When the temperature is very cold or very hot... – Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

How to reset your unit

Contents

INTRODUCTION

Playable disc type ............................ 4

Before operations ............................ 5

ENGLISH

• Your preset adjustments (except for the registered

Bluetooth devices) will also be erased.

How to forcibly eject a disc

NO EJECT?

[Hold]

• If this does not work, reset the unit.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

EMERGENCY EJECT?

NO EJECT?

EMERGENCY EJECT?

OPERATIONS

Basic operations—AV menu ............. 6

Basic operations—Control panel ...... 8

Basic operations—

Remote controller (RM-RK252) ...... 10

Listening to the radio ...................... 12

Disc operations ................................ 14

Dual Zone operations ....................... 26

USB operations ................................ 29

Bluetooth® operations—

Cellular phone/audio player .......... 31

EXTERNAL DEVICES

Listening to the iPod ........................ 38

Listening to the CD changer .............. 41

Listening to the satellite radio ......... 43

Listening to

the HD Radio™ Broadcast .............. 46

Listening to

other external components ........... 48

SETTINGS

Sound equalization .......................... 50

Assigning titles to the sources .......... 51

Menu items ..................................... 52

REFERENCES

Maintenance ................................... 61

More about this unit ........................ 62

Troubleshooting .............................. 68

Specifications .................................. 74

Playable disc type

Disc type Recording format, file type, etc. Playable

DVD DVD Video (Region Code: 1)*

ENGLISH

DVD Audio

DVD-ROM

DVD Recordable/Rewritable (DVD-R/-RW*

, +R/+RW*3)

• DVD Video: UDF bridge

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/ AAC: Compliant to ISO 9660 level 1, level 2, Romeo, Joliet

DVD Video

DVD-VR

DivX/MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC*

MPEG4

DVD+VR

DVD-RAM

DualDisc DVD side

Non-DVD side

CD/VCD Audio CD/CD Text (CD-DA)/DTS-CD

VCD (Video CD)

SVCD (Super Video CD)

CD-ROM

CD-I (CD-I Ready)

CD Recordable/Rewritable (CD-R/-RW)

• Compliant to ISO 9660 level 1, level 2, Romeo, Joliet

CD-DA

MP3/WMA/WAV/AAC*

JPEG

DivX/MPEG1/MPEG2

MPEG4

If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the monitor.

DVD-R recorded in multi-border format is also playable (except for dual layer discs).

DVD-RW dual layer discs are not playable.

It is possible to play back finalized +R/+RW (Video format only) discs.

+RW double layer discs are not playable.

This unit can play back AAC files encoded using iTunes.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Before operations

ENGLISH

Touch pad controls

The lights of the touch pad controls and monitor are turned off when no operation is done for about 10 seconds. The lights are turned on in the following cases: – When you move your hand close

to the touch pad controls.*

– When your finger touches the

touch pad controls.*

– When you use the remote

controller. – When a call/text message comes in. – When the signal from the rear view camera comes in.

* Depending on the setting. To change the setting, ☞

page 57.

The lights are always turned on in the following cases: – While <AV Menu> is displayed. – While <Source Menu> is displayed. – While the control panel is open. – When <Illumination> is set to <Normal>. (☞

page 57)

Monitor

How to operate the unit by the touch pad controls

You can operate the unit by touching the appropriate part of the touch pad controls.

• To adjust the volume, move your finger on the touch pad knob as illustrated below to display the animation on the monitor, then press 5 or ∞ repeatedly. – You can also adjust the volume by just continuing

to move your finger on the touch pad knobs as illustrated below.

Vol+

Vol-

• When you slide your finger on the touch pad knob as illustrated below, it functions in the same way as touching 5 / ∞ / 4 / ¢.

VOL

• Operations are explained mainly using the touch pad controls and buttons of the unit; however, the buttons on the remote controller can work in the same way if they have the same names or marks.

• In the explanation, the screen names are highlighted. For example, <AV Menu>.

INTRODUCTION

Basic operations— AV menu

You can use the menus to set up various settings from <AV Menu>. For details of each menu and setting, see “Menu items.” (☞ pages 52 to 60)

ENGLISH

AV Menu

Enter

Setup

~ Turn on the power.

The lights of the touch pad controls and monitor are turned on.

Ÿ Enter <AV Menu>.

Time countdown indicator

AV Menu

Enter

Setup

• Non-available items will be shaded.

Current selected icon name

Setup icons

⁄ Select an item.

Sound

Fader/Balance Volume Adjust Subwoofer Level

High Pass Filter

Crossover

Through

Current setting of the selected item

@ Enter the next screen.

High Pass Filter

Exit

• To return to the previous screen:

Through

! Select an icon to enter the setup screen.

• Repeat steps ⁄ and @ to set the sub-item if

needed.

¤ Finish the procedure.

In this manual, English indications are used for purpose of explanation. You can select the indication language on the monitor. (☞ page 53)

Canceling the display demonstration and setting the clock

Return to <Setup> by touching 4

Setup

Display

Demonstration

repeatedly.

AV Menu

Enter

Setup

Display

Clock Disc Setup 1 Disc Setup 2 Tuner

Demonstration

Wall Paper Color Scroll Tag Display

Off

Exit

Setup

Clock

Time Set

Exit

Time Set

Exit

Display

Clock

Disc Setup 1 Disc Setup 2 Tuner

Time Set

Time Format OSD Clock Clock Adjust

1:00AM

Hours

3:00PM

Minutes

3:35PM

ENGLISH

OPERATIONS

Basic operations — Control panel

ENGLISH

1 Selects sources. “Tuner” or “HD Radio” = “Satellite Radio

(SIRIUS/XM)” = “Disc” = “USB” or ”USB iPod” = “Changer,” ”iPod,” or ”External Input” = “Bluetooth” = “AV Input”

• You can also select sources by touching

5 / ∞ / 4 / ¢ after holding SRC for entering <Source Menu>.

2 • Ejects the disc. 3 • Enters or exits <AV Menu>.

• Activates Voice Dialling [Hold].

• While talking: Adjusts the built-in microphone

volume.

4 • “Tuner” and “HD Radio”: Searches for stations.

• “Satellite Radio”: Selects channels.

• “Disc,” “USB,” “USB iPod,” “Changer,” “iPod,” and

“Bluetooth”: Reverse skip/forward skip

• On menus:

– Enters the previous/next screen. – Selects items.

5 Tilts the control panel. (☞ page 9) 6 Adjusts the volume level. (☞ page 5) 7*2 • “Tuner”: Selects preset stations.

• “HD Radio”: Selects multicast channels.

• “Satellite Radio”: Selects categories.

• “Disc,” “USB,” and “Changer”: Selects titles/

folders.

• “USB iPod”: Selects the next/previous items.

• “iPod”: Enters the player’s menu and pauses playback.

• “Bluetooth”: Selects group/folder.

• On menus: Selects items.

8 • “Disc,” “USB,” “USB iPod,” and “Changer”: Starts

and pauses playback.

• “Bluetooth”: Starts playback.

• On menus: Enters the next screen or exits the

displayed screen.

9 Changes the display information. (☞ page 9) p • “Tuner,” “HD Radio,” and “Satellite Radio”:

Selects the bands.

• “Disc” and “USB”: Stops playback.

• “Bluetooth”: Pauses playback.

• On menus: Returns to the previous screen.

q • Turns on the power.

• Turns off the power [Hold].

• Attenuates the sound (when the power is on).

w Remote sensor e Resets the unit.

• Use only when the internal system malfunctions.

r Detaches the control panel. (☞ page 9)

*1 You cannot select these sources if they are not ready. *2 By holding 5 / ∞, you can display the list accessible

for the selected source.

To tilt the control panel

To attach the control panel

Touch TILT repeatedly.

Changing the display information

Available display information varies among the playback sources.

Each time you touch DISP, the display changes to show the various information.

Ex.: When the playback source is a DVD video disc.

Playback picture screen (only for video sources)

DVD

DIGITAL

MULTI

VIDEO

01 02 0:01:20

Source information screen

3:45

ENGLISH

CHAP.RPT

DVD

DIGITAL

MULTI

VIDEO

01 02 0:01:20

CHAP.RPT

Back to the beginning

3:45

Playback picture and the source information screen

Navigation screen

• This screen is displayed when <Navigation> is selected for <AV Input>.

(☞ page 56)

OPERATIONS

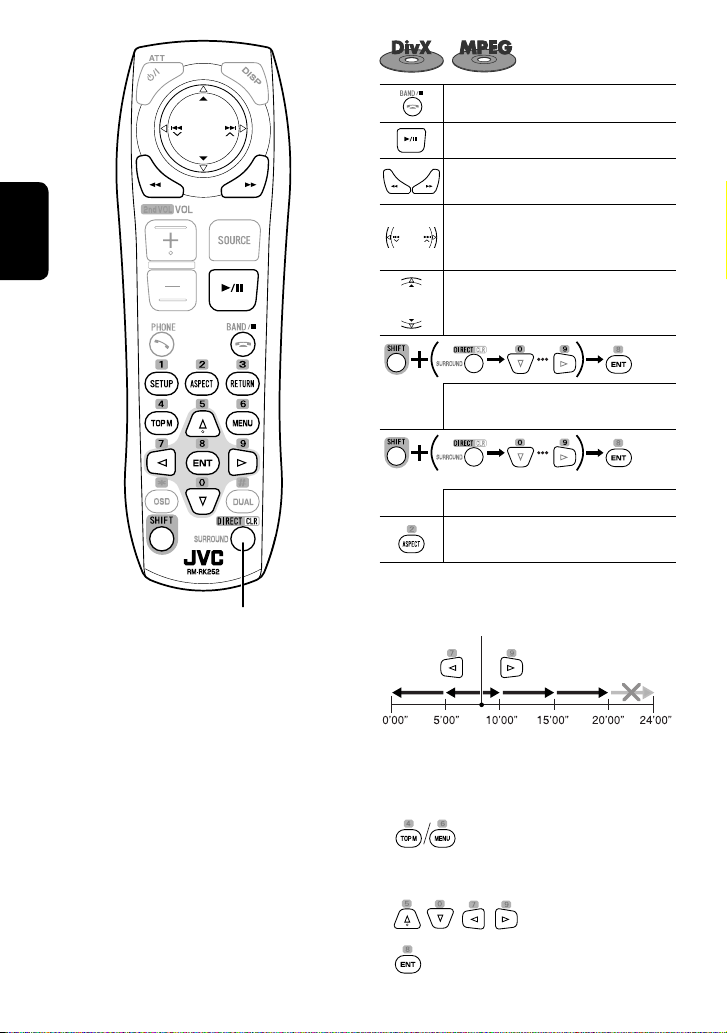

Basic operations — Remote controller (RM-RK252)

Installing the battery

ENGLISH

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly.

R03/LR03/AAA

Caution:

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

If the range or effectiveness of the remote controller decreases, replace both batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

IMPORTANT:

When Dual Zone is activated (☞ page 26), the remote controller functions only for operating the DVD/CD player.

Main elements and features

1 • Turns on the power.

• Turns off the power [Hold].

• Attenuates the sound (when the power is on).

2 “Disc,” “USB,” and “USB iPod”: Reverse search 3 • Adjusts the volume level.

• Adjusts the volume level through the 2nd AUDIO

OUT plug (while holding SHIFT). (☞ page 26)

4 • Answers incoming calls.

• Enters <Redial> [Hold].

• You can enter

button then touching 6 on the unit.

5 • DVD/DivX 6: Displays the disc menu.

• VCD: Resumes PBC playback (☞ page 21).

• DVD-VR: Displays the Original Program screen.

<Dial Menu> by pressing the

6 • Enters numbers (while holding SHIFT). (☞ pages

13, 19 to 22, 36, and 45)

• Selects the preset phone number.

• “Tuner,” “HD Radio,” and “Satellite Radio”: Selects the preset stations.

7 Displays the on-screen bar. 8 Functions with other buttons (see 3, 6, and ;) 9 Displays the display information. p “Tuner”:

• 5 / ∞: Selects preset stations.

• 4 / ¢: Searches for stations.

– Auto Search – Manual Search [Hold]

“HD Radio”:

• 5 / ∞: Selects multicast channels.

• 4 / ¢: Searches for stations.

– Auto Search – Manual Search [Hold] “Satellite Radio”:

• 5 / ∞: Selects categories.

• 4 / ¢:

– Selects channels. – Selects channels rapidly. [Hold] “Disc” and “Changer”:

• 5 / ∞:

– DVD: Selects the title. – DVD-VR: Selects the program/play list. – Other discs (except VCD/CD): Selects the

folders.

• 4 / ¢:

– Reverse skip/forward skip – Reverse search/forward search [Hold] “USB”:

• 5 / ∞: Selects the folders.

• 4 / ¢:

– Reverse skip/forward skip – Reverse search/forward search [Hold] “USB iPod”:

• 5 / ∞: Selects previous/next item.

• 4 / ¢

: – Reverse skip/forward skip – Reverse search/forward search [Hold] “iPod”:

• ∞: Pauses or resumes playback.

• 5: Enters the main menu (then 5 / ∞ / 4 /

¢ work as the menu selecting buttons).

• 4 / ¢: – Reverse skip/forward skip – Reverse search/forward search [Hold] In menu selecting mode: – Selects an item. (Then, press ∞ to confirm the

selection.) – Skips 10 items at a time [Hold]. “Bluetooth”:

• 5 / ∞: Selects group/folder.

• 4 / ¢: – Reverse skip/forward skip – Reverse search/forward search [Hold]

q “Disc,” “USB,” and “USB iPod”: Forward search w Selects the source. e • “Disc,” “USB,” and “USB iPod”: Starts and pauses

playback.

• “Bluetooth”: Starts playback.

• Answers incoming calls.

r Changes the aspect ratio of the playback pictures. t • “Tuner,” “HD Radio,” and “Satellite Radio”:

Selects the bands.

• “Disc” and “USB”: Stops playback.

• “Bluetooth”: Pauses playback.

• Ends the call.

y VCD: Returns to the PBC menu. u • DVD Video/DivX 6: Displays the disc menu.

• VCD: Resumes PBC playback. (☞ page 21)

• DVD-VR: Displays the Play List screen. i • Makes selection/settings.

• @ / #: Skips back or forward by 5 minutes for

DivX/MPEG1/MPEG2.

• % / ﬁ: Changes discs for “Changer.”

o Activates or deactivates Dual Zone. ; • Changes the surround mode.

(☞ page 23)

• “Disc” and “USB”: Switches the number entry

mode (while holding SHIFT).

• Erases the misentry after entering a wrong

number (while holding SHIFT).

*1 When Dual Zone is activated, these buttons cannot be

used.

*2 Functions as a number button only (see 6 ). *3 5 : Returns to the previous menu.

∞ : Confirms the selection.

OPERATIONS

ENGLISH

Listening to the radio

ENGLISH

A Band B Sound mode ( C Preset no. D Frequency E Assigned station name ( F FM reception indicator

☞ page 50)

☞ page 51)

~ Select “Tuner.” Ÿ Select the band.

When an FM stereo broadcast is hard to receive

AV Menu

TUNER

FLAT

FM1 P1 87.5 MHz

ABC Radio

! Search for a station—Auto Search.

• Manual Search: Hold either or until “Manual Search” appears on the monitor, then touch it repeatedly.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

Mono

Off

Exit

Reception improves, but the stereo effect will be lost.

• The MO indicator lights up.

Enter

Mode

To restore the stereo effect, select <Off> in step 4.

FM station automatic presetting

Mode

Mono

SSM Title Entry

Off

—SSM (Strong-station Sequential Memory)

This function works only for FM bands. You can preset six stations for each band.

Mode

Start

Mono

SSM

Title Entry

AV Menu

Enter

Mode

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

• When an HD Radio tuner box is connected (☞ page

46), you can also search and store the AM station automatically.

Manual presetting

Ex.: Storing the FM station of 92.5 MHz into preset

number 4 of the FM1 band.

Tune in to a station you want to preset.

TUNER

FLAT

FM1 92.5 MHz

No Name

4 Select a preset number.

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

[Hold]

Store

The Preset List appears

• For FM: Each time you hold 5 / ∞ , you can

change the bands.

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

Store

5 Store the station.

TUNER

FLAT

FM1 P4 92.5 MHz

[Hold]

No Name

The station selected in step 2 is now stored in preset number 4.

Selecting preset stations

On the remote:

On the unit:

To select directly

To select from the Preset List

3 Select the preset number.

The Preset List can also be accessed through

<AV Menu> = <List>.

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

Store

[Hold]

• For FM: Each time you hold 5 / ∞ , you can

change the bands.

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

Store

ENGLISH

OPERATIONS

Disc operations

The disc type is automatically detected, and playback starts automatically (for some discs: automatic start depends on its internal program).

ENGLISH

If a disc does not have any disc menu, all tracks in it will be played repeatedly until you change the source or eject the disc.

” appears on the monitor, the unit cannot accept the operation you have tried to do.

If “

• In some cases, without showing “ ,” operations will not be accepted.

~ Open the front panel.

Label side

Ÿ Insert the disc.

Playback starts automatically.

Caution:

Do not place your finger behind the control panel.

Caution on volume setting:

Discs and connected USB devices produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

0: Ejects the disc. 3/8: Starts and pauses playback.

BAND: Stops playback.

DISC

Now Reading...

DVD

DIGITAL

MULTI

VIDEO

01 02 0:01:20

CHAP.RPT

ENGLISH

4 ¢: Touch: Selects chapter.

Hold: Reverse/forward search

5 ∞: Selects title.

DISP:

4 ¢: Touch: Selects chapter.

Touch if necessary (☞ page 9).

Hold: Reverse/forward search

5 ∞: Selects program no./Play List no.

DISP:

Touch if necessary (☞ page 9).

A Disc type B Audio format C Sound/surround mode (

☞ pages 22 and 50)

D Title no./Chapter no./Playing time E Playback mode

DVD

DIGITAL FLAT

VR-PRG

01 02 0:01:20

A Audio format B VR-PRG: Original program

VR-PL: Play List C Sound/surround mode (

☞ pages 22 and 50)

D Program no. (or Play List no.)/Chapter no./Playing time

DVD

FRONT 2CH

DivX

01 02 0:01:20

Current Folder Name Current File Name.avi

4 ¢: Touch: Selects track.

Hold: Reverse/forward search for

DivX/MPEG

5 ∞: Touch: Selects folder.

Hold: Displays Folder List.

DISP:

Touch if necessary (☞ page 9).

A Sound/surround mode (☞ pages 22 and 50) B For DivX/MPEG: Folder no./Track no./Playing time

For JPEG: Folder no./File no. C Current folder name/current file name

*1 Search speed: x2 ] x10 *2 Search speed: ¡1 ] ¡2

OPERATIONS

ENGLISH

VCD

PBC

FLAT

02 0:01:20

4 ¢: Touch: Selects track.

Hold: Reverse/forward search

DISP:

Touch if necessary (☞ page 9)

4 ¢: Touch: Selects track.

Hold: Reverse/forward search

4 ¢: Touch: Selects track.

Hold: Reverse/forward search

5 ∞: Touch: Selects folder.

Hold: Displays Folder List.

A PBC indicator lights up when PBC is in use.

B Sound/surround mode ( C Track no./Playing time

Current Track Title Artist Name Disc Title

A Sound/surround mode (☞ pages 22 and 50)

B Track no./Playing time C Track title (only for CD Text)/Artist Name/Disc title

01 02 0:01:20

Current Folder Name Current File Name.mp3

A Audio format (MP3/WMA/WAV/AAC)

B Sound/surround mode ( C Folder no./Track no./Playing time D Current folder name/current file name

FLAT

MP3 FLAT

☞ pages 22 and 50)

02 0:01:20

RPT

☞ pages 22 and 50)

*1 Search speed: x2 ] x10 *2 “No Name” appears for conventional CDs. *3 Tag data will be shown instead of folder/file names

when they are recorded and <Tag Display> is set to <On>. (☞ page 52)

Selecting playback modes

You can use Repeat or Random playback mode.

Mode

Repeat

Random

Repeat

Set

Off

Track

Folder

Ex.: To select Track Repeat

AV Menu

Enter

Mode

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off> in step 4.

Disc type Repeat Random

Chapter: Repeats current chapter.

Title: Repeats current title.

Chapter: Repeats current chapter.

Program: Repeats current program (not available

for Playlist playback).

Track: Repeats current track (for VCD: PBC not

in use).

Disc (All): Randomly plays all tracks (for

VCD: PBC not in use).

Track: Repeats current track. Folder: Randomly plays all tracks of

current folder, then tracks of next folders.

Folder: Repeats all tracks of the current folder. Disc (All): Randomly plays all tracks.

Track: Repeats current track. Folder: Randomly plays all tracks of

current folder, then tracks of next folders.

Folder: Repeats all tracks of the current folder. Disc (All): Randomly plays all tracks.

Folder: Repeats all tracks of the current folder.

ENGLISH

—

OPERATIONS

Selecting tracks on the list

If a disc includes folders, you can display the Folder/ Track (File) Lists, then start playback.

1 Enter <Folder List>.

ENGLISH

2 Select a folder.

3 Select a file.

The Folder List can also be accessed through

<AV Menu> = <List>.

Folder List

My Best

Cinema Pops My Best2 Favorite Song

[Hold]

Cinema2

• Hold the button to display the next/previous folders.

Folder List

My Best Cinema Pops

My Best2

Favorite Song Cinema2

File List

Song011.mp3 Song012.mp3 Song013.mp3

Song014.mp3

Enter

Song015.mp3 Song016.mp3

Operations using the remote controller—RM-RK252

Prohibiting disc ejection

You can lock a disc in the loading slot.

~ Hold the buttons at the same time.

NO EJECT?

[Hold]

EMERGENCY EJECT?

Ÿ Activate the prohibition.

“No Eject” appears.

To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stops playback.

Starts or pauses playback.

• Reverse/forward search can be heard.)

• Slow motion

(No sound

during pause. (No sound

can be heard.)

• Selects chapter (during playback or pause).

• Reverse/forward search

[Hold]

Selects title (during playback or pause).

• Selects chapter.

• Selects title (when not playing).

[Twice]

Selects title (during playback or pause).

Changes the aspect ratio of the playback pictures.

Using menu driven features

2. Select an item you want to start playback.

Stops playback.

Starts or pauses playback.

• Reverse/forward search can be heard.)

• Forward slow motion

(No sound

during pause.

(No sound can be heard.)

• Reverse slow motion does not work.

• Select chapter (during playback or pause).

• Reverse/forward search

[Hold]

• Selects program.

• Selects Play List (during playback or pause).

• Selects chapter.

• Selects program (when not playing).

[Twice]

Selects program/Play List (during playback or pause).

Changes the aspect ratio of the playback pictures.

Using Original Program/Play List screens (☞ page

28)

1. For Original Programs:

For Play List:

ENGLISH

2. Select the item you want to start playback.

*1 Search speed: x2 ] x5 ] x10 ] x20 ] x60 *2 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4

] 1/2

*3 Search speed: x2 ] x10

OPERATIONS

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stops playback.

Starts or pauses playback.

Reverse/forward search be heard.)

• Selects track.

• Reverse/forward search

sound can be heard.)

Selects folder.

Selects track (within the same folder).

[Twice]

Selects folder.

Changes the aspect ratio of the playback pictures.

While playing...

Back/advance the scenes by 5 minutes.

Current playback position

1st press

1st press 2nd press

(No sound can

[Hold] (No

3rd press2nd press

For DivX6: Using menu driven features

2. Select the item you want to start playback.

During PBC playback...

Stops playback.

Starts or pauses playback. (Slide show: each file is shown for a few seconds.) Shows the current file until you change it if pressed during Slide show.

Selects track.

Selects folder.

Selects track (within the same folder).

[Twice]

Selects folder.

Changes the aspect ratio of the playback pictures.

Stops playback.

Starts or pauses playback.

• Reverse/forward search*

• Forward slow motion*4 during pause. (No sound can be heard.)

• Reverse slow motion does not work.

• Selects track.

• Reverse/forward search

[Hold] (No

sound can be heard.)

Selects an item on the menu.

Returns to the previous menu.

To cancel PBC playback 1

2 Start the desired track.

• To resume PBC:

Stops playback.

Starts or pauses playback.

Reverse/forward search

• Selects track.

• Reverse/forward search*5 [Hold]

Selects folder.

Selects track (within the same folder).

[Twice]

Selects folder.

ENGLISH

Selects track.

Changes the aspect ratio of the playback pictures.

*1 Search speed: ¡1 ] ¡2 ] ¡3 *2 Search speed: ¡1 ] ¡2 *3 Search speed: x2 ] x5 ] x10 ] x20 ] x60 *4 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4

] 1/2

*5 Search speed: x2 ] x10

OPERATIONS

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Enjoying surround sounds

You can enjoy multi-channel surround playback through the front, center, surround speakers.

• After connecting the center speaker, make sure to activate the center speaker; otherwise, no sound comes out of the center speaker (☞ page 55).

• You cannot activate this function in the following cases: – When “USB iPod” is selected as the source. – When Dual Zone is in use.

MULTI:

For multi-channel encoded sources such as Dolby

Digital

and DTS*4. (When activated, “MULTI” is shown

on the source information screen.)

Dolby Pro Logic II (Movie/Music):

For 2 channel sources except for DivX/MPEG1/MPEG2 discs.

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

*4 “DTS” and “DTS Digital Surround” are registered

trademarks of DTS, Inc.

Stops playback.

Starts or pauses playback.

Reverse/forward search

• Selects track.

• Reverse/forward search*2 [Hold]

Selects track.

*1 Search speed: x2 ] x5 ] x10 ] x20 ] x60 *2 Search speed: x2 ] x10

To turn on the surround

AV Menu

Enter

Disc Surround

Surround Off

Surround On

Auto

Surround Off:

Deactivates surround.

Surround On:

Activates surround. = Go to the following step.

Surround On

Auto Through

Dolby PLII Movie

Dolby PLII Music

Exit

Auto:

• When multi-channel digital signals come in, “MULTI” surround is activated.

• When 2-channel or 2.1-channel signals in, “4CH STEREO” is activated.

Through:

All incoming channel signals are sent to the corresponding speakers.

Dolby PLII Movie:

Activates Dolby Pro Logic II Movie.

Dolby PLII Music:

Activates Dolby Pro Logic II Music. You can adjust <Panorama> and <Center Width> settings. (☞ right column)

come

To change the <Dolby PLII Music> setting

In step 4 in the left column...

1 Select <Dolby PLII Music>.

Surround On

Auto Through Dolby PLII Movie

Dolby PLII Music

2 Enter each sub-screen then select the desired

setting. EX.: When <Panorama> is selected in step 1.

Dolby PLII Music

Panorama

Center Width

Off

Panorama

Off

Exit

Panorama:

Select <On> to add wraparound sound effect.

Center Width:

Adjust the center image so it may be heard only from the center speaker, only from the left/right front speaker as a “phantom” center image, or various combination of these speakers. As the number increases, the “phantom” effect becomes stronger (normally select <04>).

On the remote:

• You cannot change the <Dolby PL II Music> settings using the remote controller.

ENGLISH

Except signals of DivX/MPEG1/MPEG2 discs.

OPERATIONS

Operations using the on-screen bar (DVD/VCD/DivX/MPEG1/MPEG2/ JPEG)

These operations are possible on the monitor using the remote controller.

ENGLISH

~ Display the on-screen bar. (☞ page 25)

Ÿ Select an item.

! Make a selection.

• When a pop-up menu appears...

• For entering time/numbers... To move the entry position:

To select a number:

⁄

Repeat steps Ÿ and ! to set other items if needed.

To remove the on-screen bar

On-screen bar

Information

Operation

DVD -V

TIME TITLE CHAP

T02-C03 TOTAL 1:25:58

C. RPT

RPT

Above example is of DVD Video. Items shown on the bar vary depending on the disc type.

1 Disc type 2 • DVD: Audio signal format

• DTS-CD: DTS

• VCD: PBC

3 Playback mode*

DVD Video C. RPT: Chapter repeat

T. RPT: Title repeat

DVD-VR C. RPT: Chapter repeat

5 Time indication

TOTAL

Elapsed playing time of the disc

• Remaining title time (for DVD)

T. REM

• Remaining disc time (for others)

Elapsed playing time of the current

TIME

chapter/track

Remaining time of the current chapter/

REM

track

PG. RPT: Program repeat

DivX/ MPEG1/ MPEG2

T. RPT: Track repeat

F. RPT: Folder repeat

F. RND: Folder random

A. RND: All (disc) random

JPEG F. RPT: Folder repeat

VCD T. RPT: Track repeat

A. RND: All (Disc) random

4 Playback information

T02-C03

PG-001

PL-003

C-004

TRACK 01

F001-T001

F002-F002

C-002

Current title/chapter

Current program/chapter

Current playlist/chapter

Current track

Current folder/track

Current folder/file

6 Playback status

Play

Reverse/forward search

Reverse/forward slow-motion

Pause

Stop

7 Operation icons

TIME

Change time indication (see 5)

Time Search (Specify a certain scene by entering the time.)

TITLE

Title Search (by its number)

CHAP

Chapter Search (by its number)

TRACK

Track Search (by its number)

RPT

Repeat play

RND

Random play

Change the audio language, audio channel or audio stream

Change the subtitle language

Change the view angle

ENGLISH

☞ page 17

*2 Not applicable for DVD-VR.

OPERATIONS

Dual Zone operations

You can enjoy disc playback on the external monitor connected to the VIDEO OUT and 2nd AUDIO OUT plugs, while listening to any source other than “USB” through

ENGLISH

the speakers.

• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller.

When Dual Zone is activated, the main source is changed to “Disc.”

To select a different source (main source) to listen to through the speakers:

Press SRC on the control panel.

• By using the touch pad controls, you can operate the newly selected source without affecting Dual Zone (Disc) operations.

• You cannot select “USB” for the main source.

Dual Zone

Set

Off:

Deactivates Dual Zone.

On:

Activates Dual Zone without applying Headphone

Surround

. The DUAL indicator lights up.

On/Surround On:

Activates Dual Zone and applies Headphone Surround. “Headphone Surround” appears and the DUAL-SURROUND indicator lights up.

AV Menu

Enter

Off

On/Surround On

Dual Zone

On the remote:

Adjust the volume through the 2nd AUDIO OUT

plug.

3 Operate the DVD/CD player.

* JVC original headphone virtual surround system. This

surround will also work for the main source “Disc” if “On/Surround On” is selected as the sub-source. This surround does not work for DivX/MPEG1/MPEG2 discs.

Operations using the control screen

For discs except DVD and VCD:

While Dual Zone is on, these operations are possible on the external monitor using the remote controller. The control screen automatically appears when you insert a disc. (For DivX/MPEG1/MPEG2/JPEG; while not playing.)

Ex.: MP3/WMA

Folder : 2 / 3

01 Music

02 Music

03 Music

Track Information Album Weather Artist Robert M. Smith Title Rain

TIME 00:00:14T. RPT

Track : 6 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.wma Indian summer.mp3 Rain.mp3

Shower.mp3

Snow.mp3 Thunder.wma Typhoon.mp3 Wind.mp3 Winter sky.mp3

1 Current folder (highlighted bar) 2 Current folder no./total folder no. 3 Folder list

* If tag data includes “Jacket Picture” (baseline JPEG), it

will be displayed. If you press OSD, the playback mode selection window appears. (☞ below)

4 Selected playback mode (☞ below) 5 Elapsed playing time of the current track (not

displayed for JPEG)

6 Operation status 7 Current track no./total number of tracks in the

current folder (total number of tracks on the disc)

8 Track information (only for MP3/WMA/WAV/AAC) 9 Track list p Current track (highlighted)

To select a folder or track

1 Select “Folder” column or “Track” column on the

control screen.

2 Select a folder or track.

• If necessary, press 6 to start playback.

Ex.: CD Text

TIME 00:14

Track : 6 / 14

Cloudy Fair Fog Hail Indian summer

Rain

Shower Snow Thunder Typhoon Wind Winter sky

MODE

REPEAT

TRACK

Track Information

Album Four seasons Artist Robert M. Smith Title Rain

T. RPT

1 The playback mode selection window: appears

when OSD is pressed (☞ below).

2 Selected playback mode (☞ below) 3 Elapsed playing time of the current track 4 Operation status 5 Current track number/total number of tracks on the

disc

6 Track information 7 Track list 8 Current track (highlighted bar)

To select a track

• If necessary, press 6 to start playback.

ENGLISH

Selecting playback modes

You can also change the playback modes using the playback mode selection window.

• For JPEG, Random cannot be selected.

Except for JPEG: Select a playback mode.

MODE

REPEAT

OFF

3 Select your desired option.

Selectable playback mode

• DivX/MPEG1/MPEG2/JPEG: ☞ page 25

• MP3/WMA/WAV/AAC: – T. RPT: Track repeat – F. RPT: Folder repeat – F. RND: Folder random – A. RND: All (Disc) random

• CD: – T. RPT: Track repeat – A. RND: All (Disc) random

OPERATIONS

Operations using the list screen

For discs other than DVD, VCD, and CD

While Dual Zone is on, these operations are possible on the external monitor using the remote controller.

ENGLISH

While not playing...

1 Display the list screen.

Folder : 144/240 Track 144/198 Page : 4/7 fol120

fol121 fol122 fol123 fol124 fol125 fol126 fol127 fol128 fol129

fol130 fol131 fol132 fol133 fol134 fol135 fol136 fol137 fol138 fol139

fol140 fol141 fol142

fol143

fol144 fol145 fol146 fol147 fol148 fol149

fol150 fol151 fol152 fol153 fol154 fol155 fol156 fol157 fol158 fol159

List screen for DVD-VR

You can use the Original Program and Play List screen anytime while playing DVD-VR with its data recorded.

• These screens can be displayed on the built-in monitor and the external monitor.

1 Display the Original Program/Play List

screen.

ORIGINAL PROGRAM

No Date Ch ime itle

1 04/25/08 4ch 19:00 JVC DVD World 2008 2 05/17/08 8ch 10:30 3 05/22/08 8ch 17:00 Music Festival 4 05/26/08 L-1 13:19 children 001 5 06/20/08 4ch 22:00 6 06/25/08 L-1 8:23 children 002

2 Select a folder on the list.

Folder : 144/240 Track 144/198 Page : 4/5 file0121.mp3

file0122.mp3 file0123.wma file0124.mp3 file0125.mp3 file0126.wma file0127.wma file0128.mp3 file0129.mp3 file0130.wma

file0131.mp3 file0132.mp3 file0133.mp3 file0134.mp3 file0135.wma file0136.mp3 file0137.wma file0138.mp3 file0139.wma file0140.wma

file0141.wma file0142.mp3 file0143.wma

file0144.mp3

file0145.mp3 file0146.mp3 file0147.mp3 file0148.wma file0149.wma file0150.wma

file0151.wma file0152.mp3 file0153.wma file0154.mp3 file0155.wma file0156.wma file0157.wma file0158.wma file0159.mp3 file0160.wma

3 Select a track on the list.

• To go back to the folder list, press .

1 Current folder number/total folder number 2 Current track number/total number of tracks in the

current folder

3 Current page/total number of the pages included

in the list

4 Current folder/track (highlighted bar)

PLAY LIST

No Date Chap Length Title

1 05/25/08 001 1:03:16 My JVC World 2 06/17/08 005 1:35:25 3 06/20/08 003 0:10:23 Favorite music 4 06/25/08 001 0:07:19 children001-002

2 Select the item you want.

1 Program/Play List number 2 Recording date 3 Recording source (TV station, the input terminal

of the recording equipment, etc.)

4 Start time of recording 5 Title of the program/Play List 6 Highlighted bar (current selection) 7 Creating date of Play Lists 8 Total number of chapters 9 Playback time

* The title of the original program or Play List may not

be displayed depending on the recording equipment.

USB operations

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to the unit.

• You can also connect the iPod to the USB terminal of the unit. For details of the operations, ☞ pages 38 and 39.

USB cable from the rear of the unit.

• You cannot connect a computer to the USB ( ) terminal of the unit.

USB

Now Reading...

ENGLISH

4 ¢: Touch: Selects track

Hold: Reverse/forward search

5 ∞: Touch: Selects folder

Hold: Displays Folder List

3 / 8: Starts/pauses playback.

DISP:

BAND: Stops playback.

Touch if necessary. (☞ page 9)

~ Connect a USB device.

“USB” is selected as the source and playback starts automatically.

This unit can play JPEG/MPEG1/MPEG2 WAV/AAC*2 files stored on a USB mass storage class device.

• You can operate the USB device in the same way you

operate the files on discs. (☞ pages 17 to 25)

• You cannot select “USB” when Dual Zone is in use.

• All tracks on the USB device will be played repeatedly until you change the source.

*1 Except for MPEG2 files recorded by JVC Everio

camcorder (extension code <.mod>).

*2 This unit can play back AAC files encoded using

iTunes. This unit cannot play back FairPlay-encrypted files.

/MP3/WMA/

OPERATIONS

Caution:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “Now Reading...” is flashing on the monitor.

• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.

ENGLISH

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• For more details about USB operations, ☞ page 64.

Selecting playback modes

You can use Repeat or Random playback mode. Ex.: To select Track Repeat

Repeat

Set

Off

Track

Folder

AV Menu

When one of the playback modes is selected, the corresponding indicator lights up on the source

Enter

Mode

information screen.

To cancel, select <Off> in step 4.

Mode

Off

Repeat

Random

File type Repeat Random

Track: Repeats current track. Folder: Randomly plays all tracks of current

folder, then tracks of next folders.

Folder: Repeats all tracks of the current

USB (All): Randomly plays all tracks.

folder.

Track: Repeats current track. Folder: Randomly plays all tracks of current

folder, then tracks of next folders.

Folder: Repeats all tracks of the current

folder.

USB (All): Randomly plays all tracks.

Folder: Repeats all tracks of the current

folder.

—

Bluetooth® operations — Cellular phone/audio player

Connecting a Bluetooth device for the first time

Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The bluetooth devices can be connected without cables and communicate with each other.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles;

HFP (Hands-Free Profile) 1.5 OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

Pairing and PIN Code

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate each other. To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.

• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

• To use the Bluetooth function, you need to turn on Bluetooth function of the device.

ENGLISH

Features

You can operate Bluetooth devices through the unit as follows:

• Receiving a call

• Making a call—from phone book, from call history (Redial and Received Call), by dialing number, by preset numbers, by voice command

• Receiving the text message

• Playing back a Bluetooth audio player

Refer also to the instructions supplied with the Bluetooth device.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

Preparation: Operate the device to turn on its Bluetooth function.

Registration (Pairing) method

AV Menu

Enter

Bluetooth

Continued on the next page

OPERATIONS

ENGLISH

Enter a PIN (Personal Identification Number)*

Bluetooth

Deviec Menu

Dial Menu

Device Menu

Settings

Phone Connect

Phone Connect Audio Connect Delete Pairing

New Pairing

code to the unit.

• You can enter any number you like (1-digit to 16-digit number).

* Some devices have their own PIN code. Enter the

specified PIN code to the unit.

New Pairing

Pin Code

1234

Enter

• To delete an unwanted digit, select a blank.

starts flashing.

6 Operate the target Bluetooth device. (While

“Open...” is flashing on the monitor.)

Enter the same PIN code (as entered in the above step) on the device to be connected.

Now connection is established and you can use the device through the unit.

turns blue and the following icon appears when the

connection is established.

Appears when the Bluetooth phone is connected.

Appears when the Bluetooth audio player is connected.

Appears when the Bluetooth phone and the Bluetooth audio player are connected.

The device remains registered even after you disconnect the device. Use <Phone Connect> (or activate <Auto Connect>) to connect the same device from next time on. (☞ page 60)

Connecting/disconnecting a registered device

Bluetooth

AV Menu

Dial Menu

Device Menu

Settings

Phone Connect

Enter

Bluetooth

4 Select the desired setting.

Deviec Menu

Phone Connect

Audio Connect Delete Pairing New Pairing

• For connecting: Select<Phone Connect>/ <Audio Connect> then go to the next step.

• For disconnecting: Select <Phone Disconnect>/ <Audio Disconnect>.

5 Select the registered device you want to

connect.

Phone Connect

W21T P901i

P6200

Enter

You can set the unit to connect a Bluetooth device automatically when the unit is turned on. (☞ page

60)

* When a device has already connected to the unit,

<Phone Connect> and <Audio Connect> do not appear and vice versa.

Deleting a registered device

Making a call

You can make hands-free calls using the unit.

Select the registered device you want to delete.

Bluetooth

Deviec Menu

Delete Pairing

Delete

Enter

AV Menu

Enter

Dial Menu

Device Menu

Settings

Phone Connect

Phone Connect Audio Connect

Delete Pairing

New Pairing

W21T P901i

P6200

Yes

Bluetooth

The built-in microphone is behind the upper left hand corner of the unit.

The sound comes out from the connected speakers.

Bluetooth

AV Menu

Enter

Bluetooth

Dial Menu

Device Menu Settings

Redial

Continued on the next page

ENGLISH

OPERATIONS

4 Select the method to make a call.

Dial Menu

Redial

Received Calls Phonebook Preset Calls Phone Number

09845671234

ENGLISH

Redial

Shows the list of phone numbers you have dialed. = Go to the following step.

Received Calls

Shows the list of the received calls. = Go to the following step.

Phonebook

Shows the phone book copied from a cellular phone. = Go to the following step.

Preset Calls

Shows the list of preset numbers. = Go to the following step.

Phone Number

Shows the phone number entry screen. = “How to enter a phone number” ☞ page 35

Voice Dialling

(Only when the connected cellular phone has the voice recognition system): Speak the name you want to call. (Refer to the instruction manual supplied with your cellular phone.)

5 Select the name/phone number/preset number

you want to call.

Redial

Delete

08945671234

12312341234

Dial Store

Displays only when the dialed or received number is

made through the unit.

For copying, ☞ page 35.

For presetting, ☞ page 36.

You can also enter <Dial Menu> by pressing on the remote controller then touching 6 on the unit.

When a call comes in...

Name and phone number (if acquired)

The source is automatically changed to “Bluetooth.”

When <Auto Answer> is activated...

The unit answers the incoming calls automatically. (☞ page 60)

• When <Auto Answer> is deactivated, press SRC or touch any control to answer the incoming call.

To end the call or reject an incoming call Hold SRC or any control.

Answering a waiting call

If your cellular phone is equipped with the call waiting function, you can put the current call on hold and answer the waiting call. Press SRC or touch any control.

• To restore the on-hold call, press SRC or touch any control again.

• When you end one call, you can connect to the other.

• When the sound is stopped or interrupted during the use of a Bluetooth device, turn off, then turn on the unit. – If the sound is not yet restored, connect the device

again. (☞ “Connecting/disconnecting a registered device” on page 32)

• While talking, you can enter <MIC Setting> to adjust the built-in microphone volume level by touching MENU. (☞ page 60)

When a Text message comes in...

If the cellular phone is compatible with Text message and <SMS Notify> is set to <On> (☞ page 60), the unit rings and “Receiving Message” appears on the monitor to inform you of the arrival of the message.

How to enter a phone number

Select a number. Move the entry position.

• To delete an unwanted digit, select a blank.

• To erase all digits, hold DISP.

To copy the phone book

You can copy the phone book memory of a cellular phone into the unit.

AV Menu

Enter

Bluetooth

ENGLISH

How to delete the phone numbers/names

• Make sure that the Bluetooth phone is connected.

1 Display the list of phone numbers/names using

<Redial>, <Received Calls>, or <Phonebook> in <Dial Menu>.

• Follow steps 1 to 4 of “Making a call” on pages 33 and 34.

2 Select the phone number/name you want to

delete.

Redial

Delete

08945671234

12312341234

Dial Store

Delete

Enter

One

All

No: Cancels.

One: Deletes the selected phone number/name.

All: Deletes the phone numbers/names listed

in step 1.

[Hold]

Enter a PIN* code to the unit.

Bluetooth

Settings

Open

Dial Menu Device Menu

Settings

Auto connect

Auto Connect Auto Answer SMS Notify

Add Phonebook

MIC Setting

• You can enter any number you like (1-digit to 16-digit number).

* Some cellular phones have their own PIN code.

Enter the specified PIN code to the unit.

Add Phonebook

Pin Code

1234

Enter

• To delete an unwanted digit, select a blank.

Continued on the next page

OPERATIONS

Operate the target cellular phone.

Enter the same PIN code (as entered in the above step) on the cellular phone then transfer the phone

ENGLISH

book memory to the unit. (Refer to the instruction manual supplied with your cellular phone.)

7 Finish the procedure.

• If you try to copy a 51st phone book entry, “Phonebook Full” appears on the monitor. Delete unwanted names before copying (☞ page 35).

Presetting the phone numbers

You can preset up to six phone numbers.

1 Display the phone number you want to

preset by using <Redial>, <Received Calls>, <Phonebook>, or <Phone Number>.

[Hold]

Select a preset number.

4 Store the phone number.

Preset Memory

Store

Preset Memory

Store

1 2 3 4 5 6

11122223333

22233336666

44455556666

99988887777

55566668888

11133334444

11122223333

22233336666 44455556666 99988887777 55566668888 11133334444

To call a preset number

On the remote:

On the unit:

See ”Making a call.” (☞ pages 33 and 34) In step 4...

1 Select <Preset Calls>.

The Preset Calls List appears.

2 Select the preset number.

Preset Calls

11122223333

22233336666

44455556666

99988887777

Dial

55566668888

11133334444

Switching conversation media (the unit/cellular phone)

During a phone call conversation...

Then, continue your conversation using the other media.

You can use the following buttons on the remote controller for the Bluetooth phone operations. For details, ☞ pages 10 and 11.

The phone number selected in step 1 is now stored in preset number 5.

Using the Bluetooth audio player

• Operations and display indications differ depending on their availability on the connected audio player.

Bluetooth

4 ¢: Touch: Reverse/forward skip

Hold: Reverse/forward search

5 ∞: Selects group/folder. 6: Starts playback.

BAND: Pauses playback.

A Sound mode (☞ page 50) B

☞ page 32

C Status of the device Signal strength/Battery remainder

D Track no./Playing time E Indicates the touched control or pressed button. It may be

different from the operation status.

F Track title/Artist Name/Album title

* Appears only when the information comes from the

device.

~ Select “Bluetooth.” Ÿ Start playback.

• See pages 31 and 32 for connecting a new device.

• See page 32 for connecting/disconnecting a registered device.

• See page 33 for deleting a registered device.

• When the sound is stopped or interrupted during the use of a Bluetooth device, turn off, then turn on the unit. – If the sound is not yet restored, connect the device

again. (☞ “Connecting/disconnecting a registered device” on page 32)

FLAT

01 0:02:39

Current Track Title Artist Name

Album Title

Selecting playback modes

You can use Repeat or Random playback mode.

1 Enter <AV Menu> = <Mode>. 2 Select <Repeat> or <Random>. 3 Select a playback mode.

Repeat: Off: Cancels.

Random: Off: Cancels.

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off> in step 3.

You can use the following buttons on the remote controller for the Bluetooth audio operations. For details, ☞ pages 10 and 11.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http:// www.jvc-victor.co.jp/english/car/>

Track: Repeats current track. Group: Repeats all tracks of the

current group/folder.

All: Repeats all tracks.

Group: Randomly plays all tracks of

current group/folder, then tracks of next groups/folders. All: Randomly plays all tracks.

OPERATIONS

ENGLISH

Listening to the iPod

You can connect the iPod using the following cable or adapter:

Cable/adapter To operate

To listen to the music USB 2.0 cable (supplied for the iPod)

ENGLISH

Interface Adapter for iPod— KS-PD100 (not supplied)

To watch the video USB Audio and Video cable for

iPod—KS-U20K (not supplied)

When connected with the USB cable

☞ “When connected with the USB cable” below.

☞ “When connected with the interface adapter”

on page 40.

☞ “When connected with the USB cable” below.

• Make sure <iPod (Off)> is selected for

<AV Input>. (☞ page 56)

A Source name B Sound mode ( C Track or video no./Playing time

☞ page 50)

6: Starts/pauses playback. 5 ∞: Moves to the previous/next item of a

category (ex.: another album, artist, playlist,

etc.).

DISP:

Touch if necessary. (☞ page 9)

5 / ∞ may not function depending on how you

select the current track/video.

~ Select “USB iPod.”

Playback starts automatically.

• When you connect the iPod to the USB terminal, “USB iPod” is selected as the source and playback starts automatically.

USB iPod

Track Title Artist Name

Album Title

FLAT

01 0:01:20

Ÿ Select a track/video

Touch: Selects track/video. Hold: Reverse/forward search

*2 You cannot resume playback for video sources.

You can display iPod Artwork on the monitor. (☞ pages 54 and 65)

Selecting a track/video from <Search Mode>

1 Enter <Search Mode>.

Search Mode

Music

Videos Shuffle Songs

[Hold]

2 Select <Music> or <Videos>.

Search Mode

Music

Videos

Shuffle Songs

3 Select an item.

EX.: When <Music> is selected in step 2.

Music

Playlists

Artists Albums Songs Podcasts Genres

• Repeat the procedure to select the desired track/video.

4 Confirm the selection.

Repeat

Set

Off

One

All

Repeat: One: Functions the same as “Repeat

One” of the iPod. All: Functions the same as “Repeat All” of the iPod.

Random: Song: Functions the same as “Shuffle

Songs” of the iPod.

Album: Functions the same as “Shuffle Albums” of the iPod.

ENGLISH

<Search Mode> can also be accessed through <AV Menu> = <List>.

Selecting playback modes

You can use Repeat or Random playback mode.

Ex.: To select Track Repeat

Mode

Repeat

Random AudioBooks

Off

AV Menu

Enter

Mode

When playback modes are selected, the corresponding indicators light up on the source information screen.

To cancel, select <Off> in step 4.

* You can also activate the playback mode through

<Search Mode>.

To activate, select <Shuffle Songs> then touch 6 in

step 2 on page 38.

Changing the play speed of the audiobooks

You can change the play speed of the audiobooks.

Follow steps 1 to 3 in the left column. In step 3...

Select the desired speed.

Mode

AudioBooks

Set

Repeat Random

AudioBooks

Normal

Faster Slower

EXTERNAL DEVICES

When connected with the interface adapter

ENGLISH

∞: Pauses playback

– To resume, touch again

A Source name B Sound mode ( C Track no./Playing time

☞ page 50)

Preparation:

When operating through the CD changer jack, make sure <iPod> is selected for the external input setting. (☞ page 56)

~ Select “iPod.”

Playback starts automatically.

Ÿ Select a track.

Touch: Selects track. Hold: Reverse/forward search

iPod

FLAT

01 0:01:20

Track Title

Artist Name Album Title

Selecting a track from the player’s menu

1 Enter the player’s menu.

• This mode will be canceled if no operations are done for about 5 seconds.

The SEARCH indicator lights up.

2 Select the desired item.

Touch: Select an item Hold: Skip 10 items at a time

Ô <Songs> Ô <Genres> Ô <Composers> Ô (back to the beginning)

3 Confirm the selection.

4 Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.

• To return to the previous menu, touch 5.

Selecting playback modes

Operations are exactly the same as explained on page

39.*

* “AudioBooks” is not displayed in step 3.

Listening to the CD changer

CD-CH

4 ¢: Touch: Selects track.

Hold: Reverse/forward search

5 ∞: Touch: Selects folder (MP3 only).

Hold: Displays Disc List.

A MP3 indicator (MP3 only) B Sound mode (

☞ page 50)

C Disc no./Folder no./Track no./Playing time D Current track title/Artist name/Disc title

“No Name” appears for conventional CDs.

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs.

Preparation:

Make sure <Changer> is selected for the external input setting. (☞ page 56)

~ Select “Changer.” Ÿ Enter <Disc List>.

Disc List

MP3 DISC

DISC 02 DISC 03 DISC 04 DISC 05

[Hold]

• Each time you hold the button, you can display the other list of the remaining discs.

DISC 06

MP3

FLAT

01 01 01 0:01:20

Current Track Title Artist Name

Disc Title

! Select a disc to start playing.

Disc List

MP3 DISC DISC 02 DISC 03

DISC 04

Enter

DISC 05 DISC 06

While playing an MP3 disc, you can select and start playing a track in the disc using the Lists:

<Disc List> (select the current disc) = <Folder List> = <File List> then start playing a

track you want.

Disc List

MP3 DISC

DISC 02 DISC 03 DISC 04 DISC 05

Folder List

File List

Enter

DISC 06

My Best

Cinema Pops My Best2 Favorite Song Cinema2

Song011.mp3

Song012.mp3 Song014.mp3 Song014.mp3 Song015.mp3 Song016.mp3

[Hold]

Each List can also be accessed through <AV Menu>

<List> = <Disc List> = <Folder List> =

<File List>.

ENGLISH

EXTERNAL DEVICES

Selecting playback modes

You can use Repeat or Random playback mode. Ex.: To select Track Repeat

ENGLISH

AV Menu

Enter

Mode

Repeat

Set

Off

Track

Folder Disc

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off> in step 4.

Mode

Off

Repeat

Random

Disc type Repeat Random

Track: Repeats current track. Disc: Randomly plays all tracks of the current

disc.

Disc: Repeats all tracks of the current

disc.

All: Randomly plays all tracks of all loaded

discs.

Track: Repeats current track. Folder: Randomly plays all tracks of current folder,

then tracks of next folders.

Folder: Repeats all tracks of the current

folder.

Disc: Repeats all tracks of the current

disc.

Disc: Randomly plays all tracks of the current

disc.

All: Randomly plays all tracks of all loaded

discs.

You can use the following buttons on the remote controller to operate the CD changer. For details, ☞ pages 10 and 11.

MP3 only

Listening to the satellite radio

Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• JVC SIRIUS Satellite radio interface, KS-SRA100, for listening to SIRIUS Satellite radio.

• JVC Smart Digital Adaptor, XMDJVC100, for listening to XM Satellite radio.

ENGLISH

For SIRIUS Radio

Activate your subscription after connection:

1 Turn on the power.

2 Select “Satellite Radio.”

The SIRIUS Satellite radio starts updating all the SIRIUS channels. (☞ “GCI update” column below.)

• Once completed, SIRIUS Satellite radio tunes in to the preset channel, CH184.

3 Check your SIRIUS ID, ☞ page 56. 4 Contact SIRIUS on the internet at <http://

activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“Subscription updated Press any Key to continue” appears on the monitor once subscription has been completed.

For XM Radio

Activate your subscription after connection:

• Only Channel 0, 1, and 247 are available before activation.

1 Turn on the power.

2 Select “Satellite Radio.”

The XMDirect™ Universal Tuner Box starts updating all the XM channels. “Channel 1” is tuned in automatically. (☞ “GCI update” column below.)

3 Check your XM Satellite radio ID labelled on the

casing of the XMDirect™ Universal Tuner Box, or tune in to “Channel 0” (☞ page 44).

4 Contact XM Satellite radio on the internet at

<http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XMRADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the available channels (Channel 4 or higher).

GCI (Global Control Information) update:

• If channels are updated after subscription, updating starts automatically, and no sound can be heard. For SIRIUS: “Channel is updating XX% completed” appears. For XM: “UPDATING” appears.

• Update takes a few minutes to complete.

• Do not touch any touch pad control, press any button, or perform any operation until updating is completed.

EXTERNAL DEVICES

ENGLISH

SAT

XM1 P1 01ch

Category Name Channel Name

FLAT

DISP: Touch to display the program

information—artist name/song name (/composer name: only for SIRIUS Satellite radio).

For SIRIUS Radio

~ Select “Satellite Radio.” Ÿ Select the band.

! Select a category.

• To select a channel from all categories, select <All>.

⁄ Make a channel to listen.

• Holding either or changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

A Sound mode (☞ page 50) B SIRIUS/XM Band C Preset no. D Channel no. E Category name F Channel name G Signal strength

For XM Radio

~ Select “Satellite Radio.” Ÿ Select the band.

! Select a category.

• To select a channel from all categories (including non-categorised channels), skip this step.

• If you do not select a channel within 15 seconds, the category selected is canceled. You can select a channel from all categories now.

⁄ Select a channel to listen.

• Holding either or changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

• “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.

• XM and its corresponding logos are registered trademarks of XM Satellite Radio Inc.

• “SAT Radio”, the SAT Radio logo and all related marks are trademarks of SIRIUS Satellite Radio Inc., and XM Satellite Radio, Inc.

Checking the XM Satellite radio ID

Select Channel “0.”

The 8-digit (alphanumeric) ID number is displayed on the monitor. To cancel the ID number display, select any channel other than channel “0.”

Storing channels in memory

You can preset six channels for each band. Ex.: Storing a channel into preset number 5

1 Tune in to a channel you want to preset.

SAT

XM1 38ch

Rock XM Music Club

FLAT

Selecting on the lists

You can select a channel using one of the following lists—Preset List/Category List/Channel List.

AV Menu

ENGLISH

2 Display the Preset List.

XM1

Channel Name

The City

40 at 40

Hank's Place

Enter

[Hold]

Store

Audio Visions

Preview

3 Select a preset number.

XM1

Channel Name

The City

40 at 40

Hank's Place

Enter

Audio Visions

Preview

Store

4 Store the channel.

SAT

FLAT

XM1 P5 38ch

Rock

[Hold]

XM Music Club

Selecting preset channels

On the remote:

Enter

List

Select a desired list.

List

Preset List

Category List Channel List

• Preset List: Displays your preset channels. ☞

step 5

• Category List: Displays the categories. ☞ step 4

• Channel List: Displays all channels within the

selected category. ☞ step 5

4 Select a desired category.

Category List

DECADES

COUNTRY HITS ROCK URBAN JAZZ & BLUES

5 Select a desired channel.

EX.: When <Preset List> is selected in step 3.

XM1

Channel Name

The City

40 at 40

Hank's Place

Enter

Audio Visions

Preview

Store

On the unit:

See “Selecting on the lists” in the right column.

• Category List can also be accessed by...

• Preset List can also be accessed by...

[Hold]

EXTERNAL DEVICES

Listening to the HD Radio™ Broadcast

Before operating, connect HD Radio tuner box, KT-HD300 (separately purchased) to the CD changer jack on the rear of the unit.

ENGLISH

What is HD Radio Technology?

HD Radio Technology can deliver high-quality digital sound—AM digital will have FM-like quality (in stereo) and FM digital will have CD-like quality—with static-free and clear reception. Furthermore, stations can offer text and data, such as artist names and song titles.

• When the HD Radio tuner box is connected, it can also receive conventional analog broadcasts.

• Many HD Radio stations also offer more than one channel of programming. This service is called multicasting.

• To find HD Radio stations in your area, visit www.hdradio.com <http://www.hdradio.com/>.

HD Radio

5 ∞: Selects multicast channels.

DISP: Touch to display the program

information—song name/artist name/album title.

A Flashes first then lights up when a digital audio broadcast

is tuned in.

B Station Call Sign C Program type D Signal strength E HD Radio reception indicators ( F DX/Local indicator (

* When an HD Radio multicast channel is received, the

first four letters of Call Sign and channel number are displayed.

☞ page 47)

FLAT

FM1 P1 87.5 MHz

WXYZ-FM

ROCK

AUTO

Refer also to page 12 for basic radio operations.

When receiving HD Radio multicast channels...

Select your desired channel.

“LINKING” appears while linking to a multicast channel.

Searching for HD Radio stations only:

The “HD SEARCH” indicator appears.

Changing HD Radio reception mode

While receiving an HD Radio broadcast, the unit tunes to digital or analog audio automatically due to the receiving condition.

AV Menu

Enter

Mode

Tuning in to stations with sufficient signal strength

This function works only for FM bands. Once you have activated this function (selected <Local>), it always works when searching for FM stations.

AV Menu

Enter

Mode

ENGLISH

Mode

Mono DX/Local SSM

Blend Hold

Auto

Blend Hold

Analog Digital

Auto

Exit

Analog: Tuning to analog audio only Digital: Tuning to digital audio only Auto: Switch between digital and analog

audio automatically

• If no sound can be heard from the selected setting, change the setting to <ANALOG> or <DIGITAL>.

• The setting automatically changes to <AUTO> if you tuned in to or change to another station, or if you turned off the power.

• This setting cannot take effect for the conventional FM/AM stations.

• If the radio station forces the reception mode to digital, the DIGITAL indicator flashes.

Mode

DX/Local

Exit

Mono

DX/Local

SSM Blend Hold

Local

Only stations with sufficient signal strength will be detected.

• The DX indicator goes off, then the LO indicator lights up.

• During SSM search (☞ page 12), this function cancels temporarily.

EXTERNAL DEVICES

Listening to other external components

AV-INPUT

You can connect an external component to the LINE IN/VIDEO IN plugs.

ENGLISH

AV-IN

DISP:

Touch if necessary. (☞ page 9)

A Sound mode (☞ page 50) B Assigned title (

☞ page 51)

Preparation:

Make sure the appropriate <AV Input> setting is selected for the connected component. (☞ page 56)

~ Select “AV Input.” Ÿ Turn on the connected component and

start playing the source.

FLAT

AV-INPUT

Navigation screen

When you connect a Navigation System to the unit, you can view the navigation screen regardless of the source.

Preparation:

Make sure <AV Input> setting is selected for <Navigation>. (☞ page 56)

To watch the navigation screen, touch DISP repeatedly. (☞ page 9)

• The aspect ratio of the navigation screen is fixed to <Full> regardless of the <Aspect> setting. (☞ page 53)

• When you do not connect the Navigation System but connect an audio component to LINE IN plugs, you can use “AV Input” for listening to the audio source.

EXT-INPUT

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied).

A Sound mode (☞ page 50) B Assigned title (

☞ page 51)

EXT-IN

FLAT

EXT-INPUT

Preparation:

Make sure <External Input> is selected for <External Input>. (☞ page 56)

~ Select “External Input.” Ÿ Turn on the connected component and start playing the source.

ENGLISH

EXTERNAL DEVICES

Sound equalization

ENGLISH

Selecting a sound mode

Select a sound mode.

Equalizer

Edit

Exit

You can select one of the following sound modes: <Flat>, <Hard Rock>, <R&B>, <Pop>,

• For preset equalizing values of each sound

mode, ☞ page 67.

• For multi-channel source, the sound mode is temporarily canceled.

Flat Hard Rock

R&B

Pop Jazz

AV Menu

Enter

Equalizer

Edit

+03

Store

60.0 Hz

Storing your own adjustments

You can store your adjustments into <User1>, <User2>, and <User3>.

1 Follow steps ~ and Ÿ on the left. 2 Select the item you want to adjust.

Equalizer

Edit

Flat Hard Rock

R&B

Pop

Exit

Jazz

3 Adjust each setting.

Edit

4 Select <User1>, <User2>, or <User3> then

store the setting.

User Store

User1 User2

User3

Store

+03

60.0 Hz

Assigning titles to the sources

You can assign titles as follows.

FM/AM stations*Up to 16 characters—up to 30

stations

“AV Input”

Up to 16 characters

“External Input”

• If you try to assign a title to a 31st station, “Name Full” flashes on the monitor. Delete unwanted titles before assignment.

* You cannot assign titles to the HD Radio stations.

Ex.: Assigning title to “AV Input”

~ Select “AV Input.”

• For FM/AM stations: Select the band, then tune into a station.

Title Entry

A-a-0

Store

⁄ Assign a title.

1 Select a character, then move the entering

2 Repeat step 1 until you finish entering the

@ Finish the procedure.

AV-In Name

AV-INPUT

Title Entry

A-a-0

AV-In Name

AV-INPUT

Store

position.

• To change the character set, touch DISP.

(For available characters, ☞ page 66.)

• To erase the whole characters, hold DISP.

title.

ENGLISH

Mode

Title Entry

AV Menu

Enter

Mode

SETTINGS

Menu items

Menu operations

For details of the menu operations, ☞ page 6.

ENGLISH

Setup

Display

Equalizer

AV Menu

Sound

Enter

Setup

• The display indications may change according to change of the specifications.

Initial: Underlined

Disc Surround

Mode

List

Dual Zone

Bluetooth

Clock

Disc Setup 1

Disc Setup 2

Tuner

Input

Others

Setup

Menu items Selectable settings, [reference page]

Demonstration Off: Cancels.

On: Activates the demonstration on the monitor.

Wall Paper You can select the background picture of the monitor.

Grid, Silk, Metal, Plain

Color You can select the background color of the monitor.

Blue, Light-Blue, Red, Orange, Yellow, Green, Purple, Dark-Blue, Dark-Green, Brown, Light-Brown, Black

Scroll Off: Cancels.

Display

Tag Display Off: Cancels.

Once: Scrolls the source information once. Auto: Repeats scrolling (5-second intervals).

• Holding DISP (on the unit) scrolls the information regardless of this setting.

On: Shows the Tag data while playing MP3/WMA/WAV/AAC tracks.

Menu items Selectable settings, [reference page]

Dimmer Off: Cancels.

On: Activates dimmer. Auto: Dims the monitor when you turn on the headlights.

Time Set: Touch ¢ to display the time setting screen, then set the Dimmer On/Off times.

Bright You can adjust brightness of the monitor.

–15 (darkest) to +15 (brightest); Initial 00

Picture Adjust

You can adjust the following to make the monitor clear and legible for watching the playback picture. The setting will be stored for “Disc/USB” and “AV Input.”

–15 to +15; Initial 0 Bright: Adjust if the picture is too bright or too dark. Contrast: Adjust the contrast. Color: Adjust the color of the picture—lighter or darker. Tint: Adjust the tint if the human skin color is unnatural.

Aspect

Display

You can change the aspect ratio of the picture.

Aspect ratio of incoming signal

4:3 16:9

Full:

For 16:9 original pictures Auto: • For “Disc”: Aspect ratio is automatically

selected to match to the incoming signals.

• For other video sources: Aspect ratio is fixed at <Regular>.

Regular:

For 4:3 original pictures

Language

Select the indication language shown on the monitor.

English, Español, Français, Deutsch, Italiano, Nederlands, Svenska, Dansk, Руccĸий, Português

• The characters you can enter for assigning the titles also change

according to the language selected, ☞ [66]

The ILLUMINATION CONTROL lead connection is required. (☞ “Installation/Connection Manual”)

* *2 Adjustable only when the source is a disc or USB containing pictures or movies, or “AV Input.” *3 Not adjustable for audio sources. *4 After you change the indication language setting, turn off then on the power so that your setting takes effect.

ENGLISH

SETTINGS

Menu items Selectable settings, [reference page]

Time Set

Initial 1:00 AM, ☞ [7]

Time Format 12Hours, 24Hours OSD Clock Off: Cancels.

ENGLISH

Clock Adjust Off: Cancels.

On: Displays the clock time while playing back a video source.

Auto: The built-in clock is automatically adjusted using the clock time

Clock

Time Zone

*1*2

data provided via the satellite radio channel. Select your residential area from one of the following time zones for

clock adjustment. Alaska, Pacific, Mountain, Central, Eastern, Atlantic, Newfoundland

*1*2

DST

(Daylight Saving Time) Activates this if your residential area is subject to DST.

Off: Cancels.

On: Activates daylight saving time. Menu Language Audio Language

Select the initial disc menu language; Initial English (☞ also page 67).

Select the initial audio language; Initial English (☞ also page 67).

Subtitle Select the initial subtitle language or erase the subtitle (<Off>); Initial

Off (☞ also page 67). Monitor Type Select the monitor type to watch a wide screen picture on the external

16:9 4:3 Letterbox

monitor.

16:9:

Select when the aspect ratio of the external monitor is 16:9.

4:3 Pan Scan

4:3 Letterbox/4:3 Pan Scan:

Select when the aspect ratio of the external monitor is 4:3. Refer to

the illustrations on the left to see how the pictures are shown on the

monitor.

OSD Position

Position 1 Position 2

Select the position of the on-screen bar, ☞ [25].

1: Higher position

2: Lower position

Disc Setup 1

File Type Select playback file type when a disc/USB contains different types of files.

You can store this setting separately for each source —“Disc” and “USB.”

Audio: Plays back audio files.

Still Picture: Plays back JPEG files.

Video: Plays back DivX/MPEG1/MPEG2 files.

Audio&Video: Plays back audio files and DivX/MPEG1/MPEG2 files. DivX Regist. (Registration) This unit has its own Registration Code. Once you have played back a file

with which the Registration Code recorded, this unit’s Registration Code

is overwritten for copyright protection.

iPod Artwork Off: Cancels.

On: Activates artwork display. To display artwork, touch DISP repeatedly.

☞ [9]

• Refer also to page 65.

Menu items Selectable settings, [reference page]

D. (Dynamic) Range Compres. (Compression)

You can enjoy a powerful sound at a low volume level while playing Dolby Digital software.

Auto: Select to apply the effect to multi-channel encoded software. On: Select to always use this function.

Speaker Size You can adjust the speaker size setting.

Select the speaker

Adjust the speaker size

• Front SPK: Small, Large

• Center SPK: None, Small, Large

• Rear SPK: None, Small, Large

• Subwoofer: On, Off

• Speaker size: <Large> for 13 cm (5-1/4 inch) diameter or more; <Small> for 13 cm (5-1/4 inch) or less.

• Front speakers and rear speakers cannot be adjusted separately the left and right.

Regardless of the setting above...

• No sound comes out of the subwoofer while playing Dolby Pro Logic II Movie or Music if the front speaker is set to <Large>.

• No sound comes out of the center speaker when surround is

Disc Setup 2

Speaker Level

Select the speaker

Adjust the speaker level

deactivated.

You can adjust the output level of the activated speakers (☞ <Speaker Size> above), monitoring the test tone. Front Lch/Center Ch/Front Rch/Rear Rch/Subwoofer Adjust the output level of each speaker in the range of –10dB to +10dB; Initial 0dB.

• Hold 6 to turn on and off the test tone.

Speaker Distance You can adjust the speaker output timing.

Select the speaker

Adjust the speaker distance

Appears only when SIRIUS Satellite Radio or XM Satellite Radio is connected.

Front Lch/Center Ch/Front Rch/Rear Rch/Rear Lch: Adjust the speaker distance from the listening position in the range of 15 cm/6 inches to 600 cm/240 inches in 15 cm/6 inch step; Initial 120 cm/48 inch (for center speaker), 150 cm/60 inch (for other speakers).

• Hold DISP to change the measuring unit—cm and inch.

*2 Set <Clock Adjust> to <Auto> then touch ¢ to display these setting items. *3 Selectable only for “Disc” and “USB.” (Playback stops when you select one of the items.) *4 This subwoofer level setting takes effect only when surround is activated. (☞ also pages 22 and 23)

/Rear Lch:

ENGLISH

SETTINGS

Menu items Selectable settings, [reference page]

IF Band Width

Auto: Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.) Wide: Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.

ENGLISH

Area Setting US: When using in North/Central/South America. FM/AM intervals are

set to 200 kHz/10 kHz.

TUNER

Europe: When using in any other areas. FM/AM intervals are set to 50 kHz (100 kHz during auto search)/9 kHz. South America: When using in South American countries where FM interval is 100 kHz. AM interval is set to 10 kHz.

SIRIUS ID AV Input

Your SIRIUS identification number appears on the monitor. You can determine the use of LINE IN and VIDEO IN plugs.

Off: Select when no component is connected (“AV Input” is skipped while selecting the source). iPod (Off): Select when connecting the iPod using the USB Audio and Video cable for iPod. ☞ [38]

Audio&Video: Select when connecting an AV component such as a VCR. Audio: Select when connecting an audio component such as a portable

audio player.

Camera

Input

: Select when connecting the rear view camera.

Navigation: Select when connecting a Navigation System. ☞ [48]

External Input

For connecting an external component to the CD changer jack on the rear.

Changer/iPod*6: CD changer or iPod ☞ [40, 41] External Input: Any other than the above. ☞ [49]

• For connecting KS-SRA100/XMDJVC100, this setting is not required. It is automatically detected.

Beep Off: Cancels.

On: Activates the key-touch tone.

Telephone Muting

Others

Off: Cancels. Muting1, Muting2: Select either one which mutes the sounds while

using the cellular phone.

Menu items Selectable settings, [reference page]

Illumination You can turn off the touch pad controls and monitor lights while turning

on the unit. ☞ [5]

Touch pad controls Monitor

Normal: Always lights.

Others

Initialize

Proximity/Motion: Lights up when your hand

moves close to the controls.

Proxi/Motion-LCD: Light up when your hand moves close to the

controls.

Touch Pad: Lights up when your finger

touches the controls.

Touch Pad-LCD: Light up when your finger touches the controls.

Initialize all settings you have made in <AV Menu>. Hold 6, then reset the unit. ☞ [3]

Always lights.

Equalizer

Flat/Hard Rock/R&B/Pop/Jazz/Dance/Country/Reggae/Classic/User1/User2/User3, ☞ [50]

*1 Appears only when an HD Radio tuner box is connected. *2 Appears only when a SIRIUS Satellite Radio is connected. *3 Not selectable when “AV Input” is selected as the source. *4 The REVERSE GEAR SIGNAL lead connection is required ☞ “Installation/Connection Manual.” The rear view through

the camera appears on the monitor in “Full” aspect ratio (regardless of the aspect ratio setting) when you shift the

gear to the reverse (R) position. *5 Not selectable when the component connected to the CD changer jack is selected as the source. *6 The name of the component detected through the CD changer jack is shown. *7 The TEL MUTING lead connection is required. ☞ “Installation/Connection Manual.“

ENGLISH

SETTINGS

Sound

Menu items Selectable settings, [reference page] Fader/Balance Adjust fader—speaker output balance between the front and rear speakers.

Adjusts fader

ENGLISH

Adjust balance

Volume Adjust Adjust and store auto-adjustment volume level for each source, comparing to

Subwoofer Level

High Pass Filter Through: Select when the subwoofer is not connected.

Crossover Adjust the crossover frequency between the front/rear speakers and the

Amplifier Gain You can change the maximum volume level of this unit.

Rear Speaker

• Upmost—front only

• Downmost—rear only When using a two-speaker system, set the fader to the center (00). Adjust balance—speaker output balance between the left and right speakers.

• Leftmost—left only

• Rightmost—right only

the FM volume level. The volume level will automatically increase or decrease when you change the source. –12 to +12; Initial 00

• For digital sources: You can make the adjustments separately depending on the audio format—Dolby Digital/DTS and the others.

Adjust the subwoofer output level.

–06 to +08; Initial 00

On: Select when the subwoofer is connected.

subwoofer.

80Hz, 120Hz, 150Hz

Off: Deactivates the built-in amplifier. Low Power: Select this if the maximum power of the speakers is less than

50 W.

High Power

You can activate/deactivate the rear speakers. Off, On

Disc Surround

Menu items Selectable settings, [reference page] Surround Off Select to deactivate the surround function. Surround On

Select to activate the surround function. ☞ [23] Auto, Through, Dolby PLII Movie, Dolby PLII Music

• When you select <Dolby PLII Music>, you can adjust <Panorama> and <Center Width>.

Mode

Menu items Selectable settings, [reference page] Mono SSM DX/Local Blend Hold Title Entry

Only for FM bands. (Off, On), ☞ [12] Only for FM bands of “Tuner” and FM/AM bands of “HD Radio.” ☞ [12, 47] Only for FM bands of “HD Radio.” (DX, Local), ☞ [47] Only for “HD Radio.” ☞ [47] Only for FM/AM stations of “Tuner,” “AV Input,” and “External Input.” ☞ [51]

Repeat/Random Only for “Disc,” “USB,” “USB iPod,” “Changer,” “iPod,” and “Bluetooth.”

☞ [17, 30, 37, 39, 40, 42]

AudioBooks

Only for “USB iPod.” (Normal, Faster, Slower) ☞ [39]

List

The accessible lists differ depending on the source. ☞ [13, 18, 38, 41, 45]

Dual Zone

Off, On, On/Surround On, ☞ [26]

Bluetooth

Menu items Selectable settings, [reference page]

Redial

Received Calls Phonebook Preset Calls Phone Number

Dial Menu

Voice Dialling

This setting takes effect only when surround is deactivated. (☞ also pages 22 and 23)

*2 This setting takes effect only when Dual Zone is activated. (☞ also page 26) *3 Selectable only for “Disc” and “USB.” *4 This setting takes effect only when the center speaker is activated. *5 Items listed under <Mode> vary among the playback sources. *6 Appears only when an HD Radio tuner box is connected. *7 Only for the device connected for Bluetooth phone.

Select one of the call methods, ☞ [34]

ENGLISH

Continued on the next page

SETTINGS

Menu items Selectable settings, [reference page]

Phone Connect/Audio Connect Only for the registered devices.

Establish the connection with the registered device, ☞ [32]

Phone Disconnect/ Audio Disconnect

ENGLISH

Delete Pairing Only for the registered devices.

Only for the device being connected. Disconnect the current device before connecting another device, ☞ [32]

Delete the registered devices, ☞ [33]

New Pairing

Device Menu

Enter the PIN code to establish the connection, ☞ [32] Once the connection is established, it is registered in the unit. You can connect the unit and the device by using <Phone Connect>/ <Audio Connect> (☞ above) from the next time on.

Auto Connect When the unit is turned on, the connection is established automatically

with...

Off: No Bluetooth device. Last: The last connected Bluetooth device.

Auto Answer Off: The unit does not answer the calls automatically. Answer the calls

manually.

On: The unit answers the incoming calls automatically. Reject: The unit refuses all incoming calls.

SMS Notify On: The unit informs you of the arrival of a message by ringing and

displaying “Receiving Message.”

Off: The unit does not inform you of the arrival of a message.

Add Phonebook Copy the phone book memory of a cellular phone into the unit. You can

MIC Setting Adjust the built-in microphone volume.

Settings

01, 02, 03

Phone Volume Adjust the phone volume.

00 to 30 or 50

Initialize

Initialize all settings you have made in <Bluetooth>.

, Initial 15

Yes: Initializes the settings. No: Cancels.

Information The following information is shown:

Name: The unit name Address: The Mac address of the unit Version: The Bluetooth software/hardware versions Phone Device/Audio Device: The connected device names

Depends on the amplifier gain control. (☞ page 58)

*2 If you wish to receive more information about Bluetooth, visit the following JVC web site:

<http://www.jvc-victor.co.jp/english/car/>

When operating the Bluetooth device, refer also to the instructions supplied with the device.

Maintenance

How to clean the connector

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD—8 cm (3-3/16") disc Warped disc

Stick-on labelSticker and sticker residue

Unusual shape

Transparent or semi-transparent

parts on its recording area

C-thru Disc (semi-transparent disc)

ENGLISH

REFERENCES

More about this unit

General

Turning on the power

ENGLISH

• By pressing SRC (source) on the unit, you can also turn on the power. If the source is ready, playback starts.

Tuner (FM only)

Storing stations in memory

• When SSM is over, received stations are preset in No. 1 (lowest frequency) to No. 6 (highest frequency).

Disc

General

• In this manual, words “track” and “file” are interchangeably used.

• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV/AAC) are recorded in the same disc.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

Inserting a disc

• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the monitor. Eject the disc.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

Changing the source

• If you change the source, playback also stops without ejecting the disc.

Next time you select “Disc” for the playback source,

disc play starts from where it stopped previously.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• This unit can recognize a total 25 characters for file/ folder names.

• Some discs or files may not be played back due to their characteristics or recording conditions.

Playing DVD-VR

• For details about DVD-VR format and play list, refer to the instructions supplied with the recording equipment.

File playback

Playing DivX files

• This unit can play back DivX files with the extension code <.divx>, <.div>, <.avi> (regardless of the letter case—upper/lower).

• This unit supports the DivX files whose resolution is 720 x 576 pixels or less.

• Audio stream should conform to MP3 or Dolby Digital.

• The file encoded in the interlaced scanning mode may not be played back correctly.

• The maximum bit rate for video signals (average) is 4 Mbps .

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*. * <.mod> is an extension code used for the MPEG2

files recorded by JVC Everio camcorders. The MPEG2 files with the <.mod> extension code cannot be played back when stored on a USB mass storage class device.

• The stream format should conform to MPEG system/ program stream.

• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.

• The maximum bit rate for video signals (average) is 4 Mbps.

Playing JPEG files

• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.

• It is recommended that you record a file at 640 x 480 resolution.

• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played.

Playing MP3/WMA/WAV/AAC files

• This unit can play back files with the extension code <.mp3>, <.wma>, <.wav>, or <.m4a> (regardless of the letter case—upper/lower).

• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps AAC: 16 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)

44.1 kHz (for WAV) 48 kHz, 44.1 kHz (for AAC)

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3). This unit can also show WAV/WMA/AAC Tag.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in elapsed

time indication.

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO

format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional,

and voice format. – WMA files which are not based upon Windows

Media® Audio. – WMA/AAC files copy-protected with DRM. – AAC files copy-protected with FairPlay (except

those stored on an iPod). – Files which have the data such as AIFF, ATRAC3,

etc.

Enjoying surround sounds

• If <Surround On> is selected, “MULTI” surround playback automatically starts for multi-channel encoded discs regardless of the <Surround On> setting.

• You cannot activate surround for MPEG multi-channel DVD Video, DivX 2-channel and MPEG 2-channel sources. If <Surround On> is selected, stereo sounds are emitted only through the front speakers. “FRONT 2CH” appears on the source information screen.

• When “FIX” appears on the source information screen, no sound comes out of the subwoofer.

• When <AUTO> is selected, downsampling is performed for DVD Video (LPCM only) and DVD-VR (LPCM only).

ENGLISH

REFERENCES

USB

• If “No USB device“ appears after removing a device, reattach a device or select another playback source.

• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device

ENGLISH

Check the device” appears on the monitor.

• The unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• When connecting a USB device, refer also to its instructions.

• Connect only one USB device to the unit at a time. Do not use a USB hub.

• This unit may not recognize a USB device connected through a USB card reader.

• When connecting with a USB cable, use the USB 2.0 cable.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot assure proper functions or supply power to all types of the devices.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total of 25 characters for file/folder names.

• For MPEG1/2 files: The maximum bit rate for video signals (average) is 2 Mbps.

Bluetooth operations

General

• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on circumstances around you.

• When the unit is turned off, the device is disconnected.

Warning messages for Bluetooth operations

Connection Error:

The device is registered but the connection has failed. Use <Phone Connect>/<Audio Connect> to connect the device again. (☞ page 32)

Error:

Try the operation again. If “Error” appears again, check if the device supports the function you have tried.

Please Wait...:

The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

Icons for phone types

• These icons indicate the phone type set on the device.

Cellular phone

Household phone

Office

General

Other than above

iPod operations

• You can control the following types of iPods:

– Through the USB 2.0 cable

• iPod video (5th Generation)

• iPod nano

• iPod nano (2nd Generation)

– Through the interface adapter

• iPod with dock connector (3rd Generation)

• iPod with Click Wheel (4th Generation)

• iPod mini

• iPod photo

• iPod nano

• iPod video (5th Generation)

To watch the video, connect the iPod using USB

Audio and Video cable (not supplied).

• If the iPod does not play correctly, update your iPod software to the latest version. For details about updating your iPod, visit <http://www.apple.com>.

• When you turn on this unit, the iPod is charged through the unit.

• While the iPod is connected, all operations from the iPod are disable. Perform all operations from this unit.

• The text information may not be displayed correctly.

• The text information scrolls on the monitor. This unit can display up to 40 characters when using the interface adapter and up to 128 characters when using the USB 2.0 cable or USB Audio and Video cable.

Notice:

When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: – For the USB connection: <http://www.jvc-victor.

co.jp/english/car/>

– For the interface adapter connection: <http://

www.jvc.co.jp/english/car/support/ks-pd100/ index.html>

For the USB connection:

When <iPod Artwork> is set to <On>: Do not press any keys during the first 30 seconds or more of playing back any track containing artwork

. It takes 30 seconds or more to display artwork and no operations are available while loading it.

The picture displayed on the iPod’s screen while

playing back a track.

HD Radio reception

• During SSM search... – All stations including conventional FM/AM

stations are searched and stored for the selected band.

Satellite radio operations

• You can also connect the JVC SIRIUS radio PnP (Plug and Play), using the JVC SIRIUS radio adapter, KS-U100K (not supplied) to the CD changer jack on the rear. (Select “External Input” as the source.)

By turning on/off the power of the unit, you can turn

on/off the JVC PnP. However, you cannot control it from this unit.

• To know more about SIRIUS Satellite radio or to sign up, visit <http://www.sirius.com>.

• For the latest channel listings and programming information, or to sign up for XM Satellite radio, visit <http://www.xmradio.com>.

ENGLISH

REFERENCES

Menu items

• If you change the <Amplifier Gain> setting from <High Power> to <Low Power> while the volume level is set higher than “30,” the unit automatically changes the volume level to “VOL 30.”

ENGLISH

• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.

• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if <4:3 Pan Scan> is selected, the screen size may become <4:3 Letterbox> for some discs.

Characters you can enter for titles

In addition to the roman alphabet (A – Z, a – z), you can use the following characters to assign titles. (☞ page 51)

• When <Руccĸий> is selected for <Language>. (☞

page 53)

Upper and lower cases

About sounds reproduced through the rear terminals

• Speaker out/analog discrete output—LINE OUT (FRONT/REAR)/CENTER OUT/SUBWOOFER OUT: Multi-channel signals are emitted for a multichannel encoded software. (When Dual Zone is activated, the same signal emitted through 2nd AUDIO OUT plugs are emitted for the main source “Disc.”)

• 2nd AUDIO OUT: 2-channel signal is emitted when Dual Zone is activated. When playing a multichannel encoded disc, multi-channel signals are downmixed.

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

• Official DivX® Ultra Certified product

• Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

• HD Radio™ and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corp.

Numbers and symbols

• When any language other than <Руccĸий> is

selected for <Language>. (☞ page 53)

Upper and lower cases

Numbers and symbols

Preset equalizing values

Frequency

Sound mode

Flat 00 00 00 00 00 00 00 Hard Rock +03 +03 +01 00 00 +02 +01 R&B +03 +02 +02 00 +01 +01 +03 Pop 00 +02 00 00 +01 +01 +02 Jazz +03 +02 +01 +01 +01 +03 +02 Dance +04 +02 00 –02 –01 +01 +01 Country +02 +01 00 00 00 +01 +02 Reggae +03 00 00 +01 +02 +02 +03 Classic +02 +03 +01 00 00 +02 00 User1/2/3 00 00 00 00 00 00 00

60.0 Hz 150.0 Hz 400.0 Hz 1.0kHz 2.5kHz 6.3kHz 15.0kHz

Language codes (for DVD/DivX language selection)

Code Language Code Language Code Language Code Language Code Language

AA Afar FA Persian KK Kazakh NO Norwegian ST Sesotho AB Abkhazian FI Finnish KL Greenlandic OC Occitan SU Sundanese AF Afrikaans FJ Fiji KM Cambodian OM (Afan) Oromo SW Swahili AM Ameharic FO Faroese KN Kannada OR Oriya TA Tamil AR Arabic FY Frisian KO Korean (KOR) PA Panjabi TE Telugu AS Assamese GA Irish KS Kashmiri PL Polish TG Tajik AY Aymara GD Scots Gaelic KU Kurdish PS Pashto, Pushto TH Thai AZ Azerbaijani GL Galician KY Kirghiz QU Quechua TI Tigrinya BA Bashkir GN Guarani LA Latin RM Rhaeto-

Romance BE Byelorussian GU Gujarati LN Lingala RN Kirundi TL Tagalog BG Bulgarian HA Hausa LO Laothian RO Rumanian TN Setswana BH Bihari HI Hindi LT Lithuanian RW Kinyarwanda TO Tonga BI Bislama HR Croatian LV Latvian, Lettish SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MG Malagasy SD Sindhi TS Tsonga BO Tibetan HY Armenian MI Maori SG Sangho TT Tatar BR Breton IA Interlingua MK Macedonian SH Serbo-Croatian TW Twi CA Catalan IE Interlingue ML Malayalam SI Singhalese UK Ukrainian CO Corsican IK Inupiak MN Mongolian SK Slovak UR Urdu CS Czech IN Indonesian MO Moldavian SL Slovenian UZ Uzbek CY Welsh IS Icelandic MR Marathi SM Samoan VI Vietnamese DZ Bhutani IW Hebrew MS Malay (MAY) SN Shona VO Volapuk EL Greek JA Japanese MT Maltese SO Somali WO Wolof EO Esperanto JI Yiddish MY Burmese SQ Albanian XH Xhosa ET Estonian JW Javanese NA Nauru SR Serbian YO Yoruba EU Basque KA Georgian NE Nepali SS Siswati ZU Zulu

TK Turkmen

ENGLISH

REFERENCES

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• No sound comes out of the center speaker.

• The monitor is not clear and legible. Sunshine from the windscreen may cause this symptom.

• The unit does not work at all.

• The remote controller does not work.

• “No Signal” appears. • Change the source.

General

• “Mecha Error Push Reset” appears on the monitor, and the control panel does not move.

• The touch pad controls do not respond properly.

• <Illumination> function does not work properly.

Symptoms Remedies/Causes

• Center speaker is not activated. (☞ page 55) Once you have reset the unit, make sure to activate the

speaker again.

• Center speaker is used only for surround playback. No sound comes out for stereo playback.

Adjust <Bright>. (☞ page 53) Reset the unit. (☞ page 3) Deactivate Dual Zone. (☞ page 26)

(While Dual Zone is activated, the remote controller only functions for operating the DVD/CD player.)

• Start the playback on the external component connected to VIDEO IN plug.

• Check the cords and connections.

• Signal input is too weak.

Reset the unit. (☞ page 3)

• Keep your hands and controls clean and dry.

• Eliminate static electricity and do not place magnetic items near the unit.

• Leave the unit until the temperature becomes stable in the car.

• A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat.

Symptoms Remedies/Causes

• SSM automatic presetting does not work.

• Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

• Disc can be neither recognized nor played .

• Disc cannot be ejected.

• Recordable/Rewritable discs cannot be played back.

• Tracks on the Recordable/Rewritable discs cannot be skipped.

• Playback does not start. • Insert the disc correctly again.

Store stations manually. (☞ page 13)

Eject the disc forcibly. (☞ page 3) Unlock the disc. (☞ page 18)

• Insert a finalized disc.

• Finalize the discs with the component which you used for recording.

• Region code of the DVD is not correct. (☞ page 4)

• The format of files is not supported by the unit.

ENGLISH

• The playback picture is not clear and legible.

Disc playback

• Sound and pictures are sometimes interrupted or distorted.

• No playback picture appears on the monitor. Parking brake lead is not connected properly.

• No picture appears on the external monitor. • Connect the video cord correctly.

• “Eject Error” or “Loading Error” appears on the monitor.

• Disc cannot be played back. • Change the disc.

• Noise is generated. The track played back is not a playable file format. Skip to

• Tracks are not played back as you have intended them to play.

File playback

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

• “Not Support” appears on the monitor and track skips.

Adjust items in <Picture Adjust>. (☞ page 53)

• Stop playback while driving on rough roads.

• Change the disc.

(☞ “Installation/Connection Manual”)

• Select the correct input on the external monitor. Changing the source by pressing SRC will solve this error.

• Record the tracks using a compliant application in the

appropriate discs. (☞ page 4)

• Add appropriate extension codes to the file names.

another file. Playback order may differ from the one played back using

other players.

how the tracks are recorded. The track is unplayable.

REFERENCES

Symptoms Remedies/Causes

• Noise is generated. • The track played back is not a playable file format (MP3/ WMA/WAV/AAC). Skip to another file.

• Do not add the extension code <.mp3>, <.wma>,

ENGLISH

• Tracks cannot play back as you have intended

them to play.

• “Now Reading...” keeps flashing on the

monitor.

USB playback

• Correct characters are not displayed (e.g.

album name).

• While playing a track, sound is sometimes

interrupted.

<.wav>or <.m4a> to non-MP3/WMA/WAV/AAC tracks.

Playback order may differ from the one played back using other players.

• Readout time varies depending on the USB device.

• Do not use too many hierarchy, folders and empty folders.* * Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA/WAV/AAC track.

• Turn off the power then on again.

• Do not pull out or connect the USB device repeatedly while “Now Reading...” is displayed on the monitor.

For available characters, ☞ page 66.

The tracks have not been properly copied into the USB device. Copy tracks again into the USB device, and try again.

Symptoms Remedies/Causes

• Bluetooth device does not detect the unit. • Search from the Bluetooth device again.

• Reset the unit. When “Open...” appears on the monitor, search from the Bluetooth device again.

• The unit does not make pairing with the Bluetooth device.

• Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth

• The sound is interrupted or skipped while using a Bluetooth audio player.

Bluetooth

• The connected audio player cannot be controlled.

• The unit does not response when you tried to copy the phone book to the unit.

• “No Audio Device” appears on the monitor. Connect this unit and the Bluetooth audio player correctly.

• “No Voice Device” appears on the monitor. The connected cellular phone does not have the voice

• The iPod does not turn on or does not work. • Check the connecting cable and its connection.

• The sound is distorted. Deactivate the equalizer either on this unit or the iPod.

• “Disconnect” appears on the monitor. Check the connecting cable and its connection.

• Playback stops. The headphones are disconnected during playback. Restart

• “No Files” appears on the monitor. No tracks are stored. Import tracks to the iPod.

• “Reset 01” – “Reset 07” appears on the monitor.

• “Reset 08” appears on the monitor. Check the connection between the adapter and this unit.

iPod playback

• The iPod’s controls do not work after disconnecting from this unit.

• “Restricted Device” appears on the monitor. Check whether the connected iPod is compatible with this

• No operations are available while playing back a track containing artwork.

• Enter the same PIN code for both the unit and target device. If the PIN code of the device is not indicated on its manuals, try “0000” or “1234.”

cellular phone.

• Move the car to place where you can get a better signal reception.

• Reduce the distance between the unit and the Bluetooth audio player.

• Disconnect the device connected for Bluetooth phone.

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the device again.

Check whether the connected audio player supports AVRCP (Audio/Video Remote Control Profile).

You may have tried to copy the same entries (as stored) to the unit. Touch BAND to exit.

recognition system.

• Charge the battery.

playback.

Disconnect the adapter from both this unit and iPod. Then, connect them again.

Reset the iPod.

unit. (☞ page 65) Operate the unit after the artwork is loaded. (☞ page 65)

ENGLISH

REFERENCES

Symptoms Remedies/Causes

• “No Disc” appears on the monitor. Insert a disc into the magazine.

• “No Magazine” appears on the monitor. Insert the magazine.

• “Cannot play this disc Check the disc” appears

ENGLISH

on the monitor.

• “Reset 08” appears on the monitor. Connect this unit and the CD changer correctly and press

CD changer

• “Reset 01” – “Reset 07” appears on the monitor.

• The CD changer does not work at all.

• “CALL 1-888-539-SIRIUS TO SUBSCRIBE” appears on the monitor.

• “No Signal” or “NO SIGNAL” appears on the monitor.

• “No Antenna” or “CHECK ANTENNA” appears on the monitor.

• “Invalid Channel” appears on the monitor for about 5 seconds, then returns to the previous display when listening to the SIRIUS Satellite

Satellite radio

radio.

• “CHANNEL–––” appears on the display for about 2 seconds, then returns to the previous channel while listening to the XM Satellite radio.

Disc does not include playable files. Replace the disc with playable files.

the reset button of the CD changer. Press the reset button of the CD changer.

Reset the unit. (☞ page 3) Starts subscribing SIRIUS Satellite radio. (☞ page 43)

Move to an area with stronger signals.

Connect the antenna firmly.

No broadcast on the selected channel. Select another channel or continue listening to the previous channel.

Selected channel is no longer available or is unauthorized. Select another channel or continue listening to the previous channel.

Symptoms Remedies/Causes

• “No Name” or “–––” appears on the monitor. No text information for the selected channel.

• “Channel is Updating XX% completed” or “UPDATING” appears on the monitor and no sound can be heard.

• “OFF AIR” appears on the monitor while listening to the XM Satellite radio.

• “LOADING” appears on the monitor while

Satellite radio

listening to the XM Satellite radio.

• “Reset08” flashes on the monitor. Reconnect this unit and the Satellite radio correctly and

• Satellite radio does not work at all. Reconnect the Satellite radio after a few seconds.

• Sound quality changes when receiving HD Radio stations.

• No sound can be heard. • <Analog> is selected when receiving all digital

HD Radio reception

• “Reset 8” appears on the display. Recconect this unit and the HD Radio tuner box correctly,

• No picture appears on the monitor. • Turn on the video component if it is not on.

AV-IN

• The playback picture is not clear and legible.

The receiver is updating the channel information and it takes a few minutes to complete.

Selected channel is not broadcasting at this time. Select another channel or continue listening to the previous channel.

The unit is loading the channel information and audio. Text information is temporarily unavailable.

reset the unit.

Fix the reception mode either to <Digital> or <Analog> (☞ page 47).

broadcast of HD Radio station. Select <Digital> or <Auto> (☞ page 47).

• <Digital> is selected when receiving weak digital signals or receiving conventional radio broadcast. Select <Analog> or <Auto> (☞ page 47).

then reset the unit.

• This unit is not connected to the video component correctly. Connect it correctly.

Adjust items in <Picture Adjust>. (☞ page 53)

ENGLISH

REFERENCES

Specifications

Power Output: 20 W RMS × 4 Channels at 4 Ω and

≤ 1% THD+N

Signal-to-Noise Ratio: 80 dBA (reference: 1 W into 4 Ω)

ENGLISH

Load Impedance: 4  (4  to 8  allowance) Equalizer Control Range: Frequencies: 60.0 Hz, 150.0 Hz, 400.0 Hz, 1.0kHz,

2.5kHz, 6.3kHz, 15.0kHz

Level: ±10 dB

Audio Output Level LINE OUT (FRONT/ REAR)/CENTER OUT/

AMPLIFIER

SUBWOOFER OUT: Color System: NTSC Video Output (composite): 1 Vp-p/75  Other Terminals: Input: LINE IN, VIDEO IN, USB input terminal,

Frequency Range: FM (with channel interval set to

FM Tuner: Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

FM/AM TUNER

AM Tuner: Sensitivity/Selectivity: 20 μV/35 dB Signal Detection System: Non-contact optical pickup (semiconductor laser) Frequency Response: DVD, fs=48 kHz: 16 Hz to 22 000 Hz

DVD/CD

Dynamic Range: 93 dB Signal-to-Noise Ratio: 94 dB Wow and Flutter: Less than measurable limit

Line-Out Level/Impedance: 5.0 V/20 k load (full scale) Output Impedance: 1 k

Antenna input Output: 2nd AUDIO OUT, VIDEO OUT Others: CD changer, OE REMOTE

87.5 MHz to 107.9 MHz

100 kHz or 200 kHz): FM (with channel interval set to

50 kHz): AM (with channel interval set to

10 kHz): AM (with channel interval set to 9 kHz): 531 kHz to 1 602 kHz

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB

DVD, fs=96 kHz: 16 Hz to 44 000 Hz VCD/CD: 16 Hz to 20 000 Hz

87.5 MHz to 108.0 MHz

530 kHz to 1 710 kHz

Screen Size: 3.5 inch wide liquid crystal display Number of Pixel: Drive Method: TFT (Thin Film Transistor) active matrix format Color System: PAL/NTSC

MONITOR

Aspect Ratio: 16:9 (wide) Allowable Storage Temperature: –10°C to +60°C (14°F to 140°F) Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F) USB Standards: USB 2.0 Full Speed Data Transfer Rate: Full Speed: Maximum 12 Mbytes

USB

Compatible Device: Mass storage class Compatible File System: FAT 32/16/12 Max. Current: Less than 500 mA/5 V Version: Bluetooth 1.2 certified Output Power: +4 dBm Max. (Power class 2) Service Area: Within 10 m (10.9 yd) Profile: HFP (Hands-Free Profile) 1.5

BLUETOOTH

Power Requirements: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D):

GENERAL

Mass (approx.): 2.2 kg (4.9 lbs) (excluding accessories)

211 200 pixels: 960 (horizontal) × 220 (vertical)

Low Speed: Maximum 1.5 Mbytes

OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

Installation Size (approx.):

Panel Size (approx.):

182 mm × 52 mm × 160 mm (7-3/16” × 2-1/16” × 6-5/16”)

188 mm × 58 mm × 12 mm (7-7/16” × 2-5/16” × 1/2”)

ENGLISH

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

REFERENCES

Como primer paso, por favor lea detenidamente este manual para comprender a fondo todas las instrucciones y

Muchas gracias por la compra de un producto JVC.

obtener un máximo disfrute de esta unidad.

IMPORTANTE PARA PRODUCTOS LÁSER

1. PRODUCTO LÁSER CLASE 1

2. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el usuario;

encargue el servicio a personal técnico cualificado.

3. PRECAUCIÓN: (EE.UU.) Radiación láser de clase II visible y/o invisible, cuando está abierto. No mire fijamente

(Para Canadá) Radiación láser de clase 1M visible y/o invisible cuando ésta abierto. No mirar

4. REPRODUCCIÓN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL EXTERIOR DE LA UNIDAD.

ESPAÑOL

el haz.

directamente con instrumental óptico.

IMPORTANTE (EE.UU.)

Este equipo se ha sometido a todo tipo de pruebas y cumple con las normas establecidas para dispositivos de Clase B, de conformidad con la Parte 15 de las reglas de la FCC (Comisión Federal de Comunicaciones). Estas reglas están diseñadas para asegurar una protección razonable contra este tipo de interferencias en las instalaciones residenciales. Este equipo genera y utiliza energía de radiofrecuencia. Si no se instala y utiliza debidamente, es decir, conforme a las instrucciones, podrían producirse interferencias en radiocomunicaciones. Sin embargo, no se garantiza que estas interferencias no se produzcan en una instalación determinada. Si este equipo ocasiona interferencias en la recepción de radio o televisión, lo cual puede comprobarse mediante la conexión o desconexión del equipo, el problema podrá corregirse mediante una o una combinación de las siguientes medidas: – Reoriente la antena receptora o cámbiela de lugar. – Aumente la separación entre el equipo y el aparato

receptor.

– Enchufe el equipo a una toma de corriente situada en

un circuito distinto del aparato receptor.

– Consulte a su distribuidor o a un técnico experto en

radio/televisión.

Precaución

Los cambios o modificaciones no aprobados por JVC pueden anular la autoridad del usuario para operar el equipo.

[Sólo Unión Europea]

ADVERTENCIAS: Para evitar daños y accidentes

• NO instale ningún receptor o tienda ningún cable en una ubicación donde; – puede obstaculizar las maniobras del volante de

dirección y de la palanca de cambios.

– puede obstaculizar la operación de los dispositivos

de seguridad, como por ejemplo, bolsas de aire.

– Donde pueda obstruir la visibilidad.

• NO opere la unidad mientras maneja.

Si es necesario operar la unidad mientras maneja,

asegúrese de mirar atentamente en todas las direcciones.

• El conductor no debe mirar el monitor mientras conduce.

• El conductor no deberá ponerse los auriculares mientras conduce.

Precauciones sobre el monitor:

• El monitor incorporado a esta unidad ha sido fabricado con tecnología de alta precisión, pero puede contener algunos puntos inefectivos. Estos es inevitable y no es ningún signo de anomalía.

• No exponga el monitor a la luz directa del sol.

• Cuando la temperatura sea muy baja o muy alta... – Ocurren cambios químicos en el interior,

produciendo un mal funcionamiento.

– Puede suceder que las imágenes no aparezcan

claramente o que se muevan con lentitud. En tales entornos, puede suceder que las imágenes no estén sincronizadas con el sonido, o que la calidad del sonido se deteriore.

Cómo reposicionar su unidad

• También se borrarán los ajustes preestablecidos

realizados por usted (excepto aquellos para los dispositivos Bluetooth registrados).

Cómo expulsar el disco por la fuerza

NO EJECT?

[Sostener]

• Si esto no funciona, reinicialice la unidad.

Para fines de seguridad...

• No aumente demasiado el nivel de volumen pues es muy peligroso conducir si no se escuchan los sonidos exteriores.

• Detenga el automóvil antes de efectuar cualquier operación complicada.

Temperatura dentro del automóvil...

Si ha dejado el automóvil estacionado durante largo tiempo en un sitio cálido o frío, no opere la unidad hasta que se normalice la temperatura del habitáculo.

Este producto incorpora tecnología de protección de los derechos de autor que está protegida por patentes de EE.UU. y otros derechos de propiedad intelectual. La utilización de esta tecnología de protección de los derechos de autor debe ser autorizada por Macrovision y está destinada únicamente para uso doméstico y otras formas limitadas de visionado, a menos que Macrovision lo autorice expresamente. Está prohibida la ingeniería inversa o desmontaje del aparato.

EMERGENCY EJECT?

NO EJECT?

EMERGENCY EJECT?

Contenido

INTRODUCCIÓN

Tipo de disco reproducible ................ 4

Antes de las operaciones .................. 5

OPERACIONES

Operaciones básicas—Menú AV ........ 6

Operaciones básicas—

Panel de control ........................... 8

Operaciones básicas —

Control remoto (RM-RK252) ........... 10

Para escuchar la radio ...................... 12

Operaciones de los discos ................. 14

Operaciones de Zona Dual ................ 26

Operaciones de USB ......................... 29

Operaciones Bluetooth®—

teléfono celular/reproductor de

audio ........................................... 31

DISPOSITIVOS EXTERNOS

Para escuchar el iPod ....................... 38

Escuchando el cambiador de CD ........ 41

Para escuchar la radio satelital ......... 43

Para escuchar la transmisión

HD Radio™ .................................... 46

Escuchado otros componentes

externos ...................................... 48

AJUSTES

Ecualización de sonido ..................... 50

Asignación de títulos a la fuente ....... 51

Opciones del menú .......................... 52

REFERENCIAS

Mantenimiento ............................... 61

Más sobre este receptor ................... 62

Localización de averías ..................... 68

Especificaciones ............................... 74

ESPAÑOL

Tipo de disco reproducible

Tipo de disco

Formato de grabación, tipo de archivo, etc.

DVD DVD Vídeo (Códigos regionales: 1)*

DVD Audio

ESPAÑOL

DVD Grabable/reescribible (DVD-R/-RW*

• DVD Vídeo: Puente UDF

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/ AAC: Compatible con ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

, +R/+RW*3)

DVD-ROM DVD Vídeo DVD-VR DivX/MPEG1/MPEG2 JPEG MP3/WMA/WAV/AAC* MPEG4 DVD+VR DVD-RAM

DualDisc Lado DVD

Lado no-DVD

CD/VCD Audio CD/CD Text (CD-DA)/DTS-CD

VCD (Vídeo CD) SVCD (Súper Vídeo CD) CD-ROM CD-I (CD-I Ready)

CD Grabable/reescribible (CD-R/-RW)

• Compatible con ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

CD-DA MP3/WMA/WAV/AAC* JPEG DivX/MPEG1/MPEG2 MPEG4

Reproducible

*1 Si inserta un disco DVD Vídeo con un código de región incorrecto aparecerá “Region code error” en el monitor. *2 También es posible reproducir un DVD-R grabado en formato “multi-border” (excepto discos de doble capa). Los

discos DVD-RW de doble capa no se pueden reproducir.

*3 Es posible reproducir discos finalizados +R/+RW (sólo formato de vídeo).

Los discos +RW de doble capa no se pueden reproducir.

*4 Esta unidad puede reproducir archivos AAC codificados con iTunes.

Precaución sobre la reproducción de DualDisc

El lado no DVD de un “DualDisc” no es compatible con la norma “Compact Disc Digital Audio”. Por consiguiente, no se recomienda usar el lado no DVD de un DualDisc en este producto.

Antes de las operaciones

ESPAÑOL

Controles de la almohadilla táctil

Las luces de los controles de la almohadilla táctil y del monitor se apagan tras un período de inactividad de aproximadamente 10 segundos. Las luces se encienden en los casos siguientes: – Cuando mueve su mano cerca de

los controles de la almohadilla táctil.*

– Cuando su dedo toca los controles

de la almohadilla táctil.*

– Cuando se utiliza el control

remoto. – Cuando entra una llamada/mensaje de texto. – Cuando se recibe una señal de la cámara de

retrovisión

* Depende del ajuste. Para cambiar el ajuste, ☞ página

57.

Las luces siempre se encienden en los casos siguientes: – Mientras se visualiza la pantalla <AV Menu>. – Mientras se visualiza la pantalla

<Source Menu>.

– Mientras el panel de control está abierto. – Cuando <Illumination> está ajustado a

<Normal>. (☞ página 57)

Monitor

Cómo controlar la unidad mediante los controles de la almohadilla táctil

Puede controlar la unidad tocando la parte apropiada de los controles de la almohadilla táctil.

• Para ajustar el volumen, mueva su dedo sobre la perilla de la almohadilla táctil tal como se muestra en la siguiente ilustración para que aparezca la animación en el monitor y, a continuación, pulse repetidamente 5 o ∞. – El volumen también se puede ajustar con sólo

continuar moviendo el dedo sobre las perillas de la almohadilla táctil, tal y como se muestra en la siguiente ilustración.

Vol+

Vol-

• Al deslizar su dedo sobre la perilla de la almohadilla táctil tal como se muestra en la siguiente ilustración, funcionará de la misma manera que cuando se toca 5 / ∞ / 4 / ¢.

VOL

• Las operaciones se explican utilizando principalmente los controles de la almohadilla táctil y los botones de la unidad; sin embargo, los botones del control remoto pueden funcionar de la misma manera si tienen los mismos nombres o marcas.

• En las explicaciones, los nombres de la pantalla aparecen resaltados. Por ejemplo, <AV Menu>.

INTRODUCCIÓN

Operaciones básicas—Menú AV

Puede utilizar los menús para configurar diversos ajustes desde <AV Menu>. Para obtener detalles sobre cada menú y ajuste, consulte “Opciones del menú”. (☞ páginas 52 a 60)

AV Menu

ESPAÑOL

Enter

Setup

~ Encienda la unidad.

Las luces de los controles de la almohadilla táctil y del monitor se encienden.

Ÿ Ingrese <AV Menu>.

Indicador de cuenta atrás del tiempo

AV Menu

Enter

Setup

Iconos de configuración

Nombre del icono actualmente seleccionado

⁄ Seleccione una opción.

Sound

Fader/Balance Volume Adjust Subwoofer Level

High Pass Filter

Crossover

Through

Ajuste actual de la opción seleccionada

@ Visualice la siguiente pantalla.

High Pass Filter

Through

Exit

• Para volver a las pantallas anteriores:

• Las opciones no disponibles aparecen sombreadas.

! Seleccione una opción para ingresar la

pantalla de menú.

• Repita los pasos ⁄ y @ para ajustar la opción secundaria, si es necesario.

¤ Finalice el procedimiento.

En este manual, se utilizan indicaciones en inglés para las explicaciones. Podrá seleccionar el idioma de indicación que desea en el monitor. (☞ página 53)

Cancelación de la demostración en pantalla y puesta en hora del reloj

Setup

Display

Demonstration

AV Menu

Enter

Setup

Display

Clock Disc Setup 1 Disc Setup 2 Tuner

Demonstration

Wall Paper Color Scroll Tag Display

Off

Exit

Setup

Clock

Time Set

Exit

Time Set

Exit

Display

Clock

Disc Setup 1 Disc Setup 2 Tuner

Time Set

Time Format OSD Clock Clock Adjust

1:00AM

Hours

3:00PM

Minutes

3:35PM

ESPAÑOL

Vuelva a <Setup> tocando 4

repetidamente.

OPERACIONES

Operaciones básicas — Panel de control

ESPAÑOL

1 Selecciona las fuentes. “Tuner” o “HD Radio” = “Satellite Radio

(SIRIUS/XM)” = “Disc” = “USB” o “USB iPod” = “Changer”, “iPod” o “External Input” = “Bluetooth” = “AV Input”

• También puede seleccionar las fuentes tocando 5 / ∞ / 4 / ¢ y luego SRC para ingresar

<Source Menu>.

2 • Expulsa el disco. 3 • Ingrese o salga de <AV Menu>.

• Activa Marcación por voz [Sostener].

• Mientras habla: Ajusta el volumen del micrófono incorporado.

4 • “Tuner” y “HD Radio”: Efectúa la búsqueda de

emisoras.

• “Satellite Radio”: Selecciona los canales.

• “Disc”, “USB”, “USB iPod”, “Changer”, “iPod” y “Bluetooth”: Salto hacia atrás/salto hacia adelante

• En los menús:

– Ingresa la pantalla anterior/siguiente. – Selecciona las opciones.

5 Inclina el panel de control. (☞ página 9) 6 Ajusta el nivel de volumen. (☞ página 5) 7*2 • “Tuner”: Selecciona las emisoras preajustadas.

• “HD Radio”: Selecciona los canales

multidifusión.

• “Satellite Radio”: Selecciona las categorías.

• “Disc”, “USB”, y “Changer”: Selecciona títulos/

carpetas.

• “USB iPod”: Selecciona los elementos

siguientes/anteriores.

• “iPod”: Accede al menú del reproductor y pone la reproducción en pausa.

• “Bluetooth”: Selecciona el grupo/carpeta.

• En los menús: Selecciona las opciones.

8 • “Disc”, “USB”, “USB iPod” y “Changer”: Inicia y

pone la reproducción en pausa.

• “Bluetooth”: Inicie la reproducción.

• En los menús: Ingresa la pantalla siguiente o sale

de la pantalla visualizada.

9 Cambia la información en pantalla. (☞ página 9) p • “Tuner,” “HD Radio,” y “Satellite Radio”:

Selecciona las bandas.

• “Disc”, y “USB”: Detiene la reproducción.

• “Bluetooth”: Pone la reproducción en pausa.

• En los menús: Vuelve a la pantalla anterior.

q • Encienda la unidad.

• Apaga el sistema [Sostener].

• Atenúa el sonido (al conectar la alimentación).

w Sensor remoto e Reinicialice la unidad.

• Se utiliza sólo debido a un malfuncionamiento

interno del sistema.

r Desengancha el panel de control. (☞ página 9)

*1 Podrá seleccionar algunas fuentes si no están

preparadas.

*2 Manteniendo pulsado 5 / ∞, podrá visualizar la

lista accesible para la fuente seleccionada.

Para inclinar el panel de control

Para fijar el panel de control

Incline TILT repetidamente.

Cambio de la información en pantalla

La información en pantalla disponible varía según las fuentes de reproducción.

Cada vez que toca DISP, la pantalla cambia para mostrarle diversas informaciones.

Ej.: Cuando la fuente de reproducción es un disco DVD video.

Pantalla de la imagen de reproducción (sólo para fuentes de video)

DVD

DIGITAL

MULTI

VIDEO

01 02 0:01:20

Pantalla de información de fuente

3:45

ESPAÑOL

CHAP.RPT

DVD

DIGITAL

MULTI

VIDEO

01 02 0:01:20

CHAP.RPT

Vuelta al comienzo

3:45

Imagen de reproducción y pantalla de información de fuente

Pantalla de navegación

• Esta pantalla se visualiza cuando se selecciona <Navigation> para <AV Input>. (☞ página 56)

OPERACIONES

Operaciones básicas — Control remoto (RM-RK252)

Instalación de la pila

R03/LR03/AAA

ESPAÑOL

Instale las pilas en el control remoto haciendo coincidir correctamente las polaridades (+ y –).

Precaución:

No deje las pilas expuestas a altas temperaturas, como, por ejemplo, a la luz del sol, al fuego u otras condiciones similares.

Si disminuye la efectividad o el radio de acción del control remoto, cambie ambas pilas.

Antes de utilizar el control remoto:

• Apunte el control remoto directamente hacia el sensor remoto del receptor.

• NO exponga el sensor remoto a una luz brillante (luz solar directa o iluminación artificial).

El receptor está equipado con la función de control remoto en el volante de dirección.

• Para la conexión, consulte el Manual de instalación/conexión (volumen separado).

IMPORTANTE:

Cuando se activa la Zona Dual (☞ página 26), el control remoto funciona solamente para controlar el reproductor DVD/CD.

Elementos principales y funciones

1 • Encienda la unidad.

• Apaga el sistema [Sostener].

• Atenúa el sonido (al conectar la alimentación).

2 “Disc”, “USB”, y “USB iPod”: Búsqueda regresiva 3 • Ajusta el nivel de volumen.

• Ajusta el nivel de volumen a través de la clavija 2nd AUDIO OUT (mientras sostiene SHIFT). (☞ página 26)

4 • Contesta las llamadas entrantes.

• Ingresa <Redial> [Sostener].

• Puede acceder a <Dial Menu> pulsando el botón y luego tocando 6 en la unidad.

5 • DVD/DivX 6: Visualiza el menú de disco.

• VCD: Reanuda la reproducción de PBC. (☞ página 21)

• DVD-VR: Muestra la pantalla Original Program (programa original).

6 • Introduce los números (mientras sostiene SHIFT).

(☞ páginas 13, 19 a 22, 36 y 45)

• Selecciona el número telefónico preajustado.

• “Tuner,” “HD Radio,” y “Satellite Radio”: Selecciona las emisoras preajustadas.

7 Visualiza la barra en pantalla. 8

Funciona con otros botones (consulte 3, 6 y ;). 9 Visualiza la información en pantalla. p “Tuner”:

• 5 / ∞: Selecciona las emisoras preajustadas.

• 4 / ¢: Efectúa la búsqueda de emisoras. – Búsqueda automática – Búsqueda manual [Sostener]

“HD Radio”:

• 5 / ∞: Selecciona los canales multidifusión.

• 4 / ¢: Efectúa la búsqueda de emisoras. – Búsqueda automática – Búsqueda manual [Sostener] “Satellite Radio”:

• 5 / ∞: Selecciona las categorías.

• 4 / ¢: – Selecciona los canales. –

Selecciona los canales rápidamente. [Sostener]

“Disc” y “Changer”:

• 5 / ∞: – DVD: Selecciona el título. – DVD-VR: Selecciona el programa/lista de

reproducción.

– Otros discos (excepto VCD/CD): Selecciona las

carpetas.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

“USB”:

• 5 / ∞: Selecciona las carpetas.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

“USB iPod”:

• 5 / ∞: Selecciona el elemento anterior/

siguiente.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

“iPod”:

• ∞: Pausa o reanuda la reproducción.

• 5: Entra al menú principal (seguidamente 5

/ ∞ / 4 / ¢ funcionan como botones selectores de menú).

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener] En el modo de selección de menú: – Seleccione una opción. (Seguidamente, pulse

∞ para confirmar la selección). – Salta 10 elementos a la vez [Sostener]. “Bluetooth”:

• 5 / ∞: Selecciona el grupo/carpeta.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

q “Disc”, “USB”, y “USB iPod”: Búsqueda progresiva w Selecciona la fuente. e • “Disc”, “USB”, y “USB iPod”: Inicia y pone la

reproducción en pausa.

• “Bluetooth”: Inicie la reproducción.

• Contesta las llamadas entrantes. r Cambia la relación de aspecto de las imágenes

reproducidas.

t • “Tuner,” “HD Radio,” y “Satellite Radio”:

Selecciona las bandas.

• “Disc”, y “USB”: Detiene la reproducción.

• “Bluetooth”: Pone la reproducción en pausa.

• Finaliza la llamada.

y VCD: Vuelve al menú PBC. u • DVD Vídeo/DivX 6: Visualiza el menú de disco.

• VCD: Reanuda la reproducción de PBC. (☞

página 21)

• DVD-VR: Muestra la pantalla Play List (lista de

reproducción).

i • Efectúa la selección/los ajustes.

• @ / #: Salta 5 minutos hacia atrás o adelante

para DivX/MPEG1/MPEG2.

• % / ﬁ: Cambia los discos para “Changer”.

o Activa o desactiva la Zona Dual. ; • Cambia el modo Surround.

(☞ página 23)

• “Disc”, y “USB”: Cambia el modo de entrada de

número (mientras sostiene SHIFT).

• Borra la entrada errónea luego de ingresar un

número incorrecto (mientras sostiene SHIFT).

*1 Estos botones no se pueden utilizar cuando está

activada la Zona dual.

*2 Funciona solamente como botón numérico (consulte

6 ).

*3 5: Vuelve al menú anterior.

∞ : Confirma la selección.

OPERACIONES

ESPAÑOL

Para escuchar la radio

ESPAÑOL

A Banda B Modo de sonido ( C N° de preajuste D Frecuencia E Nombre asignado a la emisora ( F Indicador de recepción de FM

☞ página 50)

☞ página 51)

~ Seleccione “Tuner”. Ÿ Seleccione la banda.

Cuando una radiodifusión en FM estéreo sea difícil de recibir

AV Menu

Enter

Mode

TUNER

ABC Radio

FLAT

FM1 P1 87.5 MHz

! Búsqueda de una emisora—Búsqueda

automática.

• Búsqueda manual: Mantenga pulsado o hasta que “Manual Search” (Búsqueda

manual) aparezca en la pantalla y, a continuación, tóquelo repetidamente.

• El indicador ST se enciende al recibir una

radiodifusión FM estéreo con una intensidad de señal suficientemente potente.

Para restablecer el efecto estéreo, seleccione <Off> en el paso 4.

Mono

Off

Exit

Se consigue mejorar la recepción, pero se pierde el efecto estereofónico.

• El indicador MO se enciende.

Preajuste automático de

Mode

Mono

SSM Title Entry

Off

emisoras FM —SSM (Memoria secuencial de las emisoras más fuertes)

Esta función funciona sólo para las bandas FM. Se pueden preajustar seis emisoras para cada banda.

Mode

Start

Mono

SSM

Title Entry

AV Menu

Enter

Mode

Las emisoras FM locales con las señales más intensas serán exploradas y almacenadas automáticamente en la banda FM.

5 Almacene la emisora.

TUNER

FLAT

FM1 P4 92.5 MHz

[Sostener]

No Name

La emisora seleccionada en el paso 2 ha sido almacenada en el número de preajuste 4.

Selección de las emisoras preajustadas

En el control remoto:

ESPAÑOL

• Cuando se ha conectado un sintonizador HD Radio (☞ página 46), la búsqueda y el almacenamiento de la emisora AM también puede efectuarse automáticamente.

Preajuste manual

Ej.: Almacenando una emisora FM de 92.5 MHz en el

número de preajuste 4 de la banda FM1.

Sintonice la emisora que desea preajustar.

TUNER

FLAT

FM1 92.5 MHz

No Name

[Sostener]

Aparece la lista de preajustes

• Para FM: Cada vez que sostiene 5 / ∞, se cambiarán las bandas.

4 Seleccione un número de preajuste.

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

Store

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

Store

En la unidad:

Para seleccionar directamente

Para seleccionar de la lista de preajustes

[Sostener]

• Para FM: Cada vez que sostiene 5 / ∞, se cambiarán las bandas.

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

Store

3 Seleccione el número de preajuste.

FM1

87.5

89.9

97.9

105.9

Enter

108.0

87.5

Store

También se podrá acceder a la lista de preajustes a través de <AV Menu> = <List>.

OPERACIONES

Operaciones de los discos

El tipo de disco se detecta automáticamente, y la reproducción se inicia automáticamente (para algunos discos: el inicio automático depende de su programa interno).

Si el disco no dispone de ningún menú de disco, todas las pistas del mismo serán reproducidas repetidamente hasta que usted cambie la fuente o expulse el disco.

Si aparece “

• En algunos casos, puede suceder que no se acepte la operación aunque no se visualice “ ”.

” en el monitor, significa que la unidad no puede aceptar la operación intentada.

ESPAÑOL

~ Abra el panel frontal.

Lado de la etiqueta

Ÿ Inserta el disco.

La reproducción se inicia automáticamente.

Precaución:

No ponga su dedo detrás del panel de control.

Precaución sobre el ajuste de volumen:

Los discos y los dispositivos USB conectados producen muy poco ruido al compararse con otras fuentes. Antes de reproducir un disco, baje el volumen para evitar daños a los altavoces debido a un repentino aumento del nivel de salida.

DISC

Now Reading...

0: Expulsa el disco. 3/8: Inicia y pone la reproducción en

pausa.

BAND: Detiene la reproducción.

DVD

DIGITAL

MULTI

VIDEO

01 02 0:01:20

CHAP.RPT

4 ¢: Toque: Selecciona un capítulo.

Sostener: Búsqueda hacia atrás/

adelante

5 ∞: Selecciona un título. DISP:

Toque si es necesario (☞ página 9).

4 ¢: Toque: Selecciona un capítulo.

Sostener: Búsqueda hacia atrás/

adelante

5 ∞: Selecciona Nº de programa/Nº de

lista de reproducción

DISP:

Toque si es necesario (☞ página 9).

A Tipo de disco B Formato de audio C Modo de sonido/Surround (

☞ las páginas 22 y 50)

D Nº de título/Nº de capítulo/tiempo de reproducción E Modo de reproducción

DVD

DIGITAL FLAT

VR-PRG

01 02 0:01:20

A Formato de audio B VR-PRG: Programa original

VR-PL: Lista de reproducción C Modo de sonido/Surround (

☞ las páginas 22 y 50)

D Nº de programa (o Nº de lista de reproducción)/Nº de

capítulo/Tiempo de reproducción

DVD

FRONT 2CH

DivX

01 02 0:01:20

Current Folder Name Current File Name.avi

ESPAÑOL

4 ¢: Toque: Selecciona la pista.

Sostener: Búsqueda hacia atrás/ adelante para DivX/MPEG

5 ∞: Toque: Selecciona la carpeta.

Sostener: Visualiza la lista de carpetas.

DISP:

Toque si es necesario (☞ página 9).

A Modo de sonido/Surround (☞ las páginas 22 y 50) B Para DivX/MPEG: Nº de carpeta/Nº de pista/tiempo de

reproducción

Para JPEG: Nº de carpeta/Nº de archivo C Nombre de la carpeta actual/nombre del archivo actual

*1 Velocidad de búsqueda: x2 ] x10 *2 Velocidad de búsqueda: ¡1 ] ¡2

OPERACIONES

VCD

PBC

FLAT

02 0:01:20

4 ¢: Toque: Selecciona la pista.

ESPAÑOL

DISP:

Sostener: Búsqueda hacia atrás/

adelante Toque si es necesario (☞ página 9)

4 ¢: Toque: Selecciona la pista.

Sostener: Búsqueda hacia atrás/

adelante

4 ¢: Toque: Selecciona la pista.

Sostener: Búsqueda hacia atrás/

adelante

5 ∞: Toque: Selecciona la carpeta.

Sostener: Visualiza la lista de carpetas.

A El indicador PBC se enciende mientras se está usando PBC. B Modo de sonido/Surround (

☞ las páginas 22 y 50)

C Nº de pista/tiempo de reproducción

FLAT

02 0:01:20

Current Track Title Artist Name Disc Title

A Modo de sonido/Surround (☞ las páginas 22 y 50) B Nº de pista/tiempo de reproducción C Título de pista (sólo para CD Text)/Nombre del artista/

Título de disco

01 02 0:01:20

Current Folder Name Current File Name.mp3

MP3

FLAT

RPT

A Formato de audio (MP3/WMA/WAV/AAC) B Modo de sonido/Surround (

☞ las páginas 22 y 50)

C Nº de carpeta/Nº de pista/tiempo de reproducción D Nombre de la carpeta actual/nombre del archivo actual

*1 Velocidad de búsqueda: x2 ] x10 *2 Aparece “No Name” para los CDs convencionales. *3 Aparecerán los datos de etiqueta en lugar de los

nombres de carpetas/archivos cuando estén grabados y con <Tag Display> ajustado a <On>. (☞ página

52)

Selección de los modos de reproducción

Solamente puede usar el modo de reproducción repetida o aleatoria.

Ej.: Para seleccionar repetición de pista

Mode

Repeat

Set

Off

Repeat

Random

Off

Track

Folder

AV Menu

Al seleccionar uno de los modos de reproducción, el indicador correspondiente se enciende en la

Enter

Mode

pantalla de información de fuente.

Para cancelar, seleccione <Off> en el paso 4.

Tipo de disco Repeat Random

Chapter: Repite el capítulo actual.

Title: Repite el título actual.

Chapter: Repite el capítulo actual.

Program: Repite el programa actual (no

disponible para la reproducción de la lista de reproducción).

Track: Repetir la pista actual (para VCD:

PBC no está en uso).

Disc (All): Se reproducen aleatoriamente todas

las pistas (para VCD: PBC no está en uso).

Track: Repetir la pista actual. Folder: Reproduce aleatoriamente todas las

pistas de la carpeta actual y luego las pistas de las siguientes carpetas.

Folder: Se repiten todas las pistas de la

carpeta actual.

Disc (All): Reproducir aleatoriamente todas

las pistas.

Track: Repetir la pista actual. Folder: Reproduce aleatoriamente todas las

pistas de la carpeta actual y luego las pistas de las siguientes carpetas.

Folder: Se repiten todas las pistas de la

carpeta actual.

Disc (All): Reproducir aleatoriamente todas

las pistas.

Folder: Se repiten todas las pistas de la

carpeta actual.

ESPAÑOL

—

OPERACIONES

Selección de pistas en la lista

Si un disco incluye carpetas, podrá visualizar las listas de carpetas/pistas (archivo) y luego iniciar la reproducción.

1 Ingrese <Folder List> (Lista de carpetas).

Folder List

My Best

Cinema Pops My Best2 Favorite Song

[Sostener]

• Mantenga pulsado el botón para visualizar las

ESPAÑOL

carpetas siguientes/anteriores.

Cinema2

2 Selecciona una carpeta.

Folder List

My Best Cinema Pops

My Best2

Favorite Song Cinema2

3 Seleccione un archivo.

File List

Song011.mp3 Song012.mp3 Song013.mp3

Song014.mp3

Enter

Song015.mp3 Song016.mp3

También se podrá acceder a la lista de carpetas a través de <AV Menu> = <List>.

Prohibición de la expulsión del disco

Podrá bloquear un disco en la ranura de carga.

Operaciones utilizando el control remoto—RM-RK252

~ Sostenga los botones simultáneamente.

NO EJECT?

[Sostener]

EMERGENCY EJECT?

Ÿ Active la prohibición.

Aparecerá “No Eject”.

Para cancelar la prohibición, repita el mismo procedimiento que para seleccionar <EJECT OK?>.

También funciona como CLR (eliminar): Borra una entrada incorrecta si lo pulsa mientras mantiene pulsado SHIFT.

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

• Búsqueda hacia atrás/adelante

(El

sonido no se escucha).

• Cámara lenta*2 durante la pausa. (El sonido no se escucha.)

• Selecciona un capítulo (durante la reproducción o la pausa).

• Búsqueda hacia atrás/adelante*3

[Sostener]

Selecciona un título (durante la reproducción o la pausa).

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

• Búsqueda hacia atrás/adelante*1 (El sonido no se escucha).

• Cámara lenta hacia adelante

durante la

pausa. (El sonido no se escucha.)

• La cámara lenta hacia atrás no funciona.

• Seleccionar un capítulo (durante la reproducción o la pausa).

• Búsqueda hacia atrás/adelante

[Sostener]

• Selecciona un programa

• Selecciona la lista de reproducción (durante la reproducción o la pausa).

ESPAÑOL

• Selecciona un capítulo.

• Selecciona título (cuando no se está reproduciendo).

[Dos veces]

Selecciona un título (durante la reproducción o la pausa).

Cambia la relación de aspecto de las imágenes reproducidas.

Usando las funciones de control por menú

2. Selecciona una opción deseada para iniciar la

reproducción.

• Selecciona un capítulo.

• Selecciona un programa (cuando no se está reproduciendo).

[Dos veces]

Selecciona un programa/lista de reproducción (durante la reproducción o la pausa).

Cambia la relación de aspecto de las imágenes reproducidas.

Uso de las pantallas programa original/lista de reproducción (☞ página 28)

1. Para programas originales:

Para la lista de reproducción:

2. Selecciona la opción deseada para iniciar la reproducción.

*1 Velocidad de búsqueda: x2 ] x5 ] x10 ] x20 ] x60 *2

Velocidad a cámara lenta: 1/32 ] 1/16 ] 1/8 ] 1/4 ] 1/2

Velocidad de búsqueda: x2 ] x10

OPERACIONES

ESPAÑOL

También funciona como CLR (eliminar): Borra una entrada incorrecta si lo pulsa mientras mantiene pulsado SHIFT.

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

Búsqueda hacia atrás/adelante*1 (El sonido no se escucha).

• Selecciona la pista.

• Búsqueda hacia atrás/adelante [Sostener] (El sonido no se escucha).

Selecciona la carpeta.

Selecciona la pista (dentro de la misma carpeta).

[Dos veces]

Selecciona la carpeta.

Cambia la relación de aspecto de las imágenes reproducidas.

Mientras se está reproduciendo...

Retrocede/avanza las escenas 5 minutos.

Posición de reproducción actual

1ª pulsación

1ª pulsación 2ª pulsación

3ª pulsación2ª pulsación

Para DivX6: Usando las funciones de control por menú

2. Selecciona la opción deseada para iniciar la

reproducción.

Durante la reproducción PBC...

Detiene la reproducción.

Inicia o pone la reproducción en pausa. (Slide show: se muestra cada archivo durante unos segundos). Muestra el archivo actual hasta que lo cambie, si lo pulsa durante la presentación de diapositivas.

Selecciona la pista.

Selecciona la carpeta.

Selecciona la pista (dentro de la misma carpeta).

[Dos veces]

Selecciona la carpeta. Cambia la relación de aspecto de las

imágenes reproducidas.

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

• Búsqueda hacia atrás/adelante*

• Cámara lenta hacia adelante*4 durante la pausa. (El sonido no se escucha.)

• La cámara lenta hacia atrás no funciona.

• Selecciona la pista.

• Búsqueda hacia atrás/adelante*5

[Sostener] (El sonido no se escucha).

Selecciona la pista.

Cambia la relación de aspecto de las imágenes reproducidas.

Selecciona una opción en el menú.

Vuelve al menú anterior.

Para cancelar la reproducción PBC 1

2 Inicie la pista deseada.

• Para reanudar PBC:

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

Búsqueda hacia atrás/adelante

• Selecciona la pista.

• Búsqueda hacia atrás/adelante*5

[Sostener]

Selecciona la carpeta.

Selecciona la pista (dentro de la misma carpeta).

[Dos veces]

Selecciona la carpeta.

*1 Velocidad de búsqueda: ¡1 ] ¡2 ] ¡3 *2 Velocidad de búsqueda: ¡1 ] ¡2 *3 Velocidad de búsqueda: x2 ] x5 ] x10 ] x20 ]

x60

*4 Velocidad a cámara lenta: 1/32 ] 1/16 ] 1/8 ]

1/4 ] 1/2

*5 Velocidad de búsqueda: x2 ] x10

OPERACIONES

ESPAÑOL

También funciona como CLR (eliminar): Borra una entrada incorrecta si lo pulsa mientras mantiene pulsado SHIFT.

Cómo disfrutar de sonidos Surround

Puede disfrutar de una reproducción Surround multicanal a través de los altavoces delanteros, central, surround.

• Asegúrese de activar el altavoz central después de conectarlo; de lo contrario, no saldrá sonido a través del mismo (☞ página 55).

• Esta función no se puede activar en los siguientes casos: – Cuando se ha seleccionado “USB iPod” como

fuente.

– Cuando se está usando la Zona Dual.

MULTI:

Para fuentes codificadas multicanal, como por ejemplo, Dolby Digital en la pantalla de información de fuente).

Dolby Pro Logic II (Movie/Music):

Para fuentes de 2 canales excepto discos DivX/MPEG1/ MPEG2.

, y DTS*4. (Al activarse, aparece “MULTI”

Fabricado bajo licencia de Dolby Laboratories. Dolby,

Pro Logic y el símbolo de la doble D son marcas comerciales de Dolby Laboratories.

“DTS” y “DTS Digital Surround” son marcas

registradas de DTS, Inc.

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

Búsqueda hacia atrás/adelante

• Selecciona la pista.

• Búsqueda hacia atrás/adelante*2

[Sostener]

Selecciona la pista.

*1 Velocidad de búsqueda: x2 ] x5 ] x10 ] x20 ]

x60

Velocidad de búsqueda: x2 ] x10

Para activar el efecto surround

AV Menu

Enter

Disc Surround

Surround Off

Surround On

Para cambiar el ajuste <Dolby PLII Music>

En el paso 4 de la izquierda...

1 Seleccione <Dolby PLII Music>.

Surround On

Auto Through Dolby PLII Movie

Dolby PLII Music

2 Ingrese cada pantalla secundaria y, a

continuación, seleccione el ajuste deseado.

Ej.: Cuando se selecciona <Panorama> en el paso

Dolby PLII Music

Panorama

Center Width

ESPAÑOL

Auto

Surround Off:

Surround se desactiva.

Surround On: Activa Surround. = Vaya al paso siguiente.

Surround On

Exit

Auto Through

Dolby PLII Movie

Dolby PLII Music

Auto:

• Cuando se introducen señales digitales multicanal, se activa surround “MULTI”.

• Cuando se introducen señales de 2 canales o 2.1 canales*5, se activa “4CH STEREO”.

Through:

Todas las señales de canal entrantes se envían a los altavoces correspondientes.

Dolby PLII Movie:

Dolby Pro Logic II Movie se activa.

Dolby PLII Music:

Dolby Pro Logic II Movie se activa. Puede realizar los ajustes de <Panorama > y <Center Width >. (☞ en la derecha)

Excepto señales de los discos DivX/MPEG1/MPEG2.

Off

Panorama

Off

Exit

Panorama:

Seleccione <On> para añadir efecto de sonido envolvente.

Center Width:

Ajuste la imagen central de manera que pueda escucharse sólo por el altavoz central, sólo por los altavoces delanteros izquierdo/derecho como una imagen “fantasma”, o de diversas combinaciones de estos altavoces. Conforme aumenta el número, el efecto “fantasma” se intensifica (normalmente seleccione <04>).

En el control remoto:

• Los ajustes <Dolby PL II Music> no se pueden cambiar usando el control remoto.

OPERACIONES

Operaciones usando la barra en pantalla (DVD/VCD/DivX/MPEG1/ MPEG2/JPEG)

Estas operaciones se pueden realizar en el monitor usando el control remoto.

~ Visualiza la barra en pantalla. (☞ página

25)

ESPAÑOL

Ÿ Seleccione una opción.

! Efectúe una selección.

• Cuando aparezca un menú emergente...

• Para ingresar tiempos/números... Para mover la posición de entrada:

Para seleccionar un número:

⁄

Repita los pasos Ÿ y ! para ajustar otras opciones, si es necesario.

Para borrar la barra en pantalla

Barras en pantalla

Información

Funcionamiento

DVD -V

TIME TITLE CHAP

T02-C03 TOTAL 1:25:58

C. RPT

RPT

El ejemplo de arriba es de un DVD Vídeo. Las opciones mostradas en la barra varían según el tipo de disco.

1 Tipo de disco 2 • DVD: Formato de señal de audio

• DTS-CD: DTS

• VCD: PBC

3 Modo de reproducción*

DVD Vídeo C. RPT: Repetición de capítulo

T. RPT: Repetición de título

DVD-VR C. RPT: Repetición de capítulo

PG. RPT: Repetición de programa

DivX/ MPEG1/ MPEG2

T. RPT: Repetición de pista

F. RPT: Repetición de carpeta

F. RND: Aleatoria de carpetas

A. RND: Aleatoria Todos (Discos)

JPEG F. RPT: Repetición de carpeta

VCD T. RPT: Repetición de pista

A. RND: Aleatoria Todos (Discos)

4 Información sobre reproducción

T02-C03

PG-001

C-002

PL-003

C-004

TRACK 01

F001-T001

F002-F002

Título/capítulo actual

Programa/capítulo actual

Lista de reproducción/capítulo actual

Pista actual

Carpeta/pista actual

Carpeta/archivo actual

5 Indicación de la hora

Tiempo de reproducción transcurrido

TOTAL

del disco

• Tiempo estante del título (para DVD)

T. REM

• Tiempo restante del disco (para los otros)

Tiempo de reproducción transcurrido

TIME

del capítulo/pista actual Tiempo restante del capítulo/pista

REM

actual

6 Estado de reproducción

Reproducción

Búsqueda hacia atrás/adelante

Cámara lenta hacia atrás/adelante

Poner en pausa

Parada

7 Iconos de operación

Cambia la indicación del tiempo

TIME

(véase 5) Búsqueda por tiempo (especificar una

cierta escena ingresando el tiempo).

TITLE

Búsqueda de título (por su número)

CHAP

Búsqueda de capítulo (por su número)

TRACK

Búsqueda de pista (por su número)

Reproducción repetida

RPT

Reproducción aleatoria

RND

Cambia el idioma de audio, el canal de audio, o el flujo de audio

Cambia el idioma de los subtítulos

Cambia el ángulo de visión

ESPAÑOL

☞ página 17

*2 No aplicable para DVD-VR.

OPERACIONES

Operaciones de Zona Dual

Mientras escucha cualquier otra fuente distinta de “USB” a través de los altavoces, podrá disfrutar de la reproducción del disco en el monitor externo conectado a las clavijas VIDEO OUT y 2nd AUDIO OUT.

• Mientras se está usando la Zona Dual, sólo podrá operar el reproductor DVD/CD utilizando el control remoto.

ESPAÑOL

Dual Zone

Set

AV Menu

Enter

Off

On/Surround On

Dual Zone

Off:

Desactive la Zona Dual.

On :

La Zona Dual se activa sin aplicar Headphone Surround*. El indicador DUAL se enciende.

On/Surround On:

La Zona Dual se activa y se aplica Headphone Surround. Aparece “Headphone Surround” y el indicador DUAL-SURROUND se enciende.

Al activar la Zona Dual, la fuente principal cambia a “Disc”.

Para seleccionar una fuente distinta (fuente principal) y escuchar a través de los altavoces:

Pulse SRC en el panel de control.

• Utilizando los controles de la almohadilla táctil, puede accionar la fuente recién seleccionada sin afectar las operaciones de la Zona Dual (Disc).

• No se puede seleccionar “USB” para la fuente

principal.

En el control remoto:

Ajuste el volumen a través de la clavija 2nd

AUDIO OUT.

3 Opere el reproductor DVD/CD.

* Sistema virtual Surround para auriculares original de

JVC. Este Surround también será efectivo para la fuente principal “Disc” si se ha seleccionado “On/Surround On” para la fuente secundaria. Este efecto surround no se activa para los discos DivX/MPEG1/MPEG2.

Operaciones utilizando la pantalla de control

Para discos que no sean DVD y VCD:

Mientras esté activada la Zona Dual, estas operaciones se pueden realizar en el monitor externo utilizando el control remoto. La pantalla de control aparece automáticamente al insertar un disco. (Para DivX/MPEG1/MPEG2/JPEG; mientras no se esté reproduciendo).

Ej.: MP3/WMA

TIME 00:00:14T. RPT

Track : 6 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.wma Indian summer.mp3 Rain.mp3

Shower.mp3

Snow.mp3 Thunder.wma Typhoon.mp3 Wind.mp3 Winter sky.mp3

Folder : 2 / 3

01 Music

02 Music

03 Music

Track Information Album Weather Artist Robert M. Smith Title Rain

JVC KD-ADV49 User Manual [en, es, fr]

Specifications and Main Features

Frequently Asked Questions

User Manual

Playable disc type

Before operations

Basic operations— AV menu

Basic operations — Control panel

Basic operations — Remote controller (RM-RK252)

Listening to the radio

Disc operations

Dual Zone operations

USB operations

Bluetooth® operations — Cellular phone/audio player

Listening to the iPod

Listening to the CD changer

Listening to the satellite radio

Listening to the HD Radio™ Broadcast

Listening to other external components

Sound equalization

Assigning titles to the sources

Menu items

Maintenance

REFERENCES

More about this unit

Troubleshooting

Specifications
