JVC HV-32D25EJ User Manual

HV-32D25EJ

Colour Television

HV-32D25EJ

Contents

Setting up your TV. . . . . . . . . . . . . . . . . 5

TV buttons and functions. . . . . . . . . . . 10

Remote control buttons and functions. . 11

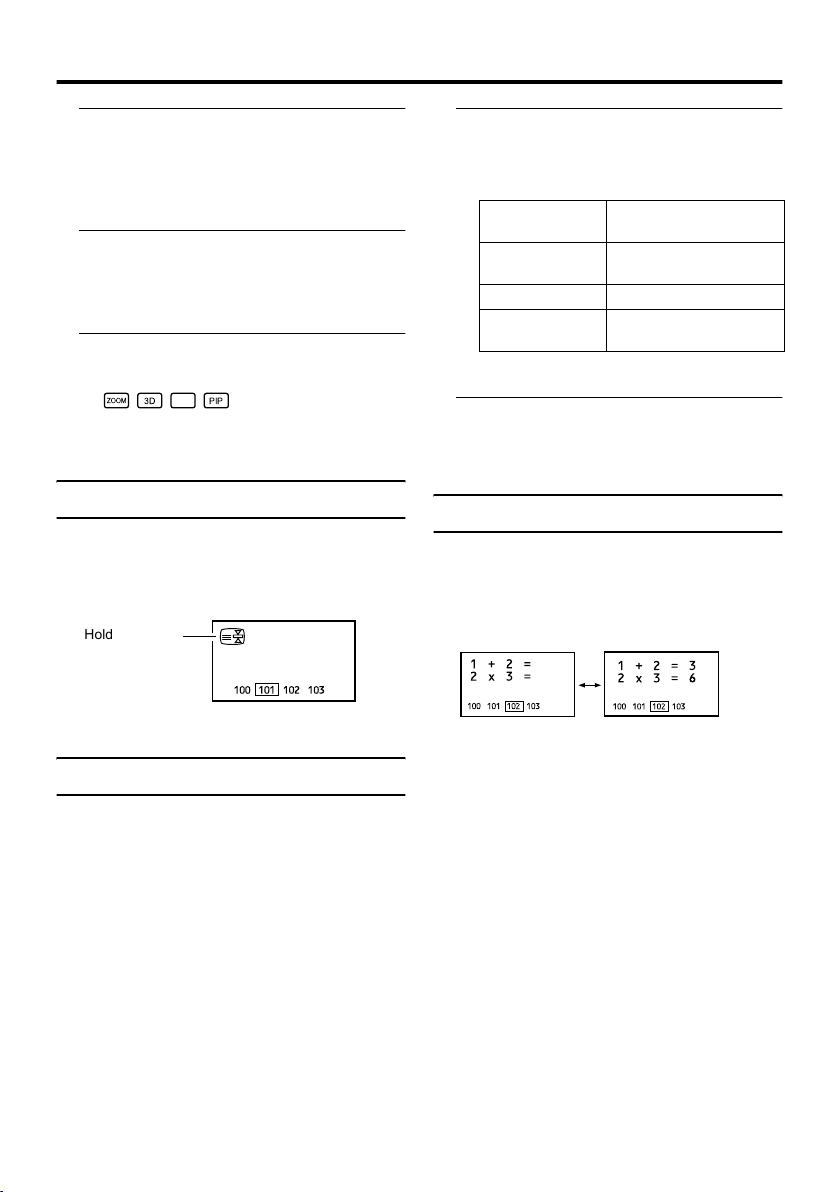

Teletext function . . . . . . . . . . . . . . . . . 19

Using the TV’s menu . . . . . . . . . . . . . . 22

Additional menu operations . . . . . . . . . 47

Additional preparation . . . . . . . . . . . . . 50

Troubleshooting. . . . . . . . . . . . . . . . . . 55

Specifications . . . . . . . . . . . . . . . . . . . 57

LCT1271-001A-U 1002-T-CR-JMUK

INSTRUCTIONS

Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

Avoid improper installation and never put the unit where good ventilation is not possible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Adhere to the minimum distance guidelines shown for safe operation.

• The main power button on the TV does not fully isolate the TV from the mains supply. If you are not going to use this TV for a long period of time, be sure to disconnect the mains plug from the mains outlet.

Failure to heed the following precautions may result in damage to the TV or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.



Warning

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable

for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If a new mains plug has to be fitted, then follow the instruction given below:

Important

Do not make any connection to the larger terminal which is marked with the letter E or

by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live

As these colours may not correspond with the coloured marking identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When replacing the fuse, use only a correctly rated approved type and always re-fit the fuse cover.

 If in doubt — consult a competent

electrician.

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Fuse



Guidelines for safe operation

This equipment has been designed and manufactured to comply with international safety standards. However, as with any electrical appliance, care must be taken to ensure optimal results and operational safety.

• Before attempting to use this equipment, read the operating instructions thoroughly.

• Ensure that all electrical connections (including the mains plug, extension leads, etc.) have been made in accordance with the manufacturer’s instructions.

• If ever in doubt about the installation, operation or safety of this equipment, consult your dealer.

• Handle all glass panels or covers with care.

• Never operate this equipment if it appears damaged or operates abnormally. Turn the power off, disconnect the main power plug and consult your dealer.

• Never remove any affixed panels or covers. Doing so may result in electrical shock.

• Never leave this equipment operating unattended unless otherwise specifically stated that it is designed to do so or in standby mode. Only use the designated power switch to turn off the power and ensure that all potential users are instructed how to do so. Make special arrangements for infirm or handicapped persons.

• Never watch TV while operating a motor vehicle. It is illegal to watch TV while driving.

• Never listen to headphones at high volume. Doing so may damage your hearing.

• Never obstruct the ventilation of this equipment. Doing so may cause overheating and result in a malfunction or damage.

• Never use makeshift stands or attempt to affix legs with wood screws. When using a manufacturer’s approved stand or legs, use only the fixtures provided and follow the installation instructions.

• Never allow this equipment to be exposed to rain or moisture.

• Never allow anyone, especially children, to insert anything into an opening in the case. Doing so may result in a fatal electrical shock.

• Never guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.

Caution

• The woofer unit is mounted on the TV. Always move the TV and woofer unit together when removing the TV from the box, or when moving the woofer unit.

• If the TV is tilted during movement the woofer unit may fall. Be careful to keep the TV level when moving it.

• Do not grip the woofer unit when moving the TV.

• Do not place objects on the woofer unit duct.

LIFTING CAUTION

FREE WOOFER UNIT

KEEP WITH UNIT

D.I.S.T. demonstration

To start the D.I.S.T. demonstration: Press the a button to display the MENU (main menu). Then press the yellow button. A picture split in two ( D.I.S.T. turned on and D.I.S.T. turned off ) will appear on the screen.

To quit the D.I.S.T. demonstration: Press the yellow button, b button, P p buttons or any of the number buttons.

Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial and video cassette recorder (VCR)

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

 If you are connecting a VCR,

follow AAAA →→→→ BBBB →→→→ CCCC in the diagram opposite.

 If you are not connecting a VCR,

follow 1111.

75-ohm Coaxial

Cable

To use the T-V LINK functions, you must have a T-V LINK compatible VCR connected by a SCART cable C to the EXT2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 8.

Back of the TV

DIGITAL AUDIOIN

WOOFER AUDIO OUT

SUB

WOOFER

EXT-4

R L

Pr Pb

COAXIAL

OPTICAL

EXT-1

Aerial

• You can watch a video using the VCR without doing C. For details, see your VCR instruction manual.

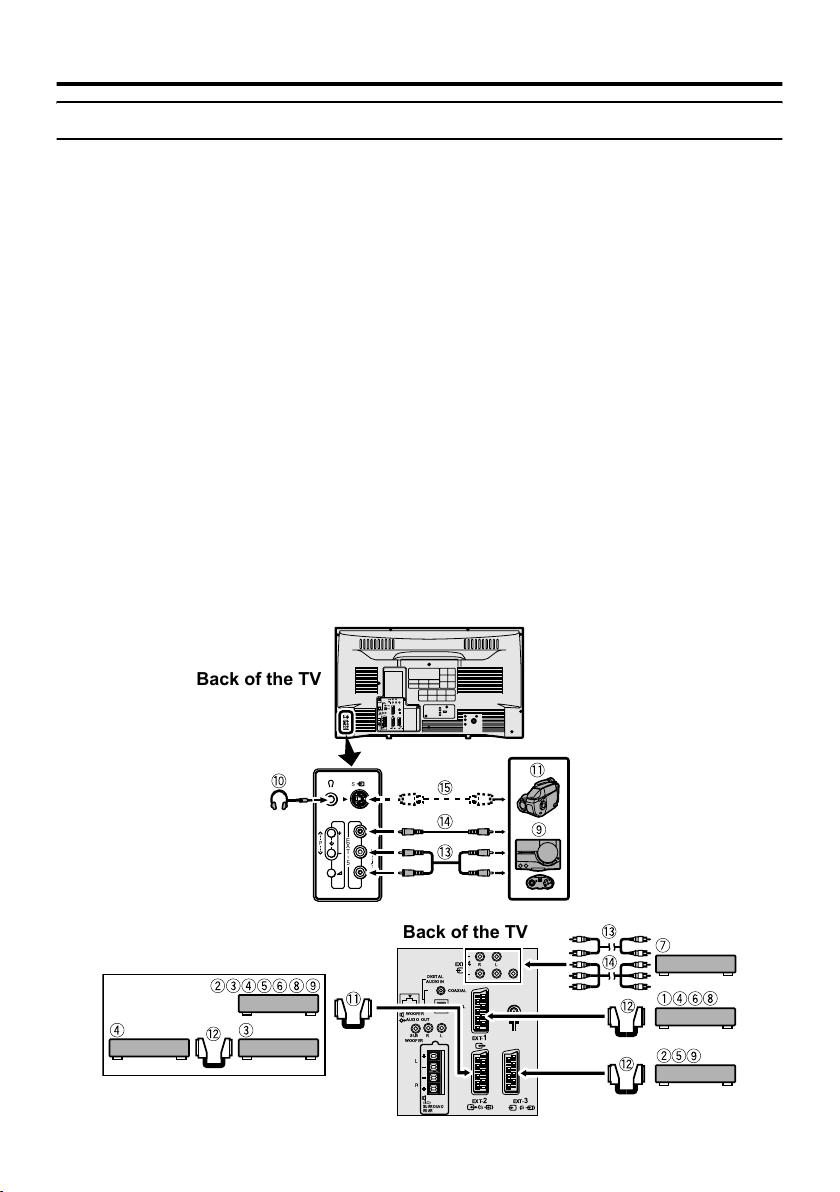

• To connect more equipment, please see “Connecting external equipment” on page 50.

• To connect additional audio equipment, see “Using additional audio equipment” on page 52.

• To connect a device (such as DVD player) with the digital output terminal for Dolby Digital, see “Listening to Dolby Digital audio” on page 52.

• If you connect a decoder to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “Using the DECODER (EXT-2) function” on page 48. Otherwise, you will not be able to watch scrambled channels.

21-pin

SCART

Cable

VCR

SURROUND REAR

AV IN/OUT

Terminal

EXT-2

EXT-3

75-ohm Coaxial

Cable

To Aerial

Input

To Aerial

Output

Setting up your TV

 Rear Panel

DIGITAL AUDIOIN

WOOFER AUDIO OUT

SUB

WOOFER

SURROUND REAR

1 Woofer terminal (page 54)

EXT-4

R L

Pr Pb

COAXIAL

OPTICAL

EXT-1

2 AUDIO OUT terminal (page 53) 3 SURROUND REAR terminal (page 53) 4 EXT-1 terminal (pages 5, 36, 50) 5 EXT-2 terminal (pages 5, 8, 36, 50) 6 EXT-3 terminal (pages 36, 50) 7 EXT-4 terminal (pages 36, 50) 8 Aerial socket (page 5)

DIGITAL AUDIO IN terminal (pages 36, 52)

EXT-2

EXT-3

Connecting the power cord to the AC outlet

Caution

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

Putting the batteries into the Remote control

Use two AAA/R03 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use the remote control.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

Initial settings

When the TV is first turned on, it goes into the initial setting mode, and you will see the JVC logo. Follow the instructions on the screen display to make the initial settings.

1 Press the Main power button on the

The Power lamp lights red (for power on), then green (for TV on) and the JVC logo appears.

Power lamp

TV OK

PIP3D

Yellow button

Blue button

Main power button

Setting up your TV

• If the power lamp stays red and does not change to green: your TV is in the standby mode. Press the # (standby) button on the remote control to turn your TV on.

• If the JVC logo does not appear this is because your TV has already been turned on for the first time: use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “INSTALL” on page 41.

2 Press the a button

The LANGUAGE menu appears.

LANGUAGE

BACK

TV OK

D0002(E)-EK

3 Press the 6 buttons to choose

ENGLISH. Then press the aaaa button

The on-screen display will then be in English. The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

D0003-EN

TV OK

BACK

START MORE

TV OK

BACK

4 Press the 5555 and 6666 buttons to

choose the country where you are

• To receive SKY 1 you need a satellite tuner. You must have the satellite tuner set to SKY 1 before starting the AUTO PROGRAM function which follows.

5 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically stored in the programme numbers (PR).

• To cancel the AUTO PROGRAM function: Press the b button.

AUTO PROGRAM

20%

BACK

TV OK

D0004-EK

CH 10

EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

TV OK

BACK

MOVE

BBC1 BBC2

ITV

CH4

CH5

ID INSERT DELETE MANUAL

After the TV channels have been registered in the programme numbers (PR), the EDIT menu appears

• If you want to, you can now edit the programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 42.

• If you do not want to edit programme numbers (PR), go to the next step.

If “ACI START/ACI SKIP” appears in the AUTO PROGRAM menu:

You can use the ACI (Automatic Channel Installation) function to decode the ACI data and complete the registration of all the TV channels quickly. For details of the ACI function and how to use it, see “Using the ACI function” on page 47.

START MORE

If you don’t want to use the ACI function, press the 6 buttons to choose ACI SKIP and then press a.

Setting up your TV



6 Press the a button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV VCR

BACK

TV OK

EXIT

D0005-EN

7 If you do not have a T-V LINK

compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

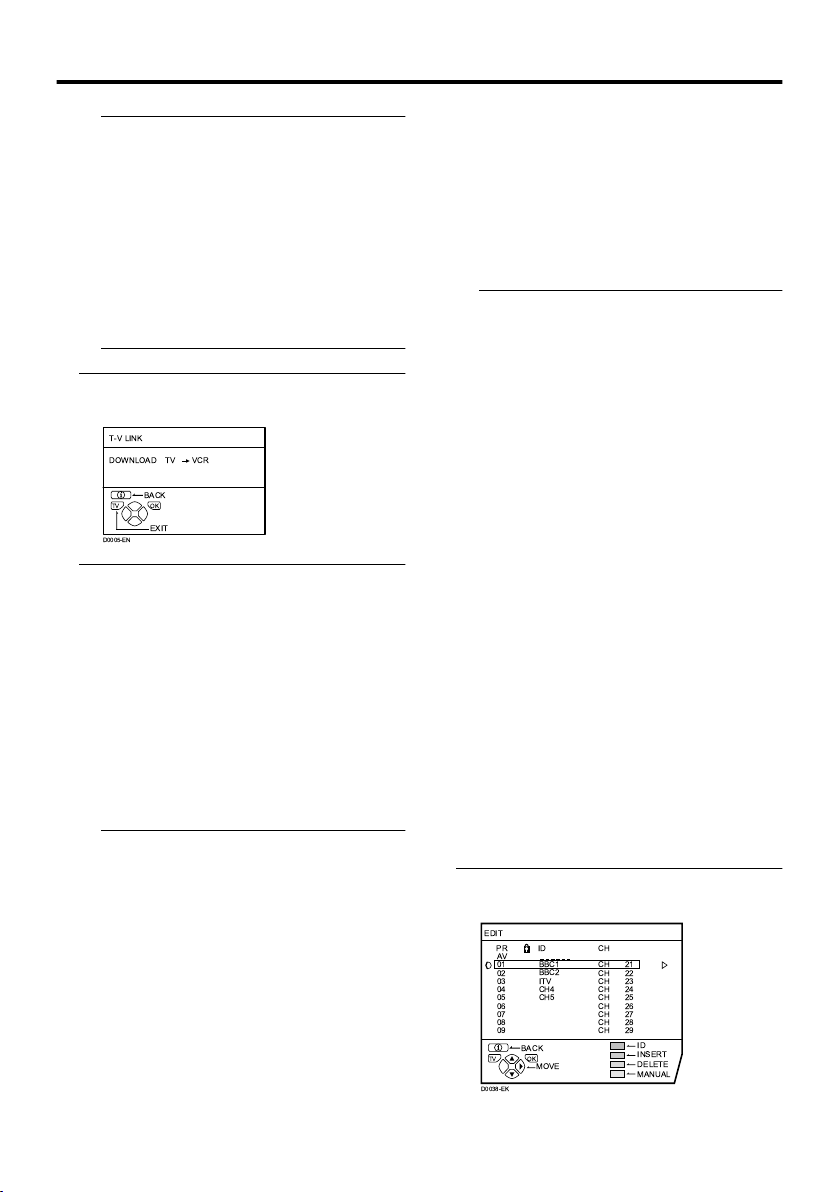

Follow the operating procedure “Using the DECODER (EXT-2) function” on page 48 to transmit the programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV

• When the COUNTRY setting is

UNITED KINGDOM:

BBC1, BBC2, ITV, Channel 4 and Channel 5 are automatically set to the programme numbers PR1 to PR5. If the TV doesn't receive one of these TV channels, that programme number (PR) will not be set. Programme number PR6 is not normally set.

• When the COUNTRY setting is

IRELAND:

If your TV can detect the TV channel name from the TV channel broadcast signal, the TV channel name is assigned to the programme number (PR) to which the TV channel has been set. However, which TV channels are set to which programme numbers (PR) will depend on the area in which you live.

• If a TV channel you want to view is not set to a programme number (PR), you can set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 42.

• The AUTO PROGRAM function does not set the programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the MANUAL function.

• In some areas you may get TV reception from more than one transmitter, for example different ITV regions. In this case each TV channel could be set twice. If this happens, the first set of channels will have the stronger signal. If you want to delete the second set of channels, you will have to do it manually (see page 45).

For users in the UK:

If you have any problems setting up your new TV, please call the  Helpline on

For users in the Republic of Ireland:

If you have any problems setting up your new TV, please call the  Helpline on

0870 330 5000

1890-582500

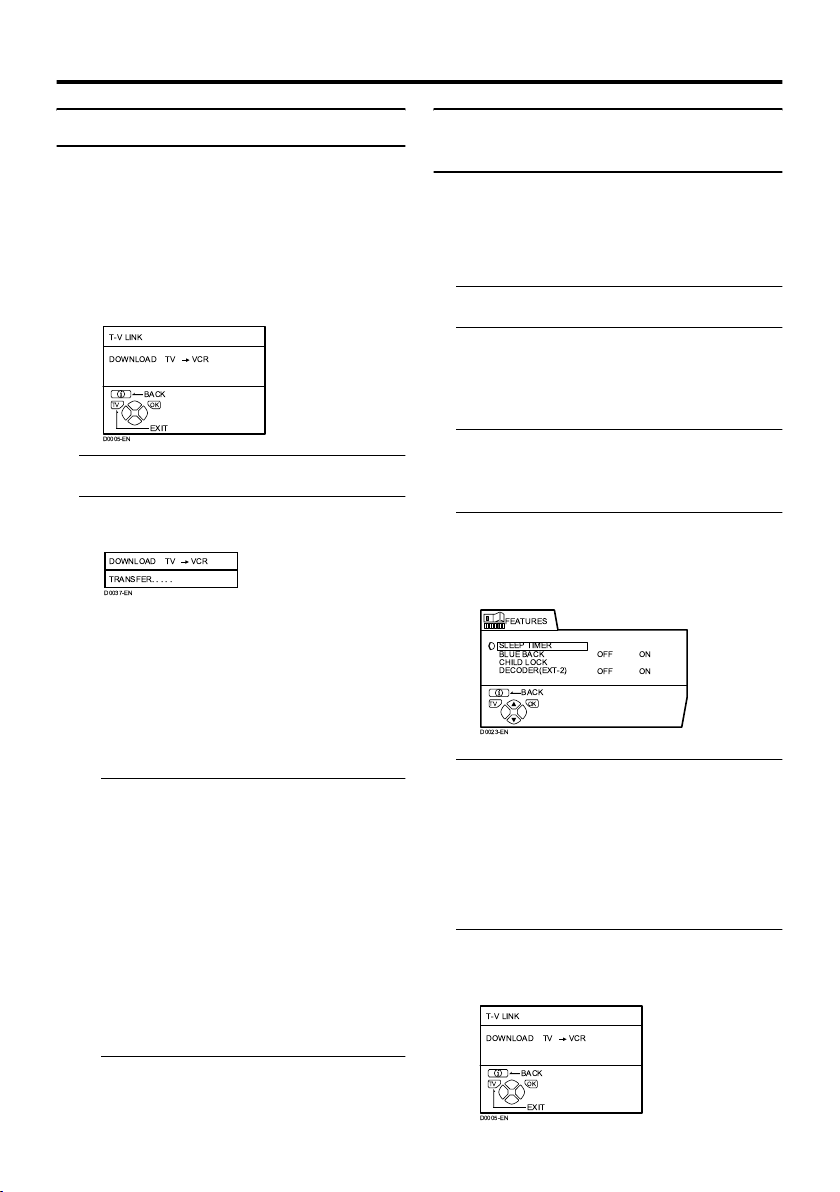

T-V LINK functions

When you have a T-V LINK compatible VCR connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier. For details, see your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation).

Setting up your TV

 Pre-set download

The VCR will automatically download the registered data on the TV channels from the TV. This means you do not need to set up the program channels on your VCR manually. The preset download function automatically begins when the initial setting is complete or whenever you carry out the AUTO PROGRAM or EDIT/MANUAL functions.

You can also carry out this function using your VCR controls.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, check that:

• the VCR power is turned on

• the VCR is T-V LINK compatible

• the VCR is connected to the EXT-2 terminal

• the SCART cable is fully wired.

 Direct Rec

“What You See Is What You Record”

You can easily record to VCR the images that you are watching on the TV.

For details, read the manual for your VCR. Use your VCR controls. “VCR IS RECORDING” is displayed.

In the following situations, the VCR will stop recording if the TV is turned off, if the TV channel or input is changed, or if the menu is displayed on the TV:

• when recording images from an external device connected to the TV (for example a camcorder)

• when recording a TV channel after it has been unscrambled on a decoder

• when recording a TV channel by using the TV’s output because the VCR’s own tuner cannot properly receive that channel.

When the VCR is not ready (for example when there is no tape inserted), “NO RECORDING” is displayed.

You cannot carry out Direct Rec using your TV’s control. Generally, the VCR cannot record a TV channel that it cannot receive properly on its own tuner, even if you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV. For details, see your VCR instruction manual.

 TV auto power on/VCR image view

When the VCR starts playing, the TV automatically turns on and the images from the EXT-2 terminal appear on the screen.

When the VCR menu is operated, the TV automatically turns on and the images from the EXT-2 terminal appear on the screen.

• This function does not happen if your TV’s main power is turned off. Set your TV’s main power to on (standby mode).

TV buttons and functions

Turn the main power on

Press the Main power button on the TV.

The power lamp lights red and your TV is in the standby mode.

• If the power lamp lights green, the TV is

To turn the main power off:

Press the main power button again. The power lamp goes off.

Caution

• The main power button on the TV does not fully isolate the TV from the AC supply. If you are not going to use the TV for a long period of time, be sure to disconnect the AC plug from the AC

EXT-4

R L

DIGITAL

Pr Pb

AUDIOIN

COAXIAL

OPTICAL

WOOFER AUDIOOUT

SUB

EXT-1

WOOFER

EXT-2

EXT-3

SURROUND

REAR

socket.

Turn the TV on from standby mode

Press the P p buttons to turn the TV on from standby mode

Choose a TV channel

already on.

Refer to the pages in brackets for details.

1 Remote control sensor 2 Power lamp (6, 10) 3 Main power button (6, 10) 4 Headphone jack (mini jack) (50) 5 P p buttons/ q buttons (11) 6 r (Volume) button (10) 7 EXT-5 terminal (36, 50)

Press the P p buttons to choose a programme number (PR) or an EXT terminal

Adjust the volume

1 Press the r (Volume) button

The volume level indicator appears.

2 Press the q buttons while the

volume level indicator is on screen

• The headphone volume is adjusted with the “HEADPHONE” menu (see page 28).

Remote control buttons and functions

1 Muting button 2 Number buttons 3 c button 4 3 sound button

1 2 3

4 5 6

7 8 9

TV OK

MULTI

SWAP

SUB-P

PIP3D

FREEZE

5 Information button 6 b button 7 5 buttons 8 Standby button 9 Colour buttons 0 a button

- 6 buttons = VCR/DVD/Teletext control button ~ VCR P DVD switch ! g (Text) button @ P button # F button $ U p button % S button ^ MULTI button

Turn the TV on or off from standby mode

Press the # (standby) button to turn the TV on or off.

When the TV is turned on, the power lamp changes from red to green.

• The power can be turned on by pressing

the b button, 6 buttons or Number buttons.

Choose a TV channel

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR6 → press 6

• PR12 → press 1 and 2

 Use the 6 buttons:

Press the 6 buttons to choose the programme number (PR) you want.

Remote control buttons and functions

 Use the PR LIST:

1 Press the h (Information) button to

display the PR LIST

Pressing the h (information) button changes the display as follows:

PR LIST

PR ID AV

BBC1

01 02 03 04 05 06 07 08 09

TV OK

+10-10

D0011-EN

2 Press the 5 and 6 buttons to

choose a programme number (PR). Then press the a button

• For programme numbers (PR) with the

CHILD LOCK function set, the n (CHILD LOCK) mark appears next to the Programme number (PR) in the PR LIST.

• You cannot use the 6 buttons to

choose a programme number (PR) with the CHILD LOCK set.

• Even if you try to choose a programme number (PR) with the CHILD LOCK set, the n (CHILD LOCK) mark will appear, and you cannot watch the TV channel. To watch the TV channel, see “CHILD LOCK” on page 39.

• If the picture is tilted or unnatural colour appears in the corner of the screen, this can be corrected. See “PICTURE TILT” on page 26.

12:00

No display

Adjust the volume

Press the 5 buttons to adjust the volume.

The volume indicator appears and the volume changes as you press the q buttons.

• The headphone volume is adjusted with the “HEADPHONE” menu (see page 28).

 Muting the sound

Press the l (muting) button to turn off the sound.

Pressing the l (muting) button again restores the previous volume level.

Watch images from external equipment

 Use the o button:

Press the o button to choose an EXT terminal.

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

EXT-1

EXT-5

 Use the 6 buttons:

Press the 6 buttons to choose an EXT terminal.

 Use the PR LIST:

1 Press the h (Information) button to

display the PR LIST

EXT-2

EXT-3

EXT-4

2 Press the 5 and 6 buttons to

choose an EXT terminal. Then press the a button

• The EXT terminals are registered after the Programme number PR 99.

Remote control buttons and functions

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “S-IN (SVIDEO input)” on page 36.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 25.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

• This TV set has a function which can automatically change over the input according to a special signal output from an external device. (The EXT-4 and EXT-5 terminals do not support this function.)

To return to a TV channel:

Press the b button, the 6 buttons or the number buttons.

To use the programme number PR 0 (AV):

When the TV and VCR are connected only by the aerial cable, choosing the programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL” on page 42. Pressing the o button changes the choice as follows:

TV mode

Programme

numbers

PR 1 – PR 99

PR 0

EXT modes

EXT-1

EXT-5

EXT-2

EXT-3

EXT-4

• The VCR sends its playback image along the aerial cable as an RF (radio frequency) signal.

• Also see your VCR instruction manual.

ZOOM function

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

AUTO:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal. If a WSS signal is not included, the picture is displayed in accordance with the ZOOM mode set with the 4:3 AUTO ASPECT function.

• For details of the 4:3 AUTO ASPECT function, see “4:3 AUTO ASPECT” on page 26.

• When the AUTO (WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the c button and change to another ZOOM mode.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

PANORAMIC:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

• The top and bottom of the picture are slightly cut off.

14:9 ZOOM:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Remote control buttons and functions

16:9 ZOOM:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

16:9 ZOOM SUBTITLE:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

FULL:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the FULL mode to restore the picture to its original shape.

 Choose the ZOOM mode

1 Press the c button to display

the ZOOM menu

ZOOM

AUTO REGULAR PANORAMIC 14:9 ZOOM 16:9 ZOOM 16:9 ZOOM SUBTITLE FULL

BACK

TV OK

D0009-EN

 Adjusting the visible area of the


If subtitles or the top (or bottom) of the picture are cut off, you can adjust the visible area of the picture manually.

1 Press the c button

The ZOOM menu appears.

2 Press the a button to display the

ZOOM mode indicator

The indicator appears.

16 : 9 ZOOM

D0010-EN

3 While it is displayed, press the 6666

buttons to change the position of the picture

• You cannot adjust the visible area in REGULAR or FULL mode.

2 Press the 6 buttons to choose a

ZOOM mode. Then press the a button

The picture expands and the chosen ZOOM mode is displayed in about 5 seconds.

• The ZOOM mode may be automatically changed by the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

Remote control buttons and functions

3D-PHONIC function

Dolby Surround Pro Logic surround sound and Dolby Digital surround sound can be easily enjoyed without additional surround speakers. You can turn the 3D-PHONIC function on or off by one-touch operation.

Press the 3333 button

Pressing the 3 button changes the function as follows:

3D-PHONIC

SURROUND OFF

D0050-EN

• The 3 button does not work while the

headphones are connected to the TV.

• The 3D-PHONIC function can be also turned on or off by using the SURROUND FEATURES menu. For details, see “3D-PHONIC” on page 29.

• As well as 3D-PHONIC, this TV has “DOLBY SURROUND”, “DANCE CLUB”, “CONCERT HALL” and “STADIUM” surround modes. These surround modes can be selected from the SURROUND FEATURES menu. For details, see “SURROUND FEATURES” on page 29.

Displaying the current time

You can display the current time on the screen.

• This TV uses teletext data to set the time. If the TV has not received a TV channel that has teletext programmes since it was turned on, the time display is blank. To see the time, choose a TV channel that has teletext programmes. The time will still be displayed as long as you do not turn off the TV, even if you choose other TV channels.

• When watching videos, an incorrect time is sometimes displayed.

Return to TV channel instantly

You can return to a TV channel instantly.

Press the b button

The TV returns to the TV mode and a TV channel appears.

Using the FREEZE function

You can view the current programme as a still picture.

1 Press the F

The still picture of the current picture will appear.

current

programme

To cancel the FREEZE function:

Press the F button, the 6 buttons or the number buttons.

F button

D0056-EN

still picture

Press the h (Information) button to display the current time

Pressing the h (Information) button changes the display as follows:

PR LIST

TV OK

D0011-EN

PR ID AV

01 02 03 04 05 06 07 08 09

BBC1

+10-10

12 : 00

No indication

• The FREEZE function does not work while a sub-picture is displayed.

• The still picture cannot be output from the TV.

Remote control buttons and functions

Using the PIP (picture-inpicture) function

You can view two pictures (main-picture and sub-picture). Two different TV programmes can be watched at the same time, or a TV programme and a video programme from an external device can be watched at the same time.

1 Press the PPPP button

Pressing the PPPP button changes the PIP mode as follows:

Twin pictures mode

Main-


Picture in picture mode

Main-


Subpicture

Listening to the sound of the subpicture:

You can listen to the sound of the subpicture with the headphones while listening to the sound of the main-picture from the TV speakers. For details, see “HEADPHONE” on page 28.

• The sub-picture sound is mono.

Changing the position of the subpicture:

You can choose one of four positions. For details, see “PIP POSITION:” on page 26.

Swapping the main-picture and sub-picture:

Press the S button. The main-picture and sub-picture will be swapped.

2 Press the U

change the sub-picture to the picture from another TV channel or another EXT terminal

Cancel the PIP function

Main-


D0057-EN

U pppp buttons to

D0051-EN

Cancelling the PIP function:

Press the PPPP button or b button.

• If the main-picture signal is poor, the quality of the sub-picture may also be poor.

• If the pictures have different standards, the top and bottom of one of them may be missing.

• If an external device is operated, the sub-picture may disappear. If this happens, press the PPPP button again to redisplay the sub-picture.

Remote control buttons and functions

• You cannot view a scrambled channel

in the sub-picture. If the S button is pressed when viewing a scrambled channel in the main-picture using an external decoder, the channel you have been viewing in the sub-picture will appear in both the main-picture and sub-picture.

• The ZOOM function does not work in twin-picture mode.

• Do not press the S button while you are recording the TV output on the VCR. If you do, the TV output signal will change.

• The BLUE BACK function does not work in twin picture mode or the picture-in-picture mode.

• A progressive-scanning picture cannot be displayed as the sub-picture. Also:

- When the EXT-4 picture is a

progressive-scanning picture, you cannot choose EXT-4 with the U p buttons.

- When the EXT-4 picture signal is

changed to a progressive-scanning picture while the EXT-4 picture is displayed as the sub-picture, the PIP function is cancelled.

- The pictures cannot be swapped

when a progressive-scanning picture from EXT-4 is being displayed as the main picture.

• The sub-picture cannot be output from the TV.

Using the MULTI-PICTURE function

You can display multi-pictures so you can find a program you want to view.

1 Press the MULTI button to display

multi-pictures

The channels are displayed in the channel number order. The multi-pictures will appear in one of the two multi-picture modes.

12-pictures multi:

Still pictures

Moving

D0058-EN


4-pictures multi:

Still

Main picture

D0059-EN

pictures

Moving picture

• To display the next multi-pictures,

press the MULTI button.

2 Press the U

U pppp buttons to

choose the screen you want to see

The chosen picture changes to a moving picture.

3 Press the aaaa button

The multi-pictures disappear and the chosen picture appears.

Changing the multi-picture mode:

See “MULTI-PICTURE:” on page 26.

Cancelling the multi-pictures:

Press the b button, the 6 buttons, the number buttons or the a button.

• Pictures from external devices cannot be displayed in the 12-pictures multi mode.

• In the 4-pictures multi mode, the picture from external devices can only be displayed as the main picture.

Remote control buttons and functions

Operating a JVC brand VCR or DVD player

These buttons will operate a JVC brand VCR or DVD player. Pressing a button that looks the same as the device’s original remote control button has the same effect as the original remote control.

1 Set the VCR P DVD switch to the

VCR or DVD position

VCR:

When you are using a VCR, set the switch to the VCR position.

DVD:

When you are using a DVD player, set the switch to the DVD position.

P (Text):

When you are viewing Teletext programmes, set the switch to the P (Text) position.

2 Press the VCR/DVD control button

to control your VCR or DVD player

• If your device is not made by JVC, these buttons will not work.

• Even if your device is made by JVC, some of these buttons may not work, depending on the device you are using.

• You can use the p buttons to choose a TV channel the VCR will receive, or choose the chapter the DVD player plays back.

• Some models of DVD player use the p buttons for both operating the fast forward/backward functions and for choosing the chapter. In this case, the 253 buttons do not work.

+ 41 hidden pages

JVC HV-32D25EJ User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
