JVC HV-28D40BK, HV-32D40BK User Manual

HV-32D40BK HV-28D40BK

Integrated Digital Colour Television

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) Number: 3081

INSTRUCTIONS



Warning

DO NOT cut off the mains plug from this equipment.

for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If a new mains plug has to be fitted, then follow the instruction given below:

Important

Do not make any connection to the larger terminal which is marked with the letter E or

by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live



Guidelines for safe operation

This equipment has been designed and manufactured to comply with international safety standards. However, as with any electrical appliance, care must be taken to ensure optimal results and operational safety.

• Before attempting to use this equipment, read the operating instructions thoroughly.

• Ensure that all electrical connections (including the mains plug, extension leads, etc.) have been made in accordance with the manufacturer’s instructions.

• If ever in doubt about the installation, operation or safety of this equipment, consult your dealer.

• Handle all glass panels or covers with care.

• Never operate this equipment if it appears damaged or operates abnormally. Turn the power off, disconnect the main power plug and consult your dealer.

• Never remove any affixed panels or covers. Doing so may result in electrical shock.

• Never leave this equipment operating unattended unless otherwise specifically stated that it is designed to do so or in standby mode. Only use the designated power switch to turn off the power and ensure that all potential users are instructed how to do so. Make special arrangements for infirm or handicapped persons.

• Never watch TV while operating a motor vehicle. It is illegal to watch TV while driving.

• Never listen to headphones at high volume. Doing so may damage your hearing.

• Never obstruct the ventilation of this equipment. Doing so may cause overheating and result in a malfunction or damage.

• Never use makeshift stands or attempt to affix legs with wood screws. When using a manufacturer’s approved stand or legs, use only the fixtures provided and follow the installation instructions.

• Never allow this equipment to be exposed to rain or moisture.

• Never allow anyone, especially children, to insert anything into an opening in the case. Doing so may result in a fatal electrical shock.

• Never guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.

If the plug fitted is not suitable

As these colours may not correspond with the coloured marking identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When replacing the fuse, use only a correctly rated approved type and always re-fit the fuse cover.

 If in doubt — consult a competent

electrician.

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Fuse

How to move the TV

When moving the TV, make sure that it is held by two people as shown in the illustration. Be careful not to trap your hands when putting the TV down.

Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long period of time, it is recommended that you disconnect the power cord from the main outlet.

Avoid improper installation and never put the unit where good ventilation is not possible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Adhere to the minimum distance guidelines shown for safe operation.

• The main power button on the TV does not fully isolate the TV from the mains supply. If you are not going to use this TV for a long period of time, be sure to disconnect the mains plug from the mains outlet.

Failure to heed the following precautions may result in damage to the TV or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

D.I.S.T. demonstration

To start the D.I.S.T. demonstration: Press the H button to display the menu bar. Then press the yellow button. A picture split in two (D.I.S.T. turned on and D.I.S.T. turned off) will appear on the screen.

To quit the D.I.S.T. demonstration: Press the yellow button,

TV/DTV button, p p buttons or any of the number buttons.

NOTE:

Due to static electricity, the TV may be covered with dust. If this happens, wipe the TV with a soft cloth being careful not to scratch the TV.

Digital terrestrial broadcasting (DVB-T) service area

Although this TV can receive both Digital terrestrial broadcasting (DVB-T) and Analogue terrestrial broadcasting, depending on the area in which you live, you may not be able to receive Digital terrestrial broadcasting (DVB-T). For details of the Digital terrestrial broadcasting (DVB-T) service area, refer to the FREEVIEW website etc.

CONTENTS

Setting up your TV ...................................7

Connecting the aerial................................. 7

Connecting the power cord to the AC

outlet....................................................... 8

Putting the batteries into the remote

control..................................................... 8

Initial settings ............................................. 8

T-V LINK functions................................... 11

TV buttons and functions......................13

Turn the main power on ........................... 13

Turn the TV on from standby mode ......... 13

Choose a TV channel .............................. 13

Adjust the volume .................................... 14

Remote control buttons and

functions..............................................15

Turn the TV on or off from standby mode Choose a TV channel and watch images

from external devices ........................... 16

Adjust the volume .................................... 17

Information function ................................. 17

ZOOM function......................................... 18

3D CINEMA SOUND function.................. 20

Using the FREEZE function ..................... 20

Using the MULTI-PICTURE function ....... 20

Using the GUIDE ..................................... 22

Displaying the Subtitles............................ 24

Operating a JVC brand VCR or DVD

player.................................................... 24

... 15

Teletext function ....................................25

Basic operation (Digital)........................... 25

Basic operation (Analogue)...................... 26

Using the List Mode ................................. 26

Hold.......................................................... 27

Sub-page ................................................. 27

Reveal...................................................... 27

Size .......................................................... 27

Index ........................................................ 27

Cancel...................................................... 27

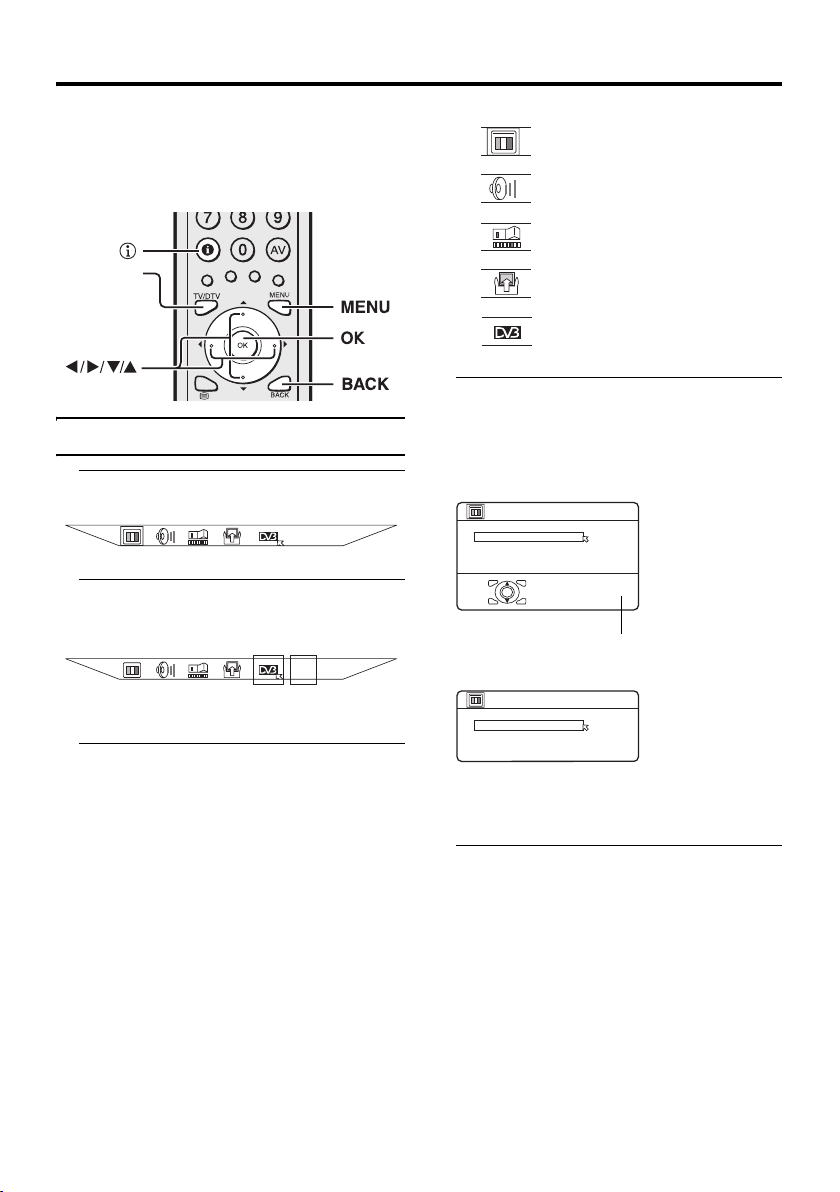

Using the TV’s menu..............................28

Basic operation ........................................ 28

PICTURE menu ......................................29

PICTURE MODE...................................... 29

CONTRAST ............................................. 29

BRIGHT.................................................... 29

SHARP..................................................... 29

COLOUR.................................................. 29

HUE.......................................................... 29

COLOUR TEMP....................................... 29

FEATURES .............................................. 30

SOUND menu ......................................... 33

STEREO / I • II ......................................... 33

BASS........................................................ 33

TREBLE ................................................... 33

BALANCE ................................................ 33

HEADPHONE VOLUME .......................... 33

3D CINEMA SOUND................................ 33

FEATURES menu................................... 34

SLEEP TIMER ......................................... 34

CHILD LOCK............................................ 34

APPEARANCE......................................... 35

BLUE BACK ............................................. 35

SET UP menu ......................................... 36

AUTO PROGRAM (Analogue)................. 36

EDIT/MANUAL (Analogue) ...................... 36

PICTURE TILT ......................................... 40

DECODER (EXT-2).................................. 41

EXT SETTING.......................................... 42

ATTENUATOR......................................... 44

DTV menu...............................................45

Timers (DTV Timer Recording) ................45

Configuration............................................ 47

Edit PR List .............................................. 49

Installation ................................................ 52

Common Interface.................................... 52

Additional preparation ..........................53

Connecting external equipment ...............53

Troubleshooting ....................................56

Specifications ........................................59

Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

 If you connect via a device with an

antenna terminal such as a VCR, follow A → B → C in the diagram opposite.

 If you connect the antenna

directly to the TV, follow 1.

To use the T-V LINK functions, you must have a T-V LINK compatible VCR connected by a SCART cable C to the EXT2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 11.

• To connect more equipment, please see “Connecting external equipment” on page 53.

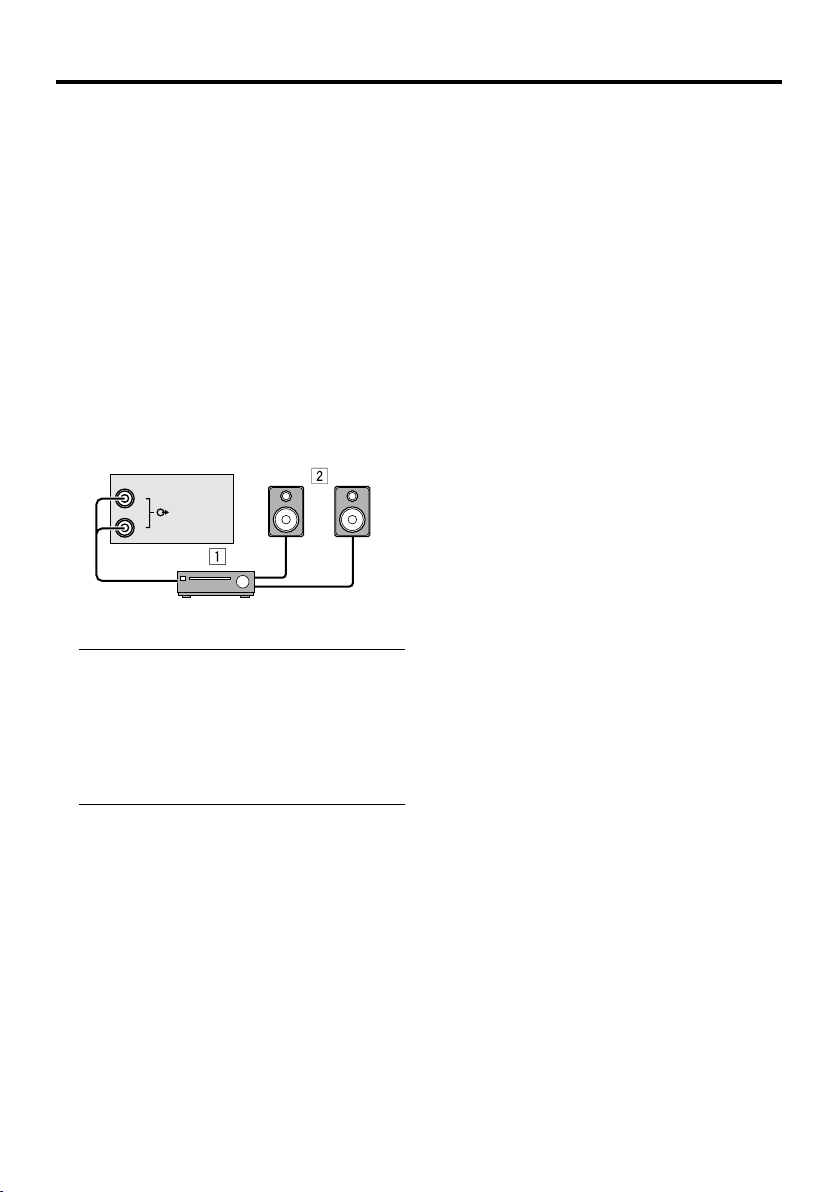

• To connect additional audio equipment, see “Connecting speakers/amplifier” on page 55.

• If you connect a decoder to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “DECODER (EXT-2)” on page 41. Otherwise, you will not be able to watch scrambled channels.

• When receiving Digital terrestrial broadcasting (DVB-T), reception can suddenly be lost if the signal becomes weak. Use a correctly installed highperformance antenna.

• When connecting via a device with an antenna terminal such as a VCR, depending on the connection method, the signal may be weakened. If this happens, use a booster to increase the signal strength.

• In areas with a lot of radio communication such as near ports or airports, noise may be introduced into the picture or sound. In such cases, reception may be improved by using a high-performance antenna.

• Read the instruction manual of the devices which you connect to the TV.

For example

21-pin

SCART

Cable

VCR

AV IN/OUT

Back of the TV

EXT-

PrPbR

AUDIO OUT

Terminal

75-ohm Coaxial

Cable

EXT-1

EXT-2

EXT-3

75-ohm Coaxial

To Aerial

Aerial

Cable

Input

Output

Setting up your TV

 Rear Panel

Not use

EXT-

PrPbR

AUDIO OUT

EXT-1

EXT-3

EXT-2

1 Aerial socket (page 7) 2 EXT-1 terminal (pages 7, 42, 53) 3 EXT-2 terminal (pages 7, 11, 42, 53) 4 EXT-3 terminal (pages 42, 53) 5 EXT-4 terminal (pages 42, 53) 6 AUDIO OUT terminal (page 55) 7 Common Interface terminal (page 52)

Connecting the power cord to the AC outlet

Caution

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

Putting the batteries into the remote control

Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use the remote control.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

Initial settings

When the TV is first turned on, it goes into the initial settings mode, and you will see the JVC logo. Follow the instructions on the screen display to make the initial settings.

TV/DTV

7 buttons

Setting up your TV

1 Press the main power button on the

The power lamp lights green and the JVC logo appears.

Main power

button

Power lamp

• If the JVC logo does not appear this is because your TV has already been turned on for the first time: Perform the initial settings with “Installation” (see page 52) in the DTV menu and “AUTO PROGRAM (Analogue)” (see page 36) in the SET UP menu.

• To receive SKY 1 you need a satellite tuner. You must have the satellite tuner set to SKY 1 before starting the AUTO PROGRAM function which follows.

2 Press the a button

The Digital terrestrial broadcasting (DVB-T) Automatic Search starts. The Digital terrestrial broadcasting (DVB-T) channels which can be received are automatically registered.

Installation > Automatic Search

Channels: BBC ONE

BBC TWO BBC THREE BBC NEWS 24 BBCi CBBC Channel

When the Automatic Search has finished, the EDIT PR LIST menu appears

1 BBC ONE

Select Delete Edit Name Lock Favourites

Select function Watch PR

D0202-EN

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Select PR

EDIT PR LIST

• If you want to, you can now edit the programme numbers (PR) using the EDIT PR LIST function. For details, see “Edit PR List” on page 49.

• If you do not want to edit programme numbers (PR), go to the next step.

3 Press the H button

The EDIT PR LIST menu disappears and the Analogue terrestrial broadcasting AUTO PROGRAM starts. The AUTO PROGRAM menu appears and received TV channels are automatically stored in the programme numbers (PR).

>> AUTO PROGRAM

CH 28

14%

D0004-EN

• To cancel the AUTO PROGRAM function: Press the

TV/DTV button.

More..

UHF 100%

Cancel, go to Installation Cancel, go to DTV

BACK

D0201-EN

CH:68

Setting up your TV

After the AUTO PROGRAM has finished, the EDIT menu appears

> EDIT

D0038-EK

PR ID AV 01 02 03 04 05 06 07 08 09

MOVE

BBC1 BBC2 ITV CH4 CH5

CH 21 CH 22 CH 23 CH 24 CH 25 CH 26 CH 27 CH 28 CH 29

INSERT

MANUAL

DELETE

• If you want to, you can now edit the programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL (Analogue)” on page 36.

• If you do not want to edit programme numbers (PR), go to the next step.

4 Press the a button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV RECORDING DEVICE

D0005-EN

EXIT

If you do not have a T-V LINK compatible VCR connected:

Press the

TV/DTV button to exit the T-V

LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 11 to transmit the Programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV

• The Analogue terrestrial broadcasting channels BBC1, BBC2, ITV, Channel 4 and Channel 5 are automatically set to the programme numbers PR1 to PR5. If the TV doesn’t receive one of these TV channels, that programme number (PR) will not be set. Programme number PR6 is not normally set.

• If a TV channel you want to view is not set to a programme number (PR), you can set it manually. To set an Analogue terrestrial broadcasting channel, see “EDIT/MANUAL (Analogue)” on page 36. To set a Digital terrestrial broadcasting (DVB-T) channel, see “Manual Search:” on page 52.

• The AUTO PROGRAM function does not set the programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the MANUAL function.

• In some areas you may get TV reception from more than one transmitter, for example different ITV regions. In this case each TV channel could be set twice. If this happens, the first set of channels will have the stronger signal. If you want to delete the second set of channels, you will have to do it manually (see page 36).

For users in the UK:

If you have any problems setting up your new TV, please call the Helpline on 0870 330 5000.

Setting up your TV

 Downloading the data to VCR

You can transmit to the latest Analogue terrestrial broadcasting Programme numbers (PR) data to a VCR with the T-V LINK function.

Caution

• This only works when a T-V LINK compatible VCR is connected to the EXT-2 terminal.

• This only works when the T-V LINK menu is being displayed.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

D0005-EN

1 Turn on the VCR

2 Press the a button

The data transmission begins.

T-V LINK TV RECORDING DEVICE

TRANSFER. . . . .

D0037-EN

The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu is changed over to another menu:

The TV has finished its menu. This new menu is operated from the VCR. See the VCR instruction manual for what to do next.

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu:

Check the following three items. Then press the 2 button to retry data transmission.

• Has a T-V LINK compatible VCR

• Has the VCR power been turned on?

• Does the SCART cable that is

EXIT

been connected to the EXT-2 terminal?

connected to the EXT-2 terminal to TV LINK compatible VCR have all its proper connections?

T-V LINK functions

When you have a T-V LINK compatible VCR connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier. For details, see your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation).

 Pre-set download

The VCR will automatically download the registered data on the TV Analogue terrestrial broadcasting channels from the TV. This means you do not need to set up the program channels on your VCR manually. The preset download function automatically begins when the initial setting is complete or whenever you carry out the AUTO PROGRAM or EDIT/MANUAL functions.

You can also carry out this function using your VCR controls.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, check that:

• the VCR power is turned on

• the VCR is T-V LINK compatible

• the VCR is connected to the EXT-2 terminal

• the SCART cable is fully wired.

Setting up your TV

 Direct Rec

“What You See Is What You Record”

You can easily record to VCR the images that you are watching on the TV.

For details, read the manual for your VCR. Use your VCR controls. “DEVICE IS RECORDING” is displayed.

You cannot carry out Direct Rec using your TV’s control. Generally, the VCR cannot record a TV channel that it cannot receive properly on its own tuner, even if you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV. For details, see your VCR instruction manual.

Do not turn the TV off in the following cases.

• when recording images from an external device connected to the TV (for example a camcorder)

• when recording a TV channel after it has been unscrambled on a decoder

• when recording a TV channel by using the TV’s output because the VCR’s own tuner cannot properly receive that channel.

• when recording Digital terrestrial broadcasting (DVB-T).

If you change channels or perform other operations while a Digital terrestrial broadcasting (DVB-T) channel is being recorded, a window appears asking whether to stop the recording.

Press the a button to stop the recording, or the continue the recording.

TV/DTV button to

When the VCR is not ready, the following messages are displayed.

ERROR MESSAGE

NO RECORDING

NO RECORDING POSSIBLE

NO RECORDING, MEDIA PROBLEM

NO RECORDING, DEVICE BUSY

Cause and countermeasure

The VCR is not able to record. Check the VCR.

The TV input is set to EXT-4. Since the EXT-4 picture cannot be output to EXT-2, DIRECT REC is not possible.

The RECORDING DEVICE is not ready to record. Check the VCR tape.

The RECORDING DEVICE cannot record as it is recording or playing. Check the VCR.

Refer to the VCR instruction manual.

TV buttons and functions

Turn the main power on

Press the main power button on the TV.

The power lamp lights red and your TV is in standby mode.

• If the power lamp lights green, the TV is

To turn the main power off:

Press the main power button again. The power lamp goes off.

Caution

• The main power button on the TV does not fully isolate the TV from the AC supply. If you are not going to use the TV for a long period, be sure to disconnect the AC plug from the AC socket.

Turn the TV on from standby mode

Press the P p buttons to turn the TV on from standby mode

already on.

MONO

EXT-5

MONO

EXT-5

See the pages in parentheses for details.

1 Main power button (pages 9, 13) 2 Power lamp (pages 9, 13) 3 Remote control sensor 4 r (Volume) button (page 14) 5 P p buttons/ q buttons (page 13) 6 Headphone jack (mini jack) (page 53) 7 EXT-5 terminal (pages 42, 53)

Choose a TV channel

Press the P p buttons to choose a programme number (PR) or an EXT terminal

The EXT terminal cannot be chosen when watching Digital terrestrial broadcasting (DVB-T).

To switch between Analogue terrestrial broadcasting and Digiatl terrestrial broadcasting (DVB-T):

1 Press the r (Volume) button 2 Press the r (Volume) button

again when the volume level indicator appears

TV buttons and functions

Adjust the volume

1 Press the r (Volume) button once

The volume level indicator appears.

2 Press the q buttons while the

volume level indicator is displayed

Remote control buttons and functions

1 Muting button 2 Number buttons 3 Information button

6 7

4 Colour button

TV/DTV button

5 6 7 buttons 7 g (Text) button 8 p p buttons 9 VCR/DVD/Teletext control buttons 0 p buttons

- c button

= 3 button ~ # (Standby) button ! VCR/TV/DVD switch @ G button # H button $ a button % b button ^ r (Volume) q buttons

GUIDE button

& * SUBTITLE button ( X (Multi) button ) f/g (Freeze/Swap) button

9 0

& *

( )

Turn the TV on or off from standby mode

Press the # (standby) button to turn the TV on or off.

When the TV is turned on, the power lamp lights green.

• The power can be turned on by pressing the

TV/DTV button, p p buttons or

Number buttons.

To turn the TV on or off, set the VCR/TV/ DVD switch on the remote control to the TV position and press the # button. If the VCR/TV/DVD switch on the remote control is set to a position other than TV, the TV will not be turned on or off even if the # button is pressed.

Remote control buttons and functions

Choose a TV channel and watch images from external devices

• If the picture is tilted, correct it. See “PICTURE TILT” on page 40.

 Switching between Digital

terrestrial broadcasting (DVB-T) and Analogue terrestrial broadcasting.

Press the TV/DTV button.

The broadcasting is switched every time the button is pressed.

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

• PR 123 → press 1, 2 and 3

 Use the p p buttons:

Press the p p buttons to choose the programme number (PR) you want.

• For Digital terrestrial broadcasting (DVBT), if the FAVOURITE setting in the “Edit PR List” (see page 49) has been set, only that programme number (PR) can be chosen.

• For Analogue terrestrial broadcasting, an EXT terminal can also be chosen.

 Use the AV button:

Press the AV button to choose an EXT terminal.

TV mode EXT modes

Analogue terrestrial broadcasting

EXT-1

EXT-2

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “S-IN (SVIDEO input)” on page 42.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 31.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

• This TV set has a function which can automatically change over the input according to a special signal output from an external device. (The EXT-4 and EXT-5 terminals do not support this function.)

• Since this TV is designed to make full use of the resolution of the original video source, the motion may appear unnatural when the video source is input with 625p progressive-scanning component signals. If this happens, change the output setting of the connected device to 625i interlace-scanning component signal output. See the instructions that came with the device for more information.

To return to a TV channel:

Press the

TV/DTV button, the p p buttons

or the number buttons.

Digital terrestrial broadcasting (DVB-T)

EXT-5

EXT-3

EXT-4

Remote control buttons and functions

To use the programme number PR 0 (AV):

When the TV and VCR are connected only by the aerial cable, choosing the programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL (Analogue)” on page 36. Pressing the G button changes the choice as follows:

TV mode EXT modes

Analogue terrestrial broadcasting

Digital terrestrial broadcasting (DVB-T)

EXT-1PR 0

EXT-5

EXT-2

EXT-3

EXT-4

• The VCR sends its playback image along the aerial cable as an RF (radio frequency) signal.

• Also see your VCR instruction manual.

Adjust the volume

Information function

When watching Digital terrestrial broadcasting (DVB-T):

When the h (Information) button is pressed, the programme information appears for approximately 1 minute.

ITV News

D0203-EN

Now: 13:00-14:00 Steve Scott

13:19

Next: 14:00-14:30 Steve Scott

• When the h (Information) button is

pressed while the information is being

displayed, the information disappears.

• The time display in the programme information uses the time information which is included in the Digital terrestrial broadcasting (DVB-T). Depending on the channel, the time information may not be correct.

When watching Analogue terrestrial broadcasting:

You can see the channel number of the programme you are watching, the current time or the PR LIST. From the PR LIST, you can choose a channel or EXT terminal.

CH61

Press the r q buttons to adjust the volume.

The volume indicator appears and the volume changes as you press the r q buttons.

 Muting the sound

Press the l (muting) button to turn off the sound.

Pressing the l (muting) button again restores the previous volume level.

Press the h (Information) button to display the information you want to

see.

Pressing the h (Information) button changes the display as follows:

PR LIST

D0011-EN

PR ID

AV 01 02 03 04 05 06 07 08 09

BBC1

+10-10

Channel number display

12 : 00

No indication

Remote control buttons and functions

Channel number display:

The channel number and channel name (when the channel name is registered) of the programme you are watching or the EXT terminal number is displayed.

Time display:

The current time of the teletext data is displayed. If the TV has not received a TV channel that has teletext programmes since it was turned on, the time display is blank. To view the current time, choose a TV channel that has teletext programmes.

• An incorrect current time is sometimes displayed when watching videos.

PR LIST:

The programme number (PR) and EXT terminal list is displayed. Pressing the a button after choosing the programme number (PR) or EXT terminal with the 7 buttons will display the chosen programme or EXT terminal.

• For programme numbers (PR) for which the CHILD LOCK function is set, the n (CHILD LOCK) mark is displayed. For details see “CHILD LOCK” on page 34.

ZOOM function

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

AUTO:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal. If a WSS signal is not included, the picture is displayed according to the ZOOM mode set with the 4:3 AUTO ASPECT function.

• For details of the 4:3 AUTO ASPECT function, see “4:3 AUTO ASPECT” on page 32.

• When the AUTO (WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the c button and change to another ZOOM mode.

• When watching a 16:9 FULL programme with Digital terrestrial broadcasting (DVB-T), the aspect ratio is FULL.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

PANORAMIC:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

• The top and bottom of the picture are slightly cut off.

+ 42 hidden pages
