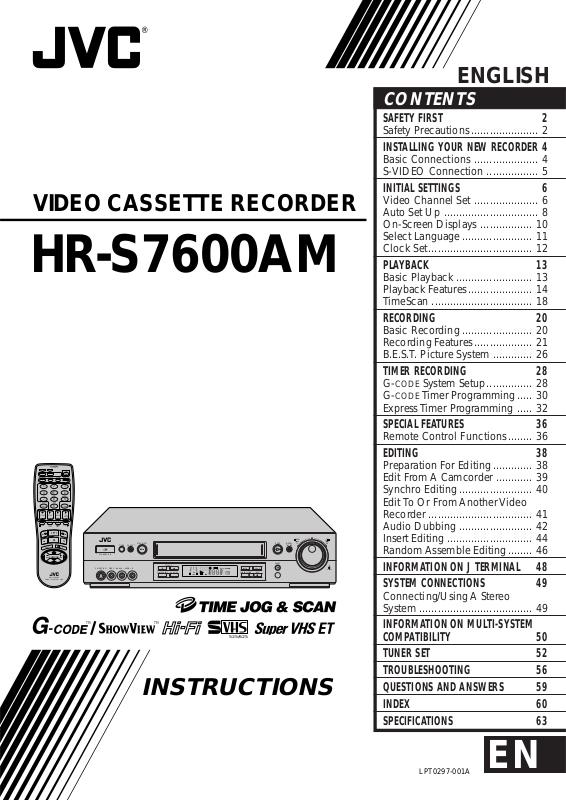

VIDEO CASSETTE RECORDER

HR-S7600AM

VCR

TV/VCR

DISPLAY

AUDIO

(MONITOR)

123

456

DAILY

WEEKLY

AUX

C. RESET

CANCEL

TIMER

START STOP DATE

PROG

EXPRESS PROGRAMMING

PROG.

30 SEC

PROG.

CHECK

REW

–

REMOTE CONTROL UNIT

PUSH JOG

MULTI BRAND

INSERT A.DUB

PLAY

DIGITAL TBC/NR

PAUSE

REC

STOP/EJECT

–

STANDBY/ ON

TIMER S-VHS ET

TV PROG

+ 8 4

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

SYNCHRO EDIT

SP/LP/EP

REVIEW

0 6 15dB NORM

VCR

COLOUR SYSTEM

525/625

INSTRUCTIONS

JOG

SHUTTLE

ENGLISH

CONTENTS

SAFETY FIRST 2

Safety Precautions...................... 2

INSTALLING YOUR NEW RECORDER4

Basic Connections ..................... 4

S-VIDEO Connection ................. 5

INITIAL SETTINGS 6

Video Channel Set ..................... 6

Auto Set Up ............................... 8

On-Screen Displays ................. 10

Select Language ....................... 11

Clock Set.................................. 12

PLAYBACK 13

Basic Playback......................... 13

Playback Features..................... 14

TimeScan ................................. 18

RECORDING 20

Basic Recording ....................... 20

Recording Features................... 21

B.E.S.T. Picture System ............. 26

TIMER RECORDING 28

G-CODE System Setup............... 28

CODE T imer Programming..... 30

G-

Express T imer Programming ..... 32

SPECIAL FEATURES 36

Remote Control Functions........ 36

EDITING 38

Preparation For Editing............. 38

Edit From A Camcorder ............ 39

Synchro Editing........................ 40

Edit To Or From Another Video

Recorder .................................. 41

Audio Dubbing ........................ 42

Insert Editing ............................ 44

Random Assemble Editing ........ 46

INFORMATION ON J TERMINAL 48 SYSTEM CONNECTIONS 49

Connecting/Using A Stereo

System ..................................... 49

INFORMATION ON MULTI-SYSTEM COMPATIBILITY 50

TUNER SET 52 TROUBLESHOOTING 56 QUESTIONS AND ANSWERS 59 INDEX 60 SPECIFICATIONS 63

LPT0297-001A

2 EN

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR

MOISTURE.

CAUTION

n When you are not using the recorder for a long period of time, it is recommended that you disconnect the

power cord from the mains outlet.

n Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent electric shock or

fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

n Use the conversion plug (not provided in certain areas) depending on the type of your AC wall outlet.

ATTENTION

1. This recorder can also receive SECAM colour television signals for recording and playback.

2. Recordings made of SECAM television signals produce monochrome pictures if played back on another video recorder of SECAM standard, or do not produce normal colour pictures if played back on another video recorder of PAL standard.

3. SECAM prerecorded cassettes or recordings made with a SECAM video recorder produce monochrome pictures when played back with this recorder.

IMPORTANT

n Please read the various precautions on this page before installing or operating the recorder. n It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent

of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

Warning on lithium battery

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in fire.

525/625

n Cassettes marked "S-VHS" and "VHS" can be used with this video cassette recorder. However, S-VHS recordings are possible only

with cassettes marked "S-VHS". By using S-VHS ET it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

CODE and SHOWVIEW are trademarks of Gemstar Development Corporation.

n G-

CODE/SHOWVIEW system is manufactured under license from Gemstar Development Corporation.

The G-

EN 3

POWER SYSTEM

This set operates on voltage of AC110 – 240 V` (Rating), AC90 – 260 V` (Operating), 50/60 Hz with automatic switching.

The STANDBY/ON button does not completely shut off mains power from the unit, but switches operating current on and off. "

Video tapes recorded with this video recorder in the LP (Long Pla y) or EP (Extended Pla y) mode cannot be pla y ed back on a single-speed video recorder .

Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.

1. DO NOT place the recorder . . .

... in an environment prone to extreme temperatures or humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are generated. ... on a surface that is unstable or subject to vibration.

DO NOT block the recorder's ventilation openings.

2. DO NOT place heavy objects on the recorder or remote control.

DO NOT place anything which might spill on top of the recorder or remote control.

4. A VOID violent shocks to the recorder during transport.

" shows electrical power standby and " " shows ON.

MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.

ABOUT HEAD CLEANING

Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your nearest JVC dealer if such troubles occur.

Auto Head Cleaner

A built-in head cleaner automatically cleans the video heads and head drum whenever a tape is loaded or unloaded to reduce head clogging.

4 EN

Basic

INSTALLING YOUR NEW RECORDER

It's essential that your video recorder is properly connected. Follow these steps carefully. THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

Connections

Aerial terminal

Back of TV

AV-IN terminals

Mains Power Cord

RF Cable (provided)

AV Cable (not provided)

TV Aerial Cable

CHECK CONTENTS

Make sure the package contains all of the accessories listed in "SPECIFICATIONS" (

Z pg. 63).

SITUATE RECORDER

Place the recorder on a stable, horizontal surface.

CONNECT RECORDER TO TV

The connection method you use depends on the type of TV you have.

RF CONNECTION

To Connect To A TV With NO AV Input Terminals . . .

●

a– Disconnect the TV aerial cable from the TV. b– Connect the TV aerial cable to the ANT. IN jack

on the rear panel of the recorder.

c– Connect the provided RF cable between the RF

OUT jack on the rear panel of the recorder and the TV's aerial terminal.

AV CONNECTION

To Connect To A TV With AV Input Terminals . . .

●

a– Connect the aerial, recorder and TV as per "RF

CONNECTION".

b– Connect an optional AV cable between the

AUDIO OUT and VIDEO OUT connectors on the rear panel of the recorder and the TV's AV-IN terminals .

Mains outlet

Rear View

AUDIO OUT/ VIDEO OUT

Connect the power plug to an AC

before installing the lithium

outlet

Z pg. 7

battery.

CONNECT RECORDER TO MAINS

Plug the end of the mains power cord into a mains outlet.

NOTE:

Use the conversion plug (not provided in certain areas) depending on the type of your AC wall outlet.

A TTENTION

If you have finished all the necessary connections, go to "Video Channel Set" on page 6, then perform A uto Set Up on page 8; do NOT press the control to turn on the recorder's power before you start A uto Set Up.

button on the recorder/remote

S-VIDEO Connection

EN 5

Aerial terminal

Back of TV

Rear View

S-VIDEO IN connector

AUDIO IN connectors

Mains outlet

Mains Power Cord

Audio cable (not provided)

S-Video cable (provided)

AUDIO OUT

(S--1)

OUT

S VIDEO

S VIDEO OUT

RF Cable (provided)

VIDEO

AUDIO

Aerial or Cable

ANT. IN

OUT

IN EDITSYNCHRO

PAUSE/R.A.EDIT

RF OUT

JLIP

ANT. IN

RF OUT

To Connect to A TV With S-VIDEO/AUDIO IN Connectors . . .

●

CONNECT RECORDER TO TV

a– Connect the aerial, recorder and TV as per "RF

CONNECTION" (

b–Connect the recorder's S VIDEO OUT connector to

the TV's S-VIDEO IN connector.

c– Connect the recorder's AUDIO OUT connectors to

the TV's AUDIO IN connectors.

Z pg. 4).

NOTES:

●

You can obtain high-quality S-VHS pictures.

●

If your television is not stereo-capable, use the recorder's AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction (

●

To operate the recorder with your TV using the S-VIDEO connection, set your TV to the VIDEO (or AV mode).

●

For switching the TV's mode, refer to the instruction manual of your television.

pg. 49).

CONNECT RECORDER TO MAINS

Plug the end of the mains power cord into a mains outlet.

ATTENTION

If you have finished all the necessary connections, go to "Video Channel Set" on page 6, then perform A uto Set Up on page 8; do NOT press the

button on the recorder/remote control to turn on the recorder's power before you start Auto Set Up.

6 EN

STOP/EJECT

TV PROG

Video Channel Set

Video Channel (RF Output Channel) is the channel on which your TV receives picture and sound signals from the video recorder through the RF cable.

INSERT A.DUB

COLOUR SYSTEM

PLAY

PAUSE

REC

STANDBY/ ON

STOP/EJECT

TIMER S-VHS ET

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

SYNCHRO EDIT

TV PROG

SP/LP/EP

INITIAL SETTINGS

If you have connected the video recorder to your TV via the provided RF cable only (RF connection) – Go to "With RF Connection" below.

If you have connected the video recorder to your TV via both the provided RF cable and an AV cable (AV connection), or via the provided RF cable, the provided S-Video cable and an audio cable (S-VIDEO connection) – Go to "With AV Connection or S-VIDEO Connection" on next page.

With RF Connection

IMPORTANT:

Before performing the following steps, make sure the recorder's power is off and there is no cassette inserted in the recorder.

REW

DIGITAL TBC/NR

JOG

SHUTTLE

ACCESS VIDEO CHANNEL SET MODE

Hold down STOP/EJECT on the recorder until the display panel shows the following.

TEST SIGNAL

123 456

TV PROG+/–

SELECT TV SYSTEM

Press TV PROG + or – to set appropriate TV system that matches the system of TV being used (refer to the table

below).

1 : B/G 2 : D/K 3 : I 5 : M

Major Countries TV System

New Zealand, Kuwait, U.A.E., Indonesia, Singapore, Thailand, Malaysia, Iran, Saudi Arabia, Egypt, Morocco, Lebanon, Iraq

China, Mongolia, Russia D/K Hong Kong I Australia H U.S.A., Japan, S.Korea, Taiwan M

4 : H

B/G

The channel on which the screen to the left appears clearly in step 3 is your Video Channel.

To view picture signals from the video recorder, set your TV to the Video Channel.

EN 7

SET VIDEO CHANNEL

Set your TV to UHF channel 36.

● If the two vertical white bars appear clearly on the

screen as shown in the illustration ( on page 6), press OK and then go to step 4.

● If the two vertical white bars do not appear clearly, press OK and then TV PROG + or – to set the video recorder to a vacant channel between 28 and 60 which is not occupied by any local station in your area.

(Ex.) If channel 50 is available in your area

Then set your TV to UHF channel 50 and check if the two vertical white bars appear clearly on the screen; if so, go to step 4. If not, re-set the video recorder to another vacant channel and try again.

NOTES:

●

If you set the video recorder to a channel which is occupied by a local station or has neighbouring channels that are occupied by local stations, the picture reception quality will be affected and some interference noise will appear on the TV screen. Be sure to select a vacant channel which has no broadcast on neighbouring channels.

●

If you cannot obtain the two vertical white bars clearly with any channel between 28 and 60, consult your JVC dealer.

FINISH VIDEO CHANNEL SET

Press OK.

● If Auto Set Up (Z pg. 8) or Tuner Set (Z pg. 52) has

not previously been performed, the Language Select screen appears and Auto Set Up function takes place automatically .

Z "TEST SIGNAL"

With AV Connection or S-VIDEO Connection

IMPORTANT:

Before performing the following steps, make sure the recorder's power is off and there is no cassette inserted in the recorder.

ACCESS VIDEO CHANNEL SET MODE

Hold down STOP/EJECT on the recorder until the display panel shows the following.

SET VIDEO CHANNEL

Press OK, then press TV PROG – until the display panel shows the following.

Now the video channel is set to off (– –).

FINISH VIDEO CHANNEL SET

Press OK.

● If Auto Set Up (Z pg. 8) or Tuner Set (Z pg. 52) has

To view picture signals from the video recorder, set your TV to its AV mode.

not previously been performed, the Language Select screen appears and Auto Set Up function takes place automatically .

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Be sure to connect the power plug to an AC outlet first before installing the lithium battery; otherwise, the battery's service life will be drastically shortened.

Installing/Removing the lithium battery

1 Make sure that the power plug is connected to an AC outlet

and turn off the recorder power.

2 Open the battery cover while pressing the release tab as

illustrated.

3 Insert a lithium battery with the plus (+) side up and push it in.

● To remove the lithium battery, press the latch A down-

ward using a pointed non-metallic object, then pull out the lithium battery.

4 Close the battery cover until it clicks in place.

8 EN

Auto Set Up

IMPORTANT

● Don't press any buttons on the recorder or remote that are not directly related to the step you are performing while Auto Set Up is in progress.

● If you perform Auto Set Up successfully during installation, there's no need to separately perform the Language Select, Clock Set or Channel Set procedures, but if adjustments become necessary they can be performed as follows: – To change the selected language – To reset or adjust the time – To add/delete channels manually – To reset the tuner after moving to a different location

Z pg. 52

123 456 7

Z pg. 11

Z pg. 12

Z pg. 53

89 0

INITIAL SETTINGS (cont.)

The Auto Set Up function simplifies installation by guiding you through the procedures of setting the language, clock and tuner channels — simply follow the on-screen menus that appear.

Before starting, make sure of the following:

● The TV aerial cable should be connected to the recorder.

● The recorder's mains power cord should be connected to

a mains outlet. The "Video Channel Set" procedure should be done first

●

and the TV should be set to its AV mode (with AV or SVIDEO connection connection

Z pg. 4, 5

Z pg. 7) or video channel (with RF

Z pg. 6).

SELECT LANGUAGE

Press PUSH JOG %ﬁ to place the pointer next to your desired language (English or Chinese), then press OK or

PUSH JOG .

● The Clock Set screen appears.

ﬁ

SET TIME

Press PUSH JOG %ﬁ to set the time, then press OK

or PUSH JOG .

● Press and hold either button to delay or advance the time by 30 minutes.

ﬁ

CLOCK SET

TIME DATE YEAR 0:00 01.01 99

[5/∞] = [MENU] : EXIT

SET DATE

Press PUSH JOG %ﬁ to set the date, then press OK or PUSH JOG .

● Press and hold either button to change the date by 15 days.

ﬁ

SET YEAR

Press PUSH JOG %ﬁ to set the year, then press MENU.

PUSH JOG

EN 9

Major Countries TV System

Australia, New Zealand, Kuwait, U.A.E., Indonesia, Singapore, Thailand, Malaysia, Iran, Saudi Arabia, Egypt, Morocco, Lebanon, Iraq

China, Mongolia, Russia D/K Hong Kong I U.S.A., Japan, S.Korea, Taiwan M

B/G

PUSH JOG

SELECT TV SYSTEM

Press PUSH JOG %ﬁ to place the pointer next to the appropriate TV system (refer to the table on the left).

START AUTO CHANNEL SET

Press OK or PUSH JOG .

● The Auto Set Up function scans all the channels that

are receivable by your recorder. It then automatically assigns each receivable channel to the TV PROG buttons. It skips non-receivable channels.

● As Auto Set Up progresses, the " screen moves from left to right. (See below.)

ﬁ

" mark on the

DO NOT press any button on the recorder or remote control while Auto Set Up is in progress.

AUTO CH SET PLEASE WAIT

During Auto Set Up

"PLEASE WAIT" blinks on the screen and "Auto" blinks on the front display panel.

START FINISH

When Auto Set Up is completed, the lowest position number will appear on the front display panel.

TV Screen

NOTES:

●

If you perform Auto Set Up when the aerial cable is not connected properly, "SCAN COMPLETED -NO SIGNAL-" appears on the screen. When this happens, make sure of the aerial connection and press OK; Auto Set Up will take place again.

●

If there is a power cut, or if you press or MENU while Auto Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the recorder power once and try again.

●

If you want to set the tuner manually such as to add or skip channels, to swap channel positions, or to fine-tune channels,

pg. 53 – 55.

●

If no sound accompanies the picture or the audio sounds unnatural on some channels that have been stored by Auto Set Up, the TV system setting for those channels may be incorrect. Select the appropriate TV system for those channels. Selection – When you see the picture but the audio can't be heard or sounds unnatural" on page 55.

"TV System

10 EN

INITIAL SETTINGS (cont.)

You can choose whether or not to have various operational indicators appear on screen, by setting this function ON or OFF.

On-Screen Displays

Turn on the TV and select the VIDEO channel (or AV mode).

123 456

PUSH JOG

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS FUNCTION SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to "FUNCTION SET", then press OK or PUSH JOG .

ENABLE/DISABLE ON-SCREEN DISPLAY

The default setting is "ON", so if you want on-screen

displays, leave the setting as it is and go to step 5. If you don't want the displays to appear, press PUSH JOG %ﬁ to place the pointer next to "O.S.D." and press OK or PUSH JOG to set to "OFF".

ﬁ

RETURN TO NORMAL SCREEN

Press MENU.

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON AUTO SP=LP TIMER OFF

NEXT PAGE [5/∞] = [MENU] : EXIT

ﬁ

FUNCTION SET

NOTES:

●

When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting.

●

During playback, the operation mode indicators may be disturbed depending on the type of tape being used.

The superimposed indication on the TV screen tells you what the recorder is doing.

1– Operation mode indicators 2– Tape speed SP/LP/EP 3– Colour system indicator ( 4– Tape direction 5– Counter display 6– Tape remaining time indicator ( 7– Audio mode display ( 8– Tape position indicator ( 9– Type of Broadcast ( 10– Current day/month/year 11– Clock display 12– Channel position number/Aux. indicator

(L-1, F-1, S-1or S-2)

13– Cassette loaded mark

Z pg. 23)

12 11

9 8

PR. 12 ]SP 21 : 00 MESECAM

24. 12. 99

HIFI –1 : 23 : 45

R REMAIN 1 : 00

2 3

4 5

Z pg. 50)

Z pg. 22)

Z pg. 17)

Select

EN 11

TURN ON THE RECORDER

Press .

Language

Turn on the TV and select the VIDEO channel (or AV mode).

123 456

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to

"INITIAL SET", then press OK or PUSH JOG .

ACCESS LANGUAGE SELECT SCREEN

Press PUSH JOG %ﬁ to place the pointer next to

"LANGUAGE", then press OK or PUSH JOG .

MAIN MENU

FUNCTION SET

TUNER SET

INITIAL SET

R.A. EDIT

[5/∞] = [MENU] : EXIT

INITIAL SET

CLOCK SET

LANGUAGE

G-CODE/SHOWVIEW SETUP

JLIP ID NO. SET

[5/∞] = [MENU] : EXIT

PUSH JOG

SELECT LANGUAGE

Press PUSH JOG %ﬁ to place the pointer next to the language of your choice (English or Chinese), then press

OK or PUSH JOG .

RETURN TO NORMAL SCREEN

Press MENU.

12 EN

Clock Set

Turn on the TV and select the VIDEO channel (or AV mode).

123 456

INITIAL SETTINGS (cont.)

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to

"INITIAL SET", then press OK or PUSH JOG .

FUNCTION SET

TUNER SET

INITIAL SET

R.A. EDIT

[5/∞] = [MENU] : EXIT

MAIN MENU

PUSH JOG

ACCESS CLOCK SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to "CLOCK SET", then press OK or PUSH JOG . The

Clock Set screen appears.

INITIAL SET

CLOCK SET LANGUAGE G-CODE/SHOWVIEW SETUP JLIP ID NO. SET

[5/∞] = [MENU] : EXIT

TIME DATE YEAR 0: 00 01 . 01 99

[5/∞] = [MENU] : EXIT

SET TIME

Press PUSH JOG %ﬁ to set the time, then press OK or PUSH JOG .

● Press and hold either button to delay or advance the time by 30 minutes.

SET DATE

Press PUSH JOG %ﬁ to set the date, then press OK or PUSH JOG .

● Press and hold either button to change the date by 15 days.

SET YEAR

Press PUSH JOG %ﬁ to set the year.

CLOCK SET

NOTE:

If the year digits are automatically cleared, it is possible that you have input February 29th in a non-leap year. Input the correct data.

START CLOCK OPERATION

Press MENU.

PLAYBACK

PLAY

STOP

PLAY

COLOUR SYSTEM

TIME SCAN SHUTTLE

STOP/EJECT

Basic Playback

Turn on the TV and select the VIDEO channel (or AV mode).

REW

INSERT A.DUB

COLOUR SYSTEM

PLAY

DIGITAL TBC/NR

PAUSE

REC

STANDBY/ ON

STOP/EJECT

TIMER S-VHS ET

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

SYNCHRO EDIT

TV PROG

SP/LP/EP

EN 13

The easiest, most basic operation possible with your video recorder is tape playback. Already-recorded signals on a video tape are read by your video recorder and displayed on your TV just like a TV programme. S-VHS playback is possible only with S-VHS PAL tapes recorded in the SP or LP mode, or S-VHS NTSC tapes recorded in the SP or EP mode.

LOAD A CASSETTE

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is

point toward the recorder. Don't apply too much pressure when inserting.

● The recorder power comes on automatically and the counter is reset to 0:00:00.

● Select the appropriate colour system by pressing the

JOG

SHUTTLE

COLOUR SYSTEM button(

● If the record safety tab has been removed, playback begins automatically (

Z pg. 50).

Z pg. 20).

FIND PROGRAMME START POINT

If the tape is advanced past the start point, press REW or turn the TIME SCAN SHUTTLE ring to the left.

To go forward, press FF or turn the TIME SCAN SHUTTLE ring to the right.

REW

123 456

START PLAYBACK

Press PLAY. "BEST" appears blinking in the recorder's display panel during automatic tracking (

Z pg. 26).

STOP PLAYBACK

Press STOP on the remote or STOP/EJECT on the recorder's front panel. Then press STOP/EJECT to

remove the cassette.

Usable cassettes

● Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.

● This video recorder can record on regular VHS and Super VHS cassettes. While only VHS signals can be recorded on regular VHS cassettes, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.

By using S-VHS ET it is possible to record and play back

with S-VHS picture quality on VHS cassettes with this recorder (

pg. 25).

14 EN

TV PROG

PLAY

TIME SCAN SHUTTLE

JOG

STOP

Playback Features

STOP/EJECT

TIMER S-VHS ET

STANDBY/ ON

VIDEOS-VIDEO (S-2)

(

)

L —AUDIO— R

MONO

REW

TV PROG

SYNCHRO EDIT

SP/LP/EP

123 456

STOP

PAUSE

PLAY

INSERT A.DUB

COLOUR SYSTEM

PLAY

PAUSE

REC

TV PROG

30 SEC

PAUSE

PUSH JOG

PLAYBACK (cont.)

Still Picture/Frame-By-Frame Playback

PAUSE DURING PLAYBACK

Press PAUSE.

● During still picture, the sound from the previous

REW

DIGITAL TBC/NR

JOG

SHUTTLE

3 seconds (approx.) will be played back repeatedly (provided there was at least 6 seconds of normal playback prior to engaging the still picture mode).

● "TIME SCAN AUDIO" must be set to "ON", or the sound will not be heard (

Z pg. 19).

ACTIVATE FRAME-BY-FRAME PLAYBACK

Turn the JOG dial to the right for forward frame-byframe playback, or to the left for reverse frame-by-frame

playback.

Press PAUSE.

Press PUSH JOG or .

To resume normal playback, press PLAY.

Slow Motion

ACTIVATE SLOW-MOTION PLAYBACK

Turn the TIME SCAN SHUTTLE ring to the left or press PUSH JOG during playback to decrease speed in the

forward direction. To play in reverse slow-motion (and in reverse play mode), continue to turn the TIME SCAN SHUTTLE ring to the left or press PUSH JOG after selecting all the forward direction slow-motion modes.

During still picture, turn the TIME SCAN SHUTTLE ring to the right for forward slow motion, or to the left for reverse slow motion.

During still picture, press and hold PAUSE for 2 seconds, then release. Press and release again to return to still picture.

During still picture, press and hold PUSH JOG or . Release to return to still picture.

ﬁ

ATTENTION

● Picture may not appear during high-speed search with an EP recorded NTSC tape.

● In the high-speed search, still, slow motion or frame by frame playback mode, the picture will be distorted, and there will be a loss of colour.

● When normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.

T o resume normal pla ybac k, press PLAY.

NOTE:

For Time Jog, see page 19.

EN 15

High-Speed Search

ACTIVATE HIGH-SPEED SEARCH

During playback or still, press FF for forward highspeed search, or REW for reverse high-speed search.

T o resume normal pla ybac k, press PLAY.

NOTES:

●

For short searches, press and hold FF or REW during playback or still picture. When released, normal playback resumes.

●

TimeScan will be automatically engaged during high-speed search other than EP recorded NTSC tape.

Index Search

Your recorder automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.

NOTE:

Before starting, make sure the recorder is in the Stop mode.

Manual Tracking

Your video recorder is equipped with automatic tracking control. During playback, you can override this and adjust the tracking manually by pressing the TV PROG buttons.

OVERRIDE AUTOMATIC TRACKING

Press (SP/LP/EP) on the remote to engage manual tracking.

ADJUST TRACKING MANUALLY

Press TV PROG + or – to adjust tracking.

RETURN TO AUTOMATIC TRACKING

Press (SP/LP/EP) on the remote to re-engage automatic tracking.

ACTIVATE INDEX SEARCH

Press PUSH JOG or (™ or £) on the remote control. "™ 1" or "£ 1" is displayed on screen and

search begins in the corresponding direction.

● To access index codes 2 through 9, press PUSH JOG

ﬁ

or repeatedly until the correct index number is displayed. Ex.: To locate the beginning of B from the current

position, press PUSH JOG twice. To locate the beginning of D from the current position, press PUSH JOG once.

● When the specified index code is located, playback begins automatically.

ﬁ

Current position

AB C D E F

–2 –1 1 2 3

Skip Search

SKIP OVER UNWANTED SECTIONS

Press 30 SEC 1 to 4 times during playback. Each press initiates a 30-second period of fast-motion playback.

Normal playback resumes automatically.

Index number

NOTE:

When a new tape is inserted, the recorder enters the automatic tracking mode automatically.

Repeat Playback

Your video recorder can automatically play back the whole tape 50 times repeatedly.

START PLAYBACK

Press PLAY.

ACTIVATE REPEAT PLAYBACK

Press PLAY and hold for over 5 seconds, then release.

● The Play indicator ( ) on the display panel blinks

slowly.

● The tape plays 50 times automatically, and then stops.

STOP PLAYBACK

Press STOP at any time to stop playback.

NOTE:

To return to normal playback during a Skip Search, press PLA Y.

NOTE:

Pressing PLAY, REW, FF or PAUSE also stops Repeat Playback.

16 EN

DIGITAL TBC/NR

PLAY

TIMER S-VHS ET

STANDBY/ ON

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

STOP/EJECT

SYNCHRO EDIT

PLA YBACK (cont.)

Digital 3R

Digital 3R picture system applies edge correction to the luminance signal to enhance detail.

REW

PLAY

DIGITAL

TV PROG

SP/LP/EP

PLAY

COLOUR SYSTEM

INSERT A.DUB

TBC/NR

PAUSE

REC

JOG

SHUTTLE

ACCESS MAIN MENU SCREEN

Press MENU.

AUDIO

PUSH JOG

TIMER

REVIEW

REW

123 456

Digital TBC/NR

Your video recorder is equipped with the Digital TBC (Time Base Corrector) that removes jitter from fluctuating video signals to deliver a stable picture even with old tapes and rental cassettes. The on/off of Digital 3-DNR (Noise Reduction) which cuts noise and enables clear picture reproduction is also linked to this function. * The default setting is "ON".

We recommend that you use the Digital TBC feature when... ... playing back a tape recorded on a camcorder. ... playing back a tape repeatedly used. ... using this video recorder as the player for editing.

ACTIVATE DIGITAL TBC/NR

Press DIGITAL TBC/NR so that the button lights up.

● To turn off DIGITAL TBC/NR, press DIGITAL TBC/NR

again so that the light goes off.

ACCESS FUNCTION SET SCREEN

FUNCTION SET TUNER SET INITIAL SET R.A. EDIT

[5/∞] = [MENU] : EXIT

MAIN MENU

Press PUSH JOG %ﬁ to place the pointer next to

"FUNCTION SET", then press OK or PUSH JOG

SELECT DIGITAL 3R SET MODE

Press PUSH JOG %ﬁ to place the pointer next to "DIGITAL 3R", then press OK or PUSH JOG

"ON".

FUNCTION SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON AUTO SP=LP TIMER OFF NEXT PAGE

[5/∞] = [MENU] : EXIT

PREVIOUS PAGE DIGITAL 3R ON S-VHS ON TIME SCAN AUDIO ON

to set to

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

Normally it is recommendable to keep "DIGITAL 3R" set to "ON".

●

Depending on the type of tape being used, picture quality may be better with "DIGITAL 3R" set to "OFF".

NOTES:

●

If you play back a tape recorded under poor TV reception condition, there may be cases where the picture becomes more stable with Digital TBC/NR set to off.

●

When Digital TBC/NR is set to on, if you play back a tape where certain types of signals are recorded (using a PC or some character generators), the playback picture may be distorted. If this is the case, turn off Digital TBC/NR.

●

When playing back a NTSC 4.43 or MESECAM tape, Digital TBC/NR does not function even though the TBC/NR button is lit.

EN 17

Next Function Memory

The Next Function Memory "tells" the recorder what to do after rewinding. Before continuing, ensure that the recorder is in the Stop mode.

a– For Automatic Start Of Playback After Tape Rewind...

...press REW, then press PLAY within 2 seconds.

b– For Automatic Power Off After Tape Rewind...

...press REW, then press

c– For Automatic Timer Standby After Tape Rewind...

...press REW, then press TIMER within 2 seconds.

within 2 seconds.

NOTE:

It is not possible to select the Automatic Timer function if the cassette's record safety tab is removed.

Tape Position Indicator

The tape position indicator appears on screen when, from the Stop mode, you press FF, REW or perform an Index Search. The position of "5" in relation to "0" (beginning) or "+" (end) shows you where you are on the tape. "O.S.D." ( set to "ON", or the indicator will not appear.

Z pg. 10) must be

Beginning

1:23:45

REMAIN 1:00

+++

End

Instant ReView

Simply by pressing a single button, the recorder power comes on, rewinds, and begins playback of the last timer-recorded programme. If you have several programmes recorded, you can easily access any of them.

NOTE:

Before starting, make sure that the recorder is off and that the Timer mode is disengaged.

ACTIVATE INSTANT REVIEW

Press REVIEW. The recorder power comes on and the recorder searches for the index code indicating the start

of the last timer-recorded programme. Once it's found, playback begins automatically.

● The front display panel tells you how many programmes have been recorded. If you have, for example, 3 programmes, "REVIEW" and "3" appear and blink. To watch the first of the 3 programmes, press REVIEW begins playback automatically. You can access a programme as far as 9 index codes away from the current tape position.

NOTE:

Instant ReView is not possible while the recorder is in the Timer mode.

three times. The recorder searches and

NOTE:

Depending on the type of tape used, there may be times when the indication is not correct.

Soundtrack Selection

Your video recorder is capable of recording three soundtracks (HI-FI L, HI-FI R and NORM) and will play back the one you select.

During Playback

Pressing AUDIO on the remote control changes the soundtrack being played back as follows:

TRACK

Recorder's Front Panel On-Screen Display

NORM NORM For audio-dubbed tapes NORM

HI FI

NORM

USE

For Hi-Fi stereo tapes

For main audio of Bilingual tapes

For sub audio of Bilingual tapes

For audio-dubbed tapes

NOTES:

●

" " should normally be selected. In this mode, Hi-Fi stereo tapes are played back in stereo, and the NORM track is played back automatically for tapes with only normal audio.

●

For instructions on recording stereo and bilingual programmes, refer to page 23.

●

"O.S.D." must be set to "ON" or the on-screen displays will not appear

pg. 10).

(

18 EN

PLAY

TIME SCAN SHUTTLE

PAUSE

TimeScan

STOP/EJECT

TIMER S-VHS ET

STANDBY/ ON

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

SYNCHRO EDIT

TV PROG

SP/LP/EP

COLOUR SYSTEM

INSERT A.DUB

PLA YBACK (cont.)

Your recorder is equipped with the TimeScan function. TimeScan allows noise free pictures to be displayed on your TV screen in the forward and reverse search modes. Audio will be played back at normal speed during the TimeScan modes ( TimeScan allo ws you to view a programme in search mode while listening to the audio.

NOTES:

●

"TIME SCAN AUDIO" must be set to "ON", or the sound will

REW

PLAY

DIGITAL TBC/NR

PAUSE

REC

JOG

SHUTTLE

not be heard in TimeScan mode (

●

The audio will not synchronize with the video in TimeScan modes.

●

During 1.5x speed TimeScan the audio playback speed will also be 1.5 times normal, so dialog will sound fast-talking.

●

In Pause mode 3 seconds (approx.) of audio will be played back repeatedly (

●

In TimeScan search modes some of the audio information will

pg. 14).

not be played so that the audio can keep up with the video.

Audio signal during TimeScan

Z pg. 19).

pg. 19).

123 456

PUSH JOG

PAUSE

Playback tape

Sound of 1, 3 and 5 is heard. Sound of 2 and 4 is not heard. Output audio signal is normal (monaural) sound.

Variable-Speed Search

ACTIVATE VARIABLE-SPEED SEARCH

During playback or still, turn the recorder's TIME SCAN SHUTTLE ring. It remains at that position even after you

release it. Each time it passes a click position, the playback speed changes. (Refer to the chart on pg. 19 for playback speeds.)

During playback, press PUSH JOG or .

● The more times you press, the faster the playback picture moves.

● To decrease speed, press the button for the opposite direction. (Refer to the chart on pg. 19 for playback speeds.)

T o resume normal pla ybac k, press PLAY.

ﬁ

TimeScan

< PAL or MESECAM tape >

Names of Special-effects playback

–––––––––––––––––––––––––––––––––––––––

Reverse Forward

Search Play

Slow-motion

(Time Jog**) (Time Jog**)

*Still

Slow-motion

EN 19

Play Search

SPEED SP

-9x -7x -5x -3x -1x -1/2x -1/3x 0 1/3x 1/2x 1x 1.5x 2x 3x 5x 7x 9x

–––––––––––––––––––––––––––––––––––––––

SPEED LP

Audio output

-7x -3x -1/2x 0 1/2x 1x 1.5x 2x 5x 9x –––––

–––––

Audio is output.

–––––

Audio is not Audio is Audio is

output. output. output.

–––––

Audio is output.

–––––

< NTSC tape >

Names of Special-effects playback

SPEED SP/EP Audio output

–––––––––––––––––––––––––––––––––––––––

Search Play Slow-motion *Still Slow-motion Play Search

-7x -5x -3x -1x -1/6x -1/18x 0 1/18x 1/6x 1x 2x 3x 5x 7x –––

–––

Audio is output.

* Still mode cannot be engaged using the remote control's PUSH JOG or button. Still mode can only be engaged by

Reverse Forward

–––

Audio is not Audio is Audio is not

output. output. output.

ﬁ

–––

Audio is output.

–––

pressing the PAUSE button.

**Smooth slow motion delivering an uninterrupted moving image without distortion. Time Jog does not work NTSC or

MECECAM playback.

Noise may appear or the upper part of the picture may be

●

If the picture jitters vertically, noise appears or the upper or lower part of the picture is distorded at -1/2x, -1/3x, 1/3x, 1/2x or 1.5x normal speed, use TV PROG + or – to correct the picture.

● Noise tends to apperar at -9x or 9x normal speed during TimeScan search.

● When noise appears or the upper or lower part of the picture is distorted during TimeScan search, press

and

adjust tracking with TV PROG + or – button.

● The speed is shown during TimeScan in the upper right corner of the TV screen for approx. 5 seconds. (The display may be distorted.)

● To resume normal playbac k, press PLAY.

● When using the recorder's TIME SCAN SHUTTLE ring, the

playback speed may not change in the correct step if it is turned too fast.

● Picture and audio may become distorted when the recording speed changes. When this happens, resume normal playback once, and then try using TimeScan again.

● The picture may be noisy or there may be a loss of colour when you change the playback speed. (More noise will appear with LP recordings.)

● During high-speed search with an NTSC tape containing both SP and EP recordings, the search speed will change automatically to 7x normal playback speed with TimeScan when the recording tape speed switches from EP to SP.

●

distorted during search (including TimeScan), still, frame-byframe playback, 2x search, or depending on the tape being used.

●

Picture may appear distorted in comparison to normal playback.

● When normal playback resumes from search (including TimeScan), still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used. In TimeScan mode there will be a time lag between the video

●

and the audio and noise may appear in the audio signal.

● TimeScan sound quality will differ in comparison to normal playback.

● When material such as music videos where there is nonstop sound (very few breaks in the soundtrack) are viewed at 1.5x or 2x normal speed, the audio playback may be faster than normal.

● Depending on the type of tape contents, the sound may not be clear during forward slow-motion playback.

● Time Jog cannot be activated by pressing PAUSE for longer than 2 seconds.

● When the playback direction is reversed, it takes approximately 6 seconds until sound is heard. There will be a loss of colour or the picture will be monochrome

●

with an LP-recorded MESECAM tape during TimeScan.

● TimeScan at -1/2x, 1/2x and 1.5x normal speed are not possible with a MESECAM tape.

If you don't want to hear TimeScan audio, set "TIME SCAN AUDIO" to "OFF" (See below).

TimeScan Audio

The audio output can be set ON/OFF during TimeScan. Select ON/OFF as required.

* The default setting is "ON".

1 Press MENU to access the Main Menu screen. 2 Press PUSH JOG %ﬁ to place the pointer next to "FUNCTION

SET", then press OK or PUSH JOG .

3 Press PUSH JOG %ﬁ to place the pointer next to "TIME SCAN

AUDIO", then press OK or PUSH JOG to select "ON" or "OFF".

4 Press MENU to return to the normal screen.

FUNCTION SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON AUTO SP=LP TIMER OFF NEXT PAGE

[5/∞] = [MENU] : EXIT

PREVIOUS PAGE DIGITAL 3R ON S-VHS ON TIME SCAN AUDIO ON

[5/∞] = [MENU] : EXIT

20 EN

STOP

PLAY

SP/LP/EP

PLAY

STOP/EJECT

RECORD

COLOUR SYSTEM

TV PROG

Basic Recording

Turn on the TV and select the VIDEO channel (or AV mode).

INSERT A.DUB

REC

PLAY

PAUSE

TV PROG+/–

STANDBY/ ON

STOP/EJECT

TIMER S-VHS ET

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

TV PROG

SYNCHRO EDIT

SP/LP/EP

123 456

COLOUR SYSTEM

REW

DIGITAL TBC/NR

NUMBER

RECORDING

TV signals being received by the recorder's built-in tuner can be recorded onto a video tape. You can "capture" a TV programme using your video recorder. S-VHS recording is possible only for PAL recordings made in the SP or LP mode, or NTSC recordings made in the SP mode. S-VHS ET recording is possible only for PAL recordings made in the SP mode, or NTSC recordings made in the SP mode.

LOAD A CASSETTE

Insert a cassette with the record safety tab intact.

● The counter is reset to 0:00:00 and the recorder

power comes on automatically.

● Select the appropriate colour system by pressing the COLOUR SYSTEM button (

Z pg. 50).

CHOOSE A PROGRAMME

JOG

SHUTTLE

Press TV PROG +/– or the NUMBER keys to select the channel you wish to record.

SET TAPE SPEED

Press SP/LP/EP ( ). Check the SP/LP/EP indicator on the recorder display panel to confirm the selected tape

speed.

START RECORDING

Press and hold RECORD and PLAY on the remote control, or press RECORD on the recorder.

B.E.S.T. takes place at the beginning of each first SP and first LP (or EP) recording after inserting the cassette (

Z pg. 26).

PAUSE/RESUME RECORDING

Press PAUSE. Press PLAY to resume recording.

RECORD

Accidental erasure prevention

● To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

SP/LP/EP

Record safety tab

PAUSE

STOP RECORDING

Press STOP on the remote control or STOP/EJECT on the recorder. Then press STOP/EJECT to remove the

cassette.

NOTE:

When recording in NTSC, if EP is selected, recording will always be done in the VHS mode even if an S-VHS cassette is used.

Recording Resume Function

If there is a power outage during recording (or Instant Timer Recording or timer recording), the recording will resume automatically when power is restored to the recorder unless the recorder's memory backup has expired.

Recording

RECORD

TV PROG

Features

STOP/EJECT

TIMER S-VHS ET

STANDBY/ ON

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

TV PROG

SYNCHRO EDIT

SP/LP/EP

123 456

INSERT A.DUB

COLOUR SYSTEM

REC

PLAY

DIGITAL TBC/NR

PAUSE

TV PROG

EN 21

Record One Programme While Watching Another

SELECT CHANNEL TO WATCH

Once recording is in progress, all you need to do is to set the channel controls on the TV for the station you

REW

JOG

SHUTTLE

wish to view.

● The programme selected with the TV's channel controls appears on the TV screen while the one selected with the TV PROG buttons is recorded on the tape.

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the recorder off after recording is finished.

START RECORDING

Press RECORD on the recorder.

ENGAGE ITR MODE

Press RECORD again. " " blinks and "0:30" appears on the front display panel.

SET RECORDING DURATION

If you want to record for more than 30 minutes, press

RECORD to extend the time. Each press extends

recording time by 30 minutes.

NOTE:

You can only perform ITR using the RECORD button on the recorder's front panel.

22 EN

RECORDING (cont.)

Elapsed Recording Time Indication

You can check the exact time of a recording.

C.RESET

123 456

DISPLAY

SET COUNTER DISPLAY

Press DISPLAY until a counter reading appears on the dispay panel.

RESET COUNTER

Press C. RESET before starting recording or playback.

● The counter is reset to "0:00:00" and shows the exact

Tape Remaining Time

NOTE:

Depending on the type of tape used, there may be times when the tape remaining time reading may not appear right away, or is not correct. "– –:– –" may sometimes appear, or the display may blink on occasion.

elapsed time as the tape runs.

DISPLAY REMAINING TIME

Press DISPLAY until the time remaining on the tape appears.

● The display panel shows the tape remaining time with

" displayed.

● By pressing the DISPLAY button, you can change the display to show the counter reading, channel position*, clock time or tape remaining time.

* Channel position is not displayed during playback.

123 456

AUDIO

EN 23

Receiving Stereo And Bilingual Programmes

Your recorder is equipped with a Sound-Multiplex decoder (A2) and a Digital stereo sound decoder (NICAM) as well, making reception of stereo and bilingual broadcasts possible.

When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being Received

A2 Stereo ST A2 Bilingual BIL Regular Monaural (none) NICAM Stereo ST NICAM NICAM Bilingual BIL NICAM NICAM Monaural NICAM

● To listen to a stereo programme, press AUDIO until " " appear on the front display panel or "HIFI L R"

" appears on the screen.

● To listen to a bilingual programme, press AUDIO until " " appears on the front display panel, or "HIFI L " or

R" appears on the screen (as required).

"HIFI

● To listen to the Standard (regular monaural) audio while

receiving a NICAM broadcast, press AUDIO until "NORM" appears on the front display panel or on the screen.

On-screen Display

" and

" or

NOTE:

"O.S.D." must be set to "ON" or the on-screen displays will not

appear (

pg. 10).

To Record Stereo And Bilingual Programmes (A2)

● Stereo programmes are automatically recorded in stereo on

the Hi-Fi audio track (with the normal audio track recording mixed L and R channel sound).

● Bilingual programmes are automatically recorded in bilingual

on the Hi-Fi audio track. The main soundtrack will be recorded on the normal audio track.

T o Record NICAM Stereo And Bilingual Programmes

The NICAM audio programme will be recorded on the Hi-Fi audio track, and the Standard audio programme on the normal audio track.

NOTES:

●

If the quality of stereo sound being received is poor, the broadcast will be received in monaural with better quality.

●

Before playing back a programme recorded in stereo, or a bilingual programme, refer to "Soundtrack Selection" (

pg. 17).

24 EN

S-VHS ET

COLOUR SYSTEM

TIMER S-VHS ET

STANDBY/ ON

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

STOP/EJECT

SYNCHRO EDIT

RECORDING (cont.)

S-VHS (Super VHS), S-VHS ET and VHS

Your recorder can record in S-VHS, S-VHS ET or VHS.

REW

PLAY

DIGITAL TBC/NR

TV PROG

SP/LP/EP

INSERT A.DUB

COLOUR SYSTEM

REC

PAUSE

PUSH JOG

S-VHS allows you to make high quality video recordings with a

horizontal resolution of 400 lines. This compares with the 240 lines of resolution of normal VHS recordings. To achieve the highest quality picture we recommend that you record in S-VHS

JOG

SHUTTLE

mode. By using S-VHS ET it is possible to record and play back with S-

VHS picture quality on VHS cassettes with this recorder. For details, refer to page 25.

To record in S-VHS;

● perform the steps 1 – 4 below to set the "S-VHS" to "ON".

● then, insert a cassette marked "S-VHS", the S-VHS indicator

will light on the display panel.

The S-VHS recording mode will be automatically selected.

To record in S-VHS ET on a VHS high grade cassette;

● press S-VHS ET and set to "ON".

Z "Super VHS ET" on page 25.

To record in VHS;

● insert a cassette marked "VHS".

● press S-VHS ET and set to "OFF".

The VHS recording mode will be automatically selected regardless of the S-VHS mode setting.

To record in VHS on an S-VHS cassette;

● insert the cassette marked "S-VHS", the S-VHS indicator will

light on the display panel.

● then, perform the steps 1 – 4 below to set the "S-VHS" to

"OFF"; the S-VHS indicator will go out.

The VHS recording mode will be selected.

ATTENTION

● S-VHS recording is possible only for PAL recordings made in the SP or LP mode, or NTSC recordings made in the SP mode.

● S-VHS ET recording is possible only for PAL recordings made in the SP mode, or NTSC recordings made in the SP mode.

● When recording NTSC signals in S-VHS or S-VHS ET, be sure to select "AUTO" or "NTSC3.58" by pressing the COLOUR SYSTEM button (

Z pg. 50).

NOTES:

●

When playing back a tape that has been recorded in S-VHS or S-VHS ET, the S-VHS indicator lights on the display panel regardless of the "S-VHS" mode setting.

●

Tapes recorded in S-VHS or S-VHS ET mode can not be played back successfully on normal VHS recorders.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS FUNCTION SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to

"FUNCTION SET", then press OK or PUSH JOG .

FUNCTION SET TUNER SET INITIAL SET R.A. EDIT

[5/∞] = [MENU] : EXIT

MAIN MENU

SELECT S-VHS MODE

Press PUSH JOG %ﬁ to place the pointer next to "SVHS", then press OK or PUSH JOG to select "ON" or

"OFF".

FUNCTION SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON AUTO SP=LP TIMER OFF NEXT PAGE

[5/∞] = [MENU] : EXIT

PREVIOUS PAGE DIGITAL 3R ON S-VHS ON TIME SCAN AUDIO ON

[5/∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

STANDBY/ ON

S-VHS ET

EN 25

Super VHS ET

Your recorder is equipped with Super VHS ET that makes it possible to record with S-VHS picture quality on VHS cassettes.

REW

JOG

SHUTTLE

INSERT A.DUB

COLOUR SYSTEM

PLAY

DIGITAL

TBC/NR

PAUSE

REC

STOP/EJECT

TIMER S-VHS ET

(

)

MONO

VIDEOS-VIDEO (S-2)

L —AUDIO— R

SYNCHRO EDIT

TV PROG

SP/LP/EP

SELECT S-VHS ET SET MODE

Press S-VHS ET. The button lights up.

● The "S-VHS" indicator lights on the front display panel.

● To disengage the S-VHS ET mode, press S-VHS ET. The button's light goes off.

NOTES:

●

You cannot activate the S-VHS ET function... ...while recording is in progress. ...while timer-recording (incl. Instant Timer Recording

21) is in progress. ...while B.E.S.T. ( ...when the recorder's power is off.

●

S-VHS ET does not work with S-VHS tapes.

pg. 26) is in progress.

pg.

S-VHS ET

This facility allows recording with S-VHS picture quality on VHS cassettes. You can play back those cassettes recorded in S-VHS ET on a recorder equipped with S-VHS ET.

NOTES:

●

To obtain the highest quality recording and playback pictures over a longer period on this model, S-VHS recording on S-VHS tape is recommended.

●

You can play back S-VHS ET recordings not only on this recorder but also on another VHS recorder equipped with S-VHS ET. * It is recommended to specifically label S-VHS ET recordings so you can easily distinguish them from regular VHS recordings.

●

S-VHS ET recordings can also be played back on an S-VHS recorder or a VHS recorder equipped with SQPB (S-VHS QUASI PLAYBACK) function. However, there may be cases where S-VHS ET playback is not possible on a particular recorder.

●

Frequent search (including TimeScan), still, frame-by-frame and slow-motion playback may damage the tape and cause picture degradation.

●

With some tapes, better picture quality may not be obtained even with S-VHS ET recording. It is recommended that you do test record beforehand to make sure whether better results can be obtained.

●

High Grade tapes are recommended for superior results.

●

Make sure that "B.E.S.T ." is set to "ON" (Z pg. 26).

●

During S-VHS ET playback, noise may appear depending on tape quality.

●

Noise may appear during search (including TimeScan), still, frame-by-frame and slow-motion playback.

●

If the playback picture becomes blurred or interrupted, use a cleaning cassette.

26 EN

PLAY

RECORD

B.E.S.T. Picture

RECORDING (cont.)

The B.E.S.T. (Biconditional Equalised Signal Tracking) system checks the condition of the tape in use during recording and playback, and compensates to provide the highest-possible recording and playback pictures. The default setting for both recording and playback is "ON".

System

Turn on the TV and select the VIDEO channel (or AV mode).

REW

INSERT A.DUB

REC

PLAY

DIGITAL TBC/NR

PAUSE

STANDBY/ ON

STOP/EJECT

TIMER S-VHS ET

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

TV PROG

SYNCHRO EDIT

SP/LP/EP

123 456

COLOUR SYSTEM

Preparation

JOG

SHUTTLE

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS FUNCTION SET SCREEN

Place the pointer next to "FUNCTION SET" by pressing PUSH JOG %ﬁ, then press OK or PUSH JOG .

ﬁ

FUNCTION SET TUNER SET INITIAL SET R.A. EDIT

[5/∞] = [MENU] : EXIT

MAIN MENU

SELECT MODE

Place the pointer next to "B.E.S.T." by pressing

PUSH JOG %ﬁ, then press OK or PUSH JOG to set

to "ON" or "OFF".

ﬁ

FUNCTION SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON AUTO SP=LP TIMER OFF NEXT PAGE

[5/∞] = [MENU] : EXIT

RECORD

PLAY

PAUSE

PUSH JOG

RETURN TO NORMAL SCREEN

Press MENU.

EN 27

Recording

START RECORDING

Press and hold RECORD and press PLAY on the remote, or press RECORD on the recorder.

DURING B.E.S.T.

B.E.S.T. COMPLETE

● The recorder spends approximately 7 seconds assessing the condition of the tape, then begins recording.

NOTES:

●

The B.E.S.T. system works for both SP and LP (or EP) modes only after a tape has been inserted and the Record mode is first initiated. It does not work during recording.

●

In the case of timer recording, the B.E.S.T. system works before recording is initiated.

●

Once the cassette is ejected, the B.E.S.T. data is cancelled. The next time the cassette is used for recording, B.E.S.T. is reperformed.

●

Pressing the recorder's RECORD button while "BEST" is displayed does not start Instant Timer Recording (

pg. 21).

Playback

The recorder assesses the quality of the tape once you initiate playback.

START PLAYBACK

Press PLAY.

● The recorder adjusts the playback picture quality based on the quality of the tape in use.

● B.E.S.T. is active during Auto Tracking. "BEST" appears blinking on the recorder's display panel.

NOTES:

●

When watching a tape recorded with "B.E.S.T." set to "ON", it is recommended that you leave B.E.S.T . on during playback as well.

●

When watching a rental tape or one recorded on another video recorder, or when using this recorder as the player for editing, set B.E.S.T. to your preference by performing steps 1 through 5 on page 26.

●

"BEST" only appears at the beginning of automatic tracking. Even though it doesn't appear after that, the B.E.S.T. function is operative.

ATTENTION

Since the B.E.S.T. system works before recording actually starts, there is a delay of approximately 7 seconds after RECORD and PLAY on the remote are pressed, or RECORD on the recorder is pressed. To make sure you record the desired scene or programme in its entirety, first perform the following steps:

1) Press and hold PAUSE RECORD PAUSE mode.

● The recorder then automatically checks the condition

of the tape and, after approximately 7 seconds, reenters RECORD PAUSE.

2) Press PLAY to start recording.

● If you want to bypass the B.E.S.T. system and begin

recording immediately, set "B.E.S.T." to "OFF" in step 4 on page 26.

and press RECORD to engage the

28 EN

G-CODE System Setup

Turn on the TV and select the VIDEO channel (or AV mode).

TIMER RECORDING

The G-CODE timer programming system eliminates the need to input channel, date, start and stop time data when setting the timer record function. Simply key in the GTV programme you wish to record (found in most TV listings) and the recorder's timer is automatically programmed.

You have to set "GUIDE PROG" numbers, which are assigned to each station for purposes of Gstations stored in your recorder's memory to get proper results.

Before Gprocedures:

● Tuner setting (

● Clock setting (

CODE setup you must have performed the following

Z pg. 8, 52)

Z pg. 12)

CODE timer programming, for all the

IMPORTANT

Perform the following procedure after Auto Set Up on page 8 and/or the channel setting steps on pages 52 – 55. After setting the Guide Program Numbers, channel positions may be incorrect if you stored or skipped channels. In this case, re-perform Guide Program Number setting.

CODE number for the

123 456

PUSH JOG

NUMBER

INFORMA TION

G-CODE and SHOWVIEW are different trademarks used to represent the same easy recording feature, but only the term

CODE system will be used in the instructions. If you use the

G-

HOWVIEW system, follow the same instructions listed for

CODE system.

the G-

Guide Program Number Set

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to "INITIAL SET", then press OK or PUSH JOG .

ACCESS G-CODE/ SHOWVIEW SETUP SCREEN

Press PUSH JOG %ﬁ to place the pointer next to "G-CODE/SHOWVIEW SETUP", then press OK or

PUSH JOG .

ENTER GUIDE PROG NUMBER

Press PUSH JOG %ﬁ or NUMBER keys to enter the

Guide Program number for the desired station as shown in the TV listings. Then press OK or PUSH JOG .

G-CODE/SHOWVIEW SETUP

GUIDE PROG TV PROG

[0-9] OR [5/∞]:SELECT = [MENU] : EXIT

123 456

NUMBER

ENTER RECEIVING CHANNEL POSITION NUMBER

Press PUSH JOG %ﬁ or NUMBER keys to input the

number of the recorder's channel position on which the Guide Program number's broadcast is received. Then press OK or PUSH JOG .

● If the satellite broadcast is received on your recorder's auxiliary channel "L-1", select "L-1" for the channel position.

● Repeat steps 4 and 5 as necessary.

EN 29

G-CODE/SHOWVIEW SETUP

GUIDE PROG TV PROG

[0-9] OR [5/∞]:SELECT = [MENU] : EXIT

PUSH JOG

RETURN TO NORMAL SCREEN

Press MENU.

Guide Program Number

"Guide Program (GUIDE PROG) number" refers to the assigned TV station numbers, according to broadcast area, for

CODE timer recording. The Guide Program numbers can be

Gfound in most TV listings.

30 EN

COLOUR SYSTEM

G-CODE Timer Programming

Before performing G-CODE Timer Programming:

● Be sure to read "G-

● Insert a cassette with the safety tab in place. The recorder

will come on automatically.

● Turn on the TV and select the VIDEO channel (or AV mode).

● Select the appropriate colour system by pressing the COLOUR SYSTEM button (

STOP/EJECT

TIMER S-VHS ET

STANDBY/ ON

(

)

MONO

VIDEOS-VIDEO (S-2)

L —AUDIO— R

CODE System Setup" (Z pg. 28).

Z pg. 50).

SYNCHRO EDIT

TV PROG

SP/LP/EP

INSERT A.DUB

COLOUR SYSTEM

REC

REW

PLAY

DIGITAL TBC/NR

PAUSE

TIMER RECORDING (cont.)

With the G-CODE system, timer programming is greatly simplified because each TV programme has a corresponding code number which your recorder is able to recognise.

ACCESS G-CODE/ SHOWVIEW SCREEN

Press PROG.

[0 – 9] =

+/–

[

] : EXPRESS PROGRAMING

[PROG] : EXIT

ENTER G-CODE NUMBER

Press the NUMBER keys to enter the G-

of a programme you wish

JOG

SHUTTLE

to record.

● If you make a mistake, press CANCEL and input the correct number.

CODE number

[0 – 9] =

CANCEL

[ [PROG] : EXIT

G-CODE/SHOWVIEW

12345678

] : DELETE

CANCEL

PROG

123 456

SP/LP/EP

NUMBER

ACCESS G-CODE PROGRAMME SCREEN

Press OK, and the G-CODE Programme screen

appears. (If you're just starting out, "P1" appears.)

G-CODE/SHOWVIEW123456789

START STOP 21:00 = 22:00

DATE TV PROG

25.12 1

: OK

IMPORTANT

Make sure the channel position number you wish to record is displayed; if not, see "GSetup" on page 28 and set the Guide Program number for that G-

● If the number you entered is invalid, "ERROR" appears on the screen. Press CANCEL and input a valid Gnumber.

● If the "G-CODE/SHOWVIEW SETUP" screen appears, see "ATTENTION – Regarding Guide Program Number Set" on page 31.

CODE number correctly.

SET TAPE SPEED

Press SP/LP/EP ( ) to set the tape speed.

– P1 –

CODE System

CODE

DAILY

NUMBER

PROG

STOP+/–

123 456

PUSH JOG

WEEKLY

TIMER

EN 31

RETURN TO NORMAL SCREEN

Press PROG or OK. "PROGRAM COMPLETED" appears on the screen for about 5 seconds, then normal screen

appears.

● Repeat steps 1 – 5 for each additional programme.

ENGAGE RECORDER'S TIMER MODE

Press TIMER. The recorder turns off automatically and "‰" appears on the display panel.

● To disengage the timer, press TIMER again.

NOTES:

●

To Change The Stop Time . . . . . . press STOP +/– after pressing OK in step 3. Y ou can compensate for anticipated programme schedule delays this way.

●

To Timer-Record Weekly Or Daily Serials . . . . . . after pressing OK in step 3, press WEEKLY (NUMBER key "9") for weekly serials or DAILY (NUMBER key "8") for daily serials (Monday – Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.

●

You can programme this recorder to timer-record as many as 8 programmes. If you try to programme the recorder to record a ninth, "PROGRAM FULL" appears on screen. To record the extra programme, you must first cancel any unnecessary programmes (

●

It is not possible to timer-record a TV programme with a

CODE

G-

pg. 34).

number which starts with "0".

Satellite T uner Users

To timer-record a satellite broadcast using the G-CODE system:

1 Perform steps 1 – 6. 2 Set the satellite tuner to the appropriate channel before

the selected programme begins.

3 Leave the satellite tuner's power on.

ATTENTION

Regarding Guide Program Number Set

"G-CODE/SHOWVIEW SETUP" appears after performing step 3 if the Guide Program number for the Gyou entered has not been set.

● Press the NUMBER keys or PUSH JOG %ﬁ to input the channel position number on which your recorder receives that station, then press OK or PUSH JOG .

CODE program screen appears.

The G-

G-CODE/SHOWVIEW SETUP

GUIDE PROG TV PROG

2– –

[0-9] OR [5/∞]:SELECT = [PROG] : EXIT

(Ex.) To timer-record a RTR programme with the Gsystem. * If your recorder receives

RTR on the channel position 2, press OK or PUSH JOG after entering "2".

CODE number

CODE

32 EN

DATE+/–

STOP+/–

COLOUR SYSTEM

TIMER RECORDING (cont.)

ACCESS G-CODE/

Express Timer Programming

Remember, the clock must be set before you can programme the timer (

Before performing the following steps:

● Insert a cassette with the safety tab in place. The recorder will come on automatically.

● Turn on the TV and select the VIDEO channel (or AV mode).

● Select the appropriate colour system by pressing the

COLOUR SYSTEM button (

STOP/EJECT

TIMER S-VHS ET

STANDBY/ ON

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

SYNCHRO EDIT

TV PROG

SP/LP/EP

Z pg. 12).

Z pg. 50).

INSERT A.DUB

COLOUR SYSTEM

REW

PLAY

DIGITAL TBC/NR

PAUSE

REC

SHOWVIEW SCREEN

Press PROG.

ACCESS PROGRAMME SCREEN

Press START +/–. (If you're just starting out, "P1"

appears.)

[+/–] = [PROG] : EXIT

ENTER PROGRAMME START TIME

JOG

SHUTTLE

Press START +/– to enter the time you want

recording to start.

● Press and hold START +/– to move in 30-

minute increments, or press and release repeatedly to move 1 minute at a time.

[+/–] = [PROG] : EXIT

– P1 – START STOP –:– – = –:– –

DATE TV PROG – –.– – – –

– P1 –

START STOP 21:00 = –:– –

DATE TV PROG – –.– – – –

START+/–

PROG

123 456

TV PROG+/–

ENTER PROGRAMME STOP TIME

Press STOP +/– to enter the time you want recording to stop.

● Press and hold STOP +/– to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.

ENTER PROGRAMME DATE

Press DATE +/–. (The current date appears on screen. The date you enter appears in its place.)

ENTER CHANNEL POSITION

Press TV PROG +/–.

START STOP 21:00 = 22:00

DATE TV PROG

25.12 1 [+/–] = [PROG] : EXIT

– P1 –

SET TAPE SPEED

DAILY

Press SP/LP/EP ( ) to set the tape speed.

RETURN TO NORMAL

EN 33

PROG

123 456

SP/LP/EP

WEEKLY

TIMER

SCREEN

After confirming all information is correct, press PROG or OK. "PROGRAM COMPLETED" appears on the

screen for about 5 seconds, then normal screen appears.

● Repeat steps 1 – 8 for each additional programme.

ENGAGE RECORDER'S TIMER MODE

Press TIMER. The recorder turns off automatically and "‰" appears on the display panel.

● To disengage the timer, press TIMER again.

NOTES:

●

To Timer-Record Weekly Or Daily Serials . . . . . . anytime during steps 2 through 8, press WEEKLY (NUMBER key "9") for weekly serials or DAILY (NUMBER key "8") for daily serials (Monday–Friday). Either "WEEKL Y" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.

●

pg. 34).

34 EN

DATE+/–

STOP+/–

CANCEL

START+/–

PROG CHECK

123 456

SP/LP/EP

TIMER

TV PROG+/–

TIMER RECORDING (cont.)

Check, Cancel And Replace Programmes

DISENGAGE TIMER MODE

Press TIMER, then press .

ACCESS PROGRAMME CHECK SCREEN

Press PROG CHECK.

ACCESS PROGRAMME

PR START STOP CH DATE 1 8:00 10:00 3 24.12 2 10:00 10:45 2 25.12 3 11:30 13:00 1 25.12 4 5 6 7 8 [PROG CHECK] : NEXT

PUSH JOG

SCREEN

Press PROG CHECK again to check more informa-

tion. Each time you press PROG CHECK, the next programme's information appears.

[PROG CHECK] : NEXT

T o cancel or replace a pr ogramme...

– P1 – START STOP 8:00 = 10:00

DATE TV PROG 24:12 3

CANCEL OR REPLACE A PROGRAMME

Press CANCEL to cancel a programme. To replace a programme, press the appropriate button: START+/–,

STOP+/–, DATE+/–, TV PROG+/–, SP/LP/EP (

RETURN TO NORMAL SCREEN

Press PROG CHECK as many times as necessary. If there are still some programmes remaining, go on to

step 6.

RETURN TO TIMER MODE

Press TIMER.

EN 35

Auto SP→LP Timer

If, when timer-recording in SP mode, there is not enough tape to record the entire programme, the recorder automatically switches to LP mode (with P AL broadcasts) or EP mode (with NTSC broadcasts) to allow complete recording.

For Example . . .

Recording a PAL-broadcast programme of 210 minutes in length onto a 180-minute tape.

Approximately 150 minutes Approximately 60 minutes

SP mode LP mode

Total 210 minutes

Make sure you set "AUTO SP→LP TIMER" to "ON" at the Function Set screen before the timer-recording starts.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS FUNCTION SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to "FUNCTION SET", then press OK or PUSH JOG .

SELECT MODE

Press PUSH JOG %ﬁ to place the pointer next to

"AUTO SP→LP TIMER", then press OK or PUSH

JOG to select "ON".

FUNCTION SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON AUTO SP=LP TIMER ON NEXT PAGE

[5/∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

If you have programmed the recorder to timer-record 2 or more programmes, the second programme and those thereafter may not fit on the tape if you set "AUTO SP TIMER" to "ON". In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.

●

In order to ensure that the recording fits on the tape, this feature may leave a slight non-recorded section at the end of the tape.

●

There may be some noise and sound disturbance at the point on the tape where the recorder switches from SP to LP (or EP) mode.

●

The Auto SP→LP Timer feature is not available during ITR (Instant Timer Recording), and the feature will not work properly with any tapes longer than E-180 or with some tapes of shorter lengths.

→

Auto Timer

When the Auto Timer is set to ON, the timer is automatically engaged when the recorder power is turned off and automatically disengaged when the recorder is powered back on.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS FUNCTION SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to

"FUNCTION SET", then press OK or PUSH JOG .

FUNCTION SET TUNER SET INITIAL SET R.A. EDIT

[5/∞] = [MENU] : EXIT

MAIN MENU

SELECT MODE

Press PUSH JOG %ﬁ to place the pointer next to

"AUTO TIMER", then press OK or PUSH JOG to select either "ON" or "OFF".

FUNCTION SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER ON O. S. D. ON AUTO SP=LP TIMER OFF NEXT PAGE

[5/∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTE:

For safety, when Auto timer is set to "OFF", all other recorder functions are disabled while the Timer mode is engaged. To disengage the timer, press TIMER.

36 EN

NUMBER "2"

Remote Control

SPECIAL FEATURES

Remote A/B Code Switching

The remote control is capable of controlling two JVC video recorders independently; one set to respond to the remote control's A code control signals and the other set to respond to B code control signals. The remote control is preset to send A code signals because your video recorder is initially set to respond to A code signals. You can easily modify your video recorder to respond to B code signals.

Functions

VCR

NUMBER "1"

123 456

STOP

REMOVE POWER SUPPLY

Unplug the mains power cord from the mains outlet.

SET REMOTE CONTROL CODE

While holding down VCR on the remote control, press the NUMBER key "2" and then press STOP.

RE-SUPPLY POWER

Plug the mains power cord back into the mains outlet.

TURN ON THE RECORDER

Press on the remote control. The recorder will now only respond to B code signals.

NOTE:

To set the recorder back to respond to A code signals, repeat the same procedure as shown above except pressing the NUMBER key "1" instead of "2" in step 2.

VCR

TV/VCR

CANCEL

123 456

NUMBER

TIMER

EN 37

TV Multi-brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer's TVs can also be controlled.

Before you start . . .

● Turn on the TV using its remote control.

SET TV BRAND CODE

Refer to the chart below. While holding down TV on the recorder's remote control, enter your TV's brand

code using the NUMBER keys, then press STOP. Check if the TV's power goes off as it should. If it does, try other operations (

● Once you have set the remote control to operate the TV, you don't have to repeat this step until you replace your remote control's batteries.

● Some TV brands have more than one code. If the TV does not function with one code, try entering another.

Z step 2).

STOP

TV PROG+/–

ATTENTION

The remote control can operate not only the video recorder but also some of your TV's functions.

● To operate your video recorder, first press the VCR button to set the remote control to the Video mode.

● To operate your TV, first press the TV button to set the remote control to the TV mode.

Control Your TV Using Additional Buttons

Use the NUMBER keys, and the button, CANCEL button or TIMER button to select the TV's channel.

● With televisions under Code 01, 02, 03, 05, 07, 15, 16, 22, 23, 26 or 27, the digit/2-digit entry switching button (often labelled – /– –) of your TV's remote control.

● With televisions under Code 01, 08, 18, 19, 24 or 25, the

CANCEL button corresponds to the 10 + button, and the TIMER button corresponds to the 20 + button of your TV's

remote control.

NOTE:

The way these buttons are used is determined by your TV. Use these buttons as instructed for your TV's remote control.

button corresponds to the 1-

TV VOL+/–

OPERATE TV

First, press TV to set the remote control to TV mode, then press the corresponding button:

TV/VCR, TV VOL +/– (Volume), NUMBER keys.

● For some brands of TV, you must press OK after having pressed the NUMBER keys.

IMPORTANT

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, with your TV, or in some instances, may have limited function capability.

TV BRAND NAME CODE

JVC 01 AIWA 10 BEIJING 05, 27 CHANGHONG 05, 06, 16, 25 DAEWOO 11 FERGUSON 15 FINLUX 20 FUNAI 09 GRUNDIG 17 HITACHI 07 ITT 18 JINXING 23 KONKA 26 LG/GOLDSTAR 13 MITSUBISHI 06 MIVER 19 NEC 22 NOBLEX 27 NOKIA 21 PANASONIC 02 PEONY 23, 24, 25 PHILICO 07 PHILIPS 16 SAMSUNG 12, 16 SANYO 08 SHARP 04 SONY 03 TCL 16, 28 THOMSON 14 TOSHIBA 05

, TV PROG +/–,

(Muting),

it may not work

38 EN

Preparation

EDITING

Picture Control

This feature helps you to adjust the playback picture quality according to your preference. * The default setting is "AUTO."

For Editing

Turn on the TV and select the VIDEO channel (or AV mode).

123 456

PUSH JOG

ACCESS MAIN NENU SCREEN

Press MENU.

ACCESS FUNCTION SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to "FUNCTION SET", then press OK or PUSH JOG .

SELECT PICTURE CONTROL SET MODE

Press PUSH JOG %ﬁ to place the pointer next to "PICTURE CONTROL", then press OK or PUSH JOG

to select the desired mode.

AUTO*: Normally select

EDIT: Select when you dub tapes. SOFT: Select when you want to soften the picture. SHARP: Select when you want to sharpen the picture.

"AUTO." It automatically adjusts the picture quality. * When the

B.E.S.T. function is set to "OFF"

Z pg. 26), you

( can only select "NORM" instead of "AUTO."

NOTES:

●

When you select "EDIT", "SHARP" or "SOFT", the selected mode will not change until you select again.

●

When you select "EDIT" to dub tapes, be sure to select "AUTO" (or "NORM" when the B.E.S.T. function is set to "OFF") after you finish dubbing the tapes.

FUNCTION SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O.S.D. ON AUTO SP=LP TIMER OFF

NEXT PAGE [5/∞] = [MENU] : EXIT

ﬁ

RETURN TO NORMAL SCREEN

Press MENU.

NOTE:

Select EDIT when you are dubbing tapes. Refer to pages 39 –

41.

Advantages Of S-VHS Video Recorders

You can edit from VHS to S-VHS, from S-VHS to VHS, or, from S-VHS to S-VHS.

● From VHS to S-VHS: Record VHS playback signals in the S-VHS mode. Although the picture quality is inherently limited by that of the original, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to VHS: Because the picture quality of the source material is very high, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to S-VHS: All signals will be transferred without degradation.

EN 39

You can use a camcorder as the source player and your video recorder as the recorder.

Edit From A Camcorder

123 456

NUMBER "0"

NOTES:

●

All necessary cables can be obtained from your dealer.

●

You can also use another video recorder as the player instead of a camcorder.

●

When you select EDIT to dub tapes in step 3, be sure to select "AUTO" (or "NORM" when B.E.S.T. is set to "OFF") after you finish dubbing the tapes (

IMPORTANT:

● To edit, both the player and the recorder must be of the same colour system. Press your recorder's COLOUR SYSTEM button to select the appropriate colour system.

● PAL, SECAM and NTSC camcorders can be used as a player for editing.

● For more information on multi-system compatibility,

Z pg. 50.

pg. 38).

TV PROG

MAKE CONNECTIONS

If the camcorder has no S-VIDEO output connector...

... connect the camcorder's AUDIO/VIDEO OUT

connectors to the recorder's front panel AUDIO/ VIDEO input connectors.

If the camcorder has an S-VIDEO output connector...

... connect the camcorder's S-VIDEO OUT and AUDIO OUT connectors to the recorder's front panel S-VIDEO and AUDIO input connectors.

● When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your recorder.

● When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling the recorder. Refer to the camcorder's instruction manual for operating procedure.

SET RECORDER'S INPUT MODE

Press NUMBER key "0" and/or TV PROG to select "F-1" for the AUDIO/VIDEO input connectors, or "S-2" for the AUDIO/S-VIDEO input connectors, depending on the

connectors being used.

SET EDIT MODE

See "Picture Control" on page 38.

START CAMCORDER

Engage its Play mode.

START RECORDER

Engage its Record mode.

A If the camcorder has no S-VIDEO output connector...

Recorder

REW

INSERT A.DUB

PLAY

DIGITAL

TBC/NR

PAUSE

REC

STANDBY/ ON

STOP/EJECT

TIMER S-VHS ET

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

SYNCHRO EDIT

TV PROG

SP/LP/EP

COLOUR SYSTEM

To rear panel PAUSE/

VIDEO input

AUDIO input

R.A. EDIT connector

Audio/Video Cable (not provided)

Mini-Plug Cable (not provided)

Player

Camcorder

VIDEO OUT

AUDIO OUT

(JVC camcorder only)

EDIT

B If the camcorder has an S-VIDEO output connector...

Recorder

JOG

SHUTTLE

STANDBY/ ON

STOP/EJECT

TIMER S-VHS ET

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

SYNCHRO EDIT

TV PROG

SP/LP/EP

To rear panel PAUSE/ R.A. EDIT connector

S-VIDEO input

AUDIO input

Audio Cable (not provided)

S-Video Cable (provided)

S-VIDEO OUT

Player

Camcorder

AUDIO OUT EDIT

INSERT A.DUB

COLOUR SYSTEM

REC

REW

PLAY

DIGITAL TBC/NR

PAUSE

SHUTTLE

Mini-Plug Cable (not provided) (JVC camcorder only)

JOG

40 EN

RECORD

PAUSE

SYNCHRO EDIT

Synchro Editing

REW

INSERT A.DUB

COLOUR SYSTEM

REC

TV PROG

PLAY

DIGITAL TBC/NR

PAUSE

TIMER S-VHS ET

STANDBY/ ON

(

)

VIDEOS-VIDEO (S-2)

L —AUDIO— R

MONO

NUMBER "0"

STOP/EJECT

TV PROG

SYNCHRO EDIT

SP/LP/EP

123 456 7

89 0

EDITING (cont.)

The Synchro Editing function synchronizes the start of the playback and recording operations when starting an edit operation using a camcorder with LANC connector and your video recorder.

MAKE CONNECTIONS

Connect your recorder to camcorder (Z pg. 39), and connect your recorder's SYNCHRO EDIT connector to

the camcorder's LANC connector.

SET RECORDER'S INPUT

JOG

SHUTTLE

MODE

Press NUMBER key "0" and/or TV PROG to select "F-1" for the AUDIO/VIDEO input connectors, or "S-2" for the

AUDIO/S-VIDEO input connectors, depending on the connectors being used.

SET EDIT MODE

See "Picture Control" on page 38.

LOCATE START POINT

Start playback of the tape in the camcorder, and pause playback when you find the point where you want to

start editing. Press and hold PAUSE and press RECORD on your recorder so that the recorder enters the RecordPause Mode.

Player

Recorder

SYNCHRO EDIT connector

LANC Cable (not provided)

START SYNCHRO EDITING

Press SYNCHRO EDIT.

PAUSE SYNCHRO EDITING

Press SYNCHRO EDIT again.

● Repeat steps 4 – 6 as necessary.

NOTES:

●

The Synchro Editing function may not work with the initial part of a camcorder tape.

●

The Synchro Editing function cannot be used when using the JLIP function. (Pressing SYNCHRO EDIT cancels the JLIP function.)

●

The Synchro Editing function may not work properly with some type of camcorder.

●

When you select EDIT to dub tapes in step 3, be sure to select "AUTO" (or "NORM" when B.E.S.T. is set to "OFF") after you finish dubbing the tapes (

●

You can also use the rear panel AUDIO/VIDEO input connectors, or AUDIO/S-VIDEO input connectors. Set recorder's input mode to "L-1" or "S-1" in step 2.

pg. 38).

Camcorder

To LANC connector

EN 41

You can use your video recorder as the source player or the recording deck.

Edit To Or From Another Video Recorder

TV Receiver

VIDEO CHANNEL

Player

AV Cable (not provided)

RF Cable (provided)

Another recorder

Recorder

Your recorder

MAKE CONNECTIONS

Connect the player's AUDIO/VIDEO OUT connectors to the recorder's AUDIO/VIDEO IN connectors.

● Use the L connector for monaural connection.

SET RECORDING DECK'S INPUT MODE

Set to AUX. With this video recorder, press NUMBER key "0" and/or TV PROG to select depending on the

connector being used — "L-1" for the rear panel VIDEO/ AUDIO input connectors, or "F-1" for the front panel VIDEO/AUDIO input connectors.

SET EDIT MODE

See "Picture Control" on page 38.

START SOURCE PLAYER

Engage its Play mode.

START RECORDING DECK

Engage its Record mode.

Recorder Your recorder

AV Cable (not provided)

RF Cable (provided)

Another recorder

Player

IMPORTANT:

● To edit, both the player and the recorder must be of the same colour system. Press your recorder's COLOUR SYSTEM button to select the appropriate colour system.

● For more information on multi-system compatibility,

Z pg. 50.

TV Receiver

VIDEO CHANNEL

NOTES:

●

When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting (

●

All necessary cables can be obtained from your dealer.

●

NTSC tapes being played back in the NTSC [ PAL mode

pg. 51) cannot be dubbed to another recorder.

(

●

When you dub an NTSC tape using your recorder as the playback deck, select NTSC 3.58 (or NTSC 4.43) with the COLOUR SYSTEM button (

●

When you select EDIT to dub tapes in step 3, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish dubbing the tapes (

●

If you are using another recorder with S-Video and Audio input/output connectors, you can connect those connectors to this recorder's S-VIDEO and AUDIO input/output connectors.

When Using Y our V ideo Recorder As The Source Player ... ... connect its rear panel S VIDEO OUT and AUDIO OUT connectors to the recording deck's S-Video and Audio input connectors. When Using Y our Video Recorder As The Recording Deck ... ... connect its front panel S-VIDEO and AUDIO input connectors to the source player's S-Video and Audio output connectors. Then, set the recorder's input mode to "S-2".

... connect its rear panel S VIDEO IN and AUDIO IN connectors to the source player's S-Video and Audio output connectors. Then, set the recorder's input mode to "S-1".

pg. 38).

pg. 50).

pg. 10).

42 EN

PLAY

TV PROG

A. DUB

PAUSE

EDITING (cont.)

Audio dubbing replaces the normal audio sound of a previously recorded tape with a new soundtrack.

Audio Dubbing

REW

INSERT A.DUB

COLOUR SYSTEM

PLAY

DIGITAL TBC/NR

PAUSE

REC

REW

PLAY

DIGITAL TBC/NR

PAUSE

REC

TIMER S-VHS ET

STANDBY/ ON

(

VIDEOS-VIDEO (S-2)

MONO

Mixer output

STANDBY/ ON

VIDEOS-VIDEO (S-2)

STOP/EJECT

)

L —AUDIO— R

SYNCHRO EDIT

CD Player, etc.

STOP/EJECT

TIMER S-VHS ET

(

)

L —AUDIO— R

MONO

TV PROG

SP/LP/EP

Original sound AUDIO OUT

TV PROG

SYNCHRO EDIT

SP/LP/EP

COLOUR SYSTEM

CD Player, etc.

Audio mixer

Normal audio track

JOG

SHUTTLE

Video/Hi-Fi audio track

Pre-recorded tape

Audio-dubbed tape

MAKE CONNECTIONS

Connect an audio component to the AUDIO L + R connectors on the recorder's front panel.

● When connecting monaural equipment, use only the recorder's AUDIO L connector.

SET INPUT MODE

Press NUMBER key "0" and/or TV PROG so that "F-1" appears in place of a channel number.

LOCATE START POINT

Press PLAY to start playback of the tape in your recorder, and press PAUSE when you find the point

where you want to start dubbing.

ENGAGE AUDIO DUBBING

Press A. DUB.

● Your recorder enters the Audio Dubbing Pause mode.

JOG

SHUTTLE

" blinks, " " and " " light up on the front display

(" panel.)

● To perform audio dubbing with audio mixing, press AUDIO on the remote control to select "

(L+R)" at this point. * Audio dubbing with audio mixing is not possible if

you're using a monaural audio component, or if you don't have an audio mixer.

NUMBER "0"

PLAY

123 456

AUDIO

TV PROG

PAUSE

STANDBY/ ON

PLAY

PAUSE

EN 43

START DUBBING

Engage the audio component's Play mode, then press

PLAY to start the tape in your recorder. Audio dubbing

begins at this point.

REW

JOG

SHUTTLE

INSERT A.DUB

COLOUR SYSTEM

PLAY

DIGITAL TBC/NR

PAUSE

REC

STOP/EJECT

TIMER S-VHS ET

(

)

MONO

VIDEOS-VIDEO (S-2)

L —AUDIO— R

SYNCHRO EDIT

TV PROG

SP/LP/EP

● " " blinks and " " is displayed on the front display panel.

● To stop dubbing temporarily, press PAUSE. Press PLAY to resume dubbing.

END AUDIO DUBBING

Press STOP to stop the tape in your recorder, and engage the audio component's Stop mode.

NOTES:

●

When monitoring the sound during Audio Dubbing, the normal soundtrack is automatically selected. If you wish to hear the mixed sound (Hi-Fi + Normal soundtracks), press AUDIO on the remote control to select "

pg. 17).

(

●

Audio dubbing stops automatically when the counter reaches

NORM (HI FI + NORM)"

"0:00:00", and the recorder enters the Play mode. Check the counter reading before dubbing.

●

Audio dubbing is also possible using the rear panel AUDIO IN L + R connectors. When using these connectors, make sure to select the correct input mode in step 2.

●

Audio dubbing cannot be performed on a cassette that has had its record safety tab removed.

●

When playing back an audio-dubbed tape, press AUDIO on the remote control to select the soundtrack you wish to hear

pg. 17).

(

123 456

AUDIO

PLAY

STOP

PAUSE

44 EN

NUMBER "0"

JOG

PAUSE

TV PROG

Insert Editing

Recorder

TIMER S-VHS ET

STANDBY/ ON

(

MONO

VIDEOS-VIDEO (S-2)

)

L —AUDIO— R

STOP/EJECT

SYNCHRO EDIT

TV PROG

SP/LP/EP

TIME SCAN SHUTTLE

Your recorder

INSERT A.DUB

REC

COLOUR SYSTEM

PLAY

DIGITAL TBC/NR

PAUSE

EDITING (cont.)

Insert editing replaces part of the recorded scene with new material. Both the picture and Hi-Fi audio soundtrack are replaced with new ones, while the normal audio soundtrack remains unchanged. If you wish to change the normal audio track as well, use the audio dubbing function simultaneously. Use your video recorder as the recorder.

Source tape

REW

JOG

SHUTTLE

Recorded tape

Before insert editing

Normal audio track

S-Video signal

Player

C.RESET

Audio/Video signal

Another recorder

123 456

TV PROG

PAUSE

After insert editing

MAKE CONNECTIONS

Connect the player's VIDEO OUT and AUDIO OUT connectors to your recorder's VIDEO (or S-VIDEO) and

AUDIO input connectors on the front panel.

SET INPUT MODE

Press NUMBER key "0" and/or TV PROG so that "F-1" for the VIDEO/AUDIO input connectors or "S-2" for the

S-VIDEO/AUDIO input connectors appears in place of a channel number.

LOCATE END POINT

Load the recording cassette into your recorder, and play it back to determine the edit-out point (the end of the

segment to be replaced) using the TIME SCAN SHUTTLE ring or the JOG dial or pressing PUSH

ﬁ

JOG and PAUSE.

RESET THE COUNTER

Press C. RESET to change the counter display to "0:00:00".

LOCATE START POINT

Determine the edit-in point (the beginning of the segment to be replaced) using the TIME SCAN

SHUTTLE ring or the JOG dial or pressing PUSH

ﬁ

JOG and PAUSE.

● Be sure to engage the Still mode at the edit-in point.

Video/Hi-Fi audio track

PUSH JOG

STANDBY/ ON

INSERT

PLAY

A. DUB

VIDEOS-VIDEO (S-2)

C.RESET

(

MONO

TIMER S-VHS ET

)

L —AUDIO— R

STOP/EJECT

TV PROG

SYNCHRO EDIT

SP/LP/EP

123 456

INSERT A.DUB

COLOUR SYSTEM

REC

EN 45

ENGAGE INSERT EDITING

Press INSERT.

● Your recorder enters the Insert-Pause mode. (" ", " "

REW

PLAY

DIGITAL TBC/NR

PAUSE

JOG

SHUTTLE

● The TV screen changes from the still picture to the

" light up on the front display panel.)

and " input source you are going to record.

START EDITING

Load the source cassette and play back the segment that is to be inserted. When you reach the start of the

section of the source tape that you wish to insert, press PLAY to start the tape in your recorder; Insert Editing begins at this point.

● " " and " " are displayed on the front display panel.

END INSERT EDITING

At counter "0:00:00", Insert Editing will stop automatically while the tape continues running in the Play

mode. If you wish to stop Insert Editing before the specified edit-out point, press C. RESET.

FOR AV INSERT EDITING

If you want to replace the picture, Hi-Fi audio soundtrack and normal audio soundtrack all at the same time...

In step 6 above, after you press INSERT, press A. DUB also.

...

" and " " blink and " " lights up on the front display panel.)

NOTES:

●

Suitable leads can be obtained from your dealer.

●

Insert editing is not possible with cassettes whose safety tab has been removed.

●

When insert editing is performed on a tape that has been recorded on another video recorder, the inserted portion may appear distorted.

●

In insert editing, the recording speed (SP/LP) is determined by the previous recording to be replaced. If the previous recording's speed changes within a single edit, the inserted picture will be distorted at the switching point.

●

A small portion of the recording which precedes an insert edit may become erased.

●

Insert Editing is also possible using the rear panel AUDIO/ VIDEO (or S VIDEO) IN connectors. When using these connectors, make sure to select the correct input mode in step

●

Insert Editing is not possible with an NTSC tape.

46 EN

JOG

PLAY

Random Assemble Editing

PAUSE/R.A.EDIT

Player

STOP/EJECT

TIMER S-VHS ET

STANDBY/ ON

(

VIDEOS-VIDEO (S-2)

MONO

Recorder

Mini-plug Cable (Not provided)

TV PROG

)

L —AUDIO— R

SYNCHRO EDIT

SP/LP/EP

Audio signal Video signal

Another recorder

(w/PAUSE connector)

REMOTE

PAUSE

Your recorder

PLAY

DIGITAL TBC/NR

PAUSE

INSERT A.DUB

COLOUR SYSTEM

REC

EDITING (cont.)

This function makes it easier to create edited videos when your video recorder is used as the source player in combination with another JVC video recorder equipped with a Remote PAUSE Connector. You can pre-program up to 8 scenes or "cuts" for automatic editing in the sequence you have specified.

You can also perform Random Assemble Editing with a second non-JVC recorder (

Z pg. 47).

MAKE CONNECTIONS

Connect your recorder's VIDEO/AUDIO OUT or S VIDEO OUT/AUDIO OUT connectors to the video

and audio input connectors on the recording deck, and connect your recorder's PAUSE/R.A. EDIT connector to the PAUSE connector on the recording deck.

● If the recording deck doesn't have a PAUSE connector, connect to the R.A. EDIT connector instead.

● The Mini-plug cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.

REW

JOG

SHUTTLE

PREPARE FOR EDITING

Insert the cassette to be recorded on into the recorder and set the recorder's input mode.

LOAD SOURCE CASSETTE

Insert the source cassette into your recorder.

SET EDIT MODE

See "Picture Control" on page 38.

STOP/EJECT

TIMER S-VHS ET

STANDBY/ ON

(

)

MONO

VIDEOS-VIDEO (S-2)

L —AUDIO— R

CANCEL

PROG

SYNCHRO EDIT

START SOURCE PLAYBACK

Press PLAY.

REW

PLAY

DIGITAL TBC/NR

TV PROG

SP/LP/EP

TIME SCAN SHUTTLE

INSERT A.DUB

COLOUR SYSTEM

PAUSE

REC

ACCESS MAIN MENU

JOG

SHUTTLE

SCREEN

Press MENU.

PLAY

PUSH JOG

ACCESS R.A. EDIT SCREEN

Place the pointer next to "R.A. EDIT" by pressing PUSH JOG %ﬁ, then press OK or PUSH JOG

● The screen is superimposed on the video playback in step 8.

EN 47

LOCATE EDIT-IN POINT

Find the point on the source tape from where you want

the edited scene to begin by pressing PUSH JOG using the TIME SCAN SHUTTLE ring or the JOG dial, then press PROG.

● The edit-in point is registered in memory and appears on the screen.

@ #

= 1

2 3 4

5 6 7 8

– 0:00:00 (+) 0:00:00

[PROG] =

LOCATE EDIT-OUT POINT

Find the point where you want the edited scene to

end by pressing PUSH

@ #

JOG SCAN SHUTTLE ring or the JOG dial, then press PROG.

● The edit-out point is registered in memory and appears on the screen.

● The total time of the edited scenes is displayed to the right of "(+)".

● Repeat steps 8 and 9 for each additional scene.

or using the TIME

= 1 0:02:23

2 3 4 5 6 7 8

0:02:23 (+) 0:00:00

[PROG] =

=1 0:02:23 0:02:51

2 3 4 5 6 7 8

0:02:51 (+) 0:00:28

[PROG] =

PREPARE RECORDING DECK

Engage its Record-Standby mode.

START R.A. EDIT

Press OK.

● Automatic editing begins; all the specified scenes are

copied to the recording deck in the order they were registered.

● The on-screen display remains while your recorder searches for each scene (blinking cursor indicates scene currently being searched for), but disappears during actual editing.

● During scene search, the recording deck automatically enters its Record-Standby mode.

● When all registered scenes have been edited, your recorder enters the Pause mode, the recording deck enters its Record-Standby mode, and the cursor blinks at the next available number.

NOTES:

●

You can also monitor the sound when sear ching for scenes you want to edit in steps 8 – 9. Since you can hear the soundtrack during selection, you can avoid abrupt or unnatural sounding scene-to-scene transitions. The sound that is heard, however, is not TimeScan Audio.

●

When editing, there may be a discrepancy of about 2 seconds on the source tape between the locations you chose as edit-in/-out points and the locations your recorder recognises as those points.

●

For any scene, the edit-out point must have a counter reading that is at least 1 second after the corresponding edit-in point. Any less than 1 second and the edit-out point will not be registered.

●

Since the source recorder prerolls during Random Assemble Editing, there must be at least 15 seconds worth of recorded material prior to any edit-in point on the source tape.

●

If the search time for an edit-in point exceeds 5 minutes, the recording deck enters its Stop mode and editing will not take place.

●

During steps 8 and 9 — if you engage the Pause mode while registering edit-in and -out points in the R.A. Edit screen, the characters in the on-screen display may become distorted. This is normal.

To Make Corrections . . .

. . . during step 8 or 9, you can cancel registered in and out points by pressing CANCEL on the remote control. Each time you press, the preceding point is erased.

● If, for example, you have registered 5 sets of in and out points and want to reset the first set, you have to press CANCEL until all points after the first set have been erased. Reenter them after you've repaired the first set of points.

Memory Capacity

Random Assemble Editing shares memory space with the recorder's timer. If there are programs occupied by timer-recording data, those spaces cannot be used to register edit-in and -out points — meaning you won't be able to edit 8 scenes.

● When all 8 programs are full, "PROGRAM FULL" appears on the R.A. EDIT screen.

● To cancel a program, see page 34.

RM-V700U Multi-Brand R.A. Edit Controller (Not provided)

By connecting this controller to your recorder's R.A. EDIT connector, y ou can perform Random Assemble Editing in combination with a second non-JVC video recorder . The controller is compatible with various major recorder brands. F or compatible systems and availability, please consult your JVC dealer.

PROGRAM FULL

– 0:00:00 (+) 0:00:00

[MENU] : EXIT

NOTE:

Although the RM-V700U is designed to operate the recording deck, it may not work with some recorders, or may have limited function capability.

END R.A. EDIT

Press MENU to return to the normal screen, and engage the Stop mode for your recorder and for the recording

deck.

48 EN

J terminal

INFORMA TION ON J TERMINAL

J Terminal (JLIP(Joint Level Interface Protocol) Connector)

The J Terminal is used to connect the recorder to a personal computer or similar device to allow computerized control of the recorder during editing and certain other operations.

Examples:

With the optional JLIP VIDEO CAPTURE BOX GV-CB3E:

● Enables Random Assemble Editing of up to 99 segments, using this recorder as the playback unit.

● Allows you to capture still images from the recorder into a personal computer.

For further details consult your nearest JVC dealer.

JLIP ID Number

Your recorder has its own JLIP ID number. This ID number must be unique when your recorder is connected to another device via its J terminal. The ID Number is preset to "1" at the factory. You can change this number to any number between "1" and "99". If it is necessary to change the JLIP ID number perform the following steps.

123 456

PUSH JOG

NUMBER

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to "INITIAL SET", then press OK or PUSH JOG

ACCESS JLIP ID NO. SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to

"JLIP ID NO. SET", then press OK or PUSH JOG

SET JLIP ID NUMBER

Press NUMBER keys to enter the desired ID

number.

INITIAL SET

CLOCK SET LANGUAGE G-CODE/SHOWVIEW SETUP JLIP ID NO. SET

[5/∞] = [MENU] : EXIT

JLIP ID NO. SET

RETURN TO NORMAL SCREEN

Press MENU.

CLOCK SET

[0-9] = [MENU] : EXIT

SYSTEM CONNECTIONS

Connecting/ Using A Stereo System

FM T uner

CD Player

EN 49

These instructions enable you to connect your video recorder to your Hi-Fi stereo system (if you have one) and listen to the soundtrack through the stereo.

Stereo Amplifier

Speaker Speaker

Television

AUX IN or TAPE MONITOR

Mains outlet

MAKE CONNECTIONS

Connect the AUDIO OUT L and R connectors on your video recorder to the AUX IN or TAPE MONITOR

terminals on your stereo system's receiver or amplifier.

NOTES:

●

When connecting your recorder's audio output connectors to a stereo amplifier, make sure you connect L and R correctly.

●

If stereo or bilingual TV broadcasts are receivable in your area, this recorder can record them independently of the TV set and play them back through the connected stereo system.

●

When listening to sound through the connected stereo system, turn the TV's volume down completely.

Audio Cable (not provided)

AUDIO OUT

OUT

(S--1)

S VIDEO

IN EDITSYNCHRO

OUT

VIDEO

AUDIO

PAUSE/R.A.EDIT

RF OUT

JLIP

ANT. IN

CAUTIONS:

● This recorder has a dynamic range of more than 80 dB with regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

● Some speakers and televisions are specially shielded to prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the video playback picture.

Rear View

50 EN

INFORMA TION ON MULTI-SYSTEM COMP ATIBILITY

Setting Of The Colour System Select Buttons

Use the COLOUR SYSTEM button on the front panel to select the colour system. Pressing this button changes the mode as

Mode Display

illustrated on the left. The On-Screen display will show which mode is selected.

AUTO

COLOUR SYSTEM

* "NTSC[PAL" appears during playback only.

NTSC 3.58

NTSC 4.43

NTSC

PAL*

PAL

MESECAM

Mode Description

AUTO Usually set to this mode. This mode

automatically detects PAL, NTSC, SECAM or MESECAM and adjusts to the colour system being recorded or played back. When it does not perform properly, set the colour system manually.

MANUAL For recording, there is a choice of 4

selectable modes; PAL/MESECAM/NTSC

3.58/NTSC4.43. Select the mode that matches the colour signal being received. For playback, there is an additional mode which allows NTSC tapes to be played back and viewed on PAL TVs.

NOTES:

●

In the AUTO mode, NTSC signals will be automatically recorded as NTSC 3.58.

●

In the AUTO mode, NTSC tapes will be played back as NTSC

3.58.

●

SECAM signals will always be recorded as MESECAM. Select the AUTO or the MESECAM mode when recording SECAM signals.

●

When playing back a SECAM tape, select the AUTO or MESECAM mode. The playback picture will always be monochrome.

●

In the NTSC4.43 mode, with some TVs, on-screen displays (Programme screen etc.) may roll up or down and there may be a loss of colour. When this happens, select the AUTO mode.

Off-Air Recording

The built-in multi-system tuner is capable of receiving PAL B/G, I and D/K, and SECAM B/G and D/K and NTSC broadcasts.

TV system Recorded tape

PAL B/G, I, D/K

SECAM B/G, D/K (OIRT)

NTSC (M)

Multi-system tuner (B/G, I, D/K, M)

NOTE:

This model does not operate in BRAZIL (PAL-M) or ARGENTINA (PAL-N).

HR-S7600AM

Recording circuit

PAL

MESECAM

NTSC 3.58

PAL

MESECAM

NTSC

Playback

This recorder can play back all 3 types of recorded tape.

Recorded tape

PAL

Playback circuit

PAL

HR-S7600AM

EN 51

Multi-system receiver

MESECAM

NTSC

Manual switching

MESECAM

NTSC[PAL

NTSC 3.58 MHz

Manual switching

NTSC 4.43 MHz

Built-in RFconverter G, K, I, H, M

RF OUT

VIDEO OUT AUDIO OUT

PAL (B/G, D/K, I, H) NTSC (M)

Multi-system monitor

PAL SECAM NTSC 3.58 NTSC 4.43

NOTES:

When viewing NTSC tapes on a PAL TV set:

●

The picture may shrink vertically with black bars appearing at the top and bottom of the screen. This is not a malfunction on the part of the video recorder nor the TV.

●

The picture may roll up or down. This can be corrected using the V-HOLD control found on some TVs. (This cannot be corrected if the TV does not have a V-HOLD control.)

●

During search, still, or frame-by-frame playback, the picture will be distorted, and there may be a loss of colour.

ATTENTION:

When this recorder is connected to a multi-system TV, the audio signal may not be heard or may be noisy if the colour system select switch of the TV is adjusted to the AUTO position. In such a case, set the TV's colour system select switch to the appropriate position which corresponds to the TV system you have selected at the TV System Select screen.

Tape-To-Tape Editing

There are 4 different types of recorded tape, depending on the signal recorded.

HR-S7600AM

Recording circuit

NTSC 3.58 MHz

NTSC 4.43 MHz

PAL

MESECAM

SECAM

NTSC

Recorded tape Playback equipment Dubbed tape

PAL

MESECAM

SECAM

NTSC 3.58 MHz

NTSC 4.43 MHz

PAL

MESECAM

PAL

MESECAM

NTSC

52 EN

TUNER SET

Turn on the TV and select the VIDEO channel (or AV mode).

123 456

TV PROG

PUSH JOG

IMPORTANT

Perform the following steps only if auto channel set has not been set correctly by Auto Set Up function ( you have moved to a different area or if a new station starts broadcasting in your area.

Your recorder needs to memorize all necessary stations in channel positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area so that you can call them up with the TV PROG buttons without going through any vacant channels.

Z pg. 8) or if

Auto Channel Set

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS TUNER SET SCREEN

Press PUSH JOG %ﬁ to place the pointer next to

"TUNER SET", then press OK or PUSH JOG .

ﬁ

MAIN MENU

FUNCTION SET TUNER SET INITIAL SET R.A. EDIT

SELECT AUTO CH SET MODE

Press PUSH JOG %ﬁ to place the pointer next to

"AUTO CH SET", then press OK or PUSH JOG .

[5/∞] = [MENU] : EXIT

ﬁ

[5/∞] = [MENU] : EXIT

TUNER SET

CH EDIT AUTO CH SET

EN 53

SELECT TV SYSTEM

Press PUSH JOG %ﬁ to place the pointer next to

the appropriate TV system, then press OK or PUSH JOG .

ﬁ

● Auto Channel Set will start.

START FINISH

AUTO CH SET PLEASE WAIT

TV SYSTEM SELECT

B/G D/K I M

[5/∞] = [MENU] : EXIT

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG [5/∞] = [CANCEL] : DELETE [5/∞] = [MENU] : EXIT

: EDIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTE:

If you perform Auto Channel Set when the aerial cable is not connected properly, "SCAN COMPLETED -NO SIGNAL-" appears on the screen in step 5. When this happens, make sure of the aerial connection and press OK; Auto Channel Set will take place again.

IMPORTANT

● If no sound accompanies the picture or the audio sounds unnatural on some channels that have been stored by Auto Channel Set, the TV system setting for those channels may be incorrect. Select the appropriate TV system for those channels. When you see the picture but the audio can't be heard or sounds unnatural" on page 55.

● Since your video recorder memorizes all detected stations even if the reception condition is poor, some of those stored stations may produce a noisy picture. To delete those stations,

Major Countries TV System

Australia, New Zealand, Kuwait, U.A.E., Indonesia, Singapore, Thailand, Malaysia, Iran, Saudi Arabia, Egypt, Morocco, Lebanon, Iraq

China, Mongolia, Russia D/K Hong Kong I U.S.A., Japan, S.Korea, Taiwan M

Z "TV System Selection –

Z "Delete A Channel" on page 54.

B/G

Manual Channel Set

Store channels that were not stored during Auto Set Up ( Z pg. 8) or Auto Channel Set (

Z pg. 52).

ACCESS TUNER SET SCREEN

Perform steps 1 – 3 of "Auto Channel Set" on page 52.

ACCESS CHANNEL LIST

Press PUSH JOG %ﬁ to place the pointer next to "CH EDIT", then press OK or PUSH JOG .

ﬁ

SELECT POSITION

Press PUSH JOG %ﬁ to place the pointer next to an open channel position, then press OK or PUSH JOG .

SELECT BAND

Press PUSH JOG %ﬁ to place the pointer next to the band of your choice, then press OK to initiate Manual

Channel Set.

BAND SELECT

VHF L VHF H UHF

[5/∞] = [MENU] : EXIT

SET DESIRED STATION

The screen to the right appears when a station is

detected.

If you do not want to store the detected station...

Press PUSH JOG %ﬁ to place the pointer next to "CONTINUE", then press OK or PUSH JOG . Channel search will resume.

If you want to store the detected station...

Press PUSH JOG %ﬁ to place the pointer next to "STORE", then press OK or PUSH JOG . The Channel List appears again.

● The blueback screen and the TV picture currently being broadcast appear alternately for 8 seconds each.

● If you want to store another channel, repeat steps 3 – 5.

● When channel search completes for that band, the

Band Select screen appears again. To set channels for other bands, select another band and start Manual Channel Set again (

● For fine tuning adjustment, see "Fine-Tuning Channels" on page 55.

ﬁ

Z steps 4 and 5).

RETURN TO NORMAL

MANUAL CH SET

PLEASE WAIT

VHF L 100MHZ

[MENU] : EXIT

STORE CONTINUE

[5/∞] = [MENU] : EXIT

ﬁ

SCREEN

Press MENU.

54 EN

TUNER SET (cont.)

Delete A Channel

ACCESS TUNER SET SCREEN

Perform steps 1 – 3 of "Auto Channel Set" on page 52.

ACCESS CHANNEL LIST

Press PUSH JOG %ﬁ to place the pointer next to "CH EDIT", then press OK or PUSH JOG .

SELECT CHANNEL

Press PUSH JOG %ﬁ until the channel you want to

delete begins blinking.

DELETE CHANNEL

Press CANCEL.

● To re-store it, simply

press PUSH JOG .

● Repeat steps 3 – 4 as necessary.

RETURN TO NORMAL

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG [5/∞] = [CANCEL] : DELETE [5/∞] = [MENU] : EXIT

CH FRQ SYS CH FRQ SYS 01 – – – – – 07 229 BG 02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG

[5/∞] = [ ] : ADD [MENU] : EXIT

ﬁ

: EDIT

Swap Channel Positions

Example:To swap CH03 and CH09.

ACCESS TUNER SET SCREEN

Perform steps 1 – 3 of "Auto Channel Set" on page 52.

ACCESS CHANNEL LIST

Press PUSH JOG %ﬁ to place the pointer next to "CH EDIT", then press OK or PUSH JOG .

SELECT POSITION (e.g. 03)

Press PUSH JOG %ﬁ until the section of CH "03"

begins blinking, then press OK or PUSH JOG .

● Only "03" will blink.

SELECT POSITION (e.g. 09)

Press NUMBER keys to input "0" and "9".

● The two selected channels will be swapped.

● To cancel the channel swapping, press PUSH

JOG .

ﬁ

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG [0 – 9]: INPUT CH

: FINE TUNING

[MENU] : EXIT

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG 03 355 BG 09 195 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG [ ]: CANCEL

: OK

[MENU] : EXIT

SCREEN

Press MENU.

STORE NEW POSITIONS

Press OK or PUSH JOG .

● Repeat steps 3 – 5 as necessary.

ﬁ

RETURN TO NORMAL SCREEN

Press MENU.

EN 55

Fine-Tuning Channels

ACCESS TUNER SET SCREEN

Perform steps 1 – 3 of "Auto Channel Set" on page 52.

ACCESS CHANNEL LIST

Press PUSH JOG %ﬁ to place the pointer next to "CH EDIT", then press OK or PUSH JOG .

SELECT CHANNEL TO FINE-TUNE

Press PUSH JOG %ﬁ until the channel you want to

tune begins blinking, then press OK twice.

● The "FRQ" number for that channel starts blinking.

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG [5/∞] : FINE TUNING

: SELECT SYSTEM

[MENU] : EXIT

PERFORM TUNING

Press PUSH JOG %ﬁ until the picture becomes clearer, then press OK or PUSH JOG .

● Repeat steps 3 and 4 as necessary.

ﬁ

RETURN TO NORMAL SCREEN

Press MENU.

TV System Selection – When you see the picture but the audio can't be heard or sounds unnatural

ACCESS TUNER SET SCREEN

Perform steps 1 – 3 of "Auto Channel Set" on page 52.

ﬁ

ACCESS CHANNEL LIST

Press PUSH JOG %ﬁ to place the pointer next to "CH EDIT", then press OK or PUSH JOG .

ﬁ

SELECT CHANNEL

Press PUSH JOG %ﬁ until the channel you want to

change its TV system begins blinking, then press OK three times.

● The "SYS" display for that channel starts blinking.

SELECT TV SYSTEM

Press PUSH JOG %ﬁ to select the appropriate TV system (BG [ DK [ I [ M). Then press OK or

PUSH JOG .

● Repeat steps 3 and 4 as necessary.

ﬁ

RETURN TO NORMAL SCREEN

Press MENU.

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG [5/∞] : SELECT SYSTEM

: OK

[MENU] : EXIT

56 EN

Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your video recorder off for repair.

TROUBLESHOOTING

POWER

SYMPTOM

1. No power is applied to the recorder.

2. The clock is functioning properly, but the recorder cannot be powered.

3. The remote control won't function.

TAPE TRANSPORT

SYMPTOM

1. The tape does not run during recording.

2. The tape will not rewind or fastforward.

PLAYBACK

SYMPTOM

1. The playback picture does not appear while the tape is running.

2. Noise appears during visual search.

3. Breaks are noticeable in Hi-Fi soundtrack.

4. The playback picture is blurred or interrupted while TV broadcasts are clear.

5. Playback picture has a loss of colour.

6. No sound accompanies the playback picture.

POSSIBLE CAUSE

● The mains power cord is disconnected.

● "‰" is displayed on the display panel with Auto Timer set to "OFF".

● The batteries are discharged.

POSSIBLE CAUSE

● " " is displayed on the display panel.

● The tape is already fully rewound or fast-forwarded.

POSSIBLE CAUSE

● If you're using the RF OUT connection . . . . . . the TV recei ver's channel selector is not set to the VIDEO channel. . . . the recorder's VIDEO channel has not been correctly set.

● If you're using the AV or S-VIDEO connection, the TV receiver is not set to the A V mode.

● This is normal during visual search other than TimeScan.

● Automatic tracking is engaged.

● The video heads may be dirty.

● The wrong colour system is selected

for the tape being played back.

● The wrong colour system was selected during recording.

● The TV system you have selected at the TV System Select screen is incorrect.

CORRECTIVE ACTION

Connect the mains power cord.

Press TIMER to turn the "‰" indicator off.

Replace the dead batteries with new ones.

CORRECTIVE ACTION

Press PLAY to turn the " " indicator off.

Check the cassette.

CORRECTIVE ACTION

If you are using the RF OUT connection . . . . . . set the TV receiver to the VIDEO channel. ( . . . Perform "Video Channel Set".

Z pg. 6)

( If you are using the AV or S-VIDEO connection, set the TV to its AV mode.

Engage and adjust tracking manually. (Z pg. 15)

Consult your JVC dealer.

Select the correct colour system by pressing the COLOUR SYSTEM button. ( Once recorded, the signal cannot be corrected. Be sure to choose the correct setting before recording.

Set it to the correct position for the TV broadcast system used in your area.

Z pg. 55)

(

Z pg. 6)

Z pg. 50)

RECORDING

EN 57

SYMPTOM

1. Recording cannot be started.

2. TV broadcasts cannot be recorded.

3. Tape-to-tape editing is not possible.

4. Camcorder recording is not possible.

TIMER RECORDING

SYMPTOM

1. Timer recording won't work.

2. On-screen timer programming is not possible.

3. "‰" and "]" on the display panel won't stop blinking.

4. The cassette is automatically ejected, and "‰" and "]" on the display panel won't stop blinking.

5. "‰" blinks for 10 seconds and the Timer mode is disengaged.

6. The cassette is automatically ejected, the power shuts off and "‰" and "]" won't stop blinking.

7. The G-CODE system does not timer- record properly.

POSSIBLE CAUSE

● There is no cassette loaded, or the cassette loaded has had its Record Safety tab removed.

● "L-1", "F-1", "S-1" or "S-2" has been selected as the input mode.

● The source (another video recorder, camcorder) has not been properly connected.

● All necessary power switches have not been turned on.

● The input mode is not correct.

● The camcorder has not been

properly connected.

● The input mode is not correct.

POSSIBLE CAUSE

● The clock and/or the timer have been set incorrectly.

● The timer is not engaged.

● Timer recording is in progress.

● The timer is engaged but there's no

cassette loaded.

● The loaded cassette has had its Record Safety tab removed.

● TIMER has been pressed when there are no programs in memory, or the timer record information has been programmed incorrectly.

● The end of the tape was reached during timer recording.

● The recorder's channel positions have been set incorrectly.

CORRECTIVE ACTION

Insert a cassette, or using adhesive tape, reseal the slot where the tab was removed.

Set to the desired channel.

Confirm that the source is properly connected.

Confirm that all units' power switches are turned on. Set the input mode to "L-1", "F-1", "S1" or "S-2".

Confirm that the camcorder is properly connected. Set the input mode to "L-1", "F-1", "S1" or "S-2".

CORRECTIVE ACTION

Re-perform the clock and/or timer settings. Press TIMER and confirm that "‰" is displayed on the display panel.

Timer programming can't be performed while a timer recording is in progress. Wait until it finishes.

Load a cassette with the Record Safety tab intact, or cover the hole using adhesive tape.

Remove the cassette and cover the hole with adhesive tape, or insert a cassette with the Record Safety tab intact.

Check the programmed data and reprogramme as necessary, then press TIMER again.

The programme may not have been recorded in its entirety . Next time make sure you have enough time on the tape to record the entire programme.

Refer to "Gperform the procedure. (

CODE System Setup" and re-

Z pg. 28)

58 EN

JVC HR-S7600AM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
