HD/SD Memory Card Camcorder
GY-HM600
Quality in Motion
Shown with optional microphone.
Shooting
Image Processing
Newly-developed 23x Fujinon Lens and
Full HD 1/3-inch CMOS Sensors
The Fujinon wide angle 23x zoom lens provides
superb sharpness and excellent low-light performance
in tandem with three CMOS sensors with extremely
high sensitivity of F11 (60Hz) /F12 (50Hz) at 2000 lux.
Minimum illumination is an incredible 0.15 lux (typical.)
Next Generation FALCONBRID™
Image Processing Engine
The on-board FALCONBRID™ engine achieves
superior image quality with 2D DNR processing,
as well as compensation for chromatic aberration,
shading and a wider dynamic range.
Flexibility Meets
Next Generation Performance
Introducing the GY-HM600, a light, versatile and extremely easy to use ProHD
camcorder with superior low-light performance for next generation acquisition.
1
Dual Recording
Wide Media Format Compatibility
The GY-HM600 records HD or SD footage to SDHC or SDXC media
cards in a range of le formats, including MOV for Final Cut Pro™, MP4,
compatible with XDCAM EX™, and AVCHD. In addition to seamless
relay recording for continuous shooting, simultaneous recording to both
memory cards for an instant backup or duplicate copy is also possible.
Native Workow
Ready to edit the moment it’s shot, HD or SD footage
is recorded natively in the format of the world's most
popular editing systems.
Shown with optional microphone.
2
Innovative Features without Compromise
ND Filters
Equipped with a built-in
4-position ND lter for greater
exibility through a range of
lighting situations.
3.5-inch 920K pixel
LCD Monitor
The top-mounted
position of the
high-resolution 3.5-inch
LCD monitor is ideal
for shooting at various
angles in handheld
camera applications.
Fujinon 23x Optical
Zoom Lens
Newly-developed
Fujinon wide angle
23x zoom lens delivers
superior low-light
performance and the
highest magnication in
the industry.
Full HD 1/3-inch CMOS Sensors
Three CMOS sensors offer an excellent sensitivity
of F11 (60Hz) /F12 (50Hz) and a remarkable
signal-to-noise ratio for superior precision and
vivid color reproduction.
Optical Image Stabilizer
Helping to correct lateral and vertical
movement of the camera, the built-in
OIS ensures that pristine HD images
remain sharp and stable.
3
Focus Assist
JVC's patented focus assist system highlights
the edges of objects in the image to help
the operator keep the action in focus.
0.45-inch 1.22M pixel
Color Viewnder
Stunning new high-resolution LCOS viewnder
with a crisp and detailed 16:9 aspect ratio image.
FALCONBRID™
JVC’s high-speed processor for advanced
video applications achieves stunning
image quality with superior processing
power on a single chip.
SDXC/SDHC Memory Card Recording
Dual SDHC/SDXC card slots allow footage to
be recorded either to both cards simultaneously,
or from one card to the other in relay.
Shown with optional microphone.
4
Expanding the Possibilities with Advanced
Features in a High Denition Camcorder
Superior HD Imaging
Newly-developed 23x Fujinon Auto Focus Zoom
Lens with Manual Functions
The GY-HM600 is equipped with the newly-developed
Fujinon wide angle 23x zoom lens, giving the highest
magnication in the industry. Delivering superior
low-light performance and ensuring brightness at the tele end,
the lens offers F1.6-3.0, a focal range of 29mm-667mm
(35mm equivalent) and
includes servo zoom, manual
focus, and iris rings, along
with a four-position (clear, 1/4,
1/16 and 1/64) ND lter. Other
features include an optical
image stabilizer, chromatic
aberration correction.
Wide end Tele end
High Performance Full HD 1/3-inch CMOS
Sensors
At the heart of the GY-HM600 are three,
1/3-inch CMOS sensors, each capable of
capturing full HD 1920 x 1080 resolution
images. Offering an excellent sensitivity of
F11 (60Hz) /F12 (50Hz) and a remarkable
signal-to-noise ratio, the devices provide
superior precision and color reproduction with
minimal aberration.
23x
Zoom Lens
F11/F12
(60Hz) (50Hz)
Sensitivity
Advanced Processing Engine
Revolutionary FALCONBRID™ Image
Processing Engine
FALCONBRID™ is JVC’s high-speed processor
for advanced video applications. Delivering
tremendous processing power on a single
chip, the on-board FALCONBRID™ engine
processes large amounts of video data
at exceptional speeds. Together with this
technology, superior image quality has been realized with 2D DNR
processing and compensation circuitry for wide dynamic range.
MPEG-2 and AVCHD Recording
The GY-HM600 supports both the popular
MPEG-2 Long GOP 35/25/19Mbps format,
widely used by television broadcasters, and the highly efcient
AVCHD 24/17Mbps mode, which provides compatibility with a wide
range of affordable editing systems. This means that professionals
have unprecedented exibility to meet production standards through
a wide range of workows.
MPEG-2 AVCHD
1920 x 1080
1440 x 1080
HDSD
1280 x 720
720 x 576
720 x 480
HQ mode
(35Mbps)
MOV/MP4 MOV/MP4
60i/50i
30p/25p/24p
60i/50i 60i/50i
60p/50p
30p/25p/24p
SP mode
(25Mbps)
SP mode
(19Mbps)
MOV
60p/50p
HQ mode
(24Mbps)
60i/50i 60i/50i
MPEG-2
SP mode
(17Mbps)
MTS MTS
H.264
SD mode
(8Mbps)
MOV
50i
(GY-HM600E)
60i
(GY-HM600U)
Conventional 1/3" device New Full HD CMOS
5
Flexible File-based Workow
Multiple File Formats for Native Workows
Record HD or SD footage directly in
QuickTime™ MOV File Workflow
Direct file access to Apple’s Final Cut Pro™
ready-to-edit QuickTime™ MOV les,
the native le format of Apple’s Final Cut Pro™.
JVC has eliminated one of the main obstacles
to achieving a smoother, more streamlined
production workow. Native le recording
ensures your footage is ready to edit the
moment it’s shot, resulting in a more efcient
workow and no loss of image quality.
Additionally, with the MPEG-2 mode for
SDHC
SDXC
XDCAM EX™ Compatible MP4 File
Workflow
Ingest MP4 clips to major NLE systems
Windows editing environments, it is possible
to record in MP4 format (XDCAM EX™
workow-compatible) for direct editing in other
major NLE systems, including Avid Media
Composer, Adobe Premiere and Grass Valley
Edius Pro.
*H.264 SD MOV le can be edited by Grass Valley Edius Pro.
SDHC
SDXC
Dual SDHC/SDXC Card Slots for Maximum Versatility
Dual SDHC/SDXC card slots make the GY-HM600 a truly versatile
camcorder, offering such benets as simultaneous recording and
relay recording with reliable and cost-effective media.
In relay recording mode, you can shoot continuously and seamlessly
over multiple cards. When one card is full, the camcorder switches
seamlessly and automatically to the other card. And because cards
are hot swappable, there is in effect no limit to the continuous
shooting time in any mode, even with lower capacity cards.
It is possible to start editing footage from one card while still shooting
to the other. With simultaneous recording, you can easily create
backup or duplicate les as you shoot without the need for any
external equipment—either for a client copy or simply for peace of
mind. Additionally, while the Rec trigger is used to pause and
unpause recording on one card, the other card can act as
a continuous backup that overrides the pause function.
SDHC Memory
Card Reader
SDHC Memory
Card Reader
Relay Recording
Card 1
Change
Card 3
Backup Recording
Card 1
Apple
USB 2.0
Compatible NLE System
Apple Final Cut Pro™ 6.0.4 or later
Adobe Premiere Pro CS5 or later
USB 2.0
Slot A Slot B
Adobe
Avid
Adobe
Compatible NLE Systems
Adobe Premiere Pro CS4 4.0.1 or later
Avid Media Composer 3.5 or later
Avid News Cutter 3.5 or later
Grass Valley/Canopus Edius Pro 5.0 or later
Apple Final Cut Pro™ 6.0.4 or 7.0
Card 2
Change
Card 4
Rec
Start
Avid
Avid Media Composer 5.5 or later
Avid News Cutter 5.5 or later
Canopus
Apple
HD Dual Record
Slot A Slot B
HD and HD File
SD and SD File
Rec
Rec
Pause
Start
Rec
Pause
Storage
Storage
Rec
Start
Blu-ray
File
Server
Network
Blu-ray
File
Server
Network
Rec
Pause
SDHC/SDXC media offers the best combination of
price, availability, capacity, reliability and transfer speed.
With no moving parts and no pins or other extrusions,
SDHC/SDXC cards are both durable and reliable, and
compare favorably with tape on a cost-per-minute basis.
* During simultaneous backup recording in HD mode, the duplicate le records in the same
le format and bit rate as the original.
Scene 1 Scene 2 Scene 3
Card 2
While Card1 record continuously, Card2 independently perform Rec start /
Rec pause at Rec trigger.
** Backup Recording is not compatible with AVCHD mode.
6
A Powerhouse of Performance and Flexibility
High-Performance Features
Superb Portability and
Compact Design
With a stylish body that ts
boldly within the distinctive
range of ProHD camcorders,
the compact dimensions
and superb portability of
the GY-HM600 allow it to be
used anywhere. Lightweight
(2.4kg/5.3lbs operating
condition), versatile and extremely easy to use,
it is the perfect camcorder for next generation acquisition.
Shooter-Friendly Controls and Layouts
Ergonomics has played a major role in the design of the GY-HM600.
The camcorder’s handgrip makes it very comfortable to hold, even
on long shoots. And despite its extremely compact dimensions,
all the camcorder’s main functions are accessible directly from
controls and switches on the camera body, right where you would
expect them to be.
l
White balance —Selectable
between preset and two user
settings
l
Gain — (L,M,H) -6, -3, 0, 3, 6, 9,
12, 15,18, 21, 24 dB & Lolux, AGC
can be assigned to the “L/M/H”
gain switch
l
Full Auto— (on/off)
l
ND Filter— (Clear, 1/4, 1/16, 1/64)
l
Auto/Manual Focus, One Push
Auto
l
Shutter—Speed selectable by
cross keys
l
Focus Assist/User 1— (on/off)
l
OIS/User 2— (on/off)
l
LoLux/User 3 — a JVC exclusive
feature that permits shooting in
adverse lighting conditions
l
AE LOCK/User 4— (on/off)
l
Zebra/User 5— (on/off)
l
Marker/User 6— (on/off)
Among the controls are seven
user-denable buttons that can be
assigned a range of functions for
instant setting instead of the preset
settings.
1.22 Megapixel LCOS Viewnder
The GY-HM600 features a stunning new
high-resolution (852 x 480 x 3) LCOS
(Liquid Crystal on Silicon) 0.45" viewnder.
The 16:9 image is crisper and more
detailed than conventional LCD viewnders,
with higher vertical resolution and superior
RGB color separation.
Focus Assist Function
Helping the camera operator stay focused on the action is a focus
assist system that highlights the edges of objects in the image.
When Focus Assist is switched on, the image in the viewnder or
LCD monitor switches to monochrome and all objects that are in
focus appear with colored edges (selectable from red, green or blue).
Keeping the important elements in the picture in focus while shooting
is greatly simplied.
Focus Assist OFF Focus Assist ON
GUI
The GY-HM600 takes ProHD's highly regarded GUI navigation
to the next level. Not only are menu items immediately accessible,
but settings can also be easily checked right from the settings
window. With an improved graphical interface, it’s easier than ever to
customize the settings to match individual preferences
or the demands of the moment.
High-Resolution 920K pixels 3.5" LCD Monitor
The high-resolution 920K pixels 3.5" 16:9 aspect ratio LCD monitor
provides a wide array of monitoring and setup indications.
For maximum exibility, the monitor is mounted at the top of
the camera, ideal for
shooting at various
angles in handheld
camera applications.
Shown with optional microphone.
3.5 inch
7
User Friendly Functions
Pre Rec Mode
How many times have you missed a crucial moment because you
didn’t hit the record button in time? With Pre Rec enabled,
the camcorder continuously buffers up to 15 seconds of video,
so that when recording is started the cached video is included
in the recorded le, giving you an up to 15 second head start.
Interval Rec
This feature allows you to record single frames at set intervals,
which can be used to shoot slow-moving scenes, such as sunsets
or construction, or to capture time-lapse recordings, such as
the growing of plants.
Variable Frame Rate Recording (Over Crank, Under Crank)
When recording in the 720p 35Mbps mode, the camera can be set
to record at a frame rate different than the playback rate.
This capability makes it possible to record slow or fast motion when
the recording is played back at 24p, 25p or 30p. The GY-HM600 can
also under-crank in the 1080p 35Mbps mode.

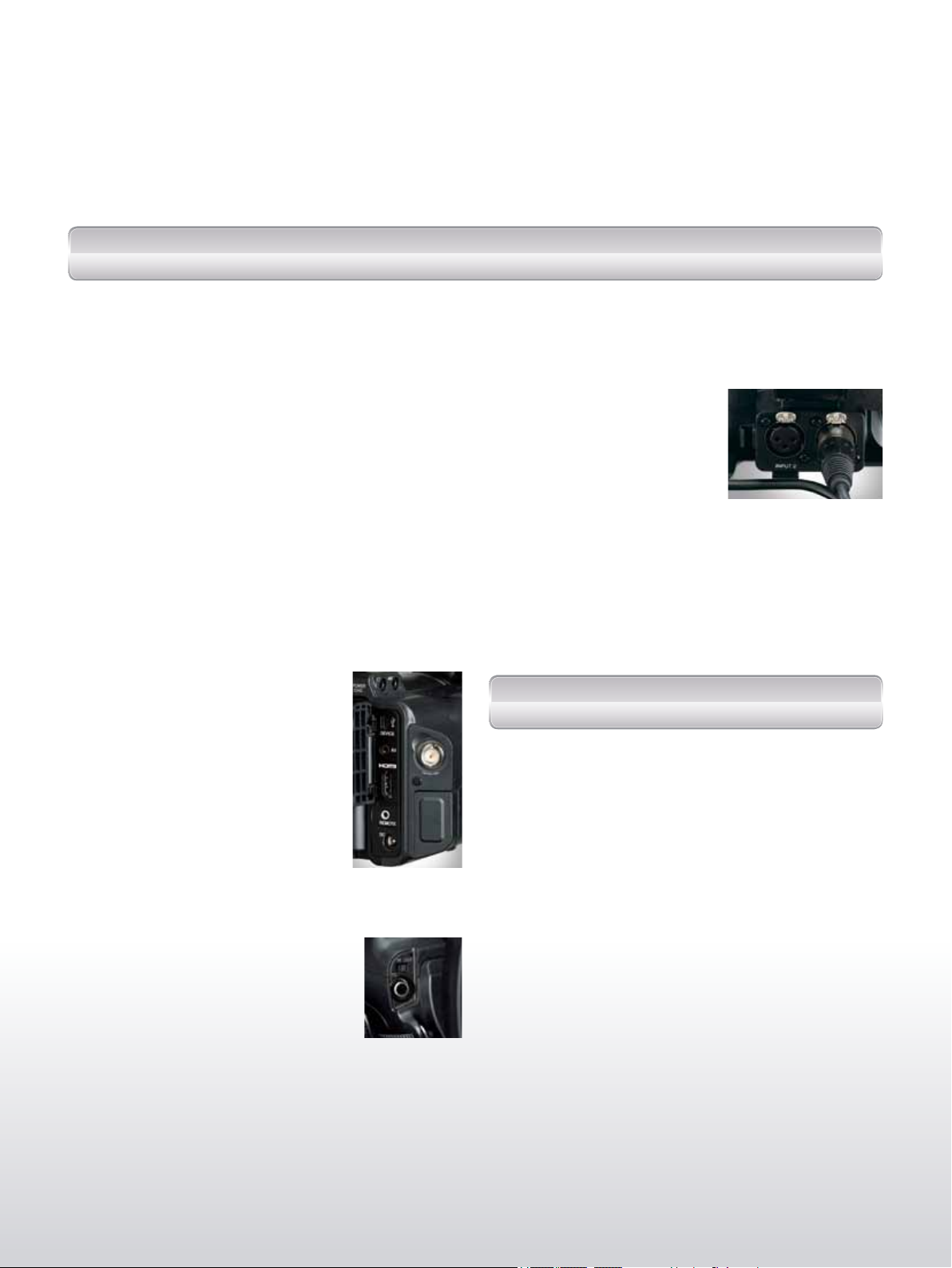

Cutting-Edge Connectivity
Equipped with leading edge connections,
the GY-HM600 offers versatility while meeting
the needs of professional applications.
For easy monitoring of footage, you can
monitor from the digital SDI and HDMI outputs
simultaneously, easily switching between output
in HD or SD.
l
SDI (HD/SD) out
l
HDMI (HD/SD) out
l
TC Sync in/out
l
AV out
l
USB
l
Mic/Line x 2 with
phantom power
l
Aux In for Wireless
Receiver
l
ø2.5mm Remote Control
l
ø3.5mm Stereo
Headphone out
TC Sync
With TC Sync functionality, two GY-HM600 units
can be synchronized with time code using an
RCA cable. Since the terminal can be used for
both in/out functions, either unit can be
the master, providing for an ideal multi-camera
operation setup.
Wired Remote Control
The GY-HM600 comes with a wired remote interface
(Ø 2.5mm connector) for operating the camcorder remotely
when using a tripod, jib, crane or boom.
Audio Recording and Monitoring Flexibility
The GY-HM600 provides a number of essential audio features.
Its built-in stereo microphone is ideal for capturing natural sound on
location, but the camera also includes two mic/line selectable XLR
inputs with phantom power.
The side panel is equipped with screws
to attach a holder for an optional
wireless receiver, for which there are
dedicated mic and headphone jacks.
Also equipped with an audio equalizer,
sound can be adjusted to your liking
from the GUI.
High-Capacity Battery Systems
Capture more footage and clock more recording time with the newly
developed high-capacity (4900mAh) battery. In addition, it is also
possible to charge the battery when the camera is switched off and
plugged in using the AC adapter.
Supporting Software
JVC ProHD Clip Manager
The ProHD Clip Manager for both Mac and Windows makes it easy
to manage MP4 clips on the GY-HM600’s memory cards from your
computer. With a few clicks of the mouse you can copy, move
or delete clips, preview clip content, as well as view and edit clip
metadata. A thumbnail view of all the clips in the current folder shows
the content of each clip at a glance. Use the viewer to watch
the whole clip, or change the clip's index frame used for
the thumbnail. You can also manage folders to keep your clips
organized, and check the remaining free space on a card. The latest
version of ProHD Clip Manager offers an even greater level of NLE
compatibility by enabling MP4 les to be converted to m2t, widely
supported by NLEs.
ProHD Log and Transfer Plug-in
The ProHD Log and Transfer Plug-in is a plug-in for Apple’s Final Cut
Pro™ that lets you drop MP4 les recorded on the GY-HM600 into
the clip bin. With the plug-in installed, you can view thumbnails of
the MP4 les on a memory card from the Log and Transfer screen of
Final Cut Pro™. Simply drag and drop the thumbnails into the bin to
automatically convert the clips to QuickTime™, ready for use.
8
High-Performance Functionality
Top View
Side View
Front View Rear View
9
Shown with optional microphone.
System Conguration
On camera light
Microphone
Shoulder belt
Headphone
SDI cableBNC
HDMI cable
Wireless microphone
receiver
EW112-p (Sennheiser)
UCR100 (Lectrosonics)
or equivalent
Wide conversion lens
WHV-077 (Zunow)
WCX-08 (Zunow)
HDWC8X-72 (16x9)
or equivalent
Rain cover
PR410 (Petrol)
or equivalent
Soft carrying bag
PC202 (Petrol)
PC003 (Petrol)
or equivalent
Dimensions
Unit: inches (mm)
Battery
(SSL-JVC50)
AC adapter
GY-HM600
DC cable
Tripod
AV cable
Battery
SSL-JVC50 (IDX)
Monitor/Switcher etc
Battery charger
LC-2J(IDX)
Remote Control Unit
VZ-Stealth (Varizoom)
ZC-3DV (Libec)
MVR901EPLA (Manfrotto)
521LX (Manfrotto)
or equivalent
140)
-6(
5
6-37/64 (156.5)
2-9/32 (57)
(HOOD)
10
16-5/8 (415.5)
10-25/32 (269.5)
13-13/16 (345.5)
16-7/64 (402.5)
7-1/8 (177.5)
5-15/16 (148.5)
7-1/8 (178)
7-7/8 (197)
Final Cut Pro is not supplied.
Specication
GY-HM600
[GENERAL]
Power: DC 12V (AC adaptor), DC 7.2V (Battery)
Power consumption: Approx. 10W(with VF in single REC mode and
default setting)
Dimensions (W x H x D): 178 x 198 x 416 mm (7" x 7-13/16" x 16-3/8")
Mass: Appro.2.4kg (5.3lbs), (Including battery)
Operating temperature: 0˚C to 40˚C (32˚C to 104˚C)
Storage temperature: -20˚C to 50˚C (14˚C to 122˚C)
Operating humidity: 30% to 80% RH
Storage humidity: Under 85%
[CAMERA]
Image sensor: 1/3" 2.2M pixels progressive scan 3CMOS
Synchronizing system: internal synchronization
Stabilizer: Optical image stabilizer
Lens: Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion: 29 to 667mm)
Sensitivity: F11 (60Hz) /F12 (50Hz), 2000lx (typical)
Minimum illumination: 0.15lx (typical) (1920 x 1080 mode, F1.6, Lolux mode,
1/30 or 1/25 shutter)
Filter diameter: 72mm
Shutter speed: 1/4 to 1/10000
Gain: -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux, ALC
ND lter: Clear, 1/4, 1/16, 1/64
LCD display: 3.5” 920K pixels, 16:9
Viewnder: 0.45” 1.22M pixels, 16:9
[VIDEO/AUDIO RECORDING]
Recording media: 2x SDHC/SDXC memory card Class 4/6/10
(Class4 for AVCHD and H.264 only)
Video recording:
Video codec: MPEG-2 Long GOP (HD), MPEG-4/AVC H.264 (HD/SD)
File format: MOV (HD/SD: H.264), MP4 (XDCAM EX), MTS (AVCHD)
Recording mode:
MPEG-2 Long GOP
NTSC setting:
HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i,
1280 x 720/59.94p, 29.97p, 23.98p
SP mode: 1440 x 1080/59.94i (25Mbps), 1280 x 720/59.94p (19Mbps)
PAL setting:
HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i, 1280 x 720/50p, 25p
SP mode: 1440 x 1080/50i (25Mbps), 1280 x 720/50p (19Mbps)
AVCHD
NTSC setting:
HQ mode: 1920 x 1080/59.94i, SP mode: 1920 x 1080/59.94i
PAL setting:
HQ mode: 1920 x 1080/50i, SP mode: 1920 x 1080/50i
SD (MPEG-4/AVC H.264)
NTSC setting: 720 x 480/59.94i (GY-HM600U only)
PAL setting: 720 x 576/50i (GY-HM600E only)
Audio recording LPCM 2ch, 48 kHz/16-bit (MPEG-2 Long GOP/MPEG-4/
AVC H.264), Dolby Digital 2ch, 48kHz/16-bit, 256kbps (AVCHD)
[INTERFACE]
Video output: AV output, SDI output (BNC x1), HDMI output x1
Audio input: XLR x2 (MIC, +48V/LINE), ø3.5mm mini jack x1
Audio output: AV output
Headphone: ø3.5mm mini jack x 1
Time code link input/output: RCA x 1
Remote: ø2.5mm mini jack x 1
USB: Mini-USB2.0, Type-B
[PROVIDED ACCESSORIES]
Battery pack (SSL-JVC50) x 1, AC adapter x 1, AV cable x 1
Optional Accessories
SSL-JVC50
Battery (IDX)
LC-2J
Battery Charger (IDX)
n
SDHC Class 4/6/10, SDXC
recording time (approx.)
Class 4 only correspondence with
AVCHD/H.264 mode.
Apple, Apple logo, Macintosh, QuickTime, and Final Cut Pro are trademarks of Apple Inc. registered in the United States and other countries.
“AVCHD Progressive/AVCHD” and the “AVCHD Progressive/AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.
Dolby is a registered trademark of Dolby Laboratories. The SD, SDHC and SDXC logos are trademarks of the SD Card Association. HDMI, the
HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and
other countries. Product and company names mentioned here are trademarks or registered trademarks of their respective owners.
All screen pictures in this brochure are simulated.
DISTRIBUTED BY
4GB
8GB
16GB
32GB
64GB (SDXC)
128GB (SDXC)
720p
22 min.
45 min.
1 hr. 30 min.
3 hr.
6 hr.
12 hr.
MOV/MP4
MPEG-2/HD
SP HQ SP HQ SD
1080i
17 min.
35 min.
1 hr. 10 min.
2 hr. 20 min.
4 hr. 40 min.
9 hr. 20 min.
720p/1080i 1080i 1080i 480i/576i
12 min.
25 min.
50 min.
1 hr. 40 min.
3 hr. 20 min.
6 hr. 40 min.
E.&O.E. Design and specications subject to change without notice.
1 hr. 40 min.
3 hr. 20 min.
6 hr. 40 min.
13 hr. 20 min.
The values for weight and dimensions are approximate.
MTS MOV
25 min.
50 min.
19 min.
39 min.
1 hr. 18 min.
2 hr. 36 min.
5 hr. 12 min.
10 hr. 24 min.
KCS-8431 CEHM600GNK1209
H.264/SDAVCHD
47 min.
1 hr. 35 min.
3 hr. 10 min.
6 hr. 20 min.
12 hr. 40 min.
25 hr.
Simulated pictures.
Printed in Japan
Loading...
