INTRODUCTION

CONTROLS, INDICATORS AND CONNECTORS

PREPARATIONS

PREPARATIONS FOR OPERATION

SETTING AND ADJUSTMENTS BEFORE SHOOTING

SHOOTING OPERATION

HD CAMERA RECORDER

INSTRUCTIONS

GY-HD110 GY-HD111

PLAYBACK MODE

USING EXTERNAL COMPONENTS

MENU SCREENS

FEATURES OF THE CAMERA SECTION

OTHERS

Thank you for purchasing this JVC product. Before operating this unit, please read the instructions carefully to ensure the best possible performance.

For Customer Use :

Enter below the Serial No. which is located on the body. Retain this information for future reference. Model No. Serial No.

* The illustration shows the GY-HD110/GY-

HD111 HD CAMERA RECORDER with the provided lens, viewfinder, microphone and battery pack attached.

LST0392-001A

Thank you for purchasing the JVC GY-HD110U/CHU, GYHD110E/CHE and GY-HD111E/CHE HD CAMERA RECORDER. These instructions are for the GY-HD110U/CHU, GYHD110E/CHE and GY-HD111E/CHE. The text mainly deals with the GY-HD110U/CHU and GY-HD111E/CHE. Explanations concerning unique GY-HD110U/CHU and GYHD111E/CHE functions are set off by the (GY-HD110U/GYHD111E only) notice. Information applicable only to the GY-HD110U/CHU is marked by “(U model only)”. Information applicable only to the GY-HD110E/CHE and the GY-HD111E/CHE is marked by “(E model only)”. (HDV/DV signal input is possible with the GY-HD110U/GYHD 111E.)

ACCESSORIES

(Excluding the CHU/CHE

model)

Lens Microphone

This unit is a HDV/DV video system format camera recorder.

Videocassettes marked with the A symbol can be used.

The following phenomena may occur when tapes recorded on other units (including another GY-HD110) are recorded or played back on this camcorder.

• The transient section between scenes recorded on other units and those recorded on this unit may appear disturbed.

• Digital noise may appear during playback due to tracking errors.

• This unit records and plays back in the SP mode. Recording or playback in the LP mode is not possible. (In DV format)

• Due to manufacturing dispersion of tapes, we recommend not to record pictures within the first 2 to 3 minutes from the beginning of the tape.

• Before recording important scenes, be sure to perform a test recording and confirm that both video and audio are recorded correctly.

• Recorded video and audio contents are for private use. Other use may infringe on the rights of copyright holders.

• JVC cannot assume liabilities that may derive from the impossibility of normal recording or playback of video or audio due to malfunction of the camcorder or the videocassette.

Battery pack AC Adapter

DC Cable Power Cord

For GY-HD110E/GY-HD111E

Core Filters

For DC Cable (Gray)/View-

finder Cable (Black)

Power Cord

For Audio/IEEE1394 Cable

For GY-HD110U

Clamp Filters

* All product names in this manual are trademarks or regis-

tered trademarks of their respective companies. Marks such as ™, ® and © are not used in this manual.

Audio Cable SD memory card

MAIN FEATURES

• This camcorder records in HDV format or DV format. DV format can record and play back SD (Standard Definition) video on Mini DV videocassettes. HDV format can record and play back HD (High Definition) or SD (Standard Definition) video on Mini DV videocassettes. There are two types of recording formats within HDV format. HDV 720p (720 effective scan lines, progressive scan) HDV 1080i (1080 effective scan lines, interlaced scan) This camcorder supports HDV 720p format. (HDV 720p, 480p, 576p) HDV and are trademarks of Sony Corporation and Victor Company of Japan, Limited.

• 24p mode shooting function In HDV format, it records in 24p mode. It uses a 2:3:2:3 pulldown when recording to tape and converts the images to 60 frames. Component output is converted to 60 frames during playback as well. 24p DV format video uses a 2:3:2:3 pulldown (24p Mode). A 2:3:3:2 pulldown (24p Advanced Mode) is also supported. It can shoot with the same number of frames as movie film.

• Tapes recorded in the DVCAM format can only be played back (simple playback). Recording in the DVCAM format is not possible. DVCAM is a registered trademark of Sony Corporation.

• Supports 60 Hz/50 Hz HD or HDTV signals Supports both 60 Hz/50 Hz HD or HDTV signals. You can select this in a menu screen.

• Cross-convert video output During playback, you can output converted video from the video output connectors. You can select this in a menu screen.

• Built-in monitor speaker for audio checking The input audio can be monitored in recording or EE mode. The playback sound can be monitored in the playback mode. The speaker also outputs an alarm tone in case an abnormal condition occurs in the unit.

• Recording check function for convenient recording review function

• Camera section designed with 3-CCD system for highquality picture 1/3" 3-CCD with 1,110,000 effective pixels employed. Digital signal processing for reproduction of HDV/DV highquality picture.

• Multi-Zone Auto Iris Detection Circuit Multi-zone auto iris detection circuit ensures optimum iris position even in back light conditions or when a bright subject moves in a frame.

• Safety Zone indication in viewfinder

• Zebra pattern video level indication in viewfinder

• Full Auto Shooting (FAS) function Eliminating the need for troublesome switch or filter operations, the FAS function automatically provides a wide range of compatibility with shooting conditions which varies as you move between indoors and outdoors or between bright and dark locations.

• ND filters for 1/4ND, 1/16ND provided

• IEEE1394 connector IEEE1394 connector (6-pin) provided. Enables transfer of digital data to other equipment provided with IEEE1394 connector, such as a non-linear editing system. (Power cannot be supplied.)

• Focus assist function Enables easy and accurate focusing during shooting.

• Motion smoothing function During progressive shooting (HDV 30p, 25p, 24p), you can record smoother video than with normal progressive video.

• User buttons added Enables you to switch camera settings instantly to suit the shooting conditions.

• Time code reader/generator The built-in time code reader/generator can be used to record the time code and user’s bits.

• Built-in large 3.5" color LCD display In addition to displaying the camera image and the playback image, the LCD monitor shows the status screens, menu screens for settings, and alarm indications.

• 1/3" bayonet type lens

• Camera output, VTR playback output (composite/component) possible

• Built-in color bars (ARIB (multi-format color bars), SMPTE/ EBU type)

• Shutter speeds and menus can be selected using a dial, making it very easy to use.

• Variable scan shutter There is no flicker when shooting computer screens and other non-NTSC/PAL format screens.

• Slow shutter Makes it possible to brightly shoot video of dark subjects with little motion by accumulating the images.

• Backup recording function Continuous extended recording is possible by connecting to HDV/DV devices.

CONTENTS

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

MAIN FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INTRODUCTION

Precautions for Proper Use . . . . . . . . . . . . . . . . . . . . . . . . . 6

Routine and Periodical Maintenance . . . . . . . . . . . . . . . . . . 7

Precautions for Use of Head Cleaning Tape . . . . . . . . . . . . 7

Battery Pack to be Used . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Videocassette to be Used . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Condensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Characteristic CCD Phenomena . . . . . . . . . . . . . . . . . . . . . 9

CONTROLS, INDICATORS AND CONNECTORS

ZOOM Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Front Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Rear Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

LCD Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Right Side Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Left Side Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Top Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Indications on the LCD Monitor and in the Viewfinder . . . . 19

PREPARATIONS

Basic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Attaching the Zoom Lens . . . . . . . . . . . . . . . . . . . . . . . . . 30

Attaching the Microphone (Provided) . . . . . . . . . . . . . . . . 30

How to Attach the Viewfinder . . . . . . . . . . . . . . . . . . . . . . 30

Inserting an SD Memory Card . . . . . . . . . . . . . . . . . . . . . . 31

• Inserting an SD Memory Card

• Taking out the SD memory card

• About SD Memory Cards

About the Viewfinder Cable . . . . . . . . . . . . . . . . . . . . . . . . 31

AC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

• Charging the Built-in Battery

Battery Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

• Charging the Battery Pack

• Attaching the Battery Pack on the GY-HD110

• Detaching the Battery Pack from the GY-HD110

• Remaining Battery Power Display

• Battery Recharge Times

• Operating Time with Battery Pack

• Precautions for the Battery Pack

•Recharging

PREPARATIONS FOR OPERATION

Turning the Power ON . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

• Turning the Power ON

• Turning the Power OFF

Loading/Unloading the Cassette . . . . . . . . . . . . . . . . . . . . . 36

Setting and Displaying the Date and Time . . . . . . . . . . . . .37

• Setting the Date and Time Style

• Setting the Date and Time

• Displaying the Time and Date on the Screen

Displaying Time Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Recording Time Codes in Continuation of Time Codes Re-

corded on Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Presetting and Recording of Time Code . . . . . . . . . . . . . . .40

• Presetting time cord data

• Presetting user’s bit data Synchronizing with the Time Code of the

IEEE1394 (DV)-Connected Master Unit . . . . . . . . . .42

Screen Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

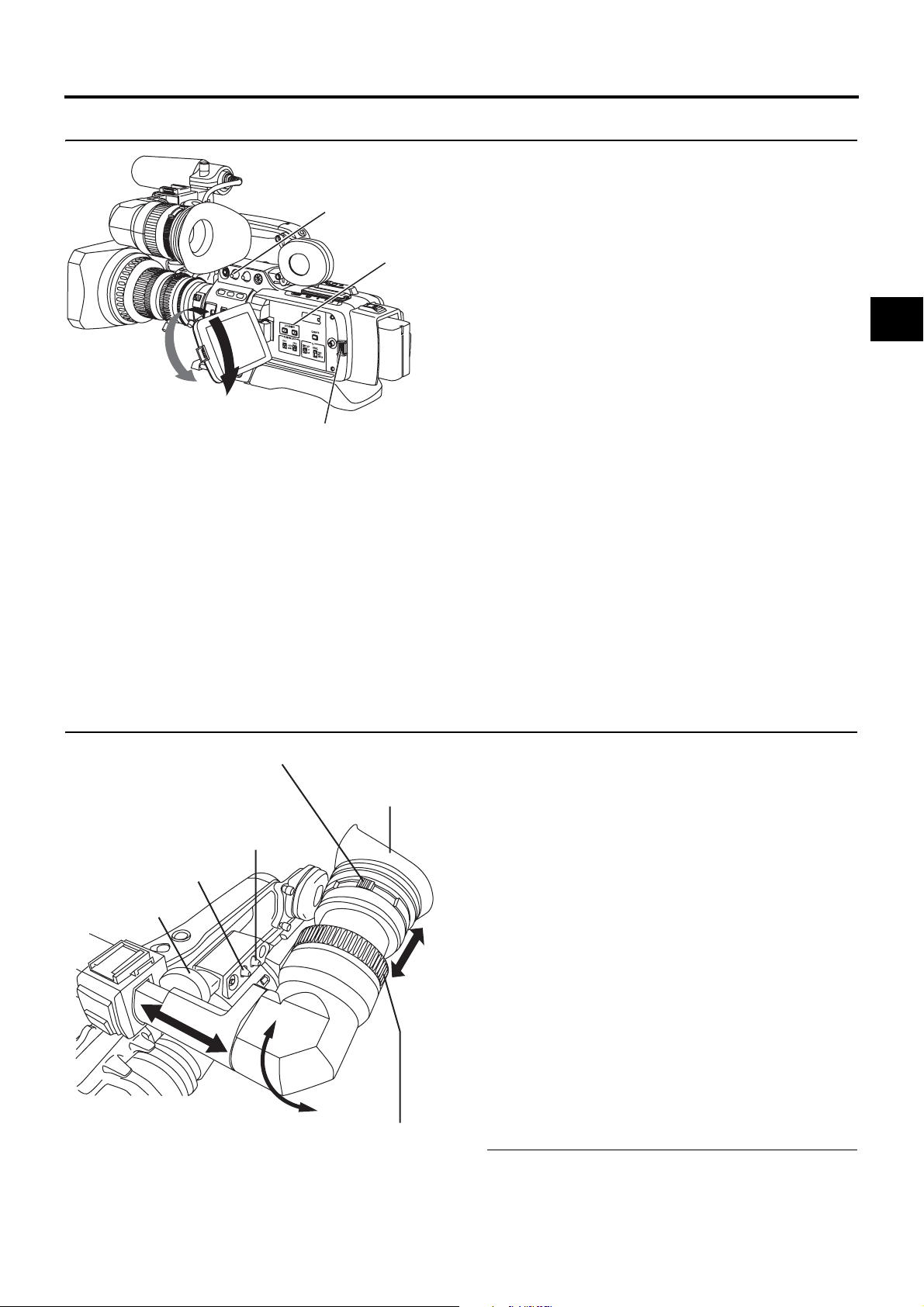

Viewfinder Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Back Focus Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . .44

White Balance Adjustment . . . . . . . . . . . . . . . . . . . . . . . . .45

• White Balance Adjustment

• Full Auto White Balance (FAW)

SETTING AND ADJUSTMENTS BEFORE SHOOTING

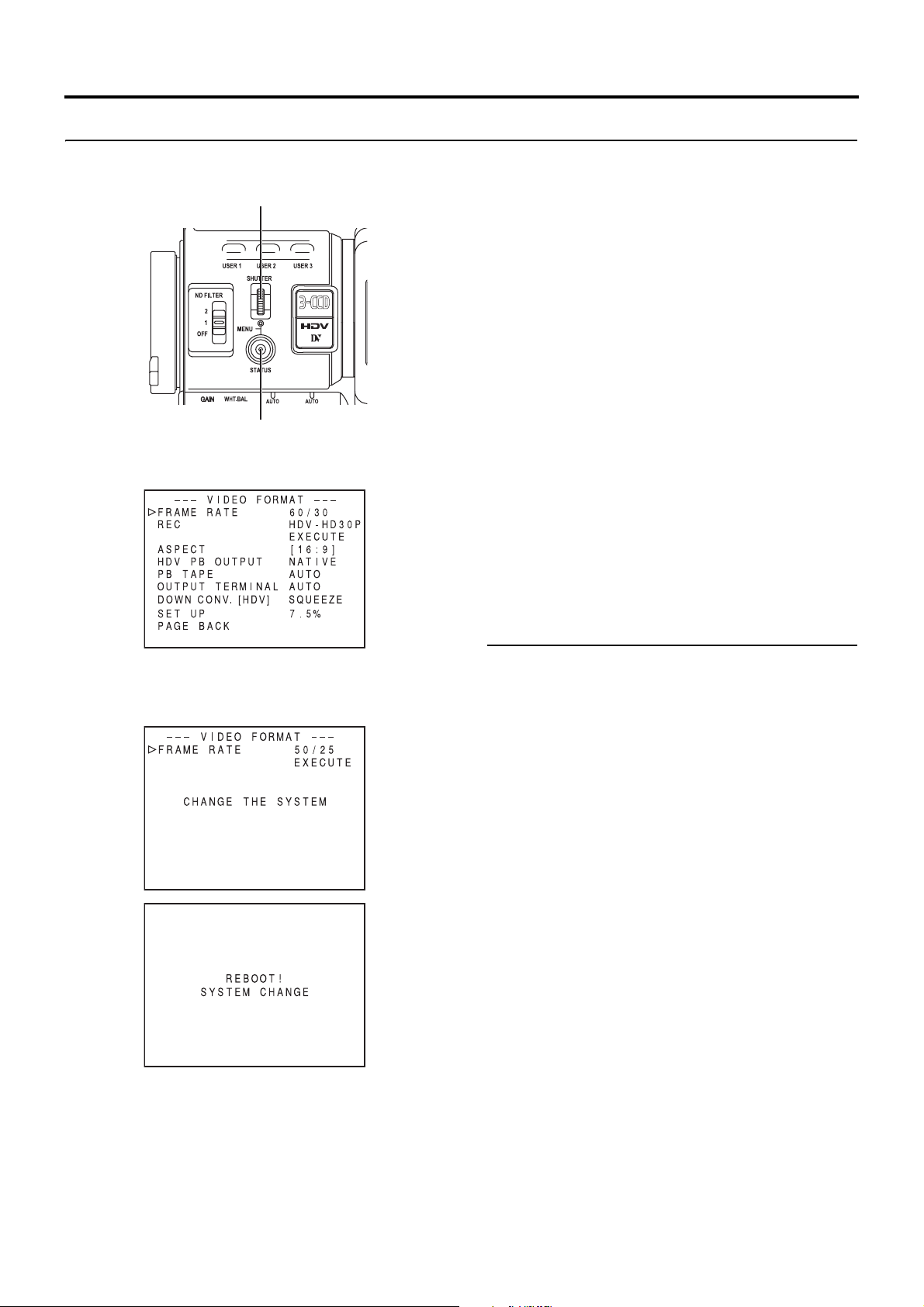

Setting the Video Format . . . . . . . . . . . . . . . . . . . . . . . . . .46

Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Screen Size (4:3/16:9) Mode Selection . . . . . . . . . . . . . . .47

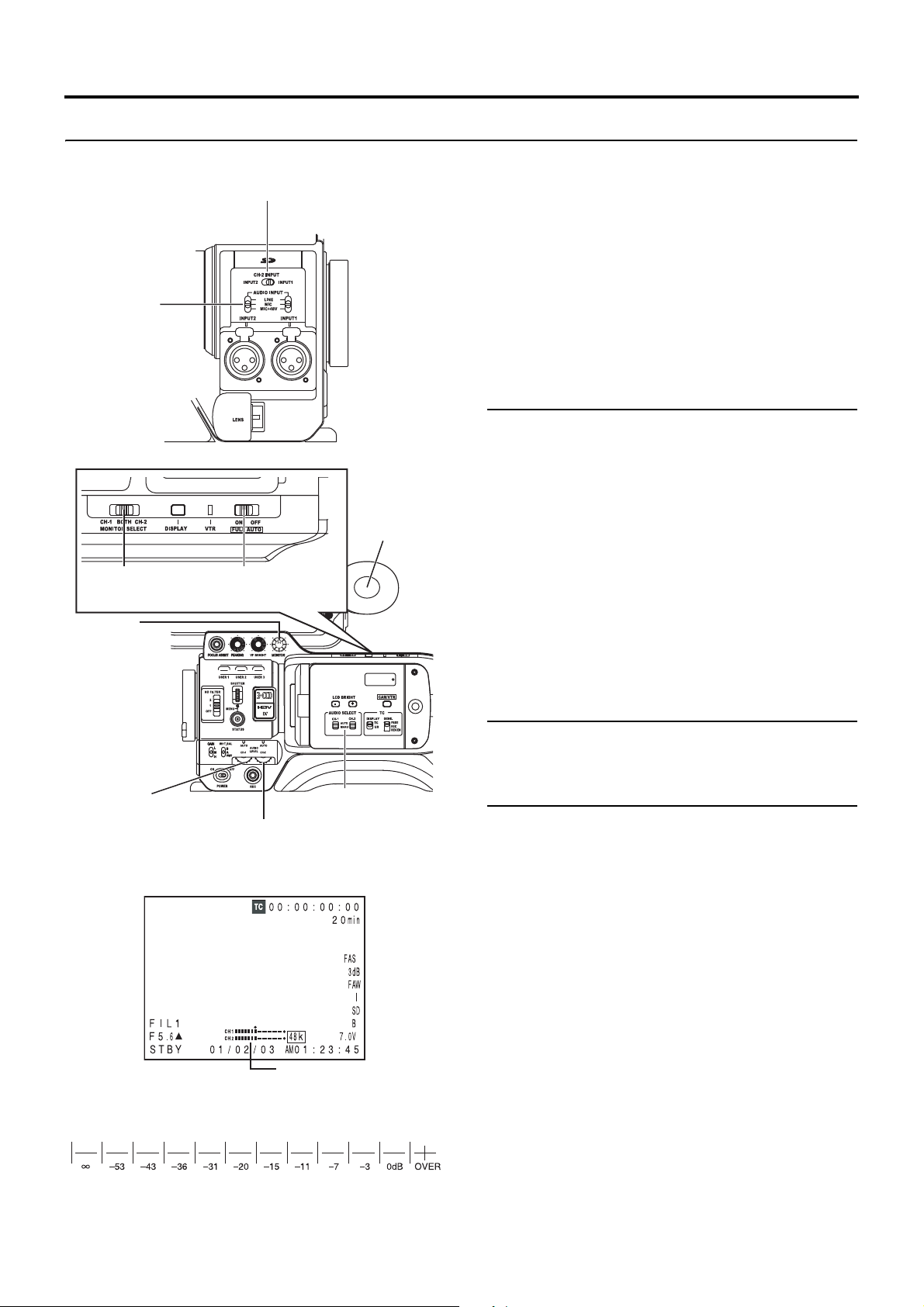

Audio Input Signal Selection . . . . . . . . . . . . . . . . . . . . . . . .48

• Selecting the CH-2 channel input connector

• Selecting the audio signal input

• Adjusting Audio during Recording

• Monitoring Audio during Recording

CONTENTS

SHOOTING OPERATION

Basic Recording Operation . . . . . . . . . . . . . . . . . . . . . . . . 50

• If the Record-Standby Mode Continues

• Checking Recorded Contents in Record-Standby Mode (Recording Check Function)

HEADER REC Function . . . . . . . . . . . . . . . . . . . . . . . . . . 52

PLAYBACK MODE

Playback Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Fast-Forward, Rewind . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Outputting Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

USING EXTERNAL COMPONENTS

Connecting the Video Signal Cables . . . . . . . . . . . . . . . . . 56

• Connecting the IEEE1394 Cable

• Composite and Component Connections

Dubbing with AV Devices . . . . . . . . . . . . . . . . . . . . . . . . . 57

HDV/DV Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Backup Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

MENU SCREENS

Menu Screen Configuration . . . . . . . . . . . . . . . . . . . . . . . . 61

Setting Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

TOP MENU Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

VIDEO FORMAT Menu Screen . . . . . . . . . . . . . . . . . . . . . 64

CAMERA OPERATION Menu Screen . . . . . . . . . . . . . . . . 66

CAMERA PROCESS [1/2] Menu Screen . . . . . . . . . . . . . 67

CAMERA PROCESS [2/2] Menu Screen . . . . . . . . . . . . . 68

ADVANCED PROCESS Menu Screen . . . . . . . . . . . . . . . 69

COLOR MATRIX ADJUST Menu Screen . . . . . . . . . . . . . 70

SKIN COLOR ADJUST Menu Screen . . . . . . . . . . . . . . . . 70

SWITCH MODE Menu Screen . . . . . . . . . . . . . . . . . . . . . 71

AUDIO/MIC [1/2] Menu Screen . . . . . . . . . . . . . . . . . . . . . 72

AUDIO/MIC [2/2] Menu Screen . . . . . . . . . . . . . . . . . . . . . 73

LCD/VF [1/3] Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . 74

LCD/VF [2/3] Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . 75

LCD/VF [3/3] Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . 76

TC/UB/CLOCK Menu Screen . . . . . . . . . . . . . . . . . . . . . . 77

HEADER REC Menu Screen . . . . . . . . . . . . . . . . . . . . . . . 78

TIME/DATE Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . 79

OTHERS [1/2] Menu Screen . . . . . . . . . . . . . . . . . . . . . . . 80

OTHERS [2/2] Menu Screen . . . . . . . . . . . . . . . . . . . . . . . 81

FILE MANAGE Menu Screen . . . . . . . . . . . . . . . . . . . . . . 83

• Loading a menu settings file

• Saving settings

• Resetting the menu settings to the factory settings

• Initializing (formatting) an SD memory card

FEATURES OF THE CAMERA SECTION

How to Use Skin Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Outputting color bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

OTHERS

Warnings and Responses . . . . . . . . . . . . . . . . . . . . . . . . . .89

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

How to Display the Hour Meter . . . . . . . . . . . . . . . . . . . . . .93

Information for Users on Disposal of Old Equipment . . . . .93

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

• EXTERNAL DIMENSIONS

CONTROLS, INDICATORS AND CONNECTORS

ZOOM Lens

Th16 x 5.5BRMU

RET

1FOCUS ring

Manual focus ring.

2ZOOM lever/ring

This is the manual zoom ring equipped with a zoom lever. To adjust the zoom manually, turn the zoom mode knob b to position “M”.

3IRIS ring

Manual iris ring. To activate the auto iris feature, set the Iris Mode switch 7 to “A”.

4[VTR] VTR trigger button

To start/stop shooting.

5[RET] Return video button

You can only monitor the return video signal from the VTR from the viewfinder, LCD monitor and video signal connector while this button is pressed. When you set the LENS RET item to “FOCUS ASSIST” in the SWITCH MODE menu screen, you can use this button as the FOCUS ASSIST button. X See page 71.

6ZOOM servo control lever

To operate the servo zoom feature with this lever, set the ZOOM knob b to “S”.

• Pressing the “W” section of this lever increases the angle of the lens for a wider shooting angle.

• Pressing the “T” section of this lever narrows the lens angle perspective for telephoto shots.

• Pushing harder changes the speed of the zoom.

M A

789

MACRO

7IRIS mode switch

A : Activates the auto iris feature. M : Allows manual iris control.

8Momentary auto iris button

When the IRIS mode switch 7 is at “M”, pushing this button activates the Auto Iris Function while it is held down only.

9[S] IRIS speed adjusting control

For adjusting the iris operation speed.

MEMO

If the speed becomes too fast, hunting may occur. To avoid the phenomena described above, perform adjustment again.

0FILTER thread

Protect the lens with a clear filter or UV filter by screwing the filter onto the thread inside the lens hood from the front. Other filters can be used for various effects.

aZOOM servo connector

Connect an optional zoom servo unit here.

b[ZOOM] ZOOM mode knob

S : Servo zoom mode. Allows operation by the zoom

servo control lever 6.

M : Manual zoom mode. Allows zoom control by the

zoom lever/ring 2.

cBACK FOCUS ring/fixing screw

For back focus adjustment only. Secure with the screw knob after adjustment. X See “Back Focus Adjustment” on page 44.

dMacro focusing ring (for close-up shooting)

By rotating this ring in the direction of the arrow, close-up shooting of very small objects becomes possible. Normal focus adjustment and zooming are not available in the macro mode. To shoot images in the macro mode, set the focus ring 1 to the infinite position (∞) and the zoom ring 2 to the maximum wide-angle position. To adjust the focus of the macro image, rotate this ring in the direction of the arrow until the object is focused.

CAUTION

• The back-focus knob is located close to the macro ring, be careful not to mistake the back-focus knob for the macro ring.

• After the required operation, be sure to return the macro focusing ring to the normal position.

X See “Attaching the Zoom Lens” on page 30. X See “Back Focus Adjustment” on page 44.

CONTROLS, INDICATORS AND CONNECTORS

Front Section

1Shoe

Makes it possible to mount separately sold lights and accessories.

2Knob

This is the mounting knob for the microphone holder 3.

3Microphone holder

Makes it possible to attach the provided microphone or a separately sold microphone. X See “Attaching the Microphone (Provided)” on page 30.

4Front tally lamp

This lamp lights up when the GY-HD110 enters the record mode. It blinks during the transition to the record mode. When the tape has run out, or the VTR enters the warning mode, it blinks quickly.

• Use the FRONT TALLY item on the OTHERS [1/2] menu screen to select whether or not the lamp should light and the lighting pattern. X See page 80.

5[LENS] Lens control connector

Connect 12-pin lens control cable from lens here.

Pin No.

1 Return switch 7 Iris position

2 VTR trigger 8 IRIS A/R INPUT

3 GND 9 EXTENDER position

5 IRIS control 11 –

6 +12V DC 12 –

Function

Lens AUTO/MANU control

Pin No.

10 ZOOM position

Function

6[ZEBRA] Zebra switch

When this switch is ON, a zebra pattern is imposed on the viewfinder or LCD areas having luminance levels in accordance with the menu settings made for the video signal. This pattern can be used as a reference for manual adjustment of the lens iris. Zebra patterns are also displayed during color bar display when this switch is set to ON.

• The default value is 70% - 80%. The luminance level can be changed with the ZEBRA setting in the LCD/VF [1/3] menu screen. X See page 74.

While this switch is pressed to the SKIN AREA side, the color tone areas specified with the SKIN COLOR ADJUST item on the ADVANCED PROCESS menu are indicated in the viewfinder. The switch returns to the OFF position when released. X See “How to Use Skin Detail” on page 86. * The Skin Detail color tone areas are not indicated while

the color bar or VTR playback picture is shown in the viewfinder or on the LCD monitor.

7[AWB] Auto white balance button

When the WHT.BAL switch c on page 15 is set to A or B and you press this button, the white balance is automatically adjusted. * It is not activated in preset, full auto shooting, full auto

white balance and color bar modes. X See “White Balance Adjustment” on page 45.

8Lens mounting ring/Lens lock lever

Hold the lens and use the lever to turn the ring anticlockwise to release lens. To mount lens make sure the lens guide pin fits well, and then turn the ring clockwise until firm. X See “Attaching the Zoom Lens” on page 30.

CONTROLS, INDICATORS AND CONNECTORS

Rear Section

3Shoulder belt hooks

Allows you to attach a separately sold shoulder belt.

4LCD monitor

Shows a color camera image or the VTR playback picture. It is also used for displaying the following:

• Menu Setting screens

• Characters showing the whether the GY-HD110 is set to shooting mode or VTR playback mode

• Date and time and time code

• Audio level meter

• Warning indications, etc.

X See page 19.

5Tripod mount

Use this hole when mounting the camera onto a tripod. (Use a screw shorter than 8 mm.) Always make sure that the camera is securely mounted.

6Rotation-preventive hole

Use this to prevent the camera from falling off the tripod. Always make sure that the camera is securely mounted.

1Back tally lamp

This lamp lights up when the GY-HD110 enters the record mode. It blinks during the transition to the record mode. When the tape has run out, or the VTR enters the warning mode, it blinks quickly.

• Use the BACK TALLY item on the OTHERS [1/2] menu screen to select whether or not the lamp should light and the lighting pattern. X See page 80.

2[PHONES] Earphone jack

This is a stereo mini-jack for connecting an earphone for audio monitoring. Plug in an earphone or headphone with a

3.5 mm diameter plug. The earphone can also be used to

monitor alarm tones in accordance with the circumstances. The audio channel to be output is selected with the AUDIO MONITOR item on the AUDIO/MIC [2/2] menu screen and MONITOR SELECT switch e on page 18. The audio output level is adjusted with the Audio monitor volume control 3 on page 14.

MEMO

• The volume of the alarm sound is set with the ALARM VR LEVEL item on the OTHERS [1/2] menu screen.

• When using a stereotype jack and stereo sound should be output, the following setting should be performed. Set the MONITOR SELECT switch e on page 18 to BOTH. Set the AUDIO MONITOR item on the AUDIO/MIC [2/2] menu screen to STEREO.

CONTROLS, INDICATORS AND CONNECTORS

LCD Door

1[LCD BRIGHT +/–] LCD brightness +/– button

This button is for adjusting the brightness of the LCD monitor display.

• Pushing the button in the + direction makes the monitor brighter.

• Pushing the button in the – direction makes the monitor darker.

• Pushing the +/– buttons simultaneously returns the setting to the standard setting.

2[CH-1/CH-2 AUDIO SELECT] CH-1/CH-2 audio selector

switch

Selects the method of adjusting the CH-1 and CH-2 audio channel audio levels.

AUTO : The audio level is automatically adjusted

according to the input level. When excessive audio is input, the limiter works to suppress the audio level. The “AUTO” LED in the CH-1/CH-2 AUDIO LEVEL area g on page 15 lights.

MANUAL : Allows you to adjust the audio levels using the

CH-1/CH-2 AUDIO LEVEL volume controls g on page 15. When excessive audio is input, the limiter works to suppress the audio level.

3[TC DISPLAY] TC/UB display switch

Selects the contents displayed on the TC counter of the LCD monitor or in the viewfinder. (This switch works when the TC/UB item on the LCD/VF [2/3] menu screen is set to ON.)

TC : Set to this position to display time code values. UB : Set to this position to display the user’s bits values.

4[TC GENE.] Time code generator setting switch

Switch for setting the time code generator to preset mode or regeneration mode. It is also used to select the time code run mode when the preset mode is selected.

FREE : The preset mode is selected, and the time

code run mode becomes the FREE run mode. Set to this position to record with the time code or user’s bits set anew (preset). In this setting, the time code always operates in the run mode. * If this setting is used when recording

scenes one after another, the time codes become discontinuous at the transition points between scenes.

REC : The preset mode is selected, and the time

code run mode becomes the REC run mode. Set to this position to record with the time code or user’s bits set anew (preset). The time code operates in the run mode during recording only. If this setting is used when recording scenes one after another, the time codes are recorded as continuous time codes.

REGEN : Regeneration mode, in which the unit reads

existing time codes on the tape and records time codes in continuation of the existing ones. Set to this position when you want to add additional time codes to time codes already recorded on the tape.

MEMO

Preset of time code and user’s bits is performed on the TC/ UB/CLOCK menu.

X See page 40. X See “TC/UB/CLOCK Menu Screen” on page 77.

5[CAM/VTR] Camera/VTR mode switch button

Each time you press this button, the mode switches between camera mode and VTR mode. When you do this, the VTR indicator g on page 18 displays the following statuses. While the mode is being switched : Flashing In VTR mode : Lit In camera mode : Off

• Select the Camera mode to record the camera image.

• Select the VTR mode to playback VTR or to input the

HDV/DV signal from the IEEE1394 connector 4 on page 16. (HDV/DV signal input is possible with the GYHD110U/GY-HD111E.)

• When the power is turned on, the mode becomes the Camera mode.

CONTROLS, INDICATORS AND CONNECTORS

USER 3USER 2USER 1

STATUS

2 1

ND FILTER

REC

OFF

POWER

VF BRIGHT

WHT.BAL

AUTO

AUDIO LEVEL

AUTO

CH-1 CH-2

Right Side Section

b c

fgh

1Monitoring speaker (Cheek pad)

• In the Camera mode, the input sound can be EE monitored. In the VTR mode, the speaker outputs the VTR playback sound. The sound to be output is selected with the MONITOR SELECT switch e on page 18.

• The sound level is adjusted with the MONITOR sound level volume 3. This speaker also outputs various warning sounds superimposed on other sound.

X See “Alarm Sound” on page 91.

2Cheek pad set screw

Screw for adjusting the height of the cheek pad.

3[MONITOR] Audio monitor volume control

Adjusts the volume of the monitoring loudspeaker and earphone.

4[VF BRIGHT] Viewfinder brightness adjustment

To adjust the brightness of the viewfinder. X See page 43.

5[PEAKING] Contour adjustment

To adjust the contours of the LCD monitor and viewfinder image. * When the Focus Assist function is running, this control

does not operate.

X See page 43.

6[FOCUS ASSIST] Focus assist button

When you press this button during shooting, the area of focus is displayed in blue, red or green, making it easy to focus accurately. X See “LCD/VF [1/3] Menu Screen” on page 74.

7Clamp

Attach the cable from the viewfinder here.

8[USER1/2/3] User buttons

You can assign camera functions to the USER1 - 3 buttons. Use them to switch shooting conditions depending upon the subject. Set them using the USER1 - 3 items in the SWITCH MODE menu screen. X See page 71.

MEMO

• The USER buttons work together with the menu settings.

• When a menu screen is being displayed, they also func-

tion as menu operation buttons. X See “Setting Menu Screens” on page 62.

9[SHUTTER] Shutter/Menu dial

• Every time this dial is pressed while in the normal screen mode (when the menu screen is not displayed), the shutter speed switches between on/off.

• When this dial is turned 1 click up or down in the normal screen mode, the shutter speed indicator is shown for about 3 seconds on the LCD monitor or in the viewfinder. The shutter speed is changed when this dial is turned while the shutter speed indicator is shown. X See page 71.

• When this dial turned upward or downward while the menu screen is displayed, the cursor (K) also moves upward or downward to allow selection of items in the menu. To change the setting value of the item, press this dial. When the setting value starts blinking, turn this dial upward or downward to change the setting. X See “Setting Menu Screens” on page 62.

0[ND FILTER] ND filter switch

Switches the built-in ND filter. OFF : Turns the filter OFF (FILTER OFF)

1: 2:

Cuts the light intensity to approximately 1/4. (1/4ND)

Cuts the light intensity to approximately 1/16. (1/16ND) When you change this switch, the type of the new ND filter is displayed in the LCD monitor or viewfinder.

CAUTION

If you switch the ND filter while shooting is in progress, the picture may be disturbed or noise may occur in the audio. X See “Camera Settings” on page 47.

a[STATUS] Status/Menu button

• Pressing this button in the normal screen mode (condi-

tion in which the menu screen is not shown) displays a status screen in the viewfinder or on the LCD monitor. The displayed status screen changes each time the button is pressed. X See “Status Screens” on page 19.

• Pressing this button for more than 1 second in the nor-

mal screen mode displays the menu screen in the viewfinder or on the LCD monitor. Pressing this button while the menu screen is displayed in the viewfinder or on the LCD monitor makes the menu screen disappear. X See “Setting Menu Screens” on page 62.

CONTROLS, INDICATORS AND CONNECTORS

b[GAIN] Sensitivity selector switch

Electronically boosts the light sensitivity when there is insufficient illumination on the subject. The boosting level differs depending on the switch position as follows: (Factory presets) L : 0 dB (no boosting is applied) M : 9 dB (boosted to approximately 3 times the original) H : 18 dB (boosted to approximately 8 times the original)

• The boosting level for each switch position can be changed with the SWITCH MODE menu screen. X See page 71. The more the boosting level is increased, the more the resulting image will be noisy.

• When the FULL AUTO switch h on page 18 is “ON”, this is fixed at “ALC”.

c[WHT.BAL] White balance switch

Three white balance modes are selectable with this switch. B : Switch into white balance mode memorized in

B. If white balance is performed with the switch in this position, it will be memorized into B.

A : Switch into white balance mode memorized in

A. If white balance is performed with the switch in this position, it will be memorized

into A. PRST (PRESET)

FAW (Full Auto White Balance) mode can be set to A, B or PRESET with the SWITCH MODE menu screen. X See page 71. In the FAW mode, video color temperatures are constantly sampled for automatic adjustment to a proper white balance.

• When the FULL AUTO switch h on page 18 is “ON”,

this is fixed at “FAW”.

dStand

When attaching the lens, slide the stand forward.

CAUTION

There is a risk that the camcorder will fall onto the viewfinder side when the lens is not attached, so leave the lens attached even if you are not using it.

e[POWER] Power ON/OFF switch

Switch that turns the power ON/OFF. When the power is OFF, “POFF” is displayed in the LCD monitor or viewfinder. * Wait at least 5 seconds if you need to turn the power on

again.

: Switch into white balance mode (3200K or

5600K) set in PRESET TEMP. item on the

CAMERA OPERATION menu screen.

X See page 66.

f[REC] REC trigger button (start/stop recording)

Start and stop recording using this button. (This works together with the REC trigger button on the top and the lens VTR trigger button.) When “SPLIT” is set for the 1394 REC TRIGGER item on the OTHERS [2/2] menu screen, this button becomes the start/stop recording button for an external device.

X See page 81. X See “Backup Recording” on page 60.

g[CH-1/CH-2 AUDIO LEVEL] CH-1/CH-2 Audio level con-

trols and AUTO LED

Allow you to adjust the audio level for the CH-1 and CH-2 audio channels.

• To use these controls, set the CH-1/CH-2 AUDIO

SELECT switch 2 on page 13 to “MANUAL”.

• When the FULL AUTO switch h on page 18 or the CH1/CH-2 AUDIO SELECT switch 2 on page 13 is set to “AUTO”, “AUTO LED” lights. (The audio level controls do not work.)

h[HDV/DV LED]

• In camera mode, this lights according to the setting for the video format being shot.

• In VTR mode, it lights according to the video format being recorded on tape or the IEEE1394 input video format.

HDV : Lights when the format is HDV. DV : Lights when the format is DV.

MEMO

• During a system error, HDV/DV flash alternately.

X Seepage90.

• Select whether or not to have this light in the FORMAT LED item on the OTHERS [1/2] menu screen. X Seepage80.

iLCD door lock and release knob

To open the LCD door, move this knob on the direction toward the rear section.

jLCD door

LCD monitor door. The LCD monitor is located on the inner side of the door. The LCD monitor can be viewed when this door is opened. The door can be turned to change the orientation of the LCD monitor, and it can be rotated so that it can be accommodated in the main body of the camera. X See page 43.

CONTROLS, INDICATORS AND CONNECTORS

Left Side Section

2345 6

1[DC INPUT] DC connector

Power input for 7.2 V DC accepts the supplied AC adapter. X See “AC Operation” on page 32.

2[LINE OUTPUT] Line output connector (Φ3.5mm)

Output connector for audio signals.

• Outputs the input audio signal in the Camera mode.

• Outputs the playback audio signal in the VTR mode.

• When a HDV/DV signal (IEEE1394) is input, the EE sound of the input audio signal is output in the VTR mode. (GY-HD110U/GY-HD111E only)

MEMO

Alarm sound is not output.

3[IEEE1394] IEEE1394 switch

Input/output signal and playback signal video from the IEEE1394 connector 4. Set this switch according to the format.

HDV : For HDV format DV : DV format

4[IEEE1394] IEEE1394 connector (6-pin)

Using an IEEE1394 cable (optional), a digital video component with IEEE1394 connector can be connected here.

X See “Connecting the IEEE1394 Cable” on page 56. X See “HDV/DV Dubbing” on page 58.

5[VIDEO/Y, P

B, PR] Video Signal Output Connectors

(RCA)

These are connectors for component or composite video signal output. The signal switches automatically depending upon the cables connected to these connectors.

• You can select the output signal using the OUTPUT TERMINAL item on the VIDEO FORMAT menu. You can also select whether or not to add a setup signal in the SET UP item. X See page 65.

• When the OUTPUT CHAR. item on the OTHERS [1/2] menu screen is ON, the menu setting screen is also displayed in the video from the video signal output connector. X See page 80. X See “Dubbing with AV Devices” on page 57.

MEMO

Put the covers on the connectors when you are not using them.

0ab

6Cassette cover

Sliding the EJECT switch a on page 17 located on the top section opens this cover to allow insertion or removal of the videocassette.

CAUTION

To prevent foreign objects from entering the internal parts of the VTR unit, do not leave the unit with the cover open for extended periods of time.

7Viewfinder connector (6-pin)

Connect the cable from the viewfinder here.

8[CH-2 INPUT] CH-2 audio input connector selector

switch

Selects the CH-2 audio input connector. INPUT1 : Inputs the audio from the INPUT1 connector

0 into CH-2.

INPUT2 : Inputs the audio from the INPUT2 connector

0 into CH-2.

MEMO

The audio from the INPUT1 connector is also input into CH-1 regardless of the setting.

9[AUDIO INPUT] Audio input signal selector switch

This switch is used to select the input sound signal from INPUT1 or INPUT2 connector.

LINE : Set to this position when connected to audio

equipment, etc. The reference input level is +4 dBs.

MIC : Set to this position when the dynamic micro-

phone is connected.

MIC+48V : Set to this position when a microphone requir-

ing +48 V power supply (phantom microphone, etc.) is connected.

CAUTION

When connecting a component that does not require +48 V power supply, make sure that the switch is not set to MIC+48V before the component is connected.

MEMO

You can select the normal input level for MIC and MIC+48V in the INPUT1, 2 MIC REF. item on the AUDIO/MIC menu screen. X See page 72.

0[INPUT1/INPUT2] INPUT1/INPUT2 audio input connec-

tors

These are audio input connectors for connecting to an external audio device or microphone.

• Set the [AUDIO INPUT] switch 9 according to the

device to be connected.

• Set the CH-2 audio input connector using the [CH-2

INPUT] switch 8. The CH-2 audio from the set connector is recorded.

aShoulder pad slide button

Button to adjust the position of the shoulder pad. When you press this button, you can move the position of the shoulder pad b forward or backward.

bShoulder pad

CONTROLS, INDICATORS AND CONNECTORS

Top Section

8 4 3

f g h

1Viewfinder

Displays the camera image and the playback picture.

2Eyepiece

Ensures that ambient light does not reach the viewfinder screen or falls into the eye of the cameraman.

3Eyepiece focus ring

You can adjust the focus by turning this ring.

4Eyepiece mounting ring

You can adjust the position of the eyepiece forward or backward by loosening this ring.

5Slide mounting ring

You can adjust the position of the viewfinder left or right by loosening this ring.

6Clamp

Attach the microphone cable here.

7[FOCUS ASSIST] Focus assist button

When you press this button during shooting, the area of focus is displayed in blue, red or green, making it easy to focus accurately. X See “LCD/VF [1/3] Menu Screen” on page 74.

8[REC] REC trigger button (start/stop recording)

Start and stop recording using this button. (This works together with the REC trigger button on the right panel and the lens VTR trigger button.)

9[REC LOCK] REC LOCK switch

Slide this switch in the direction of the arrow to lock the [REC] trigger button 8. Use this to prevent unwanted recording. (The REC trigger button on the right panel and the lens VTR trigger button are not locked.)

0SD memory card cover

When you open this cover, you can insert and remove the SD memory card. X See “Inserting an SD Memory Card” on page 31. When an SD memory card is loaded

• You can save, call up and reset the menu settings on this camcorder.

• You can initialize (format) an SD memory card.

X See “FILE MANAGE Menu Screen” on page 83.

a[EJECT] Eject switch and LED

Slide this switch to the side to insert or eject a videocassette tape. The LED lights while ejecting is in progress.

MEMO

• It takes a few seconds before the videocassette is ejected. Do not close the cassette cover during the eject operation.

• Do not touch the cassette insertion slot or cassette during the eject operation. This could result in damage.

bOperation cover

Open this cover when operating in the playback mode. Otherwise, keep this cover closed. This cover can be opened by sliding it to the side.

MEMO

When the STOP button i is pressed in the Camera mode to set the VTR operation mode indicator to indicate STOP, playback operations become possible.

c[BATTERY RELEASE] Battery pack lock release lever

Slide this lever forward to remove the battery pack.

dBattery pack

Attach the provided battery pack (BN-V428). X See “Battery Operation” on page 33.

CONTROLS, INDICATORS AND CONNECTORS

Top Section (Cont’d)

e[MONITOR SELECT] Audio monitor selector switch

This switch is used to select the monitor sound output and playback sound output from the monitoring speaker 1 on page 14 or the PHONES jack 2 on page 12.

CH-1 : The CH-1 channel audio is output. BOTH : CH-1 and CH-2 channel audio are output mixed.

When this setting is selected, the menu screen can be used to select whether the mixed sound or stereo sound should be output via the PHONES jack. (AUDIO MONITOR item on the AUDIO/MIC [2/2] menu screen) When AUDIO MONITOR item on the AUDIO/MIC [2/2] menu screen is set to “STEREO”, only the audio of CH-1 is output from the monitoring speaker.

CH-2 : The CH-2 channel audio is output.

X See “Outputting Audio” on page 55. X See “AUDIO/MIC [2/2] Menu Screen” on page 73.

CAUTION

Make sure to move switches all the way. Do not leave a switch stopped in a midway position. Noise will be generated and operation irregularities will occur.

f[DISPLAY] Display button

• Each time you keep pressing the DISPLAY button about 2 seconds, switch LCD monitor display and viewfinder display.

• When you are using an Anton-Bauer battery or IDX battery, the LCD monitor and viewfinder display switches each time the button is pressed. X See “Magnified Status Indications on the LCD Monitor” on page 26.

g[VTR] VTR indicator

This indicator lights when the camera is in the VTR mode. To perform VTR playback or to input the HDV/DV signal from the IEEE1394 connector 4 on page 16, press the CAM/VTR button 5 on page13 to turn on this indicator. It flashes when the mode is being changed. (HDV/DV signal input is possible with the GY-HD110U, GYHD 111E.)

h[FULL AUTO] Full auto shooting (FAS) switch

This is the ON/OFF switch for FAS mode.

• During FAS mode, “FAS” is displayed on the LCD monitor or the viewfinder.

• FAS mode works together with the auto iris and auto level control (ALC) modes and automatically adjusts to the optimal video signal level and white balance.

• You can select automatic adjustment mode or manual adjustment mode for audio recording level. X See “AUDIO/MIC [2/2] Menu Screen” on page 73.

• Even if there are color bars, this automatically sets to camera video.

• SMOOTH TRANS mode does not run. X See page 66.

• Auto iris mode operates even if the lens iris mode switch is set to the manual position.

• The gain changes continuously until it reaches the maximum ALC MAX setting, and the shutter speed also changes continuously.

• When you release FAS mode, all of the settings return to their previous modes.

CAUTION

When the power is turned on while the camera is in the FAS mode, it takes about 10 seconds before the automatic adjustment of FAS is completed. All of the previous setting contents are recalled when the FAS mode is cancelled.

i[STOP] Stop button

Press to enter the stop mode.

j[REW] Rewind button

Press this button to rewind the tape.

• Pressing this button in the stop or fast forward mode initiates the rewind mode. (Only for VTR mode)

• Pressing this button during playback, still picture playback or forward search initiates reverse search.

k[PLAY/STILL] Play/still button

Press to start playback. Press to enter the still picture mode during playback, in the stop mode or in the search mode. Depending on the ambient temperature, if still image playback mode continues for between 30 seconds and 3 minutes, it stops automatically. (Tape protect mode) During still picture playback and search mode, press this button to return to the normal playback mode. * If the auto tracking is active at the moment the play

mode is entered, the playback video will be interfered with digital noise.

l[FF] Fast forward button

Press this button to fast forward the tape.

• Pressing this button in the stop or rewind mode initiates the fast forward mode. (Only for VTR mode)

• Pressing this button during playback, still picture playback or reverse search initiates forward search.

CONTROLS, INDICATORS AND CONNECTORS

Indications on the LCD Monitor and in the Viewfinder

In addition to showing the EE image and the playback picture, the LCD monitor and viewfinder are also used for the following character displays. To show characters on the LCD monitor, press the DISPLAY button briefly.

 Status screens (screens for checking the current cam-

era settings)

DISPLAY button

SHUTTER

ND FILTER

OFF

USER 3USER 2USER 1

 Auto white display (only displayed in the Camera

mode)

 Menu setting screens  Alarm message display  Safety zone display (only displayed in the Camera

mode)

MEMO

When the OUTPUT CHAR. item on the OTHERS [1/2] menu screen is ON, the menu setting screen is also displayed in the video from the video signal output connector.

STATUS

WHT.BAL

STATUS button

• CAMERA MODE (display example)

STATUS 4

•VTR MODE

STATUS 1STATUS 0

STATUS 2

(display example)

 Status Screens

Press the STATUS button while normal screen is displayed to show one of the status screens. The contents of the status display are divided into those for the Camera mode and those for the VTR mode.

• Each time the STATUS button is pressed in the Camera mode, one of 5 status screens is displayed. (STATUS 0, 1, 2, 3, 4)

• One type of screen is displayed in the VTR mode.

MEMO

• When the STATUS button is pressed for 1 second or longer, the menu setting screen is displayed. To display the Status screen while the menu setting screen is displayed, press the STATUS button to return to the normal screen.

• You can switch between the LCD monitor and the viewfinder by holding down the DISPLAY button for about 2 seconds.

STATUSSTATUS 3

CONTROLS, INDICATORS AND CONNECTORS

Indications on the LCD Monitor and in the Viewfinder (Cont’d)

 Status Screens in the Camera Mode

STATUS 0 Screen

266S

8 7 6 5 4

•STATUS 0

1 Event Indication

When the Gain or Shutter Speed is changed manually, the setting condition is displayed for about 3 seconds at the time the change is made.

Setting Status Contents of Indications

Gain value was changed GAIN 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB

Gain value reached the ALC GAIN ALC

FULL AUTO was turned ON/OFF FULL AUTO ON, FULL AUTO OFF

ZEBRA was turned ON/OFF ZEBRA ON, ZEBRA OFF

Shutter speed value was changed *1 SHUTTER 1/6, 1/6.25, 1/7.5, 1/12, 1/12.5, 1/15, 1/24, 1/25, 1/30, 1/48, 1/50, 1/60, 1/100, 1/120,

1/250, 1/500, 1/1000, 1/2000,1/4000, 1/10000

Variable shutter speed value was changed *1 V. SHUTTER 1/24.01 to 1/1998.0

Shutter was turned OFF SHUTTER OFF [1/**] *4

White balance value was changed (Example)

WHITE BAL A <3200K> Numeric value: Any of 2300, 2500, 2800, 3000, 3200, 3400, 3700, 4300, 5200, 5600, 6500,

FILTER value was changed FILTER OFF, FILTER ND 1 [1/4ND], FILTER ND 2 [1/16ND]

AE LEVEL value was changed *2 AE LEVEL –3, –2, –1, NORMAL, +1, +2, +3

BLACK gain value was changed *2 BLACK NORMAL

PRESET TEMP. value was changed *2 *3 WHITE BAL PRST <3200K>, WHITE BAL PRST <5600K>

HEADER REC is running HEADER REC

FOCUS ASSIST was turned ON/OFF FOCUS ASSIST ON, FOCUS ASSIST OFF Timecode was set to zero reset TC ZERO PRESET X See page 41. REC LOCK switch was turned ON/OFF REC SWITCH LOCKED, REC SWITCH UNLOCKED X See page 17, 9 REC LOCK switch.

A REC command was sent from the IEEE1394 connector

Other Displays X See “FILE MANAGE Menu Screen” on page 83-85.

BLACK STRETCH 1, 2, 3 BLACK COMPRESS 1, 2, 3

TRIGGER TO HDV, TRIGGER TO DV

X See “Warnings and Responses” on page 89.

8000

*1 The range for the shutter speed differs depending on the video format setting. X See page 71. *2 Displayed if functions were assigned to the USER1 - 3 buttons. X Seepage71. *3 Displayed when the [WHT.BAL] white balance selector switch c on page 15 is set to PRST (PRESET). *4 “ ** ” depends on the video format.

CONTROLS, INDICATORS AND CONNECTORS

No. Item Contents

2 VTR mode indication STBY : In record standby mode (record-pause mode)

3 Indication of date and time Indicates the date and time.

LCD BRIGHT indication When the brightness of the monitor screen is adjusted with the LCD BRIGHT button, the date and time

4 Indication of Black operation B : Displayed when the black stretch or black compress settings are other than NORMAL. 5 Indication of skin tone detail

color operation

6 Indication of Iris level opera-

tion

7 Indication of FAW operation FAW : Indicated when Full Auto White Balance is ON. 8 Gain operation indication * dB : Indicates gain value when gain is other modes than 0 dB and ALC. 9 Indication of various function

operations

0 Indication of DR-HD100 Oper-

ation

REC : During recording PLAY : During playback FF : During fast forward REW : During rewind STL : During still picture playback mode FWD : During playback in forward direction (FWD1: About ×2 speed, FWD2: About ×5 speed, FWD3:

About ×10 speed)

REV : During playback in reverse direction (REV1: About ×2 speed, REV2: About ×5 speed, REV3:

About ×10 speed) STOP : Stop mode (Tape protect mode) EJECT : Cassette being ejected

- - - : No tape loaded

Whether or not the date and time should be displayed as well as the display style are set on the TIME/ DATE menu.

indications and the VTR mode indication 2 are turned off and the LCD BRIGHT indicator is displayed. (Example) BRIGHT +5 •••••+•••••O Numeric value: Any of –5, –4, –3, –2, –1, 0, +1, +2, +3, +4, +5.

SD : Indicated when skin tone detail is ON.

I : Displayed when the AE LEVEL setting is other than NORMAL

FOCUS : Displayed when the Focus Assist function is ON. SKIN AREA : Blinks while the skin detail color area is displayed. ALC : Displayed when ALC function alone is ON. FAS : Displayed when the Full Auto Shooting function is ON. S : Displayed when the SHUTTER function is ON.

When a DR-HD100 (HDD unit by FOCUS enhancements) is connected, its operation status is displayed. (For details, refer to the DR-HD100 INSTRUCTION MANUAL.)

CONTROLS, INDICATORS AND CONNECTORS

Indications on the LCD Monitor and in the Viewfinder (Cont’d)

STATUS 1 Screen

568

•STATUS 1 In addition to the information on the STATUS 0 screen, this screen displays the following items.

No. Item Contents

1 VIDEO FORMAT display Displays the currently selected video format.

2 Time Code (TC)/User’s Bits

(UB) indication

3 Remaining tape indication Remaining tape indication (displayed in 1-minute steps)

4 Voltage indication (Example) 7.0V: Indicates remaining battery level in 0.1V steps.

Allows you to select the REC item on the VIDEO FORMAT menu screen. X See page 64. You can switch this display ON/OFF using the FORMAT item on the LCD/VF [2/3] menu screen. X See page 75.

Indicates the time code (h:m:s:frame) or user’s bits data.

(Example) Time code TC 00 : 00 : 00 : 00

Colon (:) when non-drop frame mode Dot (.) when drop frame mode

User’s bits UB FF EE DD 20

Whether or not to display this item is set with the TC/UB item on the LCD/VF [2/3] menu screen. X See page 75. Whether the time code or user’s bits should be shown is selected with the TC DISPLAY switch inside the LCD door.

This indicator blinks when remaining tape time is equivalent to less than 3 minutes. Whether or not to display this item is set with the TAPE REMAIN item on the LCD/VF [2/3] menu screen. X See page 75. * When inserting a brand-new tape, the remaining tape time is not indicated.

When the tape has been run, the indication will appear. * The remaining tape indication is to be regarded only as a guide. * When the unit is used at low temperatures, it may take a while before the indication of the remaining tape

time appears.

CONTROLS, INDICATORS AND CONNECTORS

No. Item Contents

5 Audio sampling frequency in-

dication

6 Audio level meter indication Displays the CH-1, CH-2 audio level meters.

7 Standard audio level indication The level at which audio is recorded on the tape is indicated by “O”.

8 Iris indicator display M: Iris set higher than normal

9 Iris F-value indication Indicates the F-number of the connected lens.

0 Filter position indication Indicates the current filter position.

32 K : Indicated when the AUDIO MODE item on the AUDIO/MIC [1/2] menu screen is set to 32 K. (Au-

dio is recorded with 12-bit, 32 kHz sampling.)

48 K : Indicated when the AUDIO MODE item on the AUDIO/MIC [1/2] menu screen is set to 48 K. (Au-

dio is recorded with 16-bit, 48 kHz sampling.)

X See page 72.

Whether or not to display this item is set with the AUDIO item on the LCD/VF [2/3] menu. X See page 75.

–20 dB, –12 dB X See “AUDIO REF.LEVEL” on page 72.

–20 dB –12 dB

CH-1 OOOOOOOOO\\\] CH-2 OOOOOOOOO\\\]

b: Iris set to normal N: Iris set lower than normal

OPEN, F2, F2.8, F4, F5.6, F8, F11, F16, CLOSE It is not displayed when the lens is removed. For some lenses, no display appears. The indication can be switched ON/OFF with the F.NO/IRIS IND. item on the LCD/VF [1/3] menu screen. X See page 74.

No display: FILTER OFF ND1: FILTER ND1 (1/4ND) ND2: FILTER ND2 (1/16ND) The indication can be switched ON/OFF with the FILTER item on the LCD/VF [1/3] menu screen. X See page 74.

CONTROLS, INDICATORS AND CONNECTORS

Indications on the LCD Monitor and in the Viewfinder (Cont’d)

STATUS 2 Screen STATUS 3 Screen

•STATUS 2 This screen displays the camera setup statuses. Event display is not available while this screen is displayed.

Indication Indication Contents

FILE FILE F CAM1 [********], CAM2 [********], and EXT1 - 4 [********] * indicates SUB NAME X See page 83-85.

FULL AUTO ON, OFF

GAIN 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC

SHUTTER (When STEP is selected)

WHITE BAL A<##00K>, B<##00K>, PRESET<##00K>, FAW

AE LEVEL –3, –2, –1, NORMAL, +1, +2, +3

FILTER OFF, ND1 (1/4ND), ND2 (1/16ND)

ZEBRA 60-70%, 70-80%, 85-95%, OVER 95%, OVER 100%

REMAIN Displays the remaining tape (minutes) AUDIO Displays the audio sampling frequency and the audio level adjustment mode (Ex: 32K (CH1 Z CH2 a) Z (for AUTO

A F symbol is displayed when a menu setting read from LOAD FILE was changed. The display disappears when the setting is saved using STORE FILE.

OFF, 1/6, 1/6.25, 1/7.5, 1/12, 1/12.5, 1/15, 1/24, 1/25, 1/30, 1/48, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (When VARIABLE is selected) 1/24.01 - 1/1998.0 (Displayed when FAS or ALC mode is selected) EEI *The range for the shutter speed differs depending on the video format. X See page 71.

For A and B, ## represents 23, 25, 28, 30, 32, 34, 37, 43, 52, 65, or 80. For PRESET, 32 or 56.

mode) a (for MANUAL mode)

•STATUS 3 Displays a list of setting statuses for USER1, 2, and 3 as well as LENS RET item on the SWITCH MODE menu screen. X See page 71. Events are not displayed while these statuses are being displayed.

Indication Indication Contents

USER1 USER2

USER3 NONE, BARS, PRESET TEMP., B.STRETCH1, B.STRETCH2, B.STRETCH3, B.COMPRESS1, B.COMPRESS2,

LENS RET RET, FOCUS ASSIST

NONE, BARS, PRESET TEMP., B.STRETCH1, B.STRETCH2, B.STRETCH3, B.COMPRESS1, B.COMPRESS2, B.COMPRESS3, AE LEVEL+, AE LEVEL–, RET

B.COMPRESS3, RET

•STATUS 4 This screen only displays VTR mode indication, date and time, event display and alarm indications. * Whether or not date and time should be displayed and the display style are set on the TIME/DATE menu screen. X See “Displaying the Time and Date on the Screen” on page 38.

CONTROLS, INDICATORS AND CONNECTORS

 Status Screen in VTR MODE

No. Item Contents

1 VIDEO FORMAT display Displays the video format recorded on the tape when in VTR mode.

You can switch this display ON/OFF using the VIDEO FORMAT item on the LCD/VF [2/3] menu screen. X See page 75.

MEMO

This camcorder cannot play back or output tape recorded in HDV 1080i format. “INVALID TAPE!” is displayed in the event display area 4.

2 Time code (TC) and user’s bits

(UB) display

3 Remaining tape time Remaining tape indication (displayed in 1-minute steps)

4 Event display Displays messages related to VTR operations. X See page 89-90. 5 Audio sampling frequency in-

dication

6 Audio level meter indication Displays the audio level meters during playback.

7 VTR mode indication Indicates the VTR operation status

8 Time/Date indication Recorded data are displayed during playback, fast forward, and rewind.

9 Voltage indication (Example) 7.0V : Indicates remaining battery level in 0.1V steps. 0 Audio Lock indication Displayed when the audio signal from DV recording or playback is locked to the video signal.

Displays the time code data being recorded (hour, minute, second, frame) when in VTR mode. You can switch this display ON/OFF using the TC/UB item on the LCD/VF [2/3] menu screen. X See page 75. You can select to display either the time code or the user’s bits using the TC DISPLAY switch in the LCD door.

This indicator blinks when remaining tape time is equivalent to less than 3 minutes. Whether or not to display this item is set with the TAPE REMAIN item on the LCD/VF [1/2] menu screen. X See page 75. * When inserting a brand-new tape, the remaining tape time is not indicated.

When the tape has been run, the indication will appear. * The remaining tape indication is to be used only as a guide. * When the unit is used at low temperatures, it may take a while before the indication of the remaining tape

time appears.

The audio sampling frequency used for the recording is displayed during playback. (32 K, 48 K, 44.1 K)

Whether or not to display this item is set with the AUDIO item on the LCD/VF [2/3] menu screen. X See page 75.

STBY, STOP, PLAY, REC, FF, REW, FWD, REV, STL, - - - (No tape loaded), SLOW: During variable playback in forward direction (Displayed when using non-linear editing software.) (SLOW+1: About ×0.1 speed, SLOW+2: About ×0.2 speed, SLOW+3: About ×0.5 speed) During variable playback in reverse direction (Displayed when using non-linear editing software.) (SLOW–1: About ×–0.1 speed, SLOW–2: About ×–0.2 speed, SLOW–3: About ×–0.5 speed)

During recording, the data from the IEEE1394 connector is displayed. (GY-HD110U/GY-HD111E only) Whether or not the date and time should be displayed and the display style are set on the TIME/DATE menu screen. X See page 79. When the date and time have not been set, the following indication appears.

- -/- -/- - - -: - -: - -

CONTROLS, INDICATORS AND CONNECTORS

Indications on the LCD Monitor and in the Viewfinder (Cont’d)

 Magnified Status Indications on the LCD Monitor

The characters on the status screens can be showed alone in magnified size on the LCD monitor. * When this unit is being operated with an Anton Bauer battery or IDX battery, characters are displayed in magnified size.

DISPLAY button

LEC

-1 C

PLAY

REG

266S

1. Set the LCD+VF item on the LCD/VF [3/3] menu screen to ON. (X See page 76.)

2. When the DISPLAY button is pressed for a short time while the LCD monitor is displayed, the displayed contents change

every time the DISPLAY button is pressed. (Only when operating the GY-HD110 with the Anton-Bauer or IDX battery).

Only image displayed

Image and characters displayed

No. Item Contents

1 Audio Lock Indicator Displayed during recording and playback when the audio signal is locked to the video signal. 2 Time Code Generator Setting

Indicator

3 Drop/Non-drop Indicator Displayed during playback of a tape recorded in drop frame or non-drop frame mode.

4 Indication of DR-HD100 Oper-

ation

MEMO

When characters indicating the status are displayed in magnified size on the LCD monitor, the viewfinder display the image.

Characters shown enlarged

Indicates the set status of the TC GENE switch on the side section. FREE : TC GENE switch is set to PRESET-FREE RUN MODE. RECR : TC GENE switch is set to PRESET-REC RUN MODE. REGN : TC GENE switch is set to REGEN MODE. DUPL : There is 1394 input in VTR mode and TC DUPLI. menu is set to ON.

DF : During playback of a tape recorded in drop frame mode. NDF : During playback of a tape recorded in non-drop frame mode.

When a DR-HD100 (HDD unit by FOCUS enhancements) is connected, its operation status is displayed. (For details, refer to the DR-HD100 INSTRUCTION MANUAL.)

TOP MENU screen (Camera mode)

CONTROLS, INDICATORS AND CONNECTORS

 Auto White Balance Indication (Camera

mode only)

The AUTO WHITE indication and the result of the operation are displayed during the auto white balance adjustment operation. X See “White Balance Adjustment” on page 45.

 Menu Setting Screen

Screen used for making various settings. The Menu Setting Screen appears when the STATUS button is pressed for 1 second or more. X See “Setting Menu Screens” on page 62.

 Alarm Message Display

• The following alarm messages are displayed while the STATUS (0, 1, 4) screen is shown in the Camera mode, or a STATUS screen is shown in the VTR mode. If an alarm is generated while the STATUS 2, 3 screen is shown, the STATUS 0 screen returns to display the alarm. X See page 89.

• When an abnormality occurs in the VTR, a warning message with an error code is displayed. X See page 89-90.

Alarm display area

 Safety Zone Indication (Camera mode only)

The indication of the following safety zone and center mark indications can be turned ON/OFF with the SAFETY ZONE item and CENTER MARK item on the LCD/VF [1/3] menu screen. X See page 74. In addition, the safety zone display is on or off depending on the REC item setting and the ASPECT item setting in the VIDEO FORMAT menu screen, as shown below.

SAFETY ZONE OFF 4:3 14:9 16:9 16:9+4:3

CENTER MARK - OFF ON OFF ON OFF ON OFF ON

REC ASPECT

DV-60I DV-24P DV-24PA DV-50I DV-25P

HDV-SD60P HDV-SD50P HDV-HD30P HDV-HD25P HDV-HD24P

4:3

16:9

[16:9]

Cannot be selected

CONTROLS, INDICATORS AND CONNECTORS

Indications on the LCD Monitor and in the Viewfinder (Cont’d)

When not using an Anton Bauer battery or IDX battery, or when using these batteries and the LCD+VF item in the LCD/ VF [3/3] menu is set to OFF, the LCD monitor and viewfinder (VF) displays are as shown below.

LCD Monitor Status LCD Display VF Display

LCD Closed Normal LCD OFF ON

Inverted LCD ON OFF

LCD Open Normal LCD ON OFF

Inverted LCD ON OFF

When using an Anton Bauer battery or IDX battery and the LCD+VF item in the LCD/VF [3/3] menu is set to ON, the LCD monitor and viewfinder (VF) displays are as shown below.

LCD Monitor Status LCD Display VF Display

LCD Closed Normal LCD OFF ON

Inverted LCD ON ON

LCD Open Normal LCD ON ON

Inverted LCD ON ON

Inverted LCD

DISPLAY button

Normal LCD

T C

MAN

LCD open 40° or more

LCD close less than 40°

MEMO

• You can switch between the LCD monitor and the viewfinder by holding down the DISPLAY button for about 2 seconds.

• After you set up the function that switches the display between the LCD monitor and the viewfinder by holding down the DISPLAY button, the display mode is cancelled by the LCD monitor open/close and normal/inverted operations.

• If the LCD monitor is closed inside the camcorder with the screen in the normal display orientation, holding down the DISPLAY button does not work.

• You can set the LCD monitor and viewfinder to display simultaneously by selecting the VF+LCD item in the LCD/ VF [3/3] menu display. (Only when this unit is being operated with an Anton Bauer battery or IDX battery) X Seepage76.

PREPARATIONS

Basic System

SHOULDER BELT

EARPHONE

COMPONENT CABLE RCA pin

MICROPHONE

FOCUS MANUAL UNIT *1 HZ-FM13 (FUJINON)

HZ-FM15 (C ANON)

1/3 ZOOM LENS Th13 × 3.5BRMU (FUJINON)

FOCUS MANUAL UNIT *1

ZOOM SERVO UNIT

Wide Converter

HZ-ZS13B

WCV-82SC

MICROPHONE

MACRO

1/3 ZOOM LENS Th16 × 5.5BRMU (FUJINON) (Excluding the CHU/CHE model)

GY-HD110 STANDARD PACKAGE

BATTERY BN-V428

DC cable (2m)

GY-HD110

AC ADAPTER

COMPOSITE CABLE RCA pin

AUDIO CABLE Stereo-mini RCA pin

Bracket Battery

BATTERY BN-V438

Battery Charger

MONITOR

IDX

Anton Bauer

HDD UNIT DR-HD100

Mount Converter

1/2 ZOOM LENS S14 × 7.3B12U (FUJINON) S17 × 6.6BRM (FUJINON) S20 × 6.4B12U (FUJINON) YH16 × 7K12U (CANON) YH19 × 6.7K12U (CANON)

(1/2-1/3) ACM-12

CARRYING CASE

TRIPOD B ASE KA-551

TRIPOD

DOLLY

IEEE1394 CABLE

6P-6P

*1 An HZ-FM13 cannot be used with a Th16×5.5BRMU or S14×7.3B12/U zoom lens.

Use a FUJINON focus manual unit (FMM-8, CFH-3, CFC-12-990). For details, please consult your JVC authorized dealer.

DV VTR

BR-HD50

Non-linear Editing SYSTEM

PREPARATIONS

Attaching the Zoom Lens

1. Loosen the mount ring.

2. Attach the lens with its pin aligned with the hole in the

Hole

3. Tighten the mount ring.

4. Connect the cable connector.

5. Clamp the lens cable.

CAUTION

• Be sure to tighten the mount ring completely. Incomplete

Clamp

• Set the GY-HD110’s power switch to “OFF” before the

Attaching the Microphone (Provided)

Connect the provided microphone to the microphone holder.

1. 3. Knob

2. Microphone

Microphone holder

5. Clamp

Provided microphone is a phantom microphone.

1. Turn the knob on the microphone holder anticlockwise to

2. Place the microphone in the microphone holder.

3. Turn the knob on the microphone holder clockwise to

4. Connect the microphone cable to the INPUT1 or INPUT2

5. Attach the microphone cable to the clamp.

6. Make sure to perform the correct setting for use of a phan-

mount.

tightening may result in the lens dropping off or disturbed back focus.

zoom lens is attached or detached.

loosen it and open the microphone holder.

Place the microphone toward the front to prevent it from interfering with the cassette cover.

secure the microphone.

input connector on the GY-HD110.

tom microphone. X See page 48.

4. INPUT1, 2 connector

How to Attach the Viewfinder

Knob

Taking off the viewfinder

To attach the viewfinder, slide it in the direction of the arrow.

To take off the viewfinder, pull the knob in the direction of the arrow as you slide the viewfinder.

Inserting an SD Memory Card

Cutout

SD memory card cover

PREPARATIONS

By using an SD memory card, you can save and call up menu settings and camera settings for this camcorder. X See “FILE MANAGE Menu Screen” on page 83.

Check that the POWER switch is OFF.

 Inserting an SD Memory Card

1. Open the SD memory card cover.

2. Face the cutout end of the SD memory card inward and

insert it in the direction of the arrow.

CAUTION

Be sure not to touch the metal connector area of the SD memory card.

3. Close the SD memory card cover.

 Taking out the SD memory card

1. Push the SD memory card in the direction of the arrow.

• The SD memory card comes out slightly.

2. Pull the SD memory card straight out.

LOCK switch

About the Viewfinder Cable

 About SD Memory Cards

• When you use an SD memory card that was either just purchased or formatted on a device other than this camcorder, format it on this camcorder. X See page 85. Recommended SD memory cards Panasonic: 16 MB or more

• You can write-protect the card so that saved files are not mistakenly erased. Set the switch on the side of the SD memory card to the “LOCK” position.

To reduce the emission of unwanted radio waves, be sure to attach the provided core filter as shown in the figure on the left. z Attach the core filter (black) as close to the camcorder as

possible, as shown in the figure.

Core filter (black)

PREPARATIONS

AC Operation

DC INPUT connector

AC adapter

Ferrite core

POWER lamp

DC cable

To plug outlet

DC OUT connector

The GY-HD110 is operable with AC power supply or battery pack. Use the supplied AC adapter as the AC power supply.

1. After making sure that the power switches of the GY-

HD110 and of the AC adapter are set to OFF, connect the DC cable from the AC adapter to the DC INPUT connector of the GY-HD110 as shown in the illustration.

2. Press the POWER switch of the GY-HD110 to ON. Power

is supplied to the VTR section and the camera.

CAUTION

• When using the DC cable make sure to connect the end of the cable with the ferrite core to the AC adapter.

• Do not remove or connect the DC cable while recording is being performed.

• Do not use any power source with large fluctuations in the power source voltage, power sources generating noise, such as ripples or power sources with lower voltage.

Attach the supplied core filter (gray) as shown in the diagram on the right to reduce unwanted electromagnetic emission.

Core filter (gray)

z Attach the core filter as shown in the diagram on the left to

this unit as near as possible.

 Charging the Built-in Battery

The built-in, rechargeable backup battery retains the date and time and the time code data. The built-in battery is constantly being charge whenever the GY-HD110 is connected to a power supply, but it gradually discharges while the GY-HD110 is disconnected from a power supply. The battery will be fully discharged when the GYHD110 is not used for about three months, in which case the set date and time and time code data are reset. In this case, recharge the built-in battery and then set the date and time and time code data again. However, it is possible to use the GY-HD110 even if the builtin battery is discharged but the date and time and time code data cannot be recorded.

 How to charge

1. Connect the provided AC adapter to the GY-HD110 and

an AC outlet or mount a charged battery on the GYHD110.

2. Set the POWER switch on the GY-HD110 to “ON” or

“OFF” (charging takes places with the POWER switch set to either of the positions.)

3. Leave the equipment in this condition for about 4 hours.

• The built-in battery will remain charged for about 3 months after being charged for about 4 hours.

Battery Operation

PREPARATIONS

AC outlet

AC adapter

CHARGE lamp 1

POWER lamp

CHARGE lamp 2

AC cord

Battery pack

 Charging the Battery Pack

Before use the battery pack should be charged using the provided AC Adapter. * Be sure to pull the DC cable out of the AC adapter when

you charge the battery.

1. Plug the AC cable of the AC Adapter into an AC outlet.

The POWER lamp illuminates.

2. While pushing the battery pack down, slide it in the direc-

tion of the arrow to mount it on the AC Adapter. Charging starts, and the CHARGE lamp blinks green. It changes to light steadily when charging is completed.

3. When charging is completed, remove the battery pack by

sliding it in the opposite direction of the mounting direction.

 Attaching the Battery Pack on the GY-

HD110

If the DC cable is connected to the GY-HD110, unplug the cable.

1. Hold the battery pack with the connector side facing the

GY-HD110.

2. While pressing the battery pack against the GY-HD110,

slide it downward to attach it to the GY-HD110.

Connector

Battery pack

Lock release lever

 Detaching the Battery Pack from the GY-

HD110

Ensure that the POWER switch on the GY-HD110 is set to OFF.

1. While sliding the battery pack lock release lever, slide the

battery pack upward to remove it.

CAUTION

Do not detach the battery pack while recording is taking place.

MEMO

• Do not connect or disconnect the DC cable while operating with a battery pack. The following symptoms may occur if the DC cable is connected or disconnected while operating with a battery pack.

• The power is cut off for a moment when the DC cable is

disconnected.

• Noise to the video and audio signals occurs. Audio sig-

nal are muted.

• When operation is continued with DC input after the battery pack capacity has been used up, set the POWER switch to OFF after the DC power is applied. Then switch ON again.

• If the GY-HD110 is left with the battery pack attached, a small amount of power is consumed even if the POWER switch on the GY-HD110 is set to OFF. Remove the battery pack when the GY-HD110 is not going to be used.

PREPARATIONS

Battery Operation (Cont’d)

 Remaining Battery Power Display

LCD monitor/Viewfinder

When the remaining battery power is nearly exhausted, the following warnings will be generated.  Viewfinder screen or LCD monitor

When a Status screen is displayed (excluding the STATUS 2, 3 screen in the Camera mode)

• Alarm indication: LOW VOLTAGE displayed.

 FRONT and BACK TALLY lamp on camera: Blinks  Monitoring loudspeaker and PHONES jack: Alarm sound

MEMO

After the remaining battery power warnings appear, the GYHD110 automatically stops operation if the battery power operation is continued.

 Battery Recharge Times

Battery pack

BN-V428 Approx. 3 hr. 20 min Approx. 6 hr. 40 min

BN-V438 Approx. 4 hr. 20 min Approx. 8 hr. 40 min

Recharging time of

a single pack

• When charged at temperatures between 20°C (68°F) and 25°C (77°F).

• When charging battery packs after a long storage period, charging time will be longer than indicated above.

• When two battery packs are attached, they will be recharged in the order that they are attached.

Successive recharging

time of two packs

 Operating Time with Battery Pack

When a fully charged battery pack is attached, the approximate continuous operating time is as follows

Battery Pack Continuous Operating Time (at 25°C (77°F))

BN-V428 Approx. 40 minutes

BN-V438 Approx. 60 minutes

• Battery operating time may differ depending on the age of the battery pack, charging conditions and the operating environment, etc. Use the values in the table on the above for approximate reference times.

• Operating time is reduced in areas with a cold environment.

• Operating time is reduced when the power zoom lens and LCD are used frequently.

 Precautions for the Battery Pack

• When the battery pack is not in use, it must be stored in a cool, dry place. Do not leave the battery pack in a place where it might be subject to a high temperature (under direct sunlight in a car, etc.), this could cause leakage of the fluid or shorten service life.

• When the terminal section of the battery pack gets dirty, the operating time will be shortened.

• If the operating time becomes greatly reduced even immediately after recharging, the service life of the battery pack is nearly finished. Purchase a new battery pack.

 Recharging

• Recharge the battery pack after completely discharging it. Repeated recharging with residual charge remaining could result in reduced battery capacity.

• If the battery capacity is reduced by repeating incomplete recharging, or recharging without discharging, once discharge the battery pack completely, then recharge it to restore the battery capacity.

• If the battery pack is recharged with its internal temperature raised immediately after use, recharging may not be performed completely.

• Perform charging in an environment where the temperature is between 10°C (50°F) and 35°C (95°F). 20°C (68°F) to 25°C (77°F) is the ideal temperature range for charging. If the environment is too cold, charging may not complete.

PREPARATIONS FOR OPERATION

SHU

CH-1

CH-2

Turning the Power ON

CH-1 BOTH CH-2 MONITOR SELECT

DISPLAY

ON OFF

VTR

FULL AUTO

VTR indicator

VF BRIGHT

TTE

POWER switch

ND FILTER

OFF

MEN

TAT

AUT

AUDI

OFF

POWER

REC

AUDIO SELECT

LCD BRIGHT

CH-1

AUTO MANU

CAM/VTR

GENE.

CH-2

DISPLAY

ProHD

FREE

REC

REGEN

CAM/VTR button

 Turning the Power ON

1. Set the POWER switch to ON.

The unit turns on in Camera mode.

 The operation differs according to whether the unit is in the

Camera mode or in the VTR mode. The mode switches each time you press the CAM/VTR button. When the mode is switched, the VTR indicator displays the following statuses.

While the mode is being switched : Flashing In VTR mode : Lit In Camera mode : Off

Camera mode

The GY-HD110 enters the Camera mode. The camera image is displayed in the viewfinder or on the LCD monitor. When a recordable videocassette is loaded, the GY-HD110 enters the record-standby mode automatically. “STBY” is displayed in the VTR operation mode indication area of the LCD monitor or in the viewfinder. In this condition, press the REC/VTR trigger button to start recording. * Playback is also possible in the Camera mode.

Playback operation becomes possible when the STOP button is pressed to set the VTR operation mode indicator to indicate “STOP”.

VTR mode

The GY-HD110 enters the VTR mode. The camera image will not be displayed in the viewfinder or on the LCD monitor. When a videocassette is loaded, the GY-HD110 enters the stop mode. “STOP” is displayed in the VTR operation mode indication area of the LCD monitor or in the viewfinder. HDV/DV input is possible through the IEEE1394 connector. (GY-HD110U/GY-HD111E only)

 Turning the Power OFF

1. Place the GY-HD110 in the record-standby or STOP

mode.

2. Set the POWER switch to OFF.

3. Remove the battery pack or the power supply to the DC

INPUT connector. (When the camera is not going to be used for a longer period.)

CAUTION

• Do not set the POWER switch to OFF while recording is taking place. Confirm that the “STBY” or “STOP” indication is shown in the VTR operation mode indication area before the power is turned off. Should the POWER switch accidentally be set to OFF during a recording, wait at least 5 seconds before turning the power on again.

• Always set the POWER switch to OFF before disconnecting the power supply. Do not turn the battery pack or AC power supply OFF while the POWER switch on the camera is still set to ON.

PREPARATIONS FOR OPERATION

Loading/Unloading the Cassette

EJECT switch

Cassette holder

REC/SAVE

switch

Cassette cover

Tape window

 Cassette Loading

Use a videocassette tape marked MiniDV.

• To record, slide the switch on the back for use in preventing accidental erasure to the “REC” side.

• Remove any the tape slack before loading.

1. Turn the POWER switch ON.

2. Slide the EJECT switch on the top panel of the camcorder

to the side. The videocassette cover opens automatically and a videocassette tape can be inserted.

3. Insert a videocassette tape into the videocassette holder.

With the tape window facing out, move the switch on the back of the videocassette up and firmly push the center back of the videocassette straight in as far as it will go.

4. Carefully push the center of the videocassette cover in the

direction of the arrow as far as it will go to close it.

• After the cover is closed, it takes about 10 seconds until recording can begin or the camcorder can enter stop mode.

 If the power is on, the modes are as shown below.

MODE

Camera Record-standby mode STOP mode

VTR STOP mode

REC/SAVE switch

REC SAVE

REC INHIBIT is displayed on the LCD monitor and in the viewfinder.

 Unloading the Cassette

1. Turn the POWER switch to ON.

2. When the camcorder is in shooting standby mode or stop

mode, slide the EJECT switch to the side and wait until the videocassette cover opens completely.

• The LED next to the EJECT switch flashes. A few seconds pass before the videocassette tape is ejected.

3. The LED turns off and the videocassette cover opens.

• Take out the videocassette tape.

4. Carefully push the center of the videocassette cover in the

direction of the arrow as far as it will go to close it.

CAUTION

• When you close the videocassette cover, push it in firmly as far as it will go. If the videocassette cover is not closed properly, it becomes half-locked and the camcorder cannot function. If this happens, firmly push the videocassette cover in again as far as it will go to lock it.

• Do not slide the EJECT switch while recording is in progress. If you slide the EJECT switch while recording is in progress, the tape is ejected.

• Do not leave the videocassette cover open for a long time. Dust or dirt may enter the inside and cause damage.

• Do not touch the videocassette cover or interfere with the eject operation while ejecting is in progress. This will cause damage.

PREPARATIONS FOR OPERATION

Setting and Displaying the Date and Time

The date and time of the built-in clock should be set. Powered by the built-in backup battery the set date and time data continue to count even when the power is switched off.

SHUTTER dial

ND FILTER

OFF

STATUS button

WHT.BAL

POWER

SHUTTER

OFF

STATUS

AUTO

CH-1 CH-2

AUDIO LEVEL

REC

1. POWER switch

4. TC/UB/CLOCK menu screen

5. TIME/DATE menu screen

USER 3USER 2USER 1

AUTO

• The set date and time data are displayed on the LCD monitor or in the viewfinder and recorded on the tape in accordance with the settings made on the menu screen.

 Setting the Date and Time Style

The date and time are set on the menu screen. When setting while observing on a monitor connected to the connector, set the OUTPUT CHAR. item on the OTHERS [1/2] menu screen to ON.

1. Set the POWER switch to ON.

2. Press the STATUS button for 1 second or longer to dis-

play the TOP MENU screen.

3. Rotate the SHUTTER dial to align the cursor (K) with the

TC/UB/CLOCK item, and then press the SHUTTER dial in the direction of the camera body.

• The TC/UB/CLOCK menu screen appears.

4. Rotate the SHUTTER dial to align the cursor (K) with the

TIME/DATE item, and then press the SHUTTER dial.

• The TIME/DATE menu screen appears.

• Set the DISPLAY item on the TIME/DATE menu screen to ON.

5. Make settings on the TIME/DATE menu screen. (This

includes display style, etc.) DATE STYLE : Selects the style for displaying the date.

TIME STYLE : The time can be set to display as a 12-

SEC DISPLAY : To select whether or not indication of

TIME SHIFT : Adds time to the built-in clock (time

1Rotate the SHUTTER dial to align the cursor (K) with the

item to be set, and then press the SHUTTER dial.

• The setting area of the selected item starts blinking.

2Rotate the SHUTTER dial to change the setting, and

then press the SHUTTER dial.

• The setting area stops blinking and the setting is entered.

YY/MM/DD (Year, month, day) MM/DD/YY (Month, day, year) DD/MM/YY (Day, month, year)

hour or 24-hour clock system.

seconds should be displayed on the screen.

compensation) and displays it. The adjusted time is also recorded on the tape.

MEMO

The TIME STYLE, SEC DISPLAY, DATE STYLE and TIME SHIFT items can also be set and changed after the date and time have been set.

PREPARATIONS FOR OPERATION

Setting and Displaying the Date and Time (Cont’d)

1. TIME/DATE menu screen

Date

Time (Hour:Min)

CLOCK ADJ UST menu screen

Date Time

 Setting the Date and Time

1. Display the CLOCK ADJUST menu screen.

Select the CLOCK ADJUST item on the TIME/DATE menu screen.

2. Set the date and time.

The blinking digit is the one to be set. 1When the SHUTTER dial is pressed, the blinking digit

moves to the next digit.

2When the SHUTTER dial is rotated, the value of the

blinking digit changes. When the SHUTTER dial is rotated upward, the value becomes higher. When rotated downward, the value becomes smaller.

3Repeat the procedure described in 1 and 2 above to

set the day, month, year, hours, minutes. The digits indicating seconds cannot be set.

4Press the SHUTTER dial in sync with a time signal to

enter the date and time precisely.

3. When all the settings are completed, rotate the SHUTTER

dial to align the cursor with the PAGE BACK item, and then press the SHUTTER dial.

• The TIME/DATE menu screen returns.

4. To return to the normal screen, use either of the following

methods. Press the STATUS button or Return to the TOP MENU screen and then select the EXIT item on the TOP MENU screen before pressing the SHUTTER dial.



Displaying the Time and Date on the Screen

Whether or not the time and date should be displayed on the screen and how to display them are set on the TIME/DATE menu screen.

1. Display the TIME/DATE menu screen.

Select the TC/UB/CLOCK item on the TOP MENU screen.

1 2Select the TIME/DATE item on the TC/UB/CLOCK

menu screen.

2. Set the TIME/DATE menu screen.

• DISPLAY item : Sets whether or not date and time

• DISPLAY MODE item BARS : Displayed when outputting the color

CAM : Displayed when outputting the color

BARS+CAM :

• DISPLAY STYLE item

DATE+TIME : Date and time are displayed. DATE : Date only is displayed. TIME : Time only is displayed.

should be displayed. Set to ON to display the indications.

: Sets the video output mode in which

date and time should be displayed.

bar.

camera image. Date and time are always displayed.

: Sets the style in which the date and

time are displayed.

 Display of date and time in the various operation modes. In Camera mode : The date and time of the internal

clock are displayed.

In VTR playback mode : The date and time recorded on the

tape are displayed.

In VTR stop mode : The last read date and time values

are displayed. When an HDV/DV signal is input from the IEEE1394 connector

: Displays the date and time of the

HDV/DV input. (GY-HD110U/GY-

HD111E only)

Displaying Time Code

PREPARATIONS FOR OPERATION

1. LCD/VF [2/3] menu screen

TC DISPLAY switch TC GENE. switch

Time code indication

STATUS 1 screen

(Example) Time code indication

00:00:00:00

User’s bits indication

FF EE DD 20

The GY-HD110 records SMPTE-standard (NTSC) or EBUstandard (PAL) time codes and user’s bits. In the play mode or the record mode, the reproduced time codes or user’s bits are shown on the LCD monitor or in the viewfinder.

• Time code data cannot be output through the unit’s con-

nectors.

The time codes or user’s bits can be shown on the LCD monitor or in the viewfinder during playback and recording as follows. (Status screen)

 Setting

1. Set the TC/UB item on the LCD/VF [2/3] menu screen to

ON.

• Time codes or user’s bit data are displayed on the STATUS screen.

2. Whether time codes or user’s bit data should be displayed

is selected with the TC DISPLAY switch inside the LCD door.

TC : Time codes are displayed. UB : User’s bit data is displayed.

 Time code input entered the IEEE1394

connector (GY-HD110U/GY-HD111E only)

Pressing the STOP button for 1 second in the EJECT or stop mode displays the DV input time code data or user’s bit data from the IEEE1394 connector on the STATUS screen.

DTCG : The time code data from the IEEE1394 connector DUBG : The user’s bit data from the IEEE1394 connector

To return to display of the original time code or user’s bit, press the STOP button. (Display of the normal time code or user’s bit is also restored by performing VTR operation.)

MEMO

• To record DV input time cord and user’s bit from the IEEE1394 connector, set the TC DUPLI. item on the TC/ UB/CLOCK menu screen to ON. X Seepage77.

• To maintain the continuity of time code data, use with the TC GENE. switch set to REGEN mode when recording DV input signal from the IEEE1394 connector.

• There is no timecode display for HDV input.

CAUTION

A time code with a duration of more than 2 hours may not be displayed correctly by DV components for general consumer use, as some of these lack the capability to display longer time codes.

PREPARATIONS FOR OPERATION

Recording Time Codes in Continuation of Time Codes Recorded on Tape

The GY-HD110 also incorporates a time code reader. Therefore, when the unit enters record mode from record-standby mode, it can read the time code data recorded on the tape and record time codes in continuation of the existing data. The recorded user’s bit data are identical to the user’s bit data recorded on tape. * However, approximately ±1-frame variations may occur in

scene accuracy. To enable this function, set the time code related switches as follows before starting recording.

 Setting

Set the TC GENE. switch inside the LCD door to REGEN.

MEMO

The time code framing mode automatically becomes the mode (drop frame or non drop frame) already recorded on the tape.

Presetting and Recording of Time Code

TC/UB/CLOCK menu screen

(FRAME RATE: 60/30)

Framing mode: Drop frame/ Non-drop setting

The time codes from the internal time code generator can be recorded at the time of recording scenes.

• The TC/UB/CLOCK menu screen differs depending on whether the FRAME RATE item on the VIDEO FORMAT menu screen is “60/30” or “50/25”.

To preset the Time Code, make the following settings.  TC GENE. switch

Set to REC or FREE. REC : The data preset in the time code generator

FREE : The time code starts to run from the time it is

runs only during recording. Use this setting if it is necessary to record continual time codes across different scenes. * However, approximately ±1-frame varia-

tions may occur in scene accuracy.

preset in the time code generator.

TC/UB/CLOCK menu screen

(FRAME RATE: 50/25)

 TC/UB/CLOCK menu screen (FRAME RATE: 60/30)

Use the DROP/NON DROP item to select the framing mode for the time code generator.

DROP : The time code generator’s running method is

set the drop frame mode. Use this setting when placing emphasis on

the recording time. NON DROP

MEMO

Drop frame/Non-drop frame mode

In the NTSC system, the actual number of frames per 1 second is approximately 29.97 frames, but per time code 30 frames are processed. To compensate for this difference, the mode called “drop mode” drops frame 00 and 01 for every minute not divisible by 10. The “non-drop frame mode” is when no frames are dropped and the actual time shift neglected.

 TC/UB/CLOCK menu screen (FRAME RATE: 50/25)

Whether or not user’s bit data should be recorded can be selected with the UB REC item on the TC/UB/CLOCK menu screen.

: The time code generator’s running method is

set to the non drop frame mode.

Use this setting when placing emphasis on

the number of frames.

Time code (hour, min, sec, frame)

PREPARATIONS FOR OPERATION

 Presetting time cord data

The time code and user’s bit data are preset on the TC/UB/ CLOCK menu screen.

1. Display the TC/UB/CLOCK menu screen.

Select the TC/UB/CLOCK item on the TOP MENU screen.

2. Set the time code (hours, minutes, seconds, frames).

1Rotate the SHUTTER dial to align the cursor (K) with TC

PRESET, and then press the SHUTTER dial.

• The first digit of the time code blinks. The blinking digit is the one to be set.

2When the SHUTTER dial is pressed, the blinking digit

changes.

3When the SHUTTER dial is rotated, the value of the

blinking digit changes. When the SHUTTER dial is rotated upward, the value becomes higher. When rotated downward, the value becomes smaller.

4Repeat the procedure described in 2 and 3 above to

set the desired value for all digits.

5After setting the frame digit, press the SHUTTER dial to

make EXECUTE blink. The setting values are confirmed when the SHUTTER dial is pressed again. To cancel the setting, select CANCEL and press the SHUTTER dial.

3. When all the digits are set

• Press the STATUS button to return to the normal screen or

• Rotate the SHUTTER dial to align the cursor (K) with the PAGE BACK item, and then press the SHUTTER dial to return to the TOP MENU screen.

 Presetting user’s bit data

The user’s bit data are preset with the UB PRESET item on the TC/UB/CLOCK menu screen. The method for setting is the same as the method for setting the time code described above.

• The user’s bit can be specified using numerals or alphabetic letters from 0 to F for each digit.

• To record user’s bit data, set the UB REC item to ON.

CAUTION

It is not possible to set all the digits of the user’s bit data to “F”. Reading of the data during playback will not be possible for an all-F setting.

 Zero-resetting the Time Code or User’s

Bit Data

This is performed with the TC or UB PRESET item on the TC/ UB/CLOCK menu screen. (Performed separately for the time code and the user’s bit data.)

1Rotate the SHUTTER dial to align the cursor (K) with the

TC or UB PRESET item, and then press the SHUTTER dial.

2Rotate the SHUTTER dial to select ZERO PRESET as the

setting value, and then press the SHUTTER dial.

MEMO

When a menu screen is not being displayed, you can zero reset the time code data by simultaneously holding down the USER2 button and the STOP button for about 1 second.

PREPARATIONS FOR OPERATION

Stat

Synchronizing with the Time Code of the IEEE1394 (DV)-Connected Master Unit

You can synchronize the time code when performing multi-camera recording. The internal time code generator will be synchronized with the timed code in the signal input from the IEEE 1394 terminal. After synchronization (slave lock), the internal time code generator continues to run even if the IEEE1394 cable is disconnected.

Master unit Slave unit

MACRO

switch to the [DV] side.

* You can use the GY-HD110U or GY-HD111E as a slave unit. You cannot use the GY-DV110E as a slave unit.

IEEE1394 terminal IEEE1394 terminalSlide the IEEE1394

IEEE1394 cable

MACRO

Slide the IEEE1394 switch to the [DV] side.

 Connections

Connect the master unit and the slave unit with an IEEE1394 cable.

 Settings and Operations

• Master unit (GY-HD100U/GY-HD100E/GY-HD101E/GY-HD110U/GY-HD110E/GY-HD111E)

1. Set the IEEE1394 switch on the left side to [DV].

2. Set to Camera mode.

3. Set the recording format to DV-60I or DV50I.

4. Set the TC GENE. switch to [FREE].

• Slave unit (GY-HD110U/GY-HD111E)

1. Set the IEEE1394 switch on the left side to [DV].

2. Set to VTR mode.

3. Check that the camera image from the master unit is input.

us display

4. Set the TC GENE. switch to [FREE] and the TC DISPLAY switch to [TC].

5. Set to STOP mode or EJECT mode.

6. Press the STOP button for 1 second.

• The DV input time code data from the IEEE1394 terminal is displayed in the status display. (When status is in magnified size, images and characters are displayed.)

DTCG

TC SLAVE LOCK ?

EXECUTE USER1 CANCEL

7. Press the USER1 button to begin slave lock.

(To skip slave lock, press the USER3 button and clear the status display.)

8. Check that the time code that is synchronized with the master unit is running.

9. Disconnect the IEEE1394 cable.

00 : 00 : 00 : 00

USER3

MEMO

 Slave lock cannot be performed in the following instances.

• Slave unit is in CAMERA mode

• Slave unit is in VTR mode and there is no DV signal

• The TC GENE. switch on the slave unit is not set to FREE

• The slave unit is GY-HD110E

• HDV format

 If slave lock is performed in DV format and is then switched to HDV format, frame digit may deviate.

 If power is turned off, slave lock is disabled. Perform slave lock operation again.

 Slave lock cannot be performed for UB (User’s bit).

 If the frame rate for the master unit and slave unit is not synchronized, it will not run properly. Synchronize frame rate before

using.

 If DROP/NON DROP is not synchronized, it will not run properly. Synchronize DROP/NON DROP before using.

Screen Adjustment

PREPARATIONS FOR OPERATION

LCD monitor direction, angle, screen brightness, etc. can be adjusted.

180° up

90° down

PEAKING volume

LCD BRIGHT button

LCD lock release lever

 Adjusting the Direction and Angle of the

LCD monitor

• With the LCD door in the open condition, rotate the LCD door.

• It can be turned 180° in upward direction and 90° in downward direction. When turned 180° upward direction, the LCD monitor can be viewed from the lens side (vertically inverted image).

 Adjusting the LCD monitor

• PEAKING: Adjusts the contour of the LCD monitor.

• LCD BRIGHT: Adjusts the brightness of the LCD monitor.

Adjustments are made on the LCD/VF [1/3] menu screen. X Seepage74.

• LCD MIRROR MODE: Sets the LCD monitor to display mirrored images when shooting facing the subject.

Adjustments are made on the LCD/VF [3/3] menu screen. X See page 76.

• LCD CONTRAST: Adjusts the contrast of the LCD monitor.

• BLACK & WHITE: Sets the LCD monitor and viewfinder to black and white display.

Viewfinder Adjustment

Eyepiece focusing ring

VF BRIGHT volume

PEAKING volume

Sliding securing ring

Eyepiece

Viewfinder mount base

 Direction of the Viewfinder

Adjust the position and angle of the viewfinder.

 Diopter Adjustment

Rotate the eyepiece focusing ring until the viewfinder screen image is clearly visible.

 Adjustment of the Viewfinder Screen

• PEAKING: Adjusts the contour of the LCD monitor and the viewfinder screen.

•VF BRIGHT: Adjusts the brightness of the viewfinder screen.

Adjustments are made on the LCD/VF [3/3] menu screen. X See page 76.

• VF CONTRAST: Adjusts the contrast of the viewfinder screen.

• BLACK & WHITE: Sets the LCD monitor and viewfinder to black and white display.

MEMO

The screen size of the viewfinder can be changed by selecting the desired size with the ASPECT item on the VIDEO FORMAT menu screen (4:3 or 16:9).

PREPARATIONS FOR OPERATION

Back Focus Adjustment

It is only necessary to perform this when the lens is attached for the first time or when focusing is not correct in both the telephoto and wide-angle positions.

• It is easier to adjust back focus when the subject is more than 3 meters from the camera. The optimal subject for this adjustment is a Siemens star chart.

1. Set the IRIS mode switch to M (Manual).

2. Set the zoom mode to M (Manual).

3. Open the iris by turning the iris ring.

If the illumination is too strong, reduce it or move to a darker place.

4. Turn the zoom lever until the lens is at the maximum tele-

photo position.

5. Bring the subject into focus.

6. Set the lens to maximum wide-angle.

7. Loosen the back focus ring retaining knob.

8. View the same subject and adjust the back focus ring for

the best possible focus.

9. Repeat steps 4. through 8. about three times for fine

adjustment until the subject remains in focus in both the telephoto position and the wide-angle position.

10.Tighten the back focus ring retaining knob to secure the

ring.

Siemens star chart

White Balance Adjustment

Iris mode switch

PREPARATIONS FOR OPERATION

Since the color of light (color temperature) varies depending on the light source, it is necessary to re-adjust the white balance when the main light source illuminating the subject changes.

 White Balance Adjustment

Two kinds of white balance adjustment results can be stored in memories AUTO A and AUTO B.

ND filter

WHT.BAL switch

POWER switch

AWB button

During operation Result message

Improper object Insufficient illumination

 Adjustment procedure

1. Set the following switches.

• Set the POWER switch to ON.

• Set the IRIS mode switch of the lens to A (Auto).

• Set the FULL AUTO switch to OFF.

2. Set the ND filter switch according to the current lighting.

3. Set the WHT.BAL switch to A or B.

4. Place a white object near the center of the screen under

the same lighting conditions as the target subject and zoom in to fill the screen with white.

5. Press the AWB (Auto White Balance) button.

“AUTO WHITE A, B OPERATION” is displayed in the viewfinder while the auto white balance adjustment circuit operates. When correct white balance is obtained, the approximate color temperature is displayed together with “AUTO WHITE A, B OK” for about 5 seconds.

 Error messages

If the adjustment ends abnormally, an error message, as described below, blinks for about 5 seconds.

• NG: OBJECT (Improper object) Displayed when there is not enough white color on an object or the color temperature is not suitable. Replace the color temperature conversion filter or use another white object and re-adjust the white balance.

• ERROR: LOW LIGHT (Insufficient illumination) Displayed when the illumination is dim. Increase the illumination and then re-adjust the white balance.

• ERROR: OVER LIGHT (Excessive illumination) Displayed when the light is excessively bright. Decrease the illumination and then re-adjust the white balance.

Excessive illumination

CAUTION

• Do not adjust using any highly reflective objects, such as metal, etc., as this may result in improper white balance adjustment.

• The FAW (Full Auto White balance) function cannot provide optimum white balance with a subject outside the FAW adjustment range, for example when it contains only a single color or not enough white color.

• The accuracy of the FAW (Full Auto White balance) is inferior to that of the Auto white balance.

• When the power is turned on with the FAW mode selected, it takes about 10 seconds for the FAW adjustment to be completed. Do not shoot within this interval.



Full Auto White Balance (FAW)

The FAW function adjusts the white balance value automatically as the lighting condition changes.

This mode is convenient when you have no time to adjust the white balance or when the camera is moved frequently in and out of places under different lighting conditions.  Setting procedure

The FAW function can be activated with the FAW item on the SWITCH MODE menu screen. The FAW function can be allocated to one of the white balance switching switches A, B, or PRESET. X See page 71.

SETTING AND ADJUSTMENTS BEFORE SHOOTING

Setting the Video Format

Set the video format using the FRAME RATE item and the REC item on the VIDEO FORMAT menu screen.

SHUTTER dial

STATUS button

 Setting the FRAME RATE Item

1. Press the STATUS button for at least 1 second.

• The TOP MENU screen is displayed.

2. Turn the SHUTTER dial and bring the cursor (K) to the

VIDEO FORMAT.. item and press the SHUTTER dial.

• The VIDEO FORMAT menu screen is displayed.

3. Turn the SHUTTER dial and bring the cursor (K) to the

FRAME RATE item and press the SHUTTER dial.

• The setting for the selected item flashes and can be changed. “CHANGE THE SYSTEM” is displayed on the screen.

4. Turn the SHUTTER dial, change the setting and push the

SHUTTER dial.

• The setting stops flashing and is temporarily set.

• Move the cursor (K) to the EXECUTE item and EXECUTE flashes.

5. Push the SHUTTER dial.

• “REBOOT! SYSTEM CHANGE” is displayed on the screen and after a few seconds the system is rebooted.

 Setting the REC Item

Set the REC item using the same steps as for the FRAME RATE item.

MEMO

• If you change the FRAME RATE item setting, the system is rebooted.

• The synchronous video signal is momentarily disturbed when the REC item setting is switched.

 About the Motion Smooth Function

When you set the MOTION SMOOTH item on the CAMERA PROCESS [2/2] menu screen to ON with the REC item set to HDV-HD30P, HDV-HD25P or HDV-HD24P, the video can be played back more smoothly than with normal progressive video. X See page 68.

This function is only enabled during playback. It is not available during live output or shooting.

Camera Settings

VTR indicator

SETTING AND ADJUSTMENTS BEFORE SHOOTING

1. Set the switch positions.

A. [GAIN] switch: Set to L ( 0 dB). B. [WHT. BAL] (Auto White Balance) switch: Set to A or B.

2. Set the lens’ iris mode switch to “A” (Auto iris side).

3. Select the ND filter.

ND FILTER Suitable Location

OFF OFF Indoors, dark outdoors

1 1/4ND Outdoors under clear sky

2 1/16ND Outdoors under extremely clear sky

4. Set the shutter speed to OFF with the SHUTTER dial.

CAM/VTR button

Screen Size (4:3/16:9) Mode Selection

ASPECT item

4:3 4:3 TV

16:9 TV

4:3 TV16:9

[SQUEEZE]

4:3 TV

[SIDE CUT]

4:3 TV

[LETTER]

16:9 TV

The screen size of recorded images can be selected with the ASPECT item on the VIDEO FORMAT menu screen. X See page 64.

• To record using the standard screen, set ASPECT to 4:3.

• To record using the 16:9 screen, set ASPECT to 16:9.

MEMO

• When you set the REC item on the VIDEO FORMAT

• If the above applies, you can set to display the image in

• In the SAFETY ZONE item on the LCD/VF [1/3] menu

• When the ASPECT item is set to 4:3, the screen that is

menu to HDV format, the ASPECT item is fixed at 16:9 and “[16:9]” is displayed.

the style of 4:3 televisions. X See page 64.

screen, you can display the safety zone for a standard screen as well as a 16:9 screen in the viewfinder or LCD monitor. X See page 74.

displayed may differ depending on the 16:9 television you are using.

SETTING AND ADJUSTMENTS BEFORE SHOOTING

Audio Input Signal Selection

The GY-HD110 is provided with the INPUT1 connector and the INPUT2 connector for audio input.

AUDIO INPUT switch

MONITOR SELECT switch

MONITOR volume

CH-2 INPUT switch

FULL AUTO switch

Monitor speaker

Select the audio from the INPUT1 connector or the INPUT2 connector using the CH-2 INPUT switch for the audio to be recorded in CH-2.

 Selecting the CH-2 channel input con-

nector

Select using the CH-2 INPUT switch. INPUT1 : Inputs the audio from the INPUT1 connector

into CH-2.

INPUT2 : Inputs the audio from the INPUT2 connector

into CH-2.

MEMO

The audio from the INPUT1 connector is also input into CH1 regardless of the setting.

 Selecting the audio signal input

Select the sound to be input to the INPUT1 or INPUT2 connector using the AUDIO INPUT switch. The setting is made for each of INPUT1 or INPUT2 connector.

LINE : Set to this position when connected to audio

equipment, etc. The reference input level is +4 dBs.

MIC : Set to this position when using a dynamic micro-

phone.

MIC+48V : Set to this position when a microphone (phan-

tom microphone) requiring +48 V DC power supply is connected.

CH-1 audio input level volume

CH-2 audio input level volume

STATUS 1 screen

Audio level

Indicator level (reference)

CH-1/CH-2 AUDIO SELECT switch

CAUTION

When connecting a component that does not require +48 V power supply, make sure that the switch is not set to MIC+48V before the component is connected.

MEMO

You can select the normal input level for MIC and MIC+48V in the INPUT1, 2 MIC REF. item on the AUDIO/MIC [1/2] menu screen.

 Adjusting Audio during Recording

For each audio channel, use the CH-1/CH-2 AUDIO SELECT switch to select whether the audio level adjustment should be set to AUTO mode or MANUAL mode.

 Adjusting the audio input level control The audio input level can be adjusted manually when the GYHD110 is in the record, record-standby or stop mode.

1. Set the CH-1/CH-2 AUDIO SELECT switch of the channel

whose audio level that you want to adjust manually to MANUAL.

2. Rotate the audio input level control corresponding to the

audio input level to be adjusted.

• Adjust so that the peak level does not exceed the –3 dB point when a loud sound is input.

SETTING AND ADJUSTMENTS BEFORE SHOOTING

CAUTION

• When the AUDIO INPUT switch is set to MIC, be sure to check that the microphone is connected to the INPUT1/2 connector. If the microphone is not connected, increasing the audio level could cause noise from the input connector to be recorded on the tape. When the microphone is not connected to the INPUT1/2 connector, set the AUDIO INPUT switch to “LINE” or turn down the audio level control.

• In the FULL AUTO mode, the audio level volume cannot be adjusted with the audio level controls on the CH-1 and CH-2.

MEMO

The reference level for audio recorded on the tape can be set with the AUDIO REF. LEVEL item on the AUDIO/MIC menu screen. (–20 dB or –12 dB) The level will change for both CH-1 and CH-2.

 Monitoring Audio during Recording

The audio input during recording, in record-pause or stop mode can be monitored through the monitoring speaker or earphone.

• Select the audio channel to be monitored using the MONITOR SELECT switch.

CH-1 : The sound input to the CH-1 channel is output. BOTH : The sound input to the CH-1 and CH-2 channels

is output mixed.

CH-2 : The sound input to the CH-2 channel is output.

• The MONITOR volume control adjusts the monitoring volume.

• The loudspeaker or earphone outputs an alarm tone in the case of an abnormal condition occurring in the unit. An alarm tone is also output when the tape end is reached or when the battery is running down. * Do not increase the audio monitoring volume exces-

sively; otherwise howling with the camera microphone may occur.

PHONES jack

MEMO

• When connecting a stereotype earphone, make the following settings to output stereo sound.

1Set the MONITOR SELECT switch to BOTH. 2

Set the AUDIO MONITOR item on the AUDIO/MIC [2/2] menu screen to STEREO.

• When AUDIO MONITOR item on the AUDIO/MIC [2/2] menu screen is set to “STEREO”, only the audio of CH-1 is output from the monitoring speaker.

• The volume of the alarm tone is set with the ALARM VR LEVEL item on the OTHERS [1/2] menu screen. (OFF/ LOW/MIDDLE/HIGH)

SHOOTING OPERATION

Basic Recording Operation

1. Set the POWER switch to ON.

BACK TALLY lamp

FRONT TALLY lamp

POWER switch

REC trigger button

FOCUS ASSIST button

RET button

2. Start recording.

MEMO

The way the FRONT TALLY and the BACK TALLY lamps flash differ depending on what you set in the FRONT TALLY and BACK TALLY items on the OTHERS [1/2] menu screen. X See page 80.

CAUTION

• The unit enters the stop mode automatically at TAPE END.

• If the REC/VTR trigger button is pressed very quickly and

• A neat transition to the next recorded scene cannot be

• Trial-shooting is always recommended before recording

• The microphone may pick up the sound of the lens’ iris if

• The unit turns on in camera mode.

Press the REC/VTR trigger button on the GY-HD110 to start recording. Once recording has started, the FRONT TALLY lamp and BACK TALLY lamp light red.

If this mode continues for 3 minutes, the mode switches to the tape protect mode.

See “OTHERS [1/2] Menu Screen” on page 80. (LONG

PAUSE TIME item)

repeatedly, or the POWER switch is moved immediately after the trigger button is pressed, the GY-HD110 may not enter the record mode. To remedy this condition set the POWER switch to OFF and wait for 5 seconds or more before turning the power on again.

guaranteed if a recording is ended by turning the POWER switch or DC power supply OFF, or by removing the battery pack.

important events to confirm the recording is satisfactory.

the iris is changed abruptly or the iris is manually moved abruptly during recording.

VTR trigger button

About the QUICK REC START Mode

If the REC/VTR trigger button is pressed immediately after the videocassette is inserted, the mode becomes the QUICK REC START mode that enables quick start of recording. However, when shooting starts in the middle of the tape, a blank space appears as the new scene will not be linked smoothly with the previous image. Also, the time code does not continue. (Some overlap may also occur.)

 About the Focus Assist Function

When you press this button during shooting, the area of focus is displayed in blue, red or green, making it easy to focus accurately. X See “LCD/VF [1/3] Menu Screen” on page 74. You can also set this function from the RET button. X See “SWITCH MODE Menu Screen” on page 71. (LENS RET item)

VTR mode indication

1. RET button

SHOOTING OPERATION



Checking Recorded Contents in RecordStandby Mode (Recording Check Function)

This function is available only when the GY-HD110 is in the standby mode. In standby mode, about 5 seconds of the last part of the content recorded in DV format can be played back, and about 7 seconds when the content was recorded in HDV format can be played back.

• The recorded contents can be checked on the LCD monitor, in the viewfinder or on a monitor connected to the video signal output connectors.

• The video image from the VTR section is shown on the LCD monitor, in the viewfinder or on the monitor connected to the video signal output connectors.

1. In the record-standby mode, press the RET button on the

camera lens section.

• The tape rewinds and about 6 seconds of the content recorded in DV format is played back, and about 8 seconds of the content recorded in HDV format is played back. After playback, the camcorder returns to standby mode at the position on the tape where the RET button was pressed.

 If you continue to hold down the RET button, up to about

18 seconds of content recorded in DV format and up to about 20 seconds of content recorded in HDV format can be rewound and played back.

• Pressing the REC/VTR trigger button during playback will put the unit in REC standby mode. The camera will automatically return to recording mode after playback.

 If the Record-Standby Mode Continues

Setting the time before the tape protection mode is engaged The time before the tape protection mode is engaged from the record-standby mode can be set to 5 minutes or 3 minutes with the LONG PAUSE TIME item on the OTHERS [1/2] screen menu. X Seepage80.

When the record-standby mode has continued for about 5 minutes or 3 minutes, the GY-HD110 automatically stops drum rotation in order to protect the tape. (Tape protect mode)

In the tape protect mode, STOP is shown as the VTR mode indication on the LCD monitor and in the viewfinder screen. (STATUS 1 screen)

 To start recording from the tape protect mode, press the

REC/VTR trigger button.

• The drum starts rotating, and recording starts after about 3 seconds.

 To return to the record-standby mode from the tape protect

mode, press the RET button.

CAUTION

This function does not work when using RET button is used as FOCUS ASSIST button.

CAUTION

• This function does not work when using RET button is used as FOCUS ASSIST button.

• This function does not work when the GY-HD110 is in the stop mode.

• During recording check, the following indication will appear if the error rate increases due to head clogging, etc. “HEAD CLEANING REQUIRED!” is shown on the LCD monitor or in the viewfinder. (When the STATUS 0, 1, 4 screen is displayed.)

SHOOTING OPERATION

HEADER REC Function

When the REC/VTR trigger button is pressed while the STOP button is pressed, this function first records the color bar video and the test tone (1 kHz sine-wave) of the built-in signal generator at the beginning of the tape. Then it records the black video signal and the mute audio signal for the duration specified in advance. When the recording is completed, the unit enters the RecordStandby mode. The time code value at the Record-Standby position becomes the time code specified in advance. (HEADER REC function)

• Settings related to the HEADER REC function, such as whether the HEADER REC function should be enabled, the HEADER REC execution duration, and the time code value setting when the HEADER REC recording is completed, etc., are made on the HEADER REC menu screen.

• The HEADER REC function is executed under the following circumstances: CAM/VTR button: Set to CAM mode. In the Record-Standby or Stop mode

Tape beginning

(Example) 30 sec (Example) 30 sec

Color bar video signal Test tone (1 kHz) (Setting range: 0 to 99 sec)

Time code, user’s bits recording Time code, user’s bits recording

Time code: The value specified on the HEADER REC menu screen- HEADER REC time (Example) 23:59:00:00

HEADER REC

Black video signal Mute audio (No sound) (Setting range: 0 to 99 sec)

User’s bits: The value specified for the UB DATA item on the HEADER REC menu screen.

Record-Standby mode

Normal recording

Time code: The value specified on the HEADER REC menu screen. (Example) 00:00:00:00

User’s bits: The value specified for the UB PRESET item on the TC/UB/ CLOCK menu screen. (only when set to REC RUN or FREE RUN mode)

 HEADER REC menu screen contents

Item Function/Initial Setting

START KEY Sets whether the HEADER REC operation should be executed when the REC/VTR trigger button is pressed while the

TC DATA Sets the time code value for the point when the Record-Standby mode is engaged following completion of HEADER

UB DATA Sets the user’s bits of the HEADER REC section.

STOP button is pressed. DISABLE : HEADER REC operation is not executed. STOP+REC : HEADER REC operation is executed.

REC. EXECUTE : Confirms the set time code. ZERO PRESET: Resets all time codes to zero “0”. CANCEL : Clears the set time code. The frame mode is set depending on the setting in the DROP/NON DROP item on the TC/UB/CLOCK menu screen. * The time code value at the point when the Record-Standby mode is engaged may differ some frames from the value

set for this item.

EXECUTE : Confirms the set user’s bits. ZERO PRESET : Resets all user’s bits data to zero “0”. CANCEL : Clears the set user’s bits.

MEMO

The user’s bits for the normal recording section are set on the TC/UB/CLOCK menu screen.

BARS TIME Sets the duration (seconds) in which the color bar signal and test tone (1 kHz) is recorded during HEADER REC. (1-sec

BLACK TIME Sets the duration (seconds) in which the black signal is recorded during HEADER REC. (1-sec steps)

PAGE BACK The TC/UB/CLOCK menu screen returns when the SHUTTER dial is pressed.

steps) [Initial Setting: 0SEC - 30SEC - 99SEC]

[Initial Setting: 0SEC - 30SEC - 99SEC]

TC/UB/CLOCK menu screen

HEADER REC menu screen

Cursor Item Set value

During HEADER REC

• The menu screen is not displayed during HEADER REC recording.



How to set the HEADER REC menu screen

1. Display the HEADER REC menu screen.

1Select the TC/UB/CLOCK.. item on the TOP MENU

screen.

2Select the HEADER REC item on the TC/UB/CLOCK

menu screen.

SHOOTING OPERATION

2. Setting the HEADER REC menu screen.

1Select the menu item.

Rotate the SHUTTER dial to align the cursor (K) with the item to be set, and then press the SHUTTER dial.

• The setting area of the selected item starts blinking.

2Changing the setting value.

Rotate the SHUTTER dial to change the setting, and then press the SHUTTER dial.

 In the case of the TC DATA item and the UB DATA item,

the blinking digit position moves when the SHUTTER dial is pressed. When the SHUTTER dial is rotated, the value of the blinking digit changes. After all the digits have been set and the SHUTTER dial is pressed, EXECUTE starts blinking. Press the SHUTTER dial once more to confirm the set value.

3. To terminate the setting, press the STATUS button.

 Executing the HEADER REC Function

The START KEY item on the HEADER REC menu screen should be set to STOP+REC.

1. Load the cassette and engage the Record-Standby mode

or the Stop mode.

2. While pressing the STOP button, press the REC/VTR trig-

ger button.

• The tape automatically rewinds to the beginning, and HEADER REC operation starts from the beginning of the tape. After HEADER REC recording is performed for the specified duration only, the Record-Standby mode is engaged automatically.

• During HEADER REC recording, “HEADER REC” is shown (blinking) on the LCD monitor and in the viewfinder.

3. After HEADER REC recording is completed and the

Record-Standby mode is engaged, normal recording starts when you press the REC/VTR trigger button.

• When the TC GENE. switch is set to either REC or REGEN, the time code value at the start of the HEADER REC menu screen.

MEMO

• To stop during HEADER REC operation, press the REC/ VTR trigger button or the Stop button.

• The HEADER REC menu screen cannot be opened during HEADER REC recording.

• HEADER REC operation is accepted even during loading of the cassette tape.

• The test tone (1 kHz sine-wave) recorded in the color bar section will be recorded unrelated to the setting for the TEST TONE item on the AUDIO/MIC [1/2] menu screen.

• The time code preset on the TC/UB/CLOCK menu screen becomes invalid when HEADER REC recording is performed.

• The user’s bits following completion of HEADER REC recording will be the user’s bits value set on the TC/UB/ CLOCK menu screen.

• The running of the time code following completion of HEADER REC recording will be in accordance with the setting of the TC GENE. switch. FREE RUN: Continuous running. REC RUN or REGEN: Runs only during REC.

• Camera images are not output to the LCD monitor, viewfinder or video output during REW mode when the HEADER REC operation begins.

PLAYBACK MODE

Playback Procedure

Recorded pictures can be viewed in the viewfinder, or on the LCD monitor, or on the monitor connected to the video output connector.

STOP button PLAY/STILL button

REW button FF button

MEMO

The GY-HD110 can play back the following two types of videocassettes:

• MiniDV videocassette

• DVCAM videocassette Tapes recorded in the LP mode cannot be played back.

1. Set the POWER switch to ON.

2. Set the unit to the VTR mode.

Press the CAM/VTR button to turn on the VTR indicator. * Playback is also possible in the Camera mode.

Playback operation becomes possible when the STOP button is pressed to set the VTR operation mode indicator to indicate STOP.

3. Load the recorded videocassette correctly.

• When the videocassette is loaded, the unit enters the Stop mode.

4. Open the operation cover on the upper section of the unit.

Slide the operation cover to the side to open.

5. Press the PLAY/STILL button.

• Playback starts.

6. Press the PLAY/STILL button to stop playback tempo-

rarily.

• The unit enters the still mode.

7. To re-start playback, press the PLAY/STILL button.

8. To stop playback or the still mode, press the STOP button.

MEMO

• In the VTR mode, the camera image is not output on the LCD monitor, in the viewfinder or through the video output connector.

• When the still picture mode or stop mode has continued for a while, the unit automatically switches to the tape protect mode.

Tape protect mode : Drum rotation is stopped in order

to protect the tape.

• Noise may appear in the picture in the still mode.

• When the automatic tracking function is activated at the start of the playback mode, digital noise may appear in the playback image.

• This unit does not allow manual tracking adjustment.

• When playing back a tape that was recorded on another unit, digital noise may appear during playback.

• Following loading of the tape, the built-in head cleaner will emit a sound while operating. This does not indicate a malfunction.

• The data recorded for the date and time or time code on the tape can be shown on the screen. To enable or disable the display is selected on the menu screen:

Display of date and time : TIME/DATE menu screen Display of time code : LCD/VF [2/3] menu screen

Fast-Forward, Rewind

 Press the FF button in the stop mode to fast forward the

tape. Press the REW button in the stop mode to rewind the tape. (VTR mode only) * “SWITCH TO VTR MODE” is displayed and the function

does not work if the “FF” or “REW” buttons are pressed when Camera mode is in the stop mode.

 Press the STOP button to stop fast forwarding or rewind-

ing.

MEMO

• When the tape approaches the end during fast forwarding or rewinding, the tape speed decelerates to protect the tape.

• The time required for fast forwarding and rewinding may become longer when used in a cold environment. This is not a malfunction.

 Press the FF button in the play mode or still mode to

search the tape in the forward direction. Playback takes place while fast forwarding. Pressing the REW button executes search of the tape in the reverse direction. Playback takes place while rewinding. (Each press on the button switches the speed to ×2, ×5, and ×10.)

 Press the PLAY/STILL button to resume normal playback.  Press the STOP button to stop.

MEMO

• To output sound during the search, set the SEARCH AUDIO [DV] item on the AUDIO menu screen to ON.

• Block noise may appear in the picture or the image may freeze during the search.

Outputting Audio

MONITOR SELECT switch

SHUTTER dial

STATUS button

VTR indicator

AUDIO menu screen

CAM/VTR button

PLAYBACK MODE

 Setting

Confirm that the GY-HD110 is in the VTR mode. (VTR indicator: On)

1. Display the AUDIO menu screen.

Select the AUDIO item on the TOP MENU screen.

2. Set the AUDIO menu screen.

• AUDIO MONITOR Items MIX : Outputs mixed audio

STEREO : Outputs stereo audio

• PB AUDIO CH [DV] Items CH1/2 : To reproduce the sound (CH-1, CH-2)

recorded during shooting.

MIX : To reproduce the sound recorded during

shooting (CH-1, CH-2) and the afterrecorded sound (on CH-3 and CH-4) simultaneously.

CH3/4 : To reproduce the sound after-recorded

on CH-3 and CH-4.

3. Set the MONITOR SELECT switch.

Refer to Table 1 below to make the setting.

4. Either of the following operations returns you to the nor-

mal screen.

• Press the STATUS button

• Return to the TOP MENU screen, select the EXIT item

and press the SHUTTER dial.

MEMO

The DV format is capable of recording up to 4 channels when the 12-bit, 32 kHz sampling frequency is employed. The GY-HD110 records audio on the two channels CH-1 and CH-2. (4-channel recording is possible in the case of DV input. (GY-HD110U/GY-HD111E only)) When the GY-HD110 is used for playback of a tape that was recorded on another unit with audio recorded on the CH-3 and CH-4 channels, the PB AUDIO CH [DV] item on the AUDIO menu screen must be set. After-recording on the CH-3 and CH-4 channels is not possible.

Table 1

MONITOR

SELECT

CH-1 - L/R:CH1 L/R:CH1+CH3 L/R:CH3

BOTH MIX

CH-2 - L/R:CH2 L/R:CH2+CH4 L/R:CH4

AUDIO MONITOR

PB AUDIO CH [DV]

STEREO

* In HDV format, you can only select the settings within the bold frame.

L/R:CH1+CH2 L:CH1 R:CH2

CH1/2 MIX CH3/4

L/R:CH1+CH2+CH3+CH4 L:CH1+CH3 R:CH2+CH4

L/R:CH3+CH4 L:CH3 R:CH4

USING EXTERNAL COMPONENTS

Connecting the Video Signal Cables

IEEE1394 switchClamp filter

IEEE 1394

Wind once

Composite cable

Component cable

CHANGE 1394 SWITCH

IEEE 1394

HDV DV

LINE OUTPUT

DC INPUT

HDV

LINE OUTPUT

DC INPUT

VIDEO/Y

IEEE1394

VIDEO/Y

IEEE1394

 Displaying Alarms

• CHANGE 1394 SWITCH Displayed when the setting for the input/output video format from the IEEE1394 connector and the setting for the IEEE1394 switch are different. Set the IEEE1394 switch so it matches the video format.

 Connecting the IEEE1394 Cable

To reduce the emission of unwanted radio waves, be sure to attach the provided clamp filter as shown in the figure on the left.

• Attach the clamp filter as close to the camcorder as possible, as shown in the figure.

• Set the IEEE1394 switch on the left panel of the camcorder.

DV : DV format HDV : HDV format

CAUTION

When connecting the IEEE1394 cable from/to Camcorder, VCR and other IEEE1394 device, make sure the following instructions, otherwise the IEEE1394 circuit device may be destroyed.

• Turn the power of both devices OFF and connect the IEEE1394 cable.

• Do not insert incorrectly (in reverse) the IEEE1394 cable end to IEEE1394 port of both devices.

• Do not connect the IEEE1394 cable under the condition of static electricity.

• Turn the power of both devices OFF when changing the IEEE1394 switch from/to HDV/DV.

 Composite and Component Connections

The video signals output from the video signal output connectors on this camcorder (VIDEO/Y, P below, depending on the settings for the OUTPUT TERMINAL item on the VIDEO FORMAT menu screen.

AUTO : Automatically switches to a composite or

component signal, depending on which cable is connected to the video signal output terminal and outputs the signal.

COMPOSITE : Outputs a composite signal regardless of

which cable is connected to the video signal output connector.

COMPONENT : Outputs a component signal regardless

of which cable is connected to the video signal output connector.

Output signal when AUTO is set

Connector (G:

Unconnected

VIDEO/Y P

FF FCOMPONENT FG FCOMPOSITE FF GCOMPONENT FG GCOMPOSITE

None of the above OFF

B PR

In addition, you can use the PB TAPE item to set whether to automatically detect the video format of the playback tape or only play back a particular format when playing back a tape. X See page 65.

CAUTION

• Be careful not to apply excess force to the video signal output terminal when connecting or disconnecting the cable. This will cause poor contact or failure.

• To use the automatic signal-switching function while the RCA-BNC conversion connector is in use, unplug the entire connector from the video output terminal.

B, PR) are as described

Connected

)Output

Signal

Dubbing with AV Devices

USING EXTERNAL COMPONENTS

Composite cable or Component cable

IEEE 1394

HDV DV

LINE OUTPUT

DC INPUT

LINE OUTPUT connector

Audio cable

VIDEO/Y

IEEE1394

Clamp filter

VIDEO FORMAT menu screen

Signal flow

Recording unit

Signal flow

By connecting the video signal output terminal and the LINE OUTPUT terminal on this camcorder to an AV device, analog signal dubbing is possible.

1. Connect the cables.

Use the provided cable for the audio cable. To reduce the emission of unwanted radio waves, be sure to attach the provided clamp filter as shown in the figure on the left.

• Attach the clamp filter as close to the camcorder as possible, as shown in the figure.

2. Turn both devices on.

3. Set the camcorder to VTR mode.

Press the CAM/VTR button. The VTR indicator lights.

4. Set the video output.

Set the VIDEO FORMAT menu screen. X See page 64.

• HDV PB OUTPUT item:

Set the video format to be output from the video output terminal during tape playback.

• PB TAPE item:

Select whether to automatically detect the playback tape video format or play back only a particular format. Normally, use the “AUTO” setting.

• OUTPUT TERMINAL item:

Set either component or composite output. Normally, use the “AUTO” setting.

5. Set the audio output. X See page 55.

Set the AUDIO/MIC menu screen. X Seepage72.

• AUDIO MONITOR item:

Set stereo audio or mixed audio.

• PB AUDIO CH [DV] item:

Set the audio channel to be output.

• Set the MONITOR SELECT switch.

6. Insert the videocassettes.

GY-HD110 : Insert the recorded videocassette. Recording unit : Insert the videocassette to be

dubbed to.

7. Press the PLAY/STILL button on the GY-HD110 to start

playback.

8. Start recording on the recording unit.

For details, see the instructions to the unit used for recording.

9. When dubbing is completed.

Stop recording on the recording unit, and then press the STOP button on the GY-HD110 to stop playback.

AUDIO menu screen

USING EXTERNAL COMPONENTS

HDV/DV Dubbing

IEEE1394 switch

IEEE 1394

HDV

VIDEO/Y

LINE OUTPUT

DC INPUT

IEEE1394

Recording unit

Signal flow

CAUTION

• Set the IEEE1394 switch on both devices to either HDV or DV.

• Start recording after making sure that both devices are properly connected.

IEEE1394 cable

VIDEO FORMAT menu screen

Connecting the GY-HD110 to another video component equipped with HDV/DV connector (IEEE1394 standard) using a IEEE1394 cable (optional) enables dubbing of digital signals with high picture quality and high-quality sound.

 Using the GY-HD110 as the playback unit

(Dubbing to another video)

1. Set the IEEE1394 switch on the left panel of the cam-

corder.

DV : When dubbing in DV format HDV : When dubbing in HDV format

2. Connect the IEEE1394 cable.

3. Turn both devices on.

4. Set the camcorder to VTR mode.

Press the CAM/VTR button. The VTR indicator lights.

5. Set the PB TAPE item on the VIDEO FORMAT menu

screen. X See page 65. Select whether to automatically detect the playback tape video format or play back only a particular format. Normally, use the “AUTO” setting.

6. Insert a videocassette tape.

This camcorder : Recorded videocassette tape Recording unit : Videocassette you want to dub

7. Press the PLAY/STILL button on this camcorder to start

playback.

8. Start recording on the recording device.

See the recording device user manual for more information.

9. When dubbing is finished, stop recording on the recording

device, press the STOP button on the camcorder, and stop the playback.

MEMO

• Switch the IEEE1394 switch when the camcorder is OFF.

• When you dub still images, they are low resolution images. Noise may also enter the audio.

• Operations may differ depending on the features and specifications of the connected device, and operations or data exchange may not be possible even if the devices are connected.

• If noise appears on the screen or the audio cuts out, reconnect the IEEE1394 cable or turn the GY-HD110 on again.

• If you turn the power to the device connected to the IEEE1394 connector on and off or switch the video input, noise may occur in the audio. If you perform this type of operation, set the speaker volume as low as possible on the audio device connected to the camcorder.

• Recording may not be possible in some cases even if the recorder is equipped with a IEEE1394 connector.

USING EXTERNAL COMPONENTS

IEEE1394 switch

IEEE 1394

HDV

VIDEO/Y

LINE OUTPUT

IEEE1394

DC INPUT

Signal flow

CAUTION

• Set the IEEE1394 switch on both devices to either HDV or DV.

• Start recording after making sure that both devices are properly connected.

IEEE1394 cable

 When Using the GY-HD110U/GY-HD111E

as Recording Unit (Dubbing From Another Videocassette)

1. Set the IEEE1394 switch on left side of the GY-HD110.

DV : When dubbing in DV format HDV : When dubbing in HDV format

2. Connect the units with the IEEE1394 cable.

3. Turn ON both units.

4. Place the GY-HD110 in the VTR MODE.

Press the CAM/VTR button to turn on the VTR indicator.

5. Set the frame rate.

Set the FRAME RATE item (60/30, 50/25, 24) on the VIDEO FORMAT menu to match the HDV/DV signal frame rate input from the IEEE1394 connector. X See page 64.

6. Set the time code and user bit recording.

Set the TC DUPLI. item on the TC/UB/CLOCK menu screen. (Only for DV format)

OFF : Records the TC/UB set in the

camcorder.

ON : Records the TC/UB for the

IEEE1394 input.

Date and time data : Records the data sent from the

playback device.

TC/UB

Date and Time

MEMO

In HDV format, the TC/UB set in the camcorder is recorded regardless of the setting.

7. Insert the videocassettes.

GY-HD110 : Insert the videocassette to be

dubbed to.

Playback unit : Insert the recorded videocassette.

8. Start playback on the playback unit.

For details, see the instructions to the unit used for playback.

• The playback picture from the playback unit appears on the GY-HD110’s LCD monitor and viewfinder screen.

9. Press the REC/VTR trigger button on the GY-HD110 to

start recording.  To temporarily pause the recording, press the REC or

VTR trigger button.

 To restart the recording, press the REC or VTR trigger

button again.

10.When dubbing is completed.

Press the REC/VTR trigger button or the STOP button on the GY-HD110 to stop recording, and then stop playback on the playback unit.

MEMO

Depending on the player, sound may not be heard momentarily from this unit when switching modes from STILL to PLAY.

USING EXTERNAL COMPONENTS

Backup Recording

IEEE1394 switch

IEEE 1394

HDV

VIDEO/Y

LINE OUTPUT

IEEE1394

DC INPUT

Master unit GY-HD110

Signal flow

CAUTION

• Set the IEEE1394 switch on both devices to either HDV or DV.

• Start recording after making sure that both devices are properly connected.

• If the RET button is pressed during backup recording, output from the IEEE1394 terminal is stopped, the image is switched to the image recorded on this unit, interrupting the backup recording image.

OTHERS [2/2] menu screen

Backup unit

IEEE1394 cable

 Backup Recording of the GY-HD110’s

Camera Image and Sound Through the IEEE1394 Connector

The GY-HD110’s camera image and sound can be recorded for backup on another component that is equipped with IEEE1394 connector.

 Connections

Use the GY-HD110 as the master unit. Connect the master unit and the backup unit with a IEEE1394 cable.

 Settings

 Master unit (GY-HD110)

1. Set the IEEE1394 switch on left side of the GY-HD110.

DV : When backup in DV format HDV : When backup in HDV format

2. Place in Camera mode.

3. Set the 1394 REC TRIGGER item on the OTHERS [2/2]

menu screen. X See page 81. For HDV mode, set the BACK SPACE [HDV] item. X See page 81.

 Backup unit

• Place in HDV/DV signal input mode. * Depending on the used component, it may be necessary

to set “REMOTE SELECT”.

• When BR-HD50 is used, set the Backup Recording function to OFF.

• Insert the tape and set to STOP or REC PAUSE status.

 Operation

Start and stop of recording on the backup unit takes place in accordance with the operation of the REC/VTR trigger button on the master unit. (Depending on the GY-HD110 or the backup unit, the image, audio, and/or time code may deviate from what they should be at the points where the recording is started or stopped.)

MEMO

• When the backup recording is started, the “TRIGGER TO DV” or “TRIGGER TO HDV” indication is shown on the LCD or in the viewfinder for approx. 3 seconds.

• When the Series Recording function of BR-HD50 is used, the GY-HD110’s 1394 REC TRIGGER item should be set to OFF.

• If the backup device is equipped with a feature to record time codes input from the IEEE1394 connector (TC DUPLICATE feature), time code data the same as on the master side can be recorded.

• When using BR-HD50 as a backup device and switching GY-HD110 from the playback mode to the record mode, noise will be noticed on the monitor output screen of BRHD50 (backup will be correctly recorded).

MENU SCREENS

Menu Screen Configuration

The Menu Screen consists of multiple layers of menu screens as shown below. The menu screen to be set is selected from the TOP MENU in accordance with the function or purpose. The items on the menu screens differ with the Camera mode and the VTR mode. The contents of set items are stored in the GYHD110’s memory and are retained even when the power is turned off. The FILE MANAGE menu screen can be used to store the menu setting contents on the GY-HD110 or SD memory card.

TOP MENU screen (CAM)

TOP MENU screen (VTR)

MENU SCREENS

Setting Menu Screens

SHUTTER dial

USER1 USER2 USER3 button

USER 3USER 2USER 1

SHUTTER

ND FILTER

2 1

OFF

STATUS

WHT.BAL

AUTO AUTO

STATUS button

Menu screenCursor

TOP MENU screen

Item

Setting

Make the settings while observing the LCD monitor or the viewfinder screen. If the OUTPUT CHAR. item on the OTHERS [1/2] screen is set to ON, the menu screen can also be viewed on a monitor connected to the video signal output connector.

1. Set the POWER switch to ON.

2. Set the mode of the GY-HD110 with the CAM/VTR button.

(Camera mode or VTR mode)

3. Press the STATUS button for 1 second or longer.

• The TOP MENU screen appears.

4. Select the menu screen to be set.

Rotate the SHUTTER dial to align the cursor (K) with the menu screen to be set, and then press the SHUTTER dial.

• The selected menu screen appears.

5. Select the menu item on the menu screen.

Rotate the SHUTTER dial to align the cursor (K) with the item to be set, and then press the SHUTTER dial.

• The setting area of the selected item starts blinking, and the setting can now be made.

6. Change the setting.

Rotate the SHUTTER dial to change the setting, and then press the SHUTTER dial.

• The setting area stops blinking and the setting is entered.

 To change multiple items, repeat the procedures in steps

5. and 6. above.

7. Return to the TOP MENU.

Rotate the SHUTTER dial to align the cursor (K) with the PAGE BACK item, and then press the SHUTTER dial.

 To change settings on other menu screens, repeat the pro-

cedures in steps 4. to 7. above.

 To save the set contents in FILE, select the FILE MANAGE

menu screen and perform the operations for saving to file. X See “FILE MANAGE Menu Screen” on page 83.

8. To return to the normal screen after completing the set-

tings, use either of the following methods. Press the STATUS button or Return to the TOP MENU screen and align the cursor (K) with the EXIT item, and then press the SHUTTER dial.

VIDEO FORMAT menu screen

MEMO

• While the menu screen is being displayed, the USER1, USER2 and USER3 buttons can also perform menu operations. USER1 button: Raises the cursor (K)/Changes the setting USER2 button: Lowers the cursor (K)/Changes the setting USER3 button: Confirms the menu item/Confirms the setting

• The menu screen is not displayed when switching between Camera and VTR mode (VTR indicator flashes).

MENU SCREENS

TOP MENU Screen

Different menu screens are displayed depending on whether the GY-HD110 is in the Camera mode or in the VTR mode. In the VTR mode, the CAMERA OPERATION, CAMERA PROCESS and SWITCH MODE menu screens are not displayed.

Item Function

VIDEO FORMAT.. Displays the menu screen for setting the video format for shooting and playing back video.

• The cursor (K) does not move to this item when the camcorder is recording.

CAMERA OPERATION.. Displays a menu screen for setting the operation mode for camera shooting.

CAMERA PROCESS.. Displays a menu screen for adjustments of the picture quality of the camera image.

SWITCH MODE.. Displays the menu screens related to the camera switch functions.

AUDIO/MIC.. Displays a menu screen related to audio.

LCD/VF.. Displays a menu screen for selecting whether to display characters on the LCD monitor or in the viewfinder, and for

TU/UB/CLOCK.. Displays a menu screen for setting the time code, user’s bit data, date and time.

OTHERS.. Displays a menu screen for setting other functions and to display the hour meter.

FILE MANAGE.. Displays the FILE MANAGE menu screen.

EXIT The normal screen returns when the SHUTTER dial is pressed while the cursor is aligned with this item.

• This item is only displayed in the Camera mode.

It consists of two screens. The ADVANCED PROCESS menu screen and SKIN COLOR ADJUST screen can be displayed through the CAMERA PROCESS menu screen.

• This item is only displayed in the Camera mode.

• The cursor (K) does not move to this item when the camcorder is in VTR mode (PLAY, STL, FWD, REV).

• This item is only displayed when in camera mode.

Camera mode: It consists of two screens. VTR mode: It consists of one screen.

• In VTR mode, the screen changes to the AUDIO menu screen.

• The cursor (K) does not move to this item when the camcorder is recording.

adjustments of the picture quality of LCD monitor. Camera mode: It consists of three screens. VTR mode : It consists of two screens.

The ways that the date and time are recorded together with the display style are set here. The TIME/DATE menu screen and CLOCK ADJUST screen can be displayed through the TC/UB/CLOCK menu screen.

• The cursor (K) does not move to this item when the camcorder is recording.

It consists of two screens.

Saves the menu screen settings as a file on the camcorder or an SD memory card, or reads the menu screen settings saved in the file. It is also possible to reset the menu settings to default settings or initialize (format) an SD memory card. X See “FILE MANAGE Menu Screen” on page 83.

• The cursor (K) does not move to this item when the camcorder is in VTR mode or is ejecting a tape.

MENU SCREENS

VIDEO FORMAT Menu Screen

* This is not displayed in VTR mode.

Item Function/Setting (bold characters indicate initial settings)

FRAME RATE Sets the frame rate for shooting.

U model 60/30 : Shoots at 480/60i, 480/60p, 720/30p.

50/25 : Shoots at 576/50p, 720/25p. 24 : Shoots at 480/24p (2:3:2:3 pulldown), 480/24p advance mode (2:3:3:2 pulldown), 720/24p.

E model

60/30 : Shoots at 480/60p, 720/30p. 50/25 : Shoots at 576/50i, 576/50p, 576/25p, 720/25p. 24 : Shoots at 720/24p. CANCEL : Cancels the settings. EXECUTE : Executes the settings.

MEMO

• If you change the FRAME RATE item setting, the system is rebooted. X See page 46.

• The cursor (K) does not move to this item when the camcorder is in VTR mode or is ejecting a tape.

REC* Sets the video format for shooting. (Can only be displayed and set in camera mode)

You can set the following according to the FRAME RATE.

Setting Description FRAME RATE

DV-60I DV format Shoots using a 480/60i signal. (U model Only)

HDV-HD30P HDV format Shoots using a 720/30p signal.

HDV-SD50P HDV format Shoots using a 576/50p signal.

HDV-HD25P HDV format Shoots using a 720/25p signal.

DV-50I DV format Shoots using a 576/50i signal. (E model Only)

DV-25P DV format Shoots using a 576/25p signal. (E model Only)

DV-24P DV format Shoots at 480/24p (2:3:2:3 pulldown). (U model Only)

HDV-HD24P HDV format Shoots using a 720/24p signal.

60/30HDV-SD60P HDV format Shoots using a 480/60p signal.

50/25

24DV-24PA DV format Shoots at 480/24p (2:3:3:2 pulldown). (U model Only)

CANCEL : Cancels the settings. EXECUTE : Executes the settings.

MEMO

• The synchronous video signal is momentarily disturbed when the REC item setting is switched.

• On the E model, the video format is fixed at HDV-HD24 when the FRAME RATE item is set to “24”. “[HDV-HD24]” is displayed.

ASPECT* Sets the screen size for the recording video signal. (Can only be displayed and set in camera mode)

4:3 : Outputs the video with an aspect ratio of 4:3. 16:9 : Outputs the video with an aspect ratio of 16:9.

The resolution in the vertical direction drops compared to 4:3 video.

MEMO

• When the format setting is HDV, the REC item is fixed at 16:9. (“[16:9]” is displayed.)

• The synchronous video signal is momentarily disturbed when the ASPECT item setting is switched.

MENU SCREENS

Item Function/Setting (bold characters indicate initial settings)

HDV PB OUTPUT Sets the video format to be output from the video output connector during tape playback.

PB TAPE Selects whether to automatically detect the playback tape video format or play back only a particular format.

OUTPUT TERMINAL Sets the signal to be output from a video signal output connector (VIDEO/Y, P

You can set this when the OUTPUT TERMINAL item is to “COMPONENT” or “AUTO” and you have a component output connection. You can set the following, depending on the FRAME RATE item.

Setting Description FRAME RATE

NATIVE Outputs the signal being recorded on the tape. 60/30

720P Converts the signal being recorded on tape to 720p and outputs it. 50/25

1080I Converts the signal being recorded on tape to 1080i and outputs it. 24

480P Converts the signal being recorded on tape to 480p and outputs it. 60/30

NTSC Converts the signal being recorded on tape to 480i and outputs it. 24

576P Converts the signal being recorded on tape to 576p and outputs it.

PAL Converts the signal being recorded on tape to 576i and outputs it.

50/25

CAUTION

If you convert video recorded in HDV format to DV format or vice versa and output it, the colors may change.

Normally, use the “AUTO” setting. AUTO : During tape playback, the format signal is switched automatically and played back. DV : During tape playback, only the part of the tape recorded in DV format is played back. HDV : During tape playback, only the part of the tape recorded in HDV format is played back. DVCAM : During tape playback, only the part of the tape recorded in DVCAM format is played back.

MEMO

If you play back a tape containing both DV and HDV formats, the video signal is disturbed when the signal is switched.

AUTO : Automatically switches to a composite or component signal, depending on the status of the cables

connected to the video signal output connectors, and outputs it.

COMPOSITE : Outputs a composite signal regardless of the status of the cables connected to the video signal

output connectors.

COMPONENT : Outputs a component signal regardless of the status of the cables connected to the video signal

output connectors.

Output signals when AUTO is set

B, PR).

Connector (G: Unconnected F: Connected)

VIDEO/Y P

FFFCOMPONENT FGFCOMPOSITE FFGCOMPONENT FGGCOMPOSITE

None of the above OFF

B PR

Output Signal

CAUTION

If you output video recorded in HDV format using a composite signal, the colors may change.

DOWN CONV. [HDV] Set the style to display down-converted images in aspect ratio 4:3.

SQUEEZE : Image that is squeezed horizontally is displayed. LETTER : Wide image with the top and bottom blackened is displayed. SIDE CUT : Wide image with the sides cut is displayed.

MEMO

When a setting other than HDV format is set for the REC item, the setting is fixed to SQUEEZE. (“[SQUEEZE]” is displayed.)

SET UP Selects whether to add a setup signal to the video signal output from the video signal output connector.

* You can also select a setup signal for IEEE1394 signal input. (GY-HD110U/GY-HD111E only)

0.0% : No setup signal is added.

7.5% : A setup signal is added.

Initial settings: U model: 7.5% E model: 0.0%

MEMO

When the FRAME RATE item is set to 50/25, this item is not displayed. The setup signal may be fixed at “0.0%” depending on the menu settings on the camcorder as well as the cables connected to it. In this case, “[0.0%]” is displayed.

PAGE BACK The TOP MENU returns when the SHUTTER dial is pressed with the cursor at this position.

MENU SCREENS

CAMERA OPERATION Menu Screen

The CAMERA OPERATION menu screen is only displayed in the Camera mode.

Item Function/Setting (bold characters indicate initial settings)

AE LEVEL For adjusting the image level when using auto iris, “ALC” or “EEI”.

ALC MAX Sets the maximum “ALC” value to automatically change the signal intensity level depending on the brightness.

PRESET TEMP. Sets the basic color temperature when the [WHT.BAL] white balance selector switch c on page 15 is in the PRST

SMOOTH TRANS Smoothens the transition when the [GAIN] switch b on page 15, or

BARS Sets whether or not color bars are output. (This is fixed at “OFF” when in FULL AUTO mode)

PAGE BACK The TOP MENU returns when the SHUTTER dial is pressed with the cursor at this position.

Increase value: Increases level. Decrease value: Decreases level. [Settings: –3, –2, - NORMAL (0) - 2, 3]

[Setting: 6 dB, 12 dB, 18 dB]

(PRESET) position. 3200K : Sets the basic color temperature to 3200K. (Use for light sources with a low color temperature,

such as halogen lamps.)

5600K : Sets the basic color temperature to 5600K. (Use for light sources with a high color temperature,

such as sunlight.)

MEMO

This item does not function when the FAW item on the SWITCH MODE menu screen is set to “PRESET”.

[WHT.BAL] switch c on page 15 is switched over and achieves gradual change in place of sudden change. However, the smooth transition function does not function when switching the [GAIN] switch set in ALC, FULL AUTO ON. OFF : Deactivates the smooth transition function. ON : Activates the smooth transition function.

OFF : Color bars are not output. ON : Color bars are output.

MENU SCREENS

CAMERA PROCESS [1/2] Menu Screen

The CAMERA PROCESS menu screen consists of two screens. (1/2 screen, 2/2 screen) The CAMERA PROCESS menu screen is only displayed in camera mode.

Item Function/Setting (bold characters indicate initial settings)

MASTER BLACK Adjusts the pedestal level (master black) that serves as the reference black.

Increase the number : Raises the pedestal level. Decrease the number : Lowers the pedestal level. [Settings: MIN (–10), –9 - NORMAL (0) - 9, MAX (10)]

DETAIL Adjusts the contour (detail) sharpness level.

V/H BALANCE Sets which contours (details) to sharpen, those in the horizontal (H) direction or those in the vertical (V) direction.

H FREQUENCY Changes the horizontal contour compensation frequency for the contours (details). Set this as appropriate for the

V FREQUENCY

SKIN DETECT Sets ON/OFF for the skin detail function.

LEVEL Sets the contour compensation level (amount of softening) for the skin detail function.

BLACK Changes the gain in dark areas. Change this depending on the video signal being shot.

NEXT PAGE To display the CAMERA PROCESS [2/2] menu screen, move the cursor to this position and press the SHUTTER

PAGE BACK The TOP MENU returns when the SHUTTER dial is pressed while the cursor is at this position.

*1 When the REC item on the VIDEO FORMAT menu is set to “DV-60I” or “DV-50I”, “-----” is displayed and this cannot be

selected.

Increase the number : Sharpens the contour. Decrease the number : Softens the contour. OFF : Does not function. [Settings: OFF, MIN (–10), –9 - NORMAL (0) - 9, MAX (10)] When this item is set to “OFF”, “-----” is displayed for the following menu items and they cannot be selected.

Increase the number : Sharpens H direction. Decrease the number : Sharpens V direction. [Settings: H-MIN (–5), –4 - NORMAL (0) - 4, H-MAX (5)]

subject. LOW : Enhances low frequency bands.

MIDDLE : Enhances middle frequency bands. HIGH : Enhances high frequency bands.

Use this when shooting subjects with finely detailed patterns. Changes the vertical contour compensation frequency for the contours (details). Compensates for distortion when outputting progressive video to an interlaced monitor. HIGH : Enhances high frequency bands. LOW : Enhances low frequency bands.

OFF : Turns off the skin detail function. ON : Turns on the skin detail function. (Softens detected skin color area details.) X See “Using the Skin Detail Function” on page 87.

This can only be selected when the SKIN DETECT item is set to ON. –1 : Low contour compensation level (amount of softening) –2 : Medium contour compensation level (amount of softening) –3 : High contour compensation level (amount of softening)

STRETCH1 : Enhances the dark areas of the video so the contrast between light and dark is more visible by STRETCH2 STRETCH3 NORMAL : Normal status COMPRESS1 : If the video that was shot is bright overall and lacking in contrast, the gain in the dark areas is comCOMPRESS2 COMPRESS3

dial.

Use this when shooting subjects with large patterns.

Use this when shooting subjects with small patterns.

stretching the signal only in the dark areas. The amount of stretching increases from STRETCH1→STRETCH2→STRETCH3.

pressed, which adds contrast. The amount of compression increases from COMPRESS1→COMPRESS2→ COMPRESS3.

MENU SCREENS

CAMERA PROCESS [2/2] Menu Screen

Item Function/Setting (bold characters indicate initial settings)

WHITE CLIP Sets the white clipping point on input video signals with a high luminance level.

108% : The white clipping point is set at a luminance level of 108%. 100% : The white clipping point is set at a luminance level of 100%. If the screen is too white at

KNEE Sets whether to run the “knee” function, which compresses video signals over a certain level to render the tonality

in the highlight areas, automatically or manually. Set “MANUAL” when you want to check the bright areas, and adjust the knee point manually. AUTO : Adjusts the knee point automatically, according to the luminance level. MANUAL : You can change the luminance level in the “LEVEL” item.

LEVEL Sets the start point for knee compression (knee point).

Increase the number : Raises the knee point level. Decrease the number : Lowers the knee point level. [Settings: 80%, 85%, 90%, 95%, 100%]

MEMO

When the “KNEE” item is set to “AUTO”, “-----” is displayed and this cannot be selected.

MOTION SMOOTH Makes the video smoother when the tape is played back by adding frames to the signal recorded on the tape during

progressive shooting. OFF : Does not function. ON : Functions.

MEMO

This can be set when you select “HDV-HD30p”, “HDV-HD25p”, or “HDV-HD24p” in the “REC” item on the VIDEO FORMAT menu screen. When this cannot be set, “-----” is displayed.

DNR Selects whether or not to set the noise reduction.

OFF : Noise reduction is not performed. ON : Sets noise reduction.

MEMO

When the DNR is set to ON, the camcorder’s S/N ratio becomes better but the “blurring of moving objects” will increase.

ADVANCED PROCESS.. Calls up the ADVANCED PROCESS menu screen.

X See “ADVANCED PROCESS Menu Screen” on page 69.

PAGE BACK When the cursor is in this position, press the SHUTTER dial to return to the CAMERA PROCESS [1/2] menu screen.

108%, set it to 100%.

MENU SCREENS

ADVANCED PROCESS Menu Screen

Item Function/Setting (bold characters indicate initial settings)

CINELIKE OFF : Turns the function OFF.

COLOR MATRIX Sets the color matrix.

ADJUST.. When “STANDARD” or “CINELIKE” is set for the COLOR MATRIX item, a color matrix can be set individually.

GAMMA Adjusts the gamma curve to determine how black is rendered.

LEVEL When “STANDARD” or “CINELIKE” is set for the GAMMA item, a gamma curve can be set individually.

COLOR GAIN Adjusts the video signal color level.

WHITE PAINT<R> Adjusts the R (red) component when in AWB (Auto White Balance) mode.

WHITE PAINT<B> Adjusts the B (blue) component when in AWB (Auto White Balance) mode.

SKIN COLOR ADJUST When the cursor is in this position and you press the SHUTTER dial once, the screen switches to the SKIN COLOR

PAGE BACK When the cursor is in this position, press the SHUTTER dial to return to the CAMERA PROCESS [2/2] menu screen.

ON : Sets the gamma characteristics and color matrix close to the characteristics of a movie

screen. (The monitor image is movie-quality. This setting is not intended for film output)

MEMO

When this item is set to “ON”, “[CINE]” is displayed for COLOR MATRIX and GAMMA items and cannot be selected.

OFF : Turns the function OFF. STANDARD : Sets a normal color matrix. CINELIKE : Sets a color matrix close to the characteristics of a movie screen.

Press the SHUTTER dial to call up the COLOR MATRIX ADJUST menu screen. X See “COLOR MATRIX ADJUST Menu Screen” on page 70.

FILMOUT : Fixes gamma curve at the ideal level for movie film output. STANDARD : Sets a normal gamma curve. CINELIKE : Sets a gamma curve close to the characteristics of a movie screen.

MEMO

When this item is set to “FILMOUT”, “-----” is displayed for the LEVEL item and it cannot be selected.

Increase the number : Enhances the tonality of the black. However, the tonality in the bright areas deteriorates. Decrease the number : Enhances the tonality in the bright areas. However, the tonality in the black areas deterio-

rates.

[Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

OFF : Sets the video to black and white. Increase the number : Makes the colors more dense. Decrease the number : Makes the colors less dense. [Settings: OFF, MIN (–10), –9 - NORMAL (0) - 9, MAX (10)]

Increase the number : Strengthens the red. Decrease the number : Weakens the red. [Settings: MIN (–32), –31 - NORMAL (0) - 30, MAX (31)]

MEMO

• You can select this when A or B is set for the [WHT.BAL] switch c on the right panel of the camcorder. X See page 15. Settings can be made for A and B individually. (When “PRESET” is set, “-----” is displayed and this cannot be selected.)

• When you press the AWB (Auto White Balance) button and readjust the white balance, WHITE PAINT R becomes “NORMAL”.

Increase the number : Strengthens the blue. Decrease the number : Weakens the blue. [Settings: MIN (–32), –31 - NORMAL (0) - 30, MAX (31)]

MEMO

• When you press the AWB (Auto White Balance) button and readjust the white balance, WHITE PAINT B becomes “NORMAL”.

ADJUST screen.

MENU SCREENS

COLOR MATRIX ADJUST Menu Screen

Item Function/Setting (bold characters indicate initial settings)

R GAIN For manually adjusting the shading of the R axis of the color matrix (red and cyan).

R ROTATION For manually adjusting the color phase of the R axis of the color matrix (red and cyan).

G GAIN For manually adjusting the shading of the G axis of the color matrix (green and magenta).

G ROTATION For manually adjusting the color phase of the G axis of the color matrix (green and magenta).

B GAIN For manually adjusting the shading of the B axis of the color matrix (blue and yellow).

B ROTATION For manually adjusting the color phase of the B axis of the color matrix (blue and yellow).

PAGE BACK Press the SHUTTER dial to return to the ADVANCED PROCESS screen when cursor is at this position.

Increase the number : Enhances red and cyan. Decrease the number : Reduces red and cyan. [Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

Increase the number : Increases yellowishness of red color and bluishness of cyan color. Decrease the number : Increases bluishness of red color and greenishness of cyan color. [Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

Increase the number : Enhances green and magenta. Decrease the number : Reduces green and magenta. [Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

Increase the number : Increases bluishness of green color and reddishness of magenta color. Decrease the number : Increases yellowishness of green color and bluishness of magenta color. [Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

Increase the number : Enhances blue and yellow. Decrease the number : Reduces blue and yellow. [Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

Increase the number : Increases reddishness of blue color and greenishness of yellow color. Decrease the number : Increases greenishness of blue color and reddishness of yellow color. [Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

SKIN COLOR ADJUST Menu Screen

When you enter the SKIN COLOR ADJUST screen, the areas where the skin detail function is applied are displayed in color, and other areas are displayed in black and white.

Item Function/Setting (bold characters indicate initial settings)

SKIN COLOR DET. Sets the color used by the skin detail function.

SKIN COLOR RANGE Adjusts the range of skin colors to which the skin detail function is applied.

PAGE BACK When the cursor is in this position, press the SHUTTER dial to return to the ADVANCED PROCESS menu screen.

STOP : Stops loading the color used by the skin detail function. EXECUTE : Loads the color used by the skin detail function. X See “Using the Skin Detail Function” on page 87.

Adjust as you check the color range. Increase the number : Widens the range. Decrease the number : Narrows the range. [Settings: NARROW (–10), –9 - NORMAL (0) - 9, WIDE (10)]

MEMO

When the COLOR GAIN item is “OFF” on the ADVANCED PROCESS menu screen, only the areas where the skin detail function is running are displayed using skin colors.

MENU SCREENS

SWITCH MODE Menu Screen

The SWITCH MODE menu screen is only displayed in camera mode.

Item Function/Setting (bold characters indicate initial settings)

SHUTTER Sets the fixed value (STEP) for values that can change using the SHUTTER dial on the right panel or the VARIABLE

FAW Sets the positions to assign the FAW (Full Auto White Balance) function to the [WHT.BAL] white balance selector

GAIN L GAIN M GAIN H

USER1 USER2 USER3

used when shooting computer monitors. STEP : Switches the shutter speed using fixed values. VARIABLE : Set when shooting a computer monitor, etc. You can set the following using the REC item on the VIDEO FORMAT menu screen. (This is fixed at EEI when in FULL AUTO mode)

REC Item Setting for STEP Setting for VARIABLE

DV-60I HDV-SD60P

HDV-HD30P

DV-50I HDV-SD50P

HDV-HD25P

DV-25P Initial value: 1/25

DV-24P DV-24PA

HDV-HD24P Initial value: 1/48

switch c on page 15. (Fixed at FAW when in FULL AUTO mode) NONE : The FAW function is not assigned. A : Assigns FAW to the A position. B : Assigns FAW to the B position. PRESET : Assigns FAW to the PRESET position.

Sets the gain value for each position on the [GAIN] sensitivity selector switch b on page 15. [Setting: 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC] (Fixed at ALC in FULL AUTO mode)

Initial values: L: 0dB, M: 9dB, H: 18dB

You can assign one of the following menu functions to the [USER1/2/3] USER1/2/3 buttons 8 on page 14 to each button. Set according to the shooting conditions.

1/7.5, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

1/6.25, 1/12.5, 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

1/6, 1/12, 1/24, 1/48, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

1/60.19 - 1/1998.0

1/50.17 - 1/1982.8

1/25.04 - 1/1982.8

1/24.01 - 1/1998.0

1/48.11 - 1/1998.0

Setting Description

NONE Does not function.

BARS PRESET TEMP.

B.STRETCH1 B.STRETCH2 B.STRETCH3 B.COMPRESS1 B.COMPRESS2 B.COMPRESS3

AE LEVEL+ AE LEVEL–

RET Assigns the normal RET button function.

LENS RET Sets the lens RET button functions. (This does not function if there is not RET button on the lens you are using.)

RET : Functions as a normal RET button. FOCUS ASSIST : Functions as the FOCUS ASSIST button.

PAGE BACK When the cursor is in this position, press the SHUTTER dial to return to the TOP MENU screen.

Assigns “BARS” item functions in the CAMERA OPERATION menu screen. Assigns “PRESET TEMP.” item functions in the CAMERA OPERATION menu screen. X See “CAMERA OPERATION Menu Screen” on page 66.

Assigns “BLACK” item functions in the CAMERA PROCESS [1/2] menu screen. X See “CAMERA PROCESS [1/2] Menu Screen” on page 67.

Assigns “AE LEVEL” item functions in the CAMERA OPERATION menu screen.

MEMO

Cannot assign to the USER3 button. If you assign these menu functions, assign AE LEVEL+ to the USER1 button, AE LEVEL– to the USER2 button.

MENU SCREENS

AUDIO/MIC [1/2] Menu Screen

The AUDIO/MIC menu screen consists of two screens (1/2 screen, 2/2 screen). In VTR mode, the screen changes to the AUDIO menu screen.

* This is not displayed in VTR mode.

Item Function/Setting (bold characters indicate initial settings)

TEST TONE Sets whether to output a test audio signal (1kHz, –20dBFS or –12dBFS) during color bar output.

MIC WIND CUT* Selects whether to cut the lows (low frequency bands) from the audio input signal.

AUDIO REF.LEVEL Sets the reference audio level on the tape. (Both CH-1 and CH-2)

INPUT1 MIC REF.* Sets the reference audio input level for the INPUT1 connector.

INPUT2 MIC REF.* Sets the reference audio input level for the INPUT2 connector.

AUDIO MODE* Selects the audio sampling frequency for recording. (Both CH-1 and CH-2)

NEXT PAGE To display the AUDIO/MIC [2/2] menu screen, move the cursor to this position and press the SHUTTER dial.

PAGE BACK When the cursor is in this position, press the SHUTTER dial to return to the TOP MENU screen.

OFF : A test audio signal is not output. ON : A test audio signal is output.

Use this when you want to reduce wind sounds from the microphone. OFF : Low frequencies are not cut. INPUT1 : Only cuts the low frequencies in the audio from the INPUT1 connector. INPUT2 : Only cuts the low frequencies in the audio from the INPUT2 connector. BOTH : Cuts the low frequencies in the audio from both the INPUT1 and INPUT2 terminals.

–20dB : Records with –20 dB as the reference audio level. –12dB : Records with –12 dB as the reference audio level.

Set this if you are playing back the recorded tape on an ordinary DV device. * Set this for both playback and recording. * This is unrelated to the audio level via the IEEE1394 signal.

–50dB : Sets the reference audio input level at –50 dB. –60dB : Sets the reference audio input level at –60 dB.

(When HDV format is set, this is fixed at 48K and “[48K]” is displayed.) 32K : Digitally records with a 12-bit, 32 kHz sampling frequency. 48K : Digitally records with a 16-bit, 48 kHz sampling frequency. * If the DV format is 12-bit, 32 kHz, up to 4 recording track channels are available. Of those, this camcorder records on the CH-1 and CH-2 channels. This camcorder is not capable of dubbing.

MENU SCREENS

AUDIO/MIC [2/2] Menu Screen

In VTR mode, the screen changes to the AUDIO menu screen.

Item Function/Setting (bold characters indicate initial settings)

AUDIO MONITOR Selects whether stereo or mixed audio is output from the PHONES jack when the MONITOR SELECT switch is set

FAS AUDIO Selects the recording level adjusting method for FAS (Full Auto Shooting). (CH-1, CH-2)

SEARCH AUDIO [DV] Selects whether to output audio when searching a tape recorded in DV format. (This also includes slow playback.)

PB AUDIO CH [DV] Selects which channel audio to output when playing back a DV tape with the audio signal recorded in 4 channels.

PAGE BACK When the cursor is in this position, press the SHUTTER dial to the AUDIO/MIC [1/2] menu screen.

to BOTH. STEREO : Stereo audio (CH-1 audio is output to L and CH-2 audio is output to R) * Outputs only the CH-1 audio from the monitor speaker.

MIX : Mixed audio (CH-1 and CH-2 mixed audio is output to L and R)

AUTO :Sets to AUTO.

SW SET : Follows settings for the AUDIO SELECT switch.

X See “2 [CH-1/CH-2 AUDIO SELECT] switch” on page 13. X See “h [FULL AUTO] switch” on page 18.

ON : Audio is output. OFF : Audio is not output.

(Can only be set in VTR mode) CH1/2 : Outputs the CH-1 and CH-2 channel audio.

This camcorder records the audio in CH-1 and CH-2 while shooting. MIX : Outputs all 4 channels of audio at the same time. CH3/4 : Outputs the CH-3 and CH-4 channel audio.

MEMO

This camcorder does not have a function for dubbing to the CH-3 and CH-4 channels.

MENU SCREENS

LCD/VF [1/3] Menu Screen

The LCD/VF menu screen consists of three screens. (1/3 screen, 2/3 screen, 3/3 screen) The LCD/VF [1/3] menu screen can only be set in camera mode. In VTR mode, this screen consists of two screens. (1/2 screen, 2/2 screen)

Item Function/Setting (bold characters indicate initial settings)

ZEBRA Switches the luminance level of the subject sections where the zebra pattern is displayed.

60-70% : Zebra pattern is displayed in sections with luminance levels between 60% and 70%. 70-80% : Zebra pattern is displayed in sections with luminance levels between 70% and 80%. 85-95% : Zebra pattern is displayed in sections with luminance levels between 85% and 95%. OVER95% : Zebra pattern is displayed in sections with luminance levels over 95%. OVER100% : Zebra pattern is displayed in sections with luminance levels over 100%

F. NO/IRIS IND. Selects whether or not the F-number of the lens iris/iris level mark is displayed in the status display on the LCD mon-

itor or in the viewfinder. (STATUS 1 screen) OFF : F-number and iris level mark is not displayed. F.NO : F-number is displayed. F.NO+IND. : F-number and iris level mark is displayed.

FILTER Selects whether or not the FILTER position of the unit is displayed in the status display on the LCD monitor or in the

SAFETY ZONE*1 Selects whether or not the safety zone is shown on the LCD monitor or in the viewfinder together with the form of

CENTER MARK*1 Sets whether or not a center mark is displayed when the safety zone is displayed.

FOCUS ASSIST Sets the display color for focusing when running the FOCUS ASSIST function.

LEVEL Sets the display range of the focal area when the FOCUS ASSIST function is in use.

LCD MIRROR MODE Sets the image display method when the LCD monitor is in counterview position.

NEXT PAGE When you display the LCD/VF [2/3] menu screen, move the cursor to this position and press the SHUTTER dial.

PAGE BACK When the cursor is in this position, press the SHUTTER dial to return to the TOP MENU screen.

*1 SAFTY ZONE and CENTER MARK will not be displayed when the camcorder is in VTR mode (PLAY, STL, FWD, REV).

viewfinder. (STATUS 1 screen) OFF : FILTER position is not displayed. ON : FILTER position is displayed.

the safety zone indication. OFF : Not displayed 4:3 : 4:3 zone is displayed. 14:9 : 14:9 zone is displayed. 16:9 : 16:9 zone is displayed. 16:9+4:3 : 16:9 zone and 4:3 zone are display mixed. (This cannot be selected when DV format is set.)

ON : Center mark is displayed. OFF : Center mark is not displayed.

MEMO

When the SAFETY ZONE item is set to OFF, “- - -” is indicated and this item cannot be selected.

BLUE : Displays the area of focus in blue. RED : Displays the area of focus in red. GREEN : Displays the area of focus in green.

LOW : Displays the focal area narrower than MIDDLE. MIDDLE : Displays the focal area in normal setting. HIGH : Displays the focal area wider than MIDDLE.

NORMAL : Image is displayed without inverting. MIRROR : Inverted image is displayed.

MEMO

MIRROR setting is disabled when color bar is displayed or status is in magnified size.

X See “Outputting color bars” on page 88. X See “Magnified Status Indications on the LCD Monitor” on page 26.

MENU SCREENS

LCD/VF [2/3] Menu Screen

[1/2] screen is displayed in the VTR mode.

Item Function/Setting (bold characters indicate initial settings)

VIDEO FORMAT Selects whether to display the video format in the status display on the LCD monitor or the viewfinder.

TAPE REMAIN Selects whether or not the remaining tape time (minutes) is shown in the status display on the LCD monitor or in the

TC/UB Selects whether or not the time code or user’s bits data should be shown in the status display on the LCD monitor

AUDIO Selects whether the audio level meters should be shown in the status display on the LCD monitor and the viewfinder

BATTERY INFO For setting the status display method when loading the Anton-Bauer Battery.

NEXT PAGE Camera mode:

PAGE BACK Camera mode:

(Camera mode: STATUS 1 screen, VTR mode: STATUS screen) ON : Displays the video format. OFF : Does not display the video format. In camera mode : Displays the video format set in the REC item on the VIDEO FORMAT menu screen. In VTR mode : Displays the video format recorded on the playback tape or the video format input from the

IEEE1394 connector.

viewfinder. (Camera mode: STATUS 1 screen, VTR mode: STATUS screen) ON : Displayed. OFF : Not displayed.

or in the viewfinder. (Camera mode: STATUS 1 screen, VTR mode: STATUS screen) OFF : Not displayed. ON : Displayed. * Whether the time code or user’s bits data is shown is selected with the TC DISPLAY switch.

screen. (Camera mode: STATUS 1 screen, VTR mode: STATUS screen) OFF : Not displayed. ON : Displayed.

The status will be displayed on the LCD screen and the viewfinder screen. (In camera mode, only displayed when in status 1 screen.) VOLTAGE : Indicates battery voltage in 0.1 V steps [V] CAPA% : Remaining battery is shown in percentage [%] TIME : Remaining battery is shown in minutes [min] For batteries other than Anton-Bauer type, only VOLTAGE display is available regardless of the selection.

MEMO

• When TIME or CAPA is selected, the battery indicator displayed before the value changes depending on the

remaining battery level.

}: 12 % or less |: 12 % to less than 50 % {: 50 % or more

• When remaining battery level becomes less than 12%, the display changes to “} RES”.

• When CALIBRATION is required from the battery, the display switches between TIME(CAPA%) display (30 sec-

onds) and “} CAL” display (2 seconds) repeatedly.

• For CALIBRATION, refer to the instruction manual of Anton-Bauer Battery.

• Please use the remaining battery level and remaining time as a reference for shooting duration.

To display the LCD/VF [3/3] menu screen, move the cursor to this position and press the SHUTTER dial. VTR mode: To display the LCD/VF [2/2] menu screen, move the cursor to this position and press the SHUTTER dial.

When the cursor is in this position, press the SHUTTER dial to return to the LCD/VF [1/3] menu screen. VTR mode: When the cursor is in this position, press the SHUTTER dial to return to the TOP MENU screen.

MENU SCREENS

LCD/VF [3/3] Menu Screen

[2/2] screen is displayed in the VTR mode.

* This is not displayed in VTR mode.

Item Function/Setting (bold characters indicate initial settings)

LCD+VF Selects the LCD monitor and viewfinder display switching method.

LCD CONTRAST Adjusts the contrast of the LCD.

VF CONTRAST Adjusts the contrast of the viewfinder.

BLACK & WHITE* Selects the LCD monitor and viewfinder display style.

PAGE BACK Camera mode:

OFF : Turns off the viewfinder display when the LCD monitor is opened. ON : Viewfinder always displayed the image.

MEMO

• This item is only available when using the Anton-Bauer/IDX battery. Stays in OFF mode even if set to ON until the

battery is detected.

• When this item is set to ON, the contents displayed on the LCD monitor can be changed with the DISPLAY button.

(X See page 26.)

[Settings: MIN (–5), –4 - NORMAL (0) - 4, MAX (5)]

COLOR : Displays the image in color. B&W : Displays the image in black and white.

MEMO

Characters are always displayed in color.

When the cursor is in this position, press the SHUTTER dial to return to the LCD/VF [2/3] menu screen. VTR mode: When the cursor is in this position, press the SHUTTER dial to return to the LCD/VF [1/2] menu screen.

MENU SCREENS

TC/UB/CLOCK Menu Screen

Time codes (TC) and user’s bits (UB) can be set on this screen. Date and time is set on the TIME/DATE screen that can be reached from this screen.

Item Function/Setting (bold characters indicate initial settings)

TC PRESET To preset the time code, align the cursor with this position and then press the SHUTTER dial.

EXECUTE : The set time code is confirmed. CANCEL : The set time code is cancelled. ZERO PRESET : Resets all time codes to “0”.

UB PRESET To preset the user’s bit data, align the cursor with this position and then press the SHUTTER dial.

DROP/NON DROP *1 Selects whether the timecode generator framing mode is drop-frame or non-drop-frame.

UB REC *2 To select whether or not user’s bit data should be recorded.

TC DUPLI. Sets how to record the timecode (TC) and user’s bits (UB) during IEEE1394 input of DV format.

HEADER REC To make settings related to the HEADER REC function, align the cursor with this position, and then press the SHUT-

TIME/DATE To make settings related to the date and time, align the cursor with this position and then press the SHUTTER dial.

PAGE BACK When the cursor is in this position, press the SHUTTER dial to return to the TOP MENU screen.

*1 This can be displayed and selected when 60/30 is set for the FRAME RATE item on the VIDEO FORMAT menu screen.

(When 24 is set, this is fixed at “NON DROP” and “[NON DROP]” is displayed.)

*2 This can be displayed and selected when 50/25 is set for the FRAME RATE item on the VIDEO FORMAT menu screen.

EXECUTE : The set user’s bit data are confirmed. CANCEL : The set user’s bit data are cancelled. ZERO PRESET : Resets all user’s bits data to “0”.

MEMO

When the “UB REC” item is set to “OFF”, “--------” is displayed and this cannot be selected.

DROP : Internal timecode generator works in drop-frame mode. Set this when the recorded time is im-

portant.

NON DROP : Internal timecode generator works in non-drop-frame mode. Set this when the number of frames

is important.

To select whether the user’s bits should be displayed during playback of a tape with recorded user’s bits data. ON : User’s bits are recorded during recording.

User’s bits are displayed during playback.

OFF : User’s bits are not recorded during recording.

User’s bits are not displayed during playback.

OFF : Records the TC/UB set in the camcorder. ON : Records the TC/UB of the IEEE1394 input.

MEMO

In HDV format, the TC/UB set in the camcorder is recorded regardless of the setting.

TER dial.

X See “HEADER REC Menu Screen” on page 78.

X See “TIME/DATE Menu Screen” on page 79.

MENU SCREENS

HEADER REC Menu Screen

The HEADER REC menu screen is used for settings related to the HEADER REC function. (X See page 52.)

Item Function/Setting (bold characters indicate initial settings)

START KEY Sets whether the HEADER REC operation should be executed when the REC/VTR trigger button is pressed while

TC DATA Sets the time code value for the point when the Record-Standby mode is engaged following completion of HEADER

UB DATA Sets the user’s bits of the HEADER REC section.

BARS TIME Sets the duration (seconds) in which the color bar signal and test tone (1 kHz) is recorded during HEADER REC. (1-

BLACK TIME Sets the duration (seconds) in which the black signal is recorded during HEADER REC. (1-sec steps)

PAGE BACK The TC/UB/CLOCK menu screen returns when the SHUTTER dial is pressed.

the STOP button is pressed. DISABLE : HEADER REC operation is not executed. STOP+REC : HEADER REC operation is executed.

REC. EXECUTE : Confirms the set time code. ZERO PRESET : Resets all time codes to “0”. CANCEL : Clears the set time code. The frame mode is set depending on the setting in the DROP/NON DROP item on the TC/UB/CLOCK menu screen. * The time code value at the point when the Record-Standby mode is engaged may differ some frames from the val-

ue set for this item.

EXECUTE : Confirms the set user’s bits. ZERO PRESET : Resets all user’s bits data to “0”. CANCEL : Clears the set user’s bits.

MEMO

• The user’s bits for the normal recording section are set on the TC/UB/CLOCK menu screen.

• When the “UB REC” item is set to “OFF”, “--------” is displayed and this cannot be selected.

sec steps) [Settings: 0SEC - 30SEC - 99SEC]

[Settings: 0SEC - 30SEC - 99SEC]

MENU SCREENS

TIME/DATE Menu Screen

Item Function/Setting (bold characters indicate initial settings)

DISPLAY Sets whether the date and time are shown in the status display on the LCD monitor or in the viewfinder.

DISPLAY MODE In the Camera mode, the date and time are displayed in accordance with the following settings.

DISPLAY STYLE Selects the style for the date and time display.

DATE STYLE Selects the style for the date display.

TIME STYLE Selects the style for the time display.

SEC DISPLAY Selects whether to display the seconds in the time display.

TIME SHIFT Sets the clock OFFSET time. (1H steps)

CLOCK ADJUST To adjust the date and time, align the cursor with this position and then press the SHUTTER dial.

PAGE BACK The TC/UB/CLOCK menu returns when the SHUTTER dial is pressed while the cursor is at this position.

OFF : Not displayed. ON : Displayed. When a tape with time and date not recorded is played back, there will be no display of time and date even when this item is set to ON.

The date and time recorded on a tape are displayed in accordance with the following settings. BARS+CAM : Date and time are always displayed. BARS : Date and time are displayed when the color bars are output. CAM : Date and time are displayed when the camera images are output. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

DATE+TIME : Date and time are displayed. DATE : Date only is displayed. TIME : Time only is displayed. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

YY/MM/DD : Displayed in the format of year/month/date. MM/DD/YY : Displayed in the format of month/date/year. DD/MM/YY : Displayed in the format of date/month/year.

Variation Range: U model: MM/DD/YY E model: DD/MM/YY

When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

24 HOUR : Displays the time using the 24-hour system. 12 HOUR : Displays the time using the 12-hour system. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

ON : Seconds are displayed. OFF : Seconds are not displayed. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

Adds time to the built-in clock (time compensation) and displays it. The adjusted time is also recorded on the tape. [Settings: –23H - –1H, OFF, +H - +23H]

The date and time are set on the CLOCK ADJUST screen. X See “Setting the Date and Time” on page 38.

MENU SCREENS

OTHERS [1/2] Menu Screen

The OTHERS menu screen consists of two screens (1/2 screen, 2/2 screen)

Item Function/Setting (bold characters indicate initial settings)

OUTPUT CHAR. Selects whether to display the menu screen or the warning display on the monitor connected to the video signal out-

LONG PAUSE TIME Selects the time (minutes) before the tape protect mode (drum head rotation stopped) is engaged when the record-

ALARM VR LEVEL Selects whether or not alarm sound is emitted and the volume of the alarm sound.

FRONT TALLY Selects the lighting method of the FRONT TALLY lamp during recording.

BACK TALLY Selects the lighting method of the BACK TALLY lamp during recording.

FORMAT LED Sets whether or not the [HDV/DV LED] h on page 15 lights for HDV format or DV format.

NEXT PAGE To display the OTHERS [2/2] menu screen, move the cursor to this position and press the SHUTTER dial.

PAGE BACK The TOP MENU screen returns when the SHUTTER dial is pressed while the cursor is at this position.

put connector. ON : On-screen-display OFF : No on-screen-display

standby condition continues. 3MIN : 3 minutes 5MIN : 5 minutes * When used in a cold environment or when the stopped or STILL status continues, the setting will be 3 minutes or

less regardless of the setting on the menu.

* Normally, set “3MIN” and use this to prevent head clogging and tape damage.

The alarm sound is output through the monitoring loudspeaker and the PHONES jack. OFF : Sound is not output. LOW : Alarm sound is soft. MIDDLE : Alarm sound is normal.

HIGH : Alarm sound is loud.

BLINK : The lamp blinks from when the REC/VTR trigger is pressed and until recording starts. The lamp lights

steadily during recording. ON : The lamp lights only during recording. OFF : The lamp is always off.

BLINK : The lamp blinks from when the REC/VTR trigger is pressed and until recording starts. The lamp lights

steadily during recording. ON : The lamp lights only during recording. OFF : The lamp is always off.

ON : Lights. OFF : Does not light.

MENU SCREENS

OTHERS [2/2] Menu Screen

* This is not displayed in VTR mode.

Item Function/Setting (bold characters indicate initial settings)

1394 REC TRIGGER* Sets how to control the REC trigger command output from the IEEE1394 connector. (Can be displayed and set in

BACK SPACE [HDV]* This function controls the camera tape transport, back space and pre-roll time when the camera is connected to an

camera mode) Set this when recording a backup of the DV signal from this camcorder onto another device. OFF : Does not control the backup device. SYNCRO : Controls the backup device in conjunction with the recording start/stop mode status on the camcorder,

and if there is no videocassette or if no tape remains for recording, controls the backup device in con-

junction with the REC trigger button and the lens VTR button on the camcorder. SPLIT : The REC trigger button on the right panel of the camcorder controls the backup device recording start/

stop. Set this when you want to control the timing of the recording on the camcorder and the backup

device separately. SERIES : Automatically starts recording on a backup device that is on Pause when the tape on the camcorder has

less than 3 minutes remaining during shooting.

MEMO

• If you use the backup recording function on the BR-HD50, set this item to OFF.

• The cursor (K) does not move to this item when the camcorder is recording.

external HDD or external back up Recorder via IEEE1394 in HDV mode. P-1394 : Priority for IEEE1394 recording (Auto setting) P-TAPE : Priority for camera VCR recording

BACK SPACE [HDV]

P-1394

P-TAPE

IEEE1394

connection

Connected and

Power ON

No connection or

Power OFF

Connected and

Power ON

No connection or

Power OFF

1394 REC

TRIGGER

(X See page 81)

OFF

SYNCRO See Note 1

SPLIT See Note 2

SERIES N/A

OFF

SYNCRO

SPLIT

SERIES

OFF

SPLIT

SERIES N/A

OFF

SYNCRO

SPLIT

SERIES

Internal

VCR

start delay

approx. 3 seconds

approx. 1 second N/A

approx. 1 second

approx. 1 second N/A

External Recorder or HDD

vie IEEE1394 terminal

N/A

See Note 3SYNCRO

Note 1:

REC start signal will be sent 3 seconds after pressing REC trigger button. * Actual recording start time is depending on recorder performance.

Note 2:

REC start signal will be sent just after pressing REC trigger button. * Actual recording start time is depending on recorder performance.

Note 3:

In this mode, the IEEE1394 stream is discontinuous during internal VCR back space editing (when the REC trigger is operated). This may result in breaks in the recording on tape on an external recorder. In the case of HDD recording this may result in the unit staying in REC PAUSE or divided files.

MENU SCREENS

OTHERS [2/2] Menu Screen (Cont’d)

* This is not displayed in VTR mode.

Item Function/Setting (bold characters indicate initial settings)

DR-HD100 A.OFF* Selects whether or not to turn OFF the DR-HD100 (HDD unit by FOCUS enhancements) when this unit is turned

MENU ALL RESET Selects whether to reset the menu screen settings to initial settings.

PAGE BACK When the cursor is in this position, press the SHUTTER dial once to return to the OTHERS [1/2] menu screen.

DRUM HOUR Displays the drum usage time.

FAN HOUR Displays the fan motor usage time.

OFF. OFF : Power does not turn OFF. ON : Power turns OFF with the unit.

MEMO

• The [ mark is displayed at the upper right of the LCD monitor and viewfinder when the DR-HD100 is connected.

If this unit is turned OFF before the mark is displayed, power does not turn OFF even if this setting is ON.

• This setting is canceled and the DR-HD100 does not turn OFF in the following instances.

1394 REC TRIGGER item is set to OFF VTR mode is set

• When the DR-HD100 power turns off and this unit is turned ON again, after 12 seconds, “DR-HD100 power?”

appears on the LCD monitor for 7 seconds.

The camera mode and VTR mode menu settings are reset. (The TC PRESET, UB PRESET, and CLOCK ADJUST settings are not reset.) CANCEL : The settings are not reset. EXECUTE : The settings are reset.

MEMO

• The cursor (K) does not move to this item when the camcorder is in VTR mode or is ejecting a tape.

• If the current menu settings and the factory settings have different FRAME RATE settings, “REBOOT!” is dis-

played for 3 seconds, the camcorder automatically turns off and then turns on.

Use as an estimate for regular maintenance. The cursor (K) does not move to this item.

FILE MANAGE Menu Screen

FILE MANAGE menu screen

MENU SCREENS

You can perform the following operations in the FILE MANAGE menu screen.

• Settings corresponding to shooting conditions can be read immediately with the following read-only files. LIVE HD30P: Ideal setting for HD30P format LIVE HD25P: Ideal setting for HD25P format CINELIKE HD24P: Ideal setting for movie-quality shooting * The read-only files listed above cannot be saved or reset.

• Save menu settings (Camcorder: CAM1, CAM2; SD memory card: EXT1, 2, 3, 4) to files.

• Load saved files.

• You can set a SUB NAME for the file to be saved.

• Reset the menu settings to the factory settings.

• Initialize (format) an SD memory card.

• When you set CANCEL for the LOAD, STORE, RESET and FORMAT SD CARD items, these operations are not executed.

• A message is displayed in the LCD monitor or the viewfinder. Execute : Displayed for 3 seconds Complete : Displayed for 3 seconds Error : Flashes (Error displays X See page 84.)

Execute Complete

Flashing

Error display

Error

Reboot display

If there is an error:

• Press the STATUS button → Return to the normal

screen.

• Press the SHUTTER dial → Return to the FILE MAN-

AGE menu screen.

• To exit the FILE MANAGE screen: Move the cursor (K) to PAGE BACK and press the SHUTTER dial or press the STATUS button.

 Displaying the FILE MANAGE menu

screen

Select the FILE MANAGE.. item on the TOP MENU screen.

 Loading a menu settings file

Select the LOAD FILE.. item on the FILE MANAGE menu screen.

1. Turn the SHUTTER dial, bring the cursor (K) to SELECT

and press the SHUTTER dial.

• The file name setting area flashes.

2. Turn the SHUTTER dial, select the file to load and press

the SHUTTER dial.

3. Turn the SHUTTER dial, bring the cursor (K) to the LOAD

item and press the SHUTTER dial.

• EXECUTE flashes.

4. With EXECUTE selected, press the SHUTTER dial to

read the menu settings in the selected file. If the current menu settings and the menu settings to be loaded have different video format settings, “REBOOT!” is displayed for 3 seconds, the camcorder turns off automatically and then turns on.

MENU SCREENS

FILE MANAGE Menu Screen (Cont’d)

1. 2.

5. 6.

Settable Characters

Spac e

Execute Complete

 Saving settings

Select the STORE FILE.. item on the FILE MANAGE menu screen.

1. Turn the SHUTTER dial, bring the cursor (K) to SELECT

and press the SHUTTER dial.

• The file name setting area flashes.

2. Turn the SHUTTER dial, select the file to save to, and

press the SHUTTER dial.

 Setting a SUB NAME

If you do not want to set a SUB NAME, go to Step 5..

3. Turn the SHUTTER dial, bring the cursor (K) to SUB

NAME and press the SHUTTER dial.

• The first character in the file name flashes.

4. Turn the SHUTTER dial, select the character, and press

the SHUTTER dial.

• The second character in the file name flashes. Repeat Step 4. up through the eighth character.

5. Turn the SHUTTER dial, bring the cursor (K) to the

STORE item and press the SHUTTER dial.

• EXECUTE (if the file already exists, “OVERWRITE”) flashes.

6. With EXECUTE selected, turn the SHUTTER dial to save

the menu settings to the selected file.

 Error displays

• NO CARD:

No SD memory card is inserted. Insert an SD memory card.

•NO FORMAT:

The SD memory card is not initialized (formatted). Initialize (format) the SD memory card.

• NO ACCESS:

There is a problem with the SD memory card. Replace the SD memory card.

• WRITE PROTECT:

The SD memory card may be write-protected. Check that write-protection is disabled.

• CARD FULL:

The SD memory card does not have enough free space. Delete unwanted data or initialize (format) the card.

• INVALID VIDEO FORMAT:

A settings file for a video format that is not supported was called up. Settings files for video formats that are not supported cannot be called up.

• READ ONLY FILE:

Indicates a read-only file. Read-only files cannot be saved.

Flashing

Error display

Error

Execute Complete

MENU SCREENS

 Resetting the menu settings to the fac-

tory settings

Select the RESET FILE.. item on the FILE MANAGE menu screen.

1. Turn the SHUTTER dial, bring the cursor (K) to SELECT

and press the SHUTTER dial.

• The file name setting area for the file to be reset flashes.

2. Turn the SHUTTER dial, select the name of the file to

reset, and press the SHUTTER dial. CAM1, CAM2, CURRENT (current settings)

3. Turn the SHUTTER dial, bring the cursor (K) to the

RESET item and press the SHUTTER dial.

• EXECUTE flashes.

4. With EXECUTE selected, turn the SHUTTER dial to reset

the settings.

If the current menu settings and the factory settings have different video format settings, “REBOOT!” is displayed for 3 seconds, the camcorder turns off automatically and then turns on. When this happens, the SUB NAME initial value, “[SCENE]” is displayed.

Reboot display

Execute Complete

Flashing

Error display

Error

MEMO

Even if CAM1 and CAM2 are reset, the current settings are not reset. To reset the currently set values, select “CURRENT”.

 Initializing (formatting) an SD memory

card

Before initializing (formatting) a card:

1Insert and remove the SD memory card with the power

to the camcorder OFF.

2Disable write-protection on the SD memory card. 3Check that an SD memory card has been inserted into

the camcorder.

1. Turn the SHUTTER dial, bring the cursor (K) to the FOR-

MAT SD CARD item and press the SHUTTER dial.

• CANCEL flashes.

2. Turn the SHUTTER dial, and when EXECUTE flashes,

press the SHUTTER dial to initialize (format) the card.

If there is an error: Check items 2 and 3 in “Before initializing (formatting) a

card”.

FEATURES OF THE CAMERA SECTION

How to Use Skin Detail

3. 4.

Detection

Cursor

area

SHUTTER dial

USER 3USER 2USER 1

SHUTTER

ND FILTER

2 1

OFF

STATUS

WHT.BAL

AUTO AUTO

STATUS button

CAMERA PROCESS [2/2] menu screen

ADVANCED PROCESS menu screen

This function suppresses edge sharpening in the skin color areas of the video signal, enabling velvety, smooth skin tones.

 Setting the skin detail function color and

range

1. Display the ADVANCED PROCESS menu screen.

In menu setting procedure TOP MENU screen → CAMERA PROCESS [1/2] → CAMERA PROCESS [2/2] → Select ADVANCED PROCESS item.

2. Turn the SHUTTER dial, bring the cursor (K) to the SKIN

COLOR ADJUST item and press the SHUTTER dial.

• The SKIN COLOR ADJUST screen is displayed.

• The entire screen becomes black and white, and only the areas recognized by the skin detail function are displayed in color.

3. Move the cursor (K) to the SKIN COLOR DET. item, press

the SHUTTER dial and select EXECUTE to switch to skin color detection mode.

4. Shoot so that the color area you want to detect within the

detection area frame is input. To confirm the detection area, press the SHUTTER dial and set SKIN COLOR DET. to STOP.

• The frame on the screen is the detection area for the skin detail function.

• The color within the detection area is recognized as the color that the skin detail function will use.

• If the color within the detection area is not recognized as the color that the skin detail function will use, “ERROR” is displayed on the screen.

5. If you want to change the range of colors recognized with

the skin color detection function, follow the steps below. 1Turn the SHUTTER dial, bring the cursor (K) to the

SKIN COLOR RANGE item and press the SHUTTER dial. → The setting area flashes and can be changed.

2Turn the SHUTTER dial up or down to widen or narrow

the color range.

• Set the range as you check the color display.

3To confirm the color range, press the SHUTTER dial.

• The setting returns to its lit state.

6. To stop the SKIN COLOR ADJUST function, turn the

SHUTTER dial, bring the cursor (K) to the PAGE BACK item and press the SHUTTER dial.

Black and

presenta-

Color

presenta-

SKIN COLOR ADJUST menu screen

white

tion

SKIN COLOR ADJUST screen

STATUS 0

ZEBRA switch

“SD” display

FEATURES OF THE CAMERA SECTION

 Using the Skin Detail Function

To use the skin detail function set on the SKIN COLOR ADJUST screen, select “ON” for the SKIN DETECT item on the CAMERA PROCESS [1/2] menu screen. In addition, you can use the LEVEL item to set three levels of suppression of skin color area detail enhancement in the video signal. X See page 67. While the skin detail function operates, the “SD” indicator is displayed on the STATUS 0 and STATUS 1 screen in the viewfinder or LCD monitor.

 Confirming the color tone area adjusted

with the Skin Detail function

When you push the ZEBRA switch on the front panel to “SKIN AREA”, the skin detail function turns ON, and the color area adjusted with the skin detail function is displayed in color in the LCD monitor or viewfinder.

MEMO

When COLOR GAIN item on the ADVANCED PROCESS menu screen is set to “OFF”, only the portion the skin detail function is working is displayed in skin color. X See page 69.

FEATURES OF THE CAMERA SECTION

Outputting color bars

FULL AUTO switch

USER button

This camcorder can output three types of color bars, depending on the camera settings.

NTSC standard : Outputs color bars compliant with the

SMPTE standard.

PAL standard : Outputs color bars compliant with the

EBU standard.

16:9 screen : Outputs multi-format color bars.

To output color bars, make the following settings.

1. Turn the FULL AUTO switch to “OFF”.

2. Set the BARS item on the CAMERA OPERATION menu

screen to “ON”. X See page 66.

• Color bars are output.

 Outputting color bars using the USER buttons

1. Turn the FULL AUTO switch to “OFF”.

2. Assign “BARS” to one of the USER1, 2 or 3 buttons.

X See “SWITCH MODE Menu Screen” on page 71.

3. Press the USER button to which “BARS” was assigned.

• Color bars are output.

MEMO

• You can select whether to output an audio test signal during color bar output using the TEST TONE item on the AUDIO/MIC [1/2] menu screen. X See page 72.

• Color bars are not output when FULL AUTO mode is ON or in VTR mode.

OTHERS

Warnings and Responses

Warnings are displayed on the LCD monitor or the viewfinder if there was a mistaken operation, if the battery or tape is low, or if there is a problem on the VTR. In addition, if the tape or battery is low or the VTR has a problem, the tally lamp flashes (or lights) and an alarm is output from the monitor speaker or PHONES jack.

MEMO

This camcorder uses microcomputers. It may not operate properly if there is external static or interference. If this happens, turn the power off and then on again.

Display Status Action

60/30 24 INHIBIT

CHANGE FRAME

RATE MENU

60/30 INHIBIT

CHANGE FRAME

RATE MENU

50/25 INHIBIT

CHANGE FRAME

RATE MENU

24 INHIBIT CHANGE FRAME RATE MENU

DV-60I INVALID! DV-24P INVALID! DV-24PA INVALID!

DV-50I INVALID! DV-25P INVALID!

INVALID TAPE! A computer data tape or a DVC PRO cassette was used. Use a MiniDV videocassette.

LP TAPE INVALID!* Tried to play back a tape recorded in LP mode. This camcorder cannot record or play back in LP mode.

NO DV SIGNAL* DV signal was not input. Set the IEEE1394 switch to DV and input a DV signal.

NO HDV SIGNAL* HDV signal was not input. Set the IEEE1394 switch to HDV and input an HDV signal.

COPY INHIBIT* Tried to record a copyguarded signal. Cannot record a copyguarded signal.

REC INHIBIT* A tape that cannot be recorded (back switch is set to SAVE)

NO TAPE* No videocassette tape is inserted. Insert a cassette tape.

LOW VOLTAGE* Battery is low. Charge the battery pack or replace it.

TAPE NEAR END* There are less than 3 minutes remaining on the tape (flash-

TAPE END* Displayed when the tape ends. Replace the tape.

CHANGE 1394 SWITCH*

SWITCH TO VTR MODE*

HEAD CLEANING REQUIRED

CLEANING TAPE! Displayed when a head cleaning tape is inserted. The display disappears when the head cleaning tape is re-

COPY GUARD!* Tried to play back a copyguarded tape. Cannot play back a copyguarded tape.

FAN MOTOR HOUR Over the prescribed fan motor usage time. Please contact your local dealer or JVC.

PUSH CASSETTE COVER*

* When status indications are magnified, warnings are not displayed on the LCD monitor.

X See “Magnified Status Indications on the LCD Monitor” on page 26.

The FRAME RATE item is set to 50/25, and a tape recorded in 60/30, 24 frame HDV format is played back or it is input into the IEEE1394 port in VTR mode.

The FRAME RATE item is set to 50/25, and a tape recorded in 60/30 frame DV format is played back or it is input into the IEEE1394 port in VTR mode.

The FRAME RATE item is set to 60/30 or 24, and a tape recorded in 50/25 frame HDV/DV format or it is input into the IEEE1394 port in VTR mode.

The FRAME RATE item is set to 50/25 and, a tape recorded in 24 frame DV format is played back or it is input into the IEEE1394 port in VTR mode.

A tape recorded in DV-60I, DV-24P, or DV-24PA format was played back or input into the IEEE1394 connector in VTR mode on the E model.

A tape recorded in DV-50I or DV-25P format was played back or input into the IEEE1394 connector in VTR mode on the U model.

was inserted.

es only when recording).

Recording or playback video format and the IEEE1394 setting is different when connected to the IEEE1394 port.

Tried to use the FF or REW button in camera mode. Press the CAM/VTR button to set VTR mode.

Displayed when the video head is dirty. (Head clogging was detected during an edit search in shooting mode as well as during playback and displayed.)

The videocassette cover is not firmly shut. Lightly push the top center of the videocassette cover.

Sets the FRAME RATE item on the VIDEO FORMAT menu screen to match the frames. X See page 64.

The E model cannot play back tapes recorded in DV-60I, DV-24P or DV-24PA format or input into the IEEE1394 connector in VTR mode.

The U model cannot play back tapes recorded in DV-50I or DV-25P format or input into the IEEE1394 connector in VTR mode.

Set the switch on the back of the cassette tape to REC.

To continue shooting, find a new tape or replace the tape.

Set the IEEE1394 switch correctly, turn the power off and then on again.

Clean with a special head cleaning tape. X See page 7.

moved.

OTHERS

Warnings and Responses (Cont’d)

Error code

• Warning Indications for VTR Abnormalities

Should malfunctions occur during VTR operation, the unit self-diagnoses the cause and shows the diagnose together with an error code on the LCD monitor or in the viewfinder.

Warni ng

Error Code Error Details GY-HD110 Operation Remedy

CONDENSATION ON DRUM

0201

3200

LOADING FAILURE

3300

UNLOADING FAILURE

4100

CASSETTE EJECT FAILURE

5605 - 5609

DEFECTIVE TAPE

5702

TAPE END DET. ERROR

5802

TAPE BEGIN DET. ERROR

7001

DRUM MOTOR FAILURE

7101

CAP MOTOR FAILURE

7202 - 7203

SUPPLY REEL FAILURE

7302 - 7303

TAKE UP REEL FAILURE

7305

TAKE UP REEL FAILURE

8000

EMERGENCY TAPE!

TURN POWER OFF.

TURN BACK ON LATER.

Indicates dew formation (condensation).

Tape cannot be loaded. Switch the power OFF and then switch

Tape cannot be unloaded.

Irregularity with eject operation.

Tape is cut. Operation stops. Press the EJECT button to take out the

Tape end sensor error. Operation stops. All opera-

Tape beginning sensor error.

Drum rotation error.

Capstan rotation error.

Supply reel rotation error.

Take up reel rotation error.

Take up reel rotation error when unloading.

Tape problem detected.

System error when power is turned on. HDV/DV LED, VTR indicator

Operation stops. All operations are rejected.

tions are rejected.

and TALLY lamp flash. Only POWER switch operation is accepted.

Leave the unit with the power ON, until the indication disappears.

it back ON. However, the tape may be damaged depending on the circumstances. Please consult the person in charge of professional video equipment at your nearest JVC-authorized service agent.

cassette.

Switch the power OFF and then switch it back ON. However, the tape may be damaged depending on the circumstances. Please consult the person in charge of professional video equipment at your nearest JVC-authorized service agent.

Turn off the power and let the unit sit for sometime before turning it back on.

 TALLY lamp

Blinks when remaining battery power or tape is low. (Only in Camera mode)

Blinking Pattern Remaining Battery/Tape

Slow blinking (once per sec.)

Fast blinking (four times per sec.)

 Alarm Sound

When remaining battery power becomes low, a warning sound is output from the monitoring loudspeaker and the PHONES jack. (In Camera mode only) When an irregularity occurs in the VTR, a warning sound is also output.

Whether or not alarm sound should be output and the volume level are selected with the ALARM VR LEVEL item on the OTHERS [1/2] menu screen.

 Depending on the alarm conditions, the warning indicators

on the LCD monitor/viewfinder screen, the TALLY lamp, and alarm sounds appear as shown in the following table.

• Remaining battery power is low.

• Remaining tape time is equivalent to less than 3 minutes.

• Tape has run out.

• Irregularity has occurred in the VTR.

OTHERS

Alarm Indications on LCD Monitor/

Viewfinder Screen

VTR alarm indication (Example)

TALLY lamp Alarm Sound Condition

Dew formation (condensation) or error has occurred in the VTR.

J I

About 3 min. before tape end (displayed during recording).

Tape end (displayed during recording).

Remaining battery power is low.

Display symbols J : Blinking once per second. I : Blinking four times per second.

: Sound interrupted once per second. : Continuous sound.

OTHERS

Troubleshooting

Symptoms Remedy

Power cannot be switched ON. • Is power supply connected correctly?

Recording is not possible. • Is the REC LOCK switch on the hundle set to ON?

Camera image does not appear on LCD monitor or in viewfinder.

Image shown on LCD monitor or in viewfinder is dark or blurred. • Adjust the brightness of the LCD monitor or viewfinder screen.

Playback does not start when the play button is pressed. • In the Camera mode, is “STOP” indicated as the VTR operation mode indica-

Cannot play back. • Is the PB TAPE item on the VIDEO FORMAT menu screen set to a setting oth-

Cannot input an HDV/DV signal. • Is the camcorder in VTR mode? (Is the VTR indicator lit?)

Noise interferes with playback video. • Video head may be clogged with dirt. Clean head with the special head clean-

Sound is not output during playback. • Is the AUDIO SELECT item on the AUDIO menu screen set to CH3/4?

Noise appears when playing back a tape recorded on another unit.

The transient section between scenes recorded on other units and those recorded on the GY-HD110 may appear disturbed.

The front section’s audio level control doesn’t work. • Is the CH-1/CH-2 AUDIO SELECT switch set to “AUTO”?

Cannot initialize (format) the SD memory card. • Is the SD memory card write-protected? X See page 31.

• Is battery pack recharged?

• Was the power turned ON immediately after being turned OFF? Wait at least 5 seconds before turning the power ON again once it has been turned OFF.

• Is the switch on cassette set to “REC”? If it is set to “SAVE”, set it to “REC”.

• The Camera mode has not been selected. (The VTR indicator does not light.) While the VTR indicator lights, press the MODE switch upward to turn on the CAM indicator.

• The Camera mode has not been selected. (The VTR indicator does not light.) While the VTR indicator lights, camera image will not be output. Press the CAM/VTR switch upward to turn on the VTR indicator.

• Is the ND filter knob set to 2?

• Is the iris closed?

• Is the shutter speed too fast?

• Is the viewfinder cable correctly connected?

tor? When “STBY” is indicated, press the STOP button to display “STOP”.

er than AUTO? If this menu item and the tape format do not match, the tape cannot be played back.

• Is the IEEE1394 switch set correctly?

ing tape. X See “Precautions for Use of Head Cleaning Tape” on page 7.

To output the sound of the recording, set to CH1/2.

• When a tape recorded on another unit is played back or used for recording, this phenomenon may occur due to tracking errors.

• Are you trying to play back a tape recorded in HDV 1080i format? This camcorder cannot play back or output tape recorded in HDV 1080i format.

• Is the FULL AUTO switch set to “ON”?

Battery alarm is displayed even if a fully charged battery pack is put in.

Cassette cannot be ejected after the power is turned ON. • The capacity of the power supply may be insufficient. Check the power volt-

Time code or user’s bits data not displayed. • Is the TC/UB item on the LCD/VF [2/3] menu screen set to OFF?

The date and time are not displayed or recorded. • Is the DISPLAY item on the TIME/DATE menu screen set to OFF?

• Is the battery pack old?

age.

If so, set to ON.

Set to ON when the data should be displayed and recorded.

• Is the date and time setting made? X See “Setting and Displaying the Date and Time” on page 37, 38.

How to Display the Hour Meter

OTHERS

OTHERS [2/2] menu screen

The drum and fan motor usage times are displayed in the DRUM HOUR item and the FAN HOUR items on the OTHERS [2/2] menu screen as the hour meters on this camcorder. Use as an estimate for regular maintenance. X See page 7.

1. Turn the POWER switch ON.

2. Press the STATUS button for at least 1 second to display

Drum usage hours (h)

the TOP MENU screen.

3. Turn the SHUTTER dial, select the OTHERS.. item, and

press the SHUTTER dial. The OTHERS [1/2] menu screen is displayed.

4. Select the NEXT PAGE item on the OTHERS [1/2] menu

Fan motor usage hours (h)

screen and press the SHUTTER dial. The OTHERS [2/2] menu screen is displayed.

 OTHERS [2/2] Menu Screen

DRUM HOUR item : Displays the drum usage hours. FAN HOUR item : Displays the fan motor usage hours.

5. To return to the normal screen display, do one of the fol-

lowing:

• Press the STATUS button. or

• Return to the TOP MENU screen, select the EXIT item on the TOP MENU screen and press the SHUTTER dial.

Information for Users on Disposal of Old Equipment

Attention:

This symbol is only valid in the European Union.

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

to obtain information about the

OTHERS

Specifications

[General]

Power requirements : DC 7.2 V, W 2.3 A Power consumption : Approx. 16.5 W (in the Record mode) Dimensions : 235 (W) × 232 (H) × 341 (D) mm Mass : 3.3 d (7.3 lbs.) (including lens

(Th16×5.5BRMU), viewfinder, bat-

tery pack, microphone and tape) Temperature Operating : 0°C to 40°C (32°F to 104°F) Storage : –20°C to 60°C (–4F° to 140°F) Humidity Operating : 30% to 80% RH Storage : 85% RH or less

[Camera section]

Image pickup device : 1/3" interline-transfer CCDs Color separation optical system Number of total pixels : Approx. 1,110,000 pixels Color bars : SMPTE/EBU type Sync system:

Lens mount : 1/3" bayonet system ND filter : 1/4ND, 1/16ND Gain : 0, 3, 6, 9, 12, 15, 18 dB, ALC Electronic shutter Standard value : 59.94 Hz (U model)/50 Hz (E model) Fixed values : 7.5 - 10,000 Hz, 11 steps (HDV

Variable scan : 60.19 - 1,998.0 Hz (HDV HD30p/

Dynamic range : 300% or more

: F1.4, 3-color separation prism

Internal sync (built-in SSG)

HD30p/HDV SD60p/DV 60i), 6.25 -

10,000 Hz, 11 steps (HDV HD25p/

HDV SD50p/DV 50i), 6 - 10,000 Hz,

12 steps (HDV HD24p/DV 24p), 6.25

- 10,000 Hz, 11 steps (DV 25p)

HDV 60p/DV 60i), 50.17 - 1,982.8 Hz

(HDV HD25p/HDV SD50p/DV 50i),

48.11 - 1,998.0 Hz (HDV 24p), 24.01

- 1,998.0 Hz (DV 24p), 25.04 -

1,982.8 Hz (DV 25p)

[VTR section]

Video

Recording format : 720/24p, 720/25p, 720/30p, 576/50p,

480/60p (U/E model), 480/24p, 480/ 60i (U model), 576/25p, 576/50i (E model)

Video Format: [HDV]

Video signal recording format Compression : MPEG-2 video (profile & level:

[DV]

Video signal recording format Compression : DV compression, 4:1:1 (NTSC)/4:2:0

Audio: [HDV]

Audio signal recording format

[DV]

Audio signal recording format

Usable tape : MiniDV tape Tape speed : 18.8 mm/sec. Record/play time : 63 minutes (with an M-DV63PROHD

: HDV720p format, 8-bit, 19.7 Mbps

MP@H-14)

: DV format, 8-bit, 25 Mbps

(PAL)

: MPEG1 Audio Layer II

: 16-bit (locked audio), 48 kHz PCM

for 2 channels or 12-bit, 32 kHz PCM for 4 channels

tape)

[Connectors]

Analog composite output

: 1.0 V (p-p), 75 Ω, unbalanced (RCA)

Analog component output

Y : 1.0 V (p-p), 75 Ω, unbalanced (RCA)

B/PR : 0.7 V (p-p), 75 Ω, unbalanced (RCA)

Audio inputs

Mic : –60 dBs, 3 kΩ, balanced (XLR), +48

V output for phantom power supply Line : +4 dBs, 10 kΩ, balanced (XLR) Audio outputs : –8 dBs, low impedance, unbalanced

(stereo mini-jack) Earphone jack : –17 dBs to –60 dBs, 8-Ω impedance

(stereo mini-jack ×2) IEEE1394 connector : 6-pin

OTHERS

[ACCESSORIES]

Lens : 1 (Excluding the CHU/CHE model) Microphone : 1 AC Adapter : 1 Battery pack : 1 DC cable : 1 Approx. 2 m Power cord : 1 Approx. 2 m (U model only) Power cord : 2 Approx. 2 m (E model only) Core Filter : 2 Clamp Filter : 2 Audio cable : 1 SD memory card : 1 Instruction Manual : 1 Warranty Card : 1 (USA and Canada only)

For details, consult your JVC dealer. Design and specifications are subject to change without notice.

EXTERNAL DIMENSIONS

(unit: mm)

[AC ADAPTER SECTION]

Power : USA and Canada: AC 120 V, 60 Hz

European countries: AC 220 V to 240

V, 50 Hz/60 Hz

Other countries: AC 110 V to 240 V,

50 Hz/60 Hz Power consumption : 23 W Output power : DC 7.2 V, 1.2 A (charge)

DC 7.2 V, 2.3 A (VTR) Operating temperature

Dimensions : 122 (W) × 51 (H) × 92 (D) mm

Mass : Approx. 280 c (Main body only)

: 0°C to 40°C (32°F to 104°F)

[when charging, 10°C to 35°C (50°F

to 95°F)]

(4-4/5" × 2" × 3-3/5")

* Design and specifications are subject to change without notice

JVC GY-HD110, GY-HD111 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
