JVC GR-DVL500 User Manual

DIGITAL VIDEO CAMERA

GR-DVL500
GR-DVL300

Please visit our Homepage on the World Wide
Web and answer our Consumer Survey
(in English only):

http://www.jvc-victor.co.jp/english/index-e.html

ENGLISH

CONTENTS

AUTOMATIC DEMONSTRATION

GETTING STARTED

RECORDING

Basic Recording................................. 14

Advanced Features ............................ 21

PLAYBACK

Basic Playback.................................. 31

Advanced Features ............................ 32

Basic Connections .............................. 34

Advanced Connections ......................... 36

DUBBING

Dubbing To A VCR ............................. 38

Dubbing To Or From A Video Unit

Equipped With A DV Connector ............ 39

USING THE REMOTE
CONTROL UNIT

Slow-Motion Playback, Frame-By-Frame

Playback and Playback Zoom .............. 42

Playback Special Effects ...................... 43

Random Assemble Editing .................... 44

For More Accurate Editing .................... 48

Audio Dubbing .................................. 50

Insert Editing ................................... 51

8 – 13

14 – 30

31 – 37

38 – 39

40 – 51

7

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which is located on the
bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

TROUBLESHOOTING

USER MAINTENANCE

INDEX

Indications ...................................... 5 9

Controls, Connectors And Indicators ........ 62

CAUTIONS

TERMS

SPECIFICATIONS

LYT0534-001C

52 – 57

59 – 63

64 – 66

67 – 68

69 – 70

EN

58

2 EN

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions
contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents on the cover page.

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to the Index ( pgs. 59 – 63) and familiarize yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely important

information regarding the safe use of this product.

You are recommended to carefully read the cautions on pages 64 through 66 before use.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

The AA-V40U AC Power Adapter/Charger should be
used with:
AC 120 V`, 60 Hz in the USA and Canada,

AC 110V – 240 V`, 50 Hz/60 Hz in other countries.

CAUTION (applies to the AA-V40U)

TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION (s’applique à l’AA-V40U)

POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQU’AU FOND.

WARNING:
TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.

NOTES:

●

The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.

●

The rating plate (serial number plate) of the AC
Power Adapter/Charger is on its bottom.

This camcorder is designed to be used with NTSC­type color television signals. It cannot be used for
playback with a television of a different standard.
However, live recording and LCD monitor/
viewfinder playback are possible anywhere. Use the
BN-V408U/V416U/V428U battery packs and, to
recharge them, the provided multi-voltage AC
Power Adapter/Charger. (An appropriate conversion
adapter may be necessary to accommodate different
designs of AC outlets in different countries.)

When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on all
sides to allow for ventilation (10 cm (3-15/16") or
more on both sides, on top and at the rear).

Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper,
or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles,
should be placed on the apparatus.

When discarding batteries, environmental problems
must be considered and the local rules or laws
governing the disposal of these batteries must be
followed strictly.

The apparatus shall not be exposed to dripping or
splashing.

Do not use this equipment in a bathroom or places
with water.
Also do not place any containers filled with water or
liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equip­ment, fire or electric shock may be caused.)

IMPORTANT PRODUCT
SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions.
But improper use can result in potential electrical
shock or fire hazards. This product has been
engineered and manufactured to assure your
personal safety. In order not to defeat the built-in
safeguards, observe the following basic rules for its
installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions
marked on your product and its operating instruc­tions. For your safety, please read all the safety and
operating instructions before you operate this
product and keep this manual for future reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still
fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of
the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (ground­ing) pin. This plug will only fit into a grounding-type
power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
grounding-type plug.

2. Power Sources

Operate your product only from the type of power
source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult
your product dealer or local power company. If your
product is intended to operate from battery power, or
other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire
or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point
where they exit from the product.

EN3

5. Ventilation

Slots and openings in the cabinet are provided for
ventilation. To ensure reliable operation of the product
and to protect it from overheating, these openings must
not be blocked or covered.

•Do not block the openings by placing the product on a
bed, sofa, rug or other similar surface.

•Do not place the product in a built-in installation such
as a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been
adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only
as recommended by the manufacturer.

ANTENNA INSTALLATION
INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of
the National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements
for the grounding electrode.

2. Lightning

For added protection for this product during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will
prevent damage to the product due to lightning and
power-line surges.

3. Power Lines

An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching
such power lines or circuits as contact with them might
be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA
LEAD IN WIRE

GROUND CLAMP

ANTENNA
DISCHARGE UNIT

(NEC SECTION
ELECTRIC SERVICE
EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

4 EN

USE

1. Accessories

To avoid personal injury:

•Do not place this product on an unstable cart,
stand, tripod, bracket or table. It may fall, causing
serious injury to a child or adult, and serious
damage to the product.

•Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer or sold with the
product.

•Use a mounting accessory recommended by the
manufacturer and follow the manufacturer’s
instructions for any mounting of the product.

•Do not try to roll a cart with small casters across
thresholds or deep-pile carpets.

2. Product and Cart

Combination

A product and cart
combination should be
moved with care. Quick
stops, excessive force, and
uneven surfaces may cause
the product and cart
combination to overturn.

3. Water and Moisture

Do not use this product near water—for example,
near a bath tub, wash bowl, kitchen sink or laundry
tub, in a wet basement, or near a swimming pool and
the like.

4. Object and Liquid Entry

Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind
on the product.

5. Attachments

Do not use attachments not recommended by the
manufacturer of this product as they may cause
hazards.

6. Cleaning

Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.

PORTABLE CART WARNING
(Symbol provided by RETAC)

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a
marked change in performance and you are unable
to restore normal operation by following the detailed
procedure in its operating instructions, do not
attempt to service it yourself as opening or removing
covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:

a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or water.
d. If the product does not operate normally by

following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the product to its normal operation.

e. If the product has been dropped or damaged in

any way.

f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or other
hazards.

4. Safety Check

Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in safe
operating condition.

EN5

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as
lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying
or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the
unit, or in a malfunction.

Take care not to get your finger caught in the cassette holder cover. Do not let children operate the
camcorder, as they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to
the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, Editing, DC, etc.) to the camcorder and leaving the unit
on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall,
resulting in damage.

 This camcorder is designed exclusively for the digital video cassette. Only cassettes marked

“ ” can be used with this unit.

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini DV mark .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial use

without proper permission is prohibited. (Even if you record an event such as a show, perform­ance or exhibition for personal enjoyment, it is strongly recommended that you obtain permis­sion beforehand.)

6 EN

PROVIDED ACCESSORIES

•AC Power Adapter/Charger
AA-V40U

•AAA (R03) Battery x 2
(for remote control unit)

•CD-ROM
The CD ROM contains the
following 5 software programs:

• JLIP Video Capture

• JLIP Video Producer

Presto!

• Mr. Photo

• PhotoAlbum

• ImageFolio

•Remote Control Unit
RM-V716U

•Shoulder Strap

•Editing Cable

•DC Cord

•Battery Pack BN-V408U

• Lens Cap

•Audio/Video Cable

(ø3.5 mini-plug to
RCA plug)

• PC Connection Cable

EN7

1

R
S
Z
G
T

I

D

S

R
E
O
O
A
A
D

E

I

E
C
U
O

I
L

M

D

C
T

N
M
N
L
N

O

E

A
U
M
D

Y
U

.

M
R
O

U
M

M

L

E
N
D
M

P
B

O

E

R
E

O

E

D

D

A

D

R

E

E

ME

O

O

N

N

FUF

How To Attach The Lens Cap

12 3

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

AUTOMATIC DEMONSTRATION

Automatic Demonstration takes place when “DEMO. MODE”

is set to “ON” (factory-preset).

 Available when the Power Switch is set to “

” or “ ”

and no cassette is in the camcorder.

 Performing any operation during the demonstration stops

the demonstration temporarily. If no operation is per­formed for more than 1 minute after that, the demonstra­tion will resume.

 “DEMO. MODE” remains “ON” even if the camcorder

power is turned off.

 To cancel Automatic Demonstration, set the Power

Switch to “

”, then press the MENU/BRIGHT wheel
while the demo is in progress. This takes you directly to
the demo mode’s Setting Menu (so you will not have to
go through the Menu Screen). Rotate the MENU/BRIGHT
wheel to select “OFF” and press it. The normal screen
appears.

MENU/BRIGHT Wheel

GR-DVL500 only

8 EN

GETTING STARTED

Power

Battery pack
BN-V408U,
BN-V416U or
BN-V428U

POWER
indicator

CHARGE indicator

Battery pack

BN-V408U

BN-V416U (optional)
BN-V428U (optional)

NOTES:

●

If the protective cap is attached to the battery pack, remove it first.

●

Perform charging where the temperature is between 10°C and 35°C (50°F and 95°F). 20°C to 25°C (68°F to
77°F) is the ideal temperature range for charging. If the environment is too cold, charging may be incom­plete.

●

Charging times noted above are for a fully discharged battery pack.

●

Charging time varies according to the ambient temperature and the status of the battery pack.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the
camcorder and charging stops.

●

Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to
use it only in well-ventilated areas.

●

When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may
not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.

●

If the battery operation time remains extremely short even after having been fully charged, the battery is
worn out and needs to be replaced. Please purchase a new one.

DC OUT connector

Fully charging time

approx. 1 hr. 30 min.
approx. 2 hrs.
approx. 3 hrs. 20 min.

To AC outlet

AC Power
Adapter/Charger

This camcorder’s 2-way power supply system lets you
choose the most appropriate source of power. Do not use
provided power supply units with other equipment.

CHARGING THE BATTERY PACK

Make sure you unplug the camcorder’s DC cord from

1

the AC Power Adapter/Charger. Plug the AC Adapter/
Charger’s power cord into an AC outlet. The POWER
indicator lights.

Attach the battery pack with the mark aligned

2

with the corresponding marks on the AC Power
Adapter/Charger. The CHARGE Indicator begins
blinking to indicate charging has started.

When the CHARGE indicator stops blinking but stays

3

lit, charging is finished. Slide the battery and lift off.
Remember to unplug the AC Adapter/Charger’s
power cord from the AC outlet.

Lithium-ion is vulnerable in colder
temperatures.

About Batteries

DANGER! Do not attempt to take the batteries apart, or

expose them to flame or excessive heat, as it may cause a fire
or explosion.

WARNING! Do not allow the battery or its terminals to come
in contact with metals, as this can result in a short circuit and
possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large power
capacity. However, when one is exposed to cold temperatures
(below 10°C/50°F), its usage time becomes shorter and it may
cease to function. If this happens, place the battery pack in
your pocket or other warm, protected place for a short time,
then re-attach it to the camcorder. As long as the battery pack
itself is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery pack does
not come in direct contact with it.)

USING THE BATTERY PACK

EN9

BATTERY RELEASE
Button

1

3

2

ATTENTION:

Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.

INFORMATION:

VU-V856KIT is a set composed of the
BN-V856U battery pack and AA-V80U AC
Power Adapter/Charger. Read the VU-V856KIT’s
instruction manuals before using.
It is impossible to charge the BN-V856U battery
pack using the provided AC Power Adapter/
Charger. Use the optional AA-V80U AC Power
Adapter/Charger.

Tilt the viewfinder upward 1.

1

With the arrow on the battery pack pointing

2

downward, push the battery pack slightly against the
battery pack mount 2, then slide down the battery
pack to attach it 3.

•If the battery pack is attached with its mark set
in the wrong direction, a malfunction may occur.

To Detach The Battery Pack. . .

.... tilt the viewfinder upward 1 and slide the battery

pack up slightly while pressing BATTERY RELEASE to
detach it.

Approximate recording time

Battery pack

BN-V408U

BN-V416U

(optional)

BN-V428U

(optional)

BN-V856U

(optional)

( ) : when the video light is on.

NOTES:

●

Recording time is reduced significantly under the
following conditions:

•

Zoom or Record-Standby mode is engaged repeatedly.

•

The LCD monitor is used repeatedly.

●

Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.

LCD monitor on/
Viewfinder off

1 hr.

(35 min.)

2 hrs.

(1hr. 10 min.)
3 hrs. 30 min.

(2 hrs.)

7 hrs.

(4 hrs.)

LCD monitor off/
Viewfinder on

1 hr. 15 min.

(40 min.)

2 hrs. 30 min.

(1 hr. 20 min.)
4 hrs. 20 min.

(2 hrs. 20 min.)

8 hrs. 40 min.

(4 hrs. 40 min.)

USING AC POWER

Use the AC Power Adapter/Charger (connect as shown in the illustration).

NOTES:

●

The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to
240 V.

●

For other notes,  pg. 8.

Power cord

AC Power
Adapter/Charger

To AC outlet

To DC Input
connector

DC cord

To DC OUT
connector

10 EN

PAUSE

Power Zoom
Lever

Recording Start/Stop
button

Power Switch

Diopter Adjustment
Control

GETTING STARTED

Grip Adjustment

Separate the Velcro strip.

1

Pass your right hand through the loop and grasp

2

the grip.

Adjust so that your thumb and fingers can easily

3

operate the Recording Start/Stop Button and
Power Zoom Lever. Refasten the Velcro strip.

Viewfinder Adjustment

Set the Power Switch to “ ” or “ ” while

1

1

pressing down the Lock Button located on the
switch.

Turn the Diopter Adjustment Control until the

2

indications in the viewfinder are clearly
focused.

(cont.)

2

1

3

Shoulder Strap Attachment

Make sure the battery pack or DC cord is

1

removed. Following the illustration, thread the
strap through the eyelet 1, then fold it back and
thread it through the buckle 2. Repeat the
procedure to attach the other end of the strap to
the other eyelet 3, making sure the strap is not
twisted.

Tripod Mounting

Align the screw and camera direction stud on

1

the tripod with the camera’s mounting socket
and stud hole. Then tighten the screw.

•Some tripods are not equipped with studs.

CAUTION:

When using a tripod, be sure to open and
extend its legs fully to stabilize the
camcorder. To prevent damage to the unit
caused by falling over, do not use a small­sized tripod.

MENU/BRIGHT Wheel

Power Switch

Power lamp

Display

I

FAD

/

W

P

E

E

R

–

S

W

E

C

R

O

L

I

P

–

S

W

E

H

U

T

T

I

P

O

M

R

D

A

N

4

O

F

F

–

R

W

E

H

F
F
F

I

A
A
A

T

D

–

R

B

E

L

A

C

D

–

R

E

M

O

S

A

D

L
E

E
K

IRC

Lock Button

F

F

O

Y

A

L

P

EN11

Date/Time Settings

The date/time is recorded onto the tape at all times, but its
display can be turned on or off during playback
( pg. 32).

Set the Power Switch to “ ” while pressing down

1

the Lock Button located on the switch. The power
lamp lights and the camcorder is turned on.

Press the MENU/BRIGHT wheel. The Menu Screen

2

appears.

Rotate the MENU/BRIGHT wheel to select “ ”.

3

Press it and “DISPLAY MENU” appears.

Rotate the MENU/BRIGHT wheel to select “CLOCK

4

ADJ.”. Press it and “month” is highlighted.
Rotate the MENU/BRIGHT wheel to input the month.
Press it. Repeat to input the day, year, hour and
minute. Rotate the MENU/BRIGHT wheel to select

“1RETURN”, and press it twice. The Menu Screen

closes.

NOTE:

Even if you select “CLOCK ADJ.”, if the parameter is not
highlighted the camcorder’s internal clock continues to
operate. Once you move the highlight bar to the first date/
time parameter (month), the clock stops. When you finish
setting the minute and press the MENU/BRIGHT wheel,
the date and time begin operation from the date and time
you just set.

MDE

Y

I

S

D

T

U

R

E

1

C

S

O

N

D

T

E

/

A

T

M

E

I

C

O

C

K

L

N

A

P
R
R
T
C

U

L
N

N

E

E

E

M

I

E

D

O

J.

E

D

C

A

255’

P

M

030

:

0

DISPLAY MENU

12 EN

Erase protection tab*

Make sure the
window side is
facing out.

OPEN/EJECT SwitchCassette holder

GETTING STARTED

(cont.)

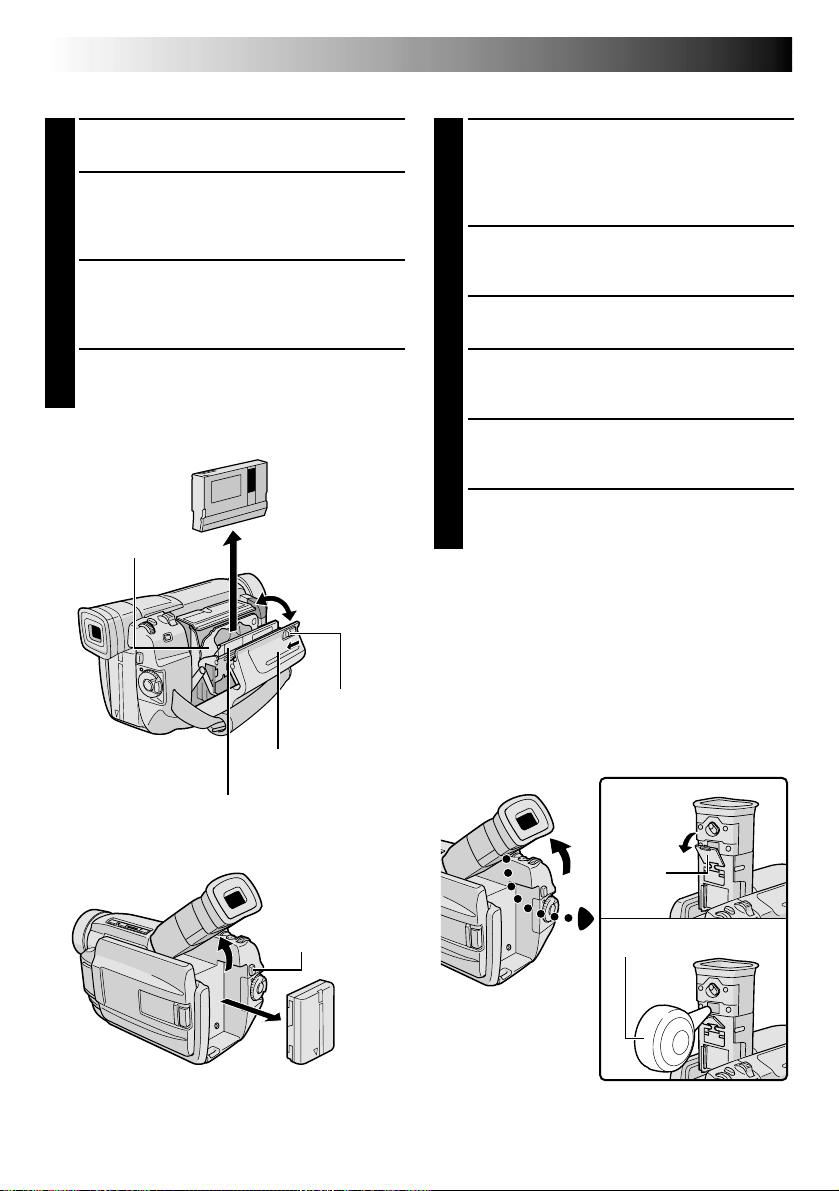

Loading/Unloading A Cassette

The camcorder needs to be powered up to load or eject a
cassette.

Slide and hold OPEN/EJECT in the direction of the

1

arrow then pull the cassette holder cover open until it
locks. The cassette holder opens automatically.

•Do not touch internal components.

Insert or remove a tape and press “PUSH HERE” to

2

close the cassette holder.

•Once the cassette holder is closed, it recedes
automatically. Wait until it recedes completely
before closing the cassette holder cover.

•When the battery’s charge is low, you may not be
able to close the cassette holder cover. Do not
apply force. Replace the battery with a fully charged
one before continuing.

Cassette holder
cover

PUSH HERE

*

To Protect Valuable Recordings . . .

.... slide the erase protection tab on the back of

the tape in the direction of “SAVE”. This
prevents the tape from being recorded over.
To record on this tape, slide the tab back to
“REC” before loading it.

NOTES:

●

It takes a few seconds for the cassette holder to open. Do not apply force.

●

If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try
again. If the cassette holder still does not open, turn the camcorder off then on again.

●

If the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few
minutes later, insert it again.

●

When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before
opening the cassette holder cover.

●

Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.

●

Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is
closed with the camcorder switched off, however, it may not recede. It is recommended to turn the power on
before loading or unloading.

●

When resuming recording, once you open the cassette holder cover a blank portion will be recorded on the
tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder
came out or not. See page 19 for information about recording from the middle of a tape.

Close the cassette holder cover firmly until it locks

3

into place.

Approximate recording time

Tape

30 min. 30 min. 45 min.
60 min. 60 min. 90 min.
80 min. 80 min. 120 min.

Recording mode

SP LP

MENU/BRIGHT Wheel

Power Switch

Power lamp

Display

C

A

M

E

R

A

MEN

1

R

E

T

U

R

R

E

C

M

O

S

O

U

N

D

Z

O

O

M

G

A

I

N

U

T

A

L

L

Y

I

D

N

U

M

D

E

M

O

.

M

S

I

D

E

L

U
N

D

E

S

P
M

O

D

E

L

P

P
B

E

R

O

D

E

E

D

Lock Button

F

F

O

Y

A

L

P

Menu Screen

Sub Menu

GR-DVL500 only

EN13

Recording Mode Setting

Set the tape recording mode depending on your preference.

Set the Power Switch to “ ” while pressing down

1

the Lock Button located on the switch. The power
lamp lights and the camcorder is turned on.

Press the MENU/BRIGHT wheel. The Menu Screen

2

appears.

Rotate the MENU/BRIGHT wheel to select “ ” and

3

press it. “CAMERA MENU” appears.

Rotate the MENU/BRIGHT wheel to select “REC

4

MODE” and press it. The Sub Menu appears. Select
“SP” or “LP” by rotating the MENU/BRIGHT wheel

and press it. Rotate the MENU/BRIGHT wheel to
select “1RETURN”, and press it twice. The Menu
Screen closes.

•Audio Dubbing ( pg. 50) and Insert Editing
( pg. 51) are impossible on a tape recorded in the
LP mode.

•“LP” (Long Play) is more economical, providing

1.5 times the recording time.

NOTES:

●

If the recording mode is switched during recording, the
playback picture will be blurred at the switching point.

●

It is recommended that tapes recorded in the LP mode
on this camcorder be played back on this camcorder.

●

During playback of a tape recorded on another
camcorder, blocks of noise may appear or there may be
momentary pauses in the sound.

14 EN

25

BR I GHT

–

+

Power lamp

Recording
Start/Stop Button

min

(Now calculating)

Tally lamp
(lights while recording
is in progress)

Power Switch

Lock Button

F

F

O

Y

A

L

P

During

shooting

Display

Tape remaining
time indicator
(Approximate)

90 min

(Blinking) (Blinking) (Blinking)

89 min

1 min0 min

3 min

2 min

RECORDING

NOTE:

Basic Recording

You should already have performed the procedures listed
below. If not, do so before continuing.

●

Power ( pg. 8)

●

Grip Adjustment ( pg. 10)

●

Viewfinder Adjustment ( pg. 10)

●

Load A Cassette ( pg. 12)

●

Recording Mode Setting ( pg. 13)

Press in the tabs on the lens cap to remove it.

1

Set the Power Switch to “ ” or “ ” while pressing

2

down the Lock Button located on the switch.

Shooting while using the LCD monitor:

OPEN and open the LCD monitor fully. Tilt it upward/

downward for best viewability.

Shooting while using the viewfinder:

monitor.

•The power lamp lights and the camcorder enters the
Record-Standby mode. “PAUSE” is displayed.

Press the Recording Start/Stop Button. “ ” appears

3

while recording is in progress.

To Stop Recording . . .

.... press the Recording Start/Stop Button. The camcorder

re-enters the Record-Standby mode.

To Adjust The Brightness Of The Display

.... rotate the MENU/BRIGHT wheel until the bright level

indicator on the display moves and the appropriate
brightness is reached.

•If you are using the GR-DVL500, it is also possible to
adjust the brightness of the viewfinder by closing the
LCD monitor and adjusting as described above.

Press PUSH

Close the LCD

180°

PUSH OPEN Button

90°

MENU/

BRIGHT Wheel

Power Switch Position

F. AUTO

EN15

(Manual) : Allows you to set various recording functions using the

Menus. If you want more creative capabilities than Full
Auto recording, try this mode.

(Full Auto) : Allows you to record using NO special effects or

manual adjustments. Suitable for standard recording.

OFF : Allows you to switch off the camcorder.

: Allows you to play back a recording on the tape.

When the Power Switch is set to

“

”, “F. AUTO” appears.

When set to “
there is no indication.

” or “ ”,

NOTES:

●

When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. If this
happens, use the viewfinder instead.

●

The image will not appear simultaneously in the LCD monitor and the viewfinder .

●

The cassette holder cannot be opened unless a power supply is attached.

●

There may be a delay after you open the cassette holder cover until the cassette holder opens. Do not use force.

●

Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing
the cassette holder cover.

●

The time required to calculate and display the remaining tape length, and the accuracy of the calculation,
may vary according to the type of tape used.

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this
condition for 5 minutes. “TAPE END” also appears when a cassette at its end is loaded.

●

If the Record-Standby mode continues for 5 minutes, the camcorder’s power shuts off automatically. To turn
the camcorder on again, set the Power Switch to “OFF”, then back to “ ” or “ ”.

●

When a blank portion is left between recorded scenes on the tape, the time code is interrupted and errors
may occur when editing the tape. To avoid this, refer to “Recording from the middle of a tape” ( pg. 19).

●

During recording, sound is not heard from the speaker.

●

To turn the tally lamp off during recording,  pg. 22, 23.

●

To remove the indications from the camcorder’s display during recording,  pg. 22, 25.

Self-Recording

JOURNALISTIC SHOOTING

In some situations, different shooting angles may provide
more dramatic results. Hold the camcorder in the desired
position and tilt the LCD monitor in the most convenient
direction. It can rotate 270° (90° downward, 180°
upward).

SELF-RECORDING

You can shoot yourself while viewing your own image in
the LCD monitor. Open the LCD monitor and tilt it upward
180° so that it faces forward, then point the lens toward
yourself and start recording.

16 EN

SNAPSHOT Button

MODE
Button

Display

Power Switch

Lock Button

F

F

O

Y

A

L

P

RECORDING

Basic Recording (cont.)

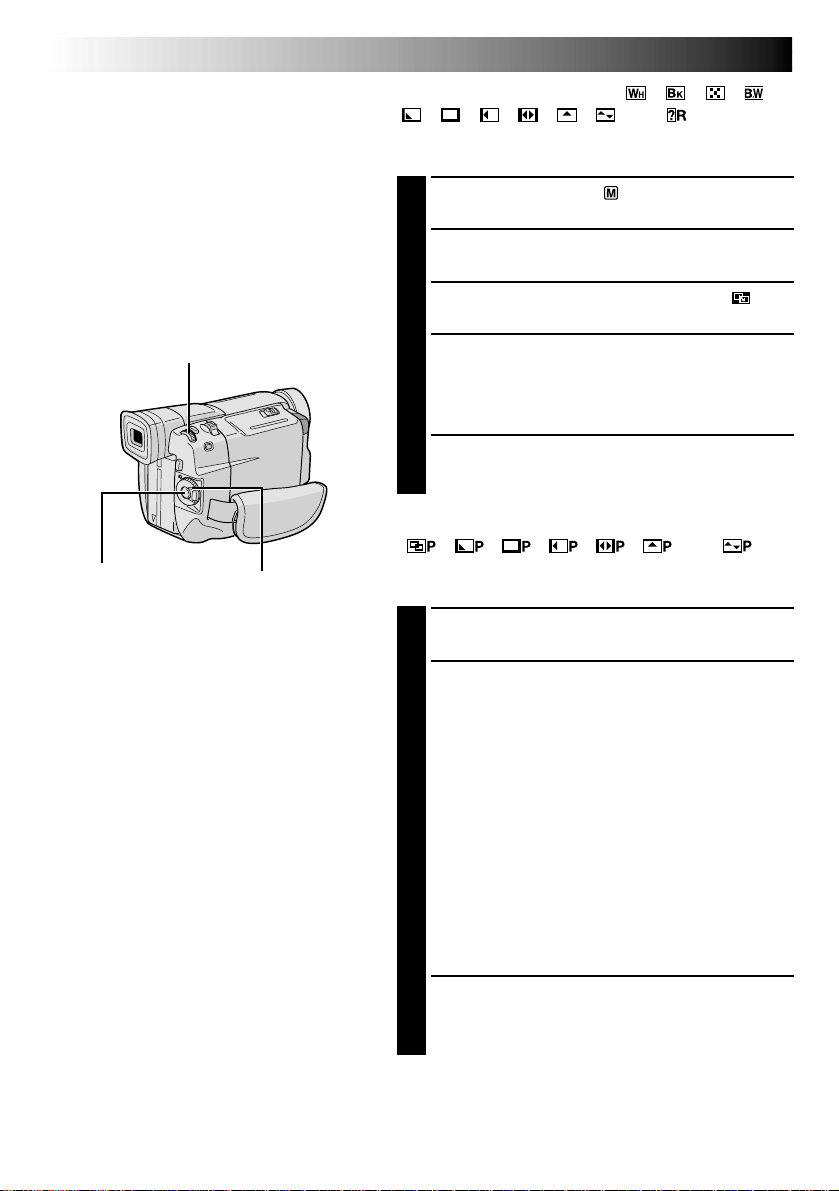

Snapshot

This feature lets you record still images that look like
photographs onto a tape.

SNAPSHOT MODE SELECTION

Set the Power Switch to “ ” or “ ” while pressing

1

down the Lock Button located on the switch.

Choose the appropriate Snapshot mode from the 5

2

available by repeatedly pressing MODE until the
desired snapshot mode indicator appears.

SNAPSHOT RECORDING

Press SNAPSHOT.

1

If you press during Record-Standby . . .

.... “PHOTO” appears and a still image will be

recorded for approx. 6 seconds, then the
camcorder re-enters the Record-Standby mode.

If you press during Recording . . .

.... “PHOTO” appears and a still image will be

recorded for approx. 6 seconds, then the normal
recording resumes.

FUL L

Snapshot mode

Motor Drive Mode

Keeping SNAPSHOT pressed provides an effect similar to
serial photography. (Interval between still images: approx.
1 second)

FULL
Snapshot mode
with no frame*

FRAME
Snapshot mode
with frame*

MULTI-4
Multi-Analyzer 4

MULTI-9
Multi-Analyzer 9

EN17

NOTES:

●

Even if “MULTI-4” or “MULTI-9” is engaged, Snapshot
recording will be performed in the FULL mode during
Digital Zoom.

●

If Snapshot recording is not possible, “PHOTO” blinks
when SNAPSHOT is pressed.

●

If Program AE with special effects ( pg. 28) is
engaged, certain modes of Program AE with special
effects are disabled during Snapshot recording. In such a
case, the icon blinks.

●

If SNAPSHOT is pressed when “DIS” is set to “ON”
( pg. 24), the Stabilizer will be disabled.

●

During playback as well, all Snapshot modes are
available. The shutter sound is not heard.

●

During Snapshot recording, the image displayed in the
viewfinder may be partially missing. However, there is
no effect in the recorded image.

●

When a cable is connected to the AV connector, the
shutter sound is not heard from the speaker, however it
is recorded onto the tape.

●

will appear while the snapshot is being taken.

PIN-UP
Pin-Up mode*

* There is the sound effect of a shutter closing.

18 EN

Zoom in (T: Telephoto)

1xW

T

Zoom display

10xW

Approximate zoom ratio

10xW

T

20xW

Zoom out (W: Wide angle)

T

Power Zoom Lever

T

Digital zoom
zone

10X (optical)
zoom zone

40xW

RECORDING

FEATURE:

Zooming

Basic Recording (cont.)

PURPOSE:

T

To produce the zoom in/out effect, or an instantaneous
change in image magnification.

OPERATION:

Zoom In

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”.

 The further you slide the Power Zoom Lever, the

quicker the zoom action.

NOTES:

●

Focusing may become unstable during Zooming. In
this case, set the zoom while in Record-Standby,
lock the focus by using the manual focus
( pg. 21), then zoom in or out in Record mode.

●

Zooming is possible to a maximum of 250X, or it
can be switched to 10X magnification using the
optical zoom ( pg. 23).

●

Zoom magnification of over 10X is done through
Digital image processing, and is therefore called
Digital Zoom.

●

During Digital zoom, the quality of image may
suffer.

●

Digital zoom cannot be used when digital image
processing, such as Picture Wipe/Dissolve ( pg.
26, 27) or Video Echo ( pg. 28), is activated.

●

Macro shooting (as close as approx. 5 cm (2") to the
subject) is possible when the Power Zoom Lever is
set all the way to “W”. Also see “TELE MACRO” in
the Menu Screen on page 24.

Power Switch

EN19

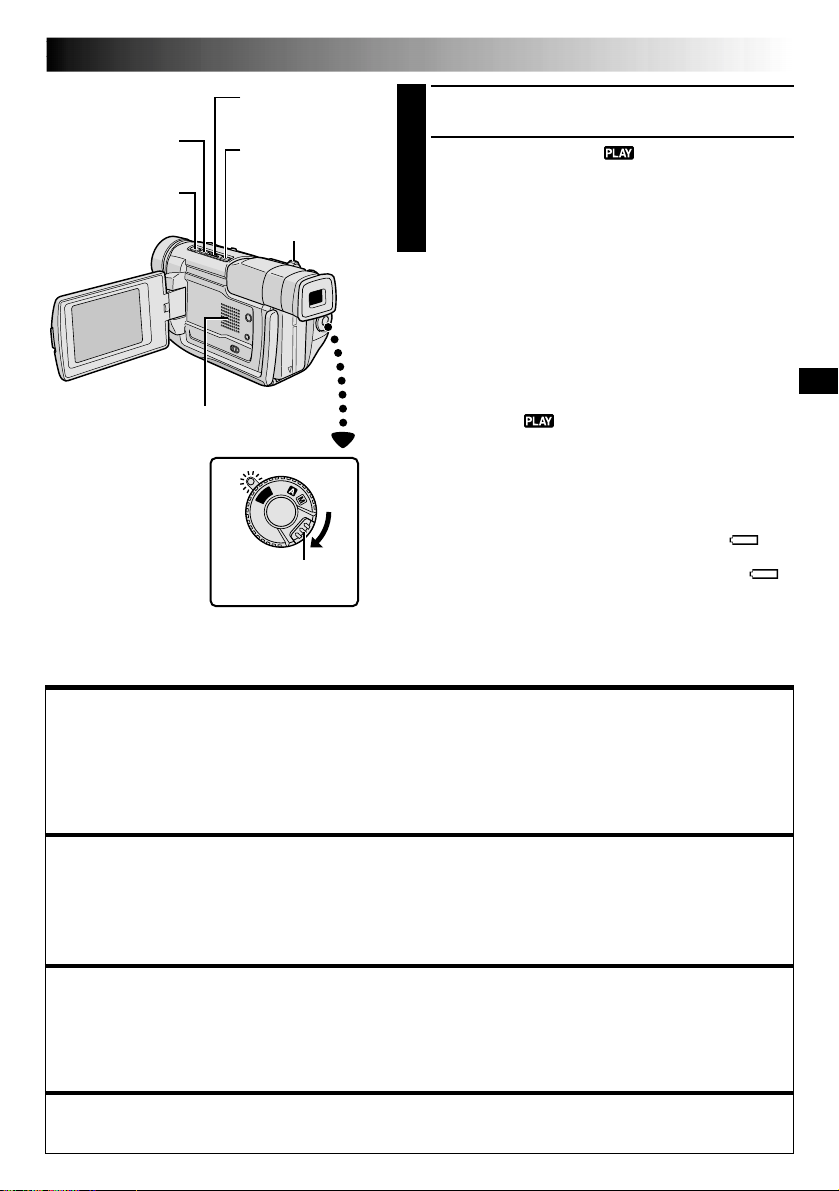

NOTE: Recording From The Middle Of A Tape

Time Code

During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded
scene on the tape during playback.
If recording starts from a blank portion, the time code begins counting from “00:00:00”
(minute:second:frame). If recording starts from the end of a previously recorded scene, the time code
continues from the last time code number.

To perform Random Assemble Editing ( pg. 44 – 49), time code is necessary. If during recording a blank
portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time
code starts counting up again from “00:00:00”. This means the camcorder may record the same time
codes as those existing in a previously recorded scene. To prevent this, perform “Recording From The
Middle of A Tape” below in the following cases;

•When shooting again after playing back a
recorded tape.

•When power shuts off during shooting.

•When a tape is removed and re-inserted during

shooting.

•When shooting using a partially recorded tape.

•When shooting on a blank portion located

partway through the tape.
