SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the ! symbol are critical for safety. Replace only with specified part numbers.
5.1 PACKING ASSEMBLY <M1> The instruction manual to be provided with this product will differ according to the destination.
35
12
36
18
11
9
8
6
34
5
14
27
24
13
FINAL ASSY
<M2>
2
4
3
29 (Refer to MANUAL
20
21
No.86557 sec.6)
17
28
19
22
5-1
1
LABEL
(SERIAL)
# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
P ACKING ASSEMBL Y <M1>
1 LY31631-015A PACKING CASE,A
LY31631-018A PACKING CASE,C
LY31631-027A PACKING CASE,B
2 LY31632-001A CUSHION
3 LY30023-008A POLY BAG
4 QPA02003006 POLY BAG
!
5 LYT0595-001A IB(EN),A,B
!
!
!
!
!
6 LYT0598-001A IB(SOFT.SETUP),A,B
8 LYT0378-003A SHEET(AGREMENT)
9 LYT0162-021A ACC.LEAFLET
11 BT-59011-2 WARRANTY CARD
12 LY31133-009A CD ROM ASSY,A,B
13 QAM0214-001 RM CABLE,EDITING CABLE
14 QAM0170-001 DC CORD
!
17 LY31587-001A BATTERY PACK,BN-V408U
18 QAM0212-001 CABLE ASSY ,AUDIO/VIDEO CABLE
19 LY20186-001A SHOULDER STRAP
20 QAM0084-001 PC CONNECTION CABLE
21 L Y20543-002A REMOTE CONTROL UNIT
22 – BATTERY,AAA(R03),X2
24 QQR0491-002 CORE FILTER
27 QQR0491-002 CORE FILTER
28 QPGA017-03005 POLY BAG
!
29 LY20591-005B
34 BT-59012-1 GUARANTY CARD
35 QAM0004-003 S CABLE,S-VIDEO CABLE
36 QQR0491-002 CORE FILTER
LYT0595-002A IB(CH),A,B
LYT0595-003A IB(RU),A,B
LYT0596-001A IB(EN),C
LYT0596-002A IB(CH),C
LYT0596-003A IB(RU),C
LYT0599-001A IB(SOFT.SETUP),C
LY31133-011A CD ROM ASSY,C
AC POWER ADAPTER CHARGER,AA-V40ED
MODEL MARK
GR-DVL400ED A
GR-DVL600ED B
GR-DVL707ED C
• INSTRUCTIONS
EN....... ENGLISH
CH ...... CHINESE
RU ...... RUSSIAN
5-2

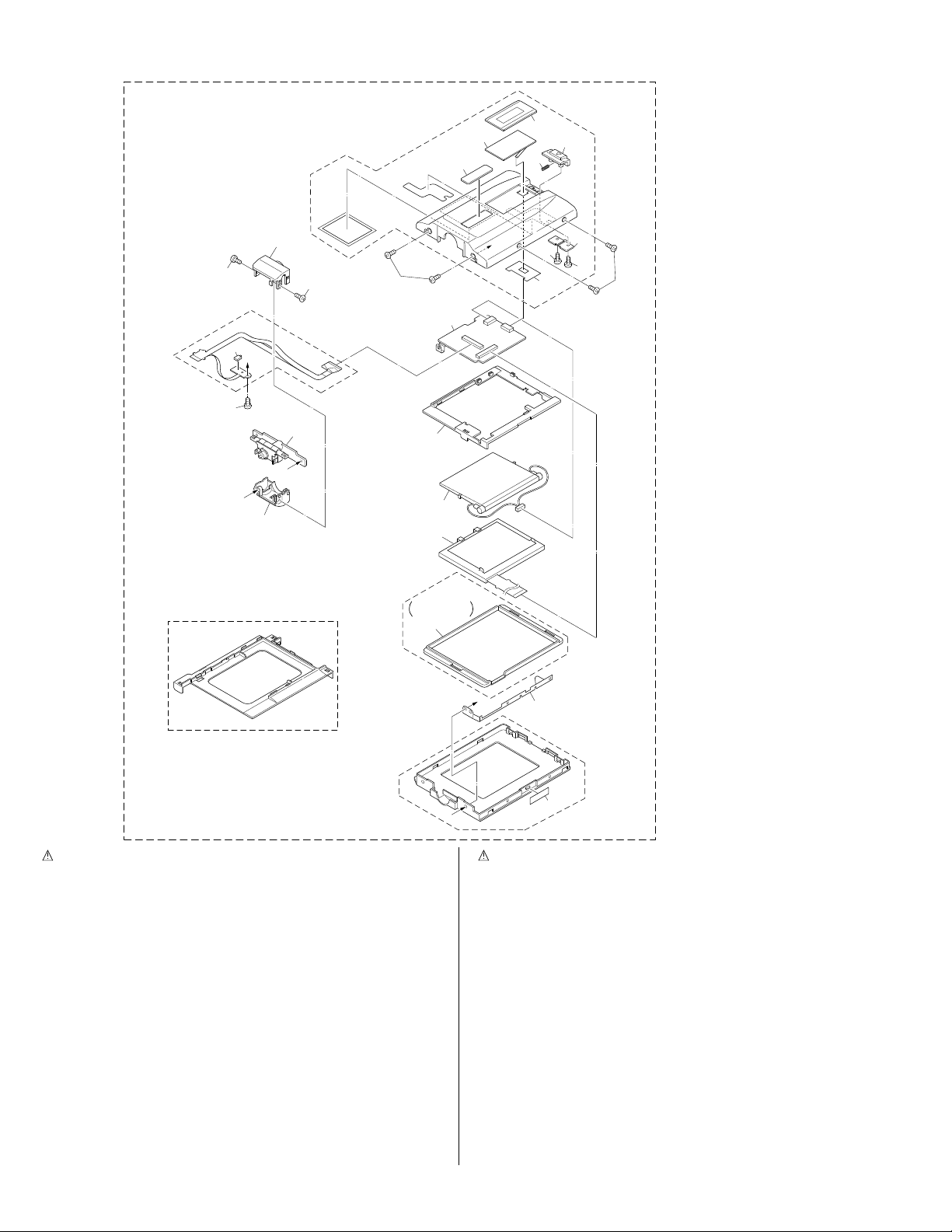

5.2 MONITOR ASSEMBL Y <M5>
500
508
514
515
508A
c
501
501D
501K
512
514
c
511
b
513
507
504
(3 inch)
501H
LCD BL
<03>
509
510
501J
501G
501A
501C
501E
501F
501B
501E
506
a
504
(3.5 inch)
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- ----------------------------------------------------- ----------------- ----------------------- -----------------------------------------------------
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
ONLY USE FOR
DVL400ED
503
502
a
b
505
502A
502 LY20598-001A MONITOR CASE ASSY,A
LY20598-002A MONITOR CASE ASSY,B,C
MONITOR ASSEMBLY <M5>
502A LY42388-001A EARTH MON(2)
503 LY20566-001B HOLDER(3LCD),A
!
500 LYH20135-011A MONITOR ASSY ,C
!
!
!
501 LY20565-009B MONITOR COVER ASSY,A
!
!
L YH20135-014A MONITOR ASSY ,B
L YH20135-015A MONITOR ASSY ,A
LY20565-010B MONITOR COVER ASSY,B
LY20565-011B MONITOR COVER ASSY,C
501A LY31620-001A KNOB(LOCK 1)
501B LY42180-001A KNOB(LOCK 2)
501C LY30002-044A COMPRES. SPRING
501D LY42386-001A EARTH MON
501E L Y30018-011A SPECIAL SCREW,X2
501F LY42368-001A SHEET(MON)
501G LY31621-001A WINDOW,A,B
LY31621-003A WINDOW,C
501H LY42162-001A MARK
501J LY42193-001A EL(WINDOW)
504 LY20567-001A HOLDER(3PWB),A
LY20568-001A HOLDER(3.5PWB),B,C
505 LY31622-001A BRACKET(EARTH)
506 QYSPSPT1730R SCREW,X2
507 QYSLSP2040D SCREW,X2
508 LY31743-001A MONI.FPC ASSY
508A NSW0095-001X DETECT SWITCH
509 QLL0080-001 BACK LIGHT,A
QLL0081-001 BACK LIGHT,B,C
510 QLD0096-002 LCD MODULE,B,C
QLD0118-001 LCD MODULE,A
51 1 LY31236-003A HINGE ASSY
512 LY31624-001A HINGE COVER(1)
513 LY31625-001A HINGE COVER(2)
514 LY30018-058A SPECIAL SCREW,X2
515 LY30018-023A SPECIAL SCREW
501K LY40559-001A SHIELD SHEET
5-3
Ozaki-M14D23/D24/D24+
E. & O. E. No. 86567
