SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
11
9
19
10
7
6
5
FINAL ASSY
<M2>
18
28
30
14
4
3
24
23
31
32
15
20
5-1
17
13
2
12
27
1
LABEL
(SERIAL)
16
25
# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY32095-010B PACKING CASE,B
LY32095-011B PACKING CASE,A
LY32095-012B PACKING CASE,C
LY32095-013B PACKING CASE,D
2 LY32096-001A CUSHION
3 LY30023-008A POLY BAG
4 QPA02003006 POLY BAG,B,C,D
QPA02003506 POLY BAG,A
!
5 LYT0750-001A INST.BOOK(EN),B,C,D
!
!
!
!
!
6 LYT0598-001A INST.BOOK(SOFT.SETUP),A,C,D
7 LYT0378-003A SHEET(AGREMENT),A,C,D
9 BT-59011-2 WARRANTY CARD
10 BT-59012-1 GUARANTY CARD
11 LY32210-002A CD ROM,A
!
12 LY20688-015A AC ADAPTER,AP-V10ED
!
13 LY31587-001A BATTERY PACK,BN-V408U
14 QAM0211-001 CABLE ASSY,AUDIO/VIDEO CABLE,A
15 QQR0918-002 CORE FILTER
16 LY20186-001A SHOULDER STRAP
17 LY20750-001A REMOTE CONTROL UNIT,RM-V717U,A
18 — BATTERY,AAA(R03),X2,A
19 PEAC0903 LI BATTRY,B,C,D
20 QPA01703005 POLY BAG
23 PEAC0428-150 CABLE ASSY,B
24 QQR0491-002 CORE FILTER
!
25 QMPS120-190-JR POWER CORD
27 QQR0490-002 CORE FILTER
28 QQR0918-002 CORE FILTER,B
30 QQR0491-002 CORE FILTER
31 QAM0084-001 PC CABLE,A,C,D
32 QQR0491-002 CORE FILTER,A,C,D
LYT0750-002A INST.BOOK(CH),B,C,D
LYT0789-001A INST.BOOK(EN),A
LYT0789-002A INST.BOOK(CH),A
LYT0789-003A INST.BOOK(RU),A
LY32210-002B CD ROM,C,D
QAM0212-001 CABLE ASSY, AUDIO/VIDEO CABLE,B,C,D
YQ20922R REMOTE CONTROL UNIT,RM-V711U,B,C,D
QAM0214-001 RM CABLE,A,C,D
• INSTRUCTIONS
EN ....... ENGLISH
CH ...... CHINESE
RU....... RUSSIAN
MODEL MARK
GR-DVL315A-C A
GR-DVL310ED B
GR-DVL410ED C
GR-DVL510ED D
5-2

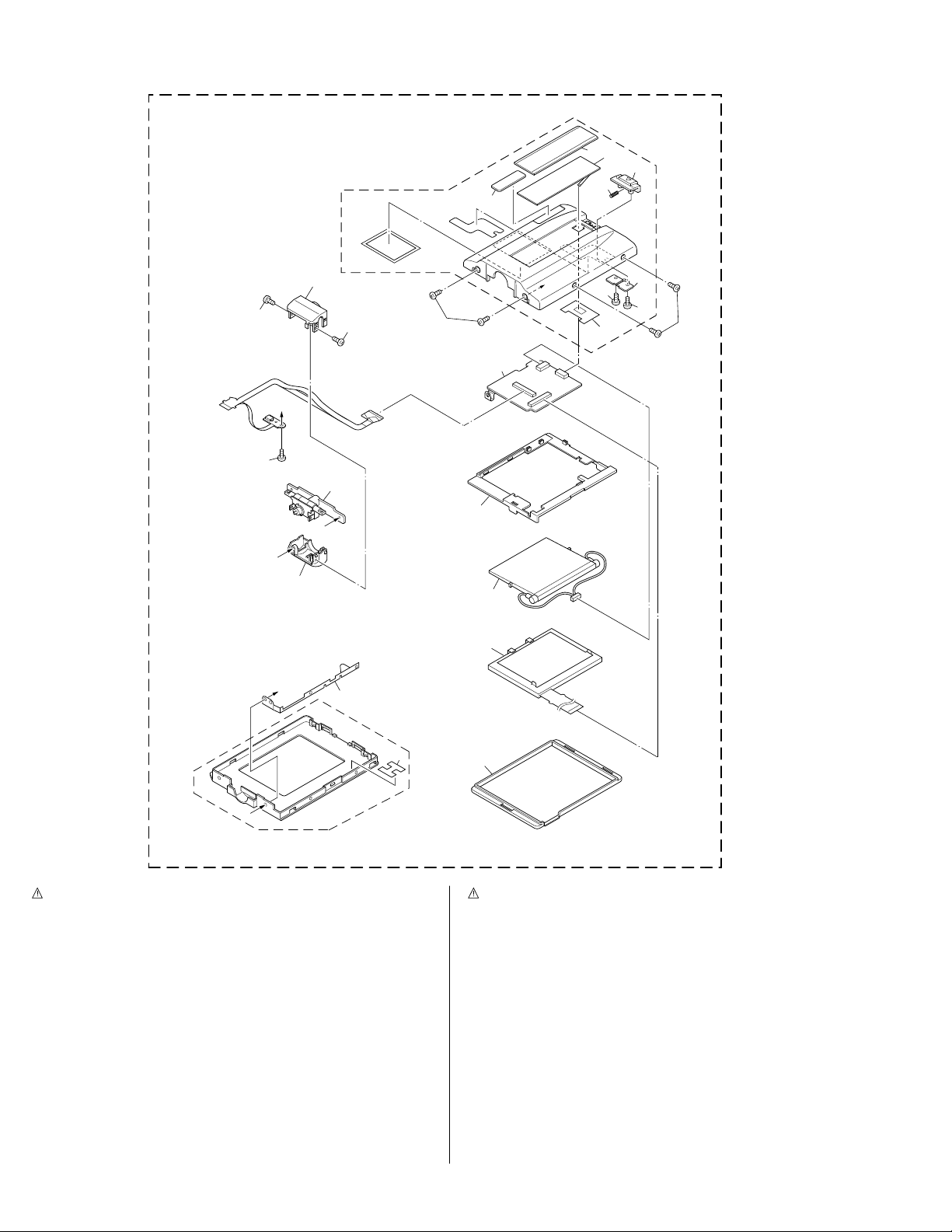

5.2 MONITOR ASSEMBLY <M5> [GR-DVL410ED]
501F
500
501J
501
501G
501H
501C
501K
501A
514
515
501D
501E
501B
501D
505
512
514
507
c
511
b
c
513
b
504
506
503
LCD BL
<03>
508
509
a
502
a
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
******************************
MONITOR ASSEMBLY <M5>
502A
516
501K LY42193-001A EL(WINDOW)
502 LY20598-001A MONITOR CASE ASSY
502A LY42388-001A EARTH MON(2)
503 LY20567-001A HOLDER(3PWB)
!
500 LYH20246-020A MONITOR ASSY
!
501 LY20721-003A MONITOR COVER(3.5)ASSY
501A LY31620-001A KNOB(LOCK 1)
501B LY42180-001A KNOB(LOCK 2)
501C LY30002-044A COMPRESSION SPRING
501D LY30018-011A SPECIAL SCREW,X2
501E LY42368-001A SHEET(MON)
501F LY40559-001A SHIELD SHEET
501G LY42883-001A MARK
501H LY32121-003A
WINDOW
501J LY42386-001A EARTH MON
504 LY31622-001A BRACKET(EARTH)
505 QYSPSPT1730R SCREW,X2
506 QYSLSP2040D SCREW,X2
507 LY31743-001A MONITOR FPC ASSY
508 QLL0094-001 BACK LIGHT
509 QLD0118-001 LCD MODULE
511 LY32079-001A HINGE ASSY
512 LY32088-001A HINGE COVER(1)
513 LY32089-001A HINGE COVER(2)
514 LY30018-058A SPECIAL SCREW,X2
515 LY30018-023A SPECIAL SCREW
516 LY20566-001B HOLDER(3LCD)
5-3
E. & O. E. No. 86635
GR-DVL315A-C,310ED,410ED,510ED
(Sanwa)-M1D225/235/2L5
