Page 1
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the ! symbol are critical for safety. Replace only with specified part numbers.

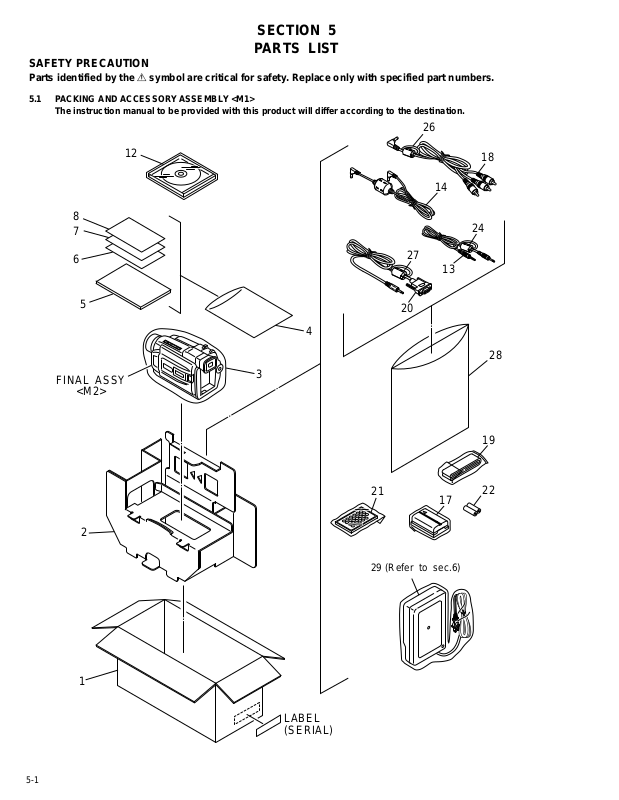

5.1 PACKING AND ACCESSORY ASSEMBLY <M1> The instruction manual to be provided with this product will differ according to the destination.
26
8
7
6
5
FINAL ASSY
<M2>
12
18
14
24
27
13
20
4
28
3
19
5-1
21
22
17
2
29 (Refer to sec.6)
1
LABEL
(SERIAL)
Page 2
# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
P ACKING AND ACCESSORY ASSEMBLY <M1>
1 LY31631-025A PACKING CASE
2 LY31632-001A CUSHION
3 LY30023-008A POLY BAG
4 QPA02003006 POLY BAG
!
5 LYT0613-001A IB(KO)
!
6 LYT0614-001A IB(SOFT.SETUP)
!
7 LYT0614-002A IB(SOFT.OPE.KO)
8 LYT0378-003A SHEET(AGREMENT)
12 LY31133-009A CD ROM ASSY
13 QAM0214-001 RM CABLE,EDITING CABLE
14 QAM0170-001 DC CORD
!
17 LY31587-001A BATTERY PACK,BN-V408U
18 QAM021 1-001 CABLE ASSY,AUDIO/VIDEO CABLE
19 LY20186-001A SHOULDER STRAP
20 QAM0084-001 PC CONNECTION CABLE
21 L Y20543-002A REMOTE CONTROL UNIT
22 – BATTERY,AAA(R03),X2
24 QQR0491-002 CORE FILTER
26 QQR0918-002 CORE FILTER
27 QQR0491-002 CORE FILTER
28 QPGA017-03005 POLY BAG
!
29 LY20591-010A AC POWER ADAPTER CHARGER, AA-V40KR
5-2
Page 3
5.2 FINAL ASSEMBLY <M2>
2
1
6
104
154
154
102
163
151A
w
151A
151
132
j
251C
154
154
163
251A
251C
132
251J
251C
y
104F
104A
104C
104D1
251E
104F
251F
251C
104E
104D
251G
251C
104B
104F
104F
251K
251E
251B
104F
104F
CCD
k
<04>
251
OPTICAL BLOCK
SECTION
251H
251H
141
139
105
101A
121H
146
146
121H
131
121H
140
hh
144
121
121E
dd
x
ff
101B
121F
121H
101
gg
138
138
RATING
LABEL
121J
107
j
1
aa
101C
101D
134
y
p
121H
148
148A
123A
124
123
122
121A
cc
121D
121K
121L
121H
cc
dd
142
121B
ee
121G
126
125
m
121C
115
n
117
113
116
117
s
169
1
168
5-3
Page 4
108C
MECHANISM
<M3>
150A
150A
f
j
k
p
160
hh
160
o
o
n
JACK
<06>
150B
150
w
x
g
150B
150B
150B
159
MAIN
<01>
161
r
j j
161
166
d
164
156
b
c
s
v
158
157
JUNCTION
<05>
130
130
159
212
213
129
128
213
f
213
c
b
a
d
e
162
h
g
155
D
y
103
153
153
153
153
106
107
z
107
aa
bb
j j
gg
127
145
107
134
152
108
108B
z
133
136
REAR
<07>
110
r
110
110
108A
bb
109
147
MONITOR
<02>
111E
111C
111C
111
u
111J
111J
111J
143
137
137
111J
111H
135
111H
MONITOR
<M5>
118
118
119
114
t
111B
ee
v
112
116
s
7
111D
ff
m
h
e
a
214
t
u
120
120
ELECTRONIC
VIEWFINDER<M4>
165
167
5-4
Page 5
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- ----------------------------------------------------- ----------------- ----------------------- -----------------------------------------------------
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
FINAL ASSEMBLY <M2>
!
101 LY20560-004B LOWER CASE ASSY
101A LY31607-001A JACK COVER
101B LY42391-001A SHEET(MIC)2
101C LY40592-001A CAP(GRIP BELT)
101D LY30029-052A SPACER(A)
102 LY20575-001B GRIP BELT
103 LY30018-003A SPECIAL SCREW
104 LY31609-003C CASS.COVER ASSY
104A LY31610-001A KNOB(EJECT)
104B LY31611-001A COVER(C.C)
104C LY42173-001B BKT(E.KNOB)
104D LY42174-001A LOCK ASSY
104D1 LY30002-038A COMPRES. SPRING
104E LY30018-084A SPECIAL SCREW
104F LY30018-023A SPECIAL SCREW,X6
105 LY42177-001B SHEET(M.ADJ)
106 LY20542-001A ZOOM UNIT
107 LY30018-084A SPECIAL SCREW,X3
108 LY31596-003B REAR COVER ASSY
108A LY42161-001A SHEET(REAR)
108B LY31595-001A KNOB(RELEASE)
108C LY30001-018A TENSION SPRING
109 LY41691-001A COVER(JIG)
110 LY30018-084A SPECIAL SCREW,X3
111 LY20557-003E UPPER CASE(2.5)ASSY
111B LY31623-001A BRACKET
111C LY40664-001A SPACER,X2
111D LY31019-001A BASE
111E LY42244-001A SHEET(MARK)
111H LY30018-084A SPECIAL SCREW,X2
1 11J LY30018-0A8A SPECIAL SCREW,X4
112 QAS0048-001 SPEAKER
113 LY42167-001A PLATE(SPK)
114 LY42168-001A KNOB(SLIDE)
1 15 LY30018-023A SPECIAL SCREW
1 16 LY30018-0A5A SPECIAL SCREW
1 1 7 LY30018-0A8A SPECIAL SCREW,X2
118 LY30018-090A SPECIAL SCREW,X2
1 19 LY30018-038A SPECIAL SCREW
120 LY30018-084A SPECIAL SCREW,X2
121 LY20563-001B FRONT COVER ASSY
121A LY31615-001B HOOD
121B LY31616-001A RING
121C LY20572-001A HOLDER(L.CONT.)
121D LY40987-003B MARK
121E YQ43810-1-1 CONTACT(LIGHT),X2
121F WJM0003-006A E-SI C WIRE C-F
121G YQ44434 BRACKET
121H LY30018-0A7A SPECIAL SCREW,X6
121J LY30018-079A SPECIAL SCREW
121K LY30029-042A SPACER(A)
121L LY31614-001A COVER(BOTTOM)
122 LY42184-001A PLATE(MIC)
123 LY31617-001A DC LIGHT ASSY
123A YQ44266 LAMP
124 LY30861-012A MICROPHONE
125 LY42390-001A SHEET(MIC)1
126 QYSLSF2055D SPECIAL SCREW
127 LY20559-002A TOP COVER(2.5)
128 LY40698-002A LABEL(HOUSING)
129 LY40699-002A LABEL(PUSH)
130 LY30018-079A SPECIAL SCREW,X2
131 LY30018-084A SPECIAL SCREW
132 LY30018-050A SPECIAL SCREW,X2
133 LY30018-079A SPECIAL SCREW
134 LY30018-079A SPECIAL SCREW,X2
135 LY30018-079A SPECIAL SCREW
136 LY30018-084A SPECIAL SCREW
137 LY30018-023A SPECIAL SCREW,X2
138 LY30018-084A SPECIAL SCREW,X2
139 QYSPSPT1725R SCREW
140 LY30018-066A SPECIAL SCREW
141 LY30018-084A SPECIAL SCREW
142 LY30018-079A SPECIAL SCREW
143 QYSPSGT1760R SCREW
144 LY30018-044A SPECIAL SCREW
145 LY30018-059A SPECIAL SCREW
146 LY30018-052A SPECIAL SCREW,X2
147 LY30018-037A SPECIAL SCREW
148 LY42182-002A CAP(HOOD)ASSY
148A LY31627-001A SPRING
150 LY31618-001C HOLDER(MECHA)ASSY
150A LY42178-001A BKT(MECHA),X2
150B LY30018-0B4A SPECIAL SCREW,X4
151 LY42179-001A BKT(OP)ASSY
151A LY41675-001A RUBBER,X2
152 LY31612-001A ARM ASSY
153 LY30018-084A SPECIAL SCREW,X4
154 LY30018-066A SPECIAL SCREW,X4
155 LY40709-001C BRACKET(GRD)
156 YQ43893-3 MINI SCREW
157 YQ43893-3 MINI SCREW
158 LY30018-023A SPECIAL SCREW
159 LY30019-021A SPECIAL SCREW,X2
160 LY30018-023A SPECIAL SCREW,X2
161 LY30018-023A SPECIAL SCREW,X2
162 YQ43893-4 MINI SCREW
163 LY30018-024A SPECIAL SCREW,X2
164 WJT0028-001A FFC WIRE,MAIN CN113-JUNC CN571
165 WJT0029-003A FFC WIRE,MAIN CN101-MONI CN7601
166 LY31657-001A SHIELD CASE(2)
167 LY30029-057A SPACER(A)
168 QQR0717-001 FERRITE CORE
169 LY30029-058A SPACER(A)
212 LY30483-001Q CASSETTE HOUSING ASSY
213 YQ43893-4 MINI SCREW,X3
214 LY42583-001A SHEET
– OPTICAL BLOCK SECTION –
251 YS20973F OPTICAL BLOCK ASSY
251A LY30723-001B ZOOM MOTOR
251B LY30724-001B FOCUS MOTOR
251C LY30727-002A SCREW,X5
251E LY30727-001A SCREW,X2
251F LY41718-001A OPTICAL LPF
251G LY31639-001A SPACER RUBBER
251H QYSPSGU1750Z SCREW,X2
251J LY31726-001A IRIS MOTOR
251K YS40168E CCD BASE ASSY
5-5
