JVC GR-AXM77UM User Manual 2
COMP ACT VHS CAMCORDER
CAMARA DE VIDEO VHS COMPACTO
CÂMERA VHS COMPACTA
GR-AXM77UM
Compact VHS
ENGLISHPORTUGUÊS ESPAÑOL
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
INSTRUÇÕES
LYT0110-001A
2 EN
Dear Customer,
Thank you for purchasing the JVC Compact
VHS camcorder. Before use, please read the
safety information and precautions contained
in the following pages to ensure safe use of
your new camcorder.
Using This Instruction Manual
•All major sections and subsections are listed in
the Table Of Contents (Z pg. 7).
•Notes appear after most subsections. Be sure to
read these as well.
•Basic and advanced features/operation are
separated for easier reference.
It is recommended that you . . .
.... refer to the Index (Z pgs. 55 – 58) and
familiarize yourself with button locations, etc.
before use.
.... read thoroughly the Safety Precautions that
follow and cautions (Z pgs. 59, 60). They
contain extremely important information
regarding the safe use of your new camcorder.
SAFETY
PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
Warning on lithium battery
The battery used in this device may present a
fire or chemical burn hazard if mistreated. Do
not recharge, disassemble, heat above 100°C
or incinerate.
Replace battery with Maxell, Panasonic
(Matsushita Electric), Sanyo or Sony CR2025;
use of another battery may present a risk of fire
or explosion.
n Dispose of used battery promptly.
n Keep away from children.
n Do not disassemble and do not dispose of in
fire.
This camcorder is designed to be used with
NTSC-type colour television signals. It cannot
be used for playback with a television of a
different standard. However, live recording
and LCD monitor/viewfinder playback are
possible anywhere. Use the BN-V12U/V18U/
V22U/V25U battery packs and, to recharge
them, the provided multi-voltage AC Power
Adapter/Charger. (An appropriate conversion
adapter may be necessary to accommodate
different designs of AC outlets in different
countries.)
NOTES:
●
The rating plate (serial number plate) and
safety caution are on the bottom and/or the
back of the main unit.
●
The rating plate (serial number plate) of the
AC Power Adapter/Charger is on its bottom.
This unit is produced to comply with Standard
IEC Publ. 65.
CAUTIONS:
n To prevent shock, do not open the cabinet.
No user serviceable parts inside. Refer
servicing to qualified personnel.
n When you are not using the AC Power
Adapter/Battery charger for a long period of
time, it is recommended that you disconnect
the power cord from AC outlet.
EN 3
IMPORTANT PRODUCT
SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. But improper use can result in potential
electrical shock or fire hazards. This product has
been engineered and
manufactured to assure your personal safety. In
order not to defeat the built-in safeguards, observe
the following basic rules for its installation, use and
servicing.
ATTENTION:
Follow and obey all warnings and instructions
marked on your product and its operating instructions. For your safety, please read all the safety and
operating instructions before you operate this
product and keep this manual for future reference.
INSTALLATION
1. Power Sources
Operate your product only from the type of power
source indicated on the marking label. If you are
not sure of the type of power supply to your home,
consult your product dealer or local power
company. If your product is intended to operate
from battery power, or other sources, refer to the
operating instructions.
2. Overloading
Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result
in a risk of fire or electric shock.
3. Power Cord Protection
Power supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the point where they exit from the
product.
4. Ventilation
Slots and openings in the cabinet are provided for
ventilation. To ensure reliable operation of the
product and to protect it from overheating, these
openings must not be blocked or covered.
•Do not block the openings by placing the product
on a bed, sofa, rug or other similar surface.
•Do not place the product in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s
instructions have been adhered to.
5. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
ANTENNA INSTALLATION
INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected
to the product, be sure the antenna or cable system
is grounded so as to provide some protection
against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/
NFPA 70, provides information with regard to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrodes, and
requirements for the grounding electrode.
2. Lightning
For added protection for this product during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product
due to lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in
the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall
into such power lines or circuits. When installing an
outside antenna system, extreme care should be
taken to keep from touching such power lines or
circuits as contact with them might be fatal.

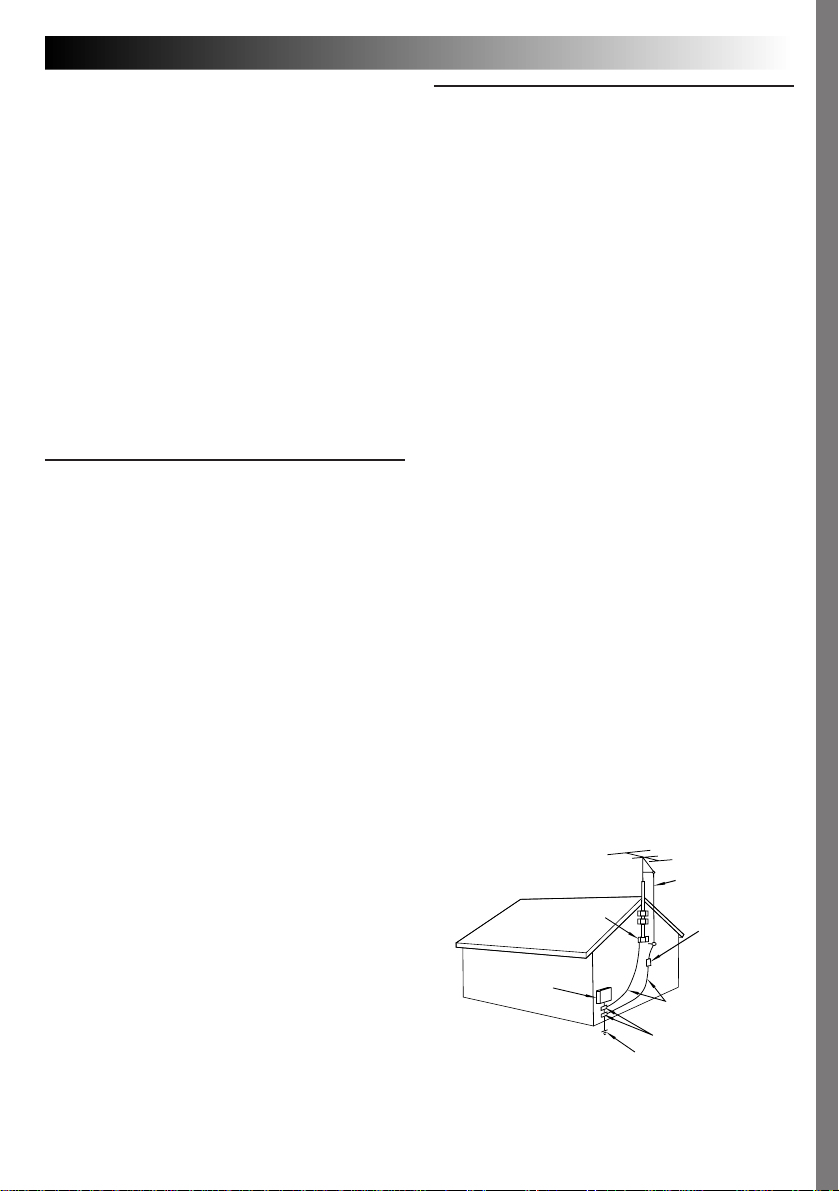

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA
LEAD IN WIRE
GROUND CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION
ELECTRIC SERVICE
EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
4 EN
USE
1. Accessories
To avoid personal injury:
•Do not place this product on an unstable cart,
stand, tripod, bracket or table. It may fall, causing
serious injury to a child or adult, and serious
damage to the product.
•Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer or sold
with the product.
•Use a mounting accessory recommended by the
manufacturer and follow the manufacturer’s
instructions for any mounting of the product.
•Do not try to roll a cart with small casters across
thresholds or deep-pile carpets.
2. Product and Cart Combination
A product and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart combination to overturn.
3. Water and Moisture
Do not use this product
near water—for example,
near a bath tub, wash
bowl, kitchen sink or
laundry tub, in a wet
basement, or near a
swimming pool and the
like.
4. Object and Liquid Entry
Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-out parts that could result in
a fire or electric shock. Never spill liquid of any
kind on the product.
5. Attachments
Do not use attachments not recommended by the
manufacturer of this product as they may cause
hazards.
6. Cleaning
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
PORTABLE CART WARNING
(Symbol provided by RETAC)
SERVICING
1. Servicing
If your product is not operating correctly or exhibits
a marked change in performance and you are
unable to restore normal operation by following the
detailed procedure in its operating instructions, do
not attempt to service it yourself as opening or
removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen
into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or damaged in
any way.
f. When the product exhibits a distinct change in
performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or
other hazards.
4. Safety Check
Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in safe
operating condition.
QUICK OPERATION GUIDE
3
2
1
EN 5
SUPPLY POWER
Hook on.
1
Push in.
2
BATT. RELEASE
Using the battery pack
Hook-on the battery pack’s top end to the
1
camcorder. (Charging procedure, Z pg. 8)
2 Push in the battery pack until it locks into
place.
To remove the battery pack
Slide BATT. RELEASE and pull out the battery
pack.
PLAYBACK
PLAY/PAUSE
3
INSERTING A VIDEO
CASSETTE
EJECTPUSH
2
4
Open
1
1 Open the LCD monitor to an angle of over
45 degrees.
2 Press EJECT to open the cassette holder.
3 Insert a video cassette.
4 Press PUSH to close the cassette holder.
(For more details, Z pg. 13)
3
SHOOTING
LENS COVER
Open/Close Switch
1
Set to “PLAY”
2
REW
STOP
1 Set the Power Switch to “PLAY”.
2 Press REW.
— The tape will automatically stop at the
beginning of the tape.
3 Press PLAY/PAUSE.
— Playback starts and the playback picture
appears.
•To stop playback, press STOP.
(For more details, Z pg. 38.)

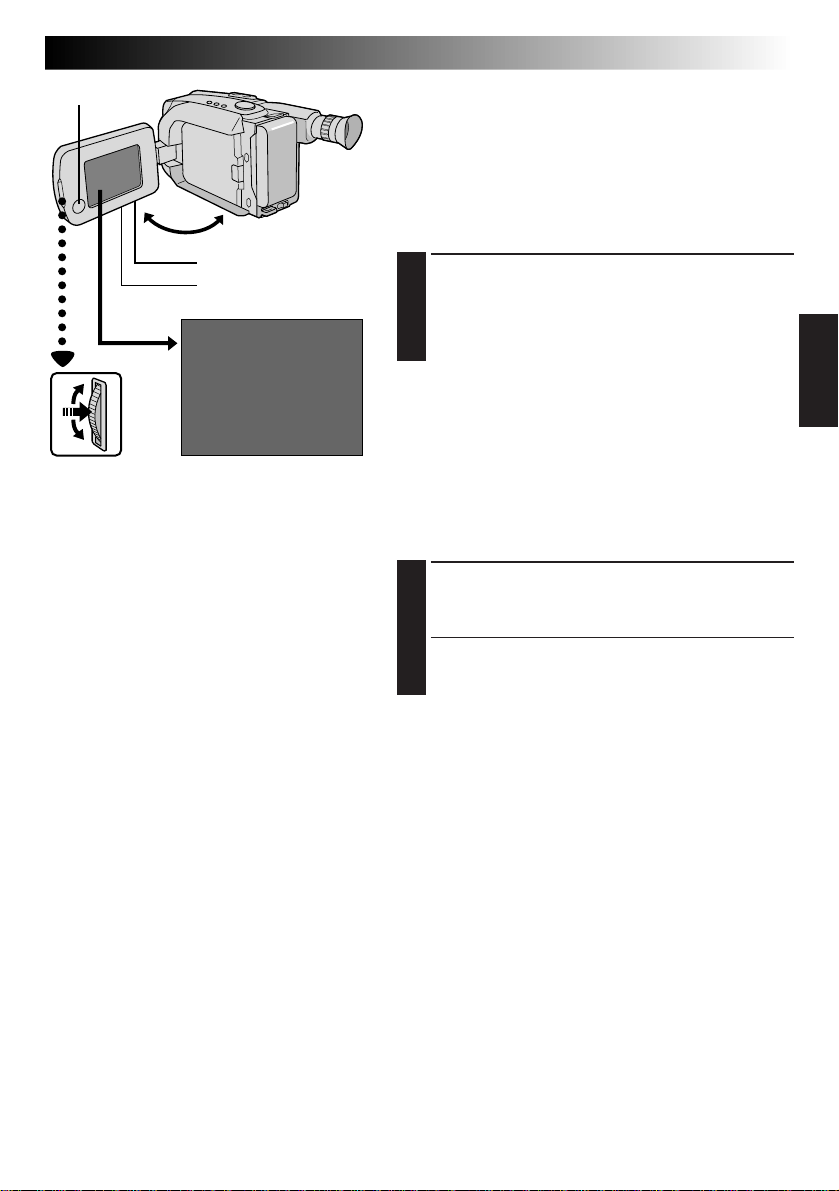

•The viewfinder switches off automatically to
save power when the LCD monitor is
opened at an angle of over 45 degrees.
•The LCD monitor turns on/off when it is
opened/closed at approx. 45 degrees.

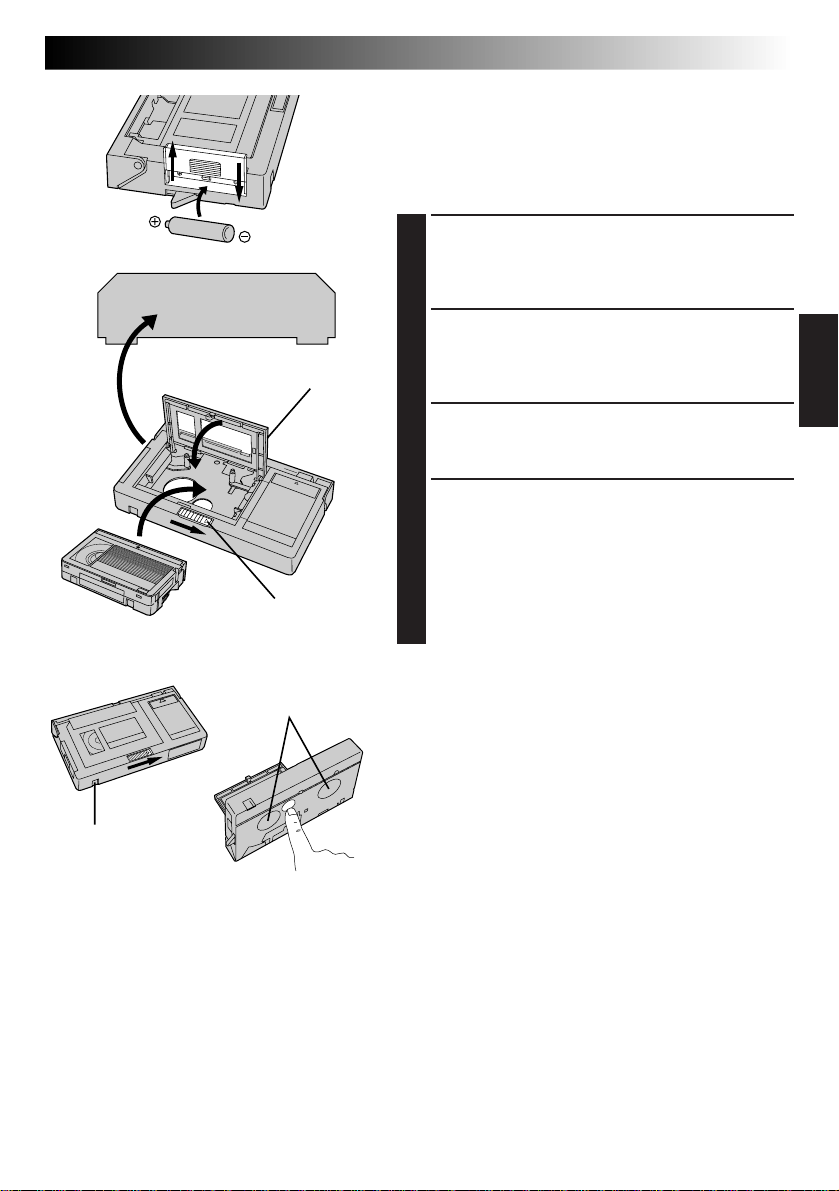

Or simply play back the tape on a VHS
VCR using the Cassette Adapter (VHS
Playpak).
Z pg. 41
Recording
Start/Stop Button
Set to
“CAMERA”
1 Slide the LENS COVER Open/Close Switch
to open the lens cover.
2 Set the Power Switch to “CAMERA”.
— The power indicator will light and an
image will appear.
3 Press the Recording Start/Stop Button.
— Recording starts.
•To stop recording temporarily, momentarily
press the Recording Start/Stop Button once
again.
(For more details, Z pgs. 16 – 19)
•The viewfinder switches off automatically to
save power when the LCD monitor is
opened at an angle of over 45 degrees.
•The LCD monitor turns on/off when it is
opened/closed at approx. 45 degrees.
6 EN

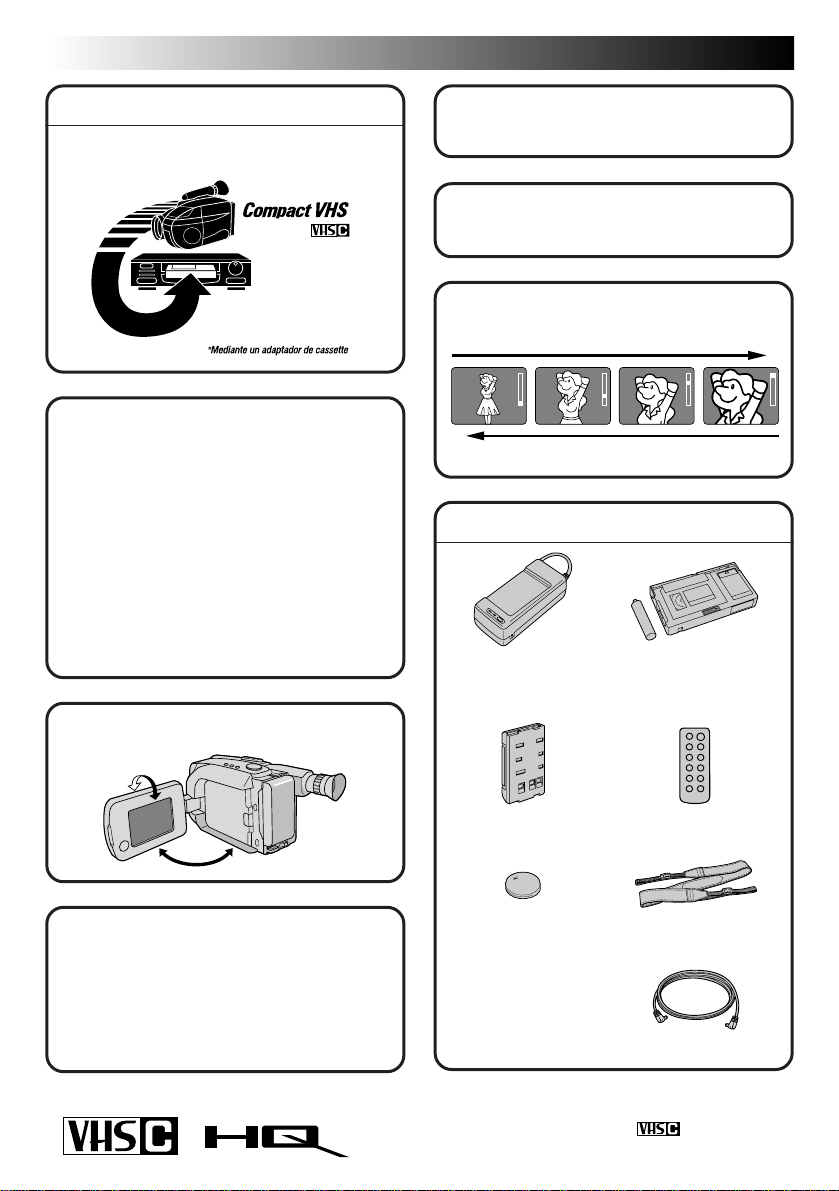

MAJOR FEATURES
REMEMBER
The Logical Choice
The only compact video
cassettes that can be
used with your VHS VCR*
Program AE with Special
Effects (
n Auto Mode Lock
n Auto Mode Release
n Electronic Fog Filter
n ND Effect
n Sepia
n Twilight
n Sports
n Nega/Posi
n 1/2000 sec. High Speed Shutter
LCD Color Monitor (Z pg. 18)
Z pg. 24)
Integrated Auto Light
Z pg. 23)
(
Picture Stabilizer
Z pg. 21)
(
Digital Hyper Zoom
Z pg. 20)
(
Zoom-in
Zoom-out
PROVIDED ACCESSORIES
•AC Power Adapter/
Charger AA-V15U
•Cassette Adapter
(VHS Playpak) C-P7U
90°
180°
Program Manager II
(Z pg. 24 – 37)
Program AE with Special Effects,
Fader, Wide, Super LoLux, Instant
Title, Menu Adjustment (Focus,
Exposure Control and so on.)
•Battery Pack
BN-V18U
•Lithium Battery
CR2025 x 2
(for clock
operation
and remote
control unit)
Cassettes marked can be used with this
camcorder.
•Remote Control
Unit RM-V705U
•Shoulder Strap
•DC Cord
CONTENTS
GETTING STARTED
Power ............................................................................................... 8
Clock (Lithium) Battery Insertion/Removal................................................. 10
Date/Time Setting ............................................................................. 11
Recording Mode Setting ....................................................................... 12
Tape Length Setting ............................................................................ 12
Loading/Unloading A Cassette ............................................................... 13

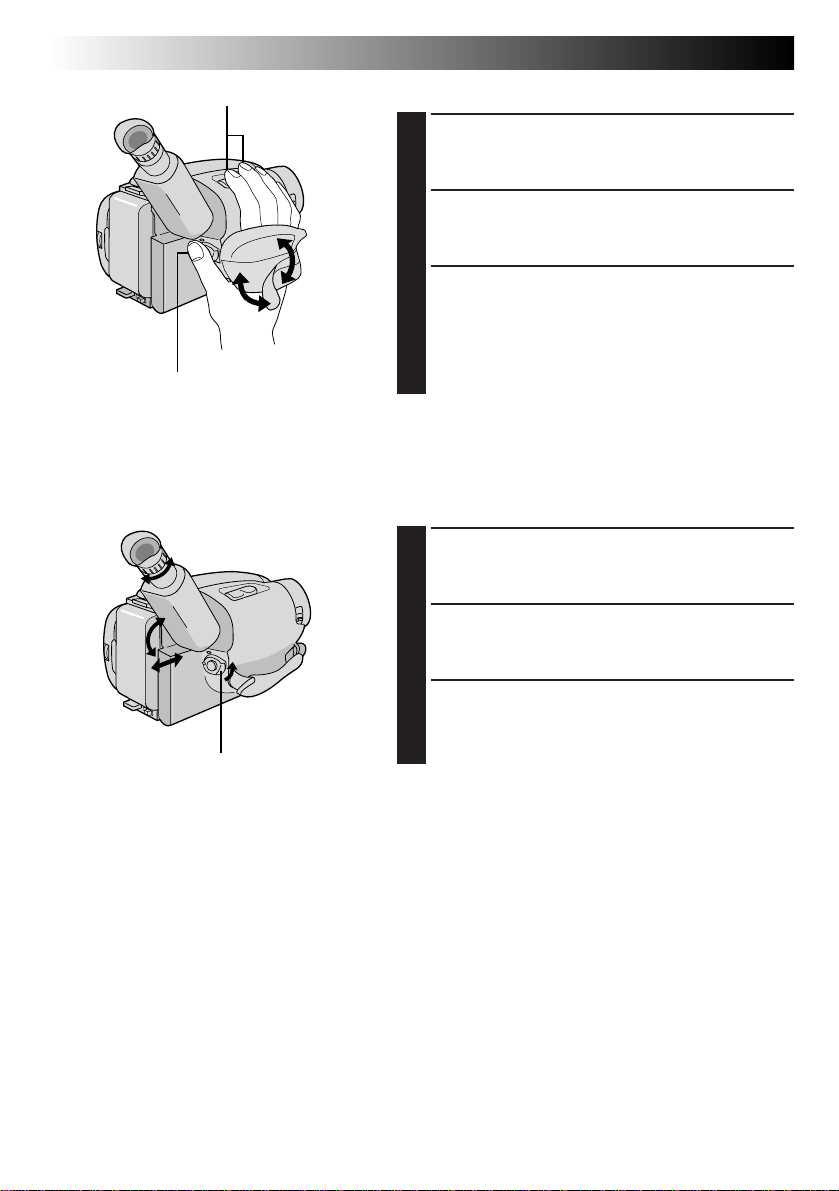

Grip Adjustment ................................................................................ 14
Viewfinder Adjustment ........................................................................ 14

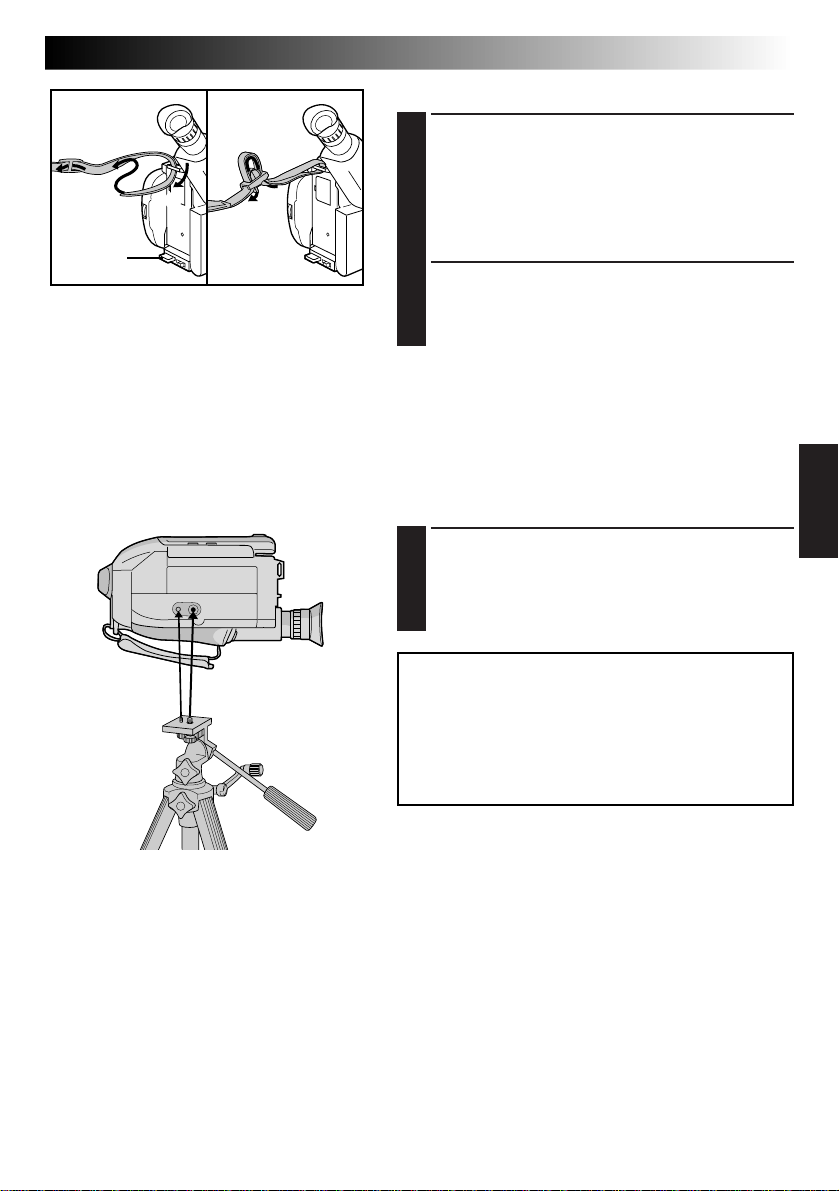

Shoulder Strap Attachment.................................................................... 15
Tripod Mounting ................................................................................ 15
EN 7
8
RECORDING
Basic Recording ................................................................................. 16
Basic Features .................................................................................. 20
Advanced Features ............................................................................. 24
PLAYBACK
Basic Playback .................................................................................. 38
Features ......................................................................................... 39
Using The Cassette Adapter................................................................... 41

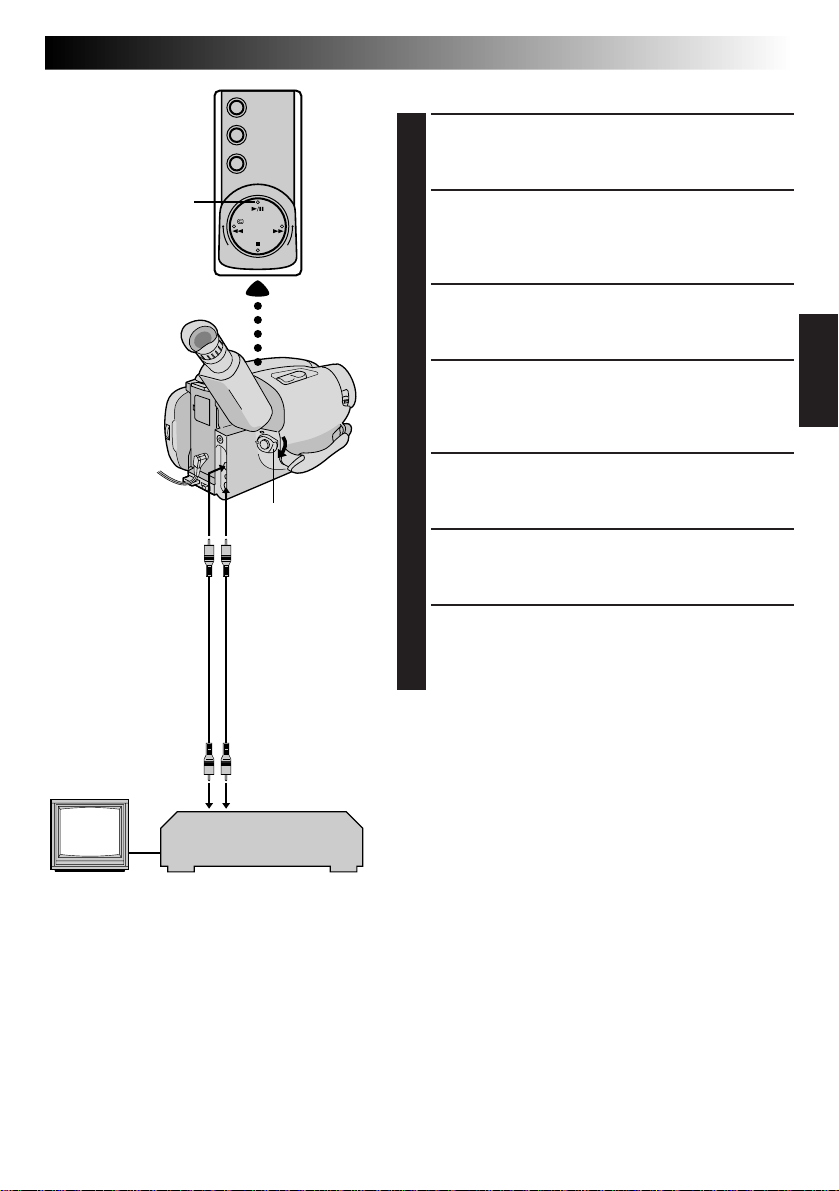

Basic Connections............................................................................... 42
TAPE DUBBING

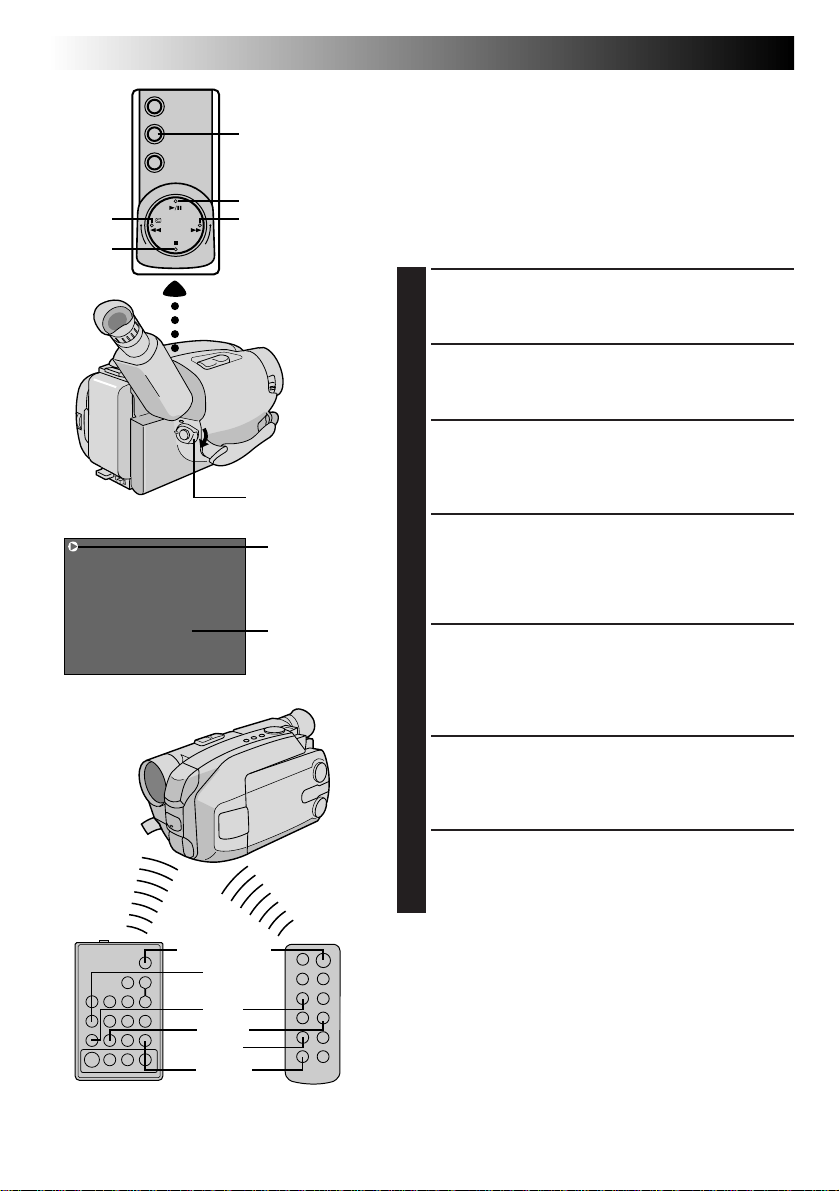

USING REMOTE CONTROL UNIT
Random Assemble Editing ..................................................................... 46
Insert Editing .................................................................................... 50
Audio Dubbing .................................................................................. 51
USER MAINTENANCE
TROUBLESHOOTING
INDEX

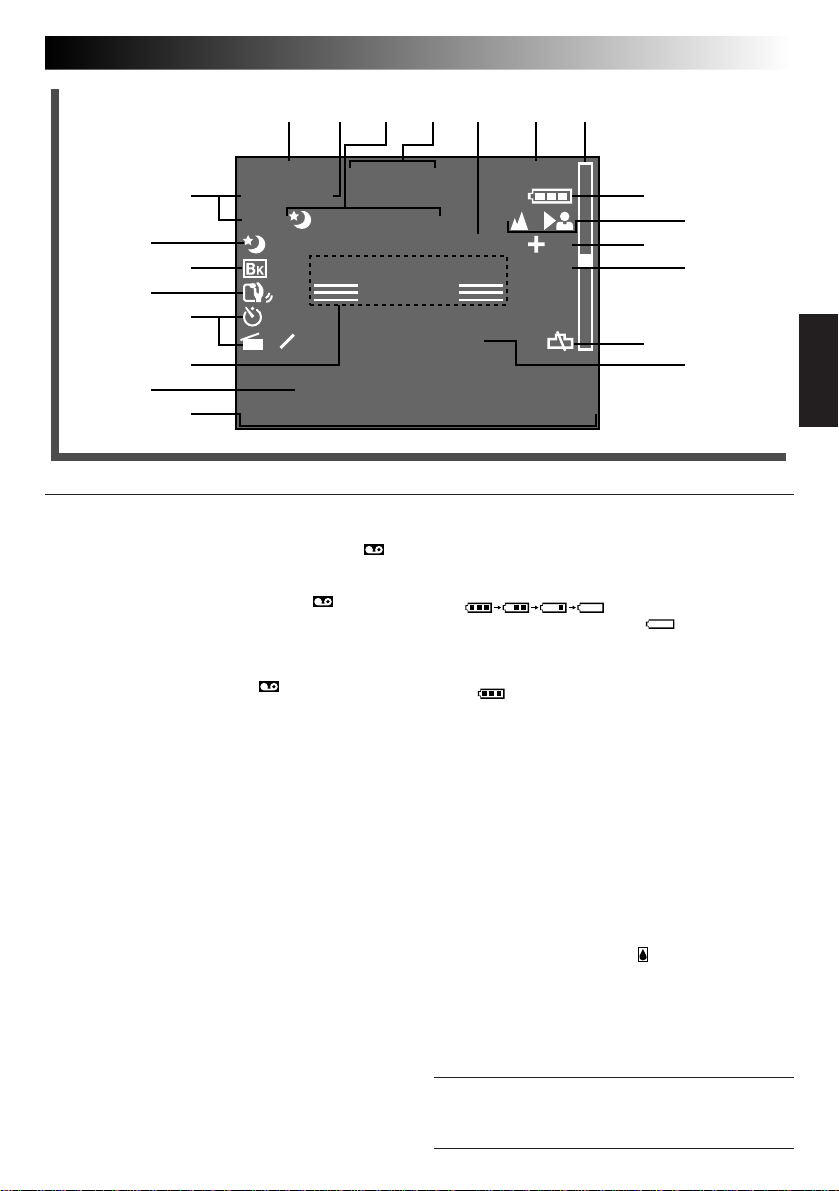

LCD monitor/Viewfinder Indications ........................................................ 55
Controls .......................................................................................... 56
Connectors....................................................................................... 56
Indicators ........................................................................................ 56
Other Parts...................................................................................... 56
Terms ............................................................................................. 58
16
38
43
44
52
53
55
CAUTIONS
SPECIFICATIONS
OPTIONAL ACCESSORIES
59
61
61
8 EN
CHG. (charge)
indicator
REFRESH indicator
Marks
REFRESH switch
To AC outlet
GETTING STARTED
Power
This camcorder’s 3-way power supply system lets you
choose the most appropriate source of power.
NOTES:
●
No function is available without power supply.
●
Use only specified power supply.
●
Do not use provided power supply units with other
equipment.
CHARGING THE BATTERY PACK
SUPPLY POWER
Connect the charger’s AC power cord to a wall
1
outlet.
REFRESH
The AC power adapter features a REFRESH
function that allows you to fully discharge
the battery pack before recharging.
Perform the REFRESH function after no less
than 5 chargings.
To discharge the battery . . .
..... attach the battery pack to the adapter
as shown in the above illustration.
Then push REFRESH. The REFRESH
indicator lights when discharging
starts, and goes out when discharging
is complete.
Hook on.
1
1
Push in.
2
BATT. RELEASE
ATTENTION:
Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.
ATTACH BATTERY PACK
Align the marks and slide the battery pack in the
2
direction of the arrow until it locks in place.
•The CHG. indicator begins blinking to indicate
charging has started.
DETACH BATTERY PACK
When the CHG. indicator stops blinking but stays lit,
3
charging is finished. Slide the battery pack opposite
the direction of the arrow.
BATT. PACK
BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min.
BN-V18U approx. 1 hr. 40 min. approx. 5 hrs. 30 min.
BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.
BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.
CHARGE DISCHARGE
USING THE BATTERY PACK
ATTACH BATTERY PACK
Hook its top end to the camcorder and push the
1
battery pack in until it locks in place.
DETACH BATTERY PACK
Slide BATT. RELEASE and pull out the battery pack.
2
Approximate recording time (unit: min.)
BATT. monitor on/ monitor off/ monitor on/
PACK Viewfinder off Viewfinder on Viewfinder on
BN-V12U 55 (35) 60 (35) 50 (35)
BN-V18U 90 (60) 95 (60) 80 (55)
BN-V22U 120 (80) 130 (80) 105 (70)
BN-V25U 160 (105) 170 (110) 140 (100)
( ) : when the video light is on.
LCD LCD LCD
EN 9
CHARGE MARKER
Charge marker
(OPTIONAL BATTERY ONLY)
A charge marker is provided on the battery pack to
help you remember whether it has been charged or
not. Two colors are provided (red and black)—you
choose which one means charged and which
means discharged.
•The battery pack BN-V18U does not have a
charge marker.
NOTES:
●
The recording time per charge is affected by such factors as the time spent in Record-Standby mode and
the frequency of zooming. It is safer to have spare battery packs.
●
Charging times noted on page 8 are for fully discharged battery pack, and discharging times are for fully
charged battery pack.
●
Charging and discharging times vary according to the ambient temperature and the status of the battery pack.
●
Remember to set the charge marker after charging a battery pack or after detaching a discharged one from
your camcorder.
●
Perform the REFRESH function after no less than 5 chargings.
●
While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to
discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger
does not charge the battery. When disharging is complete, detach the battery from the AC Power Adapter/
Charger to store it.
●
High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t
allow it to discharge in container, such as a bag.
●
If you stop recharging or discharging part way through, make sure to remove the battery pack before
unplugging the adapter’s AC cord.
●
Remove the battery pack from the adapter immediately after discharging.
●
To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.
●
Make sure you unplug the DC cord before charging or discharging the battery pack.
●
The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored
for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.
indicator should blink during recharging. If not, contact your nearest JVC dealer.
DC OUT
terminal
To DC
IN jack
AC Power
Adapter/Charger
DC cord
Car Battery Cord
AP-V7U (optional)
Car Battery Charger/Adapter
BH-V3U (optional)
AA-V15U
To AC outlet
To car’s
cigarette
lighter socket
USING A CAR BATTERY
Use the optional Car Battery Cord or Car Battery
Charger/Adapter (connect as shown in the
illustration to the left).
NOTES:
●
When using the car battery, leave the engine
idling.
●
The optional Car Battery Charger (BH-V3U) can
also be used to charge the battery pack.
●
When using the optional Car Battery Charger or
Car Battery Cord (AP-V7U), refer to the respective
instruction booklet.
USING AC POWER
Use the AC Power Adapter (connect as shown in
the illustration to the left).
NOTE:
The supplied AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110 V to 240 V.
10 EN
GETTING STARTED
A

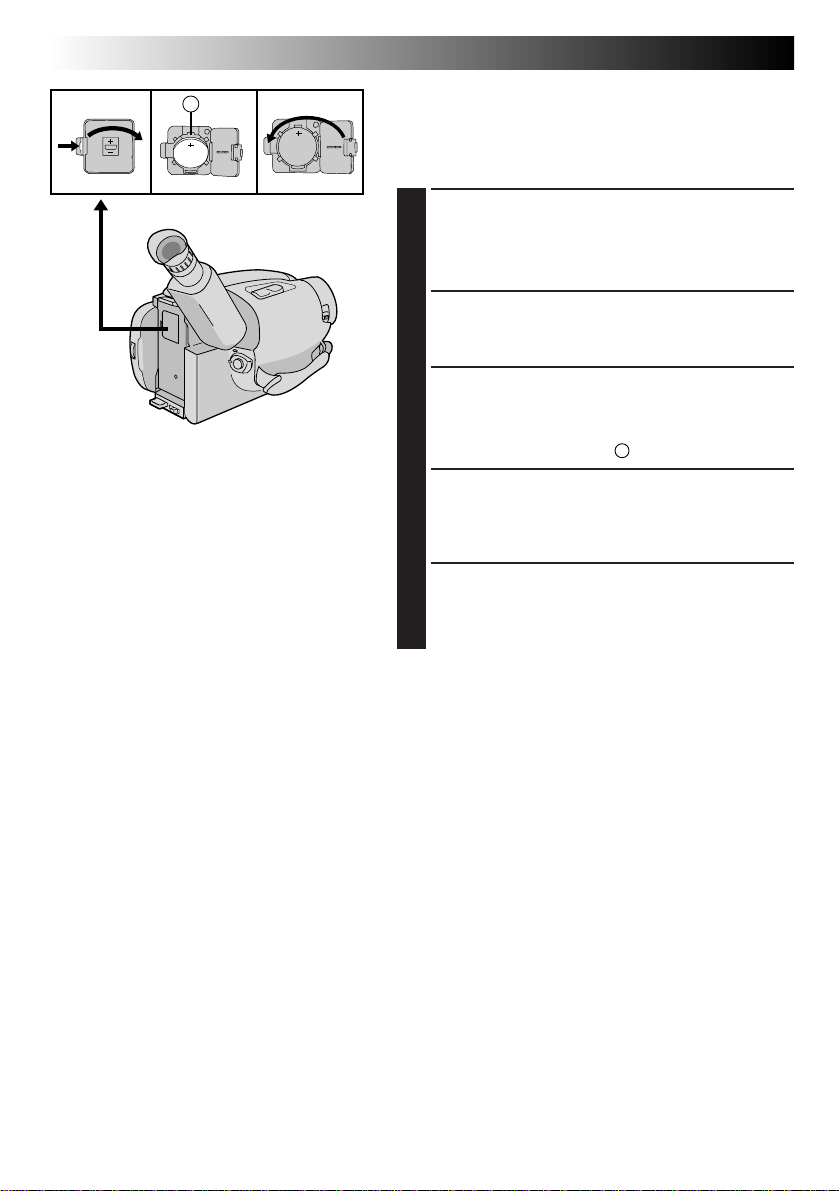

Clock (Lithium) Battery Insertion/Removal
This battery is necessary for clock operation and to
perform date/time settings.
SWITCH OFF POWER
Switch off the unit’s power and remove the power
1
supply unit.
OPEN COVER
Open the clock battery compartment cover while
2
pressing the release tab.
REMOVE BATTERY (when replacing)
Insert a pointed, non-metallic object between the
3
battery and the compartment (A) and pull the
battery out.
INSERT BATTERY
Ensure that the plus (+) side is up and insert a
4
CR2025 lithium battery and push it in.
CLOSE COVER
Close the compartment cover until it clicks in place.
(cont.)
5
NOTE:
See “SAFETY PRECAUTIONS” (Z pg. 2) for information
on safe handling of lithium batteries.
Select Dial
MENU
Jog Dial
LCD monitor or viewfinder
MENU
4
MENU END
FOCUS
EXPOSURE
DATE TIME
TELE MACRO
TAPE LENGTH
M. W. B.
ZOOM SPEED
4
NEXT
Menu Screen
AUTO
AUTO
JAN
OFF
T30
AUTO
FAST
1. 98
Date/Time Setting
ACCESS MENU SCREEN
First set the Power Switch to “CAMERA”. Turn the
1
Select Dial to any position except AUTO LOCK,
then press the MENU Jog Dial.
SELECT FUNCTION
Rotate the MENU Jog Dial to move the highlight bar
2
to “DATE/TIME”, then press it. The DATE/TIME
Setting Menu appears.
•If you decide you want to return the date and time
to the previous settings, rotate the MENU Jog Dial
to move highlight bar to “EXIT” and press it, then
go to step 6.
•If you want to set only the time without changing
the date, go to step 4.
SET DATE
Rotate the MENU Jog Dial to move the highlight bar
3
to the item you want to set and then press it. When
the setting begins blinking, rotate the MENU Jog
Dial until the correct setting appears and then press
it. The setting stops blinking.
•Repeat this procedure until you’re satisfied with
the Date settings (“YEAR”, “MONTH” and “DAY”).
EN 11
DATE TIME
YEAR
MONTH
DAY
TIME
EXIT
DATE/TIME Setting Menu
4
MENU END
FOCUS
EXPOSURE
DATE TIME
TELE MACRO
TAPE LENGTH
M. W. B.
ZOOM SPEED
4
NEXT
1998
JAN
1
PM 12:00
12-hour indication
with AM or PM
MENU
AUTO
AUTO
DEC
25. 98
OFF
T30
AUTO
FAST
SET TIME
Rotate the MENU Jog Dial to move the highlight bar
4
to “TIME” and then press it. When the hour setting
begins blinking, rotate the MENU Jog Dial until the
correct setting appears and then press it. When the
hour setting stops blinking and the minute setting
begins blinking, rotate the MENU Jog Dial until the
correct setting appears and then press it. The minute
setting stops blinking.
START CLOCK OPERATION
When none of these settings (YEAR, MONTH, DAY,
5
TIME) blinks, rotate the MENU Jog Dial to move the
highlight bar to “EXIT”, and press it. The Menu
Screen appears and “MENU END” is highlighted.
CLOSE MENU
Press the MENU Jog Dial.
6
NOTE:
To display the date and time in the LCD monitor or the
viewfinder and on a connected TV, see “Date/Time
Insert” (Z pg. 22).
12 EN
SP/EP Recording Mode Button
Select Dial
MENU Jog Dial
GETTING STARTED
(cont.)
Recording Mode Setting
Set depending on your preference.
SET RECORDING MODE
First set the Power Switch to “CAMERA”. Press SP/EP
1
Button for more than 1 second. “SP” (Standard Play)
provides higher picture and sound quality and is
better for dubbing, while “EP” (Extended Play) is
more economical, providing three times as the
recording time.
NOTE:
If the recording mode is switched during recording, the
playback picture will be blurred at the switching point.
Viewfinder
SP
Recording mode
indicator
LCD monitor or viewfinder
MENU
4
MENU END
FOCUS
EXPOSURE
DATE TIME
TELE MACRO
TAPE LENGTH
M. W. B.
ZOOM SPEED
4
NEXT
Menu Screen
TAPE LENGTH
T20
T30
T40
EXIT
TAPE LENGTH Setting Menu
4
MENU END
FOCUS
EXPOSURE
DATE TIME
TELE MACRO
TAPE LENGTH
M. W. B.
ZOOM SPEED
4
NEXT
MENU
AUTO
AUTO
DEC
OFF
T40
AUTO
FAST
AUTO
AUTO
DEC
OFF
T20
AUTO
FAST
T40
Tape length
indicator
25.98
25.98
Tape Length Setting
Set the tape length according to the length of the tape
used.
ACCESS MENU SCREEN
First set the Power Switch to “CAMERA”. Turn the
1
Select Dial to any position except AUTO LOCK,
then press the MENU Jog Dial.
SELECT FUNCTION
Rotate the MENU Jog Dial to move the highlight bar
2
to “TAPE LENGTH”, then press it. The TAPE
LENGTH Setting Menu appears.
SET TAPE LENGTH
Rotate the MENU Jog Dial to move the highlight bar
3
to the correct setting. T20=20 minutes of recording
time, T30=30 minutes, and T40=40 minutes (in SP).
•If you decide you want to return the tape length to
the previous setting, rotate the MENU Jog Dial to
move the highlight bar to “EXIT”.
CLOSE MENU
Press the MENU Jog Dial. The Menu Screen
4
reappears and the highlight bar is on “MENU END”.
Then press the MENU Jog Dial again to close the
Menu Screen.
NOTES:
●
The tape remaining time (Z pg. 17) displayed in the
viewfinder is correct only if the correct tape length has
been selected.
●
Once you have set the tape length, it remains unchanged even if the Select Dial is returned to AUTO
LOCK.
Loading/Unloading A Cassette
EN 13
2
4
4
1
Erase Protection Gear
2
5
3
3
Turn to take
up slack.
OPEN LCD MONITOR
Open the LCD monitor to an angle of over 45
1
degrees.
OPEN CASSETTE HOLDER
Press EJECT until the holder opens. Do not use force
2
to open.
INSERT/REMOVE CASSETTE
Make sure the label is facing outward.
3
CLOSE CASSETTE HOLDER
Press PUSH and make sure the holder is closed and
4
locked.
CLOSE LCD MONITOR
First make sure the holder is closed. Then close the
5
LCD monitor.
NOTES:
●
Closing the LCD monitor while the cassette holder is
still open may cause damage to the LCD monitor.
●
A cassette holder can’t be opened unless a power
supply is attached.
●
Make sure that the tape is not slack when loading the
cassette. If there is any slack, turn the gear on the
cassette in the direction of the arrow to take up the
slack.
●
Make sure the Erase Protection tab is in the position
that allows recording. If not, slide the tab. Some
cassettes have removable tabs. If the tab has been
removed, cover the hole with adhesive tape.
●
The cassette holder can’t be opened while the
camcorder is in the record mode.
14 EN
Recording Start/Stop Button
Power Zoom Button
GETTING STARTED
Grip Adjustment
EXPAND LOOP
Separate the Velcro strip.
1
INSERT HAND
Pass your right hand through the loop and grasp the
2
grip.
ADJUST STRAP LENGTH
Adjust so your thumb and fingers can easily operate
3
the Recording Start/Stop Button and Power Zoom
Button. Refasten the Velcro strip.
Viewfinder Adjustment
(cont.)
3
1
1
2
2
Set POWER to “CAMERA”.
POSITION VIEWFINDER
Adjust the viewfinder manually for best viewability
1
(see illustration at left).
SELECT MODE
Set the Power Switch to CAMERA.
2
ADJUST DIOPTER
Turn the Diopter Adjustment Control until the
3
indications in the viewfinder are clearly focused.
2
3
1
1
Shoulder Strap Attachment
ATTACH STRAP
Following the illustration at left, thread the strap
1
through the top of the eyelet 1, then fold it back
and thread it through the buckle 2. Repeat the
procedure to attach the other end of the strap to the
other eyelet 3, making sure the strap isn’t twisted.
ADJUST LENGTH
Adjust as shown in the illustration at left 1.
2
Tripod Mounting
ALIGN AND TIGHTEN
Align the screw and camera direction stud on the
1
tripod with the camera’s mounting socket and stud
hole. Then tighten the screw.
EN 15
CAUTION:
When using a tripod, be sure to open and extend
its legs fully to stabilize the camcorder. To
prevent damage to the unit caused by falling
over, do not use a small-sized tripod.
16 EN
LENS COVER Switch
Power
Switch
Power
indicator
RECORDING
Basic Recording
NOTE:
You should already have performed the procedures listed
below. If not, do so before continuing.
●
Power (Z pg. 8)
●
Recording Mode/Tape Length Setting (Z pg. 12)
●
Grip Adjustment (Z pg. 14)
LOAD A CASSETTE
First open the LCD monitor to an angle of over 45
1
degrees.
Press EJECT to open the cassette holder, then insert
the cassette with the label facing out. Press PUSH to
ensure the holder is closed and locked.
Start/Stop Button
Tally lamp
(lights while recording is in progress)
Shooting while watching the viewfinder
ENTER RECORD–STANDBY MODE
Make sure the LCD monitor is closed and locked.
2
Slide the LENS COVER Open/Close Switch to open
the lens cover, then set the Power Switch to
CAMERA.
•The power indicator lights and the camcorder
enters the Record–Standby mode.
•The scene you’re aimed at appears on the
viewfinder screen, with the word “PAUSE”
superimposed upon it.
START SHOOTING
Press the Recording Start/Stop Button.
3
REC
•“
” appears in the viewfinder while recording is
in progress.
Tape remaining time indicator
25MIN
(Now calculating)
Start/Stop Button
MIN
120MIN
119MIN
3MIN
2MIN
(Blinking)
1MIN
(Blinking)
0MIN
(Blinking)
EN 17
STOP RECORDING
Press the Recording Start/Stop Button again to stop
4
recording.
•The camcorder re-enters the Record-Standby
mode.
NOTES:
●
When the Power Switch is set to CAMERA and the LCD
monitor is opened at an angle of 45 degrees or more, the
LCD monitor switches on and the viewfinder switches
off automatically to save power.
●
A cassette holder can’t be opened unless a power supply
is attached.
●
There may be a delay after you press EJECT until the
holder opens. Do not use force.
●
The tape remaining time is only displayed in the
viewfinder as shown.
●
The remaining time indicated in the viewfinder is
approximate.
●
The time required to calculate the remaining tape
length, and the accuracy of the calculation, may vary
according to the type of tape used.
●
The tape remaining time indicator is correct only if the
correct tape length has been selected (Z pg. 12).
●
“TAPE END” appears when the tape reaches its end,
and the power goes off automatically if left in this
condition for 5 minutes. “TAPE END” also appears
when a cassette whose tape is already at its end is
loaded.
●
If the Record–Standby mode continues for 5 minutes
without performing Zoom or any other operations, the
camcorder’s power shuts off automatically. Set the
Power Switch to “POWER OFF”, and then back to
“CAMERA” to turn the camcorder on again.
●
If the Recording Start/Stop Button is pressed after the
Record-Standby mode has continued for over
5 minutes, recording may not start immediately.
●
If you’re recording on a cassette from the middle (such
as when a tape is removed and re-inserted during
recording), use the Retake function (Z pg. 21) to find
the end of the last recording so you don’t erase any of
it.
●
The LENS COVER warning blinks for about 5 seconds
when the camcorder is turned on when the cover is
closed.
●
While shooting, sound is not heard from the speaker.
18 EN
90°
180°
LENS COVER Switch
Power
Switch
Start/Stop Button
Tally lamp
(lights while recording is in progress)
Power
indicator
RECORDING
Basic Recording (cont.)
Shooting while watching the LCD monitor
Before the following steps, perform step 1 (Z pg. 16).
ENTER RECORD–STANDBY MODE
Make sure the LCD monitor is fully open. Slide the
2
LENS COVER Open/Close Switch to open the lens
cover, then set the Power Switch to CAMERA.
•The power indicator lights and the camcorder
enters the Record–Standby mode.
•The scene you’re aimed at appears in the LCD
monitor, with the word “PAUSE” superimposed
upon it.
START SHOOTING
Tilt the LCD monitor upward/downward for best
3
viewability (Z pg. 19) and press the Recording
Start/Stop button.
REC
•“
” appears in the LCD monitor while recording
is in progress.
STOP RECORDING
Press the Recording Start/Stop Button again to stop
4
recording.
•The camcorder re-enters the Record-Standby
mode.
NOTES:
●
When you use the LCD monitor outdoors in direct
sunlight, the LCD monitor may be difficult to see. If this
happens, we recommend that you use the viewfinder
(Z pg. 16).
●
The tape remaining time is not displayed on the LCD
monitor. However, when the tape is about to reach its
end, the following indicators appear:
“
2MIN
” ¥“
1MIN
” ¥“
0MIN
●
For other notes, refer to pg. 17.
”.
EN 19
Journalistic shooting
In some situations different angles of shooting may be
required for more dramatic results.
OPEN LCD MONITOR
Make sure the LCD monitor is fully open.
1
TILT LCD MONITOR
Tilt the LCD monitor in the most convenient
2
direction.
•The LCD monitor can rotate almost full circle
(270°: 90° downward, 180° upward).
Interface shooting
A person you shoot can view himself/herself in the LCD
monitor, and you can even shoot yourself while viewing
your own image in the LCD monitor.
TILT LCD MONITOR UPWARD
Open the LCD monitor and tilt it upward to 180
1
degrees so that it faces forward.
•When the LCD monitor is tilted upward to an
angle of over approx. 105 degrees, the monitor
image is inverted vertically, and the viewfinder
also switches on.
BRIGHT Dial
Self-recording
START RECORDING
Point the lens toward the subject (yourself when
2
self-recording) and start recording.
•During Interface Shooting, the monitor image and
indications do not appear inverted as they would
when viewing a mirror.
NOTE:
During Interface Shooting, indications other than the
Date/Time display and Title display do not appear in the
viewfinder.
Brightness control
You can adjust the brightness of the LCD monitor by
turning the BRIGHT Dial.
ADJUST BRIGHTNESS
If you want to brighten the image . . .
1
Turn the Dial toward “+”.
If you want to darken the image . . .
Turn the Dial toward “–”.
20 EN
RECORDING
Basic Features
Zoom-in
Power Zoom button
Select Dial
LCD monitor or viewfinder
4
MENU END
FOCUS
EXPOSURE
DATE TIME
TELE MACRO
TAPE LENGTH
M. W. B.
ZOOM SPEED
4
NEXT
FAST
SLOW
Zoom indicator bar
Zoom Level indicator
MENU
AUTO
AUTO
JAN
OFF
T30
AUTO
FAST
Menu Screen
ZOOM SPEED
Zoom-out
MENU Jog Dial
1.98
FEATURE: Zooming
PURPOSE: To produce the zoom in/out effect, or
OPERATION:
NOTES: ●
an instantaneous change in image
magnification.
Digital circuitly doubles the maximum
22x magnification offered by optical
zoom. This system is called Digital Zoom.
Zoom In
Press the “T” of the Power Zoom Button.
Zoom Out
Press “W” of the Power Zoom Button.
n Zooming speed is available. A total of
4 zoom speeds are available. 2 speeds
can be selected depending on how
hard the Power Zoom Button is
pressed (press the button fully for
regular-speed, press it lightly for slowspeed), while 2 speed levels (FAST/
SLOW) can be selected in the ZOOM
SPEED Menu depending on the overall
speed you prefer.
The combinations of zoom speeds are
shown in the chart below.

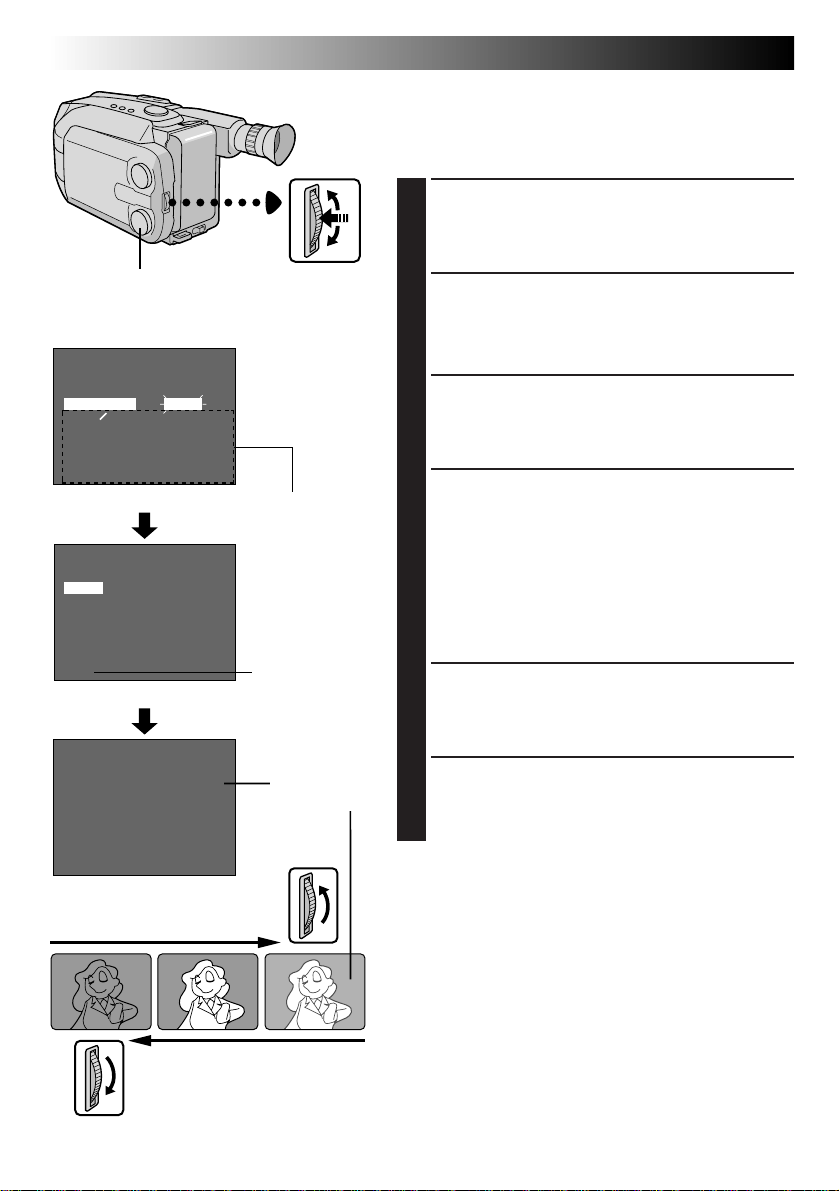

Changing the ZOOM SPEED in the
Menu
1)Set the Select Dial to any position
except AUTO LOCK and press the
MENU Jog Dial. The Menu Screen
appears.
2)Rotate the MENU Jog Dial to move
the highlight bar to “ZOOM SPEED”,
then press it. The ZOOM SPEED
Setting Menu appears.
3)Rotate the MENU Jog Dial to move
the highlight bar to the desired speed
and press it twice. The Menu Screen
disappears and setting is completed.
Focusing may become unstable
during Zooming. In this case, set the
zoom while in Record–Standby, lock
the focus by using the manual focus
Z
pg. 33), then zoom in or out in
(
Record mode.
●
The zoom level indicator (5) moves
during zoom. Once the zoom level
indicator reaches the top of the zoom
indicator bar, all magnification from
that point is through digital processing.
●
During Digital Zoom, the quality of
image may suffer. To deactivate Digital
Zoom, set “D.ZOOM” to “OFF” in
the Menu Screen (
Z
pg. 31).
EXIT
ZOOM SPEED Setting Menu
Zooming Speed ( 1 – 4 in order of speed)
“ZOOM SPEED”
in the Menu
Screen
FAST 1 (fastest) 3
SLOW 2 4 (slowest)
Pressing the
Power Zoom Button
fully lightly
: when the Select Dial is set to AUTO LOCK.
P. STABILIZER
RETAKE (R/F)
EN 21

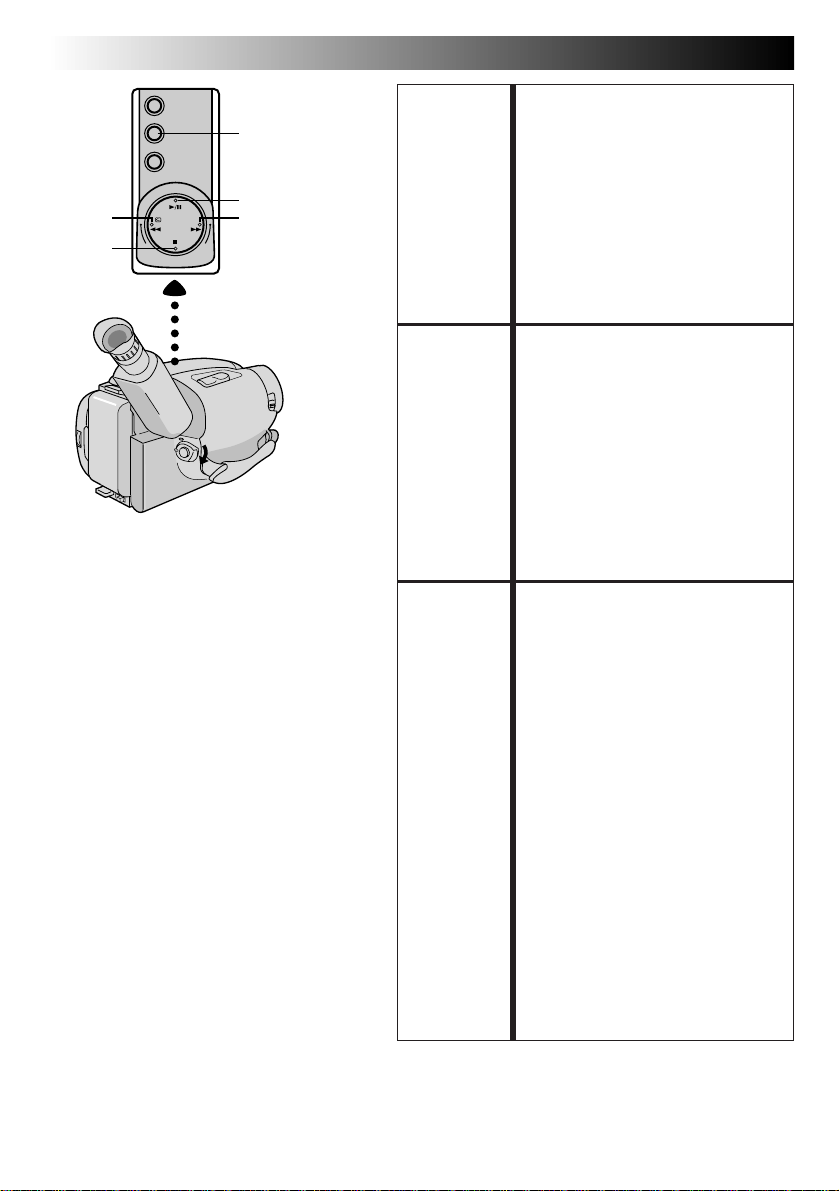

FEATURE: Quick Review
PURPOSE: To check the end of the last record-
OPERATION: 1)Press “ ” and release quickly
NOTE:
FEATURE: Retake
PURPOSE: To re-record certain segments.
OPERATION: 1)Make sure the camcorder is in the
NOTE:

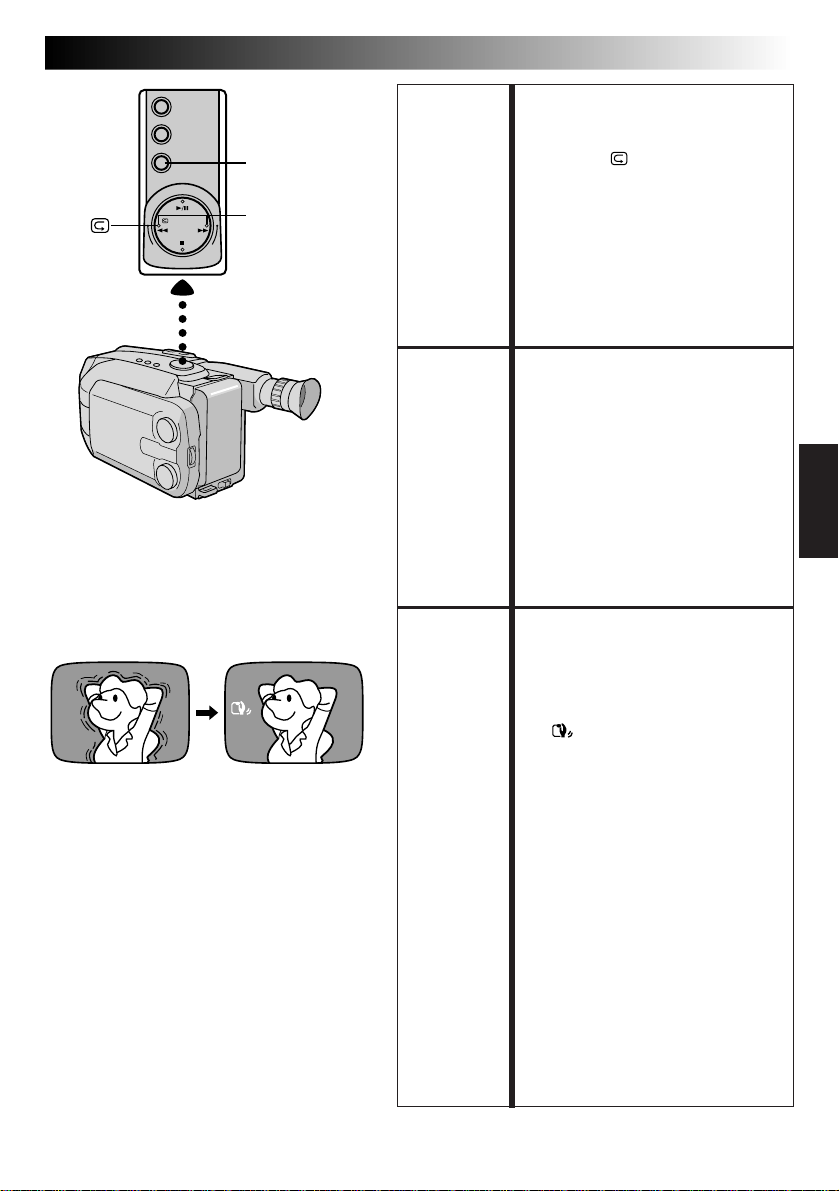

FEATURE: Picture Stabilizer
PURPOSE: To compensate for unstable images
OPERATION: 1)Press P. STABILIZER. “
NOTES: ●
ing.
during the Record–Standby mode.
n Tape is rewound for about 2
seconds and played back
automatically, then pauses in
Record–Standby mode for the
next shot.
Distortion may occur at start of
playback. This is normal.
Record–Standby mode.
2) Press either RETAKE button to
reach the start point for new
recording. Pressing “F” forwards
the tape and pressing “R” reverses
it.
3) Press Recording Start/Stop Button
to start recording.
Noise may appear during Retake.
This is normal.
caused by camera-shake, particularly
at high magnification.
n To switch off the Picture
Stabilizer, press P. STABILIZER.
The indicator disappears.
”appears.
Accurate stabilization may not be
possible if hand shake is excessive,
or under the following conditions:
•
When shooting subjects with
vertical or horizontal stripes.
•
When shooting dark or dim
subjects.
•
When shooting subjects with
excessive backlighting.
•
When shooting scenes with
movement in various directions.
•
When shooting scenes with lowcontrast backgrounds.
●
Switch off the Picture Stabilizer
when recording with the
camcorder on a tripod.
22 EN
DATE/TIME
Select Dial
Date display
Time display
Date/Time display
Auto Date Record mode
Date-off mode (No display)
Date display
DEC 25.98
Time display
PM10:50:00
Date/Time display
Display
Auto Date Record mode
AUTO DATE
Auto date record mode
DEC 25.98
Auto date record
executed
RECORDING
FEATURE: Date/Time Insert
PURPOSE: To display the date and time on the
OPERATION: 1)Turn the Select Dial to any
NOTES:
Basic Features (cont.)
LCD monitor, in the viewfinder, or
on a connected color monitor, as
well as to record them manually or
automatically.
position except AUTO LOCK.
2) Choose a display mode by
pressing DATE/TIME repeatedly
while in Record-Standby to cycle
through the modes as shown in the
illustration at left.
n You should have already
performed the Date/Time Setting
procedure (Z pg. 11). If you
haven’t, do so first.
DISPLAY
●
The selected display can be
recorded.
●
If you don’t want to record the
display, select the Date-off mode
before shooting.
●
If you want to delete the display
during shooting, press DATE/TIME.
●
To recall the display, engage the
Record-Standby mode and press
DATE/TIME repeatedly until the
desired display appears.
AUTO DATE RECORD
●
Your camcorder automatically
records the date for about 5
seconds after recording is initiated
in the following situations:
•
After changing the date.
•
After loading a cassette.
•
After Auto Date Record mode is
selected by pressing DATE/TIME.
In this mode, the date is replaced
after 5 seconds with “AUTO DATE”
but this is not recorded.
●
Setting the Select Dial to AUTO
LOCK always engages the Auto
Date Record mode, and disables
all other modes.
DEC 25.98
PM10:50:00
LIGHT OFF/AUTO/ON
(Can be accessed when the
LCD monitor is opened)
DANGER
n The video light can become extremely
hot. Do not touch it either while in
operation or soon after turning it off,
otherwise serious injury may result.
n Do not place the camcorder into the
carrying case immediately after using
the video light, since it remains
extremely hot for some time.
n When operating, keep a distance of
about 30 cm. (1 ft.) between the video
light and people or objects.
n Do not use near flammable or explosive
materials.
n It is recommended that you consult your
nearest JVC dealer for replacing the
video light.
EN 23
FEATURE: Video Light
PURPOSE: To brighten the scene when natural
OPERATION: 1)Set the LIGHT OFF/AUTO/ON
NOTES: ●
lighting is too dim.
Switch as required:
ON : Always keeps the light on as
AUTO : Automatically turns on the
OFF : Turns off the light.
n The video light can only be used
n It is recommended to set the white
n When not using the video light,
long as the camcorder is
turned on.
light when the camcorder
senses insufficient lighting
on the subject.
with the camcorder’s power on.
balance (Z pg. 35) to HALOGEN
mode ( ) when you use the video
light.
turn it off to save battery power.
Even if the battery indicator ( )
does not blink if the battery pack’s
charge is low, the camcorder may
turn off automatically when you
turn on the video light, or when
you start recording with the video
light turned on.
●
When the LIGHT OFF/AUTO/ON
Switch is set to “AUTO”:
•
Depending on the lighting
conditions, the video light may
keep turning on and off. In this
case, manually switch the light
on or off using the LIGHT OFF/
AUTO/ON switch.
•
While the Sports or High-Speed
Shutter mode (Z pg. 25) is
engaged, the light is likely to stay
on.
•
While the Twilight mode
(Z pg. 25) is engaged, the light
will not activate.
24 EN
1 second later, the mode is activated.
SEPIA
LCD monitor or
viewfinder
After 1 sec.
RECORDING
Advanced Features
Program AE With Special Effects
All you have to do to access any of the variety of
shooting effects is to turn the Select Dial.
SELECT MODE
Turn the Select Dial until the symbol of the function
1
you want is aligned with the mark.
•The selected mode’s name and its indication are
displayed for approx. 1 second. Then the name
disappears, and only the indication remains. The
mode is activated.
•When Auto Mode Lock or Auto Mode Release
mode is selected, only the mode’s name is
displayed. Then the name disappears and the
mode is activated.
NOTES:
●
Only one effect can be engaged at a time.
●
The screen becomes slightly reddish when the Fade/
Mark
K
C
O
L
R
E
L
T
U
E
O
A
0
A
M
0
O
0
2
/
1
S
D
E
E
F
G
N
D
Wipe (Z pg. 26) is used in the Sepia mode.
●
The screen becomes slightly dark in the High Speed
Shutter mode. Use in well-lit situations.
●
In the High Speed Shutter or Sports modes, picture
color may be adversely affected if subject is lit by
alternating discharge-type light sources such as
flourescent or mercury-vapor lights.
Select Dial
Dial LCD monitor/
symbol Viewfinder indication
Mode
Dial LCD monitor/
symbol Viewfinder indication
EN 25
Mode
LOCK AUTO LOCK
Auto Mode Lock
Auto Mode Lock
Locks the camcorder in Full Auto mode, preventing
incorrect operation due to accidental button
pressing during shooting.
•In this mode the following controls are disabled;
DATE/TIME display select, and the Menu Jog Dial.
RELEASE AUTO RELEASE
Auto Mode Release
Auto Mode Release
Re-enables the controls that were disabled by Auto
Mode Lock.
FG FG : FOG
Electronic
Fog Filter
Electronic Fog Filter
Makes the picture look misty white, as when an
external fog filter is attached to the lens. Softens the
image and gives it a “fantasy” look.
ND ND:ND EFFECT
ND Effect
ND Effect
A black mist darkens the picture, as when an ND
filter is used. Helps to counter the effects of glare on
the subject.
SEPIA
Sepia
Sepia
The scene being shot is recorded in sepia-tinted
(reddish-brown) monochrome, giving the effect of
an older movie. Use together with Wide (Z pg. 27)
for the authentic look of a classic Hollywood
movie.
TWILIGHT
Twilight
Twilight
Dusk, twilight scenery, fireworks, etc., look more
natural and dramatic. The following happens when
Twilight mode is selected:
•Auto gain control is turned off.
•White Balance is set to “ ” (FINE day mode), but
can also be manually changed to another mode
(Z pg. 35).
•Auto Focus becomes available only in the range of
10 m (33 ft.) to infinity. To focus when the subjectto-camera distance is less than 10 m (33 ft.), use
manual focusing (Z pg. 33).
SPORTS
Sports
Sports
High shutter speed clearly captures fast-moving
action.
NEGA POSI
Nega/Posi
Nega/Posi (Negative/Positive)
The colors of a picture are reversed.
NEGA POSI mode
1/2000 S 1/2000
2
1/2000 sec.
High Speed Shutter
High-Speed Shutter (1/2000s.)
Captures faster action than Sports mode.
26 EN
[Ex. : Fader]
Fade-in
Function indication
4
EFFECT
MOSAIC
B
K
OFF
(No indication)
Fade-out
LCD monitor or
viewfinder
After 2 sec.
B
K
FADER
MOSAIC
SHUTTER
SLIDE
OFF
EFFECT
Recording Start/Stop Button
RECORDING
Advanced Features (cont.)
Fade/Wipe
These effects let you make pro-style scene transitions.
Fade- or wipe-in works at recording start, and fade- or
wipe-out works at recording end or when you enter
Record–Standby mode.
ENGAGE FADE- OR WIPESTANDBY MODE
Press EFFECT to cycle through the modes as shown
at left. Once the desired mode appears, it is selected
1
and reserved.
•The selected mode’s name and its indication are
displayed for approx. 2 seconds. Then the name
disappears, and only the indication remains.
START OR END RECORDING
Press Recording Start/Stop Button to activate fade-in/
2
out or wipe-in/out.
TO CANCEL FADE- OR WIPESTANDBY MODE
Press EFFECT repeatedly until
“OFF” appears
3
•“OFF” is displayed for approx. 2 seconds and the
fade/wipe standby mode is canceled.
B
K
Fader
Fades in/out to a black screen.
Mosaic (Fader)
Gradually turns/returns the picture into/from a mosaic
pattern.
Shutter (Wipe)
A black screen moves in from the top and bottom,
closing over the image like a shutter, or a new image
pushes open the black screen vertically from the center.
Slide (Wipe)
A black screen moves in from the left to gradually cover
the image, or a new image moves in from right to left.
NOTES:
●
Pressing and holding the Recording Start/Stop Button
allows you to record a black blank screen or a mosaic
pattern if Mosaic Fader is selected.
●
The screen becomes slightly reddish when the Fade/Wipe is
used with Sepia (
●
With the Electronic fog filter mode (Z pg. 25) engaged,
when Fader (not Mosaic) is used, the image fades in/out to a
white screen.
Z
pg. 25).
.
NOTE (for Fade/Wipe, Wide, Super LoLux, Instant Titles and Picture Stabilizer) :
When the Select Dial is turned to AUTO LOCK, the above functions will be set to the Factory settings (Fade/Wipestandby : “OFF”, Wide mode : off, Super LoLux : “MAX”, Instant Title : off, Picture Stabilizer: off). Then when the
Select Dial is returned to any position except AUTO LOCK, the above functions return to the settings you selected
before turning it to AUTO LOCK. However, if the function is switched during AUTO LOCK, the selected mode
will be set and will remain unchanged even when the Select Dial is turned to any position except AUTO LOCK.
LCD monitor or viewfinder
EN 27
Wide
This feature allows you to record black bars at the top
and bottom of the screen to produce a cinema-like
“wide-screen” effect.
WIDE
SUPER LOLUX
LCD monitor or viewfinder
4
S.LX
MAX
MAX
After 2 sec.
Wide mode
ENGAGE WIDE MODE
Press WIDE.
1
•To restore normal screen, press WIDE again.
Super LoLux(Gain Up)
Bright, natural recordings can be taken even in areas with
low or poor lighting.
SELECT SUPER LOLUX MODE
Press SUPER LOLUX repeatedly to cycle through the
1
modes as shown at left. Once the desired mode
appears, it is engaged.
•The mode’s name is displayed for approx. 2
seconds, then disappears.
MAX : To record a subject in a dark lit environ-
NORM : To record a subject in a dimly lit environ-
OFF : Allows you to shoot dark scenes with no
ment. When it is more convenient to shoot
the subject with a brighter image even if
the picture becomes slightly coarse.
ment. When it is more convenient to shoot
with a less coarse picture although the
subject becomes slightly dark. This setting
is suitable for measuring sensitivity
conforming to EIA-639 (EIA* Standard for
Low Light Sensitivity Measurement).
*EIA : Electronic Industries Association
picture brightness adjustment.
NORM
OFF
28 EN
TITLE
LCD monitor
or viewfinder
Title display
HAPPY BIRTHDAY No display
OUR VACATION
RECORDING
Advanced Features (cont.)
Instant Titles
The camcorder has eight preset titles in memory. You can
superimpose one of them above a previously stored title
as shown in the illustration to the left.
Instant Titles can be displayed not only in English but also in
French, Spanish and Portuguese. Change the setting in
TITLE LANG. in the Menu screen. (Z pg. 29, 31).
SELECT PRESET TITLE
Press TITLE repeatedly to cycle through the preset
1
titles until the desired title is displayed.
MERRY CHRISTMAS
A SPECIAL DAY
HAPPY HOLIDAYS
OUR NEW BABY
WEDDING DAY
CONGRATULATIONS
LCD monitor or viewfinder
MENU
4
MENU END
FOCUS
EXPOSURE
DATE TIME
TELE MACRO
TAPE LENGTH
M. W. B.
ZOOM SPEED
4
NEXT
Menu Screen 1
AUTO
AUTO
DEC
OFF
T30
AUTO
FAST
25.98
EN 29
Using Menu For Detailed Adjustment
This camcorder is equipped with an easy-to-use,
on-screen menu system that simplifies many of the more
detailed camcorder settings.
ACCESS MENU SCREEN
Turn the Select Dial to any position except AUTO
1
LOCK, then press the MENU Jog Dial. The Menu
Screen appears.
MENU Jog DialSelect Dial
SELECT FUNCTION
Rotate the MENU Jog Dial to place the highlight bar
2
on the desired function.
•When the highlight bar reaches the bottom of
Menu Screen 1, Menu Screen 2 is automatically
displayed. When the highlight bar reaches the top
of Menu Screen 2, Menu Screen 1 is automatically
displayed.
•If the setting you want can’t be found in the Menu
Screen, place the highlight bar on “MENU END”,
then go to step 5.
4
REC TIME
INT. TIME
TALLY LAMP
TITLE LANG.
D. ZOOM
COLOR BAR
JLIP ID NO.
DEMO MODE
4
ENGLISH
FRENCH
SPANISH
PORTUGUESE
EXIT
4
REC TIME
INT. TIME
TALLY LAMP
TITLE LANG.
D. ZOOM
COLOR BAR
JLIP ID NO.
DEMO MODE
4
MENU
BACK
MENU END
Menu Screen 2
TITLE LANG.
Setting Menu
(ex. TITLE LANG.)
MENU
BACK
MENU END
Normal Screen
OFF
OFF
ON
ENGLISH
ON
OFF
07
OFF
OFF
OFF
ON
FRENCH
ON
OFF
07
OFF
MAKE SETTING
Press the MENU Jog Dial. The setting menu of the
3
selected function appears. The setting procedure
depends on the function you select.
If you select “FOCUS”, “EXPOSURE”, or
“DATE/ TIME” . . .
.... see respective pages (FOCUS: Z pg. 32, 33,
EXPOSURE: Z pg. 34, DATE/TIME: Z pg. 11).
If you select “JLIP ID NO.” . . .
.... press the MENU Jog Dial so that the number
blinks, then rotate it until the desired number
appears, and press it. Then rotate the MENU Jog
Dial to move the highlight bar to “EXIT”.
If you select any other functions . . .
.... rotate the MENU Jog Dial to move the highlight
bar to the desired setting.
•If you decide you want to return to the
previous setting, rotate the MENU Jog Dial to
move the highlight bar to “EXIT”.
END SETTING
Press the MENU Jog Dial. The Menu Screen
4
reappears and the highlight bar is on “MENU END”.
CLOSE MENU
Press the MENU Jog Dial. The normal screen
5
reappears.
NOTE:
The menu function except “FOCUS” and “EXPOSURE”
are not available while in the Record mode.
30 EN
Menu Screen Explanations
FOCUS
EXPOSURE
DATE/TIME
TELE MACRO
TAPE LENGTH
M.W.B.
ZOOM SPEED
AUTO
MANU
AUTO
MANU
Allows you to set the current date and time (Z pg. 11).
OFF
ON
Allows you to set the tape length depending on the tape used (Z pg. 12).
AUTO
MWB
FAST
SLOW
: FINE
: CLOUD
: HALOGEN
RECORDING
Adjusts focus automatically.
Allows you to adjust focus manually (Z pg. 32, 33).
Adjusts exposure automatically.
Allows you to adjust exposure manually (Z pg. 34).
Usually the distance to a subject where the lens is in focus
depends on the zoom magnification. Unless there is a distance
more than 1m (3.3 ft.) to the subject, the lens is out of focus at
the maximum telephoto setting. When set to “ON”, you can
shoot a subject as large as possible at a distance of approx. 60
cm (2 ft.).
•Depending on the zoom position, the lens may go out of focus.
This camcorder’s Automatic Color Temperature system senses
the color temperature of the ambient lighting for automatic
white balance adjustment. However, precise color adjustment is
not possible under the following conditions:
•When an object is in various shades of the same color.
•When a predominantly red or brown object is being shot
outdoors.
In these cases, use the camcorder’s built-in preset filters for
white balance adjustment (Z pg. 35).
Allows you to set the zooming speed (
Advanced Features (cont.)
Z pg. 20).
Loading...
