COMPACT COMPONENT SYSTEM

CA-DXU10 CA-DXU8

CA-DXU10

SUPER VIDEO

CA-DXU8

INSTRUCTIONS

GVT0210-001A

[US, UN, UG, UX, A, UW]

Warnings, Cautions and Others

Caution–– (standby/on) button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The button in any position does not disconnect the mains line.

• When the System is on standby, the STANDBY lamp lights red.

• When the System is turned on, the STANDBY lamp goes off. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

Excessive sound pressure from earphones or headphones can cause hearing loss.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION

qualified service personnel.

CAUTION

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

: Do not open the top cover or cabinet. There are no user serviceable parts inside the unit; leave all servicing to

: Visible and/or invisible Class 1M laser radiation when open. Do not view directly with optical instruments.

G-1

[European Union only]

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of

Wall or obstructions Wall or obstructions

10 cm or more.

Front view Side view

15 cm 15 cm

CA-DXU10 CA-DXU8

10 cm

15 cm

CA-DXU10 CA-DXU8

G-2

Main Unit

ONLY

Introduction

Playable Disc/File Types

DIGITAL VIDEO

SUPER VIDEO

INFO

COMPACT

DIGITAL AUDIO

The “√” in the list below shows available disc/file types.

Media type

√ √

√

USB mass

storage

class device

—

√

Recording format

CD-DA (normal CD)

VCD/SVCD

DVD Video —

Discs

DVD Audio —

DVD-VR

Audio file: MP3/WMA/WAV

CD-R/

-RW

√ √

—

√

DVD-R/

-RW, +R/ +RW

——

√

Video file: MPEG-1/MPEG-2/ ASF/DivX

AV files

Still picture file: JPEG

√

*1 Recorded with “ISO 9660” format. *2 Recorded with “UDF-Bridge” format. *3 Not applicable for +R/+RW. In addition to the above discs/files, this System can play back audio data recorded on CD-Extra and DVD/CD Text.

• This System can also play back DVD-ROM (DVD Video/ MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX format) and CD-ROM (MP3/WMA/WAV/JPEG/MPEG-1/ MPEG-2/ASF/DivX format).

• The following discs cannot be played back: DVD-RAM, CD-I (CD-I Ready) and Photo CD. Playing back these discs will generate noise and damage the speakers.

• DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

• In this manual, “file” and “track” are interchangeably used for AV file operations.

• It is possible to play back finalized +R/+RW (DVD Video format only) discs.

Caution for DualDisc playback:

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

About color system

This System accommodates both NTSC and PAL system and can play back discs/files recorded in either system. To change the color system, see page 6.

Note on Region Code

DVD players and DVD Video have their own Region Code numbers. This System can play back only DVD Video with an appropriate Region Code number.

• For details, see “Specifications” on page 47. EX.: For Southeast Asia

Audio formats

The System can play back the following digital audio formats.

•

LPCM

(Linear PCM),

DTS

(Digital Theater Systems),

DIGITAL

(Dolby Digital),

MPEG Audio, MLP

(Meridian Lossless Packing)

• Multi-channel audio of MPEG Audio will be downmixed into 2-channels. To enjoy multi-channel audio of MPEG Audio, connect an MPEG Audio decoder or an amplifier with a built-in MPEG Audio decoder to the OPTICAL DIGITAL OUTPUT terminal on the rear.

How to Read This Manual

• Button and control operations are explained in the table below.

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some information).

Indicates that you press the button

repeatedly

Indicates that you press one of the buttons.

Indicates that you

sec.

for a specified period. The number inside the arrow indicates the period of a press (in the example, 2 seconds).

Indicates that you turn the control toward the specified direction(s).

Remote ONLY

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the main unit.

INFO

briefly.

briefly and

until an option you want is selected.

press and hold

the button

Precautions

Installation

• Install the System in a location with adequate ventilation to prevent internal heat build-up in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with the TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense in the lenses on the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place.

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

• Make sure there is good ventilation around the System. Poor ventilation could overheat and damage the System. –A cooling fan is inside the System to prevent heat build-

up.

DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Connections.................................................................................... 3

Connecting a USB Mass Storage Class Device.......................... 6

Preparing the Remote Control ....................................................6

Canceling the Demonstration...................................................... 6

Changing the Color System and Scanning Mode ....................... 6

Display Indication .........................................................................7

Daily Operations—Playback........................................................ 8

Adjusting the Volume.................................................................9

Listening to the Radio................................................................. 9

Playing Back a Disc/USB Mass Storage Class Device ............10

Playing Back a Tape .................................................................12

Daily Operations—Sound & Other Adjustments

Adjusting the Speaker Output Level......................................... 13

Reinforcing the Bass Sound...................................................... 13

Applying an Optimal Bass Sound Effect—VARIO BASS ......14

Selecting the Sound Modes....................................................... 14

Creating Your Own Sound Modes—User Mode...................... 14

Selecting the Surround Modes..................................................15

Presetting Automatic DVD Video Sound Increase Level ........15

Changing the Picture Tone .......................................................15

Changing the Display Brightness .............................................16

Setting the Clock....................................................................... 16

Unique Video Disc/File Operations ...........................................17

Selecting the Audio Track ........................................................17

Selecting the Subtitle Language ...............................................18

Selecting the View Angle .........................................................18

Reviewing the Playback Quickly.............................................. 18

Selecting Browsable Still Pictures............................................18

Playing Back Bonus Group....................................................... 19

Special Picture Playback........................................................... 19

Advanced Playback Operations................................................. 20

Programming the Playing Order—Program Play ..................... 20

Playing at Random—Random Play .......................................... 21

Playing Repeatedly—Repeat Play ............................................22

Prohibiting Disc Ejection—Child Lock.................................... 22

On-Screen Operations ................................................................23

On-screen Bar Information ....................................................... 23

Operations Using the On-screen Bar ........................................24

Operations Using the Control Screen .......................................27

Recording Operations................................................................. 29

Recording onto a Tape..............................................................29

Dubbing Tapes..........................................................................30

Synchronized Recording........................................................... 30

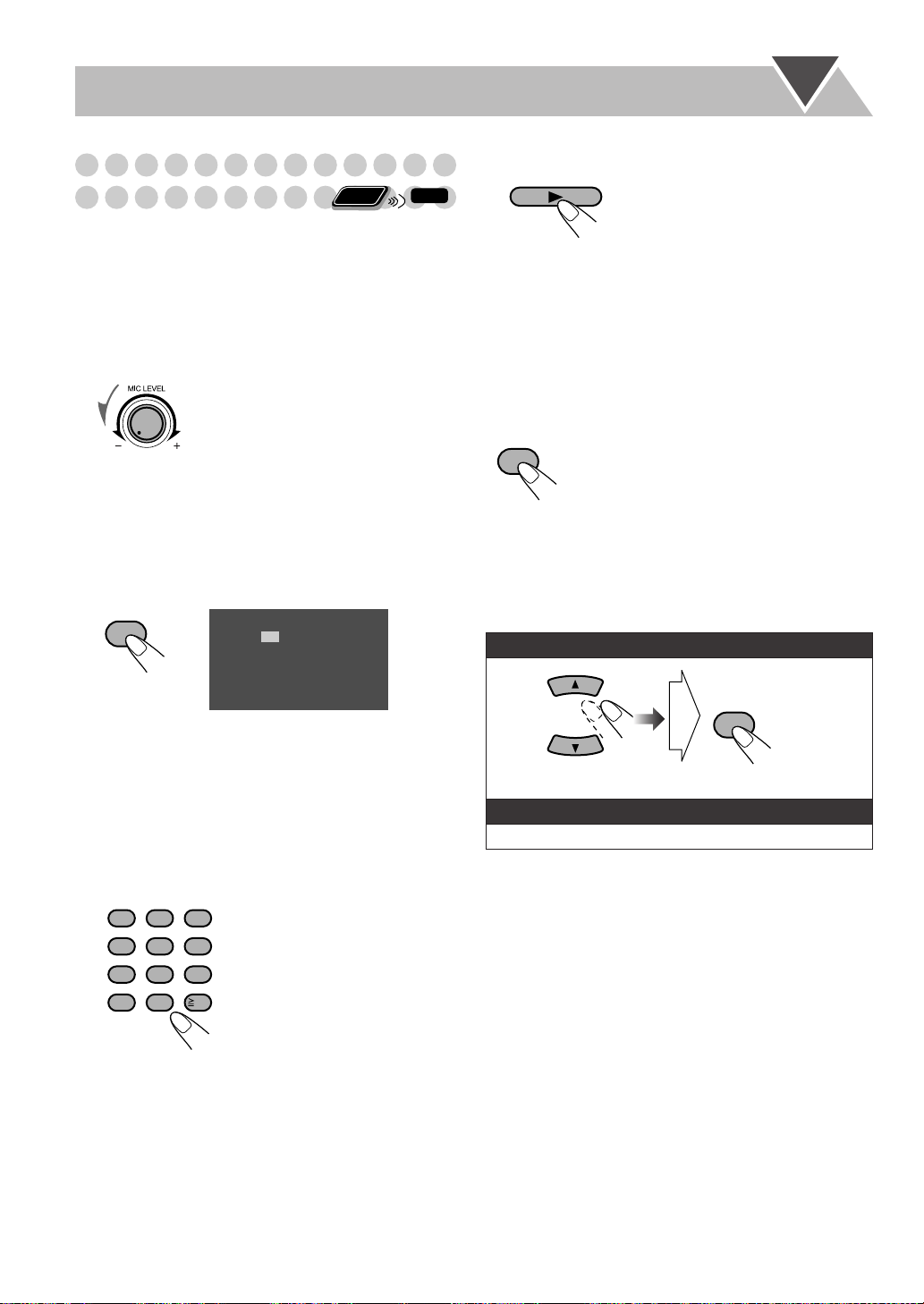

Enjoying Karaoke .......................................................................31

Singing Along (Karaoke).......................................................... 31

Adjusting the Sound Track for Karaoke ...................................32

Scoring Your Karaoke Skill ..................................................... 32

Changing the Karaoke Setting .................................................. 33

Reserving Karaoke Songs—Karaoke Program Play ................35

Timer Operations........................................................................36

Setting the Timer ......................................................................36

Turning Off the Power Automatically ......................................37

Timer Priority ...........................................................................37

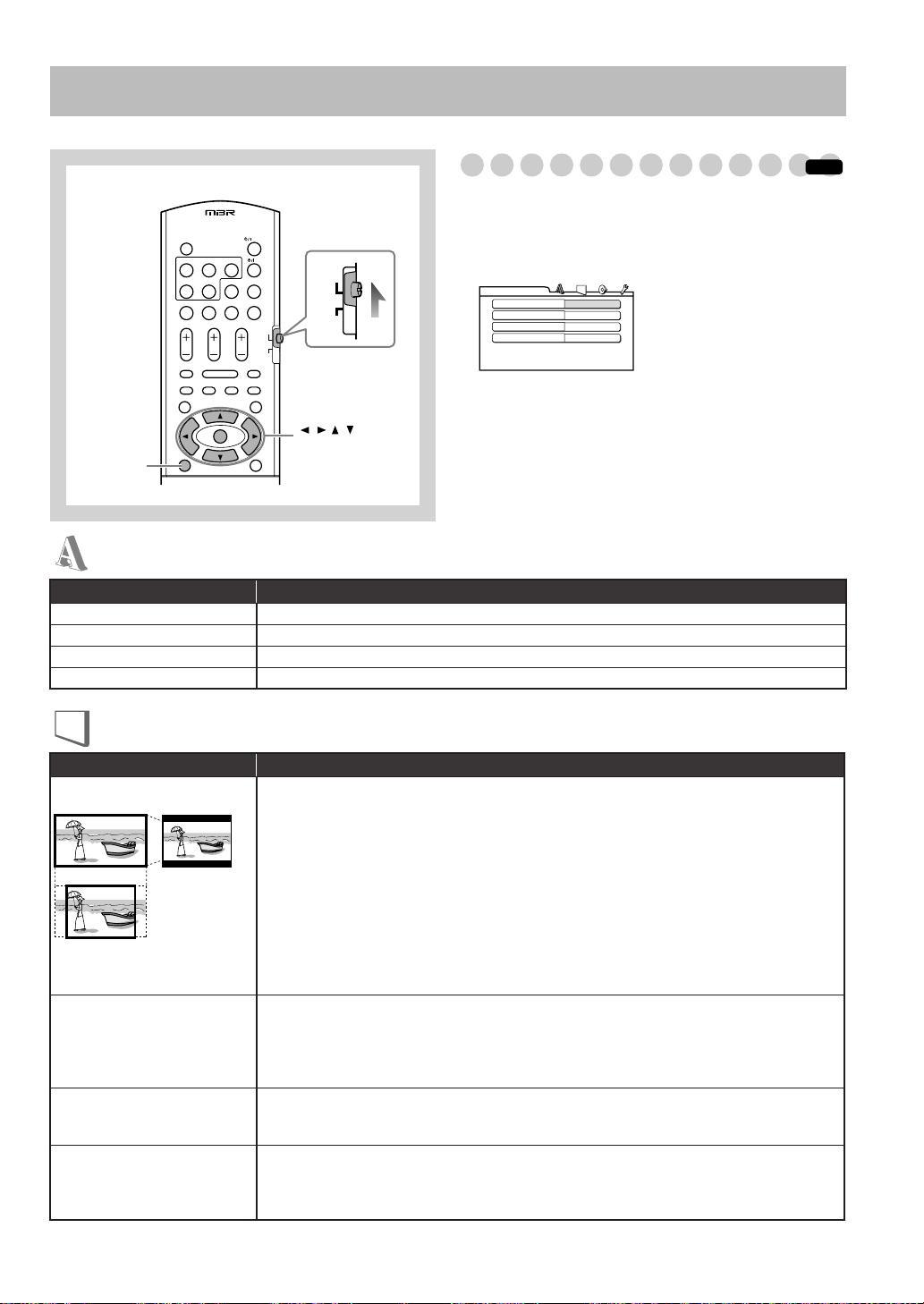

Setup Menu Operations.............................................................. 38

Operating the TV ........................................................................40

Additional Information............................................................... 41

Learning More about This System............................................ 41

Troubleshooting ........................................................................45

Specifications............................................................................ 47

Parts Index .................................................................................. 48

.......................13

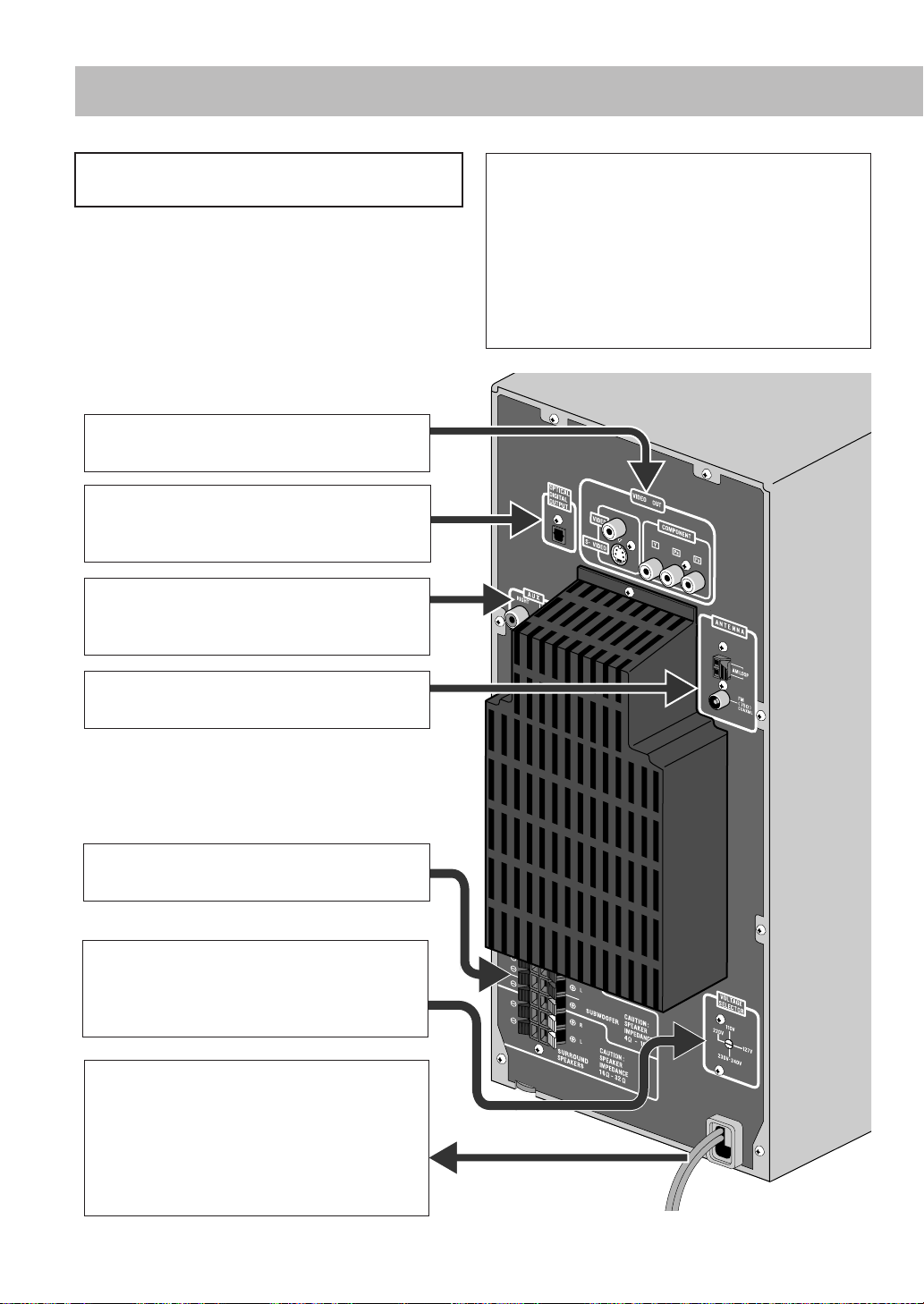

Connections

Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT directly to the video input of your TV. Connecting VIDEO OUT to a TV via a VCR may interfere with your viewing when playing back a copyprotected source. Connecting VIDEO OUT to an integrated TV/VCR system may interfere with your viewing.

The illustration is CA-DXU10.

~ From the video input of TV/monitor

See page 4.

Ÿ From the digital input of digital audio

component

See page 4.

! From the analog audio output of auxiliary

equipment (VCR, etc.)

See page 4.

Supplied accessories

• FM antenna (x1)

• AM loop antenna (x1)

• Composite video cord (x1)

• Remote control (x1)

• Batteries (x2)

• AC plug adapter (x1) (not supplied for Australia and

If any item is missing, consult your dealer immediately.

the

Middle East.)

⁄ From AM/FM antenna

See page 4.

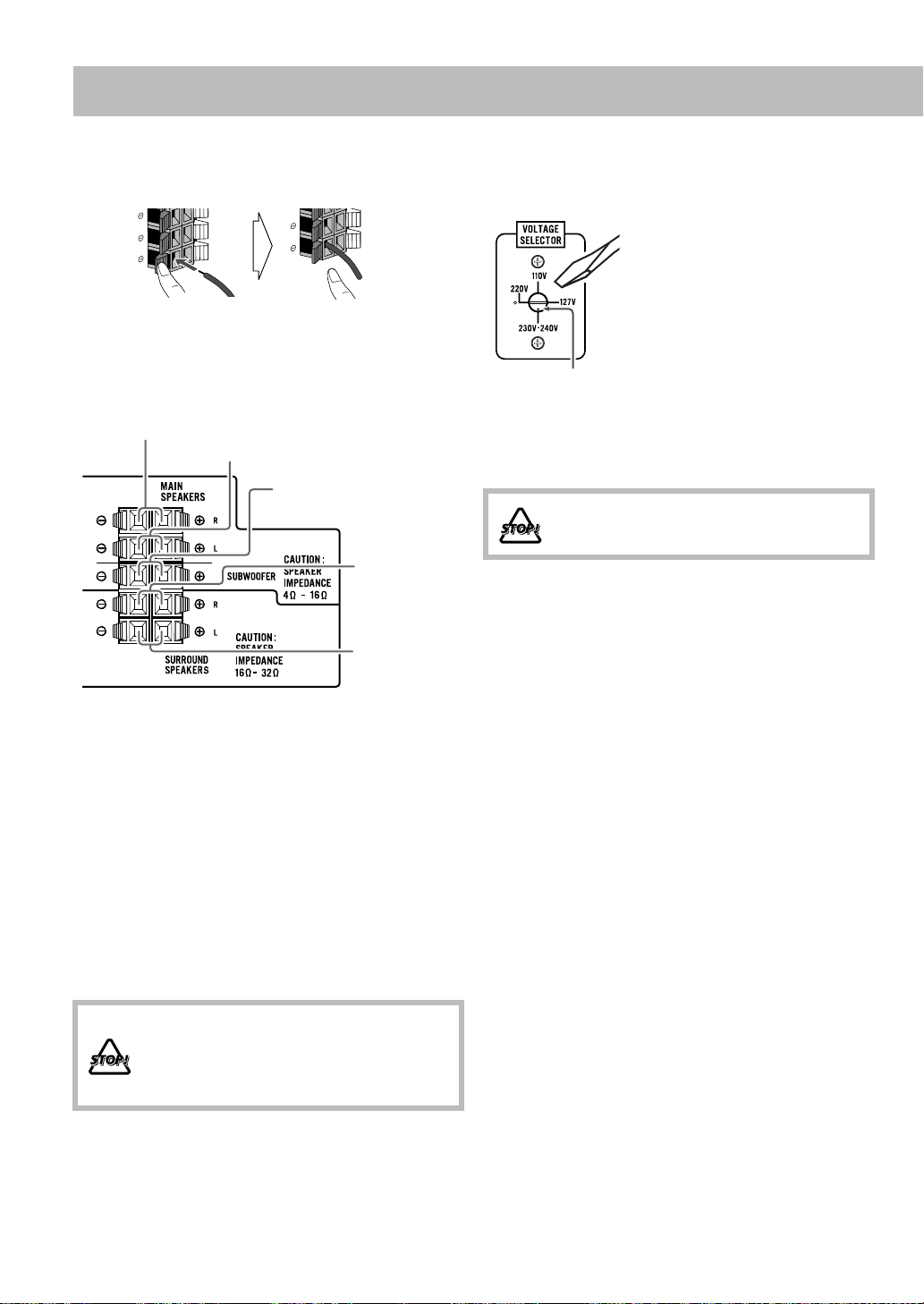

@ From the speakers

See page 5.

¤ Voltage selector (not applicable for

Australian models)

Before plugging in, confirm the position the voltage selector points at. See page 6.

# To a wall outlet

Plug the AC power cord only after all connections are complete.

• If the wall outlet does not match the AC plug, use the supplied AC plug adapter (not supplied for Australian and the Middle East models).

TV/monitor

Composite video cord (supplied)

S-Video cord (not supplied)

⁄

AM/FM antenna

To assemble the AM loop antenna

Green

Component video cord (not supplied)

• To select progressive scanning mode (see page 6), use COMPONENT jacks.

• Connect the VIDEO jack, S-VIDEO jack, or COMPONENT jacks; whichever you want to use.

• You can get better picture quality in the order of— Composite video

Digital audio component

Optical digital cord (not supplied)

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu correctly according to the connected digital audio equipment (see page 39).

• The digital signal through the OPTICAL DIGITAL OUTPUT terminal is transmitted only when the “DVD/CD” is selected as the source.

]

S-video ] Component video.

OPTICAL DIGITAL OUTPUT

Protective cap

Red

Blue

To connect AM/FM antenna

• If the antenna cord is covered with vinyl on the tip, twist and pull the vinyl off to remove.

AM loop antenna (supplied)

Turn until the best reception is obtained.

FM antenna (supplied)

Extend it so that you can obtain the best reception.

For better FM reception

FM outdoor antenna (not supplied)

Auxiliary equipment

Stereo audio cord (not supplied)

Red

White

• Disconnect the supplied FM antenna, and connect an outdoor FM antenna using a 75 connector (IEC or DIN45325).

• Make sure the antenna conductors do not touch any other terminals, connecting cords or the power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

Ω

wire with coaxial type

Speakers

To connect the speaker cords

1Push

2Insert

3Release

• When connecting the speaker cords, match their polarity with that of the speaker terminals: blue/red/green/white to (+) and black to (–).

For CA-DXU10

From front right speaker (black/blue)

From front left speaker (black/blue)

From center speaker (black/green)

From surround right speaker (black/white)

From surround left speaker (black/white)

• The front and center speakers and subwoofer(s) are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers. – When placing the speakers near a TV set, turn off the

TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s

main power switch again. Some TVs may still be affected even though you have followed the above instruction. If this happens, move the speakers away from the TV.

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

Speaker layout

To enjoy multi-channel sound, locate the speakers as follows. If you cannot locate like this, adjust the speaker setting by using the SPK. SETTING menu (see page 39).

For CA-DXU10

Front left speaker

Center speaker

Front right speaker

From left subwoofer (black/red)

For CA-DX

From front right speaker (black/blue)

From subwoofer (black/red)

From right subwoofer (black/red)

From front left speaker (black/blue)

From center speaker (black/green)

From surround right speaker (black/white)

From surround left speaker (black/white)

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the System.

Subwoofer

Surround left speaker

For CA-DX

Front left speaker

Surround left speaker

Surround right speaker

Center speaker

Surround right speaker

Subwoofer

Front right speaker

Subwoofer

Voltage selector (not applicable for

Australian models)

Canceling the Demonstration

Main Unit

ONLY

Use a screwdriver to rotate the voltage selector so that the voltage mark is pointing to the same voltage as where you are plugging in the unit. (See also the back cover page.)

Voltage mark

Power cord

Plug the AC power cord to a wall outlet.

DO NOT plug in before setting the voltage selector and all connection procedures are completed.

Connecting a USB Mass Storage Class Device

You can connect a USB mass storage class device such as a USB flash memory, hard disk drive, multimedia card reader, digital camera, etc. to this System.

USB cable (not supplied)

sec.

DEMO OFF

DEMO START

To start the demonstration,

select DEMO START.

Changing the Color System and

Remote

Scanning Mode

You can select the video output to match it to the color system of your TV (NTSC or PAL).

• If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture by selecting progressive scanning mode.

• You can change the setting only while playback is stopped.

Enter the color system setting mode.

sec.

SCAN MODE

VFP

ONLY

INFO

Main unit

• You cannot connect a computer to the (USB memory) terminal of the System.

Preparing the Remote Control

When using the remote control,

point the top of the remote control toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx.

R6(SUM-3)/AA(15F)

If the range or effectiveness of the remote control decreases, replace both batteries.

Caution

Do not expose batteries to heat or flame.

5 m) may be shorter.

Select the color system and scanning mode.

PAL

NTSC PROG

NTSC / PAL

NTSC PROG/ PAL PROG

Store the setting.

ENTER

/SET

NTSC or PAL Interlaced scanning. For a conventional PAL or NTSC TV.

NTSC or PAL Progressive scanning. For a progressive NTSC or PAL TV.

PAL PROG

NTSC

Display Indication

The indications on the display tell you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

132

Audio signal indicators

• L/R/C/LS/RS/LFE: lights to indicate the incoming audio channel signals.

•: lights to indicate the speakers from which

sound is emitted.

Disc indicators

•1 – 5: lights to indicate the current disc tray.

•: lights when a disc is detected on the disc tray; rotates during playback or pause.

Karaoke operation indicators

•: lights when Mic Mixing is activated; flashes when Karaoke Scoring is in use.

• ECHO: lights when Echo is activated.

• V.MASKING: lights when Vocal Masking is activated.

FM reception indicators

• ST (stereo): lights while an FM stereo station with sufficient signal strength is tuned in.

• MONO: lights while receiving an FM stereo station in monaural.

Tape operation indicators

• TAPE: lights when a tape is loaded in either deck A or B.

• (Reverse Mode): indicates the current Reverse Mode.

• A: lights when a tape is in deck A.

• B: lights when a tape is in deck B.

•

2 3

– Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding a tape.

• REC: lights while recording.

USB indicator

• Lights when “USB” is selected as the source.

Sound Mode/Surround mode indicators

• S. MODE: lights when one of the Sound Mode is activated.

•: lights when one of the Surround Mode is activated.

(tape direction):

rewpq ty u89

Play mode indicators

• PROGRAM: lights when Program Play is activated.

• RANDOM: lights when Random Play is activated.

Repeat mode indicators

•P: lights when Repeat Play is activated.

• ALL: lights when All File Repeat is activated.

• ALL DISC: lights when All Disc Repeat is activated.

•1 DISC: lights when One Disc Repeat is activated.

• 1: lights when One Track/Chapter/File/Step Repeat is activated.

Timer indicators

•: lights when Daily Timer or Recording Timer is on standby, working, or being set.

• SLEEP: lights when Sleep Timer is activated.

• DAILY: lights when Daily Timer is on standby; flashes while working or being set.

• REC: lights when Recording Timer is on standby; flashes while working or being set.

Main display

Source signal indicators

• DTS: lights when DTS signals are detected.

• DIGITAL: lights when Dolby Digital signals are detected.

Dolby Pro Logic II mode indicators

• Lights when Dolby Pro Logic activated.

PG/PL indicator

• PG: lights when Original Program is selected for DVD-VR playback.

• PL: lights when Play List is selected for DVD-VR playback.

B.S.P. indicator

• Lights when browsable still pictures on DVD Audio are available.

BONUS indicator

• Lights when DVD Audio with bonus group is detected.

PROGRESSIVE indicator

• Lights when the progressive scanning mode is selected.

(Movie or Music) is

Daily Operations

In this manual, the operations using the remote control are mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

REVERSE MODE

DISC 1 –

DISC 5

PREV/ NEXT/

TOP MENU

,,,,

ENTER/SET

CANCEL

RETURN

GROUP/TITLE

AUDIO

123

456

789

10 0 10

AUDIO

FM/PLAY MODE,

Number buttons

FADE MUTING

—Playback

Turn on the power.

The STANDBY lamp on the main unit goes off.

• Without pressing AUDIO, the System also turns on by pressing one of the source selecting buttons in the next step.

Select the source.

Playback automatically starts if the selected source is ready to start playback.

• To listen to the sound of the external component, press FM/AM/AUX repeatedly to select “AUX” as the source, then start playback on the external component. (By pressing AUX on the main unit, you can also select “AUX” as the source.)

Adjust the volume.

To turn off (standby) the System

AUDIO

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers.

connecting or putting on the headphones.

• Disconnecting the headphones will activate the speakers again.

The STANDBY lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

Be sure to turn down the volume before

USB

MEMORY

AUDIO

FM/AM/AUX

TAPE-A TAPE-B

AUDIO

VOL

DVD/CD

DO NOT turn off (standby) the System with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

How to select a number

123

456

789

10 0

To select 5, press 5. To select 10, press 10. To select 15, press h To select 30, press h To select 125, press h

1, 2, then 5.

10, 1, then 5. 10, 3, then 0.

10, h

10,

Adjusting the Volume

FM/PLAY MODE

ENTER

/SET

The volume level can be adjusted in 32 steps (VOLUME MIN, VOLUME 1 – VOLUME 30, and VOLUME MAX).

Remote control: Main unit:

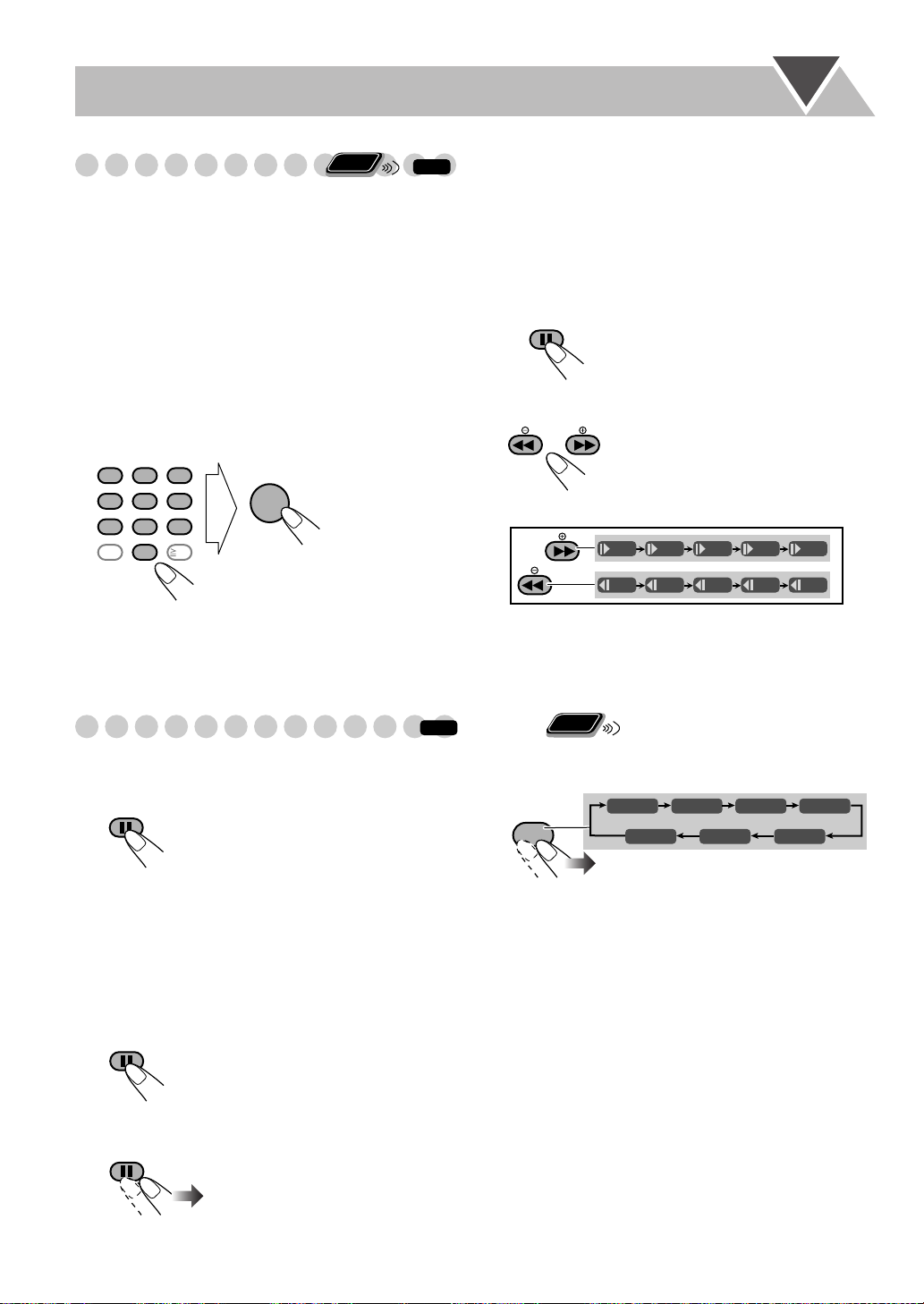

To tune in to a station

While FM or AM is selected...

sec.

SLOW

Increases the frequency.

AUDIO

VOL

Remote

To drop the volume in a moment

FADE

MUTING

ONLY

To restore the volume, press again or adjust the volume level.

Listening to the Radio

To select the AM tuner interval spacing

Main Unit

ONLY

INFO

Some countries space AM stations 9 kHz apart, and other countries use 10 kHz spacing.

Select “TUNER-AM,” then turn off (standby) the

System.

TUNER FM

TUNER AM

Select the AM tuner interval spacing.

To select 9 kHz:

Decreases the frequency.

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency search stops.

• When you repeatedly press the button, the frequency changes step by step.

To manually stop the searching,

If the FM reception is poor

press either button.

Remote ONLY

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—monaural reception mode.

To restore the stereo effect,

press the button again (the MONO indicator goes off).

Remote

To preset stations

ONLY

You can preset 30 FM and 15 AM stations.

Tune in to a station you want to preset.

• You can also store the monaural reception mode for FM preset stations if selected.

Activate the preset number entry mode.

(while holding...)

To select 10 kHz:

(while holding...)

To select the band (FM/AM)

FM/AM/AUX

TUNER FM TUNER AM

AUX

• Finish the following process while the indication on the display is flashing.

• To cancel the operation during procedure, press CANCEL.

Select a preset number for the station you store.

123

456

789

10 0

• To select a number, see “How to select a number” on page 8.

• You can also use ¢

buttons.

Store the station.

To connect a USB mass storage class device

ENTER

/SET

To tune in to a preset station

Select the band (FM or AM).

FM/AM/AUX

TUNER FM TUNER AM

AUX

Select the preset number for the station you stored.

123

456

789

10 0

• To select a number, see “How to select a number” on page 8.

• You can also use ¢/4 buttons.

Playing Back a Disc/USB Mass

Storage Class Device

•

IMPORTANT: Before playing a disc/USB mass storage class device, make sure of the following...

• Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays.

• For disc/USB mass storage class device playback, you can change the initial setting to your preference. See “Setup Menu Operations” on page 38.

If “ ” appears on the TV screen when you press a button,

perform the operation you have tried to do.

the disc/USB mass storage class device cannot

INFO

USB cable (not supplied)

• Always set volume level to the minimum level when connecting or disconnecting the USB mass storage class device.

• To disconnect the USB mass storage class device safely, turn off the System before disconnecting the device.

To play back disc/USB mass storage class device

To start:

Disc

DVD/CD

To pause: To stop:

FM /PLAY MODE

To release it, press DVD/CD 3 or USB MEMORY 3

While playing applicable for CD). When you start playback again by pressing DVD/CD 3 the position where you have stopped—Resume Play. (“RESUME” appears when you stop playback.)

To stop completely while Resume is activated,

twice. (To cancel Resume, see “RESUME” on page 39.)

USB mass storage class device

USB

MEMORY

Playback starts.

, this System can store the stop point (not

or USB MEMORY 3

, it starts from

press 7

• For playback of AV files, see also “Operations Using the Control Screen” on page 27.

To insert discs

• When using an 8 cm disc, place it on the inner circle of the disc tray.

To close the disc tray,

• If you press #

press the same 0

for the same tray, the disc tray closes and

playback starts automatically.

button again.

On-screen guide icons

• During playback, the following icons may appear for a while on the TV screen:

Appears at the beginning of a scene containing multi-angle views.

Appears at the beginning of a scene containing multi-audio languages.

Appears at the beginning of a scene containing multi-subtitle languages.

• The following icons will also be shown on the TV screen to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” in “OTHERS” menu on page 39.

To select a disc

PREV NEXT

DISC 1 DISC 2

DISC 3

To return to normal playback,

USB MEMORY 3

press DVD/CD 3

DISC 4 DISC 5

Playback starts.

Remote

To select a title/group

ONLY

While playing...

123

GROUP/TITLE

456

789

10 0

• To select a number, see “How to select a number” on page 8.

To select a chapter/track

While playing...

123

456

• The first time you press 4

, you will go back to the

789

10 0

beginning of the current chapter/track.

• To select a number, see “How to select a number” on page 8.

To locate a particular portion

• This does not function for JPEG files.

While playing...

SLOW

• For DivX files, each time you press the cursor 3

or 2

, you can skip to a scene of 30 seconds or 5 minutes away depending on the DivX file.

Remote

o select

an item directly

ONLY

You can select a title/chapter/track directly and start playback.

• For DVD Video, you can select

playback playback

, while you can select .

123

456

789

10 0

• To select a number, see “How to select a number” on page 8.

To play back by using the disc menu

a title before starting

a chapter after starting

Remote ONLY

You can operate the disc play using the disc menu.

For DVD Video/DVD Audio

Show the disc menu.

TOP MENU/PG MENU/PL

Select an item on the disc menu.

• Search speed changes as above for all discs/files except for MP3/WMA/WAV/DivX files. For MP3/WMA/WAV/ DivX files, search speed is different.

• No sound comes out if searching is carried out while showing the moving picture.

ENTER

/SET

• On some discs, you can also select items by entering the number using the number buttons. To select a number, see “How to select a number” page 8.

For SVCD/VCD with PBC

While playing a disc with PBC, “PBC” appears on the display instead of the playing time. When disc menu appears on the TV screen, select an item on the menu. Playback of the selected item starts.

To start playback:

TAPE-A TAPE-B

To stop:

123

456

789

10 0

To move to the next or previous page of the

• To select a number, see “How to select a number” on page 8.

To return to the previous menu:

current menu:

PREV NEXT

To cancel PBC,

press 7

, then press ¢

• You can also cancel PBC by pressing 7

RETURN

, then pressing the

number buttons. Playback starts with the selected track.

To reactivate PBC, press 7

, then press 4

Playing Back a Tape

To insert a tape

You can play back type I tapes.

• The use of C-120 or longer tape is not recommended.

Ex.: When using deck B.

To rewind or fast-forward tape:

SLOW

To change the tape running direction

TAPE-A TAPE-B

3 (

2 (

forward

reverse

)

To reverse the tape automatically

REVERSE

MODE

Tape is reversed, and playback repeats until you stop it.

Tape is not reversed. When the current side of the tape reaches its end, playback stops.

Tape is reversed once.

To play back both decks A and B continuously —Relay Play

When the cassettes are inserted in both decks...

REVERSE

MODE

Push

Insert

TAPE-A TAPE-B

You can start playback with either deck A or B.

Daily Operations

—Sound & Other Adjustments

Remote Control

CANCEL

VFP

DVD LEVEL

VARIO BASS

SURROUND

MODE

DISPLAY

DIMMER

AUDIO

123

456

789

10 0

AUDIO

,,,,

ENTER/SET

SOUND MODE

CHANNEL LEVEL

SUBWOOFER

+, –

LEVEL

CLOCK/TIMER

Adjusting the Speaker Output Level

Remote ONLY

You can adjust the speaker output level from –6 (dB) to +6 (dB). Initial setting: +4 (dB).

• You can also use the setup menu to adjust the speaker output level (see page 39).

• This function is not available when the surround mode is set to “STEREO” or Mic Mixing is activated.

Select the speaker you want to adjust.

(Front left speaker)

CHANNEL

LEVEL

FRONT L FRONT R

(Surround right speaker)

Adjust the output level while the display is showing

(Front right speaker)

SURR R

SURR L

(Surround left speaker)

speaker name.

SUBWOOFER

LEVEL

Repeat steps 1 and 2 to adjust other speakers.

INFO

(Center speaker)

CENTER

Main unit

VARIO BASS

SUBWOOFER LEVEL

SURROUND MODE

SOUND MODE

Reinforcing the Bass Sound

INFO

You can adjust the subwoofer level from level 1 (minimum) to level 5 (maximum). Initial setting: 5

• This function is not available when the headphones are plugged in.

SUBWOOFER

LEVEL

Applying an Optimal Bass Sound Effect

—VARIO BASS

Creating Your Own Sound Modes

—User Mode

Remote ONLY

INFO

You can adjust bass sound characteristics to create a sound suitable for the playback source of your preference.

VARIO BASS

VARIO

AUTO

(Initial setting)

TURBO TECHNO

The System automatically applies

OFF LITE.n.EASY

(Canceled)

MOVIE

TURBO, LITE.n.EASY, MOVIE or TECHNO according to the playback source (initial setting).

LITE.n.EASY

Suitable for Karaoke and classical music. You can obtain a comfortable bass sound.

MOVIE

Suitable for a video source and playback of external component. You can obtain a strong bass sound.

TECHNO

Suitable for disco or techno music and playback of cassette tapes. You can obtain a strong bouncy bass sound.

TURBO

Suitable for most kinds of music and playback of external component. You can obtain a balanced bass sound.

You can adjust the preset Sound Modes to create your own Sound Modes which suit your taste. The changed settings can be stored as the USER1, USER2 and USER3 Modes.

While “USER1,” “USER2” or “USER3” is shown on the display...

ENTER

/SET

Select the SEA parameter you want to adjust.

BASS (Bass).

MID (Mid-range).

TRE (Treble).

Adjust the parameter.

Selecting the Sound Modes

You can select one of the preset Sound Modes—SEA (Sound Effect Amplifier) mode.

SOUND

MODE

ROCK

Boosts low and high frequency. Good for acoustic music (initial setting).

POP

Good for music with an emphasis on vocal.

CLASSIC

USER1/2/3

Good for classical music.

Your individual mode stored in memory. See the next column “Creating Your Own Sound Modes—User Mode.”

• While one of the Sound Mode is activated, S. MODE indicator lights up.

To cancel the Sound Mode,

POP CLASSIC

FLAT USER1–3

select “FLAT.”

ENTER

/SET

• You can adjust the level from –3 to +3.

• Repeat steps 2 and 3 to adjust other parameters.

Select one of the User Modes.

USER1 USER2

USER3

Store the setting.

ENTER

/SET

• You can adjust the SEA pattern temporarily by doing the operations in steps 1 to 3. The adjustment is cleared when you change the sound mode to another mode.

Selecting the Surround Modes

Remote ONLY

INFO

• For “DVD/CD” and “USB” (multi-channel software):

SURROUND

MODE

AUTO

DOLBY D/DTS/PPCM/LPCM

STEREO

DANCE

HALL

Initial setting: DOLBY D/DTS/PPCM/LPCM*

• For “DVD/CD” and “USB” (stereo software), “TAPE” and “AUX”:

SURROUND

MODE

AUTO

ALL CH ST MUSIC

MOVIE

STEREO STADIUM

HALL

Initial setting: ALL CH ST

•

For “TUNER AM” and “TUNER FM”:

SURROUND

MODE

ALL CH STAUTO

STEREO STADIUM

• While Surround Mode is activated, indicator lights up.

Selectable Surround Mode varies depending on the software.

*2MOVIE (Dolby Pro Logic II Movie) and MUSIC (Dolby

Pro Logic II Music) cannot be used for DivX file.

Presetting Automatic DVD Video

Sound Increase Level

The DVD Video sound is sometimes recorded at a lower level than other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume when you change the source.

• This function is available only for DVD Video discs.

DVD LEVEL

DVD LEVEL1 DVD LEVEL2

DVD LEVEL3

Initial setting: ALL CH ST

DSP Modes

ALL CH ST

All Channel Stereo; Creates larger stereo sound field using all the connected speakers.

DANCE HALL STADIUM

Increases resonance and bass. Adds depth and brilliance to the sound. Adds clarity and spreads the sound, as in an

outdoor stadium.

Stereo Mode

STEREO

Cancels the Surround Mode.

Auto Surround Mode

AUTO

The System automatically selects an appropriate Surround Mode or Stereo Mode according to the incoming signals. For example, a multi-channel source is automatically reproduced in an appropriate Multi-channel Surround Mode.

Multi-channel Surround Modes*

DOLBY D

For multi-channel encoded Dolby Digital source.

DTS PPCM

For multi-channel encoded DTS source. For multi-channel encoded PPCM (Packed

PCM) source.

LPCM

For multi-channel encoded LPCM (Linear PCM) source.

Dolby Pro Logic II Modes

MOVIE

Creates 5.1-channel surround field from 2channel source (suitable for movie source).

MUSIC

Creates 5.1-channel surround field from 2channel source (suitable for music source).

• As the number increases, sound level also increases.

• The initial setting is “DVD LEVEL3.”

Remote

Changing

the Picture Tone

ONLY

While viewing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own preference.

To select a preset picture tone

While playing, display VFP setting screen.

SCAN MODE

VFP

Select a preset picture tone.

NORMAL

CINEMA

USER1/USER2

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

On the TV screen

NORMAL CINEMA

USER2 USER1

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings (see next page).

To adjust the picture tone

Select “USER1” or “USER2.”

• Follow steps 1 and 2 on page 15.

Select a parameter you want to adjust.

ENTER

/SET

Remote

Setting the Clock

ONLY

INFO

Without setting the built-in clock, you cannot use any timers except the Sleep Timer.

• To exit from the clock setting, press CLOCK/TIMER as required.

• To correct a misentry during the process, press CANCEL. You can return to the previous step.

Activate clock setting mode.

CLOCK/

TIMER

GAMMA

Adjust if the neutral color is bright or dark. The brightness of dark and bright portions is maintained (–3 to +3).

BRIGHTNESS

Adjust if the picture is bright or dark as a whole (–8 to +8).

CONTRAST

Adjust if the far and near position is unnatural (–7 to +7).

SATURATION

Adjust if the picture is whitish or blackish (–7 to +7).

TINT

Adjust if the human skin color is unnatural (–7 to +7).

SHARPNESS

Adjust if the picture is indistinct (–8 to +8).

Adjust the parameter.

ENTER

/SET

Repeat steps 2 to 3 to adjust other parameters.

To erase the VFP screen,

press VFP again.

• If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.

Adjust the hour, then minute.

ENTER

/SET

Now the built-in clock starts working.

To display the clock during playback

For “DVD/CD” and “USB”:

DISPLAY

Disc/file type Clock

Playback information

For “TAPE,” “TUNER AM,” “TUNER FM” and “AUX”:

DISPLAY

Current source information

Clock

Remote

Changing the Display Brightness

DIMMER

DIMMER 1 DIMMER 2

ONLY

DIMMER OFF

(Canceled)

DIMMER 1

DIMMER 2

* Excluding the KARAOKE SCORING lamp and VARIO

BASS lamp (if they are in use.).

Dims the display and the illumination* on the main unit.

Dims the display (more than DIMMER 1) and turns off the illumination* on the main unit.

Remote Control

USB

MEMORY 3

DVD/CD 3

Unique Video Disc/File Operations

Selecting the Audio Track

For DVD Video/DivX:

containing audio languages, you can select the language to listen to.

AUDIO

For DVD Audio:

audio channels, you can select the audio channel to listen to.

For DVD-VR/SVCD/VCD:

track, you can select the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 24).

AUDIO/MPX

SLOW

,,,,

ENTER/SET

While playing DVD Video...

Ex.:

While playing back a chapter/file

While playing back a track containing

While playing back a chapter/

Remote ONLY

INFO

AUDIO/MPX

SUB TITLE

PA GE

123

456

789

10 0 10

Number buttons

ZOOM

ANGLE

1/3

ENGLISH

1/3

ENGLISH

FRENCH

2/3

FRENCH

2/3

JAPANESE

3/3

JAPANESE

While playing a DVD Audio/DivX...

1/3

2/3

While playing a DVD-VR, SVCD or VCD...

SVCD

AUDIO/MPX

ST1 ST2

DVD-VR/VCD

ST L R

DVD-VR

1 2

3/3

R1R2

ST1/ST2/ST

To listen to normal stereo (2-channel) playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

* Example: When two multi-channel streams are recorded.

• SVCD can have 4 audio channels. SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ ST2).

Remote

Remote ONLY

Selecting the Subtitle Language

For DVD Video/DVD Audio/DivX:

While playing back a

ONLY

chapter/file containing subtitles in different languages, you can select the subtitle language to display on the TV screen.

For DVD-VR:

While playing, you can turn the subtitle on or

off.

For SVCD:

While playing, SUB TITLE button functions

even if no subtitles are recorded on the disc.

• You can also select the subtitle language using the on-screen bar (see page 24).

Selecting the View Angle

For DVD Video/DVD Audio only:

chapter containing multi-view angles, you can view the same scene from different angles.

• You can also select the view angle using the on-screen bar (see page 24).

While playing...

ANGLE

While playing back a

While playing a DVD Video

Display the subtitle selection window.

SUB TITLE

Select the subtitle language.

/DivX

...

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

While playing a DVD-VR...

SUB TITLE

3/3

JAPANESE

3/3

Ex.:

1/3

2/3

Reviewing the Playback Quickly

For DVD Video/DVD-VR only:

You can move back the

3/3

Remote

ONLY

playback position by 10 seconds. (only within the same title)—Glance Back.

While playing...

REVERSE

MODE

Remote

Selecting Browsable Still Pictures

ONLY

OFF

While playing an SVCD...

SUB TITLE

For DVD Audio only:

While playing back a track linked to browsable still pictures (B.S.P.), you can select the still picture (turn the “page”) to be shown on the TV screen.

• If a track is linked to browsable still pictures (B.S.P.), they

are usually shown in turn automatically during playback.

• You can also select the “page” using the on-screen bar (see

page 24).

PAG E

Each time you press the button, the still picture (page) changes one after another (if available).

Remote

FM /PLAY MODE

Playing Back Bonus Group

For DVD Audio only:

Some DVD Audio discs have a

ONLY

INFO

special group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 11.

Enter the key number.

123

456

789

10 0

Follow the interactive instruction shown on the TV

ENTER

/SET

screen.

To cancel the key number entry,

press 7

To resume normal playback,

USB MEMORY 3

press DVD/CD 3

Slow-motion playback

• This function is available only for DVD Video, DVD-VR, SVCD and VCD.

While playing...

Still picture appears.

Start slow-motion playback.

SLOW

Speed changes as follows.

SLOW

* Only for DVD Video.

To resume normal playback,

1/32 1/16 1/8 1/4 1/2

press DVD/CD 3

Special Picture Playback

Pause playback

While playing...

FM /PLAY MODE

Playback pauses.

To resume normal playback,

USB MEMORY 3

Frame-by-frame playback

• This function is not available for ASF file.

While playing...

FM /PLAY MODE

Still picture appears.

Advance the still picture frame by frame.

FM/PLAY MODE

press DVD/CD 3

INFO

Remote

ONLY

Zoo

• For JPEG/ASF files, see page 28.

While playing...

ZOOM

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

ZOOM 5ZOOM 6

As the number increases, magnification also increases.

• You can move the zoomed-in area by pressing 2/3/5/∞.

To cancel Zoom,

press ZOOM repeatedly until

“ZOOM OFF” appears on the TV screen.

Advanced Playback Operations

Remote Control

DVD/CD 3

PREV/

NEXT/

CANCEL

AUDIO

123

456

789

10 0 10

AUDIO

FM/PLAY MODE,

Number buttons

REPEAT A-B

REPEAT

Programming the Playing Order —Program Play

Remote ONLY

You can arrange the playing order of the chapters/tracks/ files (up to 99) before you start playback.

• Program Play cannot be used for files in a USB mass storage class device, Video files/JPEG files on a disc and DVD-VR.

Before starting playback, activate Program Play.

FM /PLAY MODE

PROGRAM RANDOM

Canceled

On the display

PROGRAM

No Group/TitleDisc Track/Chapter

2 3 4 5 6 7 8 9

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

On the TV screen

INFO

Main unit

DISC 1 0

Select chapters/tracks/files you want for Program Play.

Select a disc number.

For DVDs and Audio files: Select a group/title number.

Select a track/chapter number.

• To select a number, see “How to select a number” on page 8.

Repeat step 2 above until you complete your program.

Start playback.

DVD/CD

Playback starts in the order you have programmed.

To skip: To pause: To stop*:

PREV NEXT

FM /PLAY MODE

To release, press DVD/CD 3

* Resume does not work for Program Play.

To check the programmed contents

Before or after playback...

In the reverse order.

In the programmed order.

Remote

Playing at Random—Random Play

ONLY

You can play the contents of all the loaded discs at random.

• Random Play cannot be used for files in a USB mass storage class device, Video files/JPEG file on a disc, DVD-VR and some DVDs.

Before starting playback, activate Random Play.

FM /PLAY MODE

PROGRAM RANDOM

Canceled

Start playback.

DVD/CD

To modify the program

Before or after playback...

To erase the last step:

CANCEL

To add steps in the program:

Repeat step 2 on page 20.

To exit from Program Play

Before or after playback...

FM /PLAY MODE

PROGRAM RANDOM

To erase the entire program:

Canceled

Playback of the current disc starts in a random order. When all chapters/tracks on the current disc are played, playback of the next disc starts. Random Play ends when all loaded discs are played.

To skip:

To go to the beginning of the current chapter/ track, press 4

To pause: To stop:

FM /PLAY MODE

To release, press DVD/CD 3

To exit from Random Play

Before or after playback...

FM /PLAY MODE

PROGRAM RANDOM

Canceled

Remote

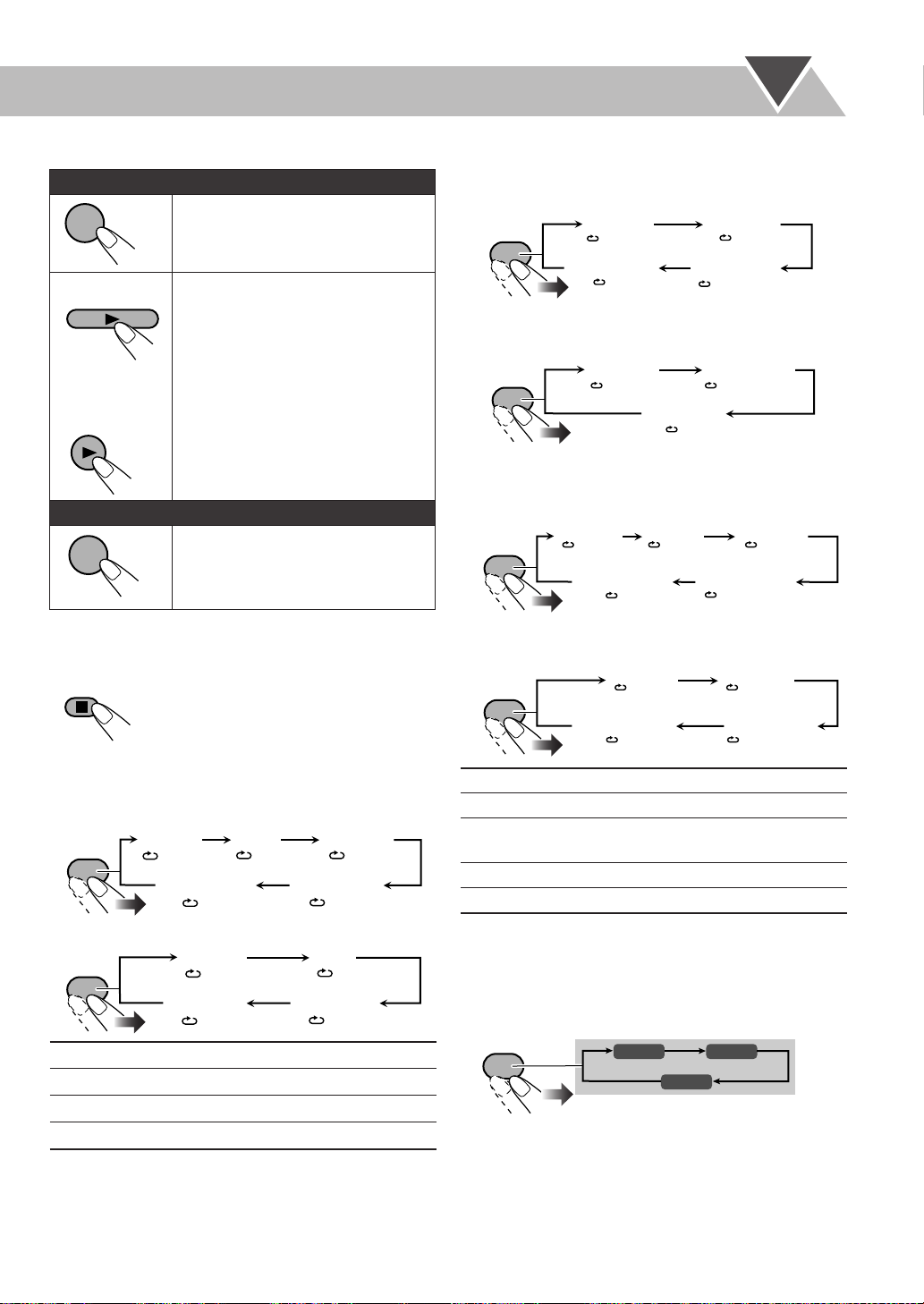

Playing Repeatedly—Repeat Play

ONLY

You can repeat playback.

• You can also select the repeat mode using the on-screen bar (see page 23. Not applicable for AV files and JPEG file.)

• For Video file/JPEG file and DVD-VR, see page 28.

• The indicator(s) lights on the display as follows to indicate the current repeat mode.

Repeat Play

For DVD Video:

•

While playing...

REPEAT

P 1

Canceled

P ALL DISC

• For Program Play:

While playing or before playback...

REPEAT

1 DISC

ALL DISC

ALL

Repeats the current chapter/track/file/step.

Repeats the current title/group/program.

* Repeats the current disc.

Repeats all discs.

Repeats all files in a USB mass storage class

P 1

P ALL

Canceled

device or all programmed chapters/tracks/ files.

* These modes may not work correctly for DVDs.

For DVD Audio:

•

While playing or before playback...

REPEAT

For Audio files (MP3/WMA/WAV):

•

P 1

Canceled

P ALL DISC

While playing or before playback...

• When repeating Audio files on disc:

REPEAT

P 1 P

Canceled

P 1DISC

P ALL DISC

• When repeating Audio files in a USB mass storage class device:

REPEAT

For CD/SVCD/VCD:

•

P 1 P

Canceled

P ALL

While playing or before playback (without PBC for SVCD/ VCD)...

REPEAT

P 1

Canceled

P 1DISC

P ALL DISC

A-B Repeat

You can repeat playback of a desired portion by specifying the beginning (point A) and the ending (point B).

• A-B Repeat cannot be used for AV files and some DVDs.

While playing (without PBC for SVCD/VCD), select

the start point (A).

REPEAT

A-B

Select the end point (B).

REPEAT

A-B

• You can search for the end point using the ¡

To cancel A-B Repeat,

press REPEAT A-B again.

• A-B Repeat will also be canceled when you stop play or skip the chapter or track.

Prohibiting Disc Ejection—Child Lock

You can lock the disc trays so that no one can eject the loaded discs.

While on standby...

button.

Main Unit

ONLY

•

For Random Play:

While playing or before playback...

REPEAT

P 1

Canceled

P 1DISC

P ALL DISC

(while holding...)

To cancel the prohibition,

repeat the same procedure.

“UNLOCKED” appears on the display.

On-Screen Operations

Remote control

USB

MEMORY 3

AUDIO

123

456

789

10 0 10

AUDIO

DVD/CD 3

,,,,

ENTER/SET

ON SCREEN

Number buttons

ZOOM

REPEAT

On-screen Bar Information

You can check the playback information and use some functions through the on-screen bar. (Not applicable for Audio file and JPEG file.)

On-screen bars

DVD Video

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

Dolby D 3/2.1ch

DISC 1

TITLE 2

CHAP 3

TOTAL 1:01:58

DVD Audio

DVD-AUDIO

TIME

DVD-VR

LPCM 3/2.1ch

OFF

DISC 2

TRACK

GROUP 14

1/31/3

TRACK 23

PAGE

TIME 0:15:58

DVD-VR

TIME OFF CHAP. ST ON

Dolby D 2/0.0ch

SVCD

DISC 1

PG 2

CHAP 3

TOTAL 0:01:58

TIME 0:04:58

TRACK 3

DISC

PROGRAM

SVCD

TIME OFF ST1

-/ 4

VCD

TIME 0:04:58

PROGRAM

VCD

TIME OFF ST

TRACK 3DISC 4

TIME OFF

DISC 5PROGRAM

TIME 0:04:58

TRACK 3

Video file on a disc—MPEG-1/MPEG-2/ASF/DivX

2513

TimeREPEAT GROUP 00:00:58

TOTAL

Time 00:00:58

TOTAL

1:25:58

FILE

CHAP

Video file in a USB mass storage class device —MPEG-1/MPEG-2/ASF/DivX

REPEAT GROUP

USB

CHAP

Disc type/source type

Playback information

Indication Meanings

Dolby D/DTS/

Audio format

PPCM/LPCM

3/2.1 ch/

Channel number

2/0.0 ch

PROGRAM/

Current play mode

RANDOM

DISC

TITLE

CHAP

GROUP 1

TRACK

PG 2

PL 2

TOTAL

1:25:58

Playback conditions

Current disc

Current title

Current chapter

Current group

Current track

Current program

Current playlist

Time indications

Indication Meanings

Playback

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Pause

Stop

Operation icons (on the pull-down menu)

Indication Meanings

TIME

Select to change the time indication (see also page 25).

Select to repeat playback (see also page 25).

Select for time search (see also page 26).

CHAP.

Select for chapter search (see also page 26).

TRACK

Select for track search (see also page 26).

1/3

Select to change the audio language or channel (see also page 17).

1/3

Select to change subtitle language (see also page 18).

1/3

Select to change view angle (see also page 18).

PA GE 1/15

Select to change the page (see also page 18).

Repeat play setting for Video files

(See also page 28.)

perations Using the

On-screen Bar

Remote ONLY

INFO

Basic operation procedures through the on-screen bar are as follows: Ex.: Selecting a subtitle (French) for DVD Video:

While a disc is selected as the source...

Display the on-screen bar with the pull-down menu.

SCREEN

Dolby D

DISC 1

TITLE 2

DVD-VIDEO

3/2.1ch

Dolby D

DVD-VIDEO

3/2.1ch

TIME OFF CHAP. 1/31/31/ 1

Disappears

CHAP 3

TOTAL 1:01:58

* This does not appear for Video files.

Select (highlight) the item you want.

DVD-VIDEO

TIME OFF CHAP. 1/31/31/ 1

Display the pop-up window.

ENTER

/SET

Select the desired option in the pop-up window.

Finish the setting.

Dolby D 3/2.1ch

DISC 1

TITLE 2

TITLE 21

CHAP 3

1/31/31/1

1/32/31/1

CHAP 3

ENGLISH

CHAP 3

FRENCH

TOTAL 1:01:58

Pop-up window disappears.

ENTER

/SET

To erase the on-screen bar,

press ON SCREEN again.

To change the time information

ENTER

/SET

You can change the time information in the on-screen bar and the display window on the main unit.

1 Display the on-screen bar with the pull-down menu.

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

2 Make sure is selected (highlighted).

TIME

DISC 1

TITLE

TITLE 2

1/3

CHAP

3 Change the time indication.

ENTER

/SET

TOTAL

T. REM

TIME

Elapsed disc time.

Remaining time of the current disc/title.

* Elapsed playing time of the current

chapter/track.

REM

* Remaining time of the current chapter/

track.

* Not applicable for DVD-VR.

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

4 Select the repeat mode you want.

ALL

Repeats all discs or all programmed tracks.

A-B

TITLE

GROUP

DISC

CHAPTER

TRACK

Repeats a desired portion (see below).

Repeats the current title.

Repeats the current group.

Repeats the disc (except for DVD).

Repeats the current chapter.

* Repeats the current track.

Repeats the current program (for DVD-VR only). See also page 28.

Repeats the current playlist (for DVDVR only). See also page 28.

OFF

Cancels Repeat Play.

* During Program Play or Random Play, “STEP”

appears.

5 Finish the setting.

ENTER

/SET

Pop-up window disappears.

Repeat Play

• For Audio files, see also page 22.

• For Video files and JPEG file, see page 28.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu.

• All discs except DVD: Repeat Play can be selected before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

OFF

DISC 1

TITLE

TITLE 2

1/3

CHAP

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

A-B Repeat

1 While playing a disc, display the on-screen bar with

the pull-down menu. 2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

OFF

DISC 1

TITLE

TITLE 2

1/3

CHAP

4 Select “A-B.”

DVD-VIDEO

TIME

TIME OFF CHAP.

5 Select the start point (A).

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

• After selecting the starting point (A), you can search for

the end point using ¡

CHAP 3

1/3 1/3

Dolby D 3/2.1ch

OFF

A–B

TOTAL 1:01:58

TOTAL

1:25:58

DISC 1

TITL

TITLE 2

DISC 1

TITLE

1/3

6 Select the end point (B).

ENTER

/SET

A-B Repeat starts. The selected

ENTER

/SET

To cancel A-B Repeat,

portion plays repeatedly.

repeat steps 1 to 3, and select “OFF”

in step 4.

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu.

• All disc except DVD: Time Search can be used before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

OFF

TIME _ : _ _ : _ _

DISC 1

TITLE

TITLE 2

1/3

CHAP

4 Enter the time.

You can specify the time in hours/minutes/seconds.

123

456

789

10 0

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54

(minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry,

press cursor 2

entry.

5 Finish the setting.

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

to erase the last

Chapter/Track Search

You can search for the number of the item to play. For DVD Video/DVD-VR: Chapter For DVD Audio: Track

1 While playing a disc, display the on-screen bar with

the pull-down menu.

2 Select or

CHAP.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

4 Enter the desired chapter/track number.

123

456

789

10 0

•

To correct a misentry, press the number buttons until

the desired number is shown in the pop-up window.

5 Finish the setting.

TRACK

DISC 1

CHAPTER _

TITLE 2

TITLE

CHAP 3

CHAP

1/3

Examples:

To select 5, press 5. To select 15, press 1, then 5. To select 30, press 3, then 0.

The System starts playing the searched chapter or track.

TOTAL 1:01:58

TOTAL

1:25:58

1/3 1/3

ENTER

/SET

The System starts playing from the specified time.

Operations Using the Control Screen

TOP MENU/PG

Remote ONLY

For DVD-VR, AV files and JPEG files:

and play the desired items through the control screen.

Control screen for DVD-VR

The control screen is superimposed on the TV screen when you call up Original Program (PG) or Play List (PL) screens.

To select playback type

To select the Original Program:

When Original Program screen is superimposed.

ORIGINAL PROGRAM

No Date Ch ime itle

1 25/04/07 4ch 19:00 JVC DVD World 2004 2 17/05/07 8ch 10:30 3 22/05/07 8ch 17:00 Music Festival 4 26/05/07 L-1 13:19 children 001 5 20/06/07 4ch 22:00 6 25/06/07 L-1 8:23 children 002

12 3 4 5

When Play List screen is superimposed.

PLAY LIST

No Date Chap Length Title

1 25/05/07 001 1:03:16 My JVC World 2 17/06/07 005 1:35:25 3 20/06/07 003 0:10:23 Favorite music 4 25/06/07 001 0:07:19 children001-002

17 8 9

Program/Play list number

Recording date

Recording source (TV station, the input terminal of the recording equipment, etc.)

Start time of recording

Title of the program/play list*

Highlight bar (current selection)

Creating date of play lists

Number of chapters

Playback time

* The title of the original program or play list may not be

displayed depending on the recording equipment.

To remove the control screen,

To select the Play List:

press ENTER/SET.

You can search for

MENU/PL

Control screen for AV files/JPEG files

The control screen automatically appears on the TV screen when the System detects Audio files on the loaded disc or connected USB mass storage class device. (For Video files/ JPEG file, it appears when playback is stopped.)

Ex.: While playing an MP3 file on a disc.

Group : 2 / 3

Blue

Red

Green

4 5

Track Information

Title Rain Artist

Album

Current source

Time : 00:00:14REPEAT STEPRANDOM

Track : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

FILE: Current source is “DVD/CD”. USB: Current source is “USB”.

Current group number/total group number

Current group

Group list

Current file

File information (only for MP3/WMA/WAV file)

Play mode information. (RANDOM or PROGRAM. Not applicable for USB mass storage class device.)

Repeat Play setting

Elapsed playing time of the current file (not applicable for JPEG file)

Operation status icon

Current file number/total number of files in the current group (total number of files on the current disc/USB mass storage class device)

Highlight bar (current selection)

File list

• If different types of files (Audio files, Video files and Still picture files) are recorded on a disc/USB mass storage class device, select the file type to play (see page 38).

To move the highlight bar between group list and file list:

Moves the bar to the file list.

Moves the bar to the group list.

To select an item in the list:

Move the highlight bar to the desired item.

• If you move the highlight bar while playing back DVD-VR or Audio files, the selected item starts playback automatically.

8 9 0

= ~

To start playback

For JPEG ﬁle:

ENTER

/SET

Disc

DVD/CD

USB mass storage class device

USB

MEMORY

For the other:

ENTER

/SET

The selected file (still picture) is displayed until you change it.

Slide-show playback starts. Each file (still picture) is shown on the screen for a few seconds, then changes one after another.

• To cancel slide-show for JPEG file, and display the current still picture, press 8

Playback starts with the selected chapter/file.

• Pressing DVD/CD 3 MEMORY 3

or USB

also starts playback.

To repeat slide-show for JPEG file

While playing or before starting playback...

• When repeating JPEG file on disc:

REPEAT

( GROUP/

REPEAT GROUP)

Canceled

(

OFF)

P 1 DISC

( DISC/ REPEAT DISC)

P ALL DISC

( ALL/

REPEAT ALL)

• When repeating JPEG file in a USB mass storage class device:

REPEAT

PP ALL

( GROUP/

REPEAT GROUP)

Canceled

(

OFF)

( ALL/

REPEAT ALL)

To repeat play for Video files

While playing or before starting playback...

• When repeating Video file on disc:

REPEAT

P 1 P

( TRACK/

REPEAT TRACK)

Canceled

(

OFF)

( GROUP/

REPEAT GROUP)

P 1 DISC

( DISC/

REPEAT DISC)

P ALL DISC

( ALL/

REPEAT ALL)

• Once you start viewing a JPEG file or Video file, the control screen disappears.

To stop playback

To repeat chapter/program/play list for DVD-VR

While playing or before starting playback...

For Original Program

REPEAT

For Play List

REPEAT

P 1 P

( CHAP)

Canceled

OFF)

(

P 1 P

( CHAP)

Canceled

OFF)

(

( PG)

P 1 DISC

( DISC)

P ALL DISC

(

ALL)

( PL)

P ALL DISC

(

ALL)

P 1* Repeats the current chapter.

* Repeats the current program/play list.

1 DISC

ALL DISC

* Repeats all programs on the current disc.

Repeats all loaded discs.

* Not available before starting playback.

• When repeating Video file in a USB mass storage class device:

P 1 P

REPEAT

ALL

( TRACK/

REPEAT TRACK)

Canceled

Repeats the current file.

Repeats the current group.

Repeat all files in the USB mass

( GROUP/ REPEAT GROUP)

P ALL

( ALL/ REPEAT ALL)( OFF)

storage class device.

1 DISC

ALL DISC

Repeats all files on the current disc.

Repeats all loaded discs.

• For Repeat Play of Audio file, see page 22.

To zoom in the JPEG/ASF file

While playing...

• If playing back JPEG file with slide-show, press 8

display the still picture, then...

ZOOM

ZOOM 1 ZOOM 2

ZOOM OFF

As the number increases, magnification increases.

• You can move the zoomed-in area by pressing 2/3/5/∞.

To cancel Zoom,

press ZOOM repeatedly until “ZOOM

OFF” appears on the TV screen.

Recording Operations

Main unit

TAPE-A

USB

MEMORY #

USB/DISC

REC START

REC

START/STOP

DUBBING

TAPE-B

REVERSE MODE

DISC 1–5 #

Deck A

Deck B

Recording onto a Tape

Main Unit

ONLY

You can use type I tapes for recording.

• To play a tape, see page 12.

Insert a recordable cassette into deck B.

Push Insert Close

Check the tape running direction and Reverse Mode settings on the display.

Tape direction indicator

Reverse Mode indicator

Current source

To change the direction

INFO

IMPORTANT

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Before recording, select the Stereo Mode (“STEREO”—see page 15) for multi-channel encoded software to downmix its multi-channel sound; otherwise, you can only record the front left/ right sound onto a tape.

• The channel level setting (see page 13 and 39) affects the recording.

3 (

2 (

forward

reverse

)

Change the Reverse Mode if necessary

To record on both sides.

•

When using Reverse Mode, start

()

recording in the forward (

) direction.

To record on only one side.

Start playing the source—“TUNER FM,”

“TUNER AM,” “DVD/CD,” “USB,” “TAPE-A” or “AUX.”

• When recording from a disc/USB mass storage class device, you can also use “Synchronized Recording” (see page 30).

• When recording from deck A, you can also use “Dubbing” (see “Dubbing Tapes” on page 30).

Start recording.

To stop recording

Check the tape running direction and Reverse Mode settings on the display.

• See step 2 of “Recording onto a Tape” on page 29.

Select the source you want to record.

• When recording from the disc: Select the disc number you want to start recording from.

Dubbing Tapes

You can record a tape from deck A to deck B.

Change the source to “TAPE”.

Insert the source cassette in deck A, and a recordable cassette in deck B.

Check the tape running direction and Reverse Mode

settings on the display.

See step 2 of “Recording onto a Tape” on page 29.

Start dubbing.

• When either tape playback or recording ends, both cassette decks stop at the same time.

To stop dubbing

Synchronized Recording

You can start and stop both playback and tape recording at the same time.

• This function is available only for CD/VCD/SVCD/DVD Audio/DVD Video and Audio files.

• Not available with Random Play.

Load a disc or connect a USB mass storage class device and insert a recordable cassette.

Main Unit

ONLY

Main Unit

ONLY

INFO

• When recording from the USB mass storage class device:

For recording desired tracks/files from discs:

You can program tracks/files to record in your preferred order. Select Program Play (and make a program; see page 20) before starting playback.

Start recording.

Playback and recording start from the first track/file.

• The System automatically creates 4-second blank between the tunes recorded on the tapes.

When either playback or recording ends, both playback and recording stop at the same time.

To record only your favorite track/file—One Track Recording

You can specify track/file to be recorded on the tape while listening to a disc/USB mass storage class device.

• This function is available only for CD/VCD/SVCD/DVD Audio and Audio files (without PBC for SVCD/VCD).

• Not available with Program Play and Random Play.

While the track/file you want to record is playing...

Playback returns to the beginning of that track/file and the track/file is recorded on the tape. After recording, both playback and recording stop.

To cancel while recording

Remote control

KARAOKE

SCORING

Source

selecting

buttons

Enjoying Karaoke

• When you activate the Mic Mixing or Vocal Masking, the surround modes you selected will be changed to “ALL CH ST” temporarily (“AUTO” will be changed to “ALL CH

AUDIO

AUDIO VOL +,–

ST” and “STEREO” will remain as “STEREO”).

IMPORTANT

• Always set MIC LEVEL to “0” when connecting or disconnecting the microphone.

• MIC LEVEL adjustment is valid for both microphones connected to the MIC1 and MIC2 jacks.

• MIC LEVEL and MIC VOL mentioned in this Instruction Book carry the same meaning.

CANCEL

MIC MIX

VOCAL SUPPORT

RESERVE

Main unit

123

456

789

10 0 10

Number buttons

KARAOKE SETTING

MIC VOL +,–

V.MASKING

KARAOKE SCORING

Source selecting buttons

VOLUME +,–

REC START/STOP

Singing Along (Karaoke)

You can enjoy singing along (Karaoke) by using one or two microphones.

• By pressing REC START/STOP, you can record your singing-along.

Turn MIC LEVEL to “0”.

Connect the microphone(s) (not supplied) to the MIC1 and/or MIC2 jack.

Mic Mixing will be automatically activated.

Start playing a source—“TUNER FM,” “TUNER AM,” “DVD/CD,” “USB,” “TAPE-A,” “TAPE-B” or “AUX.”

Sing into the microphone.

Adjust the MIC LEVEL and VOLUME.

MIC1

MIC2

MIC LEVEL

ECHO LEVEL

DO NOT keep the microphones connected while they are not in use.

To use microphone only,

select “DVD/CD” or “USB” in

step 3, but do not start playback.

To cancel Mic Mixing

MIC MIX

MIC OFF

(Canceled)

• To activate Mic Mixing, select MIC MIX.

Adjusting the Sound Track for Karaoke

Remote ONLY

You can adjust the sound track for Karaoke.

For stereo (2-channel) source:

By selecting VOCAL

MASK, you can reduce the lead vocal—Vocal Masking.

For karaoke disc:

By selecting R CHANNEL or L

CHANNEL, you can select the audio channel to play.

While Mic Mixing is activated...

V. MASKING

VOCAL MASK

OFF

(Canceled)

L CHANNEL

R CHANNEL

Reduces the vocal from stereo (2-channel) source.

L CHANNEL

Reproduce only the left audio channel.

R CHANNEL

Reproduce only the right audio channel.

To return to normal playback,

select “OFF.”

To return to normal playback temporarily

This function allows you to recover the lead vocal temporarily for your reference. While Vocal Masking, L CHANNEL or R CHANNEL is activated...

VOCAL

SUPPORT

To return to Vocal Masking, L CHANNEL or R CHANNEL,

The vocal or stereo effect will be restored temporarily.

press the same button again.

INFO

Scoring Your Karaoke Skill

INFO

This System can score your Karaoke skill by comparing your singing along with the vocal on the playback source.

• This function is available only for disc/USB mass storage class device playback.

• This function is not available for DVD Audio.

• It is recommended to select the sound track as follows (see also page 17):

For Karaoke DVD Video: For Karaoke SVCD/VCD:

Select a sound track with vocal.

Select “ST,” “ST1,” or “ST2.” After selecting a sound track, select VOCAL MASK, L CHANNEL or R CHANNEL using the V.MASKING button (see the left column).

Select “DVD/CD” or “USB” as the source.

USB

MEMORY

Connect the microphone(s) (not supplied) to the

DVD/CD

MIC1 and/or MIC2 jack.

Mic Mixing will be activated.

• If a microphone is already connected but Mic Mixing is not activated, use the MIC MIX button to activate Mic Mixing (see page 31).

Activate Karaoke Scoring.

KARAOKE SCORING

• “KSCORE ON” appears on the display.

• During Karaoke Scoring, scoring will start when playback is started.

• To cancel Karaoke Scoring before playback, press the same button again. “KSCORE OFF” appears on the display.

Start playback and sing into the microphone.

Karaoke Scoring starts.

• Adjust echo level and key if you want. (See “To apply an echo to your voice” and “To adjust the key” on page 33.)

• When you press 4

or ¢

, Karaoke Scoring is

canceled and restarts from the selected track/file.

Continued on the next page...

After the song ends, playback stops and the score board appears on the TV screen with fanfare.

Ex.:

KARAOKE SCORE BOARD

85 POINTS

Very good!!

Your score

93 POINTS1 ST

The latest top 3

• When you press 8

playback starts again, Karaoke Scoring restarts.

• If you do not sing for about 2 minutes after Karaoke Scoring starts, Karaoke Scoring is canceled. If you sing a song too quietly for the System to detect your voice for about 2 minutes after Karaoke Scoring starts, Karaoke Scoring may be canceled.

• To obtain a correct scoring result, it is recommended to sing the song completely. If the singing time is less than 3 minutes, the scoring result may be “0” or incorrect.

To stop the playback in the middle of the song,

Karaoke Scoring is not canceled and your singing along is scored until that time.

To activate Karaoke Scoring in the middle of the song,

press KARAOKE SCORING. “SCORING START” appears on the display, then scoring starts from that point.

To deactivate Karaoke Scoring in the middle of the song,

press KARAOKE SCORING. “SCORING CANCEL” appears on the display.

• Once you deactivate Karaoke Scoring in the same song during playback, pressing KARAOKE SCORING switches “KSCORE ON” and “KSCORE OFF” alternately.

• When you reactivate Karaoke Scoring in the same song during playback and “KSCORE ON” is selected, scoring starts from the next track.

2 ND 3 RD

The calorie you consumed in your singing

, Karaoke Scoring is canceled. When

8.0

85 POINTS 73 POINTS

kcal

press 7

To apply an echo to your voice

KARAOKE

SETTING

* Appears only when “DVD/CD” or “USB” is selected as

the source with Mic Mixing activated.

Adjust the echo level.

Remote control:

ECHO 1 ECHO 2 ECHO 3 ECHO 4

• As the number increases, echo level also increases.

To adjust the key

• This function is available for disc/USB mass storage class device playback.

• This function is available only for CD/VCD/SVCD/DVD Video and Audio files.

• The Key adjustment will be canceled when you deactivate Mic Mixing, or select another disc, track or file.

Select “DVD/CD” or “USB” as the source. Connect the microphone(s) (not supplied) to the

MIC1 and/or MIC2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected but Mic Mixing is not activated, use the MIC MIX button to activate Mic Mixing (see page 31).

Start playback, then...

KARAOKE

SETTING

ECHO

MIC VOL

KEYCON*SCORE LVL

MIC VOL

FANFARE

Main unit:

ECHO OFF ECHO 6 ECHO 5

(Canceled)

Remote ONLY

ECHO KEYCON

MIC VOL

SCORE LVL

FANFARE

Changing the Karaoke Setting

You can change five settings for Karaoke.

• To exit from Karaoke setting, wait for several seconds after the setting is done.

Adjust the key.

To raise the key (up to +6).

MIC VOL

To return to normal key,

To lower the key (up to –6).

select “0.”

Remote

To change the scoring level

You can change the scoring level of Karaoke Scoring.

• This function is available only for disc/USB mass storage class device playback.

Select “DVD/CD” or “USB” as the source.

Connect the microphone(s) (not supplied) to the

MIC1 and/or MIC2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected but Mic Mixing is not activated, use the MIC MIX button to activate Mic Mixing (see page 31).

ONLY

KARAOKE

SETTING

Select the scoring level setting.

MIC VOL

PRO

AMATEUR

ECHO

The scoring level is strict.

The scoring level is lenient.

KEYCON

MIC VOL

SCORE LVL

FANFARE

PRO

AMATEUR

To change the mic volume

You can adjust the mic volume at any time.

Remote control:

MIC VOL

• The mic volume level can be adjusted in 16 steps (MIC VOL 0-MIC VOL 15).

• You can also call up the mic volume adjustment by pressing KARAOKE SETTING button and selecting “MIC VOL”.

Main unit:

Remote

To turn on/off the fanfare

You can turn the fanfare on or off for Karaoke Scoring.

• This function is available only for disc/USB mass storage class device playback.

Select “DVD/CD” or “USB” as the source. Connect the microphone(s) (not supplied) to the

MIC1 and/or MIC2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected but Mic Mixing is not activated, use the MIC MIX button to activate Mic Mixing (see page 31).

ONLY

KARAOKE

SETTING

Select the fanfare setting.

MIC VOL

ECHO KEYCON

MIC VOL

OFF

(Canceled)

SCORE LVL

FANFARE

Reserving Karaoke Songs

Remote

—Karaoke Program Play

ONLY

You can determine the playback order of the titles, chapters, tracks or files on the disc player. You can program up to 12 steps.

• This function is not available for files in a USB mass storage class device.

Select “DVD/CD” as the source.

Turn the MIC LEVEL to “0”.

Connect the microphone(s) (not supplied) to the MIC1 or MIC2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected but Mic Mixing is not activated, use the MIC MIX button to activate Mic Mixing (see page 31).

Activate Karaoke Program Play.

RESERVE

Gr/Tt

Disc Tr/Chap 1 2 3 4 5

On the TV screen

INFO

Start playback.

DVD/CD

Karaoke Reserve screen disappears and playback starts in the order you have programmed.

•

For Karaoke Program Play with Karaoke Scoring:

Each time the song ends, playback stops and the score board appears. Press DVD/CD 3

to start playback of

the next track/file.

Sing into the microphone.

To check the programmed contents

RESERVE

Karaoke Reserve screen appears.

• You cannot display Karaoke Reserve screen while Karaoke Scoring is in use.

To modify the program

While Karaoke Reserve screen is shown on the TV...

To erase the unwanted step:

CANCEL

• The PROGRAM indicator flashes during this mode.

Select songs you want for Karaoke Program Play.

Press the number buttons to select a song in the following order.

Select a disc.

Select a title/group.

Select a chapter/track/file.

123

456

789

10 0 10

• To select a number, see “How to select a number” on page 8.

• To cancel the procedure, press RESERVE. The PROGRAM indicator disappears.

To erase the entire program,

To add steps in the program:

Repeat step 5.

repeat the procedure.

Remote control

AUDIO

Timer Operations

Setting the Timer

Using Daily Timer, you can wake up with your favorite song. On the other hand, with Recording Timer, you can

AUDIO

ENTER/SET

make a tape of a radio broadcast automatically.

• You cannot activate Daily Timer and Recording Timer at

• To correct a misentry during the process, press CANCEL.

Remote ONLY

INFO

the same time. (Activating one timer deactivates the other timer.)

You can return to the previous step.

Select one of the timer setting modes—ON for Recording Timer or Daily Timer.

CLOCK/

TIMER

Recording Timer Daily Timer

REC TIMER

Canceled

DAILYTIMER

Clock setting

CANCEL

123

456

789

10 0

SLEEP

CLOCK/ TIMER

Make the timer setting as you want.

ENTER

/SET

Repeat the procedure for the following settings until finished.

Set the hour then minute for on-time.

Set the hour then minute for off-time.

For Recording Timer: Select the playback source— “TUNER-FM,” “TUNER-AM” or “AUX.” For Daily Timer: Select the playback source— “TUNER-FM,” “TUNER-AM,” “DISC,” “USB,” “TAPE-A,” “TAPE-B” or “AUX.”

EX.: When “TUNER-FM” is selected.

• When you select “AUX” as the source, you also need to set the timer of the external component.

Select an item you want to play or record as follows.

“TUNER-FM” and “TUNER-AM”: Preset station. “DISC”: Disc, group/title and track/file/chapter. “USB”: Group and file.

Select the volume level.

• You can select the volume level (“VOLUME 0” – “VOLUME 30” and “VOLUME --”). If you select “VOLUME --,” the volume is set to the last level when the System has been turned off.

After making the timer setting, “SET OK” appears and your setting items appear on the display one after another.

Turn off the System (on standby) if you have set the timer with the System turned on.

AUDIO

How Recording Timer works

When Recording Timer has been set, the timer indicator () and the REC indicator are lit on the display. Recording Timer works only once.

• Recording Timer starts working only when the System is turned off (on standby).

When the on-time comes

The System turns on, tunes in to the specified station, sets the volume level to the preset level, and starts recording.

When the off-time comes

The System stops recording, and turns off (on standby).

• The timer setting remains in memory until you change it.

How Daily Timer works

Once the Daily Timer has been set, the timer indicator () and DAILY indicator are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see below).

• Daily Timer starts working only when the System is turned off (on standby).

When the on-time comes

The System turns on, tunes in to the specified station or starts playing the specified source, and sets the volume level gradually to the preset level after about 30 seconds.

When the off-time comes

The System stops playback, and turns off (standby).

• The timer setting remains in memory until you change it.

To turn off the Timer after the setting is done

You can turn off the timer after it has been set.

• Since Daily Timer works at the same time everyday, you may need to cancel it on some particular days.

Select the timer (REC TIMER or DAILYTIMER) you want to cancel.

CLOCK/

TIMER

Turn off the selected timer.

CANCEL

Recording Timer Daily Timer

REC TIMER

Canceled

Clock setting

DAILYTIMER

To turn on the timer again,

ENTER/SET in step

Turning Off the Power Automatically

repeat step 1 and press

Remote

ONLY

With Sleep Timer, you can fall asleep while listening to music.

Specify the time (in minutes).

SLEEP

Wait until the set time disappears.

10 20 30 60 90

Canceled

120150180

To check the time remaining until the shut-off time

SLEEP

• If you press the button repeatedly, you can change the shut-off time.

Timer Priority

If Timer settings overlap, the timers work as described below.

• Sleep Timer has priority over the Recording Timer and Daily Timer.

Canceled

6:00 6:30 7:00 7:30

Recording Timer/ Daily Timer

Sleep Timer

The System turns off.

• In this case, Recording Timer/Daily Timer does not work.

Recording/Playback

Canceled

Recording Timer/ Daily Timer

Sleep Timer

• In this case, Recording Timer/Daily Timer is canceled. (If Sleep Timer shuts off the System earlier than the off time you have set for Recording Timer, recording stops when Sleep Timer shuts off the System.)

6:00 6:30 7:00 7:30

The System turns off.

• The timer indicator ( ) goes off.

Setup Menu Operations

Remote Control

SET UP

LANGUAGE menu

Item

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Basic Procedure

You can change the settings of the System.

• The Setup menu can be used only when “DVD/CD” or

AUDIO

,,,,

ENTER/SET

You can select the initial menu language of DVD Video (see page 46).

You can select the initial audio language of DVD Video (see page 46).

You can select the initial subtitle language of DVD Video (see page 46).

You can select “ENGLISH,” “CHINESE,” or “SPANISH” as the on-screen language.

“USB” is selected as the source.

Press SET UP while playback is stopped.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Press 3 (or 2

2 3

Press ∞ (or 5)

Press ENTER/SET.

Press ∞ (or 5)

ENGLISH

) to select the menu.

to select the item.

to select the options, then press

ENTER/SET.

To erase a preference display,

press SET UP.

Contents

INFO

PICTURE menu

Item

MONITOR TYPE

16:9 4:3 LB

4:3 PS

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

Contents

You can select the monitor type to match your TV when you play back picture recorded for widescreen televisions.

16:9 NORMAL/16:9 MULTI NORMAL (Wide television screen):

of your TV is fixed to 16:9.

16:9 AUTO/16:9 MULTI AUTO (Wide television screen):

wide TV.

4:3 LB/4:3 MULTI LB (Letter Box conversion):

For a conventional (4:3) TV. Displays a wide-

screen picture to fit the width of the TV screen keeping the aspect ratio.

4:3 PS/4:3 MULTI PS (Pan Scan conversion):

For a conventional (4:3) TV. The picture is zoomed

in to fill the screen vertically and the left and right sides of the picture are cut off.

• By selecting “MULTI” mode, the color system of the System changes automatically to match the color system of the picture. For the color system setting, see page 6.

You can obtain optimal picture quality by selecting the type of the video source.

AUTO:

Normally, select this option. The System recognizes the picture type (film or video source) of

the current picture according to its information.

FILM:

For a film source picture.

VIDEO:

You can set the screen saver function to ON or

ON: OFF:

For a video source picture.

OFF

The on-screen display becomes dark when no operation is done for about 5 minutes.

To cancel the screen saver.

You can select a file type to play.

AUDIO: STILL PICTURE:

VIDEO:

To play Audio files. (MP3/WMA/WAV files.)

To play Still Picture files. (JPEG file.)

To play Video files. (MPEG-1/MPEG-2/ASF/DivX files.)

Select this when the aspect ratio

Select this when your TV is an ordinary

AUDIO menu

Item

DIGITAL AUDIO OUTPUT

D. RANGE COMPRESSION

SPK. SETTING menu

Item

LEVEL

DELAY

FRONT LEFT SPEAKER

FRONT RIGHT SPEAKER

CENTER SPEAKER

SURROUND RIGHT SPEAKER

SURROUND LEFT SPEAKER

TEST TONE

FRONT LEFT SPEAKER

FRONT RIGHT SPEAKER

CENTER SPEAKER

SURROUND RIGHT SPEAKER

SURROUND LEFT SPEAKER

0dB

OFF

0 ms

Contents

Set this item correctly when using the OPTICAL DIGITAL OUTPUT terminal on the rear.

PCM ONLY:

When connecting to audio equipment which is compatible with only linear PCM

signals.

DOLBY DIGITAL/PCM:

When connecting to a Dolby Digital decoder or an amplifier with

built-in Dolby Digital decoder.

STREAM/PCM:

When connecting to a DTS/MPEG Audio decoder or an amplifier with built-in DTS/

MPEG Audio decoder.

You can enjoy a powerful sound at a low volume level while playing Dolby Digital software.

AUTO:

Select to apply the compression only to multi-channel encoded audio (except for 1-channel

and 2-channel sources).

ON:

Select this to always apply the compression.

Contents

Select this item, then press ENTER/SET to show the LEVEL submenu for adjusting the speaker output level.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND RIGHT/LEFT

SPEAKER:

TEST TONE:

• Select “ALL CH ST,” “MUSIC,” or “MOVIE” (see page 15) to adjust the output level for all speakers with the test tone.

Select this item, then press ENTER/SET to show the DELAY submenu for adjusting the speaker delay time.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND RIGHT/LEFT

SPEAKER:

• Set one speaker to “0 ms,” then set other speakers so that the sound from all speakers can reach you at the same time.

Select the speaker, then adjust the output level (–6 dB to +6 dB in 1 dB steps).

Turns on/off the test tone.

Select the speaker, then adjust the delay time (0 ms to 15 ms in 1 ms steps).

OTHERS menu

Item Contents

RESUME

ON SCREEN GUIDE

DivX REGISTRATION

You can select Resume.

ON:

The System resumes playback from the position where playback has been stopped (not applicable

for CD).

OFF:

Resume is deactivated.

Activate or deactivate the on-screen guide.

ON:

Activate the on-screen guide.

OFF:

Deactivate the on-screen guide.

The System has its own Registration Code. If necessary, you can confirm it. Once you have played back a DivX file in which the Registration Code is recorded, the System’s Registration Code is overwritten for copyright protection.

Operating the TV

Remote control

TV/VIDEO

Volume buttons for TV

CHANNEL +,–

AUDIO

123

456

789

10 0

AUDIO

ENTER/SET

Number buttons

Operating the TV

You can operate JVC’s or other manufacturers’ TV using the remote control supplied for this System.

Slide the AUDIO/TV selector to “TV.”

AUDIO

Press and hold until the following steps are completed.

ENTER

/SET

Enter the 2-digit manufacturer’s code number.

123

456

789

10 0

Manufacturer’s code

Manufacturer Code number

JVC 01

Hitachi 10

Magnavox 02

Mitsubishi 03

Panasonic 04,11

Philips 15

RCA 05

Samsung 12

Sanyo 13, 14

Sharp 06

Sony 07

Toshiba 08

Zenith 09

Release TV.

To operate the TV

To turn on or off the TV:

To select the TV channel:

123

456

789

10 0

To select the input mode (either TV or VIDEO):

TV/VIDEO

To adjust TV volume:

VOL

TV CHANNEL

Additional Information

Learning More about This System

Connections

Changing the Color System and Scanning Mode:

• If you play back an NTSC disc/file with the color system set to “PAL (PROG),” the disc/file will be reproduced using “PAL 60” format; however, if the TV does not support this format, the screen may not display properly.

• If you play back a PAL disc/file with the color system set to “NTSC (PROG),” you can watch the playback pictures, but the following symptoms may occur: – The items on the menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the

original aspect ratio.

– The picture movement is not smooth.

• You cannot change the scanning mode to progressive in the following cases: – When your TV does not support the progressive video input. – When you have not connected your TV to the unit using

a component video cord.

• When you play back an NTSC disc/file in progressive scanning mode either NTSC PROG or PAL PROG, the System outputs the NTSC signal regardless of the color system settings.

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations may be erased in a few days. If this happens, preset the stations again.

Playing Back a Disc/USB Mass Storage Class Device:

• When you change the source to “DVD/CD” or “USB,” it may take a while to activate the source.

• While the System is reading a disc, the source may not change to “USB MEMORY” correctly. In this case, press

, then reactivate “USB MEMORY” as the source.

• On some discs/files, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• For playback of files in the USB mass storage class device... – When connecting a USB mass storage class device, refer

also to its manual.

– Connect one USB mass storage class device to the

System at a time. Do not use a USB hub.

– You cannot charge any USB mass storage class device through

the

– While playing back a file in a USB mass storage class

device, do not disconnect the device. It may cause a malfunction of both the System and the device.

– JVC bears no responsibility for any loss of data in the

USB mass storage class device while using this System.

(see pages 3 to 6)

(USB memory) terminal

(see pages 8 to 12)

of this System.

– When connecting with a USB cable, use the cable whose

length is less than 1 m. – This System is compatible with USB 2.0 Full Speed. – You can play back the following types of files in a USB

mass storage class device (maximum data transfer rate: 2

Mbps):

– Audio: MP3, WMA, WAV

– Still picture: JPEG

– Video: MPEG-1, MPEG-2, ASF, DivX (maximum

frame rate of 30 fps for progressive)

– This System may not play back some files even though

their formats are listed above. – You cannot play back a file larger than 2 Gigabyte. – When playing a file which has a high transfer rate, frames

or sounds may be dropped during playback. – This System cannot recognize a USB mass storage class

device whose rating is other than 5 V and does not exceed

500 mA. – This System may not play back some USB mass storage

class device and does not support DRM (Digital Rights

Management). – It will take some time to start up a Digital Audio Player

(DAP) larger than 1 Gigabyte. – You cannot send any data to your USB mass storage

class device from this System.

• For MP3/WMA/WAV playback... – MP3/WMA/WAV discs require a longer readout time

than regular CDs. (It depends on the complexity of the group/file configuration.)

– Some MP3/WMA/WAV files cannot be played back and

will be skipped. This results from their recording processes and conditions.

– When making MP3/WMA/WAV discs, use ISO 9660

Level 1 or Level 2 for the disc format.

– This System can play back MP3/WMA/WAV files with

the extension code <.mp3>, <.wma> or <.wav> (regardless of the letter case—upper/lower).

– It is recommended that you make each MP3/WMA/

WAV files at the following conditions:

– MP3/WMA: At a sampling rate of 44.1 kHz and bit

rate of 128 kbps. – WAV: 44.1 kHz/16 bit Linear PCM. – This System cannot play back files made at bit rate of

less than 64 kbps.

• For DVD-VR playback...

Original Program:

–

original picture in the recorded order.

Play List:

–

by the recording equipment.

– For details about DVD-VR format and play list, refer to

the manual of the recording equipment.

• For JPEG playback... – This System can play back JPEG files with the extension

code <.jpg> or <.jpeg> (regardless of the letter case— upper/lower).

The System can play back the play list edited

The System can play back the

– It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files*.

Progressive JPEG files* or lossless JPEG files* cannot be played. * Baseline JPEG format: Used for digital cameras,

web, etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

• For MPEG-1/MPEG-2 playback... – This System can play back MPEG-1/MPEG-2 files with

the extension code <.mpg> or <.mpeg> (regardless of the letter case—upper/lower).

– The stream format should conform to MPEG system/

program stream.

– 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is

recommended for the highest resolution.

– This System also supports the resolutions of 352 x 576/

480 x 576/352 x 288 pixels (25 fps) and 352 x 480/480 x 480/352 x 240 pixels (30 fps).

– The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple profile at Main Level)/ MP@LL (Main Profile at Low Level).

– Audio streams should conform to MPEG1 Audio Layer-2

or MPEG2 Audio Layer-2.

• For ASF playback... – This System can play back ASF files with the extension

code <.asf> (regardless of the letter case—upper/lower).

– This System supports ASF files whose resolution is

352 x 288 pixels or less.

– Some recorded files may not be able to played back

depending on file characteristics, kind of digital still/ video cameras, or recording conditions.

• For DivX playback... – The System supports DivX 6.x, 5.x, 4.x and 3.11. – When making a disc, use the UDF-Bridge format.

“Multi-border” is not supported.

– The System supports DivX files whose resolution is 720

x 480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

– Audio stream should conform to Dolby Digital, MPEG1

Audio Layer-2 or MPEG Audio Layer-3 (MP3).

– This System can play back DivX files with the extension

code <.divx> <.div> <.avi> (regardless of the letter case—upper/lower).

– The System does not support GMC (Global Motion

Compression).

– The file encoded in the interlaced scanning mode may

not be played back correctly.

Daily Operations—Sound & Other Adjustments

(see pages 13 to 16)

Adjusting the Speaker Output Level :

• The channel level cannot change during Mic Mixing, Vocal Masking or Karaoke Scoring.

Reinforcing the Bass Sound:

• The adjustment for the subwoofer level does not affect the sound through the headphones.

Applying an Optimal Bass Sound Effect—VARIO BASS

• If you plug in a microphone and Mic Mixing is activated, the System will automatically switches the mode to LITE.n.EASY even if the mode is set to OFF.

Creating Your Own Sound Modes —User Mode:

• When you unplug the AC power cord or if a power failure occurs, the User Mode settings may be erased in a few days. If this happens, set the User Modes again.

Selecting the Surround Modes:

• Dolby Pro Logic II Modes: Dolby Pro Logic II Mode is a multi-channel playback format to convert 2-channel sources into 5.1-channels. Dolby Pro Logic II reproduces spacious sound from original sound without adding any new sounds or tonal colorations.

• While you use the headphones, the Surround Mode is canceled temporarily.

• Some DVD Audio discs prohibit downmix. While playing back such a disc... – You cannot change the Surround Mode. – The System plays back the left front and right front

signals when you have selected “STEREO” for the Surround Mode or when you use the headphones.

• Dolby PL II MUSIC/MOVIE take no effect to MPEG-1/ MPEG-2/ASF/DivX files.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Unique Video Disc/File Operations

to 19)

Selecting the Audio Track:

• On some disc/file, you cannot change audio languages while playing back.

Playing Back Bonus Group:

• You cannot select a track in the bonus group for Program Play.

Special Picture Playback:

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Playback Operations

Programming the Playing Order—Program Play:

– While programming steps...

Your entry will be ignored if you have tried to program an item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks).

– For SVCD/VCD/CD loaded on the other tray than the

current one, the System may prompt for the group number entry as well; however, these entries will be ignored during playback.

(see pages 17

(see pages 20 to 22)

• The programmed contents will remain until you erase it.

• While the PROGRAM indicator is on, you cannot change the disc to play. (DISC 1 – DISC 5 on the remote control and 3

on the main unit do not work.)

On-Screen Operations

Operations Using the On-screen Bar:

•

A-B Repeat the same track.

is possible only within the same title or within

Recording Operations

General:

• You cannot change the source during recording.

• There is leader tape which cannot be recorded onto at the start and the end of cassette tapes. Thus, before recording, wind the leader tape first to ensure that the recording will be made without any music part lost.

• If no cassette is inserted or a protected tape has been inserted, “NO REC” appears on the display.

• The recording level is automatically set correctly. Thus, you can make sound adjustments other than Surround Mode, without affecting the recording level.

Recording onto a Tape:

• While recording from disc/USB mass storage class device, plugging in and out headphones may cause sound distortion and affect the recording.

• When using Reverse Mode for recording, start recording in the forward (3 stop when only one side (reverse) of the tape is recorded.

Synchronized Recording:

• You cannot open the disc tray while recording onto a tape using USB/DISC REC START button.

• Recording starts from the first track even if you have selected a track by using 4/¢. To specify track(s) to record, program them (not applicable for USB mass storage class device) or use One Track Recording.

• While recording, you cannot use disc/USB mass storage class device operation buttons (except for 7

• You cannot use Repeat Play during synchronized recording (Repeat Play will be canceled).

• USB/DISC REC START button does not work: – While playback is paused. – When Random Play mode is selected. – When playing back in Program Play mode.

• When using the Reverse Mode and the tape reaches its end in the forward direction (3 will be re-recorded at the beginning of the reverse side (2

• When using the Reverse Mode and the tape reaches its end in the reverse side (2 even though the disc/USB mass storage class device is not entirely recorded.

) direction first; otherwise, recording will

Enjoying Karaoke

General:

• When Mic Mixing or Vocal Masking is activated: – Multi-channel source will be down-mixed. – Dolby Pro Logic II will be canceled temporarily.

(see pages 23 to 28)

(see pages 29 to 30)

) during recording, the last song

) during recording, recording stops

(see pages 31 to 35)

• When Mic Mixing is activated and ALL CH ST is selected as the Surround mode, the output level of surround speaker decreases.

• While recording onto a tape, Key adjustment, Echo and Vocal Masking will be recorded. However, while recording onto a tape using USB/DISC REC START, Key adjustment will not be recorded.

• While the System is turned on, connecting a microphone automatically activates Mic Mixing and all the Karaoke related functions.

• If you connect a microphone during the System turned off, press MIC MIX to activate Mic Mixing after turning the System on.

Adjusting the Sound Track for Karaoke:

• The Vocal Masking setting is not applied to the optical digital output signals through the OPTICAL DIGITAL OUTPUT terminal.

• On some music, Vocal Masking does not provide the correct effect.

Scoring Your Karaoke Skill:

• Karaoke Scoring does not work for DVD Audio, but you can activate or deactivate the function while playing back DVD Audio.

• While Karaoke Scoring is in use, you cannot deactivate Mic Mixing or use MIC MIX, RESERVE and number buttons.

• Activating Karaoke Scoring cancels Repeat Play.

• You cannot use Karaoke Scoring during Program Play, Random Play, or recording. However, you can turn Karaoke Scoring on and off by using KARAOKE SCORING button during these play modes.

• The ranking (top 3) is cleared when you turn off the System.

Reserving Karaoke Songs—Karaoke Program Play:

• You can use RESERVE button when a microphone is plugged in. However, you can cancel Karaoke Program Play using the button even if a microphone is not plugged in. In case you reactivate Karaoke Program Play, plug in a microphone.

• If you have selected a disc tray on which a disc containing Video files or JPEG file or DVD-VR is loaded, that disc number is skipped.

• If DVD-VR or a disc containing Video files and JPEG file is loaded on the current tray, you cannot activate Karaoke Program Play.

• When the track starts playback, that track number will be

erased from the Karaoke Reserve screen (the programmed contents will remain until you erase it).

• While the PROGRAM indicator is flashing, you cannot change the disc to play. (DISC 1 – 5 on the remote control and 3

on the main unit do not work.)

• For some VCD, the Karaoke Scoring result may not appear at the end of the track if PBC is activated. In this case, press

to view your scoring result.

Timer Operations

Setting the Timer:

• If you do not specify the preset station or track number correctly while setting a timer, the currently selected station or the first track will be played when timer is activated.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• Without stopping the recording, you cannot change the source while Recording Timer is recording.

• Daily Timer will not work correctly for some DVDs.

Setup Menu Operations

General:

• If the upper and lower parts of the menu are cut off, adjust the picture size control of the TV.

LANGUAGE menu:

• When the language you have selected for MENU LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is not recorded on a disc, the original language is used as the initial language.

PICTURE menu—MONITOR TYPE:

• Even if “4:3 PS/4:3 MULTI PS” is selected, the screen size may become 4:3 letter box with some disc. This depends on how they are recorded.

• When you select “16:9 NORMAL/16:9 MULTI NORMAL” or “16:9 AUTO/16:9 MULTI AUTO” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

SPK. SETTING menu—DELAY:

• See the following diagram as an example for setting the delay time:

Center speaker

Front left speaker

(see pages 36 to 37)

(see pages 38 to 39)

Front speakers:

Front right speaker

0 ms

Center speaker:

1 ms

Surround speakers:

2 ms

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, extreme temperatures, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotate it. – If the tape is loose, it may get stretched, cut, or caught in

the cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape—in dusty places, in direct sunlight or heat, in moist areas, on a TV or speaker, or near a magnet.

To keep the best recording and playback sound quality:

• Use a cotton swab moistened with alcohol to clean the heads, capstans and pinch rollers.

• Use a head demagnetizer (available at electronics and audio shops) to demagnetize the heads (when the System is turned off).

To protect your recording

Cassettes have two small tabs on the back to protect from unexpected erasure or rerecording.

To protect your recording,

tabs.

To re-record on a protected tape,

the holes with adhesive tape.

remove these

cover

Surround left speaker

OTHERS menu—ON SCREEN GUIDE:

• The setup menu and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zoom-in always appear on the display regardless of this setting.

Surround right speaker

Maintenance

To get the best performance of the System, keep your discs, tapes and mechanism clean.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it forcefully. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in contact

for a long time.

Troubleshooting

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

]

There is a time limit. Repeat procedure again.

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. Unplug the AC power cord and then plug it back in.

Unable to operate the System from the remote control.

]

The path between the remote control and the remote sensor on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive video input.

]

Incorrect color system is selected (see page 6).

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB /4:3 MULTI LB” for “MONITOR TYPE” (see page 38).

Radio Operations:

Hard to hear broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc/file Operations:

The disc does not play.

]

You have inserted a DVD Video whose Region Code is not correct. (“REGION ERR” appears on the display.)

]

The disc is placed upside down. Place the disc with the label side up.

ID3 Tag on an MP3 disc cannot be shown.

There are two types of ID3 Tag—Version 1 and Version 2.

]

This System can only show ID3 Tag Version 1.

Groups and files are not played back as you expect.

]

The playing order is determined when the ﬁles were recorded. It depends on the application.

AV files are not played back.

]

The disc or USB mass storage class device includes different types of ﬁles (Audio ﬁle, Video ﬁle and Still picture ﬁle.). In this case, you can play back the ﬁles selected only by the “FILE TYPE” setting (see page 38).

]

You have changed the “FILE TYPE” setting after the System read the disc or the USB mass storage class device. In this case, reload the disc or disconnect the USB mass storage class device and connect it again.

The disc sound is discontinuous.

]

The disc is scratched or dirty.

The playback sounds strange.

]

Cancel Vocal Masking (see page 32).

]

Cancel Key adjustment (see page 33).

No subtitle appears on the TV screen though you have selected the initial subtitle language.

]

Some discs are programmed to always display no subtitle initially. If this happens, press SUB TITLE after starting play (see page 18).

Audio language is different from the one you have selected as the initial audio language.

]

Some discs are programmed to always use the original language initially. If this happens, press AUDIO/MPX after starting play (see page 17).

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use. “LOCKED” appears on the display window (see page 22). Program Play is in use. Cancel Program Play (see page 21).

]

Tape Operations:

The cassette holder cannot be opened.

]

Power supply from the AC power cord has been cut off while the tape was running. Turn on the System.

Recording Operations:

“CANNOT REC” appears on the display.

]

The System cannot perform recording.

Impossible to record.

]

Small tabs on the back of the cassette are removed. Cover the holes with adhesive tape.

]

Karaoke Scoring is in use. Cancel Karaoke Scoring (see page 32).

Karaoke Operations:

Karaoke function cannot be activated.

]

Ensure at least one microphone is connected and Mic Mixing is activated. If a microphone is not connected, you cannot activate Mic Mixing and any other Karaoke related function.

Karaoke Scoring cannot be activated.

]

You cannot use Karaoke Scoring while recording, or while the disc menu for DVD Video/SVCD/VCD is shown on the TV screen.

Scoring result seems wrong (or “– –” appears).

]

The time of playback and singing along are too short for Karaoke Scoring. It is recommended to sing more than 3 minutes to obtain a correct scoring result.

]

No sound from the microphone or the input level (MIC LEVEL) is too low.

] You have sung too quietly.

Timer Operations:

Daily Timer or Recording Timer does not work.

] The System has been turned on when the on-time comes.

Timer starts working only when the System is turned off.

OPTICAL DIGITAL OUTPUT Signals

DIGITAL AUDIO

OUTPUT Playback disc/file STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD Video

with 48 kHz, 16/20/24 bit Linear PCM 48 kHz, 16 bit Linear PCM*

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD Audio

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD-R/-RW in DVD-VR format

with 48 kHz, 16/20/24 bit Linear PCM 48 kHz, 16 bit Linear PCM*

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

SVCD, VCD, CD CD with DTS MP3/WMA/WAV/MPEG-1/MPEG-2 disc/file ASF disc/file DivX disc/file

DTS bitstream 44.1 kHz, 16 bit Linear PCM

with MP2, MP3

with Dolby Digital

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the OPTICAL DIGITAL

OUTPUT terminal if the discs are not copy-protected.

44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM

32 kHz/44.1 kHz/48 kHz, 16 bit Linear PCM

Dolby Digital bitstream

Output Signals

48 kHz, 16 bit Linear PCM*

44.1 kHz, 16 bit Linear PCM*

32 kHz, 16 bit Linear PCM

32 kHz/44.1 kHz/48 kHz, 16 bit Linear PCM

Language Code List

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

BO Tibetan IE Interlingue MO Moldavian SM Samoan VI Vietnamese BR Breton IK Inupiak MR Marathi SN Shona VO Volapuk CA Catalan IN Indonesian MS Malay (MAY) SO Somali WO Wolof CO Corsican IS Icelandic MT Maltese SQ Albanian XH Xhosa CY Welsh IW Hebrew MY Burmese SR Serbian YO Yoruba DA Danish JI Yiddish NA Nauru SS Siswati ZU Zulu DZ Bhutani JW Javanese NE Nepali ST Sesotho EL Greek KA Georgian NL Dutch SU Sundanese EO Esperanto KK Kazakh NO Norwegian SV Swedish ET Estonian KL Greenlandic OC Occitan SW Swahili EU Basque KM Cambodian OM (Afan) Oromo TA Tamil FA Persian KN Kannada OR Oriya TE Telugu

Finnish

Fiji

Faroese

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Armenian

IA Interlingua MN Mongolian SL Slovenian UZ Uzbek

KO KS KU KY LA LN LO LT LV MG MI MK ML

Korean (KOR) Kashmiri Kurdish Kirghiz Latin Lingala Laothian Lithuanian Latvian, Lettish Malagasy Maori Macedonian Malayalam

Panjabi

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Kinyarwanda

Sanskrit

Sindhi

Sangho

Serbo-Croatian

Singhalese

TG TH TI TK TL TN TO TR TS TT TW UK UR

Tajik Thai Tigrinya Turkmen Tagalog Setswana Tonga Turkish Tsonga Tatar Twi Ukrainian Urdu

Specifications

Amplifier section

Output Power: FRONT SPEAKERS: 150 W per channel, min. RMS, driven into

CENTER SPEAKER:

CA-DXU10: 140 W per channel, min. RMS, driven into

CA-DXU8: 50 W per channel, min. RMS, driven into

SURROUND SPEAKERS:

CA-DXU10: 130 W per channel, min. RMS, driven into

CA-DXU8: 50 W per channel, min. RMS, driven into

SUBWOOFERS:

Digital output: OPTICAL DIGITAL OUTPUT:

Digital input: (USB memory) Audio input sensitivity/Impedance (Measured at 1 kHz, with tape recording signal 400 mV) AUX(STEREO): 400 mV/47 k MIC1/MIC2: 3.0 mV/50 k

VIDEO OUT:

Color system: PAL/PAL PROG/NTSC/NTSC PROG selectable VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

COMPONENT (Interlace/Progressive):

Speaker Terminals: 4

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range: 531 kHz – 1 710 kHz (at 9 kHz)

For Saudi Arabia: 531 kHz to 1 602 kHz (9 kHz)

Disc/file player section

Region codes: Middle East: 2

Playable disc:

DVD Video/DVD Audio/CD/VCD/SVCD CD-R/CD-RW (CD/VCD/SVCD/MP3/WMA/WAV/JPEG/ MPEG-1/MPEG-2/ASF/DivX format) CD-ROM (MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/ DivX format) DVD-R/-RW (DVD-VR/DVD Video/DVD Audio/MP3/WMA/ WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX format) +R/+RW (DVD Video/DVD Audio/MP3/WMA/WAV/JPEG/ MPEG-1/MPEG-2/ASF/DivX format) DVD-ROM (DVD Video/MP3/WMA/WAV/JPEG/MPEG-1/ MPEG-2/ASF/DivX format)

Playable file:

MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2, ASF, DivX format

4 Ω at 1 kHz with no more than 10% total harmonic distortion.

6 Ω at 1 kHz with no more than 10% total harmonic distortion.

150 W, min. RMS, driven into 4 Ω at 63 Hz with

no more than 10% total harmonic distortion.

–21 dBm to –15 dBm (660 nm ±30 nm)

Ω

C (chrominance, burst)

PAL 0.3 V(p-p)/75 NTSC 0.286 V(p-p)/75

(Y) 1 V(p-p)/75

B/PR

) 0.7 V(p-p)/75

Ω − 16 Ω

South East Asia: 3 Central and South America, Australia: 4

(front speakers/subwoofers) (surround/center speakers)

530 kHz – 1 710 kHz (at 10 kHz)

530 kHz to 1 600 kHz (10 kHz)

Ω Ω

Dynamic range: 80 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

USB storage section

USB specification: Compatible with USB 2.0 Full Speed Compatible device: Mass Storage Class Compatible file system: FAT16, FAT32 Bus power supply: 5 V / 500 mA

Cassette deck section

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V /

AC 230 V – AC 240 V , (adjustable with the voltage selector), 50 Hz / 60 Hz

For Australia: AC 240 V , 50 Hz

Power consumption:

CA-DXU10: 300 W (at operation) / 22 W (on standby)

CA-DXU8: 270 W (at operation) / 21 W (on standby) Dimensions (W/H/D) (approx.): 185 mm x 460 mm x 370 mm Mass (approx.):

CA-DXU10: 11.5 kg

CA-DXU8: 11.4 kg

Supplied Accessories

See page 3.

Design and specifications are subject to change without notice.

• Manufactured under license from Dolby Laboratories. “Dolby”,

“Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS Digital Surround” are registered trademarks of

DTS, Inc.

• “Official DivX® Ultra Certified product” “Plays all versions of

DivX® video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format” “DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under licence.”

• Microsoft and Windows Media are either registered trademarks of

Microsoft Corporation in the United States and/or other countries.

• This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH

DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

• USE OF THIS PRODUCT IN ANY MANNER THAT

COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.

Parts Index

Remote control

Button Page Button Page

AUDIO TV

¡¡¡¡

11 4444, PREV ¢¢¢¢, NEXT 88

88 5555 , ∞∞∞∞ , 3333 , 2222 ,

ENTER/SET

Number buttons

ANGLE AUDIO/MPX AUDIO/TV

selector

AUDIO VOL +, –n

CANCEL CHANNEL

LEVEL CLOCK/

TIMER

DISC1-5 DIMMER DISPLAY DVD/CD 33

DVD LEVEL

FADE MUTING

FM/AM/AUX FM/PLAY

MODE

GROUP/TITLE

KARAOKE SCORING

KARAOKE SETTING

8, 37

10, 12, 19, 21, 28, 32

9, 11, 12, 19, 22, 25ON SCREEN

9, 11, 12, 19

9-12, 21, 32

10, 19, 21, 28, 33

6, 9-11, 14-16, 18, 19, 21, 2428, 35, 36 ,38, 40

8-12, 19, 20, 26, 35, 40

8, 9, 31

9, 16, 21, 35-37

16, 36, 37

f 8

o : x m

t 1

8, 10, 11, 19-21, 28, 32-35

8-10

9, 20, 21

32, 33

33, 34

MENU/PL MIC MIX

11, 27

MIC VOL +, –D31, 33, 34

PAGE REPEAT REPEAT A-B RESERVE RETURN REVERSE

MODE SCAN MODE SET UP SLEEP

SLOW

22, 28

;

SOUND MODEs14 SUB TITLE

SUBWOOFER LEVEL

SURROUND MODE

TAPE-A TAPE-B

TOP MENU/PG

TV CHANNEL +, –

TV/VIDEO

USB MEMORY 33

VARIO BASS Volume

buttons for TV VFP V.MASKING

VOCAL SUPPORT

ZOOM

+, –

23 3

23 v

q 5

a 6

; G

8, 12

11, 27

8, 10, 11, 19, 28, 32

15, 16

19, 28

Main unit

Button Page Button Page

STANDBY

–PRESET/4444, PRESET+/¢¢¢¢

–

TUNING/1111 ,

¡¡

TUNING+/¡¡ Display Disc trays

(USB

Memory) terminal

AUX DEMO

£¢

9-12, 21, 32

∞

10, 19, 21, 28, 33PHONES

10, 12, 21, 22, 28-30, 32

¶•

9, 11, 12, 19, 22, 25REC START/

10, 22, 30

6, 10

™

MIC1, MIC2 MIC LEVEL

–

% ^

PUSH OPEN

STOP REVERSE

MODE

0 #$

SOUND MODE~14

SUBWOOFER LEVEL ,

31-35

31, 34, 35

12, 29

30, 31

12, 29

DISC1–5 ####, 00

DUBBING

DVD/CD ##

ECHO LEVEL +, –

FM/AM

KARAOKE SCORING

Remote control

Main unit

6 *

; s

h k

3 4 5 6

10, 11, 22, 30

8, 10, 11, 19, 20, 21, 28, 32, 35

9, 10

32, 33

e r

y u i

o a d

(

)

∞§¶•

SURROUND MODE

TAPE-A TAPE-B

USB/DISC REC START

USB MEMORY ##

@# )

@# +

(

VARIO BASS814

VOLUME +, –_8, 9, 31

AUDIO

333

123

456

789

10 0 10

™

Q W

E R

U I O

: A

S D

F G

8 9

= ~ ! @

% ^ &

8, 12, 30

8, 12, 29, 30

8, 10, 11, 19, 28, 30, 32

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, and U.K.)

CA-DXU10/CA-DXU8 COMPACT COMPONENT SYSTEM

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

Excluding Australian model.

0407JSKMDCJMM

COMPACT COMPONENT SYSTEM

CA-DXU6

SUPER VIDEO

CA-DXU6

INSTRUCTIONS

GVT0209-001A

[US, UN, UG, UX, A, UW]

Warnings, Cautions and Others

Caution–– (standby/on) button!

• When the System is on standby, the STANDBY lamp lights red.

• When the System is turned on, the STANDBY lamp goes off. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

Excessive sound pressure from earphones or headphones can cause hearing loss.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION

qualified service personnel.

CAUTION

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

: Do not open the top cover or cabinet. There are no user serviceable parts inside the unit; leave all servicing to

: Visible and/or invisible Class 1M laser radiation when open. Do not view directly with optical instruments.

G-1

[European Union only]

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of

Wall or obstructions Wall or obstructions

10 cm or more.

Front view Side view

15 cm 15 cm

CA-DXU6

10 cm

15 cm

CA-DXU6

G-2

Main Unit

ONLY

Introduction

Playable Disc/File Types

DIGITAL VIDEO

SUPER VIDEO

INFO

COMPACT

DIGITAL AUDIO

The “√” in the list below shows available disc/file types.

Media type

Recording format

CD-DA (normal CD)

VCD/SVCD

DVD Video —

DVD Audio —

Discs

DVD-VR

Audio file: MP3/WMA/WAV

CD-R/

-RW

√ √

—

√

DVD-R/

-RW, +R/ +RW

USB mass

storage

class device

——

√ √

√

—

√

Video file: MPEG-1/MPEG-2/ ASF/DivX

AV files

Still picture file: JPEG

√

• This System can also play back DVD-ROM (DVD Video/ MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX format) and CD-ROM (MP3/WMA/WAV/JPEG/MPEG-1/ MPEG-2/ASF/DivX format).

• The following discs cannot be played back: DVD-RAM, CD-I (CD-I Ready) and Photo CD. Playing back these discs will generate noise and damage the speakers.

• DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

• In this manual, “file” and “track” are interchangeably used for AV file operations.

• It is possible to play back finalized +R/+RW (DVD Video format only) discs.

Caution for DualDisc playback:

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

About color system

This System accommodates both NTSC and PAL system and can play back discs/files recorded in either system. To change the color system, see page 6.

Note on Region Code

DVD players and DVD Video have their own Region Code numbers. This System can play back only DVD Video with an appropriate Region Code number.

• For details, see “Specifications” on page 47. EX.: For Southeast Asia

Audio formats

The System can play back the following digital audio formats.

•

(Linear PCM),

LPCM DTS

(Digital Theater Systems),

DIGITAL

MPEG Audio

(Dolby Digital),

MLP

(Meridian Lossless Packing)

• Multi-channel sound will be downmixed into 2-channels. To enjoy multi-channel sound, connect a compatible decoder or an amplifier with a compatible decoder to the OPTICAL DIGITAL OUTPUT terminal on the rear.

How to Read This Manual

• Button and control operations are explained in the table below.

Some related tips and notes are explained later in the

•

sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some information).

Indicates that you press the button

and repeatedly

selected.

Indicates that you press one of the buttons.

Indicates that you

sec.

for a specified period. The number inside the arrow indicates the period of a press (in the example, 2 seconds).

Indicates that you turn the control toward the specified direction(s).

Remote ONLY

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the main unit.

INFO

briefly.

briefly

until an option you want is

press and hold

the button
