COMPACT COMPONENT SYSTEM

CA-DXT9 CA-DXT7

English

INSTRUCTIONS

GVT0147-001A

[US, UN]

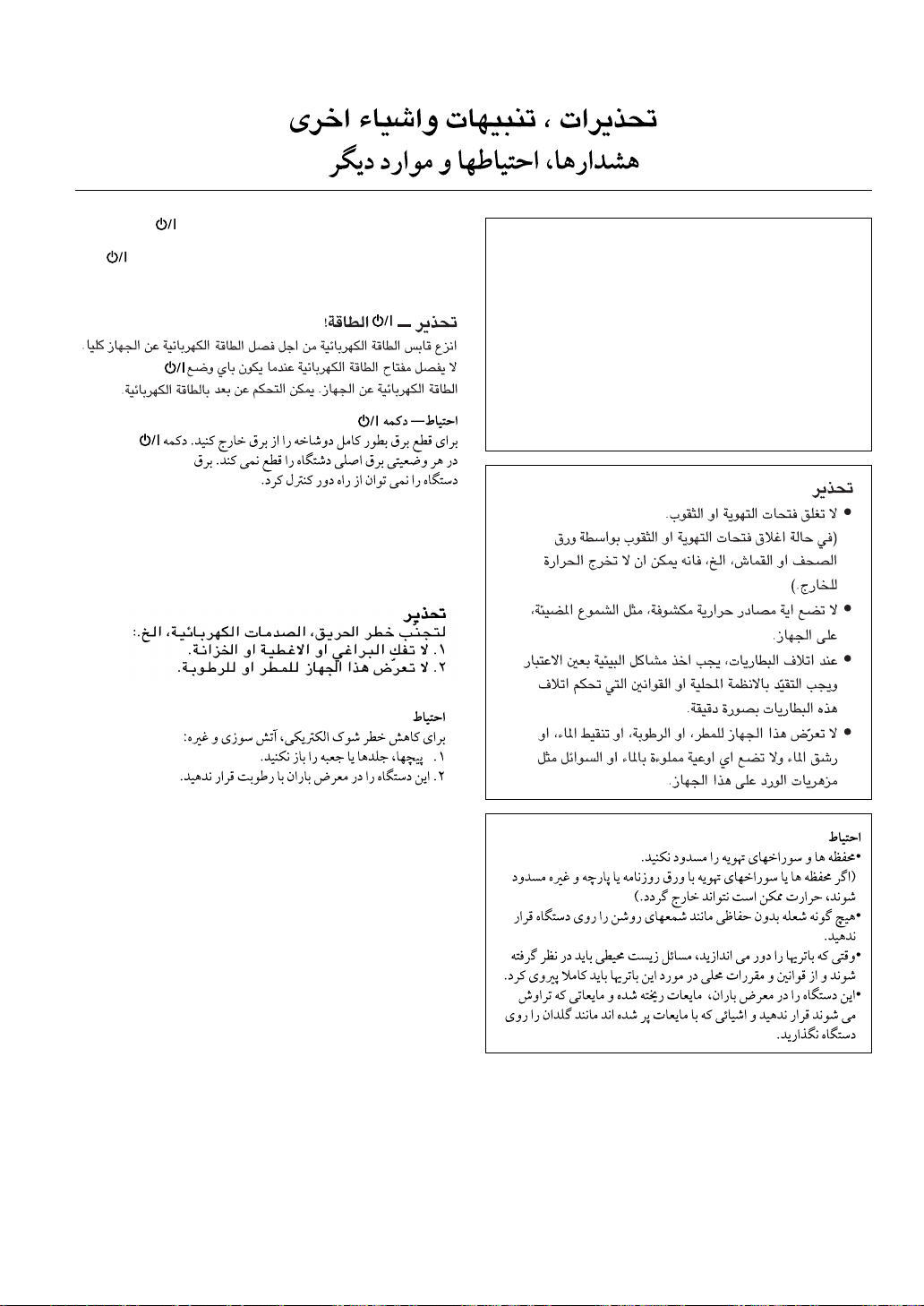

Warnings, Cautions and Others

Caution–– button!

Disconnect the mains plug to shut the power off completely. The button in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view Side view

Wall or obstructions Wall or obstructions

15 cm 15 cm

1 cm

CA-DXT9 CA-DXT7

10 cm

15 cm

CA-DXT9 CA-DXT7

G-2

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION

inside the unit; leave all servicing to qualified service personnel.

CAUTION

failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE UNIT.

: Do not open the top cover. There are no user serviceable parts

: Visible and invisible laser radiation when open and interlock

G-3

Introduction

Precautions

Installation

• Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place.

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

• Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit. –A cooling fan is inside the unit to prevent heat buildup.

DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Contents

Connections........................................................................ 3

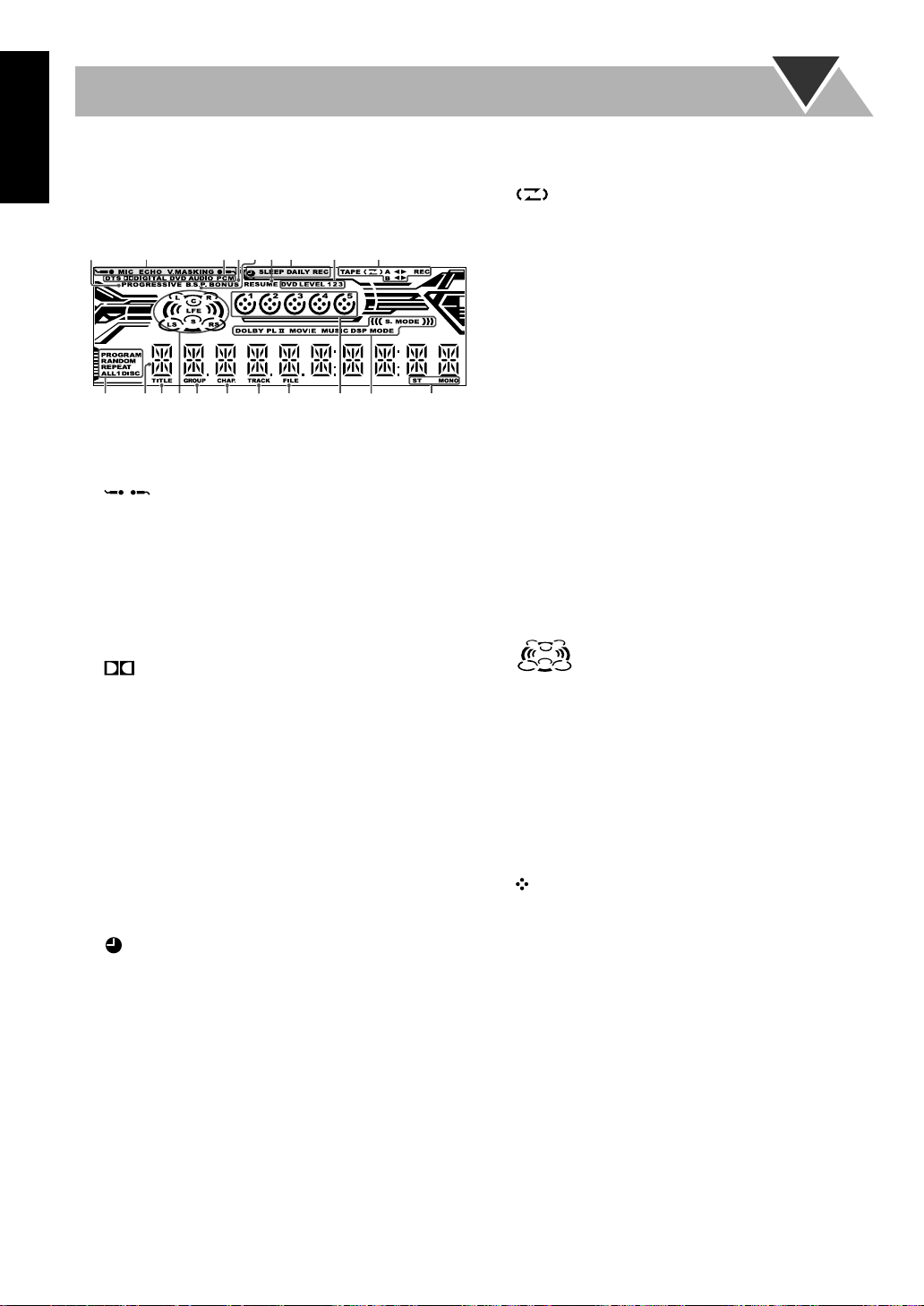

Display Indication .............................................................8

Daily Operations—Playback............................................ 9

Canceling the Demonstration .......................................... 9

Listening to the Radio ................................................... 10

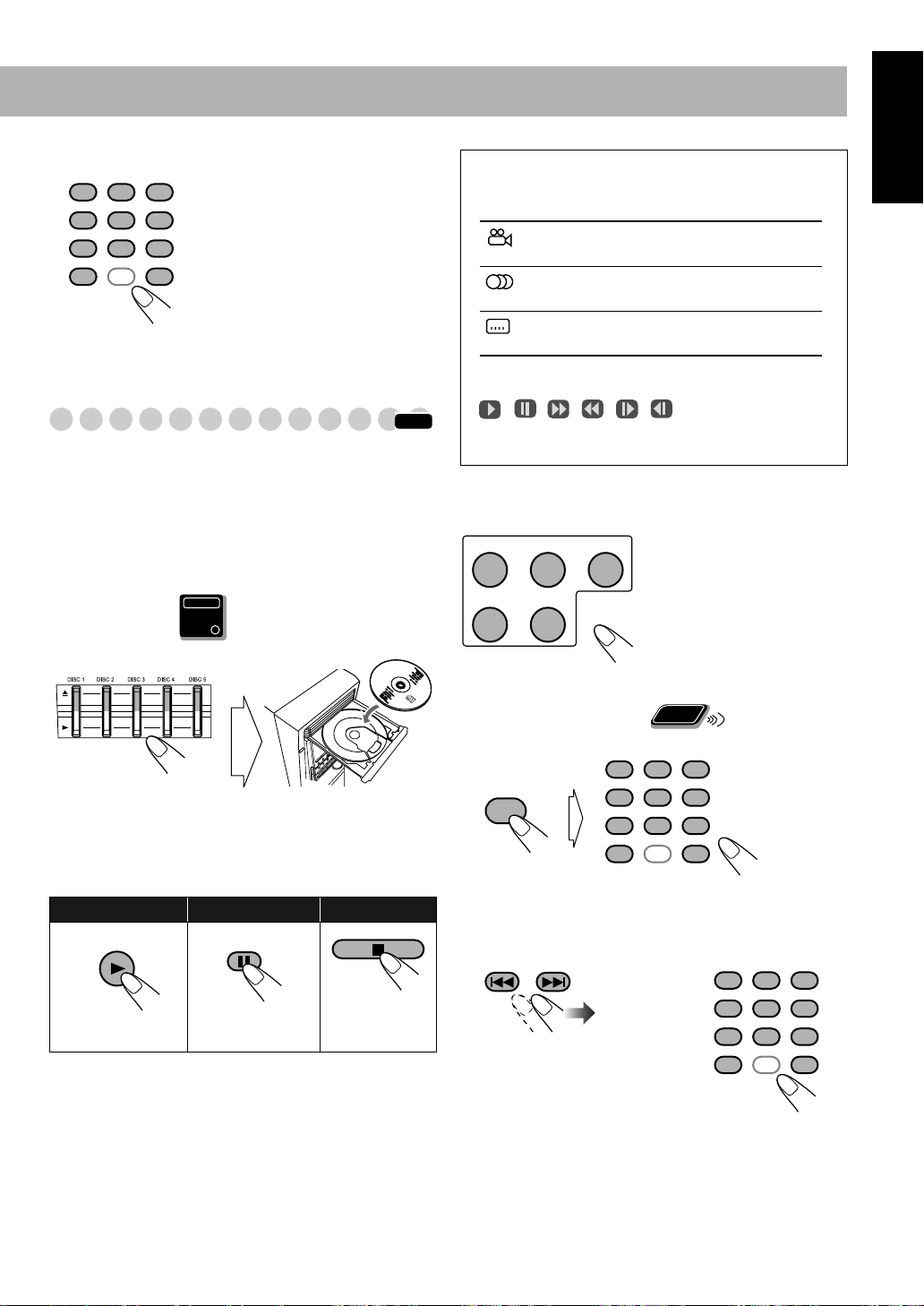

Playing Back a Disc ...................................................... 11

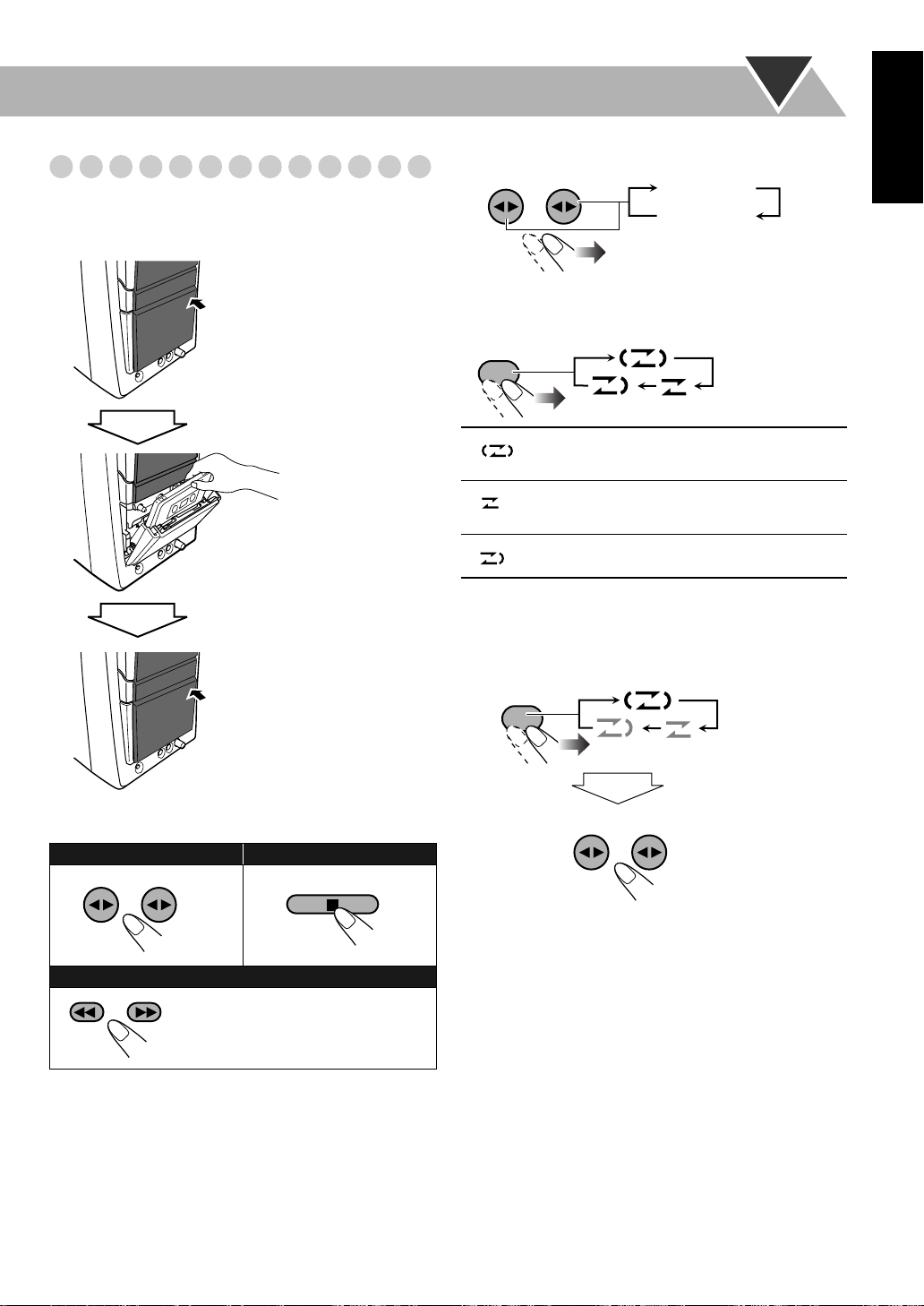

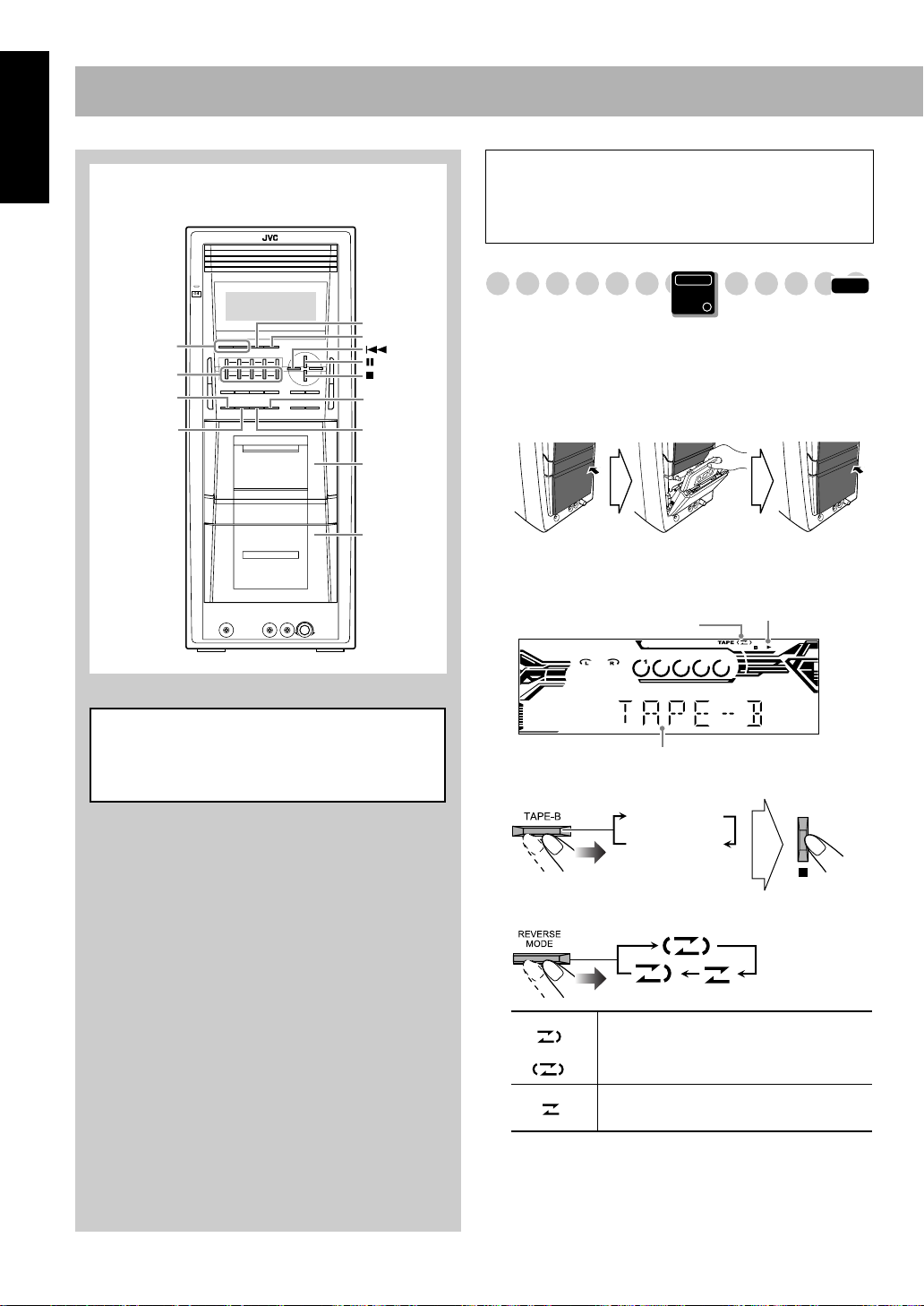

Playing Back a Tape...................................................... 13

Daily Operations—Sound&Other Adjustments

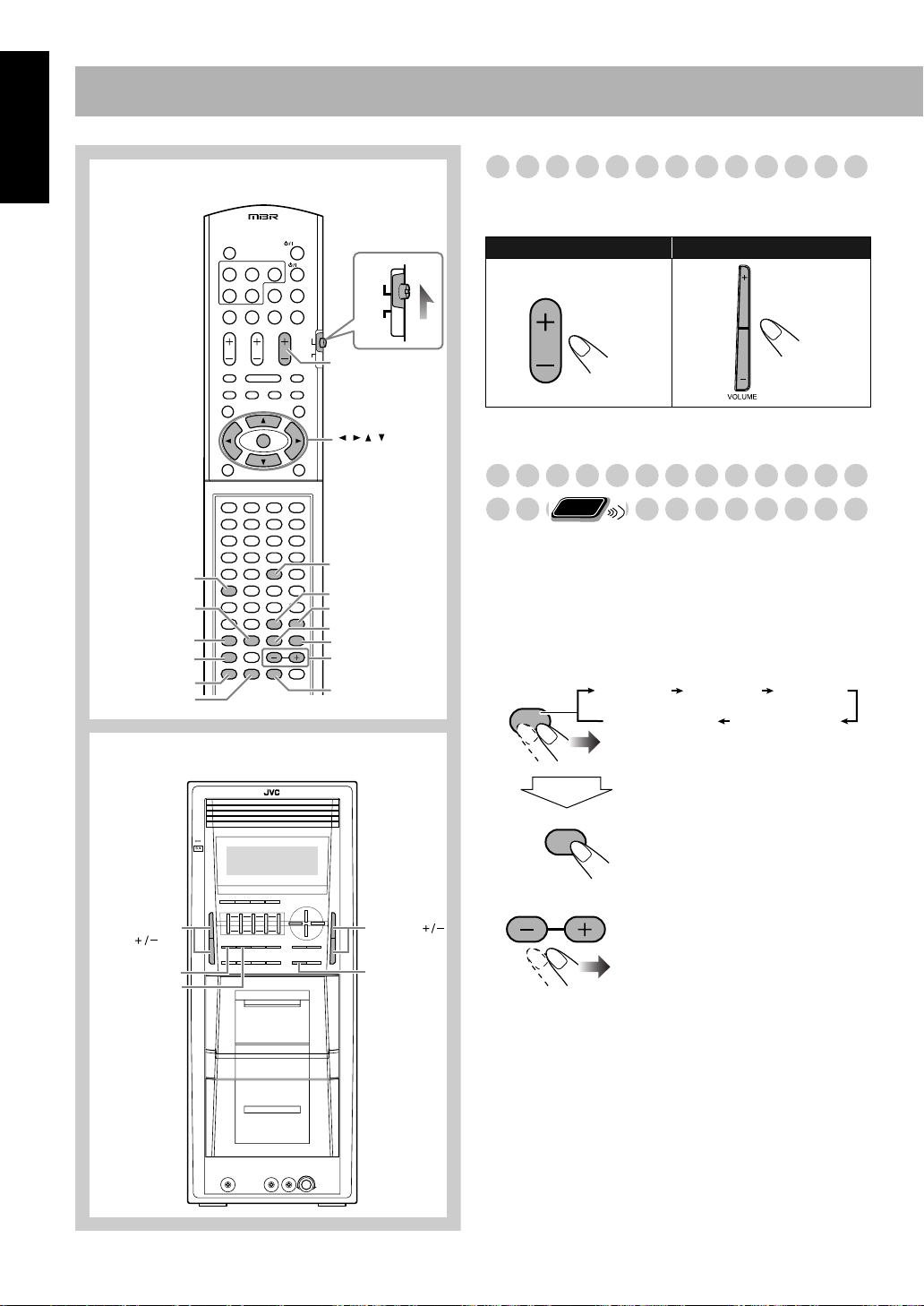

Adjusting the Volume ................................................... 14

Adjusting the Speaker Output Level ............................. 14

Reinforcing the Bass Sound .......................................... 15

Selecting the Sound Modes ........................................... 15

Creating Your Own Sound Modes—User Mode .......... 15

Selecting the Surround Modes ...................................... 16

Presetting Automatic DVD Video

Sound Increase Level ................................................ 16

Changing the Color System and Scanning Mode.......... 17

Changing the Picture Tone............................................ 17

Changing the Display Brightness.................................. 18

Setting the Clock ........................................................... 18

Turning Off the Power Automatically .......................... 18

Unique DVD/VCD Operations....................................... 19

Selecting the Sound Track............................................. 19

Selecting the Subtitle Language.................................... 20

Selecting the View Angle.............................................. 20

Reviewing the Playback Quickly .................................. 20

Selecting Browsable Still Pictures ................................ 20

Playing Back Bonus Group ........................................... 21

Special Picture Playback ............................................... 21

Advanced Disc Operations ............................................. 22

Programming the Playing Order—Program Play.......... 22

Playing at Random—Random Play............................... 23

Playing Repeatedly—Repeat Play ................................ 24

Prohibiting Disc Ejection—Child Lock ........................ 24

On-Screen Disc Operations ............................................ 25

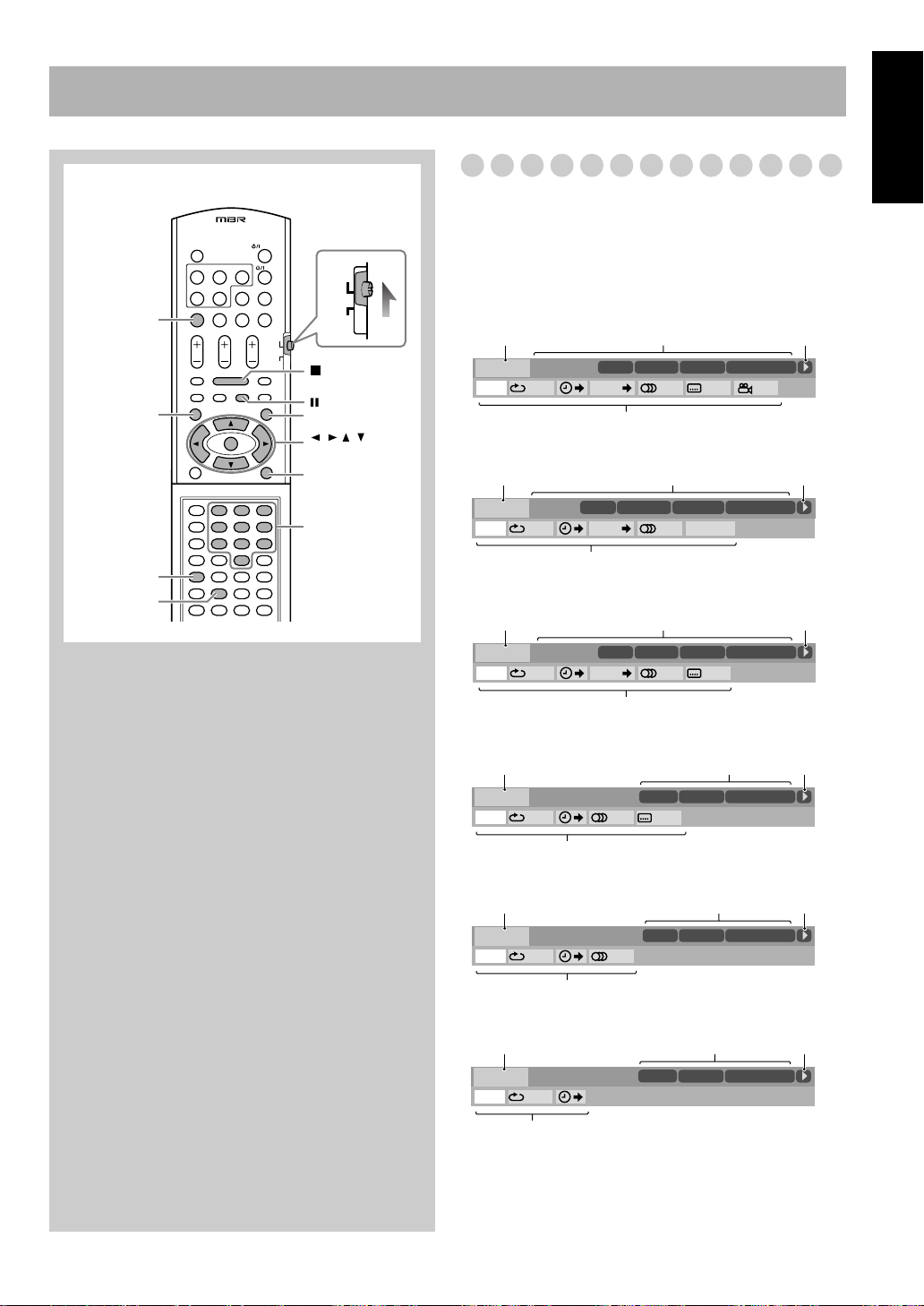

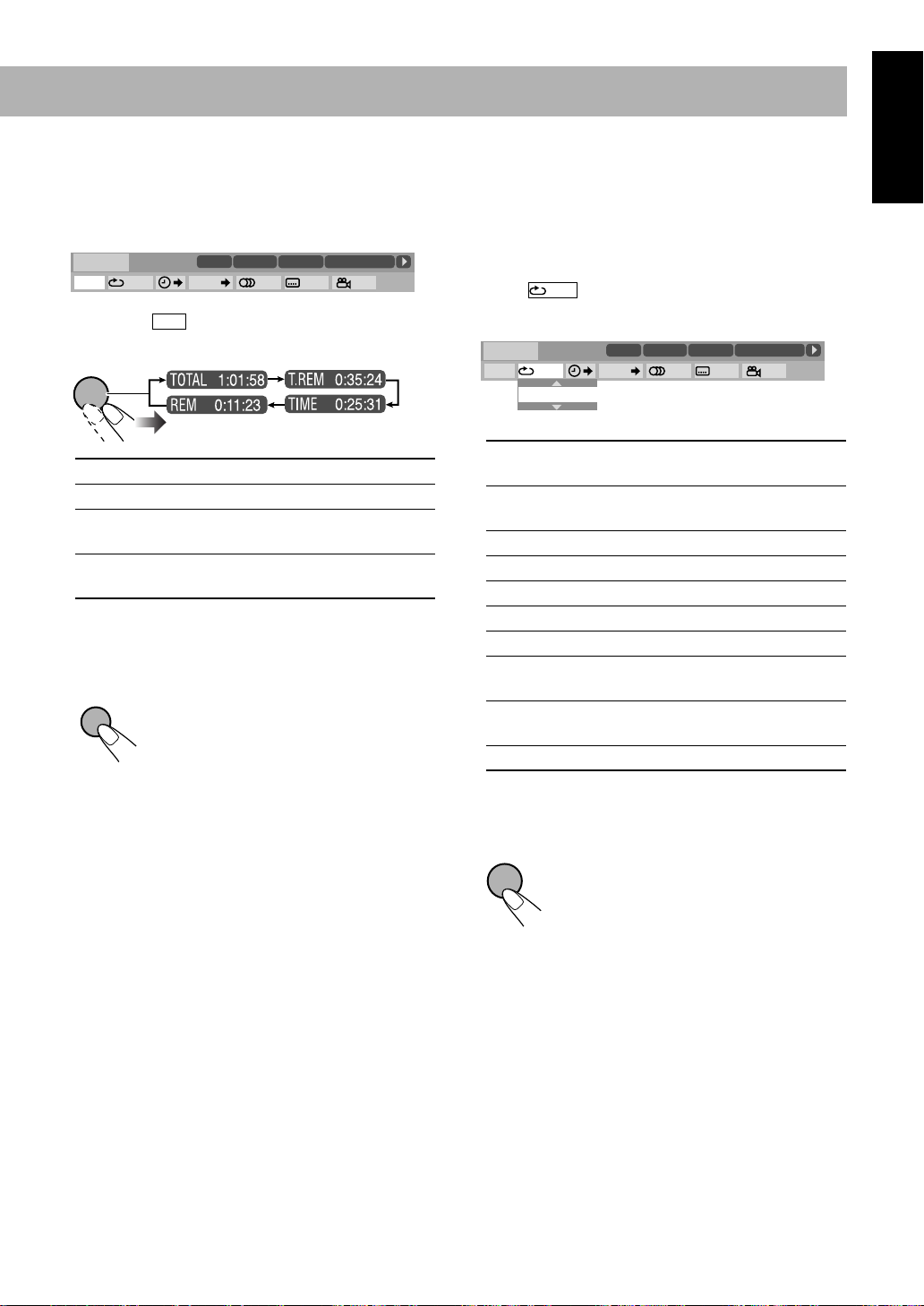

On-screen Bar Information............................................ 25

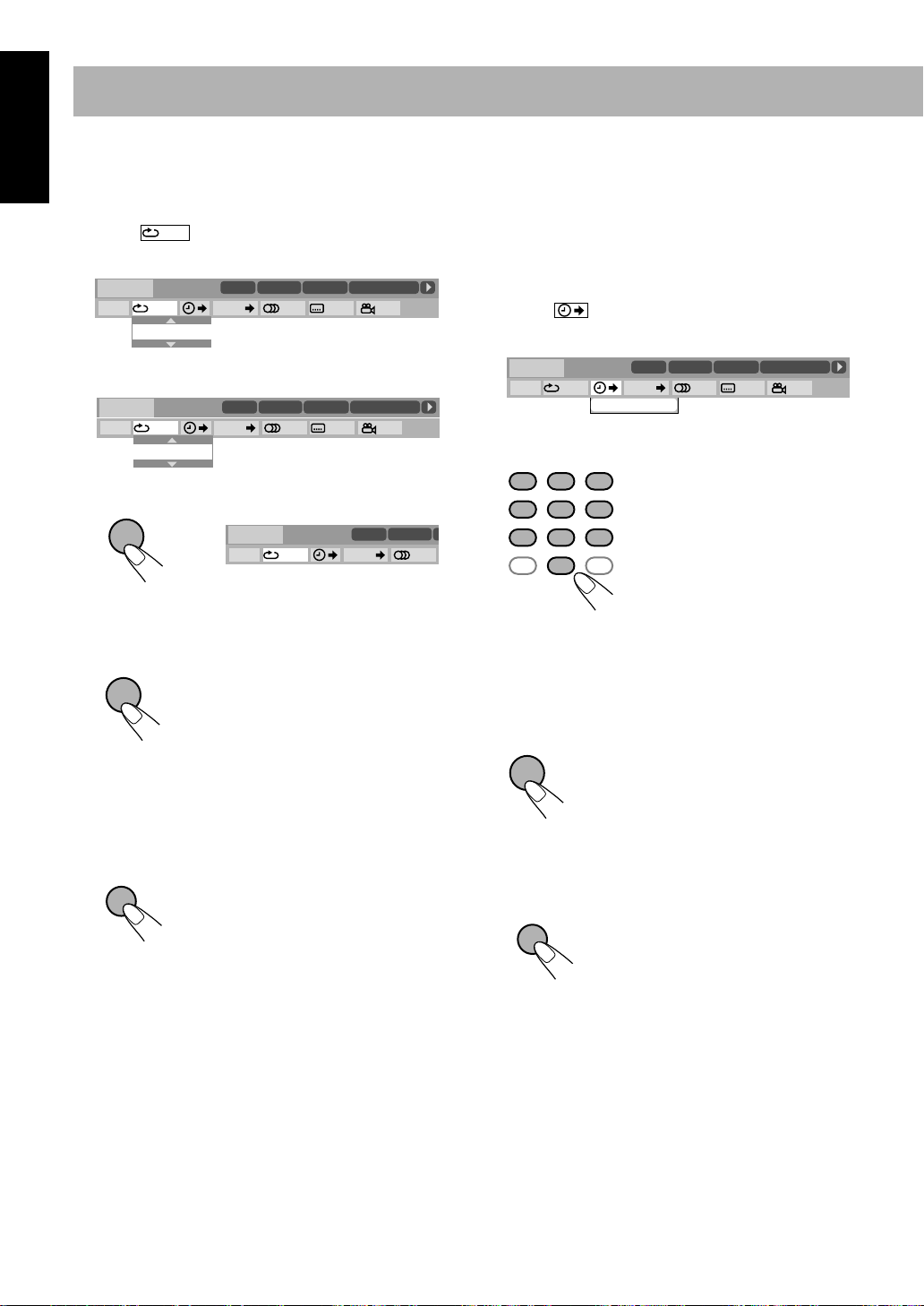

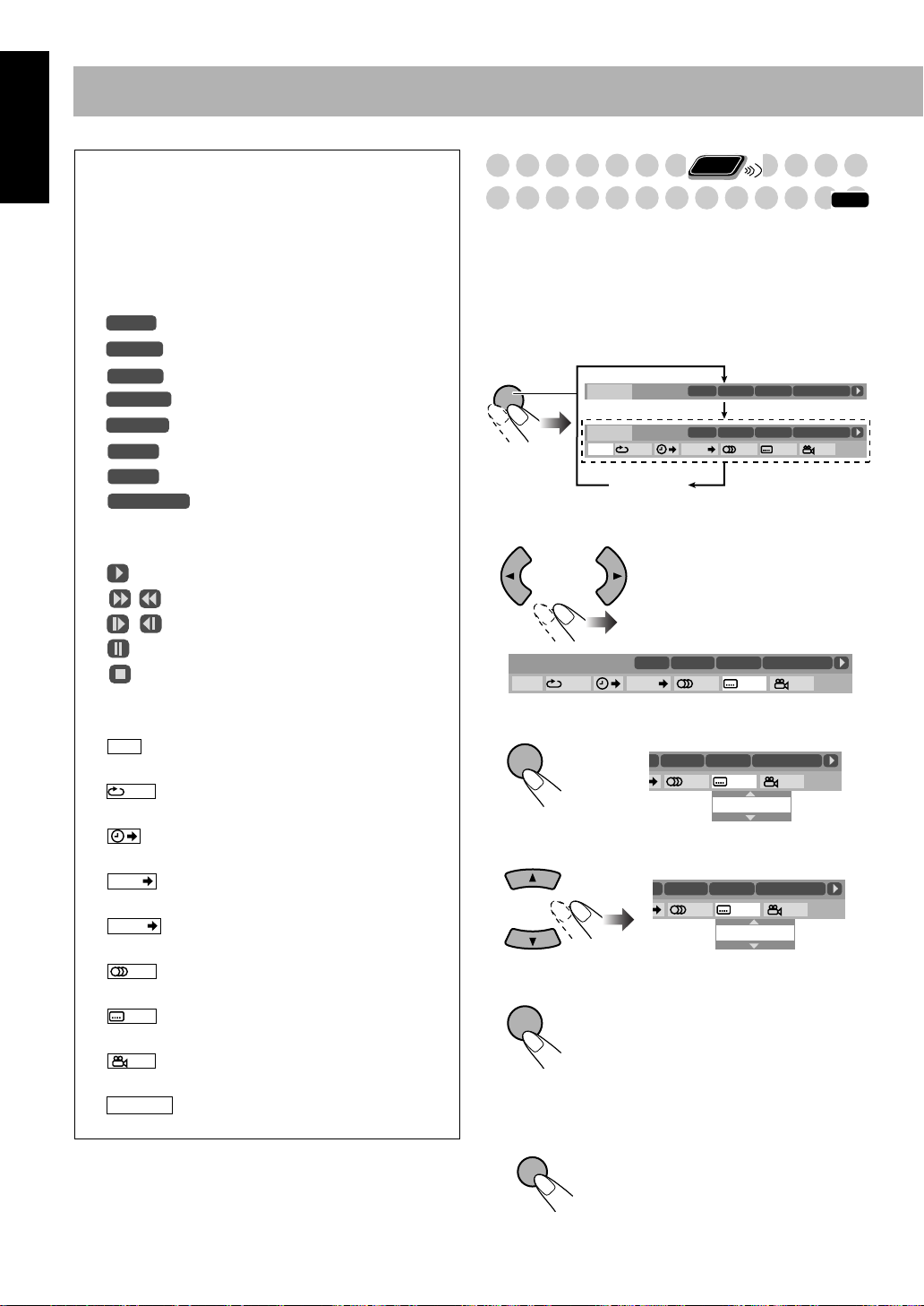

Operations Using the On-screen Bar............................. 26

Operations on the Control Screen ................................. 29

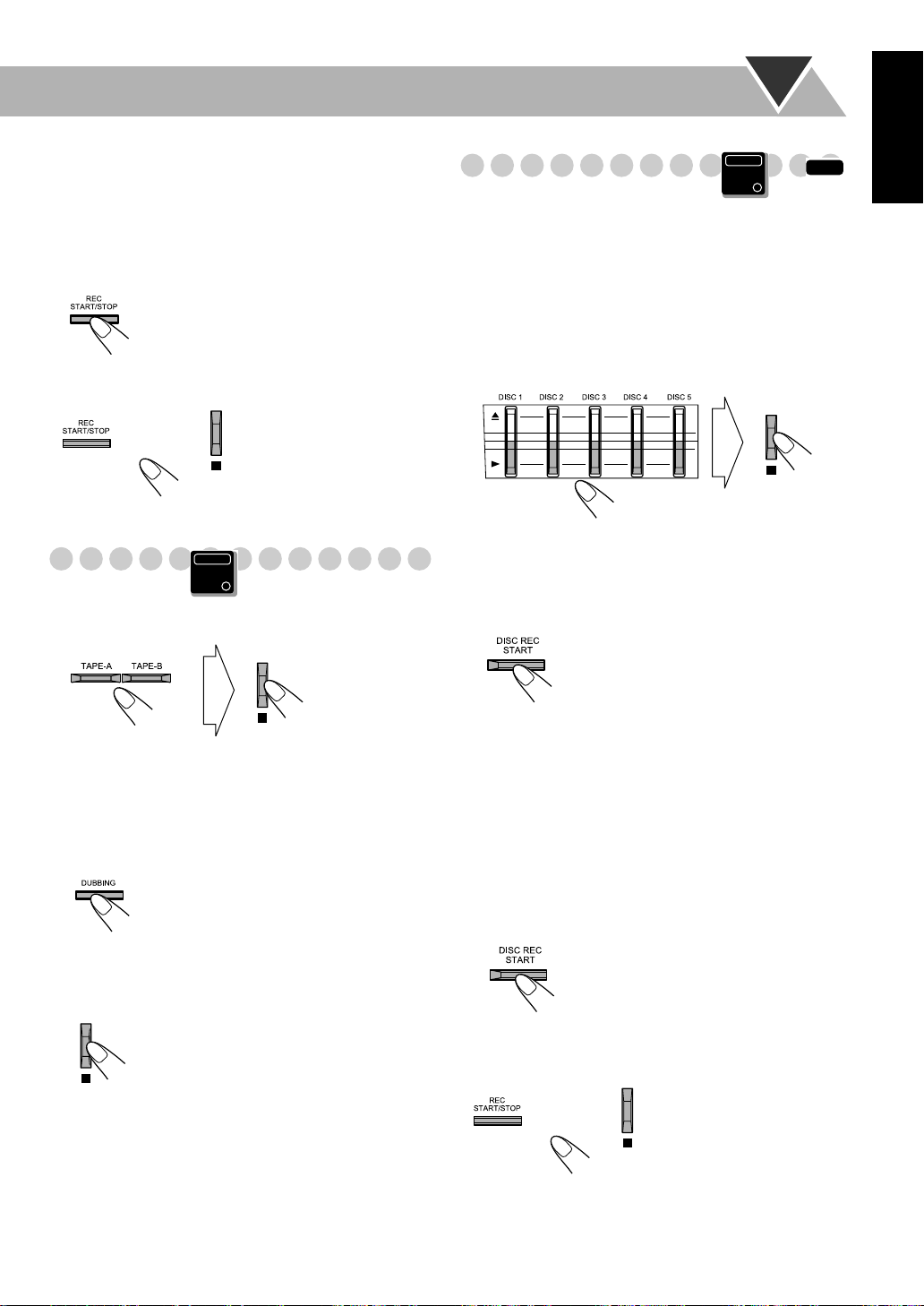

Recording Operations..................................................... 32

Enjoying Karaoke ...........................................................34

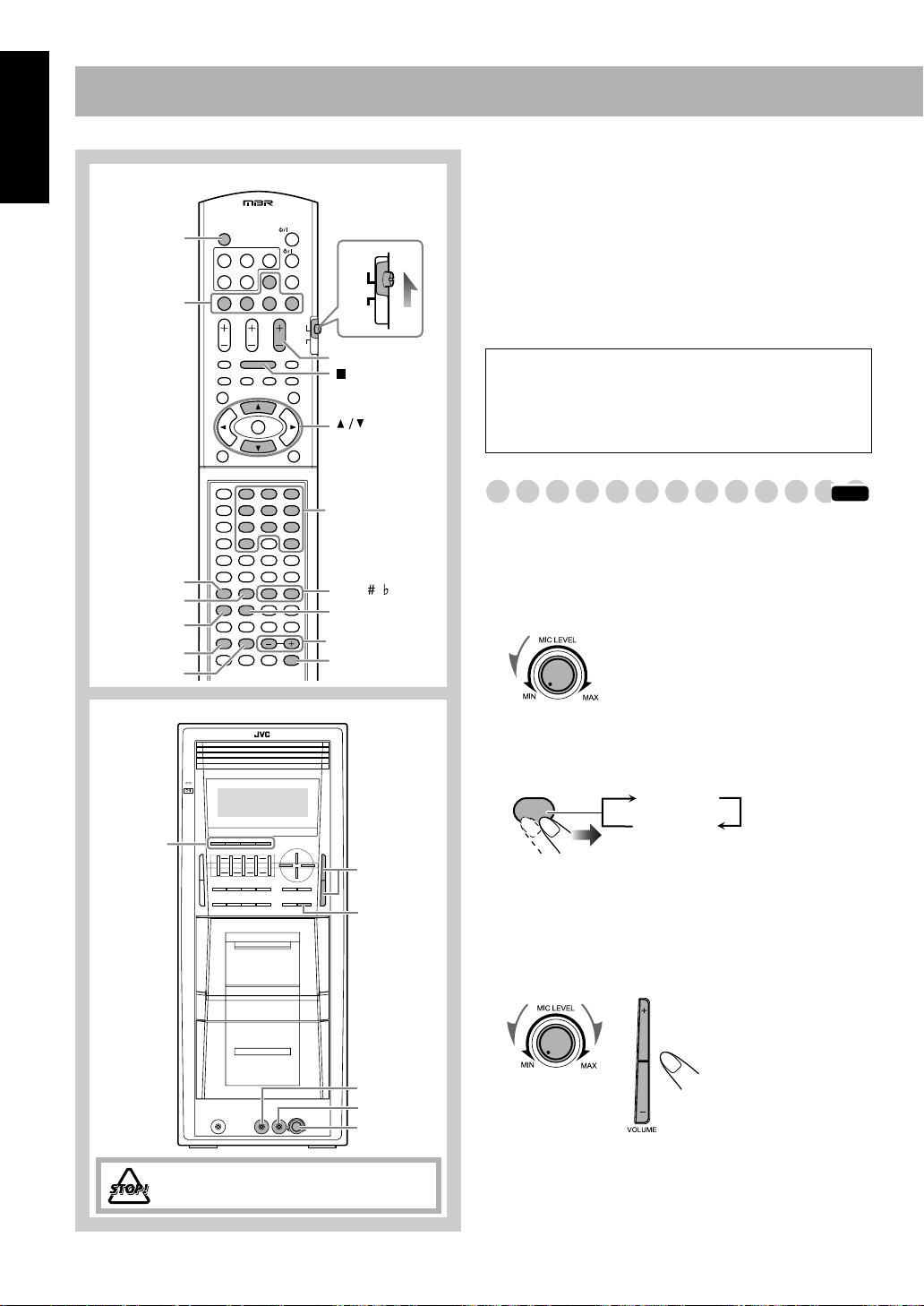

Singing Along (Karaoke) .............................................. 34

Reducing the Lead Vocal—Vocal Masking.................. 35

Scoring Your Karaoke Skill .......................................... 35

Reserving Karaoke Songs—Karaoke Program Play..... 36

Timer Operations............................................................ 37

Setup Menu Operations.................................................. 39

Operating the TV ............................................................41

Additional Information................................................... 42

Troubleshooting ............................................................ 45

Specifications ................................................................ 47

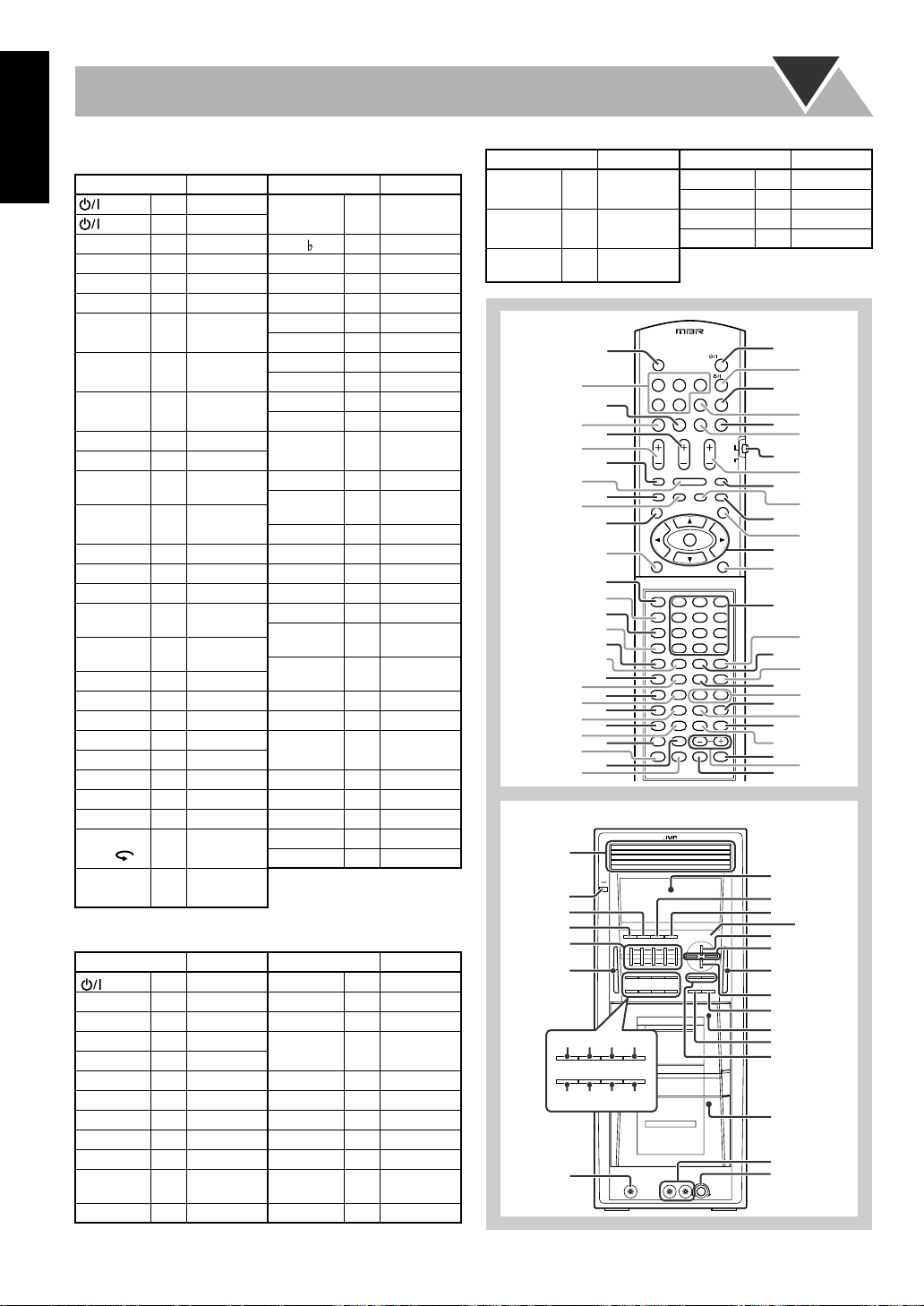

Parts Index ...................................................................... 50

............. 14

English

Main Unit

ONLY

Playable Disc Types

DIGITAL VIDEO

DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

• CD-R/-RW: Recorded in the Audio CD/Video CD/ SVCD formats and MP3/WMA/JPEG files.

• DVD-R: Recorded in the DVD Video format.

• DVD-RW: Recorded in the DVD Video format or the Video Recording (DVD-VR) format.

• DVD-RAM: Recorded in the Video Recording (DVDVR) format.

In addition to the above discs, this system can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD+R, DVD+RW, CD-I (CD-I Ready), Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

• In this manual, “file” and “track” are interchangeably used for MP3/WMA/JPEG operations.

Caution for DualDisc playback:

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

About color system

This System accommodates both NTSC and PAL system and can play back discs recorded with either system. To change the color system, see page 17.

Note on Region Code

This System can play back only DVD Videos whose Region Code numbers include “3.”

EX.:

INFO

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays.

• For disc playback, you can change the initial setting to your preference. See “Setup Menu Operations” on page 39.

If “ ” appears on the TV screen when you press a button,

the disc cannot accept the operation you have

tried to do.

How to Read This Manual

• Button and control operations are explained as listed in the table below.

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some information).

Indicates that you press the button

repeatedly

selected.

Indicates that you press one of the buttons.

Indicates that you

sec.

for a specified period. The number inside the arrow indicates the period of press (in the example, 2 seconds).

Indicates that you turn the control toward the specified direction(s).

Remote ONLY

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the main unit.

INFO

briefly.

briefly and

until an option you want is

press and hold

the button

Audio formats

The System can play back the following digital audio formats.

•

LPCM

(Linear PCM),

DTS

(Digital Theater Systems),

Packing)

DIGITAL

MLP

(Dolby Digital),

(Meridian Lossless

Connections

Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT directly to the video input of your TV. Connecting VIDEO OUT to a TV via a VCR may interfere with your viewing when playing back a copyprotected disc. Your viewing may be interfered when connecting VIDEO OUT to an integrated TV/VCR system.

CA-DXT9

~ From the video input of TV/monitor

See page 5.

Ÿ From the digital input of digital audio

component such as CD recorder

See page 5.

! From the analog audio output of auxiliary

equipment (VCR, etc.)

See page 5.

⁄ From AM/FM antenna

See page 5.

Supplied accessories

English

• FM antenna (x1)

• AM loop antenna (x1)

• Composite video cord (x1)

• Remote control (x1)

• Batteries (x2)

• AC plug adapter (x1) If any item is missing, consult your dealer immediately.

@ From the speakers

See page 6.

¤ Voltage selector

Before plugging in, confirm the position the voltage selector points at. See page 7.

# To a wall outlet

Plug the AC power cord only after all connections are complete.

• If the wall outlet does not match the AC plug, use the supplied AC plug adapter.

English

CA-DXT7

~ From the video input of TV/monitor

See page 5.

Ÿ From the digital input of digital audio

component such as CD recorder

See page 5.

! From the analog audio output of auxiliary

equipment (VCR, etc.)

See page 5.

⁄ From AM/FM antenna

See page 5.

@ From the speakers

See page 6.

¤ Voltage selector

Before plugging in, confirm the position the voltage selector points at. See page 7.

# To a wall outlet

Plug the AC power cord only after all connections are complete.

• If the wall outlet does not match the AC plug, use the supplied AC plug adapter.

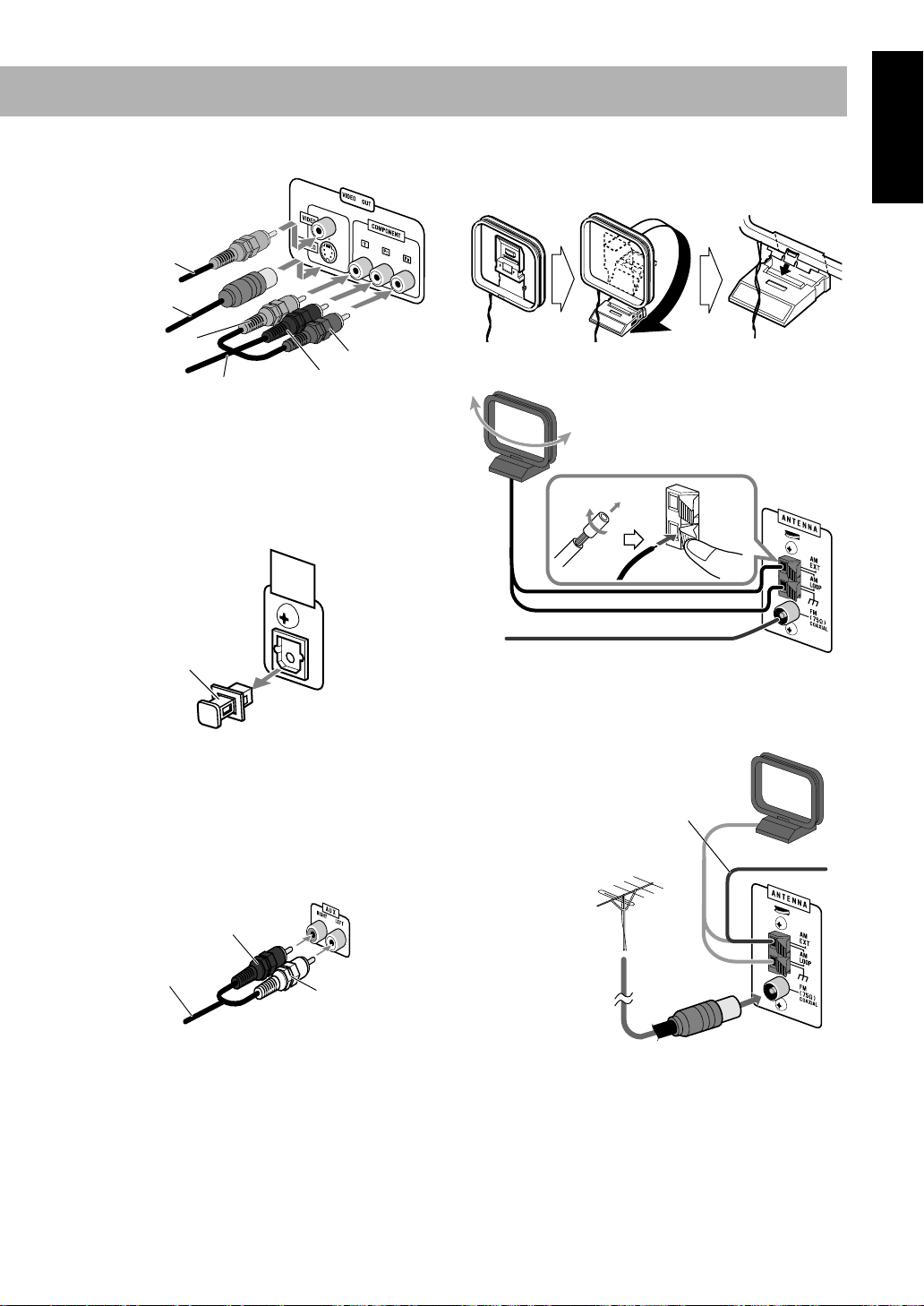

TV/monitor

Composite video

cord (supplied)

S video cord

(not supplied)

⁄

AM/FM antenna

To assemble the AM loop antenna

English

Green

Component video cord (not supplied)

• To select progressive scanning mode (see page 17), use COMPONENT jacks.

• Connect the VIDEO jack, S-VIDEO jack, or COMPONENT jacks whichever you want to use.

Digital audio component

OPTICAL DIGITAL OUTPUT

Protective cap

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu correctly according to the connected digital audio equipment (see page 40). If setting is incorrect, loud noise may be generated causing damage to the speakers.

Auxiliary equipment

Red

Blue

To connect AM/FM antenna

AM loop antenna (supplied)

Turn it until the best reception is obtained.

FM antenna (supplied)

Extend it so that you can obtain the best reception.

For better AM/FM reception

AM loop antenna (supplied)

Keep it connected.

Vinyl-covered wire (not supplied)

Extend it horizontally.

Red

Stereo audio cord (not supplied)

White

FM outdoor antenna (not supplied)

• Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 connector (IEC or DIN45325).

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

Ω

wire with coaxial type

English

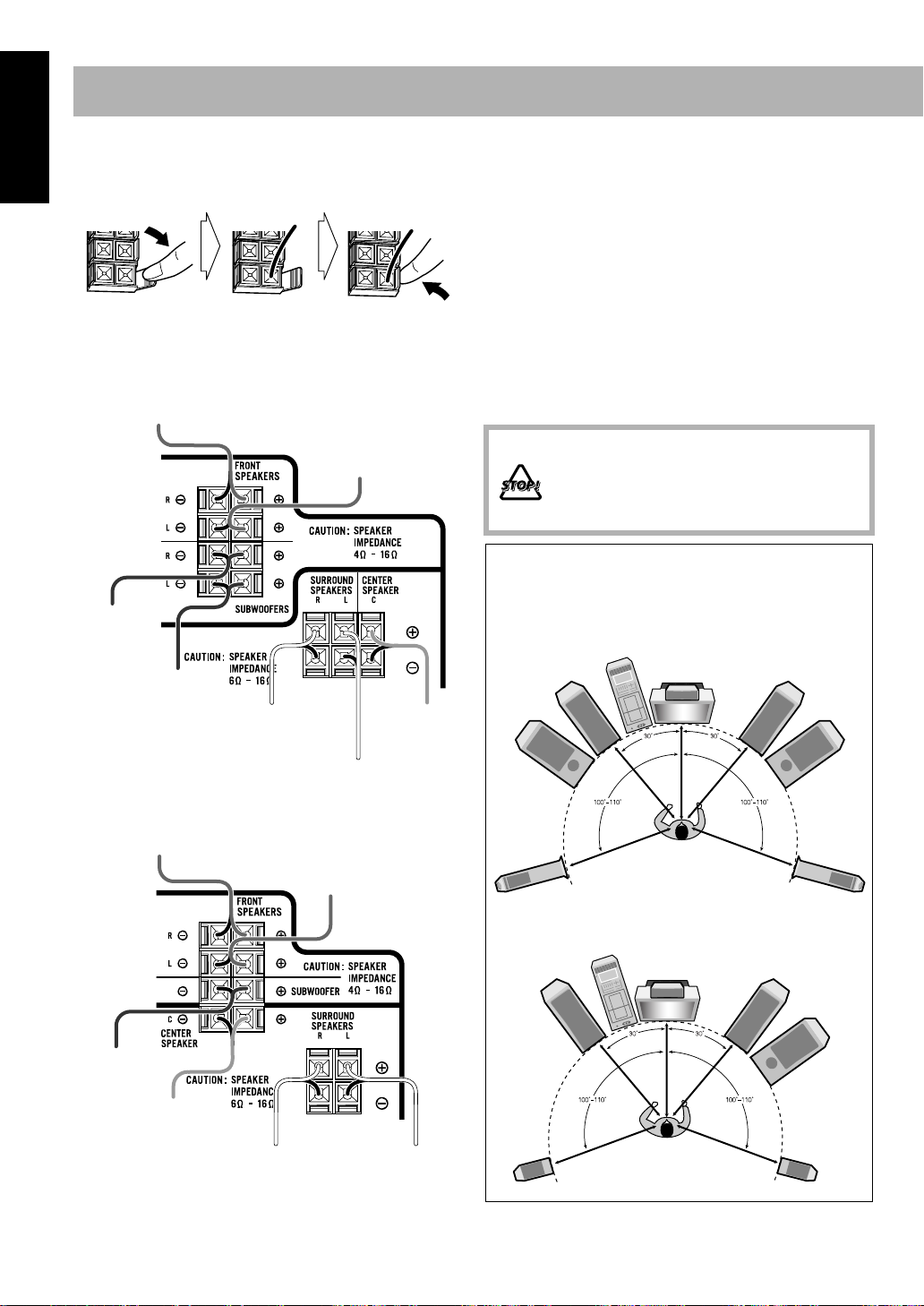

Speakers

To connect the speaker cords

• When connecting the speaker cords, match their polarity with that of the speaker terminals: blue/red/green/white/ gray to (+) and black to (–).

For CA-DXT9

From right front speaker (blue/black)

From left front speaker (blue/black)

From right subwoofer (red/black)

From left subwoofer (red/black)

From right surround speaker (white/black)

From left surround speaker (white/black)

For CA-DXT7

From right front speaker (blue/black)

From left front speaker (blue/black)

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the System.

• The front and center speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers. – When placing the speakers near a TV set, turn off the

TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s

main power switch again. Some TVs may still be affected even though you have followed the above instruction. If this happens, move the speakers away from the TV.

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

Speaker layout

To enjoy multi-channel sound, locate the speakers as follows. If you cannot locate like this, adjust the speaker setting by using the Setup menu (see page 40).

For CA-DXT9

From center speaker (green/black)

From subwoofer (red/black)

From center speaker (green/black)

From right surround speaker (gray/black)

For CA-DXT7

From left surround speaker (gray/black)

To remove the speaker grilles of the front speakers

Holes

Projection

Preparing the remote control

When using the remote control,

remote control toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx.

R6(SUM-3)/AA(15F)

5 m) may be shorter.

English

point the top of the

To adjust the voltage selector

Use a screwdriver to rotate the voltage selector so that the voltage mark is pointing at the same voltage as where you are plugging in the unit. (See also the back cover page.)

Voltage mark

DO NOT plug in before setting the voltage selector and all connection procedures are complete.

Speaker grille

• Dispose of batteries in the proper manner, according to federal, state, and local regulations.

DO NOT recharge, short, disassemble or heat the battery or dispose of it in a fire.

Display Indication

English

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

13289

ewpq

PROGRESSIVE indicator

• Lights when the progressive scanning mode is selected.

Karaoke operation indicators

•: lights when the Mic Mixing Mode is activated;

flashes when scoring function is in use.

• MIC: lights when the Mic Mixing Mode is activated; flashes when scoring function is in use.

• ECHO: lights when the echo effect is activated.

• V.MASKING: lights when the Vocal Masking Mode is activated.

Source signal indicators

• DTS: lights when a source signal is DTS.

• DIGITAL: lights when a source signal is Dolby Digital.

• DVD: lights when DVD Video is detected.

• DVD AUDIO: lights when DVD Audio is detected.

• PCM: l

BONUS indicator

• Lights when DVD Audio with bonus group is detected

B.S.P. indicator

• Lights when browsable still pictures on DVD Audio are

RESUME indicator

• Lights when Resume is activated (see page 40).

Timer indicators

•: lights when Daily Timer or Recording Timer stands

• SLEEP: lights when the Sleep Timer is activated.

• DAILY: lights when the Daily Timer stands by; flashes

• REC: lights when the Recording Timer stands by; flashes

DVD LEVEL 1/2/3 indicators

• Lights to indicate the DVD Video increase level.

ights when a source signal is linear PCM.

(see page 21).

available (see page 20).

by or is working or being set.

while working or being set.

(see pages 34 to 36)

Tape operation indicators

• TAPE: lights when a tape is loaded in either deck A or B.

• (Reverse Mode): lights to indicate the current Reverse Mode (see page 13).

• A: lights when a tape is in the deck A.

• B: lights when a tape is in the deck B.

•

2 3

(tape direction): – Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding a tape.

• REC: lights while recording.

Disc operation indicators

• PROGRAM: lights when Program Play is activated.

• RANDOM: lights when Random Play is activated.

• REPEAT: lights when Repeat Play is activated.

• ALL DISC: lights when All Disc Repeat is activated.

•1 DISC: lights when One Disc Repeat is activated.

• 1: lights when One Track/Chapter/Step Repeat is activated.

Main display

TITLE indicator

• Lights to indicate the title number for DVD Video.

Audio signal indicators

• L/R/C/LS/RS/LFE: Lights to indicate the incoming audio channel signals.

•:Lights to indicate the speakers from which

sound is emitted.

GROUP indicator

• Lights to indicate the group number.

CHAP. indicator

• Lights to indicate the chapter number.

TRACK indicator

• Lights to indicate the track number.

FILE indicator

• Lights to indicate the file number.

Disc indicators

•1 – 5: lights to indicate the current disc tray.

•: lights when a disc is detected on the disc tray; rotates during playback or paused.

Sound Mode/Surround Mode indicators

• DOLBY PL II MOVIE/MUSIC: lights when Dolby Pro Logic Modes (Movie or Music) is activated.

• S.MODE: lights when one of the Sound Modes Modes

is activated.

• DSP MODE: lights when one of the DSP Modes is activated.

;

FM reception indicators

• ST (stereo): lights while an FM stereo station with sufficient signal strength is tuned in.

• MONO: lights while receiving an FM stereo station in monaural.

(see page 15)

/Surround

Daily Operations

—Playback

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

DISC 1 –

DISC 5

AUDIO

FM MODE /

TOP MENU

GROUP/TITLE

SET

123

456

789

10 0 +10

AUDIO

AUX

////

ENTER

10 keys

RETURN REVERSE

MODE

Turn on the power.

The STANDBY lamp on the main unit goes off.

• Without pressing AUDIO, the System also turns on by pressing one of the source select buttons in the next step.

Select the source.

Playback automatically starts if the selected source is ready to start playback.

• If you press AUX, start playback source on the external component.

Adjust the volume.

[

Operate the target source as explained later.

To turn off (stand by) the system

AUDIO

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers.

connecting or putting the headphones.

• Disconnecting the headphones will activate the speakers again.

The STANDBY lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

Be sure to turn down the volume before

DO NOT turn off (stand by) the System with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

English

DVD/CD TAPE-A TAPE-B FM/AM

AUDIO VOL

Canceling the Demonstration

sec.

DEMO OFF

DEMO START

To start the demonstration,

select DEMO START.

Main Unit

ONLY

English

SET

Listening to the Radio

To select the AM tuner interval spacing

Some countries space AM stations 9 kHz apart, and other countries use 10 kHz spacing.

Select “AM,” then turn off (stand by) the System.

FM AM

Select the AM tuner interval spacing.

To select 9 kHz:

(holding then...)

To select 10 kHz:

(holding then...)

To select the band (FM/AM)

FM/AM

FM AM

Main Unit

ONLY

INFO

Remote

If the received FM station is hard to listen

FM MODE

The MONO indicator lights on the display. Reception will improve though

ONLY

stereo effect is lost—monaural reception mode.

To restore the stereo effect,

press the button again (the MONO indicator goes off).

Remote

To preset stations

ONLY

You can preset 30 FM and 15 AM stations.

• To cancel the operation during procedure, press CANCEL.

Tune in to a station you want to preset.

• You can also store the monaural reception mode for FM preset stations if selected.

Start presetting.

Select a preset number.

123

456

789

10 0 +10

Examples:

To select preset number 5, press 5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then 10.

• You can also use +/– buttons.

To tune in to a station

While FM or AM is selected...

sec.

Increases the frequencies.

Decreases the frequencies.

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency search stops.

• When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

press either button.

Store the station.

To tune in to a preset station

Select the band (FM or AM).

FM/AM

FM AM

Select a preset number.

123

456

789

10 0 +10

Examples:

To select preset number 5, press 5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then 10.

• You can also use 4/¢

buttons on the remote control or PRESET +/– buttons on the main unit.

Playing Back a Disc

INFO

Before operating a disc, be familiar how a disc is recorded.

• DVD Video comprises of “ “

Chapters,

“

Groups

“

Groups

comprise of only “

” DVD Audio/MP3/WMA comprise of ” which includes “ ” which includes “

Tracks

Titles

” which includes

” JPEG comprises of

Tracks, Files,

” and CD/SVCD/VCD

.”

• For JPEG playback, see page 30.

To insert discs

Main Unit

ONLY

On-screen guide icons

• During disc playback, the following icons may appear for a while on the TV screen:

Appears at the beginning of a scene containing multi-angle views.

Appears at the beginning of a scene containing multi-audio languages.

Appears at the beginning of a scene containing multi-subtitle languages.

• The following icons will be also shown on the TV screen to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 40.

To select a disc

DISC 1 DISC 2

DISC 4 DISC 5

DISC 3

Playback starts.

English

• When using an 8 cm disc, place it on the inner circle of the disc tray.

To close the disc tray,

• If you press 3

for the same tray, the disc tray closes

press the same 0

again.

automatically and playback starts.

To start:

DVD/CD

Playback of the current disc starts.

While playing DVD/SVCD/VCD/MP3:

To pause: To stop:

FM MODE

To release it, press DVD/CD 3

This System can

store the stop point, and when you start playback again by pressing DVD/CD 3

, it starts from the position where you have stopped—Resume Play. (RESUME indicator lights up when you stop playback.)

press 7

To stop completely while Resume is activated,

twice. (To cancel Resume, see “RESUME” on page 40.)

To select a title/group

While playing a disc...

123

GROUP/TITLE

456

789

10 0 +10

To select a chapter/track

While playing a disc...

• First time you press

, you can go back to the beginning of the current chapter/track.

Remote ONLY

123

456

789

10 0 +10

English

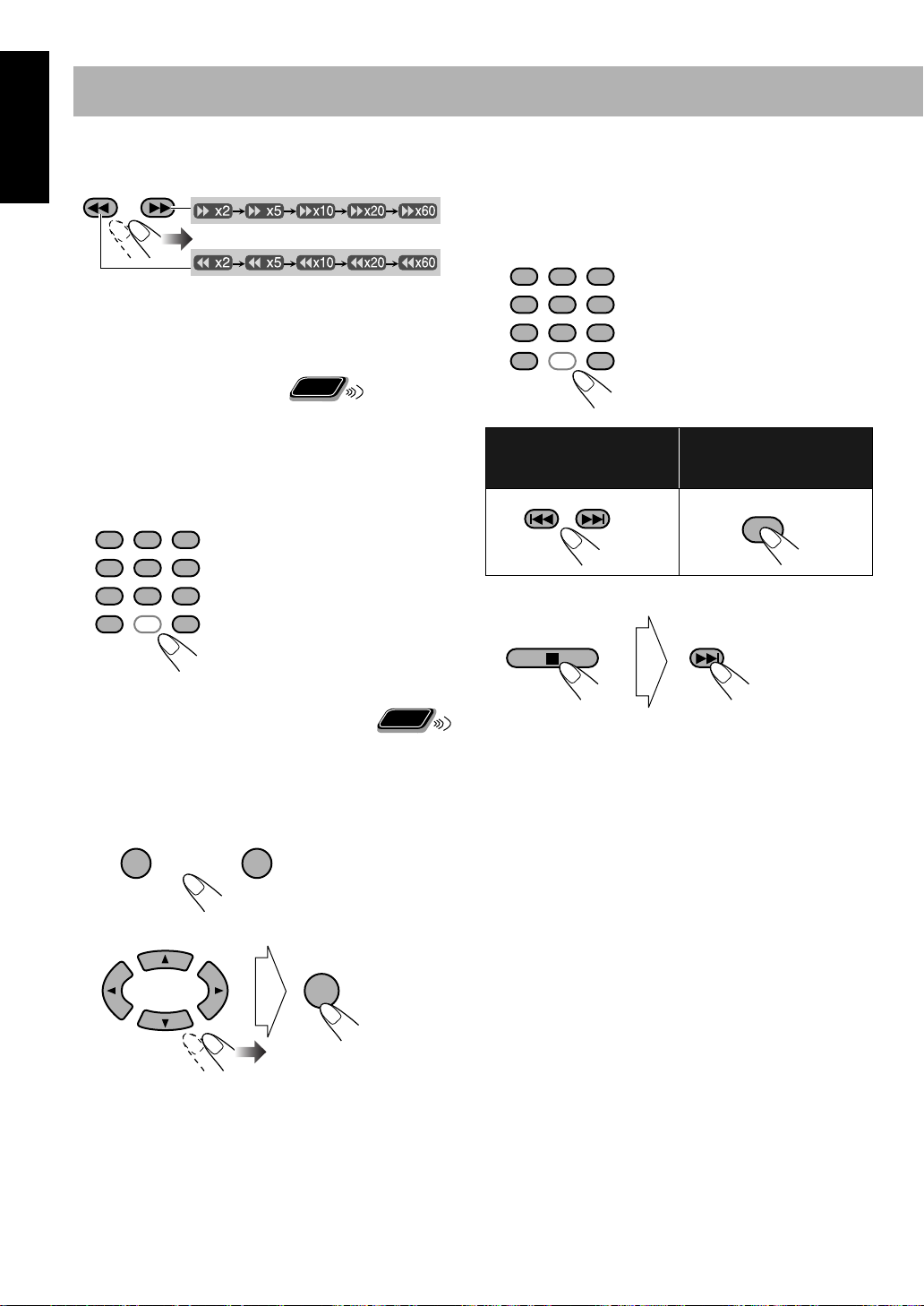

To locate a particular portion

While playing a disc except MP3/WMA...

For SVCD/VCD with PBC

While playing a disc with PBC, “PBC” appears on the display instead of the playing time. When disc menu appears on the TV screen, select an item on the menu. Playback of the selected item starts.

• No sound comes out while searching on DVD Video/ SVCD/VCD.

To return to normal playback,

o select

an item directly

press DVD/CD 3

Remote

ONLY

You can select a title/chapter/track directly and start playback.

• For DVD Video, you can select

playback playback

, while you can select .

123

456

789

10 0 +10

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

To play back by using the disc menu

a title before starting

a chapter after starting

Remote ONLY

You can operate the disc play using the disc menu.

123

456

789

10 0 +10

To move to the next or previous page of the

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

To return to the previous menu:

current menu:

RETURN

To cancel PBC

You can also cancel PBC by pressing the 10 keys to start playback when disc menu is not shown on the TV screen.

For DVD Video/DVD Audio

Show the disc menu.

TOP MENU/PG MENU/PL

Select an item on the disc menu.

ENTER

• On some discs, you can also select items by entering the number using the 10 keys.

To reactivate PBC, press 7

, then press 4

Playing Back a Tape

TAPE-A TAPE-B

To insert a tape

You can play back type I tapes.

• The use of C-120 or longer tape is not recommended.

To change the tape running direction

TAPE-A TAPE-B

3 (

2 (

forward

reverse

English

)

Push

Insert

To reverse the tape automatically

REVERSE

MODE

Tape is reversed, and playback repeats until you stop it.

Tape is not reversed. When the current side of the tape reaches its end, playback stops.

Tape is reversed once.

To playback the both decks A and B continuously —Relay Play

When the cassettes are set in the both decks...

REVERSE

MODE

To start:

To rewind tape:

TAPE-A TAPE-B

To stop:

You can start playback of either deck A or B.

Daily Operations

—Sound&Other Adjustments

English

Remote Control

DVD LEVEL

EFFECT

RHYTHM AX

SET

CLOCK/TIMER

SLEEP

Main unit

123

456

789

10 0 +10

AUDIO

AUDIO VOL +/–

////

ENTER

VFP / SCAN MODE

SUB WFR LEVEL CHANNEL LEVEL

SOUND MODE SURROUND MODE +/–

DIMMER

Adjusting the Volume

The volume level can be adjusted in 32 steps (VOLUME MIN, VOLUME 1 – VOLUME 30, and VOLUME MAX).

Remote control:

AUDIO VOL

Main unit:

Adjusting the Speaker Output

Remote

LEVEL

ONLY

(Front left speaker)

(Front right speaker)

FRONT L FRONT R

SURROUND R

(Surround right speaker)

(Center speaker)

CENTER

SURROUND L

(Surround left speaker)

Level

You can adjust the speaker output level from –6 (dB) to +6 (dB).

• You can also use the setup menu to adjust the speaker output level (see page 40).

Select the speaker you want to adjust.

CHANNEL

SUB WOOFER LEVEL

SURROUND

DVD LEVEL

MODE

VOLUME

RHYTHM AX

SET

Adjust the output level.

Repeat steps 1 and 2 to adjust other speakers.

Reinforcing the Bass Sound

Creating Your Own Sound

Remote

ONLY

INFO

English

To adjust the bass level gradually

INFO

You can select the subwoofer level from level 0 (minimum) to level 4 (maximum).

Remote control:

SUB WFR

LEVEL

Main unit:

To emphasize rhythmical feeling—RHYTHM AX

This function emphasizes bass attack feeling.

RHYTHM AX

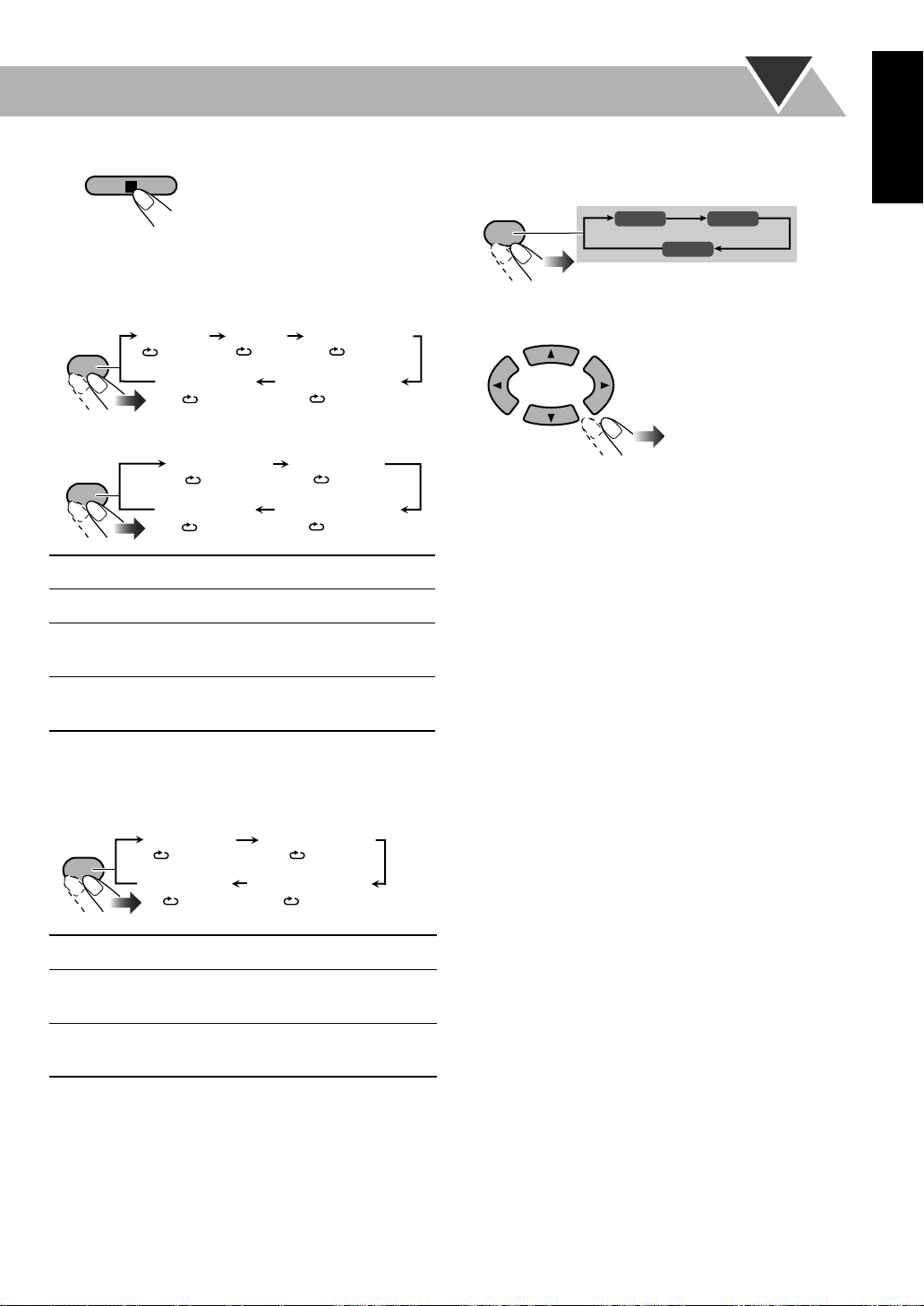

Selecting the Sound Modes

You can select one of the preset Sound Modes.

SOUND

MODE

ROCK

OFF

SEA Modes

POP CLASSIC

Remote ONLY

Modes—User Mode

You can adjust the preset Sound Modes to create your own Sound Modes which suit your taste. The changed settings can be stored as the USER1, USER2 and USER3 Modes.

While the Sound Mode name is shown on the display...

Enter the SEA Control Mode.

SET

Adjust the SEA pattern.

Adjust BASS.

Adjust TREBLE.

SET

• You can adjust the bass and treble level from –5 to +5.

Select one of the User Modes.

FLAT USER1–3

SEA (Sound Effect Amplifier) Modes

ROCK

POP

CLASSIC

User Modes

USER1/2/3

To cancel the Sound Mode,

Boosts low and high frequency. Good for acoustic music (initial setting).

Good for vocal music.

Good for classical music.

Your individual mode stored in memory. See the next column “Creating Your Own Sound Modes—User Mode.”

select “FLAT.”

USER1 USER2 USER3

Store the setting.

SET

• The Sound Mode changes to the one you have stored.

English

Selecting the Surround Modes

• For DVD/CD, TAPE-A, TAPE-B, AUX:

SURROUND

MODE

MUSIC

DANCEALL CH. ST

MOVIE AUTO

HALL

INFO

STADIUM STEREO

Remote

To adjust the DSP effect level

ONLY

When one of the DSP Modes (except for “ALL CH. ST”) is selected...

EFFECT

EFFECT 1 EFFECT 2

EFFECT 3

•

For FM/AM:

SURROUND

MODE

ALL CH. ST

STEREO STADIUM

DSP Modes

ALL CH. ST

DANCE

HALL

STADIUM

Stereo Mode

STEREO

Auto Surround Mode

AUTO

Dolby Pro Logic II Modes

MOVIE

MUSIC

All Channel Stereo; Creates larger stereo sound field using all the connected speakers (initial setting).

Increases resonance and bass.

Adds depth and brilliance to the sound.

Adds clarity and spreads the sound, as in an outdoor stadium.

Canceles the Surround Mode.

• When multi-channel surround signal comes in, multi-channel surround mode is activated.

• When Dolby Surround signal comes in, MOVIE (Dolby Pro Logic II Movie) mode is selected.

• When 2-channel signal comes in, STEREO mode is selected.

Creates 5.1-channel surround field from 2-ch source (suitable for movie source).

Creates 5.1-channel surround field from 2-ch source (suitable for music source).

DANCE HALL

• The initial setting is “EFFECT3.”

Presetting Automatic DVD Video

Sound Increase Level

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume when you change the source.

DVD LEVEL

As the number increases, sound level also increases.

• The initial setting is “DVD LEVEL3.”

DVD LEVEL1 DVD LEVEL2

DVD LEVEL3

Changing the Color System and

Remote

Scanning Mode

ONLY

You can select the video output to match it to the color system of your TV (NTSC or PAL).

• If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting progressive scanning mode.

• You can change the setting only while the disc playback is stopped.

Enter the color system setting mode.

sec.

SCAN MODE

VFP

Select the color system and scanning mode.

INFO

Select a preset picture tone.

NORMAL CINEMA

USER2 USER1

NORMAL

CINEMA

USER1/USER2

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings (see below).

To adjust the picture tone

Select “USER1” or “USER2.”

• Follow steps 1 and 2 above.

Select a parameter you want to adjust.

ENTER

English

PAL

NTSC PROG

NTSC / PAL

NTSC

PAL PROG

NTSC or PAL Interlaced scanning. For a conventional PAL or NTSC TV.

NTSC / PAL PROG

Store the setting.

SET

Changing the Picture Tone

NTSC or PAL Progressive scanning. For a progressive NTSC or PAL TV.

Remote ONLY

While viewing a playback pictures on the TV, you can select the preset picture tone, or adjust it and store your own preference.

To select a preset picture tone

While playing, display VFP setting screen.

SCAN MODE

VFP

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

On the TV screen

GAMMA

Adjust if the neutral color is bright or dark. The brightness of dark and bright portions is maintained (–3 to +3).

BRIGHTNESS

Adjust if the picture is bright or dark as a whole (–8 to +8).

CONTRAST

Adjust if the far and near position is unnatural (–7 to +7).

SATURATION

Adjust if the picture is whitish or blackish (–7 to +7).

TINT

Adjust if the human skin color is unnatural (–7 to +7).

SHARPNESS

Adjust if the picture is indistinct (–8 to +8).

Adjust the parameter.

ENTER

Repeat steps 2 to 3 to adjust other parameters.

To erase the VFP screen,

press VFP again.

English

Changing the Display Brightness

DIMMER

DIMMER 1 DIMMER 2

DIMMER OFF

(Canceled)

DIMMER 1

DIMMER 2

* Except for the RHYTHM AX and KARAOKE SCORING

lamps.

Setting the Clock

Without setting the build-in clock, you cannot use any timers.

• To exit from the clock setting, press CLOCK/TIMER as required.

• To correct a misentry during the process, press CANCEL. You can return to the previous step.

Activate clock setting mode.

CLOCK/

TIMER

Dims the display and the illumination on the main unit*.

Dims the display (same as DIMMER 1) and turns off the illumination on the main unit*.

Remote ONLY

INFO

Remote

Turning Off the Power Automatically

ONLY

With Sleep Timer, you can fall asleep while listening to music.

Specify the time (in minutes).

SLEEP

Wait until the set time goes off.

10 20 30 60 90

Canceled

120150

To check the time remaining until the shut-off time

SLEEP

• If you press the button repeatedly, you can change the shut-off time.

• If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.

Adjust the hour, then minute.

SET

Now the built-in clock starts working.

Unique DVD/VCD Operations

Remote Control

DVD/CD 3

GLANCE

BACK

AUDIO

SUB TITLE

ANGLE

ZOOM

PA GE

123

456

789

10 0 +10

AUDIO

////

ENTER

10 keys

Remote

Selecting the Sound Track

For DVD Video:

While playing back a chapter containing

ONLY

INFO

audio languages, you can select the language to listen to.

For DVD Audio:

While playing back a track containing

audio channels, you can select the audio channel to listen to.

For DVD-VR/Karaoke SVCD/VCD:

When playing back a

track, you can select the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 26).

While playing DVD Video...

AUDIO

Ex.:

3/3

JAPANESE

3/3

JAPANESE

1/3

ENGLISH

1/3

ENGLISH

FRENCH

2/3

FRENCH

2/3

English

While playing a DVD-VR, SVCD, or VCD...

AUDIO

ST1/ST2/ST

ST1 ST2

DVD-VR/VCD

ST L R

To listen to normal stereo (2 channel)

R1R2

SVCD

playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. Karaoke SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ST2).

English

Selecting the Subtitle Language

For DVD Video:

While playing back a chapter containing subtitles in different languages, you can select the subtitle language to display on the TV screen.

For DVD-VR:

While playing, you can turn on or off the

subtitle.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the on-

screen bar (see page 26).

Remote ONLY

Remote

Selecting the View Angle

For DVD Video only:

While playing back a chapter

ONLY

containing multi-view angles, you can view the same scene from different angles.

• You can also select the view angle using the on-screen bar (see page 26).

While playing back...

ANGLE

While playing a DVD Video...

Display the subtitle selection window.

SUB TITLE

Select the subtitle language.

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

While playing a DVD-VR...

SUB TITLE

3/3

JAPANESE

3/3

Ex.:

1/3

2/3

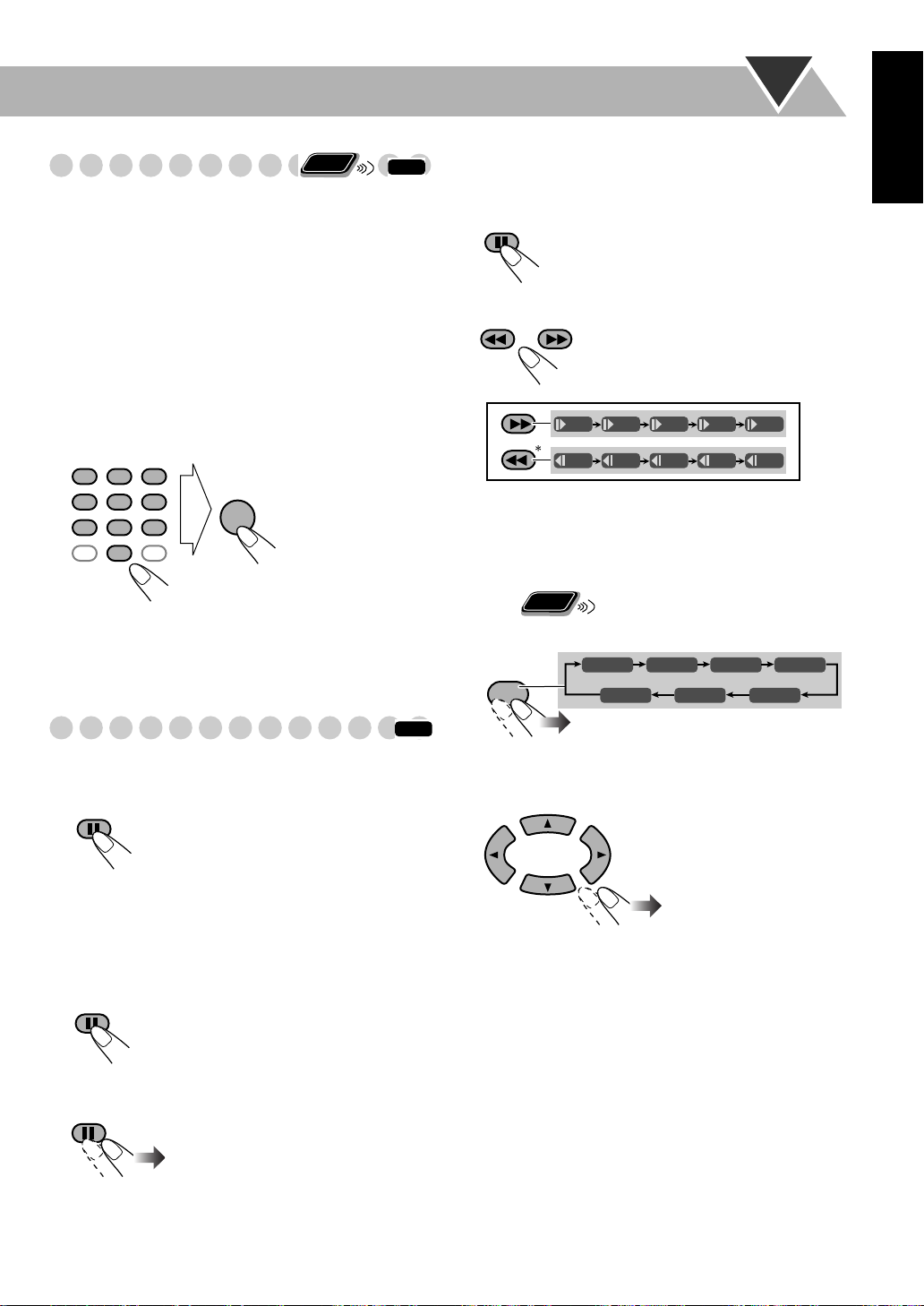

Reviewing the Playback Quickly

For DVD Video/DVD-VR only:

You can move the

3/3

Remote ONLY

playback position to 10 seconds before the current position (only within the same title)—Glance Back.

While playing back...

GLANCE BACK

Remote

Selecting Browsable Still Pictures

ONLY

OFF

While playing an SVCD...

SUB TITLE

For DVD Audio only:

While playing back a track linked to browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

• If a track is linked to browsable still pictures (B.S.P.), they

are usually shown in turn automatically during playback.

• You can also select the page using the on-screen bar (see

page 26).

PAG E

Each time you press the button, the still picture changes one after another (if available).

Remote

Playing Back Bonus Group

For DVD Audio only:

Some DVD Audios have a special

ONLY

INFO

group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 11.

Enter the key number.

123

456

789

10 0 +10

Follow the interactive instruction shown on the TV

ENTER

screen.

To cancel the key number entry,

press 7

Slow-motion playback

While playing...

FM MODE

Still picture playback starts.

Select slow motion speed.

1/32 1/16 1/8 1/4 1/2

* Not available for DVD-VR/SVCD/VCD.

To resume normal playback,

Remote

ZOOM

ONLY

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

Zoo

While playing...

press DVD/CD 3

English

ZOOM 5ZOOM 6

Special Picture Playback

Still picture playback

While playing...

FM MODE

Still picture playback starts.

To resume normal playback,

Frame-by-frame playback

While playing...

FM MODE

Still picture playback starts.

Advance the still picture frame by frame.

FM MODE

To resume normal playback,

press DVD/CD 3

INFO

As the number increases, magnification also increases.

• For JPEG, see page 31.

Move the zoomed-in position.

To resume normal playback,

press ZOOM repeatedly until

“ZOOM OFF” appears on the TV screen.

Advanced Disc Operations

English

Remote Control

DVD/CD 3

REPEAT

CANCEL

Main unit

DVD/CD

123

456

789

10 0 +10

AUDIO

////

10 keys

PLAY MODE

Remote

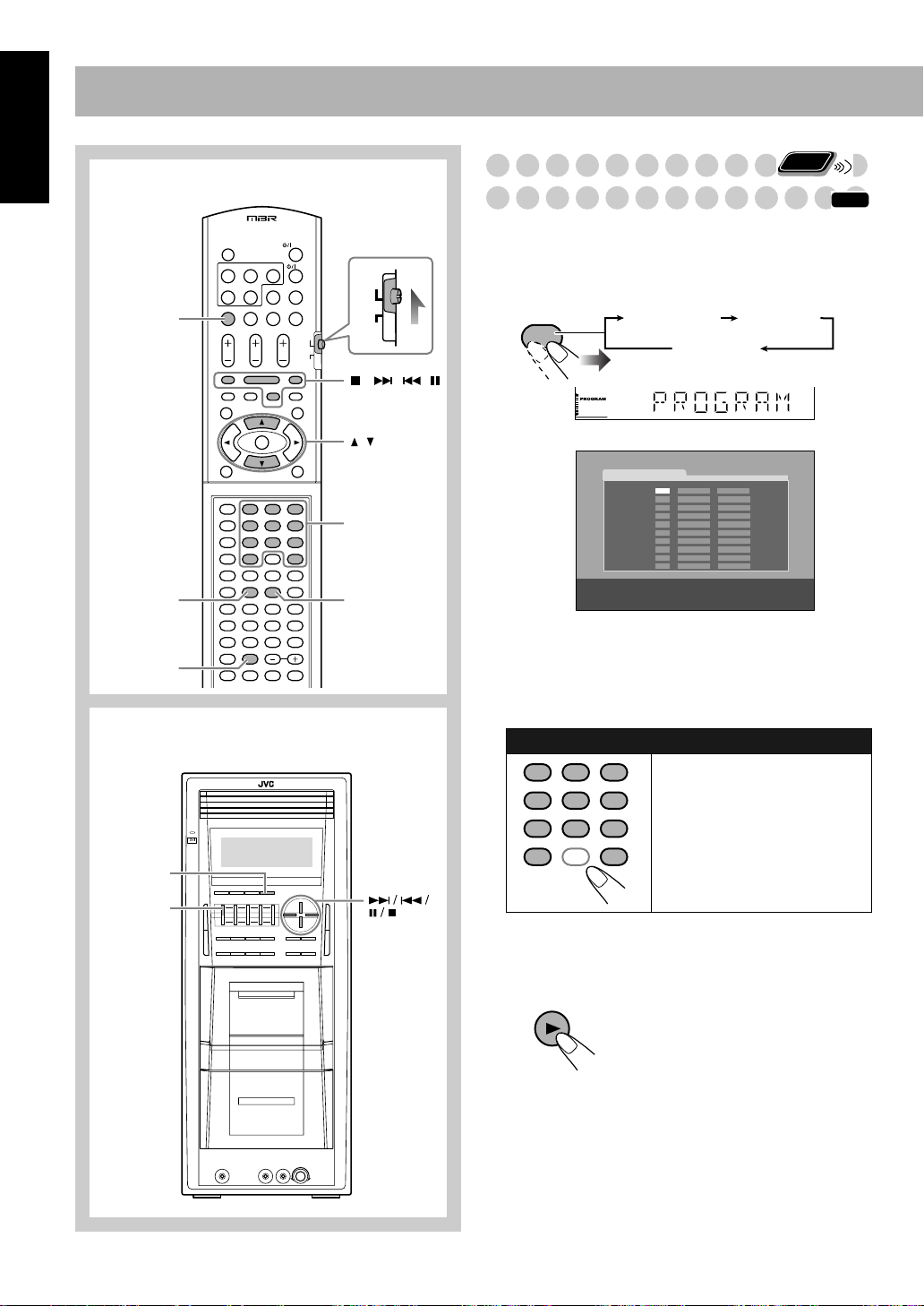

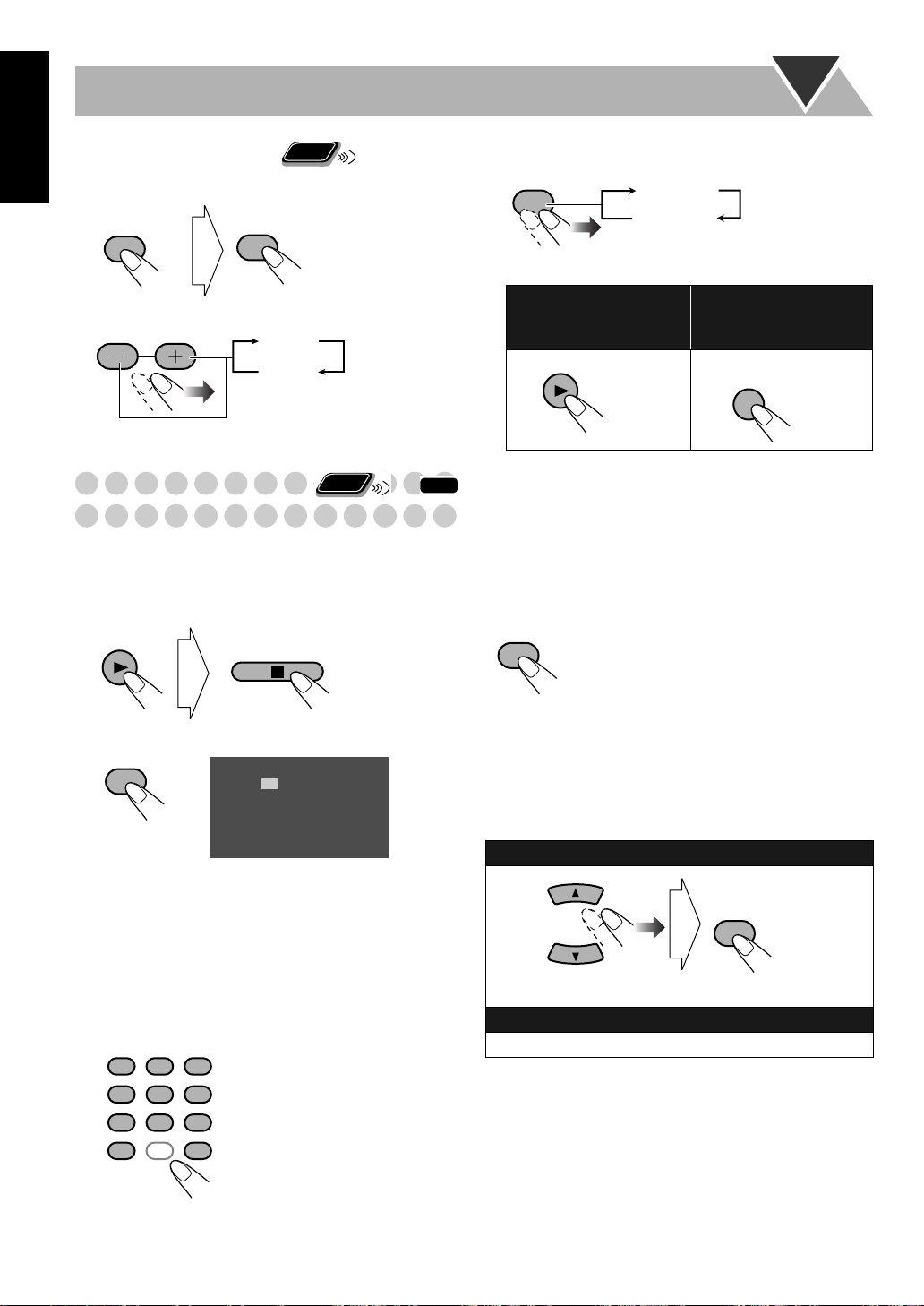

Programming the Playing Order —Program Play

ONLY

INFO

You can arrange the playing order of the tracks (up to 99) before you start playback.

Before starting playback, activate Program Play.

PLAY MODE

PROGRAM RANDOM

Canceled

On the display

PROGRAM

No Group/TitleDisc Track/Chapter

2 3 4 5 6 7 8 9

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

On the TV screen

Select chapters or tracks you want for Program Play.

Select a disc number.

Select a title or group number.

Select a chapter or track number.

To enter the numbers:

123

456

789

10 0 +10

Examples:

To enter number 5, press 5. To enter number 15, press +10, then 5. To enter number 30, press +10, +10, then 10.

DISC 1 0

Repeat the above step 2 until you finish what you want to program.

Start playback.

DVD/CD

Playback starts in the order you have programmed.

To skip a track:

To pause: To stop*:

FM MODE

To release, press DVD/CD 3

* Resume does not work for Program Play.

To check the programmed contents

Before or after playback...

in the reverse order

in the programmed order

To modify the program

Before or after playback...

To erase the last step:

CANCEL

To erase the entire program:

Remote ONLY

Remote

Playing at Random—Random Play

ONLY

You can play the contents of all the loaded discs at random.

• Random Play cannot be used for some DVDs.

Before starting playback, activate Random Play.

PLAY MODE

PROGRAM RANDOM

Canceled

Start playback.

DVD/CD

To skip:

Playback of the current disc starts in a random order. When all chapters/tracks on the current disc are played, playback of the next disc starts. Random Play ends when all loaded discs are played.

To pause: To stop:

FM MODE

English

To add steps in the program:

Repeat step 2 on page 22.

To exit from Program Play

Before or after playback...

PLAY MODE

PROGRAM RANDOM

Canceled

To go to the beginning of the current track, press 4

To release, press DVD/CD 3

To exit from Random Play

Before or after playback...

PLAY MODE

PROGRAM RANDOM

Canceled

English

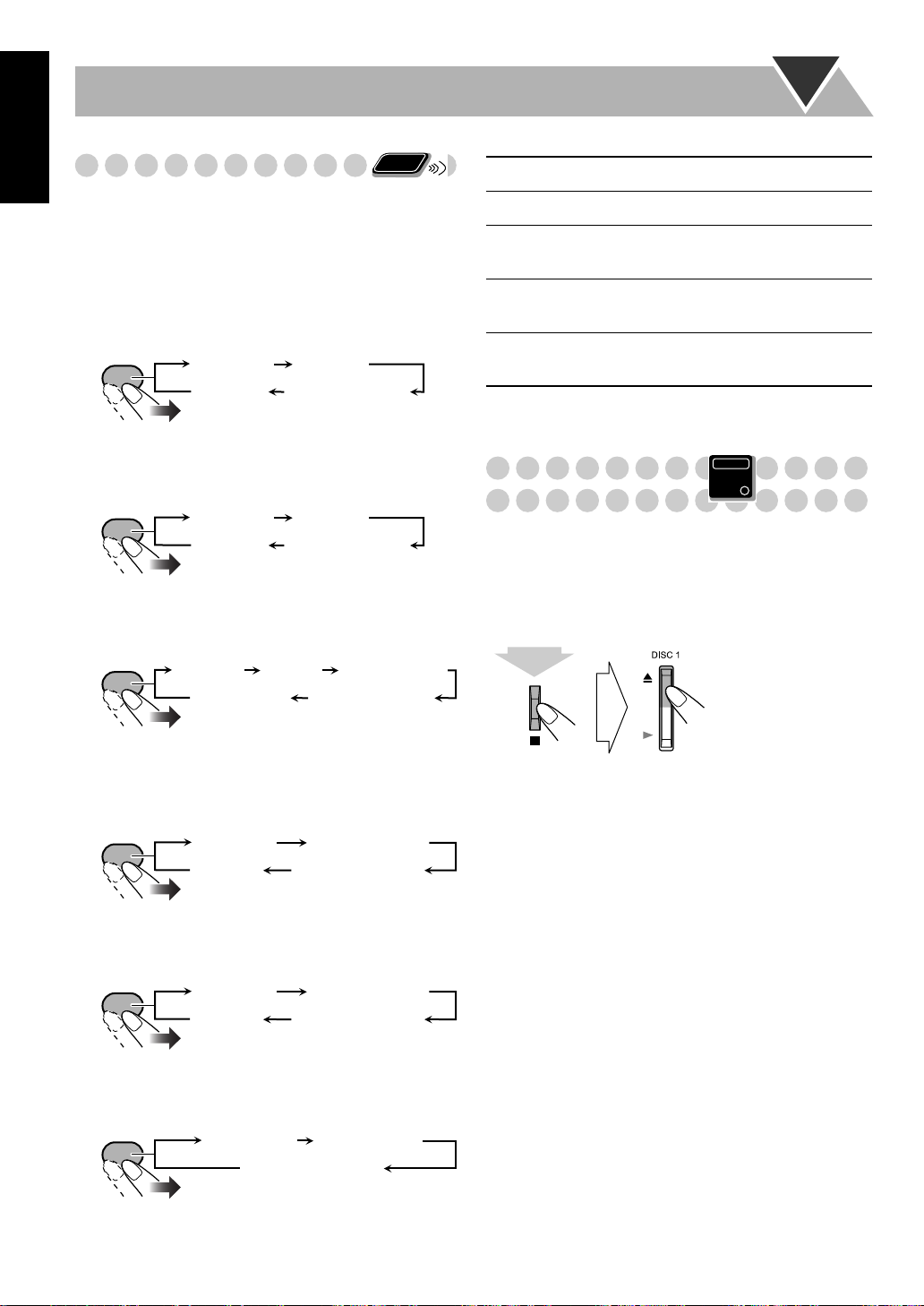

Playing Repeatedly—Repeat Play

You can repeat playback.

• You can also select the repeat mode using the on-screen bar (see page 26).

• The indicator(s) lights on the display as follows to indicate the current repeat mode.

•

For DVD Video:

While playing...

REPEAT

•

For DVD Audio:

REPEAT 1 REPEAT

Canceled

REPEAT ALL DISC

While playing or before playback...

REPEAT

For MP3/WMA:

•

REPEAT 1 REPEAT

Canceled

REPEAT ALL DISC

While playing or before playback...

REPEAT

REPEAT 1 REPEAT

Canceled

REPEAT ALL DISC

REPEAT 1 DISC

Remote ONLY

REPEAT 1

REPEAT

REPEAT 1 DISC

REPEAT ALL DISC

REPEAT

Repeats the current chapter/track.

Repeats the current title/group.

Repeats the current disc.

Repeats all discs.

Repeats all programmed tracks.

ALL

* These modes may not work correctly for DVD Video.

Prohibiting Disc Ejection

Main Unit

ONLY

—Child Lock

You can lock the disc trays so that no one can eject the loaded discs.

• This operation is possible only when the source is the disc player.

While in standby mode...

For CD/SVCD/VCD:

• While playing or before playback (without PBC for SVCD/ VCD)...

REPEAT

•

For Random Play:

REPEAT 1

Canceled

REPEAT 1 DISC

REPEAT ALL DISC

While playing or before playback...

REPEAT

•

For Program Play:

REPEAT 1

Canceled

REPEAT 1 DISC

REPEAT ALL DISC

While playing or before playback...

REPEAT

REPEAT 1

Canceled

REPEAT ALL

(holding then...)

To cancel the prohibition,

repeat the same procedure.

“UNLOCKED” appears on the display.

On-Screen Disc Operations

Remote control

DVD/CD 3

ZOOM

REPEAT

123

456

789

10 0 +10

AUDIO

////

ENTER

ON SCREEN

10 keys

On-screen Bar Information

You can check the information on disc (except for MP3/ WMA/JPEG disc) and use some functions through the onscreen bar.

On-screen bars

DVD Video

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

Dolby D 3/2.1ch

DISC 1

TITLE 2

CHAP 3

TOTAL 1:01:58

DVD Audio

DVD-AUDIO

TIME

PPCM 3/2.1ch

OFF

DISC 2

TRACK

GROUP 14

1/31/3

TRACK 23

PAGE

TIME 0:15:58

DVD-VR

TIME OFF CHAP. ST ON

Dolby D 2/0.0ch

DISC 1

PG 2

CHAP 3

TOTAL 0:01:58

English

SVCD

TIME 0:04:58

TRACK 3

DISC

SVCD

TIME OFF ST1

-/ 4

VCD

TIME 0:04:58

VCD

TIME OFF ST

TRACK 3DISC 4

TIME 0:04:58

TRACK 3

TIME OFF

DISC 5

English

ENTER

Disc type

Playback information

Indication Meanings

Dolby D/

Audio format

PPCM

3/2.1 ch/

Channel number

2.0/0 ch

DISC

TITLE

CHAP

GROUP 1

TRACK

PG 2

PL 2

TOTAL

1:25:58

Playback conditions

Current disc

Current title

Current chapter

Current group

Current track

Current title

Current play list

Time indications

Indication Meanings

Playback

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Pause

Stop

Operation icons (on the pull-down menu)

Indication Meanings

TIME

Select to change the time indication (see also page 27).

Select to repeat playback (see also pages 24, 27 and 28).

Select for time search (see also page 28).

CHAP.

Select for chapter search (see also page 29).

TRACK

Select for track search (see also page 29).

1/3

Select to change the audio language or channel (see also page 19).

1/3

Select to change subtitle language (see also page 20).

1/3

Select to change view angle (see also page 20).

PA GE 1/15

Select to change the page (see also page 20).

Remote

perations Using the

On-screen Bar

ONLY

INFO

Basic operation procedure through the on-screen bar is as follows: Ex.: Selecting a subtitle (French) for DVD Video:

While a disc is selected as the source...

Display the on-screen bar with the pull-down menu.

SCREEN

Dolby D

DISC 1

TITLE 2

DVD-VIDEO

3/2.1ch

Dolby D

DVD-VIDEO

3/2.1ch

TIME OFF CHAP. 1/31/31/1

CHAP 3

TOTAL 1:01:58

Goes off

Select (highlight) the item you want.

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

Display the pop-up window.

Select the desired option in the pop-up window.

Finish the setting.

Dolby D 3/2.1ch

DISC 1

TITLE 2

TITLE 21

CHAP 3

1/31/31/1

1/32/31/1

Pop-up window goes off.

To erase the on-screen bar

SCREEN

CHAP 3

ENGLISH

CHAP 3

FRENCH

TOTAL 1:01:58

To change the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1 Display the on-screen bar with the pull-down menu.

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

2 Make sure is selected (highlighted).

TIME

DISC 1

TITLE

TITLE 2

1/3

CHAP

3 Change the time indication.

ENTER

TOTAL

T.REM

TIME

Elapsed disc time.

Remaining disc time.

* Elapsed playing time of the current

chapter/track.

REM

* Remaining time of the current chapter/

track.

* Not available for DVD-VR.

To erase the on-screen bar

SCREEN

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

Repeat Play

• See also page 24.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu.

• Except for DVD Video: Repeat Play can be selected before starting playback.

2 Select . 3 Display the pop-up window.

OFF

Dolby D 3/2.1ch

OFF

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

DISC 1

TITLE 2

TITLE

CHAP

1/3

4 Select the repeat mode you want.

ALL

Repeats all discs or all programmed tracks.

A-B

Repeats a desired portion (see the next page).

TITLE

GROUP

DISC

CHAPTER

TRACK

Repeats the current title.

Repeats the current group.

Repeats the disc (except for DVD).

Repeats the current chapter.

* Repeats the current track.

Repeats the current title (for DVD-VR only). See also page 31.

Repeats the current play list (for DVDVR only). See also page 31.

OFF

Cancels Repeat Play.

* During Program Play or Random Play, “STEP”

appears.

5 Finish the setting.

Pop-up window goes off.

ENTER

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

English

ENTER

A-B Repeat

1 While playing, display the on-screen bar with the pull-

down menu. 2 Select . 3 Display the pop-up window.

OFF

Dolby D 3/2.1ch

OFF

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

DISC 1

TITLE

TITLE 2

1/3

CHAP

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

4 Select “A-B”.

OFF

Dolby D 3/2.1ch

A–B

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

DISC 1

TITLE

TITLE 2

1/3

CHAP

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

5 Select the start point (A).

ENTER

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

DISC 1

• After selecting the starting point (A), you can search for

the end point using ¡

6 Select the end point (B).

A-B Repeat starts. The selected

ENTER

To cancel A-B Repeat,

portion plays repeatedly.

repeat steps 1 to 3, and select “OFF”

in step 4.

1:25:58

TITLE 2

TITLE

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing (without PBC for SVCD/VCD), display

the on-screen bar with the pull-down menu.

• Except for DVD: Time Search can be used before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

OFF

TIME _ : _ _ : _ _

DISC 1

TITLE 2

TITLE

CHAP

1/3

4 Enter the time.

You can specify the time in hours/minutes/seconds.

123

456

1/3

789

10 0 +10

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

•

It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry,

press cursor 2

entry.

5 Finish the setting.

The System starts playing from the specified time.

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

to erase the last

To erase the on-screen bar

SCREEN

To erase the on-screen bar

SCREEN

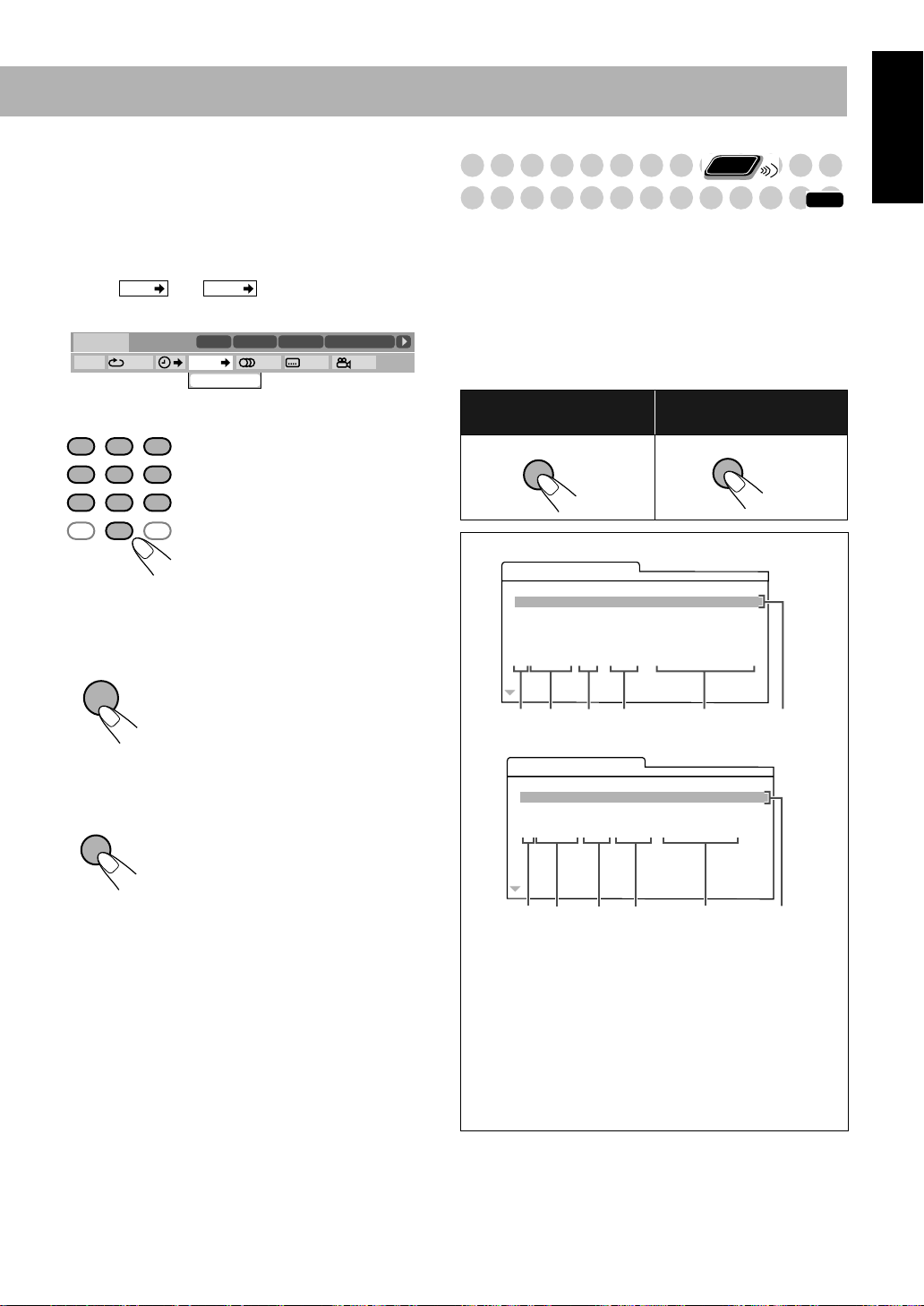

Chapter/Track Search

MENU/PL

You can search for the number of the item to play. For DVD Video/DVD-VR: Chapter For DVD Audio: Track

1 While playing, display the on-screen bar with the pull-

down menu.

2 Select or

CHAP.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

4 Enter the desired chapter/track number.

123

456

789

10 0 +10

•

To correct a misentry, press the 10 keys until the

desired number is shown in the pop-up window.

5 Finish the setting.

ENTER

To erase the on-screen bar

SCREEN

TRACK

DISC 1

CHAPTER _

TITLE 2

TITLE

TOTAL 1:01:58

CHAP 3

TOTAL

1/3 1/3

1:25:58

CHAP

1/3

Examples:

To select chapter/track 5, press 5. To select chapter/track 15, press 1, then 5. To select chapter/track 30, press 3, then 0.

The System starts playing the searched chapter or track.

Remote

Operations on the Control Screen

For DVD-VR/MP3/WMA/JPEG:

ONLY

INFO

You can search for and

play the desired items through the control screen.

Control screen for DVD-RW/RAM in DVD-VR format

The control screen is superimposed on the TV screen when you call up Original Program (PG) or Play List (PL).

To select playback type

To select the Original Program:

TOP MENU/PG

When Original Program is selected.

ORIGINAL PROGRAM

No Date Ch ime itle

1 25/04/04 4ch 19:00 JVC DVD World 2004 2 17/05/04 8ch 10:30 3 22/05/04 8ch 17:00 Music Festival 4 26/05/04 L-1 13:19 children 001 5 20/06/04 4ch 22:00 6 25/06/04 L-1 8:23 children 002

12 3 4 5

When Play List is selected.

PLAY LIST

No Date Chap Length Title

1 25/05/04 001 1:03:16 My JVC World 2 17/06/04 005 1:35:25 3 20/06/04 003 0:10:23 Favorite music 4 25/06/04 001 0:07:19 children001-002

To select the Play List:

English

1 789

Title/Play list number

Recording date

Recording source (TV station, the input terminal of the

recording equipment, etc.)

Start time of recording

Title of the program/play list*

Highlight bar (current selection)

Creating date of play lists

Number of chapters

Playback time

* The title of the original program or play list may not be

displayed depending on the recording equipment.

To erase the control screen for DVD-VR,

press ENTER.

English

ENTER

Control screen for MP3/WMA/JPEG disc

The control screen automatically appears on the TV screen when you load an MP3, WMA, or JPEG disc.

Ex.: When the MP3 disc is loaded.

Group : 2 / 3

Blue

Red

Green

3 4

Tr ack Information

Title Rain Artist

Album

Current group number/total group number

Current group

Group list

Current track

Track information (ID3 Tag Version 1.0: only for

Time : 00:00:14REPEAT TRACK

Tr ack : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

MP3/WMA)

Repeat Play setting

Elapsed playing time of the current track (only for MP3/WMA)

Operation mode icon

Current track number/total number of tracks in the current group (total number of tracks on the loaded disc)

Highlight bar

Track list

• If both types of files (MP3/WMA files and JPEG files) are recorded on a disc, select the file type to play (see page 39).

6 7

8 9

To move the highlight (green) bar between group list and track list (for MP3/WMA/JPEG):

Moves the bar to the track list.

Moves the bar to the group list.

To select an item in the list:

Move the highlight bar to a desired item.

• If you move the highlight bar while playing back DVD-VR/ MP3/WMA, the selected item starts playback automatically.

To start playback

For DVD-VR/MP3/WMA:

Playback starts with the selected chapter/track.

• Pressing DVD/CD 3

also starts

playback.

For JPEG:

The selected track (still picture) is displayed until you change it.

DVD/CD

Slide-show playback starts. Each track (still picture) is shown on the screen for a few seconds, then changes one after another.

• Once you start playing back a JPEG track, the control screen goes off.

• To cancel slide-show, and display the current still picture, press 8

To stop playback

To repeat title/play list for DVD-VR

While playing or before starting playback...

For Original Program

REPEAT

For Play List

REPEAT 1 REPEAT

(

( PG)

OFF)

( CHAP)

Canceled

REPEAT 1 DISC

REPEAT ALL DISC

(

( DISC)

ALL)

To zoom in the still picture (for JPEG)

During being paused...

ZOOM

ZOOM 1 ZOOM 2

ZOOM OFF

As the number increases, magnification also increases.

Move the zoomed-in position.

English

REPEAT

REPEAT 1

REPEAT

* Repeats the current title/play list.

REPEAT 1 DISC

REPEAT

* Repeats the current chapter.

REPEAT 1 REPEAT

( CHAP)

Canceled

OFF)

(

( PL)

REPEAT ALL DISC

(

Repeats all titles on the current disc.

Repeats all loaded discs.

ALL DISC

* Not available before starting playback.

To repeat slide-show for JPEG

While playing or before starting playback...

REPEAT

( GROUP)

(Canceled)

( OFF)

Repeats the current group.

REPEAT 1 DISC

( DISC)

REPEAT ALL DISC

( ALL)

ALL)

To cancel Zoom,

press ZOOM repeatedly until “ZOOM

OFF” appears on the TV screen.

REPEAT 1

Repeats all files on the current disc.

DISC

REPEAT ALL

Repeats all loaded discs.

DISC

• For Repeat Play of MP3/WMA, see pages 24 and 27.

Recording Operations

English

Main unit

TAPE-A / TAPE-B

DISC 1–5 3

DISC REC

START

REC

START/STOP

FM/AM DVD/CD

REVERSE MODE

DUBBING

Deck A

Deck B

Before recording, select the Stereo Mode (“STEREO”— see page 16) for DVD Video to downmix its multichannel sound into 2 channel; otherwise, you can only record the front left/right sound onto a tape.

Recording on a Tape

Main Unit

ONLY

You can use type I tapes for recording.

• To play a tape, see page 13.

Insert a recordable cassette in deck B.

Push Insert Close

Check the tape running direction and Reverse Mode settings on the display.

Tape direction

Reverse Mode indicator

indicator

INFO

IMPORTANT

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Current source

To change the direction

3 (

2 (

forward

reverse

)

Change the Reverse Mode if necessary

To record on both sides.

When using Reverse Mode, start

•

()

recording in the forward (

To record on only one side.

) direction.

Start playing the source—“FM,” “AM,” “DVD/CD,” “TAPE-A” or “AUX.”

• When recording a disc, you can also use “Synchronized Disc Recording” (see the right column).

• When recording from deck A, you can also use “Dubbing” (see below).

Start recording.

To stop recording

Dubbing Tapes

Change the source to TAPE.

Insert the source cassette in deck A, and a recordable

cassette in deck B.

Check the tape running direction and Reverse Mode settings on the display.

See step 2 of “Recording on a Tape” on page 32.

Start dubbing.

• When either tape playback or recording ends, both cassette deck stop at the same time.

To stop dubbing

Main Unit

ONLY

Synchronized Disc Recording

You can start and stop both disc play and tape recording at the same time.

Load a disc and insert a recordable cassette. Check the tape running direction and Reverse Mode

settings on the display.

• See step 2 of “Recording on a Tape” on page 32.

Select the disc number you want to start recording

from.

For recording desired tracks on discs:

You can program tracks to record in your preferred order.

• Select Program Play (and make a program; see page 22) without starting playback.

Start recording.

The disc playback and recording start from the first track.

• The System automatically creates 4second blanks between the tunes recorded on the tapes.

• When either disc play or recording ends, both disc player and the cassette deck stop at the same time.

Main Unit

ONLY

INFO

To record only your favorite track—One Track Recording

You can specify tracks to be recorded on the tape while listening to a disc (except for DVD Video).

While the track you want to record on the tape is playing...

The disc player returns to the beginning of that track and the track is recorded on the tape. After recording, the disc player and cassette deck automatically stop.

English

To cancel while recording

Enjoying Karaoke

English

Remote control

KARAOKE

SCORING

Source

buttons

V.MASKING

ECHO

MIC MIX

SET

CANCEL

123

456

789

10 0 +10

AUDIO

AUDIO VOL +/–

10 keys

KEY

RESERVE

+ / – SETTING

• For DVD Audio/DVD-VR:

this section are not available

The functions described in

• When you activate the Mic Mixing Mode or Voice Masking Mode, multi-channel sounds are downmixed into 2 channel. The multi-channel surround mode (“ALL CH. ST,” “MOVIE,” “MUSIC,” or “AUTO” for multi-channel surround signals—see page 16) is changed to “STEREO” temporarily* (and restored when the Mic Mixing Mode or Voice Masking Mode is deactivated). * The indicator remains on the display.

IMPORTANT

• Always set MIC LEVEL to MIN when connecting or disconnecting the microphone.

• MIC LEVEL adjustment is valid for both microphones connected to the MIC 1 and MIC 2 jacks.

Singing Along (Karaoke)

INFO

You can enjoy singing along (Karaoke) by using two microphones.

• By pressing REC START/STOP, you can record your singing-along.

Turn MIC LEVEL to MIN.

Main unit

Source

buttons

VOLUME +/–

KARAOKE SCORING

MIC 1

MIC 2

MIC LEVEL

DO NOT keep the microphones connected while they are not in use.

Connect the microphone(s) (not supplied) to the MIC 1 and/or MIC 2 jack.

Activate the Mic Mixing Mode.

MIC MIX

MIC OFF

Start playing a source—“FM,” “AM,” DVD/CD,” “TAPE,” or “AUX.”

•

For Karaoke SVCD/VCD:

channel. See “Selecting the Sound Track” on page 19.

Sing into the microphone. Adjust the MIC LEVEL and VOLUME.

To cancel from the Mic Mixing Mode,

in step 3.

To use microphone only,

do not start playback.

Select a desired audio

select “MIC OFF”

select “DVD/CD” in step 4, but

Remote

To apply an echo to your voice

ONLY

While the Mic Mix Mode is activated...

ECHO

ECHO 1 ECHO 2 ECHO 3

ECHO 4ECHO 0

(Canceled)

• As the number increases, echo level also increases.

Remote

To adjust the Key (disc playback only)

While playing back...

KEY KEY

To raise the key (up to +6).

To lower the key (up to –6).

ONLY

Scoring Your Karaoke Skill

INFO

This System can score your Karaoke skill by comparing your singing along with the vocal on the playback disc.

• This function is for disc playback only.

• It is recommended to select the sound track as follows (see page 19):

For DVD Video: For SVCD/VCD:

• It is recommended to sing for more than

minutes

to make the scoring function work properly.

Select “DVD/CD” as the source.

DVD/CD

Select the sound track with vocal.

Select “ST,” “ST1,” or “ST2.”

one and a half

English

To cancel the Key Control

KEY KEY

–6 +60

KEYCON

JAPANESE

On the display On the TV screen

• Key Control is also canceled when you deactivate the Mic Mixing Mode, or select another track or disc.

Remote

Reducing the Lead Vocal

ONLY

INFO

—Vocal Masking

If you want to reduce the lead vocal (of any source except DVD Audio/DVD-VR), you can use the Vocal Masking Mode.

V. MASKING

V.MASK1

V.MASK2

To sing into microphone(s),

(follow steps 1 to 3 and 6 on page 34).

To cancel from the Vocal Masking Mode,

V.MASK1 V.MASK2

OFF

Cancels vocal on stereo sources.

Cancels the right audio channel.

activate the Mic Mixing Mode

select “OFF.”

Activate the scoring function.

KARAOKE SCORING

KARAOKE SCORE BOARD

SINGING

On the TV screen

Playback of the first track starts and the Mic Mixing Mode is automatically activated (with the last adjustment for echo).

Sing into the microphone.

See steps 1, 2, and 6 on page 34.

• Adjust echo level and key if you want (see the left column).

After the song ends, playback stops and the score board appears on the TV screen with fanfare.

Ex.:

KARAOKE SCORE BOARD

Your score

85 POINTS

Very good!!

93 POINTS1 ST 2 ND 3 RD

The latest top 3

To stop the playback in the middle of the song,

The scoring function is not canceled and your singing along is scored if the playback time is more than one minute.

To cancel the scoring function,

SCORING. The screen on the TV disappears. (The Mic Mixing Mode remains activated.)

85 POINTS 73 POINTS

press 7

press KARAOKE

English

To turn on/off the fanfare

1 Enter the fanfare setting mode

SETTING

2 Select the fanfare setting.

SET

OFF

Remote ONLY

Activate the Mic Mixing Mode.

MIC MIX

MIC OFF

Start playback.

To start Karaoke Program Play:

DVD/CD

To start Karaoke Program Play with the scoring function:

KARAOKE SCORING

Remote

Reserving Karaoke Songs

ONLY

INFO

—Karaoke Program Play

You can determine the playback order of the titles or tracks on the disc player. You can program up to 12 steps.

Change the source to “DVD/CD.”

DVD/CD

Activate Karaoke Program Play.

RESERVE

• PROGRAM indicator flashes during this mode.

Select songs you want for Karaoke Program Play.

Press the number buttons to select a song in the following order.

Select a disc.

Select a title/group.

Select a chapter/track.

123

456

789

10 0 +10

Gr/Tt

Disc Tr/Chap 1 2 3 4 5

On the TV screen

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

Playback starts in the order you have programmed.

•

For the Karaoke Program Play with the scoring function:

Each time the song ends, playback stops and the score board appears. Press KARAOKE SCORING twice to start playback of the next track.

To check the programmed contents

RESERVE

The Karaoke reserve screen appears.

• You cannot display the Karaoke reserve screen while the scoring function is in use.

To modify the program

While the Karaoke reserve screen is shown on the TV...

To erase the unwanted step:

CANCEL

To erase the entire program,

To add steps in the program:

Repeat step 3.

repeat the procedure.

Timer Operations

Remote control

AUDIO

CANCEL

SET

CLOCK/

TIMER

123

456

789

10 0 +10

AUDIO

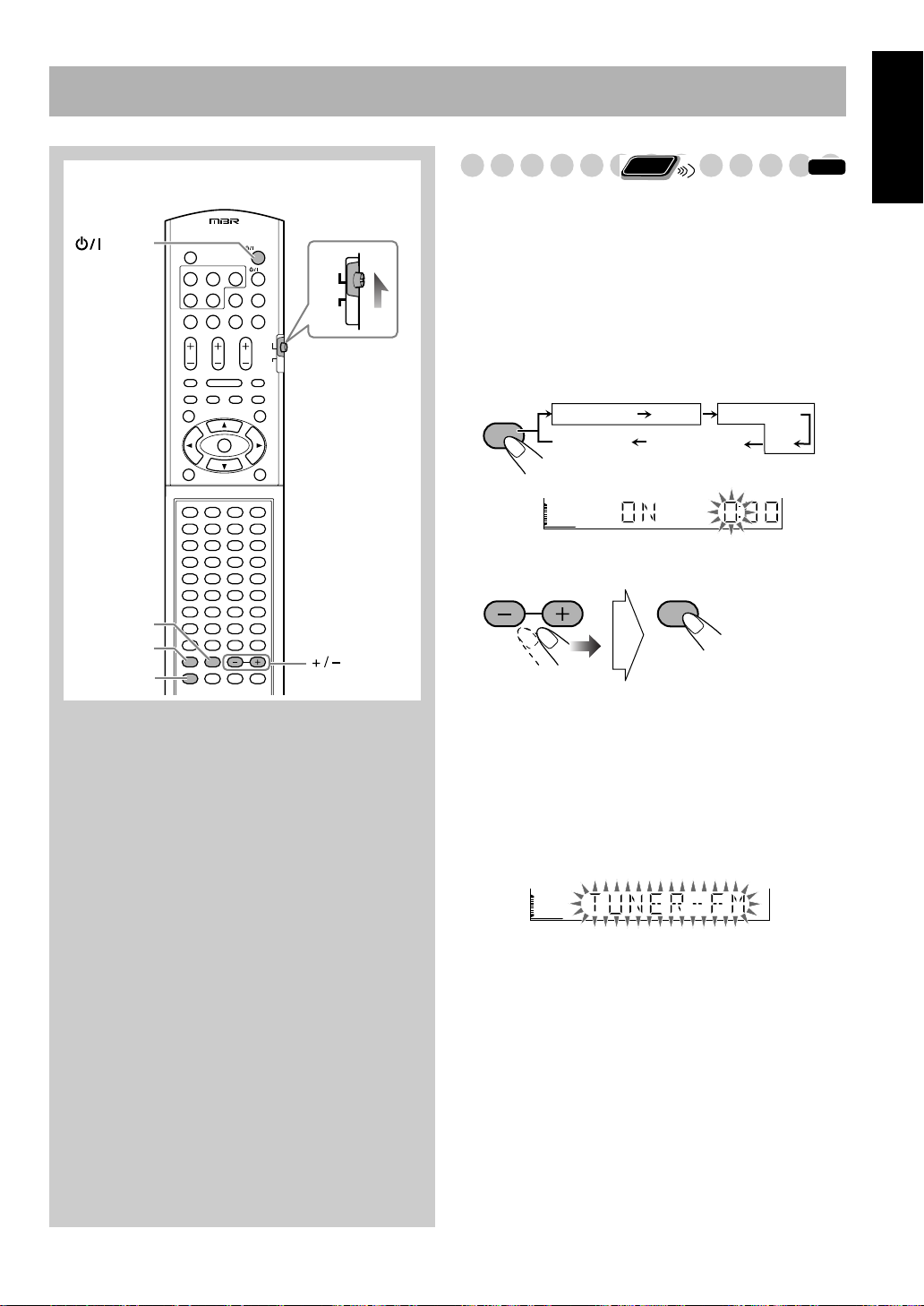

Setting the Timer

Remote ONLY

INFO

English

Using Daily Timer, you can wake up with your favorite song. On the other hand, with Recording Timer, you can make a tape of a radio broadcast automatically.

• You cannot activate Daily Timer and Recording Timer at a time. (Activating either timer deactivates the other timer.)

• To correct a misentry during the process, press CANCEL.

You can return to the previous step.

Select one of the timer setting modes—ON for Daily Timer or Recording Timer.

CLOCK/

TIMER

Make the timer setting as you want.

Recording Timer Daily Timer

REC TIMER

Canceled

DAILYTIMER

Clock setting

SET

Repeat the procedure until you finish setting in the following order:

Set the hour then minute for on-time.

Set the hour then minute for off-time.

For Recording Timer: Select the playback

source—“TUNER-FM” or “TUNER-AM.”

For Daily Timer: Select the playback source—

“TUNER-FM,” “TUNER-AM,” “DISC,” “TAPE-A,” “TAPE-B” or “AUX IN.”

EX.: When “TUNER-FM” is selected.

Select a preset station for “TUNER-FM” and “TUNER-AM,” or select a disc, group, and then track number for “DISC.”

Select the volume level.

• You can select the volume level (“VOLUME 0” – “VOLUME 30” and “VOLUME --”). If you select “VOLUME --,” the volume is set to the last level when the System has been turned off.

English

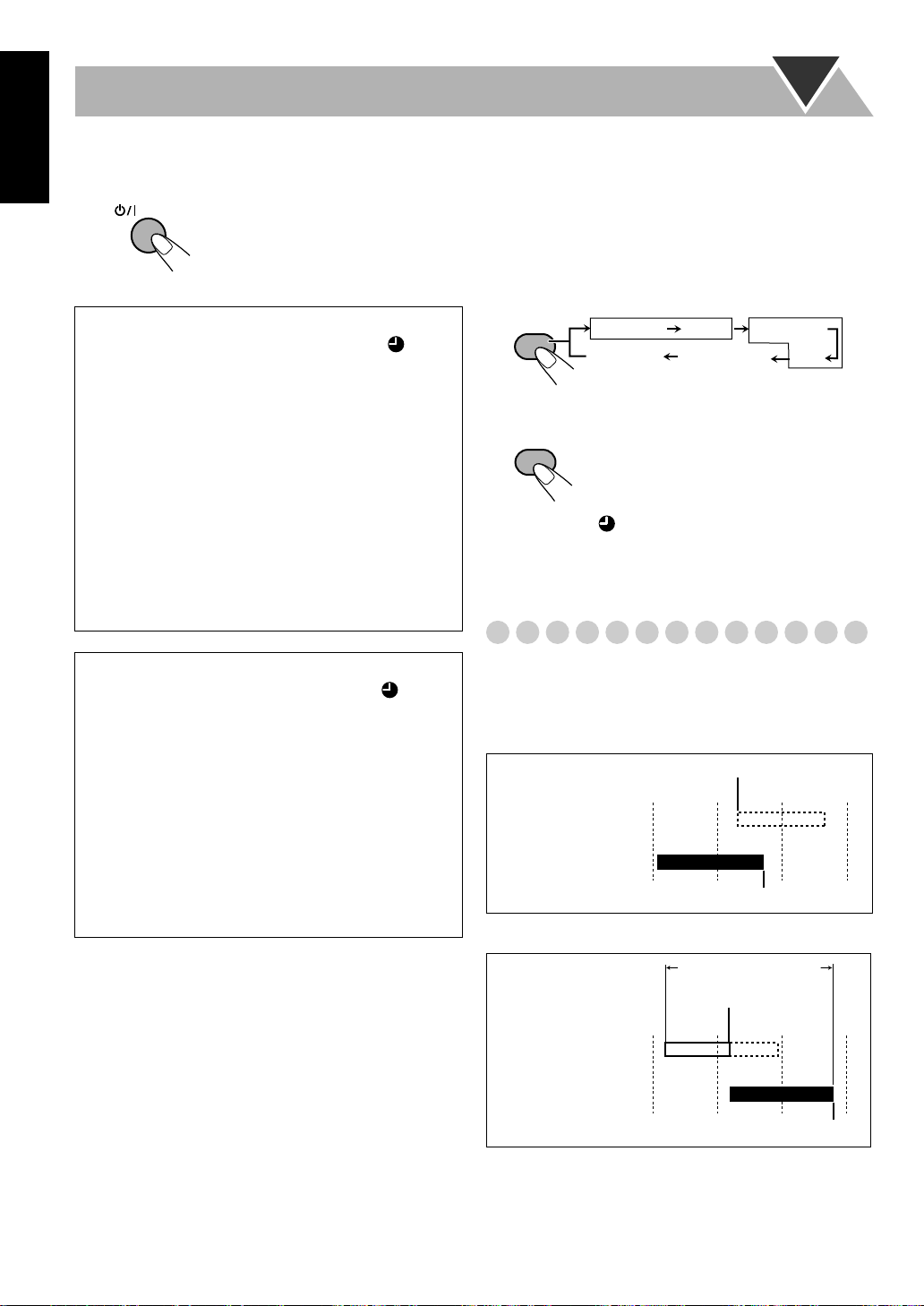

Turn off the System (on standby) if you have set the timer with the System turned on.

AUDIO

To turn off the Timer after the setting is done

You can turn off the timer after it has been set.

• Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

Select the timer you want to cancel (REC TIMER or

DAILYTIMER) you want to cancel.

How Daily Timer actually works

Once the Daily Timer has been set, the timer ( ) indicator and DAILY indicator are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see the next column).

• Daily Timer starts working only when the System is turned off (on standby).

When the on-time comes

The System turns on, tunes in to the specified station or starts playing the specified source, and sets the volume level to the preset level.

When the off-time comes

The System stops playback, and turns off (standby).

• The timer setting remains in memory until you change it.

How Recording Timer actually works

When Recording Timer has been set, Timer ( ) indicator and the REC indicator are lit on the display. Recording Timer works only once.

• Recording Timer starts working only when the System is turned off (on standby).

When the on-time comes

The System turns on, tunes in to the specified station, sets the volume level to the preset level, and starts recording.

When the off-time comes

The System stops recording, and turns off (standby).

• The timer setting remains in memory until you change it.

CLOCK/

TIMER

Turn off the selected timer.

CANCEL

Recording Timer Daily Timer

REC TIMER

Canceled

Clock setting

DAILYTIMER

• The timer ( ) indicator goes off.

To turn on the timer again,

repeat the step 1 and press SET

in step 2.

Timer Priority

If the settings for Sleep Timer and Recording Timer/Daily Timer overlap, the timers work as described below.

• Sleep Timer (see page 18) has priority over the Recording Timer and Daily Timer.

Canceled

6:00 6:30 7:00 7:30

Recording Timer/ Daily Timer

Sleep Timer

The System turns off.

• In this case, Recording Timer/Daily Timer does not work.

Recording/Playback

Canceled

6:00 6:30 7:00 7:30

Recording Timer/ Daily Timer

Sleep Timer

The System turns off.

• In this case, Recording Timer/Daily Timer is canceled. (If Sleep Timer shuts off the System earlier than the off time you have set for Recording Timer, recording stops when Sleep Timer shuts off the System.)

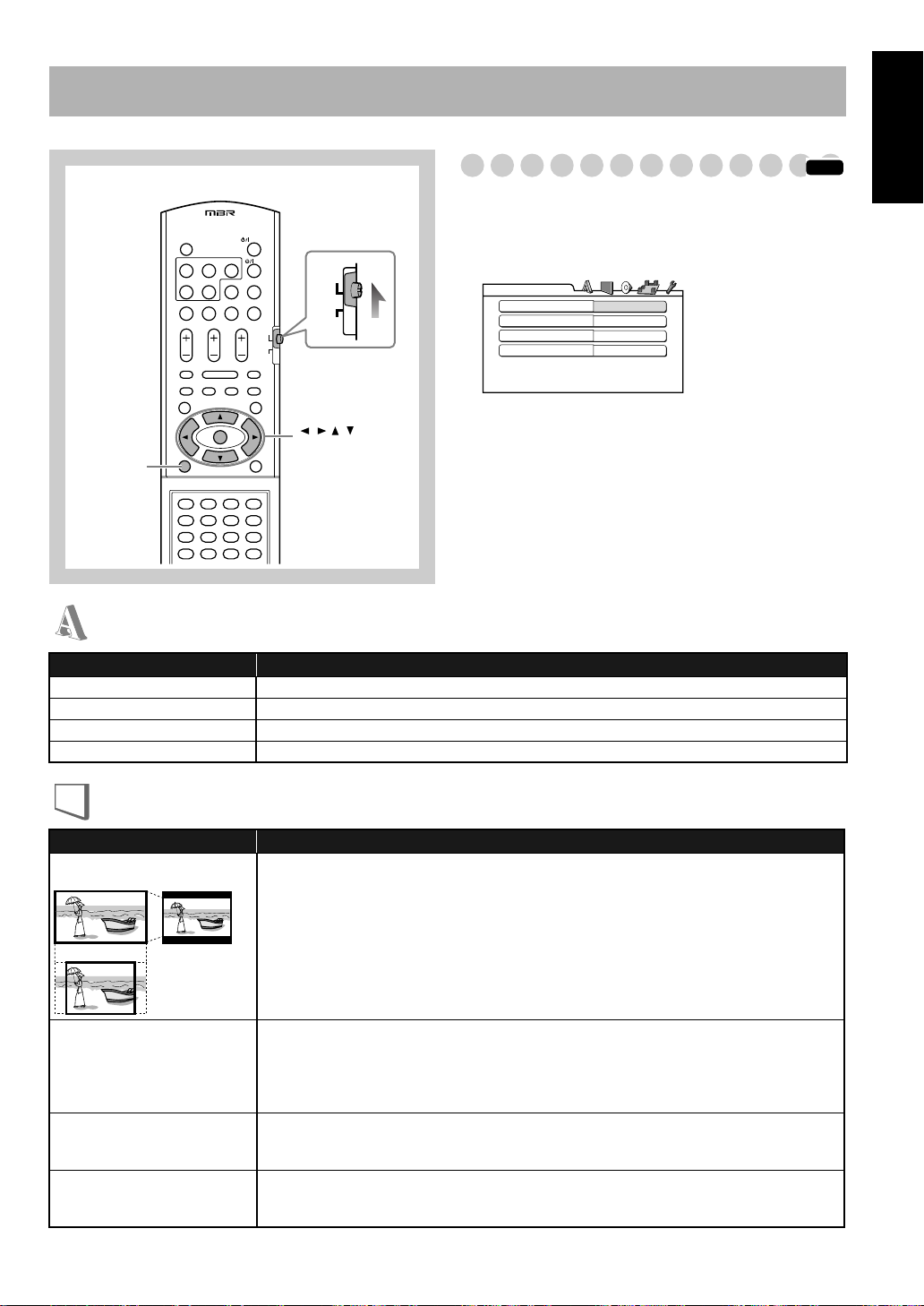

Setup Menu Operations

123

456

789

10 0 +10

Remote Control

SET UP

LANGUAGE menu

Item

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Initial settings

Some items in the menus cannot be changed during playback.

AUDIO

////

ENTER

You can select the initial menu language of DVD Video (see page 46).

You can select the initial audio language of DVD Video (see page 46).

You can select the initial subtitle language of DVD Video (see page 46).

You can select “ENGLISH,” “CHINESE,” or “SPANISH” as the on-screen language.

Press SET UP.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Press 2 (or 3 Press 5 (or ∞)

Press ENTER.

4 5

Press 5 (or ∞)

ENGLISH

) to select the menu.

to move to select the item.

to select the options, then press

ENTER.

To erase a preference display

Press SET UP.

Contents

INFO

English

PICTURE menu

Item

MONITOR TYPE

16:9 4:3 LB

4:3 PS

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

Contents

You can select the monitor type to match your TV when you play back DVD Video discs recorded for wide-screen televisions.

16:9/16:9 MULTI (Wide television screen): 4:3 LB/4:3 MULTI LB (Letter box conversion):

screen picture to fit the width of the TV screen keeping the aspect ratio.

4:3 PS/4:3 MULTI PS (Pan Scan conversion):

up for filling the screen vertically and the left and right sides of the picture are cut off.

• By selecting “MULTI” mode, the color system of the System changes automatically to match the color system of the loaded disc. For the color system setting, see page 17.

You can obtain optimal picture quality by selecting the source type of the disc contents.

AUTO:

Normally, select this option. The System recognizes the picture type (film or video source) of

the current disc according to the disc information.

FILM:

For a film source disc.

VIDEO:

You can set the screen saver function to ON or

ON: OFF:

You can select a file type to play.

AUDIO: STILL PICTURE:

For a video source disc.

The on-screen display becomes dark when no operation is done for about 5 minutes.

To cancel the screen saver.

To play MP3/WMA files.

To play JPEG files.

For a wide-screen (16:9) TV.

For a conventional (4:3) TV. Displays a wide-

For a conventional (4:3) TV. The picture is zoomed

OFF.

English

AUDIO menu

Item

DIGITAL AUDIO OUTPUT

D.RANGE COMPRESSION

SPK. SETTING menu

Item

LEVEL

DELAY

FRONT LEFT SPEAKER

FRONT RIGHT SPEAKER

CENTER SPEAKER

SURROUND RIGHT SPEAKER

SURROUND LEFT SPEAKER

TEST TONE

FRONT LEFT SPEAKER

FRONT RIGHT SPEAKER

CENTER SPEAKER

SURROUND RIGHT SPEAKER

SURROUND LEFT SPEAKER

0dB

OFF

0 ms

Contents

Set this item correctly when using the OPTICAL DIGITAL OUTPUT terminal on the rear.

PCM ONLY: DOLBY DIGITAL/PCM:

When connecting to audio equipment which can decode only linear PCM signals.

When connecting to a Dolby Digital decoder or an amplifier with a built-

in Dolby Digital decoder.

STREAM/PCM:

When connecting to a DTS decoder or an amplifier with a built-in DTS decoder.

Set this item to listen to DVD Video recorded in Dolby Digital format at low or middle volume.

AUTO:

You can enjoy powerful playback sound.

ON:

Select this if the sound level of DVD Video is lower than the one of TV program to make the

sound at a lower volume clear.

Contents

Select this item, then press ENTER to show the LEVEL submenu for adjusting the speaker output level.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND LEFT/RIGHT

SPEAKER:

TEST TONE:

• Select “ALL CH. ST,” “MUSIC,” or “MOVIE” (see page 16) to adjust the output level for all speakers with the test tone.

Select this item, then press ENTER to show the DELAY submenu for adjusting the speaker delay time.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND LEFT/RIGHT

SPEAKER:

• Set one speaker to “0 ms,” then set other speakers so that the sound from all speakers can reach you at the same time.

Select the speaker, then adjust the output level (–6 dB to +6 dB in 1 dB steps).

Turns on/off the test tone.

Select the speaker, then adjust the delay time (0 ms to 15 ms in 1 ms steps).

OTHERS menu

Item

RESUME

ON SCREEN GUIDE

Contents

You can select Resume.

ON:

The System resumes playback from the position where playback has been stopped if the disc is

still in the disc tray.

OFF:

Resume is deactivated.

Activate or deactivate the on-screen guide.

ON:

Activate the on-screen guide.

OFF:

Deactivate the on-screen guide.

Operating the TV

Remote control

TV/VIDEO

TV VOL +/–

CHANNEL +/–

123

456

789

10 0 +10

AUDIO

ENTER

10 keys

Operating TV

You can operate the JVC’s or other manufacturers’ TV using this remote control.

Slide the AUDIO/TV selector to “TV.”

AUDIO

Press and hold until the following steps are complete.

ENTER

Enter the 2-digit manufacture’s code number.

123

456

789

10 0 +10

English

Manufacture’s code

Manufacture Code number

JVC 01

Hitachi 10

Magnavox 02

Mitsubishi 03

Panasonic 04,11

Philips 15

RCA 05

Samsung 12

Sanyo 13, 14

Sharp 06

Sony 07

Toshiba 08

Zenith 09

Release TV.

To operate the TV

To turn on or off the TV:

To select the TV channel:

123

456

789

10 0 +10

To select the input mode (either TV or VIDEO):

TV/VIDEO

To adjust TV volume:

TV VOL

CHANNEL

Additional Information

English

Learning More about This System

Introduction

Playable Disc Types:

• About audio format Linear PCM:

–

format used for CDs and most studio masters.

–

Dolby Digital:

Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

–

DTS (Digital Theater Systems):

audio, developed by Digital Theater Systems, Inc., which enables multi-channel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

• If you use a DVD-RAM with a cartridge, take the disc out

of the cartridge before inserting.

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number,

the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure

occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Disc:

• On some DVD, SVCD, or VCD discs, the actual operations

may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• When playing back a DVD Audio disc recorded in MLP

(Meridian Lossless Packing; a lossless audio compression system that can completely recreate the PCM signal), the signals are recognized as the linear PCM signals, however, no indicator lights up on the display.

• For MP3/WMA playback...

– MP3/WMA discs require a longer readout time than

regular CDs. (It depends on the complexity of the group/ file configuration.)

– Some MP3/WMA files cannot be played back and will

be skipped. This results from their recording processes and conditions.

– When making MP3/WMA discs, use ISO 9660 Level 1

or Level 2 for the disc format.

– This System can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

– It is recommended that you make each MP3/WMA file at

a sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at bit rate of less than 64 kbps.

(see pages 1 to 2)

Uncompressed digital audio, the same

Compressed digital audio, developed by

Compressed digital

(see pages 9 to 13)

Daily Operations—Sound&Other Adjustments

(see pages 14 to 18)

Reinforcing the Bass Sound:

• The adjustment for the subwoofer level does not affect the sound through the headphones.

Creating Your Own Sound Modes—User Mode:

• When you unplug the AC power cord or if a power failure occurs, the User Mode settings will be erased in a few days. If this happens, set the User Modes again.

Selecting the Surround Modes:

• Dolby Pro Logic II Modes: Dolby Pro Logic II Mode is multichannel playback format to decode 2-channel sources into 5.1-channel. Dolby Pro Logic II enables to reproduce spacious sound from original sound without adding any new sounds and tonal colorations.

• While you use the headphones, the Surround Mode is canceled temporarily (“STEREO” appears) and you cannot use SURROUND MODE and EFFECT.

• Some DVD Audios prohibit downmix. While playing back such a disc... – You cannot change the Surround Mode. (“MULTI CH”

appears on the display.)

– The System plays back the left front and right front

signals when you have selected “STEREO” for the Surround Mode or when you use the headphones. (“LR ONLY” appears on the display.)

Changing the Color System and Scanning Mode:

• If you play back an NTSC disc with the color system set to “PAL (PROG),” the disc will be reproduced using “PAL 60” format, however, if the TV does not support this format, the screen may rolls over upward and downward rapidly.

• If you play back a PAL disc with the color system set to “NTSC (PROG),” you can watch the playback pictures, but the following symptoms may occur: – The items on the disc menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the

original aspect ratio.

– The picture movement is not smooth.

• You cannot change the scanning mode to progressive in the following cases: – When your TV does not support the progressive video

input.

– When you have not connected your TV to the unit using

a component video cord.

• When you play back an NTSC disc in progressive scanning mode, the System outputs the NTSC signal regardless of the color system settings.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Unique DVD/VCD Operations

Selecting the Sound Track:

• On some DVD Videos, you cannot change audio languages while playing back.

Playing Back Bonus Group:

• You cannot select a track in the bonus group for Program Play.

Special Picture Playback:

• During slow-motion playback, no sound will be reproduced.

• You cannot use frame-by-frame playback for DVD-VR.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

Programming the Playing Order—Program Play:

– While programming steps...

Your entry will be ignored if you have tried to program an item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks).

– For SVCD/VCD/CD loaded on the other tray than the

current one, the System may prompt for the group number entry as well, however, these entries will be ignored during playback.

• You cannot use Program Play and Random Play for DVDVR/JPEG discs.

• The programmed contents will remain until you erase it.

• While the PROGRAM indicator is on, you cannot change the disc to play. (DISC 1 – 5 on the remote control and 3 on the main unit do not work.)

On-Screen Disc Operations

Operations Using the On-screen Bar:

• A-B Repeat: – A-B Repeat cannot be used on some DVDs. – A-B Repeat is possible only within the same title or

within the same track.

Operations on the Control Screen:

• For DVD-VR playback... –

Original Program:

original picture in the recorded order.

–

Play List:

by the recording equipment. The control screen for the

play list appears only when the disc has the play list. – Resume is not available. – For details about DVD-VR format and play list, refer to

the manual of the recording equipment.

• For JPEG files playback... – It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

The System can play back the play list edited

The System can play back the

(see pages 19 to 21)

(see pages 22 to 24)

(see pages 25 to 31)

– This System can play only baseline JPEG files*.

Progressive JPEG files* or lossless JPEG files* cannot be played. * Baseline JPEG format: Used for digital cameras,

web, etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

• This System can play back JPEG files with the extension code <.jpg> or <.jpeg> (regardless of the letter case— upper/lower).

• This System may not play back JPEG files properly if they are recorded on the devices other than digital still camera.

• During slide-show playback, zoom cannot be operated.

Recording Operations

General:

• You cannot change the source during recording.

• There is leader tape which cannot be recorded onto at the start and the end of cassette tapes. Thus, when recording discs or radio broadcasts, wind the leader tape first to ensure that the recording will be made without any music part lost.

• If no cassette is inserted or a protected tape has been inserted, “NO REC” appears on the display.

• The recording level is automatically set correctly. Thus, you can make sound adjustment other than the Surround Mode without affecting the recording level.

Recording on a Tape:

• When using Reverse Mode for recording, start recording in the forward (3 stop when only one side (reverse) of the tape is recorded.

Synchronized Disc Recording:

• Recording starts from the first track even if you have selected a track by using ¢/4. To specify track(s) to record, program them (or use One Track Recording).

• While recording, you cannot use disc operation buttons (except for 7 volume control).

• Everything on the disc goes onto the tape in the order on the disc, or according to the order you have made for Program Play.

• You cannot use Repeat Play while synchronized recording (Repeat Play will be canceled).

• DISC REC START button does not work: – While playback is paused. – When Random Play is activated. – While playing back or being paused with Program Play.

• When the tape reaches its end in the forward direction (3 during recording, the last song will be re-recorded at the beginning of the reverse side (2

• When the tape reaches its end in the reverse side (2 during recording, recording stops even though the disc is not entirely recorded.

) direction first; otherwise, recording will

) and sound setting buttons (except for

(see pages 32 to 33)

English

)

English

Enjoying Karaoke

General:

• When the Mic Mixing or Vocal Masking Mode is activated: – Multichannel source will be downmixed into 2 channel

temporarily.

– Dolby Pro Logic II Mode will be canceled temporarily.

Reducing the Lead Vocal—Vocal Masking:

• The Vocal Masking Mode setting is not applied to the optical digital output signals through the OPTICAL DIGITAL OUTPUT terminal.

• When playing a Karaoke disc in the Vocal Masking Mode, the vocal may not be reduced or the volume may be lower.

• On some music, the Vocal Masking Mode does not provide the correct effect.

Scoring Your Karaoke Skill:

• Before the scoring function is activated, you can select the track by pressing ¢/4 (except for DVD Video and SVCD/VCD with PBC).

• If you press ¢/4 while scoring, playback stops and scoring is canceled (but the track is not skipped).

• If you activate the scoring function while playback is stopped with Resume function, playback starts from the position you have stopped.

• You can also activate the scoring function while playing back. In this case, the scoring starts from that point.

• While the scoring function is in use, you cannot use the following buttons: V.MASKING, MIC MIX, RESERVE, and disc operation buttons (except for ¢/4/7

• Activating the scoring function cancels Repeat Play.

• You cannot use the scoring function during Program Play, Random Play, or recording.

• The ranking (top 3) is cleared when you turn off the System. (If the number of songs scored is less than 3, “0 POINT” appears.)

Reserving Karaoke Songs—Karaoke Program Play:

• If you have selected a disc tray on which DVD Audio or DVD-VR is loaded, that disc number is skipped.

• If DVD Audio or DVD-VR is loaded on the current tray, you cannot use Karaoke Program Play.

• When the track starts playback, that track number will be erased from the Karaoke reserve screen (the programmed contents will remain until you erase it).

• While the PROGRAM indicator is flashing, you cannot change the disc to play. (DISC 1 – 5 on the remote control and 3

on the main unit do not work.)

(see pages 34 to 36)

Timer Operations

Setting the Timer:

• If you do not specify the preset station or track number correctly while setting a timer, the currently selected station or the first track will be played when timer is activated.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• Without stopping the recording, you cannot change the source after Recording Timer starts recording.

• If you set DVD Video as the source, Daily Timer will not work correctly.

Setup Menu Operations

General:

• If the upper and lower parts of the menu are cut off, adjust the picture size control of the TV.

LANGUAGE menu:

• When the language you have selected for MENU LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is not recorded on a disc, the original language is used as the initial language.

PICTURE menu—MONITOR TYPE:

• Even if “4:3 PS (MULTI)” is selected, the screen size may become 4:3 letter box with some DVD Videos. This depends on how the discs are recorded.

• When you select “16:9 (MULTI)” for a picture whose

aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

SPK. SETTING menu—DELAY:

• See the following diagram as an example for setting the delay time:

OTHERS menu—ON SCREEN GUIDE:

• The setup menu and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zoom-in always appear on the display regardless of this setting.

(see pages 37 to 38)

(see pages 39 to 40)

Front speakers:

0 ms

Center speaker:

1 ms

Surround speakers:

2 ms

Maintenance

To get the best performance of the System, keep your discs, tapes, and mechanism clean.

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotate it. – If the tape is loose, it may get stretched, cut, or caught in

the cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape—in dusty places, in direct sunlight or heat, in moist areas, on a TV or speaker, or near a magnet.

To keep the best recording and playback sound quality

• Use a cotton swab moistened with alcohol to clean the heads, capstans, and pinch rollers.

• Use a head demagnetizer (available at electronics and audio shops) to demagnetize the heads (when the System turned off).

To protect your recording

Cassettes have two small tabs on the back to protect from unexpected erasure or rerecording.

To protect your recording,

tabs.

To re-record on a protected tape,

the holes with adhesive tape.

remove these

cover

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it strong. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in contact

for a long time.

Troubleshooting

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

]

There is a time limit. Repeat procedure again.

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. Unplug the AC power cord and then plug it back in.

Unable to operate the System from the remote control.

]

The path between the remote control and the remote sensor on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive video input.

]

Incorrect color system is selected (see page 17).

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB (MULTI)” for “MONITOR TYPE” (see page 39).

Radio Operations:

Hard to listen to broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

English

Disc Operations:

The disc does not play.

]

You have inserted a disc whose Region Code is not “3.” (“REGION ERR” appears on the display.)

]

The disc is placed upside down. Place the disc with the label side up.

ID3 Tag on an MP3 disc cannot be shown.

]

There are two types of ID3 Tag—Version 1 and Version 2. This System can only show ID3 Tag Version 1.

MP3 groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

MP3/WMA or JPEG files are not played back.

]

The inserted disc may include both type of tracks (MP3/ WMA ﬁles and JPEG ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 39).

]

You have changed the “FILE TYPE” setting after you inserted a disc. In this case, reload the disc.

The disc sound is discontinuous.

]

The disc is scratched or dirty.

The disc playback sounds strange.

]

Cancel Key Control (see page 35).

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, press SUB TITLE after starting play (see page 20).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, press AUDIO after starting play (see page 19).

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use. “LOCKED” appears in the display window (see page 24).

]

The Program Play is in use. Cancel the Program Play (see page 23).

Tape Operations:

The cassette holder cannot be opened.

]

Power supply from the AC power cord has been cut off while the tape was running. Turn on the System.

Recording Operations:

Impossible to record.

]

Small tabs on the back of the cassette are removed. Cover the holes with adhesive tape.

]

The Karaoke scoring function is in use. Cancel the scoring function (see page 35).

Karaoke Operations:

Cannot activate the scoring function.

]

DVD Audio or DVD-VR is playing.

]

You cannot use the scoring function while recording, or while the disc menu for DVD Video/SVCD/VCD is shown on the TV screen.

Scoring result seems wrong (or “– –” appears).

]

The playback time with the scoring function is too short. It is recommended to sing for more than one and a half minutes. (If playback time is less than one minute, the scoring is canceled.)

]

No input from the microphone or the input level (MIC LEVEL) is too low.

]

You have sung in too low voice.

Timer Operations:

Daily Timer or Recording Timer does not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

Language Code List

Afar

Abkhazian

Afrikaans

Ameharic

AR Arabic FY Frisian KU Kurdish PS Pashto, Pushto TE Telugu AS Assamese GA Irish KY Kirghiz PT Portuguese TG Tajik AY Aymara GD Scots Gaelic LA Latin QU Quechua TH Thai AZ Azerbaijani GL Galician LN Lingala RM Rhaeto-Romance TI Tigrinya BA Bashkir GN Guarani LO Laothian RN Kirundi TK Turkmen BE Byelorussian GU Gujarati LT Lithuanian RO Rumanian TL Tagalog BG Bulgarian HA Hausa LV Latvian, Lettish RU Russian TN Setswana BH Bihari HI Hindi MG Malagasy RW Kinyarwanda TO Tonga BI Bislama HR Croatian MI Maori SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MK Macedonian SD Sindhi TS Tsonga BO Tibetan HY Armenian ML Malayalam SG Sangho TT Tatar BR Breton IA Interlingua MN Mongolian SH Serbo-Croatian TW Twi CA Catalan IE Interlingue MO Moldavian SI Singhalese UK Ukrainian CO Corsican IK Inupiak MR Marathi SK Slovak UR Urdu CS Czech IN Indonesian MS Malay (MAY) SL Slovenian UZ Uzbek CY Welsh IS Icelandic MT Maltese SM Samoan VI Vietnamese DA Danish IW Hebrew MY Burmese SN Shona VO Volapuk DZ Bhutani JI Yiddish NA Nauru SO Somali WO Wolof EL Greek JW Javanese NE Nepali SQ Albanian XH Xhosa EO Esperanto KA Georgian NL Dutch SR Serbian YO Yoruba ET Estonian KK Kazakh NO Norwegian SS Siswati ZU Zulu EU Basque KL Greenlandic OC Occitan ST Sesotho

Persian

Finnish

Fiji

FO Faroese KS Kashmiri PL Polish TA Tamil

KM KN KO

Cambodian Kannada Korean (KOR)

OM OR PA

(Afan) Oromo Oriya Panjabi

SU SV SW

Sundanese Swedish Swahili

Specifications

CA-DXT9 Amplifier section

Output Power: FRONT SPEAKERS: 150 W per channel, min. RMS, driven into

CENTER SPEAKER: 140 W per channel, min. RMS, driven into

SURROUND SPEAKERS: 140 W per channel, min. RMS, driven

SUBWOOFERS: 150 W per channel, min. RMS, driven into 4 Ω at

Digital output: OPTICAL DIGITAL OUTPUT:

Audio input sensitivity/Impedance (Measured at 1 kHz, with tape recording signal 300 mV) AUX: 300 mV/47 k MIC 1/2: 3.0 mV/50 k

VIDEO OUT: Color system: NTSC/PAL selectable

VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

COMPONENT (Interlace/Progressive):

Speaker Terminals: 4

4 Ω at 1 kHz with no more than 10% total harmonic distortion.

6 Ω at 1 kHz with no more than 10% total harmonic distortion.

into 6 Ω at 1 kHz with no more than 10% total harmonic distortion.

1 kHz with no more than 10% total harmonic distortion.

–21 dBm to –15 dBm (660 nm ±30 nm)

Ω

C (chrominance, burst) 0.286 V(p-p)/75

(Y) 1 V(p-p)/75 (PB/PR) 0.7 V(p-p)/75

Ω − 16 Ω

(front speakers/subwoofers) (surround/center speakers)

Ω Ω

English

Disc player section

Playable disc: DVD Video/DVD Audio/CD/VCD/SVCD

CD-R/CD-RW (recorded in Audio CD/Video CD/ Super Video CD formats and MP3/WMA/JPEG files) DVD-R (recorded in DVD Video format) DVD-RW (recorded in DVD Video format or DVDVR format)

DVD-RAM (recorded in DVD-VR format) Dynamic range: 80 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

Cassette deck section

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V / AC

230 V – AC 240 V , (adjustable with the voltage selector), 50 Hz / 60 Hz

Power consumption: 335 W (at operation)

29 W (on standby) Dimensions (W/H/D) (approx.): 185 mm x 460 mm x 361 mm Mass (approx.): 11.4 kg

Design and specifications are subject to change without notice.

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range: 531 kHz – 1 602 kHz (at 9 kHz)

530 kHz – 1 600 kHz (at 10 kHz)

English

CA-DXT7 Amplifier section

Output Power: FRONT SPEAKERS: 150 W per channel, min. RMS, driven into

CENTER SPEAKER: 50 W per channel, min. RMS, driven into

SURROUND SPEAKERS: 50 W per channel, min. RMS, driven

SUBWOOFER: 150 W per channel, min. RMS, driven into 4 Ω at

Digital output: OPTICAL DIGITAL OUTPUT:

Audio input sensitivity/Impedance (Measured at 1 kHz, with tape recording signal 300 mV) AUX: 300 mV/47 k MIC 1/2: 3.0 mV/50 k

VIDEO OUT: Color system: NTSC/PAL selectable

VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

COMPONENT (Interlace/Progressive):

Speaker Terminals: 4

4 Ω at 1 kHz with no more than 10% total harmonic distortion.

6 Ω at 1 kHz with no more than 10% total harmonic distortion.

into 6 Ω at 1 kHz with no more than 10% total harmonic distortion.

1 kHz with no more than 10% total harmonic distortion.

–21 dBm to –15 dBm (660 nm ±30 nm)

Ω

C (chrominance, burst) 0.286 V(p-p)/75

(Y) 1 V(p-p)/75 (PB/PR) 0.7 V(p-p)/75

Ω − 16 Ω

(front speakers/subwoofer) (surround/center speakers)

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range: 531 kHz – 1 602 kHz (at 9 kHz)

530 kHz – 1 600 kHz (at 10 kHz)

Disc player section

Playable disc: DVD Video/DVD Audio/CD/VCD/SVCD

Dynamic range: 80 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

CD-R/CD-RW (recorded in Audio CD/Video CD/ Super Video CD formats and MP3/WMA/JPEG files) DVD-R (recorded in DVD Video format) DVD-RW (recorded in DVD Video format or DVDVR format) DVD-RAM (recorded in DVD-VR format)

Cassette deck section

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V / AC

Power consumption: 270 W (at operation)

Dimensions (W/H/D) (approx.): 185 mm x 460 mm x 361 mm Mass (approx.): 11.4 kg

Design and specifications are subject to change without notice.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+DIGITAL OUT” are trademarks of

Ω

Digital Theater Systems, Inc.

Ω

• This product incorporates copyright protection technology

Ω

that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be

Ω

authorized by Macrovision, and is intended for home and

Ω

other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

230 V – AC 240 V , (adjustable with the voltage selector), 50 Hz / 60 Hz

25 W (on standby)

OPTICAL DIGITAL OUTPUT Signals

English

DIGITAL AUDIO

OUTPUT

Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY

DVD Video

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD Audio

DVD-RW/RAM in DVD-VR format

SVCD, VCD, CD

CD with DTS

MP3/WMA disc

*1 While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the OPTICAL DIGITAL

OUTPUT terminal if the discs are not copy-protected.

*2 There is no output for DVD Audio with content protection set.

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/20/ 24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

with 48 kHz, 16/20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM*1/48 kHz, 16 bit Linear PCM*

DTS bitstream 44.1 kHz, 16 bit Linear PCM

32/44.1/48 kHz, 16 bit Linear PCM

Output Signals

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

48 kHz, 16 bit Linear PCM*

English

Remote control

Button Page Button Page

AUDIO

¡¡¡¡ / 11

¢¢¢¢ / 44

5555 / ∞∞∞∞ / 3333 / 2222 /

ENTER

+ / –

10 keys

ANGLE

AUDIO

AUDIO/TV selector

AUDIO VOL + / –

AUX

CANCEL

CHANNEL + / –541

CHANNEL LEVEL

CLOCK/ TIMER

DIMMER

DISC 1–5

DVD LEVEL

DVD/CD 33

ECHO

EFFECT

FM MODE

FM/AM

GLANCE BACK

GROUP/ TITLE

8 9 Q 7 . P E

y r m

v l

J 2 o

4 s h P b p

11 – 13, 23

10, 12, 13, 21

11, 21

12, 17, 20, 21, 26 – 31, 39, 41

14, 15, 17, 18, 36, 37

10 – 12, 21, 22, 28, 36, 41

9, 41

9, 14

23, 36, 38

18, 37, 38

9, 11

9, 10

KARAOKE SCORING

KEY #/

MIC MIX

MENU/PL

ON SCREEN

PAGE

PLAY MODEO22, 23

REPEAT

RHYTHM AXg15

RESERVE

RETURN

REVERSE MODE

SCAN MODEU17

SET

SET UP

SETTING

SLEEP

SOUND MODEF15

SUB TITLE

SUB WFR LEVEL

SURROUND MODE

TAPE-A 2222 33

TAPE-B 2222 33

TOP MENU/ PG

TV VOL + / –

TV/VIDEO

V.MASKING

VFP

ZOOM

Main unit

Button Page Button Page

Display

¡¡¡¡ / 11

¢¢¢¢ / 44

AUX

DEMO

Disc trays

DISC1–5 3333/00

DISC REC START

DUBBING

8 ! % =

+ _ 1 5 ¡

10 – 13, 23, 24

10, 12, 13, 21

11, 21

11, 24, 33

DVD/CD

DVD LEVEL

FM/AM

KARAOKE SCORING

MIC 1 / MIC 2&34

MIC LEVEL

PHONES

PRESET +/–

PUSH-OPEN 00

REC START/ STOP

RHYTHM AX$15

Parts Index

Button Page Button Page

REVERSE

34, 36

12, 29

26 – 29

;

24, 31

10,

14,

15, 18,

36 – 38

9, 13

12, 29

21, 31

9, 11

)

9, 10

# ^

13, 32

™

MODE

SUBWOOFER LEVEL

SURROUND MODE

Remote control

Main unit

+/–

(

2 3 4 5

(

¡™£¢

13, 32

TAPE-A

TAPE-B

TUNING

VOLUME +/–

4 3 % ~

9, 13, 33

9, 13, 32, 33

9, 14, 34

e r t y u

123

456

789

10 0 +10

i o

;

E R

D F G

8 9

Remote

sensor

= ~

! @

)

# $ %

& *

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, and U.K.)

CA-DXT9/CA-DXT7 COMPACT COMPONENT SYSTEM

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

EN, CS

0205AIMMDWJEM

COMPACT COMPONENT SYSTEM

CA-DXT9 CA-DXT7

English

INSTRUCTIONS

GVT0147-002A

[UG, UX]

Warnings, Cautions and Others

Caution–– button!

Disconnect the mains plug to shut the power off completely. The button in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing

Front view Side view

on a stand with a height of 10 cm or more.

15 cm

1 cm 1 cm

CA-DXT9 CA-DXT7

15 cm

CA-DXT9 CA-DXT7

10 cm

G-2

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION

inside the unit; leave all servicing to qualified service personnel.

CAUTION

failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE UNIT.

: Do not open the top cover. There are no user serviceable parts

: Visible and invisible laser radiation when open and interlock

G-3
