Transporting loads up
to 1.4 tonnes in light to
medium-duty applications
Ergonomically designed
tiller can be operated
with either hand
Maintenance-free gel batteries
with on-board charger

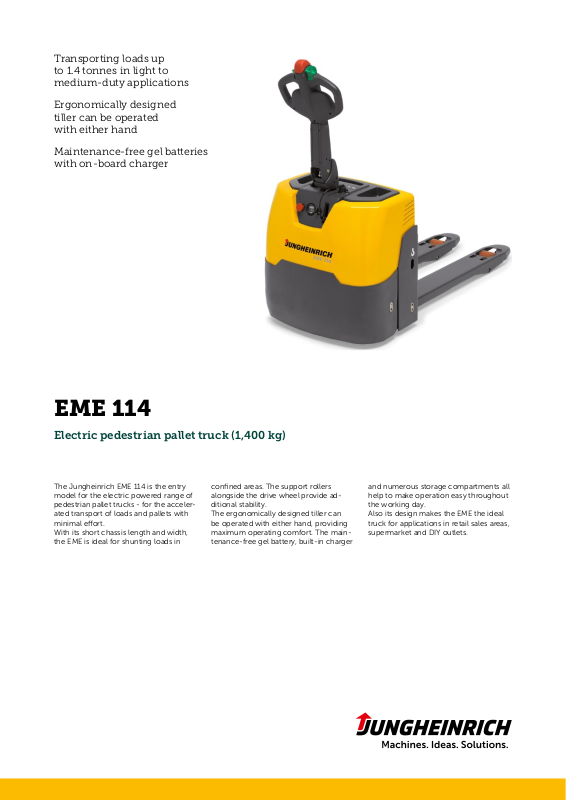

EME 114
Electric pedestrian pallet truck (1,400 kg)
The Jungheinrich EME 114 is the entry
model for the electric powered range of
pedestrian pallet trucks - for the accelerated transport of loads and pallets with
minimal eort.
With its short chassis length and width,
the EME is ideal for shunting loads in
confined areas. The support rollers
alongside the drive wheel provide additional stability.
The ergonomically designed tiller can
be operated with either hand, providing
maximum operating comfort. The maintenance-free gel battery, built-in charger
and numerous storage compartments all
help to make operation easy throughout
the working day.
Also its design makes the EME the ideal
truck for applications in retail sales areas,
supermarket and DIY outlets.
EME 114
5
h
14
721
c
195
l
2
a
2
y
Q
h
3
h
m
s
2
l
1
l
x
13
a
2
e
b
1
b
b
11
Wa
Ast
Issue: 07/2011
Technical data in line with VDI 2198
1.1 Manufacturer (short form) Jungheinrich
1.2 Model EME 114
1.3 Drive Electrics
1.4 Manual, pedestrian, stand-on, seated, order picker operation pedestrian
1.5 Load capacity/rated load Q t 1.4
1.6 Load centre distance c mm 600 600 500 500
Identification
1.8 Load distance x mm 963
1.9 Wheelbase y mm 1217
2.1 Service weight kg 244 244 240 240
2.2 Axle load, w. load, front / rear kg 608 / 1050 608 / 1050 608 / 1045 608 / 1045
2.3 Axle load, w.o. load, front / rear kg 248 / 50 248 / 50 243 / 50 243 / 50
Weights
3.1 Tyres Polyurethan
3.2 Tyre size, at front mm Ø 252 x 89
3.3 Tyre size, at rear mm Ø 84 x 93
3.4 Additional wheels (dimensions) mm Ø 100 x 40
3.5 Wheels, number front/rear (× = driven wheels) 1x +2/2
3.6 Track width, front b
Wheels / chassis
3.7 Track width, rear b
mm 490
10
mm 360 490 360 490
11
4.4 Lift h3 mm 120
4.9 Height of tiller in drive position min. / max. h
4.15 Lowered height h
4.19 Overall length l
4.20 Length incl. back of forks l
4.21 Total width b
mm 890 / 1265
14
mm 85
13
mm 1600 1600 1450 1450
1
mm 450
2
mm 710
1/b2
4.22 Fork dimensions s/e/l mm
4.25 Width over forks b
Basic dimensions
4.32 Floor clearance centre wheelbase m
mm 520 650 520 650
5
mm 34
2
4.33 Aisle width for pallets 1000 × 1200 sideways Ast mm 1762 1762
4.34 Aisle width for pallets 800 × 1200 lengthways Ast mm 1915 1919
4.35 Turning radius W
mm 1420
a
5.1 Travel speed, w. / w.o. load km/h 5.1 / 5.3
5.2 Lift speed, w. / w.o. load m/s 0.03 / 0.03
5.3 Lower speed, w. / w.o. load m/s 0.04 / 0.03
5.7 Gradeability laden/unladen % 3 / 6
data
5.8 Max. gradeability, laden/unladen % 5 / 8
Performance
5.10 Service brake electro-magnetic
6.1 Drive motor rating S2 60 min. kW 1.0
6.2 Lift motor rating at S3 10% kW 0.8
6.3 Battery according to DIN 43531/35/36 A,B,C, no no
6.4 Battery voltage/nominal capacity K5 V/Ah 2x 12 / 63
Electrics
6.5 Battery weight kg 46
6.6 Energy consumption according to VDI cycle kWh/h 0.8
8.4 Sound pressure level at operator’s ear according to EN 12053 dB (A) 63
Misc.
1)
1)
47 / 160 /
1150
1)
1)
963
1)
1217
47 / 160 /
1150
1)
1420
1)
813
1)
1067
47 / 160 /
1000
1)
1270
1)
813
1)
1067
47 / 160 /
1000
1)
1270
1)
Load section raised - 58 mm
In accordance with VDI Guideline 2198 this specification sheet provides details of the standard truck only. Non-standard tyres, different masts, optional equipment, etc. may
result in different values.
Benefit from the advantages
Your first investment in powered
trucks
Compact and manoeuvrable Optimal energy management Ergonomic tiller
An ideal first investment in powered
trucks
The EME 114 represents a step up
from a hand pallet truck to a powered
pedestrian pallet truck. The 1 kW motor
relieves the strain on the operator when
transporting pallets and loads up to a
maximum of 1.4 tonnes. Over short to
medium distances this makes it the ideal
product for occasional picking and transporting.
Compact and manoeuvrable
The short chassis length (450 mm)
and width (710 mm) allows the EME to
operate in tight areas. This makes the
EME 114 extremely compact and easy to
steer in confined areas.
Optimum energy management
Two maintenance-free 63 Ah /12 volt gel
batteries.
• Discharge indicator.
• On-board charger that can be plugged
into any 13Amp plug socket.
• Hour meter.
Safety and ergonomics
• Tiller can be operated with either hand.
• Crawl speed button for safe control in
confined areas.
• Numerous storage compartments.
• Support rollers ensure maximum
stability.
Options
Two widths over forks (520/650mm), two
fork lengths (1000/1150mm)
