The new model with the direct-drive system has been developed based on the DDL8700 -7 machine head.
The machine demonstrates improved responsiveness to promise stress-free operation.
In addition, the control box and operation panel are integrated with the motor cover of the machine head, to simplify the setup procedure.
Enhanced energy-saving performance
The new-model compact-sized servomotor has been installed in
the direct-drive style. The new-model servomotor improves
energy consumption and achieves increased speed and torque.
As compared with the belt-driven DDL-8700-7, the DDL-8700A-7
achieves a reduction of power consumption by 25 %.
Direct-drive
type
V-belt
type
Power
consumption
25
%
OFF
DDL-8700-7/SC-920
Comparison mode: Relative to the power consumed in four seconds, including the time required for sewing 100 stitches (including eight reverse-feed stitches each
at the beginning and end of sewing) and the standby time (with the energy-saving mode OFF)
DDL-8700A-7
DDL-8700AS-7-WB

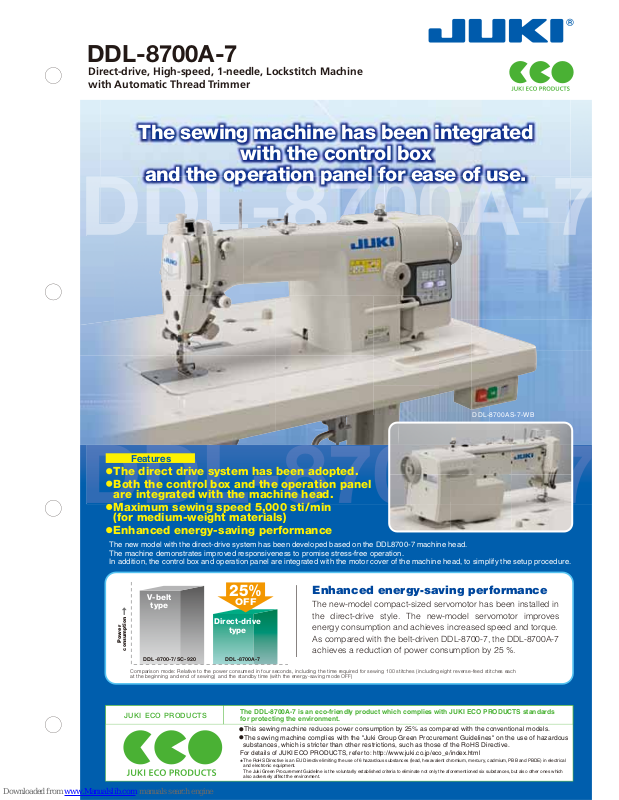

The sewing machine has been integrated
with the control box
and the operation panel for ease of use.
The direct drive system has been adopted.
Both the control box and the operation panel
are integrated with the machine head.
Maximum sewing speed 5,000 sti/min
(for medium-weight materials)
Enhanced energy-saving performance
Features
DDL-8700A-7
JUKI ECO PRODUCTS
•
This sewing machine reduces power consumption by 25% as c ompared with the c onventional models.
•
The sewing machine complies with the "Juki Group Green Procurement Guidelines" on the use of hazardous
substances, which is stricter than other restrictions, such as those of the RoHS Directive.
Direct-drive, High-speed, 1-needle, Lockstitch Machine
with Automatic Thread Trimmer
The DDL-8700A-7 is an eco-friendly product which complies with JUKI ECO PRODUCTS standards
for protecting the environment.
The RoHS Directive is an EU Directive limiting the use of 6 hazardous substances (lead, hexavalent chromium, mercury, cadmium, PBB and PBDE) in electrical
and electronic equipment.
The Juki Green Procurement Guideline is the voluntarily established criteria to eliminate not only the aforementioned six substances, but also other ones which
also adversely affect the environment.
*
For details of JUKI ECO PRODUCTS, refer to: http://www.juki.co.jp/eco_e/index.html
Direct-drive
The machine has adopted the
direct-drive system, which provides
excellent responsiveness. It helps
reduce operator fatigue and achieve
a comfortable work environment.
Since the sewing machine has no
V-belt, the operator needs neither to
clean up shavings from the V-belt,
nor adjust the V-belt tension.
WHEN YOU PLACE ORDERS
Provided
One-touch type reverse feed
0B
Provided WB
Code
Wiper and one-touch type reverse feed
SMedium-weight
Application
Heavy-weight H
Code
Machine head
Option part
SPECIFICATIONS
Application
Max. sewing speed
Max. stitch length
Presser foot
Lubricating oil
Needle
Power consumption
Weight of machine head
Outside dimensions of package (mm)
By hand:5.5mm, By Knee:13mm
JUKI Machine Oil 7 (equivalent to ISO VG7)
210VA
35kg (include motor, cotrol box, cover)
803×278×459 (0.102m
3
)
Heavy-weight
4,000sti/min
5mm
DB×1(#21)#20-#23
Medium-weight
5,000sti/min
4mm
DB×1(#14)#9-#18
DDL-8700AS-7 DDL-8700AH-7
Model name
Lubricati
n
SPE
Presser fo
M
ax. stit
c
M
ax. sew
App
li
cat
io
Mode
l n
Operation panel
Function table of operation panel
The operation panel provided as standard is provided
the functions shown in the following table.
Not provided
Provided
Wiper
*
"sti/min" stands for "Stitches per Minute."
*
The production support function actually consists of three different functions (six different modes),
which are the output control function, operation measuring function and bobbin thread counter function.
Control box and
Operation panel
The control box and operation panel
are integrated with the motor cover
of the machine head. The machine is
provided as standard with the
operation panel.
Bobbin thread winder
The bobbin winder is installed on the
top of the machine head in order to
improve workability at the time of
bobbin replacing.
Gauge
All of the gauges for the DDL-8700-7
are applicable to the new model.
Automatic thread
trimmer mechanism
Thread trimming speed has been
increased. As compared with the
DDL-8700-7, it has been increased by
approximately 1.5 times, thereby
contributing to increased productivity.
Not provided
Auto-lifter
Provided
AK85A
Code
Single-phase 220V〜240V (for General Export, China)
K
Single-phase 220V〜240V (for CE) N
Power supply
D
3-phase 220V〜240V (for General Export, JA*)
*
JA：North America and Central and South America.
Code
Please note when placing orders,
that the model name should be written as follows:
Main function
Production support function*
0 to 15 stitches
0 to 15 stitches
0 to 15 stitches, 0 to 9 times
Multi-layer stitching
Display of sewing speed
Automatic reverse-feed stitching
(performed at start/end of sewing; selectable)
Double reverse-feed stitching
(performed at start/end of sewing; selectable)
Description Name of Part
40114345
LED lamp (JL-1) LED_ALL_ASSY
Part No.
Option panel
CP180D
SEWING MACHINERY BUSINESS UNIT
JULY, 2012 Printed in Japan(C)
2-11-1, TSURUMAKI, TAMA-SHI,
TOKYO
206-8551, JAPAN
PHONE : (81) 42-357-2254
FAX :
(
81
)
42-357-2274
http://www.juki.com
✽
Specifications and appearance are subject to change without prior notice for improvement.
✽
Read the instruction manual before putting the machine into service to ensure safety.
✽
This catalogue prints with environment-friendly soyink on recycle paper.
