JRC JSS-2150 User guide

JSJSS-21502150

150W MF/HF RADIO EQUIPMENT150W MF/HF RADIO EQUIPMENT

INSTRUCTIONINSTRUCTION

MANUALMANUAL

.

CAUTIONS AGAINST HIGH VOLTAGE

Radio and radar devices are operated by high voltages of anywhere from a few hundred volts up to
many hundreds of thousands of volts. Although there is no danger with normal use, it is very
dangerous if contact is made with the internal parts of these devices. (Only specialists should attempt
any maintenance, checking or adjusting.)
There is a very high risk of death by even a few thousand volts, in some cases you can be fatally
electrocuted by just a few hundred volts. To prevent accidents, you should avoid contact with the
internal parts of these devices at all costs. If contact is inevitable as in the case of an emergency, you
must switch off the devices and ground a terminal in order to discharge the capacitors. After making
certain that all the electricity is discharged, only then can you insert your hand into the device. Wearing
cotton gloves and putting your left hand in your pocket, in order not to use both hands simultaneously,
are also very good methods of shock prevention.
Quite often, an injury occurs by secondary factors, therefore it is necessary to choose a sturdy and
level working surface. If someone is electrocuted it is necessary to thoroughly disinfect the affected
area and seek medical attention as soon as possible.

When you find an electrocution victim, you must first switch off the machinery and ground all circuits. If
you are unable to cut off the machinery, move the victim away from it using a non-conductive material
such as dry boards or clothing.
When someone is electrocuted, and the electrical current reaches the breathing synapses of the
central nervous system inside the brain, breathing stops. If the victim's condition is stable, he or she
can be administered artificial respiration. An electrocution victim becomes very pale, and their pulse
can be very weak or even stop, consequently losing consciousness and becoming stiff.
Administration of first aid is critical in this situation.

Cautions concerning treatment of

electrocution victims

First aid

☆Note points for first aid

Unless there is impending danger leave the victim where he or she is, then begin artificial respiration.
Once you begin artificial respiration, you must continue without losing rhythm.

(1) Make contact with the victim cautiously, there is a risk that you may get electrocuted.

(2) Switch off the machinery and then move the victim away slowly if you must.

(3) Inform someone immediately (a hospital or doctor, dial emergency numbers, etc.).

(4) Lay the victim on his or her back and loosen any constrictive clothing (a tie, or belt).

(5) (a) Check the victim's pulse.

(b) Check for a heartbeat by pressing your ear against the victim's chest.
(c) Check if the victim is breathing by putting the back of your hand or face near the victim's face.
(d) Check the pupils of the eyes.

(6) Open the victim's mouth and remove any artificial teeth, cigarette or chewing gum. Leave the

mouth opened and flatten the tongue with a towel or by putting something into the mouth to
prevent the victim's tongue from obstructing the throat. (If he or she is clenching the teeth and it is
difficult to open the mouth, use a spoon or the like to pry open the mouth.)

(7) Continually wipe the mouth to prevent the accumulation of saliva.

☆If the victim has a pulse but is not breathing

(“Mouth to mouth” resuscitation) Figure 1

(1) Place the victim’s head facing backward (place something under the neck like a pillow).
(2) Point the chin upward to widen the trachea.
(3) Pinch the victim’s nose, take a deep breath, then put your mouth over the victim’s mouth and

exhale completely, making sure that your mouth completely covers the victim’s mouth. Then
remove your mouth. Repeat this routine 10 to 15 times per minute (holding the nostrils).

(4) Pay attention to the victim to notice if he or she starts to breath. If breathing returns, stop

resuscitation.

(5) If it is impossible to open the victim’s mouth, put something like a plastic straw or vinyl tube into

one of the nostrils then blow air in while covering the mouth and the other nostril.

(6) Occasionally, when the victim comes back to consciousness, they immediately try to stand up.

Prevent this and keep them in a laying position. Give them something warm to drink and be sure
that they rest (do not give them any alcohol).

Administering artificial respiration by raising the head.

① (1) Raise the back of head, then place one

hand on the forehead and place the other
hand under the neck. →①

Most victims open their mouth when this is

done, making “mouth to mouth”
resuscitation easier.

② (2) Cover the victim’s mouth by opening your

mouth widely, then push your cheek
against the victim’s nose, →②
or pinch the victim’s nose to prevent air
from leaking out of it. →③

③ (3) Completely exhale into the lungs.
Exhale into the lungs until the chest

inflates.
You have to blow as rapidly as possible for
the first 10 times.

“Mouse to mouse” artificial respiration

Figure 1

☆If the victim has no pulse and is not breathing

(Heart massage in combination with artificial respiration.) Figure 2

If the victim has no pulse, his or her pupils are dilated, and if you cannot detect a heartbeat, the heart
may have stopped, beginning artificial respiration is critical.

(1) Put both hands on the diaphragm, with hands on top of each other keeping both arms straight (If

your elbows are bent, you cannot push with as much power). Press the diaphragm with your body
weight until the chest sinks about 2 cm (about 50 times per minute).

(2) If administering first aid when alone:

Perform the heart massage about 15 times then blow in twice. Repeat this routine.
If administering first aid with two people:
One person performs the heart massage 5 times, and the other person blows air in once. Repeat
this routine (Heart massage and “mouth to mouth” resuscitation used together).

(3) Constantly check the pupils and the pulse, if the pupils become normal and the pulse steadies,

keep them in a laying position and give them something warm to drink, be sure that they rest (do
not give them any alcohol). In any case you have to entrust major decision making to a doctor.
Having understanding people around is essential to the victim’s recovery from the mental shock of
electrocution.

① ②

③ ④

(Heart massage in combination with artificial respiration.) Figure 2

Preface

Thank you for choosing the Model JRC JSS-2150 150W MF/HF radio equipment. This radio
equipment can be used as a Global Maritime Distress and Safety System (GMDSS) radio device,
compliant with international regulations, that provides emergency communications and standard
communications capabilities for small and large ships.

● Please read this instruction manual thoroughly before using the JSS-2150 150W MF/HF radio

equipment, and use it in accordance with the instructions contained herein.

● Please keep this manual available for future reference. Please refer to it if any difficulties are

encountered when using the equipment.

v

Concerning the symbols

This manual uses the following symbols to explain correct operation and to prevent
injury or damage to property.
The symbols and descriptions are as follows. Understand them before proceeding with
this manual.

Before operation

WARNING

CAUTION

Examples of symbols

The Δ symbol indicates caution (including DANGER and WARNING).
The illustration inside the Δ symbol specifies the content of the caution
more accurately. (This example warns of possible electrical shock.)

The ; symbol indicates that performing an action is prohibited. The
illustration inside the ; symbol specifies the contents of the prohibited
operation. (In this example disassembly is prohibited.)

The z symbol indicates operations that must be performed. The
illustration inside the z symbol specifies obligatory instructions. (In this
example unplugging is the obligatory instruction.)

Concerning the WARNING labels

The WARNING labels are put on the NTD-2150 MF/HF Transceiver, NFC-2150
Antenna tuner, NBD-2150 AC/DC Power supply, and NBB-724 Battery charger. Do not
take off, destroy, or modify the labels.

Ex) NBD-2150 AC/DC Power supply (Upper view)

Indicates a warning that, if ignored, may result in
serious injury or even death.

Indicates a caution that, if ignored, may result in
injury or damage to property.

vi

Handling precautions

WARNING

Do not open the equipment to inspect or repair internal circuits. Inspection or
repairs by anyone other than a specialized technician may result in fire, electrical
shock, or malfunction.
If internal inspection or repair is necessary, contact our service center or agents.

Do not disassemble or customize this unit.
Doing so may cause fire, electrical shock, or malfunction.

Do not get this equipment wet or spill any liquids on or near this equipment.
Doing so may cause electrical shock, or equipment malfunction.

Do not touch any of the areas with warning labels.
Doing so may cause electrical shock.

Do not use voltage other than that specified.
Doing so may cause fire, electrical shock, or malfunction.

Do not remove protective covers on the high voltage terminals.
Doing so may cause electrical shock.

Do not insert anything flammable into the equipment.
Doing so may cause fire, electrical shock, or malfunction.

If a distress call is received, make sure to inform the ship's captain or officer in
charge.
Doing so may save the lives of the crews and passengers on the ship in distress.

This equipment is used for both distress communication and routine communication.
Contact JRC or our agent if any problem is observed in this unit during routine
operation or inspection.

vii

Handling precautions

CAUTION

Do not use this equipment anyplace other than specified.
Doing so may cause failure or malfunction.

Do not turn the trimmer resistors or the trimmer capacitors on the PCB unit.
Doing so may cause failure or malfunction.

Do not install the equipment in a place near water or in one with excessive
humidity, steam, dust, or soot.
Doing so may cause fire, electrical shock, or malfunction.

Do not test the distress call.
Doing so may inconvenience local shipping and rescue centers.

Do not turn off the equipment when at sea because the SOLAS Convention
requires keeping watch on distress and safety frequencies at all times. Always
listen to 2187.5 kHz, and 8414.5 kHz, and one or more of the following
frequencies; 4207.5 kHz, 6312.0 kHz, 12577.0 kHz, or 16804.5 kHz. In class B
mode, it is necessary to keep watch only on 2187.5 kHz.

When completely turning off the power to the equipment, turn off the breaker
on the transceiver

To operate DSC functions of the equipment, the ID numbers assigned to the ship
must be registered in advance. If registration is necessary, contact our service
center or agents.

To install this equipment, contact our service center or agents.
Special knowledge on selecting the place where the antenna is to be mounted
and setting the ID number (MMSI) assigned to the ship is required in addition to
installing the equipment.

When sending a distress call, follow the instructions of the ship's captain or
officer in charge.

If a false distress call is transmitted accidentally, follow the instructions below:

1. Press the CANCEL key on the controller (when appropriate, follow the
commands on screen) and terminate the transmission of the distress call.

2. Report the false distress call to a nearby RCC (Rescue Coordination Center).

(In Japan, inform the nearest Japan Coast Guard.)
Information to be reported:

The date/time, location, and reason why the false distress call was transmitted.
Also report the ship's name, type, nationality, and ID number as well as the unit
model name and manufacture number/date, if possible.

3. Report the false distress call to nearby ships using 2182.0 kHz or another
frequency for distress and safety purposes on the radiotelephone.

4. If any acknowledgements to the distress call are received, inform the ships of
the false distress call.

To turn off an alarm or clear a display such as a received DSC message, do not
press the DISTRESS key. Doing so may cause a false distress call.
(Press the CANCEL key to turn off the alarm and delete the message.)

viii

CAUTION

When sending a drobose call, do not press the DISTRESS key. Doing so
may cause a false distress call.
(Drobose calls can be sent via the [Call] button displayed on the screen.)

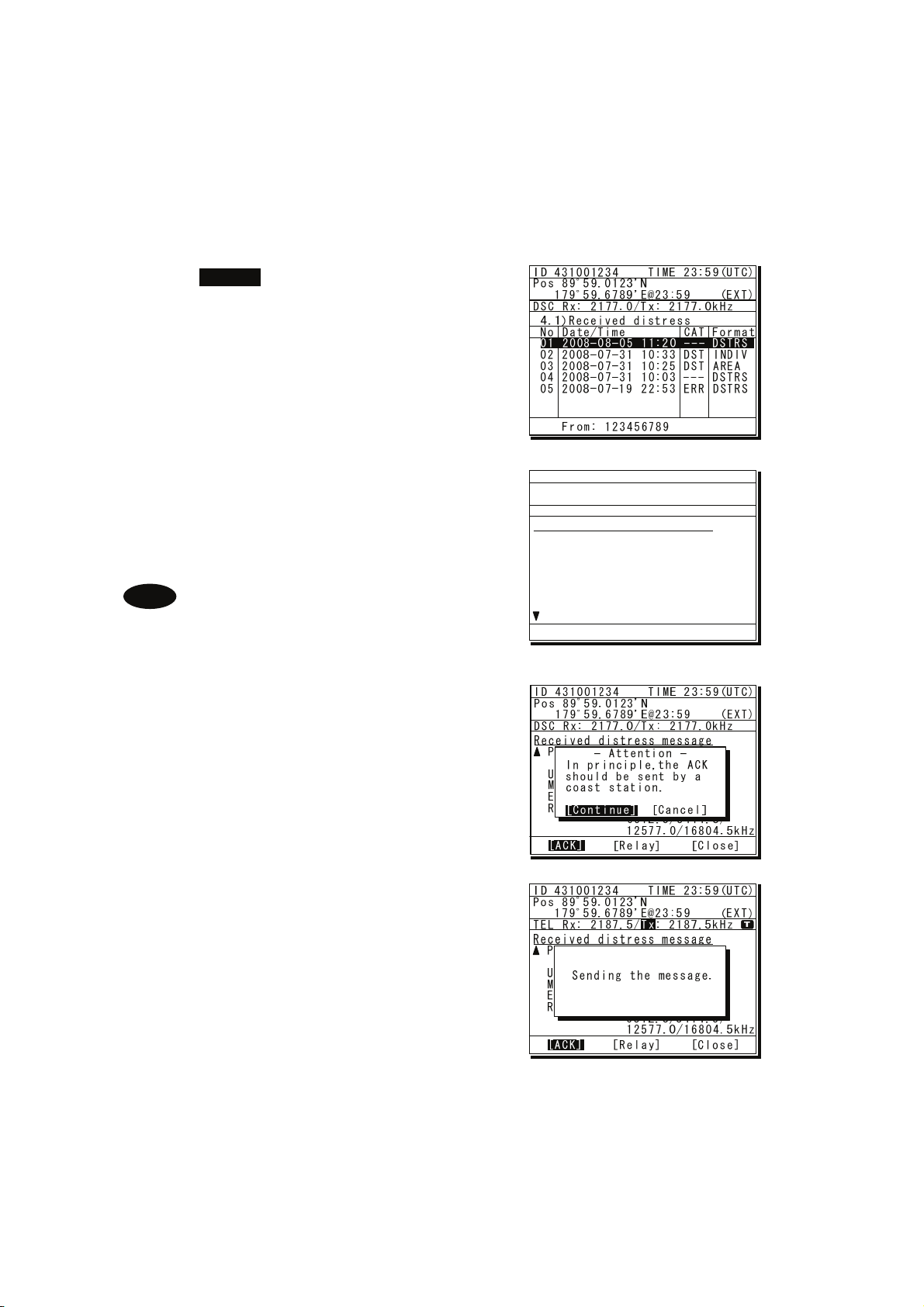

A distress acknowledgement or a distress relay call can be transmitted from a
received distress message stored in the log, but when sending such a call,
follow the instructions of the ship's captain or officer in charge.

Received distress calls are automatically deleted after 48 hours to avoid
accidental resending or other misoperation. Accordingly, if such messages
cannot be read, it is not a malfunction.

The received distress message logs are cleared when turning off the power by
such as the breaker on the transceiver. Due to the SOLAS Convention
(keeping watch on distress and safety frequencies at all times), do not turn off
the equipment when at sea.

The time in the 7.1 Date & time menu means the present time, and is different
from the time in the 7.2 POS/TIME menu that means the time when the
position information is valid.

The time in the 7.2 POS/TIME menu means the time when the position
information is valid, and is different from the present time mentioned in the 7.1
Date & time menu.

The batteries, except for sealed lead-acid batteries that require no equalization,
should be carried out the equalizing charge at least every six months

The thermal head of the NKG-91 printer may be very hot after printing. Do not
touch the thermal head of the printer. Make sure the thermal head is cool
before replacing the paper or cleaning the thermal head.

The paper used in the NKG-91 printer is heat sensitive. Take the following
precautions when using this paper.

・ Store the paper away from heat, humidity, or heat sources.
・ Do not rub the paper with any hard objects.
・ Do not place the paper near organic solvents.
・ Do not allow the paper to come in contact with polyvinyl chloride film, erasers,

or adhesive tape for long periods of time.

・ Keep the paper away from freshly copied diazo type or wet process copy

paper.

The print head of the NKG-800 printer may be very hot after printing. Do not
touch the print head of the printer. Make sure the print head is cool before
replacing the paper or cleaning the print head.

Do not use the NKG-800 printer if there is no ink ribbon cartridge or paper. Do not
twist the ink ribbon when installing the ink ribbon cartridge.

Before opening and closing the cover of the NKG-800 printer, turn off the printer.
Wait more than 2 seconds after turning the printer off before turning it back on
again so it can initialize correctly.

ix

D

D

D

I

I

I

S

S

S

T

T

T

R

R

R

E

E

E

S

S

S

S

S

S

C

C

C

A

A

A

L

L

L

L

L

L

S

S

S

Sending a Distress Call (Distress Alert)

CAUTION

When sending a distress call, follow the instructions of the ship's captain or officer in
charge.

1

.

1

.

1

.

Open the DISTRESS key cover on the NCM-2150 controller.

2

.

2

.

2

.

Press and hold the DISTRESS key for 4 seconds to send the distress call.

When the countdown is finished the screen below on the right is displayed, and after tuning the
antenna to the frequency, the distress call is transmitted.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

3)Editing a distress msg
Format :Distress
Self-ID :431001234

Distress call starts

Nature :Undesignated
Position : 89ﾟ59.0123'N
179ﾟ59.6789'E

in sec

UTC of pos :23:59
Comm type :Radiotelephone
EOS :EOS

[Return] [Tips] [Cancel]

3

.

3

.

3

.

After sending the distress call, wait for an acknowledgement.

The radiotelephone can be used to communicate even while waiting for an acknowledgement. The screen
below is displayed when an acknowledgement is received. Press the CANCEL key or ENT to cancel the
alarm, and then select Continue with the jog dial and press ENT. Unless an acknowledgement is received or
the distress call is cancelled manually, the equipment repeats the distress call every 3.5 to 4.5 minutes.

4

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2187.5/Tx: 2187.5kHz

Distress calling

Stage :Transmitting
Next :--­ Call-F:2187.5/4207.5/6312.0
(kHz) 8414.5/12577.0/16804.5

[MoreInfo]
WKR scan bands:

2 4 6 8 12 16 (MHz)

Tx

T

x

4

.

4

.

4

.

After receiving acknowledgement, use the radiotelephone to request rescue.

First, the responding station calls by radiotelephone. Communicate the following information to that station.

z Say "MAYDAY".
z Say "This is (name of your ship)".
z Tell the station the ship's Maritime Mobile Service Identity (MMSI) number, call sign, ship's position,

nature of distress, and rescue requests.

Note

If time permits, enter the nature of the distress as follows, just before sending the distress call.
(For more details, see 4.5.3.)

1) Open menu 3. Editing a distress msg.

2) Press ENT in the screen displayed at right

and select the nature of the distress.

3) Press ENT to confirm the selection.
The nature of the distress is set. If the position
and time (UTC) are not displayed automatically
for any reason, input them manually at this time.

4) Press and hold the DISTRESS key for 4

seconds to send the distress call.

The rest of the procedure is the same as
described above.

Terminating a Distress Call

CAUTION

If a false distress call is transmitted accidentally, follow the instructions below:

1. Immediately terminate the distress call according to the following procedure.

2. Report the false distress call to a nearby RCC (Rescue Coordination Center).
(In Japan, inform the nearest Japan Coast Guard.)
Information to be reported:

The date/time, location, and reason why the false distress call was transmitted. Also
report the ship's name, type, nationality, ID number as well as the unit model name and
manufacture number/date, if possible.

3. Report the false distress call to nearby ships using 2182.0 kHz or another frequency for
distress and safety purposes on the radiotelephone.

4. If any acknowledgements to the distress call are received, inform the ships of the false
distress call.

1

.

1

.

1

.

Press the CANCEL key on the NCM-2150 controller.

If the CANCEL key is pressed during transmission of the distress call, the screen immediately returns to
the status display.
If the CANCEL key is pressed in the interval between automatic resending of the distress call, the screen
shown below is displayed. Select Break with the jog dial and press ENT to return to the status display.

xi

Receiving a Distress Call

WARNING

If a distress call is received, make sure to inform the ship's captain or officer in charge.
Doing so may save the lives of the crew and passengers on the ship in distress.

1

.

1

.

1

.

When a distress call is received, the distress message is displayed.

The ALM lamp starts blinking, and an alarm gradually grows louder.

2

.

2

.

2

.

Press the CANCEL key to stop the alarm and then select Accept with the jog dial and
press ENT. Keep watch on the distress call's frequency of the radiotelephone.

Keep watch for at least 5 minutes. Notify the coast station as appropriate.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4100.0/Tx: 4100.0kHz

Received distress message
Position :90ﾟ00.0000'N
180ﾟ00.0000'E
UTC of pos:23:57
Mode :Radiotelephone
EOS :EOS
Rx FRQ :2187.5/----.-/

[Accept] [Cancel]

3

.

3

.

3

.

[Accept]

To respond to the distress call and coordinate with the coast station, select acknowledge
(ACK) from the menu in 4. DSC logs and send it. After sending it, communicate with the
ship in distress via the radiotelephone as follows.

z Say "MAYDAY".
z Repeat the identity (MMSI) of the ship in distress 3 times
z Say, "This is".
z Repeat the identity (MMSI) of your ship 3 times
z Say "RECEIVED MAYDAY".

----.-/----.-/

-----.-/-----.-kHz

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4100.0/Tx: 4100.0kHz

Received distress message
Type :Distress
From :431022222
Nature :Man overboard
Position :90ﾟ00.0000'N
180ﾟ00.0000'E
UTC of pos:23:57
Mode :Radiotelephone
EOS :EOS

Press CANCEL to silence alarm.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

2182.0

TX kHz

2182.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

xii

Equipment exterior

● JSS-2150 150W MF/HF Radio Equipment

NTD-2150 150 W MF/HF Transceiver NFC-2150 Antenna Tuner

NCM-2150 MF/HF Controller/NQW-261 Handset

xiii

● NKG-91 Printer

● DPU-414 Printer

● NKG-800 Printer

● NBB-724 Battery charger

● NBD-2150 AC/DC Power supply

● NCH-321A Distress Message Controller (DMC)

xiv

Contents

Preface ......................................................................................................... v

Before operation ......................................................................................... vi

Handling precautions ................................................................................. vii

DISTRESS CALLS ....................................................................................... x

Equipment exterior ..................................................................................... xiii

Glossary of terms ....................................................................................... xix

1. EQUIPMENT OVERVIEW ........................................................................ 1-1

1.1 Functions ................................................................................................................... 1-1

1.2 Features ..................................................................................................................... 1-1

1.3 Basic configuration .................................................................................................... 1-2

1.3.1 Basic configuration of the main unit ..................................................................... 1-2

1.3.2 Options ................................................................................................................. 1-2

1.3.3 System configuration ........................................................................................... 1-3

1.4 External dimensions .................................................................................................. 1-4

1.5 Block diagram ............................................................................................................ 1-12

2. NAMES AND FUNCTIONS ...................................................................... 2-1

2.1 Controller (NCM-2150) .............................................................................................. 2-1

2.2 Main displays ............................................................................................................. 2-3

2.2.1 Status display ....................................................................................................... 2-3

2.2.2 Function screen and key operations .................................................................... 2-4

2.2.3 Menu screen ........................................................................................................ 2-5

2.2.4 DSC message receiving screen .......................................................................... 2-5

3. INSTALLATION ........................................................................................ 3-1

4. OPERATION ............................................................................................. 4-1

4.1 Controller operation overview .................................................................................... 4-1

4.2 Basic communications procedure .............................................................................. 4-3

4.2.1 Turning on the power ........................................................................................... 4-3

4.2.2 Turning off the power/ Putting into sleep mode ................................................... 4-4

4.2.3 Communicating in radiotelephone mode ............................................................. 4-5

4.2.4 Communicating in CW mode ............................................................................... 4-7

4.2.5 Receiving AM broadcasts .................................................................................... 4-9

4.3 Setting the radio ........................................................................................................ 4-10

4.3.1 Setting the communication frequencies .............................................................. 4-10

4.3.2 Setting the communication channels .................................................................. 4-11

4.3.3 Setting the automatic gain control (AGC) ........................................................... 4-15

4.3.4 Setting the noise reduction (NR) ......................................................................... 4-15

4.3.5 Setting the attenuation (ATT) .............................................................................. 4-16

4.3.6 Setting the clarifier ............................................................................................... 4-16

4.3.7 Setting the squelch level ..................................................................................... 4-17

4.3.8 Setting the CW bandwidth ................................................................................... 4-17

4.3.9 Scanning the Rx frequencies .............................................................................. 4-18

4.3.10 Reducing the Tx power ....................................................................................... 4-19

4.3.11 Setting the antenna tuning power ....................................................................... 4-19

4.4 Basic DSC operations ................................................................................................. 4-20

4.4.1 Routine calls to an individual station ................................................................... 4-20

4.4.2 Routine calls to a group of ships ......................................................................... 4-23

4.4.3 Receiving routine calls ........................................................................................ 4-25

4.5 Emergency calls (DSC safety/urgency/distress calls) ................................................ 4-29

4.5.1 Safety calls .......................................................................................................... 4-29

4.5.1.1 Individual calls ............................................................................................. 4-29

4.5.1.2 Area calls ..................................................................................................... 4-31

4.5.1.3 Other features of the safety calls (position request/test) ............................... 4-33

4.5.1.4 Receiving safety calls .................................................................................. 4-37

4.5.2 Urgency calls ....................................................................................................... 4-40

4.5.2.1 Individual calls ............................................................................................. 4-40

4.5.2.2 Area calls ..................................................................................................... 4-41

4.5.2.3 Special calls (medical transport/neutral ship) .............................................. 4-43

4.5.2.4 Receiving urgency calls ............................................................................... 4-43

4.5.3 Distress calls ....................................................................................................... 4-45

4.5.3.1 Quick distress calls ...................................................................................... 4-45

4.5.3.2 Distress calls from the menu ....................................................................... 4-48

4.5.3.3 Receiving distress calls ............................................................................... 4-51

4.5.3.4 Acknowledging a received distress call ....................................................... 4-52

4.5.4 Distress relay calls on behalf of someone else ................................................... 4-53

4.5.4.1 Coast station calls ........................................................................................ 4-53

4.5.4.2 Area calls ..................................................................................................... 4-55

4.5.4.3 Receiving drobose calls ............................................................................... 4-57

4.5.5 Distress relay calls .............................................................................................. 4-58

4.5.5.1 Sending distress relay calls ......................................................................... 4-58

4.5.5.2 Receiving distress relay calls ...................................................................... 4-60

4.6 DSC call log ............................................................................................................

4.6.1 Received distress messages .............................................................................. 4-62

4.6.2 Received other messages ................................................................................... 4-63

4.7 Popup screens .......................................................................................................... 4-64

.. 4-62

5. SETTINGS & REGISTRATIONS ............................................................. 5-1

5.1 Date and time settings .............................................................................................. 5-1

5.2 Own ship position and time settings .......................................................................... 5-3

5.3 Controller settings ...................................................................................................... 5-4

5.3.1 LCD adjustment ................................................................................................... 5-4

5.3.2 Sound settings ..................................................................................................... 5-4

5.3.3 User key assignments .......................................................................................... 5-5

5.3.4 Selecting Tx meters ............................................................................................. 5-6

5.3.5 Transferring user channel data to another controller ........................................... 5-7

5.4 Registering user channels ......................................................................................... 5-8

5.5 Advanced settings for DSC/WKR .............................................................................. 5-10

5.5.1 Automatic acknowledgement ............................................................................... 5-10

5.5.2 Setting DSC watch frequency .............................................................................. 5-11

5.5.3 Disabling receiving alarms for routine and safety calls ........................................ 5-11

5.5.4 Using medical/neutral settings for urgency calls .................................................. 5-11

5.5.5 Registering the ship's group ID ............................................................................ 5-11

5.6 Setting connections for options ................................................................................. 5-12

6. MAINTENANCE & INSPECTION ............................................................. 6-1

6.1 General maintenance & inspection ............................................................................ 6-1

6.2 Self diagnosis inspection ........................................................................................... 6-2

6.3 System alarm indication ............................................................................................ 6-5

6.3.1 Alarm list .............................................................................................................. 6-6

6.3.2 Viewing the alarm history ..................................................................................... 6-8

6.4 Software version ........................................................................................................ 6-9

6.5 Troubleshooting ......................................................................................................... 6-10

6.5.1 Procedures for locating malfunctions ................................................................... 6-10

6.5.2 Guide to locating faults ........................................................................................ 6-11

6.5.3 Consumables ....................................................................................................... 6-12

6.5.4 Repair units/parts ................................................................................................. 6-12

6.5.5 Regular replacement parts ................................................................................... 6-12

7. AFTER-SALES SERVICE ........................................................................ 7-1

8. DISPOSAL ............................................................................................... 8-1

9. SPECIFICATIONS .................................................................................... 9-1

9.1 JSS-2150 150W MF/HF Radio Equipment ................................................................ 9-1

9.2 Options ...................................................................................................................... 9-4

9.3 Peripheral interfaces .................................................................................................. 9-6

10. OPTIONS OPERATION ......................................................................... 10-1

10.1 AC/DC power supply (NBD-2150) ............................................................................. 10-1

10.2 Battery charger (NBB-724) ........................................................................................ 10-2

10.3 Printer (NKG-91) ........................................................................................................ 10-4

10.4 Printer (NKG-800) ...................................................................................................... 10-5

10.5 Operations using a SELCALL unit ............................................................................. 10-8

11. Appendix ............................................................................................... 11-1

11.1 Frequencies for distress and safety calls .................................................................. 11-1

11.2 National DSC frequencies for routine calls ............................................................... 11-2

11.3 International DSC frequencies for routine calls ........................................................ 11-2

11.4 ITU channel list (TEL/CW) ........................................................................................ 11-3

11.5 Guide to MF/HF operation ........................................................................................ 11-11

Glossary of terms

This section defines general and DSC terms related to this equipment.

● General terms

DSC

Digital Selective Calling device
Used in routine calls, safety and urgency
calls, and distress calls for rescue requests.

GMDSS

Global Maritime Distress and Safety System.

GPS

Global Positioning system

IMO

International Maritime Organization

ITU

International Telecommunication Union
Establishes conventions and regulations for
all electrical wired and radio, land, sea, air,
and space communications. It contains
internal organizations such as ITU-R and
ITU-T.

ITU-R

The International Telecommunications Union
(ITU) radio communications department.

LT

Local time

MMSI

Maritime Mobile Service Identity
The 9-digit Maritime Mobile Service Identity
number assigned to each ship and coast
station.

RMS

Remote Maintenance System
Transmits ship equipment information
temporarily stored in the VDR via Inmarsat to
land, for use in maintenance and
management of radio equipment.

RR

Radio Regulations
International regulations for radio transmission
established by the treaty of the ITU.

SOLAS Convention

International Convention for Safety of Life at
Sea
The international convention applies to all
ships engaged on international voyages. A
safety certificate is issued if the conditions of
this convention are satisfied.

SQL (Squelch)

A function that acts to suppress the audio
output of a receiver in the absence of a radio
signal of sufficient strength.

UTC

Universal Time Coordinated

MF/HF

Medium frequencies and high frequencies
(300 kHz to 30 MHz)

VOL (Volume)

Speaker volume

NMEA

PTT

RCC

Maritime equipment transmission standard
established by the National Marine
Electronics Association.

Push to talk

Rescue Co-ordinate Center

WRC

World Radiocommunication Conference

WKR

Watch Keeping Receiver
The WKR is the receiver dedicated to
monitoring the distress and safety
frequencies.

xix

● DSC terms

Address

General term for Maritime Mobile Serive
Identity number (MMSI).
This equipment uses To/From to distinguish
between the sender and receiver. It also
means the Self-ID (own ship MMSI) and
Dist-ID (MMSI of a ship in distress).

Category

Message code indicating priority of the call.
Priority levels are listed below.

・ Routine… General calls for routine work
・ Safety…
・ Urgency…
・ Distress…

EOS (End Of Sequence)

Termination code appended to call
messages.
Other codes are listed below.

・ ACK RQ… Acknowledgement request
・ ACK BQ… Acknowledgement responding

ECC (Error Check Character)

Error check code appended to the end of call
messages.
This is not normally displayed, but if an error
occurs on a message, an ECC error is
displayed.

Mode

Message code indicating communication
mode after a DSC call.
This equipment is fixed to radiotelephone.

Nature of Distress

Message code indicating the type of distress
when a distress call is issued.
Codes are listed below.

・ Fire… Fire, explosion
・ Flooding… Flooding
・ Collision… Collision
・ Grounding… Grounding
・ Listing… Risk of ship capsizing
・ Sinking… Sinking
・ Disabled… Ship inoperable/adrift
・ Undesignated… Undesignated distress
・ Abandoning… Abandoning ship
・ Piracy attack… Piracy/robbery attack
・ Man overboard… Man overboard

Calls for safety communications
Calls for urgent communications
Calls for distress communications

to the ACK RQ

Polling

Polling is a feature for routine calling.
It is used, for example, to confirm whether a
ship is within radio range when a coast
station requests navigational information of
the ship.

Reason

Message code indicating reason for negative
acknowledgement response.
Codes are listed below.

・ No reason… No reason
・ Congestion… Maritime information

exchange center
congested

・ Busy… Busy
・ Queue… Queued
・ Barred… Station barred
・ No operator… No operator
・ Temp no oper…
・ EQP disabled… Equipment disabled
・ Unable FRQ… Indicated frequency

・ Unable mode…

Rx FRQ

Received frequency of the call

Subject

Message code clarifying communication
contents when sending an urgency call to all
ships.
When sailing in dangerous waters, such as
in areas of political instability, these call
messages are used with the following
information.

・ Neutral ship: In accordance with ITU

resolution 18 (Mob-83), inform all ships
that own ship is of neutral nationality.

・ Medical TRANSP: Inform all ships

that own ship is performing medical
transportation, and is protected under the
1949 Geneva Convention.

Topic

Message codes in an acknowledged message
After sending an individual call, "Unable to
comply" is displayed when the responding
station cannot comply.

Temporarily no operator

cannot be used
Indicated mode cannot
be used

xx

Type

Message code indicating the type of the call.
Codes are listed below.

・ Individual call… Individual call message
・ Individual ACK… Acknowledgement of

individual call message

・

Individual NACK… Negative acknowledgement

of individual call message

・ Group call… Group call message
・ GEO area call… Area call message
・ All ships call… Call to all ships
・ Distress… Distress call message
・ Distress ACK… Acknowledgement of

distress call message

・ Distress relay… Distress relay message
・

Distress relay ACK

… Acknowledgement of

distress relay message

・

Distress relay GEO

… Area call of distress

relay message

Intent

Message code indicating specific content.
Indicates the type of the call for a specific
purpose, not for radiotelephone
communication.

・ Polling… Polling
・ Position RQ… Ship position request
・ Ship position…

Ship position notification

・ Test… Safety test call

Work FRQ

Message code indicating communication
frequency after a DSC call.

xxi

xxii

Equipment Overview

1. EQUIPMENT OVERVIEW

1.1 Functions

This equipment includes MF/HF transceiver, Class-A DSC and DSC watch keeping receiver required
as the Global Maritime Distress and Safety System (GMDSS). It is designed as a separated
transceiver and small, lightweight controller(s) for easy installation not only in international passenger
ships and freight ships of 300 tons or more, but also conventional ships of less than 300 tons.
It has the DSC routine and distress call functions, and function keys that can be set to run a
self-diagnostic function and DSC safety test call for periodic inspections.

1.2 Features

● Compliant with the ITU Radio Regulations (RR), the IMO performance standards, and the ITU-R

recommendations.

● Contains all channels specified in the ITU Radio Regulations (RR).

● Separately designed transceiver and controller enable easy installation in limited or difficult

spaces.

● A semi-transmissive LCD with a wide viewing angle is easily viewable even in direct light or when

backlit and allows it to be installed in a variety of positions.

● The backlights of the LCD and operation keys are fully adjustable, preventing interference with

night watch keeping.

● When in distress, the DSC can send a distress message with the expanded position data accurate

up to 1/10000 of a minute for both latitude and longitude to make search and rescue operations by
the RCC easier.

● High-quality stable operation is possible by using DSP technology on a transceiver with a

DSC/WKR modem.

● The DSC/WKR modem operates in Class A mode suitable for all areas, and in Class B mode

limited to ships navigating in A1 and A2 areas.

● An advanced digital audio amplifier with a built-in loud speaker provides a maximum of 5 W of

clear audio.

● A dedicated self-diagnosis key makes maintenance and inspection simple.

● Besides printers and GPS, other peripherals such as the remote maintenance system (RMS) can

be connected to the equipment.

1-1

Equipment Overview

1.3 Basic configuration

1.3.1 Basic configuration of the main unit

No. Description Model Qty Notes

1 MF/HF transceiver

2 MF/HF controller NCM-2150 1

3 Handset NQW-261 1 Includes the cradle

4 Antenna tuner NFC-2150 1

5 Instruction manual 7ZPJD0449 1 This manual

1.3.2 Options

No. Description Model Notes

1 TX antenna NAW-60 6m whip antenna

2 RX/WKR antenna NAW-60 6m whip antenna

3 Joint box JQD-69C For both RX and WKR

4 Junction box NQD-2253

5 Coaxial connector M-P-7, M-A-JJ For RG-12/UY and RG-10/UY

6 AC/DC power supply NBD-2150

7 Battery charger NBB-724

8 MF/HF controller NCM-2150

NTD-2150

1

Includes the connection cable
(7ZCJD0343)

8-1 Flush mounting bracket MPBC42957

8-2 Mounting bracket MPBX44354

8-3 Connection box NQD-2250

9 Handset NQW-261 Waterproof type (IP66 equivalent)

10 Printer NKG-91

10-1 Printer connection cable 7ZCJD0254A

10-2 Printer paper 7ZPJD0384

10-3 Wall mounting bracket MPBP31446

11 Printer DPU-414

11-1 Printer connection cable 7ZCJD0254A

11-2 Printer power cable 7ZCJD0257C

11-3 Printer paper 6ZCAF00252A

12 Printer NKG-800

12-1 Printer connection cable 6ZCSC00407

12-2 Printer power cable 6JNKD00100B

12-3 Printer paper 5ZPCM00006

12-4 Ink ribbon (SP-16051) 5ZZCM00003

One additional controller available.

For extension and expansion of the controller

Wall mount or
flush mount type

Desktop type

Desktop type

13

1-2

Distress message controller

NCH-321A

1.3.3 System configuration

NFC-2150

Antenna Tuner

Equipment Overview

NKG-91 Printer

NCM-2150 MF/HF Controller

Expansion Controller

GPS

NTD-2150 MF/HF Transceiver

NCH-321A DMC

* The equipment can also be

connected to the VDR
server to use the remote
maintenance system.

NBD-2150 AC/DC Power Supply

NBB-724 Battery Charger

1-3

Equipment Overview

1.4 External dimensions

Below are the external dimensions of each unit.

（１） MF/HF Transceiver (NTD-2150)

（２） MF/HF Controller (NCM-2150)

Unit: mm
Weight: Approx. 13 kg

Unit: mm
Weight: Approx. 1.3 kg

1-4

（３） Handset (NQW-261)

．

（４） Connection box (NQD-2250)

Mounting

hole

Equipment Overview

Unit: mm
Weight: Approx. 0.5 kg

Unit: mm
Weight: Approx. 0.6 kg

1-5

Equipment Overview

（５） Antenna Tuner (NFC-2150)

（６） Junction Box (NQD-2253)

Unit: mm
Weight: Approx. 3.3 kg

Unit: mm
Weight: Approx. 1.2 kg

1-6

（７） AC/DC Power Supply (NBD-2150)

Equipment Overview

Unit: mm
Weight: Approx. 9.8 kg

1-7

Equipment Overview

（８） Battery Charger (NBB-724)

Unit: mm
Weight: Approx. 12.0 kg

1-8

（９） Printer (NKG-91)

● Wall mount type

Mounting

hole

Wiring hole

(back)

● Flush mount type

Wiring hole

(side)

Equipment Overview

Unit: mm
Weight: Approx. 1.5 kg

Unit: mm
Weight: Approx. 0.8 kg

1-9

Equipment Overview

（１０） Printer (DPU-414)

● Desktop type

Unit: mm
Weight: Approx. 0.6 kg

1-10

（１１） Printer (NKG-800)

● Desktop type

Equipment Overview

Unit: mm
Weight: Approx. 3.7 kg

1-11

Equipment Overview

1.5 Block diagram

NQW-261

Handset

NQW-261

Handset

NQD-2250

Connection box

7ZCJD0343

NCM-2150

MF/HF Controller

NQD-2250

Connection box

7ZCJD0343

NCM-2150

MF/HF Controller

NKG-91

Printer

7ZCJD0254A

6.5V DC

（5m）

（5m）

TTYCS- 4
DPYC-2.5（x2）

TTYCS- 4
DPYC-2.5

JQD-69C
Joint box

RG-12/UY

M-P-7

RX/WKR ANT

NTD-2150

MF/HF Transceiver

TTYCS- 1

MPYCS- 7

TTYCS- 1

TTYCS- 4

TX

ANT

DPYC-10

M-P-7

24V DC

TTYCS-1

M-P-7

RG-10/UY

TTYCS-4

7ZCJD0348

M-A-JJ

NQD-2253

Junction box

NBD-2150

AC/DC Power supply

NBB-724

Battery charger

5D-2VH

GPS

NCH-321A
DMC

RMS
(VDR)

AME

Tx antennaRx/WKR antenna

Lead wire

TH-7/1.6

TX ANT

NFC-2150

Antenna tuner

DPYC-16

7ZCJD0347

7ZCJD0349

100V/220V AC
50/60Hz 1φ

24V DC
200Ah

1-12

2. NAMES AND FUNCTIONS

2.1 Controller (NCM-2150)

The controller parts and their functions are described below.

1

2

1. Internal loud speaker

Names and Functions

3

4

13 5 6 7 8 9 10 11 12

14

15

2. Jack for telegraph in continuous wave (CW) mode

3. Numeric keypad (10-key) and function keys

In addition to entering numeric values, when combined with the

FUNC key, the keys have the following functions.

･ TEL ····· Displays the status display in TEL mode.
･ DSC ····· Displays the status display in DSC mode.
･ CW ····· Displays the status display in CW mode.
･ 1CLAR ····· Displays the setting screen for the clarifier.
･ 2SCAN ····· Displays the scan menu.
･ 3NR ····· Displays the setting screen for noise reduction.
･ 4AT T ····· Displays the setting screen for attenuation.
･ 5AGC ····· Displays the setting screen for AGC (automatic

gain control).

･ 6SP ····· Turns speaker on or off.
･ 7PRN ····· Prints the specified screen.
･ 8TEST ····· Displays the self-diagnosis menu.

PWR

･ 9 ····· Switches Tx power between high and low.

RDC

TEST

･ 0 ····· Displays the DSC test call menu.

CALL

･ FUNC ····· Enables functions assigned to number keys.

2-1

Names and Functions

･ ENT ····· Enter key.
･ USER ····· User defined key. Register a frequently used menu and use this key to open it

quickly.

ANT

･ ····· Tunes the antenna.

TUNE

･ CH ····· Sets the communication channel input mode (user channel, ITU channel, or free

frequency).

4. Jog dial

- On the status display, rotating the jog dial changes the channel or Rx frequency.

- On a menu or popup screen, rotating the jog dial moves the cursor position or screen

contents. When selecting a button or an item on the screen, rotate the jog dial until the

cursor is on it and then press the jog dial.

Note

Press the jog dial to obtain access rights from another controller.

5. Handset connector

6. DISTRESS key (Under a clear cover with spring)

When in distress, sends a DSC distress call when pressed and held for 4 seconds.

7. RF GAIN control

Adjusts sensitivity level.

Note

Gain is set to maximum immediately after DSC mode is set, regardless of the

position of the control.

8. DIM (Dimmer) key

Adjusts dimmer level (Max → Typ → Min → Off) of the LCD display and key switches.

Additionally used to put into sleep mode by pressing it in combination with the key at the

same time (a confirmation screen is displayed).

Note

・ The adjusted dimmer level is not saved. When the controller is powered off

and on again, the dimmer level is always set to Typ (default).

・ If a DSC message is received, the dimmer adjustment cycle becomes "Max →

Typ → Typ → Typ" while the receiving alarm is activated.

PWR

CONT

9. PWR/CONT (Power/Contrast) key

Turns on the equipment or changes the controller from sleep mode to standby. Once turned on,

this key is also used to adjust the LCD contrast.

10. VOL (Volume) control

Adjusts volume of built-in loud speaker.

11. ALM/WKR lamp

Lights up red on any malfunction detected in the equipment or after sending a DSC distress call,

or blinks red on receiving a DSC call. Lights green to indicate the DSC watchkeeping receiver is

operating while the equipment is in sleep mode.

12. CANCEL key

Cancels menus or stops alarms.

13. MENU key

Displays menu list.

14. Handset

When using in radiotelephone mode, press and hold the PTT key to talk.

15. Cradle (for handset)

2-2

Names and Functions

2.2 Main displays

The LCD screen on the controller changes according to current conditions. This section

describes the status display, FUNC menu, main menu, and DSC message receiving

screens.

2.2.1 Status display

1

2
3

4

5
6

7

8

9

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL ITU-1201

RX kHz

13077.0

TX kHz

TX

12230.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

1. Occupied mark. Indicates another controller
has the access rights.

2. Indicates the ship's MMSI.

3. Indicates the ship's position and that time.

4. Indicates the communication mode and
channel.

5. Indicates the receiver is scanning.

6. Indicates Tx power is low.

7. Indicates the following conditions if Tx
frequency is not tuned.

z Not tuned : Blinks
z Tuning : Lights
z Tuned : Off

8. When in reception or standby, indicates
strength of received signal (S meter), or
when in transmission, indicates strength of
transmitted signal in one of the pre-set
units shown below.

z Tx power (PWR)
z Antenna current (Ia)
z PA voltage (Vc)
z PA current (Ic)

*

11. Indicates current time as follows:

z Universal time coordinated : UTC
z Local time : LT

12. Indicates the source of the ship's position
information as follows.

z External device (e.g. GPS) : EXT
z Manual input : MAN
z No input : OFFLINE

13. Indicates the user channel in use is
transmitted at the band power level
because the channel power is not
registered.

14. Indicates channel or frequency is duplex
for communicating with a coast station.

15. Indicates the reception frequency.

16. Indicates the transmission frequency. TX
mark is highlighted when transmitting.

17. Indicates the built-in loud speaker is on or
off. indicates the squelch is on.

18. Indicates the reception status (attenuation,
AGC, noise reduction) and transmission
status (PA power).

10

11

12

13

14

15

16

17

18

9. Indicates the frequency (band) the DSC
watch keeping receiver is monitoring for
distress and safety calls.

10. Indicates the equipment is running on DC
power.

2-3

Names and Functions

2.2.2 Function screen and key operations

The functions assigned to the number keys are temporarily enabled by pressing the FUNC

key in the status display or pressing and holding the FUNC key and then pressing the

number key.

1

2

1

1. Indicates the enabled number key and its
function when the FUNC key is pressed in
the status display. Pressing the number
keys here operates the function for that
key as shown at the right.

CLAR : Displays the clarifier adjustment menu

2

SCAN : Displays the scan menu
NR : Displays the noise reduction menu

3
4

ATT : Displays the attenuation menu
AGC : Displays the AGC menu

5
6

SP : Turns the built-in loud speaker on or off
PRN : N/A (This screen cannot be printed)

7
8

TEST : Displays the self-diagnosis menu

PWR

9 : Displays the Tx power reduction menu

RDC
TEST

0 : Displays the DSC test call menu

CALL

FUNC : Closes this screen (returns to the

status display)

2. Indicates that pressing ENT enables or disables the use of the jog dial to change the frequency
and channel in the status display.

Note

Equipment

status

DSC mode

In status display
while inputting
frequency

While tuning
antenna or
transmitting

While printing

During
self-diagnosis

While
scanning

While waiting for
DSC
acknowledgement

While just
received DSC
message is
displayed

While alarm
screen is
displayed

In the following situations the function assigned to the function key cannot be used.

1

CLAR 2SCAN 3NR 4ATT 5AGC 6SP 7PRN 8TEST 9

●

●

PWR
RDC

0

TEST
CALL

● ● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ● ●

●

● ● ●

●

● ●

●

●

● ● ● ● ●

● ● ● ● ● ● ● ● ● ●

2-4

2.2.3 Menu screen

1

2

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx:13077.0/Tx:12230.0kHz

Main menu

1.DSC non-distress call

1.DSC non-distress call

2.DSC drobose call

3.Editing a distress msg

4.DSC logs

5.Radio operation

6.Maintenance

7.Setup

0.Back

1. Indicates the current menu name.

2. Indicates the menu content. The cursor line
or position is highlighted. Select items with
the jog dial and press ENT to confirm.

Names and Functions

3

3. Indicates the main radio information the
same as the status display. Also indicates
the following marks in the frequency
information area according to the
conditions.

T ： Tuning condition
L ： Tx power is low

2.2.4 DSC message receiving screen

1

2

3

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

Received routine message
Type :Individual call
From :123456789
Mode :Radiotelephone
Work FRQ :Tx 2065.0kHz
Rx 2065.0kHz
EOS :ACK RQ
Rx FRQ :2177.0kHz

[Accept][Unable][NewCH][Cancel]

1. Indicates the received message category.
(Routine, Safety, Urgency, Distress)

2. Shows the received message. The example
above shows the following contents.

¾ Type : Individual call to own ship
¾ From : The caller's MMSI is

¾ Mode : Radiotelephone is

¾

Work FRQ

¾ EOS : Acknowledgement

¾ Rx FRQ : The received frequency of

123456789.

requested as a subsequent
communication type.

: Indicates the proposed

working channel

requested

this call

・

Note

When [Unable] or [NewCH] is selected, an editing screen appears.

・

In the case of the position request, test, and polling calls, if the Auto ACK setting
is on and acknowledged automatically, the receiving screen is not displayed. Also,
when the Auto ACK setting is off, the above receiving screen is displayed and
[Send ACK] appears for sending the acknowledgement.

3. Indicates message handling menu for
received message. The example above
shows the following.

z [Accept]

Select to agree to the call, and start
radiotelephone communications
immediately.

z [Unable]

Select to not agree to the call, and
reply to the call as "unable to comply".

z [NewCH]

Select to agree to the call except on
the proposed channel, and reply to
the call with a new channel proposal.

z [Cancel]

Return to the previous screen.

2-5

Installation

3. INSTALLATION

CAUTION

To install this equipment, contact our service center or agents.
Special knowledge on selecting the place where the antenna is to be mounted and
setting the ID number (MMSI) assigned to the ship is required in addition to
installing the equipment.

3-1

Operation

4. OPERATION

This chapter describes basic controller operations, radiotelephone communications, DSC
calling procedures, and other radio functions.

4.1 Controller operation overview

Basically, the controller is operated with the numeric keypad (10key), the MENU key, and jog
dial. The following is an overview of their operation.

z When two controllers are connected, only one controller having the access right can operate

the radiotelephone, except for sending a distress call, changing audio volume, and changing
display conditions. (Unless otherwise mentioned, the instructions below are for the controller
with the access rights.)

z To obtain the access right at a controller without access rights, press ENT to get the access

right unless the other controller is being operated (PTT/KEY ON or menu operations).

z The DISTRESS key is always available even if the controller does not have the access

right. (The DISTRESS key has the highest priority.)

z On the status display, the communication frequency or channel can be set by using the

number keys or by rotating the jog dial.

z Pressing the TEL , DSC , or CW keys changes the communication mode and returns

the menu display to the status display. When this is done, the channel input mode changes
to the free frequency mode.

z When the communication mode is set to TEL or CW, pressing the same communication mode

key turns the PA on and off. (When the PA is on, TXON appears.)

z All functions can be accessed using the MENU key, jog dial, and the dedicated

keys/controls. (See the menu tree of the equipment on the next page.)

z Pressing or pressing and holding the FUNC (function) key and a number key allows rapid

access to that function.

z There are two ways to access main menu items. After pressing the MENU key to display

the main menu, use either the jog dial to move the cursor to the desired item and press ENT
to select it, or select the item by pressing the respective number key. (Ex: For Self diagnosis
(6.1.1 Transceiver), press MENU Î 6SP Î 1CLAR Î 1CLAR )

z Any menu can be assigned to the USER key to quickly open it with a single touch of a

button.

z Normally the key is always enabled.

z The CH key's channel input mode can be changed to a User channel, ITU channel, or to

a free frequency. This key is only enabled when the status display is displayed.

z Pressing the CANCEL key in any menu moves the display up one level in the hierarchy

(or to the status display). The same results can be achieved by selecting "0. Back" when
available on-screen. Further, pressing the CANCEL key on an input line will clear the
entered data.

ANT

TUNE

z Pressing the MENU key in any menu opens the main menu. Also, pressing MENU

while in the main menu returns to the status display.

z If no operations are done for 10 minutes while a menu is open, the screen automatically

returns to the status display.

z Dialog boxes (popup screens) are opened when necessary and operations can be done in

the dialog box.

z Screens in the menu tree on the following page indicated by "Printable" can be printed from

a printer connected to the controller by pressing and holding the FUNC key and then
pressing the 7PRN key.

4-1

Operation

Menu tree

Main Menu Hierarchical Menu 1 Hierarchical Menu 2 Shortcut Key Note

1. DSC non-distress call FUNC - 0

2. DSC drobose call

3. Editing a distress msg

4. DSC logs 4.1 Received distress (Received message screen) Printable

4.2 Received others (Received message screen) Printable

5. Radio operation

5.2 ITU channel list (index) 5.2 ITU channel list (table) Printable

5.3 Mode

5.4 Receiver 5.4.1 Auto gain control FUNC - 5

5.4.2 Noise reduction FUNC - 3

5.4.3 Attenuation FUNC - 4

5.4.4 Clarifier FUNC - 1

5.4.5 Squelch

5.4.6 CW bandwidth

5.4.7 Scan FUNC - 2

5.5 Transmitter 5.5.1 Power FUNC - 9

5.5.2 Tune power

6. Maintenance 6.1 Self diagnosis 6.1.1 Transceiver

6.1.2 Controller Printable

6.1.3 Transceiver log Printable

6.1.4 Controller log Printable

6.1.5 DSC loop

6.2 Alarm information Alarm history Printable

6.3 Software version Printable

7. Setup 7.1 Date & time 7.1.1 Date

7.1.2 Present time

7.1.3 Display form

7.2 POS/TIME 7.2.1 Own position

7.2.2 UTC of position

7.3.3 User key assign

7.3.4 Tx meter

7.3.5 Data transfer

7.4 User channels (index) 7.4 User channels (table) Printable

7.5.2 WKR scanning FRQ

7.5.3 Safety/Routine alarm

7.5.4 Medical/Neutral use

5.1 User channel list (index) 5.1 User channel list (table)

- ATU

- PA

- TRX

- WKR MODEM

7.3 My controller 7.3.1 LCD adjustment

7.5 DSC/WKR condition

7.6 Option

1. Contrast

2. Dimmer

3. Screen saver

7.3.2 Sound

1. Operation

2. Notification level

3. Sidetone

7.5.1 Automatic ACK

1. Test call

2. Position RQ call

3. Polling call

7.5.5 Group-ID

7.6.1 Connection Printable

7.6.2 Data out

7.6.3 Baudrate

7.6.4 Flow control

7.6.5 Print direction

Printable

Printable

FUNC - 8

FUNC - 6

(SP)

4-2

4.2 Basic communications procedure

The following describes basic radio communication procedures.

4.2.1 Turning on the power

Operation

CAUTION

Do not turn off the equipment when at sea because the SOLAS Convention
requires keeping watch on distress and safety frequencies at all times.
Always listen to 2187.5 kHz and 8414.5 kHz, and one or more of the following
frequencies; 4207.5 kHz, 6312.0 kHz, 12577.0 kHz, or 16804.5 kHz.
In class B mode, it is necessary to keep watch only on 2187.5 kHz.

■ Procedure ■

1

.

1

.

1

.

Make sure the equipment is connected to a
power source and turn on the breaker on the
transceiver.

¾ The controller and transceiver start the

internal check. After the check is finished
correctly, the status display appears and
becomes receiving condition (standby) on
the receiving frequency showing.

¾ If the NBD-2150 AC/DC Power supply is

connected, turn on its breaker first.

Note

- When turning on the controller or the equipment in sleep mode, press

key for one second.

- Pressing key for 6 seconds makes the system reset to restart.

- When two controllers are connected, and one controller is turned on from sleep

mode, the status display is displayed immediately without checking operations.

- If errors are detected during the operation check, the message is displayed.

Please inform JRC or our agent of the error contents.

PWR

CONT

PWR

CONT

4-3

Operation

4.2.2 Turning off the power/ Putting into sleep mode

When completely turning off the power to the equipment, turn off the breaker
on the transceiver

■ Procedure ■

1

.

1

.

1

.

Press the key and DIM key
simultaneously.

After that, the power-off process is activated
according to the controllers' status.

z When using only one controller

z When using two controllers

Note

PWR

CONT

Select the desired item below on the
popup screen shown at right

⋅ [OK]: Turns off the power. (Puts into

sleep (energy saving) mode.)

⋅ [Cancel]: Returns to the previous

screen.

On a controller with access rights, select
the desired item below on the popup
screen shown at right

⋅ [EQP]: Turns off the power. (Puts into

sleep (energy saving) mode.)

⋅ [CTRL]: Puts the controller into sleep

mode and gives access rights
to another controller.

⋅ [Cancel]: Returns to the previous screen.

On a controller without access rights,
select the desired item below on the
displayed popup screen at right

⋅ [OK]: Puts one controller into sleep

mode.

⋅ [Cancel]: Returns to the previous

screen.

¾ In sleep mode, the equipment and controller change to the following statuses.

⋅ If all the equipment goes to sleep, the ALM lamp lights green to indicate

the DSC watch keeping receiver is on and operating.

⋅ If a distress or urgent DSC message is received, the equipment

automatically turns on and sounds an alarm.

¾ Turn off both the AC and DC breakers if turning off the power at an external

NBD-2150 AC/DC Power supply.

CAUTION

4-4

4.2.3 Communicating in radiotelephone mode

Use the handset to communicate in radiotelephone mode.

■ Procedure ■

1

.

1

.

1

.

When operating on a controller without
access rights (OCC is displayed), press the

jog dial to obtain the access rights.

Unless the controller with access rights is being
used, the access rights are acquired and the OCC
display on the screen disappears.

2

.

2

.

2

.

Press the TEL key.

¾ The communication mode is set to TEL.

¾ Pressing the TEL key again turns the

power to the PA on and off.

Operation

¾ If the power to the PA is on, TXON is

displayed as shown at right.

3

.

3

.

3

.

Set the frequency for making calls in
radiotelephone mode.

The frequency is set on the receiving

Note

4

.

4

.

4

.

Adjust the volume of the loudspeaker by
turning the volume control.

-

status in the status display. For
details, see "4.3.1 Setting the
communication frequencies" and
"4.3.2 Setting the communication
channels".

- See the frequency for making calls
in the appendix "11.4 ITU channel
list (TEL/CW)".

5

.

5

.

5

.

Turn the RF GAIN control to an appropriate
reception level.

4-5

Operation

6

.

6

.

6

.

Press the key to tune the antenna.

Note

7

.

7

.

7

.

Lift the handset from the cradle.

8

.

8

.

8

.

Press the PTT key to talk.

The TX and TXON marks appear on the
screen to show the equipment is transmitting.
Releasing the PTT key returns it to receiving.

Note

9

.

9

.

9

.

When finished communicating, return the
handset to the cradle.

ANT

TUNE

- TUNE blinks if the transmission
frequency is not tuned.

- Even if TUNE is not displayed,
tune the antenna before making a
call.

- TUNE lights during tuning. It goes
out after tuning.

Pressing the PTT key turns on the power
to the PA automatically.

■ Making a radiotelephone call ■

1

.

1

.

1

.

Set a frequency the objective station is monitoring.

2

.

2

.

2

.

Lift the handset from the cradle.

3

.

3

.

3

.

Press the PTT key, check that TX and TXON are displayed and make a call as
described below.

z Say the name of the station being called ... Repeat 3 times.

z Say "This is..."

z Say own ship name ... Repeat 3 times.

z If necessary, indicate your working frequency.

z "over"

4

.

4

.

4

.

Release the PTT key to listen.

5

.

5

.

5

.

Start communicating according to the response. When changing frequencies, make
sure that no other stations are using the indicated working channel.

Note

- When transmitting from your own station, always press the PTT key while talking.

- On a simplex channel, always say "over" just before releasing the PTT key.

- Always say "out" when terminating communications.

4-6

4.2.4 Communicating in CW mode

Use a CW keyer to communicate in CW mode.

■ Procedure ■

1

.

1

.

1

.

When operating on a controller without
access rights (OCC is displayed), press the

jog dial to obtain the access rights.

Unless the controller with access rights is being
used, the access rights are acquired and the OCC
display on the screen disappears.

2

.

2

.

2

.

Press the CW key.

¾ The communication mode is set to CW.

¾ Pressing the CW key again turns the

power to the PA on and off.

¾ If the power to the PA is on, TXON is

displayed as shown at right.

3

.

3

.

3

.

Set the frequency for making calls in CW
mode.

Operation

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

CW ITU-1201

RX kHz

12550.0

TX kHz

12550.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

The frequency is set on the receiving

Note

4

.

4

.

4

.

Adjust the volume of the loudspeaker by
turning the volume control.

5

.

5

.

5

.

Turn the RF GAIN control to an appropriate
reception level.

-

status in the status display. For
details, see "4.3.1 Setting the
communication frequencies" and
"4.3.2 Setting the communication
channels".

- See the frequency for making calls
in the appendix "11.4 ITU channel
list (TEL/CW)".

4-7

Operation

6

.

6

.

6

.

Press the key to tune the antenna.

Note

7

.

7

.

7

.

Communicate in CW mode using the CW
keyer connected to the KEY jack on the

controller as shown in the figure to the right.

The TX and TXON marks appear on the
screen to show the equipment is transmitting.

Note

ANT

TUNE

- TUNE blinks if the transmission
frequency is not tuned.

- Even if TUNE is not displayed,
tune the antenna before making a
call.

- TUNE lights during tuning. It goes
out after tuning.

- After keying on, turns on the PA
power automatically.

- For the sidetone setting, see "5.3.2
Sound settings".

4-8

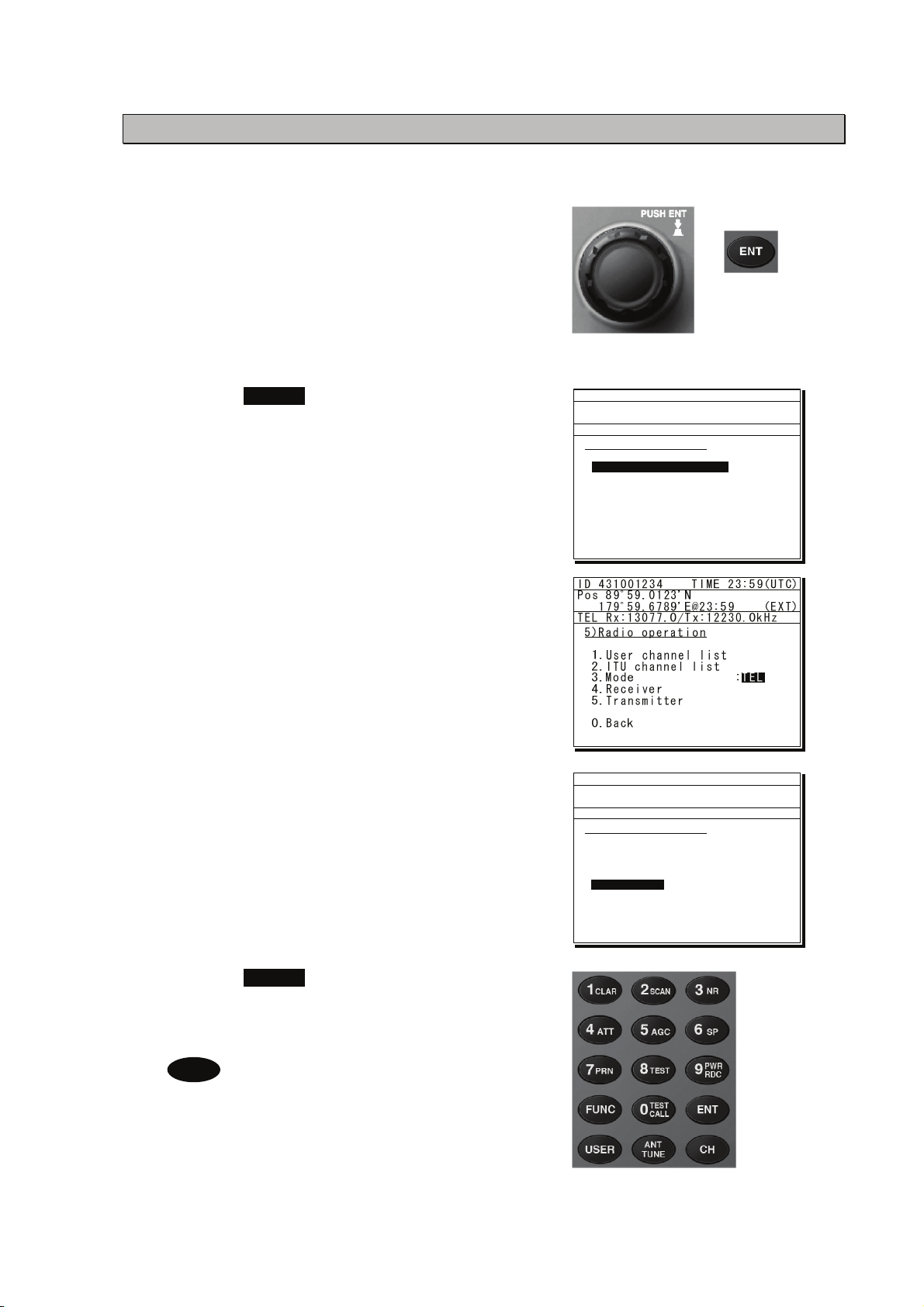

4.2.5 Receiving AM broadcasts

It is possible to listen to the radio in AM mode.

■ Procedure ■

1

.

1

.

1

.

When operating on a controller without
access rights (OCC is displayed), press the
jog dial to obtain the access rights.

Unless the controller with access rights is
being used, the access rights are acquired
and the OCC display on the screen
disappears.

2

.

2

.

2

.

Press the MENU key, and through
hierarchical menus, select 5. Radio
operation.

Operation

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx:13077.0/Tx:12230.0kHz

5)Radio operation

1.User channel list

1.User channel list

2.ITU channel list

3.Mode :TEL

4.Receiver

5.Transmitter

0.Back

3

.

3

.

3

.

Move the cursor to 3. Mode, and press
ENT.

Move the cursor to the right as shown in the
figure at right to select a communication mode.

4

.

4

.

4

.

Turn the jog dial to select AM, and press
ENT.

The communication mode is set to AM.

5

.

5

.

5

.

Press the MENU key twice to return to the
status display and then input an AM
broadcast frequency using the numeric keys.
Then press ENT to receive the broadcast.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
AM Rx:13077.0/Tx:-----.-kHz

5)Radio operation

1.User channel list

2.ITU channel list

3.Mode :AM

4.Receiver

4.Receiver

5.Transmitter

0.Back

Note

- Adjust the reception level and
volume by turning the VOL and RF
GAIN knobs according to the
reception conditions.

- The AM mode is for reception only
so a transmission frequency is not
shown.

4-9

Operation

4.3 Setting the radio

This section describes how to set the communication frequencies and how to use the receiver

and transceiver functions.

4.3.1 Setting the communication frequencies

Use the free frequency input mode to input the communication frequencies directly.

■ Procedure ■

1

.

1

.

1

.

In the status display, use the numeric keypad
to input the frequency.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

Note

2

.

2

.

2

.

Input numbers to the 0.1 kHz place and
press ENT.

The transmission frequency input mode opens as
shown in the screen at right.

Note

3

.

3

.

3

.

Input the transmission frequency in the
same way as the reception frequency.

4

.

4

.

4

.

Input numbers to the 0.1 kHz place and
press ENT.

- When 1 is input using the numeric
keypad, it appears on the far right as
shown in the screen on the right.

- In the user/ITU channel input mode,
press the CH key once or twice to
hide the channel display.

For a simplex frequency, press ENT to
automatically input the same frequency
as the receiving frequency to complete
communication frequency settings.

TEL

RX kHz

.1

TX kHz

2331.5

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

12345.6

TX kHz

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

-----.-

The communication frequency settings are
complete.

Note

4-10

Turn the jog dial in the status display to change the reception frequency on the 0.1 kHz
scale. For simplex frequencies, the transmission frequency is changed at the same
time.

Operation

4.3.2 Setting the communication channels

Besides the free frequencies described previously, ITU channel mode and user channel modes

can also be set. The ITU channel mode is mode for using channels based on the international

standard and is built-in to the equipment. The user channel mode is the mode for using channels

on pre-registered frequencies. These modes can be used according to the operations.

(1) Selecting a frequency and channel input mode

■ Procedure ■

1

.

1

.

1

.

Set the screen of the status display.

The status display at right shows free frequency
mode.

2

.

2

.

2

.

Press the CH key.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

2331.5

TX kHz

2331.5

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

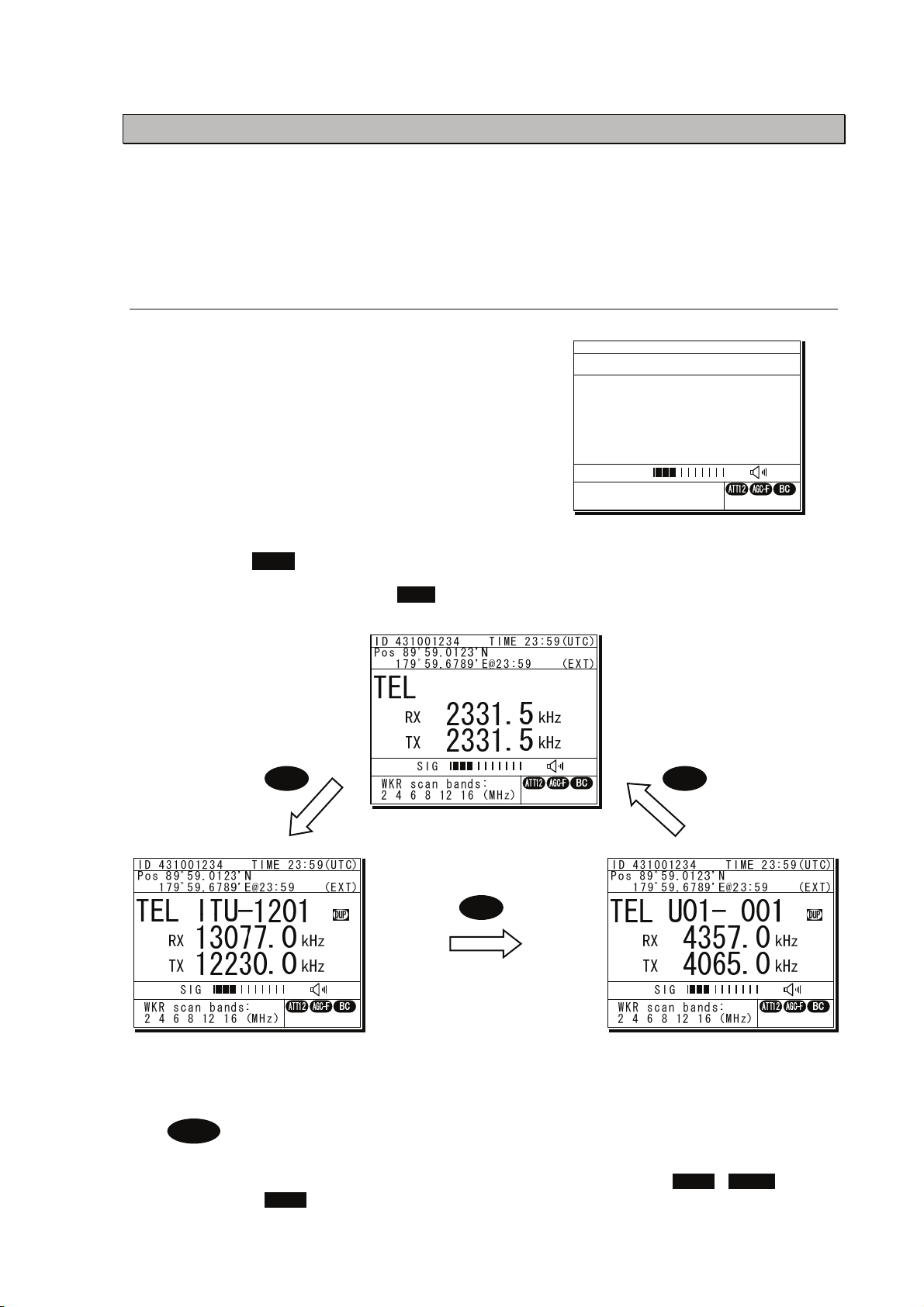

As shown below, each time the CH key is pressed the mode changes in order from the
free frequency mode, ITU channel mode, to the user channel mode.

(Free frequency input mode)

(ITU channel mode) (User channel mode)

Note

- If changed to the ITU channel mode, the communication mode of the free
frequency input mode and the previous (or lowest) ITU channel number are
applied.

- If the communication mode is changed by pressing the TEL , DSC , or

CW keys, the free frequency input mode is set.

CH

CH CH

4-11

Operation

(2) Setting the ITU channels

■ Procedure ■

1

.

1

.

1

.

After setting the TEL or CW communication
modes, pressing the CH key opens the

status display for the ITU channel mode.

2

.

2

.

2

.

Input the channel by using the numeric
keypad.

Note

3

.

3

.

3

.

Input the rest of the digits and press ENT.

The input ITU channel frequency is displayed
and the settings are complete.

Note

When 4 is input using the numeric
keypad, it appears on the far right
as shown in the screen on the right.

- See the appendix "11.4 ITU channel list (TEL/CW)" for a list of pre-installed

ITU channels and their frequencies.

- Besides doing settings with the numeric keypad, settings can also be done with

the jog dial.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL ITU- 4

RX kHz

13077.0

TX kHz

12230.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL ITU- 401

RX kHz

4357.0

TX kHz

4065.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

4-12

Operation

(3) Setting user channels

A total of 20 groups with 20 channels set to each group (i.e. 400 channels) can be registered on
the equipment. This section explains how to set channels that are already registered.

■ Procedure ■

1

.

1

.

1

.

Use the CH key to open the user channel
mode status display.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

2

.

2

.

2

.

Pressing ENT causes the channel group
number to blink so a channel group can be
input.

Use the numeric keypad or jog dial to input the
number of a registered group.

Note

3

.

3

.

3

.

After inputting a group number, pressing ENT
causes the channel number to blink so a user
channel can be input.

Use the numeric keypad or jog dial to input the
number of a registered channel.

When 2 is input using the numeric
keypad, it appears on the far right
as shown in the screen on the right.

TEL U01- 001

RX kHz

4357.0

TX kHz

4065.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

Note

4

.

4

.

4

.

Input the rest of the digits and press ENT.

¾ The input user channel frequency is

displayed and the settings are complete.

¾ The group name is displayed for 3 seconds

after the settings are done.

Note

When 3 is input using the numeric
keypad, it appears on the far right
as shown in the screen on the right.

- Channels can be set directly in the status display by using the numeric keypad
or the jog dial without setting a channel group. After inputting with the numeric
keypad, press ENT.

- See "5.4 Registering user channels" for how to register frequencies to user
channels.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL U20- 385

RX kHz

4146.0

TX kHz

4146.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

4-13

Operation

(4) Using channel lists

Besides the procedure above, user channels and ITU channels can also be set from the channel

lists (5.1 User channel list or 5.2 ITU channel list). This section explains how to set channels that

are already registered from the user channel list.

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 5. Radio

operation.

2

.

2

.

2

.

Select 1. User channel list and press ENT.

The user channel list index (group list) as
shown at right is displayed.

3

.

3

.

3

.

Select the intended channel group and press
ENT.

The user channel list as shown at right is
displayed.

4

.

4

.

4

.

Select the channel to set and press ENT.

5) Radio operation

1.User channel list

2.ITU channel list

3.Mode :TEL

4.Receiver

5.Transmitter

0.Back

5.1)User channel list (index)
No CH group name Type

01 JRC Tokyo TEL

02

Pacific ABC CW
03
04
05
06
07
08

5.1)User channel list (table)
Name: JRC Tokyo
Type: TEL
CHNo Rx[kHz] Tx[kHz] Mode

001 4357.0 4065.0 TEL

002
003
004
005
006

4360.0

4363.0

4366.0

4369.0

4372.0

4068.0

4071.0

4074.0

4077.0

4080.0

TEL
TEL
TEL
TEL
TEL

The user channel settings are complete, the
status display is displayed.

4-14

4.3.3 Setting the automatic gain control (AGC)

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 5.4 Receiver.

2

.

2

.

2

.

Select 1. Auto gain control and press ENT,
when the cursor moves to the right use the jog

dial to select Slow, Fast, or OFF.

After selecting and pressing ENT, the
settings are complete.

Note

The same settings can be done by pressing and holding the FUNC key and the

5AGC key at the same time.

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

5.4)Receiver

1.Auto gain control :Fast

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

Operation

4.3.4 Setting the noise reduction (NR)

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, after 5.4 Receiver

appears, move the cursor to 2. Noise

reduction.

2

.

2

.

2

.

Press ENT to move the cursor to the right,
then use the jog dial to select NR1, NR2,

BC, or OFF.

After selecting and pressing ENT, the
settings are complete.

Note

- The various settings are shown
below.

・ NR1： Noise reduction (low)
・ NR2： Noise reduction (high)
・ BC： Beat canceller

- The same settings can be done by
pressing and holding the FUNC
key and the 3NR key at the same
time.

- This function is disabled in DSC
mode.

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :NR1

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

4-15

Operation

4.3.5 Setting the attenuation (ATT)

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, after 5.4 Receiver

appears, move the cursor to 3.

Attenuation.

2

.

2

.

2

.

Press ENT to move the cursor to the right,
then use the jog dial to select 6dB, 12dB,

18dB, or OFF.

After selecting and pressing ENT, the
settings are complete.

Note

The same settings can be done by pressing and holding the FUNC key and the

4ATT key at the same time.

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :6dB

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

4.3.6 Setting the clarifier

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, after 5.4 Receiver

appears, move the cursor to 4. Clarifier.

2

.

2

.

2

.

Press ENT to move the cursor to the right, then
use the jog dial or numeric keypad to select a

value in the range of -200 to +200 Hz.

After inputting and pressing ENT, the settings
are complete.

Note

- When using the numeric keypad,
input "+" with the 1CLAR key and
"-" with the 2SCAN k ey.

- Pressing and holding the FUNC
key and the 1CLAR key at the
same time opens a popup screen. The
same settings can be done here.

- This function is disabled in DSC
mode.

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+008Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

4-16

4.3.7 Setting the squelch level

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, after 5.4 Receiver

appears, move the cursor to 5. Squelch.

2

.

2

.

2

.

Press ENT to move the cursor to the right,
then use the jog dial or numeric keypad to

input a value in the range of 000 to 100.

After inputting and pressing ENT, the settings
are complete.

Note

- Setting the value to 000 automatically
displays it as OFF.

- This function is disabled in DSC
mode.

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :012

6.CW bandwidth :Narrow

7.Scan

0.Back

Operation

4.3.8 Setting the CW bandwidth

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, after 5.4 Receiver

appears, move the cursor to 6. CW

bandwidth.

2

.

2

.

2

.

Press ENT to move the cursor to the right,
then use the jog dial to select Wide or

Narrow.

After inputting and pressing ENT, the settings
are complete.

Note

- Setting the value to 000 automatically
displays it as OFF.

- This function is enabled in CW mode
only.

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

4-17

Operation

4.3.9 Scanning the Rx frequencies

Scanning is done for each group of user channels.

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, after 5.4 Receiver

appears, move the cursor to 7. Scan.

2

.

2

.

2

.

Press ENT to confirm the selection.

The group list as shown at right is displayed.

Note

- The previous scan can be restarted
by pressing and holding the

FUNC key and then pressing the
2SCAN key on the status display.

- If the user channel is not registered,
scan cannot be done so the screen
shown at right is not displayed.

5.4)Receiver

1.Auto gain control :Slow

2.Noise reduction :OFF

3.Attenuation :OFF

4.Clarifier :+000Hz

5.Squelch :OFF

6.CW bandwidth :Narrow

7.Scan

0.Back

5.4.7)Scan
No CH group name Type

01 JRC Tokyo TEL

02

Pacific ABC CW
03
04
05
06
07
08

3

.

3

.

3

.

Select the channel group to scan with the
cursor and press ENT.

The popup screen as shown at right is
displayed.

Note

If the popup screen shown at right
is displayed during scanning, Stop
appears instead of Execute.

4

.

4

.

4

.

1. Select Execute and press ENT, the screen
at right is displayed and scanning starts.

¾ To confirm the channel lists registered in a

channel group, select 2. User channel list
and press ENT.

¾ To change the scanning speed, select 3.

Scan speed (sec) and press ENT. The setting
range is 0.3 to 9.9 seconds, the same as
TEL/DSC/CW.

Note

- Scanning can be done regardless of the squelch being set to open or close.
When pushing PTT or keying the CW keyer or when squelch is closed and
opens, scanning stops momentarily. In this case the scanning can be restarted
by pressing ENT.

- To stop scanning, press the CANCEL key.

- When scanning to receive routine DSC calls, set the scan speed to 0.3

seconds within 6 channels.
Note: If too many channels are being scanned, it may not catch the reception.

5.4.7)Scan
No CH group name Type

1. Execute

01 JRC Tokyo TEL

2. User channel list

02

Pacific ABC CW

3. Scan speed (sec)

03
04

TEL DSC CW

05

3.0 0.3 3.0

06
07
08

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

JRC Tokyo

TEL

RX kHz

4357.0

TX kHz

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

U01- 001

-----.-

4-18

4.3.10 Reducing the Tx power

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 5.5

Transmitter.

2

.

2

.

2

.

1. Select Power and press ENT to move
the cursor to the right, then use the jog dial

to select Low.

After selecting and pressing ENT, the
settings are complete.

Note

- The same settings can be done by pressing and holding the FUNC key and

the 9 key at the same time.

- When the Tx power is reduced, LOW (status display) or L (menu screen)

is displayed.

PWR
RDC

5.5)Transmitter

1.Power :High

2.Tune power :Normal

0.Back

5.5)Transmitter

1.Power :Low

2.Tune power :Normal

0.Back

Operation

4.3.11 Setting the antenna tuning power

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, after 5.5 Transmitter

appears, move the cursor to 2. Tune

power.

2

.

2

.

2

.

Press ENT to move the cursor to the right,
then use the jog dial to select a value from

0 to 3.

¾ The larger the number the stronger the

antenna tuning power.

¾ The factory default setting is 0 (Normal).

¾ After selecting and pressing ENT, the

settings are complete.

5.5)Transmitter

1.Power :High

2.Tune power :Normal

0.Back

5.5)Transmitter

1.Power :High

2.Tune power :+2

0.Back

4-19

Operation

4.4 Basic DSC operations

When calling stations, the DSC is also available for a routine, safety, urgency, or a distress call.

This section explains basics of how to use the DSC to make routine calls.

4.4.1 Routine calls to an individual station

For radiotelephone communication, a DSC routine call to an objective station can be made as

follows.

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC

non-distress call.

2

.

2

.

2

.

Select Address and press ENT to move
the cursor to the right and input the other

stations 9-digit MMSI.

3

.

3

.

3

.

To change the call frequency, select
Calling FRQ and press ENT to move the

cursor to the right, then input the Tx and

Rx frequencies with the numeric keypad.

Note

- When 2 is input using the numeric
keypad, it appears on the far right
as shown in the screen on the
right.

- Press ENT for every setting of the
Tx and Rx frequencies.

4

.

4

.

4

.

Select Working FRQ and press ENT to
move the cursor to the right and input

the working frequency (radiotelephone

frequency) with the numeric keypad.

Note

- When 2 is input using the numeric
keypad, it appears on the far right
as shown in the screen on the
right.

- Press ENT for every setting of the
Tx and Rx frequencies.

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[RTN/Indv/TEL ]
Address :[0 ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[RTN/Indv/TEL ]
Address :[431123456]
Calling FRQ:[Tx .2kHz]
:[Rx . ]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[RTN/Indv/TEL ]
Address :[431123456]
Calling FRQ:[Tx 2169.0kHz]
:[Rx 2169.0kHz]
Working FRQ:[Tx .2kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

4-20

5

.

5

.

5

.

When input is complete, the cursor
moves to Call.

Check the settings before making routine
calls.

Note

Select Preview and press ENT before
calling to display the details of the
message as shown at right (bottom).

6

.

6

.

6

.

Select Call and press ENT to start the
procedure for making a routine individual
call.

¾ The sending procedure screen as shown at

right is displayed.

¾ After that the status is shown at Stage. Here

it is checking if the channel is free.

7

.

7

.

7

.

When a free channel is confirmed, the
antenna is tuned, and a DSC message is
sent.

8

.

8

.

8

.

After the DSC message is sent, wait for
acknowledgement.

9

.

9

.

9

.

Acknowledgement is received.

Operation

1)DSC non-distress call
Call type :[RTN/Indv/TEL ]
Address :[431123456]
Calling FRQ:[Tx 2169.0kHz]
:[Rx 2169.0kHz]
Working FRQ:[Tx 2065.0kHz]
[Rx 2065.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Format :Individual
Address :431123456
Category :Routine
Self-ID :431001234
Telecommand1:Radiotelephone
Telecommand2:No information
Working FRQ :Tx 2065.0kHz
Rx 2065.0kHz

[Call] [Return] [Cancel]

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2169.0/Tx: 2169.0kHz

Routine individual call

Stage :Waiting for CH free
Time :0.1min after calling
Call-F: 2169.0/ 2169.0kHz
Work-F: 2065.0/ 2065.0kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2169.0/Tx: 2169.0kHz

Routine individual call

Stage :Transmitting
Time :0.3min after calling
Call-F: 2169.0/ 2169.0kHz
Work-F: 2065.0/ 2065.0kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2169.0/Tx: 2169.0kHz

Routine individual call

Stage :Waiting for ACK
Time :0.5min after calling
Call-F: 2169.0/ 2169.0kHz
Work-F: 2065.0/ 2065.0kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

[Cancel]

Tx

[Cancel]

[Cancel]

¾ The ALM lamp starts blinking, and the call

alarm gradually grows louder.

¾ The radiotelephone frequency is set and the

antenna is tuned automatically.

4-21

Operation

1

0

.

1

0

.

1

0

.

Press the CANCEL key or ENT.

The alarm stops and the screen shown at
right is displayed.

1

1

.

1

1

.

1

1

.

Press ENT.

The status display shown at right, with
communication frequencies set, is displayed
and the routine call is completed. Start
communications using the handset.

Note

The popup screen shown at the right
(bottom) appears if the antenna tuning
that started in step 9 above is not
finished yet.

Note

- If the MMSI of the coast station is input at Address, the following display and
functions are available.

¾ The initial call frequencies are TX 2189.5 kHz and Rx 2177 kHz.

Frequencies can also be selected from among international frequencies
by using the numeric keypad or the jog dial. For details, see "11.3
International DSC frequencies for routine calls".

¾ The working frequency is specified by the coast station so Working FRQ

is not displayed.

ID 431001234 TIME 00:00(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@00:00 (EXT)
TEL Rx: 2065.0/Tx: 2065.0kHz

Received routine message
Type :Individual ACK
From :431123456
Mode :Radiotelephone
Work FRQ :Tx 2065.0kHz
Rx 2065.0kHz
EOS :ACK BQ
Rx FRQ :2169.0kHz

[Continue]

[Continue] [Cancel]

ID 431001234 TIME 00:00(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@00:00 (EXT)
TEL Rx: 2065.0/Tx: 2065.0kHz

Received routine message
Type :Individual ACK
From :431123456
Mode :Radiotelephone
Work FRQ :Tx 2065.0kHz
Rx 2065.0kHz
EOS :ACK BQ
Rx FRQ :2169.0kHz

[Continue] [Cancel]

- Attention -

Tuning the antenna to
the frequency now.
Wait a moment, please.

[Continue]

Tx

T

- If the objective station is unable to comply with the call, own station (caller)
may receive one of the following acknowledgements may be received. (* are
coast stations only) In this case, wait and retry the call again later, if possible,
according to the message.

No reason/ No reason.

Congestion/ The maritime information
exchange center is congested.

Busy/ Busy.

Queue/ The call has been queued.*

Barred/ The station is closed.

4-22

No operator/
Operator is not present.

*

Temp no operator/
The operator is temporarily away.
EQP disabled/
The equipment has been disabled.
Unable FRQ/
The proposed frequency cannot be used.
Unable mode/
The proposed mode cannot be used.

Operation

4.4.2 Routine calls to a group of ships

For radiotelephone broadcasting, a DSC routine call to a group of ships can be made as follows.

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC
non-distress call.

2

.

2

.

2

.

Select Call type and press ENT to move
the cursor to the right. Then use the jog
dial to select RTN/Group/TEL.

After selecting and pressing ENT, the cursor
moves to Address.

3

.

3

.

3

.

Select Address and press ENT to move
the cursor to the right and input the
group of ships' 9-digit MMSI.

4

.

4

.

4

.

To change the call frequency, select
Calling FRQ and press ENT to move the
cursor to the right, then input the Tx and
Rx frequencies with the numeric keypad.

Note

- When 2 is input using the numeric
keypad, it appears on the far right
as shown in the screen on the
right.

- Press ENT for every setting of the
Tx and Rx frequencies.

5

.

5

.

5

.

Select Working FRQ and press ENT to
move the cursor to the right and input
the working frequency (radiotelephone
frequency) with the numeric keypad.

Note

- When 2 is input using the numeric
keypad, it appears on the far right
as shown in the screen on the
right.

- After inputting press ENT.

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[RTN/Group/TEL ]
Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[RTN/Group/TEL ]
Address :[0 ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[RTN/Group/TEL ]
Address :[043123456]
Calling FRQ:[Tx .2kHz]
:[Rx . kHz]
Working FRQ:[Tx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[RTN/Group/TEL ]
Address :[043123456]
Calling FRQ:[Tx 2169.0kHz]
:[Rx 2169.0kHz]
Working FRQ:[Tx .2kHz]

[Call] [Preview] [Cancel]

4-23

Operation

6

.

6

.

6

.

When input is complete, the cursor
moves to Call.

Check the settings before making routine
calls.

Note

Select Preview and press ENT before
calling to display the details of the
message as shown at right (bottom).

7

.

7

.

7

.

Select Call and press ENT to start the
procedure for making a routine call.

1)DSC non-distress call
Call type :[RTN/Group/TEL ]
Address :[043123456]
Calling FRQ:[Tx 2169.0kHz]
:[Rx 2169.0kHz]
Working FRQ:[Tx 2065.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Format :Group
Address :043123456
Category :Routine
Self-ID :431001234
Telecommand1:Radiotelephone
Telecommand2:No information
Working FRQ :Tx 2065.0kHz
EOS :EOS

[Call] [Return] [Cancel]

¾ The sending procedure screen as shown at

right is displayed.

¾ After that, the status is shown at Stage. Here

it is checking if the channel is free.

8

.

8

.

8

.

When a free channel is confirmed, the
antenna is tuned, and a DSC message is

sent.

9

.

9

.

9

.

After sending a DSC message,
immediately change the communication

frequencies of the radiotelephone and

tune the antenna.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2169.0/Tx: 2169.0kHz

Routine group call

Stage :Transmitting
Time :0.3min after calling
Call-F: 2169.0/ 2169.0kHz
Work-F: 2065.0/ kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

Tx

[Cancel]

When tuning is finished, the status display
shown at right, with communication
frequencies set, is displayed and the group
call is completed. Start broadcasting using
the handset.

4-24

Operation

4.4.3 Receiving routine calls

When receiving a DSC call from a coast or ship station, the message will be displayed

immediately on the screen. After that, perform the following procedures as appropriate.

(1) Receiving an individual call (type: radiotelephone)

■ Procedure ■

1

.

1

.

1

.

The screen at right is displayed, and the
ALM lamp blinks and the alarm grows

louder gradually.

The example message contains the following
information.

- Message type: Individual call

- Caller's MMSI: 123456789

- Communication mode: Radiotelephone

- Work frequency: Tx 2065.0 kHz

Rx 2065.0 kHz

- Sequence process: ACK RQ

- Receiving frequency: 2177.0 kHz

2

.

2

.

2

.

Press the CANCEL key or ENT to stop
the alarm, and the screen at right is

displayed.

3

.

3

.

3

.

If the call can be accepted, select Accept
and press ENT.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

Received routine message
Type :Individual call
From :123456789
Mode :Radiotelephone
Work FRQ :Tx 2065.0kHz
Rx 2065.0kHz
EOS :ACK RQ
Rx FRQ :2177.0kHz

Press CANCEL to silence alarm.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

Received routine message
Type :Individual call
From :123456789
Mode :Radiotelephone
Work FRQ :Tx 2065.0kHz
Rx 2065.0kHz
EOS :ACK RQ
Rx FRQ :2177.0kHz

[Accept]

[Accept][Unable][NewCH][Cancel]

¾ The acknowledgement procedure screen as

shown at right is displayed.

¾ After that, the status is shown at Stage. Here

it is checking if the channel is free.

¾ See the following notes for information about

the other items (Unable/NewCH/Cancel) in
the handling menu.

4

.

4

.

4

.

When a free channel is confirmed, the
antenna is tuned, and an acknowledgement

message is sent.

4-25

Operation

5

.

5

.

5

.

After sending an acknowledgement
message, changes the working frequency

and tunes the antenna.

6

.

6

.

6

.

When acknowledgement is finished, the
status display is displayed.

Start communications using the handset.

Note

- When Unable (unable to comply) is selected in the received message handling
menu, the following popup screen opens. Select a reason to insert in the
message.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 2065.0/Tx: 2065.0kHz

Routine individual ACK

Stage :Acknowledged
Time :0.8min after calling
Call-F: 2177.0/ 2177.0kHz
Work-F: 2065.0/ 2065.0kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

Tx

[Cancel]

TEL

RX kHz

2065.0

TX kHz

2065.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

T

No reason/ No reason.

Busy/ Busy.

Barred/ The station is closed.

No oper/
Operator is not present.

Temp no oper/
The operator is temporarily away.
EQP disabled/
The equipment has been disabled.
Unable FRQ/
The proposed frequency cannot be used.
Unable mode/
The proposed mode cannot be used.

- When New CH (change working frequency) is selected in the received message
handling menu, the following popup screen opens. Enter an appropriate
working frequency.

4-26

- When Cancel is selected in the received message handling menu, the previous
screen reappears.

(2) Receiving an individual call (type: polling)

■ Procedure ■

1

.

1

.

1

.

The screen at right is displayed, and the
ALM lamp blinks and the alarm grows

louder gradually.

The example message contains the following
information.

- Message type: Individual call

- Caller's MMSI: 001234567

- Purpose of call: Polling

- Sequence process: ACK RQ

- Receiving frequency: 2177.0 kHz

2

.

2

.

2

.

Press the CANCEL key or ENT to stop the
alarm, and the screen at right is displayed.

Operation

Note

3

.

3

.

3

.

Select Send ACK and press ENT to send
a reply message.

¾ The acknowledgement procedure screen as

shown at right is displayed.

¾ After that, the status is shown at Stage. Here

it is checking if the channel is free.

4

.

4

.

4

.

When a free channel is confirmed, the
antennas are tuned, and an

acknowledgement message is sent.

5

.

5

.

5

.

Once the reply message is sent, the
status display is displayed.

When the Auto ACK is set to on and
the status display is displayed, the
acknowledgement is automatically
sent upon receiving a call, without the
notification shown at right.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

Routine polling ACK

Stage :Transmitting
Time :0.1min after calling
Call-F: 2177.0/ 2177.0kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

Tx

[Cancel]

The polling call is now complete because
there is no communication using the
radiotelephone.

4-27

Operation

(3) Receiving a group call

■ Procedure ■

1

.

1

.

1

.

The screen at right is displayed, and the
ALM lamp blinks and the alarm grows

louder gradually.

The example message contains the following
information.

- Message type: Group call

- Caller's MMSI: 123456789

- Communication mode: Radiotelephone

- Work frequency: Receiving 2065.0 kHz

- Sequence process: Response

unnecessary

- Receiving frequency: 2177.0 kHz

2

.

2

.

2

.

Press the CANCEL key or ENT to stop
the alarm, and the screen at right is

displayed.

3

.

3

.

3

.

If possible to listen to the broadcast, select
Accept and press ENT to set the working

channel.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

2065.0

TX kHz

2177.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

4-28

Operation

4.5 Emergency calls (DSC safety/urgency/distress calls)

In emergency, the DSC is available for safety, urgency, or distress calls. For safety and urgency

calls, either individual calls or area calls is selectable for the type of call. For distress calls,

enabled to send either after entering the nature of distress or frequency, or without entering

anything. In both cases, pressing the DISTRESS key is required to send the distress call.

4.5.1 Safety calls

44..55..11..11

For radiotelephone communication, a DSC safety call to an objective station can be made as

follows.

Individual calls

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC

non-distress call.

2

.

2

.

2

.

Select Call type and press ENT to move
the cursor to the right. Then use the jog

dial to select SAF/Indv/TEL.

3

.

3

.

3

.

Press ENT.

The text displayed in Calling FRQ and
Working FRQ changes as shown to the right,
and the cursor moves to Address.

4

.

4

.

4

.

Select Address and press ENT to move
the cursor to the right and input the other

stations 9-digit MMSI.

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/TEL ]
Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/TEL ]

Address :[ ]

Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/TEL ]
Address :[0 ]
Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

4-29

Operation

5

.

5

.

5

.

To change the call frequency, select
Calling FRQ and press ENT to move the

cursor to the right. Then select the

distress and safety frequencies using the

jog dial.

Note

- The numeric keypad can also be
used.

- For information on distress and
safety calls, See "11.1 Frequencies
for distress and safety calls".

6

.

6

.

6

.

Press ENT.

The work frequency of the same band as the
input Calling FRQ is automatically set in
Working FRQ and the cursor moves to
Working FRQ.

7

.

7

.

7

.

Move the cursor to Call and press ENT to
start the procedure for making an

individual safety call.

¾ The sending procedure screen as shown at

right is displayed.

¾ After that, the status is shown at Stage. DSC

messages are sent immediately upon
antenna tuning because a free channel
(excluding test calls) is not confirmed for a
safety category.

1)DSC non-distress call
Call type :[SAF/Indv/TEL ]
Address :[431123456]
Calling FRQ:[ 4207.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/TEL ]
Address :[431123456]
Calling FRQ:[ 4207.5kHz]

Working FRQ:[ 4125.0kHz]

[Call] [Preview] [Cancel]

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 4207.5/Tx: 4207.5kHz

Safety individual call

Stage :Transmitting
Time :0.3min after calling
Call-F: 4207.5/ 4207.5kHz
Work-F: 4125.0/ 4125.0kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

Tx

[Cancel]

Note

The following procedure is the same as in "4.4.1 Routine calls to an individual

station".

4-30

Operation

44..55..11..22

For radiotelephone broadcasting, a DSC safety area call can be made as follows.

Area calls

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC
non-distress call.

2

.

2

.

2

.

Select Call type and press ENT to move
the cursor to the right. Then use the jog
dial to select SAF/Area/TEL.

3

.

3

.

3

.

Press ENT.

The display changes as shown to the right
and the cursor moves to Area form.

4

.

4

.

4

.

Set the area to call.

Enter as below according to the Area form
settings.

- When Center&rad

・ Enter the center point of the area in

Center.

・ Enter the radius of the area in Radius.

- When Corner&dev (shown at right)

・ Enter the northwest corner of the area in

Corner.

・ Enter the south and north/east and west

deviation in a range from 00 to 99 in
Deviation.

5

.

5

.

5

.

To change the call frequency, select
Calling FRQ and press ENT to move the
cursor to the right. Then select the
distress and safety frequencies using the
jog dial.

Note

- The numeric keypad can also be
used.

- For information on distress and
safety calls, See "11.1 Frequencies
for distress and safety calls".

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Area/TEL ]
Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Area/TEL ]

Area form :[Center&rad]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Area/TEL ]
Area form :[Corner&dev]

- Corner :[ ﾟN ﾟE]

- Deviation:[ ﾟ/ ﾟ]
Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Area/TEL ]
Area form :[Center&rad]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Calling FRQ:[ 4207.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

4-31

Operation

6

.

6

.

6

.

Press ENT.

The work frequency of the same band as the
input Calling FRQ is automatically set in
Working FRQ and the cursor moves to
Working FRQ.

7

.

7

.

7

.

Move the cursor to Call and press ENT to
start the procedure for making an area

safety call.

¾ The sending procedure screen as shown at

right is displayed.

¾ After that, the status is shown at Stage. DSC

messages are sent immediately upon
antenna tuning because a free channel
(excluding test calls) is not confirmed for a
safety category.

1)DSC non-distress call
Call type :[SAF/Area/TEL ]
Area form :[Center&rad]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Calling FRQ:[ 4207.5kHz]

Working FRQ:[ 4125.0kHz]

[Call] [Preview] [Cancel]

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 4207.5/Tx: 4207.5kHz

Safety area call

Stage :Transmitting
Time :0.2min after calling
Call-F: 4207.5/ 4207.5kHz
Work-F: 4125.0/ kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

Tx

[Cancel]

8

.

8

.

8

.

After sending a DSC message, immediately
change the communication frequencies of

the radiotelephone and tune the antennas.

Once tuning is complete, the status display
shown at right is displayed with
communication frequencies set and the area
call is completed. Start broadcasting using
the handset.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

4207.5

TX kHz

4125.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

4-32

Operation

44..55..11..33

Use safety calls to request position information to stations and to make DSC test calls.

Other features of safety calls (position request/test)

(1) Position request call

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC

non-distress call.

2

.

2

.

2

.

Select Call type and press ENT to move
the cursor to the right. Then use the jog

dial to select SAF/Indv/PosRQ.

3

.

3

.

3

.

Press ENT.

The display changes as shown to the right
and the cursor moves to Address.

4

.

4

.

4

.

Select Address and press ENT to move
the cursor to the right and input the other

stations 9-digit MMSI.

5

.

5

.

5

.

To change the call frequency, select
Calling FRQ and press ENT to move the

cursor to the right. Then select the

distress and safety frequencies using the

jog dial and press ENT.

Note

- The numeric keypad can also be
used.

- For information on distress and
safety calls, See "11.1 Frequencies
for distress and safety calls".

- After input is complete, check the
details of the message before
sending it using Preview.

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/PosRQ]
Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/PosRQ]

Address :[ ]

Calling FRQ:[ 2187.5kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/PosRQ]
Address :[0 ]
Calling FRQ:[ 2187.5kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/PosRQ]
Address :[431123456]
Calling FRQ:[ 4207.5kHz]

[Call] [Preview] [Cancel]

4-33

Operation

6

.

6

.

6

.

Select Call and press ENT to start the
procedure for making a position request

call.

¾ The sending procedure screen as shown at

right is displayed.

¾ After that, the status is shown at Stage. DSC

messages are sent immediately upon
antenna tuning because a free channel
(excluding test calls) is not confirmed for a
safety category.

7

.

7

.

7

.

After the DSC message is sent, wait for
acknowledgement.

8

.

8

.

8

.

When a reply is received, a message,
like the one at right, with the position

information of the other station is

displayed.

¾ The ALM lamp starts blinking, and the call

alarm gradually grows louder.

¾ Press either the CANCEL key or ENT to

silence the alarm and display Close. After
checking the position of the other station in
the reply message, press ENT in Close to
show the status display.

¾ The position request process is now

complete because there is no communication
using the radiotelephone.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 4207.5/Tx: 4207.5kHz

Safety position request call

Stage :Transmitting
Time :0.1min after calling
Call-F: 4207.5/ 4207.5kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 4207.5/Tx: 4207.5kHz

Received safety message
Type :Individual ACK
From :431123456
Intent :Ship position
Position :90ﾟ00'N
180ﾟ00'E
UTC of pos:12:34
EOS :ACK BQ
Rx FRQ :4207.5kHz

Press CANCEL to silence alarm.

Tx

[Cancel]

4-34

Note

Even if the equipment is functioning properly, Unknown may be displayed for the

time and position depending on the condition of the station, and replies may be

not be received depending on the status of radio wave propagation.

(2) Test call

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC

non-distress call.

2

.

2

.

2

.

Select Call type and press ENT to move
the cursor to the right. Then use the jog

dial to select SAF/Indv/Test.

3

.

3

.

3

.

Press ENT.

The display changes as shown to the right
and the cursor moves to Address.

4

.

4

.

4

.

Select Address and press ENT to move
the cursor to the right and input the other

stations 9-digit MMSI.

5

.

5

.

5

.

To change the call frequency, select
Calling FRQ and press ENT to move the

cursor to the right. Then select the

distress and safety frequencies using the

jog dial and press ENT.

Note

- The numeric keypad can also be
used.

- For information on distress and
safety calls, See "11.1 Frequencies
for distress and safety calls".

- After input is complete, check the
details of the message before
sending it using Preview.

Operation

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/Test ]
Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/Test ]

Address :[ ]

Calling FRQ:[ 2187.5kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/Test ]
Address :[0 ]
Calling FRQ:[ 2187.5kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[SAF/Indv/Test ]
Address :[431123456]
Calling FRQ:[ 4207.5kHz]

[Call] [Preview] [Cancel]

4-35

Operation

6

.

6

.

6

.

Select Call and press ENT to start the
procedure for making a test call.

¾ The sending procedure screen as shown at

right is displayed.

¾ After that, the status is shown at Stage. Here

it is checking if the channel is free.

7

.

7

.

7

.

When a free channel is confirmed, the
antennas are tuned, and a DSC message

is sent.

8

.

8

.

8

.

After the DSC message is sent, wait for
acknowledgement.

9

.

9

.

9

.

When a reply is received, the reply
message is displayed as shown at the

right.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 4207.5/Tx: 4207.5kHz

Safety test call

Stage :Waiting for CH free
Time :0.1min after calling
Call-F: 4207.5/ 4207.5kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 4207.5/Tx: 4207.5kHz

Safety test call

Stage :Waiting for ACK
Time :0.5min after calling
Call-F: 4207.5/ 4207.5kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

[Cancel]

[Cancel]

¾ The ALM lamp starts blinking, and the call

alarm gradually grows louder.

¾ Press either the CANCEL key or ENT to

silence the alarm and display Close. Press
ENT to display the status display.

¾ The test call process is now complete

because there is no communication using the
radiotelephone.

Note

- Press the O key while holding the FUNC key to start from 3 above.

- According to the condition of the station and the radio wave propagation

conditions, the acknowledgement may not be received even if the equipment
works normally.

TEST
CALL

4-36

Operation

44..55..11..44

When receiving a safety call from a coast station or another ship station, the message is

displayed immediately. Then treat the message according to the type as below.

Receiving safety calls

(1) Receiving an individual call (Type: Radiotelephone)

This procedure is identical to the case of a

routine call. However the screen shown at

right will be displayed with the alarm.

The example message contains the following
information.

- Message type: Individual call

- Caller's MMSI: 123456789

- Communication mode: Radiotelephone

- Work frequency: Tx 4125.0 kHz

Rx 4125.0 kHz

- Sequence process: ACK RQ

- Receiving frequency: 4207.5 kHz

(2) Receiving an individual call (Type: Position request)

■ Procedure ■

1

.

1

.

1

.

The screen at right is displayed, and the
ALM lamp blinks and the alarm grows

louder gradually.

The example message contains the following
information.

- Message type: Individual call

- Caller's MMSI: 123456789

- Purpose of call: Position request

- Sequence process: ACK RQ

- Receiving frequency: 16804.5 kHz

2

.

2

.

2

.

Press the CANCEL key or ENT to stop
the alarm, and the screen at right is

displayed.

Note Note

When the Auto ACK is set to on and
the status display is displayed, the
acknowledgement is automatically
sent upon receiving a call, without
the notification shown at right.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4125.0/Tx: 4125.0kHz

Received safety message
Type :Individual call
From :123456789
Intent :Position RQ
EOS :ACK RQ
Rx FRQ :16804.5kHz

Press CANCEL to silence alarm.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4125.0/Tx: 4125.0kHz

Received safety message
Type :Individual call
From :123456789
Intent :Position RQ
EOS :ACK RQ
Rx FRQ :16804.5kHz

[Send ACK]

[Send ACK] [Cancel]

4-37

Operation

3

.

3

.

3

.

Select Send ACK and press ENT to send
a reply message.

¾ The acknowledgement procedure screen as

shown at right is displayed.

¾ After that, the status is shown at Stage. DSC

messages are sent immediately upon
antenna tuning because a free channel
(excluding test calls) is not confirmed for a
safety category.

4

.

4

.

4

.

Once the acknowledgement is sent, the
status display is displayed.

The position request process is now
complete because there is no communication
using the radiotelephone.

Note

If there is no position information (GPS is not connected or 23.5 hours have
elapsed since manual input) when pressing ENT with Send ACK selected, enter
the appropriate information on the following position and the time input screen
that appears.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx:16804.5/Tx:16804.5kHz

Safety position request ACK

Stage :Transmitting
Time :0.5min after calling
Call-F:16804.5/16804.5kHz

[Cancel]
WKR scan bands:

2 4 6 8 12 16 (MHz)

Tx

[Cancel]

(3) Receiving an individual call (Type: Test)

This procedure is the same as making a

routine polling call. However the screen

shown at right will be displayed with the

alarm.

The example message contains the following
information.

- Message type: Individual call

- Caller's MMSI: 123456789

- Purpose of call: Test

- Sequence process: ACK RQ

- Receiving frequency: 16804.5 kHz

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4125.0/Tx: 4125.0kHz

Received safety message
Type :Individual call
From :123456789
Intent :Test
EOS :ACK RQ
Rx FRQ :16804.5kHz

Press CANCEL to silence alarm.

4-38

(4) Receiving an Area Call

Operation

This procedure is the same as making a

routine category group call.

However the screen shown at right will be

displayed with the alarm.

The example message contains the following
information.

- Message type: Area call

- Call area: North latitude

80 to 90 degrees
East longitude
170 to 180 degrees

- Caller's MMSI: 431022222

- Communication mode: Radiotelephone

- Work frequency: Rx 2182.0 kHz

- Sequence process: End of sequence

- Receiving frequency: 2187.5 kHz

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 2065.0/Tx: 2065.0kHz

Received safety message
Type :GEO area call
To :80ﾟN-90ﾟN/
170ﾟE-180ﾟE
From :431022222
Mode :Radiotelephone
Work FRQ :Rx 2182.0kHz
EOS :EOS
Rx FRQ :2187.5kHz

Press CANCEL to silence alarm.

4-39

Operation

4.5.2 Urgency calls

44..55..22..11

For radiotelephone communication, a DSC urgency call to an objective station can be made as

follows.

Individual calls

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC

non-distress call.

2

.

2

.

2

.

Select Call type and press ENT to move
the cursor to the right. Then use the jog

dial to select URG/Indv/TEL.

3

.

3

.

3

.

Press ENT.

The text displayed in Calling FRQ and
Working FRQ changes as shown to the right,
and the cursor moves to Address.

Note

The following procedure is the same as for safety calls in "4.5.1.1 Individual

calls".

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[URG/Indv/TEL ]
Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[URG/Indv/TEL ]

Address :[ ]

Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

4-40

Operation

44..55..22..22

For radiotelephone broadcasting, a DSC urgency area call can be made as follows.

Area calls

■ Procedure ■

1

.

1

.

1

.

Press MENU key, and through
hierarchical menus, select 1. DSC
non-distress call.

2

.

2

.

2

.

Select Call type and press ENT to move
the cursor to the right. Then use the jog
dial to select URG/Area/TEL.

3

.

3

.

3

.

Press ENT.

The display changes as shown to the right
and the cursor moves to Area form.

4

.

4

.

4

.

Set the area to call.

Enter as below according to the Area form
settings.

- When Center&rad

⋅ Enter the center point of the area in

Center.

⋅ Enter the radius of the area in Radius.

- When Corner&dev (shown at right)

⋅ Enter the northwest corner of the area in

Corner.

⋅ Enter the south and north/east and west

deviation in a range from 0 to 99 in
Deviation.

5

.

5

.

5

.

After the area is input, the cursor moves to
Subject.

If necessary, set the subject as Medical
TRNSP (medical transport ship) or Neutral
ship (neutral nationality).

Note

It is fixed at No information when
the power is turned on. For details,
see "4.5.2.3 Special calls (medical
transport/neutral ship)".

1)DSC non-distress call

Call type :[RTN/Indv/TEL ]

Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[URG/Area/TEL ]
Address :[ ]
Calling FRQ:[Tx 2177.0kHz]
:[Rx 2177.0kHz]
Working FRQ:[Tx . kHz]
[Rx . kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[URG/Area/TEL ]

Area form :[Center&rad]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Subject :[No information]
Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[URG/Area/TEL ]
Area form :[Corner&dev]

- Corner :[ ﾟN ﾟE]

- Deviation:[ ﾟ/ ﾟ]
Subject :[No information]
Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[URG/Area/TEL ]
Area form :[Center&rad]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]

Subject :[No information]

Calling FRQ:[ 2187.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

4-41

Operation

6

.

6

.

6

.

To change the call frequency, select
Calling FRQ and press ENT to move the

cursor to the right. Then select the

distress and safety frequencies using the

jog dial.

Note

- The numeric keypad can also be
used.

- For information on distress and
safety calls, See "11.1 Frequencies
for distress and safety calls".

7

.

7

.

7

.

Press ENT.

The work frequency of the same band as the
input Calling FRQ is automatically set in
Working FRQ and the cursor moves to
Working FRQ.

8

.

8

.

8

.

Move the cursor to Call and press ENT to
start the procedure for making an

urgency call.

1)DSC non-distress call
Call type :[URG/Area/TEL ]
Area form :[Center&rad]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Subject :[No information]
Calling FRQ:[ 4207.5kHz]
Working FRQ:[ 2182.0kHz]

[Call] [Preview] [Cancel]

1)DSC non-distress call
Call type :[URG/Area/TEL ]
Area form :[Center&rad]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Subject :[No information]
Calling FRQ:[ 4207.5kHz]

Working FRQ:[ 4125.0kHz]

[Call] [Preview] [Cancel]

¾ The sending procedure screen as shown at

right is displayed.

¾ After that, the status is shown at Stage. DSC

messages are sent immediately upon
antenna tuning because a free channel is not
confirmed for the urgency safety category.

9

.

9

.

9

.

After sending a DSC message,
immediately change the communication

frequencies of the radiotelephone and

tune the antennas.

Once tuning is complete, the status display
shown at right is displayed with
communication frequencies set and the area
call is completed. Start broadcasting using
the handset.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

4207.5

TX kHz

4125.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

4-42

Operation

44..55..22..33

When sailing dangerous waters such as in areas of political instability, additional information can

be added to urgency calls made to all ships in the area if any of the following apply.

・ Own ship is performing medical transportation and protected under the 1949 Geneva

・ Own ship is of neutral nationality in accordance with ITU resolution 18 (Mob-83).

Special calls (medical transport/neutral ship)

Convention.

■ Procedure ■

1

.

1

.

Set 7.5.4 Medical/Neutral use to ON,

1

.

before this call operation.

Note

- This setting is always reset to the
default value (OFF) after turning
the power off and on.

- These calls can always be
received regardless of the
settings.

2

.

2

.

2

.

Make the urgency area call as described
in "4.5.2.2 Area calls."

7.5)DSC/WKR condition

1.Automatic ACK

2.WKR scanning FRQ

3.Safety/Routine alarm :ON

4.Medical/Neutral use :ON

5.Group ID : [0 ]

0.Back

Note

The subject items can be edited
according to these settings.

44..55..22..44

When receiving an urgency call from a coast or another ship station, the message is displayed

immediately with the specific alarm for urgency calls, and treat the message appropriately. Note

that the two tone alarm is applied for urgency calls and differs from routine and safety call

alarms.

Receiving urgency calls

(1) Receiving an Individual Call

■ Procedure ■

This procedure is the same for routine and

safety calls. However, the screen shown at

right is displayed with the alarm.

The example message contains the following
information.

- Message type: Individual call

- Caller's MMSI: 123456789

- Communication mode: Radiotelephone

- Work frequency: Tx 4125.0 kHz

Rx 4125.0 kHz

- Sequence process: ACK RQ

- Receiving frequency: 4207.5 kHz

4-43

Operation

(2) Receiving an Area Call

■ Procedure ■

This procedure is the same as receiving a

safety area call.

However, the screen shown at right is

displayed with the alarm.

The example message contains the following
information.

- Message type: Area call

- Call area: North latitude

80 to 90 degrees
East longitude
170 to 180 degrees

- Caller's MMSI: 431022222

- Communication mode: Radiotelephone

- Work frequency: Receiving

2182.0 kHz

- Sequence process: Response
unnecessary

- Receiving frequency: 2187.5 kHz

Note

If receiving a call containing information regarding a medical transport or neutral
ship, the message shows it as the "Subject".

4-44

Operation

4.5.3 Distress calls

When in distress, distress calls are always transmitted by pressing the dedicated DISTRESS

key. The distress calls transmit your own MMSI, ships position, time of the position, and the

nature of distress.

CAUTION

Do not test the distress call.
Doing so may inconvenience local shipping and rescue centers.

When sending a distress call, follow the instructions of the ship's captain or
officer in charge.

If a false distress call is transmitted accidentally, follow the instructions
below:

1. Press the CANCEL key on the controller (when appropriate, follow the
commands on screen) and terminate the transmission of the distress call.

2. Report the false distress call to a nearby RCC (Rescue Coordination
Center).

(In Japan, inform the nearest Japan Coast Guard.)
Information to be reported:

The date/time, location, and reason why the false distress call was
transmitted. Also report the ship's name, type, nationality, ID number as
well as the unit model name and manufacture number/date, if possible.

3. Report the false distress call to nearby ships using 2182.0 kHz or another
frequency for distress and safety purposes on the radiotelephone.

4. If any acknowledgements to the distress call are received, inform the
ships of the false distress call.

44..55..33..11

The following describes the procedure to send a distress call immediately without using menus.
In this case, the nature of distress in the message will be sent as "Undesignated" by default.
Further, if no information for the position and the time of position obtained within 23.5 hours, this
information will be composed automatically.

Quick distress calls

■ Procedure ■

1

.

1

.

1

.

Open the DISTRESS key cover.

4-45

Operation

2

.

2

.

2

.

Press and hold the DISTRESS key for 4
seconds until the countdown is completed.

3

.

3

.

3

.

After the antenna is tuned, the distress call
is sent.

In this case, the distress call is sent on all
distress and safety frequencies. The distress
message is sent within 1 minute.

4

.

4

.

4

.

The equipment stays in distress mode
until acknowledgement is received.

¾ Unless an acknowledgement is received

or the distress call is cancelled manually,
the distress call repeats automatically in
a variable interval every 3.5 to 4.5
minutes. (The time until the next
broadcast is shown at Next.)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

3)Editing a distress msg
Format :Distress
Self-ID :431001234

Distress call starts

Nature :Undesignated
Position : 89ﾟ59.0123'N
179ﾟ59.6789'E

in sec4

UTC of pos :23:59
Comm type :Radiotelephone
EOS :EOS

[Return] [Tips] [Cancel]

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 8291.0/Tx: 8291.0kHz

Distress calling

Stage :Waiting for ACK
Next :Resends 3.2min later
Call-F:2187.5/4207.5/6312.0
(kHz) 8414.5/12577.0/16804.5

[MoreInfo]
WKR scan bands:

2 4 6 8 12 16 (MHz)

[MoreInfo]

¾ Press ENT in the screen displayed at right

to show the content of the message being
sent.

¾ The distress call can be sent manually while

waiting for acknowledgement by the

DISTRESS key operation mentioned above.

¾ The radiotelephone can be used for

communication while waiting for
acknowledgement. The distress/safety
frequencies for the radiotelephone can be
changed by turning the jog dial.

5

.

5

.

5

.

When the acknowledgement is received,
the message is displayed as shown at the

right.

¾ The ALM lamp starts blinking, and the call

alarm gradually grows louder.

¾ The radiotelephone mode is set to the

distress/safety frequency of the band on
which the acknowledgement is received and
antenna tuning is done immediately.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 8291.0/Tx: 8291.0kHz

Distress calling

Stage :Waiting for ACK
Next :Resends 3.2min later
Call-F:2187.5/4207.5/6312.0
(kHz) 8414.5/12577.0/16804.5

[MoreInfo]
WKR scan bands:

2 4 6 8 12 16 (MHz)

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4125.0/Tx: 4125.0kHz

Received the acknowledgement
Type :Distress ACK
To :All ships
From :001234567
Dist-ID :431001234
Nature :Undesignated
Position :89ﾟ59.0123'N
179ﾟ59.6789'E
UTC of pos:23:59

Press CANCEL to silence alarm.

- Msg contents ­431001234/Undesignated
/ 89ﾟ59.0123'N
179ﾟ59.6789'E @23:59/
Radiotelephone
[ OK ]

[ OK ]

[MoreInfo]

4-46

Operation

6

.

6

.

6

.

Press the CANCEL key or ENT.

¾ Continue is displayed after the alarm stops.

¾ Turn the jog dial to scroll the received

message. When the last line of the message
is reached the cursor moves to Continue.

7

.

7

.

7

.

Pressing ENT while the cursor is on

Continue displays the status display. Use

the radiotelephone's handset to call for

help.

Normally, the responding station calls on the
radiotelephone. Then reply to the receipt as
follows.

z Say, "MAYDAY".
z Say, "This is".
z Own ship's MMSI and call sign,

position, nature of distress, and
rescue requests

Note

The following popup screens are displayed as appropriate in distress mode.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4125.0/Tx: 4125.0kHz

Received the acknowledgement
Type :Distress ACK
To :All ships
From :001234567
Dist-ID :431001234
Nature :Undesignated
Position :89ﾟ59.0123'N
179ﾟ59.6789'E
UTC of pos:23:59

[Continue]

Popup message Contents Note

Attention / Resending

the distress call soon…

Attention / Now continuing

the distress call mode.

Break this mode?

Notifies that the distress call will
be resent automatically within 12
seconds.

Confirmation screen when the
CANCEL key is pressed in distress
mode

To continue distress mode, select
[Continue], or to cancel distress
mode, select [Break]

4-47

Operation

44..55..33..22

The following describes the procedure to send a distress call with the nature of distress selected
in the menu. Also, besides manually inputting position and the time information, the transmission
method and frequency can be set here.

Note: Multi-frequency or single frequency can be selected as the transmission method. The

Distress calls from the menu

various methods are shown below.

⋅ Multi-frequency method: The distress call message is sent continuously on each

frequency, 2187.5 kHz, 8414.5 kHz, and at least one
other distress/safety frequency.

⋅ Single frequency method: The same distress call message is sent on one

distress/safety frequency 5 times continuously. If 2 or
more distress/safety frequencies are selected, the same
message is transmitted 5 times continuously in the same
way on the other frequency after an interval between 3.5
to 4.5 minutes (variable).

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 3 Editing a
distress msg.

The distress type is displayed as
Undesignated as a default value. If the
position information is input automatically by
a GPS type device, or has already input
manually, that information is also displayed.

2

.

2

.

2

.

Press ENT and select the nature of
distress.

The nature of distress is selectable from
below.

Nature of distress Contents

Fire Fire, explosion

Flooding Flooding

Collision Collision

Grounding Grounding

Listing

Sinking Sinking

Disabled Disabled and adrift

Undesignated Undesignated distress

Abandoning Abandoning ship

Piracy attack

Man overboard Man overboard

Listing, in danger of
capsizing

Piracy/armed robbery
attack

3

.

3

.

3

.

Press ENT.

The cursor moves to Position. If a valid position
and time of that position are already displayed,
no entry is necessary. Skip to step 6.

3)Editing a distress msg

Nature :[Undesignated ]

Position :[NE]
:[ 89ﾟ59.0123'N]
:[179ﾟ59.6789'E]
UTC of pos :[23:59]
Mode(fixed) :[Radiotelephone]
Attempt type:[Multi-FRQ ]
Tx bands :[2/4/6/8/12/16]
[Preview] [Tips] [Cancel]

3)Editing a distress msg
Nature :[Fire ]
Position :[NE]
:[ 89ﾟ59.0123'N]
:[179ﾟ59.6789'E]
UTC of pos :[23:59]
Mode(fixed) :[Radiotelephone]
Attempt type:[Multi-FRQ ]
Tx bands :[2/4/6/8/12/16]
[Preview] [Tips] [Cancel]

3)Editing a distress msg
Nature :[Fire ]

Position :[NE]

:[ 89ﾟ59.0123'N]
:[179ﾟ59.6789'E]
UTC of pos :[23:59]
Mode(fixed) :[Radiotelephone]
Attempt type:[Multi-FRQ ]
Tx bands :[2/4/6/8/12/16]
[Preview] [Tips] [Cancel]

4-48

4

.

4

.

4

.

Press ENT and select the quadrant of the

position with the jog dial.

The quadrant changes from NE Æ NW Æ SE

Æ SW Æ CL. Select CL to delete the input

information.

5

.

5

.

5

.

After pressing ENT, input the latitude,

longitude, and time using the numeric

keypad.

6

.

6

.

6

.

Move the cursor to Attempt type and

press ENT to change the transmission

method for the distress call.

Multi-frequency method is set as the default.
To change to the single frequency method,
select Single-FRQ with the job dial and press
ENT.

3)Editing a distress msg
Nature :[Fire ]
Position :[NW]
:[ 89ﾟ59.0123'N]
:[179ﾟ59.6789'E]
UTC of pos :[23:59]
Mode(fixed) :[Radiotelephone]
Attempt type:[Multi-FRQ ]
Tx bands :[2/4/6/8/12/16]
[Preview] [Tips] [Cancel]

3)Editing a distress msg
Nature :[Fire ]
Position :[NW]
:[ 89ﾟ59.0123'N]
:[179ﾟ59.6789'W]
UTC of pos :[23:59]
Mode(fixed) :[Radiotelephone]
Attempt type:[Multi-FRQ ]
Tx bands :[2/4/6/8/12/16]
[Preview] [Tips] [Cancel]

3)Editing a distress msg
Nature :[Fire ]
Position :[NW]
:[ 89ﾟ59.0123'N]
:[179ﾟ59.6789'W]
UTC of pos :[23:59]
Mode(fixed) :[Radiotelephone]
Attempt type:[Single-FRQ]
Tx bands :[2/4/6/8/12/16]
[Preview] [Tips] [Cancel]

Operation

7

.

7

.

7

.

Move the cursor to Tx bands and press

ENT to change the transmission

frequency for the distress call.

¾ At first, all the frequencies are selected

as transmission frequencies.

¾ To change the frequencies, move the

cursor by pressing ENT to the frequencies
(band) to be unselected, turn the jog dial
so they are blank and press ENT.

¾ For the Multi-frequency method, 2 and 8

are fixed and are skipped. Also in this
case, it is necessary to select more than
one other band.

After completing the Tx band settings, the

¾

cursor returns to Nature.

8

.

8

.

8

.

Open the DISTRESS key cover.

3)Editing a distress msg
Nature :[Fire ]
Position :[NW]
:[ 89ﾟ59.0123'N]
:[179ﾟ59.6789'W]
UTC of pos :[23:59]
Mode(fixed) :[Radiotelephone]
Attempt type:[Single-FRQ]
Tx bands :[2/ /6/8/12/16]
[Preview] [Tips] [Cancel]

4-49

Operation

9

.

9

.

9

.

Press and hold the DISTRESS key for
4 seconds until the countdown is

completed.

Note

- The rest of the procedure is the same as described in the "Quick distress call".

- Select Preview and press ENT before calling to display the details of the

message as shown below.

3)Editing a distress msg
Format :Distress
Self-ID :431001234
Nature :Fire
Position : 89ﾟ59.0123'N
:179ﾟ59.6789'E
UTC of pos :23:59
Comm type :Radiotelephone
EOS :EOS

[Return] [Tips] [Cancel]

- Select Tips and press ENT to display precautions about operations in this
screen in a popup screen as shown below.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

3)Editing a distress msg

Nature :[Fire ]

Nature

Position :[NW]

Distress call starts

[ 89ﾟ59.0123'N]
[179ﾟ59.6789'W]
UTC of pos :[23:59]

in sec4

Mode(fixed) :[Radiotelephone]
Attempt type:[Single-FRQ]
Tx bands :[2/ /6/8/12/16]

[Preview] [Tips] [Cancel]

4-50

Operation

44..55..33..33

When a distress call is received from another ship, the message is immediately displayed with the
specific two-tone alarm sound that is different from a routine or safety call.

Receiving distress calls

WARNING

If a distress call is received, make sure to inform the ship's captain or officer
in charge. Doing so may save the lives of the crews and passengers on the
ship in distress.

■ Procedure ■

1

.

1

.

1

.

When a distress call is received, the
distress message is displayed.

¾ The ALM lamp starts blinking, and the call

alarm gradually grows louder. However, the
aural alarm keeps silence if the distress
position is not within 500nm, and is not in
the polar areas (greater than 70°N/S).

¾ The example message contains the

following information.

- Message type: Distress call

- Caller's MMSI: 431001234

- Nature of distress: Man overboard

-

Position & time: North latitude
12° 34.0000'
East longitude
123° 45.0000'
23:57

- Communication mode: Radiotelephone

- Sequence process: End of sequence

- Receiving frequency*: 2187.5 kHz

* Scroll to view

2

.

2

.

2

.

Press the CANCEL key or ENT to stop
the alarm, and the screen at right is
displayed.

Turn the jog dial to scroll the received
message. When the last line of the message
is reached the cursor moves to Accept.

3

.

3

.

3

.

Press ENT while Accept is selected to
set the radiotelephone mode's
distress/safety frequency to the band the
distress message was received on. The
status display is displayed to watch the
distress communications.

Keep watch for at least 5 minutes. Notify the
coast station as appropriate.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

2182.0

TX kHz

2182.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

4-51

Operation

44..55..33..44

Ship stations must keep watch on distress communications after they receive the distress call. If

necessary (after consulting with the RCC or a coast station and being directed to do so) it is

possible to acknowledge the ship in distress from your own ship.

Acknowledging a received distress call

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 4.1 Received

distress.

On the bottom line, the MMSI of the ship is
displayed highlighted by the cursor.

2

.

2

.

2

.

Select the distress call to acknowledge
and press ENT.

The distress message is displayed with the
ACK/Relay/Close handling menu.

Note

If the distress call message could
not be received on 2187.5 kHz,
ACK is disabled so it is not
displayed.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

Received distress message
Type :Distress
From :123456789
Nature :Man overboard
Position :12ﾟ34.0000'N
123ﾟ45.0000'E
UTC of pos:11:20
Mode :Radiotelephone
EOS :EOS

[ACK] [Relay] [Close]

3

.

3

.

3

.

Scroll the received message by using the
jog dial, when the cursor is on ACK press

ENT.

The warning message, "In principle, the
ACK should be sent by a coast station" is
displayed.

4

.

4

.

4

.

After confirming the warning message,
select "Continue" and press ENT to send

the acknowledgement in 2187.5 kHz DSC

mode.

After sending the acknowledgement the
radiotelephone mode is set to 2182.0 kHz,
communicate by radiotelephone with the
ship in distress according to the following
procedure.

z Say "MAYDAY".
z Repeat the identity (MMSI) of the ship in distress 3 times
z Say "This is..."
z Repeat the identity (MMSI) of your ship 3 times
z Say "RECEIVED MAYDAY".

4-52

Operation

4.5.4 Distress relay calls on behalf of someone else

If another ship is in distress but is itself unable to make a distress call, and the master of the ship
considers that further help is necessary, the distress relay call on behalf of the ship can be
transmitted using the "DSC drobose call" menu. In this case, compose a distress relay call format
by inputting the MMSI (if known), the ship's position and the time of position (if known), and the
nature of distress to send to a specific area or a coast station.

CAUTION

When sending a drobose call, do NOT press the DISTRESS key. Doing so
may cause a false distress call.
(Drobose calls can be sent via the [Call] button displayed on the screen.)

44..55..44..11

Transmits a drobose call to a specified coast station.

Coast station calls

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 2 DSC

drobose call.

2

.

2

.

2

.

Select Address and press ENT, input the
MMSI of the calling coast station.

3

.

3

.

3

.

If the 9-digit identity (MMSI) of the ship
in distress is known, select Distress ID,

press ENT and input it.

2)DSC drobose call
Format :[Individual]
Address :[ ]
Distress ID:[ ]
Nature :[Undesignated ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
UTC of pos :[ : ]
[Call] [Preview] [Cancel]

2)DSC drobose call
Format :[Individual]
Address :[0 ]
Distress ID:[ ]
Nature :[Undesignated ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
UTC of pos :[ : ]
[Call] [Preview] [Cancel]

2)DSC drobose call
Format :[Individual]
Address :[001234567]
Distress ID:[0 ]
Nature :[Undesignated ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
UTC of pos :[ : ]
[Call] [Preview] [Cancel]

4-53

Operation

4

.

4

.

4

.

Select Nature and press ENT, then select
the nature of distress with the jog dial.

The nature of distress is selectable from
below.

Nature of distress Contents

Fire Fire, explosion

Flooding Flooding

Collision Collision

Grounding Grounding

Listing

Sinking Sinking

Disabled Disabled and adrift

Undesignated Undesignated distress

Abandoning Abandoning ship

Piracy attack

Man overboard Man overboard

Listing, in danger of
capsizing

Piracy/armed robbery
attack

5

.

5

.

5

.

Press ENT.

2)DSC drobose call
Format :[Individual]
Address :[001234567]
Distress ID:[123456789]
Nature :[Fire ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
UTC of pos :[ : ]
[Call] [Preview] [Cancel]

The cursor moves to Position. If the position
of the ship in distress is known, press ENT
and input it here.

6

.

6

.

6

.

After inputting the position of the ship in
distress press ENT. Input the time at
UTC of pos in the same way and press
ENT.

Scroll the screen, the cursor moves to
Calling FRQ.

7

.

7

.

7

.

To change the distress/safety frequency
for sending the DSC drobose call, select
Calling FRQ and press ENT, then select
the distress/safety frequency using the
jog dial.

After selecting a frequency and pressing
ENT, the cursor moves to Address.

2)DSC drobose call
Format :[Individual]
Address :[001234567]
Distress ID:[123456789]
Nature :[Fire ]
Position :[NE]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
UTC of pos :[ : ]
[Call] [Preview] [Cancel]

2)DSC drobose call
Distress ID:[123456789]
Nature :[Fire ]
Position :[NE]
:[ 89ﾟ59.0000'N]
:[179ﾟ59.0000'E]
UTC of pos :[23:59]
Mode(fixed):[Radiotelephone]
Calling FRQ:[ 2187.5kHz]
[Call] [Preview] [Cancel]

2)DSC drobose call
Distress ID:[123456789]
Nature :[Fire ]
Position :[NE]
:[ 89ﾟ59.0000'N]
:[179ﾟ59.0000'E]
UTC of pos :[23:59]
Mode(fixed):[Radiotelephone]
Calling FRQ:[ 4207.5kHz]
[Call] [Preview] [Cancel]

8

.

8

.

8

.

Select Call and press ENT to tune the
antenna and make a DSC drobose call.

After the transmission, the radiotelephone
mode and the distress/safety frequency of
the band on which the call is transmitted is
set in the status display.

4-54

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 4207.5/Tx: 4207.5kHz

2)DSC drobose call
Distress ID:[123456789]
Nature :[Fire ]
Position :[NE]

Sending the message.

[ 12ﾟ34. 'N]
[123ﾟ45. 'E]
UTC of pos :[12:34]
Mode(fixed):[Radiotelephone]
Calling FRQ:[ 4207.5kHz]

[Call]

[Call] [Preview] [Cancel]

Tx

Operation

9

.

9

.

9

.

When an acknowledgement is received
from a coast station, the screen at right

is displayed.

¾ The ALM lamp starts blinking, and the

call alarm gradually grows louder.

¾ Press either the CANCEL key or ENT to

silence the alarm and display Accept in the
handling menu.

¾ Select Accept and press ENT to display the

status display and make a distress call on
the radiotelephone.

44..55..44..22

Transmits a DSC drobose call to all ships in a specified area.

Area calls

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 2 DSC

drobose call.

2

.

2

.

2

.

Select Format and press ENT, then
select the Area (center) or Area (corner)

with the jog dial.

3

.

3

.

3

.

Press ENT.

¾ The display changes as shown to the

right and the cursor moves to Center or
Corner.

¾ The input is the same as for safety and

urgency area calls.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
TEL Rx: 4125.0/Tx: 4125.0kHz

Received distress message
Type :Distress relay ACK
To :Individual
From :001234567
Dist-ID :123456789
Nature :Fire
Position :89ﾟ59.0000'N
179ﾟ59.0000'E
UTC of pos:23:59

Press CANCEL to silence alarm.

2)DSC drobose call
Format :[Individual]
Address :[ ]
Distress ID:[ ]
Nature :[Undesignated ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
UTC of pos :[ : ]
[Call] [Preview] [Cancel]

2)DSC drobose call
Format :[Area(center)]
Address :[ ]
Distress ID:[ ]
Nature :[Undesignated ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
UTC of pos :[ : ]
[Call] [Preview] [Cancel]

2)DSC drobose call
Format :[Area(center)]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Distress ID:[ ]
Nature :[Undesignated ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
[Call] [Preview] [Cancel]

4

.

4

.

4

.

If the 9-digit identity (MMSI) of the ship
in distress is known, select Distress ID,

press ENT and input it.

2)DSC drobose call
Format :[Area(center)]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Distress ID:[123456789]
Nature :[Undesignated ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
[Call] [Preview] [Cancel]

4-55

Operation

5

.

5

.

5

.

Select Nature and press ENT, then select
the nature of distress with the jog dial.

The nature of distress is selectable from
below.

Nature of distress Contents

Fire Fire, explosion

Flooding Flooding

Collision Collision

Grounding Grounding

Listing

Sinking Sinking

Disabled Disabled and adrift

Undesignated Undesignated distress

Abandoning Abandoning ship

Piracy attack

Man overboard Man overboard

Listing, in danger of
capsizing

Piracy/armed robbery
attack

6

.

6

.

6

.

Press ENT.

The cursor moves to Position. If the position
of the ship in distress is known, press ENT
and input it here.

7

.

7

.

7

.

After inputting the position of the ship in
distress press ENT. Input the time at

UTC of pos in the same way and press

ENT.

Scroll the screen, the cursor moves to
Calling FRQ.

8

.

8

.

8

.

To change the distress/safety frequency
for sending the DSC drobose call, select

Calling FRQ and press ENT, then select

the distress/safety frequency using the

jog dial.

After selecting a frequency and pressing
ENT, the cursor moves to Address.

2)DSC drobose call
Format :[Area(center)]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Distress ID:[123456789]
Nature :[Fire ]
Position :[ ]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
[Call] [Preview] [Cancel]

2)DSC drobose call
Format :[Area(center)]

- Center :[89ﾟN179ﾟE]

- Radius :[0500NM]
Distress ID:[123456789]
Nature :[Fire ]
Position :[NE]
:[ ﾟ . ' ]
:[ ﾟ . ' ]
[Call] [Preview] [Cancel]

2)DSC drobose call
Distress ID:[123456789]
Nature :[Fire ]
Position :[NE]
:[ 89ﾟ59.0000'N]
:[179ﾟ59.0000'E]
UTC of pos :[23:59]
Mode(fixed):[Radiotelephone]
Calling FRQ:[ 2187.5kHz]
[Call] [Preview] [Cancel]

2)DSC drobose call
Distress ID:[123456789]
Nature :[Fire ]
Position :[NE]
:[ 89ﾟ59.0000'N]
:[179ﾟ59.0000'E]
UTC of pos :[23:59]
Mode(fixed):[Radiotelephone]
Calling FRQ:[ 4207.5kHz]
[Call] [Preview] [Cancel]

9

.

9

.

9

.

Select Call and press ENT to tune the
antenna and make a DSC drobose call.

¾ After the transmission, the radiotelephone

mode and the distress/safety frequency of
the band on which the call is transmitted is
set in the status display.

¾ After reply received by the radiotelephone or

DSC, start distress communication.

4-56

Operation

44..55..44..33

When receiving a drobose call directed to ships in a specified area, the ship stations (inc. your
own ship) are allowed to acknowledge only by the radiotelephone. (Receiving a distress relay call
from a coast station is the same.)

Receiving drobose calls

■ Procedure ■

1

.

1

.

1

.

When a DSC drobose call is received,
the screen at right is displayed.

¾ The ALM lamp starts blinking, and the call

alarm gradually grows louder. However, the
aural alarm keeps silence in cases below;

- the distress position is not within 500nm and is
not in the polar areas (greater than 70°N/S), or

- duplicate area calls are received within 1 hour.

¾ The example message contains the

following information.

- Message type: Distress relay area call

- Call area: North latitude

80 to 90 degrees
East longitude
170 to 180 degrees

- Caller's MMSI: 431000123

- Ship in distress MMSI: 431022222

- Nature of distress: Man overboard

- Position & time*: North latitude

90° 00.0000'
East longitude
180° 00.0000'
23:57

- Communication mode*: Radiotelephone

- Sequence process*: End of sequence

- Receiving frequency*: 4207.5 kHz

* Scroll to view

2

.

2

.

2

.

Press the CANCEL key or ENT to stop
the alarm, and the screen at right is

displayed.

Turn the jog dial to scroll the received
message. When the last line of the message
is reached the cursor moves to Accept.

3

.

3

.

3

.

Press ENT while Accept is selected to
set the radiotelephone mode's

distress/safety frequency to the band the

distress message was received on. The

status display is displayed to watch the

distress communications.

Keep watch for at least 5 minutes. Notify the
coast station as appropriate.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)

TEL

RX kHz

4125.0

TX kHz

4125.0

SIG
WKR scan bands:

2 4 6 8 12 16 (MHz)

4-57

Operation

4.5.5 Distress relay calls

After receiving a distress call, ship stations must keep watch on the distress/safety frequency of
the radiotelephone for at least 5 minutes. If there is no response from the coast station, the
received distress message can be sent to the coast station as a distress relay call.

44..55..55..11

A distress relay call can be composed from the log of the received distress message.

Sending distress relay calls

■ Procedure ■

1

.

1

.

1

.

Press the MENU key, and through
hierarchical menus, select 4.1 Received

distress.

On the bottom line, the MMSI of the ship is
displayed highlighted by the cursor.

2

.

2

.

2

.

Select the distress call to be relayed and
press ENT.

The distress message is displayed with the
ACK/Relay/Close handling menu.

3

.

3

.

3

.

Scroll the received message by using the
jog dial, when the cursor is on Relay

press ENT.

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

4.1)Received distress
No Date/Time CAT Format
01 2008-07-31 11:20 DST ALL

01 2008-08-05 11:20 --- DSTRS

02 2008-07-31 10:33 DST INDIV
03 2008-07-31 10:25 DST AREA
04 2008-07-31 10:03 --- DSTRS
05 2008-07-19 22:53 ERR DSTRS

From: 123456789

The warning message, "Normally, the relay
call should be sent to a coast station." is
displayed.

4

.

4

.

4

.

After confirming the warning message,
select "Continue" and press ENT.

Enter the appropriate address and call
frequency in the screen as shown at right.

Note

- The screen at right is for sending
individual distress relay calls.

- To transmit the distress relay call
to a specified area, use the jog dial
to move the cursor to Area as
shown in the screen at right and
then press ENT.

4-58

ID 431001234 TIME 23:59(UTC)
Pos 89ﾟ59.0123'N
179ﾟ59.6789'E@23:59 (EXT)
DSC Rx: 2177.0/Tx: 2177.0kHz

Received distress message
Position :90ﾟ00.0000'N

- Individual call -

180ﾟ00.0000'E
UTC of pos:23:57

Address :[ ]

Address

Mode :Radiotelephone

Call FRQ :[ 2187.5kHz]

EOS :EOS
Rx FRQ :2187.5/4207.5/

[Call] [Area] [Cancel]

6312.0/8414.5/

12577.0/16804.5kHz
[ACK] [Relay] [Close]

[Relay]
