JRC JSB-196 User Manual

150W SSB RADIOTELEPHONE

JSB-196

Smallest 150W SSB

Smallest 150W SSB

with DSP

with DSP Technology

Technology

■

Compact, the Smallest in the world

■

Easy Operation with Jog Dial and
Large LCD

■

High Performance the Digital Signal
Processing (DSP) Technology

■

Wide Frequency Range

※

■

200 Programmable Memory
Channels

■

Various Operating Modes

■

Voluntary Fitting (Option)

※ as of Jan. 2000

DSC Class A Terminal for

The JSB-196 SSB Radiotelephone is of extremely
compact and lightweight design for easy installation.
JRC advanced Digital Signal Processing technology
and high efficiency power amplification have
enabled this 150W SSB to be the smallest transceiver
in its class.

FEATURES

■

Compact, the smallest in the world!

The JSB-196 can be installed in any convenient location aboard
fishing vessels, yachts and workboats of all sizes, and its' high
quality communication is achieved by the stabilised output power
and DSP Digital Signal Processing technologies.

■

Easy Operation with Jog Dial and Large , Clear LCD

Changing Frequency, communication mode, power output , squelch,
AGC, etc, is easy with the Jog Dial, back-lit keypad and large Liquid
Crystal Display (LCD).

■

Wide Frequency Range

Covering fully the HF marine band 1.6 to 29.9999MHz for transmission
and 0.1 to 29.9999MHz for reception, the JSB-196 also is programmed
with all ITU channels for easy use.

■

200 Programmable Memory Channels

User definable channels are stored in a non-volatile memory that
can be easily and quickly accessed with the Jog Dial. The
programmable channels are stored in groups of 10 for easy
scanning, with a maximum of 20 channels per group.

■

DSC Class A Terminal for Voluntary Fitling (option)

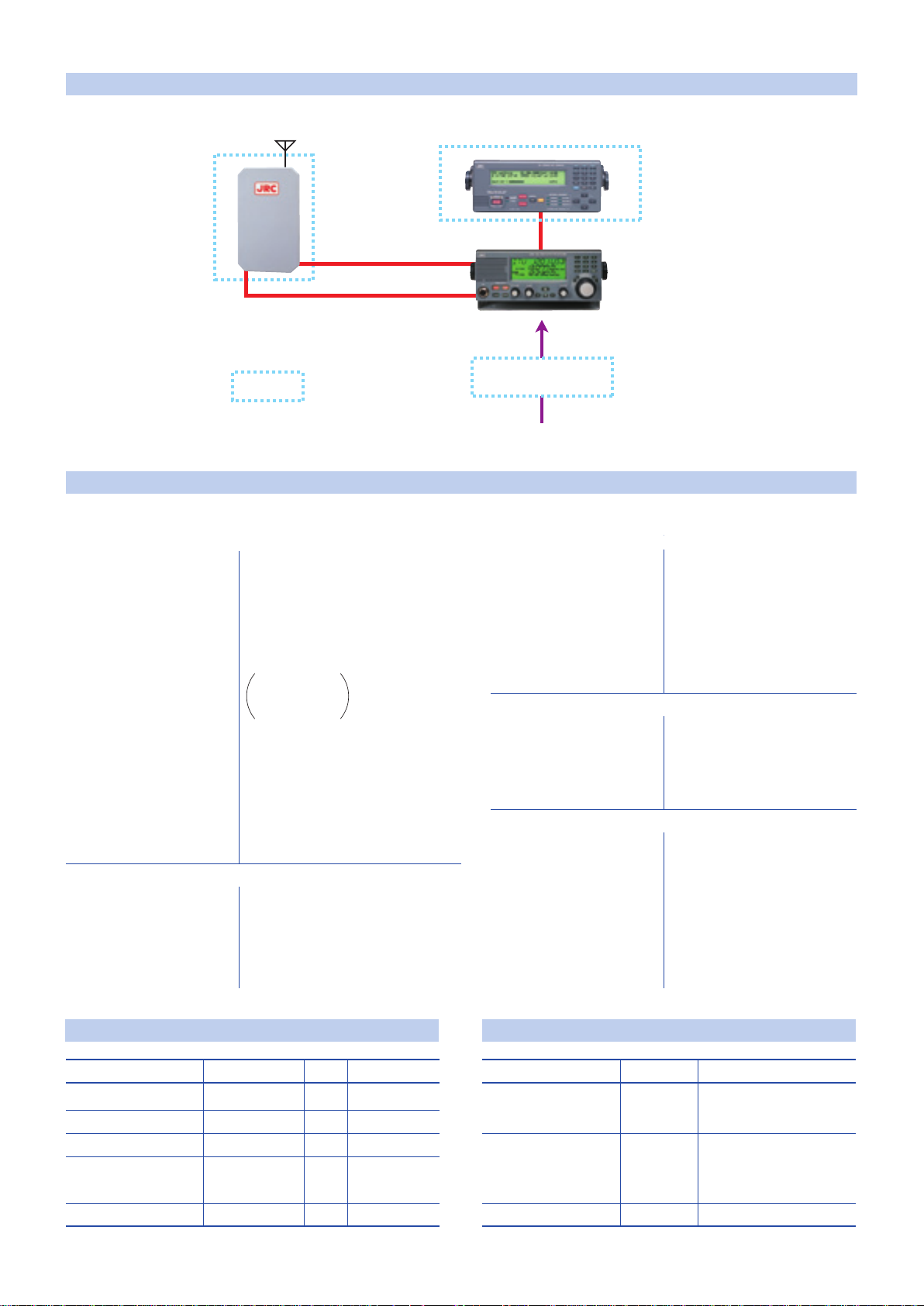

SYSTEM CONFIGURATION

JSB-196

Transmission/Reception
Antenna

Antenna Tuner
NFC-196

RF Cable(5m)

Control Cable(5m)

OPTION

SPECIFICATION

JSB-196 SSB Radiotelephone

General

Frequency range
Receive 0.1 to 29.9999MHz

Frequency increments 100Hz
Frequency tolerance 40Hz or better
User definable channels
Emission mode J3E (USB), LSB, A1A, F1B,

H2B, H3E (Reception only)
Preset ITU channels 1693ch
283 ITU SSB
519 ITU A1A
891 ITU F1B

Scanning channels 20 user defined channels
Antenna impedance 50Ω
Operating temperature -15
Power requirement 13.6VDC10%

(12.3VDC to 15.0VDC)
negative-grounded
Tx:40Amax Rx:2Amax
(openable between 10.2VDC
and 16.2VDC)

Transmitter

Output power 150
Carrier suppression 40dB or better
Spurious suppression 40dB or better
AF frequency response 350 to 2700Hz

(6dB bandwidth)

Microphone input 600Ω
Line input 600Ω, 0dBm (balanced)

Transmit 1.6 to 29.9999MHz

200ch (20ch X 10 Groups)

˚C to +55˚C

W pep

DSC/NBDP MODEM NCT-196N

(for voluntary fiting)

SSB
Radiotelephone
JSB-196

DC13.6V

DC-DC Converter

NBG-300

(Option)

DC24V power supply

Receiver

Receiving systems T
Intermediate frequency 70.455MHz, 455kHz, 20.2kHz

J3E:
F1B:

AF output 5.0W max. 1W rated
Clarifier range 200Hz in 1Hz steps
Line output 600Ω, 0dBm (balanced)

Two-Tone Generator

Frequency of tones
Frequency tolerance 1.5% or better
Duration of tones 250ms10ms
Variation between two tones
Duration of the alarm signal
Modulation depth 80%10%

NFC-196 Antenna Tuner (option)

Frequency range 1.6 to 30MHz
Power capability 200W pep
SWR after tuning 2 : 1
Tuning time

Preset tuning : typical 0.1s

Operating temperature -30
Power requirement 10.2VDC to 16.2VDC

negative-grounded

1.5A max

riple superheterodyne

6.3μV or less (1.6 to 4MHz)

3.5μV or less (4 to 29.9999MHz)

1.8μV or less (1.6 to 4MHz)

1.0μV or less (4 to 29.9999MHz)

1300Hz and 2200Hz

1:1.2 or less

30 to 60s

Automatic tuning :

˚C to +60˚C

typical 3s

STANDARD COMPONENTS

Components Model Q'ty Remarks

SSB Radiotelephone JSB-196 1
Hand Microphone NVT-140 1 Curl Cable
Power cable 7ZCJD 0043A 1 L=1m
Accessory JSB 196 1 Spare fuse,

-Access terminal, etc.
Instruction Manual 7ZPJD0108B 1 English

OPTION

Item Model Remark

Antenna Tuner NFC-196 With 5m RF and

DSC/NBDP MODEM NCT-196N With 1.5m control cable

DC-DC Converter NBG-300

control cables

and 3m power cable
(for voluntary fitting)

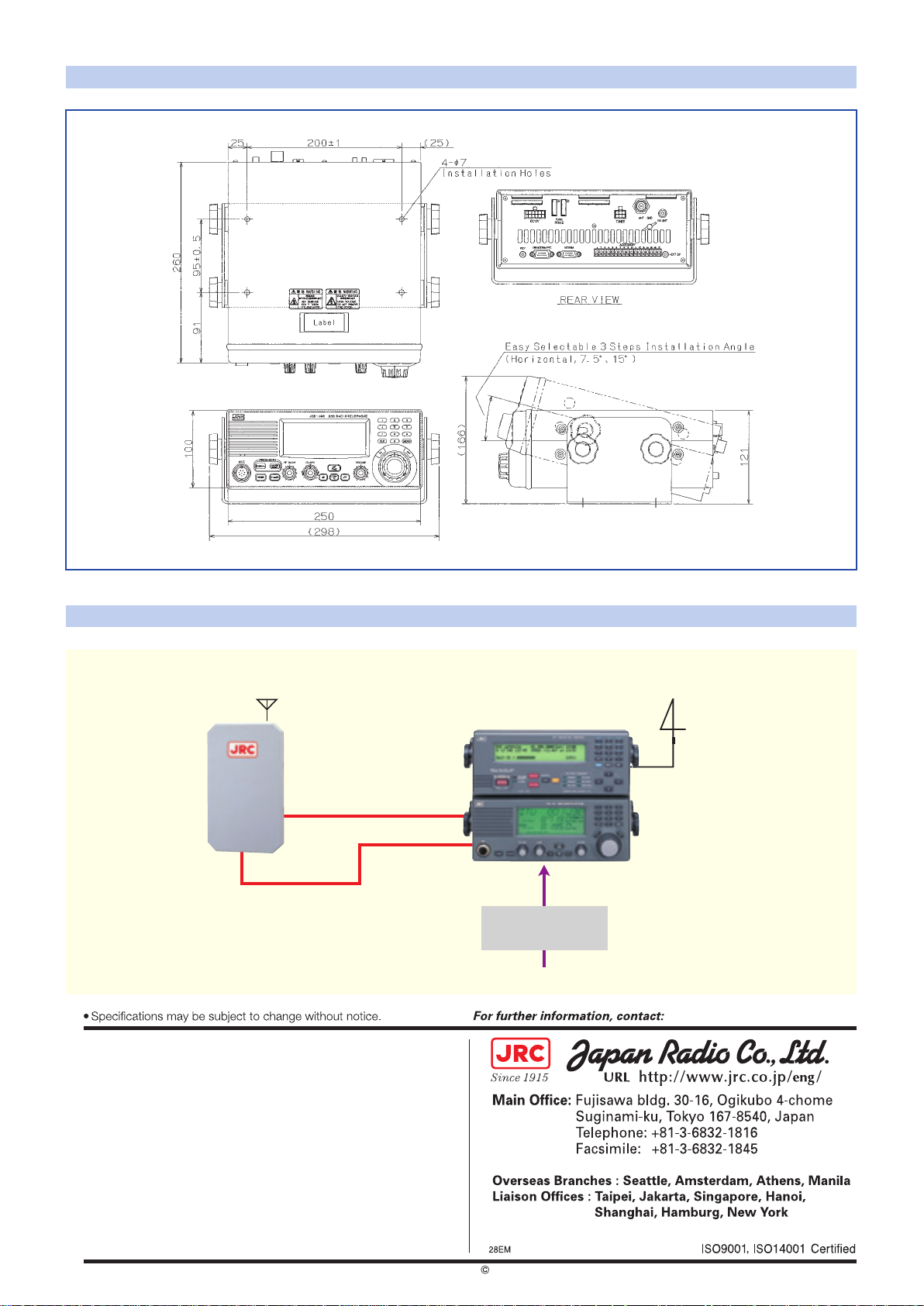

DIMENSIONS & WEIGHT (MASS)

weight (Mass):approx.7.4kg

FAMILY MODEL

JSB-196GM150W MF/HF RADIO EQUIPMENT (Fully complied with GMDSS A2 Area carriage requirement)

Transmission/Reception
Antenna

Antenna Tuner
NFC-196

RF Cable (5m)

Control Cable (5m)

Radiotelephone

DSC/NBDP MODEM
NCT-196N

JSB-196GM

DC13.6V

DC-DC Converter

(NBG-300)

DC24V power supply

WKR Antenna
