KEY TO SYMBOLS

Symbols

ARNING! A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator’s manual.

Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

Always wear:

• A protective helmet where there is a risk

of falling objects

• Approved hearing protection

• Approved eye protection

Max.

speed of output shaft, rpm

This product is in accordance with applicable EC directives.

Watch out for thrown objects and ricochets.

The operator of the machine must ensure, while working, that no persons or animals come closer than 15 metres.

Machines ﬁtted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a ﬁxed object. This is called blade thrust. The blade is capable of amputating an arm or leg. Always keep people and animals at least 15 metres from the machine.

Arro

ws which show limits for handle

positioning.

Always wear approved protective gloves.

Wear sturdy, non-slip boots.

Only use non-metallic, ﬂexible cutting attachments, i.e. trimmer heads with trimmer cord.

Noise emission to the en

vironment according to the European Community’s Directive. The machine’s emission is speciﬁed in chapter Technical data and on label.

Other symbols/decals on the mac

hine refer to special certiﬁcation requirements for certain markets.

Switch off the engine b

y moving the stop switch to the STOP position before carrying out any checks or maintenance.

Alw

ays wear approved protective gloves.

Regular cleaning is required.

Visual chec

50FT

15 m

50FT

15 m

English

–

CONTENTS

Contents

Note the f

ollowing before starting:

Please read the oper

ator’s manual carefully.

KEY

TO SYMBOLS

Symbols

....................................................................... 2

CONTENTS

Contents

...................................................................... 3

Note the following before starting: ................................ 3

INTR

ODUCTION

Dear Customer

, ............................................................ 4

WHA

T IS WHAT?

What is what on the br

ush cutter? ............................... 5

GENERAL SAFETY PRECA

UTIONS

Impor

tant ...................................................................... 6

Personal protective equipment ..................................... 6

Machine′s safety equipment ........................................ 7

Cutting equipment ........................................................ 8

ASSEMBL

Fitting the main body

................................................... 10

Connecting throttle cable and stop switch wires .......... 10

Fitting the handle ......................................................... 10

Assembling the cutting equipment ............................... 11

FUEL HANDLING

Fuel saf

ety ................................................................... 13

Fuel .............................................................................. 13

Fuelling ........................................................................ 14

ARTING AND STOPPING

Chec

k before starting ................................................... 15

Starting and stopping ................................................... 15

ORKING TECHNIQUES

Gener

al working instructions ....................................... 17

MAINTENANCE

Carb

urettor ................................................................... 20

Mufﬂer .......................................................................... 20

Cooling system ............................................................ 21

Spark plug .................................................................... 21

Air ﬁlter ......................................................................... 21

Gear ............................................................................. 22

Maintenance schedule ................................................. 23

TECHNICAL D

ATA

echnical data .............................................................. 24

EC-declaration of conformity ........................................ 25

ARNING! Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection.

ARNING! Under no circumstances may the design of the machine be modiﬁed without the permission of the manufacturer. Always use genuine accessories. Non-authorized modiﬁcations and/or accessories can result in serious personal injury or the death of the operator or others.

–

English

INTR

ODUCTION

Dear Customer

Cong

ratulations on your choice to buy a Jonsered product!

We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very long time to come. The purchase of one of our products gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the address of your nearest service workshop.

It is our wish that you will be satisﬁed with your product and that it will be your companion for a long time. Think of this operator′s manual as a valuable document. By following its

′

content (using, service, maintenance etc) the life span and the second-hand value

of the machine can be extended. If you will sell this machine, make sure that the buyer will get the operator

′

s manual.

Good luck on using your Jonsered machine!

Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

English

–

WHA

T IS

WHA

What is what on the brush cutter?

6 74 5

2 3

21 22

14 13 1211

Trimmer head

2 Bevel gear

3 Grease ﬁller cap, bevel gear

4 Cord cutter

5 Cutting attachment guard

6 Guard extension

7 Shaft

8 Loop handle

9 J-handle

10 Throttle control

11 Stop switch

12 Throttle lock

13 Start throttle button

14 Harness support hook

15 Starter handle

16 Fuel tank

17 Choke control

18 Air purge

19 Air ﬁlter cover

20 Clutch cover

21 Cylinder cover

22 Spark plug cap and spark plug

23 Spanner

24 Locking pin

25 Combination spanner

26 Operator′s manual

27 Harness

–

English

GENERAL SAFETY PRECA

UTIONS

Impor

tant

Personal protective equipment

HELMET

A protectiv

e helmet where there is a risk of falling objects

HEARING PROTECTION

Wear hearing protection that provides adequate noise reduction.

EYE PROTECTION

Always wear approved eye protection. If you use a visor then you must also wear approved protective goggles. Approved protective goggles must comply with standard ANSI Z87.1 in the USA or EN 166 in EU countries.

GLOVES

Gloves should be worn when necessary, e.g., when ﬁtting cutting attachments.

BOOTS

Wear boots with steel toe-caps and non-slip sole.

CLOTHING

Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, long pants. Do not wear jewellery, shorts sandals or go barefoot. Secure hair so it is above shoulder level.

FIRST AID KIT

Always have a ﬁrst aid kit nearby.

IMPORTANT!

The machine is only designed for trimming grass.

The only accessories you can operate with this engine unit are the cutting attachments we recommend in the chapter on Technical data.

Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co-ordination.

Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”.

Never use a machine that has been modiﬁed in any way from its original speciﬁcation.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualiﬁed specialists. See instructions under the heading Maintenance.

All covers, guards and handles must be ﬁtted before starting. Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.

The machine operator must ensure that no people or animals come closer than 15 metres while working. When several operators are working in the same area the safety distance should be at least twice the tree height and no less than 15 metres.

ARNING! This machine produces an electromagnetic ﬁeld during operation. This ﬁeld may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

ARNING! Running an engine in a conﬁned or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

IMPOR

TANT!

A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator’s manual.

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

ARNING! Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine stops.

English

–

GENERAL SAFETY PRECA

UTIONS

Mac

hine′s safety equipment

This section descr

ibes the machine′s safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the ”What is what?” section to locate where this equipment is positioned on your machine.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.

Thr

ottle lockout

The throttle loc

kout is designed to prevent accidental operation of the throttle control. When you press the lock (A) (i.e. when you grasp the handle) it releases the throttle control (B). When you release the handle the throttle control and the throttle lockout both move back to their original positions. This movement is controlled by two independent return springs. This arrangement means that the throttle control is automatically locked at the idle setting.

Make sure the throttle control is locked at the idle setting when the throttle lockout is released.

Press the throttle lockout and make sure it returns to its original position when you release it.

Check that the throttle control and throttle lockout move freely and that the return springs work properly.

See instructions under the heading Start. Start the hedge trimmer and apply full throttle. Release the throttle trigger and check that the blades stop and remain stationary. If the blades move when the throttle trigger is in the idle position then the carburettor idle setting must be adjusted. See instructions under the heading Maintenance.

Stop s

witch

Use the stop s

witch to switch off the engine.

Start the engine and make sure the engine stops when you move the stop switch to the stop setting.

Mufﬂ

The m

ufﬂer is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user. A mufﬂer ﬁtted with a catalytic converter is also designed to reduce harmful exhaust gases.

IMPORTANT!

All servicing and repair work on the machine requires special training. This is especially true of the machine

′

s safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.

ARNING! Never use a machine with faulty safety equipment. The machine’s safety equipment must be checked and maintained as described in this section. If your machine fails any of these checks contact your service agent to get it repaired.

–

English

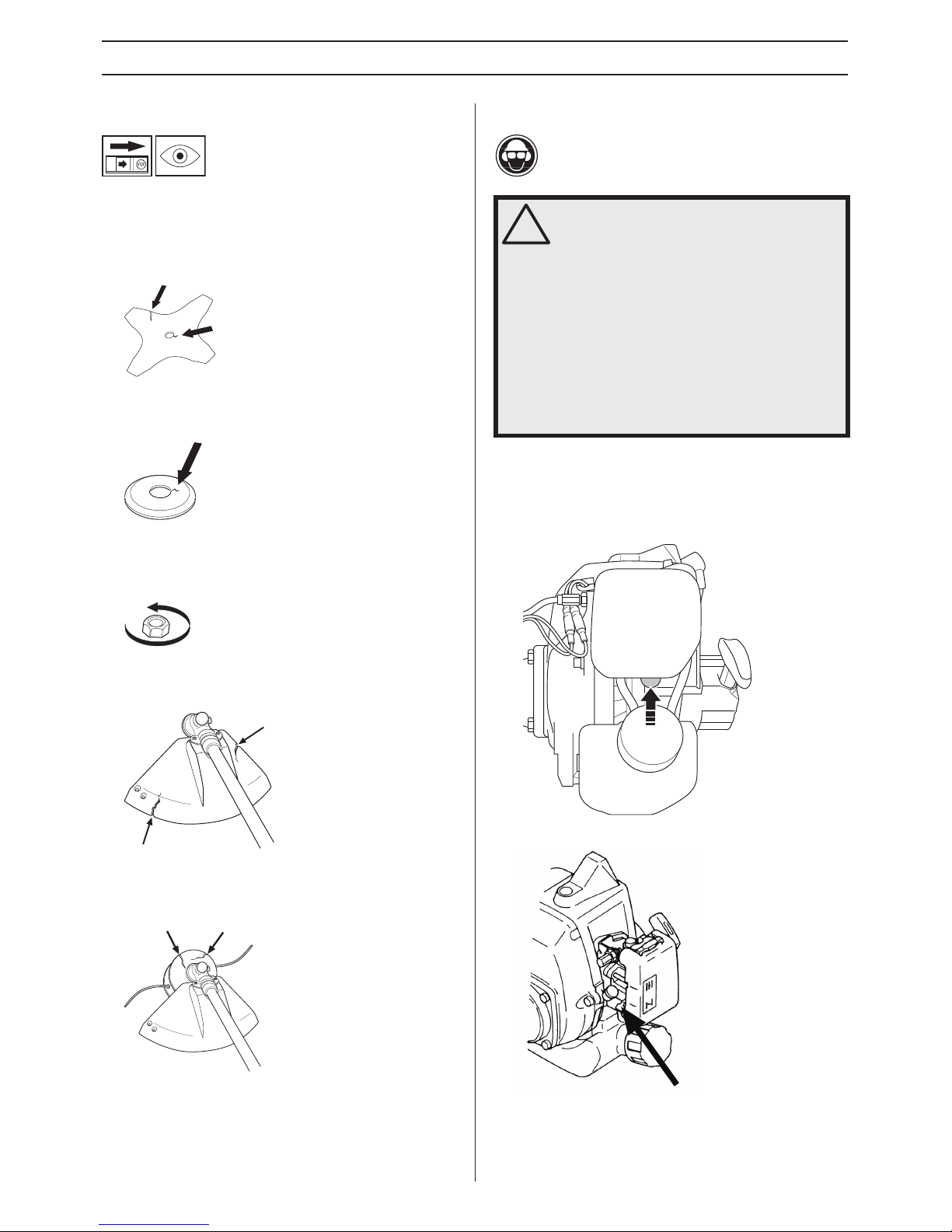

GENERAL SAFETY PRECA

UTIONS

In countr

ies that have a warm and dry climate there is a signiﬁcant risk of ﬁre. We therefore ﬁt certain mufﬂers with a spark arrestor mesh. Check whether the mufﬂer on your machine is ﬁtted with this kind of mesh.

For mufﬂers it is very important that you follow the instructions on checking, maintaining and servicing your machine.

Never use a machine that has a faulty mufﬂer.

Regularly check that the mufﬂer is securely attached to the machine.

If the mufﬂer on your machine is ﬁtted with a spark arrestor mesh this must be cleaned regularly. A blocked mesh will cause the engine to overheat and may lead to serious damage.

Loc

king nut

A loc

king nut is used to secure some types of cutting

attachment.

When ﬁtting, tighten the nut in the opposite direction to the direction of rotation of the cutting attachment. To remove it, undo the nut in the same direction as the cutting attachment rotates. (CAUTION! The nut has a left-hand thread.) Tighten the nut using the socket spanner.

The nylon lining inside the locking nut must not be so worn that you can turn it by hand. The lining should offer a resistance of at least 1.5 Nm. The nut should be replaced after it has been put on approx. 10 times.

Cutting equipment

This section descr

ibes how to choose and maintain your

cutting equipment in order to:

• Reduce the risk of blade thrust.

• Obtain maximum cutting performance.

• Extend the life of cutting equipment.

WARNING! Mufﬂers ﬁtted with catalytic converters get very hot during use and remain so for some time after stopping. This also applies at idle speed. Contact can result in burns to the skin. Remember the risk of ﬁre!

WARNING! The inside of the mufﬂer contain chemicals that may be carcinogenic. Avoid contact with these elements in the event of a damaged mufﬂer.

WARNING! Bear in mind that:

The exhaust fumes from the engine are hot and may contain sparks which can start a ﬁre. Never start the machine indoors or near combustible material!

IMPORTANT!

Only use cutting attachments with the guards we recommend! See the chapter on Technical data.

Refer to the instructions for the cutting attachment to check the correct way to load the cord and the correct cord diameter.

Keep the teeth of the blade correctly sharpened! Follow our recommendations. Also refer to the instructions on the blade packaging.

WARNING! Always stop the engine before doing any work on the cutting attachment. This continues to rotate even after the throttle has been released. Ensure that the cutting attachment has stopped completely and disconnect the HT lead from the spark plug before you start to work on it.

English – 9

GENERAL SAFETY PRECAUTIONS

Cutting equipment

Grass blades and grass cutters are intended for cutting coarse grass.

A trimmer head is intended for trimming grass.

General rules

Only use cutting attachments with the guards we recommend! See the chapter on Technical data.

Keep the teeth of the blade correctly sharpened! Follow our instructions and use the recommended ﬁle gauge. An incorrectly sharpened or damaged blade increases the risk of accidents.

Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.

Sharpening grass cutters and grass blades

• See the cutting attachment packaging for correct sharpening instructions. Sharpen blades and cutters using a single-cut ﬂat ﬁle.

• Sharpen all edges equally to maintain the balance of the blade.

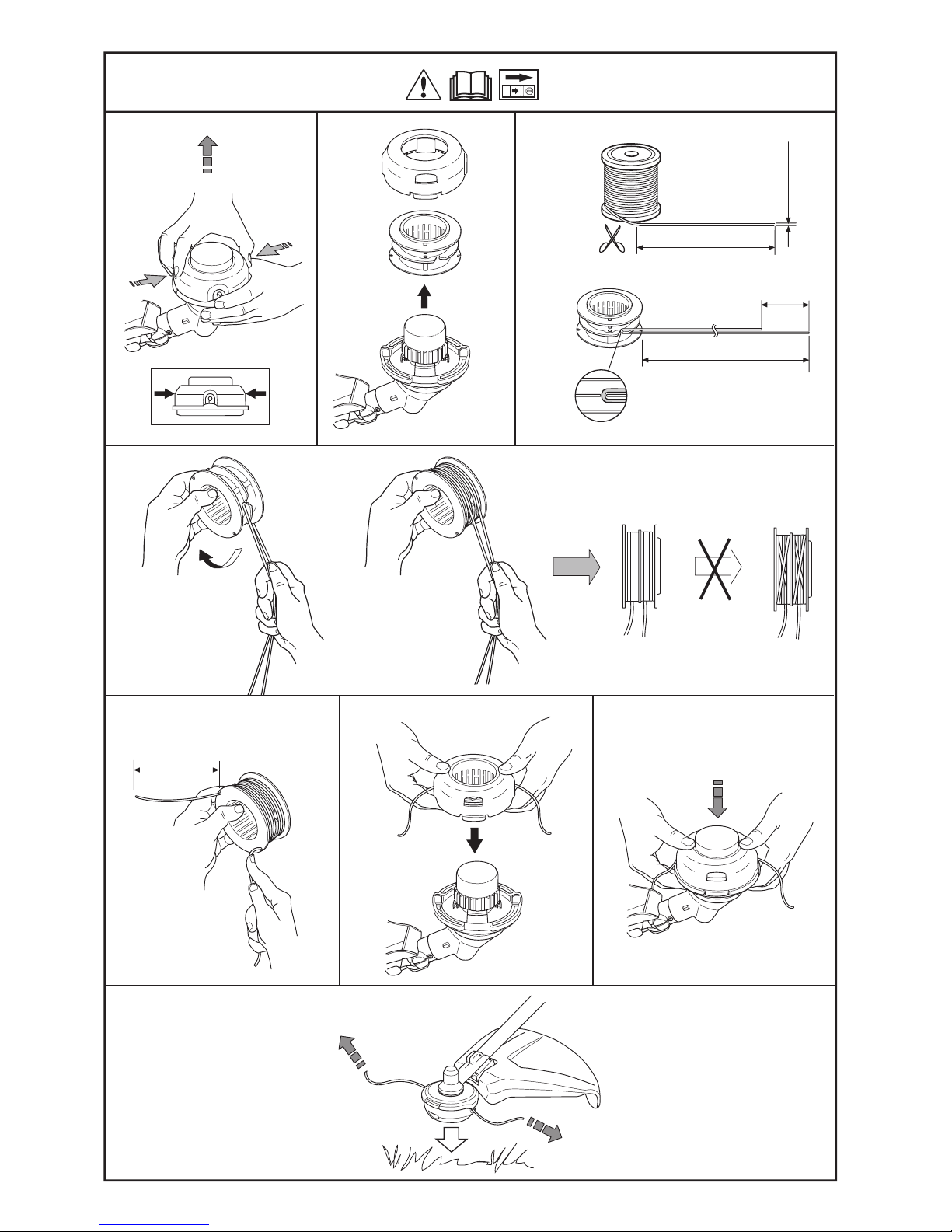

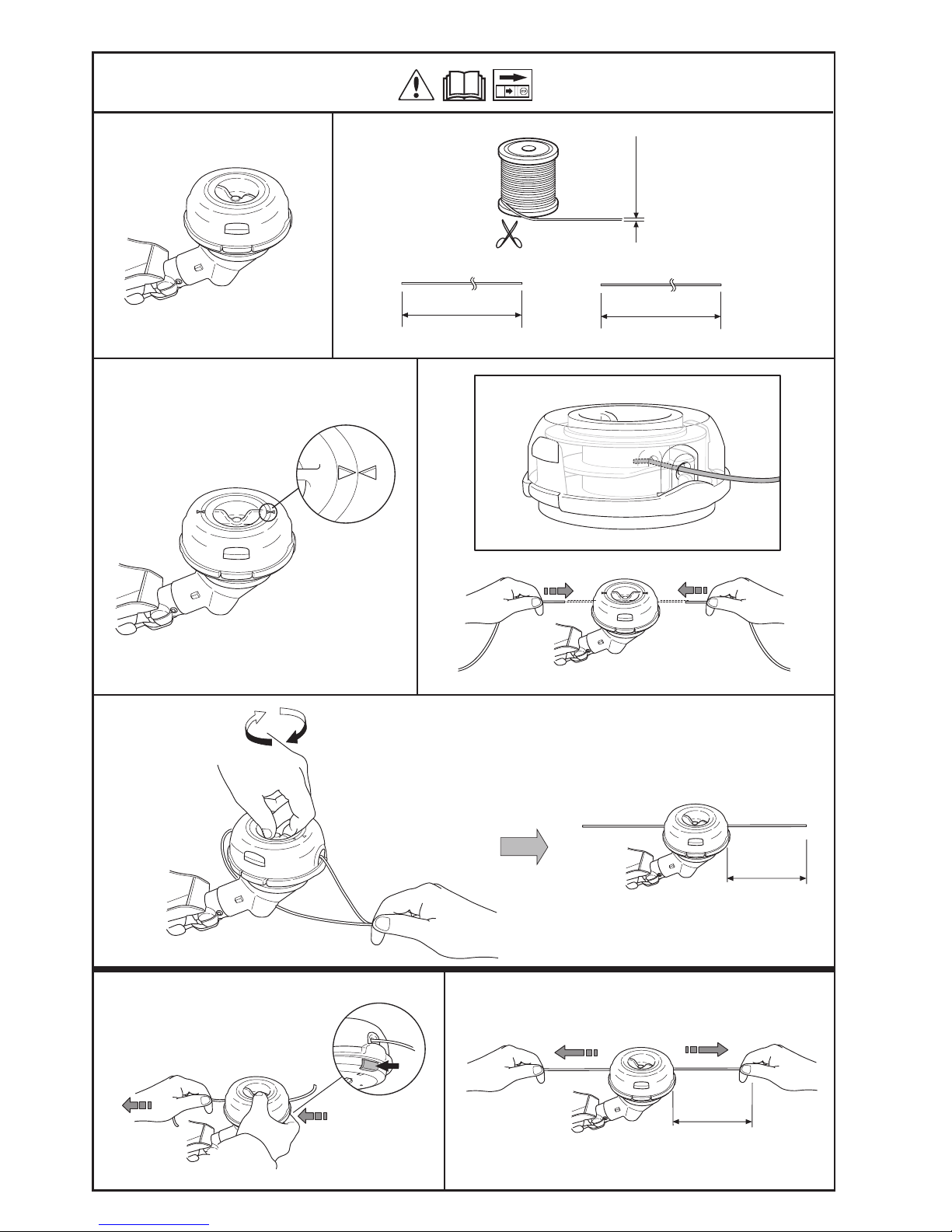

Trimmer head

• Only use the recommended trimmer heads and trimmer cords. These have been tested by the manufacturer to suit a particular engine size. This is especially important when a fully automatic trimmer head is used. Only use the recommended cutting attachment. See the chapter on Technical data.

• Smaller machines generally require small trimmer heads and vice versa. This is because when clearing using a cord the engine must throw out the cord radially from the trimmer head and overcome the resistance of the grass being cleared.

• The length of the cord is also important. A longer cord requires greater engine power than a shorter cord of the same diameter.

• Make sure that the cutter on the trimmer guard is intact. This is used to cut the cord to the correct length.

• To increase the life of the cord it can be soaked in water for a couple of days. This will make the line tougher so that it lasts longer.

WARNING! Using an incorrect cutting attachment or an incorrectly sharpened blade increases the risk of blade thrust.

WARNING! Always discard a blade that is bent, twisted, cracked, broken or damaged in any other way. Never attempt to straighten a twisted blade so that it can be reused. Only use original blades of the speciﬁed type.

IMPORTANT!

Always ensure the trimmer cord is wound tightly and evenly around the drum, otherwise the machine will generate harmful vibration.

10 – English

ASSEMBLY

Fitting the main body

Connect the engine (A) to the tube (B) with four screws (C).

Connecting throttle cable and stop switch wires

1 Insert the throttle cable (A) through the carburettor bracket

(B), then screw the cable adjuster sleeve (C) into the carburettor bracket fully.

2 Position the slotted ﬁtting (D) on the carburettor so the

recessed hole (E) for the cable lug (F) is away from the cable adjuster sleeve.

3 Rotate the carburettor throttle cam and slip the throttle

cable through the slot in the slotted ﬁtting, making sure the cable lug drops into the recessed hole.

4 Operate the throttle trigger a few times to make sure that

it works correctly.

5 Adjust the cable adjuster sleeve so the stop on the

carburettor throttle cam just contacts the throttle stop and the cable position keep 1-2 mm play between the cable lug and the slotted ﬁtting when the throttle trigger is fully depressed.

6 When the throttle cable is adjusted correctly, tighten the

locking nut (G).

7 Plug the stop switch wires (H) into the matching

connectors from the engine. Note that wire polarity is not important.

Fitting the handle

1 Position the handle on the shaft. Note that the handle

must be mounted below the arrow on the shaft.

2 Attach the J-handle to the loop handle using the 4 screws,

as shown.

3 Now make a ﬁnal adjustment, with the machine hanging

from the harness, to obtain the most comfortable working position. Tighten the screws.

1-2mm

English – 11

ASSEMBLY

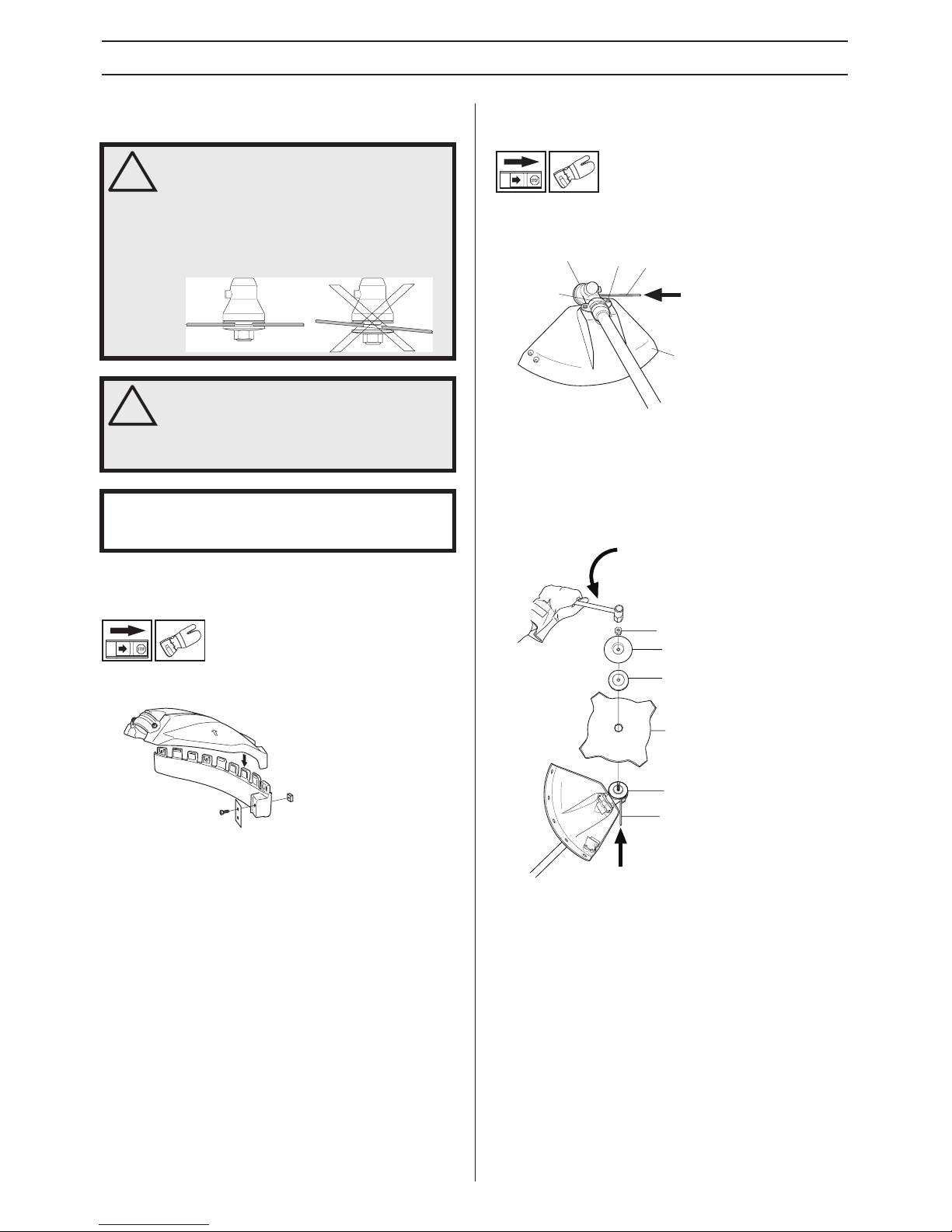

Assembling the cutting equipment

Fitting the cord cutter and guard extension to the trimmer guard

• Attach the cord cutter to the guard extension with screw and washer as shown.

• Fit the guard extension to the trimmer guard as shown.

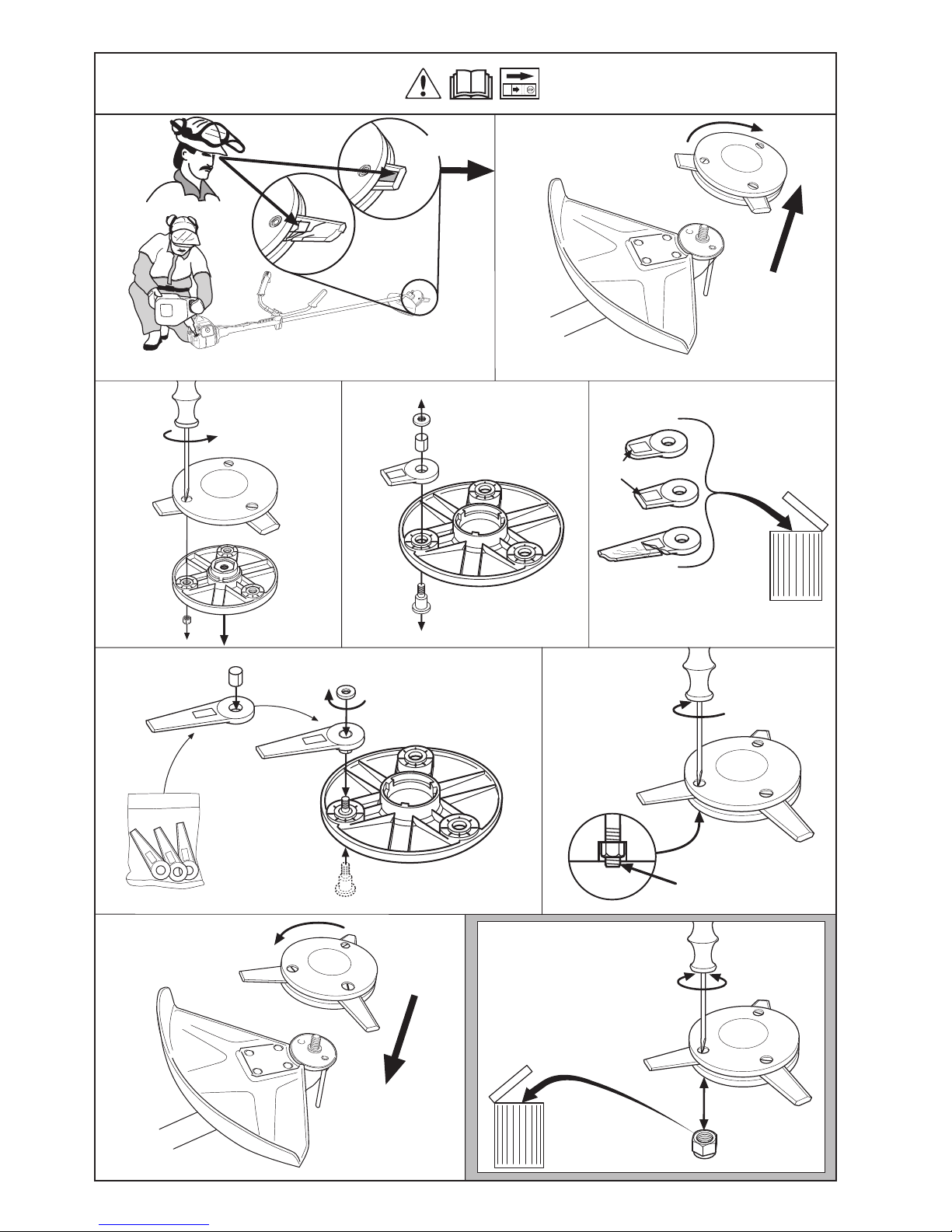

Fitting a blade guard, grass blade and grass cutter

• Fit the guard (A) to the gear housing using the support plate (M) and two screws (L).

• Fit the drive disc (B) on the output shaft.

• Turn the blade shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.

• Insert the locking pin (C) in the hole to lock the shaft.

• Place the blade (D), support cup (E) and support ﬂange (F) on the output shaft.

• Fit the nut (G). The nut must be tightened to a torque of 35-50 Nm (3.5-5 kpm). Use the socket spanner in the tool kit. Hold the shaft of the spanner as close to the blade guard as possible. To tighten the nut, turn the spanner in the opposite direction to the direction of rotation (Caution! left-hand thread).

WARNING! When ﬁtting the cutting attachment it is extremely important that the raised section on the drive disc/support ﬂange engages correctly in the centre hole of the cutting attachment. If the cutting attachment is ﬁtted incorrectly it can result in serious and/or fatal personal injury.

WARNING! Never use a cutting attachment without an approved guard. See the chapter on Technical data. If an incorrect or faulty guard is ﬁtted this can cause serious personal injury.

IMPORTANT! If a saw blade or grass blade are to be used the machine must be equipped with the correct handlebar, blade guard and harness.

12 – English

ASSEMBLY

Fitting other guards and cutting attachments

• Fit the guard (A) to the gear housing using the support plate (M) and two screws (L).

• Fit the drive disc (B) on the output shaft.

• Turn the blade shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.

• Insert the locking pin (C) in the hole to lock the shaft.

• Screw on the trimmer head (H) in the opposite direction to the direction of rotation.

• To dismantle, follow the instructions in the reverse order.

English – 13

FUEL HANDLING

Fuel safety

Never start the machine:

1 If you have spilt fuel on it. Wipe off the spillage and allow

remaining fuel to evaporate.

2 If you have spilt fuel on yourself or your clothes, change

your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.

3 If the machine is leaking fuel. Check regularly for leaks

from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or naked ﬂames, for example, from electrical machinery, electric motors, electrical relays/switches or boilers.

• When storing and transporting fuel always use approved containers intended for this purpose.

• When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to ﬁnd out where to dispose of excess fuel.

• Ensure the machine is cleaned and that a complete service is carried out before long-term storage.

• The transport guard must always be ﬁtted to the cutting attachment when the machine is being transported or in storage.

• Secure the machine during transport.

Fuel

NB! The machine is equipped with a two-stroke engine and must always been run using a mixture of petrol and two-stroke oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture.

Petrol

NB! Always use a quality petrol/oil mixture at least 90 octane (RON). If your machine is equipped with a catalytic converter (see chapter on Technical data) always use a good quality unleaded petrol/oil mixture. Leaded petrol will destroy the catalytic converter.

Use low-emission petrol, also known as alkylate petrol, if it is available.

• The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.

• When working at continuous high revs a higher octane rating is recommended.

Two-stroke oil

• For best results and performance use JONSERED twostroke engine oil, which is specially formulated for our aircooled two-stroke engines.

• Never use two-stroke oil intended for water-cooled engines, sometimes referred to as outboard oil (rated TCW).

• Never use oil intended for four-stroke engines.

• Mixing ratio

1:50 (2%) with JONSERED two-stroke oil.

1:33 (3%) with oils class JASO FB or ISO EGB formulated for air-cooled, two-stroke engines.

WARNING! Take care when handling fuel. Bear in mind the risk of ﬁre, explosion and inhaling fumes.

WARNING! Fuel and fuel fumes are highly inﬂammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

Petrol, litre

Two-stroke oil, litre

2% (1:50) 3% (1:33)

5 0,10 0,15

10 0,20 0,30

15 0,30 0,45

20 0,40 0,60

14 – English

FUEL HANDLING

Mixing

• Always mix the petrol and oil in a clean container intended for fuel.

• Always start by ﬁlling half the amount of the petrol to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of petrol.

• Mix (shake) the fuel mixture thoroughly before ﬁlling the machine’s fuel tank.

• Do not mix more than one month’s supply of fuel at a time.

• If the machine is not used for some time the fuel tank should be emptied and cleaned.

Fuelling

• Always use a fuel container with an anti-spill valve.

• Clean the area around the fuel cap. Contamination in the tank can cause operating problems.

• Ensure that the fuel is well mixed by shaking the container before ﬁlling the tank.

WARNING! Taking the following precautions, will lessen the risk of ﬁre:

Do not smoke or place hot objects near fuel.

Always shut off the engine before refuelling.

Always stop the engine and let it cool for a few minutes before refuelling.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Tighten the fuel cap carefully after refuelling.

Always move the machine away from the refuelling area before starting.

English – 15

STARTING AND STOPPING

Check before starting

• Check the blade to ensure that no cracks have formed at the bottom of the teeth or by the centre hole. The most common reason why cracks are formed is that sharp corners have been formed at the bottom of the teeth while sharpening or that the blade has been used with dull teeth. Discard a blade if cracks are found.

• Check that the support ﬂange is not cracked due to fatigue or due to being tightened too much. Discard the support ﬂange if it is cracked.

• Ensure the locking nut has not lost its captive force. The nut lock should have a locking force of at least 1.5 Nm. The tightening torque of the locking nut should be 35-50 Nm.

• Check that the blade guard is not damaged or cracked. Replace the blade guard if it is exposed to impact or is cracked.

• Check that the trimmer head and trimmer guard are not damaged or cracked. Replace the trimmer head or trimmer guard if they have been exposed to impact or are cracked.

• Never use the machine without a guard nor with a defective guard.

• All covers must be correctly ﬁtted and undamaged before you start the machine.

Starting and stopping

Cold engine

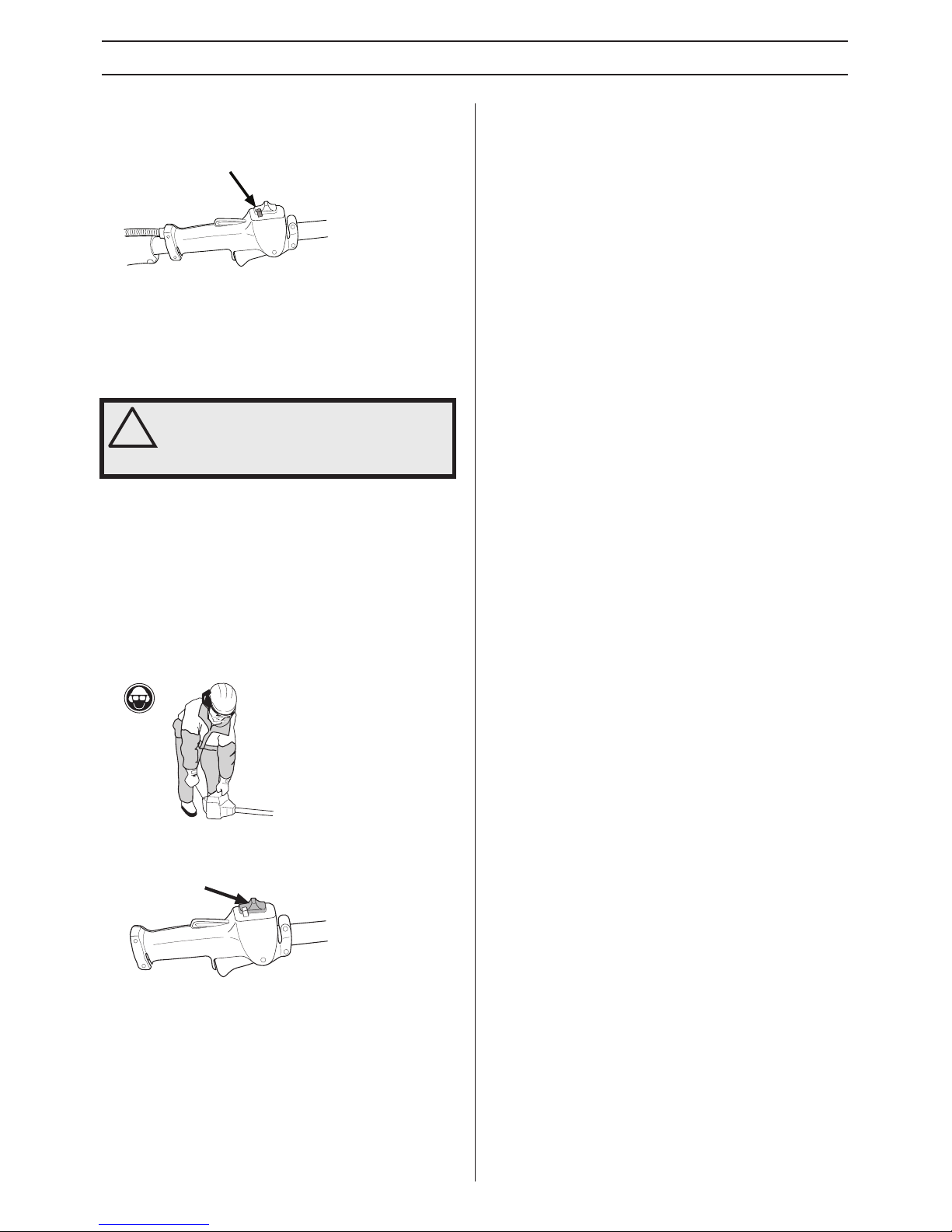

Ignition: Set the stop switch to the start position.

Primer bulb: Press the air purge repeatedly until fuel begins

to ﬁll the bulb. The bulb need not be completely ﬁlled.

Choke: Set the choke control in the choke position.

Start throttle: Set the throttle to the start position by ﬁrst

pressing the throttle lockout and the throttle trigger, then pressing the start throttle button (A). Then release the throttle lockout and the throttle trigger, followed by the start throttle

WARNING! The complete clutch cover and shaft must be ﬁtted before the machine is started, otherwise the clutch can come loose and cause personal injury.

Always move the machine away from the refuelling area before starting. Place the machine on a ﬂat surface. Ensure the cutting attachment cannot come into contact with any object.

Make sure no unauthorised persons are in the working area, otherwise there is a risk of serious personal injury. The safety distance is 15 metres.

16 – English

STARTING AND STOPPING

button. The throttle function is now activated. To return the engine to idle, press the throttle lockout and throttle trigger again.

Warm engine

Use the same starting procedure as for a cold engine but without setting the choke control in the choke position.

Starting

Hold the body of the machine on the ground using your left hand (CAUTION! Not with your foot!). Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord. Never twist the starter cord around

your hand.

Repeat pulling the cord until the engine starts. When the engine starts, return choke control to run position.

CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.

Stopping

Stop the engine by switching off the ignition.

WARNING! When the engine is started with the choke in either the choke or start throttle positions the cutting attachment will start to rotate immediately.

English – 17

WORKING TECHNIQUES

General working instructions

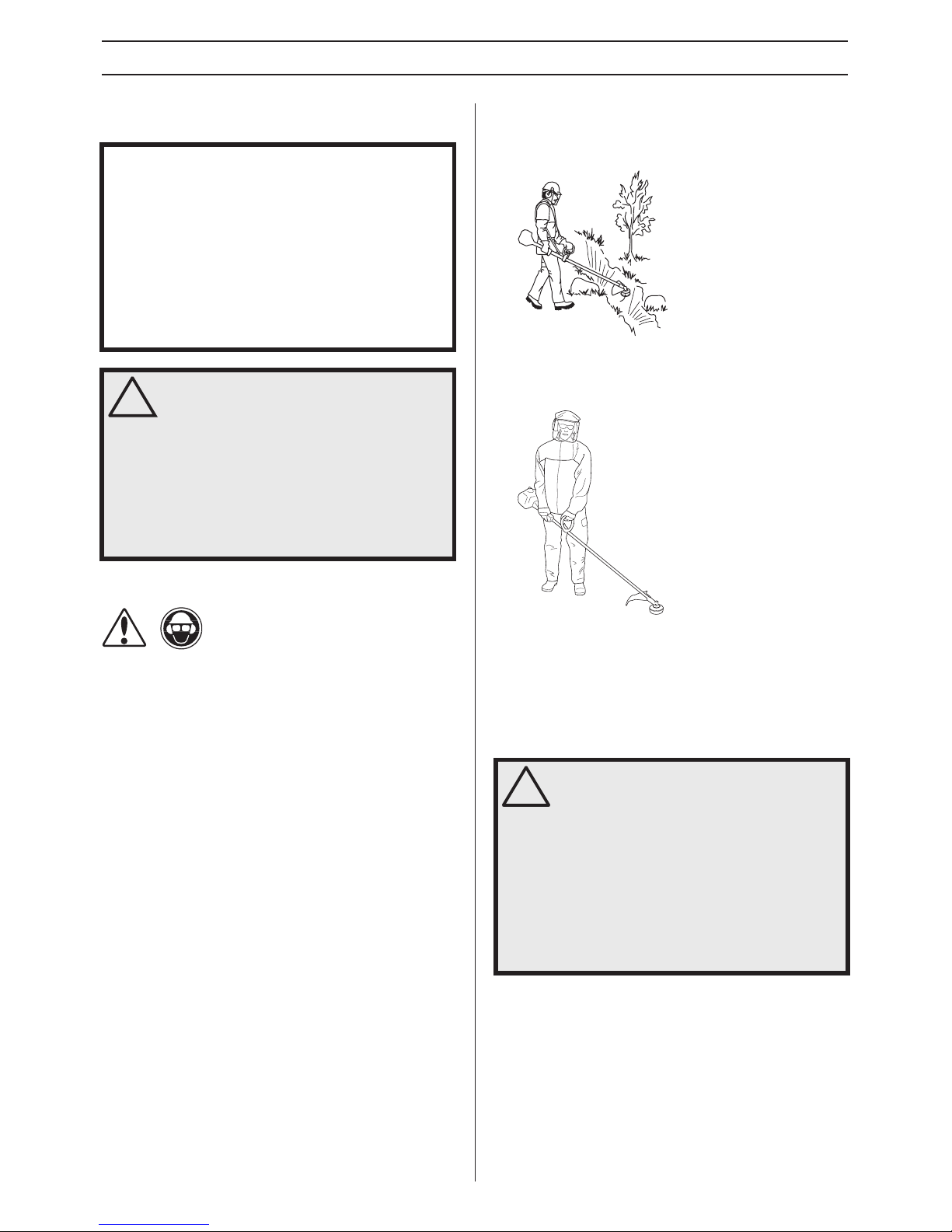

Basic safety rules

1 Look around you:

• To ensure that people, animals or other things cannot affect your control of the machine.

• To ensure that people, animals, etc., do not come into contact with the cutting attachment or loose objects that are thrown out by the cutting attachment.

• NB! Do not use the machine unless you are able to call for help in the event of an accident.

2 Inspect the working area. Remove all loose objects, such

as stones, broken glass, nails, steel wire, string, etc. that could be thrown out or become wrapped around the cutting attachment.

3 Do not use the machine in bad weather, such as dense

fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etc.

4 Make sure you can move and stand safely. Check the area

around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground.

5 Keep a good balance and a ﬁrm foothold.

6 Always hold the machine with both hands. Hold the

machine on the right side of your body.

7 Keep the cutting attachment below waist level.

8 Switch off the engine before moving to another area. Fit

the transport guard before carrying or transporting the equipment any distance.

9 Never put the machine down with the engine running

unless you have it in clear sight.

IMPORTANT!

This section describes the basic safety precautions for working with brush cutters and trimmers.

If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop.

Avoid all usage which you consider to be beyond your capability.

You must understand the difference between forestry clearing, grass clearing and grass trimming before use.

WARNING! Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the ﬁngers, hands or wrists. The risk increases at low temperatures.

WARNING! Neither the operator of the machine nor anyone else may attempt to remove the cut material while the engine is running or the cutting equipment is rotating, as this can result in serious injury.

Stop the engine and cutting equipment before you remove material that has wound around the blade shaft as otherwise there is a risk of injury. The bevel gear can get hot during use and may remain so for a while afterwards. You could get burnt if you touch it.

18 – English

WORKING TECHNIQUES

Basic working techniques

Always slow the engine to idle speed after each working operation. Long periods at full throttle without any load on the engine can lead to serious engine damage.

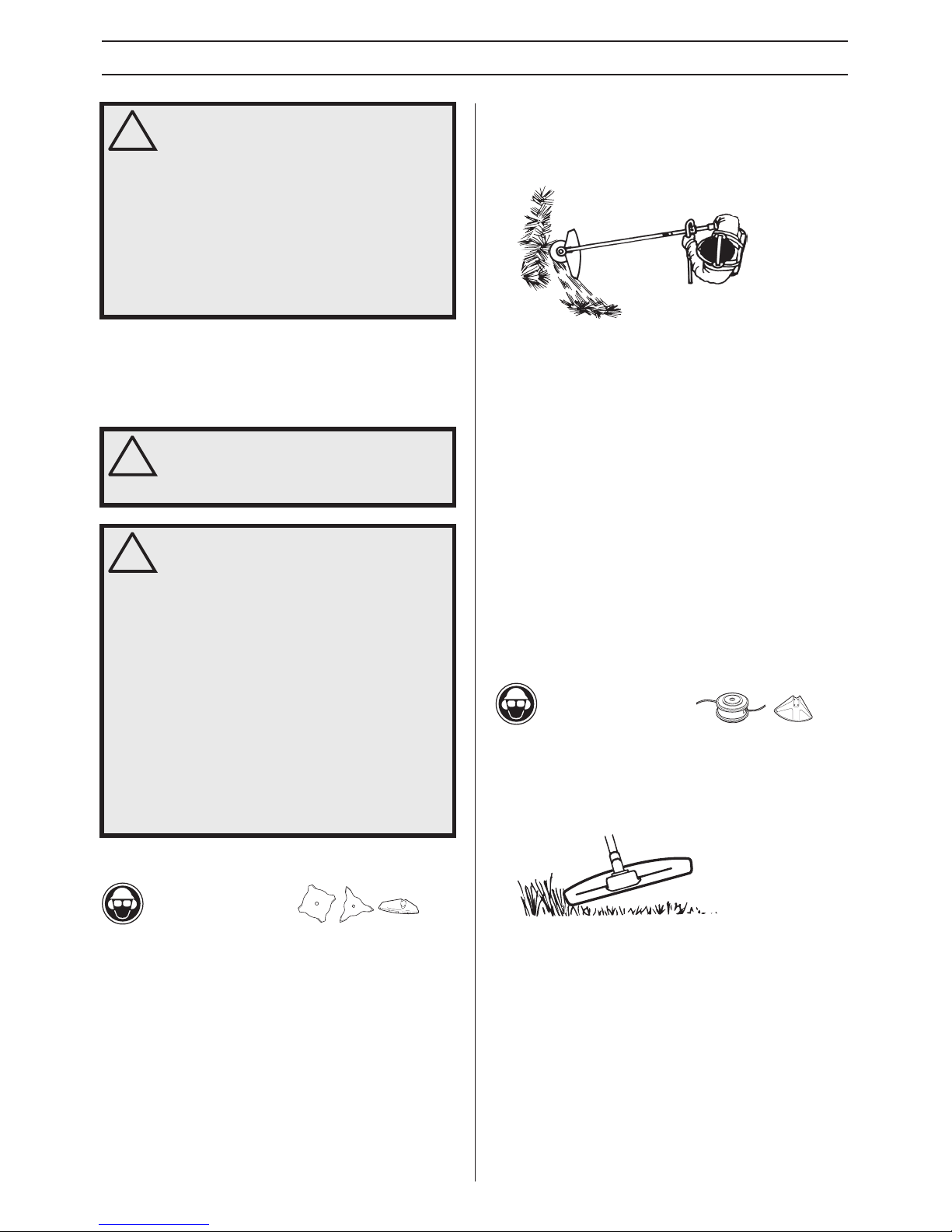

Grass clearing using a grass blade

• Grass blades and grass cutters must not be used on woody stems.

• A grass blade is used for all types of tall or coarse grass.

• The grass is cut down with a sideways, swinging movement, where the movement from right-to-left is the clearing stroke and the movement from left-to-right is the return stroke. Let the left-hand side of the blade (between 8 and 12 o’clock) do the cutting.

• If the blade is angled to the left when clearing grass, the grass will collect in a line, which makes it easier to collect, e.g. by raking.

• Try to work rhythmically. Stand ﬁrmly with your feet apart. Move forward after the return stroke and stand ﬁrmly again.

• Let the support cup rest lightly against the ground. It is used to protect the blade from hitting the ground.

• Reduce the risk of material wrapping around the blade by following these instructions:

1 Always work at full throttle.

2 Avoid the previously cut material during the return

stroke.

• Stop the engine, unclip the harness and place the machine on the ground before you start to collect the cut material.

Grass trimming with a trimmer head

Trimming

• Hold the trimmer head just above the ground at an angle. It is the end of the cord that does the work. Let the cord work at its own pace. Never press the cord into the area to be cut.

• The cord can easily remove grass and weeds up against walls, fences, trees and borders, however it can also damage sensitive bark on trees and bushes, and damage fence posts.

• Reduce the risk of damaging plants by shortening the cord to 10-12 cm and reducing the engine speed.

WARNING! Watch out for thrown objects. Always wear approved eye protection. Never lean over the cutting attachment guard. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury.

Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m. Stop the machine immediately if anyone approaches. Never swing the machine around without ﬁrst checking behind you to make sure no-one is within the safety zone.

WARNING! Sometimes branches or grass get caught between the guard and cutting attachment. Always stop the engine before cleaning.

WARNING! Machines ﬁtted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a ﬁxed object. This is called blade thrust. A blade thrust can be violent enough to cause the machine and/or operator to be propelled in any direction, and possibly lose control of the machine. Blade thrust can occur without warning if the machine snags, stalls or binds. Blade thrust is more likely to occur in areas where it is difﬁcult to see the material being cut.

Avoid cutting with the area of the blade between the 12 o'clock and 3 o'clock positions. Because of the speed of rotation of the blade, blade thrust can occur if you attempt to cut thick stems with this area of the blade.

English – 19

WORKING TECHNIQUES

Clearing

• The clearing technique removes all unwanted vegetation. Keep the trimmer head just above the ground and tilt it. Let the end of the cord strike the ground around trees, posts, statues and the like. CAUTION! This technique increases the wear on the cord.

• The cord wears quicker and must be fed forward more often when working against stones, brick, concrete, metal fences, etc., than when coming into contact with trees and wooden fences.

• When trimming and clearing you should use less than full throttle so that the cord lasts longer and to reduce the wear on the trimmer head.

Cutting

• The trimmer is ideal for cutting grass that is difﬁcult to reach using a normal lawn mower. Keep the cord parallel to the ground when cutting. Avoid pressing the trimmer head against the ground as this can ruin the lawn and damage the tool.

• Do not allow the trimmer head to constantly come into contact with the ground during normal cutting. Constant contact of this type can cause damage and wear to the trimmer head.

Sweeping

• The fan effect of the rotating cord can be used for quick and easy clearing up. Hold the cord parallel to and above the area to be swept and move the tool to and fro.

• When cutting and sweeping you should use full throttle to obtain the best results.

20 – English

MAINTENANCE

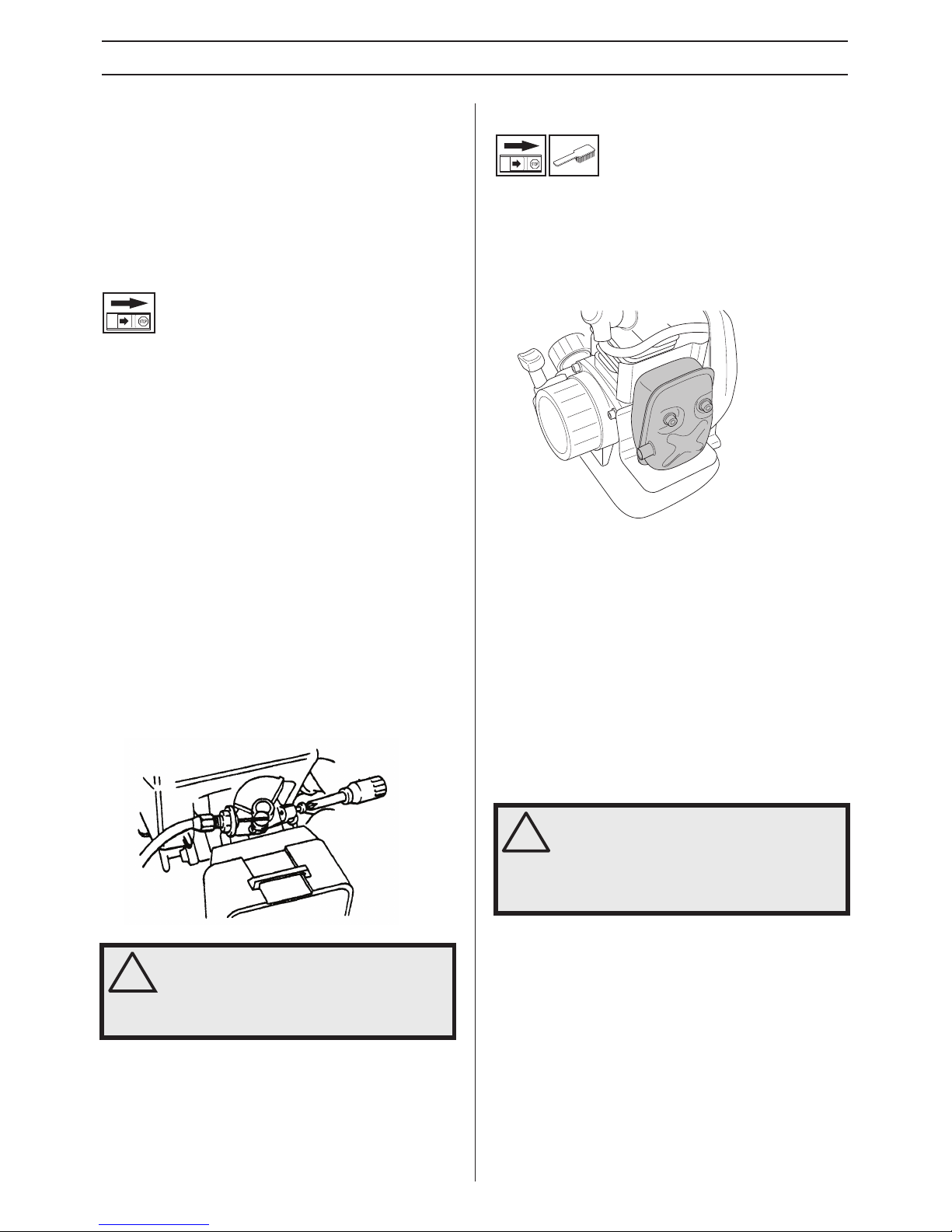

Carburettor

Your Jonsered product has been designed and manufactured to speciﬁcations that reduce harmful exhaust fumes. The engine will be run in after it has used 8-10 tanks of fuel. To ensure that the engine runs at peak performance and produces as little harmful exhaust fumes as possible after the running-in period, ask your dealer/service workshop (which has a rev counter for this purpose) to adjust your carburettor.

Function

• The carburettor governs the engine’s speed via the throttle control. Air and fuel are mixed in the carburettor. The air/fuel mixture is adjustable. Correct adjustment is essential to get the best performance from the machine.

• Adjusting the carburettor means that the engine is adapted to local operating conditions, e.g. climate, altitude, petrol and the type of 2-stroke oil.

Adjusting the idle speed

The T-screw regulates the throttle setting at idle speed. If the T-screw is turned clockwise this gives a higher idle speed; turning it anti-clockwise gives a lower idle speed.

Before any adjustments are made, make sure that the air ﬁlter is clean and the air ﬁlter cover is ﬁtted.

Adjust the idle speed using the idle adjustment screw T, if it is necessary to readjust. First turn the idle adjustment screw T clockwise until the cutting attachment starts to rotate. Then turn the screw anticlockwise until the cutting attachment stops. The idle speed is correctly adjusted when the engine will run smoothly in every position. The idle speed should also be well below the speed at which the cutting attachment starts to rotate.

Mufﬂer

CAUTION! Some mufﬂers are ﬁtted with a catalytic

converter. See chapter on Technical data to see whether your machine is ﬁtted with a catalytic converter.

The mufﬂer is designed to reduce the noise level and to direct the exhaust gases away from the operator. The exhaust gases are hot and can contain sparks, which may cause ﬁre if directed against dry and combustible material.

Some mufﬂers are equipped with a special spark arrestor mesh. If your machine has this type of mufﬂer, you should clean the mesh at least once a week. This is best done with a wire brush.

On mufﬂers without a catalytic converter the mesh should be cleaned weekly, or replaced if necessary. On mufﬂers ﬁtted with a catalytic converter the mesh should be checked, and if necessary cleaned, monthly. If the mesh is damaged it should be replaced. If the mesh is frequently blocked, this can be a sign that the performance of the catalytic converter is impaired. Contact your dealer to inspect the mufﬂer. A blocked mesh will cause the machine to overheat and result in damage to the cylinder and piston. See also instructions under the heading Maintenance.

CAUTION! Never use a machine with a defective mufﬂer.

WARNING! If the idle speed cannot be adjusted so that the cutting attachment stops, contact your dealer/service workshop. Do not use the machine until it has been correctly adjusted or repaired.

English – 21

MAINTENANCE

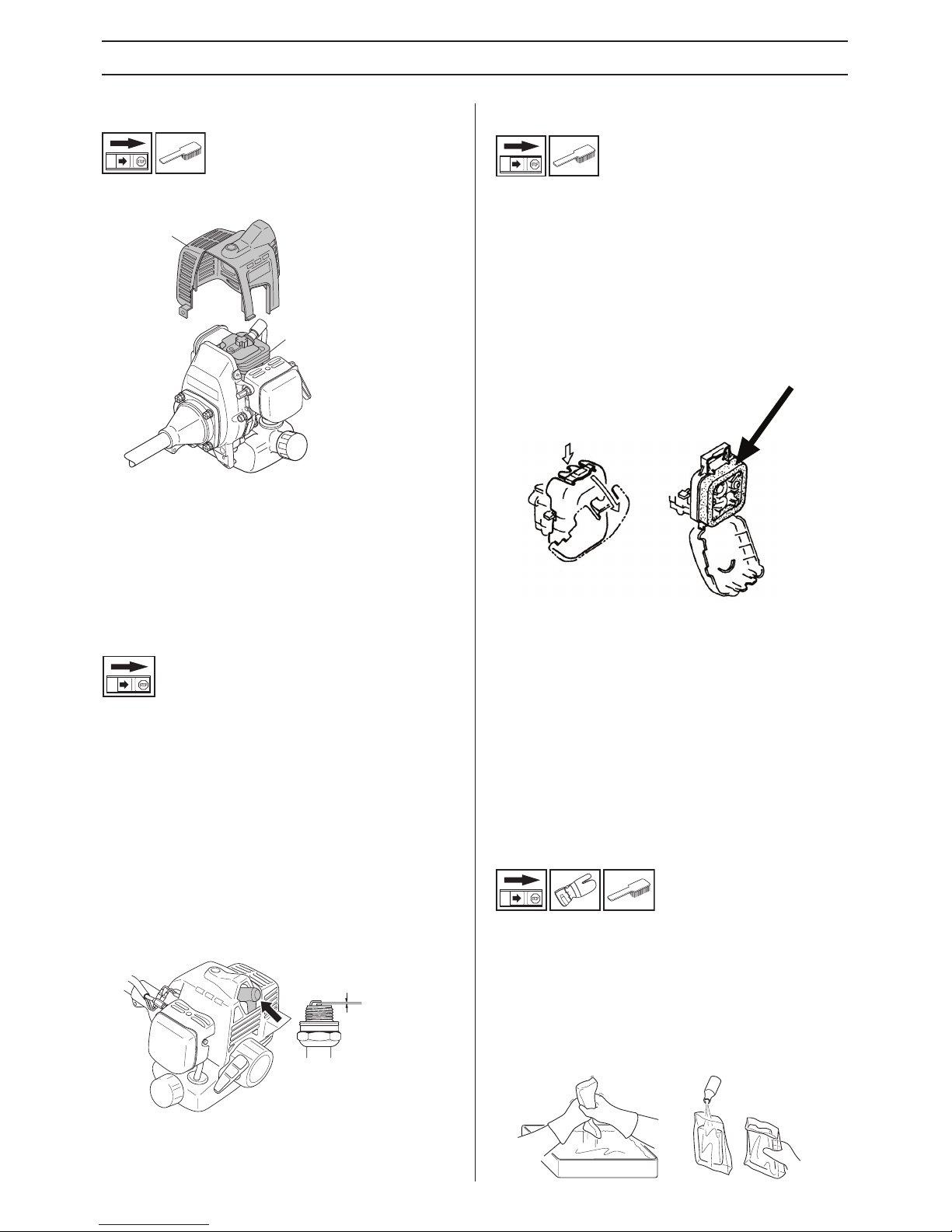

Cooling system

To keep the working temperature as low as possible the machine is equipped with a cooling system.

The cooling system consists of:

1 Cooling ﬁns on the cylinder.

2 Cylinder cover (directs cold air over the cylinder).

Clean the cooling system with a brush once a week, more often in demanding conditions. A dirty or blocked cooling system results in the machine overheating which causes damage to the piston and cylinder.

Spark plug

The spark plug condition is inﬂuenced by:

• Incorrect carburettor adjustment.

• An incorrect fuel mixture (too much or incorrect type of oil).

• A dirty air ﬁlter.

These factors cause deposits on the spark plug electrodes, which may result in operating problems and starting difﬁculties.

If the machine is low on power, difﬁcult to start or runs poorly at idle speed: always check the spark plug ﬁrst before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0,6-0,7 mm. The spark plug should be replaced after about a month in operation or earlier if necessary.

CAUTION! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder. Check that the spark plug is ﬁtted with a suppressor.

Air ﬁlter

The air ﬁlter must be regularly cleaned to remove dust and dirt in order to avoid:

• Carburettor malfunctions

• Starting problems

• Loss of engine power

• Unnecessary wear to engine parts.

• Excessive fuel consumption.

Clean the ﬁlter every 25 hours, or more regularly if conditions are exceptionally dusty.

Cleaning the air ﬁlter

Remove the air ﬁlter cover and take out the ﬁlter. Wash it clean in warm, soapy water. Ensure that the ﬁlter is dry before reﬁtting it.

An air ﬁlter that has been in use for a long time cannot be cleaned completely. The ﬁlter must therefore be replaced with a new one at regular intervals. A damaged air ﬁlter must

always be replaced.

If the machine is used in dusty conditions the air ﬁlter should be soaked in oil. See instructions under the heading Oiling the air ﬁlter.

Oiling the air ﬁlter

Always use special ﬁlter oil. Filter oil contains a solvent to make it spread evenly through the ﬁlter. You should therefore avoid skin contact.

Put the ﬁlter in a plastic bag and pour the ﬁlter oil over it. Knead the plastic bag to distribute the oil. Squeeze the excess oil out of the ﬁlter inside the plastic bag and pour off the excess before ﬁtting the ﬁlter to the machine. Never use common engine oil. This would drain through the ﬁlter quite quickly and collect in the bottom.

0,6 - 0,7 mm

22 – English

MAINTENANCE

Gear

The bevel gear is ﬁlled with the right amount of grease at the factory. However, before using the machine you should check that the bevel gear is ﬁlled 3/4 full with grease. Use JONSERED special grease.

The grease in the bevel gear does not normally need to be changed except if repairs are carried out.

English – 23

MAINTENANCE

Maintenance schedule

The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section. The user must only carry out the maintenance and service work described in this Operator’s Manual. More extensive work must be carried out by an authorized service workshop.

Maintenance

Daily maintenance

Weekly maintenance

Monthly maintenance

Clean the outside of the machine. X

Make sure the throttle trigger lock and the throttle function correctly from a safety point of view.

Check that the stop switch works correctly. X

Check that the handle and handlebar are undamaged and secured correctly.

Check that the cutting attachment does not rotate at idle. X

Clean the air ﬁlter. Replace if necessary. X

Check that nuts and screws are tight. X

Check that there are no fuel leaks from the engine, tank or fuel lines. X

Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked.

Check that the blade is correctly centred, is sharp, and is not cracked. An off-centre blade will cause vibration that could result in damage to the machine.

Check that the trimmer head is undamaged and not cracked. Replace the trimmer head if necessary.

Check that the locking nut of the cutting equipment is tighten correctly. X

Check that the transport guard for the blade is intact and that it can be secured correctly.

Check the starter and starter cord. X

Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0,6 mm or replace the spark plug. Check that the spark plug is ﬁtted with a suppressor.

Clean the machine’s cooling system. X

Clean or replace the spark arrestor mesh on the mufﬂer (only applies to mufﬂers without a catalytic converter).

Clean the outside of the carburettor and the space around it. X

Check that the bevel gear is ﬁlled three-quarters full with lubricant. Fill if necessary using special grease.

Clean the fuel tank. X

Check the fuel ﬁlter from contamination and the fuel hose from cracks or other defects. Replace if necessary.

Check all cables and connections. X

Check the clutch, clutch springs and the clutch drum for wear. Replace if necessary by an autorized service workshop.

Replace the spark plug. Check that the spark plug is ﬁtted with a suppressor.

Check and clean the spark arrestor mesh on the mufﬂer (only applies to mufﬂers ﬁtted with a catalytic converter).

24 – English

TECHNICAL DATA

Technical data

Note 1: Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/EC. Reported sound power level for the machine has been measured with the original cutting attachment that gives the highest level. The difference between guaranteed and measured sound power is that the guaranteed sound power also includes dispersion in the measurement result and the variations between different machines of the same model according to Directive 2000/14/EC.

Note 2: Reported data for equivalent sound pressure level for the machine has a typical statistical dispersion (standard deviation) of 1 dB (A).

Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s2.

Technical data GC2123

Engine

Cylinder displacement, cm

22,8

Cylinder bore, mm 32,2

Stroke, mm 28

Idle speed, rpm 3000

Recommended max. speed, rpm 10900

Speed of output shaft, rpm 8030

Max. engine output, acc. to ISO 8893, kW/ rpm 0,59/7000

Catalytic converter mufﬂer No

Speed-regulated ignition system No

Ignition system

Spark plug NGK BPMR 6Y

Electrode gap, mm 0,6-0,7

Fuel and lubrication system

Fuel tank capacity, litre 0,55

Weight

Weight without fuel, cutting attachment and guard, kg 4,6

Noise emissions

(see note 1)

Sound power level, measured dB(A) 106

Sound power level, guaranteed LWA dB(A) 108

Sound levels

(see note 2)

Equivalent sound pressure level at the operator’s ear, measured according to EN ISO 11806 and ISO 22868, dB(A):

Equipped with trimmer head (original) 93

Vibration levels

(see note 3)

Equivalent vibration levels (a

hv,eq

) at handles, measured

according to EN ISO 11806 and ISO 22867, m/s

Equipped with trimmer head (original), left/right 2,1/4,9

English – 25

TECHNICAL DATA

EC-declaration of conformity (Applies to Europe only)

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare that the brush cutters Jonsered GC2123 with serial numbers dating from 2009 onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S DIRECTIVE:

- of May 17, 2006 "relating to machinery" 2006/42/EC

- of December 15, 2004 ”relating to electromagnetic compatibility” 2004/108/EC.

- of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC. Conformity assessment according to Annex

V. For information relating to noise emissions, see the chapter Technical data.

The following standards have been applied: EN ISO 12100-2:2003, CISPR 12:2007, EN ISO 11806:2008

SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, Sweden, has performed voluntary type examination on behalf of Husqvarna AB. The certiﬁcates are numbered: SEC/09/2069

Huskvarna December 29, 2009

Bo Jonsson, Development manager (Authorized representative for Husqvarna AB and responsible for technical documentation.)

Approved accessories Type Cutting attachment guard, Art. no.

Centre hole in blades/cutters, Ø 25,4 mm

Blade shaft thread M10

Grass blade/grass cutter

Multi 255-4 (Ø 255 4 teeth)
