SERVICE
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
I0300028
IPL, BV2125, 2003-01, 106 30 01-61
BV2125
106 30 01-61
17
DATE
11/20/02

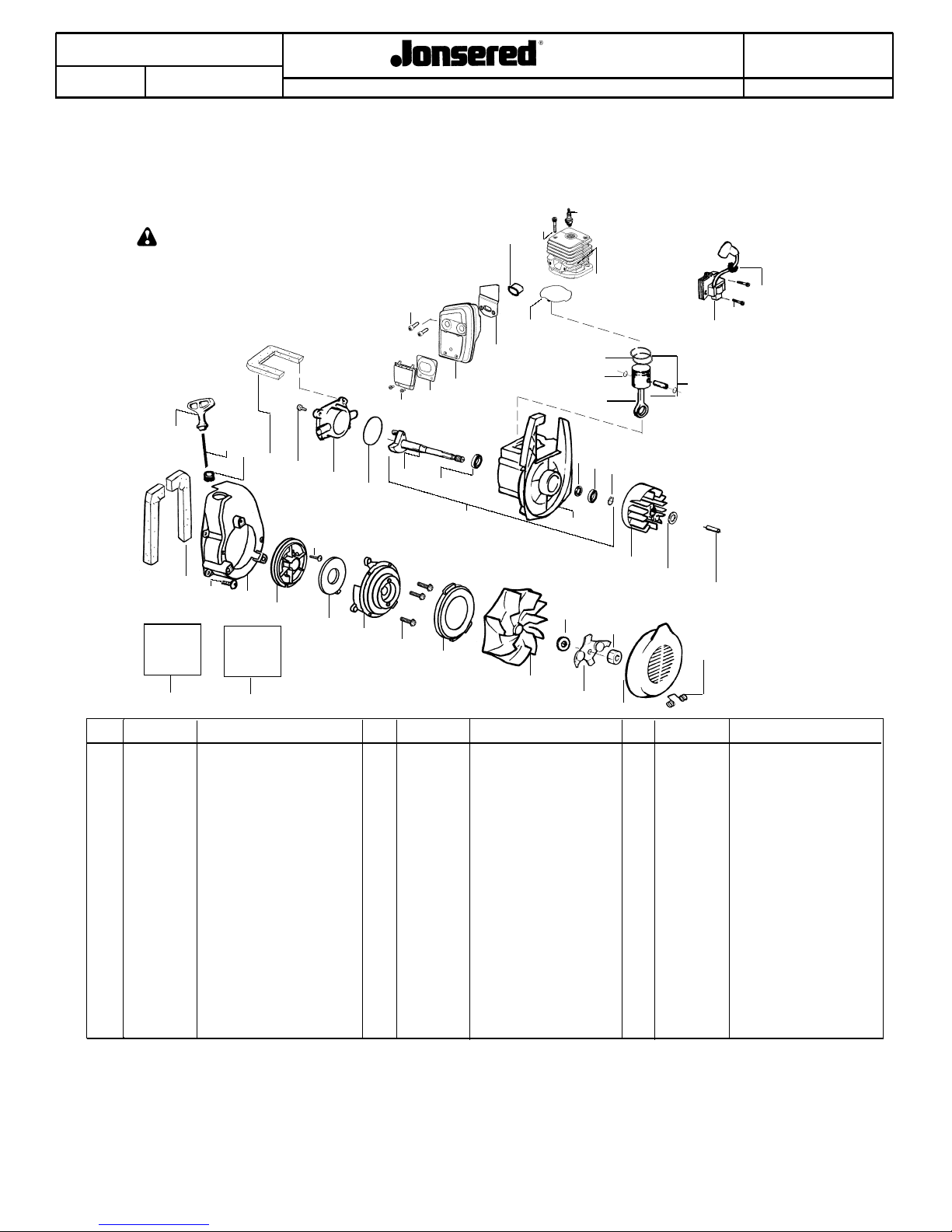

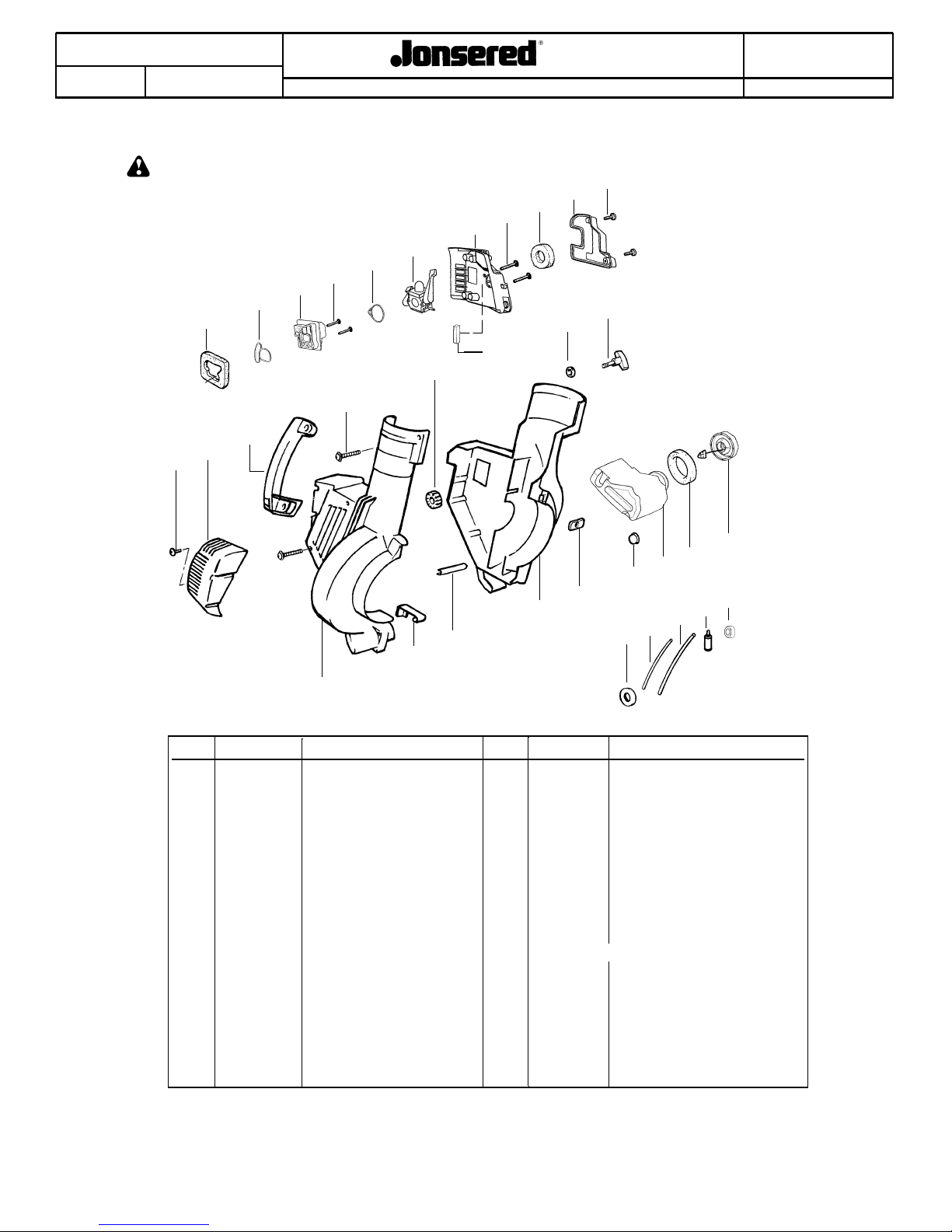

PAR TS LI ST N O.
530163137
Replaces
530163137 --- 08/12/02
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Illustration may differ from actual model due to design changes
Note:
R
PARTS LIST
MODEL(s)
BV 2125
PAG E N O.
1
All repairs, adjustments
and maintenance not described in the Operator’s
Manual must be performed by qualified service personnel.
WARNING
1
12
11
13
11
10
9
8
7
6
5
4
3
2
16
15
14
22
21
20
17
23
18
28
24
29
25
30
26
31
27
32
Ref.
NEW PART NUMBER FOR THIS IPL
n
=
Part No. Description Ref. Part No. Description
1. 530071459 Air Dam (kit)
2. 530071458 Gasket--Adapter (kit)
3. 530035561 Carburetor Adaptor
4. 530016309 Screw
5. 530071458 Gasket--Carburetor (kit)
6. -- -- -- Ki t -- Ca rb A s s’ y.
530071465 (C1Q--W11)
530071632 (C1Q--W11C)
n
7. 530056629 Air Box
8. 530015849 Screw--Carb.
9. 530049383 Filter--Air
10. 530056581 Cover--Air Filter
11. 530016349 Screw
12. 530056641 Guard--Muffler
13. 530095469 Handle
14. 530015886 Screw
15. 530049323 Isolator
16. 530071459 Foam 25.4mm (kit)
17. 530015197 Nut
18. 530016322 Knob--Blower
19. 530056844 Housing--Right
20. 530402044 Spring--Cover Latch
19
21. 530049617 Guide--Starter Rope
22. 530056843 Housing--Left
23. 530016207 Nut
24. 530036792 Isolator--Crankcase
25. 530049491 Assy--Fuel Tank
26. 530049527 Gasket--Fuel Tank
27. 530049386 Fuel Cap w/Retainer
28. 530049656 Grommet--Shroud
29. 530069247 Kit--Line Carb/Purge
30. 530069216 Kit--Line Tank/Purge
31. 530095646 Assy--Fuel Pick--up
32. 530071459 Grommet--Fuel line (kit)
Not Shown
n
530163386 Manual -- Euro
530163391 Manual -- Scan
n
530163390 Manual -- Euro
n
n
530163394 Manual -- N. America
530057414 Warning Decal
n
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
=
K
PAR TS LI ST N O.
530163137
DATE
11/20/02
Replaces
530163137 --- 08/12/02
WARNING
All repairs, adjustments and
maintenance not described
in the Operator’s Manual
must be performed by qualified service personnel.
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Illustration may differ from actual model due to design changes
Note:
4
7
6
5
R
PARTS LIST
1
2
3
10
9
8
15
16
17
MODEL(s)
BV 2125
PAG E N O.
11
12
13
14
2
34
Gasket
Kit
50
Ref. Part No. Description Ref. Part No. Description
1. 952030249 Spark Plug (RCJ--6Y)
2. 530015953 Screw
3. 530055191 Insulator--Heat
4. 530016387 Screw--Muffler--Internal
5. 530015241 Screw
6. 530071593 Kit--Spark Screen(incl. #5)
7. 530071600 Kit--Muffler(incl. 4,5,6, & 8)
8. 530071458 Gasket--Baffle (kit)
9. 530071458 Gasket--Cylinder (kit)
10. 530071457 Kit--Cylinder
11. 530019182 Grommet--Ign. Module
12. 530016357 Screw--Ignition Module
13. 530035505 Ignition Module
14. 530069812 Kit--Piston
15. 530055120 Piston Ring
16. 530015162 Retainer--Piston Pin
17. 530069945 Assy--Connecting Rod
18. 530071615 Kit--Crankcase Seal
19. 530055728 Bearing--Outer
20. 530015941 Retainer Ring--C’chaft
49
48
33
32
31
47
46
Foam
Seals
Kit
51
(Incl. 15 & 16)
30
29
35
45
27
28
44
26
24
43
42
41
21. 530016190 Spacer--Flywheel
22. 530015149 Washer
23. 530039209 Assy--Flywheel
24. 530071456 Assy--Crankcase/Crank
shaft (incl. 20,25,27)
25. 530012492 Assy--Crankcase
(Incl. 18,19,26)
26. 530032125 Bearing--Inner
27. 530012452 Assy--Crankshaft
28. 530071458 O--ring--C/case (kit)
29. 530012443 Cover--Crankcase
30. 530015810 Screw
31. 530071459 Foam--219mm (kit)
32. 530029182 Eyelet--Flange
33. 530071467 Kit--Rope
34. 530049488 Handle--Starter
35. 530016326 Screw--Rope
36. 530016240 Washer--Belleville
37. 530626605 Nut
38. 530402043 Spring--Return Cover
39. 530049313 Inlet Door
18
19
20
25
23
22
36
37
40
39
Ref. Part No. Description
21
38
40. 530095461 Assy--Mulch Blade
41. 530069817 Assy--Impeller
42. 530056625 Seal--Ring
43. 530016349 Screw
44. 530055101 Housing--Pulley
45. 530042086 Spring--Starter
46. 530071466 Kit--Starter Pulley
47. 530055102 Fan Housing
48. 530015810 Screw
49. 530071459 Foam--182mm (kit)
50. 530071458 Kit--Gasket
(page 1 incl. 2, & 5 )
(page 2 incl. 8,9, & 28 )
51. 530071459 Kit--Foam Seals
(page 1 incl. 1,16, & 32)
(page 2 incl. 31 & 49)
NEW PART NUMBER FOR THIS IPL
n
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
=
K
PAR TS LI ST N O.
530163137
DATE
11/20/02

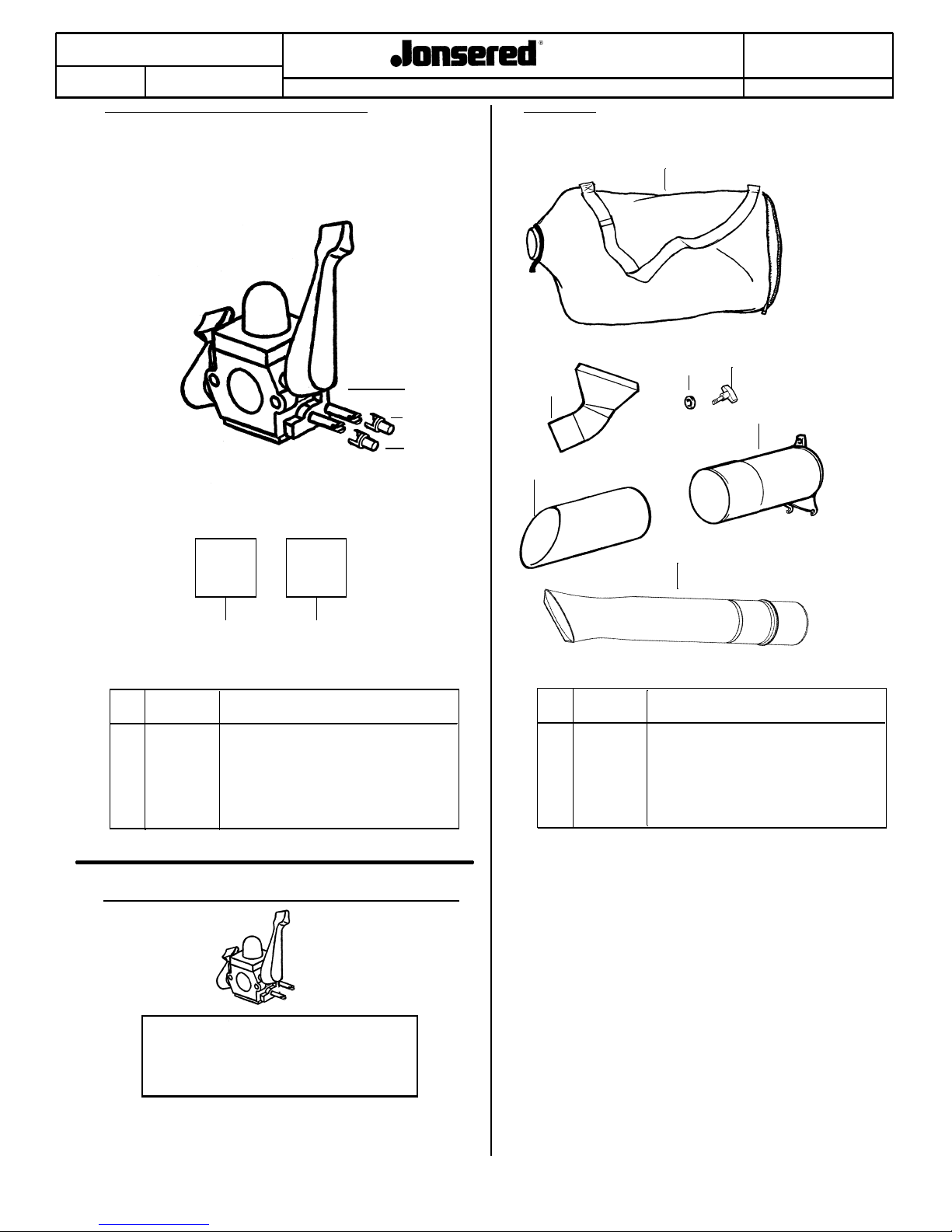

Carburetor Assembly Part Number 530071465 -- (C1Q--W11)
Replaces
530163137 --- 08/12/02
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Illustration may differ from actual model due to design changes
Note:
1
R
PARTS LIST
Assy -- Vacuum
2
MODEL(s)
BV 2125
PAG E N O.
1
4
3
3
Ref. Part No.
Carb.
Repair
Kit
45
Gasket/
Dia.
Kit
Description
1. 530071465 Assy--Carb. Zama
(C1Q--W11)
2. 530038479 Cap--Limiter (high) brown
3. 530038478 Cap--Limiter (low) tan
4. 530071475 Kit--Carb. Repair
5. 530071489 Kit--Dia. (GND--34)
2
3
5
7
Ref. Part No.
Description
6
1. 530095564 Assy--Vac. Bag w/strap
2. 530095470 Tube--Elbow Vac
3. 530049686 Retainer--Vac Tube Knob
4. 530016322 Knob
5. 530094476 Tube--Lower Vac
6. 530095468 Tube--Upper Vac
7. 530095597 Tube--Blower
Kit -- Carburetor Assy # 530071632 -- C1Q--W11C
Note: No Repair kits are available
for this carburetor, please order the
complete assembly part number
530--071632 ( C1Q--W11C )
NEW PART NUMBER FOR THIS IPL
=
n
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
=
K
