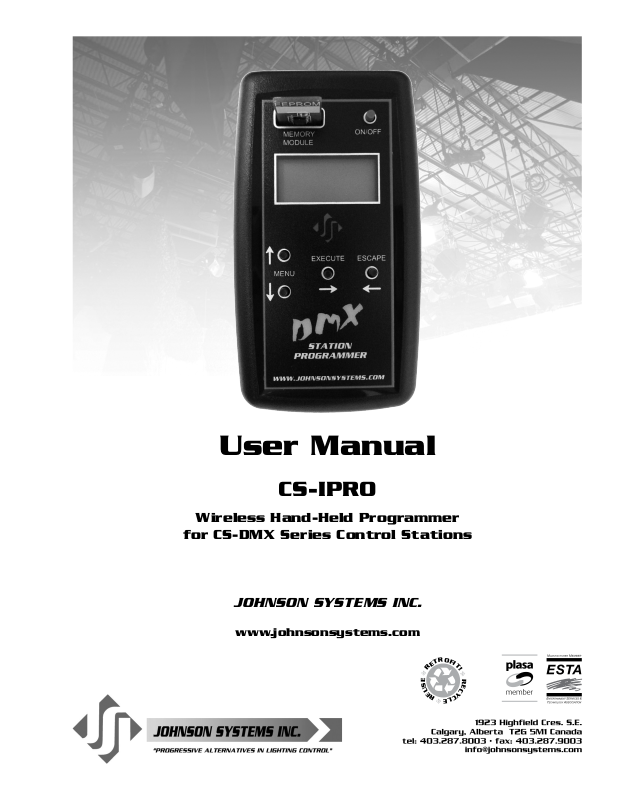

Johnson Systems CS-IPRO User Manual

User Manual
CS-IPRO
Wireless Hand-Held Programmer
for CS-DMX Series Control Stations
JOHNSON SYSTEMS INC.
www.johnsonsystems.com
O
R
F
T
I
T
E
!
R
E
S
U
E
R
E
C
Y
C
L
R
E
O
R
F
T
I
T
E
R
E
S
U
E
!
R
E
C
Y
C
L
R
E
Table of Contents
Warranty ..........................................................................................................2
User Manual Copies ........................................................................................2
Introduction ......................................................................................................3
Specications ..................................................................................................3
Battery Replacement .......................................................................................4
Security............................................................................................................4
User Interface ..................................................................................................4
System Status - LCD Display ..........................................................................5
Quick Programming Reference to System Conguration Menu Items ................... 6
Detailed Programming of System Conguration Menu Items .................................. 7
Typical Application Procedures......................................................................11

Warranty

The CS-IPRO comes with a standard one (1) year warranty against defects in parts and workmanship.

User Manual Copies

Additional copies of the most recent version of this manual can be downloaded at:
http://www.johnsonsystems.com/cs_ipro_user_manual.htm.
2
www.johnsonsystems.com

Introduction

CS-IPRO is a wireless hand-held programmer used to communicate
with and congure CS-DMX series control stations.
The CS-IPRO features a removable EEPROM Memory Module used
to save/backup the DMX channel patch conguration. The EEPROM
Memory Module can be easily removed and stored in a safe place. Additional EEPROM Memory Modules are available if multiple backups are required. An EEPROM Memory Module may also be
provided for rmware updates.
Wireless communication between the CS-IPRO and CS-DMX control stations is via bidirectional infrared LED’s. The CS-IPRO infrared LED is located behind the window at the top of the enclosure. The CS-DMX
control station infrared LED window is located on the front, between the master slider and slider 1. The maximum range for sending and
receiving data between the CS-IPRO and CS-DMX control stations
is 12” (30 cm).
CS-IPRO
The CS-IPRO is capable of printing out various conguration settings
when used in conjunction with a hand-held infrared printer (Johnson System Inc., Part Number: JS-IP). The maximum range for sending data from the CS-IPRO to the hand-held infrared printer is 6' (1.8 m).
Specifications
• Enclosure Dimensions: Width 2.75" (70 mm) x Height 4.95" (125 mm) x Depth 0.95" (24 mm)
• Total Weight: 0.33 lb. (150 g)
• Power Requirement: 2 x AA Batteries - Alkaline or Nickel Metal Hydride (NiMh) ONLY!
• Transmit Range from CS-IPRO to CS-DMX: 12" (30cm)
• Receive Range from CS-DMX to CS-IPRO: 12" (30cm)
• Transmit Range from CS-IPRO to JS-IP: 6' (1.8m)
• Operating Temperature Range: 50°F (10°C) to 104°F (40°C)
WARNING: For indoor use only!
www.johnsonsystems.com 3

Battery Replacement

2 x AA Batteries Alkaline or Nickel Metal Hydride (NiMh) ONLY!
Ensure batteries are installed as indicated inside the battery compartment.
The combined voltage of the batteries must be greater than 1.9 VDC for the CS-IPRO to power on.

Security

If the SECURITY jumper on the rear of CS-DMX control station is installed in the ENABLED position, the security KEY set in the CS-IPRO must match the security KEY set in the CS-DMX control station to make any changes to the DMX channel patch conguration. The SECURITY
jumper is installed in the DISABLED position by factory default. If security is required, it should be implemented at the time of installation. Refer to SECURITY menu items EDIT KEY, SET KEY and GET KEY on page 10 for further details.

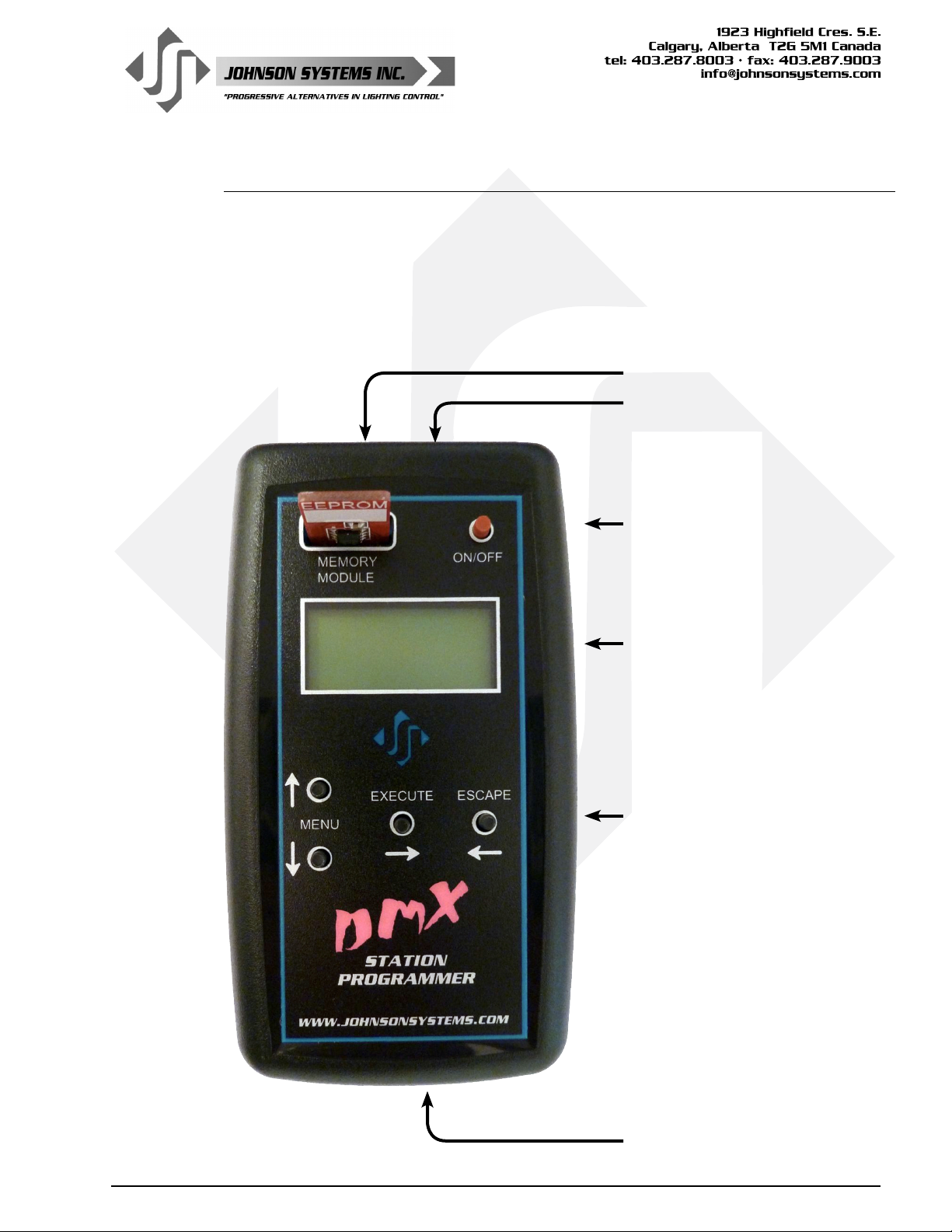

User Interface

The user interface provides access to all of the conguration menu items. It consists of an LCD
display, four (4) programming switches and a power ON/OFF switch. Within a few minutes most
users will nd the menu structure very intuitive and easy to navigate. All conguration settings are
automatically stored into an on-board internal EEPROM.
LCD Display
The LCD display is capable of displaying 2 lines of 8 characters. The LCD backlight automatically turns on when there is activity and turns off after two (2) minutes of inactivity. The LCD contrast can be easily adjusted for optimum viewing. Refer to menu item “LCD VIEW ADJUST” on page 8 for further details.
Programming Switches
The MENU UP/DOWN ( ) switches are used for navigating through the various conguration menu items. They also allow for programming of other specic parameters within a selected
menu. Pressing and holding either switch will speed up the scroll rate, which can be helpful to
speed up the conguration time.
The EXECUTE ( ) switch is normally used to select/enter a menu item, advance forward
within a selected menu item, toggle between parameters within a selected menu item or select parameters within a menu.
The ESCAPE ( ) switch is normally used to back up within a selected menu item one step at a time or exit the menu completely.
Power ON/OFF Switch
Press the ON/OFF switch to power on. Press and hold the ON/OFF switch to power off. The CS-IPRO will automatically power off after 10 minutes of inactivity.
4
www.johnsonsystems.com
