Johnson Systems CD-3000 User Manual

Page 1

User Manual

CD-3000 Series

Retroﬁt Control System

Model Application

CD-3000-AE Strand CD80® AMX or Advanced Electronic (AE) permanent installation racks. CD-3000-AE-48RR Strand CD80® AMX or Advanced Electronic (AE) 48 channel rolling racks CD-3000-AE-96RR Strand CD80® AMX or Advanced Electronic (AE) 96 channel rolling racks CD-3000-SV Strand CD80® Supervisor (SV) permanent installation racks CD-3000-SV-48RR Strand CD80® Supervisor (SV) 48 channel rolling racks CD-3000-SV-96RR Strand CD80® Supervisor (SV) 96 channel rolling racks CD-3000-C21 Strand C21 permanent installation racks

JOHNSON SYSTEMS INC.

www.johnsonsystems.com

2002161

Page 2

Contents

Warranty ..........................................................................................................2

Introduction ......................................................................................................3

Packaging & Contents .....................................................................................4

Installation .......................................................................................................4

CD-3000 Backplane ......................................................................................12

Control Input/Output Connections .................................................................13

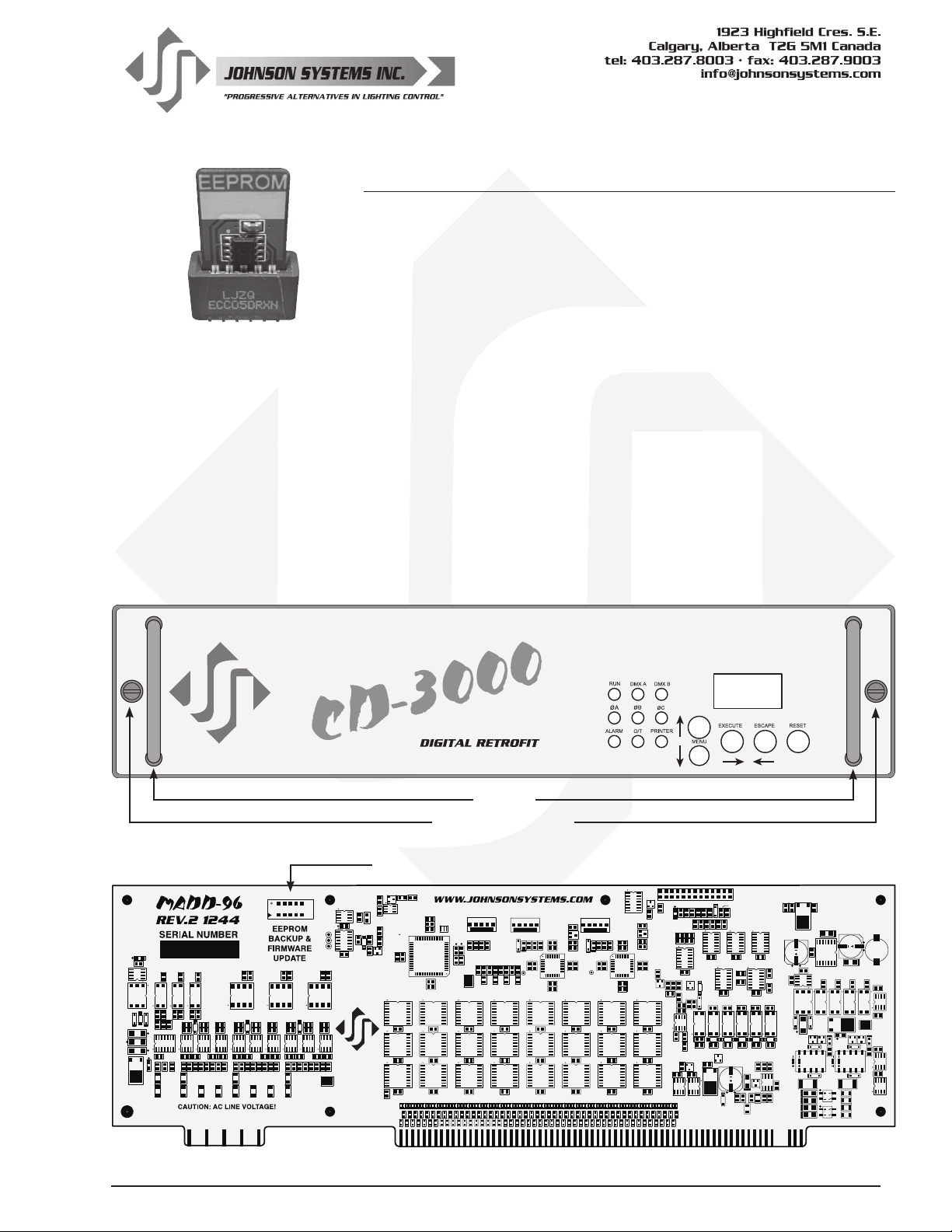

Control Module • MADD-96 ...........................................................................15

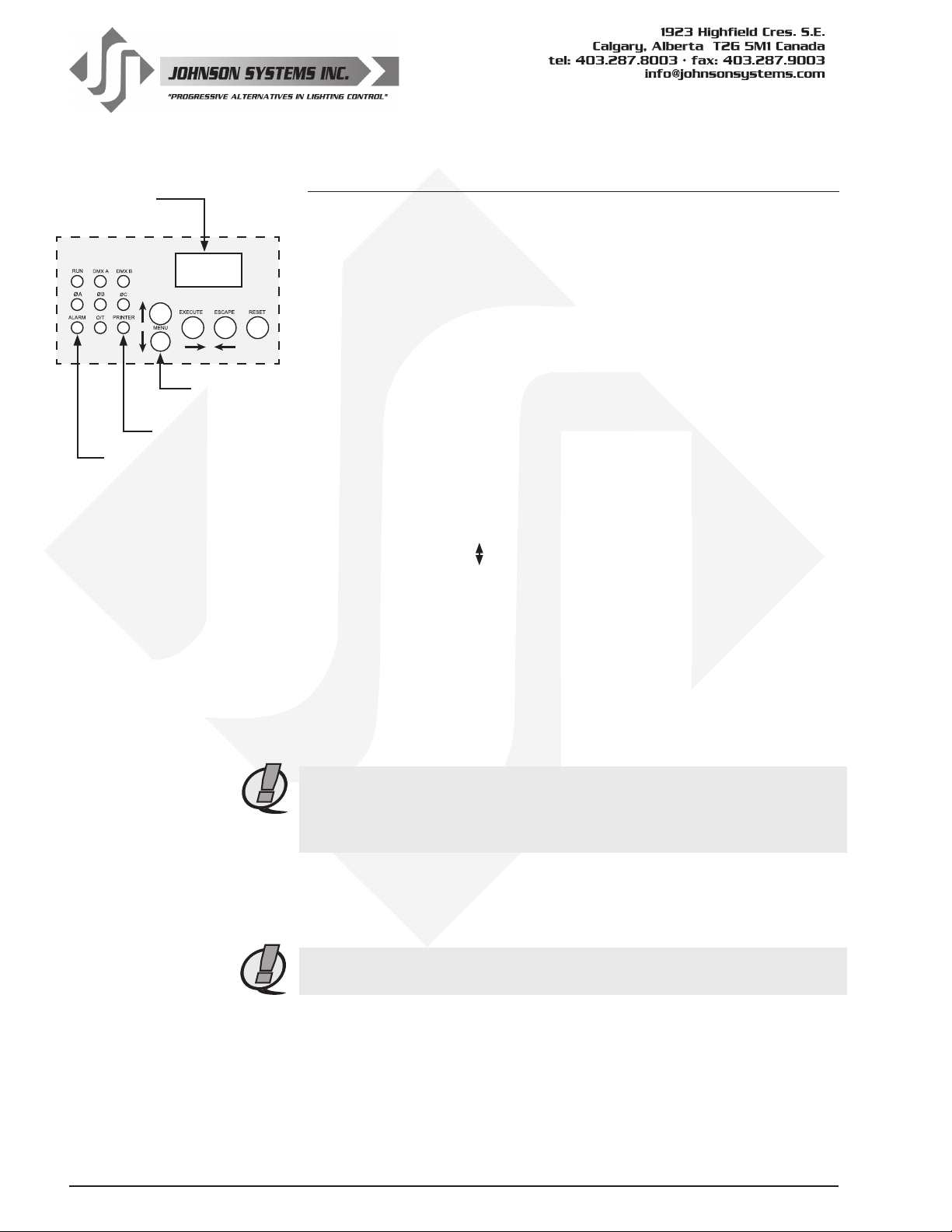

User Interface ................................................................................................16

System Status • LED Indicators ....................................................................17

System Status • LCD Display ........................................................................17

Quick Programming Reference to System Conguration Menu Items ..........19

Detailed Programming of System Conguration Menu Items........................20

Important Hard-key Information .....................................................................35

Troubleshooting Reference ...........................................................................36

Warranty

The CD-3000 comes with a standard one (1) year limited warranty. Extended warranties of up to ten (10) years are available at the time of purchase.

For details visit www.johnsonsystems.com/warranties.htm.

For Technical Assistance

1. Refer to your product user manual. The most current revision is available online: www.johnsonsystems.com/literature.htm

2. Contact the “point-of-sale” dealer or distributor from which this product was originally purchased, and ask for technical assistance.

3. If neither of the above can provide you with the necessary information, please contact our factory via email ([email protected]) or phone (403-287-8003) during business hours (Monday to Friday, 8:00AM to 5:00PM MST).

www.johnsonsystems.com

Page 3

Introduction

The JSI CD-3000 is a next

generation retrot electronics package designed specically for

any vintage of Strand CD80® dimmer rack. The CD-3000 will replace the aging control electronics of the existing CD80® dimmer rack making system replacement unnecessary. This full- featured, ETL listed state-

of-the-art unit provides a low cost digital interface to any of today’s modern

lighting communication protocols.

Designed to install in minutes with only a single screw driver, this elegant package has been designed for longevity and reliability with the end-user in mind. Intuitive LCD user interface combined with a

single modular design makes the CD-3000 extremely user-friendly and easily serviceable. Advanced next generation hardware and software designs reduce stand-by power consumption to less than 1 Watt, allowing for

compliance with the International Energy Agency’s “One Watt Initiative” for

standby power consumption.

CD-80® Supervisor

96 Channel Dimmer Rack

with CD-3000-SV Installed

Full featured, hi-resolution dimming with lightning fast response. Exclusive “lamp warming” techniques extends lamp life considerably. An

environmentally and nancially responsible solution that offers unsurpassed

high performance in a matter in minutes!

CD-3000-AE CD-3000-SV

Model Application

www.johnsonsystems.com 3

Page 4

Packaging & Contents

Each CD-3000 Series retrot system is shipped in a custom designed box for protection of the

unit. Keep the box and packaging stored in a safe place. In the unlikely event that the system needs to be returned to the JSI Factory, the packaging will be required to prevent shipping damage and maintain warranty.

Each CD-3000 Series system includes all of the hardware required to complete the retrot.

Installation

CD-3000-AE

• Disconnect (turn off) the power supply to the Strand CD80® dimmer rack(s) and rack processor electronics. Some systems may have their processor electronics powered by an isolated (separate) feed.

WARNING! Verify all power is disconnected (turned off) before proceeding.

Removal of the Old Processor Housing

• Remove the upper ventilation grill and lower air lter grill from the CD-80® rack and set them

aside.

• Inspect the lower portion of the dimmer rack for any wiring, AC line voltage bussing, conduit, etc. that could prevent the smooth removal of the old processor housing. Take the appropriate measures to remove any obstructions being careful not to strain or remove any of the control wiring that terminates on the rear of the existing processor housing.

• Inspect the upper portion of the dimmer rack for any similar obstructions. Pay particular attention to the upper left side of the dimmer rack. This portion of the rack contains

hardware, circuitry and wiring that must be retained in order to retrot the rack as designed.

www.johnsonsystems.com

Page 5

• Unscrew the two mounting (thumb) screws that hold the old processor housing in place. Slowly remove the old card cage, taking care not to strain or disconnect any of the original CD-80® wiring. Carefully observe and label as necessary all wiring as to its location and polarity.

• If you are not familiar with the Strand CD-80® dimmer rack processor electronics and wiring, it is strongly advised that you take a few minutes to look at the back of the processor housing connections and compare it to the backplane on the CD-3000-AE. Do not disconnect any wiring until

you are satised with how easy this is going to be.

NOTE: Never pull directly on the wires to remove connectors.

• Disconnect the power connector. This connector is a 9-position CPC (Circular Plastic Connector) plug (female - cable mount) and receptacle (male - chassis mount). It is black in color and approximately two (2) inches in length. It is located at the lower (rear) right-hand side of the old processor housing. Turn the locking ring counterclockwise to disconnect.

• Disconnect the four (4) 27-conductor control output cables. Do not pull on the wire to disconnect. Carefully apply pressure to the connector

itself with either your ngers or preferably a small at head screwdriver.

Do not mix up the cable order or polarity.

• Disconnect the smaller 10-conductor connector. This connector and

cable is not required on the CD-3000 retrot and should be coiled up

and wire-tied. Carefully set it aside inside the rack and keep it isolated from any AC line voltage.

• The old processor housing can now be set aside.

Installation of the new CD-3000-AE System

• Remove your new CD-3000-AE system from the box. Leave the foam end caps in place to protect the unit from damage.

• Familiarize yourself with the backplane, and low voltage control input/ output connections. Refer to page 12 for details.

• Dress out all DMX and other low voltage connections to the backplane using the breakaway connectors provided. Be sure to isolate and protect all shield wires.

• Place the CD-3000-AE in front of the rack face down / backplane up.

Leave the foam end caps left in place to protect the unit from damage.

• Connect the four (4) 27-conductor control output cables to the backplane in the same order and polarity in which they were removed. Extra care should be taken not to bend or break any of the connector/header pins. Damage to these pins may require replacement of the entire CD-3000 assembly and will not be considered warranty! Refer to page 10 for the connector pinout.

• Connect all other applicable low voltage control input/output connections to the backplane.

• Connect the 9-position CPC power connector. The connector is keyed, so the plug and receptacle must be aligned to mate properly. Once aligned, turn the locking ring clockwise until a “click” is heard and felt indicating that the connector is fully seated. Refer to page 10 for the connector pinout.

www.johnsonsystems.com 5

Page 6

• Remove the protective foam caps.

• Place the CD-3000-AE onto the CD-80® dimmer rack guide rails located on each side and carefully slide the unit into place. Ensure that the CD-3000-AE is fully seated.

• Tighten the mounting (thumb) screws into the threaded speed clips mounted on the end of each of the guide rails. Replacement speed clips are provided in case the original ones are worn out or missing.

• Install the CD-3000-AE air lter grill assembly. Start the upper two (2) mounting (thumb) screws, located on the upper arms of the air lter

grill assembly and screw into the CD-3000-AE chassis. Start the lower two (2) mounting (thumb) screws located on the lower portion of the air

lter grill assembly and screw into the brackets at the bottom CD-80®

dimmer rack. Once all four (4) mounting (thumb) screws are started, tighten them down and verify the assembly is fully seated. Be sure not

to over-tighten or cross-thread the mounting screws. The air lter should

be removed from the rack and cleaned annually using compressed air.

The air lter grill assembly is precisely engineered to allow for safe air

ow and ltration. The air lter and frame can be easily removed for cleaning and maintenance. Pushing up on the lter frame will free it to be pivoted out. Always ensure the lter frame is fully seated and secure before installing the CD-3000 air lter grill assembly. The air lter should

be removed from the rack and cleaned annually using compressed air.

WARNING! Never connect power with the air lter grill assembly removed.

• Reinstall the upper ventilation grill assembly onto the dimmer rack.

• Connect (turn on) the power supply to the Strand CD80® dimmer rack(s) and CD-3000.

• Verify system status LED indicators and LCD display. Refer to page 17 and 18 for details.

• Refer to the programming section of this manual for system setup. Refer to page 19 to 34 for details.

• Test the system thoroughly to ensure all wiring terminations are functioning and the control signals to the dimmers have the correct phase referencing.

• Verify fan operation. The fans are triggered on at 3% DMX input control, and stay on as long as the DMX is at 3% or greater. When the DMX input is brought down below 3%, there is a 5 minute timeout for the fans to turn off.

CD-3000-AE-48RR

• Follow the same installation procedure as CD-3000-AE.

CD-3000-AE-96RR

• Follow the same installation procedure as CD-3000-AE for the primary processor side of the rack.

• The CD-3000-AE-96RR is supplied with a fan housing assembly used to cool the secondary side of the rolling rack.

• The CD-3000-AE-96RR is supplied with a fan wiring harness used to supply power to the fans in the fan housing assembly.

www.johnsonsystems.com

Page 7

• Remove the old fan housing similarly to the processor housing and set aside.

• Place the fan housing assembly in front of the rack with the foam end caps left in place to protect the unit from damage.

• Connect the fan wiring harness to the connectors supplied on the fan housing assembly.

• Remove the protective foam caps.

• Install the fan housing assembly and ventilation grill assembly similarly to the CD-3000-AE.

CD-3000-SV

WARNING! Verify all power is disconnected

Removal of the Old Processor Housing

•

Remove the screws located on left and right sides of the processor housing.

• Slowly pull the processor housing partway out to expose the control cable connections.

•

If you are not familiar with the Strand CD-80® dimmer rack processor electronics and wiring, it is strongly advised that you take a few minutes to look at the control cables connected to the circuit board on top of the processor housing and compare it to the backplane on the CD-3000-SV.

NOTE: Never pull directly on the wires to remove connectors.

Do not disconnect any wiring until you are satised with how easy this is going to be.

www.johnsonsystems.com 7

(turned off)

before proceeding.

Page 8

• Note the location and function of all control cables landed on the circuit board on top of the processor housing. Label cables if necessary. These control cables may now be disconnected from the circuit board. Disconnect the “TOP COLUMNS” and “BOTTOM COLUMNS” control cables making sure they have their respective labels.

• The processor housing can now be carefully withdrawn from the rack, threading the control cables out from under the plexiglass cover. The back end must be supported as it is withdrawn so the power connector (square, white, 12-position connector) located at the left rear can be disconnected. To disconnect, squeeze the tabs on both sides of the connector together and pull out. The processor housing may now be

fully removed and set aside.

• Unscrew and remove the blank panel located under the slot for the processor housing.

• Unscrew and remove the air lter grill on the fan housing located above

the slot for the processor housing.

• Unscrew and remove the fan housing. There is a Molex connector at the rear of the fan housing that must be disconnected. This connector

and cable is not required on the CD-3000 retrot and should be coiled

up and wire-tied to the wiring harness it emerges from. Keep it isolated from any AC line voltage.

• With everything removed, look at the fuse block in the back of the rack and check the phasing. The wires landed on the bottom of the fuse block lead to the processor power connector. The black wire should be on Phase “A”, red on Phase “B”, and blue on Phase “C”. Correct if necessary.

Installation of the new CD-3000-SV System

• Remove your new CD-3000-SV system from the box. Leave the foam end caps in place to protect the unit from damage.

• Familiarize yourself with the backplane, and low voltage control input/ output connections. Refer to page 12 for details.

• Dress out all DMX and other low voltage connections to the backplane using the breakaway connectors provided. Be sure to isolate and protect all shield wires.

• Place the CD-3000-AE in front of the rack face down / backplane up.

Leave the foam end caps left in place to protect the unit from damage.

• Connect the “TOP COLUMNS” and “BOTTOM COLUMNS” control cables to their designated locations on the backplane. Lock in place using the ejection clamps on the connector. Refer to page 11 for the connector pinout.

www.johnsonsystems.com

Page 9

• Connect all other applicable low voltage control input/output connections to the backplane.

• Connect the power connector (square, white, 12-position connector) into its mate mounted on the CD-3000-SV chassis. The connector is keyed so it can only be inserted one way. Push the connector in until a “click” is heard and the clamps locked indicating that the connector is fully seated. Refer to page 11 for the connector pinout.

• Carefully slide the CD-3000-SV into the rack using the rails for the old fan housing. Be sure not to pinch or stress any wires or cables. Secure in place using the four (4) 10-32 x 3/8” screws provided.

• Place the new air lter grill assembly over the bottom opening of the

rack. Secure in place using the four (4) 10-32 x 1 3/4” screws provided.

The air lter grill assembly is precisely engineered to allow for safe air

be removed from the rack and cleaned annually using compressed air.

WARNING! Never connect power with the air lter grill assembly removed.

• Connect (turn on) the power supply to the Strand CD80® dimmer rack(s) and CD-3000.

• Verify system status LED indicators and LCD display. Refer to page 17 and 18 for details.

• Refer to the programming section of this manual for system setup. Refer to page 19 to 34 for details.

• Test the system thoroughly to ensure all wiring terminations are functioning and the control signals to the dimmers have the correct phase referencing.

• Verify fan operation. The fans are triggered on at 6% DMX input control, and stay on as long as the DMX is at 6% or greater. When the DMX input is brought down below 6%, there is a 5 minute timeout for the fans to turn off.

CD-3000-SV-48RR

• In development.

CD-3000-SV-96RR

• In development.

CD-3000-C21

• In development.

www.johnsonsystems.com 9

Page 10

CD-3000-AE Dimmer Control Cable Pinout

J1AE Connector J2AE Connector J3AE Connector J4AE Connector

PIN FUNCTION PIN FUNCTION PIN FUNCTION PIN FUNCTION

1 Dimmer 24 1 Dimmer 48 1 Dimmer 72 1 Dimmer 96 2 Dimmer 23 2 Dimmer 47 2 Dimmer 71 2 Dimmer 95 3 Dimmer 18 3 Dimmer 42 3 Dimmer 66 3 Dimmer 90 4 Dimmer 17 4 Dimmer 41 4 Dimmer 65 4 Dimmer 89 5 Dimmer 12 5 Dimmer 36 5 Dimmer 60 5 Dimmer 84 6 Dimmer 11 6 Dimmer 35 6 Dimmer 59 6 Dimmer 83 7 Dimmer 6 7 Dimmer 30 7 Dimmer 54 7 Dimmer 78 8 Dimmer 5 8 Dimmer 29 8 Dimmer 53 8 Dimmer 77

9 Dimmer 22 9 Dimmer 46 9 Dimmer 70 9 Dimmer 94 10 Dimmer 21 10 Dimmer 45 10 Dimmer 69 10 Dimmer 93 11 Dimmer 16 11 Dimmer 40 11 Dimmer 64 11 Dimmer 88 12 Dimmer 15 12 Dimmer 39 12 Dimmer 63 12 Dimmer 87 13 Common 13 Common 13 Common 13 Common 14 Common 14 Common 14 Common 14 Common 15 Common 15 Common 15 Common 15 Common 16 Dimmer 10 16 Dimmer 34 16 Dimmer 58 16 Dimmer 82 17 Dimmer 9 17 Dimmer 33 17 Dimmer 57 17 Dimmer 81 18 Dimmer 4 18 Dimmer 28 18 Dimmer 52 18 Dimmer 76 19 Dimmer 3 19 Dimmer 27 19 Dimmer 51 19 Dimmer 75 20 Dimmer 20 20 Dimmer 44 20 Dimmer 68 20 Dimmer 92 21 Dimmer 19 21 Dimmer 43 21 Dimmer 67 21 Dimmer 91 22 Dimmer 14 22 Dimmer 38 22 Dimmer 62 22 Dimmer 86 23 Dimmer 13 23 Dimmer 37 23 Dimmer 61 23 Dimmer 85 24 Dimmer 8 24 Dimmer 32 24 Dimmer 56 24 Dimmer 80 25 Dimmer 7 25 Dimmer 31 25 Dimmer 55 25 Dimmer 79 26 Dimmer 2 26 Dimmer 26 26 Dimmer 50 26 Dimmer 74 27 Dimmer 1 27 Dimmer 25 27 Dimmer 49 27 Dimmer 73

CD-3000-AE Power Connector Pinout

PIN FUNCTION

1 Ground

2 No Connect

3 Neutral

4 No Connect

5 Phase C

6 No Connect

7 Phase A

8 No Connect

9 Phase B

www.johnsonsystems.com

Page 11

CD-3000-SV Dimmer Control Cable Pinout

#1 Top Columns #2 Top Columns #3 Top Columns

PIN FUNCTION PIN FUNCTION PIN FUNCTION

1 Dimmer 1 1 Dimmer 3 1 Dimmer 5 2 Dimmer 2 2 Dimmer 4 2 Dimmer 6 3 Dimmer 13 3 Dimmer 15 3 Dimmer 17 4 Dimmer 14 4 Dimmer 16 4 Dimmer 18 5 Dimmer 25 5 Dimmer 27 5 Dimmer 29 6 Dimmer 26 6 Dimmer 28 6 Dimmer 30 7 Dimmer 37 7 Dimmer 39 7 Dimmer 41 8 Dimmer 38 8 Dimmer 40 8 Dimmer 42 9 V+ 9 V+ 9 V+

10 NC 10 NC 10 NC

#4 Top Columns #5 Top Columns #6 Top Columns

PIN FUNCTION PIN FUNCTION PIN FUNCTION

1 Dimmer 7 1 Dimmer 9 1 Dimmer 11 2 Dimmer 8 2 Dimmer 10 2 Dimmer 12 3 Dimmer 19 3 Dimmer 21 3 Dimmer 23 4 Dimmer 20 4 Dimmer 22 4 Dimmer 24 5 Dimmer 31 5 Dimmer 33 5 Dimmer 35 6 Dimmer 32 6 Dimmer 34 6 Dimmer 36 7 Dimmer 43 7 Dimmer 45 7 Dimmer 47 8 Dimmer 44 8 Dimmer 46 8 Dimmer 48 9 V+ 9 V+ 9 V+

10 NC 10 NC 10 NC

#1 Bottom Columns #2 Bottom Columns #3 Bottom Columns

PIN FUNCTION PIN FUNCTION PIN FUNCTION

1 Dimmer 49 1 Dimmer 51 1 Dimmer 53 2 Dimmer 50 2 Dimmer 52 2 Dimmer 54 3 Dimmer 61 3 Dimmer 63 3 Dimmer 65 4 Dimmer 62 4 Dimmer 64 4 Dimmer 66 5 Dimmer 73 5 Dimmer 75 5 Dimmer 77 6 Dimmer 74 6 Dimmer 76 6 Dimmer 78 7 Dimmer 85 7 Dimmer 87 7 Dimmer 89 8 Dimmer 86 8 Dimmer 88 8 Dimmer 90 9 V+ 9 V+ 9 V+

10 NC 10 NC 10 NC

#4 Bottom Columns #5 Bottom Columns #6 Bottom Columns

PIN FUNCTION PIN FUNCTION PIN FUNCTION

1 Dimmer 55 1 Dimmer 57 1 Dimmer 59 2 Dimmer 56 2 Dimmer 58 2 Dimmer 60 3 Dimmer 67 3 Dimmer 69 3 Dimmer 71 4 Dimmer 68 4 Dimmer 70 4 Dimmer 72 5 Dimmer 79 5 Dimmer 81 5 Dimmer 83 6 Dimmer 80 6 Dimmer 82 6 Dimmer 84 7 Dimmer 91 7 Dimmer 93 7 Dimmer 95 8 Dimmer 93 8 Dimmer 94 8 Dimmer 96 9 V+ 9 V+ 9 V+

10 NC 10 NC 10 NC

CD-3000-SV Power Connector Pinout

PIN FUNCTION

1 Phase C 2 Phase B 3 Phase A 4 Neutral 5 No Connect 6 Ground 7 O/T N.C. (V+) 8 O/T N.C.

9 O/T N.O. 10 O/T N.C. (COM) 11 No Connect 12 No Connect

www.johnsonsystems.com 11

Page 12

J3AE J1AE J2AE J4AE

J1SV J10SV

J11SV

J12SV

J2SV

J3SV

J4SV

J5SV

J6SV

J7SV

J8SV

J9SV

J17

J18

J16

J15

J12

J11

J10

J4 J5

J14

J13

JP1

J2 J1

1-24 25-48 49-72 73-96

TOP COLUMNS BOTTOM COLUMNS

FAN FAN

LINE NEUTRAL

DATA+

DATA-

SHIELD

COMMON

ANALOG

+12V

FIRE ALARM INPUT (NORMALLY OPEN)

SECURITY ALARM INPUT (NORMALLY OPEN)

AUXILIALY INPUT (NORMALLY OPEN)

+12V PS

+12V O/T

COM PS

COM O/T

O/T N.O.

O/T N.C.

COMMON

+12V

DMX A

INPUT

DMX A

THRU

DMX B

INPUT

DMX B

THRU

DMX I O

REMOTE

COM

FAN+

COM

+5V

TEMP

AE SV

1 1

FAN

LINE

FAN

LINE

FAN

NEUTRAL

FAN

NEUTRAL

1 1 1 1

N.C.

F1 F2 F3

 A

 B  C

 A

 B

 C

NEUTRAL

IN PS

COMMON

DATA+

DATA-

DATA+

DATA-

DATA+

DATA-

OVERTEMP INPUT (NORMALLY CLOSED)

OPEN COLLECTOR OUTPUT

OVERTEMP INPUT (NORMALLY OPEN) (TS1)

SHIELD /

COMMON

SHIELD /

COMMON

SHIELD /

COMMON

INPUT 1

INPUT 2

INPUT 3

INPUT 4

SSR1

PLC T  

STCTN US ONL

CUTON C LN OLT

REV.1 1024

BACKPLANE BOARD

+ 

CD-3000

WWW.JOHNSONSYSTEMS.COM

SERIAL

NUMBER



CD-3000 Backplane

Internal Fuses (3) Replace with 5A 250V Fast-Acting Fuse Only!

WARNING! Verify all power is disconnected (turned off) before checking or servicing fuses.

CD-3000-SV Control Output Connectors (12)

CD-3000-AE Control Output Connectors (4)

Input / Output Contacts Connector

+12VDC Power Supply Output Connector

0-10VDC Analog Input Connector

RJ45 DMX I/O Connectors (2). Used to connect (daisychain) DMX A and DMX B between CD-3000 systems in multi-rack installations.

Dual DMX Input and Thru Connectors

www.johnsonsystems.com

Page 13

Control Input/Output Connections

All CD-3000 systems come with a variety of control input and output (I/O) capabilities. All I/O connections are terminated on the Backplane.

Breakaway type connectors are supplied for all I/O connections.

• Use wire size #28 to #12 AWG. Strip insulation length to 0.3” (7.5mm).

• Torque terminations to 3.6 IN-LBS (0.4 NM).

NOTE: For connection use copper wire only, rated for 167°F (75°C) minimum.

Dual DMX Input and Thru

• DMX A (SHIELD/COMMON, DATA-, DATA+) is terminated on the J9 and J10 connectors.

• DMX B (SHIELD/COMMON, DATA-, DATA+) is terminated on the J11 and J12 connectors.

• For multi-rack CD-3000 installations, a 10 foot (3 meter) CAT 5e patch cable is supplied. This cable is used to daisy-chain the DMX A and DMX B between systems. The CAT 5e patch cable terminates to J13 and J14 connectors.

• Complies with USITT DMX512-A (ANSI E1.11 - 2008), standard protocol for digital data control.

• Recommended cable is Belden 9829, 9842, Cat 5 or equivalent (low-capacitance, twisted pair).

• Wiring must follow a daisy-chain topology.

• Maximum of 32 receiving devices on a single DMX line.

• Maximum cable length is 1,500 feet (455 meters).

• For more information, Google DMX, or visit:

http://old.usitt.org/DMX512FAQ.aspx

Maintained

Normally

Open

Switch

Contact

+12V

Common

+12V

Analog Input 1 Thru 4

Common

+12V

Analog Input 1 Thru 4

NOTE: Ensure only the last (end-of-line) DMX receiving device is terminated!

+12VDC Power Supply Output

• A regulated +12VDC power supply is available for powering external devices.

• Terminate on +12V and COMMON of J16 connector.

• External devices should not exceed the maximum combined current draw of 2 Amps.

0-10VDC Analog Inputs or Load Shed Contact Inputs

• Four (4) analog inputs terminate on J17 connector.

• Inputs can be congured for normal or load shed mode of operation.

• Inputs can be patched to any combination of dimmer output circuits.

• Programmed in the “ANA MODE” and “ANA PAT” menus.

See page 26 for details.

www.johnsonsystems.com 13

Page 14

Normally

Closed

Thermostat

Switch

+12V

Overtemp Input Normally Closed

Over-Temperature Input (Normally Closed)

• Terminate (OVERTEMP INPUT (NORMALLY CLOSED)) on J18 connector.

• Disables all dimmer outputs when contact/switch is opened.

• Controlled via a maintained contact/switch to +12V.

• Connects to OEM wiring in Strand CD80® Supervisor (SV) racks via the power connector.

Normally

Open

Thermostat

Switch

Maintained

Normally

Open

Switch

Contact

Maintained

Normally

Open

Switch

Contact

Overtemp Input Normally Open

Common

Fire Alarm Input

Common

Security Alarm Input

Common

Over-Temperature Input (Normally Open) (TS1)

• Terminate (OVERTEMP INPUT (NORMALLY OPEN) (TS1)) on J18 connector.

• Disables all dimmer outputs when contact/switch is closed.

• Controlled via a maintained contact/switch to low-voltage common (COMMON).

• Connects to OEM wiring in Strand CD80® Supervisor (SV) racks via the power connector.

• Optionally connects to OEM wiring in Strand CD80® AMX or Advanced Electronic (AE) racks.

Connect to TS1 located on the upper left-hand side of the dimmer rack. Connect COM, also located on the upper left-hand side of the dimmer rack, to COMMON on the CD-3000 Backplane.

Fire Alarm Input (Normally Open)

• Terminate on J18 connector.

• Triggers selected channels to turn on when contact/switch is closed.

• Controlled via a maintained contact/switch to low-voltage common (COM).

• Programmed in the “F-ALARM” menu. See page 29 for details.

Security Alarm Input (Normally Open)

• Terminate on J18 connector.

• Triggers selected channels to cycle on and off at a 1 Hertz rate when contact/switch is closed.

• Controlled via a maintained contact/switch to low-voltage common (COM).

• Programmed in the “S-ALARM” menu. See page 28 for details.

Maintained

Normally

Open

Switch

Contact

100mA Max

Auxiliary Input

Common

+12V

Open Collector Output

Auxiliary Input (Normally Open)

• Terminate on J18 connector.

• Triggers 1 of 20 presets when contact/switch is closed.

• Controlled via a maintained contact/switch to low-voltage common (COM).

• Programmed in the “AUX IN” menu. See page 28 for details.

Open Collector Output

• Terminate on J18 connector.

• Sink up to 100mA.

• Trigger Solid State Relays (SSR) or other external devices.

• Controlled via DMX and/or Analog Input 4.

• Programmed in the “OC MODE” menu. See page 28 for details.

www.johnsonsystems.com

Page 15

EEPROM

Memory Module

Control Module • MADD-96

(Multiple Application Dimmer Driver)

The MADD-96 is the central electronic control system (brain) for all CD-3000

Series retrot systems. The MADD-96 is mounted in the Control Module.

The Control Module can be removed by releasing the two (2) quarter-turn fasteners on each side. To release the fasteners, turn them a quarter-turn

counter-clockwise using a athead screwdriver. Once the fasteners are

released, pull the module outwards using the two (2) handles on each side. To reinstall the Control Module, slide the metalwork through the guide rails on each side of the CD-3000 chassis and push it in until it is fully seated. You will hear and feel the Control Module snap into place. Once the Control Module is fully seated, the quarter-turn fasteners can be locked into place by lining the slot up horizontally and pushing it in with a thumb.

Located on the MADD-96 is a removable EEPROM memory module. The EEPROM slides into the PORT4 connector located on the upper left-hand

side of the board. The EEPROM is used to backup important conguration

settings and may be removed for safe storage. The EEPROM can also be

used for rmware updates. Refer to menu items “EEPROM”, “FW-LOAD”,

“RESTORE” and “BACKUP” on page 31 to 33 for further details.

CD-3000 Control Module

Handles

Quarter-turn Fasteners

EEPROM Memory Module

Q12

PORT4

C33

C34

U17

R52

R53

U13

U12

U11

R46 R43

R50

R49

R48

R47

C24

R45

R44

C25

C26

R34

R35

VR1

R1 R2

R32 R33

EDGE1

C37

R54

U16

R51

R42

C15

C16

C31 C32

C30

U10

C17

C28

C27

C29

R21

R36

R37

R38

R39

R40

R41

R20 R19

R30

R31

C36

R57

R56

U15

R29

C23 C22

C21

C18

C19

C20

R23

R24

R25

R22

R26

R27

R28

R6 R7

R18

R17

U35

TPA

TPB

TPC

C84

C35

R55

U14

R16

C12

C13 C14

C11

C10

R15

R14

R10

R11

R12

R13

TP1

LED6 R75

JP1

R88

U51

R89 R74

C70

U18

C83

D26

R130

R132

C66

PORT1

JTAG

C61

C91

C65

U28

R129 R128

C62

C92

U29

C57

C58

C59

R146 U31

D205

D204

D203

D202

D201

R205

R203

R201

EDGE2

R202

R204

C67

C64

C94

C93

C63

U32

U37

C60

U33

U38

C80

U34

U56

C81

D212

D211

D210

D209

D208

D207

D206

D222

D221

D220

D219

D218

D217

D216

D215

D214

D213

R213

R211

R209

R207

R221

R219

R217

R215

R206

R208

R210

R212

R214

R216

R218

R220

R222

PORT2

R85

R84

R87

R86

R81

D30

U55

LED2

C72

C73

R93

R95

C74

R97

C71

TP2

D226

D225

D224

D223

R225

R223

R224

R226

TP4

C100

R96

R94

R92

R90 R91

U57

C90

C133

C106

D227

R227

U60

C129

U58

U61

C107

U59

U62

C125

D246

D245

D244

D243

D242

D241

D240

D239

D238

D237

D236

D235

D234

D233

D232

D231

D230

D229

D228

R237

R239

R241

R243

R245

R235

R233

R231

R229

R228

R230

R232

R234

R236

R238

R240

R242

R244

R246

R79

R80

C101

C108

C127

C109 C131

D253

D252

D251

D250

D249

D248

D247

R247

R249

R251

R253

R248

R250

R252

PORT3

JTAG JTAG

C95

VR6

R118

C96

C104

C97

C105

D31

U64

LED3

TP5

C113

C103

C102

C99

C98

U63

U67

C130

U65

U68

C121

U66

U69

D270

D269

D268

D267

D266

D265

D264

D263

D262

D261

D260

D259

D258

D257

D256

D255

D254

R255

R257

R259

R261

R263

R265

R267

R269

R254

R256

R258

R260

R262

R264

R266

R268

R270

R82

R83

C114

D275

D274

D273

D272

D271

R271

R273

R275

R272

R274

U39

R119

C110

VR7

C119

C120

C117

C118

C116

C115

U70

C122

U71

C126

U72

C123 C132

D285

D284

D283

D282

D281

D280

D279

D278

D277

D276

R277

R279

R281

R283

R285

R276

R278

R280

R282

R284

R117

R104

R116

C46

R70

C51

C52

C111

R71

C112

R131

C85

R140

C87

Q11 R141

R145

R144

C88

U19

C128

R139

R137

R138

R134

C124

Q10

R133

U52

D294

D295

D296

D293

D292

D291

D290

D289

D288

D287

D286

D201-D296

R201-R296

R287

R289

R291

R293

R295

R286

R288

R290

R292

R294

R296

D25

R72

R127

R99

R103

R101

R120

R105

R121

R98

R126

R100

R102

U49

U45

C79 C78

U47

R124

C50

R125

VR5

D28

C76

R142

R143

R113 R115

R111

R112

D27

U41

U42

U54

LED7

D21

D20

D22

R107

R78

R106

R108

Q13

R136

R135

C56

U53

D29

R77

C49

C48

C47

U48 U50

C77

U46

R123 R122

C75

R114

U43

D24

D23

R110

R109

R69

R73

R68

D19

U36

R76

C89

R66

R67

D18

VR4

C55

C45

C44

U44

D13

RLY1

D14

D12

C69

D11

D10

C54

C53

VR3

U27

U24

C39

R60

D17

R63

R62

R65

R64

C43

U23

U26

U25

U22

VR2

R58

BR2

BR1

C42

TP3

LED5

C38

LED4

D15

C41

R59

U21

C40

D16

RLY2

U20

www.johnsonsystems.com 15

Page 16

LCD Display

System Status LED Indicators

Programming Switches

Infrared LED

User Interface

All CD-3000 Series retrot systems are equipped with a user interface. The user interface provides access to all programming and conguration

settings. System status is easily visible on the LCD display and LED

indicators. An infrared LED allows for printout of all system conguration

settings when used with a hand held infrared printer (Johnson System Inc., Part Number: JS-IP).

All of the programming is accomplished using four (4) switches. Within a few

minutes most users will nd the menu structure very intuitive and easy to navigate. All conguration settings are automatically stored into EEPROM.

LCD Display

The LCD display is capable of displaying 2 lines of 8 Characters. A backlight automatically comes on when activity is sensed on the switches. The LCD contrast can be easily adjusted for optimum viewing. Refer to menu item “LCD VIEW” on page 34 for further details.

Programming Switches

The MENU UP/DOWN ( ) switches are used for navigating through the

various system conguration menu items. They also allow for programming of other specic parameters within a selected menu. Pressing and holding

either switch will speed up the scroll rate, which can be helpful to speed up

the conguration time.

The EXECUTE switch is normally used to select/enter a menu item, advance forward within a selected menu item, or toggle between parameters within a selected menu item.

The ESCAPE switch is normally used to back up within a selected menu item one step at a time, or exit the menu completely.

NOTE: The programming switches can be locked out to prevent inadvertent

conguration changes. To toggle between “LOCKED!!” and “UNLOCKED”

press and hold down the EXECUTE and then ESCAPE switches at the same time for 4-5 seconds.

The RESET switch has two purposes. First, it allows for quick exit from a menu item after a programming change and automatically puts the system into normal run mode. Second, it provides a soft reboot for the systems microcontroller.

NOTE: A detailed procedure for programming all system conguration menu

items can be found on page 20 to 34.

www.johnsonsystems.com

Page 17

System Status • LED Indicators

RUN (Green)

Illuminates when the power is on and the microcontroller status is in normal run mode.

The LED ashes once every 2 seconds when the system is in STANDBY mode.

ØA, ØB and ØC (Green)

Illuminates when the line voltage power is within the acceptable range of 100-130 VAC for each

phase and the zero-cross reference circuitry is functioning properly. The LED will ash slowly (once per second) when an under-voltage state of less than 100 VAC is sensed and will ash

quickly (twice per second) when an over-voltage of greater than 130 VAC is sensed.

DMX A and DMX B (Yellow)

Illuminates when valid DMX is received on each of the inputs. Flashes when invalid DMX is received.

ALARM

Illuminates and ashes twice per second when either a re or security alarm is sensed on

each of the inputs.

O/T

Illuminates and ashes twice per second whenever one of four over-temperature sensing

inputs are triggered.

System Status • LCD Display

When DMX is being received, the top line of the LCD display shows the active DMX MODE (“PTY A”, “PTY B”, “MERGE”, “DMX A+B”, “2 ROOM” or “PATCH”). When DMX is not being received, the top line of the LCD display shows “MADD-96”, unless the system is in standby mode, then “STANDBY!” is displayed.

The bottom line of the LCD Display shows the current status of the system unless the system

conguration menu items are being accessed. Below are descriptions for each status indication.

NO RX!

Displayed when DMX is not being received on either input and the system is not in scene mode.

AXXXBXXX

Displayed when valid DMX is being received on one or both inputs and both inputs are not terminated. “A” and “B” represent the DMX A and DMX B inputs, while “XXX” represents the number of channels being received in each packet of data. For example, if the system is receiving 512 channels on DMX B and DMX A is disconnected the display will show “A000B512”.

XXX XXX

Same as above except the “A” and “B” is replaced with “ ” to indicate if one or both of the DMX inputs are terminated. For example, if the system is receiving 48 channels on DMX A and 512 channels on DMX B with only DMX A terminated, the display will show “ 048B512”. Refer to menu items “DMXA TRM” and “DMXB TRM” on page 23 for further details.

SH XX:YY

Displayed when DMX is disconnected and the systems predetermined DMX status hold (SH) time is counting down. “XX” represents minutes, while “YY” represents seconds. Refer to menu item “SH TIME” on page 25 for further details.

www.johnsonsystems.com 17

Page 18

INF HOLD

Displayed when DMX is disconnected and the systems predetermined DMX status hold (SH) time

is set for innite (INF) hold. Refer to menu item “SH TIME” on page 25 for further details.

SCENE:XX

Displays the scene (1 to 20) that is currently activated. The colon in front of the scene number

ashed twice per second during fading. Refer to menu item “SCENEMOD” on page 28 for further

details.

A-SCENE!

Displayed when the auxiliary input is triggered. Refer to menu item “AUX IN” on page 28 for further details.

FIRE!!!

Displayed when the re alarm input is triggered. Refer to menu item “F-ALARM” on page 29 for

further details.

SECURITY

Displayed when the security alarm input is triggered. Refer to menu item “S-ALARM” on page 28 for further details.

EXT-TEMP

Displayed when one or both of the two external over-temperature inputs is triggered. When the EXT-TEMP is triggered all dimmer outputs are disabled and the fans are turned on to full until

the external devices temperature drops to within specication. See Over-Temperature Input

information on page 14 for further details.

REM-TEMP

Displayed when the systems remote temperature sensor measures an over-temperature condition of 185°F (85°C) or more. All dimmer outputs are disabled and the fans are turned on to full until the temperature cools down to 178°F (81°C) or less. The “REM TEMP” feature is not

used with CD-3000 Series retrot systems. See menu item “REM TEMP” to view the current

remote temperature.

CTL-TEMP

Displayed when the microcontroller senses an internal over-temperature condition of 185°F (85°C) or more. All dimmer outputs are disabled and the fans are turned on to full until the temperature cools down to 178°F (81°C) or less. See menu item “CTL TEMP” to view the current microcontroller temperature.

Ø ERROR!

Displayed when an error is sensed on any of the input power phases. A phase error can be caused from an under-voltage of less than 100VAC, an over-voltage of greater than 130VAC, or if a zero-cross phase reference is not detected.

RTC ERR!

Displayed when the system detects a runtime counter (RTC) error. This occurs when there is an invalid hard-key code and the runtime counter is greater than 2160 hours (90 days). Refer to menu item “HARD-KEY” on page 30 for further details.

LOCKED!!

Displayed when an attempt is made to access the system conguration menu items and the

programming switches are locked out. To toggle between “LOCKED!!” and “UNLOCKED” press and hold down the “EXECUTE” and then “ESCAPE” switches at the same time for 4-5 seconds. Also displayed when an attempt is made to access factory only setup menus.

www.johnsonsystems.com

Page 19

Quick Programming Reference to System Conﬁguration Menu Items

1. SCENESET Enable and setup 20 different backup scenes.

2. FADETIME Set the fade time for each of the 20 scenes from 0 to 99 seconds.

3. SNAPSHOT Record DMX levels into the backup scenes.

4. DIM TEST Test the dimmer outputs one at a time, or all at once.

5. MONITOR View the control level to each dimmer output.

6. ADDRESS Set the DMX start address.

7. DMX MODE Congure the mode of the on-board DMX protocol manager.

8. 2 RM SET Set the two room assignment for each of the dimmer outputs.

9. DMXA TRM Enable or disable termination on the DMX A input.

10. DMXB TRM Enable or disable termination on the DMX B input.

11. DMX O/P Congure the on-board DMX protocol manager for offset or patch mode.

12. DMXA PAT Patch the 96 dimmer (PWM) outputs to any DMX A input channel.

13. DMXB PAT Patch the 96 dimmer (PWM) outputs to any DMX B input channel.

14. SH TIME Set the DMX status hold time from 0 to 99 minutes or innite.

15. DC PATCH Congure the dimmer to channel patch for the dimmer rack.

16. DIM CURV Congure the dimmer curve for each output.

17. VOUT LIM Set the maximum RMS output voltage for each dimmer.

18. REGULATE Enable or disable the dimmer output voltage regulation.

19. ANA MODE Congure the analog inputs for normal or load shed mode.

20. ANA PAT Patch the analog inputs to any combination of control channels.

21. ANA TEST View the control level for each of the analog inputs.

22. ANA FLTR Apply a noise lter on the analog inputs of up to 1 Volt.

23. ANA BLOC Enable or disable the analog inputs when DMX is being received.

24. STANDBY Enable or disable the power savings standby mode.

25. TEST INC Set the test increment units to percent or hexadecimal.

26. OC MODE Congure the input trigger parameters for the open collector output.

27. AUX IN Select which scene the auxiliary input will trigger/enable.

28. SCENEMOD Enable or disable scene mode and the auxiliary input.

29. S-ALARM Select the level and control channels triggered by the security alarm input.

30. F-ALARM Select the level and control channels triggered by the re alarm input.

31. Ø-PATCH Set the zero-cross phase reference for each dimmer control output circuit.

32. WARMING Turn the “lamp warming” feature on or off.

33. POLARITY Set the PWM output control polarity. Locked for factory use only!

34. LINE V View the RMS line voltage for each power phase.

35. LINE F View the line frequency of phase A.

36. REM TEMP View the temperature of the remote temperature sensor.

37. CTL TEMP View the temperature of the microcontroller.

38. RTIME View the total run time of the microcontroller.

39. HARD-KEY View the microcontroller’s unique six-character hard-key code.

40. SERIAL# View the microcontroller’s unique six-character silicone serial number.

41. VERSION View the microcontroller’s rmware version.

42. EEPROM View the type of EEPROM memory module plugged in.

43. FW-LOAD Load new rmware into the MADD-96 via the EEPROM memory module.

44. RESTORE Restore parameters saved in the EEPROM memory module.

45. BACKUP Backup parameters and save them in the EEPROM memory module.

46. PRINTOUT Print various system conguration settings using a hand held infrared printer.

47. DEFAULTS Set various system conguration settings to the factory default.

48. LCD VIEW Adjust the contrast of the LCD Display for optimum viewing.

www.johnsonsystems.com 19

Page 20

Detailed Programming of System Conﬁguration Menu Items

NOTE: The programming switches can be locked out to prevent inadvertent conguration

changes. To toggle between “LOCKED!!” and “UNLOCKED” press and hold down the EXECUTE and then ESCAPE switches at the same time for 4-5 seconds.

The sequence of the following system conguration menu items appear as the MENU DOWN ( ) switch is pressed. Pressing the MENU UP ( ) switch will sequence the system conguration menu items in the opposite order. Pressing and holding either of the MENU UP/DOWN ( ) switches will speed up the scroll

rate, which can be helpful to speed up the conguration time.

1. SCENESET Enable and setup 20 different backup scenes. When scene mode is activated the selected scene will be held with no timeout until

the menu is exited. The 96 control channel levels are congured within the menu and can be modied on the y. Scene mode is useful when an external controller is not

available and independent internal control is required.

Press EXECUTE to enter the menu and activate scene mode. SCENE>01 Displays the scene (01) to be activated. SCENE>20 Press MENU ( ) to select a different scene from 01 to 20. CTRL: ON Control (CTRL) is ON via the selected scene. CTRL:DMX Control (CTRL) is via DMX and takes priority over scene mode. CTRL:HLD Control (CTRL) is via DMX status hold (HLD) and takes priority over scene mode. SCENE>20 Press EXECUTE to activate the selected scene.

SCENE:20 The colon (:) ashes twice per second while fading to the selected scene. SCENE:20 The colon (:) stops ashing when fade is complete and the selected scene is active.

SCENE>20 Press MENU ( ) to select a different scene from 01 to 20. SCENE 20 Press EXECUTE to modify the selected scene. C>01L 00 The second line on the LCD indicates the control channel (C) and level (L). C>96L 00 Press MENU ( ) to select the control channel (C) to modify from 01 to 96. C 96L>00 Press EXECUTE to toggle from channel (C>) to level (L>) selection. C>96L 00 Press ESCAPE to toggle from level (L>) to channel (C>) selection. C 96L>FL Press MENU ( ) to select the output level (L) for the selected channel from 00 to FL. CLEAR??? Press EXECUTE to clear the selected preset, and set all channels to 00 level. SURE ??? Press EXECUTE if you are sure to clear the selected preset. DONE !!! Indicates the selected preset has been cleared. WAIT... Press ESCAPE to exit and the menu and save programmed scene levels. Press ESCAPE to back-up within the menu, or exit/deactivate scene mode. Press RESET to exit scene mode without saving programmed scene levels.

NOTE: When scene mode is activated: DMX and DMX status hold (SH TIME)

automatically takes precedence over scene mode. The analog input levels are

merged (HTP) with the scene levels. If the analog inputs are congured for load

shed mode the inputs will take precedence over the active scene. The security

alarm (S-ALARM) input is merged (HTP) with the scene levels while the re alarm

(F-ALARM) input automatically takes precedence. Scene mode (SCENEMOD) and the auxiliary input (AUX IN) are temporarily enabled. Scene mode will only activate dimmers assigned to room “A”.

2. FADETIME Set the fade time for each of the 20 scenes from 0 to 99 seconds. The factory default is 5 seconds for all 20 presets. Press EXECUTE to enter the menu. S>01T 05 Displays the scene (S>01) and assigned fade time (T 05).

S>20T 05 Press MENU ( ) to select a different scene from 01 to 20. S 20T>05 Press EXECUTE to toggle between scene (S>) and fade time (T>) selection. S 20T>99 Press MENU ( ) to select a different fade time from 00 to 99 seconds. Press ESCAPE to exit the menu and save the selected fade time. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

www.johnsonsystems.com

Page 21

3. SNAPSHOT Record DMX levels into the backup scenes. Provides a quick and easy way to save control channel levels into each of the

01 to 20 backup scenes using a DMX source.

Press EXECUTE to enter the menu and activate snapshot mode. SAVE >01 Press MENU ( ) to select a different scene from 01 to 20. SCENE>20 Press EXECUTE to store DMX levels in the selected scene. SURE ??? Press EXECUTE if you are sure the DMX levels are set as intended. DONE !!! DMX levels have now been stored in the selected scene. NO RX! DMX is not being received on either input, so a snapshot is not possible. Press ESCAPE to back-up within the menu, or exit/deactivate snapshot mode. Press RESET to exit/deactivate snapshot mode.

4. DIM TEST Test the dimmer outputs one at a time, or all at once.

A technician’s best friend! Used for troubleshooting the dimmer outputs and eld

wiring to the load. Press EXECUTE to enter the menu and activate dimmer test mode. D 01L>00 Displays the active dimmer (D) and the test level (L). D 01L>50 Press MENU ( ) to select the desired test level. D 01L>FL Press ESCAPE to toggle the test level from full-on (FL) and off (00). D>01L FL Press EXECUTE to toggle between the dimmer (D>) and the test level (L>). D>ALL FL Press MENU ( ) to select the active dimmer from 01 to 96 or ALL. Press ESCAPE or RESET to exit the menu. The menu will automatically timeout after 5 minutes of inactivity.

5. MONITOR View the control level to each dimmer output.

The dimmer control level is displayed as a 9-bit value from 000 to 512. This menu

does not timeout automatically and will continue to monitor indenitely.

Press EXECUTE to enter the menu and activate monitor mode. D>01L000 Press MENU ( ) to select the dimmer (D) output to monitor from 01 to 96. D>96L512 Display shows dimmer 96 has full-on control. Press ESCAPE or RESET to exit the menu.

NOTE: The control value will not reach 512 when voltage output limiting is activated,

or when regulation is enabled and the line voltage is greater than 118 VAC.

6. ADDRESS Set the DMX start address. The DMX start address can be assigned from 001 to 512 and is common

to both DMX inputs. When DMX MODE is set for DMX A+B operation, each of the DMX inputs can be

assigned to a separate DMX start address. The DMX inputs are merged and DMX-B

is offset by the number of DMX-A channels. Press EXECUTE to enter the menu. DMXA>001 Displays the current DMX start address for both DMX inputs. DMXA>512 Press MENU ( ) to modify and select the desired DMX start address. DMXA>001 Press both MENU ( ) simultaneously to toggle to DMX start address 001. DMXA>025 Press EXECUTE to save the selected DMX start address. DMXB>001 * Press EXECUTE to advance to select the DMX-B start address. DMXB>512 * Press MENU ( ) to modify and select the desired DMX start address. #CHA=>01 * Press EXECUTE to advance to select the number of DMX-A channels. #CHA=>96 * Press MENU ( ) to modify the number of DMX-A channels from 01 to 96. Press ESCAPE to exit the menu and save the selected DMX start address. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

NOTE: * DMX MODE must be set for DMX A+B operation to access this feature.

NOTE: DMX O/P must be set to OFFSET mode for this menu to function.

www.johnsonsystems.com 21

Page 22

7. DMX MODE Congure the mode of the on-board DMX protocol manager.

There are ve different mode settings for the DMX protocol manager.

Priority A (PTY A) and Priority B (PTY B) modes are intended for the implementation

of a backup DMX source. Priority A (PTY A) sets the DMX A input as the priority, and ignores the DMX B input when the DMX A input is active. Priority B (PTY B) sets the DMX B input as the priority, and ignores the DMX A input when the DMX B input is active.

Merge (MERGE) mode combines both DMX inputs with highest-takes-precedence

(HTP) operation. Merge mode allows for simultaneous DMX control of the dimmers from both inputs, and is the default for the system.

Dual Universe DMX (DMX A+B) mode provides a method to combine two universes

of DMX within one system. It permits two independent DMX sources to be active on the DMX inputs, with each having a separate DMX start address. The DMX inputs are merged and DMX-B is offset by the number of DMX-A channels programmed via the ADDRESS menu (see page 21 for further details). This feature is typically used when a system is at the end of one DMX universe (DMX-A) and the beginning of another (DMX-B).

Two Room (2 ROOM) mode enables the room (A or B) assignment for each of the

dimmer outputs via the 2 RM SET menu. PTY A Press EXECUTE to toggle into Priority A (PTY A) mode. PTY B Press EXECUTE to toggle into Priority B (PTY B) mode. MERGE Press EXECUTE to toggle into Merge (MERGE) mode. DMX A+B Press EXECUTE to toggle into Dual Universe DMX (DMX A+B) mode. 2 ROOM Press EXECUTE to toggle into Two Room (2 ROOM) mode. Press ESCAPE or RESET to exit the menu.

Any change in the conguration is automatically saved.

NOTE: DMX O/P must be set to OFFSET mode for this menu to function.

8. 2 RM SET Set the two room assignment for each of the dimmer outputs.

This menu is used to assign each of the 96 dimmer outputs to room “A” or room “B”.

Dimmer outputs assigned to room “A” are controlled via the DMX-A input. Dimmer

outputs assigned to room “B” are controlled via the DMX-B input. This creates

separation within the dimmer rack and makes a single dimmer rack function as

though it is two independent dimmer racks. When used in conjunction with the DC

PATCH menu, the dimmer rack can be congured for sequential DMX control of two

rooms, even if the dimmer room assignments are not sequential. DMX MODE must be set for 2 ROOM operation for this menu to function. Press EXECUTE to enter the menu and activate 2 RM SET mode. DIM 01 A Displays the dimmer (DIM) output (01) and the room assignment (A). DIM 96 A Press MENU ( ) to select a different dimmer output from 01 to 96. DIM 96 B Press EXECUTE to toggle the room assignment from A to B. Press ESCAPE or RESET to exit the menu.

Any change in the conguration is automatically saved.

NOTE: Scene mode (SCENESET) will only activate/control dimmers assigned to

room “A”.

NOTE: DMX O/P must be set to OFFSET mode for this menu to function.

www.johnsonsystems.com

Page 23

9. DMXA TRM Enable or disable termination on the DMX A input.

Activates and deactivates a 120Ω termination resistor. DMX termination is indicated

on the LCD display when DMX is being received. When the DMX A input is not terminated (DISABLED) the LCD display will read AXXXBXXX. When the DMX A

input is terminated (ENABLED) the LCD display will read

XXXBXXX.

ENABLED Press EXECUTE to toggle termination from ENABLED to DISABLED. DISABLED Press EXECUTE to toggle termination from DISABLED to ENABLED.

Any change in the conguration is automatically saved.

NOTE: Ensure only the last (end-of-line) DMX receiving device is terminated!

10. DMXB TRM Enable or disable termination on the DMX B input.

Activates and deactivates a 120Ω termination resistor. DMX termination is indicated

on the LCD display when DMX is being received. When the DMX B input is not terminated (DISABLED) the LCD display will read AXXXBXXX. When the DMX B

input is terminated (ENABLED) the LCD display will read AXXX

XXX. ENABLED Press EXECUTE to toggle termination from ENABLED to DISABLED. DISABLED Press EXECUTE to toggle termination from DISABLED to ENABLED.

Any change in the conguration is automatically saved.

NOTE: Ensure only the last (end-of-line) DMX receiving device is terminated!

11. DMX O/P Congure the on-board DMX protocol manager for offset or patch mode..

OFFSET mode is typically used for the majority of systems, and is the factory default.

OFFSET mode refers to the DMX start address, with each of the 96 dimmer (PWM) outputs addressed sequentially from the DMX start address.

PATCH mode provides full exibility for addressing each of the 96 dimmer (PWM)

outputs. Each of the 96 dimmer (PWM) outputs can be patched to (controlled from) any DMX input channel from 001 to 512, from either or both of the DMX A and DMX B inputs simultaneously

With DMX patch mode activated, any conguration within the ADDRESS, DMX

MODE, 2 RM SET and DC PATCH menus is ignored, and the DMX patch congured

within the DMXA PAT and DMXB PAT menus takes precedence.

When using the system in DMX patch mode, it is strongly recommended to printout

the patch using a hand held infrared printer (Johnson System Inc., Part Number: JS-IP).

Press EXECUTE to enter the menu and congure the DMX mode.

DISABLED This menu is disabled to help prevent inadvertent changes. Proceed to enable. ENABLED Press and hold MENU ( ) and MENU ( ) at the same time for 4-5 seconds. OFFSET Press EXECUTE to toggle the DMX mode from OFFSET to PATCH. PATCH Press EXECUTE to toggle the DMX mode from PATCH to OFFSET. Press ESCAPE or RESET to exit the menu.

Any change in the conguration is automatically saved.

12. DMXA PAT Patch the 96 dimmer (PWM) outputs to any DMX A input channel.

There are two ways to congure the DMX patch. Each of the 96 dimmer (PWM)

outputs can be manually (MANUAL) patched to a DMX input channel, or patched in blocks (BLOCK) of sequential dimmers and DMX channels.

For MANUAL patching, each of the dimmers are patched individually. First, the

dimmer (DIM) output is selected, and then any DMX input channel from 001 to 512 is patched to the selected dimmer.

For BLOCK patching, a sequential range of dimmers are patched to a sequential

range of DMX channels. First, the rst dimmer number (DIM#) in the block is selected, then the DMX A start address (DMXA) for the block is selected, and then nally the

number of dimmers (#DIM) in the block is selected. For example, if DIM# is 001, DMX is 001, and #DIM is 096, then all of the dimmer outputs, 001 thru 096 are addressed sequentially to DMX channels 001 thru 096.

www.johnsonsystems.com 23

Page 24

Using a combination of MANUAL and BLOCK patching methods can speed up

The DMX patch should be cleared (CLEAR) before conguring the patch. Clearing

When DMXA PAT is utilized in conjunction with DMXB PAT, each of the 96 dimmer

If a dimmer is patched to both DMX A and DMX B input channels, the DMX levels are

Press EXECUTE to enter the menu and congure the DMX A patch.

Press MENU ( ) to scroll through and select the patching method. MANUAL? Press EXECUTE to patch each of the dimmers manually (MANUAL).

DIM DMXA The top line shows the dimmer (DIM) and (DMXA) address headings. 001<999? The second line shows the dimmer (DIM) and (DMXA) address values. 096<999? Press MENU ( ) to select the dimmer (DIM) from 001 to 096 to patch. 001<999? Press MENU ( ) and MENU ( ) at the same time to toggle back to 001. 001 999? Press EXECUTE to advance and select the DMXA address for the dimmer. 001 999? DMXA is initialized at 999 to indicate the dimmer is not patched. 001 999? ? indicates the DMXA address (513 to 999) is invalid and is not patched. 001 999? The cursor (_) position indicates the DMXA digit to be edited. 001 999? Press EXECUTE to move the cursor to the right, under the digit to be edited. 001 999? Press ESCAPE to move the cursor to the left or to exit the menu. 001 512 Press MENU ( ) to select the DMXA address from 001 to 512. 001 999? Press MENU ( ) and MENU ( ) at the same time to toggle back to 999. Repeat until all required dimmers are manually patched. BLOCK? Press EXECUTE to patch the dimmers in a sequential block (BLOCK).

DIM#:001 Press EXECUTE to select the rst dimmer number (DIM#) in the block.

DIM#:096 Press MENU ( ) to edit the dimmer number (DIM#) from 001 to 096. DIM#:001 Press MENU ( ) and MENU ( ) at the same time to toggle back to 001. DMXA:001 Press EXECUTE to select the DMX A (DMXA) start address for the block. DMXA:512 Press MENU ( ) to edit the DMX A (DMXA) start address from 001 to 512. DMXA:001 Press MENU ( ) and MENU ( ) at the same time to toggle back to 001. #DIM:001 Press EXECUTE to select the number of dimmers (#DIM) in the block. #DIM:096 Press MENU ( ) to edit the number of dimmers (#DIM) from 001 to 096. #DIM:001 Press MENU ( ) and MENU ( ) at the same time to toggle back to 001. PROCEED? Press EXECUTE to proceed. SURE ??? Press EXECUTE to proceed. DONE !!! Indicates the sequential block patch has been completed. Repeat until all required blocks of sequential dimmers have been patched. Press ESCAPE to exit the menu. CLEAR??? Press EXECUTE to clear the entire patch. SURE ??? Press EXECUTE to proceed. DONE !!! Indicates the entire patch has been cleared. Press ESCAPE to exit the menu and save the selected patch. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

NOTE: Be sure to BACKUP any conguration changes!

For a more complex example, if DIM# is 049, DMX is 321, and #DIM is 024, then dimmer outputs 049 thru 073 are addressed sequentially to DMX channels 321 thru 344.

conguration. Typically, a BLOCK of dimmers is rst patched and then edited using

the MANUAL patch.

the patch ensures all previously congured patch data is cleared (erased).

(PWM) outputs can be patched to (controlled from) any DMX input channel from 001 to 512, from either or both of the DMX A and DMX B inputs simultaneously.

merged and highest-takes-precedence (HTP).

NOTE: With DMX patch mode activated, any conguration within the ADDRESS,

DMX MODE, 2 RM SET and DC PATCH menus is ignored, and the DMX patch

congured within this menu takes precedence.

www.johnsonsystems.com

Page 25

13. DMXB PAT Patch the 96 dimmer (PWM) outputs to any DMX B input channel. Refer to the DMXA PAT menu for further information. The DMXA PAT menu is used to patch dimmers to DMX A input channels, while the

DMXB PAT menu is used to patch dimmers to DMX B input channels.

14. SH TIME Set the DMX status hold time from 0 to 99 minutes or innite. When DMX is disconnected the system will hold the status of the last received DMX

levels for the selected amount of time. When activated, the LCD display shows a

countdown of the status hold time or innite hold.

Press EXECUTE to enter the menu. HTIME 00 Displays the current DMX status hold time (HTIME) setting.

HTIME 99 Press MENU ( ) to set the desired hold time from 00 to 99 minutes. HTIME XX Press MENU ( ) to set the desired hold time to innite (XX). HTIME 00 Press both MENU ( ) switches to toggle back to status hold time of 00. Press ESCAPE to exit the menu and save the desired DMX status hold time. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

15. DC PATCH Congure the dimmer to channel patch for the dimmer rack. Each of the 96 dimmer (PWM) outputs can be assigned and patched to any of the 96

control channels. Multiple dimmer outputs may be patched to a single control channel. The dimmer to channel patch is used by other menu features to provide transparent control of the dimmer output circuits. CD-3000 systems are typically patched for 1 to 1

operation but may be altered for custom applications. Press EXECUTE to enter the menu. D01<C01 Displays the dimmer (D) output (01) and its current control channel (C) patch (01).

D96<C96 Press MENU ( ) to select the desired dimmer output from 01 to 96. D96 C96< Press EXECUTE to toggle the pointer (<) to select the control channel to patch. D96 C01< Press MENU ( ) to select the desired control channel from 01 to 96. D96<C01 Press EXECUTE to toggle the pointer (<) to select another dimmer output. Press ESCAPE to exit the menu and save the desired dimmer channel patch. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

NOTE: DMX O/P must be set to OFFSET mode for this menu to function.

16. DIM CURV Congure the dimmer curve for each output.

There are four different dimmer curve proles that can be assigned to each individual

dimmer output circuit. Square Law (SQ) curve is the industry standard and the default

for all dimmers. Linear (LN) curve modies the dimmer output for a linear relationship

to the control input level. Direct Drive (DD) curve is not modied - meaning the control

input level is directly proportional to the control output level. Non-Dim (ND) curve

assigns the dimmer circuit to operate in a full-on or off state only, with no dimming.

Dimmers set for non-dim will be triggered full-on at 55% control input and will be

triggered off again at 45% control input. Press EXECUTE to enter the menu. DIM01 SQ Displays the dimmer (DIM) output (01) and its current dimmer curve.

DIM96 SQ Press MENU ( ) to select the desired dimmer number from 01 to 96. DIM96 LN Press EXECUTE to toggle to linear (LN) curve mode. DIM96 DD Press EXECUTE to toggle to direct drive (DD) mode. DIM96 ND Press EXECUTE to toggle to non-dim (ND) mode. Press ESCAPE to exit the menu and save the desired dimmer curves. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

www.johnsonsystems.com 25

Page 26

17. VOUT LIM Set the maximum RMS output voltage for each dimmer. Limiting the maximum RMS voltage can greatly improve lamp life. Press EXECUTE to enter the menu. 01<127.5 Displays the dimmer (01) and its current maximum output voltage level (127.5). 96<127.5 Press MENU ( ) to select the desired dimmer number from 01 to 96. 96>127.5 Press EXECUTE to toggle the pointer (< >) to select the output voltage level. 96>100.0 Press MENU ( ) to adjust the output voltage level in 0.5 Volt increments. 96<100.0 Press EXECUTE to toggle the pointer (< >) to select another dimmer number. Press ESCAPE to exit the menu and save the desired dimmer curves. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

18. REGULATE Enable or disable the dimmer output voltage regulation. With the on-board output voltage regulation feature enabled the maximum RMS

output is limited to 118 Volts. Voltage regulation automatically adjusts the internal

control level to compensate for any line voltage uctuations.

ENABLED Press EXECUTE to toggle regulation from ENABLED to DISABLED. DISABLED Press EXECUTE to toggle regulation from DISABLED to ENABLED.

Any change in the conguration is automatically saved.

19. ANA MODE Congure the analog inputs for normal or load shed mode.

Each of the four (4) analog inputs can be independently congured for normal

(NORM) or load shed (SHED) mode of operation.

Normal (NORM) mode sets the analog input for 0-10VDC operation. The analog

voltage level sensed sets the level for the selected dimmer outputs.

Load shed (SHED) mode is used as a power management interface to building

management systems (BMS). Contact closure devices such as a photocell or maintained switch contact may be used to trigger the analog input. When a voltage of 5.5VDC to 12VDC is sensed on the analog input the selected dimmer outputs are disabled (set to zero output level). The selected dimmer outputs are enabled when

the voltage sensed on the analog input drops to below 4.5VDC. Press EXECUTE to enter the menu and set the mode for each analog input. A01<NORM Displays the active analog input (A01) and current mode setting (NORM). A04<NORM Press MENU ( ) to select the desired analog input to congure. A04<SHED Press EXECUTE to toggle from normal (NORM) to load shed (SHED) mode. Press ESCAPE to exit the menu and save the desired analog input modes. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

20. ANA PAT Patch the analog inputs to any combination of control channels. Press EXECUTE to enter the menu and activate analog patch mode. A01<C01 Displays the active analog input (A01) and control channel (C01). A04<C01 Press MENU ( ) to select the desired analog input to patch. A04>C01 Press EXECUTE to toggle the pointer (>) to select the control channel. A04>C96 Press MENU ( ) to select the desired control channel from 01 to 96.

A04>C96 * Press EXECUTE to patch and ag (*) the control channel to the analog input.

A04<C96 * Press ESCAPE to toggle the pointer (< >) to select another analog input. Press ESCAPE to exit the menu and save the desired analog patches. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

www.johnsonsystems.com

Page 27

21. ANA TEST View the control level for each of the analog inputs. The analog voltage level for the 4 analog inputs can be tested and viewed as a

percentage or hexadecimal value. The level displayed is proportional to the 0-10VDC

analog input where 5VDC is 50%. Press EXECUTE to enter the menu and activate analog test mode. AI>01=00 Displays the active analog input (AI>01) and the level (00). AI>04=00 Press MENU ( ) to select the desired analog input to test. AI>04=FL Displays the analog input level from off (00) to full-on (FL). Press ESCAPE or RESET to exit the menu.

22. ANA FLTR Apply a noise lter on the analog inputs of up to 1 Volt. High frequency noise can sometimes be induced into the analog input lines. The

analog lter is set in 1% increments where each percent (%) represents 0.1 Volts for

a maximum lter level of 1 Volt, or 10%. For example, when the analog lter level is

set at 5% (LEV:05%) all analog input levels at or below 0.5 Volts is ignored or ltered out. LEV:00% Displays the lter level (00%) in percent. LEV:00%< Press EXECUTE to enter the menu and adjust the analog lter level. LEV:10%< Press MENU ( ) to select the desired lter level. Press ESCAPE to exit the menu and save the desired analog lter level.

Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

23. ANA BLOC Enable or disable the analog inputs when DMX is being received. When analog blocking (ANA BLOC) is enabled the analog inputs will be ignored when

DMX is online. When analog blocking is disabled the analog inputs will be merged/

combined with the DMX inputs and functions in a highest-takes-precedence (HTP)

mode of operation. ENABLED Press EXECUTE to toggle analog blocking from ENABLED to DISABLED. DISABLED Press EXECUTE to toggle analog blocking from DISABLED to ENABLED.

Any change in the conguration is automatically saved.

24. STANDBY Enable or disable the power savings standby mode. When standby mode is enabled the microcontroller goes to sleep within 5 seconds

of inactivity on the control inputs. The microcontroller wakes up again when a

programming switch is pressed or when control is sensed on the control inputs. Note

that there is a delay of 150 milliseconds for the microcontroller to wake up and restart

normal run mode. ENABLED Press EXECUTE to toggle standby mode from ENABLED to DISABLED. DISABLED Press EXECUTE to toggle standby mode from DISABLED to ENABLED.

Any change in the conguration is automatically saved.

25. TEST INC Set the test increment units to percent or hexadecimal. The levels for the dimmer test (DIM TEST) and analog test (ANA TEST) features can

be displayed as a percentage or hexadecimal value. PERCENT Press EXECUTE to toggle test increments from PERCENT to HEX VAL. HEX VAL Press EXECUTE to toggle test increments from HEX VAL to PERCENT.

Any change in the conguration is automatically saved.

www.johnsonsystems.com 27

Page 28

26. OC MODE Congure the input trigger parameters for the open collector output. The on-board open collector output is used to sink up to 100mA of current. It can be

congured to be triggered via a selected DMX channel, analog input 4, or both. The

open collector is triggered on at 55% control input and triggered off again at 45% control input. When analog and DMX (A+D) is selected to trigger the open collector the inputs are combine for highest takes precedence (HTP).

Press EXECUTE to enter the menu and congure the open collector output.

A+D< 001 Displays the active trigger mode as analog and DMX (A+D<) channel 001. A+D> 001 Press EXECUTE to toggle the pointer (>) and select the DMX channel. A+D> 512 Press MENU ( ) to change and select the DMX channel from 001 to 512. A+D< 512 Press EXECUTE to toggle the pointer (<) and select a different trigger mode. DMX< 512 Press MENU ( ) to select DMX input trigger mode. ANA< Press MENU ( ) to select analog (ANA) input trigger mode. OFF< Press MENU ( ) to deactivate (OFF) the open collector output. Press ESCAPE to exit the menu and save the desired settings. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

27. AUX IN Select which scene the auxiliary input will trigger/enable. When a contact is sensed on the auxiliary input the selected scene will be triggered

and held until the contact is removed. The auxiliary input only functions when scene mode (SCENESET) is activated or when the systems scene mode (SCENEMOD) is

enabled and active. SCENE:01 Displays the scene (01) that will be triggered by the auxiliary input. SCENE>01 Press EXECUTE to enter the menu and select a different scene. SCENE>20 Press MENU ( ) to change the selected scene from 01 to 20. Press ESCAPE to exit the menu and save the desired scene to be triggered. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

28. SCENEMOD Enable or disable scene mode and the auxiliary input. Enabling scene mode puts the system in scene mode. With scene mode enabled

the selected scene will always be activated when DMX is not being received. The

selected scene can be changed in the SCENESET menu. Scene mode enables the

use of the auxiliary input. A contact closure sensed on the over-temperature, re

alarm or security alarm inputs automatically takes precedence over scene mode. ENABLED Press EXECUTE to toggle scene mode from ENABLED to DISABLED. DISABLED Press EXECUTE to toggle scene mode from DISABLED to ENABLED.

Any change in the conguration is automatically saved.

29. S-ALARM Select the level and control channels triggered by the security alarm input. When a contact is sensed on the security alarm input, the selected control channels

will cycle on and off at a 1 hertz rate. The level of the on cycle can be set from 0% to

100%. The security alarm input takes precedence over the DMX and analog inputs.

The system will stay in security alarm mode until the contact is removed.

Press EXECUTE to enter the menu and congure the security alarm input.

L>FL:01* Displays the output level (L>FL) of 100% and control channel (01*). L>00:01* Press MENU ( ) to change the output level from 00% to 100% (FL). L>FL:01* Press MENU ( ) at the same time to toggle the level back to 100% (FL). L:FL>01* Press EXECUTE to toggle the pointer (>) and select the control channel(s). L:FL>96* Press MENU ( ) to select the desired control channel from 01 to 96.

L:FL>96 Press EXECUTE to toggle the ag (*) for each desired control channel.

Press ESCAPE to exit the menu and save the desired settings. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

www.johnsonsystems.com

Page 29

30. F-ALARM Select the level and control channels triggered by the re alarm input.

When a contact is sensed on the re alarm input, the selected control channels are

triggered on to the selected output level from 0% to 100%. The re alarm input is

merged with the DMX and analog inputs with highest takes precedence (HTP). The

system will stay in re alarm mode until the contact is removed.

Press EXECUTE to enter the menu and congure the re alarm input.

L:FL>96 Press EXECUTE to toggle the ag (*) for each desired control channel.

Press ESCAPE to exit the menu and save the desired settings. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

31. Ø-PATCH Set the zero-cross phase reference for each dimmer control output circuit. Strand CD80 dimmer racks are typically powered by 3-phase, with the dimmer

phase reference congured for AABBCC (dimmers 1 and 2 are powered by phase A,

dimmers 3 and 4 are powered by phase B, dimmers 5 and 6 are powered by phase

C, etc). The defaults (DEFAULTS) menu is normally used to congure the phase

patch for standard applications. This menu provides custom phase patching for nonstandard applications.

If a dimmer control output is patched to the incorrect phase reference, the dimmer will

not dim correctly and will go to full output at around 1% DMX input..

Press EXECUTE to enter the menu and congure the dimmer phase patch.

CH 01 ØA Displays the dimmer output channel (CH 01) and patched Phase A (ØA). CH 96 ØA Press MENU ( ) to change the dimmer output channel to patch from 01 to 96. CH 96 ØB Press EXECUTE to toggle the patch to Phase B (ØB). CH 96 ØC Press EXECUTE to toggle the patch to Phase C (ØC). Press ESCAPE to exit the menu and save the desired settings. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

32. WARMING Turn the “lamp warming” feature on or off.

WARMING is set to ON by factory default, but may be turned OFF for some

Press EXECUTE to enter the menu and congure the lamp warming mode.

DISABLED This menu is disabled to help prevent inadvertent changes. Proceed to enable. ENABLED Press and hold MENU ( ) and MENU ( ) at the same time for 4-5 seconds. ON Press EXECUTE to toggle the lamp warming mode from ON to OFF. OFF Press EXECUTE to toggle the lamp warming mode from OFF to ON. Press ESCAPE or RESET to exit the menu.

Any change in the conguration is automatically saved.

The unique “lamp warming” feature is activated by a control level above 0% and

lowers the in-rush current to the dimmer (cold lamp lament) by up to 70%. This results in signicantly increased lamp lament life and lower long-term operating costs.

installation applications. With WARMING set to ON, a maximum delay of 245 milliseconds is introduced to “warm” the lamp when it is turned on. For fast chase effects the delay may be undesirable, in which case, the “lamp warming” feature can be turned off. Note that when standby mode is enabled the microcontroller goes to sleep within 5 seconds of inactivity on the control inputs, and there is delay of 150 milliseconds for the microcontroller to wake up and restart normal run mode. To ensure virtually instant dimmer control response, set STANDBY to DISABLED and WARMING to OFF.

www.johnsonsystems.com 29

Page 30

33. POLARITY Set the PWM output control polarity. Locked for factory use only! This menu is only used when swapping control modules between CD-3000-AE and

CD-3000-SV retrot systems. CD-3000-AE systems utilize a positive going PWM

output control signal while the CD-3000-SV systems utilize a negative going PWM

output control signal.

Press EXECUTE to enter the menu and congure the polarity mode.

DISABLED This menu is for factory use, and is disabled for the end user. ENABLED Press and hold MENU ( ) and MENU ( ) at the same time for 4-5 seconds. POSITIVE Press EXECUTE to toggle the PWM output polarity from POSITIVE to NEGATIVE. NEGATIVE Press EXECUTE to toggle the PWM output polarity from NEGATIVE to POSITIVE. Press ESCAPE to exit the menu and save the desired setting. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

34. LINE V View the RMS line voltage for each power phase. Press EXECUTE to enter the menu and view the line voltage of each phase. ØA=120.0 Shows the line voltage of Phase A. ØB=120.0 Press MENU ( ) to view the line voltage of Phase B. ØC=120.0 Press MENU ( ) to view the line voltage of Phase C. Press ESCAPE or RESET to exit the menu.

35. LINE F View the line frequency of phase A.

60.0 Hz Shows the frequency.

36. REM TEMP View the temperature of the remote temperature sensor.

The remote temperature sensor is not used in CD-3000 Series retrot systems and

will always read 32°F or 0°C. +032°F Shows the temperature in degrees Fahrenheit. +000°C Press EXECUTE to toggle units to degrees Celsius.

37. CTL TEMP View the temperature of the microcontroller. +91°F Shows the temperature in degrees Fahrenheit. +33°C Press EXECUTE to toggle units to degrees Celsius.

38. RTIME View the total run time of the microcontroller. The run time counter keeps track of the total time the microcontroller is powered up.

The maximum time is 99999 hours, 59 minutes, 59 seconds, or about 11.4 years.

System operation is not effected when the maximum run time is reached and can be

reset to zero at the factory. RTIME SS Shows the number of seconds (SS) of run time. HHHHH:MM Shows the number of hours (HHHHH) and minutes (MM) of run time.

39. HARD-KEY View the microcontroller’s unique six-character hard-key code.

CD-3000 Series retrot control systems may be shipped with an invalid hard-key code

of 000000. A valid hard-key must be entered before the run time (RTIME) counter

reaches 2160 hours / 90 days. If the run time expires without a valid hard-key the

LCD display will show a runtime counter error (RTC ERR!) and all dimmer control

outputs will be disabled. HARD-KEY A dash (-) between hard and key represents a valid hard-key. HARD KEY A blank space between hard and key represents an invalid hard-key. K:XXXXXX Shows the unique six-character hard-key code (XXXXXX). K:XXXXXX Follow the procedure below to enter the menu and modify the hard-key. K:XXXXXX Press and hold EXECUTE and then ESCAPE at the same time for 4-5 seconds.

www.johnsonsystems.com

Page 31

K>XXXXXX A pointer (>) appears to indicate hard-key modication is activated.

K>XXXXXX Press MENU ( ) to modify the rst hard-key character. K:>XXXXX Press EXECUTE to advance to the second hard-key character. K:>XXXXX Press MENU ( ) to modify the second hard-key character. K:X>XXXX Press EXECUTE to advance to the third hard-key character. K:X>XXXX Press MENU ( ) to modify the third hard-key character. K:XX>XXX Press EXECUTE to advance to the fourth hard-key character. K:XX>XXX Press MENU ( ) to modify the fourth hard-key character.

K:XXX>XX Press EXECUTE to advance to the fth hard-key character.

K:XXX>XX Press MENU ( ) to modify the fth hard-key character. K:XXXX>X Press EXECUTE to advance to the sixth hard-key character. K:XXXX>X Press MENU ( ) to modify the sixth hard-key character. Press ESCAPE to exit the menu and save the desired hard-key code. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

NOTE: Be sure to record and le the hard-key code on page 35 for future reference.

40. SERIAL# View the microcontroller’s unique six-character silicone serial number. XXXXXX Shows the unique six-character serial number.

41. VERSION View the microcontroller’s software version.

VER X.X Shows the microcontroller’s software version.

42. EEPROM View the type of EEPROM memory module plugged in.

All CD-3000 Series retrot control systems come with a removable EEPROM memory

module located on the MADD-96 board in the control module. The EEPROM memory module inserts into the PORT4 connector located on the upper left-hand side of the board, and may be removed for safe storage.

The EEPROM type is programmed for parameter (P) or rmware (F) operation. A

parameter EEPROM is used to backup all of the current conguration settings. A rmware EEPROM is used to update the current rmware version running on the MADD-96 microcontroller to the rmware version saved on the EEPROM.

The EEPROM memory module supplied with all CD-3000 Series retrot systems is

a parameter type with all of the factory default conguration settings saved onto it

before shipping. MADD96-P Indicates the EEPROM memory module is for a MADD-96 microcontroller. MADD96-P Indicates the EEPROM type is programmed for parameter (P) operation. XXXXXX Press EXECUTE to display the silicone serial number parameter. DISABLED Press EXECUTE and menu feature is disabled for factory use only.

MADD96-F Indicates the EEPROM type is programmed for rmware (F) operation. VER X.X Press EXECUTE to display the version (VER) of the rmware.

DISABLED Press EXECUTE and menu feature is disabled for factory use only. NONE! Indicates the EEPROM memory module is not installed.

43. FW-LOAD Load new rmware into the MADD-96 via the EEPROM memory module. If a rmware update is required, Johnson Systems Inc. may supply an EEPROM

memory module with the latest rmware version. The rmware EEPROM memory

module can be inserted into PORT4 on the MADD-96 board and the rmware can be

loaded into the microcontroller. Press EXECUTE to enter the menu. DISABLED This menu is disabled for inadvertent use. Proceed to enable. ENABLED Press and hold MENU ( ) and MENU ( ) at the same time for 4-5 seconds.

MEMCHECK Automatically checks the EEPROM memory module for rmware type.

www.johnsonsystems.com 31

Page 32

CRC-TEST Automatically does a CRC test on the rmware code in the EEPROM.

>>>>>>>> The CRC test in progress.

VER X.X Displays the rmware version on the EEPROM memory module.

UPDATE?? Press EXECUTE to proceed. SURE ??? Press EXECUTE to proceed. UPDATING Firmware update in progress. WILL Firmware update in progress. AUTO Firmware update in progress. RESTART Firmware update in progress. PLEASE Firmware update in progress.

WAIT.... When rmware update is complete the RUN LED ashes and system restarts.

NO MEM! Displayed if an EEPROM memory module is not detected. WRONG Displayed if the wrong type (parameter) of EEPROM memory module detected. MEM TYPE Displayed if the wrong type (parameter) of EEPROM memory module detected. WRONG Displayed if the wrong product type of EEPROM memory module detected. PRODUCT Displayed if the wrong product type of EEPROM memory module detected. CRC ERR! Displayed if the CRC test fails and the EEPROM memory module is defective.

WARNING: Do not reset or turn the power off while the rmware is being updated.

Doing so will cause unrecoverable loss of rmware data that is being loaded into the

MADD-96 microcontroller.

44. RESTORE Restore parameters saved in the EEPROM memory module.

All of the conguration setting parameters can be restored from EEPROM memory

module if they have been inadvertently changed or corrupted. This feature can

also be used to load conguration setting parameters into a different or new control module. This reduces the conguration time for multi-system applications that require

similar settings or when a replacement control module is required. Press EXECUTE to enter the menu. DISABLED This menu is disabled for inadvertent use. Proceed to enable. ENABLED Press and hold MENU ( ) and MENU ( ) at the same time for 4-5 seconds. MEMCHECK Automatically checks the EEPROM memory module for parameter type.

OKAY.... The EEPROM memory module has been veried for parameter type.

PROCEED? Press EXECUTE to proceed. SURE ??? Press EXECUTE to proceed. CRC-TEST Automatically does a CRC test on the parameter code in the EEPROM. WAIT CRC test in progress. VERIFY CRC test in progress. DONE!! CRC test is done and the parameter restore automatically begins. WILL Parameter restore in progress. AUTO Parameter restore in progress. RESTART When parameter restore is complete, the system restarts. SERIAL # Displayed when the silicone serial number on the EEPROM memory module is a

mismatch with the silicone serial number on the MADD-96 microcontroller. PROCEED? Press EXECUTE to proceed. NO MEM! Displayed if an EEPROM memory module is not detected. WRONG Displayed if the wrong type (parameter) of EEPROM memory module detected. MEM TYPE Displayed if the wrong type (parameter) of EEPROM memory module detected. WRONG Displayed if the wrong product type of EEPROM memory module detected. PRODUCT Displayed if the wrong product type of EEPROM memory module detected. ERROR Displayed when an error occurs. Waits for key press to restart RESTORE.

www.johnsonsystems.com

Page 33

45. BACKUP Backup parameters and save them in the EEPROM memory module.

All of the conguration setting parameters can be saved in the EEPROM memory

module for backup. The backup parameters can then be restored if they have been inadvertently changed or corrupted. Once backup is complete the EEPROM memory

module may be removed for safe storage. All CD-3000 Series retrot control systems

are shipped with the factory default settings saved in the EEPROM memory module. Press EXECUTE to enter the menu. DISABLED This menu is disabled for inadvertent use. Proceed to enable. ENABLED Press and hold MENU ( ) and MENU ( ) at the same time for 4-5 seconds. MEMCHECK Automatically checks the EEPROM memory module for parameter type. SURE ??? Press EXECUTE to proceed. WAIT Automatically begins parameter backup and generates CRC value.

VERIFY Automatically veries parameter backup data and CRC value.

DONE!! Parameter backup is done and saved in the EEPROM memory module. NO MEM! Displayed if an EEPROM memory module is not detected. WRONG Displayed if the wrong type (parameter) of EEPROM memory module detected. MEM TYPE Displayed if the wrong type (parameter) of EEPROM memory module detected. WRONG Displayed if the wrong product type of EEPROM memory module detected. PRODUCT Displayed if the wrong product type of EEPROM memory module detected. DATA ERR Displayed when a data error occurs. Waits for key press to restart BACKUP.

NOTE: Backup all CD-3000 Series retrot control systems when conguration is

complete.

46. PRINTOUT Print various system conguration settings using a hand held infrared printer.

All CD-3000 Series retrot control systems come equipped with an infrared (I/R) LED

that provides the ability to printout all the system conguration settings, when used

in conjunction with a hand held infrared printer (Johnson System Inc., Part Number:

JS-IP). Point the hand held printer I/R LED directly at the CD-3000 Control Module

PRINTER I/R LED within 3 ft (1m). Press EXECUTE to enter the menu. Press MENU ( ) to scroll through and select which item(s) to printout.

SYSTEM? Prints general system information and conguration settings.

ANALOGS? Prints the channel patch for all 4 analog inputs. Ø-PATCH? Prints the phase patch for all 96 dimmer outputs. CURVES? Prints the dimmer curves for all 96 dimmer outputs.

F-ALARM? Prints the conguration settings for the re alarm input. S-ALARM? Prints the conguration settings for the security alarm input.

SCENE? Prints the level settings for each of the 96 dimmers within the 20 scenes. SCENE>01 Press EXECUTE to toggle the pointer (>) and select which scene to print. SCENE>FL Press MENU ( ) to select the desired scene (01 to 20) or all scenes (FL). V-LIMIT? Prints the output voltage limit settings for each of the 96 dimmer outputs.

DCPATCH? Prints the conguration settings for the dimmer to channel patch.

FD-TIME? Prints the fade time settings for each of the 20 scenes. 2 ROOM? Prints the two room assignment for each of the 96 dimmer outputs. DMXAPAT? Prints the DMX A patch for each of the 96 dimmer outputs. DMXBPAT? Prints the DMX B patch for each of the 96 dimmer outputs. ALL? Printout all items at once. PRINTING Press EXECUTE on any item to begin printing. Press ESCAPE or RESET to exit the menu.

www.johnsonsystems.com 33

Page 34

47. DEFAULTS Set various system conguration settings to the factory default. Press EXECUTE to enter the menu. Press MENU ( ) to scroll through and select which item(s) to default. ØPATCH1? Sets the dimmer phase patch to AABBCC. This is the default setting. ØPATCH2? Sets the dimmer phase patch to AAAAAA.

CURVES? Sets all 96 dimmer curve proles to Square Law curve.

ANA-OFF? Clears the control channel patch for all 4 analog inputs. V-LIMIT? Sets the output voltage limit to full (127.5) on all 96 dimmer outputs.

DCPATCH? Clears the dimmer to channel patch and congures it for 1:1 operation.

FD-TIME? Sets the fade time at 5 seconds for all 20 scenes. 2 ROOM? Sets the two room assignment to room “A” on all 96 dimmer outputs. SURE??? Press EXECUTE to select the item to default. Are you sure? DONE!!! Press EXECUTE to set the selected default. Press ESCAPE or RESET to exit the menu.

48. LCD VIEW Adjust the contrast of the LCD Display for optimum viewing. Press EXECUTE to enter the menu. ADJUST Press MENU ( ) to adjust the contrast. Press ESCAPE to exit the menu and save the desired LCD view. Press RESET to exit the menu without saving. The menu will automatically timeout after 5 minutes of inactivity and save.

www.johnsonsystems.com

Page 35

Important Hard-key Information

CD-3000 Series retrot systems may be shipped with an invalid hard-key code of 000000. A valid hard-key must

be entered before the run time (RTIME) counter reaches 2160 hours / 90 days. If the run time expires without a valid hard-key, the LCD display will show a runtime counter error (RTC ERR!) and all dimmer control outputs will be disabled.

Refer to menu item “HARD-KEY” on page 30 of the user manual for detailed instructions on how to enter a valid

hard-key code. Be sure to record and le the valid hard-key code for future reference.
