User Manual
CS-DMX Series
Programmable Manual DMX Stations
JOHNSON SYSTEMS INC.
www.johnsonsystems.com
O
R
F
T
I
T
E
!
R
E
S
U
E
R
E
C
Y
C
L
R
E
O
R
F
T
I
T
E
R
E
S
U
E
!
R
E
C
Y
C
L
R
E
Contents
Warranty ..........................................................................................................2
User Manual Copies ........................................................................................2
Introduction ......................................................................................................3
Features ..........................................................................................................3
CS-DMX Series Control Station Diagrams ......................................................4
“ON”, “DIM” and “OFF” Buttons with Integral LED’s ........................................5
Master (M) Slider .............................................................................................5
Secondary (3, 6, 9 or 12) Sliders .....................................................................5

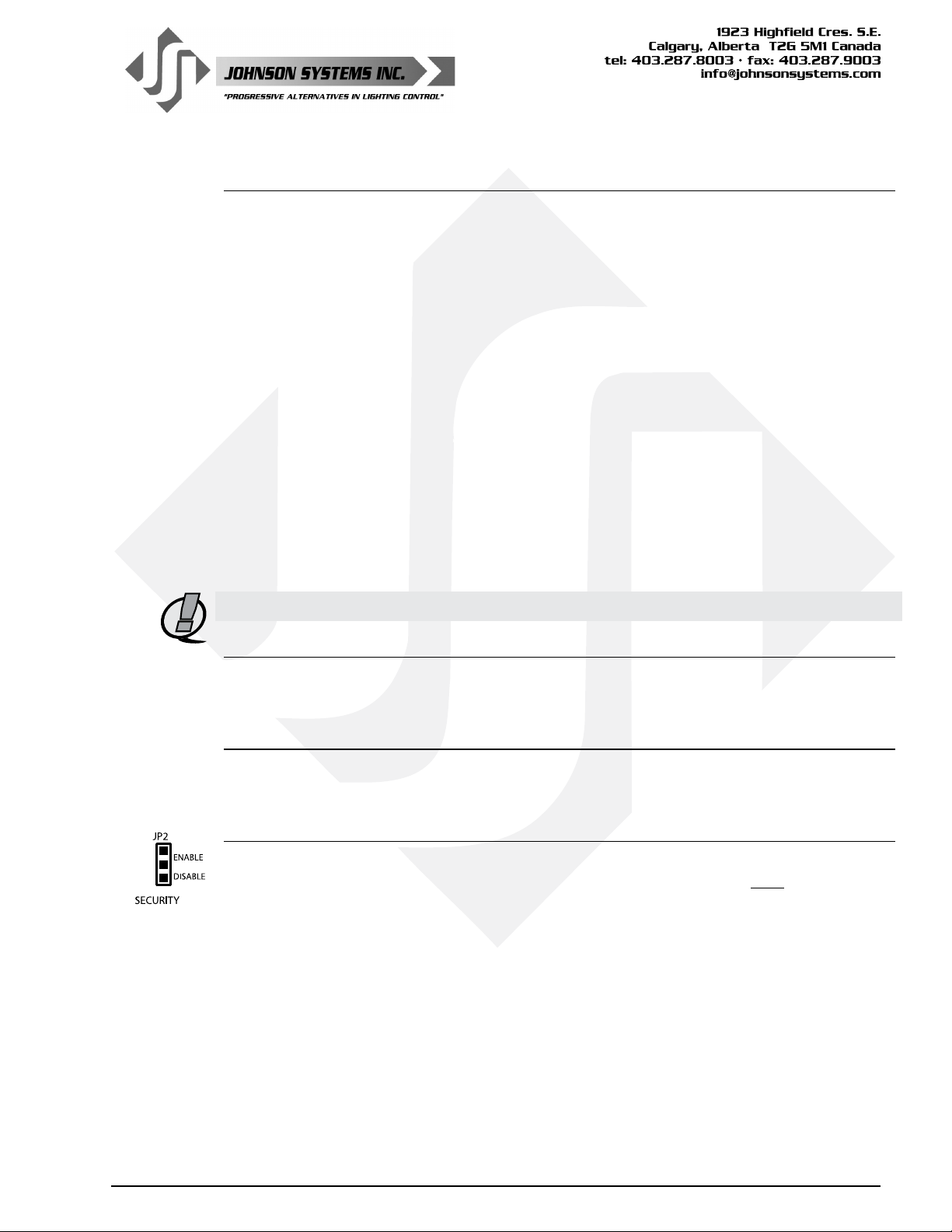

Control Station Security Feature .....................................................................5
Power Supply Requirement .............................................................................6
Control Station Wiring......................................................................................6
DMX Input and Output Wiring..........................................................................6

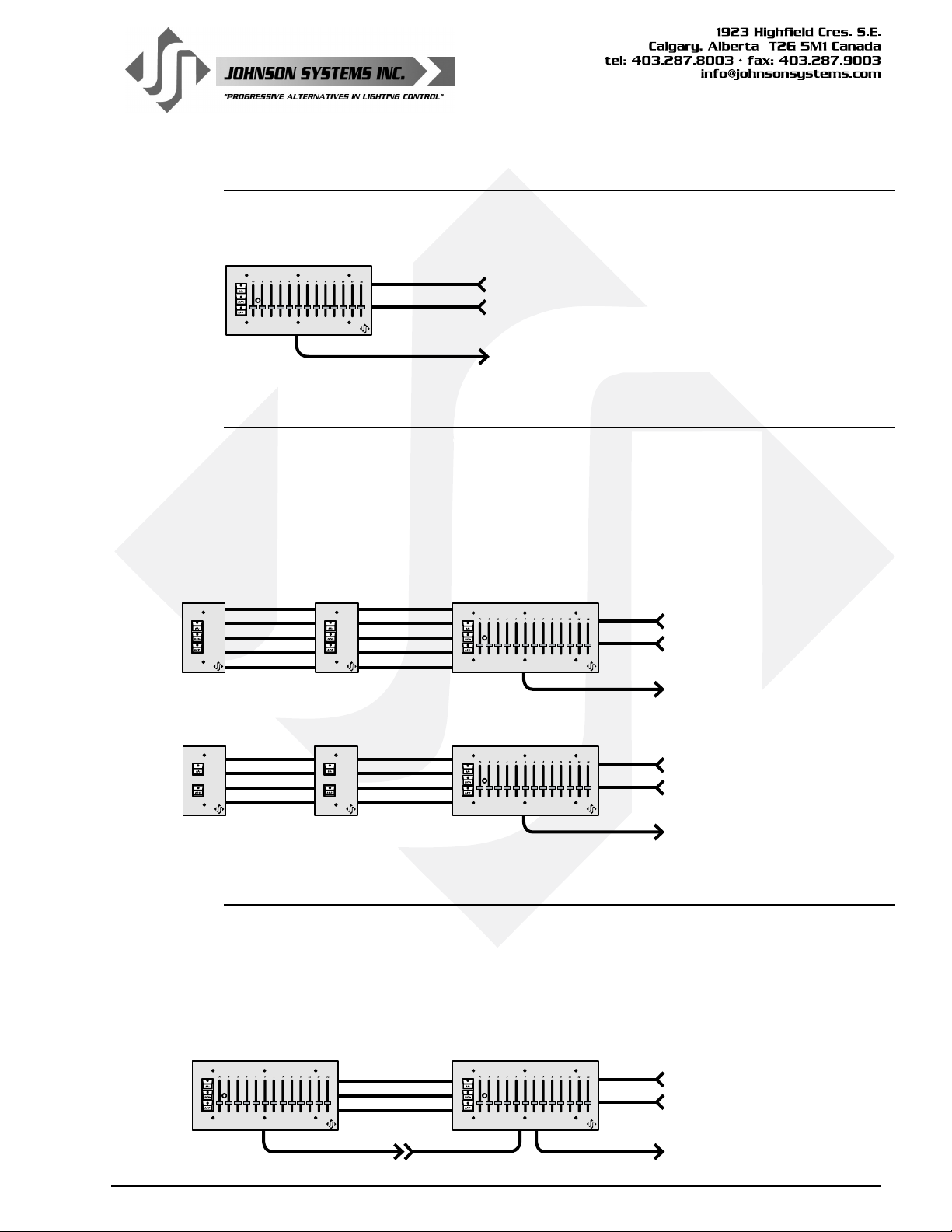

Wiring an Independent Control Station............................................................7
Wiring a Single or Multiple Entrance Control Stations
to a Master Control Station ..............................................................................7
Wiring Two or More Master Control Stations Together with “Take Control” .....7
Wiring Two or More Control Stations Together with “Mimic” ............................8
Mounting the Control Station ...........................................................................8
Calibrate the DMX Output Range ....................................................................8
Congure the Control Station Using a CS-IPRO Wireless
Hand-Held Programmer ..................................................................................8
Time Fade .......................................................................................................9
Set the Adjustable Time Fade..........................................................................9
Set the Button LED Intensity ...........................................................................9
Local Lockout Mode Activation ......................................................................10
Remote Lockout Mode Activation ..................................................................10
Short Circuit and Overload Protection ...........................................................10

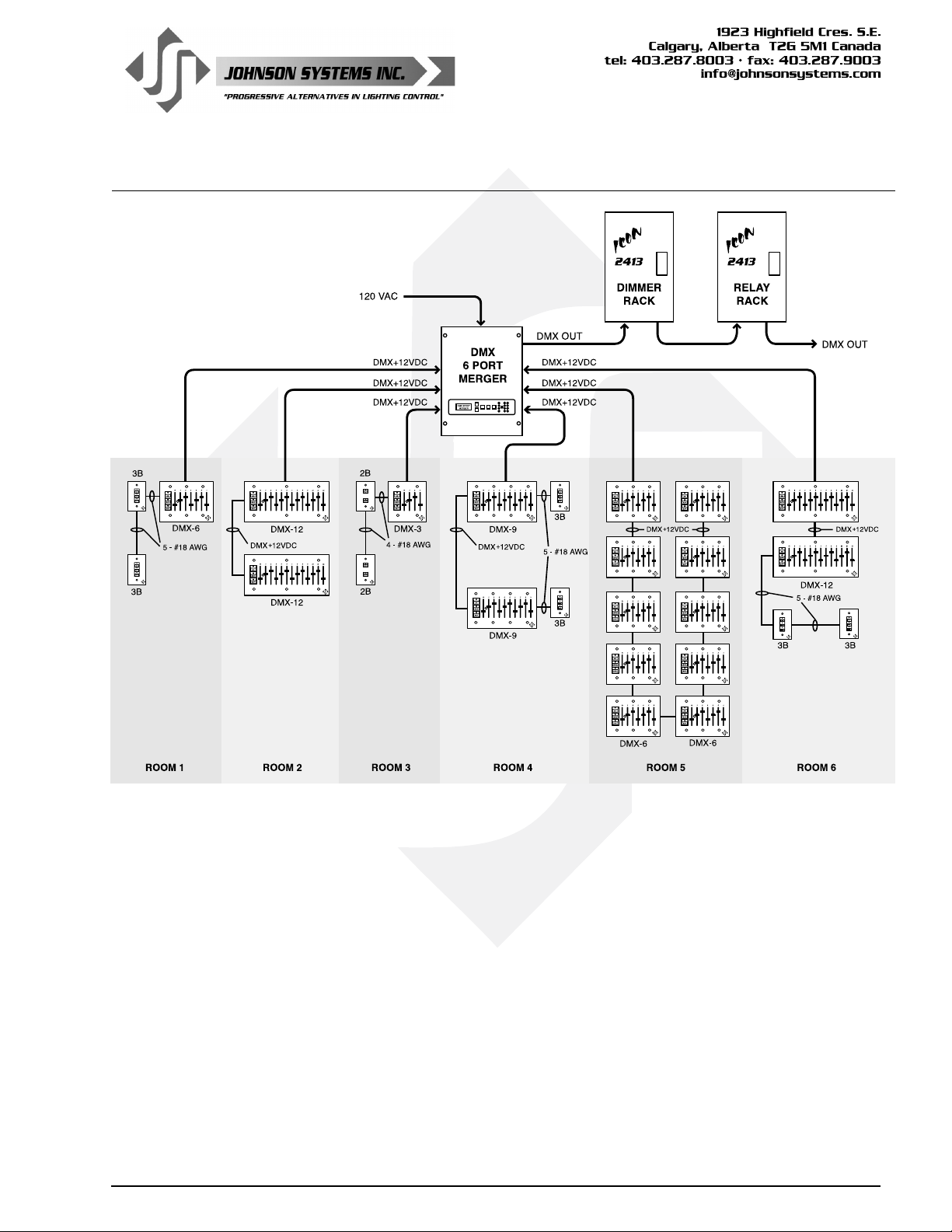

CS-DMX Series Typical Wiring Applications ..................................................11
Warranty
All CS-DMX Series control stations come with a standard one (1) year limited
warranty against defects in parts and workmanship.
User Manual Copies
Additional copies of the most recent version of this manual can be
downloaded at:
http://www.johnsonsystems.com/pdf_les/jsi_cs_dmx_manual_rev_1.pdf.
Note: Refer to the CS-IPRO user manual for detailed programming
information.
2
www.johnsonsystems.com
CS-DMX Series
Programmable Manual
DMX Station
Introduction
Multi-Station, multi-room manual DMX controls for a full DMX
universe of control!
Value, power and complete exibility in a “green”, user friendly,
cost-effective package! The DMX Series of controls are the most
capable manual “stand-alone” DMX controls available. These eld
programmable controls support 512 channels of DMX data with
digitally adjustable fade times. Multiple stations can be daisy-chained
together on the same control wire permitting multiple stations per
room. Each station can be individually programmed with our wireless
infrared hand-held programmer (Model Number: CS-IPRO) permitting
any slider/channel assignments imaginable.
Available from single to 12 channels with master, preset and take
control functions. Two and three button entrance station can be
remotely “locked out” for application where access needs to be
limited. This series of controls will operate on DC supply voltages
up to 18 volts. Adjustable time fade and LED intensity allow
customization for demanding applications. Durable powder-coat nish
is available in either black or white.
CS-IPRO
Wireless Hand-held
Programmer
Features
• Manual DMX at your ngertips.
• Six models/sizes available including two and three button entrance
stations.
• 512 DMX channels of control per station.
• Multiple stations can be daisy-chained on the same DMX line.
• Digitally adjustable fade-times and LED brightness.
• Station programming via low cost, wireless infrared hand-held remote.
• Local or remote/entrance station lockout options.
• Short-circuit and over-current protection.
• Ruggedly built for reliability and longevity.
• Tough, durable powder coat paint on 0.080” aluminum laser cut
faceplate for a scratch resistant non-glare nish.
• Color matched and sized for use with Johnson Systems AP Series
adapter plates where necessary to adapt to existing (larger) electrical
back boxes.
• Metal shaft sliders and machine screw mounting help prevent broken or
missing parts.
• Heavy-duty "high tactile" pushbutton switches are rated for 5 million
operations.
• Optional 6 Port Cascading Installation Merger permits low cost DMX
universe combining.
www.johnsonsystems.com 3
CS-DMX Series Control Station Diagrams
"ON", "DIM", and "OFF" Buttons With Integral LED's
Master (M) Slider
Infared LED Sensor
Secondary (3, 6, 9, or 12) Sliders

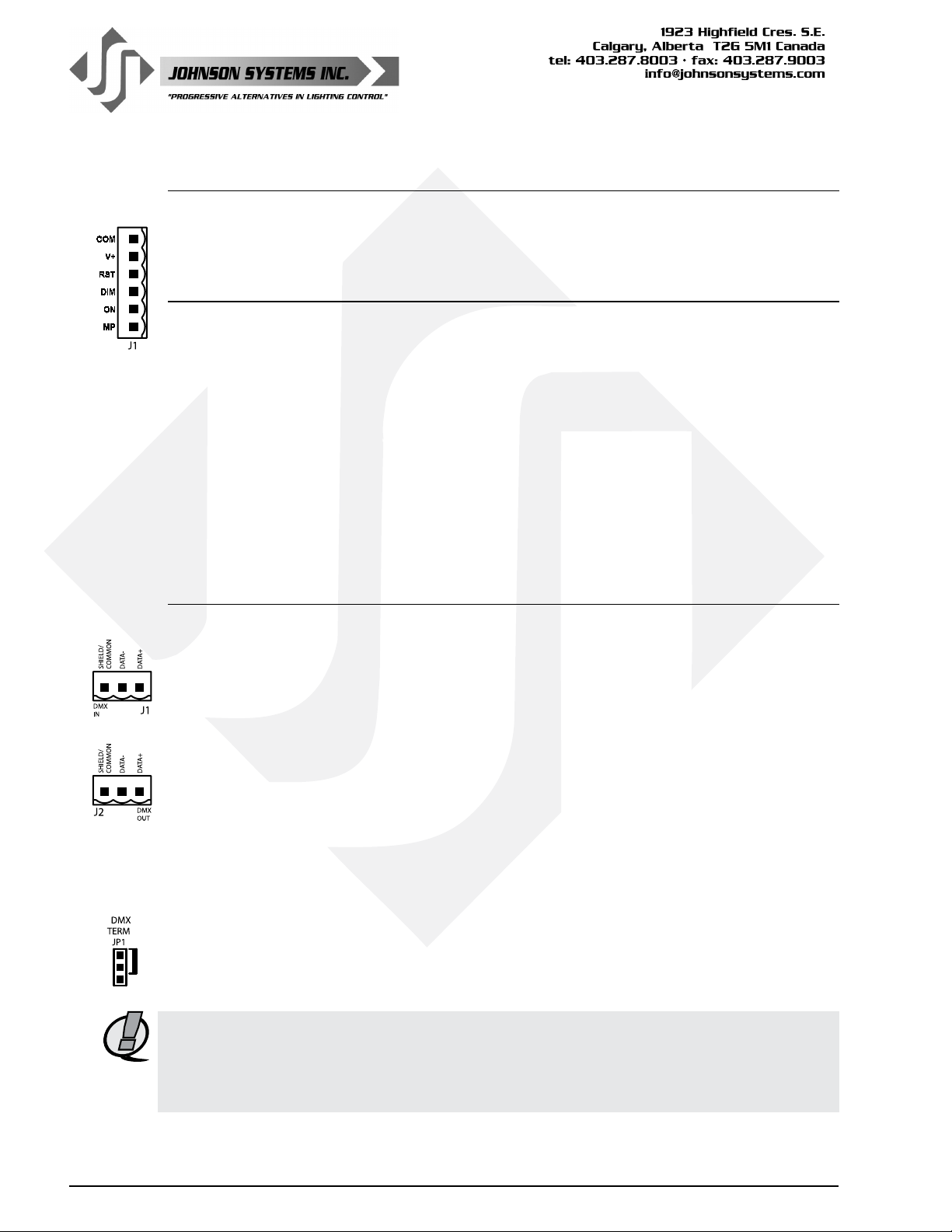

6-Position Connector (J1) For:
• Power Supply Input (COM, V+)
• Button Contacts (ON, DIM, RST)
• Master Pot (MP) Analog Output
DMX Output Range Calibration Jumper (JP1)
Security Enable/Disable Jumper (JP2)
Factory Only Jumper(s)
4
DMX Input Connector (J1)
DMX Output Connector (J2)
DMX Termination Jumper (JP1)
www.johnsonsystems.com
