John Deere 328D, 332D, 326D, 320D, 318D User Manual

D-SERIES

SKID STEERS

The difference is in the D-tails.

You asked. And we delivered. Loaded with customer-inspired enhancements, our redesigned D-Series Skid

Steers incorporate roomier operator stations, quieter pressurized cabs with best-in-class visibility, and

curved-glass swing-out doors. You also have a choice of numerous productivity-boosting options including

EH joysticks with selectable control pattern and variable boom and bucket speed settings. Other innovative

advantages include a highly efcient and easy-to-clean V-plenum cooling system. And easier-starting electronic

fuel-injected PowerTechE™ diesels. As always, grouped checkpoints, advanced diagnostics, and wide-open access

2

3

help speed servicing, minimize maintenance, and lower daily operating costs. To learn how the D-Series can

help you get more done, more reliably, for less, read on. Then talk to your John Deere dealer.

318D 320D 326D 328D 332D

Net horsepower 43.3 kW (58 hp)

@ 2,300 rpm

Rated operating
capacity

Tipping load 1634 kg

817 kg

(1,800 lb.)

(3,600 lb.)

47.1 kW( 63 hp)
@ 2,300 rpm

908 kg

(2,000 lb.)

1816 kg

(4,000 lb.)

51.9 kW (70 hp)
@ 2,000 rpm

1180 kg

(2,600 lb.)

2361 kg

(5,200 lb.)

59.6 kW (80 hp)
@ 2,000 rpm

1271 kg

(2,800 lb.)

2542 kg

(5,600 lb.)

*With one-set standard counterweight.

66.7 kW (89 hp)
@ 2,400 rpm

1453 kg

(3,200 lb.)

2906 kg

(6,400 lb.)*

Open the door
to an even more
productive day.

With a noticeably larger entryway and all-glass curved door

providing wide-open access, getting in and out of our skid

steers has never been easier. Operators are also going to

like what they see inside the D-Series. All-around visibility is

even more expansive, for a virtually unrestricted view that’s

second to none. The all-new pressurized cab is 50-percent

quieter. More spacious, too. We added six inches of headroom

without compromising overhead clearance. Made the HVAC

system more efcient and designed in more vents to keep

the cab comfortable. Added a bevy of other creature comforts,

too, including suspension seats, additional storage, and

optional AM/FM/weatherband radio. By tuning in to your

suggestions, we’ve made choosing a Deere skid steer an

easy “D”ecision.

1

2

1. Standard cab amenities include storage box, cup holder, 12-volt
power port, iPod™/cell-phone holder, and other nice “D” tails.

2. We’ve got your back with a sculpted deluxe vinyl seat helping smooth
the ride. For even more comfort, choose an optional mechanical- or
fabric-covered air-suspension seat (in cab-equipped models).

4

5

3. Although not exactly a sunroof, the bolt-on top window on cab­equipped skid steers removes quickly for increased ventilation
and/or easy cleaning.

3

With 100-percent more front glass, 50-percent larger top window, and lower side windows, it’s easy
to see why visibility is best in class. For clear sightlines to the action in front, beside, and behind you.

HVAC system employs eight automotive-style louvers to direct 50-percent more airow and 30-percent

more heat to help keep the view clear and cab comfortable year-round.

Cab is sealed and pressurized to keep out dust and noise. Plus it’s 50-percent quieter, so you’ll actually
be able to hear the optional radio.

Pull-down padded lap bar provides quick, convenient operator restraint and comfortable arm support.

Triple-interlock operator-presence system automatically applies the brakes when the lap bar is raised,
operator leaves the seat, or the engine is shut down.

Take control your way.

With three different styles of available controls on all ve D-Series models, you decide how the work gets done.

Foot controls are standard. Or opt for hands-only levers, or electrohydraulic (EH) joysticks for steering, forward/

reverse, and boom/bucket functions. EH joysticks provide low-effort ngertip control and smooth machine

response. Add the optional EH Performance Package and you can even customize machine performance for

specic tasks or conditions.

1. Overhead panel conveniently places machine info on the left and control switches
on the right. Easy-to-read LCD monitor provides access to a wealth of machine
info and control, including vital operating conditions and advanced diagnostics.

2. Fatigue-beating joysticks allow you to work more comfortably, precisely, and

productively. Buttons, triggers, and dial control auxiliary hydraulics and ow
rates, two-speed transmission, and bucket oat.

3. Want to make the most of our vertical-lift boom design? Add the self-leveling
option. Combined with parallel-lift throughout the lift path, it’s perfect for a
multitude of material-handling tasks.

1

6

7

2 3

Optional hands-only controls and EH joysticks come equipped with a

oor-mounted foot throttle.

Electronic rotary throttle lets you dial-in the engine speed you need for
maximum fuel economy or full engine power.

Available with optional joysticks, the EH Performance Package lets an operator
customize skid-steer operation and response to personal preferences:

• Creeper mode decreases ground speed in 10-percent increments while
maintaining maximum hydraulic ow. It’s ideal for hydraulic-thirsty

tools such as cold planers.

• Boom and bucket speed rate limits:

– Precision mode limits top speed and provides precise hydraulic

metering for work near critical structures.

– Utility mode delivers smooth and balanced metering for normal

operation.

– Production mode delivers faster joystick response for stockpiling

and loading jobs where precision isn’t as important.

• Switchable control pattern goes from ISO to H-pattern at the touch
of a ngertip.

Optional digital-coded anti-theft system includes automatic end-of-day
activation.

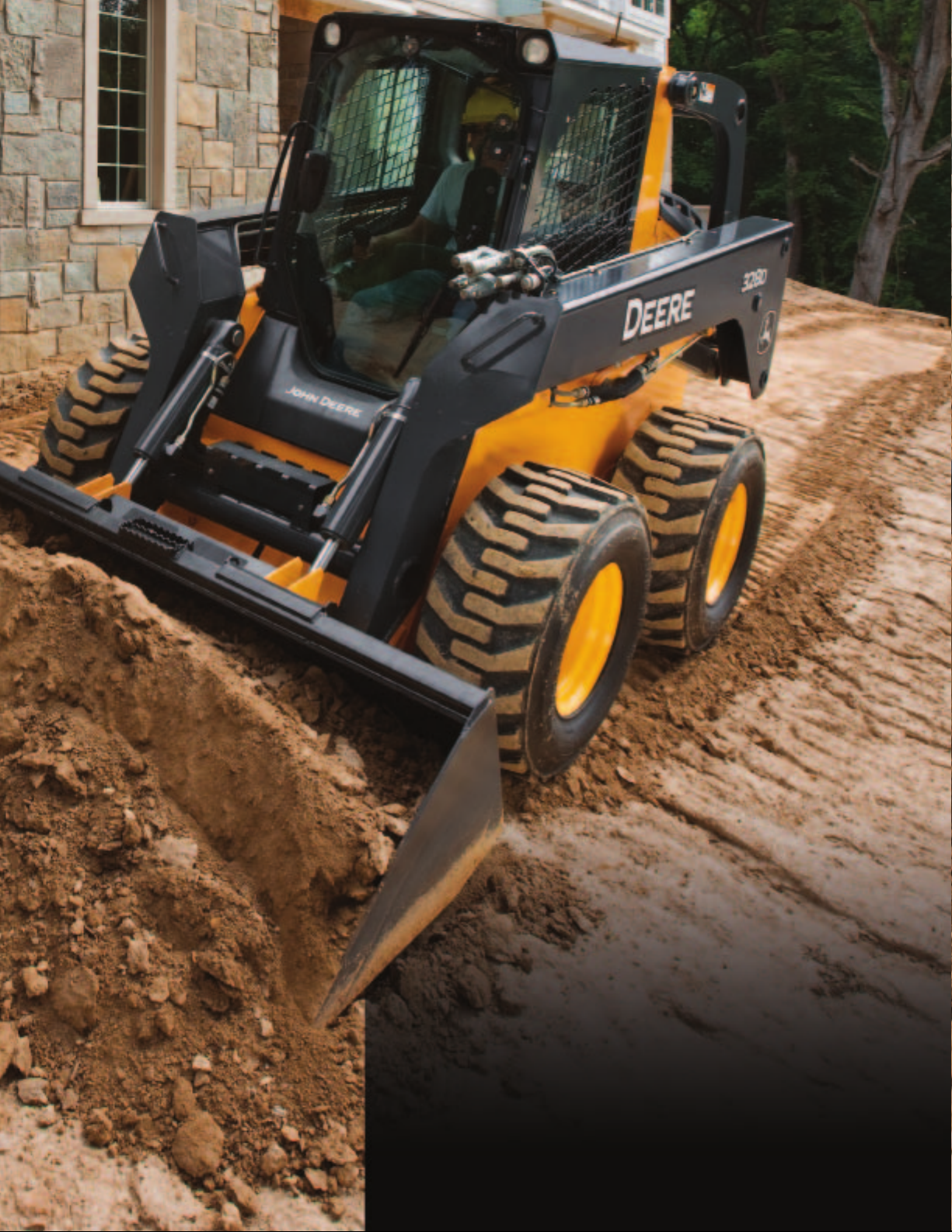

Unsurpassed stability,
unequalled ability.

Want a skid steer that’s more productive? Get one of ours. Optimal weight distribution, low center of gravity, high

ground clearance, and long wheelbase deliver superior stability. But getting there is only half the battle. These skid

steers also excel at putting material in its place. Their patented vertical-lift boom rises to the occasion, delivering

exceptional lift height and reach. So you can do more, with less effort.

1

2

1. Superior axle torque, large standard
tires, and impressive breakout force give
D-Series Skid Steers the leverage to dig in
where others just spin. So they penetrate

dirt piles more easily and ll the bucket

fuller and faster.

2. Thirty-ve degrees of rollback ensure

large bucket loads reach their intended
destination — instead of somewhere

3

8

in-between.

3. Some jobs are a real stretch for other skid
steers. Our patented vertical-lift boom
clears high sideboards and even dumps
to the center of tandem-axle trucks.

9

4

4. Need a skid steer that’s nimble and
quick? Equip any D-Series model with
an optional two-speed transmission and
enjoy faster work cycles and transport.

Fuel-sipping PowerTech™ E diesel engines meet stringent Tier 3 (328D, 332D)
and interim Tier 4 (318D, 320D, 326D) regulations. Exclusive electronic injection

delivers signicant torque rise and more usable power. Saves fuel, reduces noise,

and improves cold starting, too.

Impressive tipping load and rated operating capacities enable D-Series Skid
Steers to precisely place pallets and master an ever-changing variety of
material-handling tasks.

D-Series’ unequalled ability comes from a design that optimizes hydraulics,
lift capabilities, and pushing forces. Plus, they’re still the most stable, and with
generous ground clearance, go where others won’t.

Increased auxiliary ows provide the hydraulic horsepower needed to drive a

wide variety of powered attachments.

Available attachments:

Ag forks
Augers
Backhoes
Bale spears (round, square)
Blades (snow, utility)
Breakers/hammers
Brooms (angle/pickup)
Cold planers
Dozer blades
Grapples (ag utility,
brush-tined, scrap)
Landplanes
Mulching head
Multipurpose buckets
Pallet forks
Power rakes
Rock buckets
Roller levels
Rotary cutter
Rotary tillers
Scrapers (material, manure)
Side-discharge buckets
Snow blowers
Snow pushers
Steel tracks
Trenchers

Vibratory rollers

3-point hitch

10

11

Connect and conquer.

With more than 100 available Worksite Pro™ attachments, we’ve got the connections you need to expand
your business opportunities. D-Series Skid Steers deliver plenty of standard or optional high-ow power to run
hydraulic-thirsty tools such as trenchers and cold planers. And their universal self-cleaning power Quik-Tatch™ lets

you go from bucket to broom to whatever in no time at. What’s more, many Worksite Pro attachments are also

compatible with our compact track loaders, compact excavators, 244J Loader, and 110 Tractor Loader Backhoe.
For maximum versatility and utilization.

1. Like their green and yellow siblings,
our skid steers are prime movers on
the farm. Equipped with spears, tines,
forks, and grapples, they handle a wide
variety of tasks.

2. Blowers, brooms, blades, and pushers
make D-Series Skid Steers naturals
for removing whatever winter drops
your way.

3. Whether you’re cleaning out pens or
re-bedding stalls, we’ve got the manure
scrapers, forks, utility grapples — plus
the side-discharge and other buckets to
get it done.

4. Our offering of nursery and landscape
tools continues to grow and includes
augers, pallet forks, power rakes, land­planes, dozer blades, and roller levels.

1

5. Vibratory rollers, multipurpose buckets,

backhoes, breakers, and cold planers
help you get more done. And undone.

2

3

4

5

Nothing runs like a Deere,
because nothing is built like one.

You work long and hard — and we designed the D-Series to do the same. To boost uptime, we combined proven
John Deere skid steer reliability and durability features with numerous advances such as an innovative V-plenum
cooling system with hydraulically driven fan. Electronic-ignition PowerTech E engines. Heavier-duty power

Quik-Tatch. And beeer booms, upper links, and integrated rear bumpers, to list just a few. When you know how

they’re built, you’ll run a Deere.

12

13

Large cross-section boom arms and heavy-duty upper links deliver the strength
to endure tough tasks for long-term durability.

Spring-applied, hydraulic-released wet-disc park brakes are fully enclosed and
never require adjustment.

O-ring face-seal hydraulic ttings virtually eliminate aggravating and costly
oil leaks.

Switches and electrical connectors are sealed from moisture and dirt to help
prevent corrosion.

Auto-shutdown system monitors engine and hydraulic vitals, and issues an
audible warning when limits are exceeded. If necessary, it shuts down the
machine to help prevent damage.

1

2

3

1. Industry-exclusive design separates

coolers in an innovative V-shape
conguration that’s 20-percent more
efcient. Large aluminum hydraulic

cooler and radiator provide the
necessary cooling capacity for high­ambient temperature operation.

2. Hydraulic-driven variable-speed fan
runs only as fast or frequently as needed

for improved power and fuel efciency.
Decreases noise and debris ow through

the coolers, too. There’s also an exclusive
fan option that reverses automatically
every 20 minutes, or at the click of a
switch, to clear core-clogging buildup.

3. Rear bumper with integral tie-downs and
available heavy-duty rear grille protect
cooling components from run-ins with
obstacles.

14

15

To help conserve fuel and prolong engine life, standard auto-idle reduces engine
speed after the operator has vacated the seat. Full auto-idle (available with EH

controls) slows the engine after ve seconds of inactivity, and resumes preset

engine speed with any movement of the joysticks.

Fluid-ll locations and checkpoints are grouped and color-coded. And a conveniently
displayed maintenance chart helps ensure that nothing gets overlooked.

Getting to the heart of a John Deere is easy. There’s no need to raise the boom —

just pivot the cab and remove the oor. Takes only minutes.

Unique cooler design resists debris buildup and makes radiator and cooler cores
easier to clean.

We’ve lowered the boom
on maintenance.

Servicing a D-Series Skid Steer is simple and quick. So simple, in fact, that you won’t even have to raise the boom for daily
service or most periodic maintenance. Checkpoints are grouped beneath the hinged door, and easily removable side

panels give way to the coolers, maintenance-free battery, and uid and air lters. If necessary, the operator station can

be tilted in minutes for best-in-class drivetrain access. And industry-leading parts and service are just as accessible at
more than 1,200 John Deere dealer locations from coast to coast.

1

3

5

2

4

6

1. Daily servicing is
quick and con­venient. Simply
lift the hood for
ground-level
access to check

uids and refuel.

2. Spin-on lters and

environmental
drains allow quick

uid changes.

3. Through-the­monitor onboard
fault codes and
diagnostics help
speed trouble­shooting.

4. Because no main­tenance beats
low maintenance,
serpentine belt and
hydraulic engine
valve lifters never
require adjust­ment.

5. Hydraulic sight
gauge and see­through coolant
and windshield
washer uid
reservoirs let you
check levels at
a glance.

6. Need extra elbow­room? Raise the
boom for wide­open engine com­partment access.
Unique lock lever
secures the boom
from inside the cab.

318D / 320D

Engine 318D 320D

Manufacturer and Model John Deere PowerTech
Non-Road Emission Standards EPA Interim Tier 4/EU Stage IIIB EPA Interim Tier 4/EU Stage IIIB
Cylinders 4 4
Net Peak Power (ISO 9249) 43.3 kW (58 net hp) at 2,300 rpm 47.1 kW (63 net hp) at 2,300 rpm
Gross Peak Power (ISO 14396) 47.0 kW (63 gross hp) at 2,200 rpm 50.8 kW (68 gross hp) at 2,300 rpm
Net Peak Torque 219 Nm (162 ft.-lb.) at 1,950 rpm 230 Nm (170 ft.-lb.) at 2,000 rpm
Displacement 2.4 L (149 cu. in.) 2.4 L (149 cu. in.)
Rated Engine Speed 2,600 rpm 2,600 rpm
Net Torque Rise 31% at 1,500 rpm 27% at 1,600 rpm
Aspiration Turbocharged and intercooled Turbocharged and intercooled
Air Cleaner Dry dual element Dry dual element

Cooling 318D / 320D

Fan Drive Variable-speed hydraulic drive

Powertrain 318D 320D

Hydrostatic-manual or electrohydraulic; four 80 HD heavy-duty chain, continuous loop
Single Speed 10.9 km/h (6.8 mph) 10.9 km/h (6.8 mph)
Two Speed, High 16.3 km/h (10.1 mph) 17.7 km/h (11.0 mph)
Axles Induction-hardened, one-piece forged axle shafts with maintenance-free oil-bath lubrication of inner

and outer axle bearings
Maximum Axle Torque 6033 Nm (4,450 lb.-ft.) 6406 Nm (4,725 lb.-ft.)
Tractive Effort 3318 kgf (7,315 lbf) 3220 kgf (7,100 lbf)

Final Drive Chains, high strength, adjustment free
Brakes Integral, automatic, spring applied, hydraulically released wet-disc park brake
Hydraulics

Standard Pump Flow 68 L/m (18 gpm) 76 L/m (20 gpm)
Total Pump Flow with High-Flow Option 102 L/m (27 gpm) 117 L/m (31 gpm)
System Pressure at Couplers 21 374 kPa (3,100 psi) 21 374 kPa (3,100 psi)
Hydraulic Horsepower
Standard Flow (calculated) 25 kW (34 hp) 28 kW (38 hp)
High Flow (calculated) 40 kW (54 hp) 46 kW (62 hp)

Cylinders 318D / 320D

John Deere heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Electrical

Voltage 12 volt
Battery Capacity 750 CCA (optional 925 CCA)
Alternator Rating 70 amp

Lights Halogen, 2 front and 1 rear standard
Operator’s Station

ROPS (ISO 3471)/FOPS (ISO 3449) structure with quick-pivot standard

Tires/Wheels 318D 320D

Standard Tire Size 10 x 16.5 8 PR Extra Wall 12 x 16.5 10 PR SKS

Serviceability 318D / 320D

Rell Capacities

Fuel Tank 70.0 L (19.0 gal.)

Operating Weights 318D 320D

Base Machine 2928 kg (6,450 lb.) 2996 kg (6,600 lb.)

TM

E 4024HT John Deere PowerTech E 4024HT

16

17

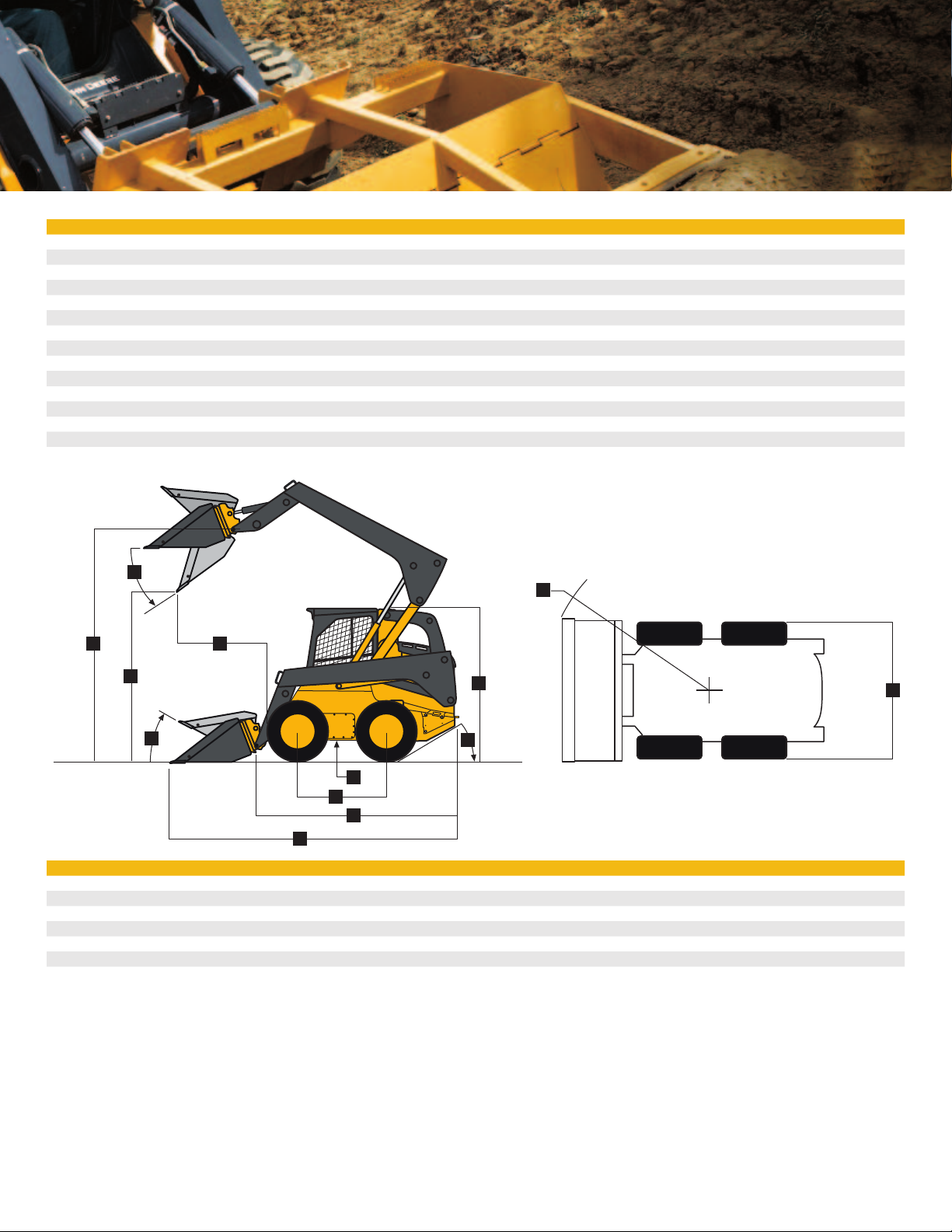

Machine Dimensions 318D 320D
A Length without Bucket 2.74 m (9 ft. 0 in.) 2.74 m (9 ft. 0 in.)
B Length 3.36 m (11 ft. 0 in.) 3.36 m (11 ft. 0 in.)
C Width without Bucket 1.61 m (5 ft. 3 in.) 1.76 m (5 ft. 9 in.)
D Height to Top of ROPS 1.98 m (6 ft. 6 in.) 2.01 m (6 ft. 7 in.)
E Height to Hinge Pin 2.99 m (9 ft. 10 in.) 3.02 m (9 ft. 11 in.)
F Dump Height 2.38 m (7 ft. 10 in.) 2.42 m (7 ft. 11 in.)
G Dump Reach

With Foundry Bucket 760 mm (29.9 in.) 728 mm (28.7 in.)
With Construction Bucket 0.95 m (3 ft. 2 in.) 0.92 m (3 ft. 0 in.)

H Wheelbase 1.07 m (3 ft. 6 in.) 1.07 m (3 ft. 6 in.)
I Ground Clearance 217 mm (8.5 in.) 254 mm (10.0 in.)
J Angle of Departure 25.0 deg. 27.5 deg.
K Front Turn Radius 1.98 m (6 ft. 6 in.) 2.01 m (6 ft. 7 in.)
L Dump Angle (full lift height) 42.0 deg. 42.0 deg.
M Bucket Rollback (ground level) 32.0 deg. 32.0 deg.

L

K

E

F

M

Loader Performance 318D 320D

Tipping Load 1634 kg (3,600 lb.) 1816 kg (4,000 lb.)
SAE Rated Operating Capacity 817 kg (1,800 lb.) 908 kg (2,000 lb.)
Rated Operating Capacity (with one set of counterweights) 885 kg (1,950 lb.) 976 kg (2,150 lb.)
Boom Breakout 1589 kg (3,500 lb.) 1589 kg (3,500 lb.)
Bucket Breakout Force 2327 kg (5,125 lb.) 2327 kg (5,125 lb.)

G

D

J

I

H

A

B

C

326D / 328D / 332D

Engine 326D 328D 332D

Manufacturer and Model John Deere PowerTech
Non-Road Emission Standards EPA Interim Tier 4/EU Stage IIIB EPA Tier 3/EU Stage IIIA EPA Tier 3/EU Stage IIIA
Cylinders 5 5 5
Net Peak Power (ISO 9249) 51.9 kW (70 hp) at 2,000 rpm 59.6 kW (80 hp) at 2,000 rpm 66.7 kW (89 hp) at 2,400 rpm
Gross Peak Power (ISO 14396) 55.1 kW (74 hp) at 2,800 rpm 63.4 kW (85 hp) at 2,200 rpm 71.1 kW (95 hp) at 2,400 rpm
Net Peak Torque 256 Nm (189 ft.-lb.) at 2,050 rpm 300 Nm (221 ft.-lb.) at 2,000 rpm 341 Nm (252 ft.-lb.) at 1,950 rpm
Displacement 3.0 L (186 cu. in.) 3.0 L (186 cu. in.) 3.0 L (186 cu. in.)
Rated Engine Speed 2,800 rpm 2,800 rpm 2,600 rpm
Net Torque Rise 36.0% at 1,400 rpm 43.0% at 1,700 rpm 36.9% at 1,680 rpm
Aspiration Turbocharged and intercooled Turbocharged and intercooled Turbocharged and intercooled
Air Cleaner Dry dual element Dry dual element Dry dual element

Cooling 326D / 328D / 332D

Fan Drive Variable-speed hydraulic drive

Powertrain 326D 328D 332D

Hydrostatic-servo control or electrohydraulic; four 100 HD heavy-duty chain, continuous loop
Single Speed 11.3 km/h (7.0 mph) 11.3 km/h (7.0 mph) 11.3 km/h (7.0 mph)
Two Speed, High 17.7 km/h (11.0 mph) 19.3 km/h (12.0 mph) 19.3 km/h (12.0 mph)
Axles Induction-hardened, one-piece forged axle shafts with maintenance-free oil-bath lubrication of inner

and outer axle bearings
Maximum Axle Torque 7725 Nm (5,680 lb.-ft.) 8480 Nm (6,235 lb.-ft.) 9289 Nm (6,830 lb.-ft.)
Tractive Effort 3958 kgf (8,725 lbf) 3905 kgf (8,610 lbf) 4218 kgf (9,300 lbf)

Final Drive Chains, high strength, adjustment free
Brakes Spring-applied, hydraulically released wet-disc park brake
Hydraulics

Standard Pump Flow 80 L/m (21 gpm) 80 L/m (21 gpm) 95 L/m (25 gpm)
Total Pump Flow with High-Flow Option 125 L/m (33 gpm) 132 L/m (35 gpm) 144 L/m (38 gpm)
System Pressure at Couplers 23 787 kPa (3,450 psi) 23 787 kPa (3,450 psi) 23 787 kPa (3,450 psi)
Hydraulic Horsepower
Standard Flow (calculated) 34 kW (46 hp) 34 kW (46 hp) 40 kW (53 hp)
High Flow (calculated) 54 kW (72 hp) 57 kW (77 hp) 61 kW (82 hp)

Cylinders 326D / 328D / 332D

John Deere heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Electrical

Voltage 12 volt
Battery Capacity 925 CCA
Alternator Rating 70 amp

Lights Halogen, 2 front and 1 rear standard
Operator’s Station

ROPS (ISO 3471)/FOPS (ISO 3449) structure with quick-pivot standard

Tires/Wheels 326D 328D 332D

Standard Tire Size 12 x 16.5 10 PR Extra Wall 14 x 17.5 12 PR Extra Wall 14 x 17.5 14 PR Hauler

Serviceability 326D / 328D / 332D

Rell Capacities

Fuel Tank 110.5 L (29.0 gal.)

Operating Weights 326D 328D 332D

Base Machine 3689 kg (8,125 lb.) 3814 kg (8,400 lb.) 4163 kg (9,170 lb.)

TM

E 5030HT John Deere PowerTech E 5030HT John Deere PowerTech E 5030HT

18

19

Machine Dimensions 326D 328D 332D
A Length without Bucket 2.99 m (9 ft. 10 in.) 2.99 m (9 ft. 10 in.) 2.99 m (9 ft. 10 in.)
B Length 3.60 m (11 ft. 10 in.) 3.60 m (11 ft. 10 in.) 3.60 m (11 ft. 10 in.)
C Width without Bucket 1.84 m (6 ft. 1 in.) 1.95 m (6 ft. 5 in.) 1.99 m (6 ft. 6 in.)
D Height to Top of ROPS 2.12 m (6 ft. 11 in.) 2.15 m (7 ft. 1 in.) 2.15 m (7 ft. 1 in.)
E Height to Hinge Pin 3.18 m (10 ft. 5 in.) 3.22 m (10 ft. 7 in.) 3.23 m (10 ft. 7 in.)
F Dump Height 2.54 m (8 ft. 4 in.) 2.57 m (8 ft. 5 in.) 2.59 m (8 ft. 6 in.)
G Dump Reach

With Foundry Bucket 838 mm (33.0 in.) 796 mm (31.3 in.) 803 mm (31.6 in.)
With Construction Bucket 1.02 m (3 ft. 4 in.) 0.98 m (3 ft. 3 in.) 0.98 m (3 ft. 3 in.)

H Wheelbase 1.23 m (4 ft. 0 in.) 1.23 m (4 ft. 0 in.) 1.23 m (4 ft. 0 in.)
I Ground Clearance 245 mm (9.7 in.) 295 mm (11.6 in.) 275 mm (10.8 in.)
J Angle of Departure 28 deg. 31 deg. 31 deg.
K Front Turn Radius 2.17 m (7 ft. 1 in.) 2.17 m (7 ft. 1 in.) 2.17 m (7 ft. 1 in.)
L Dump Angle (full lift height) 45 deg. 45 deg. 45 deg.
M Bucket Rollback (ground level) 35 deg. 35 deg. 35 deg.

L

K

E

F

M

Loader Performance 326D 328D 332D

Tipping Load 2361 kg (5,200 lb.) 2542 kg (5,600 lb.) 2906 kg (6,400 lb.)*
SAE Rated Operating Capacity 1180 kg (2,600 lb.) 1271 kg (2,800 lb.) 1453 kg (3,200 lb.)
Rated Operating Capacity (with one set of counterweights) 1249 kg (2,750 lb.) 1339 kg (2,950 lb.) 1521 kg (3,350 lb.)
Boom Breakout 2270 kg (5,000 lb.) 2270 kg (5,000 lb.) 2996 kg (6,600 lb.)
Bucket Breakout Force 3519 kg (7,750 lb.) 4676 kg (10,300 lb.) 6299 kg (13,875 lb.)

*With one-set standard counterweight.

G

D

J

I

H

A

B

C

Additional equipment

Key: l Standard s Optional or special See your John Deere dealer for fur ther information.

318 320 326 328 332 Engine

l l l

l l

l l

l l l

l l l l l
l l l l l

l l l l l
l l l l l

l l l l l

l l l l l

l l l l l

s s s s s

l l l l l
l l l l l

s s s s s

l l l l l

l l l l l

l l l l l
s s s s s

l l l l l

l l l l l

l l l l l
s s s s s

l l l l l

l l l l l

Meets EPA Interim
Tier 4/EU Stage IIIB
emissions
Meets EPA Tier 3/EU
Stage IIIA emissions
John Deere PowerTech™
E 4024HT
John Deere PowerTech E
5030HT
Auto-idle

Automatic fan-belt
tensioner
Automatic preheat

Electronic injection
system
John Deere COOL-GARD™
II Extended-Life Engine
Coolant
John Deere Plus-50™
10w30 initial engine

oil ll*

5-micron primary fuel

lter and water separator

Cold-weather starting
package

Cooling System

Coolant recovery tank
Variable-speed hydrau-

lically driven fan cooling
system
Reversing fan drive

Powertrain

High-strength adjust-

ment-free nal-drive

chains
Spring-applied hydrau­lically released wet-disc
park brake
Wet-disc brakes
Transmission, 2-speed

Hydraulic System

John Deere hydraulic
cylinders with cushioned
boom cylinders
Quick-check hydraulic

uid-level sight glass
5-micron hydraulic lter
High-ow hydraulics

Electrical

Automatic shutdown
with alarm
Auxiliary hydraulics oper­ator-presence system

318 320 326 328 332 Electrical (continued)

l l l l l

l l l l l

l l l l l

s s s s s
s s s s s
l l
s s l l l
s s s s s
s s s s s
s s s s s

l l l l l
l l l l l
l l l l l

l l l l l
l l l l l
l l l l l
l l l l l
l l l l l

l l l l l

s s s s s

s s s s s
l l l l l
s s s s s
l l l l l

s s s s s

Deluxe instrumentation
EMU with: Operator­selectable monitoring –
Hour meter, engine rpm,
battery voltage, diag­nostics, EMU congu-
ration, engine coolant
temperature, hydraulic
oil temperature / LED
warning indicators –
Glow plug, seat switch,
seat belt, door open,
auxiliary hydraulics, park
brake engaged, 2-speed
engaged, stop, low
engine oil pressure,
engine coolant over­temperature, battery

not charging, air lter

restriction, hydraulic

lter restriction

Front and rear halogen
work lights
Triple interlock operator­presence control system
Anti-theft system

Backup alarm
Battery, 750 CCA
Battery, 925 CCA
Hazard warning lights
Strobe light, amber
Horn

Operator’s Station

Adjustable foot pedals
Deluxe cab headliner
Electronic push-button

auxiliary controls
Grab handles (4)
Pull-down lap bar
Quick-pivot ROPS
Rear window
ROPS/FOPS operator
structure
Seat belt, 76-mm (2-in.),
retractable
Seat belt, 51-mm (3-in.),
retractable
Shoulder belt
Top window
Removable top window
Water-shedding deluxe
vinyl seat
Deluxe vinyl suspension
seat

318 320 326 328 332 Operator’s Station

s s s s s
l l l l l

s s s s s

s s s s s
s s s s s

s s s s s
s s s s s

s s s s s

s s s s s
s s s s s

s s s s s

s s s s s
s s s s s
s s s s s

l l l l l
l l l l l

s s s s s
l l l l l

s s s s s

l l l l l

l l l l l

s s s s s
s s s s s**

s s s s s
s s s s s
s s s s s
s s s s s

*500-hour engine oil-change intervals when John Deere Plus-50 oil

and John Deere oil lter are used.

**Standard equipped with one [1] set.

(continued)

Air-ride (cloth) seat
12-volt power port /

Dome light / Cargo stor­age / Beverage holder
Air conditioning with
heater/defroster
Heater with defroster

AM/FM/weatherband
radio with auxiliary input
Cab enclosure

Electrohydraulic joystick
controls
Electrohydraulic perfor­mance package (includes
creeper mode, switchable
ISO-H pattern control,
and boom/bucket speed
set with attachment
controller)
Floor mat

Floor mat with left
footrest
Hand controls with foot
throttle
Rearview mirror

Severe-duty cab door
Heavy-duty rear grille

Loader

Integral cab boom lock
Patented John Deere

Quik-Tatch™ (no grease
required)
Power Quik-Tatch

Patented John Deere
vertical-lift boom with
superior visibility
Hydraulic self-leveling
on/off

Other

Convenient front and
rear tie-downs
Environmental drains

for all uid reservoirs

Chrome exhaust stack
Modular rear-weight

packages
Single-point lift kit
SMV sign kit
Spare tire and wheel
Tire options: Flotation /
Solid / Heavy duty

Net eng ine pow er is wit h standard eq uipmen t including air c leane r, exhaust system, al ternator, and cooling f an, at standard cond ition s per SAE J1349 and DIN 6270 B,

using No. 2-D fuel a t 35 API g ravi ty. Gross pow er is wit hout cooling f an. Specic ations and de sign subject to change with out notice. Whereve r applicable,

speci cations are in accordance wi th SAE standards. Excep t where o ther wise noted, t hese speci cations are b ased on u nits w ith st andar d equipment, f ull fuel tank s,

DK ADSSC WP Lith o in U.S. A. (10-10)

and 79-kg (175-lb.) operato r.

www.JohnDeere.com
