Jenn-Air JDSP548HL, JDSP536HL Quick Guide

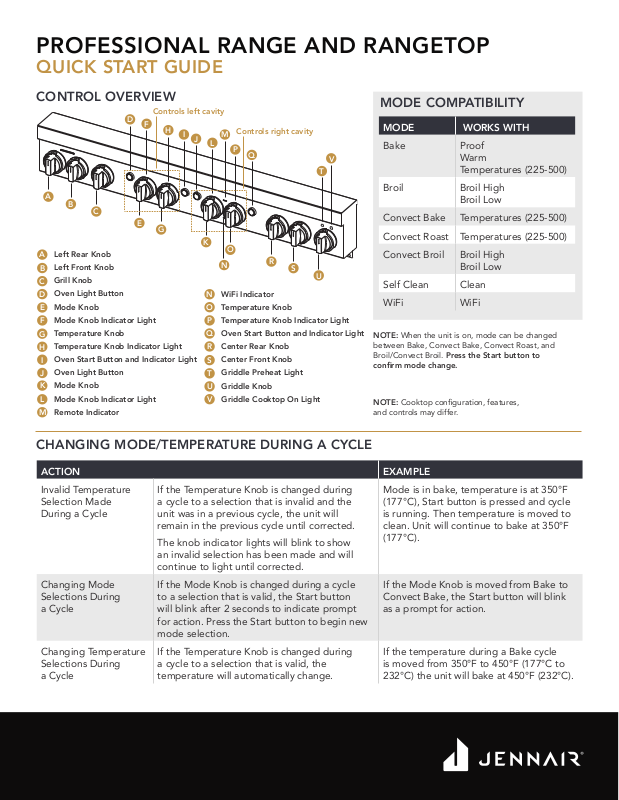

PROFESSIONAL RANGE AND RANGETOP

QUICK START GUIDE

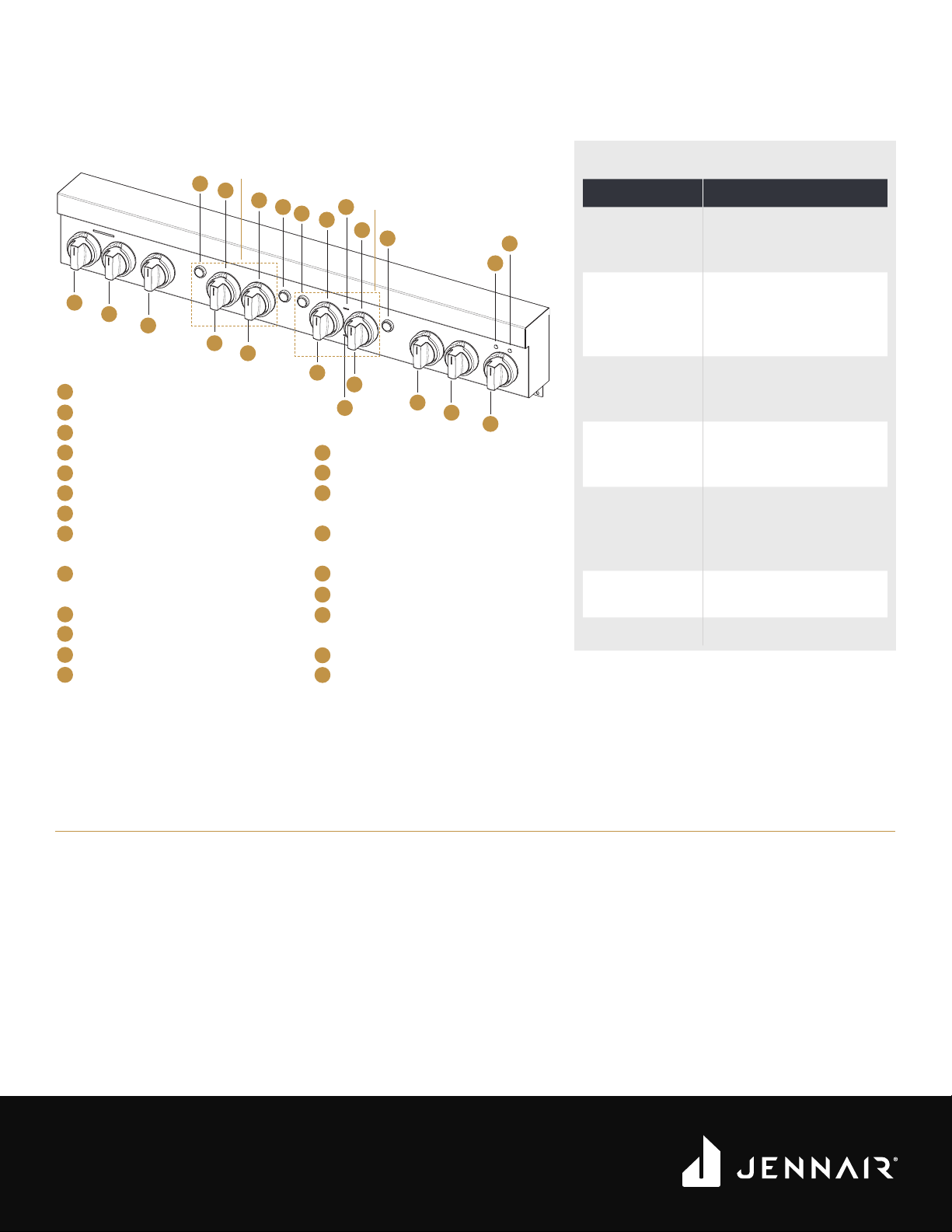

CONTROL OVERVIEW

Controls left cavity

Left Rear Knob

Left Front Knob

Grill Knob

Oven Light Button

Mode Knob

Mode Knob Indicator Light

Temperature Knob

Temperature Knob Indicator Light

Oven Start Button and Indicator Light

Oven Light Button

Mode Knob Mode Knob Indicator Light

Remote Indicator

MODE COMPATIBILITY

Controls right cavity

WiFi Indicator

Temperature Knob

Temperature Knob Indicator Light

Oven Start Button and Indicator Light

Center Rear Knob

Center Front Knob

Griddle Preheat Light

Griddle Knob

Griddle Cooktop On Light

MODE WORKS WITH

Bake Proof

Warm Temperatures (225-500)

Broil Broil High

Broil Low

Convect Bake Temperatures (225-500)

Convect Roast Temperatures (225-500)

Convect Broil Broil High

Broil Low

Self Clean Clean

WiFi WiFi

NOTE: When the unit is on, mode can be changed between Bake, Convect Bake, Convect Roast, and Broil/Convect Broil. Press the Start button to conrm mode change.

NOTE: Cooktop conguration, features, and controls may differ.

CHANGING MODE/TEMPERATURE DURING A CYCLE

ACTION EXAMPLE

Invalid Temperature Selection Made During a Cycle

Changing Mode Selections During a Cycle

Changing Temperature Selections During a Cycle

If the Temperature Knob is changed during a cycle to a selection that is invalid and the unit was in a previous cycle, the unit will remain in the previous cycle until corrected.

The knob indicator lights will blink to show an invalid selection has been made and will continue to light until corrected.

If the Mode Knob is changed during a cycle to a selection that is valid, the Start button will blink after 2 seconds to indicate prompt for action. Press the Start button to begin new mode selection.

If the Temperature Knob is changed during a cycle to a selection that is valid, the temperature will automatically change.

Mode is in bake, temperature is at 350°F (177°C), Start button is pressed and cycle is running. Then temperature is moved to clean. Unit will continue to bake at 350°F (177°C).

If the Mode Knob is moved from Bake to Convect Bake, the Start button will blink as a prompt for action.

If the temperature during a Bake cycle is moved from 350°F to 450°F (177°C to 232°C) the unit will bake at 450°F (232°C).

TONES

A tone will sound when:

• The unit is powered on

• The unit switches to off mode

• A valid mode and temperature selection has been made and the Start button is pressed to begin a cycle

• An invalid Start button selection is made

• There is an error with the unit

• Preheating has been completed

• The timer from the app has ended (the tone will sound every ve minutes until the timer is stopped)

• A WiFi event is occurring

• The Meat probe connects/disconnects

WIFI CONNECTIVITY

WiFi Connectivity and Remote Operation

Models are provided with a WiFi module that allows the unit to be remotely operated. The control is capable of monitoring and performing remote operations once the remote enabling function sequence is properly initiated at the appliance.

Download the App

The rst step to get your appliance connected is to download the

app on your mobile device. The app will be your guide and walk you through all of the steps. Download the app by visiting Google Play or iTunes.

To connect your appliance:

1. Follow the prompts in the app to create an account.

2. Locate SAID Label, refer to right side of front frame.

For more information on WiFi Connectivity, reference the Use and Care Guide.

LIGHT INDICATORS AND BEHAVIORS

FUNCTION USE & LIGHT BEHAVIOR

Start Button The Start button will ash white after 2 seconds to prompt the user to press start after the mode

and temperature have been selected. If no action is taken after 2 minutes, a tone will sound and the unit will timeout and return to idle mode. To exit idle mode, re-select a mode and temperature before pressing start.

If an invalid knob combination has been chosen and the Start button is pressed, the indicator light will quickly blink and a tone will sound to indicate that the chosen selection is invalid. See the functions table for valid selections. Set mode and temperature knobs to desired selection. The Start button will blink white when ready. Press the Start button to begin cycle.

WiFi Indicator Light The WiFi indicator light illuminates white when the unit is WiFi enabled.

All lights will turn off in Idle mode.

Remote Indicator Light

Temp/Mode Knob Indicator Light

The Remote indicator light illuminates white when the unit is remote enabled. All lights will turn off in Idle mode.

When a temp or setting is selected, and the mode is valid, the temp/mode indicator lights will illuminate white. When the Start button has been pressed, the knob indicator light will turn white and pulse until preheat is completed. The light will turn solid white and a tone will sound when preheat is complete. If there is no preheat for a cycle, the preheat completes immediately and the light turns solid white.

If an invalid mode and temperature combination has been selected, the knob light will quickly blink and a tone will sound prompting the user to select a valid combination. The indicator light will continue to blink and a tone will sound every 30 seconds until the error is xed or timeout after 2 minutes of inactivity.

The temperature knob will blink amber if the oven is too hot to proof or if a 100+ degree decrease in temperature is in progress i.e. changing from Bake 450 to Bake 350.

Griddle Cooktop On Light

Griddle Preheat Light

Right Griddle indicator light - The Griddle Cooktop On light illuminates blue when the griddle knob is powered on.

Left Griddle indicator light - The griddle Preheat light ashes blue while the griddle is preheating. Once preheat temperature has been reached, the indicator light turns solid blue.

W11177312A JC180052
