Skytile® Direct/Indirect

Important warranty information

This product is supported by a 2-year standard warranty which will extend to 5-years if registered within the first year of pu
Please register at jcc.co.uk/warranty (Terms and conditions apply).

The installer will be asked to provide the following information, which is detailed on a label attached to the luminaire’s chas
Product Code/Date Code.

59

595

Technical Support: [phone] Customer Services: [phone]

BS EN ISO9001 - 2015 - Registered Firm Certificate No. GB 1552

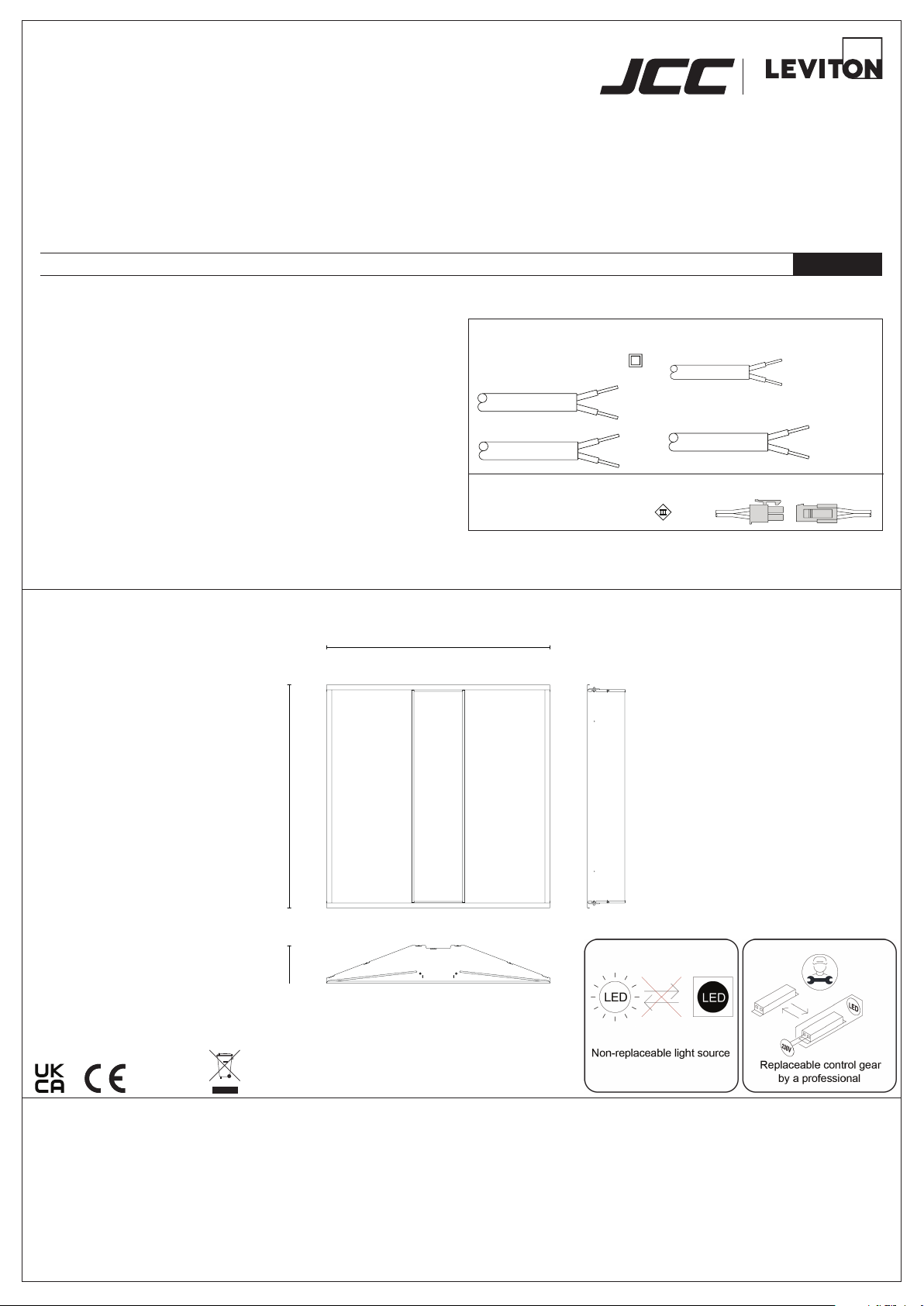

Installation instructions for Skytile® recessed LED panels

Warnings & Cautions

a

• It is recommended that luminaires are installed by a qualied
electrician to ensure the installation complies with the local current
wiring regulations.

• Any broken or damaged parts should be replaced as soon as possible.

JCC will not accept responsibility for claims arising from sub-standard

installations.

INSTALLATION

• Read instructions and check that you have all of the tools and accessories required to complete the installation correctly. Isolate power supply
before starting the installation.

Specication: Ra: 80
Wattage: 35 Watts
CCT: 4000K

Installation

1. Remove the ceiling tile or tiles from the location where you wish to install

the LED panel.

2. Wire the LED driver to the mains supply as indicated in gure 1., connect

DALI or 1-10V dimming controls where required.

3. Move LED panel into the ceiling aperture and when positioned halfway

connect the driver low voltage output to the LED panel (luminaire) as
shown in gure 1.a.

4. Position the LED panel into place in the grid ceiling.

5. Reconnect mains power supply and test for operation.

You can help protect the environment. Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate

waste disposal centre. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the
recyclable material collection service.

• This product is for indoor use only and should not be covered by any
insulated material.

• It may be necessary to upgrade your MCBs to allow for increased inrush
current.

• This product is designed for connection to a 220-240V~ 50/60Hz.

ENGLISH

Luminiare connection

220-240V 50/60Hz / Class II

DSI control wires

DALI control wires

Figure 1.a. Luminaire connection

1050mA/27-38V DC / Class III

DSI +

DSI -

DA

DA

Figure 1. Mains Input Cable

1-10V control wires

Plug & Play Connectors

Neutral: Blue

Live: Brown

1-10V+

1-10V-

Prole & Dimensions

5

101

All dimensions in millimetres

RoHS

Compliant

JCC Lighting Products Ltd. Lux Park, Chichester Business Park, City Fields Way, Tangmere, Chichester, West Sussex, PO20 2FT

IP20

jcc.co.uk

rchase.

sis:

V5_April_22_RS
