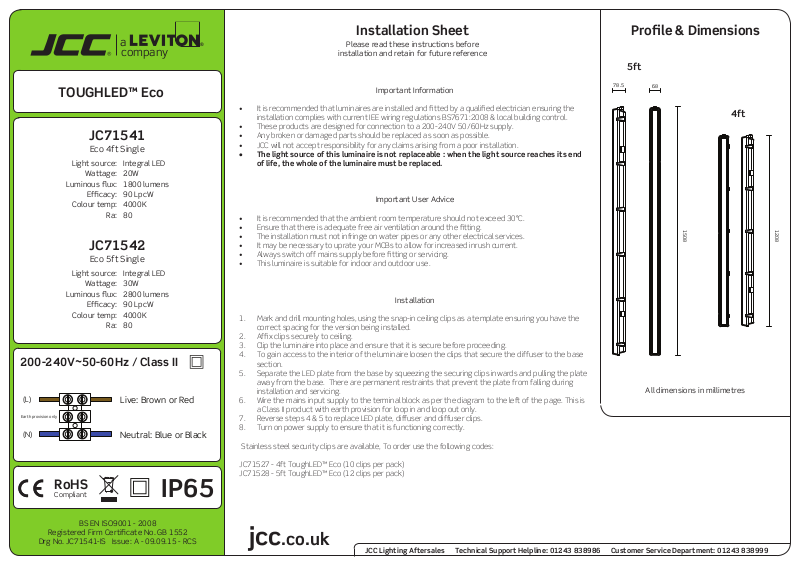

Installation Sheet
a
Please read these instructions before
installation and retain for future reference
Prole & Dimensions
5ft
TOUGHLED™ Eco
JC71541
Eco 4ft Single
Light source:
Wattage:
Luminous ux:
Efcacy:
Colour temp:
Integral LED
20W
1800 lumens
90 LpcW
4000K
Ra:
80
JC71542
Eco 5ft Single
Light source:
Wattage:
Luminous ux:
Efcacy:
Colour temp:
200-240V~50-60Hz / Class II
(L)
(N)
Integral LED
30W
2800 lumens
90 LpcW
4000K
Ra:
80
Live: Brown or Red
Important Information
• It is recommended that luminaires are installed and tted by a qualied electrician ensuring the
installation complies with current IEE wiring regulations BS7671:2008 & local building control.
• These products are designed for connection to a 200-240V 50/60Hz supply.
• Any broken or damaged parts should be replaced as soon as possible.
• JCC will not accept responsibility for any claims arising from a poor installation.
• The light source of this luminaire is not replaceable : when the light source reaches its end
of life, the whole of the luminaire must be replaced.
Important User Advice
• It is recommended that the ambient room temperature should not exceed 30°C.
• Ensure that there is adequate free air ventilation around the tting.
• The installation must not infringe on water pipes or any other electrical services.
• It may be necessary to uprate your MCBs to allow for increased inrush current.
• Always switch off mains supply before tting or servicing.
• This luminaire is suitable for indoor and outdoor use.
Installation
1. Mark and drill mounting holes, using the snap-in ceiling clips as a template ensuring you have the
correct spacing for the version being installed.
2. Afx clips securely to ceiling.
3. Clip the luminaire into place and ensure that it is secure before proceeding.
4. To gain access to the interior of the luminaire loosen the clips that secure the diffuser to the base
section.
5. Separate the LED plate from the base by squeezing the securing clips inwards and pulling the plate
away from the base. There are permanent restraints that prevent the plate from falling during
installation and servicing.
6. Wire the mains input supply to the terminal block as per the diagram to the left of the page. This is
a Class II product with earth provision for loop in and loop out only.
7. Reverse steps 4 & 5 to replace LED plate, diffuser and diffuser clips.
8. Turn on power supply to ensure that it is functioning correctly.
Stainless steel security clips are available, To order use the following codes:
68
4ft
1508
All dimensions in millimetres
RoHS
Compliant IP65
Registered Firm Certicate No. GB 1552
Drg No. JC71541-IS Issue: A - 09.09.15 - RCS
BS EN ISO9001 - 2008
JC71527 - 4ft ToughLED™ Eco (10 clips per pack)
JC71528 - 5ft ToughLED™ Eco (12 clips per pack)
jcc.co.uk
JCC Lighting Aftersales Technical Support Helpline: 01243 838986 Customer Service Department: 01243 838999
