Unswitched Live: Black
Neutral: Blue
Black
Brown
Blue
1A Fused Unswitched Live
Fig. 2
Fig. 3
Plug & Play Connector - LED Panel
Mains supply to LED Driver
Plug & Play Connector - LED Driver
Red/Black
Blue/Brown
Black/Dash White
Black/Dash White
Suppl
Ceiling Grid
LED Driver
595
595
9.8
company

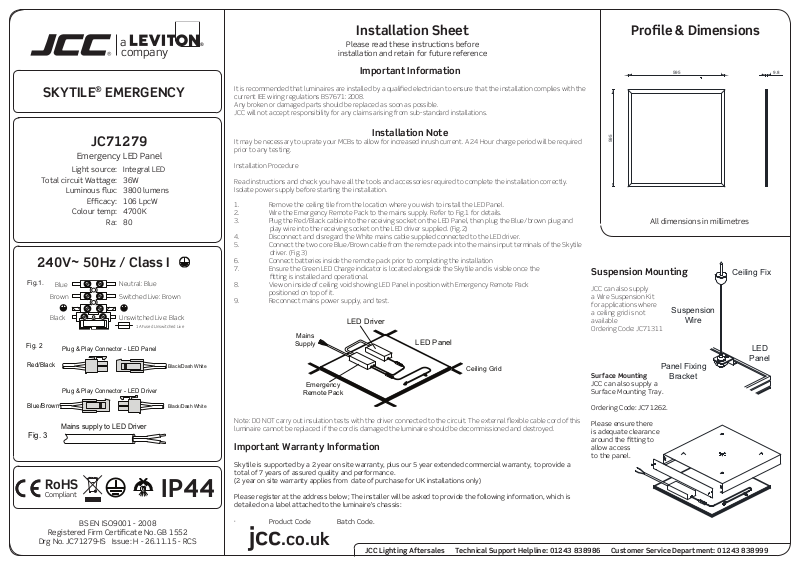

Installation Sheet
a
Please read these instructions before
Prole & Dimensions
installation and retain for future reference
Important Information
SKYTILE® EMERGENCY
JC71279
Emergency LED Panel
Light source:
Total circuit Wattage:
Luminous ux:
Efcacy:
Colour temp:
Integral LED
36W
3800 lumens
106 LpcW
4700K
Ra:
80
240V~ 50Hz / Class I
Fig.1.
Switched Live: Brown
RoHS
Compliant IP44
BS EN ISO9001 - 2008
Registered Firm Certicate No. GB 1552
Drg No. JC71279-IS Issue: H - 26.11.15 - RCS
It is recommended that luminaires are installed by a qualied electrician to ensure that the installation complies with the
current IEE wiring regulations BS7671: 2008.
Any broken or damaged parts should be replaced as soon as possible.
JCC will not accept responsibility for any claims arising from sub-standard installations.
Installation Note
It may be necessary to uprate your MCBs to allow for increased inrush current. A 24 Hour charge period will be required
prior to any testing.
Installation Procedure
Read instructions and check you have all the tools and accessories required to complete the installation correctly.
Isolate power supply before starting the installation.
1. Remove the ceiling tile from the location where you wish to install the LED Panel.
2. Wire the Emergency Remote Pack to the mains supply. Refer to Fig.1 for details.
3. Plug the Red/Black cable into the receiving socket on the LED Panel, then plug the Blue/brown plug and
play wire into the receiving socket on the LED driver supplied. (Fig.2)
4. Disconnect and disregard the White mains cable supplied connected to the LED driver.
5. Connect the two core Blue/Brown cable from the remote pack into the mains input terminals of the Skytile
driver. (Fig.3)
6. Connect batteries inside the remote pack prior to completing the installation
7. Ensure the Green LED Charge indicator is located alongside the Skytile and is visible once the
tting is installed and operational.
8. View on inside of ceiling void showing LED Panel in position with Emergency Remote Pack
positioned on top of it.
9. Reconnect mains power supply, and test.
Mains
y
Emergency
Remote Pack
Note: DO NOT carry out insulation tests with the driver connected to the circuit. The external exible cable cord of this
luminaire cannot be replaced: if the cord is damaged the luminaire should be decommissioned and destroyed.
LED Panel
Important Warranty Information
Skytile is supported by a 2 year on site warranty, plus our 5 year extended commercial warranty, to provide a
total of 7 years of assured quality and performance.
(2 year on site warranty applies from date of purchase for UK installations only)
Please register at the address below; The installer will be asked to provide the following information, which is
detailed on a label attached to the luminaire’s chassis:
· Product Code Batch Code.
jcc.co.uk
JCC Lighting Aftersales Technical Support Helpline: 01243 838986 Customer Service Department: 01243 838999
All dimensions in millimetres
Suspension Mounting
JCC can also supply
a Wire Suspension Kit
for applications where
a ceiling grid is not
available
Ordering Code: JC71311
Surface Mounting
JCC can also supply a
Surface Mounting Tray.
Ordering Code: JC71262.
Please ensure there
is adequate clearance
around the tting to
allow access
to the panel.
Suspension
Panel Fixing
Bracket
Ceiling Fix
Wire
LED
Panel
