company

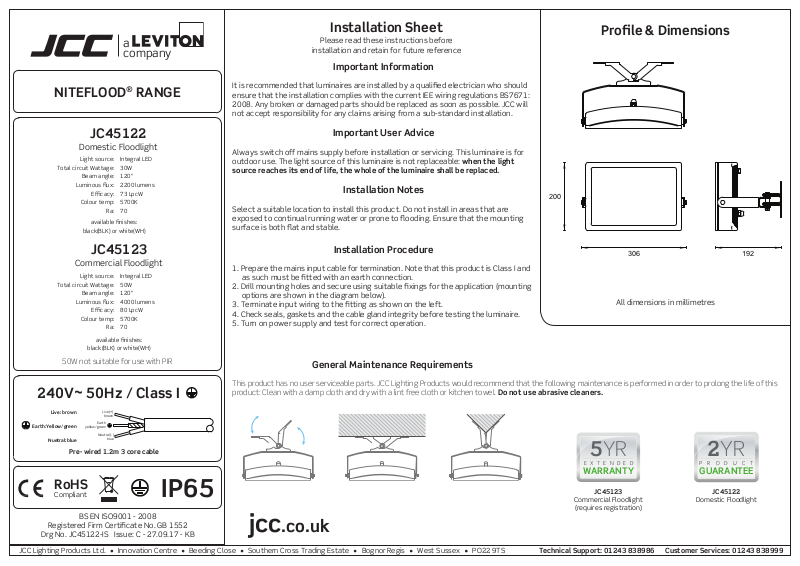

Installation Sheet
Live (+)
306
192
20
a
Please read these instructions before
installation and retain for future reference
Prole & Dimensions
NITEFLOOD® RANGE
JC45122
Domestic Floodlight
Light source:
Total circuit Wattage:
Beam angle:
Luminous ux:
Efcacy:
Colour temp:
available nishes:
black(BLK) or white(WH)
Ra:
Integral LED
30W
120°
2200 lumens
73 LpcW
5700K
70
JC45123
Commercial Floodlight
Light source:
Total circuit Wattage:
Beam angle:
Luminous ux:
Efcacy:
Colour temp:
black(BLK) or white(WH)
50W not suitable for use with PIR
Integral LED
50W
120°
4000 lumens
80 LpcW
5700K
Ra:
70
available nishes:
Important Information
It is recommended that luminaires are installed by a qualied electrician who should
ensure that the installation complies with the current IEE wiring regulations BS7671:
2008. Any broken or damaged parts should be replaced as soon as possible. JCC will
not accept responsibility for any claims arising from a sub-standard installation.
Important User Advice
Always switch off mains supply before installation or servicing. This luminaire is for
outdoor use. The light source of this luminaire is not replaceable: when the light
source reaches its end of life, the whole of the luminaire shall be replaced.
Installation Notes
Select a suitable location to install this product. Do not install in areas that are
exposed to continual running water or prone to ooding. Ensure that the mounting
surface is both at and stable.
Installation Procedure
1. Prepare the mains input cable for termination. Note that this product is Class I and
as such must be tted with an earth connection.
2. Drill mounting holes and secure using suitable xings for the application (mounting
options are shown in the diagram below).
3. Terminate input wiring to the tting as shown on the left.
4. Check seals, gaskets and the cable gland integrity before testing the luminaire.
5. Turn on power supply and test for correct operation.
General Maintenance Requirements
0
All dimensions in millimetres
This product has no user serviceable parts. JCC Lighting Products would recommend that the following maintenance is performed in order to prolong the life of this
product: Clean with a damp cloth and dry with a lint free cloth or kitchen towel. Do not use abrasive cleaners.
5YR
EXTENDED
WARRANTY
JC45123
Commercial Floodlight
(requires registration)
2YR
PRODUCT
GUARANTEE
JC45122
Domestic Floodlight
240V~ 50Hz / Class I
Live: brown
Earth:Yellow/green
Nuetral:blue
Pre- wired 1.2m 3 core cable
RoHS
Compliant IP65
Earth
yellow/green
Neutral (-)
brown
blue
BS EN ISO9001 - 2008
Registered Firm Certicate No. GB 1552
Drg No. JC45122-IS Issue: C - 27.09.17 - KB
JCC Lighting Products Ltd. Innovation Centre Beeding Close Southern Cross Trading Estate Bognor Regis West Sussex PO22 9TS Technical Support: 01243 838986 Customer Services: 01243 838999
