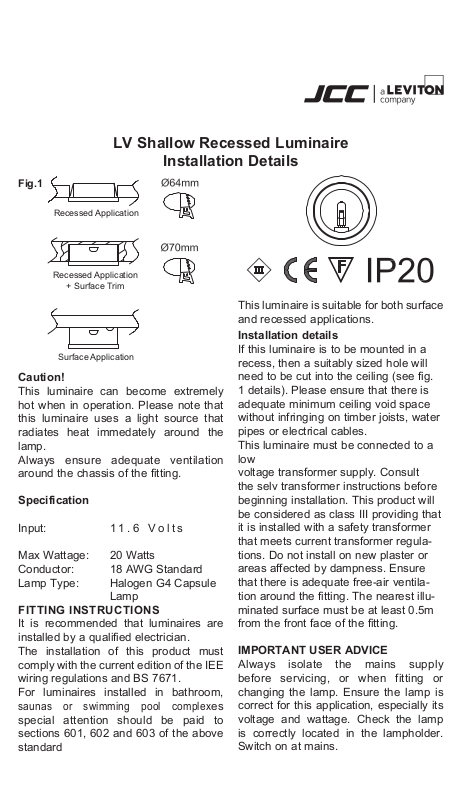

LV Shallow Recessed Luminaire

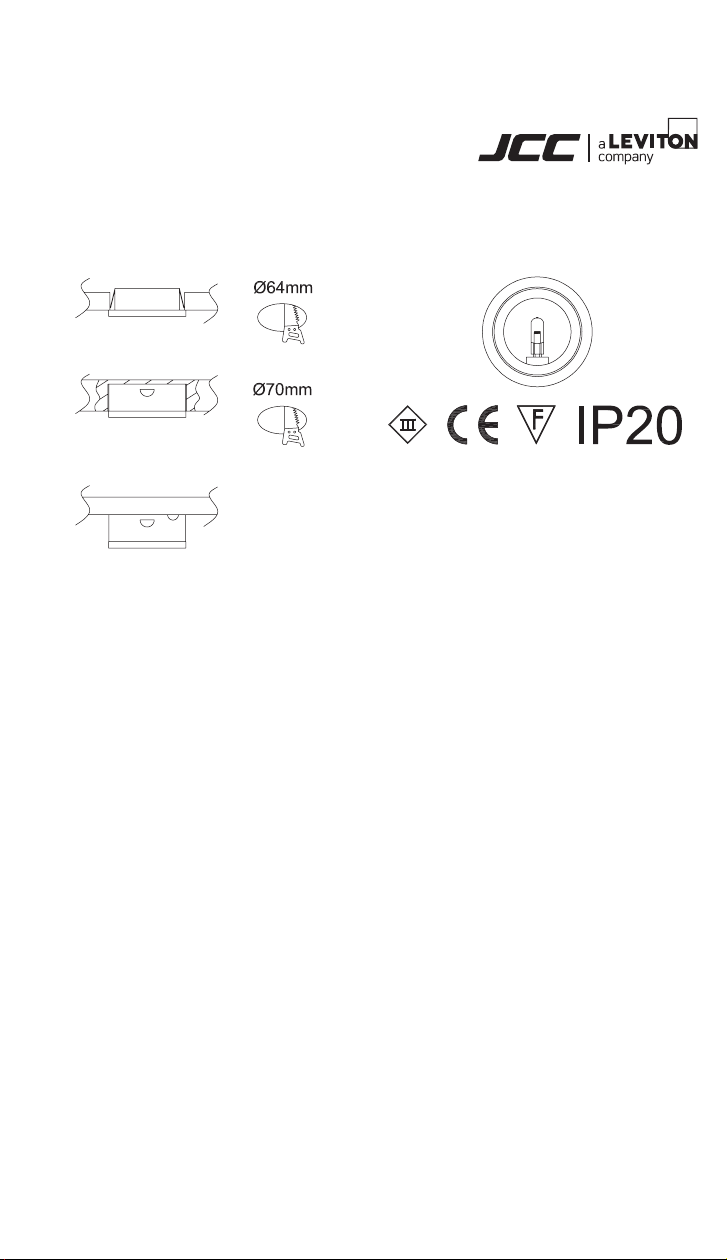

Fig.1
Installation Details
Recessed Application
Recessed Application
+ Surface Trim
Surface Application
Caution!
This luminaire can become extremely
hot when in operation. Please note that
this luminaire uses a light source that
radiates heat immedately around the
lamp.
Always ensure adequate ventilation
around the chassis of the fitting.
Specification
Input: 11.6 Volts
Max Wattage: 20 Watts
Conductor: 18 AWG Standard
Lamp Type: Halogen G4 Capsule
Lamp
FITTING INSTRUCTIONS
It is recommended that luminaires are
installed by a qualified electrician.
The installation of this product must
comply with the current edition of the IEE
wiring regulations and BS 7671.
For luminaires installed in bathroom,
saunas or swimming pool complex
special attention should be paid to
sections 601, 602 and 603 of the above
standard
This luminaire is suitable for both surface
and recessed applications.
Installation details
If this luminaire is to be mounted in a
recess, then a suitably sized hole will
need to be cut into the ceiling (see fig.
1 details). Please ensure that there is
adequate minimum ceiling void space
without infringing on timber joists, water
pipes or electrical cables.
This luminaire must be connected to a
low
voltage transformer supply. Consult
the selv transformer instructions before
beginning installation. This product will
be considered as class III providing that
it is installed with a safety transformer
that meets current transformer regulations. Do not install on new plaster or
areas affected by dampness. Ensure
that there is adequate free-air ventilation around the fitting. The nearest illuminated surface must be at least 0.5m
from the front face of the fitting.
IMPORTANT USER ADVICE
Always isolate the mains supply
before servicing, or when fitting or
changing the lamp. Ensure the lamp is
correct for this application, especially its
es
voltage and wattage. Check the lamp
is correctly located in the lampholder.
Switch on at mains.
