Jbl SDP-3 User Manual

Installation/ Technical Manual

SDP-3 Digital Surround Processor/Controller

Important Safety Instructions

Save these instructions for later use. Follow all instructions and warnings marked on the unit. Always use with the correct line voltage. Refer to the manufacturer's operating instructions for power requirements. Be advised that different operating voltages

may require the use of a different line cord and/or attachment plug. Do not install the unit in an unventilated rack, or directly above heat producing equipment such as power amplifiers. Observe the maximum ambient operating

temperature listed in the product specification. Slots and opening on the case are provided for ventilation; to ensure reliable operation and prevent it from overheating, these openings must not be blocked or

covered. Never push objects of any kind through any of the ventilation slots. Never spill a liquid of any kind on the unit. Never attach audio power amplifier outputs directly to any of the unit's connectors. To prevent shock or fire hazard, do not expose the unit to rain or moisture, or operate it where it will be exposed to water. Do not attempt to operate the unit if it has been dropped, damaged, exposed to liquids, or if it exhibits a distinct change in performance indicating the need for

service. This unit should only be opened by qualified service personnel. Removing covers will expose you to hazardous voltages.

This triangle, which appears on your component, alerts you to the presence of uninsulated, dangerous voltage inside the enclosure... voltage that may be sufficient to constitute a risk of shock.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This triangle, which appears on your component, alerts you to important operating and maintenance instructions in this accompanying literature.

Adhere to all warnings on the unit and in the operating instructions. Take precautions not to defeat the grounding or polarization of the unit's power cord. Do not overload wall outlet, extension cords or integral convenience receptacles, as this can result in a risk of fire or electrical shock. Route power supply cords so that they are not likely to be walked on or pinched by items placed on or against them, paying particular attention to cords at plugs,

conveneince receptacles, and the point at which they exit from the unit. The unit should be cleaned only as recommended by the manufacturer.

Communications Notice

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules, which are designated to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna Relocate the computer with respect to the receiver Move the computer away from the receiver Plug the computer into a different outlet so that the computer and receiver are on different branch circuits.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: "How to identify and Resolve Radio/TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

Outdoor Antenna Grounding

If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See figure below.

Power Lines An outside antenna should be located away from power lines.

Ground Clamp

Electric Service Equipment

NEC — National Electrical Code

Antenna Lead-in Wire

Antenna Discharge Unit (NEC Section 810-20)

Grounding Conductors

(NEC Section 810-21) Ground Clamps Power Service Grounding

Electrode System (NEC Art 250, Part H)

Acknowledgements

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", "AC-3",and the double-D symbol are trademarks of Dolby Laboratories Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.

Manufactured under license from Lucasfilm Ltd. U.S. patent numbers 5,043,970; 5,189,703; and 5,222,059. Foreign patents pending. "Lucasfilm" and "THX" are trademarks of Lucasfilm Ltd.

Manufactured under license from Digital Theatre Systems, Inc. U.S. Patent number 5,451, 942 and other world-wide patents issued and pending. "DTS", DTS Digtial Surround" are trademarks of Digital Theatre Systems, Inc. ©1996 Digital Theatre Systems, Inc. All rights reserved.

"Logic 7", "Auto-Azimuth" and the A-Z logo are trademarks of Lexicon, Inc.

AUTO AZIM

JBL Synthesis • 250 Crossways Park Drive • Woodbury, NY 11797 • (516) 496-3400 • www.jblsynthesis.com

JBL Part #JBLSDP-3TECH

Lexicon Patent: U.S. no. 4,862,502 and 5,796,844.

Printed in the United States of America

Dansk

Vigtig information om sikkerhed

Gem denne vejledning til senere brug. Følg alle anvisninger og advarsler på apparatet. Apparatet skal altid tilsluttes den korrekte spænding. Der henvises til

brugsanvisningen, der indeholder specifikationer for strømforsyning. Der gøres opmærksom på, at ved varierende driftsspændinger kan det blive nødvendigt at bruge andre lednings- og/eller stiktyper.

Apparatet må ikke monteres i et kabinet uden ventilation eller lige over andet udstyr, der udvikler varme, f.eks. forstærkere. Den maksimale omgivelsestemperatur ved drift, der står opført i specifikationerne, skal overholdes.

Der er ventilationsåbninger i kabinettet. For at sikre apparatets drift og hindre overophedning må disse åbninger ikke blokeres eller tildækkes. Stik aldrig noget ind igennem ventilationsåbningerne, og pas på aldrig at spilde nogen form for væske på apparatet.

Udgangsstik fra audioforstærkere må aldrig sættes direkte i apparatet. Apparatet må ikke udsættes for regn eller fugt og må ikke bruges i

nærheden af vand for at undgå risiko for elektrisk stød og brand. Apparatet må aldrig bruges, hvis det er blevet stødt, beskadiget eller vådt,

eller hvis ændringer i ydelsen tyder på, at det trænger til eftersyn. Dette apparat må kun åbnes af fagfolk. Hvis dækslet tages af, udsættes

man for livsfarlig højspænding.

Denne mærkat på komponenten advarer om uisoleret, farlig spænding i apparatet ... høj nok til at give elektrisk stød.

Denne mærkat på komponenten advarer om vigtig drifts- og vedligeholdsinformation i den tilhørende litteratur.

Suomi

Tärkeitä turvallisuusohjeita

Säilytä nämä ohjeet tulevaa käyttöä varten. Seuraa kaikkia yksikköön merkittyjä ohjeita ja varoituksia. Käytä aina oikeaa verkkojännitettä. Tehovaatimukset selviävät

valmistajan käyttöohjeista. Huomaa, että eri käyttöjännitteet saattavat vaatia toisenlaisen verkkojohdon ja/tai -pistokkeen käytön.

Älä asenna yksikköä telineeseen jossa ei ole tuuletusta, tai välittömästi lämpöä tuottavien laitteiden, esim. tehovahvistimien, yläpuolelle. Ympäristön lämpötila käytössä ei saa ylittää tuotespesifikaation maksimilämpötilaa.

Kotelo on varustettu tuuletusreiillä ja -aukoilla. Luotettavan toiminnan varmistamiseksi ja ylilämpenemisen välttämiseksi näitä aukkoja ei saa sulkea tai peittää. Mitään esineitä ei saa työntää tuuletusaukkoihin. Mitään nesteitä ei saa kaataa yksikköön.

Älä kytke audiotehovahvistimen lähtöjä suoraan mihinkään yksikön liittimeen.

Sähköiskun ja palovaaran välttämiseksi yksikkö ei saa olla sateessa tai kosteassa, eikä sitä saa käyttää märässä ympäristössä.

Älä käytä yksikköä jos se on pudonnut, vaurioitunut, kostunut, tai jos sen suorituskyky on huomattavasti muuttunut, mikä vaatii huoltoa.

Yksikön saa avata vain laitteeseen perehtynyt huoltohenkilö. Kansien poisto altistaa sinut vaarallisille jännitteille.

Tämä kolmio, joka esiintyy komponentissasi, varoittaa sinua eristämättömän vaarallisen jännitteen esiintymisestä yksikön sisällä. Tämä jännite saattaa olla riittävän korkea aiheuttamaan sähköiskuvaaran.

Tämä kolmio, joka esiintyy komponentissasi, kertoo sinulle, että tässä tuotedokumentoinnissa esiintyy tärkeitä käyttö- ja ylläpitoohjeita.

Norsk

Viktig informasjon om sikkerhet

Ta vare på denne veiledningen for senere bruk. Følg alle anvisningene og advarslene som er angitt på apparatet. Apparatet skal alltid anvendes med korrekt spenning. Produktbeskrivelsen

inneholder spesifikasjoner for strømkrav. Vær oppmerksom på at det ved ulike driftsspenninger kan være nødvendig å bruke en annen ledning- og/ eller støpseltype.

Apparatet skal ikke monteres i skap uten ventilasjon, eller direkte over varmeproduserende utstyr, som for eksempel kraftforsterkere. Den maksimale romtemperaturen som står oppgitt i produktbeskrivelsen, skal overholdes.

Apparatet er utstyrt med ventilasjonsåpninger. For at apparatet skal være pålitelig i bruk og ikke overopphetes, må disse åpningene ikke blokkeres eller tildekkes. Stikk aldri noe inn i ventilasjonsåpningene, og pass på at det aldri søles noen form for væske på apparatet.

Utgangsplugger fra audioforsterkere skal aldri koples direkte til apparatet. Unngå brannfare og elektrisk støt ved å sørge for at apparatet ikke utsettes

for regn eller fuktighet og ikke anvendes i nærheten av vann. Apparatet skal ikke brukes hvis det har blitt utsatt for støt, er skadet eller blitt

vått, eller hvis endringer i ytelsen tyder på at det trenger service. Dette apparatet skal kun åpnes av fagfolk. Hvis dekselet fjernes, utsettes

man for livsfarlig høyspenning.

Komponenten er merket med denne trekanten, som er en advarsel om at det finnes uisolert, farlig spenning inne i kabinettet ... høy nok til å utgjøre en fare for elektrisk støt.

Svenska

Viktiga säkerhetsföreskrifter

Spara dessa föreskrifter för framtida bruk. Följ alla anvisningar och varningar som anges på enheten. Använd alltid rätt nätspänning. Se tillverkarens bruksanvisningar för infor-

mation om effektkrav. Märkväl, att andra matningsspänningar eventuellt kräver att en annan typs nätsladd och/eller kontakt används.

Installera inte enheten i ett oventilerat stativ, eller direkt ovanför utrustningar som avger värme, t ex effektförstärkare. Se till att omgivningens temperatur vid drift inte överskrider det angivna värdet i produktspecifikationen.

Behållaren är försedd med hål och öppningar för ventilering. För att garantera tillförlitlig funktion och förhindra överhettning får dessa öppningar inte blockeras eller täckas. Inga föremål får skuffas in genom ventilationshålen. Inga vätskor får spillas på enheten.

Anslut aldrig audioeffektförstärkarutgångar direkt till någon av enhetens kontakter.

För att undvika elstöt eller brandfara får enheten inte utsättas för regn eller fukt, eller användas på ställen där den blir våt.

Använd inte enheten om den har fallit i golvet, skadats, blivit våt, eller om dess prestanda förändrats märkbart, vilket kräver service.

Enheten får öppnas endast av behörig servicepersonal. Farliga spänningar blir tillgängliga när locken tas bort.

Denna triangel, som visas på din komponent, varnar dig om en oisolerad farlig spänning inne i enheten. Denna spänning är eventuellt så hög att fara för elstöt föreligger.

Komponenten er merket med denne trekanten, som betyr at den tilhørende litteraturen inneholder viktige opplysninger om drift og vedlikehold.

Denna triangel, som visas på din komponent, anger att viktiga bruksanvisningar och serviceanvisningar ingår i dokumentationen i fråga.

Wichtige Sicherheitsanweisungen

Deutsch

Heben Sie sich diese Sicherheitsanweisungen auch für später auf. Befolgen Sie alle auf der Vorrichtung stehenden Anweisungen und

Warnungen. Immer nur mit der richtigen Spannung verwenden! Die

Gebrauchsanweisungen des Herstellers informieren Sie über die elektrischen Anforderungen. Vergessen Sie nicht daß bei verschiedenen Betriebsspannungen ggf. auch verschiedene Leitungskabel und/oder Verbindungsstecker zu verwenden sind.

Stellen Sie die Vorrichtung nicht in ein unbelüftetes Gestell oder unmittelbar über wärmeerzeugende Geräte wie z.B. Tonverstärker. Halten Sie die in den Produktspezifikationen angegebene maximale Umgebungstemperatur bei Betrieb ein.

Schlitze und Öffnungen im Gehäuse dienen der Belüfung; um verläßlichen Betrieb sicherzustellen und Überheizen zu vermeiden dürfen diese Öffnungen nich verstopft oder abgedeckt werden. Stecken Sie nie irgend einen Gegenstand durch die Belüftungsschlitze. Vergießen Sie keine Flüssigkeiten auf den Apparat.

Schließen Sie nie Tonverstärker unmittelbar an einen Anschluß des Apparates an.

Um elektrischen Schlag oder Feuer zu vermeiden, setzen Sie den Apparat weder Regen noch Feuchtigkeit aus und betreiben Sie ihn nicht dort wo Wasser eindringen könnte.

Versuchen Sie nicht den Apparat zu betreiben falls er fallen gelassen, beschädigt, oder Flüssigkeiten ausgesetzt wurde, oder falls sich seine Arbeitsweise derart ändert daß daraus ein Bedarf nach Raparatur zu schließen ist.

Dieser Apparat sollte nur von qualifizierten Fachleuten geöffnet werden. Das Abnehmen von Abdeckungen setzt Sie gefährlichen Spannungen aus.

Español

Instrucciones importantes de seguridad

Guarde esta instrucciones para uso posterior. Utilice siempre el voltaje correcto. Diríjase a las instrucciones de operación

del fabricante para obtener las especificaciones de potencia. Esté al tanto de que voltajes de operación distintos requieren el uso de cables y/o enchufes distintos.

No instale esta unidad en un estante sin ventilación, ni tampoco directamente encima de equipos que generen calor tales como amplificadores de potencia. Fíjese en las temperaturas ambientales máximas de operación que se mencionan en las especificaciones del producto.

Las aperturas y ranuras del chasis sirven para proveer la ventilación necesaria para operar la unidad con seguridad y para prevenir sobrecalentamiento, y por lo tanto no pueden ser obstruidas o cubiertas. No introduzca objetos de ningún tipo a través de las ranuras de ventilación, y nunca deje caer ningún líquido sobre la unidad.

Nunca conecte ningún tipo de salida de amplificadores de sonido directamente a los conectores de la unidad.

Para prevenir descargas eléctricas o incendios, mantenga la unidad alejada de la lluvia, humedad o cualquier lugar en el que pueda entrar en contacto con agua.

No trate de hacer funcionar la unidad si se ha caído, está dañada, ha entrado en contacto con líquidos, o si nota cualquier cambio brusco en su funcionamiento que indique la necesidad de hacerle un servicio de mantenimiento.

Esta unidad deberá ser abierta únicamente por personal calificado. Si usted quita las coberturas se expondrá a voltajes peligrosos.

Dieses Dreieck auf Ihrem Apparat warnt Sie vor nicht-isolierter, gefährlicher Spannung im Gehäuse ... stark genug um eine Berührungsgefahr darzustellen.

Dieses Dreieck auf Ihrem Apparat bedeutet daß wichtige Betriebsund Wartungsanweisungen in der mitgelieferten Dokumentation zu finden sind.

Français

Instructions de Sûreté Importantes

Gardez ces instructions pour réference future. Observez toutes les instructions et tous les avertissements marqués sur

l’appareil. Branchez uniquements sur un réseau de tension indiquée. Consultez le

manuel d’instruction du fabriquant pour les spécifications de courant. N’oubliez pas que différentes tensions peuvent nécessiter l’utilisation de cables et/ou de fiches de connexion différents.

N’installez pas l’appareil en un compartiment non-aéré ou directement audessus d’équipements générateurs de chaleur, tels qu’amplificateurs de courants, etc. Ne dépassez pas la température ambiante maximale de fonctionnement indiquée dans les spécifications du produit.

Des fentes et ouvertures sont prévues dans le boîtier pour l’aération; Pour assurer le bon fonctionnement et pour prévenir l’échauffement, ces ouvertures ne doivent pas être couvertes ou bloquées. N’insérez pas d’objets dans les fentes d’aération. Empêchez tout liquide de se répandre sur l’appareil.

Ne connectez jamais d’amplificateurs audio directement aux connecteurs de l’appareil.

Pour empêcher les chocs électriques et le danger d’incendie, évitez d’exposer l’appareil à la pluie ou à l’humidité, et ne le mettez pas en marche en un endroit où il serait exposé aux éclaboussures d’eau.

N’essayez pas de faire fonctionner l’appareil s’il est tombé à terre, a été endommangé, exposé à un liquide, ou si vous observez des différences nettes dans son fonctionnement, indiquant la nécessité de réparations.

Cet appareil ne doit être ouvert que par un personnel de service qualifié. En enlevant les couvercles vous vous exposez à des tensions électriques dangereuses.

Este triángulo que aparece en su componente le advierte sobre la existencia dentro del chasis de voltajes peligrosos sin aislantes ... voltajes que son lo suficientemente grandes como para causar electrocución.

Este triángulo que aparece en su componente lo alerta sobre las instrucciones de operación y mantenimiento importantes que están en los materiales de lectura que se incluyen.

Italiano

Importanti norme di sicurezza

Conservare le presenti norme per l’utilizzo futuro. Osservare tutte le istruzioni e le avvertenze apposte sull’unità. Utilizzare esclusivamente con la tensione di rete corretta. Consultare le

istruzioni operative fornite dal fabbricante per i dati riguardanti la tensione e l’assorbimento di corrente. Potrebbe essere necessario l’uso di cavi di rete e/o di spine diverse a seconda della tensione utilizzata.

Non installare l’unità in uno scaffale privo di ventilazione oppure direttamente sopra una fonte di calore, come, ad esempio, un amplificatore. Non superare la temperatura ambientale massima di funzionamento riportata nei dati tecnici del prodotto.

Le fessure e le altre aperture nella scatola servono alla ventilazione. Per un funzionamento affidabile, e per evitare un eventuale surriscaldamento, queste aperture non vanno ostruite o coperte in nessun modo. Evitare in tutti i casi di inserire oggetti di qualsiasi genere attraverso le fessure di ventilazione. Non versare mai del liquido di nessun tipo sull’unità.

Evitare sempre di collegare le uscite dell’amplificatore audio direttamente ai connettori dell’unità.

Per prevenire il pericolo di folgorazione e di incendio non esporre l’unità alla pioggia o ad un’umidità eccessiva; evitare di adoperare l’unità dove potrebbe entrare in contatto con acqua.

Evitare di adoperare l’unità se la stessa è stata urtata violentemente, se ha subito un danno, se è stata esposta ad un liquido o in caso di un evidente cambiamento delle prestazioni che indichi la necessità di un intervento di assistenza tecnica.

Ogni intervento sull’unità va eseguito esclusivamente da personale qualificato. La rimozione della copertura comporta l’esposizione al pericolo di folgorazione.

Ce triangle, sur votre appareil vous avertit de la présence de tension dangereuse, non-isolée à l’intérieur du boîtier...une tension suffisante pour représenter un danger d’électrocution.

Ce triangle sur sur votre appareil vous invite de suivre d’importantes instructions d’utilisation et d’entretien dans la documentation livrée avec le produit.

Il presente triangolo impresso sul componente avverte della presenza di tensioni pericolose non isolate all’interno della copertura... tali tensioni rappresentano un pericolo di folgorazione

Il presente triangolo impresso sul componente avverte l’utente della presenza nella documentazione allegata di importanti istruzioni relative al funzionamento ed alla manutenzione.

Installation/ Technical Manual

SDP-3 Digital Surround Processor/Controller

Introduction

1 Installation

Controls and Indicators .....................................................1

The Front Panel ................................................................ 1

The Rear Panel ................................................................. 2

The Remote Control..........................................................3

Alternate Remote Control Functions Using the Shift .. and Record/Zone 2 buttons

Connection ........................................................................ 6

Location Considerations ...................................................6

AC Connections ................................................................6

Wiring Considerations ....................................................... 7

Audio/Video Cables • Speaker Connections

Audio/Video Connections

Connecting the SDP-3 as a preamp ................................. 8

Video Connections • Digital Audio Connections

"AC-3 Ready" Laser Disc and LD/DVD Players

Contents

3 PCM Effects and Parameters

Panorama........................................................................35

Jazz.................................................................................35

Classical..........................................................................36

Football ........................................................................... 36

Cathedral.........................................................................36

Party................................................................................37

2-Channel .......................................................................37

Music Surround ...............................................................37

Rock/Pop.........................................................................38

Logic 7.............................................................................38

Television ........................................................................ 39

Pro Logic ......................................................................... 39

THX Cinema....................................................................39

Mono Enhance ................................................................40

PCM Effect Parameters .................................................. 40

2 System Configuration

Restore Factory Defaults ................................................ 11

Equalization ....................................................................11

Bass and Treble Level • Tilt • Loudness

Display Adjustment ......................................................... 13

The Video On-Screen Display

Input Configuration..........................................................15

Input Gain (Analog Inputs Only) • Input Level

Meters • Input Name • Input Effect "FX" Assignment

FX Format .......................................................................15

Automatic • PCM Only • AC-3 Only • DTS Only

Audio In ........................................................................... 20

Analog • Coax-1-5 and Optical-1-3 (Digital

Audio Inputs)

Video In ........................................................................... 20

Record/Zone 2 ................................................................ 21

Record/Zone 2 Controls

Speaker Configuration .................................................... 23

Custom Configuration • THX Configuration

Setting Output Levels......................................................25

Note on External Noise Calibration • Subwoofer

Peak Limiter • Mute Level • Power On Volume

Zone 2 Power On Volume

Setting Listener Position ................................................. 28

Speaker Distance • A/V Sync Delay • Calibrate

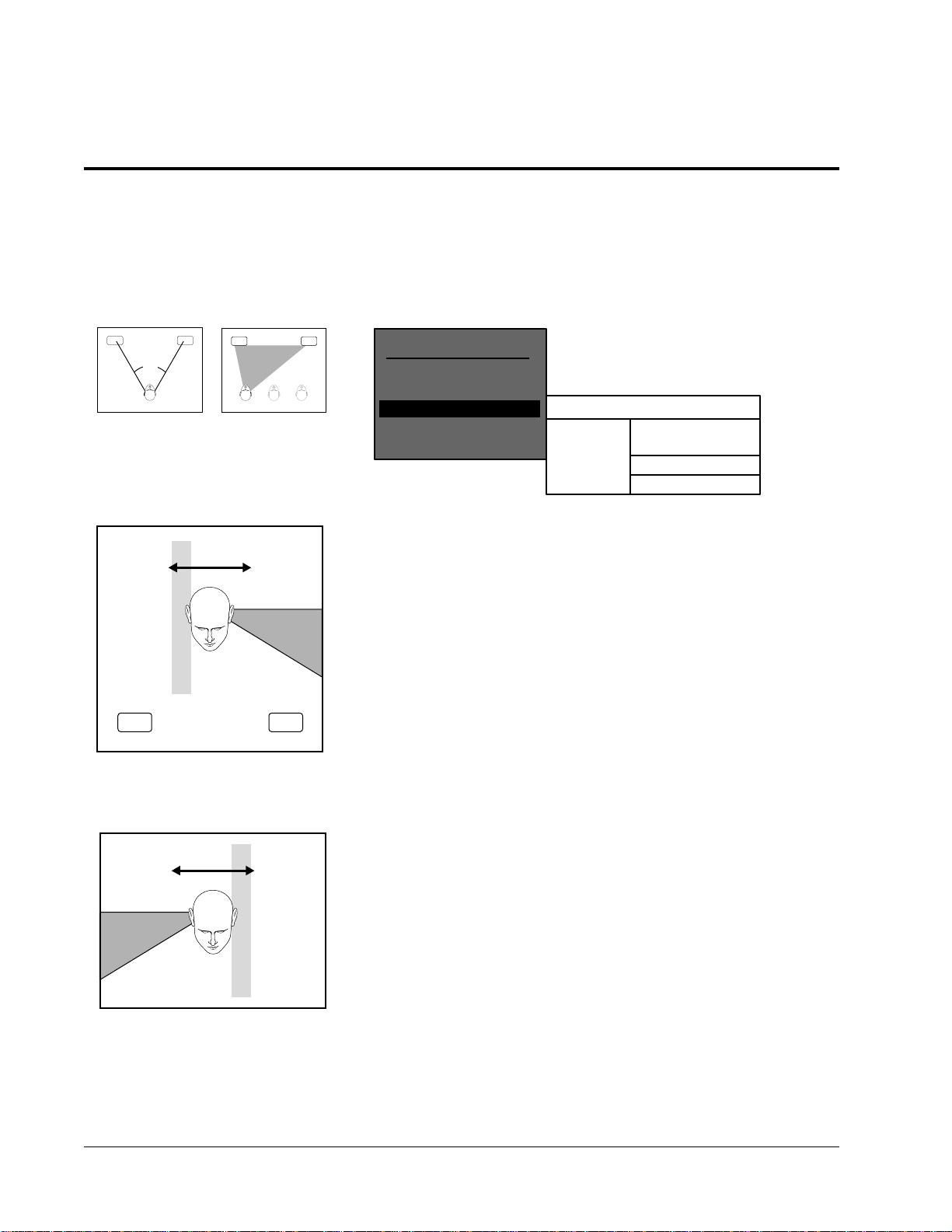

Panorama • L/R Balance • Zone 2 L/R Balance

Customization ................................................................. 32

Using SDP-3 Effects ....................................................... 33

Restoring the original parameter values of an

Effect • Naming your custom Effect • Restoring the

original Effect Name • Listening to only the SDP-3

Effect • Front/Back Fader • PGM Trigger Assignment

4 AC-3 Effects and Parameters

AC-3 Status Display ........................................................45

5.1 2-Channel .................................................................46

5.1 Music.........................................................................46

5.1 Logic 7 ......................................................................47

5.1 Dolby ......................................................................... 47

5.1 Dolby/THX.................................................................48

AC-3 2.0 Effects ..............................................................48

2.0 2-Channel .................................................................48

2.0 Rock/Pop ..................................................................49

2.0 Logic 7 ......................................................................49

2.0 Pro Logic ...................................................................50

2.0 THX Cinema..............................................................50

AC-3 Effect Parameters ..................................................50

5 DTS Effects and Parameters

DTS 2-Channel ............................................................... 55

DTS Music.......................................................................55

DTS Logic 7 .................................................................... 56

DTS Film .........................................................................56

DTS/THX.........................................................................57

DTS Effect Parameters ...................................................57

6 Troubleshooting

Problems and Solutions ..................................................59

Routine Maintenance ......................................................61

Restoring Defaults ..........................................................61

7 Specifications

Specifications ..................................................................63

JBL Synthesis

Introduction

The SDP-3 can be thought of as four units in one. At its heart is a reference-quality 8-channel music and film digital audio computer capable of creating or recreating a limitless amount of listening environments. This digital audio computer is mated to an 8-channel, 24-bit Digital-to-Analog converter that rivals the most exotic and costly standalone devices. To harness all of this digital audio power, the SDP-3 also includes a built-in line-level preamplifier with 8 analog audio inputs and 8 digital audio inputs for easy integration with multiple source components. Since many of these source components are also capable of outputting high quality video signals, the SDP-3 includes a broadcastquality composite and S-video switcher with 8 inputs. The SDP-3 also includes a digital output, two RS-232 ports and three digital audio expansion ports. The back panel includes a bare wire block terminal for trigger outputs for easy connection to associated equipment.

The SDP-3 is designed to satisfy the most rigorous demands, while retaining simplicity for casual use as well. Using the system can be as simple as pressing an input key and turning the volume up and down. Less-used functions are organized into a simple on-screen menu system and “hidden” buttons on the remote control. Controls are provided to accommodate virtually any system configuration and to allow for varying recording, mixing, and transmission styles, as well as for system control from a second zone, and for control by sophisticated automation systems.

The SDP-3 includes JAZZ, CLASSICAL, FOOTBALL, and CATHEDRAL effects for creating an ideal custom listening environment as well as ROCK/POP and MUSIC SURROUND which offer ambience extraction. As these programs use the same technology used by the overwhelming majority of professionals for adding ambience to their recordings, you will find playback greatly enhanced by the SDP-3, transporting you more deeply into the performance.

The SDP-3 also recreates 5.1 channel soundtracks with stunning accuracy, and takes them to a new level of realism with JBL’s proprietary Logic 7 technology. These effects allow you to expand 5.1 channel as well as two channel soundtracks for 7.1 and virtual 7.1 channel playback for an increased sense of spaciousness and envelopment.

The SDP-3 provides separate effects for listening to 5.1 channel music and down-mixing 5.1 channels to two channels, allowing you to finetune the SDP-3 for listening to 5.1 channel music or music videos, as well as recording 5.1 channel sources on 2-channel devices.

The SDP-3 can be easily integrated with all JBL Synthesis systems as well as other the various types of loudspeaker systems, including those that are THX certified. By adhering to the rigorous THX Ultra specification, the SDP-3 includes THX enhancements for optimizing playback of matrix-

Using the Documentation

JBL Synthesis

encoded film soundtracks as well as those recorded in the Dolby Digital and DTS discrete formats. These enhancements ensure that film soundtracks, which are typically mixed for the acoustics of large theaters, sound as the filmmakers intended when played back in the relatively small environment of a home theater.

Because the SDP-3 is designed to be customized for your system and your listening space, the information required for installation is extensive.

The Installation/Technical Manual is designed to assist you in installing, calibrating and operating the SDP-3. It should be used in conjunction with the remote control when configuring the system to perform optimally in your environment. This manual was written with the underlying assumption that the installer is familiar with audio/video system installation. An Installation Worksheet is provided at the end of this manual for documentation of the settings arrived at during the calibration procedure.

Glossary of Terms

Although the SDP-3 performs very complex signal processing, a great deal of effort has gone into making the technology behind the effects as transparent as possible to the user. To understand the overall organization of the unit, it is helpful to define those few terms which are unique to the SDP-3.

AC-3 FX The term AC-3 FX (Dolby Digital Effects) is used to describe all of the effects which are compatible with Dolby Digital input signals. Any AC-3-capable software and/or source components should be labeled with a logo, similar to the one on the SDP-3 front panel.

DTS FX The term DTS FX (Digital Surround Effects) is used to describe all of the effects which are compatible with DTS Digital Surround input signals. Any DTS-capable software and/or source components should be labeled with a logo, similar to the one on the SDP-3 front panel.

Downmix describes the process of creating a two-channel output from a multichannel (>2) signal. Downmixing is necessary to maintain compatibility between multichannel formats and devices such as Dolby Digital and DTS, and two-channel formats and devices, such as stereo tape decks and VCRs.

Effect An effect is a configuration that determines how the SDP-3 will process an input signal. The SDP-3 contains 24 effects: Panorama,

Jazz, Classical, Football, Cathedral, Party, 2-Channel, Music Surround, Rock/Pop, Logic 7, Television, Pro Logic, THX Cinema, Mono Enhance,

5.1 2-Channel, 5.1 Music, 5.1 Logic 7, 5.1 Dolby, 5.1 Dolby/THX, DTS 2-Channel, DTS Music, DTS Logic 7, DTS Film and DTS/THX.

Parameter Each Effect has a set of parameters (controls) that charac- terize it. Parameter settings can be changed to customize each Effect for your room and listening taste. Effect Parameter values are stored/recalled with each Effect. Some examples are: Subwoofer Level and Vocal Enhance System parameter values are not associated with a particular Effect and their values do not change when a new Effect is loaded. An example is: Speaker Configuration.

PCM FX The term PCM FX (Pulse Code Modulation Effects) is used to describe all of the effects which are compatible with two-channel input signals (analog or digital).

Two-Channel We use the term two-channel rather than "stereo" because a two-channel input can contain monaural, stereo or matrixencoded stereo sound depending on how it was mixed.

Installation

JBL Synthesis

The Rear Panel

CAUTION: Never make or break any connections to the SDP-3 with the rear-panel power ON. Make sure any associated amplifiers are turned off before turning this master power switch on or off.

5 6 7

S/PDIF OUT

132

S-VIDEO VIDEO

TAPE TUNER CD AUX TV V-DISC DVD VCR

AUDIO

INPUT

1 32 4

1 AUDIO INPUTS

8 stereo analog audio inputs switched with corresponding video inputs and fed to the Monitor outputs. Inputs are nominally labeled as originating from an audio tape player, tuner, CD player, an unspecified auxiliary source, a TV tuner, a Laser or Video Disc player, a DVD player, and a VCR.

2 ZONE2 and RECORD

3 pairs of stereo audio outputs and 2 video outputs supply the same signal according to the Record/Zone 2 input selection. Zone 2 output levels can be controlled independently for use with amplifiers and speakers in another room. These outputs are muted in Standby.

3 MAIN OUTPUTS

3 stereo amplifier outputs provided for front, side and rear speakers. Single outputs are provided for the center speaker and the subwoofer. These outputs are muted in Standby.

MONITOR

ZONE 2 RECORD 1 RECORD 2

OUTPUT

4 IR Input, PWR and PGM TRIGGERS

The IR input is an 1/8" mono connector for input of IR data from any industry-standard IR source. Data is retransmitted by an IR LED mounted near the front panel IR receiver.

2 trigger outputs are provided on 4-pin removable screw terminals, and a 5-pin DIN connector, as shown in the expanded illustration above. The PWR trigger is high when the SDP-3 is on, low in standby or when the unit is off. The PGM trigger can be enabled (high) or disabled (low) for specific surround modes in the Effect Adjust menu. High is indicated by either +5VDC or +12VDC, selectable via an internal jumper. (Factory configuration is +5V.)

5 VIDEO INPUTS and OUTPUTS

8 video input sources selected based on selections made in the INPUT CONFIG menu and fed to the selected monitor output jack. Record output jacks can be selected independently.

S/PDIF INTPUTS

REAR

MAIN OUTPUTS

RCA (composite) and S-video connectors are provided for monitor and record. If an S-video input is used, both S-video and composite are available at each output. If the video input is composite, only composite is available at each output. The monitor output incorporates the on-screen video overlay. Unless RECORD is enabled, the record output follows the monitor output selection without the on-screen display feature. All three outputs are blanked in Standby.

6 S/PDIF INPUTS

5 coaxial RCA connectors and 3 optical connectors for digital audio input.

7 S/PDIF OUTPUT

Coaxial digital audio output for digital-to-digital audio recording. Any digital audio output (coaxial or optical) selected for Record or Zone 2 will also be sent directly to this output.

8 EXPANSION PORTS

3 coaxial digital audio inputs capable of accepting stereo PCM signals up to 24-bit/

SIDE CENTER FRONT

SUBWOOFER

ABC

EXPANSION PORTS

TRIGGERS

PGM GND PWR

LISTED AUDIO

EQUIPMENT

7D77

E172268

TRIGGERS

IR IN

1110

100-240V 50-60 Hz, 35W

GND

PGMPWR

RS 232

IR IN

TRIGGERS

PGM GND PWR

RISK OF ELECTRIC SHOCK

ATTENTION

SDP-3

JBL Synthesis, INC. ASSEMBLED IN U.S.A.

TRIGGERS

GND

PGMPWR

CAUTION

DO NOT OPEN

RISQUE DE CHOC

ELECTRIQUE

NE PAS OUVRIR

96kHz. Note: These inputs completely bypass the digital signal processing path, including the crossovers and effects, passing the audio signal directly to the following channels: A to the L and R Front channels, B to the Cen- ter and Subwoofer channels and C to the L and R Surround channels.

9 RS 232

Reserved for future control and communication options.

10 RS 232

Serial port connector for automation and control systems.

11 Power On/Off

Master power switch disconnects the AC Mains. This switch is intended to be left On during regular use. Whenever cables are connected or disconnected, or when the unit is not going to be used for an extended period of time, this switch should be set to Off.

12 POWER

AC power connector: 3-wire, 10 Amp, IEC 320.

SDP-3 Digital Surround Processor/Controller

The Remote Control

Installation

1 ON, FP and OSD ON turns the SDP-3 on and selects the input last used with main and Zone 2 volume levels set to the levels chosen in the OUTPUT LEVELS menu.

FP (ON) turns on the front panel display.

OSD (ON) activates the MC1 on-screen display.

2 OFF, FP and OSD OFF puts the unit into standby and mutes all of the outputs.

OSD (OFF) turns off the onscreen display.

FP (OFF) turns off the front panel display.

3 SELECT, ▲,▼ and DONE Allow access to and adjustment of all displayed menu items. ▲and ▼ step a display cursor through listed menu items. SELECT displays submenus, or chooses a menu item for adjustment. The ▲and ▼ buttons alter the settings of selected parameters. DONE saves the current changes and exits the menu.

4 Shift

When pushed in conjunction with other remote buttons, activates a set of less-used, but convenient, functions.

5 Record/Zone 2

When pushed in conjunction with other remote buttons, activates a set of Record/ Zone 2 control functions.

OFF ON

FP FP

OSD OSD

Shift Record

VCR TV

DVD

AUX Tape

2 CH

Party

6 Light

Toggles the remote control backlight on and off. (Note: after seven seconds, the backlight is automatically turned off.)

SELECTDONE

Zone 2

Light

Mute

VDisc

Tuner

SDP-3

EFFECTS

TV M

Music

7 FX ▲ and ▼ These controls display, then change the current effect. The activated displays (FP or OSD) will show the effect name.

8 VOL ▲ and ▼ These controls display, then

adjust the current master volume level. The activated displays (FP or OSD) will show the volume level and a visual guage.

When Mute is engaged,

these controls display, then adjust the volume from the mute level. When full mute is engaged (⇑Mute), these controls increase or decrease

the selected volume level without disengaging full mute.

9 Mute

Engages Mute and reduces the volume by the amount selected in the OUTPUT LEVELS menu. The red Mute LED on the front panel will light and the activated displays (FP or OSD) will show MUTE ON. Pressing again restores the volume to its pre-Mute level, turns off the front panel Mute LED, and displays MUTE OFF on the active displays.

10 Input Selection

Individual buttons select from 8 inputs and activate a corresponding green LED on the front panel. Depending on the Setup configuration, selection may also load a new effect.

11 EFFECTS

These controls select Dolby, THX, Logic 7, dts, 2-Channel, Party, Television or Music playback. The actual effect is determined by the format of the input signal.

Note: When 2-Channel is engaged, pressing the button again will turn it off.

Installation

JBL Synthesis

Alternate Remote Control Functions Using the Shift and Record/Zone 2 buttons

You can access an additional set of controls with the SDP-3 remote control by using the Shift key.

Sub Bass Level Down

-1dB Volume Step

-5dB Volume Step

L/R Balance adjust

Press and hold with

buttons shown to

access these remote

control functions

Bass Up/Dn

Equalization OFF

Center Balance and Fader

OFF ON

FP FP

OSD OSD

Shift

SELECTDONE

Light

Mute

VCR TV

AUX Tape

DVD

VDisc

Tuner

Record

Zone 2

Sub Bass Level Up

+1dB Volume Step

+5dB Volume Step

Front/Back fader adjust

Treble Up/Dn

Full mute ON

Loudness ON Loudness OFF

Tilt Adjust

CLASSICAL

JAZZ

PANORAMA

Accesses Digital

2 CH

SDP-3

EFFECTS

Party

TV M

Music

FOOTBALL CATHEDRAL

MONO ENHANCE MUSIC SURROUND

Audio Expansion Ports

SDP-3 Digital Surround Processor/Controller

Installation

Zone 2 controls are accessed by holding down the Record/Zone 2 button.

Zone 2

outputs OFF

Zone 2 L/R

Balance adjust

In LOCK SETTINGS

menu, pressing with

SETTINGS selected

toggles double lock

Select input for

Record/Zone 2

outputs)

Zone 2 volume

to -20dB

OFF ON

OSD OSD

Shift Record

FP FP

SELECTDONE

VCR TV

AUX Tape

Light

Mute

V Disc

DVD

Tuner

SDP-3

V O L

Zone 2

Zone 2 outputs ON

Display STATUS menu (Press DONE to exit)

Press and hold with buttons shown to access Record/ Zone 2 controls

Zone 2 volume adjust

Zone 2 mute ON/OFF

Zone 2 volume to-10dB

Zone 2 volume

to -30dB

Master volume

to -30dB

Master volume

to-20dB

2 CH

EFFECTS

Party

TV M

Music

Zone 2 volume to+00dB

Master volume to-10dB

Master volume to+00dB

Installation

Connection

JBL Synthesis

Location Considerations

The SDP-3 is a highly specialized signal processing computer and requires special care during installation to ensure optimum performance.

The SDP-3 may be installed on a shelf or in a standard 19" equipment rack, using the supplied rack mount ears. Observe the following precautions:

• Select a dry, well-ventilated location out of direct sunlight.

• Do not stack the SDP-3 directly above heat-producing equipment such as power amplifiers.

• Avoid placing the SDP-3 near unshielded TV or FM antennas, cable TV decoders, or other receivers. The SDP-3 may interfere with some FM tuners if it is placed immediately above or below them. Some products, particularly power amplifiers, may cause hum if they are in close proximity.

•Make sure the SDP-3 front panel IR receiver window is unobstructed. The remote control must be in line-of-sight to this receiver for proper operation. If line-of-sight is impractical, an infrared remote repeater can be used with the rear panel IR connector. The SDP-3 may be placed in a glass-doored cabinet but smoked glass will make the front panel display difficult to read and will reduce the sensitivity of the IR receiver.

AC Connections

The SDP-3 is designed to be connected to an uninterrupted AC power line in the same manner as a VCR or a television. We recommend the use of an AC line filter to protect against line surges, or the installation of a line conditioner to protect against under voltage (brownouts) as well as overvoltage conditions.

The SDP-3 has a master power switch on the rear panel above the IEC standard AC power receptacle. This switch may be left ON continuously when the unit is in regular use. When the SDP-3 will not be used for an extended period of time, or whenever you are connecting or disconnecting any cables to the unit, this switch should be turned OFF.

Connect the power cable to the SDP-3, then plug the power cord into a wall outlet or into an unswitched outlet on a surge protector. Be sure that the power cord is firmly seated in the connector on the rear panel of the SDP-3.

SDP-3 Digital Surround Processor/Controller

Wiring Considerations

Audio/Video Cables

Speaker Connections

Wire Lengths

Length AWG Size

up to 25 feet 16 gauge up to 50 feet 14 gauge up to 100 feet 12 gauge

Installation

For optimum performance, use the Straight Wire interconnects provided with the JBL Synthesis sound system.

Note that the use of standard audio cables for video or digital audio applications may cause signal degradation, and is not recommended. For these connections, please use only cables that are designed for the application — these have different impedance characteristics than cables designed for analog audio applications.

All cables should be kept as short as possible.

In general, speaker cables should be kept short, and low-impedance wire should be used throughout to assure efficient power transmission and avoid audible distortion. Recommended wire lengths are given in the table below. Although these examples can be used as a general guide, your system manuals should provide detailed information specific to your components.

Audio/Video Connections

Before making any connections, turn off ALL audio and video components, including individual power amplifiers. (Unplug any components that don’t have power switches.)

The SDP-3 is designed to function as the control center of the system, selecting inputs and controlling the volume of all speakers in the system. The following diagram shows a system with a tape deck, an AM/FM tuner, a CD player with a coaxial digital audio output, a satellite receiver with an optical digital output, a DVD player and a VHS VCR. This example shows the tape deck and VCR set up for recording and dualzone audio.

Actual system connections will vary widely depending on the components used.

7In-

put

Installation

S-VIDEO VIDEO

TAPE TUNER CD AUX TV V-DISC DVD VCR

AUDIO

VIDEO DISC

PLAYER

AC-3 RF Optical or Coax Digital

ZONE 2 AMPLIFIER

and SPEAKERS

INPUT

VIDEO MONITOR

or PROCESOR

MONITOR

ZONE 2 RECORD 1 RECORD 2

OUTPUT

S/PDIF OUT

345

S/PDIF INTPUTS

REAR SIDE CENTER FRONT

MAIN OUTPUTS

SUBWOOFER

ABC

EXPANSION PORTS

TRIGGERS

PGM GND PWR

LISTED AUDIO EQUIPMENT

7D77

E172268

RS 232

IR IN

SDP-RFD

In Out

RISK OF ELECTRIC SHOCK

ATTENTION

SDP-3

JBL SYNTHESIS, INC. ASSEMBLED IN U.S.A.

TRIGGERS

GND

PGMPWR

to SDEC 1000/2500 Digital EQ

CAUTION

DO NOT OPEN

RISQUE DE CHOC

ELECTRIQUE

NE PAS OUVRIR

100-240V 50-60 Hz, 35W

JBL Synthesis

TUNER

TAPE DECK

PLAYER

CABLE or

SATELLITE

DVD

Legend

VCR

SUBWOOFER

CENTER

Audio Video Control

FRONTS

SIDES

REARS

EQ/Amplifiers and Speakers

Input sources should be connected directly to the SDP-3 inputs. Connect the Left, Center, Right, Subwoofer, Left Side and Right Side

outputs to the inputs of the JBL Synthesis SDEC Digital Equalizer. Connect the Rear Left and Rear Right outputs, if used, directly to the appropriate amplifier inputs.

Whenever possible, connect both analog and digital outputs of digital sources. This enables use of a digital input for the main zone, and the corresponding analog input for the Record/Zone 2 outputs.

SDP-3 Digital Surround Processor/Controller

Video Connections

Installation

The SDP-3 has eight composite and S-Video inputs. Connection to an S-Video input will override the composite signal connected via the RCAtype connector. Note that an S-Video input will be output on both the composite and S-Video outputs. Composite input signals will not be output as S-Video.

You can assign any video source to any (or all) of the eight SDP-3 inputs via the Input Configuration submenu of the Setup menu. This can be very useful in systems which use a VCR as the tuner for TV viewing, as the video feed from the VCR can be assigned to both the VCR and TV inputs. The VCR's audio signals can be fed to both inputs with Yconnectors. (Do not use Y-connectors on video signals.) This allows the audio and video signals from the VCR to be used for both TV and VCR viewing.

You can also assign any video source to audio-only sources such as an AM/FM tuner, to enjoy music from another source while viewing a video source.

It is important to remember that the impedance characteristics of composite video and digital audio are different from analog audio. You should only use cables specifically designed for video and digital audio.

Digital Audio Connections

The SDP-3 has eight S/PDIF digital audio inputs: five coax via RCA and three optical via TOSLINK™. The digital inputs can be set up to be selected with any (or all) of the eight inputs via the Input Configuration menu. Using the digital inputs will always provide superior performance.

Expansion Port Input Connections

The SDP-3 also has three digital audio expansion ports (A, B and C). These coaxial digital audio inputs are capable of accepting stereo PCM signals up to 24-bit/96kHz. Expansion Port A feeds the Left and Right Front channels directly. Expansion Port B feeds the Center and Subwoofer channels directly, and Expansion Port C feeds the Left and Right Surround channels directly.

Note: These inputs are designed to completely bypass all of the digital signal processing of the unit, including the crossovers and effects.

For DVD players that support true 24/96 digital audio outputs, we recommend connecting one DVD digital audio output to Expansion Port A, and another DVD digital audio output to one of the SDP-3's eight S/PDIF digital audio inputs.

Installation

JBL Synthesis

NOTE: Whenever playback of a 24/96 disc is desired, press 2-CH while holding down the Shift button on the remote control. If you are using SMALL loudspeakers, these inputs will send a full frequency response signal to the outputs, completely bypassing the internal crossovers. Do not use this input with Dolby Digital or DTS signals.

Whenever playback of non-24/96 discs is desired, select the regular input on the SDP-3 remote control or front panel.

Digital Output

For digital-to-digital audio recording, the SDP-3 also includes a coaxial digital audio output (S/PDIF OUT). Any digital audio input (coaxial or optical) selected for Record or Zone 2 will be sent directly to this output.

NOTE: Analog audio inputs and the Expansion Port inputs are not available at the S/PDIF OUT, and the REC/ZONE 2 option in the Input Configuration menu does not affect the S/PDIF OUT.

"AC-3 Ready" Laser Disc and LD/DVD Players

"AC-3 ready" laser disc and LD/DVD players output Dolby Digital (AC-3) data from laser discs on a separate RCA jack in Radio Frequency (RF) form. To maintain the exceptional performance of the SDP-3, an outboard demodulator is required to turn this RF signal back into a digital bitstream. By performing the necessary demodulation outside the SDP-3, the potential for RF interference is eliminated. The JBL Synthesis SDP-RFD is used for this purpose.

SDP-3 Digital Surround Processor/Controller

Restore Factory Defaults

Installation

System Configuration

Although the SDP-3 memory is cleared before it leaves the factory, it is good practice to restore the factory defaults with the following procedure before system configuration.

Turn the SDP-3 OFF with the remote control. Turn the unit back ON and immediately press and hold the MUTE button on the remote. (Make sure you do not block the infrared receiver on the SDP-3 front panel.) The display will read:

FACTORY PRESETS MENU

EXIT

RESTORE DEFAULTS

Press ▼ to highlight RESTORE DEFAULTS, then press SELECT. This will clear and reload all preset effects and all factory settings of Volume, Balance, Contrast, Configuration, etc. When the message FACTORY DEFAULTS RESTORED is displayed, press DONE to return to normal operation.

Equalization

MAIN MENU

EFFECT ADJUST

EQUALIZATION

DISPLAY ADJUST

SETUP

In the main menu, press SELECT to open the Equalization menu which contains Bass, Treble and Tilt controls, and a Loudness parameter.

Bass and Treble Level

Bass and Treble level controls are provided to compensate for inconsistencies in source material, rather than variations in room conditions. The BASS LEVEL control allows a boost or cut of as much as 6dB below 250Hz. The TREBLE LEVEL control allows a boost or cut of 6dB above

1.5kHz. To select either control for adjustment, use ▲ or ▼ to select the control, press SELECT, and use ▲ or ▼ to adjust the setting.

These controls do not affect the sound of rear or side speakers.

EQUALIZATION MENU

BASS LEVEL TREBLE LEVEL TILT LOUDNESS

+0.0dB +0.0dB +0.0dB

Adjust with or

-6.0 to +6.0dB

-3.0dB to +3.0dB ON, OFF

▲▼

System Configuration

JBL Synthesis

(dB)

9.0000

7.0000

5.0000

3.0000

1.0000

-1.000

-3.000

-5.000

-7.000

-9.000

20 100 1k 10k

Bass Tone Control Frequency Response

Tilt

(dB)

5.0000

4.0000

3.0000

2.0000

1.0000

0.0

-1.000

-2.000

-3.000

-4.000 20 100 1k 10k

Tilt Control Frequency Response

(Hz)

20k

(Hz)

(dB)

9.0000

7.0000

5.0000

3.0000

1.0000

-1.000

-3.000

-5.000

-7.000

-9.000

20k

20 100 1k 10k

(Hz)

20k

Treble Tone Control Frequency Response

The Tilt parameter can be thought of as a straight line that pivots on a fulcrum at 1kHz to correct the overall tonal balance of source material. The range is -3.0dB to +3.0dB, referenced to the Treble level. This control, adjustable in 0.2dB increments, is useful on many older recordings, or when the desired tonal balance cannot be achieved at the listening position. The Tilt control does not alter the tonal balance of the rear or side speakers.

Loudness

(dB)

0.0

-10.00

-20.00

-30.00

-40.00

-50.00

-60.00

-70.00

-80.00 20 100 1k 10k

Loudness vs SDP-3 Volume control (front left)

(Hz)

A Loudness Contour parameter which boosts bass information, provides more balanced reproduction at low volume listening conditions. Once you have calibrated SDP-3 output levels, set the LOUDNESS parameter ON to provide the ideal amount of boost for any given volume setting. This parameter does not affect the sound of the rear or side speakers.

20k

SDP-3 Digital Surround Processor/Controller

Display Adjustment

MAIN MENU

EFFECT ADJUST

EQUALIZATION

DISPLAY ADJUST

SETUP

ystem

Configuration

Depending on the location of the SPD-3 in your room, you may need to adjust the front panel display for optimum viewing. To adjust this display, press the ▲, ▼ or SELECT buttons on the Remote to enter the Main Menu. Press ▼ twice to select DISPLAY ADJUST.

Press SELECT to highlight the Display Adjust Menu. Press ▼ to select FRONT PANEL DISPLAY.

DISPLAY ADJUST MENU

ON-SCREEN DISPLAY

FRONT PANEL DISPLAY

To adjust brightness, use SELECT to highlight BRIGHTNESS, and ▲ or ▼ to set display tbrightness for the room's lighting conditions. Press DONE twice to return to the main menu.

If you want to turn the front panel display off, use SELECT to highlight STATUS, then use ▲ or ▼ to select OFF. Press DONE twice to return to the main menu.

The Video On-Screen Display

In addition to the front-panel display, the SDP-3 contains a character

MAIN MENU

EFFECT ADJUST

EQUALIZATION

DISPLAY ADJUST

SETUP

generator for a video overlay display on monitors. Since the on-screen display is capable of showing the full menu of options available at any point, calibration of the system is faster and easier if the SDP-3 video output is connected to a video monitor.

Adjustments to the on-screen display are made from the Display Adjust menu. To display this menu, press the ▲, ▼ or SELECT buttons on the Remote to enter the Main Menu. Press ▼ twice to select DISPLAY ADJUST.

Press SELECT to enter the Display Adjust menu. Press SELECT to open the On-Screen Display menu.

FRONT PANEL DISPLAY

STATUS BRIGHTNESS

ON

75%

Adjust with or

ON, OFF 25%, 50%, 75%, 100%

▲▼

System Configuration

DISPLAY ADJUST MENU

ON-SCREEN DISPLAY

FRONT PANEL DISPLAY

ON-SCREEN DISPLAY

JBL Synthesis

Adjust with or

▲▼

Video Input Selection and the

On-Screen Display

When using the Video Monitor output with the On-Screen Display, the SDP-3 automatically puts up a blue or gray background when no video signal is present.

STATUS POSITION FORMAT COLOR MENU BACKGROUND

2 SECONDS

TOP

NTSC

ENABLED

ALWAYS ON, 2 SECONDS, ALWAYS OFF TOP, CENTER, BOTTOM NTSC, PAL, SECAM ENABLE, DISABLE ON, OFF

This menu allows you to choose the position and duration of items displayed on-screen during normal operation, as well as the options of color or black and white display and conformance to local video format.

Adjusting the position allows you to move the SDP-3 display items to a location where they will not interfere with any other video overlays or signals your system may generate.

The STATUS option allows you to choose to have the on-screen display always off, always on, or on for a two-second duration. Note that if you choose to have the display "time out", this will not affect the display of the main menu. Note also that parameter changes will still be performed when you make adjustments with ▲ or ▼, even if the display is inactive. If you choose ALWAYS OFF, you will not be able to use the video overlay, and even setup will have to be done using the front-panel display.

COLOR allows you to have the on-screen display presented in monochrome or color. FORMAT allows you to select NTSC, PAL or SECAM formats. (Note that SECAM format is available only in monochrome).

MENU BACKGROUND allows you to have on-screen controls displayed on a solid color background (ON) or directly superimposed on your video image (OFF).

Press DONE twice to return to the main menu.

SDP-3 Digital Surround Processor/Controller

INPUT CONFIG V-DISC

GAIN NAME PCM FX AC-3 FX DTS FX FX FORMAT AUDIO IN VIDEO IN REC/ZONE2

▲▼

Adjust with or

OFF

V-DISC

LOGIC 7

5.1 LOGIC 7

DTS LOGIC 7

AUTOMATIC

COAX-2

V-DISC

ANALOG

AUTO On/Off or MANUAL -18 to +12dB RESTORE DEFAULT or EDIT NAME USE LAST EFFECT or any PCM Effect USE LAST EFFECT or any AC-3 Effect Use LAST EFFECT or any DTS Effect

AUTO, PCM only, AC-3 only, DTS only Sources: ANALOG, COAX 1-5, OPTICAL 1-3 Sources: NONE, VCR, DVD, V-DISC,TV, AUX, CD, TUNER, TAPE Record Output: Analog, Digital or Blocked

Input Configuration

SETUP MENU

INPUT CONFIG

SPEAKER CONFIG

OUTPUT LEVELS

LISTENER POSITION

LOCK SETTINGS

INPUT CONFIG MENU

VCR DVD

V-DISC

TV AUX CD TUNER TAPE

ystem

Configuration

The SDP-3 has eight inputs, each of which can be associated with any of the eight video and eight digital audio inputs. Selecting Input Configuration from the Setup menu displays a sub-menu which lists these inputs and allows you to select them individually for adjustment. Each input has an identical parameter sub-menu. V-DISC is shown below as an example.

The GAIN control is only available for analog inputs. Whenever a digital input is selected under AUDIO

IN, this control is automatically set to OFF.

Input Gain (Analog Inputs Only)

For optimal performance when using analog inputs, the unit must be driven to its full input level without clipping. Despite industry attempts at standardization, different analog sources have a wide range of output levels. To compensate for this, each of the eight SDP-3 analog inputs can be assigned a different input gain, assuring optimum performance regardless of the source. For use with a calibration tone, the Dolby reference point is indicated by an enlarged tick mark on the Input Level meters.

The SDP-3 GAIN function can be set to AUTOMATIC to monitor the analog input level and automatically optimizes the input gain. If the signal level is too high, input gain is automatically decreased to a point which does not cause clipping. When the signal level remains low (>12dB below clipping for 2.5 minutes), the input gain is increased in 1dB steps to maximize dynamic range.

When MANUAL is selected, the display shows the last auto level setting. (If the auto level feature has not been used, the display shows the last manually entered level.) The auto level setting indicates the optimum input level value as determined by the unit. The ▲ and ▼ buttons increase or decrease the input gain in 1dB increments for the selected input over a range of -18dB to +12 dB. The setting is displayed in dB along with horizontal bargraph meters on the on-screen display to indicate incoming signal level.

Note that if a level is set manually, then AUTOMATIC is engaged, the level will not go above the last value entered manually.

System Configuration

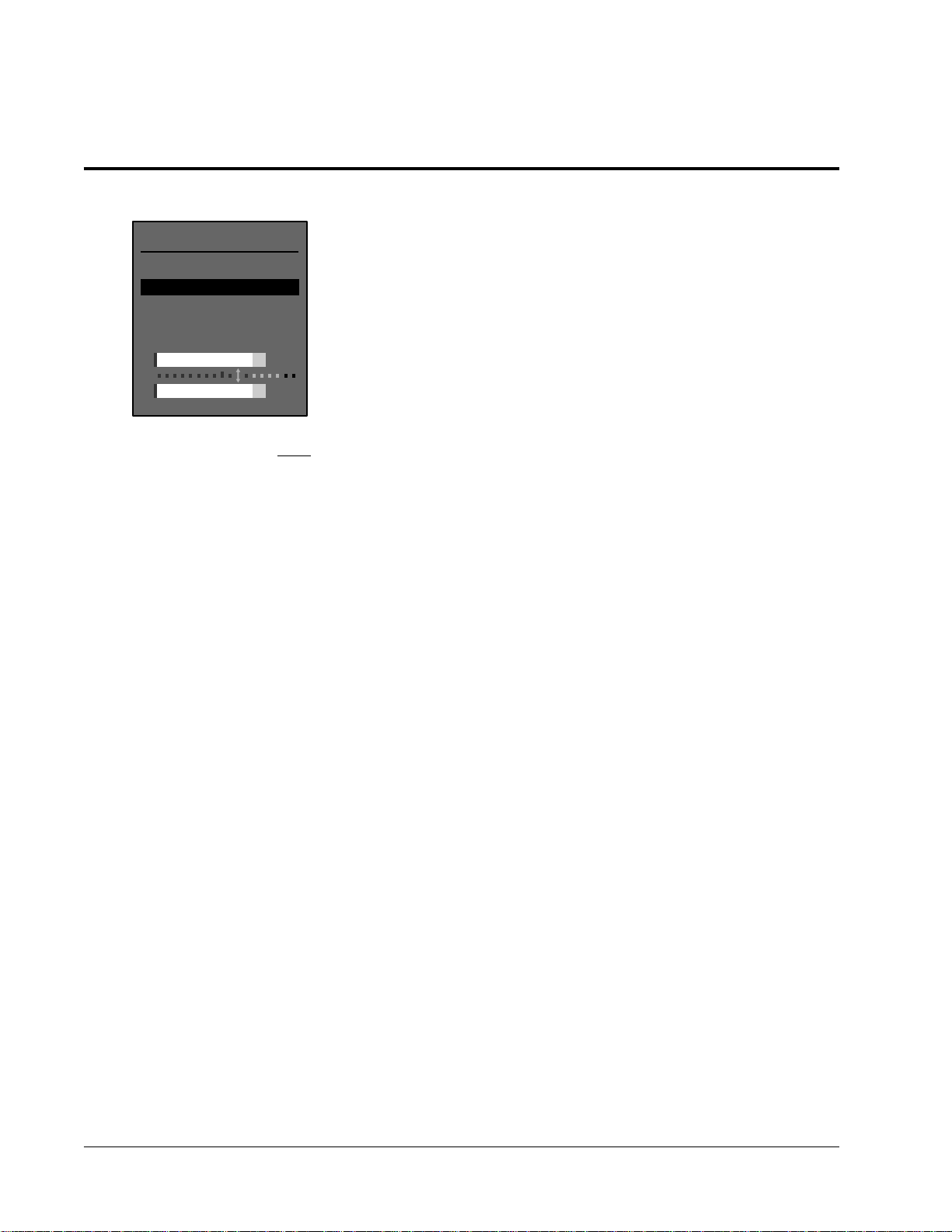

Input Level Meters

INPUT GAIN CD

AUTO

MANUAL

AUTO GAIN:

PEAK LEVEL:

The input level meters are displayed when you select the GAIN parameter for an active input which has been selected in the Setup menu.

Input Name

+00dB

-15.0dB

JBL Synthesis

When GAIN is selected, two on-screen horizontal bar meters display peak incoming signal level. The highest peak level is shown in dB in a separate text line, and as an arrow in the the meter display. White, yellow and red sections of the bar meter show increasing levels. The white portion is shown in 3dB increments, the yellow and red portions are shown in 1.5dB increments. An enlarged block at -21dB indicates the reference level used with a Dolby calibration tone source.

The peak level display can be refreshed by pressing DONE to exit, then pressing SELECT to return to the display.

Each input has an associated name, which is displayed during normal operation whenever the input is selected. The default names correspond to the labels on the SDP-3 remote control, front and rear panels. These names can be customized to more accurately reflect your system configuration.

To assign a new name (up to 8 characters) for an input, select NAME from the Input Configuration menu, and EDIT INPUT NAME from the sub-menu. The display will show the current name with a cursor marking the character position to be modified. Use the ▲ and ▼ buttons to select a new character for that position, and SELECT to move the cursor to another position. Press DONE twice to return to the Input Configuration menu.

Restore Input Name

This control allows you to restore the factory name for the currently selected input. Pressing SELECT displays the message PRESS SELECT TO RESTORE INPUT NAME. Pressing SELECT again restores the name and exits to the Input Configuration menu.

Input Effect "FX" Assignment

The SDP-3 has the ability to automatically load an effect whenever an input is chosen. For example, if you primarily listen to CD’s with the ROCK/POP effect, the SDP-3 can be set to load this effect when the CD input is chosen. (You can listen to any similar type of effect using the EFFECT ▲ and ▼ buttons on the front panel or the FX ▲ and ▼ buttons on the remote control.) If you select USE LAST, the SDP-3 will load the last effect used for the selected input. Any effect can be assigned to any or all of the eight inputs.

SDP-3 Digital Surround Processor/Controller

*AC-3 Effect chooses the 5.1 or the 2.0 effect depending on the AC-3 status of the signal.

ystem

Configuration

The SDP-3 can also be set up to automatically switch to an appropriate effect whenever PCM, AC-3 or DTS encoded material is detected at the input. This allows one input to be used for different formats. For example, in the factory default state, the V-DISC input will automatically load the appropriate version of Logic 7 when an AC-3, DTS, or PCM signal is present. The default selections for input effect assignment are shown below. More information is provided in the following FX Format section.

Input PCM Effect AC-3 Effect* DTS Effect

VCR TELEVISION 5.1 LOGIC 7 2.0 LOGIC 7 DTS LOGIC 7 DVD LOGIC 7 5.1 LOGIC 7 2.0 LOGIC 7 DTS LOGIC 7

V-DISC LOGIC 7 5.1 LOGIC 7 2.0 LOGIC 7 DTS LOGIC 7

TV TELEVISION 5.1 LOGIC 7 2.0 LOGIC 7 DTS LOGIC 7

AUX TELEVISION 5.1 LOGIC 7 2.0 LOGIC 7 DTS LOGIC 7

CD ROCK/POP 5.1 MUSIC 2.0 ROCK/POP DTS MUSIC

TUNER TELEVISION 5.1 MUSIC 2.0 ROCK/POP DTS MUSIC

TAPE PRO LOGIC 5.1 MUSIC 2.0 ROCK/POP DTS MUSIC

INPUT CONFIG MENU

VCR DVD

V-DISC

TV AUX CD TUNER TAPE



FX Format

The FX FORMAT parameter in the Input Configuration menu allows the SDP-3's format switching option to be individually adjusted for each input. Many "multi-format" source components, such as laser disc players, are capable of outputting different signals depending on the software being used. The SDP-3 automatically identifies the format of incoming audio signals, and selects an appropriate effect. The four selections available for FX FORMAT on each input are: AUTOMATIC, PCM ONLY, AC-3 ONLY and DTS ONLY. Each of these selections is described below.

Automatic

When AUTOMATIC is selected, the SDP-3 automatically identifies the format of the incoming signal and selects an appropriate effect. Effects

INPUT CONFIG V-DISC

GAIN NAME PCM FX AC-3 FX DTS FX

DTS LOGIC 7

FX FORMAT AUDIO IN VIDEO IN REC/ZONE2 

OFF

V-DISC

LOGIC 7

5.1 LOGIC 7

AUTO

COAX-2

V-DISC

ANALOG



can be chosen for each individual input and for each format in the INPUT CONFIG menu. To illustrate how AUTOMATIC would operate with a laser disc player, note the following example which assumes an "AC-3 ready" laser disc player used in conjunction with the JBL Synthesis SDP-RFD AC-3/RF Demodulator. This example assumes the V-DISC input has the factory preset configuration shown below, and that the SDP-RFD is connected to COAX 2 on the SDP-3.

NOTE: When AUTOMATIC is selected for an input, and DTS software is being used, there may be a brief burst of noise before playback begins. This is inherent in DTS software and does not represent a problem with your SDP-3. To avoid this, set up an input as DTS only, and use it exclusively for playback of DTS software.

System Configuration

JBL Synthesis

The SDP-3 V-DISC input is selected. A movie encoded in Dolby Surround is put in the laser disc player and starts to play. The SDP-RFD recognizes that the movie is not AC-3 encoded, and automatically routes the laser disc player's PCM (2-channel digital) signal to the SDP-

3. The SDP-3 identifies the signal as PCM and automatically loads the LOGIC 7 effect (as specified in the INPUT CONFIG menu).

Now, assume the movie is replaced with one that is encoded in Dolby Digital (AC-3). When it begins to play, the SDP-RFD recognizes the signal as being AC-3 encoded and demodulates it for the SDP-3. The SDP-3 automatically loads the 5.1 Logic 7 effect.

The FX ▲ and ▼ buttons are used to audition the other available AC3 effects and 5.1 DOLBY is selected. At some point during the movie, the PAUSE button on the laser disc player is pressed. This causes the laser disc player to temporarily replace the AC-3 output signal with a PCM signal. This change is recognized by the SDP-3, which automatically loads the Logic 7 effect (because in this example, AUTOMATIC is selected as the setting of FX FORMAT and LOGIC 7 is selected as the PCM FX in the INPUT CONFIG menu). Because the laser disc is paused, there is no audio. When PAUSE is released, playback is resumed and the SDP-3 automatically reselects the 5.1 DOLBY effect because it was the last effect selected before the audio was paused. To go back to the default effect, simply press the input button.

Now, the movie is replaced with a 5" music disc that is encoded in DTS. When the disc begins to play, the SDP-RFD recognizes that it is not AC- 3 encoded, and automatically routes the signal to the SDP-3. The SDP3 recognizes the DTS signal and automatically loads the DTS LOGIC 7 effect*. The FX ▲ and ▼ buttons are used to audition the other available DTS effects and DTS MUSIC is selected. At some point, the skip button on the laser disc player is pressed several times to advance to a different track . This causes the laser disc player to temporarily replace the DTS output signal with a PCM signal while it searches for the selected track. This change is recognized by the SDP-3, which automatically loads the Logic 7 effect (because in this example, AUTOMATIC is selected as the setting of FX FORMAT and Logic 7 is selected as the PCM FX in the INPUT CONFIG menu). Because the disc player is searching, there is no audio. When playback is resumed, the SDP-3 automatically reselects the DTS MUSIC effect.* To go back to the effect selected as a default, simply press the input button.

* As the SDP-3 is in AUTOMATIC mode, there may be a brief burst of noise before normal playback begins.

SDP-3 Digital Surround Processor/Controller

PCM Only

NOTE: PCM ONLY is automatically selected for an input whenever ANALOG is selected as the AUDIO IN setting, as AC-3 and DTS effects are incompatible with analog inputs.

AC-3 Only

NOTE: As AC-3 is a digital format, you must have a digital input selected for AUDIO IN in the INPUT CONFIG menu.

ystem

Configuration

If PCM ONLY is selected as the FX FORMAT for a given input, only PCM effects in the SDP-3 can be used. When the SDP-3 receives a signal which is not PCM encoded, it will mute and display "NO PCM AUDIO."

In the previous example, if PCM ONLY had been selected, rather than AUTOMATIC, the SDP-3 would have muted and displayed "NO PCM AUDIO" when the AC-3 movie and the DTS music disc were being played.

When AC-3 ONLY is selected as the FX FORMAT, only AC-3 effects can be used on that input. Any other type of signal received on that input will cause the SDP-3 to mute and display "NO AC-3 AUDIO." The FX ▲ and ▼ buttons will select only AC-3 effects. This is recommended for any input which will be used only for AC-3 playback.

In our example, selecting AC-3 as the FX Format setting, would have caused the SDP-3 to mute and display "NO AC-3 AUDIO" when the Dolby Surround movie and the DTS music disc were played. When the laser disc was paused, the SDP-3 would have muted rather than automatically selecting the PCM effect Logic 7.

DTS Only

NOTE: As DTS is a digital format, you must have a digital input selected for AUDIO IN in the INPUT CONFIG menu.

When DTS ONLY is selected as the FX FORMAT, only DTS effects can be used on that input. Any other type of signal received on that input will cause the SDP-3 to mute and display "NO DTS AUDIO." The FX ▲ and ▼ buttons will select only DTS effects.

In our example, selecting DTS as the FX Format setting, would have caused the SDP-3 to mute and display "NO DTS AUDIO" when the Dolby Surround and AC-3 movies were played. When the DTS music disc was advanced, the SDP-3 would have muted briefly rather than automatically selecting the PCM effect Logic 7. There would not have been any brief bursts of noise before playback began.

System Configuration

Audio In

Analog

COAX 1-5 and OPTICAL 1-3 (Digital Audio Inputs)

JBL Synthesis

This option in the INPUT CONFIG menu determines which audio input connector on the SDP-3 rear panel will be used for the MAIN zone. Using the digital inputs will usually yield better performance, and these should be used whenever a source component has a digital audio output. The options available for AUDIO IN are: ANALOG, COAX (1-5) and OPTICAL (1-3).

When ANALOG is selected for a given input, the SDP-3 will use the corresponding analog stereo audio input to generate the MAIN OUTPUTS. Note that selecting ANALOG will automatically select PCM ONLY as the FX FORMAT as the AC-3 and DTS effects are only compatible with digital inputs.

When one of these eight digital inputs is selected, the SDP-3 will use it to derive the signal for the MAIN OUTPUTS. Note that all eight digital inputs can be used for various SDP-3 inputs. This is particularly useful when using a source component such as a VCR, laser disc or DVD player to drive multiple SDP-3 inputs.

Video In

NOTE: S-Video input signals will be output on both the composite and SVideo jacks. However, if you are only connecting to the monitor via the SVideo output, composite video input sources will not be displayed.

NOTE: The Expansion Port input cannot be assigned as the default for any input.

The inputs labeled VCR, DVD, V-DISC, TV, AUX, CD, TUNER and TAPE have corresponding video inputs. For maximum configuration flexibility, each of these video inputs can be assigned to a different input, or to multiple inputs. If the assigned video input has both S-Video and composite jacks, the S-video signal takes priority whenever a cable is plugged into the appropriate S-video connector.

SDP-3 Digital Surround Processor/Controller

Record/Zone 2

ystem

Configuration

The SDP-3 is designed to be the control center of any system. As such, there are separate outputs for easy integration of external recording devices as well as an additional “zone” in multi-room installations.

The Record and Zone 2 outputs on the SDP-3 are wired in parallel so that the input selection will always be the same for both. For example, if the CD input is selected for Record, the CD input is also output to Zone 2. The primary difference between the Record and Zone 2 outputs is that Zone 2 has its own volume control, while the Record output level is fixed.

NOTE: When listening to DTS material from a source component, DTS digital data may also be sent out of the analog outputs. DTS data, which sounds like loud white noise, may cause damage to a system.

As protection against feedback, the TAPE and VCR inputs are normally blocked from being used as sources for the Record and Zone 2 outputs. This default condition can be changed in the Input Configuration menu as follows.

Use ▲ and ▼ to select REC/ZONE 2, then press SELECT. The ▲ and ▼ buttons will select ANALOG, DIGITAL, or BLOCKED as the state of the Zone 2 output.

ANALOG allows maximum flexibility from digital sources by utilizing both the digital and analog outputs of a digital source component (provided both are connected). The SDP-3 processes the digital input signal for the main zone, and simultaneously routes the analog input signal to the Record and Zone 2 outputs. Since no D/A converters are necessary for the analog input signal, the functionality in the Main zone is not compromised.

DIGITAL routes the digital signal, assigned to the input, to the SDP-3’s 24-bit Digital to Analog (D/A) converters. After conversion, the signal is sent to the Record and Zone 2 outputs. As this setup bypasses the D/A converters in the source component, and utilizes the 24-bit D/A converters in the SDP-3, sound quality can be dramatically improved when recording or listening in Zone 2. Note, however, that this setup automatically loads the appropriate 2-Channel effect in the main zone.

NOTE: Removing the block from any input which has both an input and output attached to the SDP-3 may cause damaging feedback.

Record/Zone 2 Controls

BLOCKED simply blocks the input from being sent to the Record and Zone 2 outputs. This prevents feedback from occurring with devices that have both an input and output attached to the SDP-3 (Tape deck, VCR, etc.).

Record/Zone 2 functions can be accessed from the SDP-3 front panel or the remote control. In either case, press and hold Record/Zone 2 while pressing one of the following buttons.

Turns on the Zone 2 outputs, lights the red Record/Zone 2 front panel

System Configuration

OFF

OSD (ON)

VOL ▲ and ▼

Mute

JBL Synthesis

LED and redirects the current main zone input to the Record/Zone 2 outputs.

Turns off the Zone 2 outputs, and the associated front panel LEDs.

Displays a STATUS menu for the current input. Press Done to exit.

Displays, then adjusts the current Zone 2 volume level. Activated displays (FP or OSD) will show level and a bar gauge. When Zone 2 mute is engaged, these controls adjust volume without disengaging Zone 2 mute.

Engages Zone 2 mute and reduces the Zone 2 volume level to -80dB. Pressing again restores Zone 2 volume to its previous level.

SELECT and DONE (remote control only)

Displays, then adjusts Zone 2 left/right balance. Activated displays (FP or OSD) will show bar gauge and level in dB.

VCR, DVD, V Disc, TV, AUX, CD, Tuner, and Tape

Selects the Record/Zone 2 input and lights the corresponding front panel input LED (unless the input is blocked).

Dolby, THX, Logic 7, and DTS (remote control only)

These controls set the Zone 2 volume level to the following levels.

Dolby -30dB THX -20dB Logic 7 -10dB DTS +00dB

2 CH, Party, TV M, and Music (remote control only)

These controls set the master volume level to the following levels. When Zone 2 mute is engaged, these controls set the Zone 2 volume level without disengaging mute.

2CH -30dB Party -20dB TV M -10dB Music +00dB

SDP-3 Digital Surround Processor/Controller



Speaker Configuration

Custom Configuration

ystem

Configuration

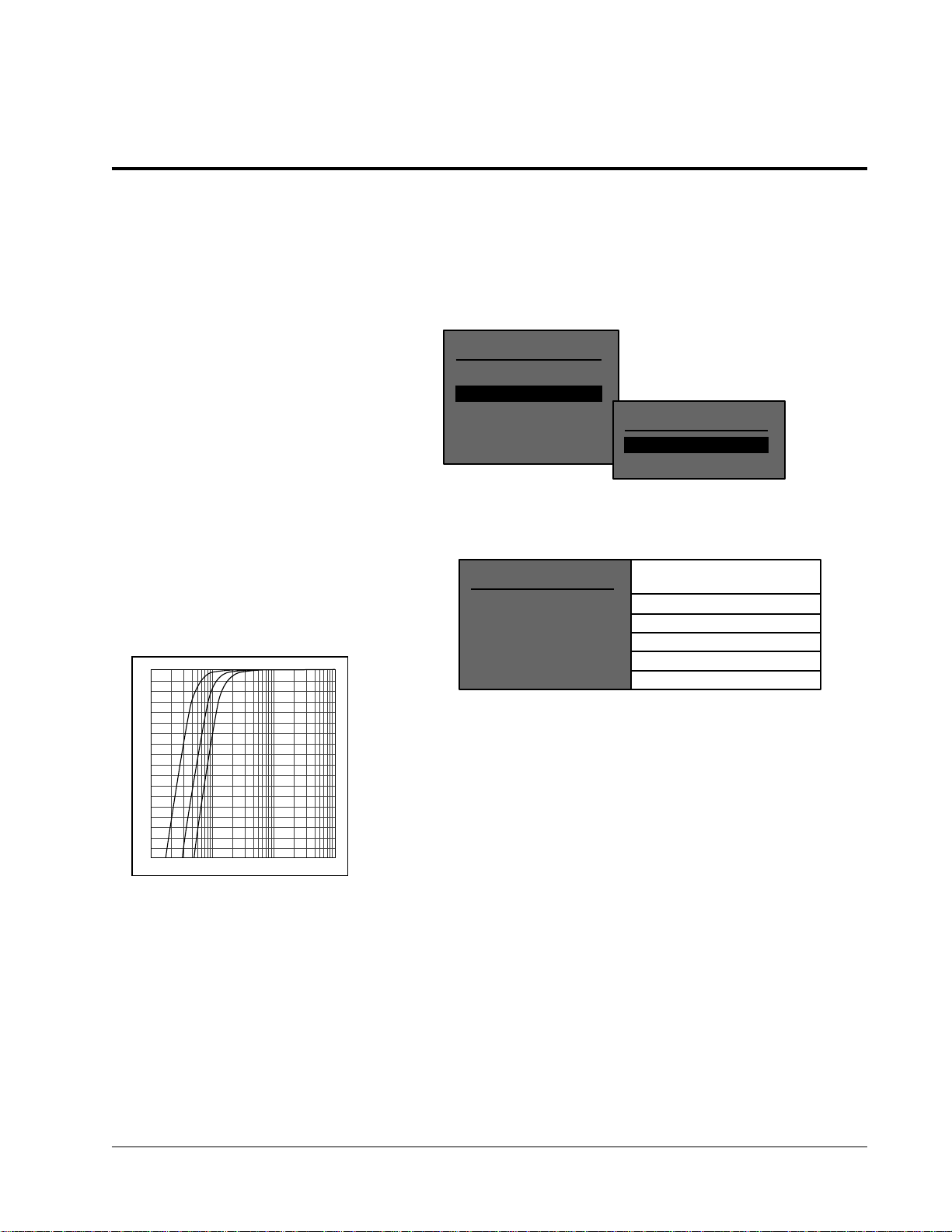

The Speaker Configuration menu allows a wide range of choices in speaker type and room setups to provide optimal performance in almost any room. An adjustable lowpass filter is available for the subwoofer, as well as a highpass filter for all other speakers. The two selections are for CUSTOM or THX configuration.

SETUP MENU

INPUT CONFIG

SPEAKER CONFIG

OUTPUT LEVELS

LISTENER POSITION

LOCK SETTINGS

Press SELECT to open the CUSTOM CONFIG menu. Press SELECT to access the selections for any highlighted menu item.

SPEAKER SETUP MENU

CUSTOM CONFIG

THX SPEAKER CONFIG

dBr

0.0

-1.000

-2.000

-3.000

-4.000

-5.000

-6.000

-7.000

-8.000

-9.000

-10.00

-11.00

-12.00

-13.00

-14.00

-15.00

-16.00

-17.00

-18.00 10 1005020 2k1k500200 5k 10k

Front L/R

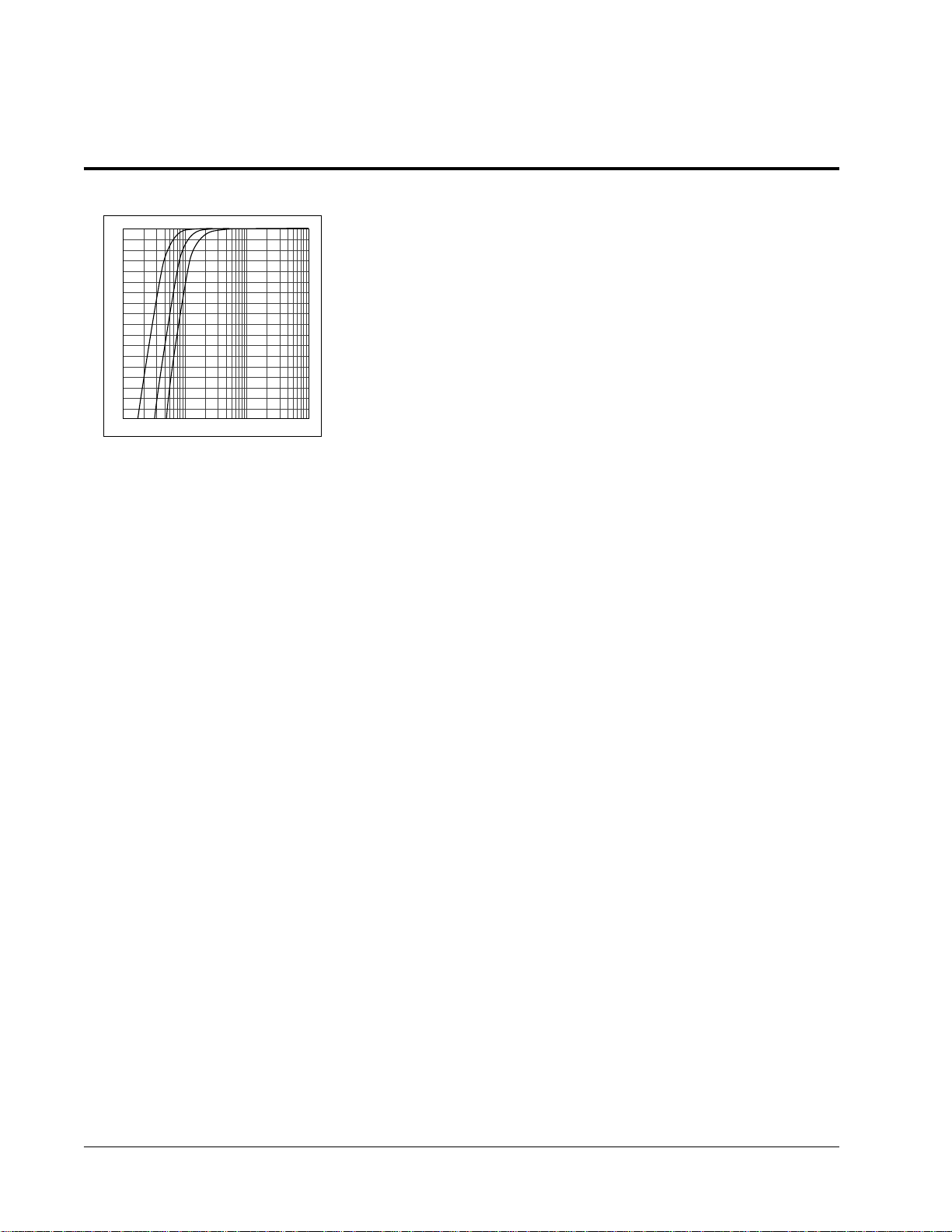

The high pass filter attenuates low frequencies at 12dB per octave. The values given are for the

-3dB point.

CUSTOM CONFIG MENU

FRONT L/R CENTER

DIPOLE SMALL

SIDES REARS SUBWFR

SMALL SMALL

SMALL

YES

Adjust with or

LARGE, SMALL LARGE, SMALL, NONE LG or SM STD, LG or SM DIPOLE, NONE LARGE, SMALL, NONE YES, NO

▲▼

Select LARGE for full-range front speakers to deliver full frequency response to the front left and right outputs. Selecting SMALL activates a 12dB per octave highpass filter and automatically routes low frequency information to the subwoofer output. Choices of 40, 80 and 120 Hz are available for the -3dB point. The SMALL setting is recommended unless your speakers are capable of handling full audio signals, or are equipped with their own crossovers. This setting should be on SMALL at 80Hz for ALL JBL Synthesis systems.

System



Configuration

JBL Synthesis

dBr

0.0

-1.000

-2.000

-3.000

-4.000

-5.000

-6.000

-7.000

-8.000

-9.000

-10.00

-11.00

-12.00

-13.00

-14.00

-15.00

-16.00

-17.00

-18.00 10 1005020 2k1k500200 5k 10k

Center

Bass Split rolls off frequencies at 12dB per octave. The values given are at the -3dB point of attenuation from the center speaker.

Sides

Systems that utilize a full-range center speaker should select LARGE to direct center information to the center output with a full frequency response. Select SMALL for installations where the center speaker is smaller than the left and right front speakers. This will automatically engage the Bass Split feature, which takes the low frequency content from the center and distributes it to the left and right front speakers, reducing the risk of damage to a small center speaker without loss of bass information. When SMALL is highlighted, press SELECT to display and adjust the crossover point for the low frequency redistribution. Available crossover points are: 40, 80 and 120Hz. Press DONE to return to the Speaker Configuration menu. This setting should be on SMALL at 80Hz for ALL JBL Synthesis systems.

This menu sets the system for your particular side speaker configuration. Systems with side speakers should be designated as STANDARD (LARGE or SMALL) or DIPOLE (LARGE or SMALL). DIPOLE indicates a THX speaker configuration, and will work best for dipoles, whether or not speakers are used. When STANDARD SMALL or DIPOLE SMALL is highlighted, press SELECT to display and adjust the highpass filter for the side outputs. Choices are 40, 80 or 120Hz. For any 5.1 channel inputs, selecting SMALL routes the low frequency information to the subwoofer output. Selecting NONE mutes the side outputs and directs all surround information to the rear outputs. This setting should be on DIPOLE SMALL at 80Hz for ALL JBL Synthesis systems.

Rears

The active selections are LARGE and SMALL. Systems that utilize fullrange rear speakers should select LARGE to direct a full-range signal to them. SMALL should be selected when filtering is desired. (40, 80 and 120Hz are available as settings for the -3dB point). For any 5.1 channel inputs, selecting SMALL routes the low frequency information to the subwoofer output. Selecting NONE mutes the rear outputs and directs all surround information to the side outputs. When used with JBL Synthesis systems using side and rear speakers, this setting should be on SMALL at 80Hz. Otherwise, NONE should be selected.

SDP-3 Digital Surround Processor/Controller



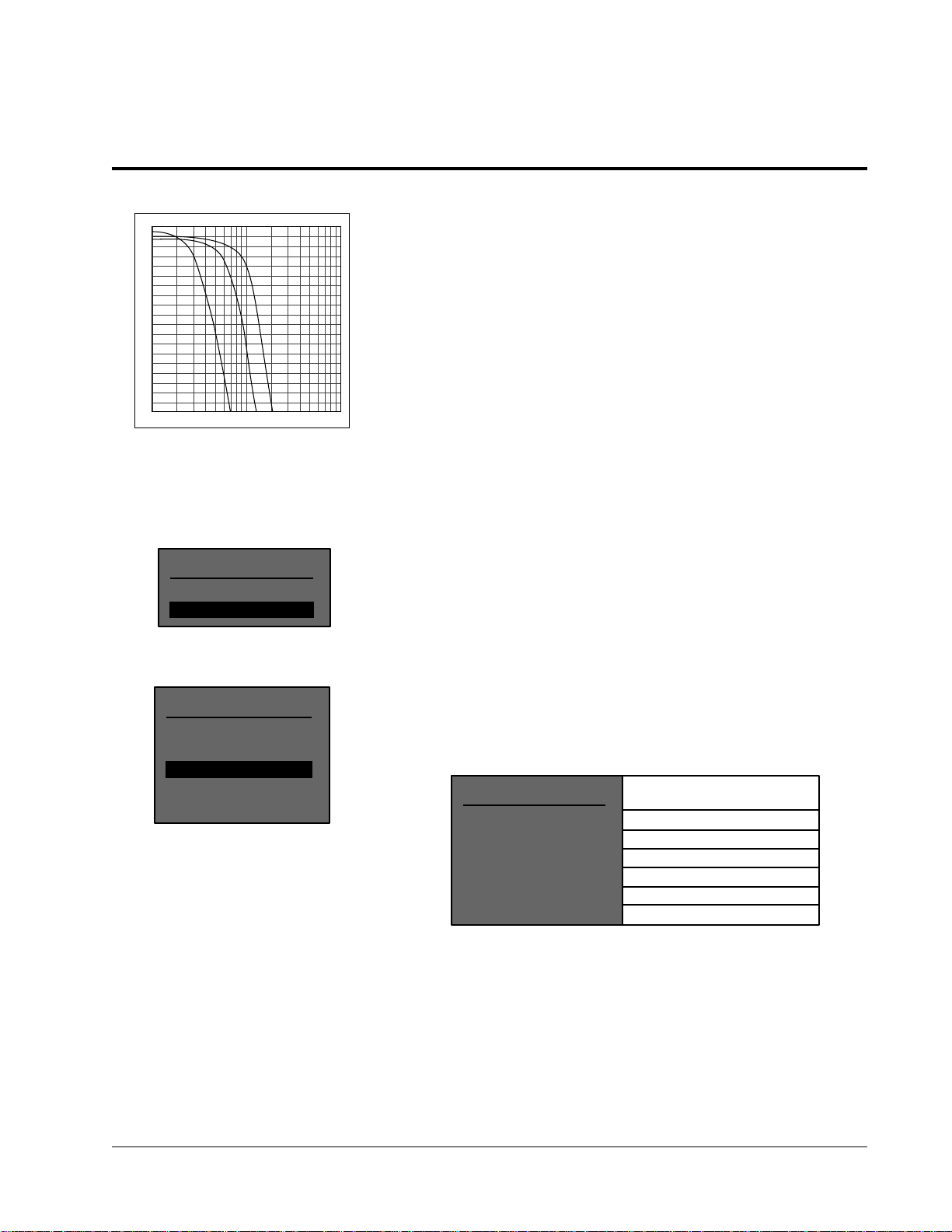

dBr

+1.000

0.0

-1.000

-2.000

-3.000

-4.000

-5.000

-6.000

-7.000

-8.000

-9.000

-10.00

-11.00

-12.00

-13.00

-14.00

-15.00

-16.00

-17.00

-18.00 10 1005020 1k500200

Subwoofer Output

Subwoofer Frequency Response The low pass filter attenuates high frequencies at 24dB per octave. The values given are for the 6dB point.

THX Configuration

ystem

Configuration

Use of the subwoofer output is specified here. Selecting YES, then pressing SELECT allows you to display and adjust the crossover frequency for the subwoofer output. All summing and filtering is performed in the digital domain. You can select three different crossover points (40, 80 or 120Hz) for the subwoofer. Although you can bypass the crossover (OFF) and run a full range output if your subwoofer has an internal crossover, it is generally best to use the crossover in the SDP-

3. NO mutes the subwoofer output and disables the Subwoofer Level parameter. For any 5.1 channel input, selecting NO routes the LFE (.1 channel) to any front, side or rear speakers set to LARGE. When used with ALL JBL Synthesis systems, this setting should be on yes.

SPEAKER SETUP MENU

CUSTOM CONFIG

THX SPEAKER CONFIG

Setting Output Levels

SETUP MENU

INPUT CONFIG

SPEAKER CONFIG

OUTPUT LEVELS

LISTENER POSITION

LOCK SETTINGS

Selecting THX SPEAKER CONFIG from the SPEAKER SETUP menu automatically sets the speaker selections to the appropriate configuration for 5.1-channel THX listening. This setting is not recommended for

7.1-channel configuration. This configuration is not adjustable.

When SDP-3 input and output levels are set properly, the entire system will be calibrated to play films at the level intended by the director. Setting the output levels is easy with a Sound Pressure Level (SPL) meter. Using the SDP-3’s internally generated calibration signal, adjust the level of each output to the same relative level (75dB "C" weighting).

OUTPUT LEVELS MENU

INTERNAL NOISE TEST EXTERNAL NOISE TEST SUB PEAK LIMIT MUTE LEVEL PWR-ON VOL Z-2 PWR-ON

+15dB

-30dB

Adjust with or

Noise signal sent sequentially to all speakers Pro Logic effect w/current input as source

-5 to +35dB

-10dB, -20dB, -30dB, -40dB, FULL MUTE LAST LVL, -80 to +6dB LAST LVL, -80 to +12dB

▲▼

Select INTERNAL NOISE TEST or EXTERNAL NOISE TEST from the Output Levels menu.

The INTERNAL NOISE TEST disables any EQ functions, centers the Balance and Fader controls, and sets the system volume to +00dB. The test signal circles the room according to the speaker configuration you have defined in the Speaker Configuration menu. For a full complement of speakers, the order is: Left Front, Center, Right Front, Right Side, Left Side, Subwoofer, Right Rear, Left Rear.

System Configuration

JBL Synthesis

The EXTERNAL NOISE TEST loads the Pro Logic, 5.1 Dolby or DTS Music effect and uses the signal from the currently selected input for calibration.

Once a test source is selected, a sub-menu showing each output level is displayed. Use the ▲ and ▼ buttons to highlight an output for adjustment. Press SELECT to stop the cycling of the noise signal, then use ▲ and ▼ to adjust the selected output level in precise 0.5dB increments from -10dB to +10dB.

OUTPUT LEVELS MENU

INTERNAL NOISE TEST EXTERNAL NOISE TEST

*These selections will not be active if "NONE" is selected in the Speaker Configuration menu.

Using a Sound Pressure Level Meter such as Radio Shack model

Adjust with or

LEFT FRONT CENTER* RIGHT FRONT RIGHT SIDE* LEFT SIDE* SUBWOOFER* RIGHT REAR* LEFT REAR* 

▲▼

-10dB to +10dB

33-2050 or 33-2055, set the weighting to C and the response to Slow. Adjust the subwoofer output to 80dB. Adjust all other output levels to achieve 75dB at the listening position.

In the absence of an SPL meter, it is possible to set the output level by ear. Use the internal noise generator in the SDP-3 to adjust all volumes to be the same as they cycle around the various speakers. Depending on timbre variations between your speakers, this may be difficult to judge — get as close as you can. The system should be reasonably well balanced, although not actually calibrated for precise playback and level matching. With the system volume at 0dB, the internal noise source should be at the same level at which film dialog sounds comfortable.

Note on External Noise Calibration

When using the external noise calibration, the SDP-3 will load the factory default effect for the format of the incoming signal. In other words, if a PCM signal is coming into the SDP-3 when external noise is engaged, the SDP-3 will load the PRO LOGIC effect with the factory preset settings. If a Dolby Digital AC-3 signal is coming in, the SDP-3 will load the 5.1 DOLBY effect with the factory preset settings. If a DTS signal is coming in, the SDP-3 will load the DTS MUSIC effect with the factory preset settings.

NOTE: The Volume control is active when utilizing external noise calibration.

SDP-3 Digital Surround Processor/Controller

Subwoofer Peak Limiter

ystem

Configuration

Dolby Digital (AC-3) and DTS encoded sources can produce low frequency peaks that are much louder than those in matrixed Dolby Surround decoding. These higher levels may be troublesome in the home listening environment, either because they disturb non-listeners in nearby rooms, or because of the inability of the subwoofer and its associated amplifier to reproduce these levels without clipping.

Note that +00dB=85dB, in a properly calibrated system.

SUB PEAK LIMITER

LIMITER LIMITER ADJUST

!WARNING!

REDUCE SYSTEM VOLUME

BEFORE TURNING

LIMITER OFF

The SDP-3 provides a Subwoofer Peak Limiter that prevents the subwoofer signal level from exceeding a preset value. The limiter is factory preset to the OFF postion. This setting can be changed within the limiter’s operating range of -5dB to +35dB, with -5dB providing maximum limiting.

To turn on the limiter or to change its setting, select the SUB PK LIMITER parameter in the Output Levels menu.

Press ▼ to select LIMITER, then press SELECT. Press ▲ to select ON. Press DONE twice to return to the Output Levels menu. While readjusting the system volume to a comfortable listening level, check to be sure the subwoofer or its amplifier is not overloading on passages with loud low frequency peaks.

OFF

+15dB

Adjust with or

ON, OFF

-5dB to +35dB

▲▼

Note that the Sub Peak Limiter is separate from the Subwoofer level control in the Effect Adjust menus — one setting does not affect the other.

Selecting LIMITER ADJUST in the Sub Peak Limiter menu invokes a calibration routine for setting the optimal peak level for your installation. Pressing SELECT routes low frequency calibration noise to the subwoofer output of the SDP-3. A two-line display indicates the LIMITER LEVEL setting in dB on the top line with a bar at the bottom to indicate relative noise level. Press ▲ and ▼ to adjust the noise level to the highest level that your system can reproduce without overload.

Be sure the limiter is set to ON before exiting. Press DONE to exit and automatically set the limiter to the level you have selected.

System Configuration

JBL Synthesis

Mute Level

This menu allows you to set the level of attenuation used whenever the SDP-3 MUTE function is engaged. In the Output Levels menu, attenuation levels of -10dB, -20dB, -30dB, -40dB, and FULL are available.

Power On Volume

This control in the Output Levels menu allows you to select the volume at which the SDP-3 will power on. You can choose from a range of -80 to +6dB, or elect to have the system power on at the last level used (LAST LVL).

Zone 2 Power On Volume

This control in the Output Levels menu allows you to select the initial volume level for Zone 2. You can choose from a range of -80 to +12dB, or elect to have Zone 2 power on at the last level used (LAST LVL).

Setting Listener Position

SETUP MENU

INPUT CONFIG

SPEAKER CONFIG

OUTPUT LEVELS

LISTENER POSITION

LOCK SETTINGS

Speaker Distance

The Listener Position menu is used for setting the surround and center delays and calibrating the Panorama effect.

LISTENER POSITION

SPEAKER DISTANCE A/V SYNC DLY CALIBRATE PANORAMA L/R BALANCE ZONE 2 BALANCE

The Speaker Distance control automatically sets the appropriate time delays for all of the loudspeakers in a system. Although this adjustment is not a substitute for proper speaker placement, it will help to ensure accurate signal arrival times from all channels at the listening position.

To set up Speaker Distance, you may physically measure the distance from the primary listening position to the front baffle of each individual speaker in your system. An easy and accurate way to accomplish this is to have a person sit in the primary listening position, holding the end of a measuring tape, while a second person extends the tape measure to the front baffle of each speaker in turn.

OFF

< | > < | >

Adjust with or

based on speaker distance Off, 1 to 30ms

CAL NOISE, SPEAKER ANGLE, LISTENER POS

[ _ _ _ | | _ _ _ ] [ _ _ _ | | _ _ _ ]

▲▼

To enter these values, select SPEAKER DISTANCE in the Listener Position menu and press SELECT. Use ▲ and ▼ to highlight feet or meters and press SELECT. Press SELECT again to highlight NEAREST SPKR. Use ▲ and ▼ to enter the actual distance, then press DONE.

SDP-3 Digital Surround Processor/Controller

A/V Sync Delay

ystem

Configuration

Once you have entered the distance to the nearest speaker, the SDP3 will automatically calculate the maximum allowable distance. The display will show all of the speakers, each with a default distance setting equal to your nearest speaker. Use SELECT and ▲ and ▼ to highlight and enter actual distances for each speaker. The SDP-3 rounds off distance settings into discrete steps – choose the closest step to the actual distance in these cases. If a speaker distance is further than the SDP-3 can accommodate, set it to the maximum allowable distance. (This will vary, depending on your intial entry for NEAREST SPKR.)

NOTE: Do not perform time alignment in the SDP-3 when using the JBL Synthesis SDEC 1000/2500A Digital Equalizers. Time alignment will be adjusted automatically in the SDEC Digital EQ. If your system has side and rear speakers, be sure to turn the rears off prior to performing auto-time alignment with the SDEC Digital EQ.

A/V Sync Delay compensates for the delay that occurs when a video processor, such as a scan rate converter, is used with the SDP-3. Most of these processors alter the original audio/video timing relationship by adding delay to the video signal as it is processed. A/V Sync Delay applies a corresponding delay to the audio signal to restore the original audio/video timing relationship. It can also be used to compensate for poorly mastered source material.

Calibrate Panorama

If your video material appears to be out of sync, engage A/V Sync Delay in the LISTENER POSITION menu. With a video source running, adjust the delay along its 1-30ms range with ▲ and ▼.

Note that it is best to use a non-film source when setting A/V Sync Delay, as film dialog added in post production may have poor timing relationships.

Panorama works by canceling the sound going from each speaker to the opposite ear. Its effectiveness is highly dependent on the geometry of your front loudspeakers, the room and your listening position. The correct timing of the canceling signal varies with the relative angle between your main speakers.

Find a mono source, such as an announcer on FM radio or a mono film, and listen for a tightly focused center image of speech or singing. If the image is off-center, adjust the SDP-3’s input balance controls. (The more centered the monaural image, the better Panorama will work.)

Select CALIBRATE PANORAMA from the Listener Position menu to display a sub-menu that allows you to turn on a calibration noise source, configure the speaker angle, and adjust the listener position.

System Configuration

60°

L127. . . Center . . . R127

SPEAKER ANGLE is the angle between the main speakers as seen from the listening position — here it is about 60°. LISTENER POS allows you to adjust for an offset listening position.

SILENCE

{

NOISE

JBL Synthesis

CAL NOISE is a special digitally generated signal to aid in calibrating the Speaker Angle and Listener Position parameters. Note that in all cases, sound will actually be produced by both front loudspeakers. The adjustments affect the perceived directionality of the sound.

LISTENER POSITION

SPEAKER DISTANCE A/V SYNC DLY

CALIBRATE PANORAMA

L/R BALANCE ZONE 2 BALANCE

OFF

CAL NOISE

< | >



< | >

SPEAKER ANGLE LISTENER POS

Adjust with or

▲▼

OFF, LEFT ONLY, LEFT AND RIGHT, RIGHT ONLY 10° - 118° L127...CNTR...R127

The SPEAKER ANGLE, displayed in degrees, adjusts for wide or narrow speaker spacing (relative to the listening position). For the two canceling signals to arrive at both ears at the same time you must be centered precisely between the speakers. It will be easiest to calibrate this parameter if you start equidistant from the two front speakers, even if this is not your normal listening position. Once you have heard the effect and set the speaker angle, the Listener Position parameter will allow you to “move” the effect to your customary listening position.

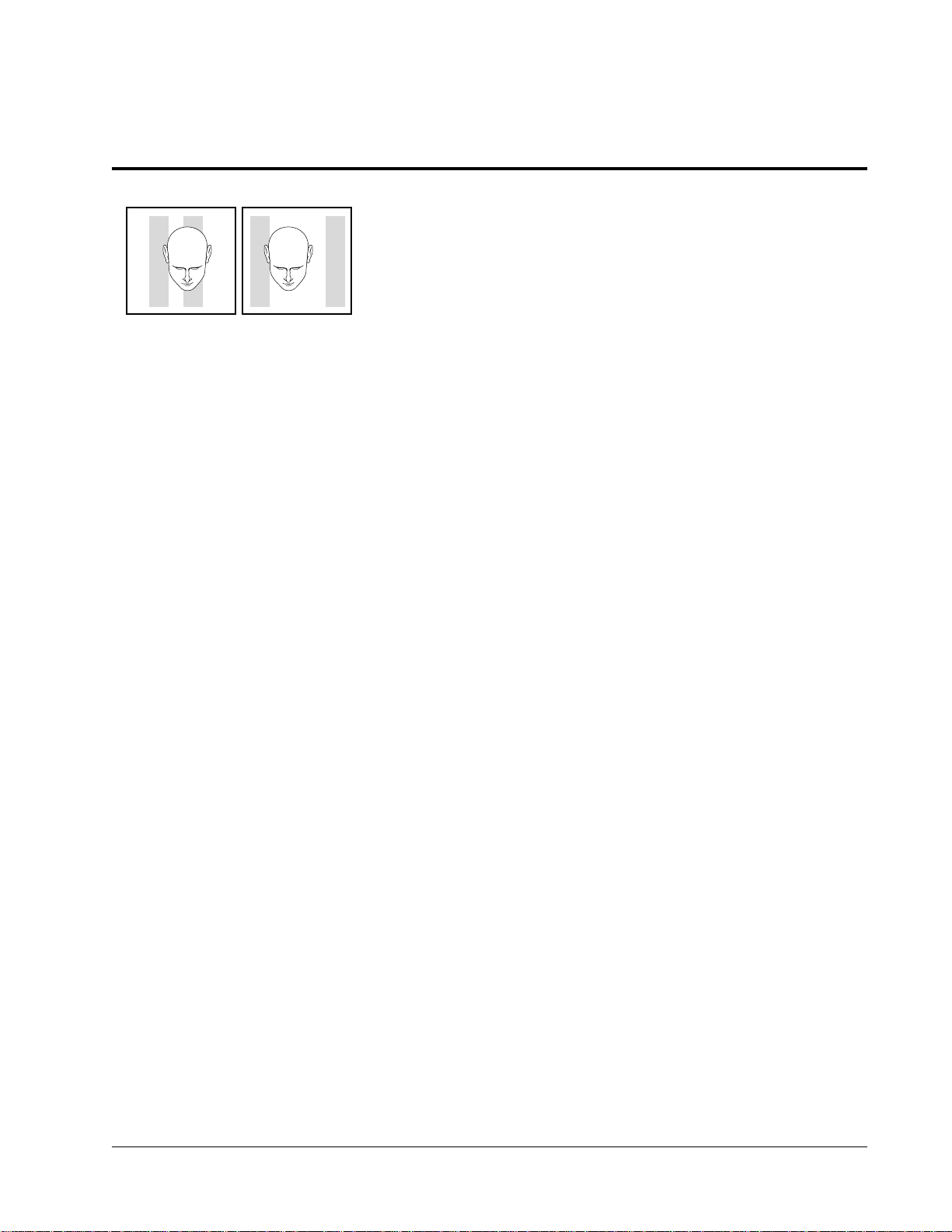

Move your head from side to side to find the position where the noise is full left, and the right ear hears near total silence.

NOISE

When calibrating right, if your left ear is in the silent band, the speaker angle is correct.

SILENCE

{

To set the Speaker Angle, center yourself symmetrically between the two front speakers. Turn CAL NOISE on and select LEFT ONLY. The test signal should sound as though it is coming from off to your left side, well beyond the left speaker, with near-total silence in your right ear. Still facing forward, move your head from side to side until the effect is strongest. When you have found this sweet spot you will notice an almost physical sensation of silence in your right ear.

Now, select RIGHT ONLY. Again, shift your head from side to side to find the sweet spot, this time looking for the point where the sound is strongest in your right ear. Select LEFT AND RIGHT to determine if the sweet spots from the left and right tests coincide. If they do not coincide, return to the SPEAKER ANGLE display. If the first sweet spot is to the

left of the second, press ▲ ; if it is to the right, press ▼.

SDP-3 Digital Surround Processor/Controller

If the two silent bands are too close, lower the Speaker Angle; if they are too far apart, raise the Speaker Angle.

L/R Balance

ystem

Configuration

If your normal listening position is not centered between your two front speakers, once you have corrected the speaker angle setting, you can "move" the sweet spot to that position. To do this, select LISTENER POS and use ▲ and ▼ to move the effect. As you adjust the position, the display will indicate motion to the left of center (L001,L002,L003...L127), CENTER, or to the right of center (R001,R002,R003...R127). The numbers represent approximately 1/3", but are provided primarily as a general reference.

Panorama is now calibrated. Press DONE repeatedly to step back to the main setup menu.

This control allows you to adjust the left/right balance of the front, side and rear main outputs. This control can also be accessed on the remote by pressing and holding the Shift button and using DONE to move to the left, and SELECT to move to the right.

Zone 2 L/R Balance

This control allows you to adjust the left/right balance of the Zone 2 outputs. This control can also be accessed on the remote by pressing and holding the Record/Zone 2 button and using DONE to move to the left, and SELECT to move to the right.

System Configuration

Customization

Locking Settings

LOCK SETTINGS MENU

SETTINGS CUSTOM NAME ASSIGN CUSTOM NAME

UNLOCKED

OFF

JBL Synthesis

After you have calibrated and customized the SDP-3, there are two additional steps recommended to safeguard the settings. First, document your adjustments using the worksheet at the end of this manual. Second, consider locking the settings so that they cannot be inadvertently changed. The last item in the Setup menu allows you to lock the SDP-3 settings, as well as to change the name displayed during power up.

Locking the settings allows full operation of the unit but prohibits the ability to change effect parameters or setup values. Specifically, with the settings locked, the unit will allow any Parameter or Setup menu to be displayed, but attempting to select any item for adjustment will display the message: SETTINGS ARE LOCKED.

In order to prevent accidental changes, select the SETTINGS parameter and use ▲ to select LOCKED. A higher level of security can be achieved by simultaneously pressing Record/Zone 2 on the remote, then pressing FX ▲ (with SETTINGS selected). Repeat to release lock.

Assign Custom Name

When the SDP-3 is first turned on, it displays a copyright notice with the current software version. You can choose to have it display CUSTOMIZED FOR DEMONSTRATION with the word DEMONSTRATION scrolled in from right to left, or you can replace the word DEMONSTRATION with a custom name of as many as 20 characters. To assign a new name, use ▲ and ▼ to highlight CUSTOM NAME. Press SELECT and press s to turn this function ON, then press DONE.

You will return to the Lock Settings menu with ASSIGN CUSTOM NAME highlighted. Pressing SELECT will display the current name with a cursor indicating which character position can be modified. Use ▲ and ▼ to select a new character. Use SELECT to move the cursor to a new position. Press DONE to save the new name.

SDP-3 Digital Surround Processor/Controller

Using SDP-3 Effects

MAIN MENU

EFFECT ADJUST

EQUALIZATION

DISPLAY ADJUST

SETUP

Customizing Effects

CUSTOM MENU

LISTEN CUSTOM/PRESET RESTORE PARAMETERS EDIT EFFECT NAME RESTORE EFFECT NAME EFFECT ONLY TRIGGER ENABLE FRONT/BACK FADER

OFF

< | >

ystem

Configuration

When EFFECT ADJUST is selected from the Main menu, the on-screen display shows a list of parameters specific to the current effect, as well as the current value of each parameter. (The front panel display shows one parameter at a time). Use the ▲ and ▼ buttons to move through the displayed list. Press SELECT to activate a two-line display which allows you to use ▲ and ▼ to alter the selected parameter’s value. Press DONE to confirm the change and move on to the next menu item. Each SDP3 Effect and its parameter menu is described in the following sections.

Although the list of available parameters will vary with different effects, the last item in each menu is always CUSTOM. Selecting CUSTOM calls up a sub-menu which allows you to name your custom effects, to compare your version with the original preset, or to restore the preset versions of the Effect name and parameter values.

When first shipped, the SDP-3 has a set of default values assigned to each Effect. These values have been determined to be suitable for initial listening. As every installation has its own unique characteristics, and listeners have distinctly different preferences, you may want to tailor the Effects to suit your own requirements. To allow easy customization, any parameter changes you make take effect instantly, and automatically become part of the Effect. You can even change the name that appears on-screen. Once you have made the changes you want, the Effect will remain as you have set it unless you alter it again, or deliberately restore the factory preset parameter values.

Selecting CUSTOM from any Effect Adjust menu will give you access to the controls listed to the side and described below. Use ▲ and ▼ to highlight any menu item, then press SELECT to open the submenu.

Comparing a modified Effect to the factory preset version

LISTEN CUSTOM/PRESET lets you compare your edited version of an Effect with the original version as set at the factory. When this control is selected, ▲ and ▼ allow you to alternate between the "preset" and your modified version ("custom"). The display will confirm whether you are LISTENING TO CUSTOM or PRESET.

Note that this function is available, even if you have not made any changes to an Effect. Until you make parameter changes to create a custom version of a preset, the LISTEN TO CUSTOM option will contain an exact duplicate of the preset Effect.

Exiting this menu restores the CUSTOM version.

System Configuration

Restoring the original parameter values of an Effect

Naming your custom Effect

Restoring the original Effect name

JBL Synthesis

The RESTORE PARAMETERS function allows you to restore the currently selected Effect to its factory preset state. When you select this function, you will be prompted to reconsider erasing your changes. If you don’t want to erase your versions, press DONE to exit the menu. Pressing SELECT in response to the displayed query will restore all of the factory preset values to the Effect.

EDIT EFFECT NAME allows you to assign a new name, of as many as 13 characters, to your Effect. With EDIT EFFECT NAME highlighted, press SELECT to display the current name with a cursor indicating which character position can be modified. SELECT moves the cursor to a new position. ▲ and ▼ scroll through the available character set. Press DONE to save the new name.

RESTORE EFFECT NAME allows you to restore the original factory name of an Effect, without changing any of your modified parameter settings. When you select this function, the message PRESS SELECT TO RESTORE EFFECT NAME allows you to reconsider erasing your custom name. — If you don’t want to erase your version, press DONE to exit the menu. Pressing SELECT in response to the displayed query will restore the factory preset name.

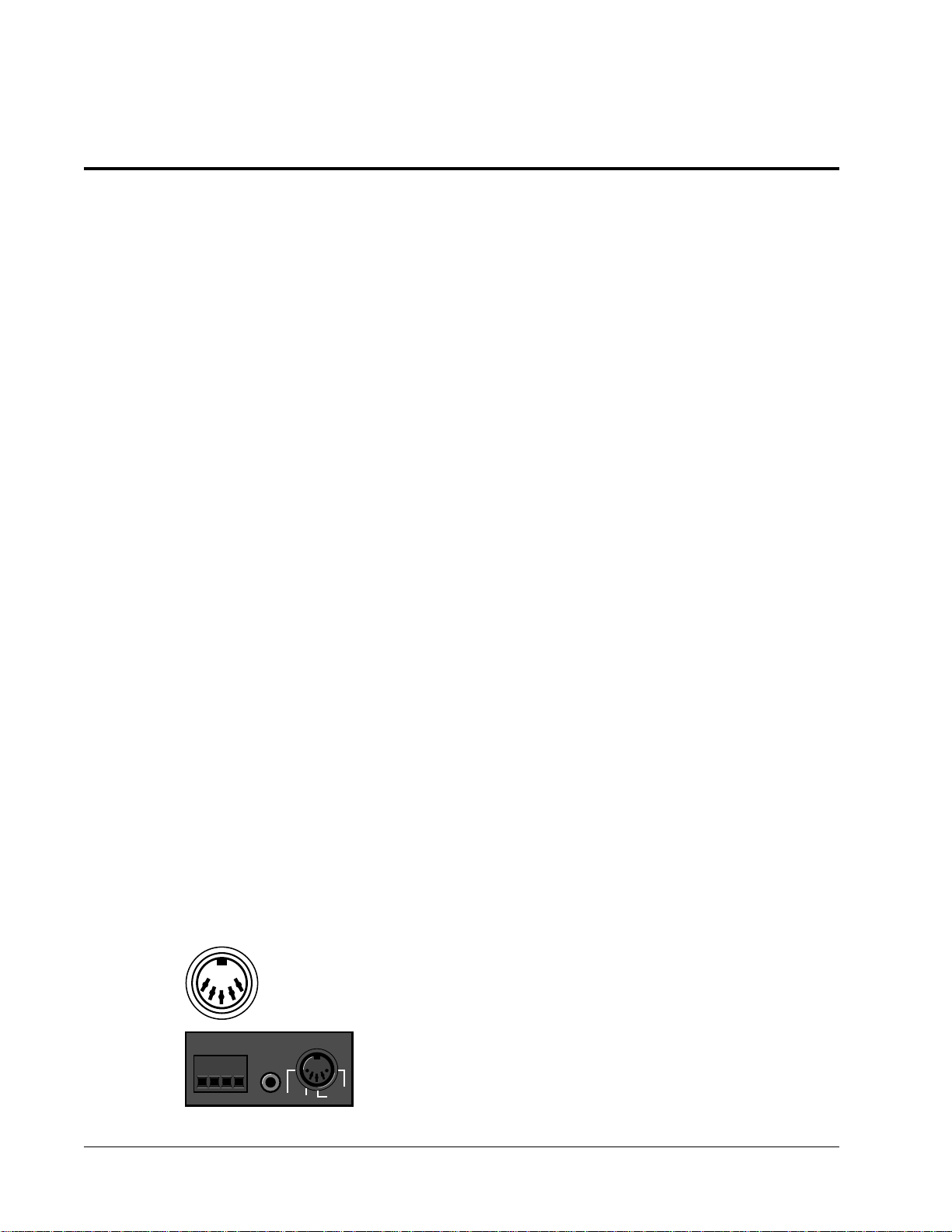

1= Ground 2= Ground 3= Power On 4= Unused 5= Trigger

Listening to only the SDP-3 Effect

Selecting EFFECT ONLY allows you to listen to only the effects added by the SDP-3 to the currently loaded program. With this function selected, use ▲ and ▼ to turn this function on or off.

Front/Back Fader

This control allows you to adjust the front/rear balance for the current effect. This control can also be accessed on the remote by pressing and holding the Shift button and using ▲ to move the balance point forward, and ▼ to move it backward.

PGM Trigger Assignment

This menu item assigns the status for the remote trigger voltage that appears on pin 5 of the DIN jack on the SDP-3 rear panel. +5VDC is provided for controlling ancillary equipment or functions. This signal can be enabled or disabled for the selected effect. +12VDC is available via an internal jumper. Contact JBL Synthesis Customer Service to perform this change. When the SDP-3 is used with a JBL Synthesis 2.1/5.1 (Stereo/Multi-

Channel) system, enabling the remote trigger switches the left and right

435

front speakers into the 5.1 (horn) configuration. Disabling the trigger

GND

puts the speakers into 2.1 (tweeter/midrange) configuration.

TRIGGERS

PGM GND PWR

1 = Ground 2 = Ground 3 = Power On 4 = Unused 5 = Trigger

TRIGGERS

IR IN

PGMPWR

SDP-3 Digital Surround Processor/Controller

Panorama

ystem

Configuration

PCM Effects and Parameters

The PCM Effects are compatible with two-channel input signals (analog or digital).

Panorama extracts the natural ambience from recorded music and moves it outward from the speakers, producing greater width and depth of image and a feeling of enhanced spaciousness. This mode adds no additional sound but expands the existing stereo image. Panorama also works with Dolby Stereo movies, bringing the surround track outward into the room.

The location of the front speakers and the listening position are crucial to Panorama’s effectiveness and for best results your system and the SDP-3 together should be set up and calibrated according to the procedure in Chapter 2. The strength of the Panorama effect drops off as you move away from the prime listening position, especially to the sides. Video systems with the main loudspeakers spaced closely on either side of a TV screen will produce a usable effect over a somewhat wider area than set-ups with a large included angle between the speakers.

Jazz

Parameter Initial Value Range

INPUT BALANCE (Centered) Full Left-Full Right CENTER LEVEL 0 0-15 REAR ROLLOFF 11.8kHz 453Hz-20.0kHz REAR DELAY 20ms 0-32ms SURROUND LEVEL 25 0-32 BASS CONTENT MONO STEREO, MONO, BINAURAL LOW FREQ WIDTH +0 -25 to +25 SUBWOOFER LVL +0dB -10dB to +10dB EFFECT LEVEL 62 0-62 CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

The Jazz Effect generates the appropriate early reflections for stereo simulation of many different intimate spaces, and sends the reflections to the front, side and rear speakers.

Parameter Initial Value Range

CENTER LEVEL 0 0-15 SPEECH DETECT ON ON, OFF HALL SIZE 9 Meters 4-17 Meters LIVENESS 4 0-6 ROLLOFF 11.8kHz 453Hz-20.0kHz SUBWOOFER LVL +0dB -10dB to +10dB EFFECT LEVEL +00dB -30 to +05dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

PCM Effects and Parameters

Classical

Football

JBL Synthesis

The Classical Effect generates the appropriate early reflections for stereo simulation of many different halls, and sends the reflections to all channels in addition to the direct signal in the main speaker. This Effect is not appropriate for highly percussive music.

Parameter Initial Value Range

CENTER LEVEL 0 0-15 SPEECH DETECT ON ON, OFF HALL SIZE 20 Meters 20-30 Meters LIVENESS 4 0-6 ROLLOFF 11.8kHz 453Hz-20.0kHz SUBWOOFER LVL +0dB -10dB to +10dB EFFECT LEVEL +00dB -30 to +05dB CUSTOM/TRIGGER DISABLE ENABLE,DISABLE

The Football Effect uses a reverberation algorithm, which differs from ambience in that it does not simulate the reflections of specific halls, but emphasizes rich, smooth reverberant decay in small and medium spaces. It works well for simulating a space with a long reverberation time relative to its size, and for simulating the sound of a live sporting event.

Parameter Initial Value Range

CENTER LEVEL 13 0-15 SPEECH DETECT ON ON, OFF MID RT .45 sec .21-3.22 sec BASS RT .56 sec 0.7, 1.0, 1.25xMID RT HALL SIZE 7 Meters 4-30 Meters PRE-DELAY 40ms 0-88ms ROLLOFF 4.0kHz 453Hz-20.0kHz SUBWOOFER LVL +0dB -10dB to +10dB EFFECT LEVEL +00dB -30 to +05dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

Cathedral

The Cathedral Effect uses a reverberation algorithm which emphasizes rich, smooth reverberant decay in large spaces. As its name indicates, it works well for simulating a space with a long reverberation time relative to its size, such as a cathedral.

Parameter Initial Value Range

CENTER LEVEL 0 0-15 SPEECH DETECT ON ON, OFF MID RT 3.90 sec 1.14-17.04 sec BASS RT 4.87 sec 0.7, 1.0, 1.25xMID RT HALL SIZE 38 Meters 20-38 Meters PRE-DELAY 40ms 0-88ms ROLLOFF 3.3kHz 453Hz-20.0kHz SUBWOOFER LVL +0dB -10dB to +10dB EFFECT LEVEL +00dB -30 to +05dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

SDP-3 Digital Surround Processor/Controller

Party

2-Channel

PCM Effects and Parameters

The Party effect allows unprocessed stereo signals to be played over all speakers for background music.

Parameter Initial Value Range

CENTER LEVEL 15 0-15 SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

The 2- Channel effect allows you to use your system for two channel stereo playback.

Parameter Initial Value Range

SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

Music Surround

Music Surround is a surround effect developed specifically for classical music listening. It makes full use of additional loudspeakers placed at the center, sides and rear of the room. This effect passes unprocessed left and right information directly to the front left and right speakers and uses ambience extraction for the side and rear speakers.

Parameter Initial Value Range

CENTER LEVEL 0 0-30 SOUNDSTAGE NEUTRAL FRONT, NEUTRAL, REAR 5 SPEAKER ENHANCE OFF ON, OFF BASS ENHANCE ON ON, OFF SURROUND ROLLOFF 14.6kHz 453Hz – 20.0kHz REAR DELAY OFFSET 15ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB SUBWOOFER LVL +0dB -10dB to +10dB EFFECT LEVEL +00dB -30 to +05dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

PCM Effects and Parameters

Rock/Pop

Logic 7

JBL Synthesis

Rock/Pop is a surround effect developed specifically for music listening. It makes full use of additional loudspeakers placed at the center, sides and rear of the room and provides a slight degree of steering for the front channels. (Music Surround, passes unprocessed left and right information directly to the front left and right speakers.)

Parameter Initial Value Range

CENTER LEVEL 14 0-30 VOCAL ENHANCE +3.0dB +0.0dB, +3.0dB, +6.0dB FRONT STEERING MUSIC OFF, FILM, MUSIC SOUNDSTAGE NEUTRAL FRONT, NEUTRAL, REAR 5 SPEAKER ENHANCE OFF ON, OFF BASS ENHANCE OFF ON, OFF SURROUND ROLLOFF 11.8kHz 453Hz – 20.0kHz REAR DELAY OFFSET 5ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

This film sound mode reproduces musical material with maximum separation at all times, whether or not directional material is being steered. In addition, Logic 7 uses intelligent steering to extract wide bandwidth stereo surround channels. If both side and rear speaker pairs are available, signals may be steered between the left side and left rear, or between the right side and right rear. It is also possible for a signal to be steered fully to the rear speakers, with the side surround speakers 6dB lower than the rears to provide subjective rear imaging.

Logic 7 contains the re-equalizer feature of the THX Cinema effect, as well as the JBL Synthesis proprietary vocal enhancement feature. The combination of stereo surround information during music and decorrelated effects, with discrete steering to the sides and rears, gives Logic 7 unrivaled performance on matrix encoded films.

Parameter Initial Value Range

AUTO AZIMUTH ON ON, OFF VOCAL ENHANCE +0.0dB 0.0dB, +3.0dB, +6.0dB RE-EQUALIZER ON ON, OFF SOUNDSTAGE NEUTRAL FRONT,NEUTRAL, REAR 5 SPEAKER ENHANCE OFF ON, OFF BASS ENHANCE OFF ON, OFF SURROUND ROLLOFF 11.8kHz 453Hz – 20.0kHz REAR DELAY OFFSET 15ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

SDP-3 Digital Surround Processor/Controller

Television

Pro Logic

PCM Effects and Parameters

The Television effect provides surround effects for television viewing of monaural, stereo, and stereo synthesized programs.

Parameter Initial Value Range

AUTO AZIMUTH ON ON, OFF VOCAL ENHANCE +0.0dB 0.0dB, +3.0dB, +6.0dB FRONT STEERING MUSIC OFF, MUSIC, FILM RE-EQUALIZER OFF ON, OFF SOUNDSTAGE NEUTRAL FRONT, NEUTRAL, REAR 5 SPEAKER ENHANCE OFF ON, OFF BASS ENHANCE OFF ON, OFF SURROUND ROLLOFF 11.8kHz 453Hz-20.0kHz SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

This Effect provides Dolby Pro Logic Surround decoding designed for any Dolby Surround encoded movies, music, television programs or games. JBL Synthesis' proprietary Auto Azimuth correction makes it one of the most accurate Pro Logic decoders available.

THX Cinema

Parameter Initial Value Range

AUTO AZIMUTH ON ON, OFF VOCAL ENHANCE 0.0dB 0.0dB, +3.0dB, +6.0dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

This Effect, provides Home THX Cinema surround decoding for any Dolby Surround encoded movies, music or television programs. The effect is similar to Pro Logic, but includes the features of re-equalization, timbre matching and decorrelation. The surround channels are monaural, but can be decorrelated. This effect can be reset to use the Logic 7 stereo surrounds with the Stereophonic setting of Surround Mode, although full separation between the sides and the rear speakers is not available.

Parameter Initial Value Range

AUTO AZIMUTH ON ON, OFF RE-EQUALIZER ON ON, OFF SURROUNDS DECORR STEREO, DECORR SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

PCM Effects and Parameters

Mono Enhance

PCM Effect Parameters

JBL Synthesis

Mono Enhance takes a monaural soundtrack and sends music and sound effects to the sides and rear through a room simulator mode while keeping the dialog in the center.

Parameter Initial Value Range

MAIN LEVEL 10 0-16 ACADEMY FILTER OFF ON, OFF ROLLOFF 3.3kHz 453Hz – 20.0kHz SUBWOOFER LVL +0dB -10dB to +10dB EFFECT LEVEL +00dB -30 to +05dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

5 SPEAKER ENHANCE simulates 7 speaker playback through a 5 speaker system, providing a heightened sense of spaciousness and envelopment without extra speakers. This enhancement is most noticeable if the surround speakers are positionned directly to the side of the listening position, or if the listening position is located against the rear wall.

Note that, although this provides very convincing improvement to a 5 speaker system, it is not a substitute for a properly set up and calibrated 7 speaker system. The difference is most noticeable when the listener is seated to one side or the other of the calibration position.

ACADEMY FILTER is provided to recreate the proper tonal balance of older monaural films that were recorded with much narrower and duller frequency response than current films.

AUTO AZIMUTH is short for auto azimuth error correction/automatic input balance. Auto Azimuth should be set to ON for films, and OFF for music. When ON, special patented algorithms continually monitor the input signal and adjust both the relative level and time offset of the two channels to keep the dialog properly centered and special effects properly localized. This automatic feature is the reason the unit does not need an input balance control for Dolby Surround decoding.

BASS CONTENT allows you to modify the bass content for Mono, Stereo or Binaural recordings. The BINAURAL setting turns the rear level parameter off and activates special low-frequency compensation. This feature is offered specifically for true binaural recordings made with a dummy head.

BASS ENHANCE derives stereo bass to provide low frequencies that are noticeably less localizable and more spacious in the playback room. Note that results will vary depending on room acoustics and the low frequency capacity of the surround speakers.

SDP-3 Digital Surround Processor/Controller

PCM Effects and Parameters

BASS RT (low frequency reverberation time) depends on MID RT and is expressed as a multiplier. BASS RT should be set to 1.0 x MID RT for a more natural effect in smaller spaces.

CENTER LEVEL adjusts the output level from the center speaker. EFFECT LEVEL adjusts the loudness of the side and rear speakers.

When there are no side speakers, it adjusts the amount of ambient signal mixed into the main loudspeakers. In Panorama, this control changes the apparent width of the front soundstage. 0 = ordinary stereo, 62 provides the widest image.

FRONT STEERING provides three basic settings which have been developed specifically to optimize center channel signal strength for film and music.

The FILM setting has excellent frontal image stability through the whole room during dialog and vocals, while preserving the full width of the front image in the spaces between dialog, and for music without vocals. The front image during vocals is noticeably narrower than with the MUSIC setting, but highly satisfactory nonetheless.

The MUSIC setting reproduces sound in all three front speakers when a strongly centered, or mono signal is present. This is an excellent choice for heavily centered pop music such as metal and sounds more natural for broadcast material with a single announcer. OFF sets the center channel level to 4.5dB less than the front left and right speakers, and then leaves the level unchanged as the steering varies. This setting is equivalent to conventional stereo with a slight center fill.

HALL SIZE allows you to select room sizes of lengths ranging from 438 meters, depending on the effect selected.

INPUT BALANCE allows you to compensate for the occasional source with audible channel imbalance. When selected, screen graphics indicate the relative left/right position.

LIVENESS adjusts the amount of recirculation within the effect. Higher values mimic more reflective surfaces in the simulated space and increase the amount of time it takes the sound to decay. At very high values, the decay is audibly less smooth than in the Football and Cathedral Effects, which are more effective at simulating very live spaces.

PCM Effects and Parameters

JBL Synthesis

LOW FREQ WIDTH allows you to apply low-frequency spatial correction to the signal. Positive values of LOW FREQ Width indicate that the

difference signal (L-R) has additional energy below 500Hz, while the sum (L+R) has correspondingly less. Negative settings of LOW FREQ

WIDTH can compensate for recordings with too much of this property. This control can add needed spaciousness and warmth to classical recordings made with coincident or near-coincident microphones.

MAIN LEVEL controls the level of the mono signal that is reproduced by the main speakers. When a center speaker is part of the configuration many films may sound better when this control is set between 6-12. This spreads the film sound out around the screen and can be more pleasant than restricting the dialog and much of the other film sound to the center speaker.

MID RT (midrange reverberation time) is the time required for midrange sounds to decay 60dB in level.

PRE-DELAY increases the delay between the direct sound and the onset of reverberation. Because some pre-delay is inherent in the program material, a value of 0 is usually a good starting point. Increasing the pre-delay value will make the hall sound larger.

RE-EQUALIZER equalizes the left, center, and right channel outputs to match the overall frequency balance of the original recording. Without this re-equalization, many films and some television programs will sound too bright.

REAR DELAY adjusts the amount of time between the appearance of a signal in the front channels and its emergence from the rear. Generally, the correct delay is about 16 milliseconds, but the setting depends on speaker set-up and source material. In general, the delay should be low enough so that the rear sound does not become identifiable as a distinct source. The settings also affect the side outputs.

REAR DELAY OFFSET is an additional delay added to the rear channels. This delay increases the apparent size of the listening space by increasing the rear delay time. Feel free to experiment to find the setting that works best.

REAR LEVEL controls the volume level of the rear speakers. Although we have selected a default value, the correct setting will vary with each recording, the room, and your personal taste.

REAR ROLLOFF sets the frequency above which the rear-channel sound is attenuated. The appropriate setting will vary with the program material. It should be set high enough to give presence and airiness to the rear sound without placing distracting instrumental overtones or other sounds behind you. The settings also affect the side outputs.

SDP-3 Digital Surround Processor/Controller

PCM Effects and Parameters

ROLLOFF mimics the absorption of the air in the hall and, typically, should begin with a low frequency to simulate large spaces.

SIDE LEVEL controls the volume level of the side speakers. Although we have selected a default value, the correct setting will vary with each recording, the room, and your personal taste.

SIDE ROLLOFF provides a high frequency cutoff for the side speakers. The optimal setting for this control will vary widely with the source material.

SOUNDSTAGE controls the level of the surround speakers relative to the front speakers in a dynamic way. The SDP-3 attempts to detect whether or not the sound source was originally encoded from a surround source by looking for occasional bursts of rear-steered material, and by identifying the directional orientation of the background sound between strong sounds. Whenever there is an indication that the source was originally surround encoded, the Soundstage control automattically reverts to the REAR setting — which gives the rear speakers full level. The NEUTRAL position attenuates the rear speakers 3dB. The FRONT position attenuates the rear speakers 6dB. The effect is to move the listening position forward in the listening space.

SPEECH DETECT activates a circuit that distinguishes monaural speech from other inputs. Essentially, this control turns down the effect to make speech clearer. Whenever stereo signals are present, the right and left input channels are used independently as inputs to the ambience synthesis. If there is a strong monaural speaking voice present at the same time, this component of the input to the effect is reduced while the stereo component is increased.

If the input signal is pure monaural speech the reverb is almost entirely attenuated. SPEECH DETECT is a real benefit to some popular music (where spoken voice, such as rap, occurs along with the music), stereo television and early stereo movies. Any stereo material which was not carefully mixed for Surround is a good candidate for playing through the Jazz, Classical, Football or Cathedral Effect with Speech Detect on.

SUBWOOFER LEVEL boosts or cuts the subwoofer output level. Although the normal subwoofer level is set during the calibration procedure, with some recordings it may be desirable to increase or decrease this deep bass level.

PCM Effects and Parameters

JBL Synthesis

SURROUND ROLLOFF allows the high frequencies of the rear channels to be attenuated with the same detection circuitry as that described for the Soundstage control. The attenuation is quite attractive on many music and broadcast sources that were not mixed for surround. When a surround source is detected, these filters are removed, so the rear speakers can reproduce surround events with full bandwidth. This control should be set high enough to give presence and airiness to the rear sound without placing distracting instrumental overtones or other sounds behind you. The settings also affect the side outputs.

SURROUNDS selects the type of surround decoding used by the SDP-3. STEREOPHONIC provides extraction of five channels of surround information from a standard 4-2-4 matrix-encoded soundtrack (Dolby Surround, Ultra*Stereo, etc.) The drama of this effect is dependent on the source material and is most noticeable with strong stereo music soundtracks. The DECORRELATED setting electronically alters the monaural surround channel to provide added spaciousness and envelopment.

VOCAL ENHANCE boosts vocals in the center channel. By targeting specific frequencies, it can boost only vocals, without raising the entire center channel level (which would alter the output balance achieved during calibration).

SDP-3 Digital Surround Processor/Controller

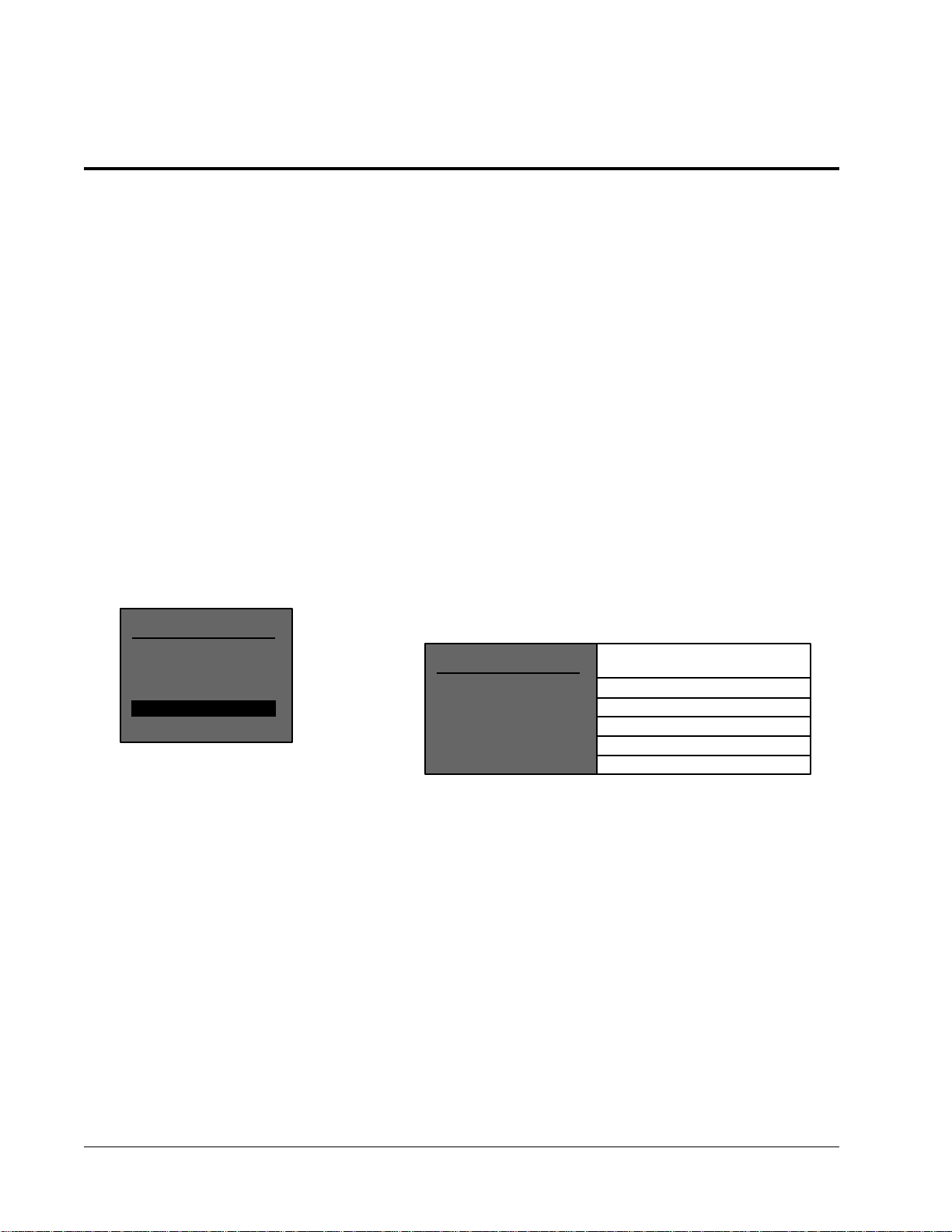

AC-3 Status Display

AC-3 STATUS

MATRIX ENCODED

DOWNMIX SAMPLE RATE DATA RATE PGM CONTENT REF OFFSET

LFE

NO

48kHz

384 kb/sec

3/2.1

-4dB

PCM Effects and Parameters

AC-3 Effects and Parameters

AC-3 Effects are compatible with Dolby Digital input signals. Any AC-3- capable software and/or source components should be labeled with a Dolby Digital badge, similar to the one on the SDP-3 front panel.

In the AC-3 effects, an AC-3 Status Display is available in the parameter menu with the following information.

MATRIX ENCODED: YES indicates a 2.0 Dolby Digital input is matrix encoded; No indicates it is not.

DOWNMIX: YES indicates a Dolby Digital input is being downmixed for the selected speaker configuration. NO indicates no downmixing is taking place, except in the 5.1 2-Channel Effect, which is designed to create a two-channel downmix from Dolby Digital 5.1 channel signals.

DATA RATE: 32-640kb, depending on the data rate of the incoming Dolby Digital signal.

SAMPLE RATE: 44.1kHz or 48kHz depending on the incoming Dolby Digital signal.

PGM CONTENT: shows you the actual spatial characteristics of the incoming soundtrack. The information appears as F/S.LFE where F = the number of front channels and S = the number of surround channels. LFE = 1 if the LFE channel is on.

For example, a given source may display 3/2.1, indicating that the source was mixed with 3 front channels, 2 surround channels, and the LFE channel. When the designation .1 indicates that the LFE channel is on, as in our example, a level meter at the bottom of the display will show LFE channel activity. (Note, that there may be instances where the LFE channel is on, but no activity shows in the meter display.)

REF OFFSET indicates the Dialog Normalization value that is present in AC-3 bitstreams. In AC-3, dialog is reproduced at -31dBFS (31dB below full scale). If the program material was mixed so that dialog is at

-31dBFS, then REF OFFSET=0dB. If the dialog was mixed at a "hotter" level, for example, -27dBFS, then REF OFFSET = -4dB and the SDP-3 would adjust the levels down 4dB to bring dialog back to -31dBFS.

AC-3 Effects and Parameters

5.1 Two Channel

5.1 Music

JBL Synthesis

This Effect mixes Dolby Digital 5.1 information for two-channel playback. These soundtracks can be recorded onto two-channel formats, or played back through left and right front speakers. The mix is designed to play back with full surround when decoded through Logic 7. In mixing a film with very heavy use of the Low Frequency Effects Channel, it may be desirable to lower LFE MIX LEVEL.

Parameter Initial Value Range

AC-3 STATUS (display only — not user adjustable) COMPRESSION OFF ON, OFF, AUTO CENTER MIX 15 0-30 SURROUND MIX +2dB -5 to +5dB CENTER DLY SAMPLES +0 -127 to +127 MASTER LEVEL +0dB -5dB to +5dB LFE MIX LEVEL +0.0dB -20dB to 0dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

This Effect enhances playback of Dolby Digital music recordings, or Dolby Digital film soundtracks with strong musical content. This effect contains many of the features found in 5.1 LOGIC 7, with settings that are more appropriate for music.

Parameter Initial Value Range

AC-3 STATUS (display only — not user adjustable) COMPRESSION OFF OFF, ON, AUTO RE-EQUALIZER OFF ON, OFF BASS ENHANCE OFF ON, OFF REAR DLY OFFSET 15ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB LFE MIX LEVEL +0.0dB -10dB to 0dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

SDP-3 Digital Surround Processor/Controller

5.1 Logic 7

AC-3 Effects and Parameters

5.1 Logic 7 combines all the features of Dolby Digital AC-3 with enhancements by JBL Synthesis and LucasFilm. This effect uses Logic 7 matrix technology to enhance the steering between the side speakers and the rear speakers, so sounds intended to come from behind the listener actually do come from behind. This effect also includes the adaptive decorrelation and re-equalizer features of 5.1 THX.

5.1 Logic 7 provides the ultimate in film reproduction. It brings out all the increased excitement and spaciousness a 7 channel speaker system can produce.

Parameter Initial Value Range

AC-3 STATUS (display only — not user adjustable) COMPRESSION OFF OFF, ON, AUTO VOCAL ENHANCE +0.0dB +0.0dB, +3.0dB, +6.0dB RE-EQUALIZER ON ON, OFF BASS ENHANCE OFF ON, OFF REAR DELAY OFFSET 0ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB LFE MIX LEVEL +0.0dB -10.0dB to 0.0dB SUBWOOFER LVL -5dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

5.1 Dolby

The 5.1 Dolby effect decodes Dolby AC-3 encoded soundtracks. Unlike analog Dolby Surround decoding, 5.1 Dolby uses five discrete full-range channels and a sixth dedicated, Low Frequency Effect (LFE) channel. In this effect, any rear speakers present are connected in parallel with the side speakers. This is the basic Dolby AC-3 effect. It does not include the enhancements by JBL Synthesis or LucasFilm, which are available with other AC-3 effects in the SDP-3.

Parameter Initial Value Range

AC-3 STATUS (display only — not user adjustable) COMPRESSION OFF OFF, ON, AUTO VOCAL ENHANCE +0.0dB +0.0dB, +3.0dB, +6.0dB BASS ENHANCE OFF ON, OFF SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB LFE MIX LEVEL +0.0dB -10.0dB to +0.0dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

AC-3 Effects and Parameters

5.1 Dolby/THX

AC-3 2.0 Effects

JBL Synthesis

This Effect provides THX 5.1 enhancements for film soundtracks recorded in the Dolby Digital format. This processing compensates for the acoustical differences between large mixing theaters and the typically smaller home environment. In this effect the side and rear speakers are driven in parallel when you designate the use of rear speakers in the Speaker Configuration menu.

Parameter Initial Value Range

AC-3 STATUS (display only — not user adjustable) COMPRESSION OFF OFF, ON, AUTO RE-EQUALIZER ON ON, OFF SIDE LEVEL +1dB -5dB to +5dB LFE MIX LEVEL +0.0dB -10.0dB to 0.0dB SUBWOOFER LVL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

The AC-3 2.0 Effects will be chosen by the SDP-3 whenever an AC-3

5.1 Effect is selected and the Program Content of the signal is 2/0 (see page 45 for more detail). The following matrix shows which 2.0 effect will play when its corresponding 5.1 effect is selected manually or programmed as the AC-3 FX for the selected input (see page 17 for more detail).

2.0 2-Channel

AC-3 5.1 Effect AC-3 2.0 Effect

5.1 Two Channel 2.0 2-Channel

5.1 Music 2.0 Rock/Pop

5.1 Logic 7 2.0 Logic 7

5.1 Dolby 2.0 Pro Logic

5.1 Dolby/THX 2.0 Dolby Cine

When this effect is chosen, playback from an AC-3 encoded 2/0 signal will be in stereo, whether or not the signal is matrix encoded as indicated in the AC-3 status display.

Parameter Initial Value Range

AC-3 STATUS (display only – not user adjustable) COMPRESSION OFF ON, OFF, AUTO SUBWOOFER LEVEL +0dB -10dB to +10dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

SDP-3 Digital Surround Processor/Controller

2.0 Rock/Pop

2.0 Logic 7

AC-3 Effects and Parameters

2.0 Rock/Pop is a surround effect developed specifically for music listening with AC-3 encoded 2/0 signals. It makes full use of additional speakers placed at the center, sides and rear of the room and provides a slight degree of steering for the front channels.

Parameter Initial Value Range

AC-3 STATUS (display only – not user adjustable) COMPRESSION OFF ON, OFF, AUTO CENTER LEVEL 14 0-30 VOCAL ENHANCE +3.0dB +0.0dB, +3.0dB, +6.0dB FRONT STEERING MUSIC OFF, MUSIC, FILM SOUND STAGE NEUTRAL FRONT, NEUTRAL, REAR 5 SPKR ENHANCE OFF ON, OFF BASS ENHANCE OFF ON, OFF SURR ROLLOFF 11.8kHz 453Hz – 20.0kHz REAR DELAY OFFSET 5ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB SUBWOOFER LEVEL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

2.0 Logic 7 works just like the Logic 7 PCM effect but for AC-3 encoded 2/0 signals. This mode is ideal for film sound. For more detail on Logic 7, see the description on page 38.

Parameter Initial Value Range

AC-3 STATUS (display only – not user adjustable) COMPRESSION OFF ON, OFF, AUTO AUTO AZIMUTH ON ON, OFF VOCAL ENHANCE +0.0dB +0.0dB, +3.0dB, +6.0dB RE-EQUALIZER ON ON, OFF SOUND STAGE NEUTRAL FRONT, NEUTRAL, REAR 5 SPKR ENHANCE OFF ON, OFF BASS ENHANCE OFF ON, OFF SURR ROLLOFF 11.8kHz 453Hz – 20.0kHz REAR DELAY OFFSET 15ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB SUBWOOFER LEVEL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

AC-3 Effects and Parameters

2.0 Pro Logic

2.0 THX Cinema

JBL Synthesis

2.0 Pro Logic provides Dolby Pro Logic surround decoding designed for Dolby Surround encoded movies, music or television programs or games. This effect works just like the Pro Logic PCM effect but for AC-3 encoded 2/0 signals.

Parameter Initial Value Range

AC-3 STATUS (display only – not user adjustable) COMPRESSION OFF ON, OFF, AUTO AUTO AZIMUTH ON ON, OFF VOCAL ENHANCE +0.0dB +0.0dB, +3.0dB, +6.0dB SUBWOOFER LEVEL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

2.0 THX Cinema works just like the THX Cinema PCM effect but for AC3 encoded 2/0 signals. For more detail on the THX Cinema effect, see the description on page 39.

Parameter Initial Value Range

AC-3 STATUS (display only – not user adjustable) COMPRESSION OFF ON, OFF, AUTO AUTO AZIMUTH ON ON, OFF RE-EQUALIZER ON ON, OFF SURROUNDS DECORR STEREO, DECORR SUBWOOFER LEVEL +0dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

AC-3 Effect Parameters

AC-3 STATUS displays the current status of incoming AC-3 data. The displayed items are not user adjustable.

SDP-3 Digital Surround Processor/Controller

AC-3 Effects and Parameters

CENTER DLY SAMPLES adjusts the time offset of the center channel. The appropriate value is +0 unless you know that the center channel is not properly timed, as well as the amount by which it is off.

CENTER LEVEL adjusts the output level from the center speaker. CENTER MIX adjusts the level of the center channel applied to the two-

channel downmix. The appropriate value for film is 16. The appropriate value for music is 11.

COMPRESSION enhances the intelligibility of Dolby Digital material at low volume levels (-6dB or lower). When set to AUTO, this control automatically limits peak signals and boosts low level signals. The amount of compression increases proportionately as volume is decreased. This is quite useful when listening to Dolby Digital soundtracks at low output levels. When set to ON, full compression is applied, regardless of volume.

FRONT STEERING provides three basic settings which have been developed specifically to optimize center channel signal strength for film and music.

LFE MIX LEVEL allows separate level attenuation of the LFE channel, which is ultimately mixed to the subwoofer output. As the bass from as many as five other channels is added to the LFE, it can significantly raise subwoofer output levels — and create the risk of damage to a system. Careful adjustment of this parameter will allow you to achieve proper tonal balance and reduce the risk of damage.

AC-3 Effects and Parameters

JBL Synthesis

MASTER LEVEL adjusts the output level of the two-channel downmix. This control should be set to +5dB unless the LFE is very heavy, in which case the level should be reduced.

REAR DELAY OFFSET is an additional delay added to the rear channels when listening to LOGIC 7 and ROCK/POP. This delay increases the apparent size of the listening space by increasing the rear delay time. Feel free to experiment to find the setting that works best.

REAR LEVEL controls the volume level of the rear speakers. Although we have selected a default value, the correct setting will vary with each recording, the room, and your personal taste.

SIDE LEVEL controls the output level of the side speakers. Use this control in conjunction with REAR LEVEL to achieve the optimum balance between the side and rear speakers.

SURROUND MIX allows independent adjustment of the level of the surround channels. Many AC-3 encoded soundtracks sound better when down-mixed to two channels with the surround level increased by approximately 2-3dB.

SDP-3 Digital Surround Processor/Controller

AC-3 Effects and Parameters

VOCAL ENHANCE boosts dialog in the center channel. By targeting specific frequencies, it can boost only dialog, without raising the entire center channel level (which would alter the output balance achieved during calibration).

AC-3 Effects and Parameters

JBL Synthesis

SDP-3 Digital Surround Processor/Controller

DTS 2-Channel

AC-3 Effects and Parameters

DTS Effects and Parameters

DTS Effects are compatible with DTS Digital Surround input signals. Any DTS-capable software and/or source components should be labeled with a logo, similar to the one on the SDP-3 front panel.

This Effect mixes DTS Digital 5.1 information for two-channel playback. These soundtracks can be recorded onto two-channel formats, or played back through left and right front speakers. The mix is designed to play back with full surround when decoded through Logic 7. In mixing a film with very heavy use of the Low Frequency Effects Channel, it may be desirable to lower LFE MIX LEVEL.

Parameter Initial Value Range

CENTER MIX 14 0-30 SURROUND MIX +2dB -5 to +5dB CENTER DLY SAMPLES +0 -127 to +127 MASTER LEVEL +0dB -5dB to +5dB LFE MIX LEVEL -5.0dB -20dB to 0dB SUBWOOFER LVL -5dB -10dB to +10dB CUSTOM/TRIGGER DISABLE ENABLE, DISABLE

DTS Music

This Effect enhances playback of DTS music recordings, or DTS film soundtracks with strong musical content. This effect contains many of the features found in DTS LOGIC 7, with settings that are more appropriate for music.

Parameter Initial Value Range

RE-EQUALIZER OFF ON, OFF BASS ENHANCE OFF ON, OFF REAR DLY OFFSET 0ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB LFE MIX LEVEL -5.0dB -10dB to +10dB SUBWOOFER LVL -5dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

DTS Effects and Parameters

DTS Logic 7

JBL Synthesis

DTS Logic 7 combines all the features of DTS Digital with enhancements by JBL Synthesis and LucasFilm. This effect uses Logic 7 matrix technology to enhance the steering between the side speakers and the rear speakers, so sounds intended to come from behind the listener actually do come from behind. This effect also includes the adaptive decorrelation and re-equalizer features of DTS/THX.

DTS Logic 7 provides the ultimate in film reproduction. It brings out all the increased excitement and spaciousness a 7 channel speaker system can produce.

Parameter Initial Value Range

VOCAL ENHANCE +0.0dB +0.0dB, +3.0dB, +6.0dB RE-EQUALIZER OFF ON, OFF BASS ENHANCE OFF ON, OFF REAR DELAY OFFSET 15ms 0-20ms SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB LFE MIX LEVEL -5.0dB -20.0db to0.0dB SUBWOOFER LVL -5dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

DTS Film

The DTS Film effect decodes DTS-encoded soundtracks. It uses five discrete full-range channels and a sixth dedicated, Low Frequency Effect (LFE) channel. In this effect, any rear speakers present are connected in parallel with the side speakers. This is the basic DTS effect. It does not include the enhancements by JBL Synthesis or LucasFilm, which are available with other DTS effects in the SDP-3.

Parameter Initial Value Range

VOCAL ENHANCE +0.0dB +0.0dB, +3.0dB, +6.0dB RE-EQUALIZER ON ON, OFF BASS ENHANCE OFF ON, OFF SIDE LEVEL +0dB -5dB to +5dB REAR LEVEL +0dB -5dB to +5dB LFE MIX LEVEL -5.0dB -20.0db to +0.0dB SUBWOOFER LVL -5dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

SDP-3 Digital Surround Processor/Controller

DTS/THX

DTS Effect Parameters

DTS Effects and Parameters

This Effect provides THX 5.1 enhancements for film soundtracks recorded in the DTS format. This processing compensates for the acoustical differences between large mixing theaters and the typically smaller home environment. In this effect the side and rear speakers are driven in parallel when you designate the use of rear speakers in the Speaker Configuration menu.

Parameter Initial Value Range

RE-EQUALIZER ON ON, OFF SIDE LEVEL +1dB -5dB to +5dB LFE MIX LEVEL -5.0dB -20.0dB to 0.0dB SUBWOOFER LVL -5dB -10dB to +10dB CUSTOM/TRIGGER ENABLE ENABLE, DISABLE

CENTER MIX adjusts the level of the center channel applied to the twonnel downmix. The appropriate value for film is 16. The appropriate value for music is 11.

CENTER DLY SAMPLES adjusts the time offset of the center channel. The appropriate value is +0 unless you know that the center channel is not properly timed, as well as the amount by which it is off.

MASTER LEVEL adjusts the output level of the downmix. This control should be set to +5dB unless the LFE is very heavy, in which ase the level should be reduced.

DTS Effects and Parameters

JBL Synthesis

REAR DELAY OFFSET is an additional delay added to the rear channels when listening to LOGIC 7 and MUSIC SURROUND. This delay increases the apparent size of the listening space by increasing the rear delay time. Feel free to experiment to find the setting that works best.

REAR LEVEL controls the volume level of the rear speakers. Although we have selected a default value, the correct setting will vary with each recording, the room, and your personal taste.

SIDE LEVEL controls the volume level of the side speakers. Although we have selected a default value, the correct setting will vary with each recording, the room, and your personal taste.

SURROUND MIX allows independent adjustment of the level of the surround channels. Many multichannel-encoded soundtracks sound better when down-mixed to two channels with the surround level increased by approximately 2-3dB.

SDP-3 Digital Surround Processor/Controller

DTS Effects and Parameters

Troubleshooting

If you encounter a problem, please review the items in the following checklist. Also be sure to thoroughly check all other connected components such as speakers, equalizers, amplifiers, VCR, TV, CD player, etc.

Problem Possible Cause and Solution

Power does not come on Check line cord to ensure good connection to the AC outlet and to the

receptacle on the SDP-3 rear panel. Check to make sure that the SDP3 rear panel power switch is ON.

No audio Check the Status menu (under DISPLAY ADJUST: ON-SCREEN or

FRONT PANEL menu — or press and hold Record/Zone 2 on the remote and press OSD ON) to verify that audio is being received.

Remote control not working Check batteries to be certain that they are inserted correctly with proper

polarity. Make sure that the infrared sensor on the SDP-3 front panel is not obstructed. See "If all else fails..." on the following page.

No output Make sure that signal is coming into the SDP-3. (Check the Status menu

by pressing and holding Record/Zone 2 on the remote, then pressing OSD ON. This menu will display input level meters and sample rate, if applicable.) Increase VOLUME using the remote control and check Front/Back and Left/Right BALANCE.

Check the SDP-3 MUTE controls to make sure they are not engaged. Check all other equipment settings and connections and verify that the

amplifiers being fed by the SDP-3 are operational. Remember that the SDP-3 mutes the output to any speakers which are

not configured in the Setup menu. If speakers are added to (or removed from) your system, the Speaker Configuration menu must be altered accordingly.

Center Channel only plays Check to see if your HiFi VCR has dropped out of tracking — readjust.

Your VCR Stereo/Mono/L-R switch may be in the wrong position — set it to Stereo.

Muffled sound in L&R channels When no center channel is used, CENTER must be configured for

NONE in the Setup Speaker Configuration menu.

Center channel sound muffled The center channel amp may be connected to the subwoofer jack on the

SDP-3 rear panel. Reconnect to Center Output jack.

No Input Level Meters The meters will only appear when adjusting the Gain parameter of a

selected, active input, or when the Status menu is displayed.

Troubleshooting

JBL Synthesis

Problem Possible Cause and Solution

No Video Make sure that video cables (particularly S-Video cables) are fully

inserted and that the appropriate connector is assigned to the VIDEO IN parameter in the Input Configuration menu.

Hum Finding and eliminating audio hum in a complex installation can be a

very frustrating task. Often, the easiest way to identify the culprit(s) is to systematically eliminate devices from the audio chain. If Cable TV is connected to any component in the system, start by unplugging the Cable completely, preferably right at the wall jack. If this eliminates, or greatly reduces the hum, it is worth a call to your Cable company. A quick fix, assuming your cable is round 75Ω wire, is to attach a 75-300Ω transformer to the end, then attach a 300-75Ω transformer to that, so that the end is back to a round 75Ω wire. There are commercially available antenna lead isolators which may provide additional insulation from electrical surges. Also try disconnecting all video connections to the SDP-3 to see if the video equipment is causing the problem.

Interference with Radio or TV The SDP-3 does generate minimal amounts of RF energy and is in

compliance with FCC rules and CE standards. If some interfering noise is noted, move AM loop and FM "T" type antennas away from the SDP-3 TV antenna feeds.

and reorient them as necessary. Use shielded cable for FM and

Erratic recall of modes Severe power surges or sags can confuse the SDP-3 memory. To

correct, or if you simply want to start over, restore the factory defaults with the procedure described at the end of this section.

If all else fails… Turn off all amplifiers. Turn the master power switch on the SDP-3 rear

panel OFF, wait 10 seconds, then turn it ON again. This causes the unit to run a diagnostic self-test routine, which takes a couple of seconds. If the SDP-3 LCD displays normally at the end of this test, no problems have been found with the SDP-3 circuitry. If the internal tests fail, the LCD may display an error message, or no message at all. If this happens, contact JBL Synthesis Customer Service.

If you find that your custom settings are routinely being corrupted, the lithium battery in the SDP-3 may need replacing. This part is not fieldreplaceable — contact JBL Synthesis Customer Service.

If the unit is still behaving erratically, perform the Restore Defaults procedure described on the following page.

JBL Synthesis maintains a knowledge base on its website (www.jblsynthesis.com) where you can find answers to frequently-asked questions and additional troubleshooting information.

SDP-3 Digital Surround Processor/Controller

Routine Maintenance

Restoring Defaults

Troubleshooting

Other than occasional replacement of the batteries in the remote control, the SDP-3 requires minimal maintenance. Use a soft, lint-free cloth slightly dampened with warm water to clean the exterior surfaces of the unit.

Do not use alcohol, benzene or acetone-based cleaners

or any strong commercial cleaners.

Do not use abrasive materials such as steel wool or metal polish. If the unit is exposed to a dusty environment, a low-pressure blower may be used to remove dust from the SDP-3 exterior.

If severe power surges or sags cause problems with normal SDP-3 operation, or you simply want to start with a clean slate, you can restore all of the factory defults with the following procedure.

This will erase any programs you have stored,

as well as all setup and calibration values.

Note any settings you want to re-use before proceeding.

Turn the SDP-3 OFF with the remote. Turn the unit back ON and immediately press and hold MUTE on the remote. (Make sure you do not block the infrared receiver on the SDP-3 front panel.) The on-screen display will read:

FACTORY PRESETS MENU

EXIT

RESTORE DEFAULTS

If you want to resume normal operation without restoring all defaults, this is your last chance. Use ▲ or ▼ to highlight EXIT, then press SELECT.

To restore defaults, use ▲ or ▼ to highlight RESTORE DEFAULTS, then press SELECT. This will clear and reload all preset effects and all factory settings of Volume, Balance, Contrast, Configuration, etc.

When the message FACTORY DEFAULTS RESTORED is diplayed, press DONE to return to normal operation. All of the adjustable parameters in the SDP-3 have now been reset to the values assigned when it cleared final Quality Control at the factory.

If you cannot solve functional problems through these procedures, consult JBL Synthesis Customer Service.

DO NOT OPEN THE UNIT.

DOING SO WILL VOID YOUR WARRANTY, AND

MODIFICATIONS MAY RENDER THE UNIT UNSERVICEABLE.

Specifications

Inputs: Audio: 8 stereo (RCA) pairs

Video: 8 composite (RCA), 8 S-video Digital: 8: 5 coaxial (RCA), 3 optical (TosLink), conforms to IEC-958,

S/PDIF standards; 3 Expansion Ports for 96kHz, 24-bit PCM digital audio

Outputs: Audio: 8 main (RCA): Left, Center, Right, L&R Sides, L&R Rears, Subwoofer

3 stereo pairs: 2 Record, 1 Zone 2

Video: 3 composite (RCA), 3 S-video: 1 Monitor, 2 Record

Audio: A/D Conversion: 24-bit Delta-Sigma

D/A Conversion: 24-bit Delta-Sigma Frequency Response: 10 Hz – 20 kHz, +0.2dB, -0.3dB, referenced to 1kHz THD+Noise: Less than 0.005% @ 1kHz, maximum output level Dynamic Range: 105dB minimum, 22kHz bandwidth, referenced to

1kHz @ –60dB below maximum output level

Signal-to-Noise Ratio: 105dB minimum, 22kHz bandwidth, referenced to

1kHz at maximum output level

Input Level: 2 Vrms for maximum output

(with Input Gain=0 dB); 200mV rms for Dolby level Input Impedance: 100 kΩ in parallel with 150pF Output Level: 6Vrms (System Volume = +12dB) Output Impedance: 100Ω in parallel with 150pF

Video: NTSC M, PAL and SECAM-compatible

Output Level: 1.0 V peak-to-peak Impedance: 75Ω Input Return Loss: 40dB Differential Gain: <0.5% Differential Phase: <0.5° Frequency Response: 10Hz to 10MHz ±0.1dB Bandwidth: >25MHz K Factor: <0.3% Gain: ±0.15dB Signal/Noise Ratio: >70dB

Power Requirements: 90–250 VAC, 50-60Hz, 35 Watts (universal input);

IEC detachable power cord Dimensions: 17.3"W x 11.5"D x 3.6"H (440 x 292 x 92mm);

Rack mounted: 19.0"W x 11.5"D x 3.5"H (483 x 292 x 89mm)

Weight: 10.8 lbs. (4.9kg)

Environment: Operating Temperature:32° to 95°F (0° to 35°C)

Storage Temperature: –22° to 167°F (–30° to 75°C) Relative Humidity: 95% max without condensation

Remote Control: Hand-held, battery-powered infrared remote control unit, uses 2 AA batteries

Specifications subject to change without notice.

Installation Worksheet

Model/Serial #________/____________

Installed by________________________________Phone____________________Date______________

Inputs

VCR Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

DVD Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

V-DISC Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

TV Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

AUX Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

CD Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

TUNER Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

TAPE Gain _______ Name ________________ PCM FX _______ AC-3 FX _______ DTS FX _______

Audio In _______ Video In _______ FX Format: ■ Auto ■ PCM ■ AC-3 ■ DTS

Rec/Zone2: ■ Analog ■ Digital ■ Blocked

OSD Position: ■ bottom ■ center ■ top Status: ■ always on ■ 2 sec. time out ■ always off

Calibrate Panorama

Speaker Listener Angle _______° Listener Position ____________

Speaker Configuration (circle selection)

FRONT LG SM 40 80 120 CENTER LG SM NONE 40 80 120 SIDES LG LG SM SM NONE 40 80 120

STD DIP STD DIP

REARS LG SM NONE 40 80 120 SUBWFR YES NO OFF 40 80 120

Sub Pk Limit ________ Mute Level ________ Pwr-On Vol ________ Z-2 Pwr-On ________ A/V Sync Delay________

Output Level Speaker Distance

Nearest Speaker __________ L. Front _____dB __________ Center _____dB __________ R. Front _____dB __________ R. Side _____dB __________ L. Side _____dB __________ Sub _____dB __________ R. Rear _____dB __________ L. Rear _____dB __________

JBL Synthesis 250 Crossways Park Drive Woodbury, NY 11797 (516) 496-3400

8500 Balboa Blvd. Northridge, CA 91329 (818) 893-8411 www.jblsynthesis.com

JBL Part No. JBLSDP-3TECH

Printed in the USA on recycled paper 5/99
