SCS175(230V)
SCS 175 Technical Specifications
SCS satellite |
SCS center |
Freq. Resp.: 90-22000 Hz |
Freq. Resp.: 120-22000 Hz |
Crossover: 4 kHz |
Crossover: 3 kHz |
Sensitivity: 86 dB |
Sensitivity: 88 dB |
Nom. Imp.: 8 Ohms |
Nom. Imp.: 8 Ohms |
Recommended amp.: |
Recommended amp.: |
25-100 Watts |
25-100 Watts |
Drivers: |
Drivers: |
100 mm woofer / |
Two 100 mm woofer / |
10 mm polymer tweeter |
10 mm polymer tweeter |
Dimensions (HxWxD): |
Dimensions (HxWxD): |
230 x 140 x 164 mm |
160 x 410 x 159 mm |
Weight: 2,5 kg |
Weight: 4 kg |

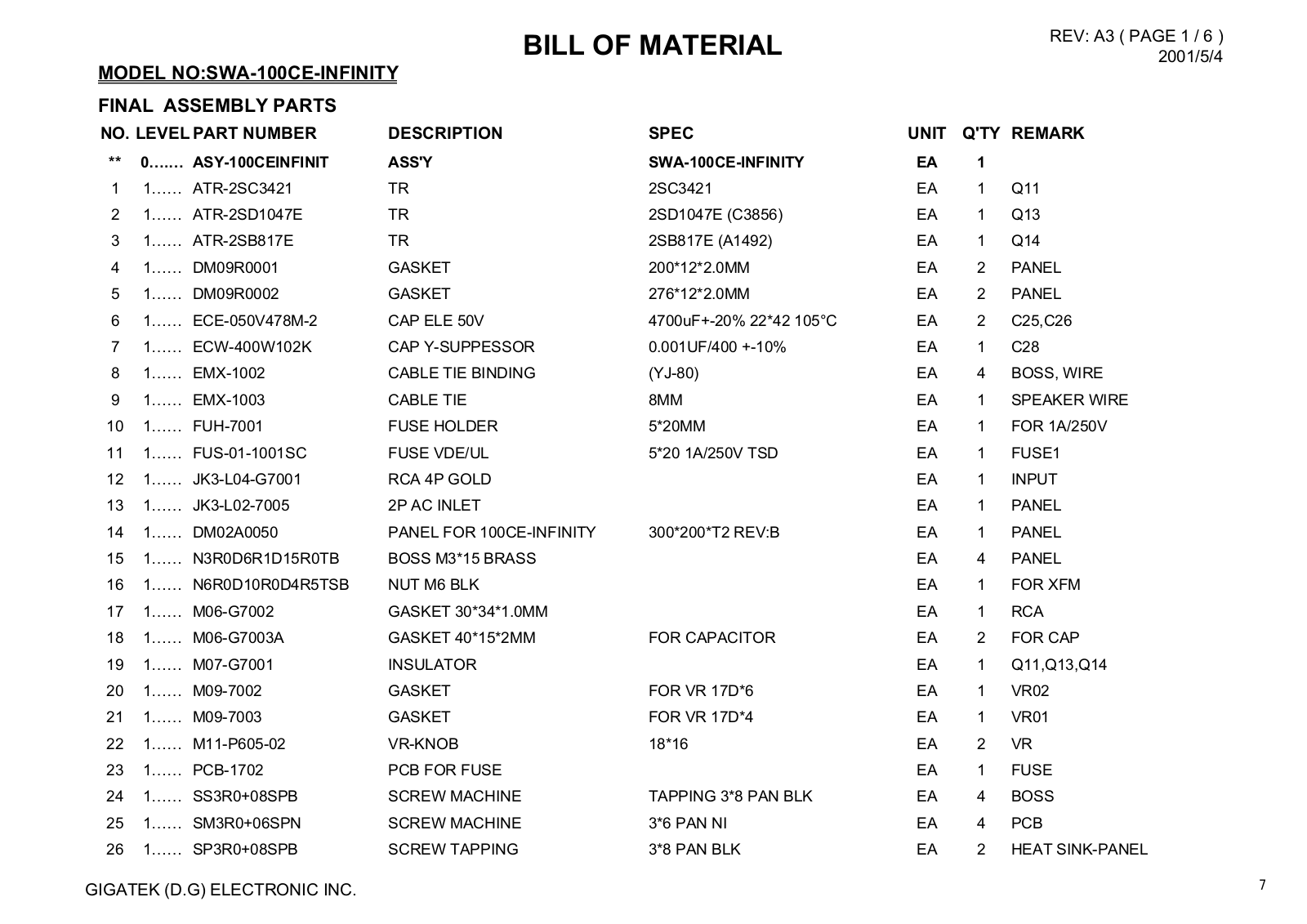

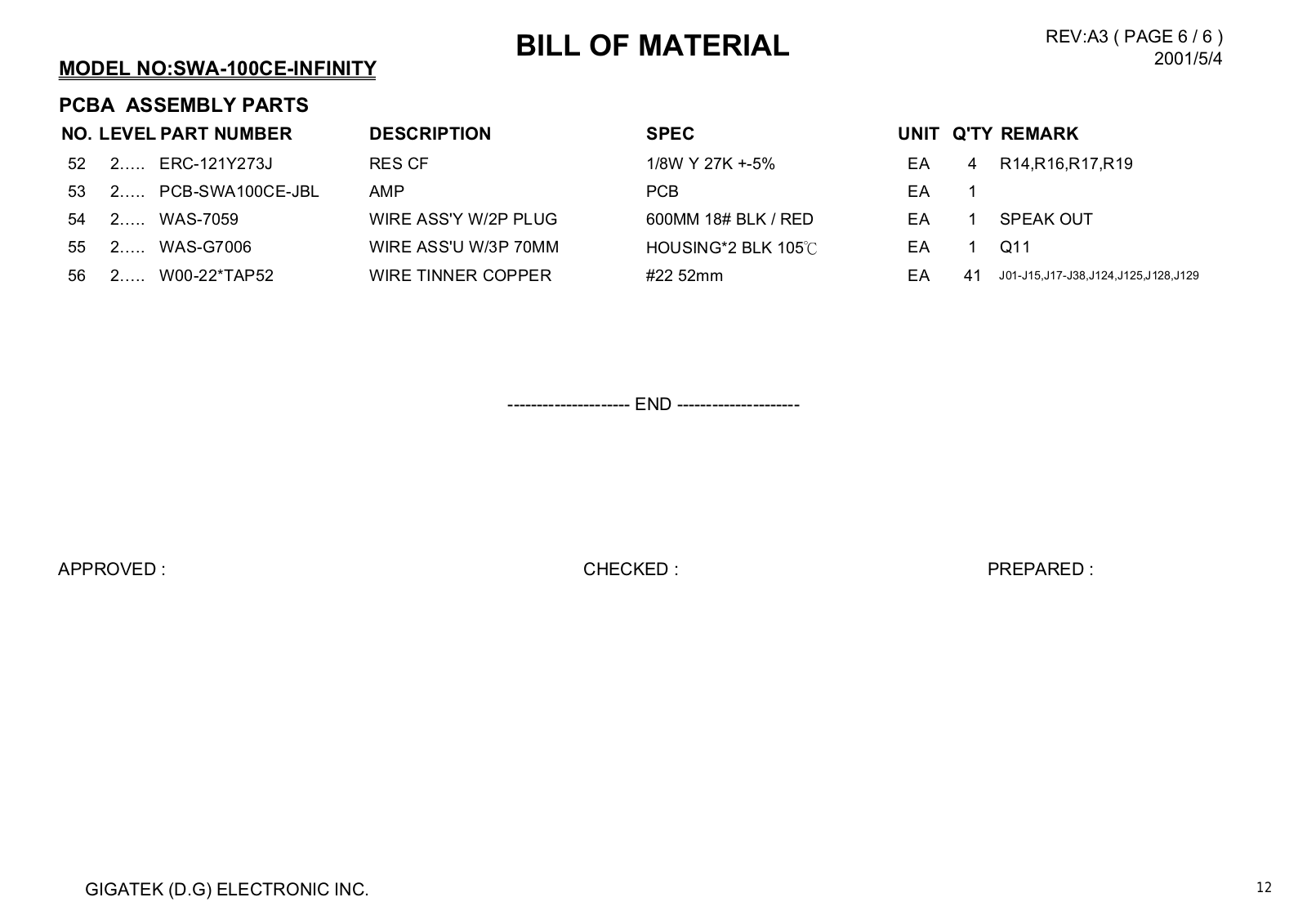

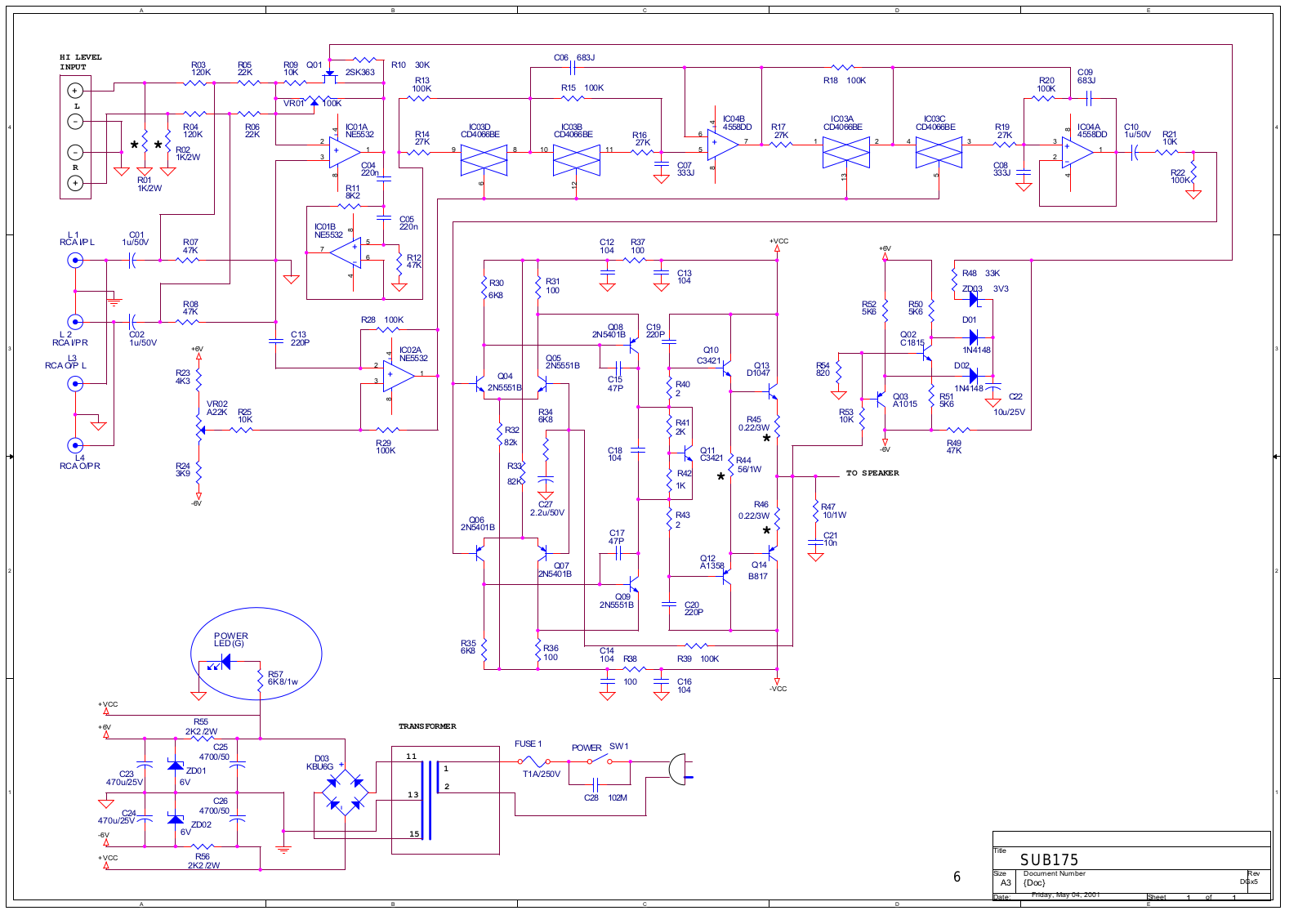

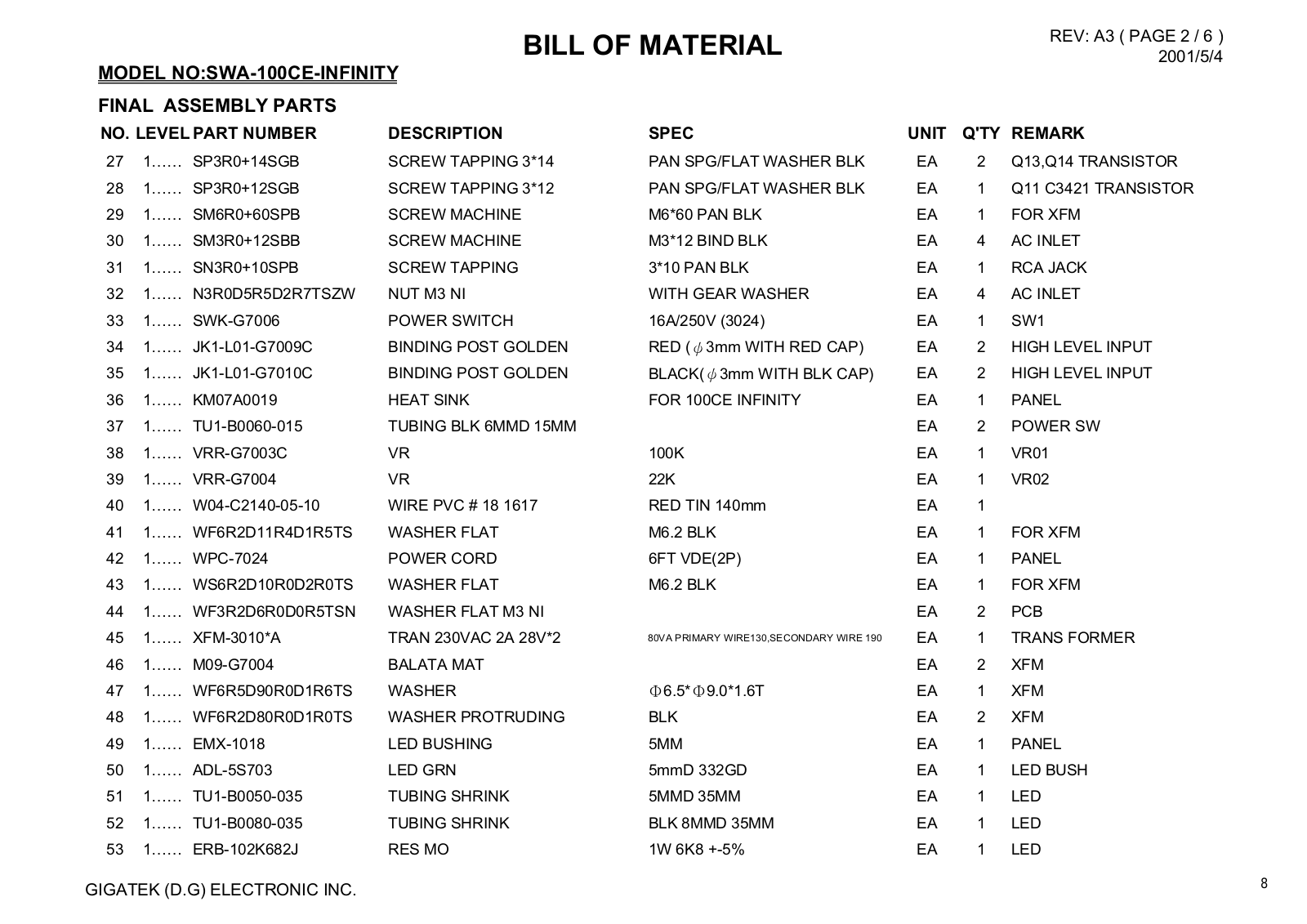

SCS active subwoofer
Low-freq. cut-off: 36 Hz
High-freq. cut-off:
Adjustable 40-130 Hz
Built-in power amp.:
110 Watts
Driver:
210 mm long throw woofer
Dimensions (HxWxD):
350 x 295 x 350 mm
Weight: 11 kg
Refinements may be made on occasion to existing products without notice, but will always meet or exceed original specifications unless otherwise stated.
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329 Europe: 2, route de Tours, 72500 Château du Loir, France www.jbl.com
©2001 JBL, Incorporated. JBL and Simply Cinema are registered trademarks of JBL, Incorporated.
Printed 06/2001
Part No. SCS175OM230V
A Harman International Company
Declaration of Conformity
We, JBL Europe, HCI
2, route de Tours
72500 Château-du-Loir
France
declare in own responsibility, that the product
described in this owner’s manual is in compliance
with technical standards:
EN 55013/A12:1994
EN 55020:1994
EN 55022:1994 class B
EN 61000-3-2:1995
EN 61000-3-3:1995
Luc Emmanuel Godard
Harman Consumer International
France.06/01
one. Speaker Placement
Subwoofer
Always start with the subwoofer as close to one of the front corners as possible to take advantage of solid-angle gains. If you get too much bass, adjust the ”VOLUME” towards ”MIN”. The result will be lower distortion and higher reliability. If the excessive bass is at one or more discrete frequencies, then it might be necessary to consider dealing with room modes.
Surround Speakers
150-180 cm |
Satellites
Here are your options:
•Modify the acoustical coupling of the subwoofer to the room boundaries and/or the room modes, i.e. move the subwoofer.
•Modify the acoustical coupling of the listener to the room boundaries and/or the room modes, i.e. move the listener.
•Move both the subwoofer and the listener.
Mounting Options
Satellites and Surrounds
On shelves. |
On the wall. |
On optional stands. |
The customer is responsible for proper selection and use of mounting hardware, available through hardware stores, to properly and safely wall-mount the speakers.
two. Speaker Connections
Connection Tips
Separate and strip the ends of the speaker wire as shown. Speakers and amplifiers/- receivers have corresponding
(+) and (–) terminals. The (+) lead of the speaker wire is noted with a stripe. It is impor-
tant to connect all the speakers identically: (+) on the speaker to (+) on the amplifier and (–) on the speaker to (–) on the amplifier. Wiring “out of phase” results in thin sound, weak bass and a poor stereo image.
Speaker Level
SCS175 (230V) simple setup guide
Serie no.
Made in Denmark
Harman Consumer International
|
|
|
|
Center |
|
|
|
|
|
|
|
|
|
+ |
– |
|
|
|
|
Left Front sat. |
|
|
Receiver |
|
|
Right Front sat. |
|||
– |
+ |
Left Front |
Center |
Right Front |
– |
+ |
|||
|
|
+ |
– |
+ |
– |
+ |
– |
|
|
|
|
Left Surround |
|
|
Right Surround |
|
|
||
|
|
+ |
– |
|
|
+ |
– |
|
|
Left Surround sat. |
Right Surround sat. |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+ |
|
– |
|
|
+ |
– |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
