Languages

ENGLISH / US 2

FRANÇAIS / FR 12

DEUTSCH / DE 22

ESPAÑOL / ES 32

繁體中文 / CHT 42

Package contents

Optional accessories

Jabra Pro 920 Headset

Multi-function buttton

Speaker volume up

Mute

Speaker volume down

Microphone boom arm

LED indicator

Speaker

Noise-cancelling

microphone

2

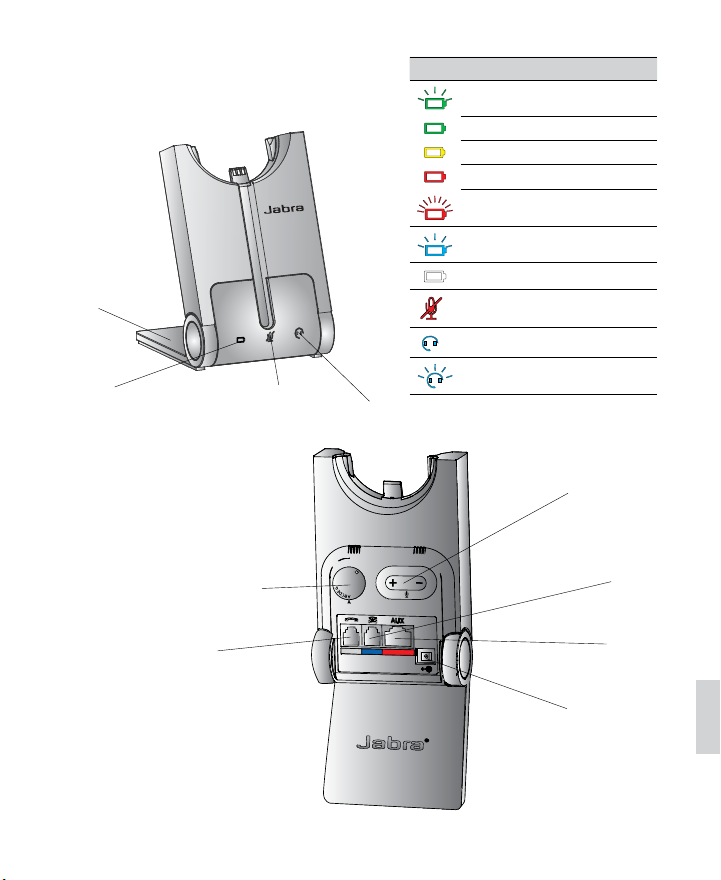

Jabra Pro 920 base

1

Foldable base
stand

Battery indicator

Mute indicator

Audio link

indicator

Icon Event

Battery charging (slow ash)

Full battery

Medium battery

Low battery

Very low battery (fast ash)

Sleep mode (slow ash)

Unknown battery status

Microphone muted

Active audio link between
headset and base

Searching for headset

US

Microphone

volume controls

Clear dial tone
switch

Handset port

Telephone port

AUX port

Power adapter port

3

setuP

steP 1: attacH tHe Headband

1. Align the headset and the headband wearing-style attachment, as illustrated, and press firmly together until

they click into place (snap-to-click).

2. Rotate the microphone boom arm for left or right ear use.

3. Adjust the length of the headband to fit snug against the head.

CLICK

OPTIONAL ACCESSORIES
Attaching the earhook (not supplied in all regions)

1. Assemble the earhook wearing-style attachment for left or right ear use. If necessary, remove the earbud
and replace with another size for best t.

2. Align the headset and the earhook wearing-style attachment, as illustrated, and press firmly together until
they click into place (snap-to-click).

3. Shape the earhook to t snug around the ear.

CLICK

4

steP 2: unfoLd tHe base

The Jabra PRO base stand can be
folded into three positions: open,
closed, and standing position.

CLICK

US

5

steP 3: seLect and connect to a desk PHone

Select which desk phone you are connecting to from the following 4 options:

OPTION 1
Desk Phone with Headset Port

This type of desk phone has a dedicated headset
port (usually at the back of the phone). These
phones typically have a button on the front
panel for switching between handset and
headset.

1. Plug the supplied telephone cable into the
port marked

2. Connect the telephone cable to the headset
port

on the base.

on the desk phone.

or

OPTION 2
Desk Phone with Jabra Link

A Jabra Link adapter enables an incoming call
to be answered or ended by the headset multi­function button.

Contact your local Jabra dealer to purchase a
Jabra Link adapter for your specic desk phone.

1. Connect the Jabra Link adapter as shown in
adapter documentation supplied with the
Jabra Link. On some phones the telephone
cable will also need to be connected.

2. Call your connected desk phone using
another phone to enable the Jabra Link
adapter. Wait 10 seconds before answering
the phone.

or

Refer to Jabra Link

documentation

6

or

OPTION 3
Desk Phone with GN1000 remote

Handset Lifter

The GN1000 remote handset lifter manually
lifts the desk phone handset to make or answer
a call. For mounting instructions refer to
documentation supplied with the GN1000.

1. On the desk phone, unplug the handset cable
from the phone body.

2. Connect the handset cable to the port marked

on the base.

3. Plug the supplied telephone cable into the
port marked

4. Connect the telephone cable into the handset
port on the desk phone.

5. Connect the GN1000 cable into the port
marked

on the base.

on the base.

US

or

OPTION 4
Desk Phone without Headset Port

This desk phone does not have a dedicated
headset port.

1. On the desk phone, unplug the handset cable
from the phone body.

2. Connect the handset cable to the port marked

on the base.

3. Plug the supplied telephone cable into the
port marked

4. Connect the telephone cable into the handset
port on the desk phone.

on the base.

7

steP 4: connect to Power

1. Plug the supplied power adapter
into the port marked
base.

2. Connect the power adapter to the
mains power socket.

on the

steP 5: dock tHe Headset

Dock the headset. When docked
correctly the headset battery will
begin charging, if needed.

Charge for 20 minutes or until the
battery indicator on the base
steady green.

is

8

steP 6: configure tHe sound

1 Put on the headset, or tap the headset

multi-function button if the headset is
currently undocked.

2 Get a dial tone by either pressing the

headset button on the desk phone, or by
lifting the desk phone handset. If there
is no dial tone, check that all cables are
connected correctly.

3 Dial a friend or colleagues phone number

using the desk phone. If you cannot
hear anything refer to ‘Having sound
problems?’ below.

4 Check your speaking volume. If the

listener says your speaking volume is too
quiet or too loud, adjust the microphone
volume using the microphone + / ­volume buttons on the back of the base.
Ensure the listener does not adjust their
own volume.

5 When nished, end the call.

IMPORTANT
Having sound problems?

If you cannot hear anything during the
test call, or the sound is distorted, try
rotating the clear dial tone switch on the
back of the base from A-G until the sound
is optimal. For further details refer to the
user manual.

US

CLICK

You have now successfullY connected Your Jabra Pro 920

9

How to make a caLL

OPTION 1
Desk phone with
headset port

OPTION 2
Desk Phone with
Jabra Link

OPTION 3
Desk phone with
GN1000 remote
handset lifter

OPTION 4
Desk phone with­out headset port

did You know?

The Jabra PRO 920 has advanced settings that you can quickly and easily congure yourself. Refer to the User
Manual to learn how.

10

11US12

micro-casQue Jabra Pro 920

Bouton multifonction

Bouton d’augmentation
du volume

Bouton Muet

Bouton de réduction
du volume

Bras articulé du microphone

Voyant lumineux

Haut-parleur

Microphone

anti-bruit

base du Jabra Pro 920

1

Support
de la base
pliable

Voyant d’état de
la batterie

Voyant d’activation/

de désactivation

du microphone

Voyant de

liaison audio

Icône Événement

Batterie en charge
(clignotement lent)

Batterie chargée
Batterie moyennement

chargée
Batterie faible
Batterie très faible

(clignotement rapide)

Mode veille (clignotement lent)

État de la batterie inconnu

Microphone désactivé

Liaison audio active entre le
micro-casque et la base

Recherche du micro-casque
en cours

FR

Réglage du volume

du microphone

Commutateur
de tonalité

Port du combiné

Port du

téléphone

Port AUX

Port de

l’adaptateur

secteur
