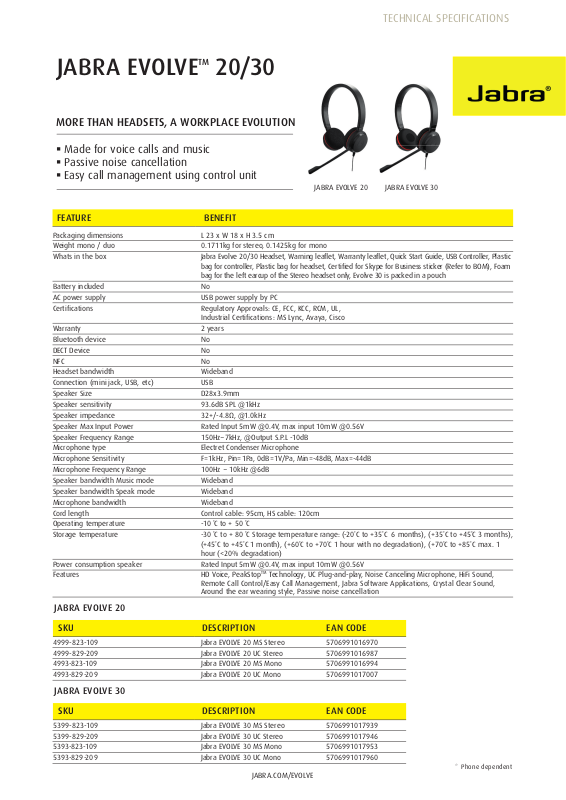

TECHNICAL SPECIFICATIONS
JABRA EVOLVETM 20/30
MORE THAN HEADSETS, A WORKPLACE EVOLUTION
Made for voice calls and music
Passive noise cancellation
Easy call management using control unit
JABRA EVOLVE 20 JABRA EVOLVE 30
FEATURE BENEFIT
Packaging dimensions L 23 x W 18 x H 3.5 cm
Weight mono / duo 0.1711kg for stereo, 0.1425kg for mono
Whats in the box Jabra Evolve 20/30 Headset, Warning leafl et, Warranty leafl et, Quick Start Guide, USB Controller, Plastic
bag for controller, Plastic bag for headset, Certifi ed for Skype for Business sticker (Refer to BOM), Foam
bag for the left earcup of the Stereo headset only, Evolve 30 is packed in a pouch
Battery included No
AC power supply USB power supply by PC
Certifi cations Regulatory Approvals: CE, FCC, KCC, RCM, UL,
Industrial Certifi cations: MS Lync, Avaya, Cisco
Warranty 2 years
Bluetooth device No
DECT Device No
NFC No
Headset bandwidth Wideband
Connection (mini jack, USB, etc) USB
Speaker Size D28x3.9mm
Speaker sensitivity 93.6dB SPL @1kHz
Speaker impedance 32+/-4.8Ω, @1.0kHz
Speaker Max Input Power Rated Input 5mW @0.4V, max input 10mW @0.56V
Speaker Frequency Range 150Hz~7kHz, @Output S.P.L -10dB
Microphone type Electret Condenser Microphone
Microphone Sensitivity F=1kHz, Pin=1Pa, 0dB=1V/Pa, Min=-48dB, Max=-44dB
Microphone Frequency Range 100Hz ~ 10kHz @6dB
Speaker bandwidth Music mode Wideband
Speaker bandwidth Speak mode Wideband
Microphone bandwidth Wideband
Cord length Control cable: 95cm, HS cable: 120cm
Operating temperature -10 ˚C to + 50 ˚C
Storage temperature -30 ˚C to + 80 ˚C Storage temperature range: (-20˚C to +35˚C 6 months), (+35˚C to +45˚C 3 months),
(+45˚C to +45˚C 1 month), (+60˚C to +70˚C 1 hour with no degradation), (+70˚C to +85˚C max. 1
hour (<20% degradation)
Power consumption speaker Rated Input 5mW @0.4V, max input 10mW @0.56V
Features HD Voice, PeakStop
Remote Call Control/Easy Call Management, Jabra Software Applications, Crystal Clear Sound,
Around the ear wearing style, Passive noise cancellation
TM
Technology, UC Plug-and-play, Noise Canceling Microphone, HiFi Sound,
JABRA EVOLVE 20
SKU DESCRIPTION EAN CODE
4999-823-109 Jabra EVOLVE 20 MS Stereo 5706991016970
4999-829-209 Jabra EVOLVE 20 UC Stereo 5706991016987
4993-823-109 Jabra EVOLVE 20 MS Mono 5706991016994
4993-829-209 Jabra EVOLVE 20 UC Mono 5706991017007
JABRA EVOLVE 30
SKU DESCRIPTION EAN CODE
5399-823-109 Jabra EVOLVE 30 MS Stereo 5706991017939
5399-829-209 Jabra EVOLVE 30 UC Stereo 5706991017946
5393-823-109 Jabra EVOLVE 30 MS Mono 5706991017953
5393-829-209 Jabra EVOLVE 30 UC Mono 5706991017960
JABRA.COM/EVOLVE
* Phone dependent
