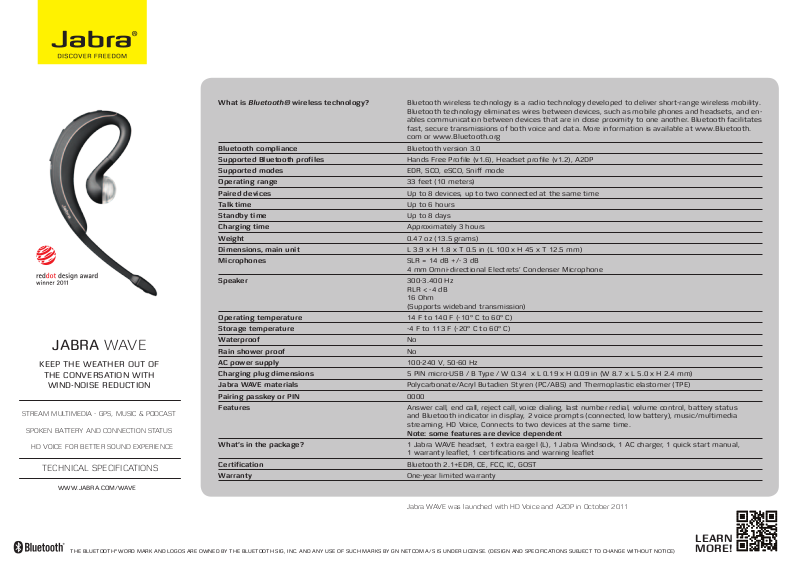

JABRA WAVE
KEEP THE WEATHER OUT OF
THE CONVERSATION WITH
WIND-NOISE REDUCTION
STREAM MULTIMEDIA - GPS, MUSIC & PODCAST
SPOKEN BATTERY AND CONNECTION STATUS
HD VOICE FOR BETTER SOUND EXPERIENCE
TECHNICAL SPECIFICATIONS
WWW.JABRA.COM/WAVE
What is Bluetooth® wireless technology? Bluetooth wireless technology is a radio technology developed to deliver short-range wireless mobility.
Bluetooth technology eliminates wires between devices, such as mobile phones and headsets, and enables communication between devices that are in close proximity to one another. Bluetooth facilitates
fast, secure transmissions of both voice and data. More information is available at www.Bluetooth.
com or www.Bluetooth.org
Bluetooth compliance Bluetooth version 3.0
Supported Bluetooth profiles Hands Free Profile (v1.6), Headset profile (v1.2), A2DP
Supported modes EDR, SCO, eSCO, Sniff mode
Operating range 33 feet (10 meters)
Paired devices Up to 8 devices, up to two connected at the same time
Talk time Up to 6 hours
Standby time Up to 8 days
Charging time Approximately 3 hours
Weight 0.47 oz (13.5 grams)
Dimensions, main unit L 3.9 x H 1.8 x T 0.5 in (L 100 x H 45 x T 12.5 mm)
Microphones SLR = 14 dB +/- 3 dB
4 mm Omni-directional Electrets’ Condenser Microphone
Speaker 300-3.400 Hz
RLR < -4 dB
16 Ohm
(Supports wideband transmission)
Operating temperature 14 F to 140 F (-10° C to 60° C)
Storage temperature -4 F to 113 F (-20° C to 60° C)
Waterproof No
Rain shower proof No
AC power supply 100-240 V, 50-60 Hz
Charging plug dimensions 5 PIN micro-USB / B Type / W 0.34 x L 0.19 x H 0.09 in (W 8.7 x L 5.0 x H 2.4 mm)
Jabra WAVE materials Polycarbonate/Acryl Butadien Styren (PC/ABS) and Thermoplastic elastomer (TPE)
Pairing passkey or PIN 0000
Features Answer call, end call, reject call, voice dialing, last number redial, volume control, battery status
and Bluetooth indicator in display, 2 voice prompts (connected, low battery), music/multimedia
streaming, HD Voice, Connects to two devices at the same time.
Note: some features are device dependent
What’s in the package? 1 Jabra WAVE headset, 1 extra eargel (L), 1 Jabra Windsock, 1 AC charger, 1 quick start manual,
1 warranty leaflet, 1 certifications and warning leaflet
Certification Bluetooth 2.1+EDR, CE, FCC, IC, GOST
Warranty One-year limited warranty
Jabra WAVE was launched with HD Voice and A2DP in October 2011
THE BLUETOOTH® WORD MARK AND LOGOS ARE OWNED BY THE BLUETOOTH SIG, INC. AND ANY USE OF SUCH MARKS BY GN NETCOM A/S IS UNDER LICENSE. (DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
