IPSO CHM2097N User Manual

On-Premise

Laundry

Planning

Handbook

Refer to Installation manual for full instructions.

5-08-51R3
October 2011

CHM2097N

IWF Washer-Extractors

Table of

Contents

Washer-Extractors................................................................... 2

Introduction............................................................................ 2

Model Identification - IWF Washer-Extractors ................. 2

Specifications and Dimensions - Model IWF014

(2-speed).............................................................................. 3

Specifications and Dimensions - Model IWF018

(2-speed).............................................................................. 7

Specifications and Dimensions - Model IWF025

(2-speed).............................................................................. 11

Specifications and Dimensions - Models IWF030

(2-speed).............................................................................. 15

Installation ............................................................................. 19

Models IWF014, IWF018, IWF025 and IWF030

(2-speed) ........................................................................ 19

Specifications and Dimensions - Models IWF033

(2-speed).............................................................................. 21

Specifications and Dimensions - Model IWF040

(2-speed).............................................................................. 25

Specifications and Dimensions - Model IWF055

(2-speed).............................................................................. 29

Specifications and Dimensions - Model IWF075

(2-speed).............................................................................. 33

Installation ............................................................................. 37

Models IWF033, IWF040, IWF055 and IWF075

(2-speed) ........................................................................ 37

Specifications and Dimensions - Models IWF0014

(M-speed)............................................................................. 39

Specifications and Dimensions - Model IWF018

(M-speed)............................................................................. 43

Specifications and Dimensions - Model IWF025

(M-speed)............................................................................. 47

Specifications and Dimensions - Models IWF030

(M-speed)............................................................................. 51

Installation ............................................................................. 55

Models IWF014, IWF018, IWF025 and IWF030

(M-speed) ....................................................................... 55

Specifications and Dimensions - Models IWF033

(M-speed)............................................................................. 57

Specifications and Dimensions - Model IWF040

(M-speed)............................................................................. 61

Specifications and Dimensions - Model IWF055

(M-speed)............................................................................. 65

Specifications and Dimensions - Model IWF075

(M-speed)............................................................................. 69

Installation ............................................................................. 73

Models IWF033, IWF040, IWF055 and IWF075

(M-speed) ....................................................................... 73

© Published by permission of the copyright owner.
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any

means without the expressed written consent of the publisher.

1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

Washer-Extractors

Introduction

Model Identification - IWF Washer-Extractors

Figure 1

IWF014 IWF030 IWF055

IWF018 IWF033 IWF075

IWF025 IWF040

CHM2097N

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

2

Washer-Extractors

Specifications and Dimensions - Model IWF014 (2-speed)

Capacity (dry weight) Ratio (kg/l)

1:11

1:10

1:9

Cylinder

Cylinder diameter, in. (mm)

Cylinder depth, in. (mm)

Cylinder volume, ft.3 (l)

Cabinet

Overall height, in. (mm)

Overall width, in. (mm)

Overall depth, in. (mm)

Front Loading

Door opening size, in. (mm)

Height of door bottom above floor, in (mm)

Height of door center above floor, in (mm)

Speed

Was h

Distribution

Spin

G-factor

Spin

Motor (3 phase), 4p, 1470 tr/min

Drain Valve, in. (mm)

Water Supply (hard, soft, warm water), in. (mm)

Direct Steam Heating

Steam inlet connection size, in. (mm)

Electrical

Electrical Heating (230/400 V)

Electrical Heating (400V)

Steam

Warm Water (without additional heating)

Warm Water (with additional heating)

Packing Dimensions (height X width X depth), in. (mm)

Weight

Net weight, lb. (kg)

Gross weight, lb. (kg)

15.87 lb. (7.2 kg)

10-50 tr/min - RPM

85 tr/min - RPM

525 tr/min - RPM

0.5 HP/0.37 kW

4.2 kW - 6 kW - 9 kW

45.66 X 28.74 X 33.46
(1160 X 730 X 850)

13 lb. (5.9 kg)

14 lb. (6.5 kg)

20.86 (530)

11.61 (295)

2.29 (65)

40.98 (1041)

25.98 (660)

31.37 (797)

11.81 (300)

13.97 (355)

20 (508)

82

2 (51)

.75 (19)

.38 (10)

Not Applicable

Not Applicable

Not Applicable

Not Applicable

384 (174)

423.28 (192)

3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

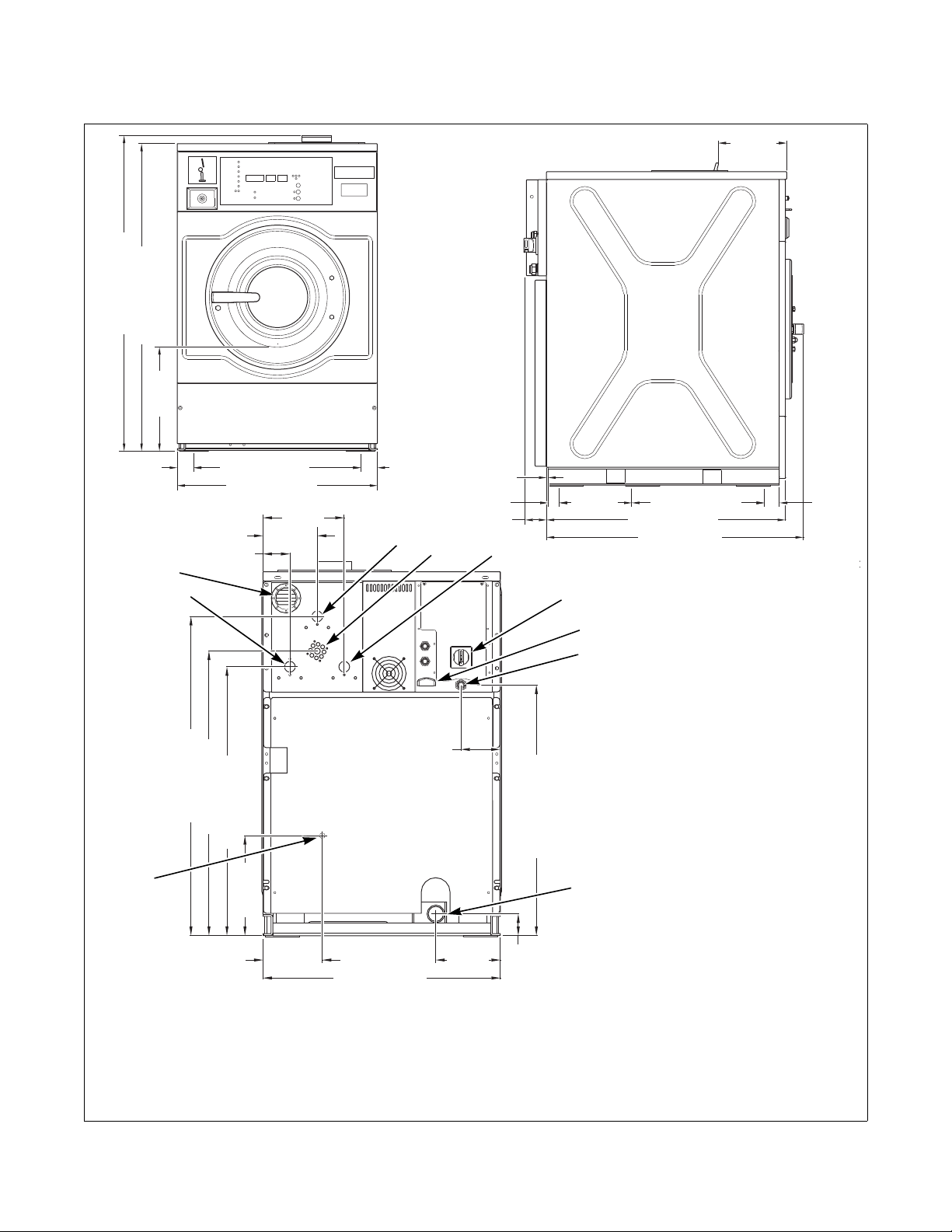

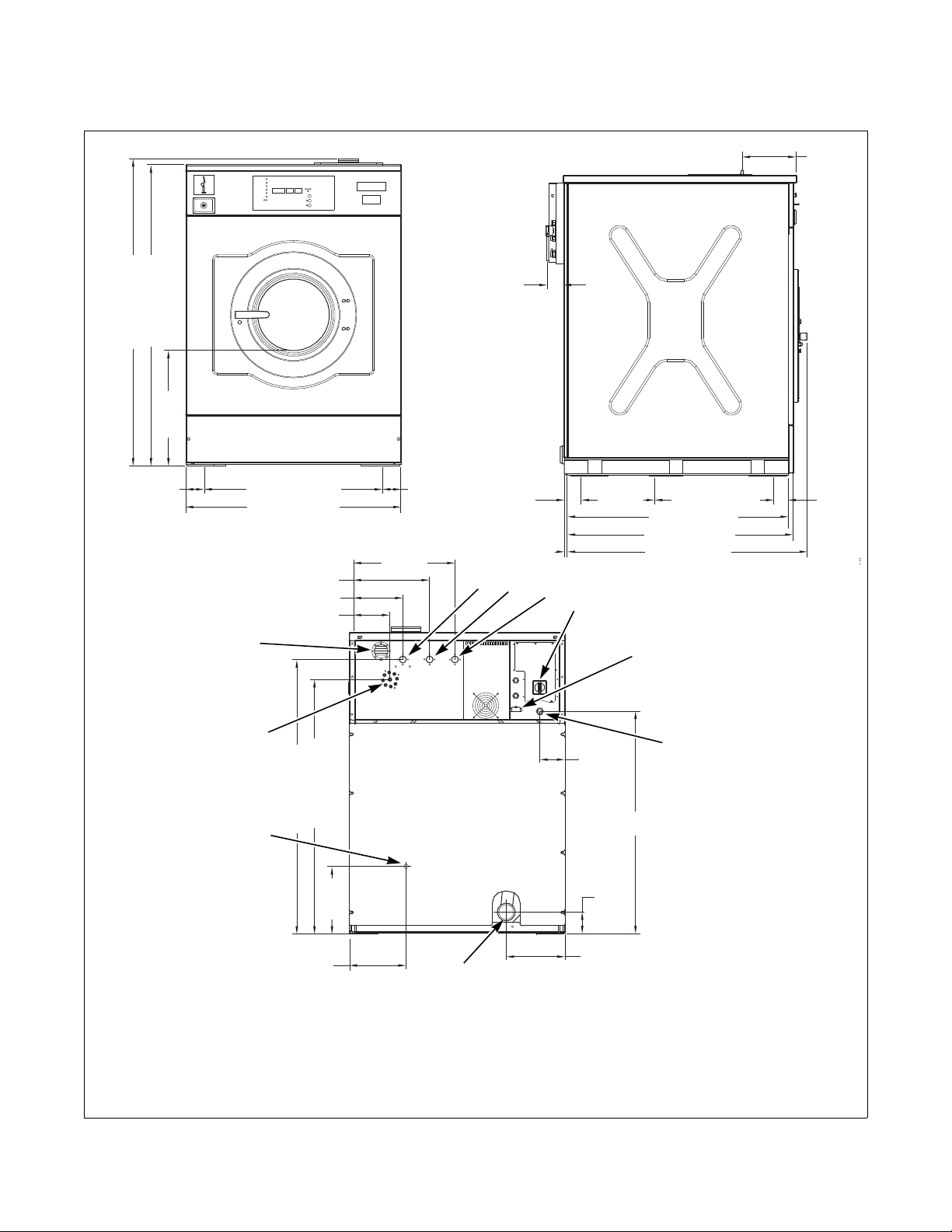

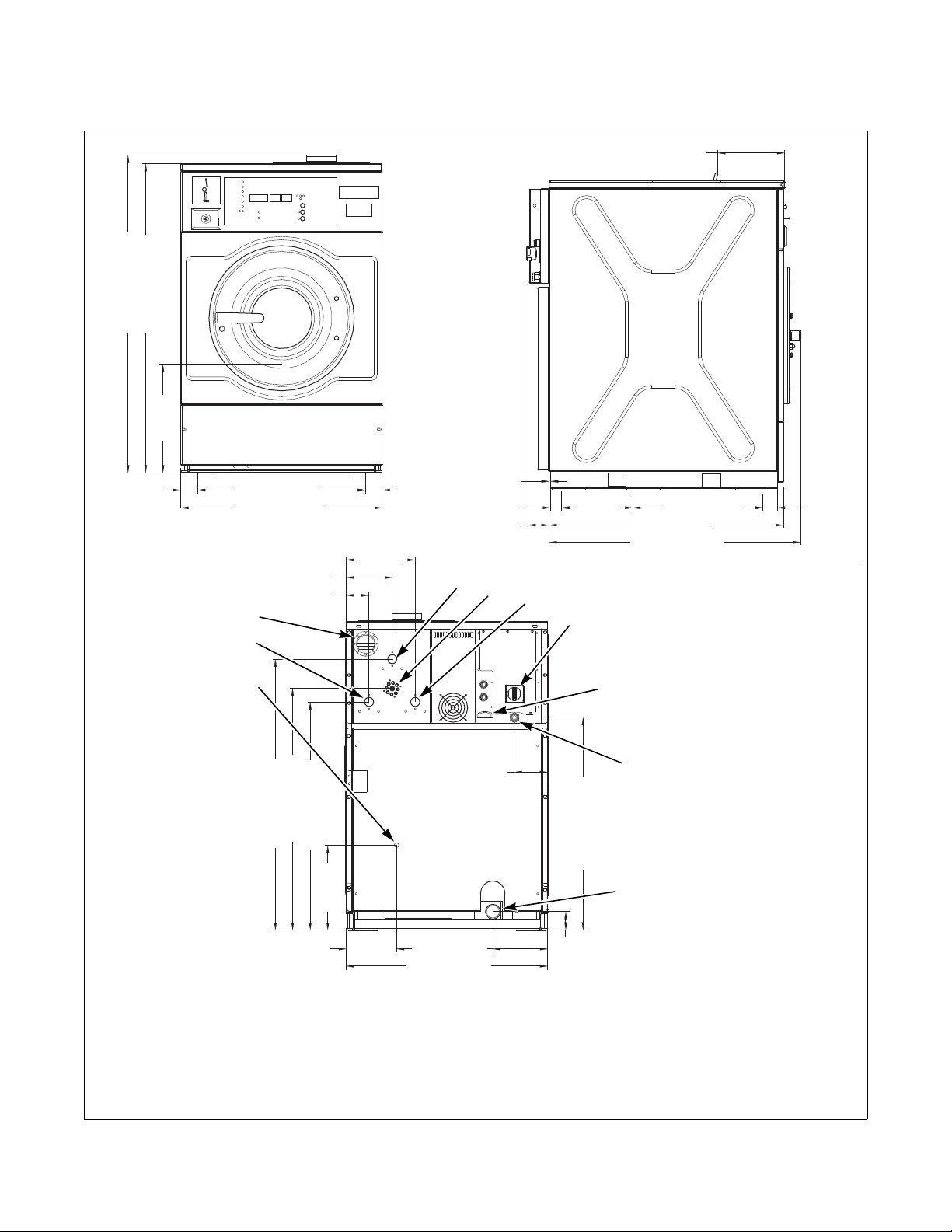

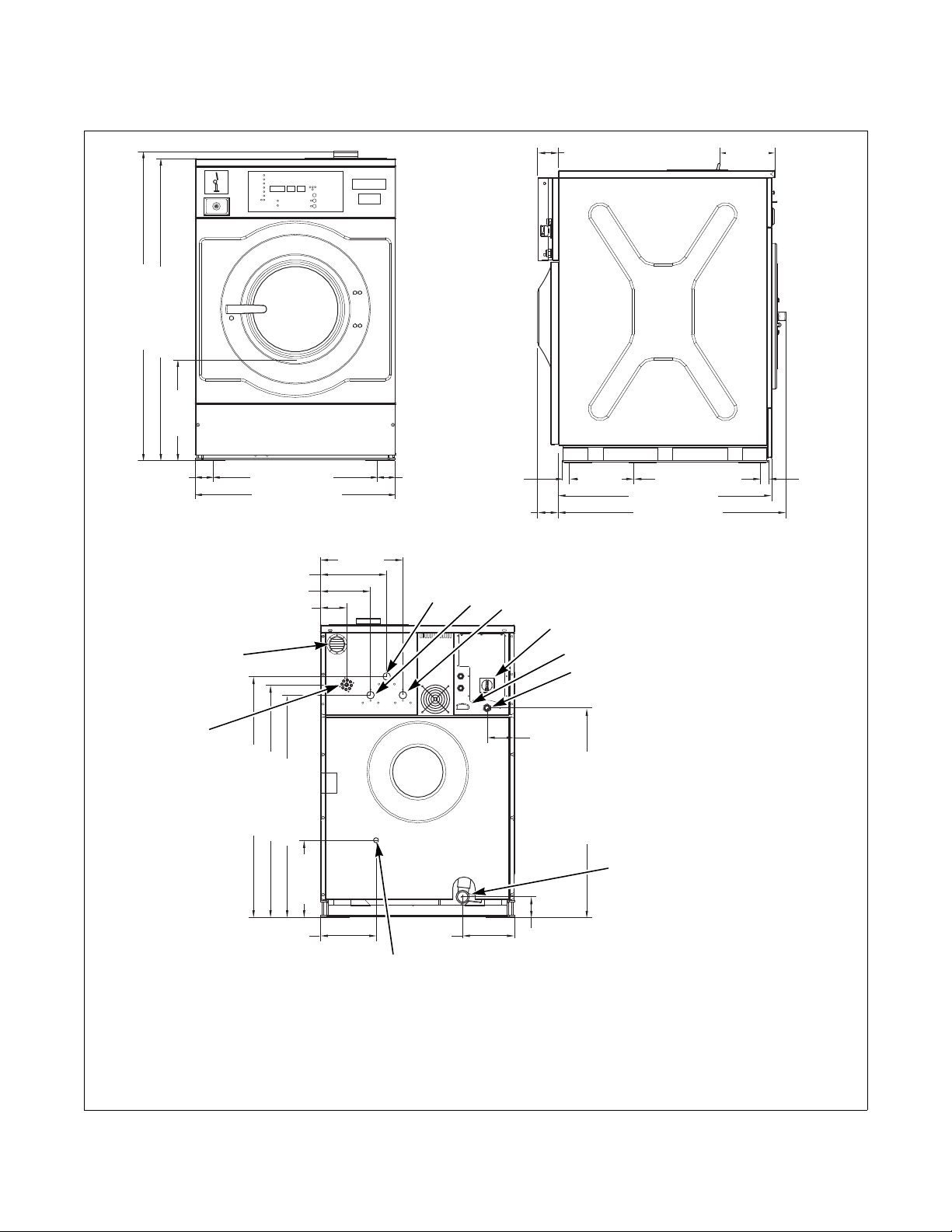

Machine Dimensions - Model IWF014 (2-speed)

CHM2099N

CHM2100N

40.98 in. (1041 mm)

39.92 in. (1014 mm)

25.98 in. (660 mm)

0.2 in.

(5 mm)

8.66 in.

(220 mm)

21.65 in. (550 mm)

2.17 in.

(55 mm)

13.98 in.

(355 mm)

25.98 in. (660 mm)

2.17 in.

(55 mm)

1.46 in. (37 mm)

2.72 in. (69 mm)

11.3 in. (287 mm)

10.75 in.

(273 mm)

26.37 in. (670 mm)

28.66 in (728 mm)

CHM2100N

CHM2110N

1.89 in.

(48 mm)

8.9 in.

(226 mm)

2.95 in. (75 mm)

5.94 in. (151 mm)

34.92 in. (887 mm)

31.14 in. (791 mm)

29.41 in. (747 mm)

10.92 in.
(277.5 mm)

27.42 in. (696.5 mm)

4.29 in.

(109 mm)

6.48 in.

(164.5 mm)

7.09 in.

(180 mm)

2.36 in.

(60 mm)

1

2

4

8

6

3

7

9

10

5

CHM2099N

Washer-Extractors

1 Ventilation Soap Dispenser 6 Ventilation Tub
2 Warm Water Connections .75 in. 7 Electrical Connections
3 Liquid Soap Connections 8 Drain Valve
4 Soft Water Connections .75 in. 9 Steam Connections
5 Main Switch 10 Hard Water Connections .75 in.

Figure 2

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

4

Washer-Extractors

2.17 in.

(55 mm)

21.65 in. (550 mm)

10.75 in. (273 mm)

1.46 in.

(37 mm)

22.05 in. (560 mm)

25.4 in. (645 mm)

11.3 in. (287 mm)

2.17 in.

(55 mm)

25.98 in. (660 mm)

ø0.87 in.

(ø22 mm)

1.89 in.

(48 mm)

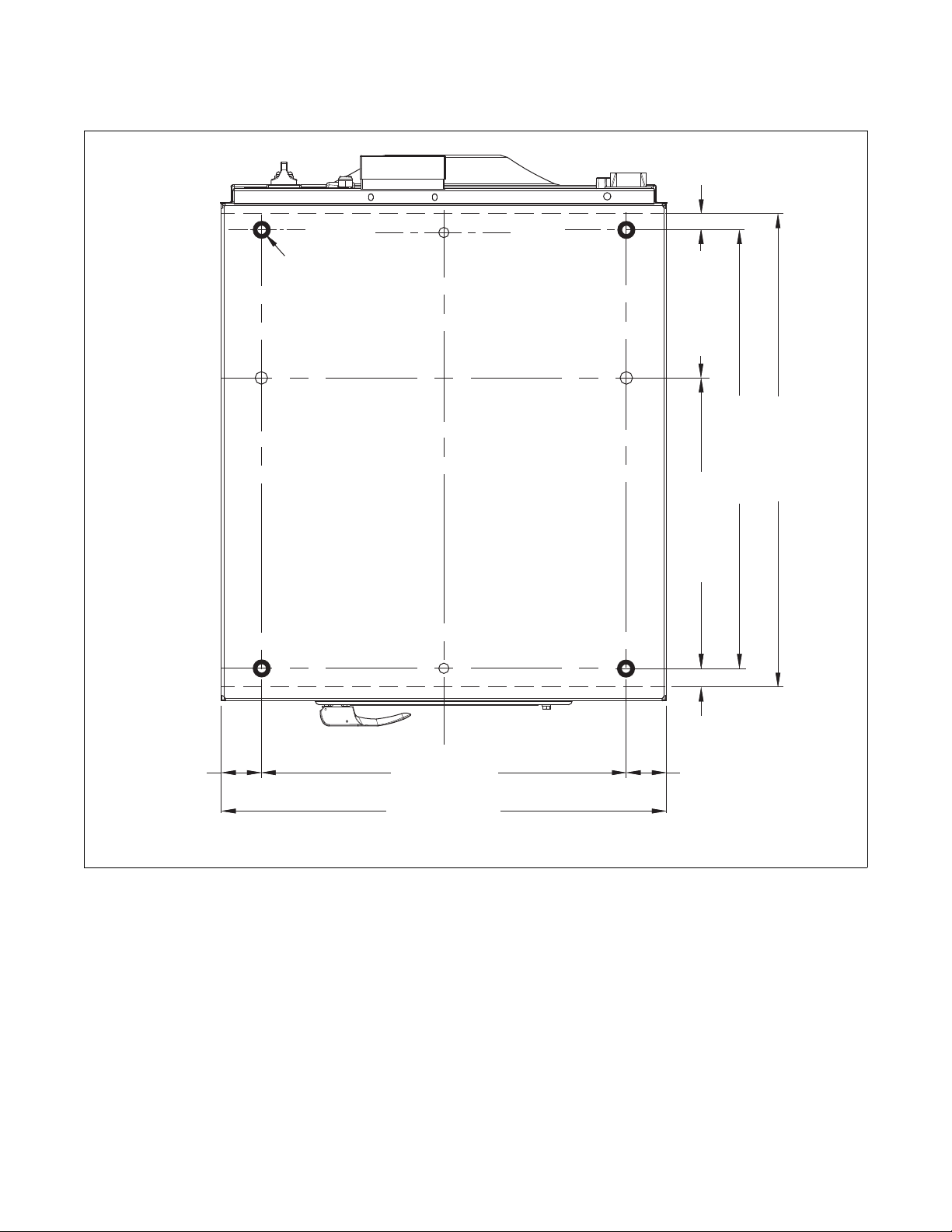

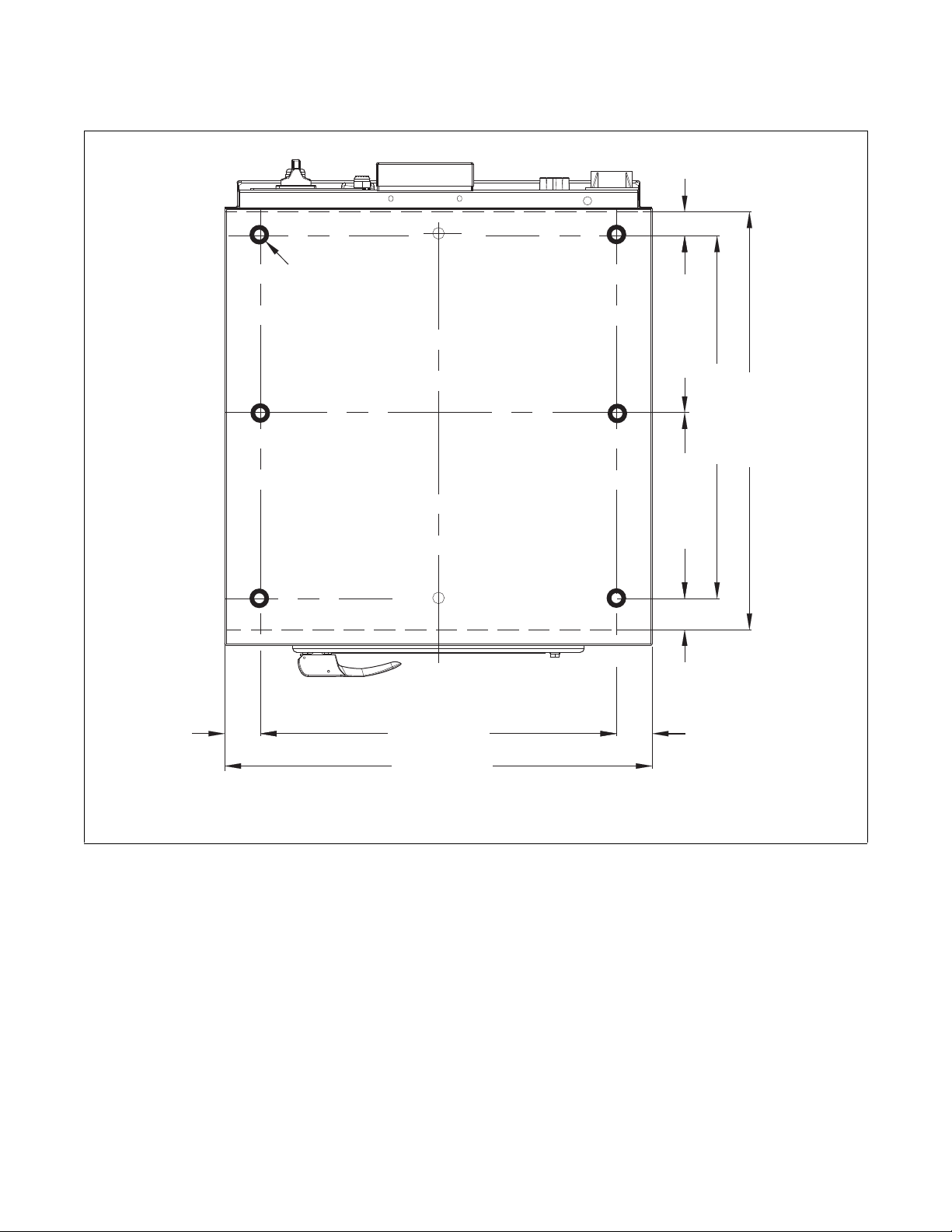

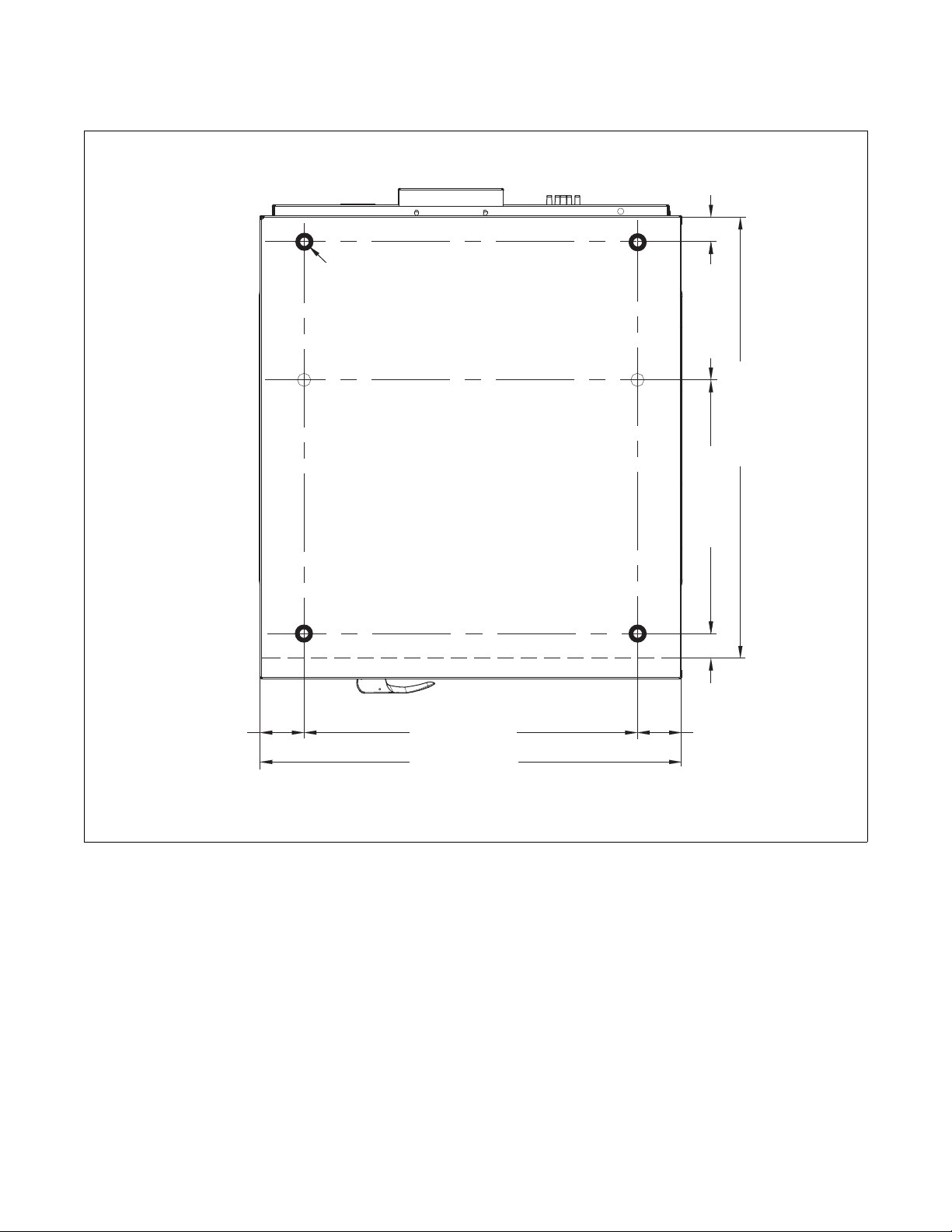

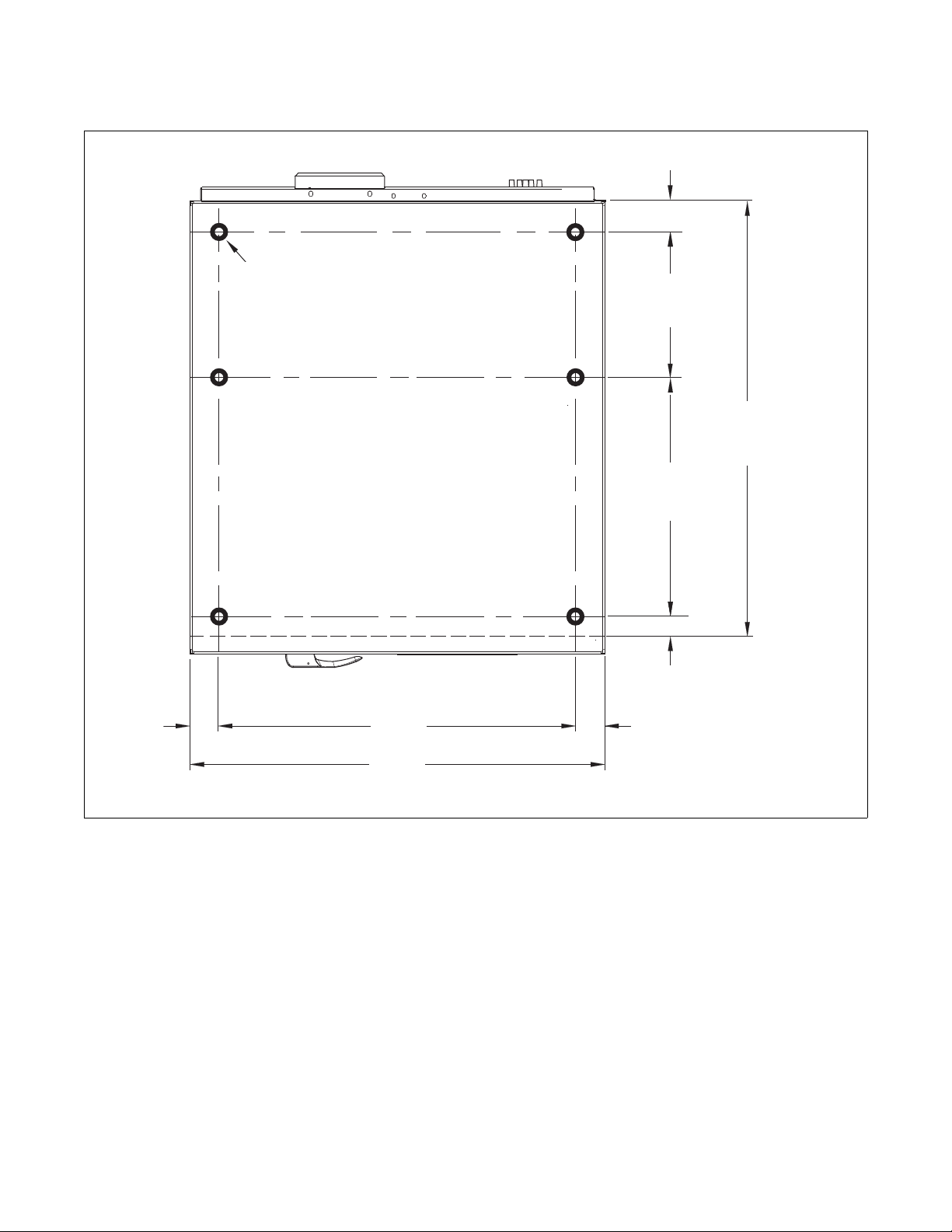

Mounting Bolt Hole Locations - Model IWF014 (2-speed)

Figure 3

CHM2156N

5

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

Electrical Installation Requirements - Model IWF014 (2-speed)

Only trained personnel should perform this
procedure. Use caution while servicing
machines with covers removed and power
applied.

W700

WARNING

Washer-Extractors

Boiler Fed/Steam Heat Electric Heat

Recommended

Circuit Breaker

Code

N 440-480 50/60 3 3+PE 1 10 6 14/2.5

P 380-415 50/60 3 3+N+PE 1 10 6 14/2.5 11.9 15 16

Q 200-240 50/60 3 3+PE 2.5 10 6 14/2.5 18.9 25 20

X 200-240 50/60 1/3 2/3+PE 2.5 10 6 14/2.5 N/A N/A N/A

N 440-480 50/60 3 3+PE

P 380-415 50/60 3 3+N+PE 8.6 10 10

Q 200-240 50/60 3 3+PE 14 15 16

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

N 440-480 50/60 3 3+PE

Voltage

Cycle

Phase

Wire

Full Load

Amps

(US-market)

US NON-US US NON-US

AWG/mm

2

Heating Elements

kW Standard

Full Load

Amps

N/A N/A N/A

3x2 kW

Alternative Electric Heat Options

N/A N/A N/A

3x1.4 kW

N/A N/A N/A

Circuit Breaker

(US-market)

Recommended

AWG/mm

2

N/A

14/2.5

14/2.5

N/A

N/A

14/2.5

14/2.5

N/A

N/A

P 380-415 50/60 3 3+N+PE 17.3

Q 200-240 50/60 3 3+PE

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Table 1

3x3 kW

27.1

25 20

30 25

14/2.5

14/2.5

N/A

6

Washer-Extractors

Specifications and Dimensions - Model IWF018 (2-speed)

Capacity (dry weight) Ratio (kg/l)

1:11

1:10

1:9

Cylinder

Cylinder diameter, in. (mm)

Cylinder depth, in. (mm)

Cylinder volume, ft.3 (l)

Cabinet

Overall height, in. (mm)

Overall width, in. (mm)

Overall depth, in. (mm)

Front Loading

Door opening size, in. (mm)

Height of door bottom above floor, in (mm)

Height of door center above floor, in (mm)

Speed

Was h

Distribution

Spin

G-factor

Spin

Motor (3 phase), 4p, 1470 tr/min

Drain Valve, in. (mm)

Water Supply (hard, soft, warm water), in. (mm)

Direct Steam Heating

Steam inlet connection size, in. (mm)

Electrical

Electrical Heating (230/400 V)

Electrical Heating (400V)

Steam

Warm Water (without additional heating)

Warm Water (with additional heating)

Packing Dimensions (height X width X depth), in. (mm)

Weight

Net weight, lb. (kg)

Gross weight, lb. (kg)

14.33 lb. (6.9 kg)

16.09 lb. (7.3 kg)

18.51 lb. (8.4 kg)

10-50 tr/min - RPM

85 tr/min - RPM

525 tr/min - RPM

0.5 HP/0.37 kW

4.2 kW - 6 kW - 9 kW

Not Applicable

Not Applicable

Not Applicable

45.66 X 28.74 X 33.46
(1160 X 730 X 850)

20.86 (530)

13.58 (345)

2.57 (73)

40.98 (1041)

25.98 (660)

31.37 (797)

11.81 (300)

13.97 (355)

20 (508)

82

2 (51)

.75 (19)

.38 (10)

12 kW

399.03 (181)

432.10 (196)

7

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

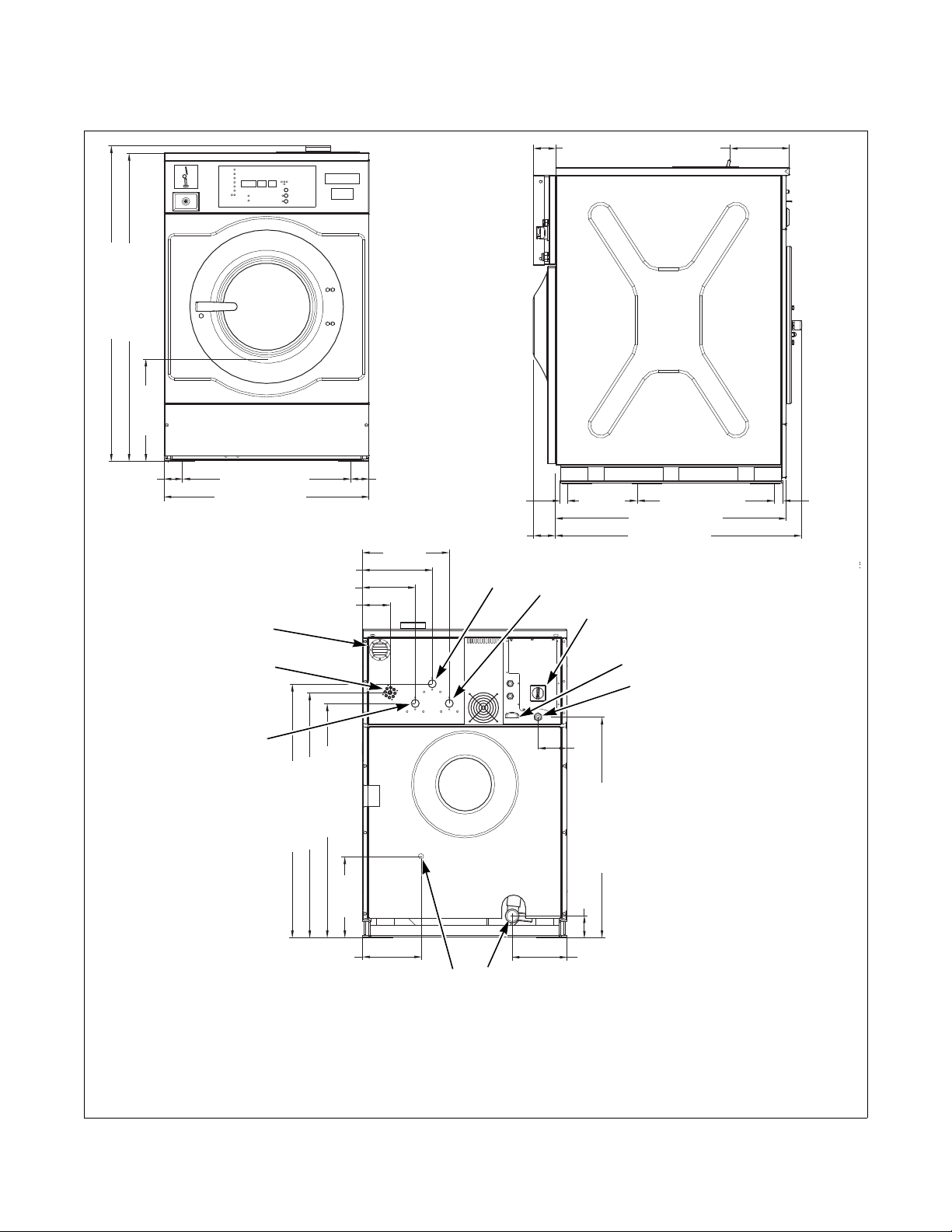

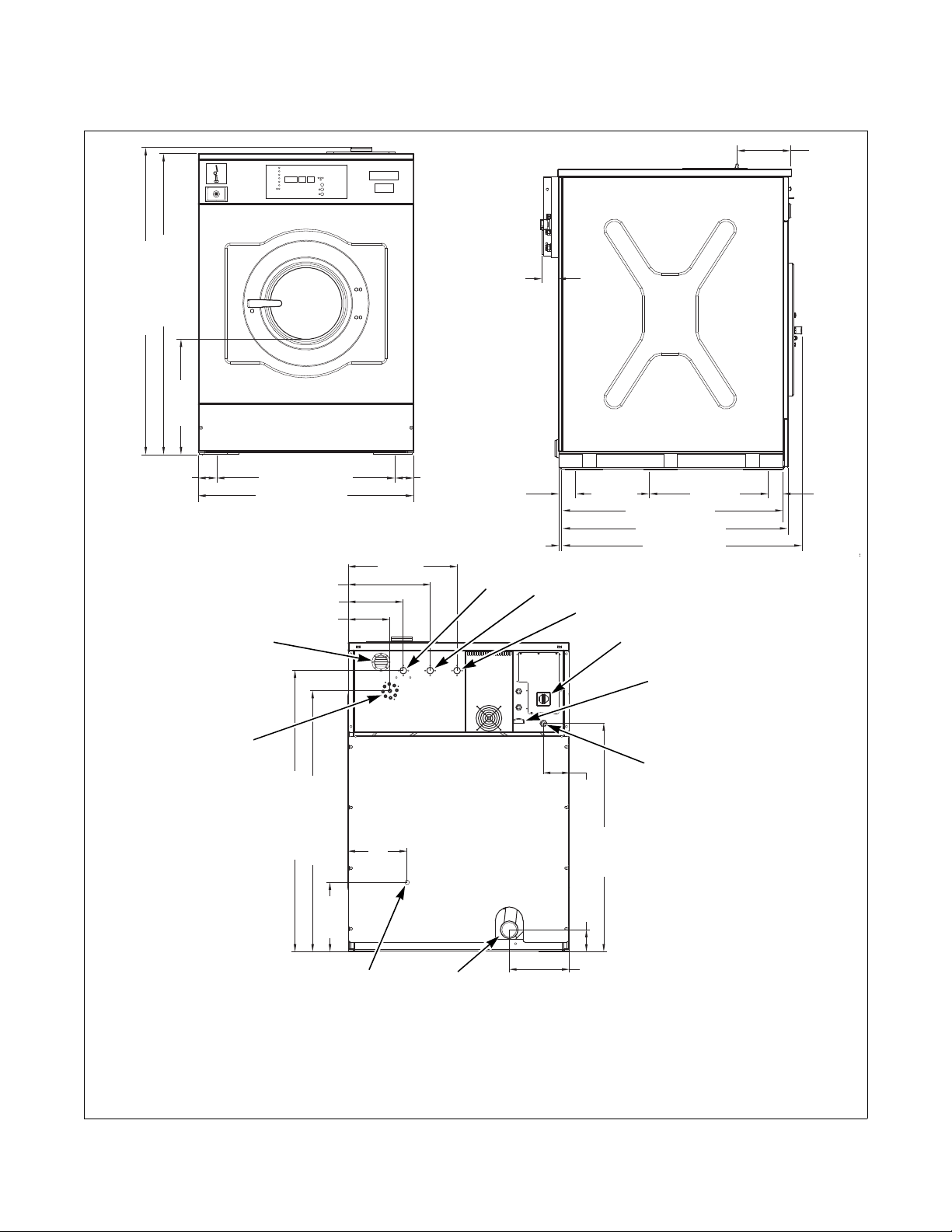

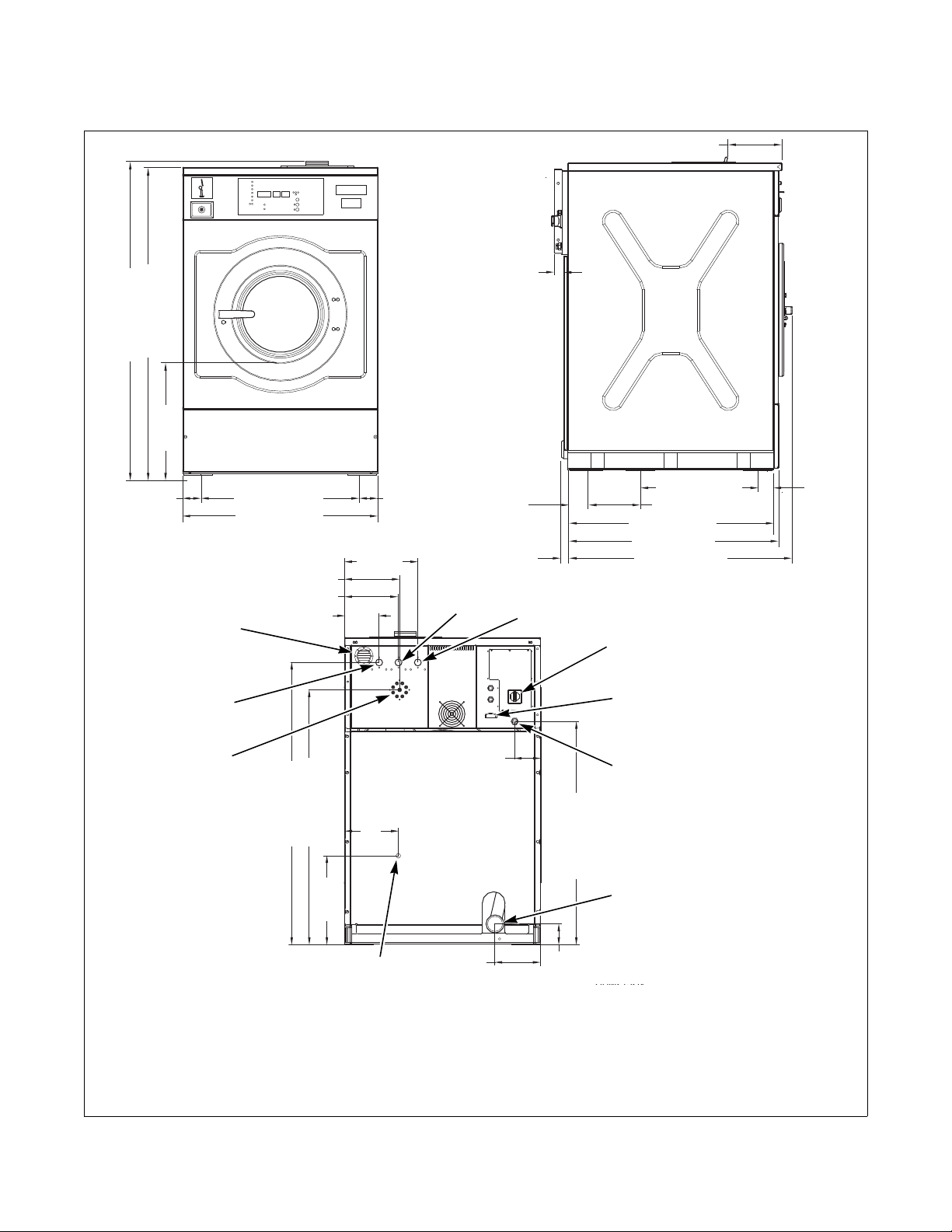

Machine Dimensions - Model IWF018 (2-speed)

CHM2099N

CHM2100

40.98 in. (1041 mm)

39.92 in. (1014 mm)

25.98 in. (660 mm)

0.2 in.

(5 mm)

8.66 in.

(220 mm)

21.65 in. (550 mm)

2.17 in.

(55 mm)

13.98 in.

(355 mm)

25.98 in. (660 mm)

2.17 in.

(55 mm)

1.46 in. (37 mm)

2.72 in. (69 mm)

12.87 in. (327 mm)

9.17 in.

(233 mm)

26.37 in. (670 mm)

28.66 in (728 mm)

CHM2110N

1.89 in.

(48 mm)

8.9 in.

(226 mm)

2.95 in. (75 mm)

5.94 in. (151 mm)

34.92 in. (887 mm)

31.14 in. (791 mm)

29.41 in. (747 mm)

10.92 in.
(277.5 mm)

27.42 in. (696.5 mm)

4.29 in.

(109 mm)

6.48 in.

(164.5 mm)

7.09 in.

(180 mm)

2.36 in.

(60 mm)

1

2

4

8

6

3

7

9

10

5

CHM2100N

CHM2099N

Washer-Extractors

5-08-51

1 Warm Water Connections .75 in. 6 Electrical Connections
2 Liquid Soap Connections 7 Drain Valve
3 Soft Water Connections .75 in. 8 Steam Connections
4 Main Switch 9 Hard Water Connections .75 in.
5 Ventilation Tub 10 Ventilation Soap Dispenser

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Figure 4

8

Washer-Extractors

2.17 in.

(55 mm)

21.65 in. (550 mm)

10.75 in. (273 mm)

1.46 in.

(37 mm)

22.05 in. (560 mm)

25.4 in. (645 mm)

11.3 in. (287 mm)

2.17 in.

(55 mm)

25.98 in. (660 mm)

ø0.87 in.

(ø22 mm)

1.89 in.
(48 mm)

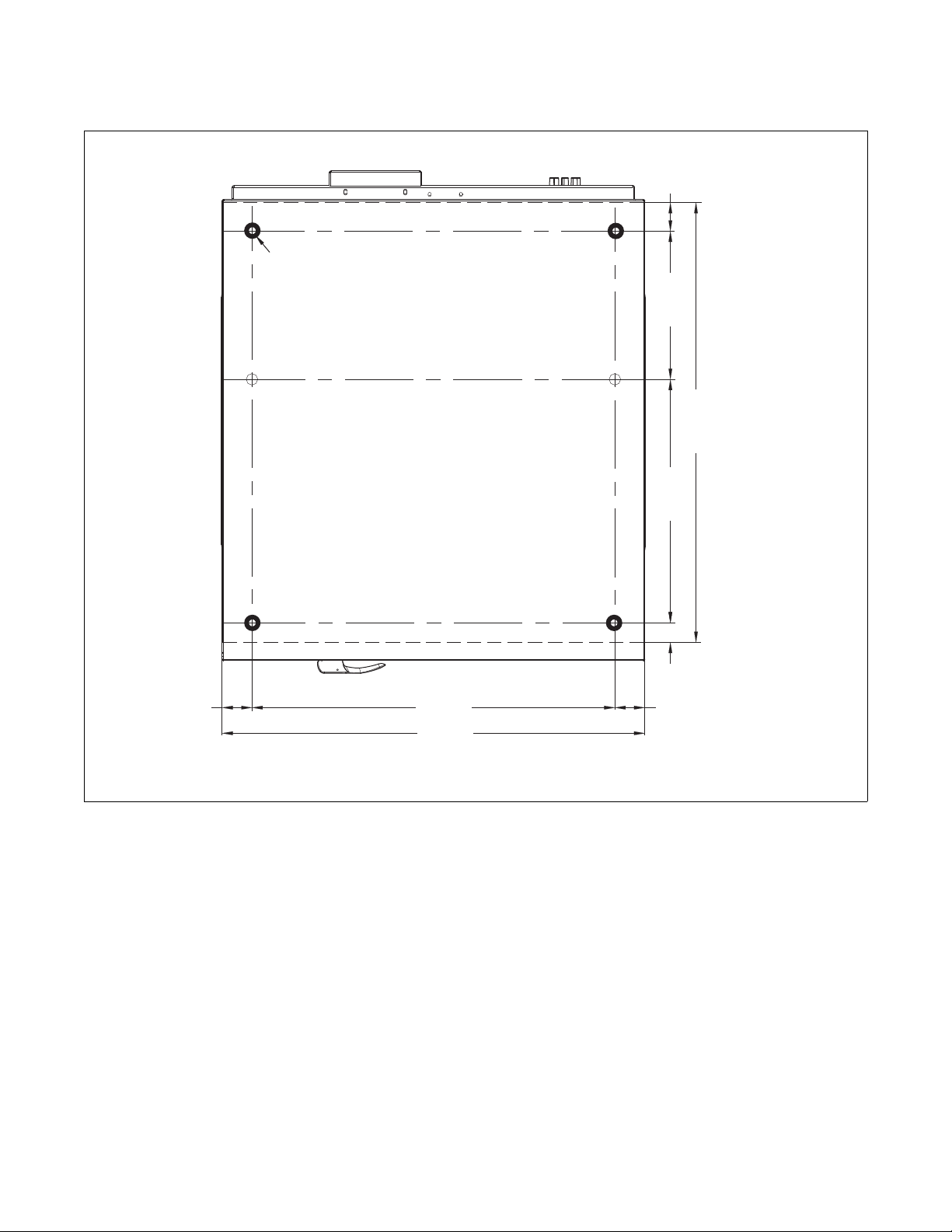

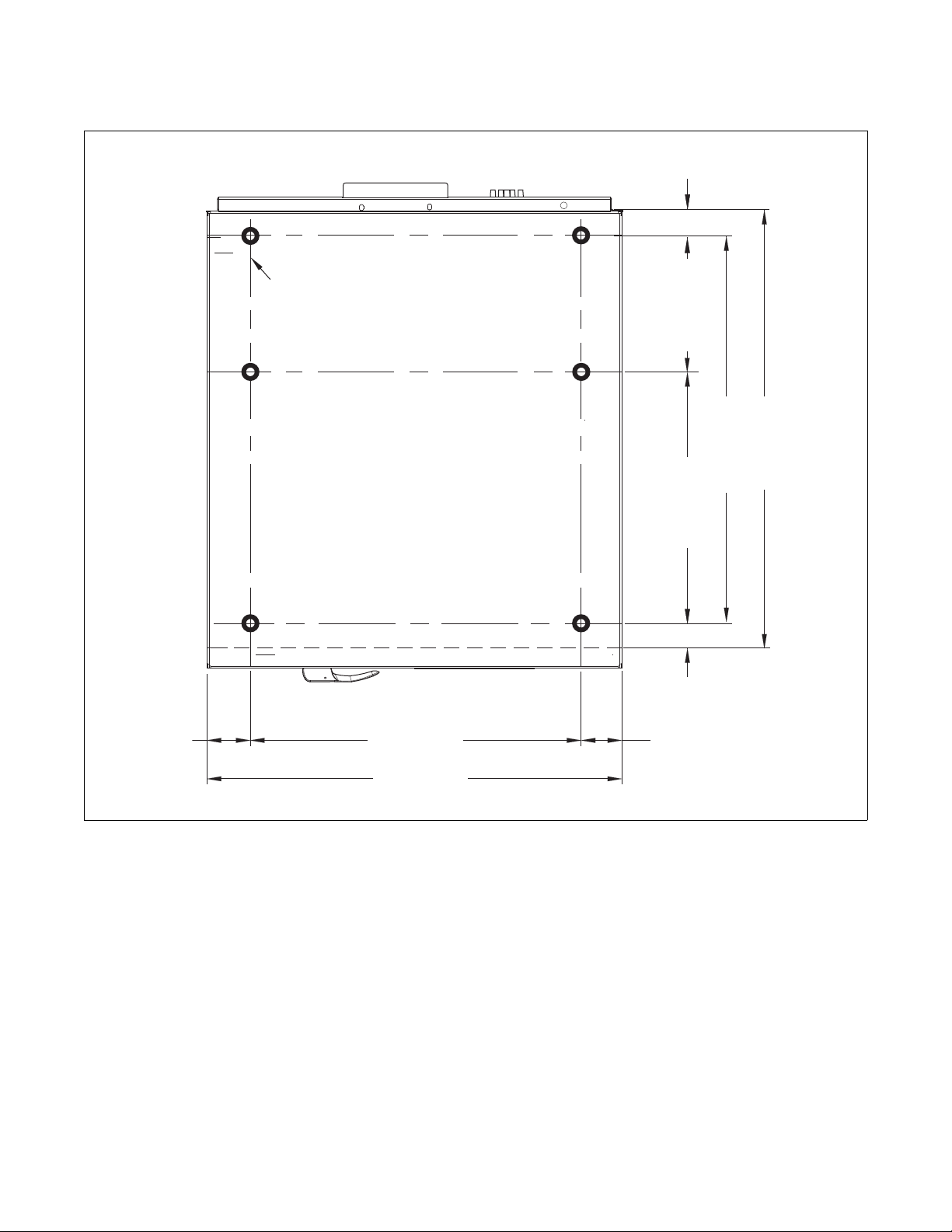

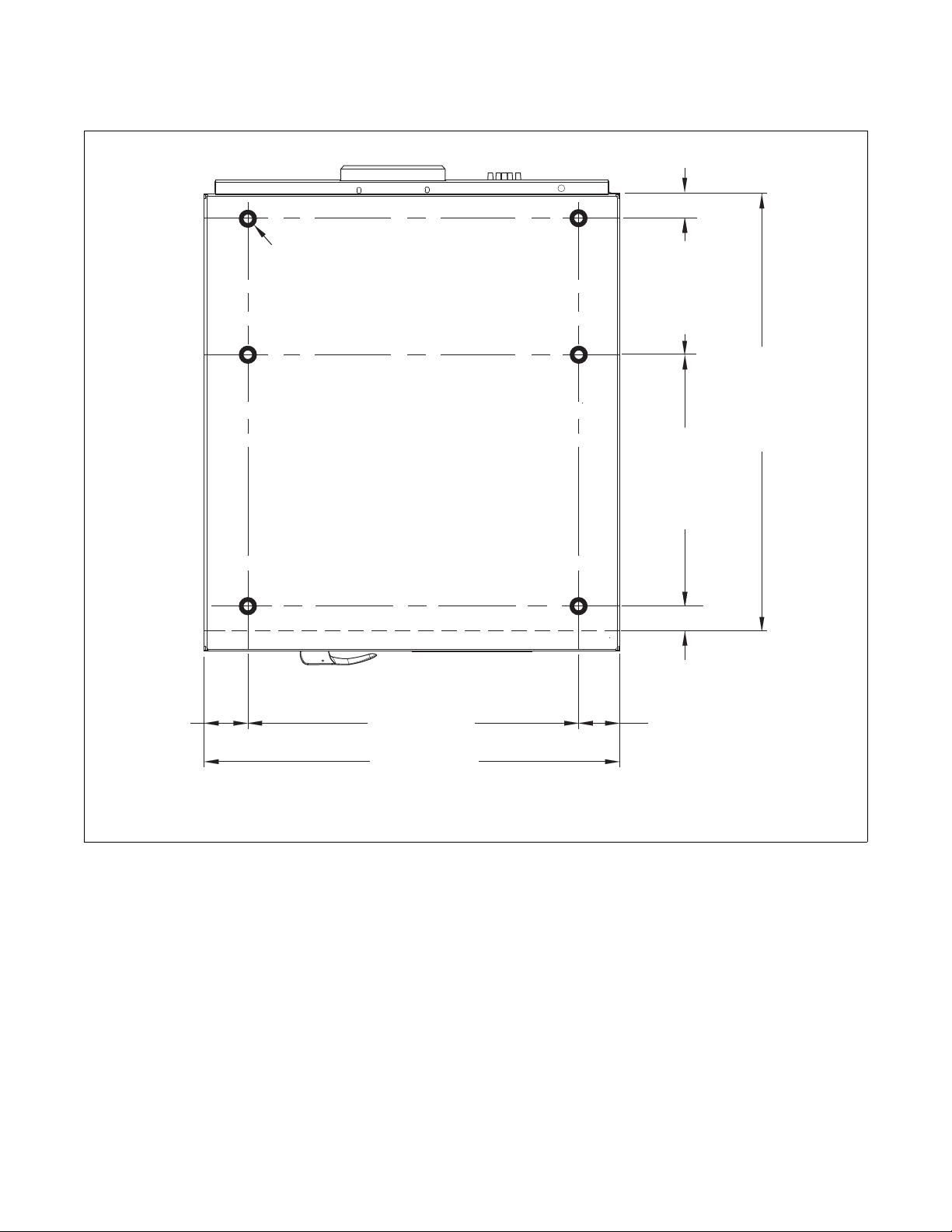

Mounting Bolt Hole Locations - Model IWF018 (2-speed)

Figure 5

CHM2105N

9

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

Electrical Installation Requirements - Model IWF018 (2-speed)

Only trained personnel should perform this
procedure. Use caution while servicing
machines with covers removed and power
applied.

W700

WARNING

Washer-Extractors

Boiler Fed/Steam Heat Electric Heat

Recommended

Circuit Breaker

Code

N 440-480 50/60 3 3+PE 1 10 6 14/2.5

P 380-415 50/60 3 3+N+PE 1 10 6 14/2.5 11.9 15 16

Q 200-240 50/60 3 3+PE 2.5 10 6 14/2.5 18.9 25 20

X 200-240 50/60 1/3 2/3+PE 2.5 10 6 14/2.5 N/A N/A N/A

N 440-480 50/60 3 3+PE

P 380-415 50/60 3 3+N+PE 8.6 10 10

Q 200-240 50/60 3 3+PE 14 15 16

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

N 440-480 50/60 3 3+PE

Voltage

Cycle

Phase

Wire

Full Load

Amps

(US-market)

US NON-US US NON-US

AWG/mm

2

Heating Elements

kW Standard

Full Load

Amps

N/A N/A N/A

3x2 kW

Alternative Electric Heat Options

N/A N/A N/A

3x1.4 kW

N/A N/A N/A

Circuit Breaker

(US-market)

Recommended

AWG/mm

2

N/A

14/2.5

14/2.5

N/A

N/A

14/2.5

14/2.5

N/A

N/A

P 380-415 50/60 3 3+N+PE 17.3

Q 200-240 50/60 3 3+PE

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

N 440-480 50/60 3 3+PE

P 380-415 50/60 3 3+N+PE

Q 200-240 50/60 3 3+PE N/A N/A N/A

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Table 2

3x3 kW

3x4 kW

27.1

19.8

22.8

25 20

30 25

25 20

30 25

14/2.5

14/2.5

N/A

14/2.5

14/2.5

N/A

N/A

10

Washer-Extractors

Specifications and Dimensions - Model IWF025 (2-speed)

Capacity (dry weight) Ratio (kg/l)

1:11

1:10

1:9

Cylinder

Cylinder diameter, in. (mm)

Cylinder depth, in. (mm)

Cylinder volume, ft.3 (l)

Cabinet

Overall height, in. (mm)

Overall width, in. (mm)

Overall depth, in. (mm)

Front Loading

Door opening size, in. (mm)

Height of door bottom above floor, in (mm)

Height of door center above floor, in (mm)

Speed

Was h

Distribution

Spin

G-factor

Spin

Motor (3 phase), 4p, 1470 tr/min

Drain Valve, in. (mm)

Water Supply (hard, soft, warm water), in. (mm)

Direct Steam Heating

Steam inlet connection size, in. (mm)

Electrical

Electrical Heating (230/400 V)

Electrical Heating (400V)

Steam

Warm Water (without additional heating)

Warm Water (with additional heating)

Packing Dimensions (height X width X depth), in. (mm)

Weight

Net weight, lb. (kg)

Gross weight, lb. (kg)

18.95 lb. (8.6 kg)

20.94 lb. (9.5 kg)

23.14 lb. (10.5 kg)

10-50 tr/min - RPM

85 tr/min - RPM

525 tr/min - RPM

0.5 HP/0.37 kW

4.2 kW - 6kW - 9 kW

Not Applicable

Not Applicable

Not Applicable

45.66 X 28.74 X 37.40
(1170 X 730 X 950)

20.86 (530)

17.32 (440)

3.35 (95)

40.98 (1041)

25.98 (660)

35.31 (897)

11.81 (300)

13.97 (355)

20 (508)

82

2 (51)

.75 (19)

.38 (10)

12 kW

440.92 (200)

460.76 (209)

11

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

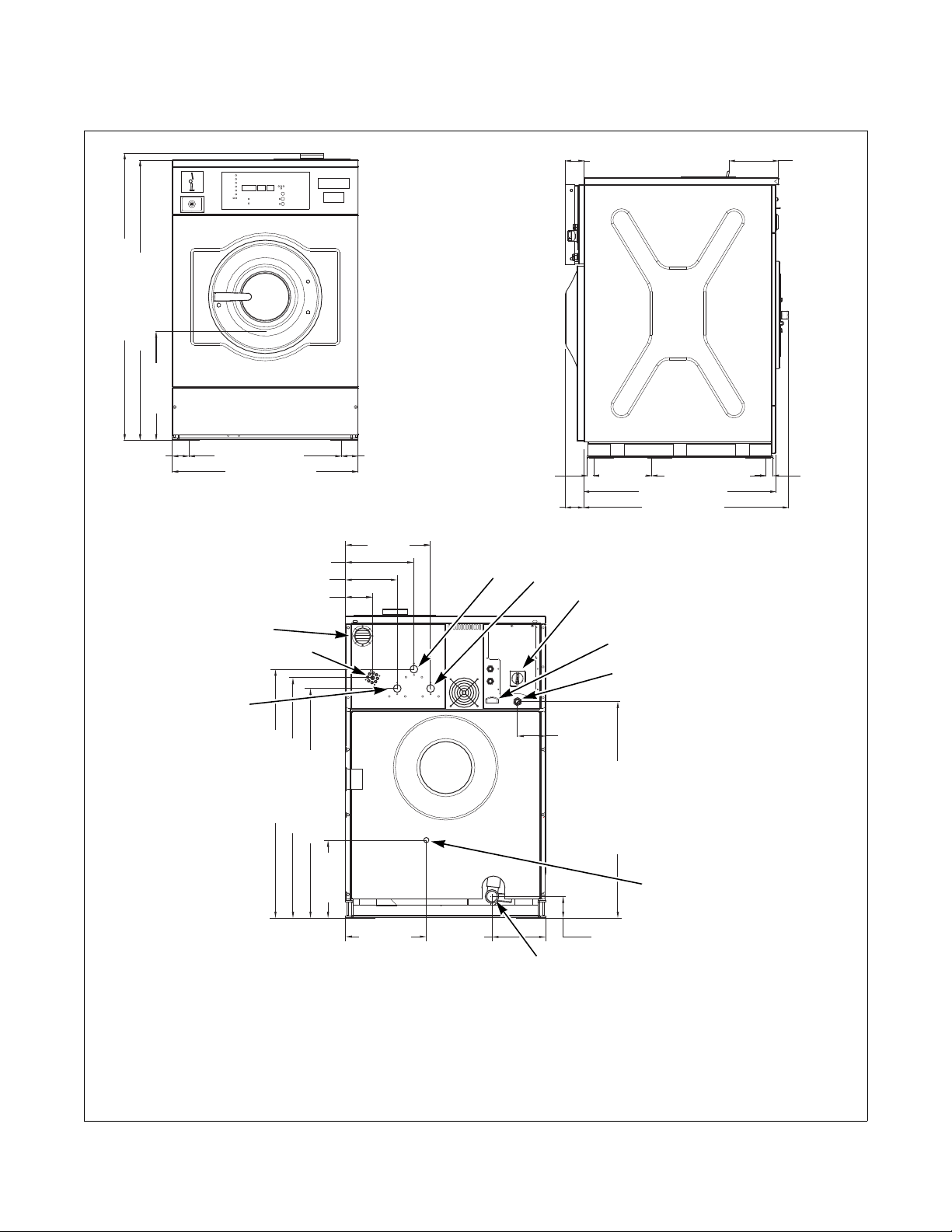

Machine Dimensions - Model IWF025 (2-speed)

CHM2100

40.98 in. (1041 mm)

39.92 in. (1014 mm)

25.98 in. (660 mm)

0.2 in.

(5 mm)

8.66 in.

(220 mm)

21.65 in. (550 mm)

2.17 in.

(55 mm)

13.98 in.

(355 mm)

25.98 in. (660 mm)

2.17 in.

(55 mm)

1.46 in. (37 mm)

2.72 in. (69 mm)

16.81 in. (427 mm)

9.17 in.

(233 mm)

30.31 in. (770 mm)

32.6 in (828 mm)

CHM2110N

1.89 in.

(48 mm)

8.9 in.

(226 mm)

2.95 in. (75 mm)

5.94 in. (151 mm)

34.92 in. (887 mm)

31.14 in. (791 mm)

29.41 in. (747 mm)

10.92 in.
(277.5 mm)

27.42 in. (696.5 mm)

4.29 in.

(109 mm)

6.48 in.

(164.5 mm)

7.09 in.

(180 mm)

2.36 in.

(60 mm)

1

2

4

8

6

3

7

9

10

5

CHM2099N

CHM2100N

CHM2099N

Washer-Extractors

5-08-51

1 Warm Water Connections .75 in. 6 Electrical Connections
2 Liquid Soap Connections 7 Drain Valve
3 Soft Water Connections .75 in. 8 Steam Connections
4 Main Switch 9 Hard Water Connections .75 in.
5 Ventilation Tub 10 Ventilation Soap Dispenser

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Figure 6

12

Washer-Extractors

CHM2158N

2.17 in.

(55 mm)

21.65 in. (550 mm)

9.17 in. (233 mm)

1.46 in.

(37 mm)

25.99 in. (660 mm)

29.33 in. (745 mm)

16.81 in. (427 mm)

2.17 in.

(55 mm)

25.98 in. (660 mm)

ø0.87 in.

(ø22 mm)

1.89 in.

(48 mm)

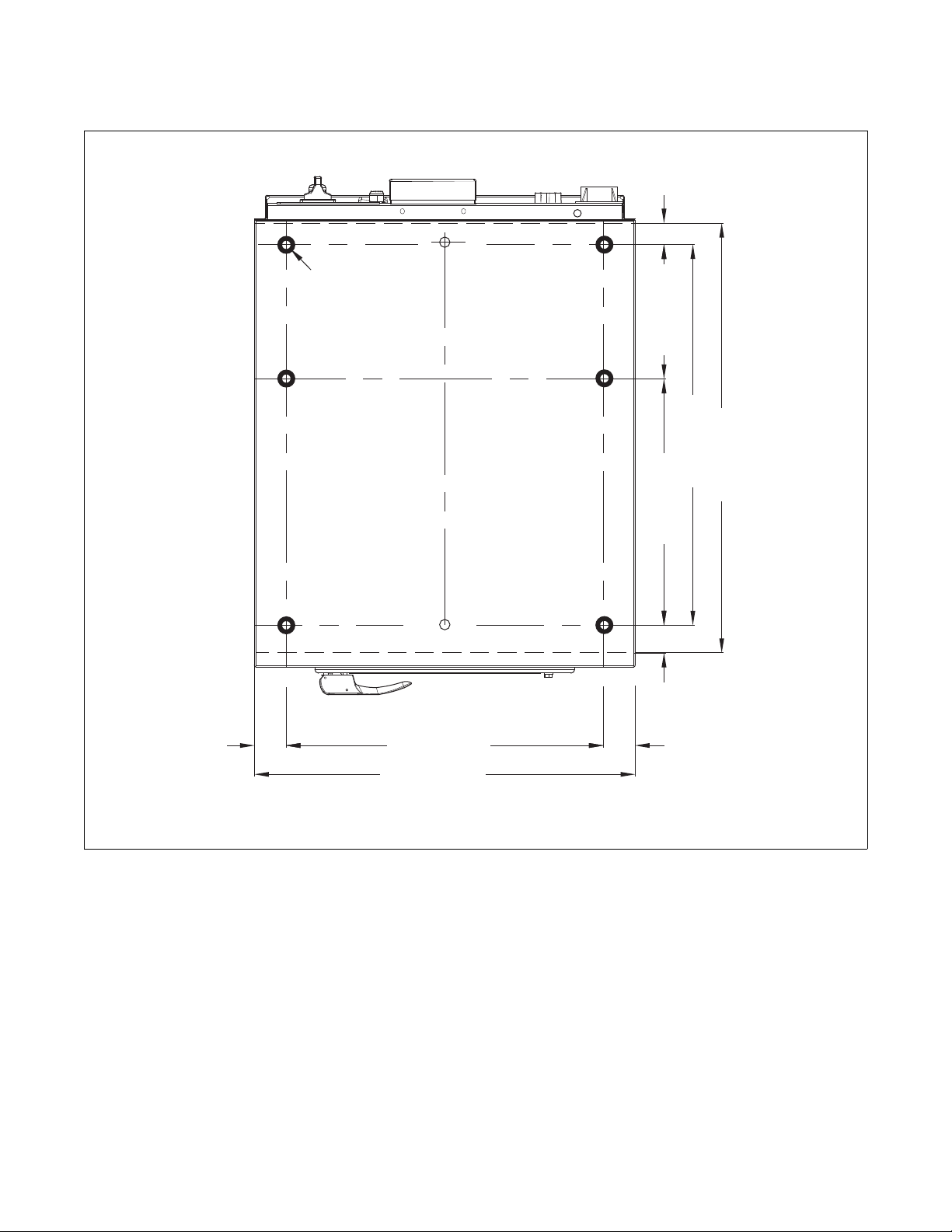

Mounting Bolt Hole Locations - Model IWF025 (2-speed)

Figure 7

CHM2158N

13

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

Electrical Installation Requirements - Model IWF025 (2-speed)

Only trained personnel should perform this
procedure. Use caution while servicing
machines with covers removed and power
applied.

W700

WARNING

Washer-Extractors

Boiler Fed/Steam Heat Electric Heat

Recommended

Circuit Breaker

Code

N 440-480 50/60 3 3+PE 1 10 6 14/2.5

P 380-415 50/60 3 3+N+PE 1 10 6 14/2.5 17.3 25 20

Q 200-240 50/60 3 3+PE 2.5 10 6 14/2.5 27.1 30 25

X 200-240 50/60 1/3 2/3+PE 2.5 10 6 14/2.5 N/A N/A N/A

N 440-480 50/60 3 3+PE

P 380-415 50/60 3 3+N+PE 8.6 10 10

Q 200-240 50/60 3 3+PE 14 15 16

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

N 440-480 50/60 3 3+PE

Voltage

Cycle

Phase

Wire

Full Load

Amps

(US-market)

US NON-US US NON-US

AWG/mm

2

Heating Elements

kW Standard

Full Load

Amps

N/A N/A N/A

3x3 kW

Alternative Electric Heat Options

N/A N/A N/A

3x1.4 kW

N/A N/A N/A

Circuit Breaker

(US-market)

Recommended

AWG/mm

2

N/A

14/2.5

14/2.5

N/A

N/A

14/2.5

14/2.5

N/A

N/A

P 380-415 50/60 3 3+N+PE 11.9

Q 200-240 50/60 3 3+PE

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

N 440-480 50/60 3 3+PE

P 380-415 50/60 3 3+N+PE 22.8

Q 200-240 50/60 3 3+PE N/A N/A N/A

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Table 3

3x2 kW

3x4 kW

15 16

18.9

19.8 25 20

25 20

30 25

14/2.5

14/2.5

N/A

14/2.5

14/2.5

N/A

N/A

14

Washer-Extractors

Specifications and Dimensions - Models IWF030 (2-speed)

Capacity (dry weight) Ratio (kg/l)

1:11

1:10

1:9

Cylinder

Cylinder diameter, in. (mm)

Cylinder depth, in. (mm)

Cylinder volume, ft.3 (l)

Cabinet

Overall height, in. (mm)

Overall width, in. (mm)

Overall depth, in. (mm)

Front Loading

Door opening size, in. (mm)

Height of door bottom above floor, in (mm)

Height of door center above floor, in (mm)

Speed

Was h

Distribution

Spin

G-factor

Spin

Motor (3 phase), 4p, 1470 tr/min

Drain Valve, in. (mm)

Water Supply (hard, soft, warm water), in. (mm)

Direct Steam Heating

Steam inlet connection size, in. (mm)

Electrical

Electrical Heating (230/400 V)

Electrical Heating (400V)

Steam

Warm Water (without additional heating)

Warm Water (with additional heating)

Packing Dimensions (height X width X depth), in. (mm)

Weight

Net weight, lb. (kg)

Gross weight, lb. (kg)

26.45 lb. (12 kg)

29.10 lb. (13.2 kg)

31.96 lb. (14.5 kg)

25.59 (650)

17.74 (400)

47.40 (1204)

30.70 (780)

33.14 (842)

11.81 (300)

17.91 (455)

23.85 (606)

10-50 tr/min - RPM

85 tr/min - RPM

475 tr/min - RPM

1 HP/0.75 kW

12 kW - 15 kW - 18 kW

Not Applicable

Not Applicable

Not Applicable

Not Applicable

52.75 X 33.38 X37.40
(1340 X 848 X 950)

617.29 (280)

645.95 (293)

4.66 (132)

82

2 (51)

.75 (19)

.38 (10)

15

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

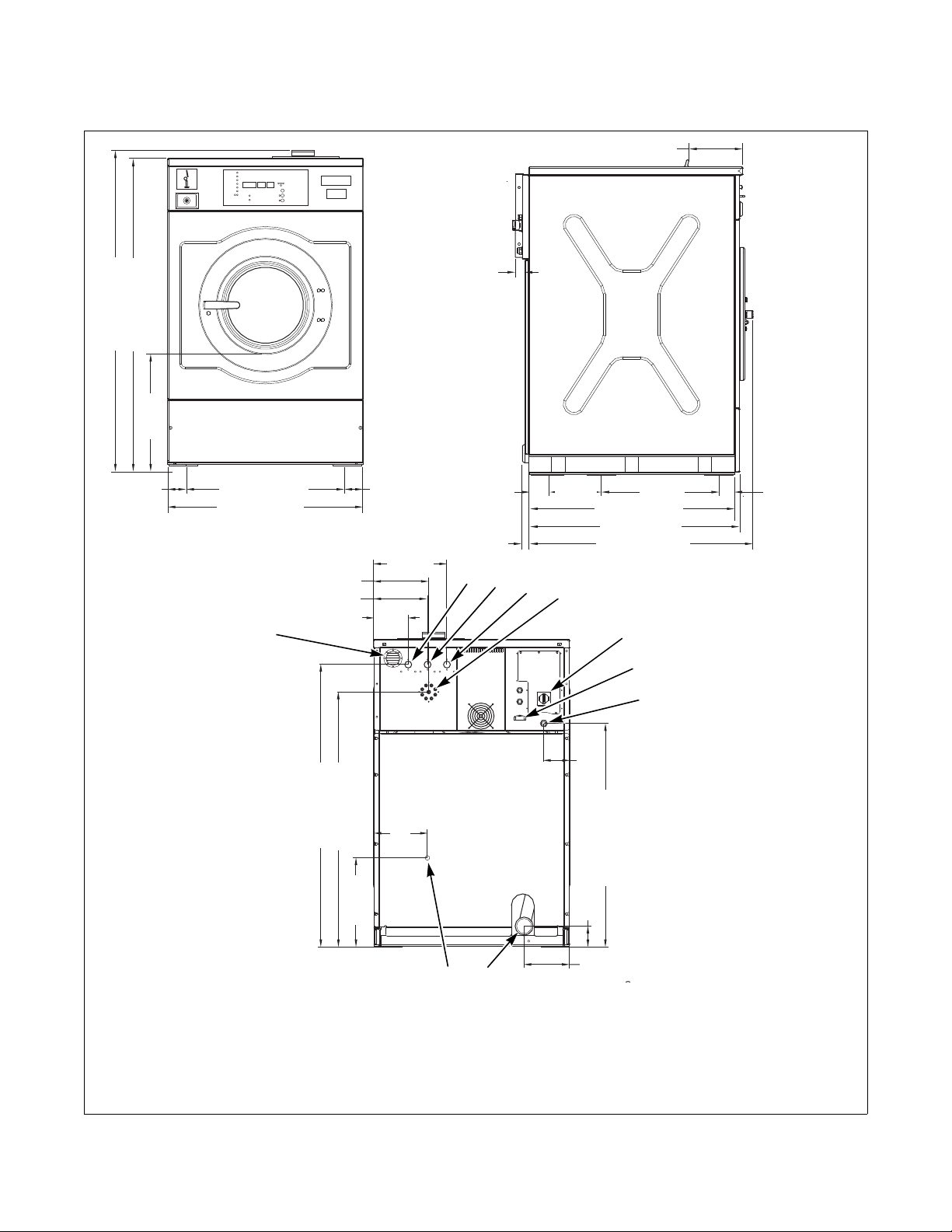

Machine Dimensions - Model IWF030 (2-speed)

CHM2117N

CHM2119N

47.4 in. (1204 mm)

46.26 in. (1175 mm)

12.4 in.

(315 mm)

1.1 in.

(28 mm)

8.66 in.

(220 mm)

25.2 in. (640 mm)

2.76 in.

(70 mm)

17.91 in.

(455 mm)

30.71 in. (780 mm)

2.76 in.

(70 mm)

3.23 in.

(82 mm)

16.14 in. (410 mm)

10.24 in.

(260 mm)

29.92 in. (760 mm)

32.12 (816 mm)

CHM2118N

1.3 in.

(33 mm)

13.07 in.

(332 mm)

7.95 in. (202 mm)

10.51 in. (267 mm)

38.15 in. (969 mm)

36.85 in. (936 mm)

35.2 in. (894 mm)

11.89 in.

(302 mm)

33.19 in. (843 mm)

4.29 in.

(109 mm)

8.23 in.

(209 mm)

3.31 in.

(84 mm)

1

2

4

8

7

3

6

9

10

5

CHM2117N

3.31 in.

(84 mm)

4.19 in. (106.5 mm)

CHM2119N

Washer-Extractors

1 Warm Water Connections .75 in. 6 Steam Connections
2 Soft Water Connections .75 in. 7 Drain Valve
3 Main Switch 8 Hard Water Connections .75 in.
4 Ventilation Tub 9 Liquid Soap Connections
5 Electrical Connections 10 Ventilation Soap Dispenser

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Figure 8

16

Washer-Extractors

2.76 in.

(70 mm)

25.2 in. (640 mm)

10.24 in. (260 mm)

1.1 in.
(28 mm)

26.38 in. (670 mm)

28.78 in. (731 mm)

16.14 in. (410 mm)

2.76 in.

(70 mm)

30.71 in. (780 mm)

ø0.87 in.

(ø22 mm)

1.3 in.

(33 mm)

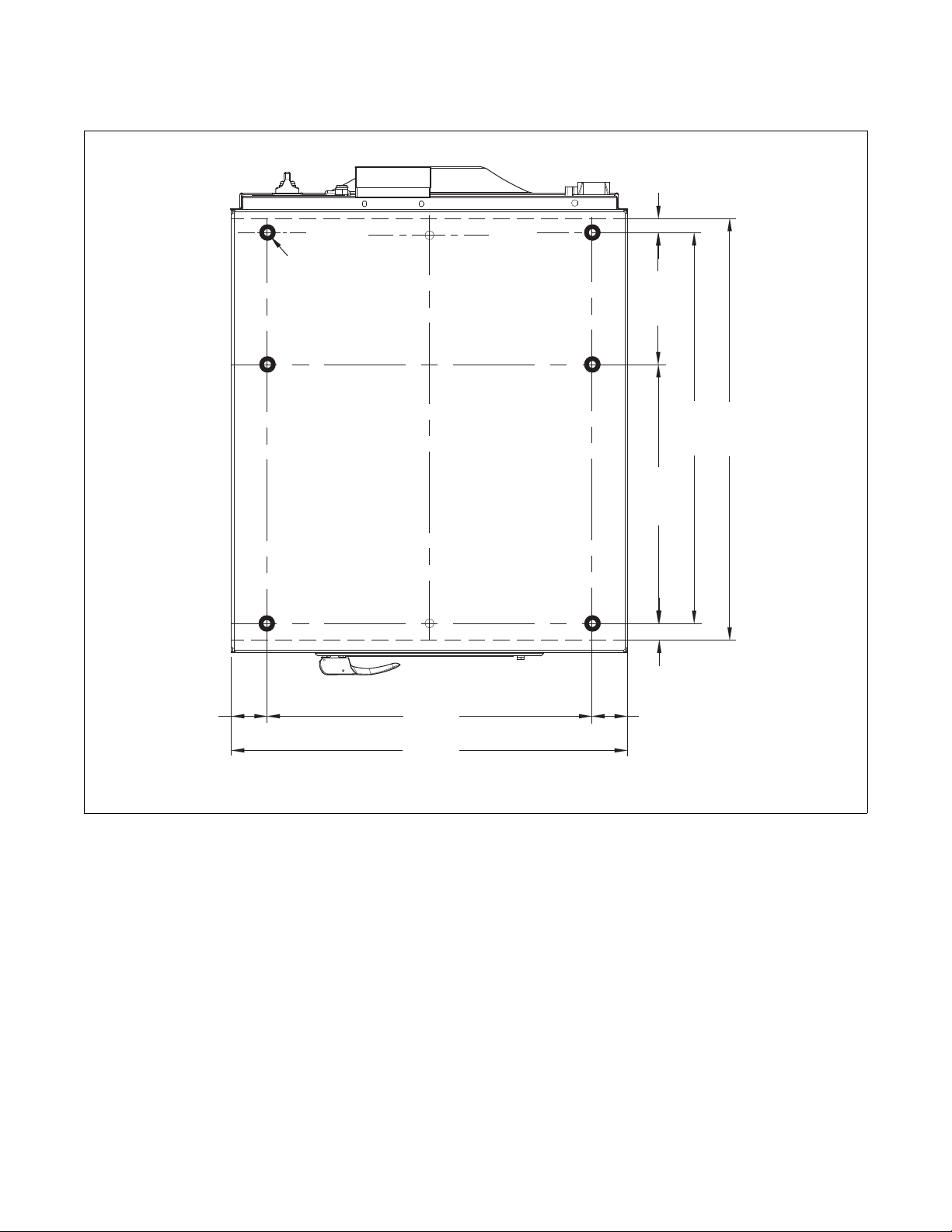

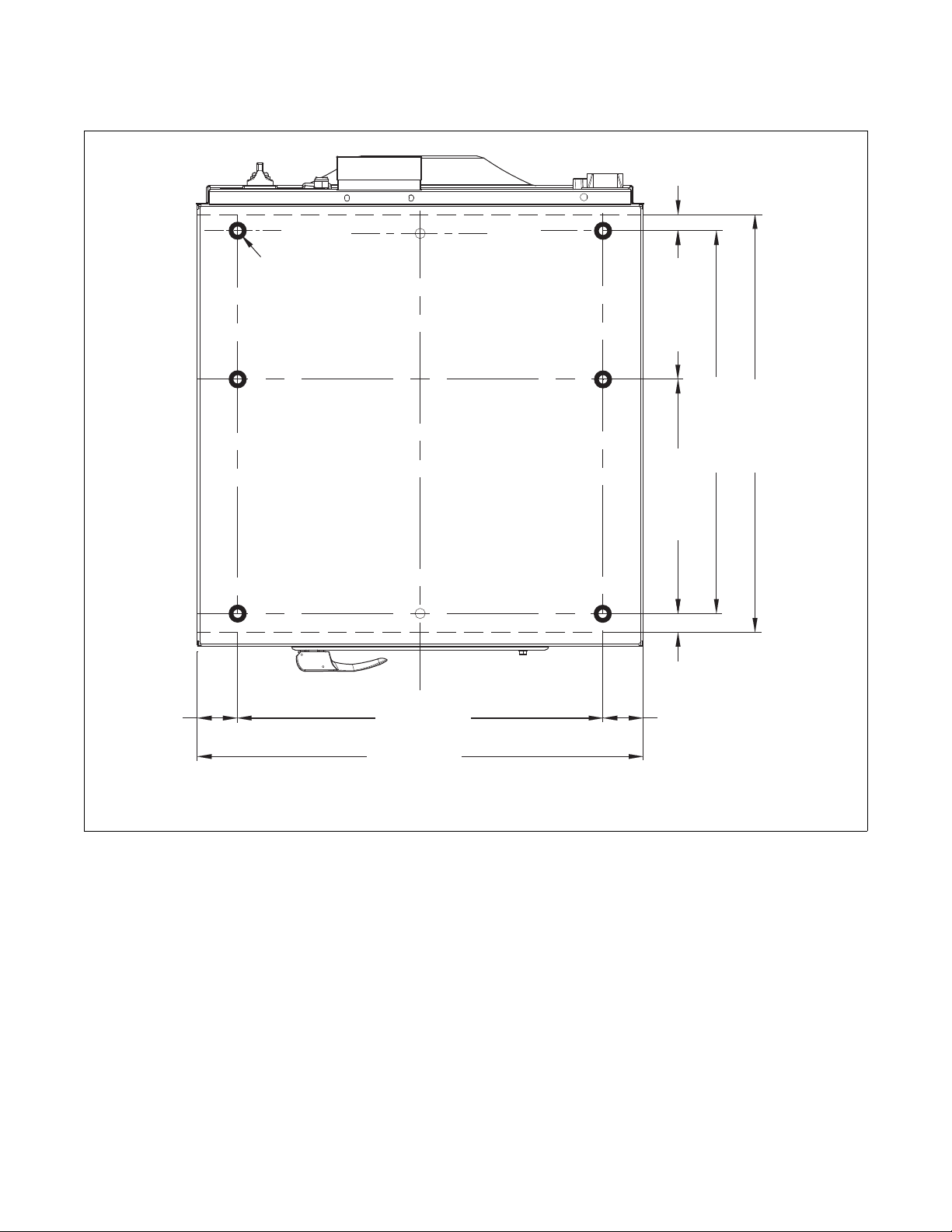

Mounting Bolt Hole Locations - Model IWF030 (2-speed)

Figure 9

CHM2159N

17

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

Electrical Installation Requirements - Model IWF030 (2-speed)

Only trained personnel should perform this
procedure. Use caution while servicing
machines with covers removed and power
applied.

W700

WARNING

Washer-Extractors

Boiler Fed/Steam Heat Electric Heat

Recommended

Circuit Breaker

Code

N 440-480 50/60 3 3+PE 1 10 6 14/2.5

P 380-415 50/60 3 3+N+PE 1 10 6 14/2.5 22.8 30 25

Q 200-240 50/60 3 3+PE 2.5 10 6 14/2.5 35.3 40 40

X 200-240 50/60 1/3 2/3+PE 2.5 10 6 14/2.5 N/A N/A N/A

N 440-480 50/60 3 3+PE

P 380-415 50/60 3 3+N+PE 28.2 40 32

Q 200-240 50/60 3 3+PE 43.5 40 50

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

N 440-480 50/60 3 3+PE

Voltage

Cycle

Phase

Wire

Full Load

Amps

(US-market)

US NON-US US NON-US

AWG/mm

2

Heating Elements

kW Standard

Full Load

Amps

19.8 25 20

6x2 kW

Alternative Electric Heat Options

24.5 30 25

3x3 kW

+

3x2 kW

29.2 40 32

Recommended

Circuit Breaker

(US-market)

AWG/mm

2

14/2.5

14/2.5

12/4.0

N/A

14/2.5

12/2.5

12/4.0

N/A

12/4.0

P 380-415 50/60 3 3+N+PE 33.7

Q 200-240 50/60 3 3+PE

X 200-240 50/60 1/3 2/3+PE N/A N/A N/A

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Table 4

6x3 kW

51.8

40 40

50 63

12/4.0

10/6.0

N/A

18

Washer-Extractors

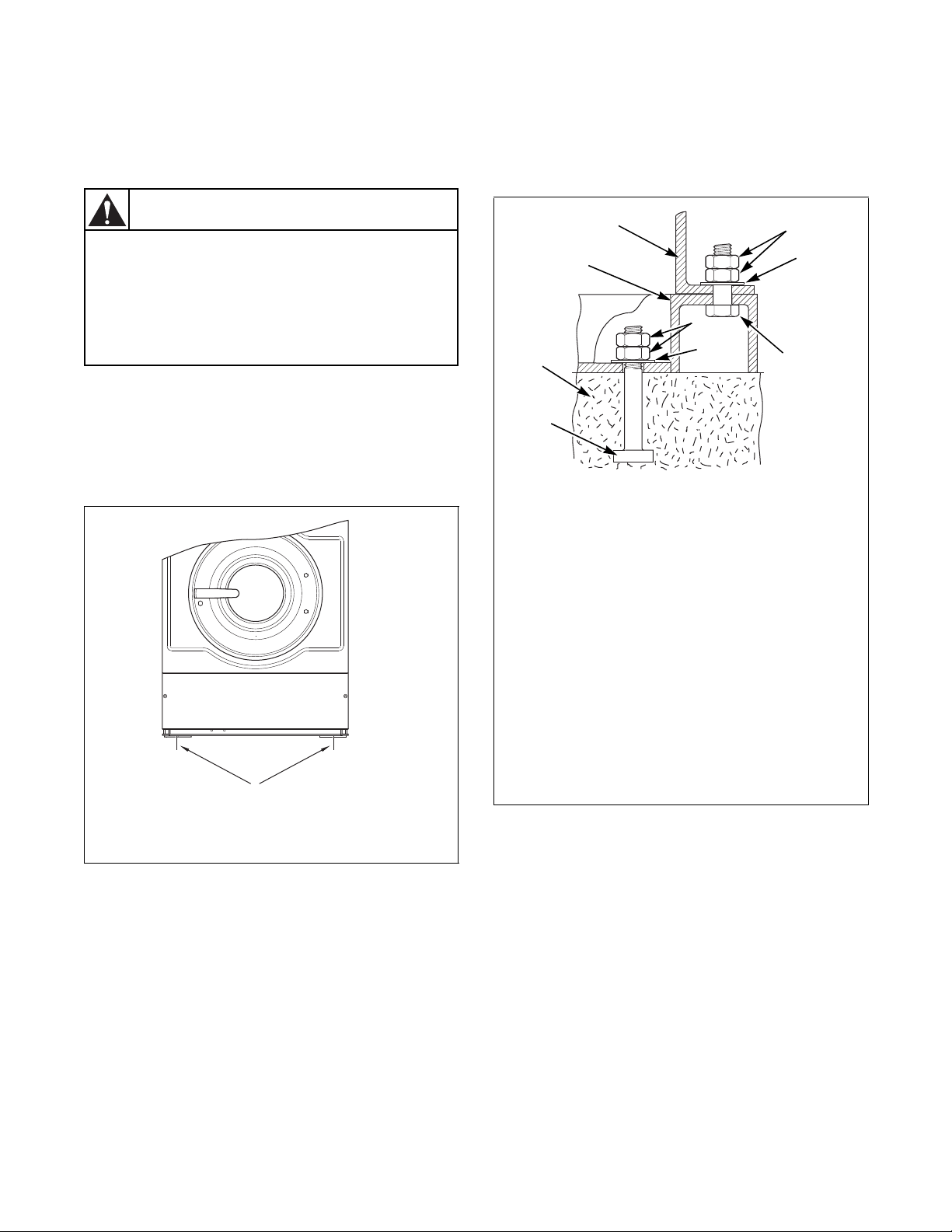

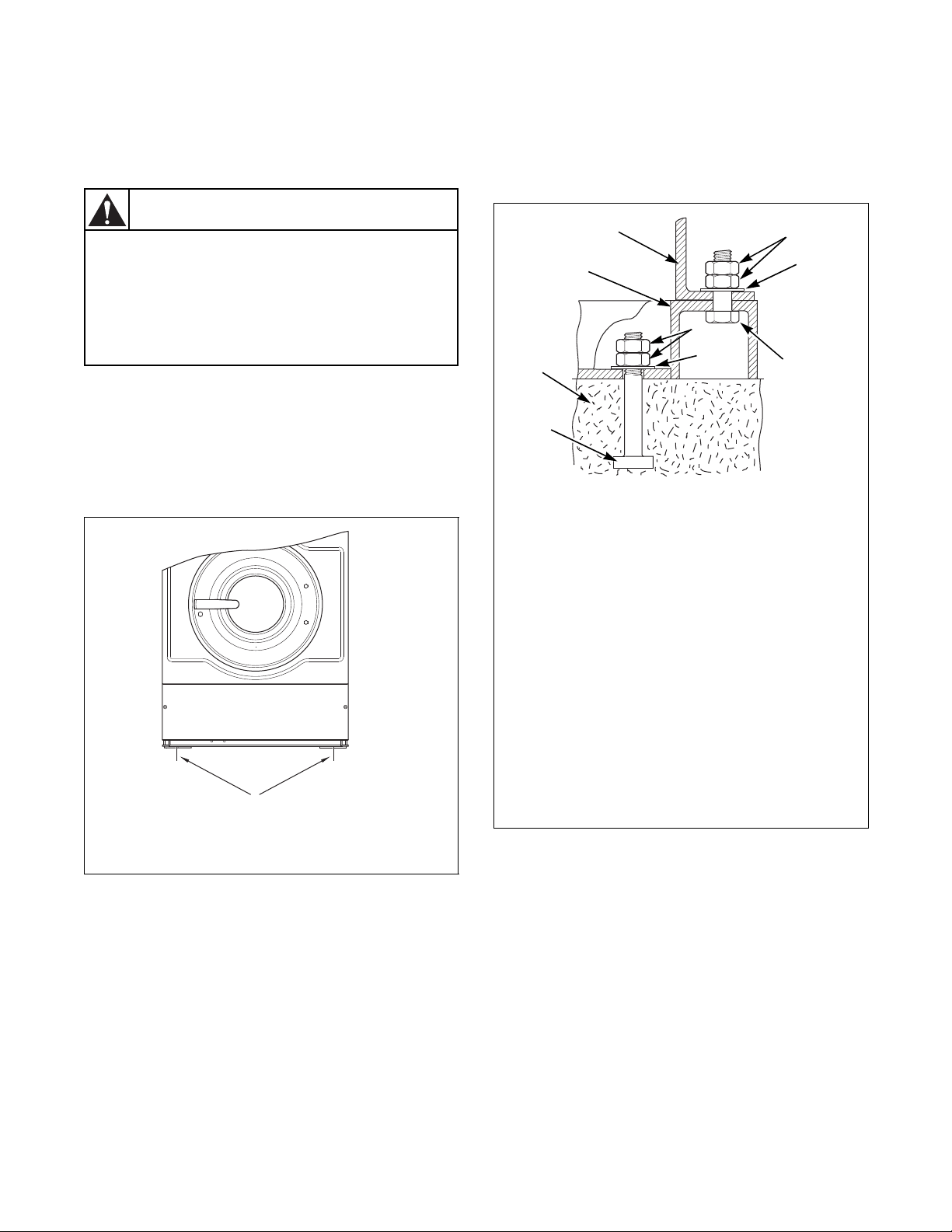

Ensure that the machine is installed on a
level floor of sufficient strength and that
the recommended clearances for
inspection and maintenance are provided.
Never allow the inspection and
maintenance space to be blocked.

SW020

CAUTION

1

1

2

3

7

4

6

2

3

5

Installation

Models IWF014, IWF018, IWF025 and
IWF030 (2-speed)

Surface

The machine must be securely fixed on a flat surface
(metal base, concrete or solid ground). The anchoring
is to be done on the 4 provided places in the holes on
the corners of the base. (See Mounting Bolt Hole
Locations). Refer to Figure 10.

CHM2102N

Anchoring to Metal Base

The machines must be fixed on a metal base which is
securely anchored on a concrete base. Refer to
Figure 11.

CHM2103N

1 Machine Base
2 Nut

.5 in. (M12) (Models IWF014, IWF018 and
IWF025), .625 in. (M16) (Model IWF030)

3 Washer

1.57 in. x 0.60 in. x 0.15 in.
(40 mm x 17 mm x 4 mm)

4 Bolt

.625 in. x 2.5 in. (M16x60 mm)

5 Bolt

.5 in. (M12) (Models IWF014, IWF018 and
IWF025), and .625 in. (M16) (Model IWF030)

6 Concrete Base

9.48 in. (250 mm) (Models IWF014, IWF018
and IWF025), and 13.77 in. (350 mm)
(Model IWF030)

7 Metal Base

1 Mounting Bolt Holes

Figure 10

The machine must be placed entirely level. For easy
maintenance it is recommended to keep a minimal
distance of 23.62 in. (600 mm) between the wall and
the back of the machine.

If several machines are placed next to each other, there
should be a minimal distance of 1.18 in. (30 mm)
between each machine.

19

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

CHM2102N

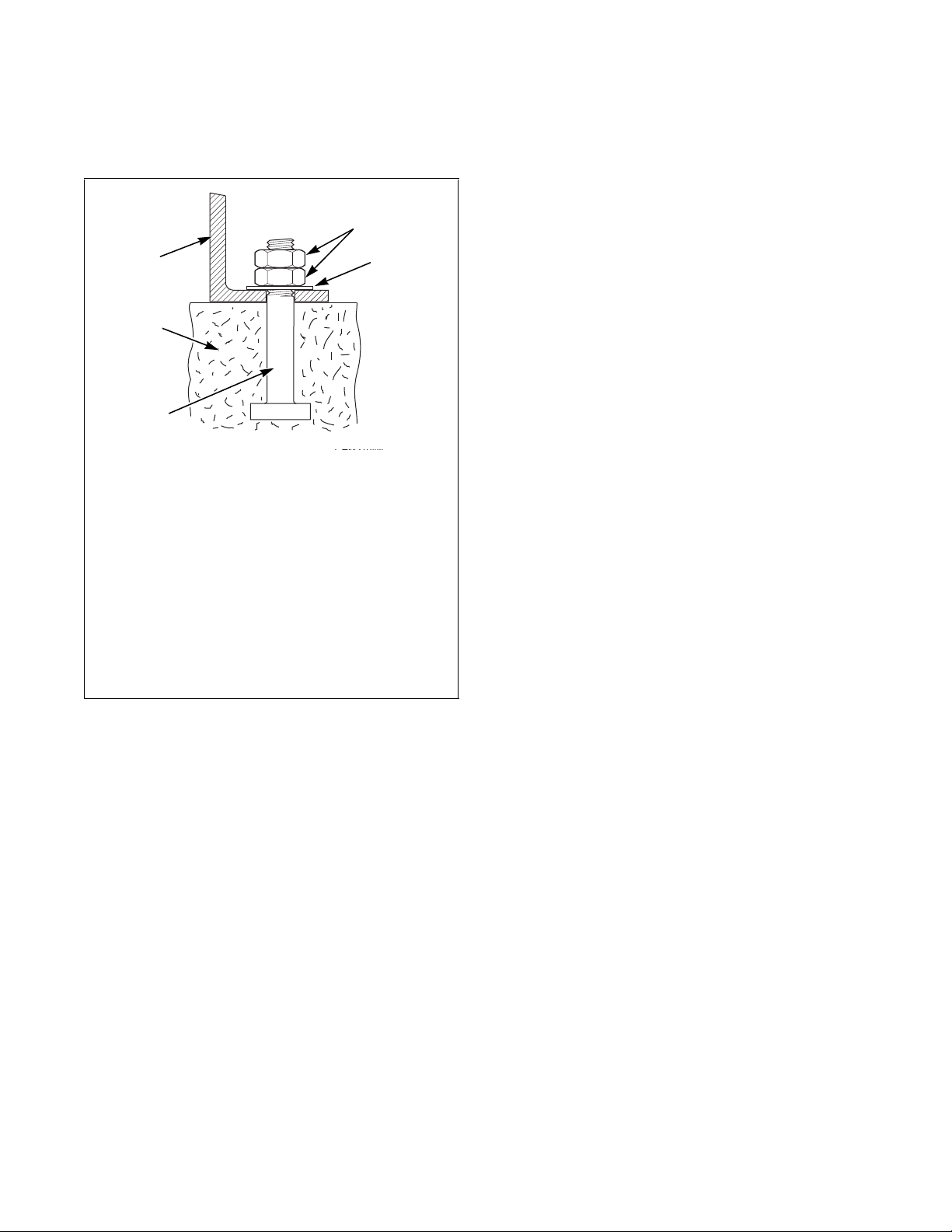

Figure 11

5-08-51

Directly to Concrete Base

5

1

2

3

4

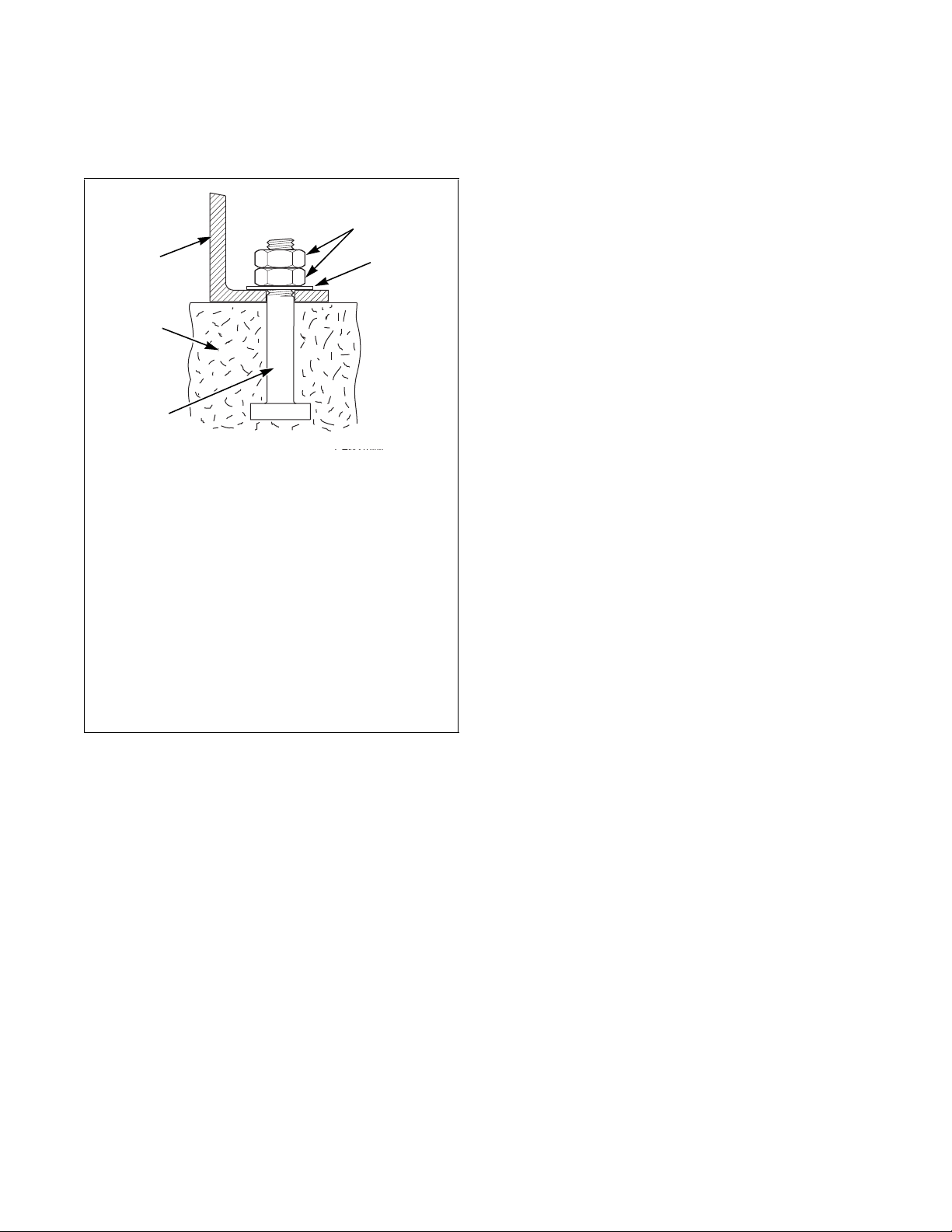

The machine must be anchored directly to concrete
base. Refer to Figure 12.

CHM2104N

1 Nut

.5 in. (M12) (Models IWF014, IWF018 and
IWF025), and .625 (M16) (Model IWF030)

2 Washer

1.57 in. x 0.60 in. x 0.15 in.
(40 mm x 17 mm x 4 mm)

3 Bolt

.5 in. (M12) (Models IWF014, IWF018 and
IWF025), and .625 (M16) (Model IWF030)

4 Concrete Base

9.48 in. (250 mm) (Models IWF014, IWF018
and IWF025), and 13.77 in. (350 mm)
(Model IWF030)

5 Machine Base

Washer-Extractors

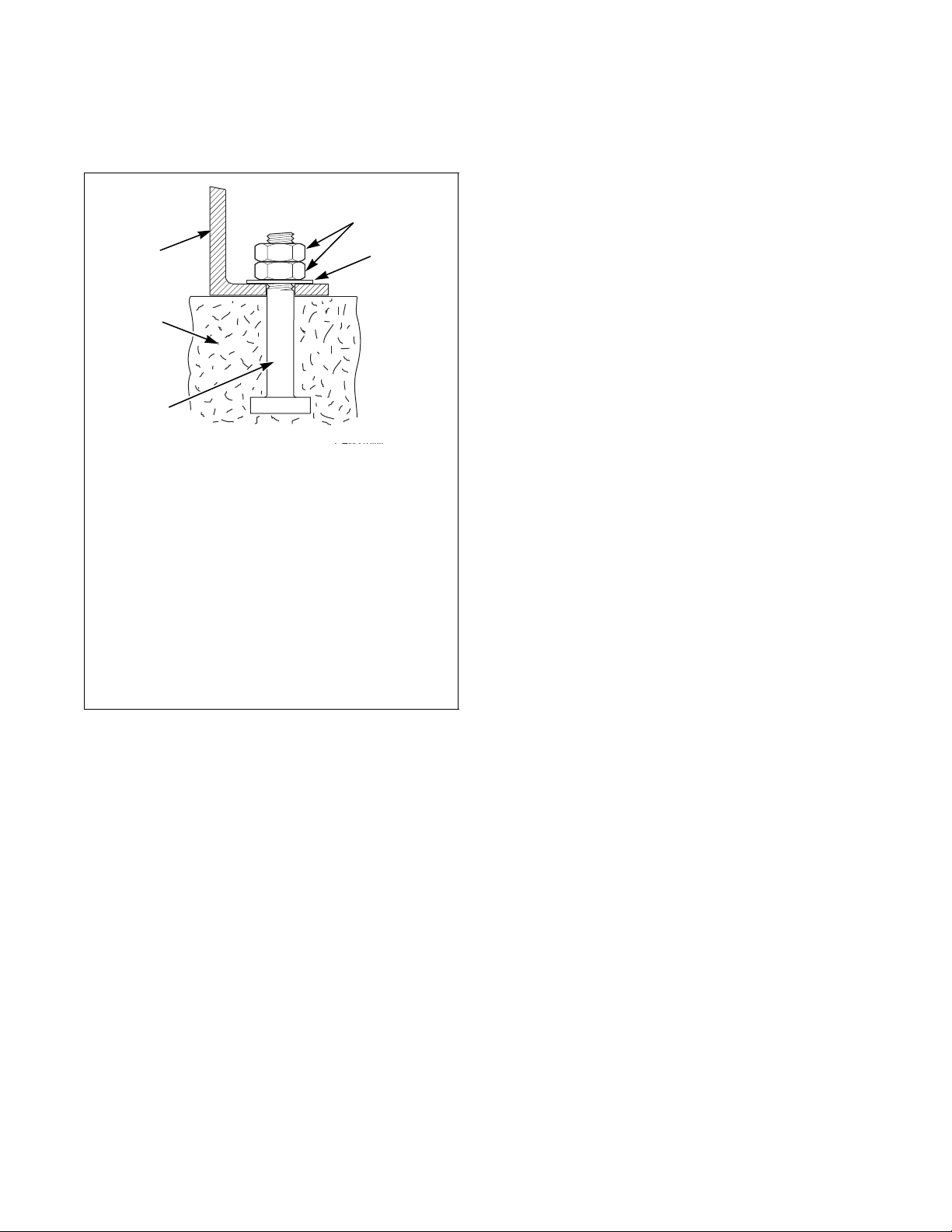

Figure 12

IMPORTANT: Machine bolts should be re-checked
on a quarterly basis.

5-08-51

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

20

Washer-Extractors

Specifications and Dimensions - Models IWF033 (2-speed)

Capacity (dry weight) Ratio (kg/l)

1:11

1:10

1:9

Cylinder

Cylinder diameter, in. (mm)

Cylinder depth, in. (mm)

Cylinder volume, ft.3 (l)

Cabinet

Overall height, in. (mm)

Overall width, in. (mm)

Overall depth, in. (mm)

Front Loading

Door opening size, in. (mm)

Height of door bottom above floor, in (mm)

Height of door center above floor, in (mm)

Speed

Was h

Distribution

Spin

G-factor

Spin

Motor (3 phase), 4p, 1470 tr/min

Drain Valve, in. (mm)

Water Supply (hard, soft, warm water), in. (mm)

Direct Steam Heating

Steam inlet connection size, in. (mm)

Electrical

Electrical Heating (230/400 V)

Electrical Heating (400V)

Steam

Warm Water (without additional heating)

Warm Water (with additional heating)

Packing Dimensions (height X width X depth), in. (mm)

Weight

Net weight, lb. (kg)

Gross weight, lb. (kg)

28.88 lb. (13.1 kg)

31.96 lb. (14.5 kg)

35.49 lb. (16.1 kg)

26.77 (680)

17.74 (400)

47.40 (1204)

30.70 (780)

33.14 (842)

15.74 (400)

15.35 (390)

23.22 (590)

10-50 tr/min - RPM

85 tr/min - RPM

465 tr/min - RPM

1.47 HP/1.1 kW

12 kW - 15 kW - 18 kW

21 kW - 24 kW

Not Applicable

Not Applicable

Not Applicable

52.75 X 33.38 X 36.22
(1340 X 848 X 920)

674.61 (306)

723.11 (328)

5.12 (145)

82

2 (51)

.75 (19)

.38 (10)

21

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

5-08-51

Machine Dimensions - Model IWF033 (2-speed)

CHM2120N

47.4 in. (1204 mm)

46.26 in. (1175 mm)

8.86 in.

(225 mm)

1.1 in. (28 mm)

8.66 in.

(220 mm)

25.2 in. (640 mm)

2.76 in.

(70 mm)

15.35 in.

(390 mm)

30.71 in. (780 mm)

2.76 in.

(70 mm)

16.14 in. (410 mm)

10.24 in.

(260 mm)

29.92 in. (760 mm)

32.12 (816 mm)

CHM2121N

1.3 in.

(33 mm)

13.07 in.

(332 mm)

7.95 in. (202 mm)

10.51 in. (267 mm)

38.15 in. (969 mm)

36.85 in. (936 mm)

35.2 in. (894 mm)

12.2 in.
(310 mm)

33.19 in. (843 mm)

4.29 in.

(109 mm)

8.23 in.

(209 mm)

8

1

3

7

5

2

6

9

10

4

3.31 in.

(84 mm)

4.17 in. (106 mm)

CHM2122N

3.23 in. (82 mm)

CHM2120N

3.31 in.

(84 mm)

Washer-Extractors

CHM2121N

1 Warm Water Connections .75 in. 6 Drain Valve
2 Soft Water Connections .75 in. 7 Steam Connections
3 Main Switch 8 Hard Water Connections .75 in.
4 Ventilation Tub 9 Liquid Soap Connections
5 Electrical Connections 10 Ventilation Soap Dispenser

5-08-51

Figure 13

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

22
