Quick Start Owner’s Manual
BOX CONTENTS
• CDMIX1 CD MIXING STATION
• POWERADAPTE
Manual de inicio rápido del usuario (ESPAÑOL)
CON NID
TE O DE LA CAJA
• ESTACIÓN DE MEZCLAS DE C
• ADAPTADOR DE CORRIENTE
D CDMIX1
Schnellbedienungsanleitung (DEUTSCH)
BOX ONT
C ENTS
• CDMIX1 CD MIXI
• POWER ADA TE
NG STATION
P
Manuale Rapido di Utilizzazione (ITALIANO)
CO NU ZIONE
NTE TO DELLA CONFE
• CD MIXI ON CDMIX1
• ADATTATOR
NG STATI
E
Guide d’utilisation simplifié (FRANÇAIS)
CON EN
T U DE LA BOÎTE
• STATION DE MIXAGE CDMIX1
• ADAPTATEUR DE COURANT
iCD02 QUICK SETUP
1. Make sure all items listed on the front of this guide
are included in the box.
2. READ SAFETY INSTRUCTION BOOKLET BEFORE
USING THE PRODUCT.
3. Study this setup diagram.
4. Place CDMIX station in an appropriate position for
operation.
5. Make sure all devices are turned off and all faders
and gain knobs are set to “zero”
6. Connect all stereo input sources as indicated in the
diagram.
7. Connect the stereo outputs to power amplifier(s),
tape decks, and/or other audio sources.
8. Plug all devices into AC power.

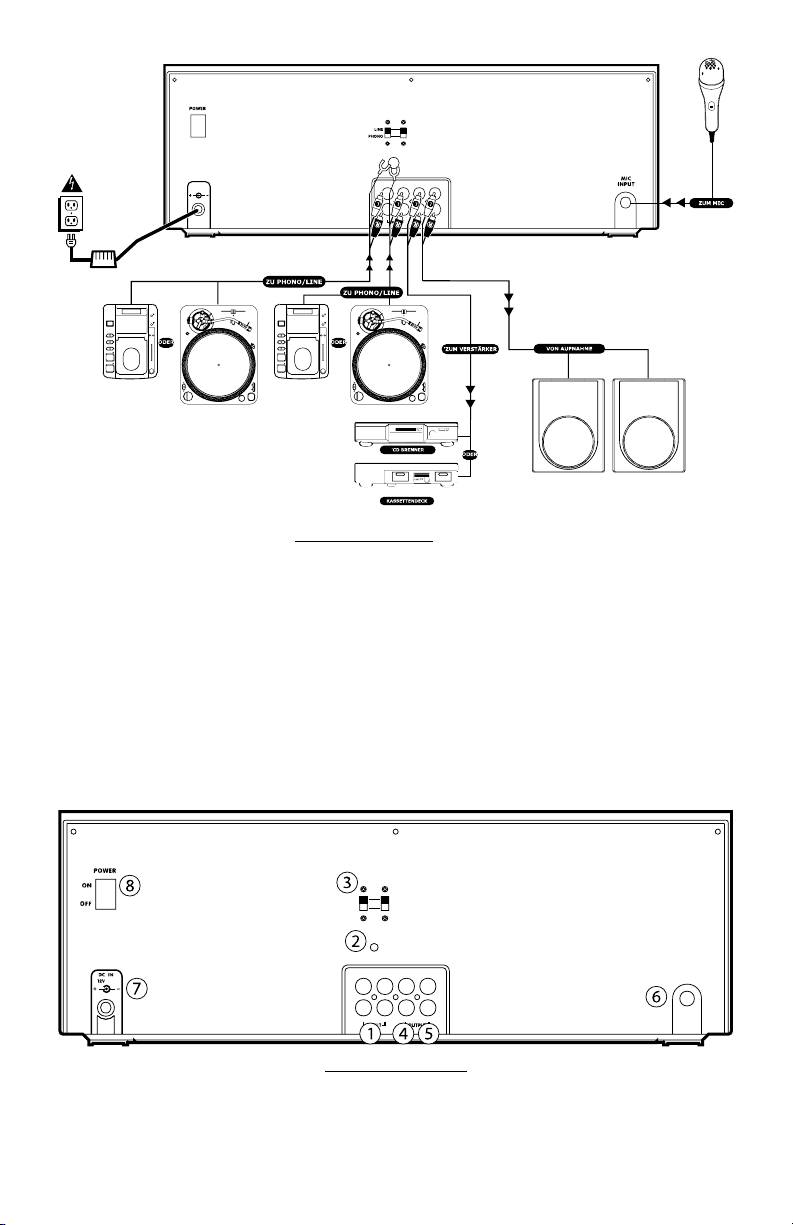

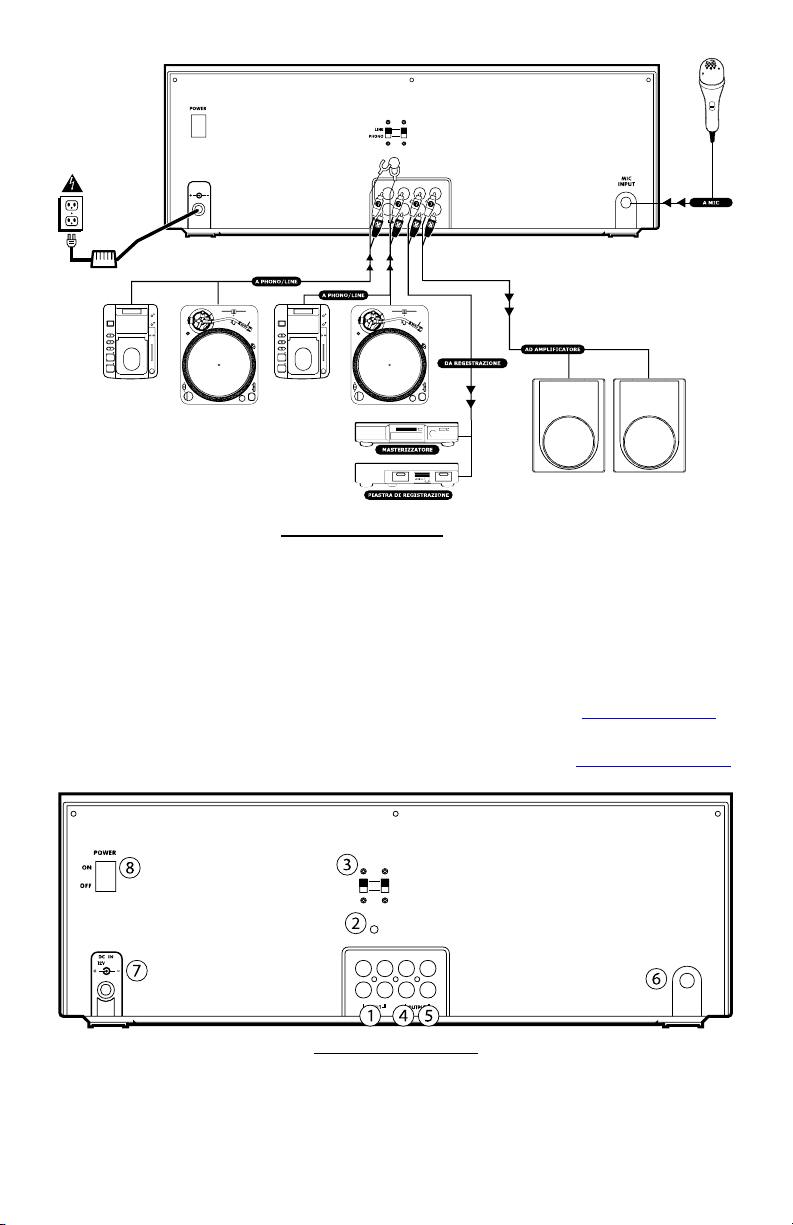

REAR CONNECTIONS
1. Channel Inputs: Unbalanced RCA jacks for
connecting external sources. The Phono/Line input is
selected using the toggle switch on the front panel.
Turntables, HiFi VCRs, cassette and reel-to-reel tape
decks, DAT machines, CD players, laser discs, tuners,
even synthesizers or other mixing consoles can be
connected using these jacks. NOTE: Plug mono audio
sources into both left and right inputs using a “Y”
cable connector.
2. GND: This screw connector should be used to connect
any turntables or other devices that need to be
grounded.
3. Input Selector Switch: Use this to allow either line
level or phono level equipment to be plugged into
your channel inputs. When Phono input is selected,
your signal is fed directly to the high-quality RIAA
9. Switch everything on in the following order.
• audio input sources (i.e. turntables or CD
players)
• ICD02
• last, any amplifiers or output devices
10. When turning off, always reverse this operation by,
• turning off amplifiers
• ICD02
• last, any input devices
11. Go to http://www.ion-audio.com
registration.
More information about this product may be found at
4. Record Output: This RCA output is for connecting a
5. Master Output (RCA): This output is for connecting
6. Mic Input: Plug your 1/4” Microphone plug in here.
http://www.ion-audio.com
phono pre-amplifiers. Use this position only for
turntables. Line level sources will overload the
sensitive phono pre-amps and will sound very bad, so
always be sure to toggle the line/phono switch over to
line before connection of line sources.
recording device such as a tape deck or CD recorder.
The level of the record output is based upon premaster levels.
an external monitoring device such as a PA system,
powered monitors, or a home stereo. The level of the
master stereo output signal is controlled by the
master fader.
for product
7. AC In: This mix station is designed to work with the
power supply cord that comes with the unit. While the
power is switched off, plug the power supply into the
mix station first, then plug it into the outlet.

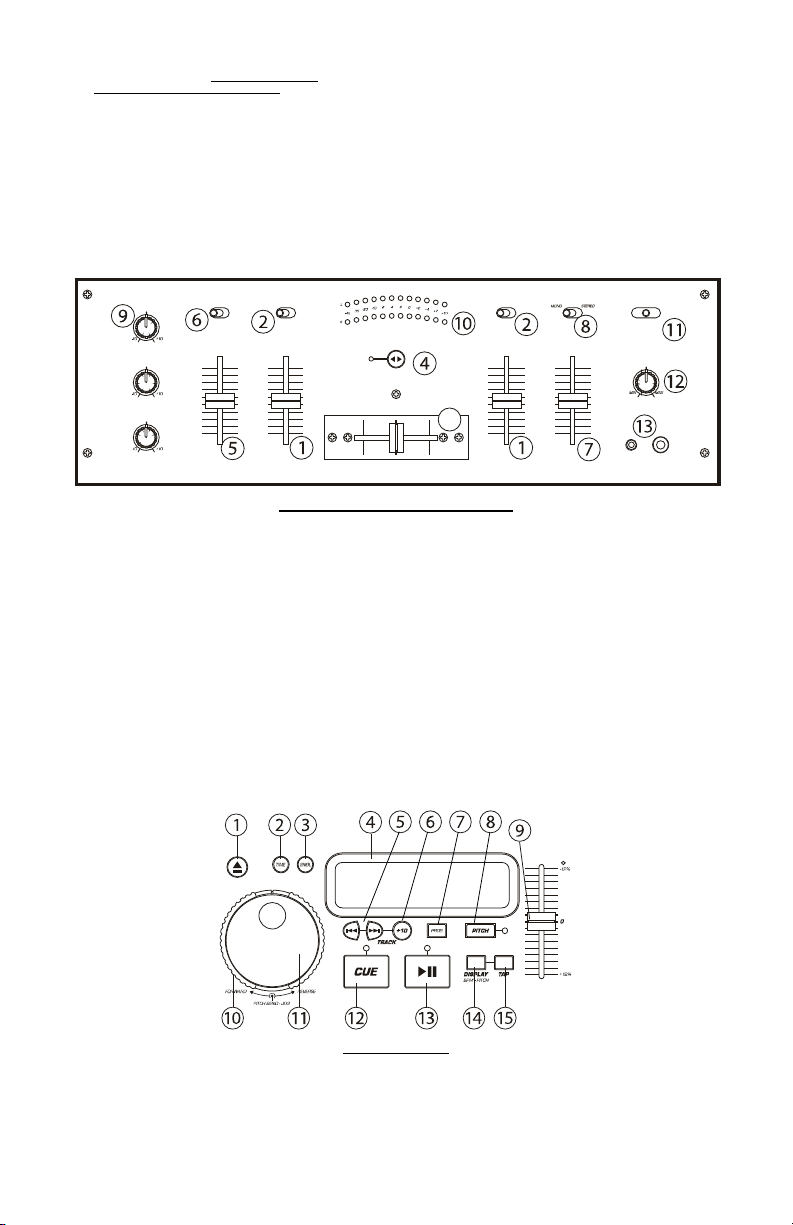

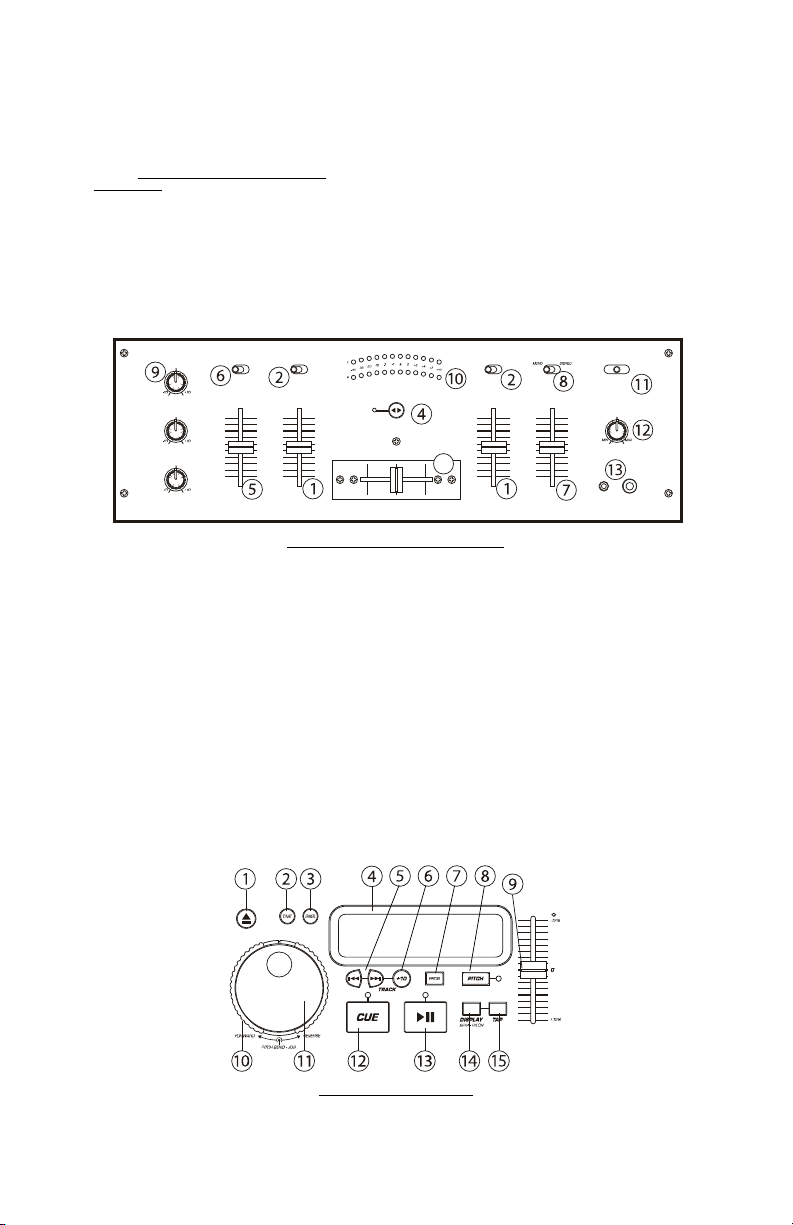

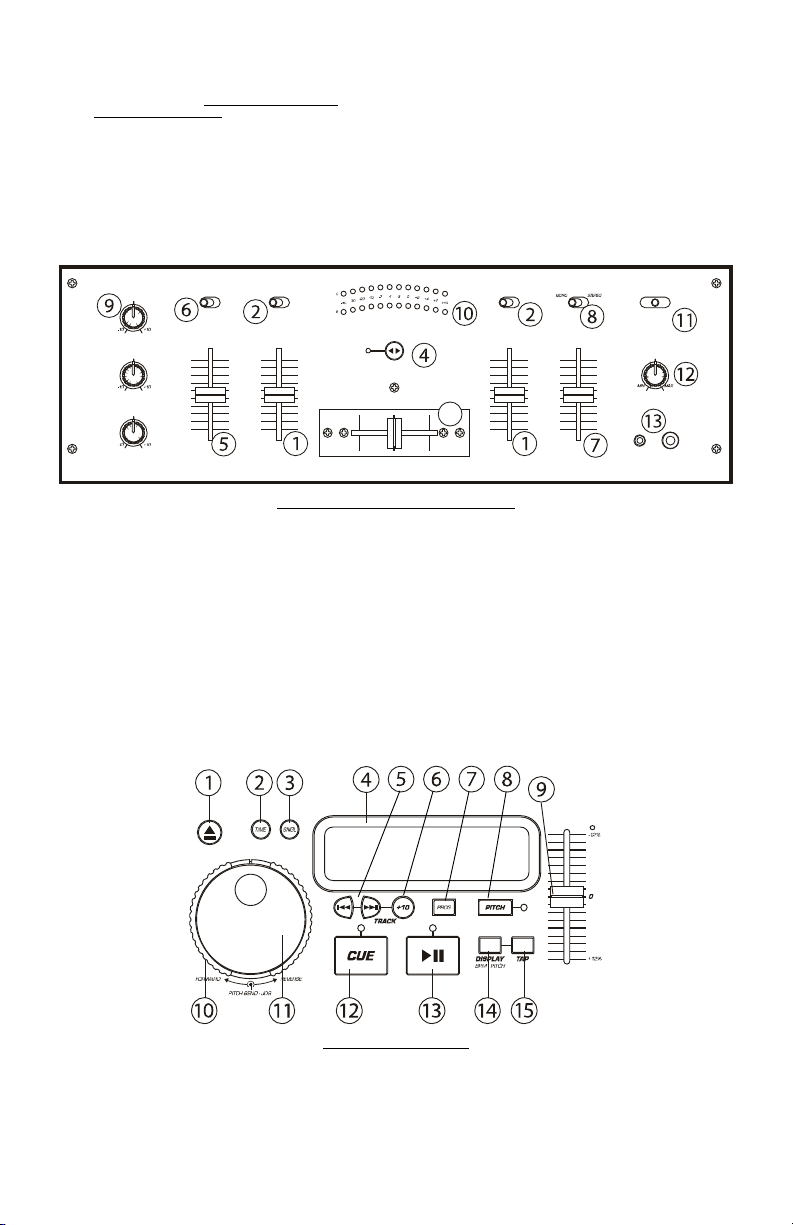

FRONT PANEL FEATURES
1. Input Fader: Controls individual source levels in
the mix.
2. Input toggle switch - Selects which source will be
live to that channel based on what you have
connected to the rear panel input section
3. Replaceable Crossfader - Achieves clean segues
between the two input channels. "Hard left" selects
Channel 1. "Hard right" selects Channel 2. With the
crossfader centered, both assigned channels are
live. Use the crossfader for fast and seamless
segues from one selected channel to the other
Note: The crossfader is user replaceable in case of
failure. Simply unscrew the two large screws which
hold it in place, lift it out and disconnect it’s cable.
Re-attach the new crossfader and screw the
mounting plate back onto the unit - you’re back in
business!
8. Power Switch: Use this switch to turn on the mix
station after all input devices are already connected to
prevent damage to your equipment. Turn the station
on before you turn on amplifiers and turn off
amplifiers before you turn off the mix station.
3
4. Fader Start – Activation allows you to start the CD
players from you crossfader. Travel from left to right
will start the right CD player and pause the left CD
player
5. Mic Input Fader – Adjusts microphone level.
6. Mic On/Off Toggle – Activates microphone.
7. Master Fader - Controls the overall output level.
8. Stereo/Mono toggle - Changes the Master output
between Mono and Stereo
9. Stereo EQ – Adjust final master output equalization
of treble, middle, and bass.
10. LED METER - Indicates the Master output level.
11. Channel Cue Selector - Used to route channel
audio to your headphones.
12. Headphone Level – Adjusts cue volume.
13. Headphone Jacks – Used to connect either 1/8” or
1/4” plugs for audio monitoring with headphones.
CD PLAYER FEATURES
1. OPEN/CLOSE (Disc Tray Open/Close) - Press to
load or eject the disc. Each press will open or close
the disc tray on the transport. NOTE: Tray will not
open unless the disc has been paused. Tray will
automatically close after 30 seconds.
2. TIME (Time Button) - Switches the time display
between elapsed playing time and remaining time
on the track and remaining time on the entire CD.
3. CONT/SING - Will cause just a single track to play
or all tracks in order by pressing once or twice.
4. LCD DISPLAY - Indicates all the functions, as they
are occurring, with the CD. These functions are
explained in the next section.
5. TRACK (Track Buttons) - Used to select the track
to be played.
6. Track 10 Button - This button is for quickly
advancing to higher tracks on a CD.
7. PROGRAM - Depress this button and the unit will
stop and the program indicator will light. Select
each track to be programmed and press the
PROGRAM button between selections. You can
program up to 30 tracks. Press PLAY to start the
program. To exit and erase program, either hold
the program button down for more than 2 seconds
while the unit is stopped, open the disc tray, or turn
off the power.
8. PITCH (Pitch Button) - Activates the Pitch Slider.
9. PITCH SLIDER - The pitch can be changed up to
+/-12% by pressing the PITCH button so the PITCH
LED is lit, then moving the sliding fader. The pitch
will not be changed if the PITCH LED is off.
10. SEARCH WHEEL (OUTER RING) - 3 forward and 3
reverse speed positions for searching through
songs. The more you turn the wheel in either
direction the faster you search through the music.
11. PITCH BEND/JOG WHEEL (INNER RING) - The
jog wheel serves 2 functions depending on the
current mode.
a) The jog wheel will control a slow frame
search when the CD is not playing. To set a
new frame cue point, spin the wheel then
press play when you have determined the
proper position. Press CUE to return to the
“CUE POINT”.
b) When both CD players are playing a CD, the
pitch bend function allows the positioning of
the bass beats to be matched after the pitch
of each disc is matched. Either player can
“catch up” or “fall back” to match the other
player. The jog wheel will temporarily bend
the pitch of the music if the song is already
playing by rotating the wheel clockwise to
speed up or counterclockwise to slow down.
By changing the pitch of one disc with
respect to the pitch of the other disc, the
12. CUE - Pressing the CUE button during play provides
1. PLAY: Active while the unit is actually playing a CD.
2. PAUSE: Active when the unit is paused.
3. CUE: Flashing when the unit is setting a cue point.
4. PROGRAM: Used for pre-p rogramming the track
5. TIME MODE: (Elapsed) is for showing time as it is
6. SINGLE: Shows when the unit is set to play just
7. PITCH: Is lit when the PITCH BUTTON is active.
beats can be matched.
a return to the position at which play was started.

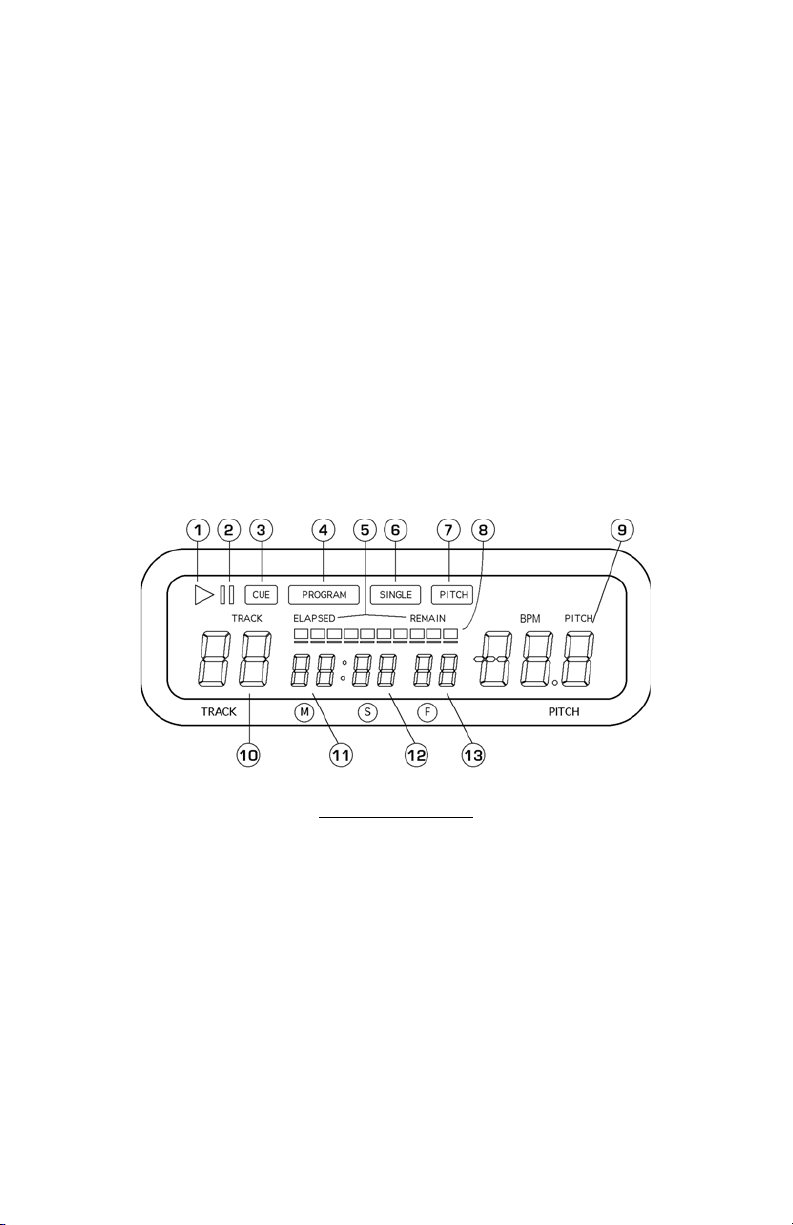

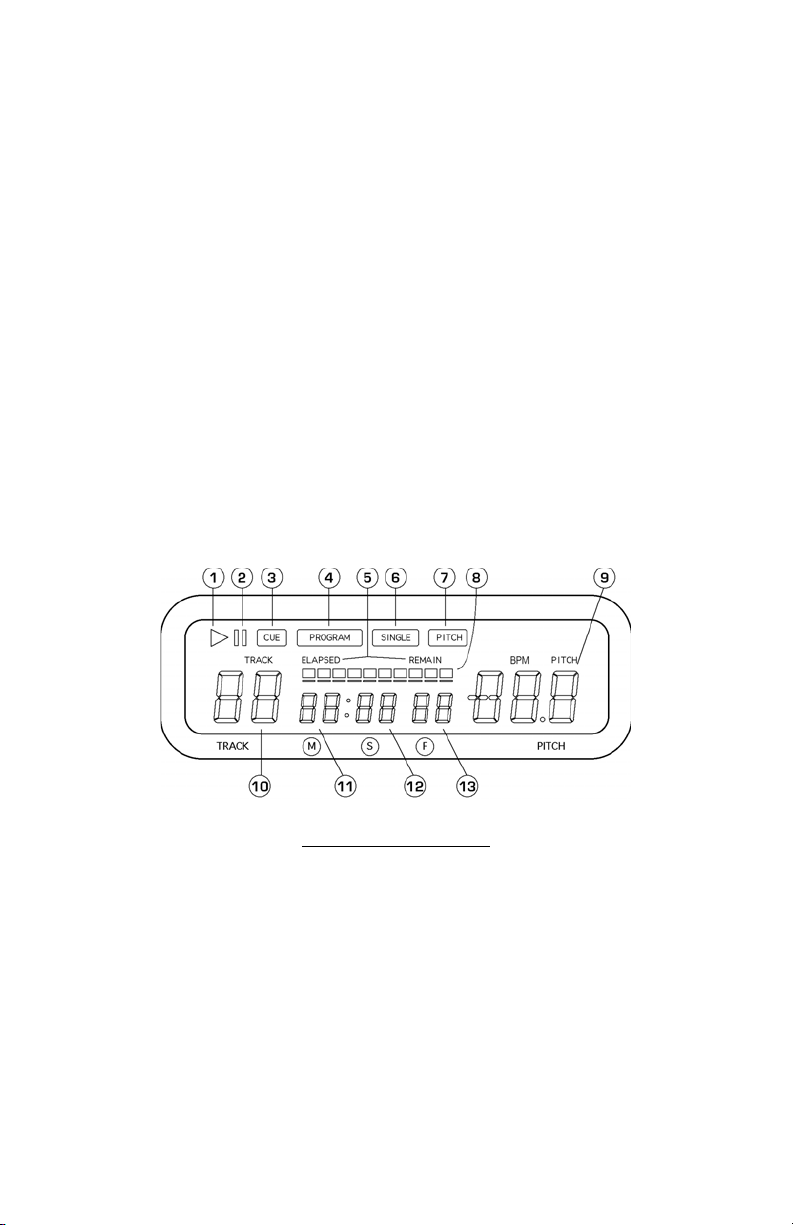

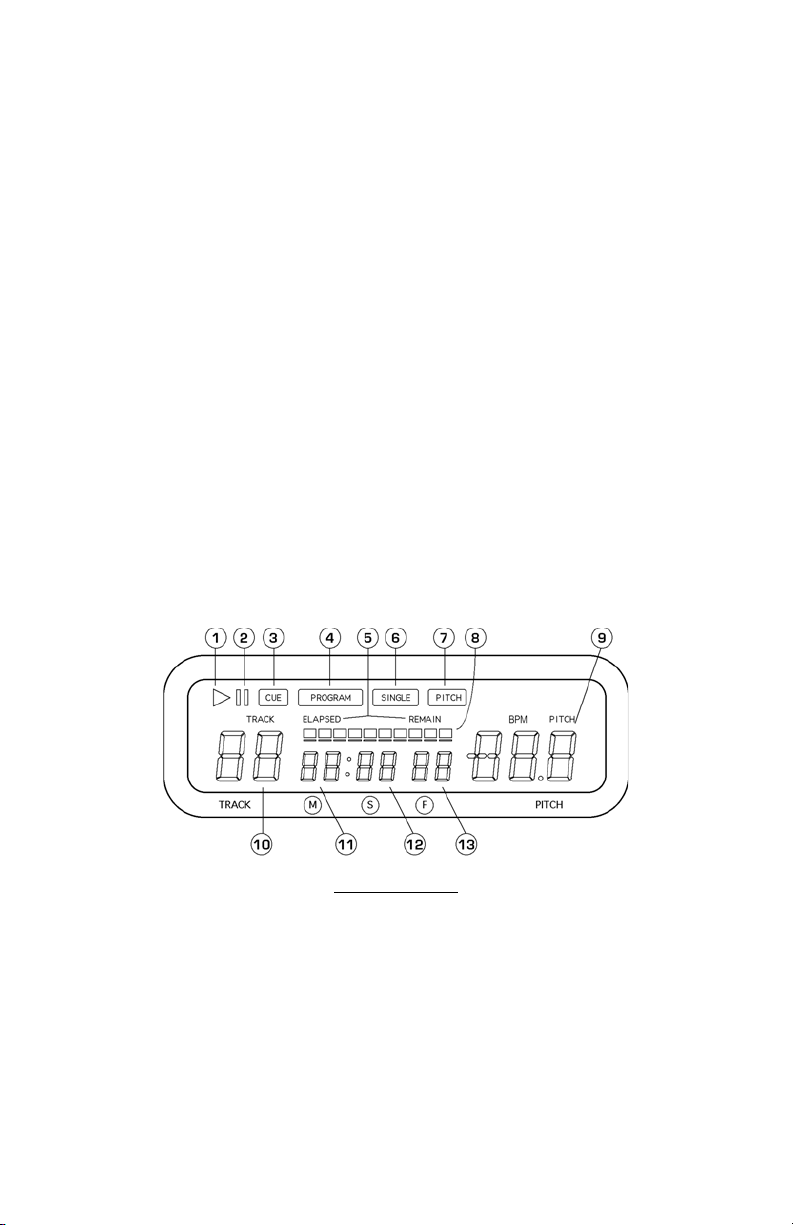

LCD DISPLAY FEATURES
Lit continuously when the unit is paused at a cue
point.
order to automatically be played by the unit. This is
a great function if you need to leave the CD player
alone.
taking place.(Remain) shows how much time is left
on a particular track. This function is controlled by
the TIME BUTTON.
one track at a time. When this is not lit, the CD will
play continuously through all tracks. This function is
controlled by the SING/CONT BUTTON.
If PAUSE is used before CUE, that will become the
cue point. Alternately pressing the PLAY button and
the CUE button allows the CD to be played from the
same position any number of times. The CUE LED
will light up from the time the CUE button is pressed
until the CD has been reset to the position at which
play was started. Steady lighting of this LED
indicates the ready condition.
13. START/PAUSE (Play/Pause Button) - Each
press of the Play/Pause Button causes the operation
to change from play to pause or from pause to play.
14. BPM/PITCH BUTTON - Switches the mode of the
display between showing the BPM and the
percentage change in pitch.
15. TAP BUTTON - Tap this button with the beat of the
music to determine the current Beats Per Minute
(BPM).
8. TIME BAR: Shows either time remaining or
elapsed depending on the setting of the TIME
BUTTON.
9. PITCH/BPM: Shows the percentage change in
pitch or current BPM.
10. TRACK: Shows the current track that the unit is
playing.
11. MINUTES: Shows the minutes elapsed or
remaining depending on mode setting.
12. SECONDS: Shows the seconds elapsed or
remaining depending on mode setting.
13. FRAMES: The CD Player breaks down a second into
75 frames for accurate cueing. This shows the
frames elapsed or remaining depending on mode
setting.

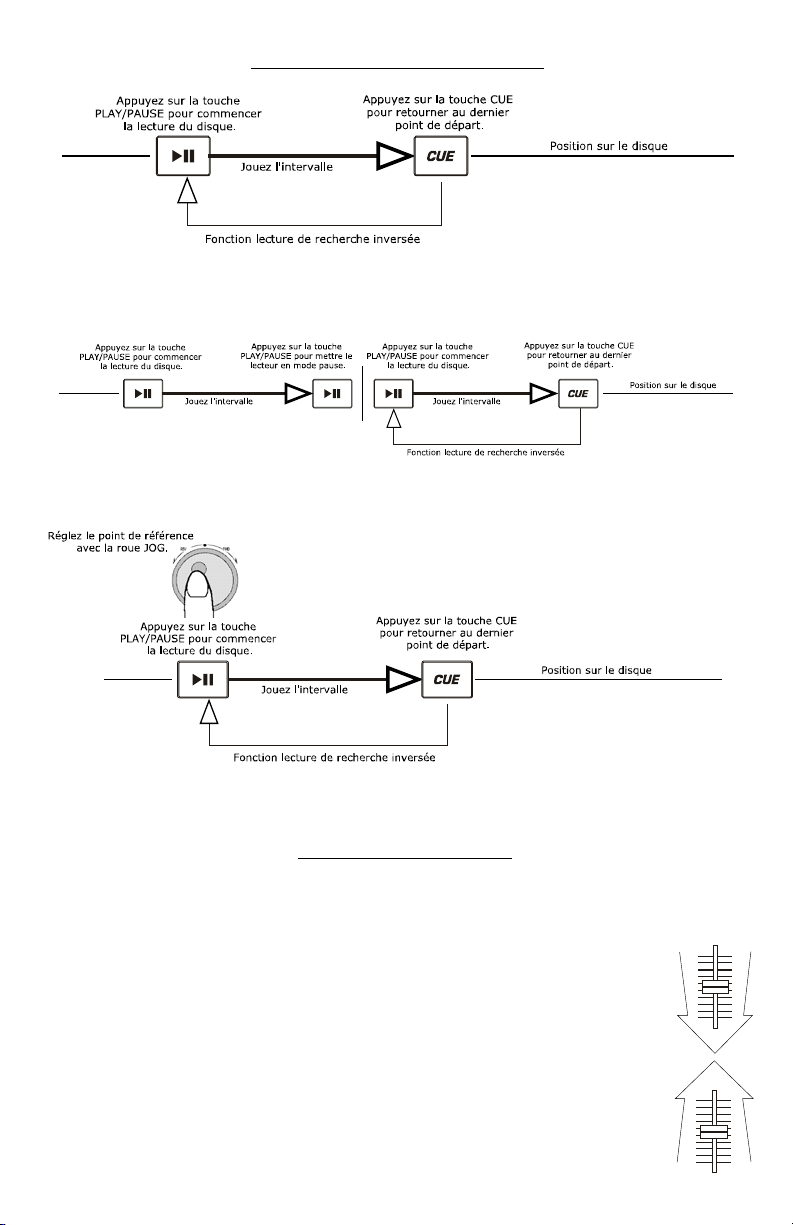

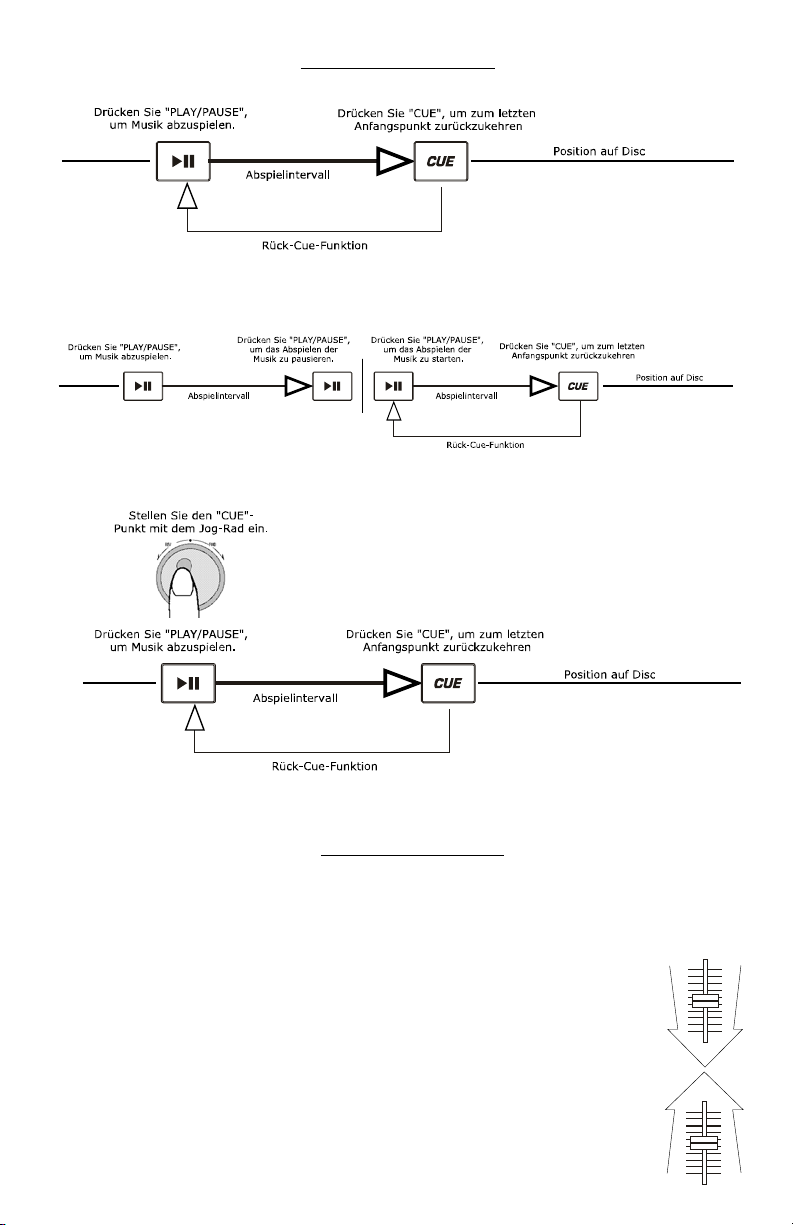

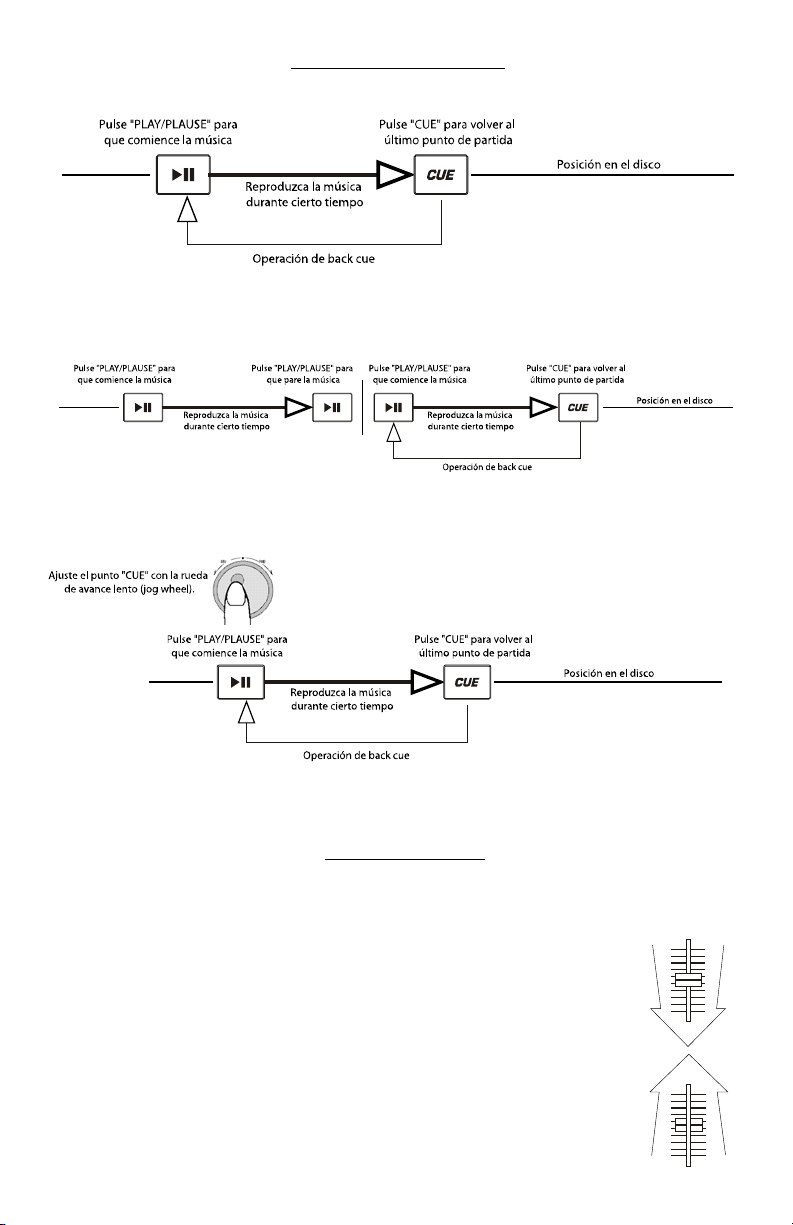

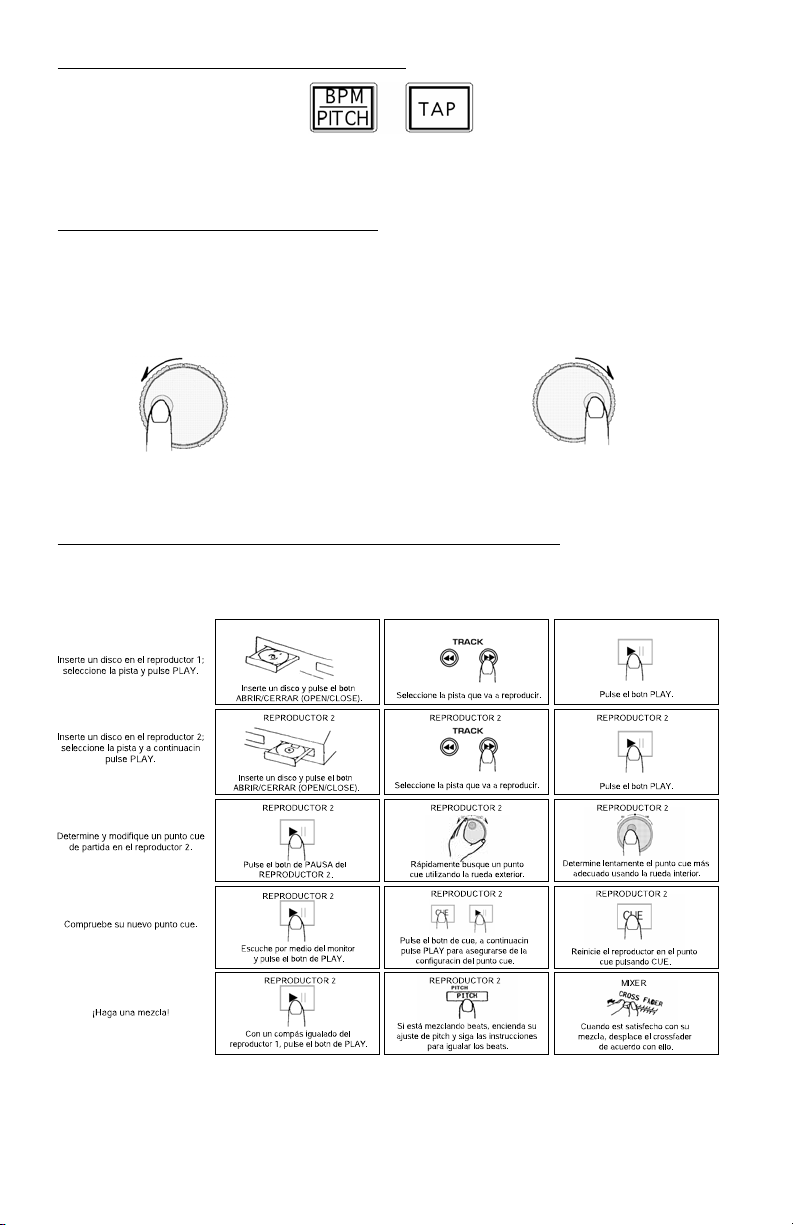

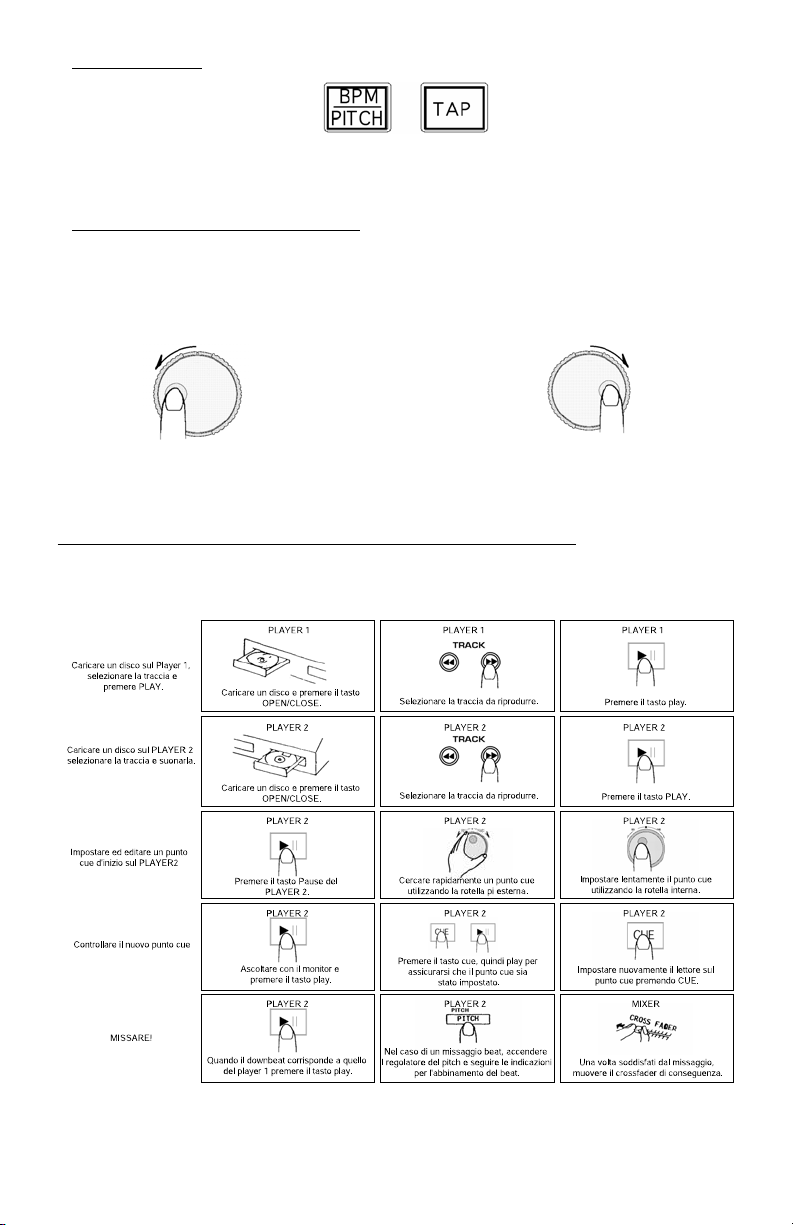

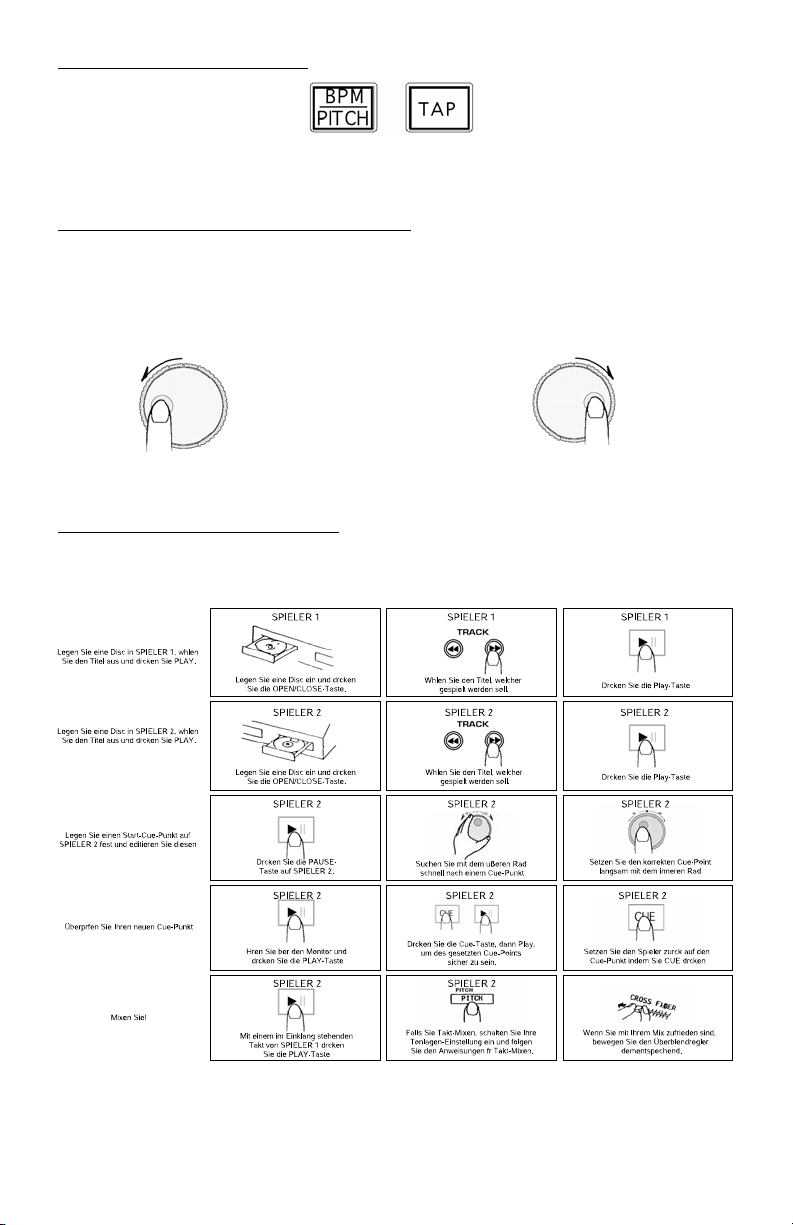

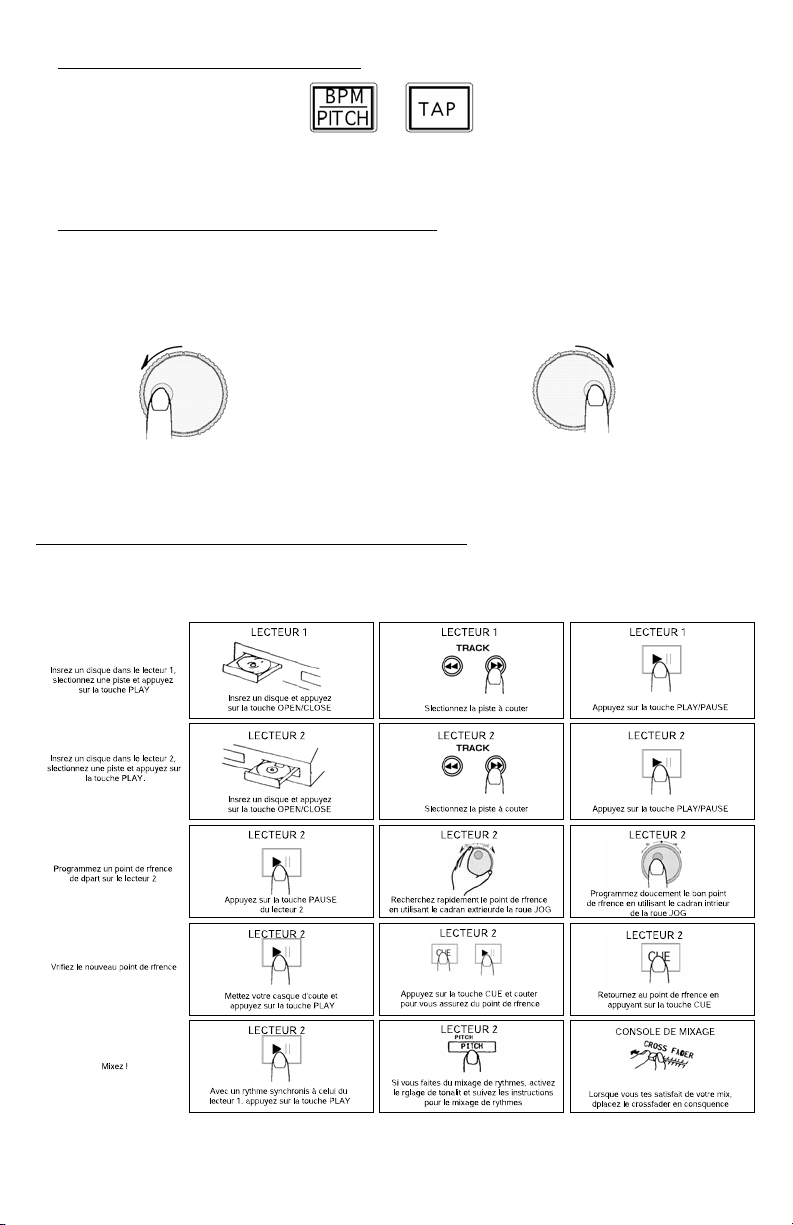

PLAY / PAUSE & CUE OPERATIONS
o
PLAY & CUE
Pressing the “PLAY/PAUSE” button starts the disc. Pressing the “CUE” button will reset the disc to the last place where the disc was
started. This is called the cue point. By alternately pressing the “PLAY/PAUSE” button and the “CUE” button, the disc may be
returned and played from the cue point any number of times. This function is called back cue.
PLAY, PAUSE & CUE
When play has been paused and then started again, the return position for the back cue will be updated to this
new position.
EDITING CUE POINT
Adjust the "CUE" point
with the jog wheel
Press "PLAY/PAUSE"
to start music
Press "PLAY/PAUSE"
to start music
Press "CUE" return to
Play Interval
last starting point
Back Cue Operation
Press "PLAY/PAUSE"
to pause music
Play Interval Play Interval
Press "PLAY/PAUSE"
to start music
Back Cue Operation
Press "PLAY/PAUSE"
to start music
Press "CUE" return to
last starting point
Play Interval
Position on Disc
Press "CUE" return t
last starting point
Position on Disc
Position on Disc
Back Cue Operation
When the inner dial is turned while a cue point is set, a new cue point can be located. The CD player will repeatedly play small parts of the
CD as you move it to the desired position. By pressing “PLAY/PAUSE” then “CUE” you can confirm that the new cue point is desirable.
Matching the Beats Per Minute
Match the tempo by monitoring the music of both PLAYER 1 and PLAYER 2 by ear and adjusting the pitch. When the tempo of the
music of the selected CD player is slow compared to the tempo of the other player, move the slider to the ( + ) side and match the
tempo. When faster, move the pitch slider to the ( - ) side. The following illustration shows the case of matching the pitch of PLAYER
2 to the pitch of the music being played on PLAYER 1.
1. Press PLAY/PAUSE to start PLAYER 1.
PLAYER 1 is playing
2. Press PLAY/PAUSE to start PLAYER 2
Both CD players are playing discs.
3. Listen to PLAYER 2 in your headphones. If the beat of channel 2 (in the headphones) is faster than
1, slow down the beat of channel 2 using the pitch control.
pitch control.
channel
he4. If the beat of channel 2 (in the headphones) slower than the beat of channel 1, speed up the beat using t
USING THE BPM DISPLAY FEATURE
Press the BPM button to select the BPM feature on the display on the side of the CD player that you wish to set. Tap the Counter
button to the beat of the music.
You will see the BPM number appear in the display. The more times you tap the more accurate your number will be. When you
adjust the pitch slider the display number will change by an equal percentage.
BEAT MATCHING USING PITCH BEND
If you find the BPM’s (Beats Per Minute or Tempos) are the same, however, the drum beats are not matched you will need to
temporarily change the pitch. The illustration below shows how to match the beat of PLAYER 2 to the beat of the music being
played on PLAYER 1. (This procedure can be done on either PLAYER).
After matching the BPM’s adjust the pitch temporarily as follows:
When PLAYER 2 is rotate the jog wheel counter clockwise
The pitch changes automatically while the jog wheel is rotated. The faster you rotate the wheel the more you change. Releasing the
wheel results in a return to the original pitch. (So the BPM’s are once again the same.)
EXAMPLE OF MIXING USING BOTH PLAYERS OF YOUR CD PLAYER
While playing a disc on PLAYER 1, load a disc into PLAYER 2 and select your next track, match its pitch to the track playing on
PLAYER1 and when you are ready use the crossfader on your mixer to fade from PLAYER 1 to PLAYER 2.
When PLAYER 2 is behind rotate the jog wheel clockwise
Load a disc in PLAYER 1 and
select the track and press PLAY.
Load a disc in PLAYER 2 and
select the track then play.
Set and edit a start cue point on
PLAYER 2
Check your new cue point
Do a MIX!
PLAYER 1
Load a disc and press the
OPE N/CLOSE button.
PLAYER 2
Load a disc and press the
OPE N/CLOSE button.
PLAYER 2
Press the Pause button ofPLAYER 2.
PLAYER 2
Listen with the m onitor a nd
press the play button.
PLAYER 2
With a matchingdownbeat from
Player 1 press the p lay button.
PLAYER 1
Se lect the trac k to be played .
PLAYER 2
Se lect the trac k to be played .
PLAYER 2
Rapidlys earch fora cue pointus ing
the outer wh ee l
PLAYER2
Press the cue button then playto be
sure of the set cue point.
PLAYER 2
Ifyou are bea tmixing, turn on your
Pitch adjus t and follow the directions
for beat matching.
PLAYER1
Pre ss the P LAYbu tton
PLAYER2
Pre ss the P LAYbu tton
PLAYER 2
Slowly set the rightc ue point
using the inner wheel
PLAYER2
Re set the pla yer to th e Cu e point
by pressing Cue
MIXER
Whenyouarehappywithyourmix
move the cross fade r acc ordingly.
INSTALACIÓN RÁPIDA DEL ICD02 (ESPAÑOL)
1. Asegúrese de que todos los artículos incluidos al
inicio de este manual están incluidos en la caja.
2. LEA EL FOLLETO DE INSTRUCCIONES DE
SEGURIDAD ANTES DE UTILIZAR EL
PRODUCTO.
3. Estudie este diagrama de instalación.
4. Coloque la estación de mezclas en una posición
adecuada para su funcionamiento.
5. Asegúrese de que todos los dispositivos están
apagados y de que todos los faders y
potenciómetros de ganancia están en posición
“cero”.
6. Conecte todas las fuentes de entrada al estéreo
como se indica en el diagrama.
7. Conecte las salidas del estéreo a los amplificadores
de alimentación, unidades de cinta magnética y/o
otras fuentes de audio.
CONEXIONES TRASERAS
1. Entradas de canal: Jacks RCA no balanceados para
la conexión de fuentes externas. La salida de
Phono/Línea es seleccionada utilizando el interruptor
de palanca del panel delantero. Giradiscos,
reproductores de video de alta fidelidad (HiFi),
casetes y unidades de cinta magnética reel-to-reel,
máquinas DAT (Digital Audio Tape), reproductores
de CD, discos láser, sintonizadores e incluso
sintetizadores u otros instrumentos pueden ser
8. Enchufe todos los dispositivos al suministro de
corriente alterna.
9. Prenda todo en el siguiente orden:
• fuentes de entrada de audio (por ej.
giradiscos o reproductores de CD)
• ICD02
• por último, cualquier amplificador o
10. Al apagar, realice siempre esta operación al
11. Visite http://www.ion-audio.com
2. GND: Este conector de tornillo debe ser usado para
3. Interruptor selector de entrada: Haga uso de
dispositivo de salida
contrario:
• apague los amplificadores
• ICD02
• por último, cualquier dispositivo de entrada
producto.
Puede encontrar más información sobre este
producto al visitar http://www.ion-audio.com
conectados utilizando estos jacks. NOTA: Enchufe
las fuentes de audio mono en ambas entradas,
derecha e izquierda, usando un cable conector tipo
“Y”.
conectar cualquier giradiscos u otro dispositivo que
tiene que ser conectado a tierra.
este interruptor para dejar que el equipo de nivel de
para registrar el
línea o nivel de phono pueda ser enchufado en sus
entradas de canal. Cuando se seleccione la entrada
de phono, su señal introducida directamente a los
pre-amplificadores phono RIAA de alta calidad.
Utilice esta posición solo para giradiscos
Fuentes de nivel de línea sobrecargarán los preamplificadores de phono sensibles y tendrá un
sonido de muy mala calidad, así que asegúrese
siempre de conmutar el interruptor de línea/phono a
línea antes de conectar las fuentes de línea.
4. Salida de grabación: Esta salida RCA es para
conectar un dispositivo de registro como una unidad
de cinta magnética o grabador de CD. El nivel de la
salida de registro se basa en los niveles de pre
master.
5. Salida Master (RCA): Esta salida sirve para
conectar un dispositivo de monitorización externo
como, por ejemplo, un sistema de megafonía,
monitores de potencia o un estéreo. El nivel de la
1. Fader de entrada: Controla los niveles de fuente
individuales del mezclador.
2. Interruptor de palanca de entrada:
3. Crossfader reemplazable – Consigue segues
limpios entre los dos canales de entrada.
“Completamente hacia la izquierda” selecciona el
canal 1. “Completamente hacia la derecha”
selecciona el canal 2. Con el crossfader en el centro,
ambos canales están activos. Use el crossfader para
segues rápidas y uniformes de un canal
seleccionado a otro.
Nota: El crossfader puede ser reemplazado por el
usuario en caso de fallo. Simplemente, desatornille
los dos tornillos grandes que lo sujetan, sáquelo
hacia fuera y desconecte el cable. Vuelva a sujetar
el nuevo crossfader y atornille la placa de montaje
de nuevo en la unidad – ¡ya puede volver al trabajo!
4. Activador del Fader (Start) – La activación le
permite poner los reproductores de CD en
funcionamiento desde su crossfader. Al desplazarlo
de izquierda a derecha, activará el reproductor de
. Las
LAS CARACTERÍSTICAS DEL PANEL FRONTAL
señal de salida del área de estéreo está controlado
por el master fader.
6. Salida de micro (Mic): Enchufe su micrófono de
¼” aquí.
7. AC In (Entrada de corriente alterna): Esta
estación de mezclas está diseñada para trabajar con
el cable de suministro de alimentación que
acompaña a la unidad. Mientras que la alimentación
esté apagada, enchufe primero el suministro de
alimentación a la estación de mezclas y luego
enchúfelo a la toma de corriente.
8. Interruptor de alimentación: Use este
conmutador para prender la estación de mezclas
después de que todos los dispositivos de entrada
hayan sido conectados para evitar daño a su equipo.
Prenda la estación de mezclas antes de prender los
amplificadores y apague los amplificadores antes de
apagar la estación de mezclas.
3
CD de la derecha y desactivará el reproductor de CD
de la izquierda.
5. Fader de entrada de micro – Ajusta el nivel del
micrófono.
6. Palanca de encendido/apagado del micro –
Pone el micrófono en funcionamiento.
7. Master Fader – Controla el nivel de salida global.
8. Palanca de estéreo/mono – Cambia la salida del
master entre mono y estéreo.
9. Ecualizador de estéreo - Ajusta la ecualización
final de salida del master de los agudos, medios y
graves.
10. MEDIDOR LED – Indica el nivel de salida del
master.
11. Selector de Cue de canal – Utilizado para enviar
audio de canal a sus auriculares.
12. Nivel de auriculares- Ajusta el volumen de cue.
13. Conector de auriculares – Utilizado para conectar
clavijas de 1/8” o 1/4” para el monitoreo de audio
con los auriculares.
1. ABRIR/CERRAR (Bandeja de disco
Abrir/Cerrar) – Púlselo para introducir o expulsar
el disco. Cada vez que lo pulse se abrirá o cerrará la
bandeja del disco en la unidad. NOTA: La bandeja
no se abrirá a menos que el disc o haya sido
Características del reproductor de CD
detenido. La bandeja se cerrará automáticamente a
los 30 segundos.
2. TIME (Botón de tiempo) – Cambia la visualización
del tiempo entre el tiempo de reproducción
transcurrido y el tiempo restante en la pista y el
tiempo restante en todo el CD.
Loading...
