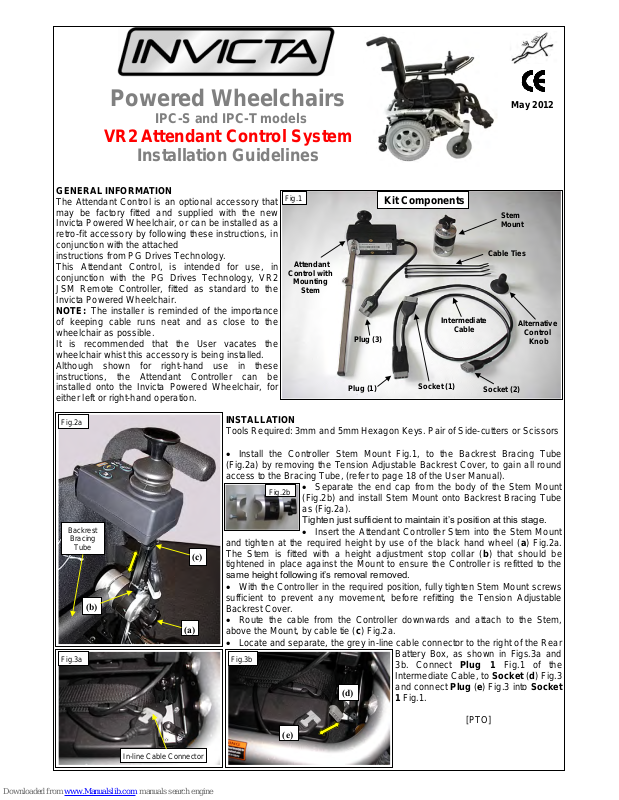

Powered Wheelchairs
IPC-S and IPC-T models
VR2 Attendant Control System
Installation Guidelines
GENERAL INFORMATION
The Attendant Control is an optional accessory that
may be factory fitted and supplied with the new
Invicta Powered Wheelchair, or can be installed as a
retro-fit accessory by following these instructions, in
conjunction with the attached
instructions from PG Drives Technology.
This Attendant Control, is intended for use, in
conjunction with the PG Drives Technology, VR2
JSM Remote Controller, fitted as standard to the
Invicta Powered Wheelchair.
NOTE: The installer is reminded of the importance
of keeping cable runs neat and as close to the
wheelchair as possible.
It is recommended that the User vacates the
wheelchair whist this accessory is being installed.
Although shown for right-hand use in these
instructions, the Attendant Controller can be
installed onto the Invicta Powered Wheelchair, for
either left or right-hand operation.
INSTALLATION
Tools Required: 3mm and 5mm Hexagon Keys. Pair of Side-cutters or Scissors
Install the Controller Stem Mount Fig.1, to the Backrest Bracing Tube
(Fig.2a) by removing the Tension Adjustable Backrest Cover, to gain all round
access to the Bracing Tube, (refer to page 18 of the User Manual).
Separate the end cap from the body of the Stem Mount
(Fig.2b) and install Stem Mount onto Backrest Bracing Tube
as (Fig.2a).
Tighten just sufficient to maintain it’s position at this stage.
Insert the Attendant Controller Stem into the Stem Mount
and tighten at the required height by use of the black hand wheel (a) Fig.2a.
The Stem is fitted with a height adjustment stop collar (b) that should be
tightened in place against the Mount to ensure the Controller is refitted to the
same height following it’s removal removed.
With the Controller in the required position, fully tighten Stem Mount screws
sufficient to prevent any movement, before refitting the Tension Adjustable
Backrest Cover.
Route the cable from the Controller downwards and attach to the Stem,
above the Mount, by cable tie (c) Fig.2a.
Locate and separate, the grey in-line cable connector to the right of the Rear
Battery Box, as shown in Figs.3a and
3b. Connect Plug 1 Fig.1 of the
Intermediate Cable, to Socket (d) Fig.3
and connect Plug (e) Fig.3 into Socket
1 Fig.1.
[PTO]
May 2012
Kit Components
Cable Ties
Stem
Mount
Intermediate
Cable
Alternative
Control
Knob
Attendant
Control with
Mounting
Stem
Socket (1)
Plug (3)
Plug (1)
Fig.2a
Fig.2b
(b)
(a)
(c)
Fig.1
Fig.3b
(d)
(e)
Socket (2)
Backrest
Bracing
Tube
Fig.3a
In-line Cable Connector
![](/html/36/36ec/36ecf456c8bf20e44a642a381e998bb0e102f7bd319fc37e7060626ba99925b0/bg2.png)
Carefully route the Intermediate Cable upwards towards the Attendant Controller and connect Plug 3 Fig.1 (on the
Controller), to Socket 2 of the Intermediate Cable Fig.4.
Cable runs should now be tied together or to frame members on route, using the cable ties provided Figs.4a and 4b.
OPERATION
For operational aspects, please refer to the attached “Attendant Module System” instructions, supplied by PG Drives
Technology.
For any other aspects relating to the use of the Invicta Powered Wheelchair please refer to the User Manual supplied
with the Invicta wheelchair.
Should you require further information regarding this or any other product in the RMS range, please contact the
RMS Technical Help-line on 01634 578881.
Cable Ties
Fig.4b Fig.4a
Cable Tie
