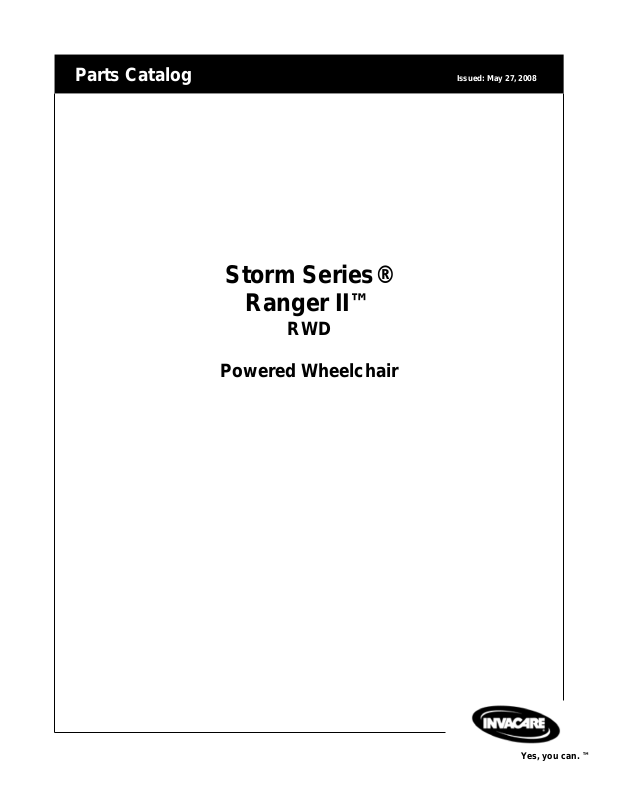

Parts Catalog

Issued: May 27, 2008

Storm Series®

Ranger II™

RWD

Powered Wheelchair

Yes, you can. ™

Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the bottom of the page or below specified charts.

Parts Catalog Usage Guide

To order call toll free 1-800-333-6900, or www.invacare.com

The information contained in this document is subject to change without notice. This catalog contains service parts for Form No. 95-172. If you have any questions regarding this catalog, please contact one of our Customer Service Representatives.

For Customer Service Support Call:

1-800-333-6900

For Faxed In Orders Call:

1-800-678-4682 or

1-440-366-0709

For Technical Service Call:

1-800-832-4707

Literature Can Be Found at:

www.invacare.com or

1-800-828-6272

SYMBOL DEFINITION

Examples:

A,B,C etc. NOTE: NLA

= Special Comments = General information pertaining to that specific page = No Longer Available

HARDWARE MEASUREMENTS

The measurements for the hardware will be listed as follows:

Screws, Bolts Washers Spacers

For your convenience, we have supplied an area for you to list your Invacare Representatives.

Corporation; Ranger II is a trademark of Invacare Corporation; Tash is a registered trademark of Tash International Inc.; Therafin is a registered trademark of

W/R/ Medical Electronics Co.; Bussman is a registered trademark of Cooper Industries; MIDI is a registered trademark of Littelfuse Inc.; and Dynamic is a

Diameter X Thread Count/Pitch X Length Inside Diameter X Outside Diameter X Thickness Inside Diameter X Outside Diameter X Length

Name Phone Numbers

registered trademark of Dynamic Controls Limited.

Form No.

95-172

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No.

95-172

Description

Accessories - Miscellaneous .................................................................................................... 134

Accessories - Oxygen Holder Assembly .................................................................................. 135

Accessories - Power Wheelchair Tool Kit ................................................................................ 136

Arms, Adjustable Height, Removable, Non-Reclining (After 9/30/00) ...................................... 39

Arms, Adjustable Height, Removable, Non-Reclining (Before 10/1/00 and All Recliners) ....... 37

Arms, Fixed Height, Removable, Non-Reclining (After 9/30/00) .............................................. 43

Arms, Fixed Height, Removable, Non-Reclining (Before 10/1/00 and All Recliners) ............... 41

Back Canes and Attaching Hardware (After 9/30/00) .............................................................. 20

Back Canes and Attaching Hardware (Before 10/1/00) ........................................................... 17

Back, Recliner Assembly .......................................................................................................... 29

Battery Boxes and Trays .......................................................................................................... 57

Battery Charger and Harnesses ............................................................................................... 59

Casters and Forks .................................................................................................................... 45

Crossbraces and Seat Extensions ........................................................................................... 14

Electronics - COM12 and COM34 ............................................................................................ 125

Electronics - MKIV Controller, Programmer and Attaching Hardware ...................................... 121

Electronics - MKIV Displays ..................................................................................................... 127

Electronics - MKIV Joystick Mounting Hardware and Joystick Accessories ............................ 109

Electronics - MKIV Joystick Options ......................................................................................... 129

Electronics - MKIV Joysticks RII, RX, A, A+, TCHJOY ........................................................... 104

Electronics - MKIV Joysticks PS, PFS and PSR ...................................................................... 107

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No.

95-172

Description

Electronics - MKIV Sip-N-Puff/ Digital Interface ....................................................................... 123

Electronics - MKIV Swivel Joystick Hardware .......................................................................... 111

Electronics - MKVI Mid-Line Swing Bracket Assembly ............................................................ 113

Electronics - Quad Link Assembly (Before 4/07/06) ................................................................. 115

Electronics - Quad Link Assembly (QL) (After 4/06/06) ........................................................... 118

Electronics - Tash and Therafin Accessories ........................................................................... 132

Frame Finishes, Touch-Up Paints and Upholstery Colors ....................................................... 5

Frames, Side and Hardware (After 9/30/00) ............................................................................ 12

Frames, Side and Hardware (Before 10/1/00) ......................................................................... 10

Front Rigging - Adjustable Angle Footplate Assembly, AT5543 - PW93, PW93E ................... 94

Front Rigging - Calf Pads and Attaching Hardware ................................................................. 84

Front Rigging - Footrest and Legrest Accessories ................................................................... 100

Front Rigging - Footrest Supports - P93 .................................................................................. 64

Front Rigging - Footrest Supports - P93E ................................................................................ 72

Front Rigging - Footrest Supports - P93M ............................................................................... 76

Front Rigging - Footrest Supports - P93ST .............................................................................. 68

Front Rigging - Footrest Supports - PW93 ............................................................................... 66

Front Rigging - Footrest Supports - PW93E ............................................................................. 74

Front Rigging - Footrest Supports - PW93ST .......................................................................... 70

Front Rigging - Legrest Release Handles and Ratchet Assembly ........................................... 82

Front Rigging - Legrest Supports - P904A ............................................................................... 78

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No.

95-172

Description

Front Rigging - Legrest Supports - PAS4A/PAL4A .................................................................. 80

Front Rigging - One Piece Wooden Footboard - (S1263) For P93, P93E, P93M, PW93, PW93E 96

Front Rigging - Pivot/ Slide Tube and Footplate - P93ST, PW93ST ....................................... 90

Front Rigging - Pivot/ Slide Tube and Footplate - P904, PAL4A, PAS4A ................................ 92

Front Rigging - Pivot/ Slide Tube and Footplate - P93, P93E, P93M ....................................... 86

Front Rigging - Pivot/ Slide Tube and Footplate - PW93, PW93E ........................................... 88

Front Rigging - Reference Chart .............................................................................................. 61

Headrest Extension (9110L) ..................................................................................................... 21

Motor, 2-Pole and Gearbox ...................................................................................................... 51

Motor, 4-Pole and Gearbox ...................................................................................................... 54

Packaging, Literature and Decals ............................................................................................ 8

Solid Folding Seats .................................................................................................................. 35

Upholstery, Back Non-Recliner (After 9/30/00) ........................................................................ 25

Upholstery, Back Non-Recliner (Before 10/01/00) ................................................................... 23

Upholstery, Recliner Back, Headrests and Pillows .................................................................. 32

Upholstery, Seat ....................................................................................................................... 27

Wheel Lock ............................................................................................................................... 49

Wheels, Rear and Anti-Tippers ................................................................................................ 47

Frame Finishes and Touch-Up Paints

Color Number Part Number Bottle Size Color

Pink Pearl.6 oz.103145202P

Super Teal.6 oz.103145406P

Deep Purple.6 oz.103145608P

Cobalt Blue.6 oz.104631917P

Anthracite.6 oz.103337622P Wet Black.6 oz.103145024P

White.6 oz.103144729P

Sunny Yellow.6 oz.103144830P

Lollipop Pink.6 oz.103145331P

Red.6 oz.103145533P

Flat Black.6 oz.104632734P

Electric Red

.6 oz.

1046321

61P

See Note(s) A See Note(s) A See Note(s) A

Electric Blue

.6 oz.

1046320

62P

See Note(s) A See Note(s) A See Note(s) A

Metallic Blue

.6 oz.

1046324

64P

See Note(s) A See Note(s) A See Note(s) A

Metallic Green

.6 oz.

1046323

65P

See Note(s) A See Note(s) A See Note(s) A

Teflon Black.6 oz.1101320-NLA69P

Silver VeinN/AN/A71P

Evergreen with Navy.6 oz.107389280P

Royal Blue with Grape.6 oz.107389583P

Lavender.6 oz.107389684P

Jeweled Green.6 oz.1101325101P

Denim Blue.6 oz.1101327102P Mocha Frost.6 oz.1101324103P Electric Teal.6 oz.1101316104P

Midnight Blue.6 oz.1101326105P

A - Veiling is not available on these colors. NOTE:

Frame Finishes, Touch-Up Paints and Upholstery Colors

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Frame Finishes, Touch-Up Paints and Upholstery Colors

Sparkle Frame Finishes

Color Number Color

Twilight Sparkle72P

Gold Sparkle73P

Green Sparkle74P

Blue Sparkle75P

Red Sparkle76P

Wet Black with Twilight Sparkle88P

Veil Options

Color Number Color

Dark Purple Veil13V

Gold Veil67V

Green Veil19V

Grey Veil15V

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Frame Finishes, Touch-Up Paints and Upholstery Colors

Upholstery Colors

Vinyl Colors Nylon Colors

U240 BlackU67 Black

U75 Dove Grey

U85 Dark Blue

U86 Ruby

U97 Sky Blue

U88 Camel

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Packaging, Literature and Decals

NOTE: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Packaging, Literature and Decals

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

40131X148 Carton, Hardware 1 11

1023167 Carton, Battery Boxes 1 12

1023166-NLA Insert 1 13

1074355 Carton 1 14 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 15

40131X011 Carton, Front Riggings 1 16

1023165 Insert 1 17 1021866 Bag, Poly (15" Wide x 26" Long) 1 18

40131X039 Insert 1 19

1035900 Decal, Transportation 1 110 1119281 Name Plate, Patent Numbers 1 111 1090146 Decal, Invacare 3-D Logo (1-19/32" L) 1 212 C 1095224 Decal, Model, Ranger II (Black) 1 213 B,C 1095225 Decal, Model, Ranger II (White) 1 213 C

1097104-NLA Decal, 250-S 1 214

1028343 Operating Instructions, MKIV 1 1A 1095272 Manual, Instruction MKIV RII 1 1A 1058610 Owner's Manual 1 1A

A - Not Shown

B - Used for chairs with frame colors 02P, 29P, 30P and 84P only.

C - Invacare logo added and model decals changed 1/11/00. When replacing side frames before 1/11/00 order decals in pairs

to match.

NOTE:

NOTE: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Side Frames and Hardware (Before 10/1/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Side Frames and Hardware (Before 10/1/00)

Item #1 - Side Frames and Hardware

Frame Type Non-Recliner Recliner

8881062457

8881058593

Adult - Right

See Note(s) A, B See Note(s) A, B

8881062458

8881058594

Adult - Left

See Note(s) A, B See Note(s) A, B

8881062459

8881058599

Hemi - Right

See Note(s) A, B See Note(s) A, B

8881062460

8881058600

Hemi - Left

See Note(s) A, B See Note(s) A, B A - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors." B - Decals not included with frame. See page titled "Packaging, Literature and Decals."

NOTE:

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

See Chart Item #1 - Side Frames and Hardware 1 11

1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 12

47471X074 Spring, Arm Lock 1 13

1028594 Pin, Arm Lock 1 14

40117X006 Bearing (5/8") 1 25

1059371 End Cap, Oval 1 16 1085124 Screw, Socket Flat Head (#10-32 x 1-3/4") 1 17 A 1007541 Seat Guide 1 28 1003545 Screw, Socket Head (1/4-20 x 1-1/4") 1 29 1085134 Screw, Socket Flat Head C'Sunk (#10-32 x 1-5/8") 1 110 A 1060099 Front Rigging Hanger - Right 1 111 1060100 Front Rigging Hanger - Left 1 111 1027097 Plug Button, Black (3/4") 1 112 1025736 Locknut (1/4-20) 1 213 1025731 Locknut (#10-32) 1 214 1058520 Fastener, Panel Snap-In 1 115

A - Screws changed 9/16/99 and serve as a direct replacement for chairs manufactured before 9/16/99.

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Side Frames and Hardware (After 9/30/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Side Frames and Hardware (After 9/30/00)

Item # 1 - Side Frames and Hardware

Frame Type Non-Recliner Recliner

8881062457

8881101699

Adult - Right

See Note(s) A, B See Note(s) B, A

8881062458

8881101700

Adult - Left

See Note(s) A, B See Note(s) B, A

8881062459

8881101701

Hemi - Right

See Note(s) A, B See Note(s) B, A

8881062460

8881101702

Hemi - Left

See Note(s) A, B See Note(s) B, A A - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors." B - Decals not included with frame. See page titled "Packaging, Literature and Decals."

NOTE:

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

See Chart Item # 1 Side Frames and Hardware 1 11 A

40117X006 Bearing (5/8") 1 22

1028594 Pin, Arm Lock 1 13

47471X074 Spring, Arm Lock 1 14

1089723 Rivet, Tubular 1 15 1029501 Plug Button, Black (1") 1 16 1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 17 1059371 End Cap, Oval 1 18 1085124 Screw, Socket Flat Head (#10-32 x 1-3/4") 1 29 1007541 Seat Guide 1 210 1085134 Screw, Socket Flat Head C'Sunk (#10-32 x 1-5/8") 1 211 1003545 Screw, Socket Head (1/4-20 x 1-1/4") 1 212 1060099 Front Rigging Hanger - Right 1 113 1060100 Front Rigging Hanger - Left 1 113 1027097 Plug Button, Black (3/4") 1 114 1025731 Locknut (#10-32) 1 215 1025736 Locknut (1/4-20) 1 216

A - Includes items 2-7

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Crossbraces and Seat Extensions

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Crossbraces and Seat Extensions

Item #1 - Crossbraces

Crossbrace Type 14" Wide 16" Wide 18" Wide 20" Wide

1071547

1071546

1071545

1064405

Hemi

See Note(s) A See Note(s) A See Note(s) A See Note(s) A

1064412

1064411

1064410

1064409

Adult

See Note(s) A See Note(s) A See Note(s) A See Note(s) A

A - Decals are not included with Crossbraces. See page titled "Packaging, Literature and Decals." NOTE:

NOTE: When replacing crossbraces for chairs built before 6/18/99 using seat extensions, a new seat extension kit must be ordered.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Crossbraces and Seat Extensions

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

See Chart Item #1 - Crossbraces 1 21

1028835 Cap, Hub (Black) 1 42

60264X001 Locknut (5/16-24) 1 13

1028491 Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 44 1056708 Plug, Pivot Tube 1 45 1038179 Screw, Hex Head (5/16-24 x 4-1/4") 1 26 1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 27 1029501 Plug Button, Black (1") 1 48 1025195 Locknut (1/4-20) 1 19 1057381 Pivot Link, 14-15" Wide - Hemi 1 210 1057382 Pivot Link, 16-18" Wide - Hemi 1 210 1057383 Pivot Link, 19-20" Wide - Hemi 1 210 1057384 Pivot Link, 14-15" Wide - Adult 1 210 1057385 Pivot Link, 16-18" Wide - Adult 1 210 1057386 Pivot Link, 19- 20" Wide - Adult 1 210 1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 211 1057828 Strap, Pivot Link 1 212 1098625 Screw, Hex Head (5/16-24 x 3-1/2") 1 113 1037913 Bushing (5/16 x 7/16 x 9/32") 1 114 1016301 Washer, Nylon (5/16 x 7/8 x 1/8") 1 115 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 116 1025730 Locknut (5/16-24) 1 117 1016263 Spacer, Coved (3/4 x 1 x 1/2") 1 418

16308X000 Washer, Flat (5/16 x 11/16 x 1/16") 1 219

1057832 Hardware, Crossbrace 1 120 1058616 Seat Extension Kit - 1" (Pair) 2 121 1058617 Seat Extension Kit - 2" (Pair) 2 121 1027057 Upholstery Hdwr. Kit -Screws w/ Washers 8 ea.

(#10 x 7/8")

2 122

1076284 Screw w/ washer (#10 x 7/8") 1 222

40163X003 Screw, Phillips Pan Head (#10 X 5/8") 1 222

1025736 Locknut (1/4-20) 1 123 1057830 Hardware, Crossbrace Pivot Tube 1 1A,B

A - Includes Items 2-6

B - Not Shown

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Back Canes and Attaching Hardware (Before 10/1/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Back Canes and Attaching Hardware (Before 10/1/00)

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

See Chart #1 Back Cane Assemblies 1 21 See Chart #2 Spreader Bar 1 12

1135506 Package, Foam Hand Grips (9" Long) 10 13 1130582 Package, Plug Buttons, Black (7/8") 10 14 1059389 Kit, Back Cane Attaching Hardware 2 15 A

Locknut (5/16-24) 1 26 Locknut (1/4-20) 1 47 Screw w/ Lug (5/16-24 x 1-3/8") 1 28 Insert, Non-Threaded Back Cane

(For Back Heights 20" and Lower)

1 29

Screw, Hex Head (1/4-20 x 1-1/2") 1 410 Washer (1/4 x 23/32 x 1/16") 1 411

A - Includes Items 6-11

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Back Canes and Attaching Hardware (Before 10/1/00)

#1 Back Cane Assemblies

Back

Height

Back Cane-

No Push Handle

10 Deg. Bend

Back Cane-

Push Handle

Straight

Back Cane-

Push Handle

10 Deg. Bend

10455751048558104899216" 10455761048559104899317" 10455771048560104899418" 10455781048561104899519" 10455791048562104899620"

NOTE: Back Cane Assemblies include Foam Grips and Plug Buttons where shown

#2 Spreader Bar

Chair Width Part Number

104387114" 104387316" 104387518" 104387720"

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1028372 Back Cane Assembly - 10 Degree Bend 1 21 1042402 Back Cane Assembly - Straight 1 21 1006229 Grip, Foam (8") 1 22

1071565-NLA Tube, Rear Upright, Black 1 23

1026907 Washer (1/4 x 1/2 x 1/16") 1 44 1057955 Screw, Hex Head (1/4-20 x 1-1/4") 1 45

1071488-NLA Insert, Threaded 1 26

1055348 Screw, Hex Head (1/4-28 x 1-3/4") 1 47 1026900 Washer (1/4 x 23/32 x 1/16") 1 88 1065362 Locknut (1/4-28) 1 19 1025195 Locknut (1/4-20) 1 110

1071564-NLA Hardware, Back Cane Attaching (Pair) 2 111 A

A - Includes Items 3-10

NOTE:

Back Canes and Attaching Hardware (After 9/30/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Item #1 - Headrest Upholstery

Chair Width Nylon Vinyl

8881054633

888105258614" W

See Note(s) A

8881054638

888105258816" W

See Note(s) A

8881054637

888105259018" W

See Note(s) A

8881054639

888105259220" W

See Note(s) A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors." NOTE:

Headrest Extension (9110L)

(For Non-Recliners Only)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Headrest Extension (9110L)

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

See Chart #1 - Headrest Upholstery 1 11

1027095 Plug Button, Black (7/8") 1 22 1054605 Tube, Headrest Extension 1 23 1028756 Tube, Insert 1 24 1028752 Bracket, Headrest, Right 1 15 1028753 Bracket, Headrest, Left 1 15 1028484 Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 26 1031095 Screws with Washers (#10-16 x 7/8") 1 47 1076284 Screw w/ washer (#10 x 7/8") 4 17

(For Non-Recliners Only)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Single Liners

Chair Width

Nylon

16-17" Height

Nylon

18-20" Height

Vinyl

16-17" Height

See Note(s) A

Vinyl

18-20" Height

See Note(s) A

8881045060

8881045076

1045205104517314" Wide

See Note(s) A See Note(s) A

8881045062

8881045078

1045207888104517516" Wide

See Note(s) A See Note(s) A

8881045064

8881045080

1045209104517718" Wide

See Note(s) A See Note(s) A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors." NOTE:

Non-Recliner Back Upholstery (Before 10/01/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Non-Recliner Back Upholstery (Before 10/01/00)

Dual Liners

Chair Width

Nylon

16-17" Height

Nylon

18-20" Height

Vinyl

16-17" Height

See Note(s) A

Vinyl

18-20" Height

See Note(s) A

8881045065

8881045081

1045210104517814" Wide

See Note(s) A See Note(s) A

8881045067

8881045083

1045212104518016" Wide

See Note(s) A See Note(s) A

8881045069

8881045085

1045214104518218" Wide

See Note(s) A See Note(s) A

8881045071

8881045087

1045216104518420" Wide

See Note(s) A See Note(s) A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors." NOTE:

NOTE: Dual line back upholstery is used with chairs that have a seat deeper than 17" or back wider than 18."

Back Upholstery Hardware

Part Number

1029850

Consists of:

(2) each Screws with Washers (#10 x 7/8") and

(2) each Cable Ties.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Chair Width

Nylon

16-20" Height

Vinyl

16-20" Height

8881058352

106061114" Wide

See Note(s) A

8881058353

106061216" Wide

See Note(s) A

8881058354

106061318" Wide

See Note(s) A

8881058355

106061420" Wide

See Note(s) A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors." NOTE:

Upholstery, Back Non-Recliner (After 9/30/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Upholstery, Back Non-Recliner (After 9/30/00)

Back Upholstery Hardware

Part Number

1029850

Consists of:

(2) each Screws with Washers (#10 x 7/8") and

(2) each Cable Ties.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Nylon

Chair Width 16" D 17" D 18" D

10163171016316101631514" W 10163231016322101632116" W 10163291016328101632718" W 10176491017646101764320" W

Seat Upholstery

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Seat Upholstery

Vinyl

Chair Width 16" D 17" D 18" D

8881024419

8881024418

8881024417

14" W

See Note(s) A See Note(s) A See Note(s) A

8881024134

8881024424

8881024423

16" W

See Note(s) A See Note(s) A See Note(s) A

8881024138

8881024137

8881024132

18" W

See Note(s) A See Note(s) A See Note(s) A

8881024142

8881024141

8881024129

20" W

See Note(s) A See Note(s) A See Note(s) A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery." NOTE:

Seat Upholstery Hardware

Part Number

1027057

Consists of:

(8) each Screws with Washers (#10 x 7/8")

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Recliner Back Assembly

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Recliner Back Assembly

Item #3 - Back Cane with Grip

Back Height

18 - 20" W

Left

14" W

Right

14" W

Left

16" W

Right

16" W

Left

18 - 20" W

Right

10520901052089105208010520791053273105327218" H 10520921052091105208210520811053275105327420" H 10520941052093105208410520831053277105327622" H 10520961052095105208610520851053279105327824" H 10520981052097105208810520871053281105328026" H

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Recliner Back Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1027095 Plug Button, Black (7/8") 1 21 1052997 Tube, Headrest with Plug Button,

without Snap Buttons - Right

1 12

1052998 Tube, Headrest with Plug Button,

without Snap Buttons - Left

1 12

See Chart Item #3 - Back Cane with Grip 1 13

1050214 Cable with Trigger 1 24 B,F 1050215 Cable with Trigger 1 24 B,G 1050216 Cable with Trigger 1 24 B,H 1026032 Washer, Nylon (11/32 x 11/16 x 1/16") 1 45 1050153 Screw, Socket Head Shoulder (5/16 x 7/8") 1 26 1050154 Lock Cylinder, Recline 1 27 D 1050306 Lock Cylinder 1 27 E 1050136 Pivot Block 1 28 1062604 Screw, Shoulder Socket Head (3/8 x 1-1/4") 1 49 1050293 Bar, Spreader, Black (14-20") 1 110 1024713 Spring, Torsion w/ Button 1 211 1025714 Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 112 1091417 Screw, Phillips Pan Head (#10-24 x 1-1/4") 1 212 C 1021260 Cable Tie (5-5/8" Long) 1 613 1025736 Locknut (1/4-20) 1 114 1026907 Washer (1/4 x 1/2 x 1/16") 1 215 1026158 Locknut (5/16-18) 1 416 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 417 1062774 Switch, Limit, Assembly 1 118 A 1008525 Washer, Internal Tooth Lock (#4-40) 1 519 1025116 Screw, Slotted Hex Head (#4-3/8") 1 520 1024001 Sensor, Actuator Switch 1 121 1050310 Clamp, Cable 1 122 1021260 Cable Tie (5-5/8" Long) 1 123

A - Includes Items 19-23

B - When ordering cable assembly #1050215 or #1050216 for chairs made before 8/4/99 or #1050214 for chairs made before

2/1/00, item 12 #1091417 must be ordered as well.

C - Lever fastener changed 8/4/99 from a "10-32 threaded insert" to a "10-24 tinnerman nut" for item 4 #1050215 and

#1050216 and 2/1/00 for #1050214.

D - Ranger II Basic - Standard 250 lb. maximum capacity.

E - Ranger II Standard - Heavy Duty 300 lb. maximum capacity.

F - 26" High Canes

G - 22-24" High Canes

H - 18 and 20" High Canes

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Recliner Back Upholstery

Nylon - Single Liners

Chair Width 18" H 20" H 22" H 24" H 26" H

1050332105032710503221050317105031214" W 1050334105032910503241050319105031416" W 1050336105033110503261050321105031618" W

Recliner Back Upholstery

Nylon - Dual Liners

Chair Width 18" H 20" H 22" H 24" H 26" H

1050381

1050370

1050359

1050348

1050337

14" W

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

1050383

1050372

1050361

1050350

1050339

16" W

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

1050385

1050374

1050363

1050352

1050341

18" W

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

1050387

1050376

1050365

1050354

1050343

20" W

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

A - Dual liner back upholstery is used with chairs that have a seat deeper than 17" or back wider than 18." NOTE:

Headrest

Nylon

14" W 16" W 18" W 20" W

1055283105462910546281054627

Pillows

Nylon

14" W 16 - 18" W 20" W

888105810410548961054894

Recliner Back, Headrests and Pillow Upholstery

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Recliner Back, Headrests and Pillow Upholstery

Nylon Upholstery Hardware

Back Upholstery Hardware Headrest Upholstery Hardware

10304411027059

Part Consists of:

(6) each Screw with Washer (#10 x 7/8")

Part Consists of:

(10) each Screw with Washer (#10 x 7/8")

Recliner Back Upholstery

Vinyl - Single Liners

Chair Width 18" H 20" H 22" H 24" H 26" H

8881050581

8881050576

8881050571

8881050566

8881050561

14" W

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

8881050583

8881050578

8881050573

8881050568

8881050563

16" W

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

8881050585

8881050580

8881050575

8881050570

8881050565

18" W

See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery." NOTE:

Recliner Back Upholstery

Vinyl - Dual Liners

Chair Width 18" H 20" H 22" H 24" H 26" H

8881050630

8881050619

8881050608

8881050597

8881050586

14" W

See Note(s) A, B See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A

8881050632

8881050621

8881050610

8881050599

8881050588

16" W

See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A

8881050634

8881050623

8881050612

8881050601

8881050590

18" W

See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A

8881050636

8881050625

8881050614

8881050603

8881050592

20" W

See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A See Note(s) B, A A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery." B - Dual liner back upholstery is used with chairs that have a seat deeper than 17" or back wider than 18."

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Recliner Back, Headrests and Pillow Upholstery

Headrest

Vinyl

14" W 16" W 18" W 20" W

8881055291

8881054632

8881054631

8881054630

See Note(s) A See Note(s) A See Note(s) A See Note(s) A A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery." NOTE:

Pillow

Vinyl

14" W 16 - 18" W 20" W

8881058107

8881054619

8881054617

See Note(s) A See Note(s) A See Note(s) A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery." NOTE:

Vinyl Upholstery Hardware

Back Upholstery Hardware Headrest Upholstery Hardware

10310951027059

Part consists of:

(4) each Screw with Washer (#10 x 7/8")

Part consists of:

(10) each Screw with Washer (#10 x 7/8")

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Solid Folding Seats

NOTE: Solid Folding Seats measure two inches narrower than actual seat width.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Solid Folding Seats

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1013218 Washer (#10 Flat) 1 81 1016770 Bracket, Seat 1 22 1016771 Hook, Seat 1 23

40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 14

8881035937 Solid Folding Seat w/ Hardware (14" W x 16" D),

Vinyl

1 15 A

8881110378 Solid Folding Seat w/Hdwr (16" W x 16" D) - Vinyl 1 15 A 8881110379 Solid Folding Seat w/Hdwr (18" W x 16" D) - Vinyl 1 15 A 8881110372 Solid Folding Seat w/Hdwr (20" W x 16" D) - Nylon 1 15 A 8881035936 Solid Folding Seat w/ Hardware (20" W x 18" D),

Nylon

1 15 A

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

NOTE:

NOTE: Solid Folding Seats measure two inches narrower than actual seat width.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Adjustable Height, Removable Arms

Non-Reclining (Before 10/1/00 and All Recliners)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Adjustable Height, Removable Arms

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

8881015932 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Right 1 11 A 8881015933 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Left 1 11 A 8881011811 Arm Pad, Vinyl, Desk Length (9" L x 2" W) 1 11 A

1055949 Screws, Phillips Pan Head (#10-32 x 1-1/8") 2 12 1041522 Arm Tube, Upper with Plug Buttons (Black) - Full

Length

1 13

1070859 Arm Tube, Upper with Plug Buttons (Black) - Desk

Length

1 13

1057736 Arm Tube, Upper with Plug Buttons (Chrome) - Full

Length

1 13

1057734 Arm Tube, Upper with Plug Buttons (Chrome) -

Desk Length

1 13

1027095 Plug Button, Black (7/8") 1 24 8881057741 Adjustable Height Base (Color) - Right 1 15 B,C 8881057742 Adjustable Height Base (Color) - Left 1 15 B,C

1057743 Adjustable Height Base (Chrome) - Right 1 15 C

1057744 Adjustable Height Base (Chrome) - Left 1 15 C

1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 16

47471X074 Spring, Arm Lock 1 17

1028594 Pin, Arm Lock 1 18

1064130 Clothing Guard 1 19 C

1028645 Rivet 1 610

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

C - Stainless steel clothing guards were replaced with ABS plastic. Chairs manufactured before 7/30/97 should be ordered in

pairs.

NOTE:

Non-Reclining (Before 10/1/00 and All Recliners)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Adjustable Height Removable Arms

Non-Reclining (After 9/30/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Adjustable Height Removable Arms

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

8881015932 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Right 1 11 A 8881015933 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Left 1 11 A

1117328 Arm Pad, Full Length, Urethane Waterfall with

Screws, Black (13" L x 2-5/8" W)

1 11 B,F

1110818 Arm Pads, Full Length, Urethane Waterfall

with Screws, Black (13" L x 2-5/8" W) (Pair)

2 11

8881011811 Arm Pad, Vinyl, Desk Length (9" L x 2" W) 1 11 A

1117327 Arm Pad, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W)

1 11 B,F

1110817 Arm Pads, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W) (Pair)

2 11

1055949 Screws, Phillips Pan Head (#10-32 x 1-1/8") 2 12

1094270 Screw, Phillips Pan Head (#10-32 x 1-1/4") (Pair) 2 12 E

1071253 Arm Top, Adjustable Height with Plug Buttons - Full

Length (Black)

1 13

1070859 Arm Tube, Upper with Plug Buttons (Black) - Desk

Length

1 13

1027095 Plug Button, Black (7/8") 1 24

1065936 Plug, Pivot 1 25

47471X074 Spring, Arm Lock 1 16

1028594 Pin, Arm Lock 1 17

1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 18

1067734 Plug Button, Black (5/8") 1 29

1028645 Rivet 1 610

1064130 Clothing Guard 1 111 8881071554 Arm Base, Adjustable Height - Right 1 112 C 8881071555 Arm Base, Adjustable Height - Left 1 112 C

1068039 Pin, Pull 1 113

1019590 Screw, Socket Button Head (1/4-20 x 1-5/8") 1 114

1068025 Clevis, Pivot 1 115

1025195 Locknut (1/4-20) 1 116

1090277 Hardware, Mounting, Swingaway Armrest 1 117 D

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with

screws for chairs manufactured before1/3/02.

C - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

D - Includes items 14-16.

E - For urethane waterfall armpads only

F - After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair

NOTE:

Non-Reclining (After 9/30/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Fixed Height, Removable Arms

Non-Reclining (Before 10/1/00 and All Recliners)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Fixed Height, Removable Arms

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

8881015932 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Right 1 11 A 8881015933 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Left 1 11 A 8881011811 Arm Pad, Vinyl, Desk Length (9" L x 2" W) 1 11 A

1055949 Screws, Phillips Pan Head (#10-32 x 1-1/8") 2 12 8881057723 Desk Length Arm Tube (Color), Right 1 13 B 8881057724 Desk Length Arm Tube (Color), Left 1 13 B

1057725-NLA Desk Length Arm Tube (Chrome), Right 1 13 C 1057726-NLA Desk Length Arm Tube (Chrome), Left 1 13 C

1041891 Tube, Arm Desk Length, Right 1 13

1041895 Tube, Arm Desk Length, Left 1 13 8881057715 Tube, Arm, Full Length (Color), Right 1 13 B 8881057716 Tube, Arm, Full Length (Color), Left 1 13 B

1057717-NLA Tube, Arm, Full Length (Chrome), Right 1 13 C 1057718-NLA Tube, Arm, Full Length (Chrome), Left 1 13 C

1044513 Tube, Arm Full Length Standard, Right 1 13

1044514 Tube, Arm Full Length Standard, Left 1 13

1035472 Clothing Guard, Desk Length 1 14

1044572 Clothing Guard, Full Length 16-19" Deep 1 14

1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 85 8881057729 Arm, Desk Length without Armpad (Color), Right 1 16 B 8881057730 Arm, Desk Length without Armpad (Color), Left 1 16 B

1057731-NLA Arm, Desk Length without Armpad (Chrome), Right 1 16 C 1057732-NLA Arm, Desk Length without Armpad (Chrome), Left 1 16 C

1057727 Arm, Desk Length without Armpad, Right 1 16

1057728 Arm, Desk Length without Armpad, Left 1 16 8881057719 Arm, Full Length without Armpad (Color), Right 1 16 B 8881057720 Arm, Full Length without Armpad (Color), Left 1 16 B

1057721-NLA Arm, Full Length without Armpad (Chrome), Right 1 16 C 1057722-NLA Arm, Full Length without Armpad (Chrome), Left 1 16 C

1044573 Arm, Full Length, without Armpad (Black), Right 1 16

1044574 Arm, Full Length without Armpad (Black), Left 1 16

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

C - Chome is NLA as of 3/22/99. Black replaced chrome. Order arm components in pairs to match.

NOTE:

Non-Reclining (Before 10/1/00 and All Recliners)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Fixed Height Removable Arms

Non-Reclining (After 9/30/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Fixed Height Removable Arms

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

8881015932 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Right 1 11 A 8881015933 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Left 1 11 A

1117328 Arm Pad, Full Length, Urethane Waterfall with

Screws, Black (13" L x 2-5/8" W)

1 11 C,E

1110818 Arm Pads, Full Length, Urethane Waterfall

with Screws, Black (13" L x 2-5/8" W) (Pair)

2 11

8881011811 Arm Pad, Vinyl, Desk Length (9" L x 2" W) 1 11 A

1117327 Arm Pad, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W)

1 11 C,E

1110817 Arm Pads, Desk Length, Urethane Waterfall with

Screws, Black (9" L x 2-5/8" W) (Pair)

2 11

1055949 Screws, Phillips Pan Head (#10-32 x 1-1/8") 2 12

1094270 Screw, Phillips Pan Head (#10-32 x 1-1/4") (Pair) 2 12 8881071517 Tube, Arm, Full Length, Right 1 13 B 8881071518 Tube, Arm, Full Length, Left 1 13 B 8881071519 Tube, Arm, Desk Length, Right 1 13 B 8881071520 Tube, Arm, Desk Length, Left 1 13 B

1067734 Plug Button, Black (5/8") 1 24

1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 45

1035472 Clothing Guard, Desk Length 1 16

1065936 Plug, Pivot 1 27 8881071550 Arm Assembly, Full Length, Right 1 18 B 8881071551 Arm Assembly, Full Length, Left 1 18 B 8881071552 Arm Assembly, Desk Length, Right 1 18 B 8881071553 Arm Assembly, Desk Length, Left 1 18 B

1068039 Pin, Pull 1 19

1019590 Screw, Socket Button Head (1/4-20 x 1-5/8") 1 110

1068025 Clevis, Pivot 1 111

1025195 Locknut (1/4-20) 1 112

1090277 Hardware, Mounting, Swingaway Armrest 1 113 D

1027095 Plug Button, Black (7/8") 1 114

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

C - As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with

screws for chairs manufactured before 1/3/02.

D - Includes Items 10-12.

E - After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair

NOTE:

Non-Reclining (After 9/30/00)

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Casters and Forks

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Casters and Forks

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1056739 Cap, Head Tube 1 11

1028550 Locknut (5/8-18) 1 12

1041444 Washer (5/8 x 1-5/16 x 1/8") 1 13

1025734 Locknut (7/16-20) 1 14

1058556 Fork and Stem -8" Casters 1 15 8881058562 Caster Forks, Standard Fork (8") 1 15 A

1025726 Screw, Hex Head (7/16-20 x 3-1/4") 1 16

1025724 Washer (15/32 x 5/8 x 3/64") 1 17

1006058-NLA Caster, Semi Pneumatic (8") 1 18 D 1068311-NLA Caster, Semi Pneumatic Charcoal (8") 1 18 E

1070811 Wheel/Caster, Semi-Pneumatic with Bearings

(8 x 1-3/4")

1 18 F

1002002 Wheel with Bearings - Pneumatic (8 x 2") 1 19 B

1006049 Bearing (7/16") 1 210

1020592 Spacer, Bearing (7/16 x 5/8 x 1-3/4") 1 111

1042489 Caster Axle Hardware (1 Pair) 1 112 C

A - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - Includes Items 10 and 11

C - Includes Items 4, 6, and 7

D - Before 1/15/97

E - After 1/15/97

F - After 6/8/97

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Rear Wheels and Anti-Tippers

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Rear Wheels and Anti-Tippers

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1058824 Anti-Tipper 1 11

1025763 Spring, Torsion with Double Button 1 12

15680X013 Anti-Rattle (1") 1 13

1037900-NLA Bushing, Anti-Wear 1 14

1057423 Tube, Support, Anti-Tip 1 15

1023264 Key (6 MM x 6MM x 40 MM) 1 16

1023262 Washer (11/32 x 13/16 x 1/8") 1 17

1064179 Kit, Locking Tab Washers with Instruction Sheet 2 18

1023260 Screw (M8 x 1-1/4 x 20MM) 1 19

1064178 Wheel, Drive 5 Spoke, Pneumatic (12-1/2" x 2-1/4")

Includes: Locking Tab Washer with Instruction Sheet

1 110

1064177 Wheel, Drive 5 Spoke with Foam Fill Insert (12-1/2"

x 2-1/4") Includes: Locking Tab Washer with Instruction Sheet

1 110

1011524 Tire (12-1/2" x 2-1/4") 1 111

1011525 Tube (12-1/2" x 2-1/4") 1 112

1073936-NLA Insert, Flat Free 1 112 A 1064176-NLA Rim with Locking Tab 1 113

A - As of 10/20/99 the "Solid" Flat Free Insert was replaced by a "Foam Fill" process. When a Flat Free Insert is requested, a

complete wheel must be ordered.

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Wheel Lock

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Wheel Lock

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1057912 Bracket, Black 1 11

47376X024 Tip, Rubber Wheel Lock Handle, Black 1 12

1057946 Spacer (31/64 x 17/64 x 7/16") 1 13

1025765 Locknut (1/4-28) 1 14

1026105 Spacer, Nylon (1/4 x 7/16 x 1/8") 1 25

1026033 Washer, Nylon (1/4 x 1/2 x 1/16") 1 86

1031833 Shoe, Wheel Lock 1 17

1021406 Screw, Hex Head (1/4-20 x 1-1/4") 1 18

1028687 Screw, Hex Head (1/4-28 x 3/4") 1 39

1018733 Link 1 110

1021408 Handle, Wheel Lock -Right 1 111

1021409 Handle, Wheel Lock -Left 1 111

1025736 Locknut (1/4-20) 1 112

1025708 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 113

1018739 Washer (1/4 x 5/8 x 3/32") 1 114

1057947-NLA Lock Assembly, Wheel, Right 1 115 1057948-NLA Lock Assembly, Wheel, Left 1 115

1058899 Handle, Wheel Lock Extension, 6" 1 1A

1058900 Handle, Wheel Lock Extension, 8" 1 1A

A - Not Shown

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

2-Pole Motor and Gearbox

NOTE: Manual recliner models for rear wheel drive continued to use the 2-pole motor/gearboxes thru

5/14/99.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

2-Pole Motor and Gearbox

Item

Number

Basic

Long Cap

(Light Duty

250-S)

Right

Basic

Long Cap

(Light Duty

250-S)

Left

Description

With Brake

Lever

(Before

3/15/99)

Right

With Brake

Lever

(Before

3/15/99)

Left

Basic

Short Cap

Right

Basic

Short Cap

Left

10579031057902105790510579041057907-NLA1057906

Motor/

Gearbox

1. N/AN/AN/AN/A10567331056732Gear Box2. N/AN/AN/AN/A10701621070161

Motor

Assembly

N/AN/AN/AN/A1070162E1070161E

Motor

Assembly

(Re-

conditioned)

10558721055872105782710578271056735-NLA1056734

Brake Repair

Kit

1038361

1057826105782610609961056736

Brake Cover

with Screws

See Note(s) D See Note(s) D

561-005561-0051044044104404410643361064336

Brushes with cap

(Pair)

N/AN/A1050305105030510503051050305

Screw,

Phillips Pan

Head (#4-40

x 1/4")

N/AN/AN/AN/A

5165204-NLA

Coupling w/

Cup (1"

Diameter)

See Note(s) B See Note(s) B

N/AN/AN/AN/A

50000X007

Coupling w/

Cup (1-5/16"

Diameter)

See Note(s) B See Note(s) C See Note(s) C

N/AN/AN/AN/A

50000X341-N

Spacer9.

See Note(s) A See Note(s) A

N/AN/AN/AN/A10435941043594

Screw,

Socket Head

(1/4-20 x

1-1/8")

10.

N/AN/AN/AN/A10502X00110502X001Lockwasher11. N/AN/AN/AN/A10064901006490Plastic Tip12. N/AN/AN/AN/A1057972-NLA1057972-NLASlotted Plate13.

N/AN/AN/AN/A1008498-NLA1008498-NLA

Screw,

Socket Head

(#8-32 x 1/2")

14.

105782310578231057823105782310578231057823

Screw,

Socket Head

(M6 x 30MM)

15.

NOTE: Manual recliner models for rear wheel drive continued to use the 2-pole motor/gearboxes thru

5/14/99.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

2-Pole Motor and Gearbox

Item

Number

Basic

Long Cap

(Light Duty

250-S)

Right

Basic

Long Cap

(Light Duty

250-S)

Left

Description

With Brake

Lever

(Before

3/15/99)

Right

With Brake

Lever

(Before

3/15/99)

Left

Basic

Short Cap

Right

Basic

Short Cap

Left

105782410578241057824105782410578241057824

Screw,

Socket Head

(M6 x 16MM)

16.

1063287

N/AN/A

Clutch

Release

Extension

Handle

17.

See Note(s) D See Note(s) D See Note(s) D See Note(s) D A - Spacer not needed after 6/30/98. B - Coupling and Cup for chairs manufactured before 11/12/01 - Use part # 50000X007 as a direct replacement part. C - After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct replacement for part number 5165204 D - Sold in pairs only

NOTE:

NOTE: Manual recliner models for rear wheel drive continued to use the 2-pole motor/gearboxes thru

5/14/99.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

4-Pole Motor and Gearbox

With Brake Lever

(After 3/14/99)

NOTE: Manual Recliner models for Rear Wheel Drive continued to use the 2-Pole Motor/Gearboxes thru

5/14/99. See page titled "2-Pole Motor and Gearbox"

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

4-Pole Motor and Gearbox

Item Number Description Right Left

1085950

1085949

Motor / Gearbox

Before 10/29/01

See Note(s) D See Note(s) D

1085950E1085949E

Motor / Gearbox

Before 10/29/01

(Refurbished)

11091681109167

Motor / Gearbox

After 10/28/01

1. 1086222

1086221

Gearbox2.

See Note(s) C See Note(s) C

10867881087218

Motor Assembly

Before 10/29/01

3. 11092291109228

Motor Assembly

After 10/28/01

3. 10702951070294Brake Repair Kit4.

1070297-NLA1070297-NLA

Brake Cover with Screws

Before 10/29/01

1104402-NLA1104402-NLA

Brake Cover (Black) with

Screws

After 10/28/01

10702961070296

Brushes with Caps

(Set Of 4)

SEE ITEM 5SEE ITEM 5

Screw, Socket Pan Head

(#8-32 x 1/4")

5165204-NLA

Coupling w/ Cup (1"

Diameter)

See Note(s) A See Note(s) A

50000X007

Coupling w/ Cup (1-5/16"

Diameter)

See Note(s) B See Note(s) B

1043594

Screw, SHC

(1/4-20 x 1-1/8")

See Note(s) C See Note(s) C

1108978

Screw, SHC

(M6 x 1 x 20MM)

See Note(s) C See Note(s) C

10829841082984

Plastic Tip

Before 10/29/01

10. 11017251101725

Plastic Tip

After 10/28/01

10. 10829851082985Slotted Plate11. 10578231057823

Screw, Socket Head (M6 x

30MM)

12. 10578241057824

Screw, Socket Head (M6 x

16MM)

13.

With Brake Lever

(After 3/14/99)

NOTE: Manual Recliner models for Rear Wheel Drive continued to use the 2-Pole Motor/Gearboxes thru

5/14/99. See page titled "2-Pole Motor and Gearbox"

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

4-Pole Motor and Gearbox

A - Coupling with Cup for chairs manufactured before 11/12/01 - Use part # 50000X007 as a direct replacement part. B - After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct replacement for part number 5165204 C - When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered. Invacare Corp. utilizes alternate suppliers for this part number. D - As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect form, fit, function or aesthetics.

NOTE:

With Brake Lever

(After 3/14/99)

NOTE: Manual Recliner models for Rear Wheel Drive continued to use the 2-Pole Motor/Gearboxes thru

5/14/99. See page titled "2-Pole Motor and Gearbox"

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Boxes and Trays

Light Duty, 250-S models use UI batteries with 22NF battery boxes.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Boxes and Trays

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1057942 Battery Box Assembly, Dual w/ Single Extended

Connector, UI

1 21

1097007 Battery Box Assembly, Rear (22NF) 1 21 1057941 Battery Box Top Assembly, Dual w/ Single

Extended Connector, UI

1 22 A,B

1097003 Battery Box Top, Rear (22NF) 1 22 A,B 1009268 Battery Box Bottom Assembly 1 23 1057944 Battery Box Bottom with Strap 1 24 1057419 Bracket, Tray Hanger (16"-20" Wide) 1 25 1057939 Bracket, Tray Hanger (14" Wide) 1 26

15680X012 Collar, Anti-Rattle (7/8") 1 27

1021406 Screw, Hex Head (1/4-20 x 1-1/4") 1 28 1057835 Tray Assembly with Buckle 1 19 1025752 Screw, Hex Head (1/4-20 x 1-1/2") 1 410 1016025 Bumper, Rubber (UI Battery Boxes Only) 1 211 1007094 Rivet, Pop (3/16") (UI Battery Boxes Only) 1 212 1025736 Locknut (1/4-20) 1 113 1044066 Hanger, Tray 1 114 1025708 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 115 1057421 Support, Tray, Sectional 1 116 1062463 Support, Tray, Recliner 1 116 1025195 Locknut (1/4-20) 1 117 1057838 Battery Tray Assembly,

22NF Battery Boxes (16"-20" Wide) - Sectional

1 118

1062464 Battery Tray Assembly,

22NF Battery Boxes (16"-20" Wide) - Recliner

1 118

1057839 Battery Tray Assembly,

UI Battery Boxes (14" Wide) - Sectional

1 118

1062465 Battery Tray Assembly,

For U1 Battery Boxes (14" Wide) - Recliner

1 118

50000X166-NLA Fuse, 60 Amp (Buss 2-1/4" Long) 1 1E

1089385 Fuse, 80 Amp, MIDI (Non-G/B & G/B) 1 2E 1060318 Hardware, Battery Terminal, UI Batteries (Pair) 2 1C,E 1058618 Hardware, Battery Terminal, 22NF Batteries (1 Pair) 2 1D,E

A - As of 11/05/99 the battery harness fuse changed from a Bussman 60 AMP to a MIDI 80 AMP fuse. This battery box top is

compatible for chairs manufactured before 11/05/99 and must be ordered when a replacement Bussman 60 AMP fuse is

requested.

B - It is recommended that the new terminal hardware be ordered when a new battery box top is ordered.

C - Hardware includes small battery terminal caps (gray and orange), 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts,

cable ties, locking tab washers and instruction sheet for two batteries.

D - Hardware includes battery clamps, battery clamp cops (red and black), small battery terminal caps (red and black), 1/4-20

x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties and locking tab washers for two batteries.

E - Not Shown

NOTE:

Light Duty, 250-S models use UI batteries with 22NF battery boxes.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Charger and Harnesses

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Battery Charger and Harnesses

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1053834 Harness, Wiring, Standard 1 11 1062466 Harness, Wiring, Recliner 1 11 1039773 Screw, Phillips Pan Head (#6-32 x 1-1/8") 1 42 1061323 Washer, Nylon (11/64 x 1/2 x 1/8") 1 23

P0870X000 Nut, Hex Keps (#4-40) 1 24

1053837 Bracket, Charger Connector 1 15 1021742 Screw, Phillips Pan Head (#4-40 x 1/2") 1 16 1053161 Battery Charger, 8 Amp. 115vac (Off Board)

Dual Mode Round Plug, Lester

1 17 A

1085678-NLA Battery Charger, 8 Amp. 115vac (Off Board)

Dual Mode Round Plug w/ AC Power Line Cord, Dynamic

1 17

1061411-NLA Battery Charger, 4 Amp. 115vac (Off Board)

Dual Mode Round Plug, Lester

1 17 D,G

1123249 Battery Charger, 8 Amp. 115vac (Off Board)

Single Mode Round Plug w/ AC Power Line Cord, CTE Corp.

1 17 H,H1

1089627 Cord, AC Power Line 115vac (2-prong off-board

11'6"L)

1 18

1083929 Cable, Charger Extension (24" Long Round Plug) 1 19 1090357 Wrap, Slit Wire Harness (1/2" O.D.) (36" Long Cut

To Length)

1 110 B

1098892 Fuse, 15 Amp. (Buss ATC-15) 1 211 E 1090117 Fuse, 15 Amp. (Buss Mini ATM-15) 1 211 F 1095502 Package, Cable Ties (11-1/2" Long) 10 1C

A - On 7/18/01 Lester 8 AMP battery charger was reinstated.

B - Plastic wire wrap replaced mesh fabric and heat shrink 9/1/99. #1090357 can be used for chairs made before 9/1/99.

C - Not Shown

D - Light Duty, 250-S Models Only.

E - Before 4/1/03. Charger extension cable requires 1 fuse. Wiring harness requires 2 fuses

F - After 3/31/03. Charger extension cable requires 2 fuses. Wiring harness requires 2 fuses

G - The 4 amp. Lester charger was obsoleted and replaced with the 8 amp. CTE charger. For wet cell batteries, use the 8

amp. dual mode Lester charger.

H - CTE charger introduced 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. For wet cell batteries refer to

the 8 amp. Lester charger.

H1 - CTE charger looks exactly the same as Dynamic's charger except for the company name that is silk screened on the

narrow side panel, where the charger plug is (hard wired) attached. Serial number starts with 04A00000001.

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Support Assemblies

Riggings Color Right Color Left Chrome Right Chrome Left

1030709103070888810357808881035779P93

N/AN/A88810707778881070776PW93

1058476105847788810584748881058475P93ST

N/AN/A88810707858881070784PW93ST

1030995103099488810376928881037691P93E

N/AN/A88810707698881070768PW93E 1031192103119188810378378881037836P93M 1058483

1058482

N/AN/A

PAS4A/PAL4A

(14-20" W)

See Note(s) A See Note(s) A

1058489

1058488

8881058647

8881058646

P904A

(14-20" W)

See Note(s) A See Note(s) A See Note(s) A See Note(s) A

A - Calf pads and attaching hardware not included with legrest. See page titled "Calf Pads and Attaching Harware." NOTE:

Pivot/Slide Tube with Footplate

P93/P93E/P93M

Side

Alumunim Footplate

(Standard - 1650)

Deluxe Aluminum Footplate

(1450)

Extra Large Aluminum

Footplate

(1350)

N/AN/A105857314"W - Right

N/AN/A105857414"W - Left 10319241028892105796916-20"W - Right 10319251028893105797016-20"W - Left 1086519N/AN/A16-20"W 2" Longer - Right 1086523N/AN/A16-20"W 2" Longer - Left 1086520N/AN/A16-20"W 4" Longer - Right 1086524N/AN/A16-20"W 4" Longer - Left

NOTE: The Pivot/Slide tube mounting hardware is not included.

Front Riggings Reference Chart

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Front Riggings Reference Chart

Pivot/Slide Tube with Footplate

PW93/PW93E

Side

Aluminum Footplate

(Standard - 1650)

Deluxe Aluminum

Footplate

(1450)

Extra Large Aluminum

Footplate

(1350)

Adjustable Angle Flip-up Footplate

(AT5543)

10604441086790N/A104154214"W - Right 10604451086791N/A104154314"W - Left 106275610263951074151107414916-20"W - Right 106275710263961074152107415016-20"W - Left

N/A1086515N/A1086494

16-20"W 2" Longer -

Right

N/A1086517N/A1086497

16-20"W 2" Longer -

Left

N/A1086516N/A1086495

16-20"W 4" Longer -

Right

N/A1086518N/A1086498

16-20"W 4" Longer -

Left

NOTE: The Pivot/Slide tube mounting hardware is not included.

Pivot/Slide Tube with Footplate

P93ST/PW93ST

Side

Composite Footplate

(1651)

105785916-20"W - Right 105786016-20"W - Left

NOTE: The Pivot/Slide tube mounting hardware is not included.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Front Riggings Reference Chart

Pivot/Slide Tube with Footplate

PAS4A

Side

Aluminum Footplate

(Standard - 1650)

Extra Large Aluminum Footplate

(1350)

1035454102390514"W - Right 1035455102390614"W - Left

NOTE: The Pivot/Slide tube mounting hardware is not included.

Pivot/Slide Tube with Footplate

PAL4A

Side

Aluminum Footplate

(Standard - 1650)

Extra Large Aluminum Footplate

(1350)

1035456102390716-20"W - Right 1035457102390816-20"W - Left

NOTE: The Pivot/Slide tube mounting hardware is not included.

Pivot/Slide Tube with Footplate

P904A

Side

Aluminum Footplate

(Standard - 1650)

Deluxe Aluminum Footplate

(1450)

Extra Large Aluminum

Footplate

(1350)

1058828N/A105861214"W - Right 1058829N/A105861314"W - Left 10588301028723105860416-20"W - Right 10588311028724105860516-20"W - Left 1086541N/A108652916-20"W 2" Longer - Right 1086551N/A108653116-20"W 2" Longer - Left 1086542N/A108653016-20"W 4" Longer - Right 1086552N/A108653216-20"W 4" Longer - Left

NOTE: The Pivot/Slide tube mounting hardware is not included.

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93 Footrest Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93 Footrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1020719 Anti-Rattle, Black 1 11

47565X057 Bushing (7/32 x 3/8 x 11/32") 1 12

1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 13 1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 14 1035539 Handle, Release (Black) - Right 1 15 1035540 Handle, Release (Black) - Left 1 15 1025735 Locknut (#10-32) 1 16 1028846 Rivnut (#10-32) 1 17 1028707 Spring, Release - Right 1 18 1028708 Spring, Release - Left 1 18 1026030 Screw, Lug (5/16-24 x 1-3/8") 1 19 1107321 Nut, Low Cap (5/16"-24) 1 110

1006490 Tip, Plastic, Black 1 1A,C 8881035779 Footrest Support Assembly, Adult, Color - Right 1 1A,B 8881035780 Footrest Support Assembly, Adult, Color - Left 1 1A,B

1030708 Footrest Support Assembly, Adult, Silver Vein -

Right

1 1A

1030709 Footrest Support Assembly, Adult, Silver Vein - Left 1 1A

A - Not Shown

B - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

C - Before 10/1/00 only

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PW93 Footrest Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PW93 Footrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1020719 Anti-Rattle, Black 1 11

47565X057 Bushing (7/32 x 3/8 x 11/32") 1 12

1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 13

1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 14

1035539 Handle, Release (Black) - Right 1 15

1035540 Handle, Release (Black) - Left 1 15

1025735 Locknut (#10-32) 1 16

1028846 Rivnut (#10-32) 1 17

1028707 Spring, Release - Right 1 18

1028708 Spring, Release - Left 1 18

15680X012 Collar, Anti-Rattle (7/8") 1 19

1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 110

1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 211

1044214 Nut, Hex with Nylon Cap (1/4-20) 1 112

1020534 Insert, Threaded 1 113

1074143 Kit, Slide Tube Mounting Hardware 1 114 C 8881070776 Footrest Support Assembly, Adult, Color - Right 1 1A,B 8881070777 Footrest Support Assembly, Adult, Color - Left 1 1A,B

A - Not Shown

B - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

C - Per Side

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93ST Footrest Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93ST Footrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 11

1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 12

1035539 Handle, Release (Black) - Right 1 13

1035540 Handle, Release (Black) - Left 1 13

1028846 Rivnut (#10-32) 1 14

1025735 Locknut (#10-32) 1 15

1030434 Cushion, Tubular Foam 1 16

1030435 Cover, Foam Cushion 1 17

1045267 Screw, Hex Head (1/4-20 x 3/4") 1 18

1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 19

1020534 Insert, Threaded 1 110

1028707 Spring, Release - Right 1 111

1028708 Spring, Release - Left 1 111

1031884 Bushing (9/32 x 3/8 x 11/32")

Black or Color Chairs

1 112

1006490 Tip, Plastic, Black 1 113 A

1026107 Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 114 A

1028485-NLA Nut, Hex (#10-32) 1 115 A

1026703 Kit, Pivot/Slide Tube Mounting Hardware (Pair) 2 116 8881058475 Footrest Support Assembly, Adult, Color - Right 1 1B,C 8881058474 Footrest Support Assembly, Adult, Color - Left 1 1B,C

1058477 Footrest Support Assembly, Adult, Chrome - Right 1 1B

1058476 Footrest Support Assembly, Adult, Chrome - Left 1 1B

A - Before 10/1/00 only.

B - Not Shown

C - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PW93ST Footrest Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PW93ST Footrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 11

1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 12

1035539 Handle, Release (Black) - Right 1 13

1035540 Handle, Release (Black) - Left 1 13

1025735 Locknut (#10-32) 1 14

1028846 Rivnut (#10-32) 1 15

1030434 Cushion, Tubular Foam 1 16

1030435 Cover, Foam Cushion 1 17

1028707 Spring, Release - Right 1 18

1028708 Spring, Release - Left 1 18

47565X057 Bushing (7/32 x 3/8 x 11/32") 1 19 15680X012 Collar, Anti-Rattle (7/8") 1 110

1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 111

1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 212

1044214 Nut, Hex with Nylon Cap (1/4-20) 1 113

1020534 Insert, Threaded 1 114

1074143 Kit, Slide Tube Mounting Hardware 1 115

1026107 Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 1A,B

1028485-NLA Nut, Hex (#10-32) 1 1A,B

1006490 Tip, Plastic, Black 1 1A,B 8881070784 Footrest Support Assembly, Adult, Color - Right 1 1A,C 8881070785 Footrest Support Assembly, Adult, Color - Left 1 1A,C

A - Not Shown

B - Before 10/1/00 only.

C - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93E Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93E Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 11 40163X002 Screw, Phillips Round Head (#10-32 x 1/2") 1 12 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 13

1027095 Plug Button, Black (7/8") 1 14

15680X012 Collar, Anti-Rattle (7/8") 1 15 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 16

1107321 Nut, Low Cap (5/16"-24) 1 17

1022874 Bumper 1 18

1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 19

67005X000 Rivnut (#10-32) 1 110

1008935 Spring, Release - Right 1 111

1008936 Spring, Release - Left 1 111

60279X003 Locknut (#10-32) 1 112

1023428 Handle, Release, Chrome - Right 1 113

1023431 Handle, Release, Chrome - Left 1 113

1006490 Tip, Plastic, Black 1 114 A 8881037691 Footrest Support Assembly, Adult, Color - Right 1 1B,C 8881037692 Footrest Support Assembly, Adult, Color - Left 1 1B,C

1030994 Footrest Support Assembly, Adult, Chrome - Right 1 1C

1030995 Footrest Support Assembly, Adult, Chrome - Left 1 1C

A - Before 10/1/00 Only

B - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

C - Not Shown

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PW93E Footrest Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PW93E Footrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

15680X012 Collar, Anti-Rattle (7/8") 1 21

1027095 Plug Button, Black (7/8") 1 22

1022874 Bumper 1 13

1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 14

1035539 Handle, Release (Black) - Right 1 15

1035540 Handle, Release (Black) - Left 1 15

1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 16

47565X057 Bushing (7/32 x 3/8 x 11/32") 1 17

1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 18

1028707 Spring, Release - Right 1 19

1028708 Spring, Release - Left 1 19

1028846 Rivnut (#10-32) 1 110

1025735 Locknut (#10-32) 1 111

1074108 Cap, End Tube (3/4") 1 112

1020534 Insert, Threaded 1 113

1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 114

1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 215

1044214 Nut, Hex with Nylon Cap (1/4-20) 1 116

1074143 Kit, Slide Tube Mounting Hardware 1 117 C 8881070768 Footrest Support Assembly, Adult, Color - Right 1 1A,B 8881070769 Footrest Support Assembly, Adult, Color - Left 1 1A,B

A - Specify frame color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - Not Shown

C - Per Side

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93M Footrest Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P93M Footrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

40163X002 Screw, Phillips Round Head (#10-32 x 1/2") 1 11 40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 12 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 13

1107321 Nut, Low Cap (5/16"-24) 1 14

1027095 Plug Button, Black (7/8") 1 25

11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 16

1008935 Spring, Release - Right 1 17

1008936 Spring, Release - Left 1 17

1022874 Bumper 1 18

1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 19

67005X000 Rivnut (#10-32) 1 110 60279X003 Locknut (#10-32) 1 111

1023428 Handle, Release, Chrome - Right 1 112

1023431 Handle, Release, Chrome - Left 1 112

1006490 Tip, Plastic, Black 1 113 C 8881037836 Footrest Support Assembly, Adult, Color - Right 1 1A,B 8881037837 Footrest Support Assembly, Adult, Color - Left 1 1A,B

1031191 Footrest Support Assembly, Adult, Chrome - Right 1 1B

1031192 Footrest Support Assembly, Adult, Chrome - Left 1 1B

A - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - Not Shown

C - Before 10/1/00 only.

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P904A Legrest Supports

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

P904A Legrest Supports

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1027095 Plug Button, Black (7/8") 1 11

11919X000 Screw, Truss Head (3/8-16 x 1-1/2") 1 12

1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 23

40363X000 Hex Nut (3/8"-16) 1 14

1025730 Locknut (5/16-24) 1 15

1026030 Screw, Lug (5/16-24 x 1-3/8") 1 16

04526X040 Tube, Elevating Support (Chrome) - Right 1 17

04526X041 Tube, Elevating Support (Chrome) - Left 1 17 8881048851 Tube, Elevating Support (Color) - Right 1 17 A 8881048852 Tube, Elevating Support (Color) - Left 1 17 A

1027097 Plug Button, Black (3/4") 1 18 1058484 Tube, Legrest Support (Chrome) - Right 1 19

1058485 Tube, Legrest Support (Chrome) - Left 1 19 8881058664 Tube, Legrest Support (Color) - Right 1 19 A 8881058665 Tube, Legrest Support (Color) - Left 1 19 A

1022874 Bumper 1 110

1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 111 8881058646 Legrest Support Assembly w/o Pad, Adult, Color -

Right

1 1A,B

8881058647 Legrest Support Assembly w/o Pad, Adult, Color -

Left

1 1A,B

1058488 Legrest Support Assembly w/o Pad, Adult, Silver

Vein - Right

1 1B,C

1058489 Legrest Support Assembly w/o Pad, Adult, Silver

Vein - Left

1 1B,C

A - Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - Not Shown

C - As of 7/6/07, chrome finish option is discontinued and no longer available.

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PAS4A/PAL4A Articulating Legrests

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

PAS4A/PAL4A Articulating Legrests

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1058478 Tube, Legrest Support, Right 1 11

1058479 Tube, Legrest Support, Left 1 11

1027097 Plug Button, Black (3/4") 1 12

40363X000 Hex Nut (3/8"-16) 1 33

1022854 Screw, Slotted Head Shoulder (1/2 x 1-1/8") 1 14

1022877 Tube Support and Drive Link - Right 1 15

1022878 Tube Support and Drive Link - Left 1 15

1022848 Slide Tube, Articulating (Chrome) - Right 1 16

1022849 Slide Tube, Articulating (Chrome) - Left 1 16

1027377 Washer (#20) 1 17

60264X001 Locknut (5/16-24) 1 18 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 19

1022866 Screw, Socket Button Head (3/8-16 x 3/4") 1 210

1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 211

1022846 Bar, Link, Chrome 1 112

1058482 Legrest Support, Articulating (Chrome) - Right 1 1A,B

1058483 Legrest Support, Articulating (Chrome) - Left 1 1A,B

A - Not Shown

B - 14-20" Wide

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Legrest Release Handles and Ratchet Assembly

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Legrest Release Handles and Ratchet Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 11

1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 12

1026107 Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 13 A

1028485-NLA Nut, Hex (#10-32) 1 14 A

1035539 Handle, Release (Black) - Right 1 15

1035540 Handle, Release (Black) - Left 1 15

1006490 Tip, Plastic, Black 1 16 A

47565X057 Bushing (7/32 x 3/8 x 11/32") 1 17

1028707-NLA Spring, Release - Right 1 18

1028708 Spring, Release - Left 1 18

1023260 Screw (M8 x 1-1/4 x 20MM) 1 19

1028846 Rivnut (#10-32) 1 110

1040060 Tip, Black Plastic 1 111

1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 112

42326X004 Bar, Ratchet - Right/Left 1 113 B

1023811 Bar, Ratchet - Right 1 113 C

1023812 Bar, Ratchet - Left 1 113 C

47330X003 Spacer (5/16 x 1/2 x 3/8") 2 214

1040831 Snap Ring 1 115

1037125 Cam, Legrest 1 116

1037485 Spring, Release 1 117

10261X000 Acorn Nut (5/16"-24) 1 118 04528X002 Bracket, Release (Chrome) 1 119

1037126 Handle, Release 1 120

A - Before 10/1/00 only.

B - For 904 Legrests

C - For Articulating Legrests

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Calf Pads and Attaching Hardware

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Calf Pads and Attaching Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

88804529X003 Pad, Legrest Vinyl - Right 1 11 A,B 88804529X004 Pad, Legrest Vinyl - Left 1 11 A,B

1091767-NLA Pad with Screws, Legrest (Pair) 2 11 A,C,D

8881091764 Pad, Legrest Vinyl - Right/Left 1 11 A,C,E

01415X000-NLA Cover, Legrest Pad 1 11

40163X006 Screw, Phillips Pan Head (#10-14 x 1/16") 1 12 04526X019 Plate, Legrest Pad 1 13

1025730 Locknut (5/16-24) 1 14

1025133 Spacer, Legrest Pad 1 15

1032267 Spacer, Legrest Pad Mounting 1 16

1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 17

1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 18

1066591 Screws, Phillips Head (#10-32 x 11/16") 2 19

48823X008 Spring, Leaf 1 110 60264X001 Locknut (5/16-24) 1 111

1025104 Bracket, Legrest (Chrome) 1 112

1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 113

A - Specify upholstery color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."

B - 14-15" Wide

C - 16-20" Wide

D - Before 9/5/00

E - After 9/4/00

NOTE:

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

P93, P93E, P93M

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1027097 Plug Button, Black (3/4") 1 11

1041527 Pivot/Slide Tube with Plug Button (Black) 1 12 B,D,E

1086479 Pivot Slide Tube with Plug Button, 2" Longer (Black) 1 12 E

1086480 Pivot Slide Tube with Plug Button, 4" Longer (Black) 1 12 E

1041525 Pivot/Slide Tube with Plug Button - Deluxe

Aluminum

1 12

44200X059 Footplate, Aluminum - Small (6-3/4" W x 6" L) 1 13 C 44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 13 A

1043659 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Right

1 13

1043660 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Left

1 13

1002343 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Right

1 13 C

1002344 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Left

1 13 C

44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Right

1 13

44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Left

1 13

1016346 Cap, Tube End (7/8") 1 14 D

1027095 Plug Button, Black (7/8") 1 14 E

1006981 Spring, Leaf 1 15 D

1036120 Spring 1 25 B

1036123 Spring, Leaf 1 15 E

40120X001 Screw, Phillips Pan Head (#8-32 x 3/8") 1 26

1070168 Push Plug, Footplate 1 17

A - Aluminum footplates on chairs built before 2/96 had a "Bright aluminum" finish. Footplates after 1/96 now have a black

finish. When replacing 1 Bright aluminum footplate, it is suggested that 2 new (black) footplates are ordered.

B - Deluxe Aluminium Footplate

C - 14" Wide

D - Standard Aluminium Footplate

E - Extra Large Aluminium Footplate

NOTE:

P93, P93E, P93M

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

PW93, PW93E

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1027097 Plug Button, Black (3/4") 1 11

1048834 Pivot/Slide Tube with Plug Button 1 12 A,B

1098906 Pivot/Slide Tube with Plug Button - 2" Longer 1 12 A,B

1086482 Pivot/Slide Tube with Plug Button - 4" Longer 1 12 A,B

1070762 Pivot/Slide Tube with Plug Button, Deluxe Aluminum 1 12 C

44200X059 Footplate, Aluminum - Small (6-3/4" W x 6" L) 1 13 D 44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 13 E

1002343 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Right

1 13 F

1002344 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Left

1 13 F

44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Right

1 13 G

44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Left

1 13 G

1043659 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Right

1 13 H

1043660 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Left

1 13 H

1016346 Cap, Tube End (7/8") 1 14 A

1027095 Plug Button, Black (7/8") 1 14 B

1006981 Spring, Leaf 1 15 A

1036120 Spring 1 25 C

1036123 Spring, Leaf 1 15 B

40120X001 Screw, Phillips Pan Head (#8-32 x 3/8") 1 16

1070168 Push Plug, Footplate 1 17

A - For Standard Aluminium Footplates

B - For 1350 Extra Large Aluminium Footplates

C - For 1450 Deluxe Aluminium Footplates

D - For 14" wide with Standard Aluminum Footplates

E - For 16-20" wide with Standard Aluminum Footplates

F - For 14" wide with 1350 Extra Large Aluminum Footplates

G - For 16-20" wide with 1350 Extra Large Aluminum Footplates

H - For 16-20" wide with 1450 Deluxe Aluminum Footplates

NOTE:

PW93, PW93E

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

P93ST/PW93ST

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1120382 Pivot Slide Tube, Curved End - Long (9-7/8" Long) 1 11 D

1057852 Pivot/Slide Tube, Curved End (9-7/8") (Steel) 1 11 E

1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 22

1027097 Plug Button, Black (3/4") 1 13

1025195 Locknut (1/4-20) 1 14

60285X006 Screw, Socket Head Cap (1/4-20 x 2-1/4") 1 15

1026879 Footplate, Composite - Small (6" W x 6" L) 1 16 A

1026880 Footplate, Composite - Medium (7" W x 6" L) 1 16 B

1026881 Footplate, Composite - Large (8" W x 6" L) 1 16 C

A - For chairs 16" wide

B - For chairs 18" wide

C - For chairs 20" wide

D - P93ST

E - PW93ST

NOTE:

P93ST/PW93ST

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

P904, PAL4A, PAS4A

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Pivot/ Slide Tube and Footplate

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1027097 Plug Button, Black (3/4") 1 11

1100568 Pivot/Slide Tube with Plug Button (Black) 1 12 C,E,F

1100569 Pivot/Slide Tube with Plug Button

Extra Large and Standard Aluminium - 2" Longer

1 12 C

1100570 Pivot/Slide Tube with Plug Button - 4" Longer 1 12 C,E,F

1041526 Pivot/Slide Tube with Plug Button (Steel) 1 12 B,E,F

1100571 Pivot/Slide Tube with Plug Button - Deluxe 1 12 C,G

44200X059 Footplate, Aluminum - Small (6-3/4" W x 6" L) 1 13 D 44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 13 A

1043659 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Right

1 13

1043660 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -

Left

1 13

1002343 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Right

1 13 D

1002344 Footplate, Aluminum - Extra Large (7" W x 8-1/2" L)

- Left

1 13 D

44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Right

1 13

44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)

- Left

1 13

1016346 Cap, Tube End (7/8") 1 14 E

1027095 Plug Button, Black (7/8") 1 14 F

1006981 Spring, Leaf 1 25 E

1036120 Spring 1 25 G

1036123 Spring, Leaf 1 15 F

40120X001 Screw, Phillips Pan Head (#8-32 x 3/8") 1 16

1070168 Push Plug, Footplate 1 17

A - Aluminum footplates on chairs built before 2/96 had a "Bright aluminum" finish. Footplates after 1/96 now have a black

finish. When replacing 1 Bright aluminum footplate, it is suggested that 2 new (black) footplates be ordered.

B - PAL4/PAS4A

C - P904

D - 14" Wide

E - Standard Aluminium Footplate

F - Extra Large Aluminium Footplate

G - Deluxe Aluminium Footplate

NOTE:

P904, PAL4A, PAS4A

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

AT5543 Adjustable Angle Footplate Assemblies

PW93, PW93E

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

AT5543 Adjustable Angle Footplate Assemblies

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1060427 Footplate, Adjustable Angle - Large

(5-1/4" W x 8" L)

1 11 B

1062569 Footplate, Adjustable Angle - X-Large

(6-1/4" W x 8" L)

1 11 C

1029545 Screw, Socket Head Cap (1/4-20 x 3/4") 1 22 A

1058517 Clamp, Footplate 1 13 A

1082686 Nut, Hex Head (1/4-20 x 11/16") 1 24 A

1025736 Locknut (1/4-20) 1 15

1026907 Washer (1/4 x 1/2 x 1/16") 1 16

1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 17

1052102 Hinge, Footplate - Right 1 18

1052103 Hinge, Footplate - Left 1 18

1022831 Screw, Socket Button Head (1/4-20 x 1-7/8") 1 19

1026900 Washer (1/4 x 23/32 x 1/16") 1 110

1057855 Pivot/Slide Tube, Straight (9-7/8" Long - Steel) 1 111

1016301 Washer, Nylon (5/16 x 7/8 x 1/8") 1 112

1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 113

A - Items 2-4 must be ordered together for chairs manufactured before 8/10/99 due to a hardware change.

B - 14" Wide

C - 16" and Wider

NOTE:

PW93, PW93E

NOTE: Heel loops are not included. See page titled "Footrest and Legrest Accessories".

NOTE: For complete pivot/slide tube and footplate assemblies, see page titled "Front Riggings Reference

Chart".

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

S1263 One Piece Wooden Footboard and Hardware

P93, P93E, P93M, PW93, PW93E

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

S1263 One Piece Wooden Footboard and Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

See Chart #1 One Piece Wooden Footboard 1 11 See Chart Heel Loop Hardware Packages 1 1A

1032013 Kit, Wooden Footboard Mounting Hardware 1 12 B

Screw, Phillips Oval Head (#10-32 x 1-1/2") 1 13 Screw, Phillips Oval Head (#10-32 x 1-1/4") 1 34 Tube, Slide - Right 1 15 Tube, Slide - Left 1 15 Plug Button, Black (3/4") 1 26 Locknut (#10-32) 1 47 Cap, Tube End (7/8") 1 28 Lock, Pad Plate, Legrest 1 19 Clamp 1 210 Washer, Nylon (3/16 x 7/16 x 1/8") 1 311 Link, Locking 1 112

1054573 Kit, Wooden Footboard Mounting Hardware 1 12 C

Screw, Phillips Oval Head (#10-32 x 1-1/2") 1 13 Screw, Phillips Oval Head (#10-32 x 1-1/4") 1 34 Tube, Pivot/Slide - Right (Chrome) 1 15 Tube, Pivot/Slide - Left (Chrome) 1 15 Plug Button, Black (3/4") 1 26 Locknut (#10-32) 1 47 Cap, Tube End (7/8") 1 28 Lock, Pad Plate, Legrest 1 19 Clamp 1 210 Washer, Nylon (3/16 x 7/16 x 1/8") 1 311 Link, Locking 1 112

A - Not Shown.

B - Includes items 3-12 and used for P93, P93E, P93M and P904

C - Includes items 3-12 and used for PW93 andPW93E only.

NOTE:

#1 One Piece Wooden Footboard

P93, P93E, P93M, PW93, PW93E

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

S1263 One Piece Wooden Footboard and Hardware

#1 One Piece Wooden Footboard

Footrest-

Footboard w/

Heel Loop Holes

Part Number

Legrest-

Footboard w/o

Heel Loop Holes

Part Number

Chair

Width

Footboard

Width

Footboard

Depth

6"11-5/8"14"48247X0031034245 6"13-3/4"16"48247X0011034247 6"15-9/16"18"48247X0001034249 6"17-1/2"20"10319131034251

P93, P93E, P93M, PW93, PW93E

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

S1263 One Piece Wooden Footboard and Hardware

Heel Loop Hardware Packages (not shown)

(All hardware is included to attach heel loops to footboard.)

Chair Width Part Number

Package

Includes

2 each Heel Loops

4 each Screw,

PPH (1/4-20 x 3")

4 each Spacer

(1/4 x 11/32 x 1-3/4")

4 each Locknut

(1/4-20)

103390414-15" Wide

2 each Heel Loops

4 each Screw,

PPH (1/4-20 x 3")

4 each Spacer

(1/4 x 11/32 x 1-3/4")

4 each Locknut

(1/4-20)

103390516"-24" Wide

P93, P93E, P93M, PW93, PW93E

Form No.

95-172

To order call toll free 1-800-333-6900, or www.invacare.com

Invacare 250-S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
