Parts Catalog
Tilt and Recline (2GTR™)
Issued: Mar 13, 2013
Tarsys®
Tilt Only (2GT™)
Recline Only (2GR™)
For
Storm Series® TDX®
Power Wheelchairs
Yes, you can. ™
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
Parts Catalog Usage Guide
To order call toll free 1-800-333-6900, or www.invacare.com
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 03-026. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Examples:
A,B,C etc.
NOTE:
NLA
= Special Comments
= General information pertaining to that specific page
= No Longer Available
HARDWARE MEASUREMENTS
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
© 2013 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, Storm Series, TDX, Tarsys, Silhouette, Contour U
are registered trademarks and 2GT, 2GR, 2GTR, MKIV, MK5, Personal Back, and Infinity are trademarks of Invacare Corporation.
Otto Bock is a registered trademark owned by Otto Bock Orthopaedische Industrie GMBH & Co.. JAY Back is a registered trademark of Sunrise Medical
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
HHG, Inc. Corporation
Form No. 03-026
1
Accessories - Back Mtg. Hardware (Infinity, Personal, JAY, Silhouette, Contour U Backs w/
Extruded Canes) (Profile Back w/ 7/8" Round Canes)
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Description
Accessories - Arm Pads - Otto Bock ........................................................................................ 148
157
Accessories - Headrest Support Assembly - A.B.S. Curved and Profile Back ......................... 150
Accessories - Lateral Support Assembly - (Clamp-On) For Round Canes .............................. 154
Accessories - Lateral Support Assembly - For Extruded Canes .............................................. 152
Accessories - Miscellaneous .................................................................................................... 171
Accessories - Power Wheelchair Tool Kit ................................................................................ 169
Accessories - Vent Tray Assembly without Mounting Hardware .............................................. 160
Accessories - Vent Tray Kit For Extruded & Round Back Canes ............................................. 166
Accessories - Vent Tray Mounting Hardware For Extruded Back Canes ................................. 162
Accessories - Vent Tray Mounting Hardware For Round Back Canes .................................... 164
Arms - 2GR and 2GTR ............................................................................................................. 65
Arms - 2GT ............................................................................................................................... 62
Backs - ABS Curved without Mounting Hardware - 2GR and 2GTR with V.S.R. ..................... 46
Backs - ABS Curved without Mounting Hardware - 2GT .......................................................... 41
Backs - Mounting Hardware - A.B.S. Curved and Profile ......................................................... 54
Backs - Mounting Hardware - A.B.S. Curved Back For (7/8" Round) Back Canes .................. 58
Backs - Profile without Mounting Hardware ............................................................................. 52
Backs - V.S.R. Actuator Motor and Mounting Hardware - 2GR and 2GTR .............................. 60
Battery Box Hardware & Door Assembly ................................................................................. 10
Battery Support Bracket Assembly - TRBKTS Option .............................................................. 12
2
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Description
Battery Tray Asbly. & Wire Harnesses - Vent Tray (3) 22NF Batteries .................................... 14
Canes - Back - Spreader Bar Assembly - 2GR and 2GTR ...................................................... 39
Canes - Back - Spreader Bar Assembly - 2GT ........................................................................ 33
Canes - Back (7/8" Round-Optional) & Spreader Bar Assembly - 2GT ................................... 35
Canes - Back (7/8" Round-Optional) and Spreader Bar Assembly - 2GR and 2GTR .............. 37
Conversion Kit - 2GR To 2GTR For TDX ................................................................................. 173
Electronics - 4-Way Switch and Mounting Hardware ............................................................... 121
Electronics - MK5 SAC and Mounting Hardware ..................................................................... 123
Electronics - MK5 TAC/TRCM and Mounting Hardware For Extruded Back Canes ................ 125
Electronics - MK5 TAC/TRCM and Mounting Hardware For Round Back Canes .................... 128
Electronics - Quad Link (QLA) After 10/30/05 .......................................................................... 146
Electronics - Quad Link 1/13/04 Thru 10/30/05 ........................................................................ 142
Electronics - Quad Link 10/9/03 Thru 1/12/04 For 1556 Heavy Duty Joystick ......................... 140
Electronics - Quad Link 10/9/03 Thru 1/12/04 For MK5 DPJ Joystick ..................................... 136
Electronics - Quad Link 10/9/03 Thru 1/12/04 For MK5 MPJ Joystick ..................................... 138
Electronics - Quad Link Before 10/9/03 .................................................................................... 133
Electronics - Tilt Recline Single Switch (TRSS) ....................................................................... 119
Electronics - Tilt/ Recline Potentiometers and Hardware ......................................................... 131
Frames - Center Seat Assembly - 2GR (Recline Actuator Included) ....................................... 24
Frames - Center Seat Assembly - 2GT .................................................................................... 22
Frames - Center Seat Assembly - 2GTR (Recline Actuator Included) ..................................... 26
3
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Description
Frames - Center Seat Mounting Hardware .............................................................................. 28
Frames - Side ........................................................................................................................... 20
Front Riggings - Calf Pads and Mounting Hardware ................................................................ 93
Front Riggings - Center Mount Rigging KIT (CTMT-T/CTMT-TL) ............................................ 108
Front Riggings - Center Mount Rigging Mounting Hardware (CTMT-T/CTMT-TL) .................. 106
Front Riggings - Center Mount Riggings (CTMT-T/CTMT-TL) ................................................. 103
Front Riggings - Footrest and Legrest Accessories ................................................................. 100
Front Riggings - Footrest Supports - 70 Degree Non-Tapered & Tapered .............................. 76
Front Riggings - Footrest Supports - PHW93 (Hemi) ............................................................... 78
Front Riggings - Front Rigging Hanger Assembly - Pin, Sector & Genius Style ...................... 73
Front Riggings - Legrest - Genius - Mechanical ....................................................................... 88
Front Riggings - Legrest Support Push Rod Assembly ............................................................ 91
Front Riggings - Legrest Supports - AT5544 ............................................................................ 83
Front Riggings - Legrest Supports - Mechanical - AT5544P .................................................... 85
Front Riggings - Legrest Supports, Articulating - PHAL4A (Hemi) ........................................... 80
Front Riggings - Pivot/Slide Tube w/ Adjustable Angle Footplates - AT5543 .......................... 98
Front Riggings - Pivot/Slide Tube w/ Footplates - Aluminum - 1650, 1350 .............................. 97
Front Riggings - Pivot/Slide Tube w/ Footplates - Composite - 1651 ....................................... 95
Front Riggings - Power Articulating Legrest - ELRPW/ELRPW22 (After 7/26/04) ................... 114
Front Riggings - Power Articulating Legrest - ELRPW/ELRPW22 (Before 7/27/04) ................ 110
Front Riggings - Power Articulating Legrest Harnesses and Hardware ................................... 117
4
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Description
Front Riggings - Reference Chart - 70ST TAPER .................................................................... 72
Front Riggings - Reference Chart - AT5544, 70NHD, PHW93 ................................................ 70
Front Riggings - Reference Chart - PHAL4A ........................................................................... 71
Interface Hardware - Attach 2GR To Battery Box .................................................................... 18
Interface Hardware & Tilt Actuator - Attach 2GT, 2GTR To Battery Box ................................. 16
Label Locations For TRBKTS Option ....................................................................................... 6
Packaging & Literature ............................................................................................................. 7
Seat Pans ................................................................................................................................. 30
Seat Pans - Mounting Hardware .............................................................................................. 31
Shroud Covers - Rear, Side, Lower Seat and V.S.R. Actuator ................................................ 68
TRBKTS Option Clarification Reference .................................................................................. 9
5
Label Locations For TRBKTS Option
Form No. 03-026
6
To order call toll free 1-800-333-6900, or www.invacare.com
Packaging and Literature
Form No. 03-026
7
To order call toll free 1-800-333-6900, or www.invacare.com
Packaging and Literature
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 B
1091514 Insert, Carton 1 12
40131X161 Insert, Plain Pad 1 23
1106472 Carton 1 14
1021149 Bag, Poly Zip-Lip (13" L x 9" W) 1 15
1080876 Carton 1 16
40131X045 Carton 1 17
1091517 Carton 1 18
See Note See Footnote 1 19 D
1030362 Carton, Tray 1 210
1115174 Carton, Corner Reinforcement 1 411
1114809 Owner's Manual, TDX w/ MK5 Electronics 1 1A
00077X031-NLA NLA - Warranty Card 1 1A
1031682 Carton, Cover 1 1A,C
1030362 Carton, Tray 1 1A,C
A - Not Shown
B - All Systems
C - Complete Seating Systems with Chair Base
D - Wood skid not supplied
NOTE:
When adjusting or replacing parts, please refer to you Owner's Manual for assistance.
NOTE:
Form No. 03-026
8
To order call toll free 1-800-333-6900, or www.invacare.com
TRBKTS Option Clarification Reference
TRBKTS Option was introduced 12/19/05 as an On-Chair option only.
Form No. 03-026
9
To order call toll free 1-800-333-6900, or www.invacare.com
Battery Box Hardware and Door Assembly
The Battery Boxes are non-serviceable parts. Call Technical Services for assistance (1-800-832-4707)
Form No. 03-026
10
To order call toll free 1-800-333-6900, or www.invacare.com
Battery Box Hardware and Door Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1133026 Kit, Battery Box Hardware 1 11 A
Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 62
Screw, Socket Head (#10-32 x 1/2") 1 23
Cover, Battery Box Shroud 1 14
1113357 NLA - Kit, Battery Box Door Assembly, 22NF Short 1 15 B,D
Label, 22NF Terminal Configuration Warning 1 16
NLA - Decal, Blank Logo 1 18
Decal, Invacare Medallion - Large 1 19
Locknut (1/4-20) 1 210
NLA - Sleeve, Door Pivot 1 211
Label, 22NF Battery Install/Remove 1 112
1113127 Kit, Battery Box Door Assembly, GP24 Short 1 15 B,D
Label, Terminal Configuration Warning, GP24 1 16
NLA - Decal, Blank Logo 1 18
Decal, Invacare Medallion - Large 1 19
Locknut (1/4-20) 1 210
NLA - Sleeve, Door Pivot 1 211
Label, Battery Install/Remove, GP24 1 112
1121072-NLA Kit, Battery Box Door Assembly, 22NF Long (For
Vent)
1 15 C,D
Label, 22NF Terminal Configuration Warning 1 16
Label, 3 Battery Configuration Warning 1 17
NLA - Decal, Blank Logo 1 18
Decal, Invacare Medallion - Large 1 19
Locknut (1/4-20) 1 210
NLA - Sleeve, Door Pivot 1 211
A - Includes Battery Box Door along w/ Items 2-4.
B - Includes Battery Box Door along w/ Items 6 and 8-12.
C - Includes Battery Box Door along w/ Items 6-11.
D - Blank Logo Decal is no longer available and no longer required for item number 9 Invacare Medallion Decal.
NOTE:
The Battery Boxes are non-serviceable parts. Call Technical Services for assistance (1-800-832-4707)
Form No. 03-026
11
To order call toll free 1-800-333-6900, or www.invacare.com
Battery Support Bracket Assembly
For TRBKTS Option
Form No. 03-026
12
To order call toll free 1-800-333-6900, or www.invacare.com
Battery Support Bracket Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1139537-NLA Kit, Battery Support Bracket Assembly - For 22NF
Batteries
1 11 A
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 42
Locknut (1/4-20) 1 43
Bracket, Battery Support, Black 1 14
1139538-NLA Kit, Battery Support Bracket Assembly - For GP24
Batteries
1 11 A
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 42
Locknut (1/4-20) 1 43
Bracket, Battery Support, Black 1 14
1139539 Kit, Battery Support Bracket Assembly - For
Invisible Super Low Tilt System w/ 22NF Batteries
1 11 B
Bracket, Battery Support, Black 1 14
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 45
1139540-NLA Kit, Battery Support Bracket Assembly - For Vent
"Ready" System w/ 22NF Batteries
1 11 A
Screw, Hex Head w/ Patch (1/4-20 x 5/8") 1 42
Locknut (1/4-20) 1 43
Bracket, Battery Support, Black 1 14
1139541 Kit, Battery Support Bracket Assembly - For Vent
"Option" System w/ 22NF Batteries
1 11 B
Bracket, Battery Support, Black 1 14
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 45
1139867-NLA Kit, Battery Support Bracket Assembly - For Elevate
"Option" System w/ 22NF Batteries
1 11 B
Bracket, Battery Support, Black 1 14
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 45
A - Includes items 2-4
B - Includes items 4 and 5
NOTE:
For TRBKTS Option
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
13
Battery Tray Assembly and Wire Harnesses For Vent Tray
(3) 22NF Batteries
Form No. 03-026
14
To order call toll free 1-800-333-6900, or www.invacare.com
Battery Tray Assembly and Wire Harnesses For Vent Tray
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120363 Kit, Battery Wire Harness with Terminal Hardware,
22NF - Rear
1 11 B,A
1120362 Kit, Battery Wire Harness with Terminal Hardware,
22NF - Front
1 12 B,A
1121143 Harness, Battery Wire with Terminal Hardware,
22NF Vent
1 13 B,A
16721X000 Locknut (1/4-20) 1 64
1095502 Package, Tie Wrap (11-1/2" L) 10 15
1096799 Screw, Hex Flange Whiz Lock (1/4-20 x 7/8") 1 46
1121124 Battery Strap Assembly, 22NF and GP24 1 27
1121125 Battery Strap Assembly For Vent, 22NF 1 18
1117186 Bracket, Battery Tray Stop, Black 1 19
90017X000 Screw, Phillips Pan Head (#10-32 x 5/16") 1 210
1121142-NLA NLA - Battery Tray Assembly, TDX 22NF For Vent 1 111 C
1121029 Kit, Vent Battery Harness Assembly with Hardware 1 112 D
Harness, Vent Battery 1 113
NLA - Harness, Vent Battery Extension 1 114
Screw, Phillips Pan Head (#8-16 x 5/8") 1 215
Tie Wrap (5-5/8" L) 1 416
Grommet, Rubber 1 117
1139531 Kit, Vent Battery Harness Assembly with Hardware
For TRBKTS Option
1 112 D
Harness, Vent Battery 1 113
Harness, Vent Battery Extension, TRBKTS Option 1 114
Screw, Phillips Pan Head (#8-16 x 5/8") 1 215
Tie Wrap (5-5/8" L) 1 416
Grommet, Rubber For TRBKTS Option 1 117
1095503 Package, Tie Wrap (5-5/8" L) 10 116
1055747 Grommet, Rubber 1 117
1137236 Grommet, Rubber For TRBKTS Option 1 117
A - Individual components are not available for the battery wire harnesses
B - Includes items 4-6
C - Includes items 7-10
D - Includes items 13-17
NOTE:
(3) 22NF Batteries
Form No. 03-026
15
To order call toll free 1-800-333-6900, or www.invacare.com
Interface Hardware and Tilt Actuator
(To Attach 2GT, 2GTR To The Battery Box)
Tilt Only (2GT) and Tilt/Recline (2GTR)
Form No. 03-026
16
To order call toll free 1-800-333-6900, or www.invacare.com
Interface Hardware and Tilt Actuator
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1082778 Actuator Motor Assembly, Tilt 1 11 E
1105039 Bushing (3/8 x 5/8 x 1/2") 1 22
1070411 Bolt, Shoulder (3/8 x 2-1/2") 1 13
1026158 Locknut (5/16-18) 1 84
1082877 Bar, Clamp, Black 1 25
1113618 Guide, Linear - Short 1 26
1113594-NLA NLA - Pivot Assembly, Rear 1 17
1091869 Screw, Socket Flat Head w/ Patch (1/4-20 x 3/4") 1 68
1064267 Locknut (5/16-18) 1 69
1114962 Screw, Socket Head (5/16-18 x 1") 1 410 B
1108429 Screw, Socket Head w/ Patch (5/16-18 x 1-1/4") 1 410 C
1031665 Screw, Shoulder Hex Socket Head (3/8 x 1-1/2",
5/16-18)
1 111
1113604 Pivot Assembly, Front 1 112
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 1013
1043629 Screw, Hex Head w/ Patch (5/16-18 x 1-1/4") 1 614
1118370 Decal, Warning, 2GTR Seat Repositioning 1 215
1120348 Kit, Bracket w/ Decal, Black - Right (2GTR) 1 116
1120349 Kit, Bracket w/ Decal, Black - Left (2GTR) 1 116
1071955 Screw, Socket Button Head (5/16-18 x 3/4") 1 617
1028769 Locknut (5/16-18) 1 418
1114964 Bracket, Lower Interface, Black - Right 1 119 B
1114965 Bracket, Lower Interface, Black - Left 1 119 B
1140829 Bracket, Lower Interface, Black - Right 1 119 C
1140830 Bracket, Lower Interface, Black - Left 1 119 C
1121117-NLA NLA - Shim, Short Seat Guide Slide 1 220 D
See Note See Footnote 1 121 A,H
1140059 Kit, Actuator Braking Module w/ Instruction Sheet 1 122 F
1141508 Instruction Sheet, Actuator Braking Module 1 1G
A - Includes items 1-20 and used to attach a 2GT or 2GTR to the battery box. When item 21 is ordered, item19 Lower
Interface Bracket made after 12/18/05 will be shipped. The seat to floor height will be raised 1/4".
B - Before 12/19/05
C - After 12/18/05
D - Item 20 is no longer used after 12/18/05
E - Actuator Braking Module added to Tilt Actuator and is backward compatible to all systems manufactured before 5/18/06.
The addition of the braking module eliminated the requirement of a Heavy Duty Tilt Actuator.
F - Actuator Braking Module can be assembled in the field on seating systems manufactured before 5/18/06 as well. Must
verify with an Invacare Technician when a kit is required.
G - Not Shown
H - Part number is no longer available as a service part.
NOTE:
(To Attach 2GT, 2GTR To The Battery Box)
Tilt Only (2GT) and Tilt/Recline (2GTR)
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
17
Interface Hardware
(To Attach 2GR To The Battery Box)
Recline Only (2GR)
Form No. 03-026
18
To order call toll free 1-800-333-6900, or www.invacare.com
Interface Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1113594-NLA NLA - Pivot Assembly, Rear 1 11 D
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 62 B
1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 62 C
1086943 Bar, Spacer, Black 1 23
1064267 Locknut (5/16-18) 1 64
1113604 Pivot Assembly, Front 1 15
1026158 Locknut (5/16-18) 1 66
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 127
1120348 Kit, Bracket w/ Decal, Black - Right (2GTR) 1 18
1120349 Kit, Bracket w/ Decal, Black - Left (2GTR) 1 18
1118370 Decal, Warning, 2GTR Seat Repositioning 1 29
1043629 Screw, Hex Head w/ Patch (5/16-18 x 1-1/4") 1 610
1071955 Screw, Socket Button Head (5/16-18 x 3/4") 1 611
1114964 Bracket, Lower Interface, Black - Right 1 112 B
1114965 Bracket, Lower Interface, Black - Left 1 112 B
1140829 Bracket, Lower Interface, Black - Right 1 112 C
1140830 Bracket, Lower Interface, Black - Left 1 112 C
1025195 Locknut (1/4-20) 1 613
1113603 Interface Hardware - 2GR 1 114 A
A - Includes items 1-13 and used to attach a 2GR to the battery box. When item 14 is ordered, item12 Lower Interface Bracket
made after 12/18/05 will be shipped. The seat to floor height will be raised 1/4".
B - Before 12/19/05
C - After 12/18/05
D - Item No Longer Available. Use part # 1113603 as a replacement.
NOTE:
(To Attach 2GR To The Battery Box)
Recline Only (2GR)
Form No. 03-026
19
To order call toll free 1-800-333-6900, or www.invacare.com
Side Frames
NOTE: A new cross beam may be required when changing seat width for a Recline Only or Tilt/Recline
system. See Center Seat Frame Assembly page.
Form No. 03-026
20
To order call toll free 1-800-333-6900, or www.invacare.com
Side Frames
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1087002 Hardware, Side Frame Mounting 1 11 A
7930333 Locknut (1/4-20) 25 42
1047449 Spacer (1/4 x 3/8 x 3/16") 1 43
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 44
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 45
1086976 Side Frame w/ Arm Lock Assembly - Right (16 - 17"
D)
1 16
1086977 Side Frame w/ Arm Lock Assembly - Left (16 - 17"
D)
1 16
1086978 Side Frame w/ Arm Lock Assembly - Right (18 - 19"
D)
1 16
1086979 Side Frame w/ Arm Lock Assembly - Left (18 - 19"
D)
1 16
1086980 Side Frame w/ Arm Lock Assembly - Right (20 - 21"
D)
1 16
1086981 Side Frame w/ Arm Lock Assembly - Left (20 - 21"
D)
1 16
1086982 Side Frame w/ Arm Lock Assembly - Right (22" D) 1 16
1086983 Side Frame w/ Arm Lock Assembly - Left (22" D) 1 16
7930347 Package, Pin, Roll (5/64 x 5/8") 25 27 B
47471X074 Spring, Arm Lock 1 27 B
1028594 Pin, Arm Lock, Black 1 27 B
1090768 Kit, Lock Handle w/Rivets (Pair) 1 17 B
A - Includes Items 2-5
B - Arm Lock Assembly
NOTE:
NOTE: A new cross beam may be required when changing seat width for a Recline Only or Tilt/Recline
system. See Center Seat Frame Assembly page.
Form No. 03-026
21
To order call toll free 1-800-333-6900, or www.invacare.com
Center Seat Frame Assembly
Tilt Only (2GT)
Form No. 03-026
22
To order call toll free 1-800-333-6900, or www.invacare.com
Center Seat Frame Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1115859 Center Seat Frame Assembly, Short (16 - 19" D) 1 11 A
1115858 Center Seat Frame Assembly, Long (20 - 22" D) 1 11 A
1113613 Center Seat Frame, Short (16 - 19" D) 1 12
1113614-NLA NLA - Center Seat Frame, Long (20 - 22" D) 1 12 B
1086590 Tilt Pivot Assembly, Right 1 13
1086591 Tilt Pivot Assembly, Left 1 13
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 84
1061922 Screw, Hex Head w/ Patch (5/16-18 x 1/2") 1 25
1082876 Spacer (3/8 x 3/4 x 3/8") 1 26
1086595 Link, Tilt, Black 1 27
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 48
1086930 Ring, Retaining (3/8") 1 49
1091502 Guide, Tilt Rail 1 410
A - Includes Items 2-10
B - No longer available individually. See Item 1, Part # 1115858 for replacement.
NOTE:
Tilt Only (2GT)
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
23
Center Seat Frame Assembly
Recline Only (2GR)
Form No. 03-026
24
To order call toll free 1-800-333-6900, or www.invacare.com
Center Seat Frame Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1086944 Screw, Socket Head (5/16-18 x 3/4") 1 61
1082878 Bracket, Acutator Support, Black - Right 1 12
1082879 Bracket, Actuator Support, Black - Left 1 12
1026158 Locknut (5/16-18) 1 73
1031665 Screw, Shoulder Hex Socket Head (3/8 x 1-1/2",
5/16-18)
1 14
1082750 Actuator Motor Assembly, Recline 1 15
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 146
1110497 Link, Recline 0 and 5 Degree Seat Tilt, Black - Right 1 17
1110498 Link, Recline 0 and 5 Degree Seat Tilt, Black - Left 1 17
1110499 Link, Recline 10 and 15 Degree Seat Tilt, Black -
Right
1 17
1110500 Link, Recline 10 and 15 Degree Seat Tilt, Black -
Left
1 17
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 48
1086930 Ring, Retaining (3/8") 1 49
1082876 Spacer (3/8 x 3/4 x 3/8") 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 211
1079203 Decal, Warning Pinch Point 1 212
1091500 Kit, Connecting Slide Bracket w/ Decal, Black -
Right
1 113
1091501 Kit, Connecting Slide Bracket w/ Decal, Black - Left 1 113
1098944 Screw, Socket Head w/ Patch (1/4-20 x 3/4") 1 414
1095352 Block, Gear Hold Down Upper 1 215
1091503-NLA NLA - Bushing (1/4 x 1/2 x 7/16") 1 416
1026035 Locknut (#10-24) 1 417
1000212 Screw, Shoulder Hex Socket (1/4 x 1-1/4", #10-24) 1 418
1095476 Dual Roller Assembly - Right 1 119 A
1095477 Dual Roller Assembly - Left 1 119 A
A - Includes 2 each of items 16-18
NOTE:
Recline Only (2GR)
Form No. 03-026
25
To order call toll free 1-800-333-6900, or www.invacare.com
Center Seat Frame Assembly
Tilt/Recline (2GTR)
Form No. 03-026
26
To order call toll free 1-800-333-6900, or www.invacare.com
Center Seat Frame Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1086944 Screw, Socket Head (5/16-18 x 3/4") 1 61
1082878 Bracket, Acutator Support, Black - Right 1 12
1082879 Bracket, Actuator Support, Black - Left 1 12
1026158 Locknut (5/16-18) 1 73
1031665 Screw, Shoulder Hex Socket Head (3/8 x 1-1/2",
5/16-18)
1 14
1082750 Actuator Motor Assembly, Recline 1 15
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 86
1086595 Link, Tilt, Black 1 27
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 48
1086930 Ring, Retaining (3/8") 1 49
1082876 Spacer (3/8 x 3/4 x 3/8") 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 211
1079203 Decal, Warning Pinch Point 1 212
1091500 Kit, Connecting Slide Bracket w/ Decal, Black -
Right
1 113
1091501 Kit, Connecting Slide Bracket w/ Decal, Black - Left 1 113
1098944 Screw, Socket Head w/ Patch (1/4-20 x 3/4") 1 414
1095352 Block, Gear Hold Down Upper 1 215
1091503-NLA NLA - Bushing (1/4 x 1/2 x 7/16") 1 416
1026035 Locknut (#10-24) 1 417
1000212 Screw, Shoulder Hex Socket (1/4 x 1-1/4", #10-24) 1 418
1095476 Dual Roller Assembly - Right 1 119 A
1095477 Dual Roller Assembly - Left 1 119 A
A - Includes 2 each of items 16-18
NOTE:
Tilt/Recline (2GTR)
Form No. 03-026
27
To order call toll free 1-800-333-6900, or www.invacare.com
Center Seat Frame Mounting Hardware
Form No. 03-026
28
To order call toll free 1-800-333-6900, or www.invacare.com
Center Seat Frame Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1026158 Locknut (5/16-18) 1 41
1031665 Screw, Shoulder Hex Socket Head (3/8 x 1-1/2",
5/16-18)
1 42
1070411 Bolt, Shoulder (3/8 x 2-1/2") 1 23
1098646 Bushing, Black (7/16 x 1/2 x 11/16") 1 24
1098645 Block, Black Tilt Angle 1 25
Form No. 03-026
29
To order call toll free 1-800-333-6900, or www.invacare.com
Item #1 Seat Pan
Chair Width 21" Deep 22" Deep16" Deep 17" Deep 18" Deep 19" Deep 20" Deep
106606810660571066046106603510660241066013109008316" Wide
106606910660581066047106603610660251066014109008417" Wide
106607010660591066048106603710660261066015109008518" Wide
106607110660601066049106603810660271066016109008619" Wide
106607210660611066050106603910660281066017109008720" Wide
106607310660621066051106604010660291066018109008821" Wide
106607410660631066052106604110660301066019109008922" Wide
Seat Pan
30
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Pan Mounting Hardware
Form No. 03-026
31
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Pan Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1092303 Hardware, Seat Pan Mounting 1 11 A
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 42
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 13
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 14
7930333 Locknut (1/4-20) 25 55
1047449 Spacer (1/4 x 3/8 x 3/16") 1 46
1026907 Washer (1/4 x 1/2 x 1/16") 1 17
A - Includes Items 2-7
NOTE:
Form No. 03-026
32
To order call toll free 1-800-333-6900, or www.invacare.com
Back Cane and Spreader Bar Assembly
Tilt Only (2GT)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
Form No. 03-026
33
To order call toll free 1-800-333-6900, or www.invacare.com
Back Cane and Spreader Bar Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1078214 Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 43
1026907 Washer (1/4 x 1/2 x 1/16") 1 44
1082699 T-Nut (1/4-20) 1 45
1099540 Link, Curved, Tilt, Black - Right 1 16
1099541 Link, Curved, Tilt, Black - Left 1 16
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 27
1099527 Screw, Socket Head (3/8-16 x 3/4") 1 28
1021851 Bolt, Socket Head Shoulder (1/2 x 1-1/2") 1 29
1062604 Screw, Shoulder Hex Socket (3/8 x 1-1/4", 5/16-18) 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 611
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 212
1082725 Block, Slide 1 213
1082724 Rod, Slide 1 214
1039860 Screw, Hex Head w/ Patch (5/16-18 x 3/4") 1 215
1087014 Bracket, Connecting, Black - Right 1 116
1087015 Bracket, Connecting, Black - Left 1 116
1026158 Locknut (5/16-18) 1 417
40363X000 Hex Nut (3/8"-16) 1 418
1082829 Plug Button, Back Cane, Black 1 219
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
See Note
1086106-NLA
See Note
See Note
1086103-NLA
See Note
1086101
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
A - No longer available as a service part. NOTE:
Item #2 Back Canes
Back Height
Side 20-21" High 22-23" High 24-25" High
108695210869501086948Right
108695310869511086949Left
Tilt Only (2GT)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
34
Back Cane (7/8" Round-Optional) and Spreader Bar
Assembly
Tilt Only (2GT)
Form No. 03-026
35
To order call toll free 1-800-333-6900, or www.invacare.com
Back Cane (7/8" Round-Optional) and Spreader Bar
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1086460 Grip, Foam, Hand (4-1/2" L) 1 23
0190722 Half Clamp, Un-Threaded Holes
(7/8" Dia. Back Canes)
1 24
0190822 Half Clamp, Threaded Holes
(7/8" Dia. Back Canes)
1 25
1007219 Screw, Socket Head (1/4-20 x 5/8") 1 66
1099540 Link, Curved, Tilt, Black - Right 1 17
1099541 Link, Curved, Tilt, Black - Left 1 17
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 28
1099527 Screw, Socket Head (3/8-16 x 3/4") 1 29
1021851 Bolt, Socket Head Shoulder (1/2 x 1-1/2") 1 210
1062604 Screw, Shoulder Hex Socket (3/8 x 1-1/4", 5/16-18) 1 211
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 612
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 213
1082725 Block, Slide 1 214
1082724 Rod, Slide 1 215
1039860 Screw, Hex Head w/ Patch (5/16-18 x 3/4") 1 216
1087014 Bracket, Connecting, Black - Right 1 117
1087015 Bracket, Connecting, Black - Left 1 117
1026158 Locknut (5/16-18) 1 418
40363X000 Hex Nut (3/8"-16) 1 419
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
0014202001410200140020013902001380200137020013602
Item #2 Back Cane with Grip
Back Height
Side 20-21" High 22-23" High 24-25" High
110472811047261103008Right
110472911047271103009Left
Assembly
Tilt Only (2GT)
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
36
Back Cane (7/8" Round-Optional) and Spreader Bar
Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
Form No. 03-026
37
To order call toll free 1-800-333-6900, or www.invacare.com
Back Cane (7/8" Round-Optional) and Spreader Bar
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1086460 Grip, Foam, Hand (4-1/2" L) 1 23
0190722 Half Clamp, Un-Threaded Holes
(7/8" Dia. Back Canes)
1 24
0190822 Half Clamp, Threaded Holes
(7/8" Dia. Back Canes)
1 25
1007219 Screw, Socket Head (1/4-20 x 5/8") 1 66
1086587 Link, Curved, Black 1 27
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 48
1086323 Screw, Shoulder Hex Socket Head (1/2 x 5/8",
3/8-16)
1 29
1021851 Bolt, Socket Head Shoulder (1/2 x 1-1/2") 1 210
1062604 Screw, Shoulder Hex Socket (3/8 x 1-1/4", 5/16-18) 1 211
1039860 Screw, Hex Head w/ Patch (5/16-18 x 3/4") 1 412
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 613
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 214
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 215
40363X000 Hex Nut (3/8"-16) 1 416
1026158 Locknut (5/16-18) 1 417
1082725 Block, Slide 1 218
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
0014202001410200140020013902001380200137020013602
Item #2 Back Cane with Grip
Back Height
Side 20-21" High 22-23" High 24-25" High 26" High
1104730110472811047261103008Right
1104731110472911047271103009Left
Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
38
Back Cane and Spreader Bar Assembly
Recline Only (2GR) and Tilt/ Recline (2GTR)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
Form No. 03-026
39
To order call toll free 1-800-333-6900, or www.invacare.com
Back Cane and Spreader Bar Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1078214 Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 43
1026907 Washer (1/4 x 1/2 x 1/16") 1 44
1082699 T-Nut (1/4-20) 1 45
1086587 Link, Curved, Black 1 26
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 47
1086323 Screw, Shoulder Hex Socket Head (1/2 x 5/8",
3/8-16)
1 28
1021851 Bolt, Socket Head Shoulder (1/2 x 1-1/2") 1 29
1062604 Screw, Shoulder Hex Socket (3/8 x 1-1/4", 5/16-18) 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 611
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 212
1082725 Block, Slide 1 213
1082724 Rod, Slide 1 214
1039860 Screw, Hex Head w/ Patch (5/16-18 x 3/4") 1 215
1026158 Locknut (5/16-18) 1 416
40363X000 Hex Nut (3/8"-16) 1 417
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 218
1082829 Plug Button, Back Cane, Black 1 219
1087001 Kit, Back Cane and Spreader Bar Mounting
Hardware
2 120 A
A - Includes items 3-19
NOTE:
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
See Note
1086106-NLA
See Note
See Note
1086103-NLA
See Note
1086101
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
A - No longer available as a service part. NOTE:
Item #2 Back Canes
Back Height
Side 20-21" High 22-23" High 24-25" High 26" High
1086954108695210869501086948Right
1086955108695310869511086949Left
Recline Only (2GR) and Tilt/ Recline (2GTR)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
40

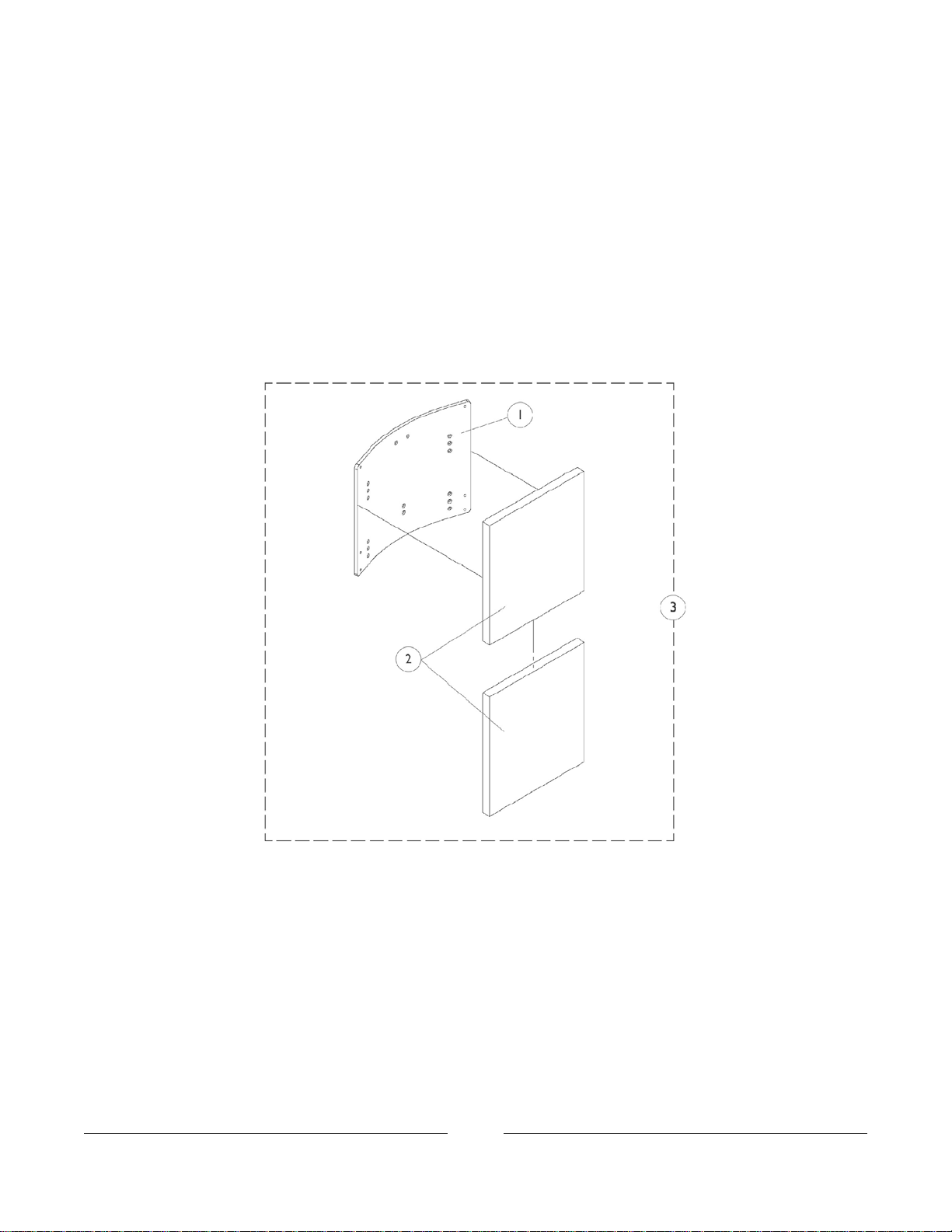

ABS Curved Back without Mounting Hardware
Tilt Only (2GT)
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
41
To order call toll free 1-800-333-6900, or www.invacare.com
ABS Curved Back without Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Pan (16" - 19" W) 1 11
See Chart #1 Back Pan (20" - 22" W) 1 11
See Chart #2 Back Cushion Assembly (16" - 19" W) 1 12
See Chart #2 Back Cushion Assembly (20" - 22" W) 1 12
See Chart #3 Back Assembly w/o Hardware (16" - 19" W) 1 13
See Chart #3 Back Assembly w/o Hardware (20" - 22" W) 1 13
1125723 Kit, Hook Fastener w/ Adhesive Back 1 1A
A - Not Shown. Hook Fastener Adhesive Kit is used to attach the Back Cover to the Back Pan and must be ordered when a
new Back Pan or Back Assembly is requested
NOTE:
#1 Back Pan (16" - 19" W)
Overall
Back
Height
Material
Back
Height
16" Wide 17" Wide 18" Wide 19" Wide
1086052-NLA1086051-NLA1086050-NLA1086049-NLA16"20"
1086059-NLA1086058-NLA1086057-NLA1086056-NLA17"21"
1086066-NLA1086065-NLA1086064-NLA1086063-NLA18"22"
1086073-NLA1086072-NLA1086071-NLA1086070-NLA19"23"
1086080-NLA1086079-NLA1086078-NLA1086077-NLA20"24"
1086087-NLA1086086-NLA1086085-NLA1086084-NLA21"25"
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist for additional information on
ordering a warranty ABS Back Pan replacement.
Tilt Only (2GT)
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
42
To order call toll free 1-800-333-6900, or www.invacare.com
ABS Curved Back without Mounting Hardware
#1 Back Pan (20" - 22" W)
Overall Back
Height
Material Back
Height
20" Wide 21" Wide 22" Wide
1086055-NLA1086054-NLA1086053-NLA16"20"
1086062-NLA1086061-NLA1086060-NLA17"21"
1086069-NLA1086068-NLA1086067-NLA18"22"
1086076-NLA1086075-NLA1086074-NLA19"23"
1086083-NLA1086082-NLA1086081-NLA20"24"
1086090-NLA1086089-NLA1086088-NLA21"25"
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist for additional information on
ordering a warranty ABS Back Pan replacement.
#2 Back Cushion Assembly (16" - 19" W)
Overall
Back
Height
Material
Back
Height
16" Wide 17" Wide 18" Wide 19" Wide
109740610974051097404109740316"20"
109741310974121097411109741017"21"
109742010974191097418109741718"22"
109742710974261097425109742419"23"
109743410974331097432109743120"24"
109744110974401097439109743821"25"
Back cover and foam are sold as a back cushion assembly only.
Tilt Only (2GT)
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
43
To order call toll free 1-800-333-6900, or www.invacare.com
ABS Curved Back without Mounting Hardware
#2 Back Cushion Assembly (20" - 22" W)
Overall
Back
Height
Material
Back
Height
20" Wide 21" Wide 22" Wide
10974091097408109740716"20"
10974161097415109741417"21"
10974231097422109742118"22"
10974301097429109742819"23"
10974371097436109743520"24"
10974441097443109744221"25"
#3 Back Assembly w/o Hardware (16" - 19" W)
Overall
Back
Height
Material
Back
Height
16" Wide 17" Wide 18" Wide 19" Wide
1090599-NLA
1090598-NLA
1090597-NLA
1090596-NLA
16"20"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090606-NLA
1090605-NLA
1090604-NLA
1090603-NLA
17"21"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090613-NLA
1090612-NLA
1090611-NLA
1090610-NLA
18"22"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090620-NLA
1090619-NLA
1090618-NLA
1090617-NLA
19"23"
See Note(s) A See Note(s) A See Note(s) A
1090627-NLA
1090626-NLA
1090625-NLA
1090624-NLA
20"24"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090634-NLA
1090633-NLA
1090632-NLA
1090631-NLA
21"25"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
A - No longer available. Must be ordered as separate components, Item 1 (Back Pan) and Item 2 (Back Cushion Assembly). NOTE:
Tilt Only (2GT)
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
44
ABS Curved Back without Mounting Hardware
#3 Back Assembly w/o Hardware (20" - 22" W)
Overall
Back
Height
Material
Back
Height
20" Wide 21" Wide 22" Wide
1090602-NLA
1090601-NLA
1090600-NLA
16"20"
See Note(s) A See Note(s) A See Note(s) A
1090609-NLA
1090608-NLA
1090607-NLA
17"21"
See Note(s) A See Note(s) A See Note(s) A
1090616-NLA
1090615-NLA
1090614-NLA
18"22"
See Note(s) A See Note(s) A See Note(s) A
1090623-NLA
1090622-NLA
1090621-NLA
19"23"
See Note(s) A See Note(s) A See Note(s) A
1090630-NLA
1090629-NLA
1090628-NLA
20"24"
See Note(s) A See Note(s) A See Note(s) A
1090637-NLA
1090636-NLA
1090635-NLA
21"25"
See Note(s) A See Note(s) A See Note(s) A
A - No longer available. Must be ordered as separate components, Item 1 (Back Pan) and Item 2 (Back Cushion Assembly). NOTE:
Tilt Only (2GT)
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
45
ABS Curved Back without Mounting Hardware
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
46
To order call toll free 1-800-333-6900, or www.invacare.com
ABS Curved Back without Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Pan (16" - 19" W) 1 11
See Chart #1 Back Pan (20" - 22" W) 1 11
See Chart #2 Back Cushion Assembly (16" - 19" W) 1 12
See Chart #2 Back Cushion Assembly (20" - 22" W) 1 12
See Chart #3 Back Assembly w/o Hardware (16" - 19" W) 1 13
See Chart #3 Back Assembly w/o Hardware (20" - 22" W) 1 13
1125723 Kit, Hook Fastener w/ Adhesive Back 1 1A
A - Not Shown. Hook Fastener Adhesive Kit is used to attach the Back Cover to the Back Pan and must be ordered when a
new Back Pan or Back Assembly is requested.
NOTE:
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
47
To order call toll free 1-800-333-6900, or www.invacare.com
ABS Curved Back without Mounting Hardware
#1 Back Pan (16" - 19" W)
Overall
Back
Height
Material
Back
Height
16" Wide 17" Wide 18" Wide 19" Wide
1086045-NLA1086044-NLA1086043-NLA1086042-NLA15"20"
1086052-NLA1086051-NLA1086050-NLA1086049-NLA16"21"
1086059-NLA1086058-NLA1086057-NLA1086056-NLA17"22"
1086066-NLA1086065-NLA1086064-NLA1086063-NLA18"23"
1086073-NLA1086072-NLA1086071-NLA1086070-NLA19"24"
1086080-NLA1086079-NLA1086078-NLA1086077-NLA20"25"
1086087-NLA1086086-NLA1086085-NLA1086084-NLA21"26"
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist for additional information on
ordering a warranty ABS Back Pan replacement.
#1 Back Pan (20" - 22" W)
Overall
Back
Height
Material
Back
Height
20" Wide 21" Wide 22" Wide
1086048-NLA1086047-NLA1086046-NLA15"20"
1086055-NLA1086054-NLA1086053-NLA16"21"
1086062-NLA1086061-NLA1086060-NLA17"22"
1086069-NLA1086068-NLA1086067-NLA18"23"
1086076-NLA1086075-NLA1086074-NLA19"24"
1086083-NLA1086082-NLA1086081-NLA20"25"
1086090-NLA1086089-NLA1086088-NLA21"26"
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist for additional information on
ordering a warranty ABS Back Pan replacement.
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
48
To order call toll free 1-800-333-6900, or www.invacare.com
ABS Curved Back without Mounting Hardware
#2 Back Cushion Assembly (16" - 19" W)
Overall
Back
Height
Material
Back
Height
16" Wide 17" Wide 18" Wide 19" Wide
109739910973981097397109739615"20"
109740610974051097404109740316"21"
109741310974121097411109741017"22"
109742010974191097418109741718"23"
109742710974261097425109742419"24"
109743410974331097432109743120"25"
109744110974401097439109743821"26"
Back cover and foam are sold as a back cushion assembly only.
#2 Back Cushion Assembly (20" - 22" W)
Overall
Back
Height
Material
Back
Height
20" Wide 21" Wide 22" Wide
10974021097401109740015"20"
10974091097408109740716"21"
10974161097415109741417"22"
10974231097422109742118"23"
10974301097429109742819"24"
10974371097436109743520"25"
10974441097443109744221"26"
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
49
ABS Curved Back without Mounting Hardware
#3 Back Assembly w/o Hardware (16" - 19" W)
Overall
Back
Height
Material
Back
Height
16" Wide 17" Wide 18" Wide 19" Wide
1090592-NLA
1090591-NLA
1090590-NLA
1090589-NLA
15"20"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090599-NLA
1090598-NLA
1090597-NLA
1090596-NLA
16"21"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090606-NLA
1090605-NLA
1090604-NLA
1090603-NLA
17"22"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090613-NLA
1090612-NLA
1090611-NLA
1090610-NLA
18"23"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090620-NLA
1090619-NLA
1090618-NLA
1090617-NLA
19"24"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090627-NLA
1090626-NLA
1090625-NLA
1090624-NLA
20"25"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1090634-NLA
1090633-NLA
1090632-NLA
1090631-NLA
21"26"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
A - No longer available. Must be ordered as separate components, Item 1 (Back Pan) and Item 2 (Back Cushion Assembly). NOTE:
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
50
ABS Curved Back without Mounting Hardware
#3 Back Assembly w/o Hardware (20" - 22" W)
Overall
Back
Height
Material
Back
Height
20" Wide 21" Wide 22" Wide
1090595-NLA
1090594-NLA
1090593-NLA
15"20"
See Note(s) A See Note(s) A See Note(s) A
1090602-NLA
1090601-NLA
1090600-NLA
16"21"
See Note(s) A See Note(s) A See Note(s) A
1090609-NLA
1090608-NLA
1090607-NLA
17"22"
See Note(s) A See Note(s) A See Note(s) A
1090616-NLA
1090615-NLA
1090614-NLA
18"23"
See Note(s) A See Note(s) A See Note(s) A
1090623-NLA
1090622-NLA
1090621-NLA
19"24"
See Note(s) A See Note(s) A See Note(s) A
1090630-NLA
1090629-NLA
1090628-NLA
20"25"
See Note(s) A See Note(s) A
1090637-NLA
1090636-NLA
1090635-NLA
21"26"
See Note(s) A See Note(s) A See Note(s) A
A - No longer available. Must be ordered as separate components, Item 1 (Back Pan) and Item 2 (Back Cushion Assembly). NOTE:
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: CURV Metal Backs will only attach to Round Back Canes only. Hardware to attach to the Key
Slotted Extruded Back Canes is not available.
NOTE: Wheelchairs with serial number dated for 2005 and after, call a Customer Service Parts Specialist
for additional information on ordering a warranty ABS Back Pan replacement.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
51
Profile Back without Mounting Hardware
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Form No. 03-026
52
To order call toll free 1-800-333-6900, or www.invacare.com
Profile Back without Mounting Hardware
Back Material
Width x Height
Overall Back
Height - Tilt
Overall Back
Height - VSR
Item #1
Back Cover
Item #2
Back Assembly
w/o Sliding
Hardware
10918770276800-NLA25" 23" 16" x 16"
10918770276800-NLA25" 23" 17" x 16"
10918760276900-NLA25" 23" 18" x 16"
10918760276900-NLA25" 23" 19" x 16"
1091878027700025" 23" 20" x 16"
10918780277000-NLA25" 23" 21" x 16"
1091875027710026" 24" 16" x 18"
1091875027710026" 24" 17" x 18"
1091874027720026" 24" 18" x 18"
1091874027720026" 24" 19" x 18"
1091873-NLA0277300-NLA26" 24" 20" x 18"
1091873-NLA0277300-NLA26" 24" 21" x 18"
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Form No. 03-026
53
To order call toll free 1-800-333-6900, or www.invacare.com
Back Assembly Mounting Hardware
A.B.S. Curved and Profile
NOTE: Items 1, 2 and attaching hardware may be required when changing back styles or back cane
heights.
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Form No. 03-026
54
To order call toll free 1-800-333-6900, or www.invacare.com
Back Assembly Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Slide Block (Tilt Only A.B.S. Curved) 1 21
See Chart #1 Back Slide Block 1 21
See Chart #2 Back Slide Sleeve (Tilt Only A.B.S. Curved) 1 22
See Chart #2 Back Slide Sleeve 1 22
1026907 Washer (1/4 x 1/2 x 1/16") 1 23
1000212 Screw, Shoulder Hex Socket (1/4 x 1-1/4", #10-24) 1 24
1091870 Screw, Socket Button Head w/ Patch (1/4-20 x 3/4") 1 45
1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 46 B
1091870 Screw, Socket Button Head w/ Patch (1/4-20 x 3/4") 1 46 F
1090131 Spacer (1/4 x 3/4 x 5/8") 1 47
1086994 Hardware, Attaching, A.B.S. Curved Back 1 1A,C
1086996 Hardware, Attaching, Profile Back (17",19",21" W) 1 1A,D
1086995 Hardware, Attaching, Profile Back (16",18",20",22"
W)
1 1A,E
A - Not Shown
B - 17",19" and 21" Wide
C - Includes Items 3-5
D - Includes Items 3,4,6 and 7
E - Includes Items 3,4 and 6
F - 16",18", 20" and 22" Wide
NOTE:
Item #1 Back Slide Block (Tilt Only A.B.S. Curved)
Seating System Back Type
20"
Back Height
21"-22"
Back Height
23"-24"
Back Height
25"
Back Height
1082919108291810829171082916CurvedTilt Only
Item #1 Back Slide Block
Seating System Back Type
20"-21"
Back Height
22"-23"
Back Height
24"-25"
Back Height
26"
Back Height
1082915108291510829151082915ProfileTilt Only
1082918108291710829161082915Curved
Recline Only
and Tilt/Recline
w/VSR
1082915108291510829151082915Profile
Recline Only
and Tilt/Recline
w/VSR
A.B.S. Curved and Profile
NOTE: Items 1, 2 and attaching hardware may be required when changing back styles or back cane
heights.
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
55
Back Assembly Mounting Hardware
Item #2 Back Slide Sleeve (Tilt Only A.B.S. Curved)
Seating System Back Type
20"
Back Height
21"-22"
Back Height
23"-24"
Back Height
25"
Back Height
1082947108294610829451082944CurvedTilt Only
A.B.S. Curved and Profile
NOTE: Items 1, 2 and attaching hardware may be required when changing back styles or back cane
heights.
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
56
Back Assembly Mounting Hardware
Item #2 Back Slide Sleeve
Seating System Back Type
20"-21"
Back Height
22"-23"
Back Height
24"-25"
Back Height
26"
Back Height
1082943108294310829431082943ProfileTilt Only
1082946108294510829441082943Curved
Recline Only
and Tilt/Recline
w/ VSR
1082943108294310829431082943Profile
Recline Only
and Tilt/Recline
w/ VSR
A.B.S. Curved and Profile
NOTE: Items 1, 2 and attaching hardware may be required when changing back styles or back cane
heights.
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
57
A.B.S. Curved Back Mounting Hardware
For (7/8" Round) Back Canes
Form No. 03-026
58
To order call toll free 1-800-333-6900, or www.invacare.com
A.B.S. Curved Back Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1106395 Kit, ABS Curved Back Mounting Hardware 1 16 A
Screw, Socket Flat Head (1/4-20 x 1-1/4") 1 41
Hook, Back Assembly Mounting 1 42
Locknut (1/4-20) 1 43
Screw, Phillips Oval Head (#10-16 x 7/8") 1 24
NLA - Spacer, Back Pan, Black 1 45
A - Includes items 1-5
NOTE:
For (7/8" Round) Back Canes
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
59
Back Assembly V.S.R. Actuator Motor and Mounting
Hardware
Recline Only (2GR) and Tilt/Recline (2GTR)
Form No. 03-026
60
To order call toll free 1-800-333-6900, or www.invacare.com
Back Assembly V.S.R. Actuator Motor and Mounting
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1121051 Hardware, V.S.R. Actuator Mounting,
A.B.S. Curved Back
1 11 A
1121052 Hardware, V.S.R. Actuator Mounting,
Profile Back
1 11 B
7930323 Package, Locknut (1/4-20) 25 52 C
7930326 Package, Screw, Hex Head (1/4-20 x 3/4") 25 13 C
1121023 Bracket, V.S.R. Actuator Mounting, Black 1 14
1026907 Washer (1/4 x 1/2 x 1/16") 1 25
0001100 Actuator Motor Assembly (5" Stroke) 1 16 D
1113627 Actuator Motor Assembly, V.S.R. (3" Stroke) 1 16 E
1008495 Screw, Socket Button Head (1/4-20 x 1-1/2") 1 17
1091869 Screw, Socket Flat Head w/ Patch (1/4-20 x 3/4") 1 28
A - Includes Items 2-5, 7 and 8
B - Includes Items 2-5 and 7
C - Profile Backs Use Quantity of 3 Only
D - For Profile backs
E - For A.B.S. curved backs
NOTE:
Hardware
Recline Only (2GR) and Tilt/Recline (2GTR)
Form No. 03-026
61
To order call toll free 1-800-333-6900, or www.invacare.com
Armrest Assembly
Tilt Only (2GT)
Form No. 03-026
62
To order call toll free 1-800-333-6900, or www.invacare.com
Armrest Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1082910 Pad, Arm w/ Elbow Stop, Desk Length, Urethane,
Black - Right (13" L x 3" W)
1 11
1082911 Pad, Arm w/ Elbow Stop, Desk Length, Urethane,
Black - Left (13" L x 3" W)
1 11
1090190 Kit, Arm Pad w/ Screws and Elbow Stop, Desk
Length, Urethane, Black (13" L x 3" W) (Pair)
2 11
1082912 Pad, Arm w/ Elbow Stop, Full Length, Urethane,
Black - Right (17" L x 3" W)
1 11
1082913 Pad, Arm w/ Elbow Stop, Full Length, Urethane,
Black - Left (17" L x 3" W)
1 11
1090191 Kit, Arm Pad w/ Screws and Elbow Stop, Full
Length, Urethane, Black (17" L x 3" W) (Pair)
2 11
1071253 Arm Tube Assembly w/ Plug Buttons, Full Length,
Black - Right/Left
1 12
1070859 Arm Tube Assembly w/ Plug Buttons, Desk Length,
Black - Right/Left
1 12
1027095 Plug Button, Black (7/8") 1 23
1107155 Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") 1 24
1064130 Guard, Clothing 1 15
47471X074 Spring, Arm Lock 1 16
1028594 Pin, Arm Lock, Black 1 17
1032244 Grip, Foam Hand (9" L) 1 18
1090768 Kit, Lock Handle w/Rivets (Pair) 2 19
1028645 Rivet 1 610
1065936 Plug, Pivot 1 211
1067734 Plug Button, Black (5/8") 1 212
1068416 Arm Base Assembly, Black - Right (16-19" D) 1 113
1068417 Arm Base Assembly, Black - Left (16-19" D) 1 113
1068418 Arm Base Assembly, Black - Right (20" and Deeper) 1 113
1068419 Arm Base Assembly, Black - Left (20" and Deeper) 1 113
1067761 Arm Base Assembly, 1" Lower, Black - Right
(16-19" D)
1 113
1067762 Arm Base Assembly, 1" Lower, Black - Left (16-19"
D)
1 113
1067755 Arm Base Assembly, 1" Lower, Black - Right (20"
and Deeper)
1 113
1067756 Arm Base Assembly, 1" Lower, Black - Left (20" and
Deeper)
1 113
1068039 Pin, Pull 1 114
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 115
1068025 Clevis, Pivot 1 116
7930323 Package, Locknut (1/4-20) 25 117
1068488 Kit, Swingaway Armrest Mounting Hardware 1 118
Tilt Only (2GT)
Form No. 03-026
63
To order call toll free 1-800-333-6900, or www.invacare.com
Armrest Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1035065 Cover, Clothing Guard w/ Pocket, FXDESK &
ADJFULL/ADJDESK
1 119
Tilt Only (2GT)
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
64
Armrest Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
Form No. 03-026
65
To order call toll free 1-800-333-6900, or www.invacare.com
Armrest Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1082910 Pad, Arm w/ Elbow Stop, Desk Length, Urethane,
Black - Right (13" L x 3" W)
1 11
1082911 Pad, Arm w/ Elbow Stop, Desk Length, Urethane,
Black - Left (13" L x 3" W)
1 11
1090190 Kit, Arm Pad w/ Screws and Elbow Stop, Desk
Length, Urethane, Black (13" L x 3" W) (Pair)
2 11
1082912 Pad, Arm w/ Elbow Stop, Full Length, Urethane,
Black - Right (17" L x 3" W)
1 11
1082913 Pad, Arm w/ Elbow Stop, Full Length, Urethane,
Black - Left (17" L x 3" W)
1 11
1090191 Kit, Arm Pad w/ Screws and Elbow Stop, Full
Length, Urethane, Black (17" L x 3" W) (Pair)
2 11
1086992 Arm Assembly w/o Arm Pad, Desk Length, Black -
Right
1 12 A,G
1086993 Arm Assembly w/o Arm Pad, Desk Length, Black -
Left
1 12 A,G
1087012 Arm Assembly w/o Arm Pad, Full Length, Black -
Right
1 12 B,G
1087013 Arm Assembly w/o Arm Pad, Full Length, Black -
Left
1 12 B,G
1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 33
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 24
0028202 Tube, Extension, Full Length 1 15
1027095 Plug Button, Black (7/8") 1 16
1107155 Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") 1 27
1028755 Screw, Phillips Pan Head (#10-32 x 5/8") 1 18 D
1107155 Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") 1 18 E
1079203 Decal, Warning Pinch Point 1 19
1115392 Tube, Arm, Support, Black 1 110
1115393 Tube, Slide, Adjustable, Black 1 111
1082842 Plug, Arm, Black 1 112
7930333 Locknut (1/4-20) 25 313
1082927 Tube, Arm, Black 1 114
1091870 Screw, Socket Button Head w/ Patch (1/4-20 x 3/4") 1 115
1095437 Arm Pivot Assembly 1 116 H
1165484 Washer, Nylon (1/4 x 1/2 x 1/32") 1 217
1086990 Hardware, Arm Attaching 1 118 C
1082699 T-Nut (1/4-20) 1 219
1086932 Pivot, Back Arm 1 120
1078214 Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 221
1119268 Kit, Slide Tube w/ Arm Support (Pair) 2 1F
Recline Only (2GR) and Tilt/Recline (2GTR)
Form No. 03-026
66
To order call toll free 1-800-333-6900, or www.invacare.com
Armrest Assembly
A - Includes Items 3,4,6, and 9-17
B - Includes Items 3-6 and 8-17
C - Includes Items 18-21
D - Used for full length arms only
E - Used for desk length arms only
F - Not Shown. Assembly includes 2 ea. of item numbers 9, 10 and 11
G - When placing an order for item 2, you must specify as a note "For Tarsys 2GTR seating" or "For Formula TRE seating"
because item 16 Arm Pivot Assembly Pin faces down for the Tarsys 2GTR and faces up for the Formula TRE powered
seating.
H - The Arm Pivot Assembly Pin faces down for the Tarsys 2GTR and faces up for the Formula TRE powered seating
NOTE:
Recline Only (2GR) and Tilt/Recline (2GTR)
67
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
Shroud Covers
Rear, Side, Lower Seat and V.S.R. Actuator
Form No. 03-026
68
To order call toll free 1-800-333-6900, or www.invacare.com
Shroud Covers
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1115839 Cover, Shroud, V.S.R. Actuator 1 11
1104253 Tie Wrap (8" L) 10 22
1028484 Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 13
1115818 Cover, Shroud - Rear 1 14 C
1025729 Screw, Phillips Pan Head Tap (#8-32 x 3/8") 1 45
1115832-NLA NLA - Shroud Cover Assembly with Decal - Right
(2GT)
1 16
1115833-NLA NLA - Shroud Cover Assembly with Decal - Left
(2GT)
1 16
1115834-NLA NLA - Shroud Cover Assembly with Decal - Right
(2GR)
1 16
1115835-NLA NLA - Shroud Cover Assembly with Decal - Left
(2GR)
1 16
1115836-NLA NLA - Shroud Cover Assembly with Decal - Right
(2GTR)
1 16
1115837-NLA NLA - Shroud Cover Assembly with Decal - Left
(2GTR)
1 16
1117234 Cover, Shroud, Lower Seat 1 17
1087033-NLA NLA - Decal, Side Shroud Cover, Tilt Only 1 28
1087034-NLA NLA - Decal, Side Shroud Cover, Recline Only 1 28
1087032-NLA NLA - Decal, Side Shroud Cover, Tilt/ Recline 1 28
1113623 Shroud Assembly with Hardware, 2GT 1 19
See Note See Footnote 1 19 A,D
See Note See Footnote 1 19 B,D
1115841-NLA NLA - Shroud Assembly with Hardware, 2GTR w/o
V.S.R.
1 19 A
See Note See Footnote 1 19 B,D
1079203 Decal, Warning Pinch Point 1 210
A - Includes items 3-8
B - Includes items 1-8
C - When TRBKTS option is used and a replacement Rear Shroud Cover is required, item 10 Pinch Point Decal must be
ordered as well
D - No longer available as a service part.
NOTE:
Rear, Side, Lower Seat and V.S.R. Actuator
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
69
NOTE: Calf pads with attaching hardware is not included on legrest.
NOTE: Pivot/ Slide tube attaching hardware is not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/ slide tube.
AT5543 = Adjustable angle footplate with 9-7/8" straight pivot/ slide tube.
1350 = Extra large footplate with "L" style pivot/ slide tube.
Support Assemblies - AT5544, 70NHD, PHW93
Rigging
Type
AT5544 AT5544P 70NHD PHW93
8881126089
8881053149
1087050
8881045291
Right
See Note(s) A, B See Note(s) A See Note(s) B See Note(s) A See Note(s) A
8881126090
8881053148
1087051
8881045292
Left
See Note(s) A See Note(s) B See Note(s) A See Note(s) A
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
B - 1651 Composite footplates are not available for AT5544P support assemblies
NOTE:
Pivot/ Slide Tube and Footplates For AT5544, 70NHD, PHW93
Footplate
Type
1651
16" W
1651
17-22" W
1350
17-22" W
AT5543
16-22" W
1062756102639510578791057869Right
1062757102639610578801057870Left
1062760108651510578811057871Right 2" Longer
1062761108651710578821057872Left 2" Longer
1121140108651610584231058421Right 4" Longer
1121141108651810584241058422Left 4" Longer
Front Riggings Reference Chart
For AT5544, 70NHD, PHW93
Form No. 03-026
70
To order call toll free 1-800-333-6900, or www.invacare.com
NOTE: Calf pads with attaching hardware is not included on legrest.
NOTE: Pivot/Slide tube attaching hardware is not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1650 = Aluminum footplate with "L" style pivot/slide tube.
1350 = Extra large footplate with "L" style pivot/slide tube.
Support Assembly - PHAL4A
Rigging
Type
PHAL4A (Chrome Only)
1114761Right
1114762Left
Pivot/Slide Tube and Footplates For PHAL4A
Footplate
Type
1650
16-22" W
1350
17-22" W
10354561023907Right
10354571023908Left
Front Riggings Reference Chart
For PHAL4A
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
71
NOTE: Pivot/Slide tube attaching hardware is not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/slide tube.
Support Assemblies - 70ST TAPER
Rigging
Type
70ST TAPER
8881026996
Right
See Note(s) A
8881026997
Left
See Note(s) A
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints". NOTE:
Pivot/Slide Tube and Footplates For 70ST TAPER
Footplate
Type
1651
16-17" W
1651
18-19" W
1651
20-22" W
105787910578691057859Right
105788010578701057860Left
105788110578711057861
Right
2" Longer
105788210578721057862
Left
2" Longer
Front Riggings Reference Chart
70ST TAPER
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
72
Front Rigging Hanger Assembly
Pin, Sector and Genius Style
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
Form No. 03-026
73
To order call toll free 1-800-333-6900, or www.invacare.com
Front Rigging Hanger Assembly
Pin, Sector and Genius Style
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
Form No. 03-026
74
To order call toll free 1-800-333-6900, or www.invacare.com
Front Rigging Hanger Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1114766 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Right (12 - 21" D)
1 11 A
1114767 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Left (12 - 21" D)
1 11 A
1132339 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Right (22" D)
1 11 A
1132340 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Left (22" D)
1 11 A
1027097 Plug Button, Black (3/4") 1 12
1068435 Front Rigging Hanger Assembly w/ Sector Block,
Black - Right (12 - 21" D)
1 13 B
1068436 Front Rigging Hanger Assembly w/ Sector Block,
Black - Left (12 - 21" D)
1 13 B
1068437 Front Rigging Hanger Assembly w/ Sector Block,
Black - Right (22" D)
1 13 B
1068438 Front Rigging Hanger Assembly w/ Sector Block,
Black - Left (22" D)
1 13 B
1054571 Kit, Sector Block - Right 1 14 C
1054572 Kit, Sector Block - Left 1 14 C
1026907 Washer (1/4 x 1/2 x 1/16") 1 15
1052957 Screw, Hex Head w/ Patch (1/4-20 x 2") 1 16
1087076 Front Rigging Hanger Assembly w/ Nylon Liner,
Genius Style, Short, Black - Right (16 - 21" D)
1 17 D
1087077 Front Rigging Hanger Assembly w/ Nylon Liner,
Genius Style, Short, Black - Left (16 - 21" D)
1 17 D
1087078 Front Rigging Hanger Assembly w/ Nylon Liner,
Genius Style, Long, Black - Right (22" D)
1 17 D
1087079 Front Rigging Hanger Assembly w/ Nylon Liner,
Genius Style, Long, Black - Left (22" D)
1 17 D
0181000 Liner, Nylon (3/4") 1 18
A - Includes front rigging hanger and item 2
B - Includes front rigging hanger and item 4
C - Includes sector block assembly and items 5 and 6
D - Includes front rigging hanger and item 8
NOTE:
Pin, Sector and Genius Style
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
Form No. 03-026
75
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assemblies
Sector Style
Form No. 03-026
76
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assemblies
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881053149 Footrest Support Assembly, 70 Degree
Non-Tapered Heavy Duty, Sector, Color - Right
1 11 A,D
8881053148 Footrest Support Assembly, 70 Degree
Non-Tapered Heavy Duty, Sector, Color - Left
1 11 A,D
8881026996 Footrest Support Assembly, 70 Degree Tapered,
Sector, Color - Right
1 11 A,E
8881026997 Footrest Support Assembly, 70 Degree° Tapered,
Sector, Color - Left
1 11 A,E
1001762 Screw, Socket Button Head (1/4-20 x 1-3/4") 1 12
1029501 Plug Button, Black (1") 1 13
1056328 Plug Button, Black (1") 1 13
1017148 Pivot, Footrest 1 14
1025736 Locknut (1/4-20) 1 15
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 26
1017423 Screw, Slotted Hex Washer Head w/ Patch (#10-32
x 1/2")
1 17
1025454 Housing, Latch - Right 1 18
1025455 Housing, Latch - Left 1 18
1026124 Collar, Anti-Rattle 1 19
1045267 Screw, Hex Head w/ Patch (1/4-20 x 3/4") 1 110
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 111 B
1020534 Insert, Threaded 1 112 F
1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 113
1044214 Nut, Hex with Nylon Cap (1/4-20) 1 114
1026703 Kit, Pivot/Slide Tube Mounting Hardware (Pair) 1 115
1057846 Kit, Pivot/Slide Tube Mounting Hardware (Pair) 1 116
1026987 Guard, Impact (8" L) 1 1C
A - Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints."
B - Item 16 takes quantity of 2
C - Not Shown. For 70 deg. Tapered Footrest.
D - Uses Item Number 3, Plug Button 1029501
E - Uses Item Number 3, Plug Button 1056328
F - As of 8/15/03, the Threaded Insert was revised from 3 to 5 Holes. Threaded Insert is Backward Compatible and does not
require ordering in Pairs.
NOTE:
Sector Style
77
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
PHW93 (Hemi) Footrest Supports
Color (Pin Style)
Form No. 03-026
78
To order call toll free 1-800-333-6900, or www.invacare.com
PHW93 (Hemi) Footrest Supports
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1020719 Anti-Rattle, Black 1 11
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 12
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 13
1025735 Locknut (#10-32) 1 14
1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 15
1114749 Handle, Release, Black - Right 1 16 A
1114750 Handle, Release, Black - Left 1 16 A
1028846 Rivnut (#10-32) 1 17
1028707 Spring, Release - Right 1 18
1028708 Spring, Release - Left 1 18
1006490 Tip, Plastic, Black 1 19
15680X012 Collar, Anti-Rattle (7/8") 1 110
1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 111
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 212
1044214 Nut, Hex with Nylon Cap (1/4-20) 1 113
1020534 Insert, Threaded 1 114 C
1074143 Kit, Slide Tube Mounting Hardware 1 115
8881126089 Footrest Support Assembly, Hemi, Color - Right 1 1B
8881126090 Footrest Support Assembly, Hemi, Color - Left 1 1B
A - Includes items 2-4
B - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
C - As of 8/15/03, the Threaded Insert was revised from 3 to 5 Holes. Threaded Insert is Backward Compatible and does not
require ordering in Pairs.
NOTE:
Color (Pin Style)
Form No. 03-026
79
To order call toll free 1-800-333-6900, or www.invacare.com
PHAL4A (Hemi) Articulating Legrest Supports
Chrome 16"-22" Wide Chairs (Pin Style)
Form No. 03-026
80
To order call toll free 1-800-333-6900, or www.invacare.com
PHAL4A (Hemi) Articulating Legrest Supports
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 11
1022874 Bumper 1 12
1114751 Handle, Release, Chrome - Right 1 13 C
1114752 Handle, Release, Chrome - Left 1 13 C
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 14
60279X003 Locknut (#10-32) 1 15
40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 16
1008935 Spring, Release - Right 1 17
1008936 Spring, Release - Left 1 17
67005X000 Rivnut (#10-32) 1 18
40163X002 Screw, Phillips Round Head (#10-32 x 1/2") 1 19
1114759-NLA NLA - Tube, Legrest Support, Hemi, Chrome - Right 1 110 D,E
1114760 Tube, Legrest Support, Hemi, Chrome - Left 1 110 D
1027097 Plug Button, Black (3/4") 1 111
1006490 Tip, Plastic, Black 1 112
1040060 Tip, Plastic, Black 1 113
1037126 Handle, Release 1 114
1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 215
1022866 Screw, Socket Button Head (3/8-16 x 3/4") 1 216
40363X000 Hex Nut (3/8"-16) 1 317
1022846 Bar, Link, Chrome 1 118
1022877 Tube, Support and Drive Link, Chrome - Right 1 119
1022878 Tube, Support and Drive Link, Chrome - Left 1 119
1022854 Screw, Shoulder Slotted Head (1/2 x 1-1/8", 3/8-16) 1 120
10261X000 Nut, Acorn (5/16-24) 1 121
04528X002 Bracket, Release, Chrome 1 122
1040831 Ring, Snap 1 123
47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 124
42326X004 Bar, Ratchet - Right/Left 1 125
1037485 Spring, Release 1 126
1037125 Cam, Legrest 1 127
1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 128
1024911 Decal, Smartleg 1 129
1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 130
48823X008 Spring, Leaf 1 131
47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 132
1025133 Spacer, Legrest Pad, Black 1 133
04526X019 Plate, Legrest Pad 1 134
60264X001 Locknut (5/16-24) 1 135
1025104 Bracket, Legrest, Chrome 1 136
11232X009 Bolt, Lug (5/16-24 x 1-3/8") 1 137
1022848 Tube, Slide, Articulating, Chrome - Right 1 138
1022849 Tube, Slide, Articulating, Chrome - Left 1 138
Chrome 16"-22" Wide Chairs (Pin Style)
Form No. 03-026
81
To order call toll free 1-800-333-6900, or www.invacare.com
PHAL4A (Hemi) Articulating Legrest Supports
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1027377 Washer (#20) 1 139
1107321 Nut, Low Cap (5/16"-24) 1 140
8881091764 Pad, Legrest, Vinyl - Right/Left 1 141 A,G
1068649 Hardware, Legrest Pad 1 142 F
Screw, Phillips Pan Head (#10-32 x 11/16") 1 2
Screw, Phillips Pan Head (#10-32 x 1") 1 2
Instruction Sheet, Legrest Pad Mtg. 1 1
1114761 Legrest Support Assembly, Articulating, Hemi,
Chrome - Right
1 1B
1114762 Legrest Support Assembly, Articulating, Hemi,
Chrome - Left
1 1B
A - Specify upholstery color U67 black when ordering.
B - Not Shown
C - Includes items 4-6
D - Includes items 1-9
E - No Longer Available individually. See part # 1114761 for replacement.
F - Includes Screws and Instruction Sheet.
G - Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1068649) when
ordering replacement Calf Pads.
NOTE:
Chrome 16"-22" Wide Chairs (Pin Style)
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
82
AT5544 Legrest Supports
(Sector Style)
16"-22" Wide Chairs
Form No. 03-026
83
To order call toll free 1-800-333-6900, or www.invacare.com
AT5544 Legrest Supports
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1017187 Cover, Top 1 11
1028529 Screw, Phillips Pan Head (#8-32 x 3/8") 1 22
40363X000 Hex Nut (3/8"-16) 1 13
1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 24
11919X000 NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2") 1 15
7930330 Locknut (5/16-24) 25 36
1026030 Bolt, Lug (5/16-24 x 1-3/8") 1 17
1043556 Tube, Elevating Adjustable Support, Black - Right 1 18
1043557 Tube, Elevating Adjustable Support, Black - Left 1 18
8881048851 Tube, Elevating Adjustable Support, Color - Right 1 18 A
8881048852 Tube, Elevating Adjustable Support, Color - Left 1 18 A
1032266 Bracket, Legrest Pad Mounting, Black 1 19
04528X002 Bracket, Release, Chrome 1 110
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 211
1025454 Housing, Latch - Right 1 112
1025455 Housing, Latch - Left 1 112
7930314 Package, Screw, Slotted Hex Washer Head (#10-32
x 1/2")
25 113
42326X001 Bar, Ratchet 1 114
7930336 Nut, Acorn (5/16-24) 25 115
1017148 Pivot, Footrest 1 116
1029501 Plug Button, Black (1") 1 117
7930301 Package, Button Head Cap Screw (1/4-20 x 1-3/4") 25 118
8881045289 Bracket, Legrest Support, Color - Right 1 119 A
8881045290 Bracket, Legrest Support, Color - Left 1 119 A
1040831 Ring, Snap 1 120
7930310 Washer, Nylon (5/16 x 11/16 x 1/16") 25 121
1040060 Tip, Plastic, Black 1 122
1037485 Spring, Release 1 123
1037125 Cam, Legrest 1 124
1037126 Handle, Release 1 125
1096974 Kit, Elevating Legrest Ratchet Hardware (Pair) 2 126 B
1096943 Instruction Sheet, Ratchet Kit 1 1C
8881045291 Legrest Support Assembly, Sector, Color - Right 1 1A,C
8881045292 Legrest Support Assembly, Sector, Color - Left 1 1A,C
A - Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints".
B - Includes items 10, 14, 15 and 20-25
C - Not Shown
NOTE:
(Sector Style)
16"-22" Wide Chairs
Form No. 03-026
84
To order call toll free 1-800-333-6900, or www.invacare.com
AT5544P Legrest Supports - Mechanical
(Sector Style) 16"-22" Wide Chairs
Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit
(1066591) when ordering replacement Calf Pads.
Form No. 03-026
85
To order call toll free 1-800-333-6900, or www.invacare.com
AT5544P Legrest Supports - Mechanical
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1087050 Legrest Support Assembly, Sector, Black - Right 1 11 A
1087051 Legrest Support Assembly, Sector, Black - Left 1 11 A
1094266 Support, Legrest, Black - Right 1 12
1094267 Support, Legrest, Black - Left 1 12
7930301 Package, Button Head Cap Screw (1/4-20 x 1-3/4") 25 13
1029501 Plug Button, Black (1") 1 14
1017148 Pivot, Footrest 1 15
7930333 Locknut (1/4-20) 25 16
7930314 Package, Screw, Slotted Hex Washer Head (#10-32
x 1/2")
25 17
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 28
1025454 Housing, Latch - Right 1 19
1025455 Housing, Latch - Left 1 19
1026158 Locknut (5/16-18) 1 110
1043556 Tube, Elevating Adjustable Support, Black - Right 1 111
1043557 Tube, Elevating Adjustable Support, Black - Left 1 111
1026030 Bolt, Lug (5/16-24 x 1-3/8") 1 112
1025730 Locknut (5/16-24) 1 213
1082908 Spacer, Coved (5/16 x 29/32 x 7/16") 1 214
11919X000 NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2") 1 115
40363X000 Hex Nut (3/8"-16) 1 116
1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 217
1025729 Screw, Phillips Pan Head Tap (#8-32 x 3/8") 1 218
1017187 Cover, Top 1 119
1092666 Rod, Legrest Elevating - Right 1 120
1092667 Rod, Legrest Elevating - Left 1 120
1025133 Spacer, Legrest Pad, Black 1 121
1032267 Spacer, Legrest Pad Mounting, Black 1 122
1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 123
1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 124
1032266 Bracket, Legrest Pad Mounting, Black 1 125
8881091759 Pad w/ Cover and Screws, Legrest Vinyl (Pair) 2 126 B,D
8881091764 Pad, Legrest, Vinyl - Right/Left 1 126 B,D
01415X000-NLA NLA - Cover, Legrest Pad 1 126
1066591 Hardware, Legrest Pad 1 127 C
Screw, Phillips Pan Head (#10-32 x 11/16") 1 2
Screw, Phillips Pan Head (#10-32 x 1") 1 2
Instruction Sheet, Legrest Pad Mtg. 1 1
04526X019 Plate, Legrest Pad 1 128
1107321 Nut, Low Cap (5/16"-24) 1 129
(Sector Style) 16"-22" Wide Chairs
Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit
(1066591) when ordering replacement Calf Pads.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
86
AT5544P Legrest Supports - Mechanical
A - Includes Items 2-25 and 29
B - Specify U67 black upholstery when ordering
C - Item includes Screws and Instruction Sheet.
D - Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1066591) when
ordering replacement Calf Pads.
NOTE:
(Sector Style) 16"-22" Wide Chairs
Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit
(1066591) when ordering replacement Calf Pads.
Form No. 03-026
87
To order call toll free 1-800-333-6900, or www.invacare.com
Genius Legrest (Mechanical)
Form No. 03-026
88
To order call toll free 1-800-333-6900, or www.invacare.com
Genius Legrest (Mechanical)
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1023966 Screw, Socket Head (#10-32 x 1-3/4") 1 11
0060000 Bumper, Rubber 1 12
0140406 Screw, Socket Head, Cap (5/16-18 x 1-1/2") 1 13
0061400 Decal, Warning Label Tie Down 1 14
0289824 Legrest Hanger Receptical w/ Dowel Pin Assembly,
Black
1 15
1096649 Guide, Square w/ Brass Barb Insert 1 16
0176700 Bushing, Coved Latch Legrest Genius 1 17
0050100 Washer, Nylon Flat (1/4 x 1/2 x 1/16") 1 108
0051606-NLA NLA - Screw, Cap, Button Head, Socket (1/4-20 x
1")
1 29
0052906 Screw, Socket Button Head (1/4-20 x 3/4") 1 310
0177802 Link, Black - Rear 1 111
1086987 Plate, Push Pin 1 112
0179202 Plate, Link 1 113
7930323 Package, Locknut (1/4-20) 25 414
7930333 Locknut (1/4-20) 25 115
0223506 Screw, Socket, Cap, Button Head (1/4-20 x 1/2") 1 116
0180506 Screw, Slotted, Pan Head (5/16-18 x 1-15/16") 1 117
0054700 Washer, Nylon (5/16 x 1/2 x 1/16") 1 218
0177702 Link, Black - Front 1 119
0182406 Pin, Push 1 120
1028486 Locknut, Low Profile (3/8-16) 1 121
0175600 Spacer, Coved (5/16 x 3/4 x 3/8") 1 222
0055206 Screw, Cap, Button Head, Socket (5/16-18 x
1-3/4")
1 123
1072692 Lockwasher, Split (5/16") 1 124
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 125
0176422 Spacer, Coved (5/16 x 3/4 x 3/8") 1 226
0176200 Bushing, Nylon Guide 1 228
0177100 Bushing, Legrest Support 1 129
0178224 Bar, Insert, Black 1 130
0175800 Bushing, Guide 1 131
0224600 Screw, Socket Head, Cap (#10-32 x 3/4") 1 132
1109613 Kit, Calf Pad Mounting, Retro-Fit 1 139 A,E
Locknut, Low Profile (5/16-18) 1 127
Screw, Hex Head (5/16-18 x 3-1/2) 1 133
Clamp, Calf Pad 1 134
Block, Legrest Pad Mount 1 135
Screw, Phillips Pan Head (#10-32 x 11/16") 1 236
Screw, Phillips Pan Head (#10-32 x 1") 1 236
Plate, Legrest Pad 1 137
Block, Mounting 1 138
Instruction Sheet, Legrest Pad Mtg. 1 1
8881091811 Pad, Calf - Right/Left 1 140
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
89
Genius Legrest (Mechanical)
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
0238124 Tube, Legrest (18") 1 141
0232424 Tube, Legrest (20") 1 141
0177022 Clamp, Tube Half 1 242
0177602 Plate, Adjustment 1 243
1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 344
1096664 Plug Button, Black (1") 1 145
0177222 Pivot, Footplate 1 146
1027097 Plug Button, Black (3/4") 1 147
0194906 Screw, Phillips Pan Head Tap (#8-32 x 1/2") 1 148
0176022 Spacer 1 249 B
0186000 Spacer, Wheel 1 249 C
0179824 Tube, Footplate, Black 1 150 B
0288824-NLA NLA - Tube, Footplate, Black 1 150 C
1036120 Spring 1 251 B
1036123 Spring, Leaf 1 251 C
1043659 Footplate, Aluminum, Deluxe, Black - Right (8" W x
5-3/4" L)
1 152 B
1043660 Footplate, Aluminum, Deluxe, Black - Left (8" W x
5-3/4" L)
1 152 B
44200X025 Footplate, Aluminum, Extra Large, Black - Right (8"
W x 8-1/2" L)
1 152
44200X026 Footplate, Aluminum, Extra Large, Black - Left (8" W
x 8-1/2" L)
1 152
See Chart Genuis Legrest Assembly 1 1D
A - Includes Items 27 and 33-38 (Per Side)
B - Standard Footplate with Rubber Edge
C - X-Large Footplate
D - Not Shown
E - Includes an Instruction Sheet.
NOTE:
Right, Left and Pair Assembly Part Numbers For Genius Legrest
Description
Standard
Footplate
X-Large Footplate Standard Footplate X-Large Footplate
20"20" 18" 18" Legrest Tube Length
16"-22" Wide16"-22" Wide16"-22" Wide16"-22" WideWidth Range
1072597026400010725950196600-NLARight Assembly
107259602639001072594-NLA0196500Left Assembly
1072905026380010729040138100-NLALegrest Pair
Form No. 03-026
90
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Push Rod Assembly
AT5544P and Genius
Form No. 03-026
91
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Push Rod Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1086966 Legrest Support Push Rod Assembly, Black - Right
(16 - 19" D)
1 11
1086967 Legrest Support Push Rod Assembly, Black - Left
(16 - 19" D)
1 11
1086968 Legrest Support Push Rod Assembly, Black - Right
(20 - 22" D)
1 11
1086969 Legrest Support Push Rod Assembly, Black - Left
(20 - 22" D)
1 11
1047449 Spacer (1/4 x 3/8 x 3/16") 1 12
1091871 Screw, Socket Head (#8-32 x 5/8") 1 13
1086958 Tube, Adjustable Slide, Black 1 14
1082922 Receptacle, Legrest 1 15
1007219 Screw, Socket Head (1/4-20 x 5/8") 1 16
1056098 Locknut (#8-32) 1 17
1086962 Rod, Push, Legrest Support, Black (16 - 19" D) 1 18
1086963 Rod, Push, Legrest Support, Black (20 - 22" D) 1 18
7930323 Package, Locknut (1/4-20) 25 19
1013971 Washer, Nylon (1/4 x 7/16 x 5/64") 1 110
AT5544P and Genius
Form No. 03-026
92
To order call toll free 1-800-333-6900, or www.invacare.com
Calf Pads and Mounting Hardware
NOTE: For replacement calf pads for Power Articulating Legrest, see Power Articulating Legrest page.
Form No. 03-026
93
To order call toll free 1-800-333-6900, or www.invacare.com
Calf Pads and Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881091759 Pad w/ Cover and Screws, Legrest Vinyl (Pair) 2 11 A,C
8881091764 Pad, Legrest, Vinyl - Right/Left 1 11 A,C
04526X019 Plate, Legrest Pad 1 12
7930330 Locknut (5/16-24) 25 13
1025133 Spacer, Legrest Pad, Black 1 14
1032267 Spacer, Legrest Pad Mounting, Black 1 15
1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 16
1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 17
1066591 Hardware, Legrest Pad 1 18 B
Screw, Phillips Pan Head (#10-32 x 11/16") 1 2
Screw, Phillips Pan Head (#10-32 x 1") 1 2
Instruction Sheet, Legrest Pad Mtg. 1 1
48823X008 Spring, Leaf 1 19
7930363 Package, Locknut (5/16"-24) 25 210
1025104 Bracket, Legrest, Chrome 1 111
1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 112
1032266 Bracket, Legrest Pad Mounting, Black 1 113
A - Specify upholstery color. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Options".
B - Item includes Screws and Instruction Sheet.
C - Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1066591) when
ordering replacement Calf Pads.
NOTE:
NOTE: For replacement calf pads for Power Articulating Legrest, see Power Articulating Legrest page.
Form No. 03-026
94
To order call toll free 1-800-333-6900, or www.invacare.com
Pivot/Slide Tube w/ Footplates - Composite - 1651
NOTE: Heel Loops are not included. See Footrest and Legrest Accessories.
NOTE: For complete pivot/slide tube and footplate assemblies, see Front Riggings Reference Charts
Form No. 03-026
95
To order call toll free 1-800-333-6900, or www.invacare.com
Pivot/Slide Tube w/ Footplates - Composite - 1651
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1057852 Tube, Pivot/Slide, Curved End, Steel, Black (9-7/8") 1 11
1057854 Tube, Pivot/Slide, Curved End, 2" Longer, Steel,
Black
1 11
1058418 Tube, Pivot/Slide, Curved End, 4" Longer, Steel,
Black
1 11
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 22
1027097 Plug Button, Black (3/4") 1 13
7930323 Package, Locknut (1/4-20) 25 14
7930366 Package, Socket Head Screw (1/4-20 x 2-1/4") 25 15
1026880 Footplate, Composite, Medium, Black (7" W x 6" L) 1 16 A
1026881 Footplate, Composite, Large, Black (8" W x 6" L) 1 16 B
1026879 Footplate, Composite, Small, Black (6" W x 6" L) 1 16 C
1026880 Footplate, Composite, Medium, Black (7" W x 6" L) 1 16 D
1026881 Footplate, Composite, Large, Black (8" W x 6" L) 1 16 E
A - 16" Wide
B - 17" and Wider
C - 16"-17" Wide Tapered
D - 18"-19" Wide Tapered
E - 20" and Wider Tapered
NOTE:
NOTE: Heel Loops are not included. See Footrest and Legrest Accessories.
NOTE: For complete pivot/slide tube and footplate assemblies, see Front Riggings Reference Charts
Form No. 03-026
96
To order call toll free 1-800-333-6900, or www.invacare.com
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1027097 Plug Button, Black (3/4") 1 11
1048834 Pivot/Slide Tube w/ Plug Button, Black 1 12 A
1098906 Pivot/Slide Tube w/ Plug Button, Black (2" Longer) 1 12 A
1086482 Pivot/Slide Tube w/ Plug Button, Black (4" Longer) 1 12 A
1041526 Pivot/Slide Tube w/ Plug, Steel, Chrome 1 12 B
1041526 Pivot/Slide Tube w/ Plug, Steel, Chrome 1 12 C
44200X027 Footplate, Aluminum, Medium, Black (7-3/4" W x 6"
L)
1 13
44200X025 Footplate, Aluminum, Extra Large, Black - Right (8"
W x 8-1/2" L)
1 13
44200X026 Footplate, Aluminum, Extra Large, Black - Left (8" W
x 8-1/2" L)
1 13
1016346 Cap, End, Tube, Black (7/8") 1 14 D
1027095 Plug Button, Black (7/8") 1 14 E
1006981 Spring, Tension 1 25 D
1036123 Spring, Leaf 1 15 E
7930354 Package, Phillips Head Screw (#8-32 x 3/8") 25 26
1070168 Plug, Push, Footplate 1 17
A - Extra Large footplate for AT5544, 70, PHW93,
B - Extra Large footplate for PHAL4A
C - Standard Aluminum footplate for PHAL4
D - For Standard Aluminum footplate
E - For Extra Large footplate
NOTE:
Pivot/Slide Tube w/ Footplate - Aluminum - 1650, 1350
NOTE: Heel Loops are not included. See Footrest and Legrest Accessories
NOTE: For complete pivot/slide tube and footplate assemblies, see Front Riggings Reference Charts.
Form No. 03-026
97
To order call toll free 1-800-333-6900, or www.invacare.com
Pivot/Slide Tube w/ Adjustable Angle Footplates - AT5543
70 deg, PHW93, AT5544, AT5544P Swingaway Supports
NOTE: Heel loops are not included. See Footrest and Legrest Accessories.
Form No. 03-026
98
To order call toll free 1-800-333-6900, or www.invacare.com
Pivot/Slide Tube w/ Adjustable Angle Footplates - AT5543
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart Pivot/Slide Tubes with Footplates 1 11 A
1113574 Footplate, Adjustable Angle, Extra Large, Black
(6-1/4" W x 8" L)
1 12 B
1058517 Clamp, Footplate 1 13
1057855 Tube, Pivot and Slide, Straight, Steel, Black (9-7/8"
L)
1 14
1057856 Tube, Pivot/Slide, Straight, Steel, Black (11-7/8" L) 1 14
1121135 Tube, Pivot/Slide, Straight, Steel, Black (13-7/8" L) 1 14
1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 15
1052102 Hinge, Footplate - Right 1 16
1052103 Hinge, Footplate - Left 1 16
1029545 Screw, Socket Flat Head (1/4-20 x 3/4") 1 27
1082686 Nut, Barrel, Hex Head (1/4-20 x 11/16") 1 28
7930321 Package, Screw, Socket Button Head (1/4-20 x
1-7/8")
25 19
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 110
1026900 Washer (1/4 x 23/32 x 1/16") 1 111
7930313 Package, Washer, Nylon (5/16 x 7/8 x 1/8") 25 112
1026907 Washer (1/4 x 1/2 x 1/16") 1 113
7930333 Locknut (1/4-20) 25 114
A - Includes Items 2 thru 14.
B - The footplate design was revised on 9/2/2008 with rounder corners and accessory holes changed from eight to four.
Recommended to replace footplate in pairs to match sides.
NOTE:
#1 Pivot Slide Tube w/ Footplate Assemblies
Rigging Type Side
16" and Wider
X- Large Footplate
1062756Right
70, PHW93, AT5544, AT5544P
(9-7/8" Tube)
1062757Left
1062760Right
70, PHW93, AT5544, AT5544P
(11-7/8" Tube)
1062761Left
1121140Right
70, PHW93, AT5544, AT5544P
(13-7/8" Tube)
1121141Left
70 deg, PHW93, AT5544, AT5544P Swingaway Supports
NOTE: Heel loops are not included. See Footrest and Legrest Accessories.
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
99
Loading...
