Parts Catalog
Issued: Oct 11, 2006
Youthmobile 3000
Yes, you can. ™
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the bottom of the page or below specified charts.
Parts Catalog Usage Guide
To order call toll free 1-800-333-6900, or www.invacare.com
The information contained in this document is subject to change without notice. This catalog contains service parts for Form No. 88-139. If you have any questions regarding this catalog, please contact one of our Customer Service Representatives.
For Customer Service Support Call:
For Faxed In Orders Call:
1-800-678-4682 or
For Technical Service Call:
Literature Can Be Found at:
www.invacare.com or
SYMBOL DEFINITION
Examples:
A,B,C etc. NOTE: NLA
= Special Comments = General information pertaining to that specific page = No Longer Available
HARDWARE MEASUREMENTS
The measurements for the hardware will be listed as follows:
Screws, Bolts Washers Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
©2006 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., and the Medallion Design are registered trademarks of Invacare Corporation.
Diameter X Thread Count/Pitch X Length Inside Diameter X Outside Diameter X Thickness Inside Diameter X Outside Diameter X Length
Name Phone Numbers
Form No.
88-139
1
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
88-139
Description
Accessories - Footrest and Legrest .......................................................................................... 55
Accessories - Head Support ..................................................................................................... 63
Accessories - Headrest Extension - Non-Recliner ................................................................... 61
Accessories - Miscellaneous .................................................................................................... 58
Accessories - Solid Folding Seat .............................................................................................. 65
Accessories - Torso Support .................................................................................................... 67
Accessories - Utility Tray .......................................................................................................... 69
Arms - Permanent and Removable .......................................................................................... 18
Crossbraces and Hardware ...................................................................................................... 9
Forks and Hardware ................................................................................................................. 20
Frames and Hardware - Permanent Arm ................................................................................. 5
Frames and Hardware - Removable Arm ................................................................................. 7
Front Riggings - Footboard - One Piece, Wooden ................................................................... 51
Front Riggings - Footrest - One Piece, Adjustable ................................................................... 47
Front Riggings - Footrest - One Piece, Non-Adjustable ........................................................... 49
Front Riggings - Footrest Support Assembly - 91 .................................................................... 38
Front Riggings - Footrest Support Assembly - 93J .................................................................. 42
Front Riggings - Footrest Support Assembly - 93M ................................................................. 40
Front Riggings - Legrest Support Assembly - 92 ..................................................................... 44
Front Riggings - Pivot Slide Tube with Footplate ..................................................................... 53
Front Riggings Index and Calf Pads ......................................................................................... 37
2
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
88-139
Description
Packaging and Upholstery Colors ............................................................................................ 4
Reclining Back Hardware ......................................................................................................... 11
Seat Extended Legrest ............................................................................................................. 56
Upholstery - Back Upholstery without Hardware ...................................................................... 13
Upholstery - Seat Upholstery without Hardware ...................................................................... 16
Wheel Lock - Recliner .............................................................................................................. 35
Wheel Lock Non-Recliner with Permanent Arm ....................................................................... 31
Wheel Lock Non-Recliner with Removable Arm ...................................................................... 33
Wheels - Front Casters and Hardware ..................................................................................... 22
Wheels - Handrim Attaching Hardware .................................................................................... 30
Wheels - Handrims ................................................................................................................... 28
Wheels - Rear Wheel Hardware ............................................................................................... 25
Wheels - Rear Wheels ............................................................................................................. 27
3
Upholstery Colors
Color Number Description
Black NylonU240
Light Blue Heavyweight VinylU16
Marina Blue VinylU60
Yellow VinylU76
Candy Apple Red VinylU77
When adjusting or replacing parts please refer to your owners manual for assistance.
Packaging and Literature
Part Number Description
Carton40131X038
Insert40131X039
Warranty Card00077X031
Owner's Manual1013147
Wrench48602X000
When adjusting or replacing parts please refer to your owners manual for assistance.
Packaging and Upholstery Colors
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
4
Permanent Arm Frames and Hardware
Form No.
88-139
5
To order call toll free 1-800-333-6900, or www.invacare.com
Permanent Arm Frames and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1027095 Plug Button, Black (7/8") 1 31 47453X019 Insert Tube 1 12 21243X000 Screw, Pan Head (#6-20 x 3/8") 1 13
1006229 Grip, Foam (8") 1 14 40144X000 Plug Button (7/8") 1 15
57768X020-NLA Caster Sleeve 1 16 A
1016682 Bearing, Sleeve Caster 1 16 40121X000 Screw Pan Head (#6-32 x 3/16") 1 17 15680X012 Collar, Anti-Rattle (7/8") 1 18
1015878 Frame w/o Hardware Right 1 19 B
1015879 Frame w/o Hardware Left 1 19 B
1015876 Frame w/o Hardware Right 1 19 C
1015877 Frame w/o Hardware Left 1 19 C
1016459 Frame w/o Hardware Right 1 19 D
1016460 Frame w/o Hardware Left 1 19 D
A - Due to product improvement when replacing 57668X020 sleeve, a pair of no. 1016682 new Caster sleeves should be
ordered.
B - 12" Wide, Non-Recliner
C - 14-16" Wide, Non-Recliner
D - 14-16" Wide, Recliner
NOTE:
Form No.
88-139
6
To order call toll free 1-800-333-6900, or www.invacare.com
Removable Arm Frames and Hardware
Form No.
88-139
7
To order call toll free 1-800-333-6900, or www.invacare.com
Removable Arm Frames and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1027095 Plug Button, Black (7/8") 1 41 60355X000 Locknut (3/8-24) 1 22 04747X024 Lock Handle 1 13
1006490 Tip, Black 1 14 40187X002 Roll Pin (5/64 x 1/2") 1 15 47471X021 Spring 1 16 B 47471X074 Spring, Arm Lock 1 16 C 47471X023 Locking Pin 1 17 B 47471X068 Locking Pin 1 17 C 04702X148 Arm Socket Right (12" Wide Chair) 1 18 04702X149 Arm Socket Left (12" Wide Chair) 1 18 04702X003 Arm Socket Right (14-16" Wide Chair) 1 18 04702X004 Arm Socket Left (14-16" Wide Chair) 1 18 47453X019 Insert Tube 1 19 21243X000 Screw, Pan Head (#6-20 x 3/8") 1 110 15680X012 Collar, Anti-Rattle (7/8") 1 111
1006229 Grip, Foam (8") 1 112 40144X000 Plug Button (7/8") 1 113
57768X020-NLA Caster Sleeve 1 114 A
1016682 Bearing, Sleeve Caster 1 114 40121X000 Screw Pan Head (#6-32 x 3/16") 1 115 04562X011 Back Tube Right 1 116 04562X012 Back Tube Left 1 116 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 217 47311X001 Clamp 1 218
7930363 Pkg, Locknut (5/16"-24) 25 219
1015872 Front Frame Right (12" Wide Chair) 1 120
1015873 Front Frame Left (12" Wide Chair) 1 120
1015866 Front Frame Right (14"-16" Wide Chair) 1 120
1015867 Front Frame Left (14"-16" Wide Chair) 1 120
1015868 Rear Frame Non-Reclining Right (12" Wide Chair) 1 121
1015869 Rear Frame Non-Reclining Left (12" Wide Chair) 1 121
1015864 Rear Frame Non-Reclining Right (14"-16" Wide
Chair)
1 121
1015865 Rear Frame Non-Reclining Left (14"-16" Wide
Chair)
1 121
04560X145-NLA Rear Frame Reclining Right / Left (14"-16" Wide
Chair)
1 121
A - Due to product improvement when replacing 57668X020 sleeve, a pair of no. 1016682 new Caster sleeves should be
ordered.
B - Before 9/93
C - After 8/93
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
8
Crossbraces and Hardware
Form No.
88-139
9
To order call toll free 1-800-333-6900, or www.invacare.com
Crossbraces and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1058416 Seat Guide (Black) 1 41
7930363 Pkg, Locknut (5/16"-24) 25 12 40317X001 Screw, Hex Head Cap (5/16-24 x 2-3/4") 1 13 04723X003 Seat Guide 1 24 A 04555X006 Rear Seat Guide After 5/89 1 24 B 04555X004 Seat Guide Front (12" Wide Chair) 1 25 C 04555X007 Front Seat Guide After 5/89 1 25 D
1027095 Plug Button, Black (7/8") 1 26 47397X024 Spacer (7/8 x 1 x 7/16") 1 27 C 47397X022 Spacer (7/8 x 1 x 7/8") 1 27 D 40144X001 Plug Button (Chrome) (3/4") 1 28 47236X001 Tension Spring 1 29
1027097 Plug Button, Black (3/4") 1 210
7930361 Screw Phillips Head (#10-32 x 1-1/8") 25 411
7930365 Locknut (#10-32) 25 412 42301X011 Tube Insert 1 213 47397X020 Spacer (7/8 x 1 x 1-3/8") 1 214 E
04354X038-NLA Crossbrace w/o Hardware (12" Wide Chair) Right 1 115 C 04354X039-NLA Crossbrace w/o Hardware (12" Wide Chair) Left 1 115 C
04354X048 Crossbrace w/o Hardware (14"-16" Wide Chair)
Right
1 115 D
04354X049 Crossbrace w/o Hardware (14"-16" Wide Chair) Left 1 115 D
A - Non-Recliner
B - Recliner
C - 12" Wide Chairs
D - 14-16" Wide Chairs
E - 12" Wide Chairs Only
NOTE:
Form No.
10
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
Reclining Back Hardware
Form No.
88-139
11
To order call toll free 1-800-333-6900, or www.invacare.com
Reclining Back Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
04429X009 Strut Tube (14" Wide Chair) 1 11 04419X015 Adjustable Pivot Spreader Bar (Pair) 1 11 40197X000 Roll Pin (3/16 x 7/8") 1 11 47340X003 Handle 1 11
40299X010-NLA Handgrip (Grey) - NLA 1 22 A
1029096 Handgrip (Black) 1 22 B
16812X000-NLA Handgrip (Grey) Center - NLA 1 13 A
1029099 Handgrip Center 1 13 B 47340X006 Handle Tie Rod 1 14 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 25
7930363 Pkg, Locknut (5/16"-24) 25 36 04562X016 Back Support Tube (14" Wide Chair) 1 17 47447X009 Screw Self Tapping (#8 x 3/8") 1 38
1027095 Plug Button, Black (7/8") 1 19
1011725 Headrest Extension Tube w/ Snap Fasteners 1 110
1054610 Headrest Extension Tube w/o Snap Fasteners 1 110 47330X003 Spacer (5/16 x 1/2 x 3/8") 1 111 04562X003 Reclining Back Tube Right / Left 1 112 40363X000 Hex Nut (3/8"-16) 1 213 16325X000 Washer (3/8 x 13/16 x 1/16") 1 214 47324X004 Spacer (9/16 x 1 x 1/16") 1 115 60282X004 Bolt Shoulder (1/2 x 2") 1 116 47376X025 Plastic Tip (Black) 1 117
1012386 Acorn Nut (7/16-20) 1 118 47557X003 Locking Handle 1 119
7930352 Locknut (7/16-20) 25 120 04610X006 Spacer Tube 1 121 04610X007 Locking Rod 1 122
1015874 Ratchet Tube Right 1 123
1015875 Rachet Tube Left 1 123 60282X003 Bolt Shoulder (1/2 x 1-1/4") 1 124
A - Before 6/93
B - After 5/93
NOTE:
Form No.
88-139
12
To order call toll free 1-800-333-6900, or www.invacare.com
Non-Recliner
Chair Width x Height Nylon Vinyl Package Quantity
1
88801026X000
101589012 x 16"
See Note(s) A
1
88804100X001
101591814 x 16"
See Note(s) A
1
88804095X000
101592016 x 16"
See Note(s) A
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors". NOTE:
Back Upholstery
without Hardware
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
13
Back Upholstery
Recliner
Chair Width x Height Nylon Vinyl Package Quantity
1
88801026X000
101589014 x 16"
See Note(s) A
1
88804100X001
101591816 x 16"
See Note(s) A
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors". NOTE:
Individual Hardware for All Back Upholstery
Part
Number
Description
Quantity Per
Package
12
Screws with Washers
(#10 x 7/8")
1041541
Recliner Headrest and Pillow
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1054655 Headrest Upholstery 14" Wide U240 1 1B
1054654 Headrest Upholstery 16" Wide U240 1 1B
88801066X000 Headrest Upholstery 1 1A,C
8881054615 Headrest Upholstery 1 1A,C
88804644X002 Headrest Pillow 1 1A,D,F
1054894 Headrest Cushion, 14" Wide 1 1B,E,F
8881054617 Pillow Headrest Vinyl 14" Wide 1 1A,C,F
See Chart Back Upholstery Hardware 1 1G See Chart Headrest Upholstery Hardware 1 1G See Chart Non-Recliner 1 1G See Chart Recliner 1 1G
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors"
B - Nylon
C - Vinyl
D - with Snaps (Before 6/95)
E - with Hook and Loop (After 5/95)
F - 14-16" Wide Chairs
G - Not Shown
NOTE:
Hardware for Headrest Upholstery
without Hardware
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
14
Back Upholstery
Hardware for Headrest Upholstery
Part
Number
Description
Quantity Per
Package
12
Screws with Washers
(#10 x 7/8")
1041541
without Hardware
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
15
Non-Recliner
Width x Depth Nylon Vinyl Packaging Quantity
1
88801022X000
101588212" x 11"
See Note(s) A
1
88801021X000
101588114" x 12"
See Note(s) A
1
88801020X000
101591416" x 14"
See Note(s) A
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors". NOTE:
Seat Upholstery
without Hardware
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
16
Seat Upholstery
Recliner
Width x Depth Nylon Vinyl Packaging Quantity
1
8881017508
101673814" x 13"
See Note(s) A
1
88801020X000
101591416" x 14"
See Note(s) A
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors" NOTE:
Hardware for Seat Upholstery
Part Number Description Quantity per Package
12
Screws with Washers
(#10 x 7/8")
1041541
without Hardware
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
17
Permanent and Removable Arms
Form No.
88-139
18
To order call toll free 1-800-333-6900, or www.invacare.com
Permanent and Removable Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881053570 Arm Pads with Screws - Desk Length 1 11 A 8881053571 Arm Pads with Screws - Full Length 1 11 A
1027095 Plug Button, Black (7/8") 1 22
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 13 21243X000 Screw, Pan Head (#6-20 x 3/8") 1 44 11008X002 Screw, Oval Head (#10-32 x 1-1/4") 2 25
1034083 Package, Screws Phillips Head (#10-32 x 1-1/8") 2 26
1036198 Upper Arm Tube w/o Armpad w/ Plug Buttons Right/
Left
1 17
47234X001 Guard Clothing, (Chrome) Full Fixed Arm 1 18 47234X009 Clothing Guard Permanent Arm Full Length 1 18
47234X053-NLA Clothing Guard Removable Arm Desk Length 1 19
47234X015 Clothing Guard Removable Arm Full Length 1 19 40358X007 Locking Knob 1 110
1076283 Screw, Phillips Head Oval with Washer (#10-16 x
7/8")
1 111
1041541 Package, Upholstery Screws w/ Washers (#10 x
7/8")
12 111
1036193 Desk Length Arm Base Assembly w/o Armpad Right 1 112
1036194 Desk Length Arm Base Assembly w/o Armpad Left 1 112 04702X036 Full Length Arm Base Assembly w/o Armpad Right 1 113 04702X037 Full Length Arm Base Assembly w/o Armpad Left 1 113
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors"
NOTE:
Form No.
88-139
19
To order call toll free 1-800-333-6900, or www.invacare.com
Forks and Hardware
Form No.
88-139
20
To order call toll free 1-800-333-6900, or www.invacare.com
Forks and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
40314X002 Retaining Ring 1 11 10141X006 Washer Wave (1/2 x 5/8 x 1/32") 1 12 40157X005 Washer Nylon (1/2 x 3/4 x 1/16") 1 13 40117X008 Bearing Radial 1 14
57768X020-NLA Caster Sleeve 1 15 B
1016682 Bearing, Sleeve Caster 1 15 40157X007 Washer (5/8 x 1-3/32 x 1/32") 1 16 40117X007 Bearing Needle Thrust 1 17 40157X006 Washer (5/8 x 1-3/32 x 1/16") 1 18
1027095 Plug Button, Black (7/8") 1 1A
01008X007-NLA Bearing Assembly 1 19
1001843 Cap, Head Tube (Black) 1 110
7930352 Locknut (7/16-20) 25 111
7930356 Washer Nylon (9/16 x 1 x 1/16") 25 212
1002626 Bearing 1 113 04268X022 Bearing Lower 1 114
01007X004-NLA Fork and Stem 5" Caster 1 115 D
1086613 Fork and Stem 5" Caster 1 115 D 04540X264 Fork and Stem (8" x 1") & (8" x 1-1/4") Casters 1 115 E 04540X247 Fork and Stem Assembly 1 115 F
1086614-NLA Fork and Stem Assembly (5") 1 116 C
04540X265 Fork and Stem Assembly (8") 1 116
A - Not Shown
B - Due to product improvement when replacing 57668X020 sleeve, a pair of no. 1086613 and no. 1016682 Caster sleeves
should be ordered.
C - Fork and Stem assembly NLA, see page titled "Front Casters and Hardware" item number 10 for replacement.
D - 5" Caster
E - 8 x 1" and 8 x 1-1/4" Casters
F - 8 x 2" Caster
NOTE:
Form No.
88-139
21
To order call toll free 1-800-333-6900, or www.invacare.com
Front Casters and Hardware
Form No.
88-139
22
To order call toll free 1-800-333-6900, or www.invacare.com
Front Casters and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1031891 Screw, Hex Head Cap (5/16-24 x 2") 1 11 A 57667P007 Screw, Hex Head Cap (7/16-20 x 3-1/4") 1 11 B
1018027 Axle Spacer 5" Casters (5/16 x 5/8") 1 22 A,C 47183X047 Spacer (5/16 x 1/2 x 3/16") 1 22 D
1026101 Spacer (7/16 x 5/8 x 3/16") 1 12 E
1016032 Washer (15/32 x 5/8 x 3/64") 1 12 F 40117X026 Bearing, Flanged (5/16") 1 23 A
1006049 Bearing (7/16") 1 23 B
1026172 Spacer (5/16 x 7/16") 1 14 A
1018982 Spacer Hub Casters (7/16 x 5/8 x 1-9/16") 1 14 E
1020592 Spacer, Bearing (7/16 x 5/8 x 1-3/4") 1 14 G
See Chart See Footnote 1 15 H
1025730-NLA Locknut (5/16-24) 1 16 A
1107321 Nut, Low Cap (5/16"-24) 1 16 A 20225X000 Locknut (7/16-20) 1 16 B
1086613 Fork and Stem 5" Caster 1 17
1016682 Bearing, Sleeve Caster 1 18
1016933 Screw, Pan Head (#8-32 x 5/16") 1 19
1086615 5" Caster Assembly 1 110
See Chart Front Casters 1 1I
A - 5" Casters
B - 8" casters
C - Before 3-9-99
D - After 3-8-99
E - 8 x 7/8" Casters
F - All other 8" Casters
G - 8 x 1-1/4" and 8 x 1-3/4" Casters
H - See chart below titled "#5 Front Casters"
I - Not Shown
NOTE:
#5 Front Casters
Part Number Description Tire
Package
Tube/Insert
Quantity
1N/AN/ACaster 5" Urethane
1029496
See Note(s) C, A, D
1N/A1040144
Wheel Assembly (8" x
1") Composite Solid
Rubber
1058137
See Note(s) A
140176X04140176X040
Caster (8x1-1/4")
Pneumatic
1009481
See Note(s) A
1101090440176X040
Pneumatic
w/Flat Free Insert
1030773
See Note(s) A
1N/AN/A
Semi-Pneumatic
(8x2")
1070811
See Note(s) E
2N/AN/A
Semi-Pneumatic
(8x2")
1071666
See Note(s) F
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
23
Front Casters and Hardware
A - Includes bearings and bearing spacers C - Order in Pairs (#1086615) for chairs manufactured Before 3/9/99. D - After 3/8/99 E - 1 piece F - 1 pair
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
24
Rear Wheel Hardware
Form No.
88-139
25
To order call toll free 1-800-333-6900, or www.invacare.com
Rear Wheel Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
47203X024 Bolt, Hex Head (7/16-20 x 4") 1 11 A 47203X025 Bolt, Hex Head Cap (7/16-20 x 4-3/4") 1 11 B 40157X011 Washer (7/16 x 15/16 x 1/16") 1 12 A 47183X037 Spacer (1/2 x 7/8 x 7/8") 1 12 B
7930352 Locknut (7/16-20) 25 13
1027600-NLA Cap, Black 1 14 C
A - Permanent Arm Chairs and Non-Reclining
B - Removable Arm Chairs and All Recliners
C - DTM Wheel Only
NOTE:
Form No.
88-139
26
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel
Style
Composite
Composite
4244BK
Composite
1763BK
Composite
4763BK
Composite
U1763BK
Composite
2244BK
Composite
2222BK
24"24"24"24"20"20"20"
Wheel
Size
Pneumatic
w/Flat Free
Insert
(24 x 1-3/8")
Pneumatic
(24 x 1-3/8")
DTM
(24 x 7/8")
Urethane
(24 x 1-1/4")
Urethane
(20 x 1-1/4")
Pneumatic
w/Flat Free
Insert
(20 x 1-3/8")
Pneumatic
(20 x 1-3/8")
Single
Tire Type
1025124
1025123
1080378
1032117
1038555
1034127
1034126
Wheel
Assembly
See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A
40176X06040176X06010393041026904103777410175191017519Tire
101090640176X061N/AN/AN/A10233221017520Tube/Insert
40117X02440117X02440117X02440117X02440117X02440117X02440117X024
Hub
Bearing
1015756101575610196951015756101575610157561015756Spacer
A - Includes tire, tube/insert, bearing and spacer. Does not include handrim. NOTE:
Rear Wheels
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
27
Chrome Plated - Non-Projection
Handrim Only Quantity Att. Points Att. Hardware Kit Wheel Type
B
1025150
611027413
See Note(s) A See Note(s) B A - Kit contains enough hardware for 1 handrim. B - See chart titled "Wheel Types".
NOTE:
Flat Black - Non-Projection
Handrim Only Quantity Att. Points Att. Hardware Kit Wheel Type
B
1025150
61
1031428
See Note(s) B See Note(s) A See Note(s) C
A
1025153
71
1015406
See Note(s) B See Note(s) A See Note(s) C
C
1025153
71
1020017
See Note(s) B See Note(s) A See Note(s) C
A - Kit contains enough hardware for 1 handrim. B - When replacing handrims for chairs built before 12/17/99 order in pairs, handrim color has changed from Pewter to Flat Black. C - See chart titled "Wheel Types".
NOTE:
Grey Plastic Coated - Non Projection
Handrim Only Quantity Att. Points Att. Hardware Kit Wheel Type
B
1025150
611027414
See Note(s) A See Note(s) B
A
1025158
711015406
See Note(s) A See Note(s) B
C
1025158
711020017
See Note(s) A See Note(s) B A - Kit contains enough hardware for 1 handrim. B - See chart titled "Wheel Types".
NOTE:
Handrims and Attaching Hardware
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
28
Handrims and Attaching Hardware
Grey Plastic Coated - Projection
8 Vertical Handrim Only Quantity Att. Points Att. Hardware Kit
B
1062763
611017873
See Note(s) A See Note(s) B
A
1062764
711015432
See Note(s) A See Note(s) B
8 Oblique
B
1062763
611017872
See Note(s) A See Note(s) B
A
1062765
711015434
See Note(s) A See Note(s) B A - Kit contains enough hardware for 1 handrim. B - See chart titled "Wheel Types"
NOTE:
Wheel Types
A = 24" Composite Wheel with Pneumatic/Urethane Tire
B = 24" Composite Wheel with DTM Tire
C = 20" Composite Wheel with Urethane or Pneumatic Tire
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
29
Standard Handrim Hardware
Part
Number
Description Hardware Kit Hardware Kit Hardware Kit
102515310251581025150
----6
Screw with Washer
(#10-32 x 7/8")
1026750
77--
Screw Pan Head (#10-32 x 1-3/4")
7930305
7----
Spacer (1/4 x 11/32 x
15/16")
1016438
The quantity in each column is the amount of that item that is in the hardware kit.
Projection Handrim Hardware
Part
Number
Description Hardware Kit Hardware Kit Hardware Kit
106276410627651062763
----6
Screw, Phillips Head
(#10-32 x 1-3/8")
11008X011
--7--
Screw Phillip Pan
Head (#10-32 x
1-1/4")
11008X003
----6
Screw, Phillips Pan
Head (#10-32 x 7/8")
16718X000
77--
Screw, Phillips Pan
Head (#10-32 x
11/16")
7930360
7----
Screw Pan Head (#10-32 x 1-3/4")
7930305
776
Attaching
Link
47559X008
776
Locknut
(#10-32)
7930365
776Washer (#10 Flat)1013218
----6
Spacer (1/2" O.D. x
3/16" W)
1017870
111
Instruction Sheet
Handrim Hardware
1062516
The quantity in each column is the amount of that item that is in the hardware kit.
Handrim Attaching Hardware
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
30

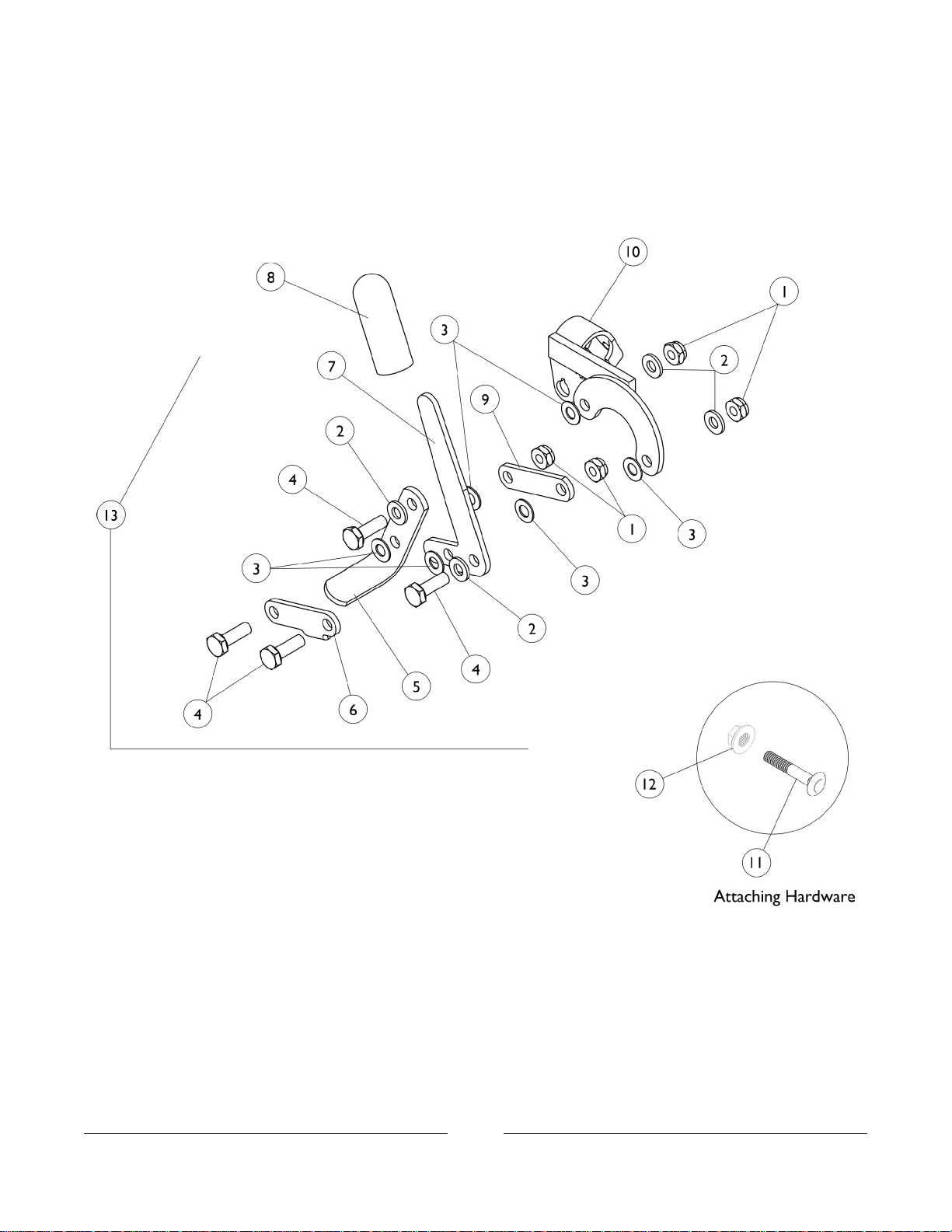

Wheel Lock Non-Recliner with Permanent Arm
Form No.
88-139
31
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock Non-Recliner with Permanent Arm
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930367 Locknut (1/4-28) 25 21 1010398 Washer, Nylon (1/4 x 1/2 x 1/16") 1 42
7930357 Washer, Nylon (1/4 x 1/2 x 1/32") 25 63 60274X012 Screw, Hex Head Cap (1/4-28 x 3/4") 1 24 47559X032 Shoe 1 15 47559X025 Link - Right 1 16 47559X026 Link - Left 1 16 47559X028 Handle - Right 1 17 47559X029 Handle - Left 1 17 47376X024 Tip, Wheel Lock Rubber 1 18 60133X006 Rivet (9/16") 1 28 47559X024 Link Flat 1 19 04512X087 Mounting Bracket - Right 1 110 04512X088 Mounting Bracket - Left 1 110
1107321 Nut, Low Cap (5/16"-24) 1 111 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 112 04512X154 Wheel Lock (Push to Lock) Right 1 113 A 04512X155 Wheel Lock (Push to Lock) Left 1 113 A
A - Push to Lock; Includes items 1-10
NOTE:
Form No.
88-139
32
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock Non-Recliner with Removable Arm
Form No.
88-139
33
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock Non-Recliner with Removable Arm
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930367 Locknut (1/4-28) 25 21
7930357 Washer, Nylon (1/4 x 1/2 x 1/32") 25 63 47559X024 Link Flat 1 14 60274X012 Screw, Hex Head Cap (1/4-28 x 3/4") 1 25 47559X025 Link - Right 1 16 47559X026 Link - Left 1 16 47559X032 Shoe 1 17 47376X024 Tip, Wheel Lock Rubber 1 18 47559X028 Handle - Right 1 19 47559X029 Handle - Left 1 19 04512X113 Bracket, Mounting - Right 1 110 04512X114 Bracket, Mounting - Left 1 110
1107321 Nut, Low Cap (5/16"-24) 1 111 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 112
1040829 Wheel Lock (Pull to Lock) Right 1 113 A
1040830 Wheel Lock (Pull to Lock) Left 1 113 A
A - Pull to Lock; Includes Items 1-10
NOTE:
Form No.
88-139
34
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock - Recliner
Form No.
88-139
35
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock - Recliner
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
04512X113 Bracket, Mounting - Right 1 11 04512X114 Bracket, Mounting - Left 1 11
7930367 Locknut (1/4-28) 25 42 40157X004 Spacer, Nylon (1/4 x 1/8") 1 23
7930357 Washer, Nylon (1/4 x 1/2 x 1/32") 25 64 60274X012 Screw, Hex Head Cap (1/4-28 x 3/4") 1 45 47559X025 Link - Right 1 16 47559X026 Link - Left 1 16
1015443 Shoe 1 17
1023296 Handle 1 18 47376X024 Tip, Wheel Lock Rubber 1 19
1107321 Nut, Low Cap (5/16"-24) 1 110 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 111
1021068 Wheel Lock Assembly w/o Hardware - Right 1 112 A
1021069 Wheel Lock Assembly w/o Hardware - Left 1 112 A
A - Pull to Lock (shown), Includes Items 1-9
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
36
Calf Pads
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
88804530X003 Legrest Pad, Vinyl -Right 1 2B 88804530X004 Pad, Legrest Vinyl - Left 1 2B 88804529X003 Pad, Legrest Vinyl - Right 1 2A,C 88804529X004 Pad, Legrest Vinyl - Left 1 2A,C
01415X000-NLA Cover, Legrest Pad 1 2A,D
8881091759 Pad w/Cover and Screws, Legrest Vinyl 2 1A,D 8881091764 Pad, Legrest Vinyl - Right/Left 1 2A,D
1066591 Screws, Phillips Head (#10-32 x 11/16") 2 1
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors"
B - 12" wide chairs
C - 14" wide chairs
D - 16" wide chairs
NOTE:
Front Riggings Index and Calf Pads
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
37
Footrest Support Assembly
91
Form No.
88-139
38
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 11
7930360 Screw, Phillips Pan Head (#10-32 x 11/16") 25 12
7930359 Screw, Phillips Pan Head (#10-32 x 1/2") 25 13
1027095 Plug Button, Black (7/8") 1 24 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 15
1107321 Nut, Low Cap (5/16"-24) 1 16
1016962 Footrest Support Only Right 1 17
1016963 Footrest Support Only Left 1 17
1022874 Bumper 1 18
1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 19 67005X000 Rivnut (#10-32) 1 110
1008935 Spring, Release - Right 1 111
1008936 Spring, Release - Left 1 111
7930365 Locknut (#10-32) 25 112
1006490 Tip, Black 1 113 A
1023428 Handle, Release, Chrome - Right 1 114
1023431 Handle, Release, Chrome - Left 1 114
1017543 Footrest Support Assembly Right 1 115
1017544 Footrest Support Assembly Left 1 115
See Chart Pivot Slide Tube with Aluminum Footplate 1 1B
A - Before 10/1/00
B - Not Shown
The following pivot slide tubes with footplates are used with the above assembly. For more information on the pivot slide tube or
footplates see page titled "Pivot Slide Tube with Footplate"
Due to design change, for all chairs built prior to 10/1/00 it is suggested that Release Handles be replaced in pairs.
NOTE:
Pivot Slide Tube with Aluminum Footplate
Chair
Width
Right Left
1017536101753512" Width 1018026101802514" Width 1018024101802316" Width
91
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
39
Footrest Support Assembly
93M
Form No.
88-139
40
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1023428 Handle, Release, Chrome - Right 1 11
1023431 Handle, Release, Chrome - Left 1 11 47565X057 Bushing (7/32 x 3/8 x 11/32") 1 12
7930360 Screw, Phillips Pan Head (#10-32 x 11/16") 25 13
1008935 Spring, Release - Right 1 14
1008936 Spring, Release - Left 1 14
7930359 Screw, Phillips Pan Head (#10-32 x 1/2") 25 15
1027095 Plug Button, Black (7/8") 1 26 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 17
1107321 Nut, Low Cap (5/16"-24) 1 18 04706X035 Footrest Support Only (Chrome) Right 1 19 04706X036 Footrest Support Only (Chrome) Left 1 19
1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 110
1022874 Bumper 1 111 67005X000 Rivnut (#10-32) 1 112
7930365 Locknut (#10-32) 25 113
1006490 Tip, Black 1 114 A
1031191 Footrest Support (Chrome) Right 1 115
1031192 Footrest Support (Chrome) Left 1 115
See Chart Pivot Slide Tube with Aluminum Footplate 1 1B
A - Before 10/1/00
B - Not Shown
The following pivot slide tubes with footplates are used with the above assembly. For more information on the pivot slide tube or
footplates see page titled "Pivot Slide Tube with Footplate".
Due to design change, for all chairs built prior to 10/1/00 it is suggested that Release Handles be replaced in pairs.
NOTE:
Pivot Slide Tube with Aluminum Footplate
Chair Width Standard 9-1/2" 2" Longer 11-1/2" 4" Longer 13-1/2"
N/AN/A
1007274
12"
See Note(s) A
N/AN/A
1007275
See Note(s) B
N/AN/A
1033506
14"
See Note(s) A
N/AN/A
1033507
See Note(s) B
1086487
1086486
1017243
16"
See Note(s) A See Note(s) A See Note(s) A
1086489
1086488
1017244
See Note(s) B See Note(s) B See Note(s) B A - Right B - Left
NOTE:
93M
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
41
Footrest Support Assembly
93J
Form No.
88-139
42
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1006490 Tip, Black 1 11 A 7930360 Screw, Phillips Pan Head (#10-32 x 11/16") 25 12 7930359 Screw, Phillips Pan Head (#10-32 x 1/2") 25 13 1027095 Plug Button, Black (7/8") 1 14 1008935 Spring, Release - Right 1 15
1008936 Spring, Release - Left 1 15 04706X039-NLA Footrest Support Only Right 1 16 04706X040-NLA Footrest Support Only Left 1 16
67005X000 Rivnut (#10-32) 1 17
7930363 Pkg, Locknut (5/16"-24) 25 18
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 19
1022874 Bumper 1 110
1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 111
7930365 Locknut (#10-32) 25 112
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 113
1023428 Handle, Release, Chrome - Right 1 114
1023431 Handle, Release, Chrome - Left 1 114
1031330-NLA Footrest Support w/ Release Handle (Tip, Bolt and
Locknut) Right
1 115
1031331-NLA Footrest Support w/ Release Handle (Tip, Bolt and
Locknut) Left
1 115
See Chart Pivot Slide Tube with Aluminum Footplate 1 1B
A - Before 10/1/00
B - Not Shown
The following pivot slide tubes with footplates are used with the above assembly. For more information on the pivot slide tube or
footplates see page titled "Pivot Slide Tube with Footplate"
Due to design change, for all chairs built prior to 10/1/00 it is suggested that Release Handles be replaced in pairs.
NOTE:
Pivot Slide Tube with Aluminum Footplate
Chair Width Standard 9-1/2" 2" Longer 11-1/2" 4" Longer 13-1/2"
N/AN/A
1020232
14"
See Note(s) A
N/AN/A
1020233
14"
See Note(s) B
1086487
1086486
1017243
16"
See Note(s) A See Note(s) A See Note(s) A
1086489
1086488
1017244
16"
See Note(s) B See Note(s) B See Note(s) B A - Right B - Left
NOTE:
93J
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
43
Legrest Support Assembly
92 - (12', 14", 16" Wide Chairs)
Calf Pads are not included with support assembly. Please refer to "Front Riggings Index and Calf Pads"
category.
Form No.
88-139
44
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
47352X003 Lock, Pad Plate, Legrest 1 11 47352X004 Clamp 1 12 04526X006 Elevating Support Tube Right 1 13 F 04526X007 Elevating Support Tube Left 1 13 F 04526X002 Support Tube, Elevating, Chrome - Right 1 13 G
04526X003 Support Tube, Elevating, Chrome - Left 1 13 G 04526X004-NLA Elevating Support Tube Right 1 13 H 04526X005-NLA Elevating Support Tube Left 1 13 H
1046328 Ratchet Assembly Kit 1 14 A,E
42326X001 Bar, Rachet 1 15
1037126 Handle, Release 1 16 A 1040060 Tip 1 17 C 1006490 Tip, Black 1 17 D
04528X002 Bracket, Release (Chrome) 1 18 A
1040831 Snap Ring 1 19 B,C
40187X000 Roll Pin 1 19 B,D
7930310 Washer, Nylon (5/16 x 11/16 x 1/16") 25 110 1037485 Spring, Release 1 111 A 1037125 Cam, Legrest 1 112 A 7930336 Nut, Acorn (5/16-24) 25 113
11919X000 Screw, Truss Head (3/8-16 x 1-1/2") 1 114
1031481 Legrest Support w/ Release Handle and Bumper
Right
1 115
1031482 Legrest Support w/ Release Handle and Bumper
Left
1 115
47330X003 Spacer (5/16 x 1/2 x 3/8") 1 116
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 117
1027095 Plug Button, Black (7/8") 1 118
40363X000 Hex Nut (3/8"-16) 1 119
1107321 Nut, Low Cap (5/16"-24) 1 120 1022874 Bumper 1 121 1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 122 1031485 Legrest Support Assembly Right 1 123 C,F 1031486 Legrest Support Assembly Left 1 123 C,F 1031487 Legrest Support Assembly Right 1 123 D,G 1031488 Legrest Support Assembly Left 1 123 D,G
1031483-NLA Legrest Support Assembly Right 1 123 H
1031484 Legrest Support Assembly Left 1 123 H
See Chart Pivot Slide Tube with Aluminum Footplate 1 1I
92 - (12', 14", 16" Wide Chairs)
Calf Pads are not included with support assembly. Please refer to "Front Riggings Index and Calf Pads"
category.
Form No.
88-139
45
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Assembly
A - Due to product improvement - items 6, 8, 11, and 12 are NLA for chairs built before 6/94. Ratchet Bar Kit (item 4) must be
ordered for those chairs.
B - After 5/94, the snap ring replaced the roll pin to attach the ratcher handle to the ratchet.
C - After 5/94
D - Before 6/94
E - Includes items 5-13
F - 12" Wide Chairs
G - 14" Wide Chairs
H - 16" Wide Chairs
I - Not Shown
NOTE:
Pivot Slide Tube with Aluminum Footplate
Chair Width Standard 9-1/2" 2" Longer 11-1/2" 4" Longer 13-1/2"
N/AN/A
1007280
12"
See Note(s) A
N/AN/A
1007281
See Note(s) B
N/AN/A
1007271
14"
See Note(s) A
N/AN/A
1007272
See Note(s) B
1086526
1086525
1017237
16"
See Note(s) A See Note(s) A See Note(s) A
1086528
1086527
1017238
See Note(s) B See Note(s) B See Note(s) B A - Right B - Left
NOTE:
The following pivot slide tubes with footplates are used with the above assembly. For more information on the pivot slide tube or footplates, see page titled "Pivot Slide Tube with Footplate.
92 - (12', 14", 16" Wide Chairs)
Calf Pads are not included with support assembly. Please refer to "Front Riggings Index and Calf Pads"
category.
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
46
One Piece Footrest - Adjustable
89
Form No.
88-139
47
To order call toll free 1-800-333-6900, or www.invacare.com
One Piece Footrest - Adjustable
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
04685X001-NLA Spring Push Button 1 11 A
40188X009 Button, Single Snap 1 11 B 04470X136-NLA Pivot Spacer Tube 1 12 04470X137-NLA Pivot Insert Tube 1 13
60284X001 Screw, Socket Head Cap (1/4-20 x 1/2") 1 14
48247X011 Footboard 1 16 C 48247X012-NLA Footboard 1 16 D
48247X013 Footboard 1 16 E
40183X004 Screw (#10-32 x 1-7/8") 1 27
1107321 Nut, Low Cap (5/16"-24) 1 18
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 19
7930365 Locknut (#10-32) 25 210
16347X000 Washer, Nylon (3/16 x 7/16 x 1/8") 1 211 04470X138-NLA Footboard Support 1 112
1017528-NLA Mat Footboard 1 113 C
1016951 Mat Footboard 1 113 D
1016952-NLA Mat Footboard 1 113 E 04706X079-NLA Footrest One Piece Adjustable 1 114 C 04706X080-NLA Footrest One Piece Adjustable 1 114 D 04706X081-NLA Footrest One Piece Adjustable 1 114 E
A - Before 7/98
B - After 6/98
C - 12" Wide Chairs
D - 14" Wide Chairs
E - 16" Wide Chairs
NOTE:
89
Form No.
88-139
48
To order call toll free 1-800-333-6900, or www.invacare.com
One Piece Footrest - Non-Adjustable
95
Form No.
88-139
49
To order call toll free 1-800-333-6900, or www.invacare.com
One Piece Footrest - Non-Adjustable
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1017528-NLA Mat Footboard 1 11 A
1016951 Mat Footboard 1 11 B
1016952-NLA Mat Footboard 1 11 C
18860X005 Screw, Phillips Pan Head (#10-32 x 1-1/2") 1 12 11008X002 Screw, Oval Head (#10-32 x 1-1/4") 1 33 48247X011 Footboard 1 14 A
48247X012-NLA Footboard 1 14 B
48247X013 Footboard 1 14 C 47352X004 Clamp 1 25 04470X052 Pivot Tube Right 1 16 04470X053 Pivot Tube Left 1 17
1107321 Nut, Low Cap (5/16"-24) 1 28 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 29 16347X000 Washer, Nylon (3/16 x 7/16 x 1/8") 1 310 47559X030 Link, Locking 1 111 60279X003 Locknut (#10-32) 1 412 47352X003 Lock, Pad Plate, Legrest 1 113 40120X001 Screw, Phillips Pan Head (#8-32 x 3/8") 1 214
1016346 Cap, Tube End (7/8") 1 215
1017530-NLA Footrest One Piece Non-Adjustable 1 116 A 1016955-NLA Footrest One Piece Non-Adjustable 1 116 B
1016956 Footrest One Piece Non-Adjustable 1 116 C
A - 12" Wide Chairs
B - 14" Wide Chairs
C - 16" Wide Chairs
NOTE:
95
Form No.
88-139
50
To order call toll free 1-800-333-6900, or www.invacare.com
One Piece Wooden Footboard
1263
Form No.
88-139
51
To order call toll free 1-800-333-6900, or www.invacare.com
One Piece Wooden Footboard
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
18860X005 Screw, Phillips Pan Head (#10-32 x 1-1/2") 1 11 11008X002 Screw, Oval Head (#10-32 x 1-1/4") 1 32 04470X050 Tube, Slide - Right 1 13 04470X051 Tube, Slide - Left 1 13
1027097 Plug Button, Black (3/4") 1 24
7930365 Locknut (#10-32) 25 45
1016346 Cap, Tube End (7/8") 1 26 47352X003 Lock, Pad Plate, Legrest 1 17 47352X004 Clamp 1 28 16347X000 Washer, Nylon (3/16 x 7/16 x 1/8") 1 39 47559X030 Link, Locking 1 110 48247X002 Footboard 1 111 A 48247X003 Footboard w/o Hardware w/ Heel Loops 1 111 B 48247X001 Footboard w/o Hardware w/ Heel Loops 1 111 C
1036915 One Piece Wooden Footboard 1 112 A
1037651 One Piece Wooden Footboard 1 112 B
1037650 One Piece Wooden Footboard 1 112 C
A - 12" Wide Chairs
B - 14" Wide Chairs
C - 16" Wide Chairs
NOTE:
1263
Form No.
88-139
52
To order call toll free 1-800-333-6900, or www.invacare.com
Pivot Slide Tube with Footplate
Form No.
88-139
53
To order call toll free 1-800-333-6900, or www.invacare.com
Pivot Slide Tube with Footplate
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1016346 Cap, Tube End (7/8") 1 11
1006981 Spring 1 12
7930354 Pkg, Phillips Head Screw (#8-32 x 3/8") 25 13
1027097 Plug Button, Black (3/4") 1 24
See Chart Pivot Slide Tube with Footplate 1 1A
A - Not Shown
The
se items are common parts for all Pivot Slide Tube with Footplate Assemblies
NOTE:
Front
Rigging
Pivot Slide
Tube
Pivot Slide
Tube
Chair Width
Support
Assembly
Support
Assembly
Aluminum
Footplates
Pivot Slide
Tube
4" Longer
13-1/2"
2" Longer
11-1/2"
Standard
9-1/2"
.
LeftRight..
See Note(s) A
N/AN/A104177644200X0321017536101753512"91 N/AN/A104177644200X0591018026101802514" N/AN/A104177644200X0271018024101802316" N/AN/A104177544200X0321007281100728012"92
N/AN/A104177544200X0591007272100727114" 108652610865257500085-NLA44200X0271017238101723716" 10865281086527
N/AN/A104152844200X0591020233102023214"93J 10864871086486104152844200X0271017244101724316" 10864891086488
N/AN/A104152844200X0321007275100727412"93M
N/AN/A104152844200X0591033507103350614" 10864871086486104152844200X0271017244101724316" 10864891086488
A - Aluminum footplates on chairs built before 2/96 had a "Ball Burnish" finish. Footplates after 1/96 now have a black finish. When replacing 1 ball burnish footplate it is suggested that 2 new (black) footplates be ordered.
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
54
Footrest and Legrest Accessories
Part
Number
Package
Quantity
1
1036657
Calf Strap w/ Hook and Loop
See Note(s) B
1
1035902
Calf Strap w/ Hook and Loop (31" Long)
See Note(s) C
1
1035905
Heel Loop without Hardware (Pair) - Small
See Note(s) D
1
1035917
Heel Loops w/o Hardware
See Note(s) E
1
1035906
Heel Loop w/ Ankle Strap w/o Hardware (Pair) Small
See Note(s) D
1
1035918
Heel Loop w/ Ankle Strap w/o Hardware (Pair)
See Note(s) E
1
1035926
Hardware, Heel Loops Aluminum Footplate (Pair)
1
8881006725
Legrest Panel
See Note(s) A
1
1034206
Non-Removable Device (1820)
1
1037087
Toe Loops without Hardware (Pair)
1
1037088
Hardware, Toe Loop (Pair)
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors." B - 12" Wide Chairs C - 14-16" Wide Chairs D - 12-14" Wide Chairs E - 16" Wide Chairs
NOTE:
Footrest and Legrest Accessories
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
55
Seat Extended Legrest
88
Form No.
88-139
56
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Extended Legrest
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
04529X035 Legrest Pad 1 11 A,D 04529X036 Legrest Pad 1 11 A,C,E 04529X037 Legrest Pad 1 11 A,D,F
1027095 Plug Button, Black (7/8") 1 12
48127X001 Screw, Phillips Round Head (#10-32 x 1/2") 1 13
01058X005-NLA Seat Extension Tube 1 14
40188X009 Button, Single Snap 1 15
88804706X082 Seat Extended Legrest Assembly 1 16 A,D
04706X072 Seat Extended Legrest Assembly 1 16 A,C,E 04706X074 Seat Extended Legrest Assembly 1 16 A,F
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors"
C - After 6/98
D - 12" Wide Chairs
E - 14" Wide Chairs
F - 16" Wide Chairs
NOTE:
88
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
57
Part Description & Description Desciption Package Quantity
1Anti-Tipper w/ Instruction Sheet (pair)
1036901
See Note(s) B
1Anti-Tipper w/ Instruction Sheet (pair)
1036900
See Note(s) C
1Clip-On Solid Seat (14" W x 12" D)
8881036896
See Note(s) A
1Crutch and Cane Carrier1034204
1
Cushion Wedged Seat
(12" W x 11" D)
1036893
See Note(s) A
1
Cushion Wedged Seat
(14" W x 12" D)
8881036894
See Note(s) A
1
Cushion Wedged Seat
(16" W x 14" D)
8881036895
See Note(s) A
1
Side Panel Cushion
(1" Wide)
8881036899
See Note(s) A
1
Side Panel Cushion
(2" Wide)
8881036898
See Note(s) A
1
Side Panel Cushion
(3" Wide)
8881036897
See Note(s) A
1Tire Pump40176X010 1Wheel Lock Extension w/Tip 6" (Pair)1050193 1Wheel Lock Extension w/Tip 8" (Pair)1050194
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors". B - All Recliners C - Non-Reclining Only
NOTE:
Miscellaneous Accessories
Form No.
88-139
58
To order call toll free 1-800-333-6900, or www.invacare.com
Miscellaneous Accessories
Carrying Pocket
Part Description & Description Desciption Package Quantity
1
Carrying Pocket, Expanded Vinyl
(14" W Chair)
8881047954
See Note(s) A
1
Carrying Pocket, Expanded Vinyl
(16-22" W Chair)
8881047957
See Note(s) A
1Carrying Pocket, Nylon
8881047956
See Note(s) A
1
Carrying Pocket, Nylon
(16-20" W Chairs)
8881047959
See Note(s) A
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors". NOTE:
Seat Positioning Strap
Part Description & Description Desciption Package Quantity
1
Seat Positioning Strap
Airline Style Buckle (12" W)
1036909
1
Seat/Chest Positioning Strap
Airline Style Buckle (43" Long)
1034751
1
Seat Positioning Straps
Auto Style Buckle (12" W Chair)
1036912
1
Seat/Chest Positioning Strap Auto Style Buckle (45" Long)
1004310
1
Seat Positions Straps
Hook & Loop Style (12" Wide)
1036906
1
Seat/Chest Positioning Straps
Hook & Loop Style (30" Long)
1034744
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
59
Miscellaneous Accessories
Solid Back & Seat Inserts
Part Description & Description Desciption Package Quantity
1
Solid Back Insert (12-14" W Chair)
8881036904
See Note(s) C, A
1
Solid Back Insert
(16" W Chair)
8881036905
See Note(s) C, A
1
Solid Seat Insert
(14" W Chair)
8881036888
See Note(s) C, A
1
Solid Seat Insert
(16" W Chair)
8881036889
See Note(s) D, A A - Specify upholstery color, see page titled "Packaging and Upholstery Colors". C - Non-Reclining Only D - All Models
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
60
Headrest Extension - Non-Recliner
Form No.
88-139
61
To order call toll free 1-800-333-6900, or www.invacare.com
Headrest Extension - Non-Recliner
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
88801066X000 Headrest Upholstery 1 11 B,C
8881054615 Headrest Upholstery 1 11 B,D
1027095 Plug Button, Black (7/8") 1 22 1076283 Screw, Phillips Head Oval with Washer (#10-16 x
7/8")
1 63
1041541 Package, Upholstery Screws w/ Washers (#10 x
7/8")
12 13
1011725 Headrest Extension Tube w/ Snap Fasteners 1 24 A,C
01058X000-NLA Headrest Extension Tube 1 24 D
1054610 Headrest Extension Tube w/o Snap Fasteners 1 24 A,C 1054604 Tube Headrest Extension 1 24 D
48811X004-NLA Insert Tube 1 25 C
48811X003 Tube Insert 1 25 A,D 47447X009 Screw Self Tapping (#8 x 3/8") 1 66 48127X002 Screw, Pan Head (#10-32 x 5/8") 1 17 04546X005 Bracket 1 28
8881054614 Headrest Extension Assembly 1 19 B,C
1054613 Headrest Extension Assembly 1 19 B,D
A - For 14" wide chairs built after 6-14-94, the insert tube is now part of the extension tube (item 4) and cannot be purchased
separately.
B - Specify upholstery color, see page titled "Packaging and Upholstery Colors"
C - 14" Wide Chairs
D - 16" Wide Chairs
NOTE:
Form No.
88-139
62
To order call toll free 1-800-333-6900, or www.invacare.com
Head Support
Form No.
88-139
63
To order call toll free 1-800-333-6900, or www.invacare.com
Head Support
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
03018X042 Bracket Wing Brace 1 11 60284X001 Screw, Socket Head Cap (1/4-20 x 1/2") 1 12 03018X043 Bracket Clamp Right 1 13 03018X046 Bracket Clamp Left 1 13
88804529X040 Pad Headrest 1 14 A
7930363 Pkg, Locknut (5/16"-24) 25 15
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 16
7930360 Screw, Phillips Pan Head (#10-32 x 11/16") 25 17 03018X045 Bracket Pad Support 1 18 D 03018X044 Bracket Pad Support 1 18 C
8881050191 Head Support Assembly (1 Pair) 1 19 A,D 8881050192 Head Support Assembly (1 Pair) 1 19 A,C
1023610 Instruction Sheet 1 1B
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors"
B - Not Shown
C - Recliner
D - Non-Recliner
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
64
Solid Folding Seat
Form No.
88-139
65
To order call toll free 1-800-333-6900, or www.invacare.com
Solid Folding Seat
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1016766 Hinge Bracket 1 21
1020225 Hinge Bracket 14" Wide Chair 1 21
1013218 Washer (#10 Flat) 1 82
7930360 Screw, Phillips Pan Head (#10-32 x 11/16") 25 83
8881020216 Solid Seat Upholstery 1 14 A,B 8881020220 Solid Seat Upholstery 1 14 A,C 8881020227 Solid Seat Upholstery 1 14 A,D
1016767 Hook Bracket 1 25
1020224 Hook Bracket 14" Wide Chair 1 25
8881036890 Solid Folding Seat Assembly 1 16 A,B 8881036891 Solid Folding Seat Assembly 1 16 A,C 8881036892 Solid Folding Seat Assembly 1 16 A,D
A - Specify upholstery color, see page titled "Packaging and Upholstery Colors"
B - 12" Wide x 11" Deep
C - 14" Wide x 12" Deep
D - 16" Wide x 14" Deep
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
66
Torso Support
Form No.
88-139
67
To order call toll free 1-800-333-6900, or www.invacare.com
Torso Support
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
88804529X040 Pad Headrest 1 11 B
60284X001 Screw, Socket Head Cap (1/4-20 x 1/2") 1 12
88804529X043 Cover Torso Bracket 1 13
03018X043 Bracket Clamp Right 1 14 03018X046 Bracket Clamp Left 1 14 03018X041 Bracket Pad Support 1 15 11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 16
7930363 Pkg, Locknut (5/16"-24) 25 17 03018X016 Bracket Support 1 18
7930360 Screw, Phillips Pan Head (#10-32 x 11/16") 25 19 03018X012 Rod Support w/ Guide Tube 1 110
8881050189 Torso Support Assembly (Pair) 1 111 B,D 8881050190 Torso Support Assembly (Pair) 1 111 B,C
1023610 Instruction Sheet 1 1A
A - Not Shown
B - Specify upholstery color, see page titled "Packaging and Upholstery Colors".
C - Recliner
D - Non-Recliner
NOTE:
Form No.
88-139
To order call toll free 1-800-333-6900, or www.invacare.com
68
Utility Tray
Form No.
88-139
69
To order call toll free 1-800-333-6900, or www.invacare.com
Utility Tray
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
04570X002 Slide Tube Support 1 21 11008X011 Screw, Phillips Head (#10-32 x 1-3/8") 1 22 04570X009 Slide Lock Tube, Full Length Arm - Right 1 13 04570X010 Slide Lock Tube, Full Length Arm - Left 1 13 04570X011 Slide Lock Tube, Desk Length Arm - Right 1 13 04570X012 Slide Lock Tube, Desk Length Arm - Left 1 13 47469X006 Tray 1 14
1009341 Tray Bracket 1 25
1010922 Support Tube 1 26 20148X004 Wing Nut (1/4-20) 1 47 60284X001 Screw, Socket Head Cap (1/4-20 x 1/2") 1 28 10123X006 Bolt, Carriage (1/4-20 x 3/4") 1 49
1035965 Utility Tray, Full Length Arm 1 110
1035966 Utility Tray, Desk Length Arm 1 110
1023704 Instruction Sheet 1 1A
A - Not Shown
NOTE:
Form No.
88-139
70
To order call toll free 1-800-333-6900, or www.invacare.com
Invacare Corporation
88-139
©2006 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., and the Medallion Design are registered trademarks of Invacare Corporation. (Revised 10/11/06)
www.invacare.com
Yes, you can. ™
One Invacare Way Elyria, Oh USA 44036-2125 800-333-6900
Technical Support 800-832-4707 Customer Service 800-333-6900
Customer Service 800-333-6900
Form No.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
