Intermec TD2410 Quick Reference Manual

Trakker Antares®
Communications
Dock (TD2410)

Quick Reference
Guide

32

Learning About the Communications Dock

The Trakker Antares® TD2410 Communications Dock is an accessory for the
Trakker Antares 2410 and 2415 Handheld T erminals. Use the communications
dock to:

• transfer data and applications to and from another device using RS-232 serial
communications.

• charge the standard (single-cell) or high-performance (dual-cell) lithium-ion
battery packs.

Use this illustration to locate the important parts of the communications dock.

Terminal/
Battery slot

Transmit
LED

Receive LED

Charging
LED

Charging
complete
LED

241XI004.eps

For information about the status LEDs, see “Understanding the Status LEDs”
later in this guide.

Intermec Technologies Corporation
Corporate Headquarters

6001 36th A ve. W.
Everett, W A 98203
U.S.A.

www.intermec.com
The information contained herein is proprietary and is provided solely for the

purpose of allowing customers to operate and service Intermec-manufactured
equipment and is not to be released, reproduced, or used for any other purpose
without written permission of Intermec.

Information and specifications contained in this document are subject to change
without prior notice and do not represent a commitment on the part of Intermec
Technologies Corporation.

© 2004 by Intermec Technologies Corporation. All rights reserved.
The word Intermec, the Intermec logo, Norand, ArciT ech, CrossBar , Data

Collection Browser, dcBrowser, Duratherm, EasyCoder , EasyLAN, Enterprise
Wireless LAN, EZBuilder , Fingerprint, i-gistics, INCA (under license), InterDriver ,
Intermec Printer Network Manager, IRL, JANUS, LabelShop, Mobile Framework,
MobileLAN, Nor*Ware, Pen*Key , Precision Print, PrintSet, RoutePower , TE 2000,
Trakker Antares, UAP, Universal Access Point, and V irtual Wedge are either
trademarks or registered trademarks of Intermec Technologies Corporation.

Throughout this manual, trademarked names may be used. Rather than put a
trademark (™ or ®) symbol in every occurrence of a trademarked name, we state
that we are using the names only in an editorial fashion, and to the benefit of the
trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

54

Setting Up the Communications Dock

Before setting up the communications dock, you need to choose a flat, stable,
and clean surface that is within 1.5 m (5 ft) of an electrical source. You need the
following equipment:

• External power supply (P/N 065236 or P/N 073941)

• AC power cord (see “Ordering Power Cords” later in this guide)

• RS-232 null-modem cable (P/N 059167)

Each of these accessories is ordered or purchased separately. For help, contact
your Intermec sales representative.

To set up the dock for RS-232 communications

1. Connect the external power supply to the power connector on the underside
of the dock.

2. Route the external power supply out the back. Refer to the illustration
below.

3. Connect the other end of the external power supply to the power cord.

4. Connect the other end of the power cord to an AC outlet.

5. Insert the 9-pin RS-232 connector into the COM port on the underside of the
dock.

6. Route the RS-232 cable over the external power supply, across the dock, and
out the back. Refer to the illustration below.

7. Connect the other end of the RS-232 cable to a serial device.

External
power
supply

RS-232
cable

241XQ005.eps

Attaching the Communications Dock to Your Desk

Use the mounting bracket that comes with your communications dock to attach
the communications dock to your desk.

Y ou need the following equipment to attach the communications dock to your
desk:

• Mounting bracket (provided)

• Two #8 Phillips head machine screws (provided)

• Two #8 screws (not provided)

• Phillips screwdriver (not provided)

• Drill (not provided)

To attach the communications dock to your desk

1. Remove and set aside the two machine screws taped to the mounting
bracket.

2. Using the mounting bracket as a template, mark where you need to drill the
holes in your desk, remove the mounting bracket, and drill the holes.

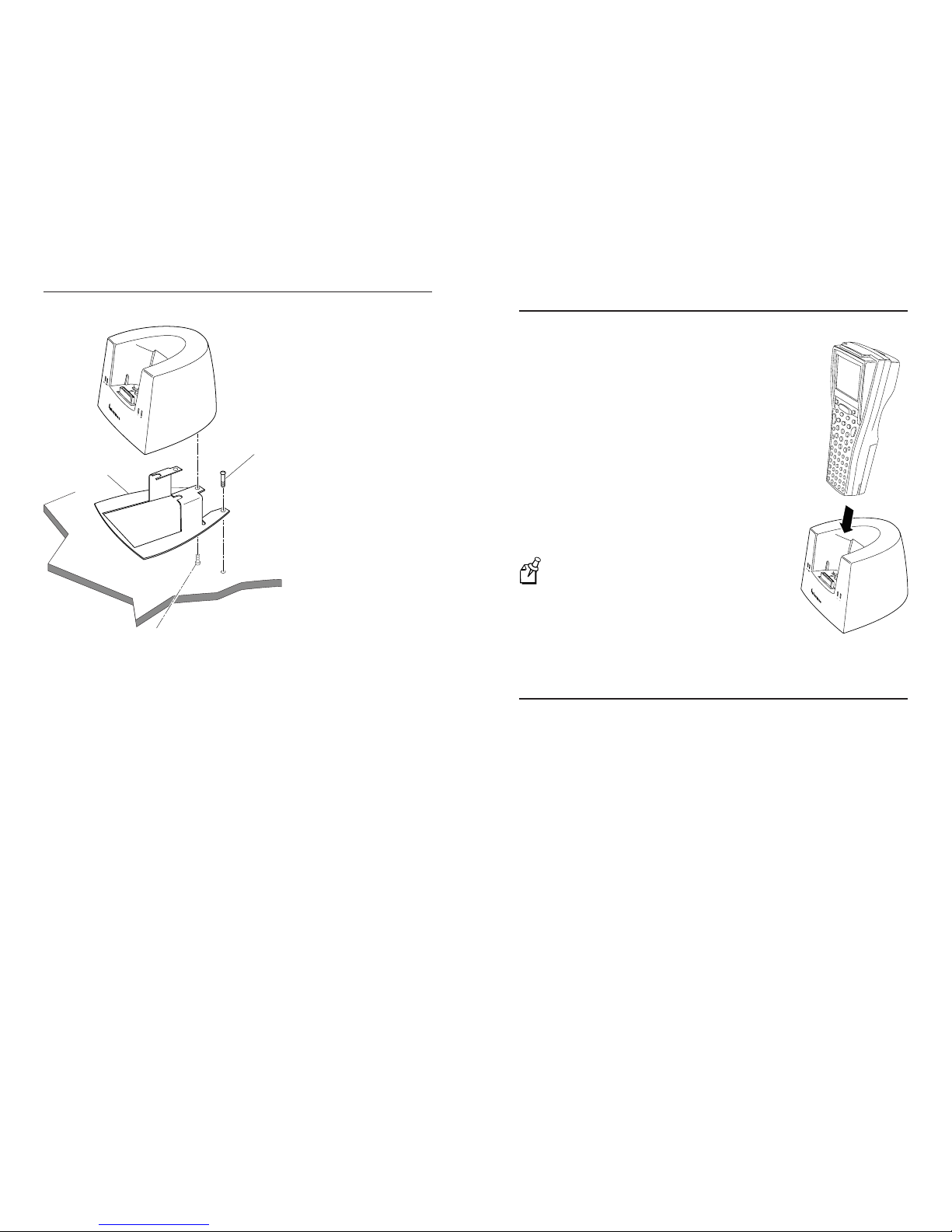

3. Align the mounting bracket with the screws and holes in the underside of the
dock and insert the mounting bracket into the underside of the dock. See the
illustration on the next page.

4. Attach the mounting bracket to the dock using a Phillips screwdriver and the
two machine screws that came with the bracket.

5. Align the dock and mounting bracket with the holes in your desk and attach
the dock and mounting bracket to the desk with two #8 screws.

6. Connect the external power supply to the dock and an AC outlet. For help,
see the previous section, “Setting Up the Communications Dock.”

7. Connect the RS-232 cable to the dock and to a serial device. For help, see
the previous section, “Setting Up the Communications Dock.”
