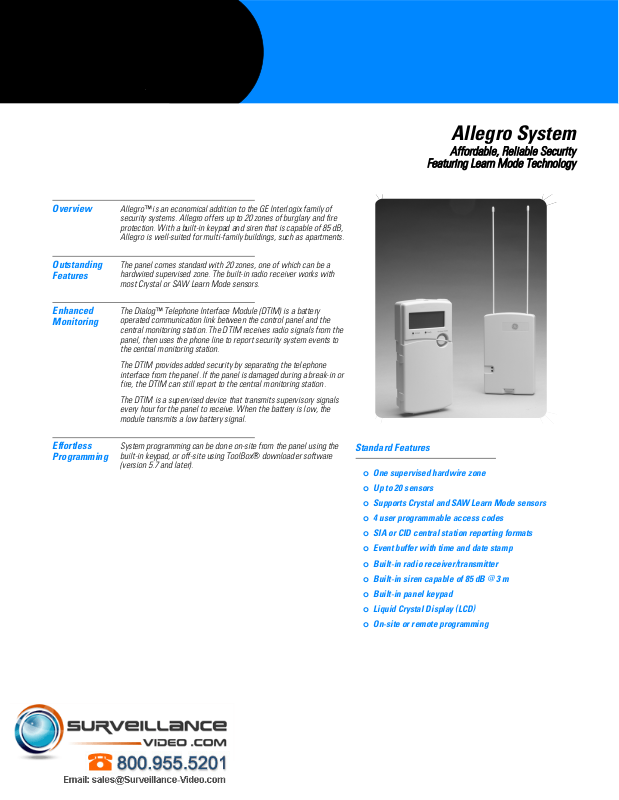

Interlogix 60-874-95R Specsheet

Allegro System

Affordable, Reliable Security

Featuring Learn Mode Technology

Overview Allegro™ is an economical addition to the GE Interlogix family of

security systems. Allegro offers up to 20 zones of burglary and fire
protection. With a built-in keypad and siren that is capable of 85 dB,
Allegro is well-suited for multi-family buildings, such as apartments.

Outstanding Features

Enhanced Monitoring

Effortless Programming

The panel comes standard with 20 zones, one of which can be a
hardwired supervised zone. The built-in radio receiver works with
most Crystal or SAW Learn Mode sensors.

The Dialog™ Telephone Interface Module (DTIM) is a battery
operated communication link between the control panel and the
central monitoring station. The DTIM receives radio signals from the
panel, then uses the phone line to report security system events to
the central monitoring station.

The DTIM provides added security by separating the telephone
interface from the panel. If the panel is damaged during a break-in or
fire, the DTIM can still report to the central monitoring station.

The DTIM is a supervised device that transmits supervisory signals
every hour for the panel to receive. When the battery is low, the
module transmits a low battery signal.

System programming can be done on-site from the panel using the
built-in keypad, or off-site using ToolBox® downloader software
(version 5.7 and later).

Standard Features

One supervised hardwire zone

o

o Up to 20 sensors

o Supports Crystal and SAW Learn Mode sensors

o 4 user programmable access codes

o SIA or CID central station reporting formats

o Event buffer with time and date stamp

o Built-in radio receiver/transmitter

o Built-in siren capable of 85 dB @ 3 m

o Built-in panel keypad

o Liquid Crystal Display (LCD)

o On-site or remote programming

Allegro System

Affordable, Reliable Security Featuring Learn Mode Technology

The Expansion Options

Add these sensors to expand the capabilities of the Allegro
System:

o Door/Window Sensor
o Indoor Motion Sensor
o Carbon Monoxide Alarm
o Smoke Sensor
o ShatterPro Glass Break

Touchpad Options

Add these touchpads for convenient system operation anywhere
in the premises:

o 2-button keychain touchpad
o Remote handheld touchpad

Ordering Information

Main Product Offering Part Number

Allegro System (Control Panel and
DTIM)

Allegro Control Panel Only 60-874-95R
DTIM Only 60-879-95R
Remote Handheld Touchpad 60-671-95R
2-Button Keychain Touchpad 60-607-319.5
Apartment Manager Keychain

Touchpad

Literature Part Number

Dealer Price List 466-1289-01
Allegro Installation Instructions 466-1821
Allegro User Guide 466-1822
DTIM Installation Instructions 466-1849
Apartment Manager Keychain

Touchpad Installation Instructions

80-697

60-930-95R

466-2006

Specifications

Power Requirements

o Panel: 8 or 9 VAC, 300 mA Must be a GE Interlogix recommended transformer
o DTIM: 3.6V AA Lithium Battery

Panel Radio Receiver

o Type: Surface Acoustical Wave (SAW)
o Frequency: 319.5 MHz + or - 140 kHz
o 600 ft. (182 m) open-air receiving range with internal antenna
o 1200 ft. (366 m) open-air receiving range with external antenna
o Sensitivity: -110 dBm

Input/Outputs

o Total Input Zones: 20 wireless zones or 1 supervised hardwired and 19 wireless

Environmental

o Operating Temperature: -30° F (-34° C) to 140° F (60° C)
o Storage Temperature: 32° F (0° C) to 122° F (49° C)
o Maximum Humidity: 90% relative humidity, noncondensing

Physical Description

o Panel color: Ash White
o DTIM color: Belgian Gray
o Panel dimensions: 7.5” x 6.75” x 1.5” (L x W x D)
o DTIM dimensions: 6.25” x 4.0” x 1.0” (L x W x D)
o Panel weight: 1.0 lb.
o Panel and DTIM mounting: Wall

Standards

o FCC Part 15 (Control Panel and DTIM)
o FCC Part 68 (DTIM)
o UL 1023 Household Burglary Alarm System (Control Panel and DTIM)
o UL 985 Household Fire Warning System (Control Panel and DTIM)
o UL 1635 Digital Alarm Communicator System (Control Panel and DTIM)
