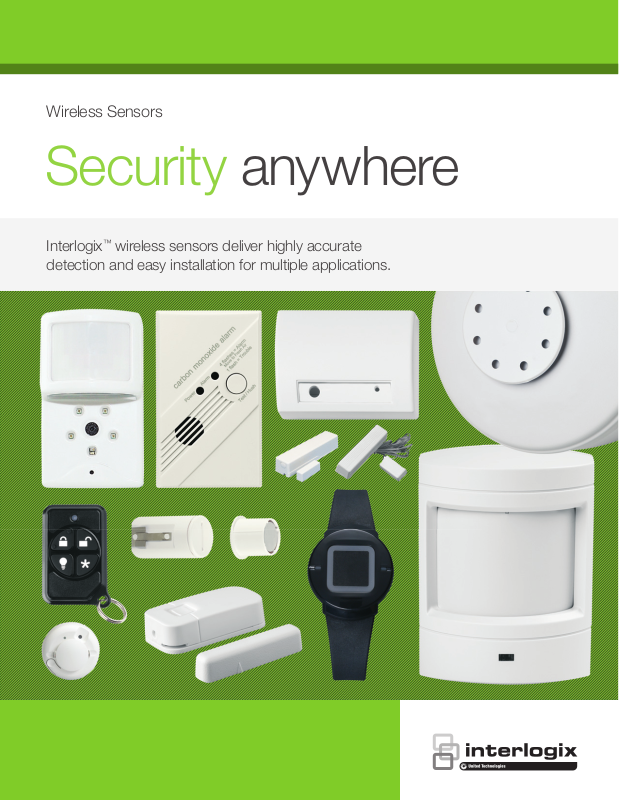

Wireless Sensors
Security anywhere
Interlogix™ wireless sensors deliver highly accurate
detection and easy installation for multiple applications.
Wireless sensing
technology
Designed to combine wireless
convenience and superior detection,
Interlogix
highest levels of security for spaces of all
™
wireless sensors offer the
to effectively
secure the most
challenging
environments
Reliable, cost-effective
sizes and requirements. A complete line
of wireless solutions works seamlessly
with other Interlogix products to ensure
consistent, reliable intrusion protection.
Designed to effectively
detection
ITI offers a wide range of wired and wireless
sensors, detectors and control panels that provide
outstanding value. Designed for easy installation
and user-friendly operation, the entire line of ITI
products consistently delivers convenient, effective
sensing and detection.
secure the most
demanding applications
Aritech offers a broad range of sensing and
detecting products that provide the highest levels
of reliability and protection, along with features
designed to meet specifi c application needs.
Ideally suited for high-risk environments, Aritech’s
full line of intrusion solutions includes wired sensors,
detectors and control panels that work together
for enhanced security, convenience and control.
Wireless Door & Window Contacts
Discreet and cost-effective, Interlogix™ wireless door and window contacts provide advanced security
for any application. Offering a range of wireless door and window contact options, these solutions
install easily for reliable, accurate detection.
DOOR & WINDOW CONTACTS / SURFACE MOUNT
Micro
• Small size offers fl exibility in applications with limited space
• Crystal transmitter extends battery life
• Low profi le blends into any decor, available in white
and brown
• Battery pull-tab design for quick and easy installation
• Replaceable lithium coin-cell battery
• Tamper switch
• UL Listed
• Dimensions (LxWxH): 1.9 x 1.0 x 0.5 in.
Ordering Information
TX-1012-01-1 Micro Crystal Door/Window Sensor, White
TX-1012-01-3 Micro Crystal Door/Window Sensor, Brown
TX-1012-01-1-25PKG
Micro Crystal Door/Window Sensor,
White, 25-Pack
SAW
• SAW transmitter
• Installs on anything that opens
and closes
Ordering Information
Crystal
• 10+ year maximum life battery for fewer changes and callbacks
• Crystal transmitter
• Two-Axis sensing allows for easy mounting in tight spaces
• Optimized internal antenna design increases range performance
• Tamper switch
• Optional external supervised contact
• Dimensions (LxWxH): 3.2 x 1.5 x 1.0 in.
Ordering Information
60-362N-10-319.5
(NX-650N)
60-362N-11-319.5
(NX-651N)
60-362N-10-319.5-PK Crystal Door/Window Sensor, White, 25-Pack
Crystal Door/Window Sensor, White
Crystal Door/Window Sensor, Brown
• For low and average traffi c areas
• Transmitter range = 500' open air
• Batteries are easy to replace
• Dimensions (LxWxH): 4.5 x 1.2 x 0.9 in.
60-670-95R (NX-450) SAW Door/Window Sensor, White
60-670-11-95R (NX-451) SAW Door/Window Sensor, Brown
60-670-95R-PK SAW Door/Window Sensor, White, 25-Pack
DOOR & WINDOW CONTACTS / RECESSED MOUNT
Micro Recessed
• Protects doors and windows where the sensor must be concealed
• Crystal technology for excellent reliability
• Lithium battery for long life
• Supervision assures proper operation
• Dimensions: 0.63" diameter x 3.75" long
Ordering Information
60-741-95 (NX-458)
Crystal Recessed Micro Door/Window
Sensor, White
DesignLine Recessed
• Compact design ensures effortless installation
• Hides discreetly in door frame
• Replaceable lithium battery lasts up to 5 years
• Standard fl ush mount and fl anged tops included
• Requires only one drill bit to install
• Supervisor y assures proper operation
• Tamper switch
• Dimensions: 0.87" diameter x 1.55" long
Ordering Information
TX-1510-0 1-1
DesignLine Recessed
Door/Window Sensor, White
Magnetic Contact Sensors Selection Table
Magnetic Contact Mounting Battery Life* Transmitter Supervision Tamper
TX-1012-01-1
60-362N-10-319.5 (NX-650N) Surface 10 years Crystal
60-670-95R (NX-450) Surface 8 years SAW
60-741-95 (NX-458) Recess 10 years Crystal
TX-1510-0 1-1 Recess 5 years Crystal
*Battery life values are estimates only. Actual battery life depends on usage.
Surface 8 years Crystal
33
33
3
3
33
Wireless Motion Detectors
Interlogix™ wireless motion detectors help secure multiple environments and can be effectively
deployed in indoor/outdoor applications for residential and commercial settings. All wireless
models are easy to install and use advanced signal technology to detect and confi rm motion
while preventing false alarms.
MOTION DETECTORS
SAW PIR
• Low-battery reporting indicates when batteries need replacing
before they expire
• Tamper switch
• Fully supervised device sends signal every 64 minutes to the
security panel to ensure uninterrupted performance
• Two 1.5VDC AA alkaline batteries
• 3 –4 year battery life
• Two sensitivity settings
• 3-minute motion lockout to conserve battery life
• Optional Animal Alley Lens
• Pet immunity signal processing prevents false alarms for
homeowners w/pets weighing up to 40 lbs.
Ordering Information
60-807-95R
(NX-481)
60-807-95R-PK
60-807-01-95R
60-639-95R
(NX-480)
Indoor SAW PIR Pet-Immune Motion Sensor
Indoor SAW PIR Pet-Immune Motion Sensor,
10-Pack
Indoor SAW PIR Pet-Immune Motion Sensor
w/3.6VDC Lithium Battery
SAW PIR Motion Sensor
Crystal PIR
• Optional lenses available for different applications
• Pet-immune version available (up to 40 lbs.)
• Crystal technology
• Three sensitivity settings
• 40' x 40' coverage pattern
• Lithium battery with 5 –8 year life
• Tamper switch
• Masking kit included for adjusting fi eld of view
• Comes with a swivel mounting bracket
• May be mounted up to 10' high
Ordering Information
60-511-01-95 Crystal PIR Motion Sensor
60-511-02-95 Pet-Immune Crystal PIR Motion Sensor
MOTION DETECTORS / SPECIALTY
Image Sensor
• ETL certifi ed for UL 639
• 35' x 40' detection coverage area
• Remotely confi gurable PIR sensitivity, such as pet immunity
• Easy installation
• Replaceable AA lithium batteries
• Tamper detection and walk test mode
• Color images
• Night vision, IR illumination
• Wireless image transmission to Alarm.com® via cellular networks*
Ordering Information
600-9400-IMAG Image Sensor
600-9400-IMAG-KIT Image Sensor w/Daughterboard
*Requires Alarm.com service
Outdoor Motion
• Two independent passive infrared sensors to detect
and confi rm movement
• Sensor module is hidden behind UV rated thermal plastic
• 10º~70º detection angle
• Masking sliders to modify fi eld of view
• High dust and humidity resistance (IP65)
• Selectable range control from 33'~98'
Ordering Information
TX-2810-01-4 Wireless Outdoor PIR
Motion Sensors Selection Table
Motion Detector Range Transmitter Technology Battery Life* Supervision Tamper Specialty
60-807-95R (NX-481)
60-639-95R (NX-480) Up to 35' SAW PIR 4 years
60-511-01-95 Up to 40' Crystal PIR 8 years
60-511-02-95 Up to 40' Crystal PIR 8 years
600-9400-IMAG Up to 35' 900MHz
TX-2810-01-4 Up to 98' Crystal PIR 3 years
*Battery life values are estimates only. Actual battery life depends on usage.
Up to 35' SAW PIR 4 years
PIR & Still
Camera
1 year
33
Pet Immune (up to 40 lbs)
33
33
33
33
33
Pet Immune (up to 40 lbs)
Captures still images; IR illumination for
night vision; pet-immune (up to 40 lbs)
Outdoor (IP65)
Wireless Glassbreak
and Shock Sensors
For reliable detection of forced entries, Interlogix™ wireless glassbreak and shock sensors deliver
exceptional protection. Featuring unique technology that recognizes the pattern of breaking
glass or shock rhythms, these detectors act as an excellent fi rst line of defense for critical areas.
GLASSBREAK & SHOCK DETECTORS
Acoustic Glassbreak Detector
• Factory-set sensitivity for safer installation
• Hand-held tester available for ensuring proper
installation/operation
• Recognizes actual pattern of breaking glass across
the full audio band
• 20' (6m) radius range and 360º coverage pattern
protects an entire room with one sensor
Ordering Information
60-873-95
(NX-488)
5709C-W Hand-Held Glassbreak Tester
ShatterPro Crystal Glassbreak Sensor
Shock Sensor
• Confi gurable for gross attack and pulse count
• Contains two-reed switch for use as door and window sensor
• Excellent fi rst line of defense protection for critical areas
• Crystal technology
• Tamper switch detects potential disablement or damage to the
sensor by an intruder
• Designed for ver tical or horizontal mounting
Ordering Information
60-886-95 Learn Mode Shock Sensor, White
60-886-11-95 Learn Mode Shock Sensor, Brown
Keyfob and Panic Devices
Interlogix™ keyfob and wearable panic devices allow users to conveniently perform basic security
functions from almost anywhere, providing peace of mind and constant security.
KEYFOB & PANIC DEVICES
Micro Keyfob
• Electronic key
• Highly compact size
• Ergonomically friendly buttons
• Semi-waterproof with IP55 rating
• LED confi rms wireless transmissions
• Open-air range up to 500'
• 5+ year battery life (based on usage)
• Replaceable battery
• Dimensions (LxWxH): 1.3 x 2.0 x 0.3 in.
Ordering Information
600-1064-95R 4 -Button Micro Keyfob
Personal Panic
Device
• Activates police, fi re or auxiliary alarms
• Water resistant (IP68 rating)
• Field-replaceable battery
• 5+ year battery life (based on usage)
• Adjustable wrist strap
• May be confi gured as a pendant
• Dual LED notifi cation indicates when
button has been pressed
• Dimensions (LxWxH): 1.6 x 1.4 x 0.4 in.
Ordering Information
TX-4200-01-1 Personal Panic Device, White
TX-4200-01-2 Personal Panic Device, Black
Water-Resistant
Pendant Panic
• Water and shock-resistant design
• Recessed panic button provides greater
immunity from false alarms
• Small design for wearing discreetly
• Can be worn around neck
• Built-in belt clip allows sensor to be
attached to belt or purse
• Can be wall-mounted
• Can be supervised
• Dimensions (LxWxH): 2.25 x 1.75 x .75 in.
Ordering Information
60-578-10-95
(NX-475)
Crystal Water-Resistant
Pendant Panic
Specialty Sensors
For additional security and protection against property damaging events, Interlogix™ offers a variety of
sensors for diverse applications. All solutions provide accurate, wireless sensing that installs easily and
delivers reliable performance.
SPECIALTY SENSORS
Garage Door/Tilt Sensor
• Compact size allows mounting directly on
inside of garage door; no wiring needed
• Event-driven updates on door status
• Super visory reports on battery and
transmitter condition
• Sensor cover tamper for added security
• Sends open signal when door opens
beyond a 35º angle
• 5+ year battery life (based on usage)
Ordering Information
TX-8010-01-1 DesignLine Garage Door Sensor
SAW Freeze Sensor
• Detects low temperature conditions and
transmits an alarm signal to the panel
when temperature drops below 41ºF,
restores when temperature rises above
50ºF
• Alkaline batteries with a lifespan of up
to 8 years
• Monitors up to 900 square feet
• Great for second homes and cabins
Tri-Zone Sensor
• Easily protects three zones in close
proximity of each other, reducing
installation time
• Easy garage door protection secures
garage doors using “tilt” sensing
capability w/no magnet required
• Programmable tilt sensor output
can instantly send a signal when it
detects motion, or delay signal for
up to one minute
Ordering Information
TX-8300-01-1
DesignLine Recessed Door/
Window Sensor, White
Water Sensor
• Provides fast notifi cation of leaks for
quick response and damage control
• Sensor directly connected to wireless
transmitter
• Low-battery reporting indicates
when batteries need replacing
before they expire
• Ideal for basements, laundr y rooms,
bathrooms, kitchens or any other place
susceptible to water damage or fl ooding
Ordering Information
60-744-95R
(NX-695)
SAW Water Sensor
Crystal Freeze Sensor
• Detects low temperature conditions and
transmits an alarm signal to the panel
when temperature drops below 45ºF
• Lithium batter y with a lifespan of up
to 10 years
• Cover tamper
• Monitors up to 900 square feet
• Great for second homes and cabins
Ordering Information
60-742-95R SAW Freeze Sensor
Ordering Information
60-504-10-319.5 Crystal Freeze Sensor
Life Safety Detectors
When circumstances demand the highest standard of protection, Interlogix™ life safety detectors
deliver. Providing effective fi re, heat and carbon monoxide detection, these solutions are compatible
with any Interlogix Learn Mode panel to form a highly reliable life safety system.
LIFE SAFETY DETECTORS
Smoke
• Integrated fi xed 135°F temperature and rate-of-rise heat detector
trips an alarm based on high temperature detected or rapidly
rising temperature rate (15°F/minute minimum)
• Self-diagnostics reduce the chance of a false alarm
• Replaceable optical chamber makes cleaning a snap
• Two 3V lithium batteries provide long batter y life (included)
• Automatic drift compensation reduces the chance of a nuisance
alarm
• Compatible with Interlogix Learn Mode panels
• Alarm signal sent to central station on test
• Low batter y pre-alert sent to central station before sounder chirps
• Mounting base tamper sends trouble condition if smoke alarm is
removed, reducing liability
Ordering Information
TX-6010-01-1 Supervised Wireless Smoke Detector
TX-6010-01-1-10PKG Supervised Wireless Smoke Detector, 10-Pack
211-10PKG
SM200-12PKG Smoke-In-A-Can for Testing Smoke Detectors
Replaceable Optical Chambers for TX-6010-01-1
Smoke Detectors
Heat (Rate of Rise)
• Ideal for garages and kitchens
• UL listed
• Compatible with Interlogix Learn Mode panels
• Ideal for environments with high dust or likelihood of rapid fi re
development
• 15°F (9ºC)/min rate-of-rise rating
• 135°F/194ºF UL temp. rating
• 100°F/150ºF UL max. ambient ceiling temp. rating
• Provides detection for up to 2500 square feet
Ordering Information
60-460-01-95
60-460-319.5 Learn Mode 135ºF Rate-of-Rise Sensor
60-460-319.5-LB Learn Mode 135ºF Rate-of-Rise Sensor w/Lithium Battery
Learn Mode 200ºF Rate-of-Rise
Sensor
LIFE SAFETY DETECTORS
SafeAir Carbon Monoxide
• Works with any Interlogix™ Learn Mode panel
• Backwards compatible with discontinued 60-652-95
wireless CO alarm
• SafeTest enables functional testing with canned CO
• Full compliance and Listed to ANSI/UL2034 standard
• Industry-leading 7 year sensor life and 5 year battery life
with (3) A A alkaline batteries
• Most reliable and longest-life electrochemical sensor
• Signal supervision and low-batter y trouble communication
to any Interlogix Learn Mode panel
• Local trouble annunciation of sensor end-of-life, tamper
and general trouble
• Wall tamper switch
• Hush for alarm, trouble and low battery
• Batter y-only-powered enables operation during power outages
• Self-diagnostics functionality for optimal per formance
Only compatible with
Simon XT
®
/XTi
SafeAir Carbon Monoxide (Simon)
• Backwards compatible with discontinued 60-652-95
wireless CO alarm
• SafeTest enables functional testing with canned CO
• Full compliance and Listed to ANSI/UL2034 standard
• Industry-leading 7 year sensor life and 5 year battery life
with (3) A A alkaline batteries
• Most reliable and longest-life electrochemical sensor
• Signal supervision and low-batter y trouble communication
to any Interlogix Learn Mode panel
• Local trouble annunciation of sensor end-of-life,
tamper and general trouble
• Wall tamper switch
• Hush for alarm, trouble and low battery
• Batter y-only-powered enables operation during power outages
• Self-diagnostics functionality for optimal per formance
• Tamper, trouble, low batter y, end-of-life report to Simon XT/XTi
(v1.4 and greater)
Ordering Information
600-6520-95 Wireless Electrochemical Carbon Monoxide Alarm
Ordering Information
TX-6310-01-1
Wireless Electrochemical Carbon Monoxide Alarm
for Use on Simon XT/XTi
Interlogix™ is a leading provider of security and life safety solutions,
including advanced video, recording and wireless transmission
technology and both residential and commercial intrusion solutions.
Through an ongoing commitment to secure and protect people,
property and assets, Interlogix continues to develop innovative and
reliable products that meet the demands of the modern world.
interlogix.com
Specifi cations subject to change without notice.
© 2014 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Building & Industrial Systems,
a unit of United Technologies Corporation.
406-3838 2014/06 (78412)
Loading...
