TS-ASP3

USER’S MANUAL

Intel ® Socket 370 CeleronTM/

Pentium® III FC-PGA Series

TS-ASP3 Motherboard

Supporting Intel ® Pentium® III/Celeron™ Series Processor (Coppermine Core)

66/100/133MHz Front Side Bus

Intel® 815EP Chipset

Welcome!!

Congratulations on your purchase of this great value motherboard, with its range of special features and innovative onboard functions, built around the advanced architecture of the new Intel® 815E Chipset. More details will follow later in this manual.

Our Website

Please come and visit us at our website on http://www.transcendusa.com/. You’ll find plenty of interesting information about this and many other quality Transcend products.

Your User’s Manual

This User’s Manual is designed to help end users and system manufacturers to setup and install the motherboard. All of the information within has been carefully checked for accuracy. However,

Transcend Information, Inc. (hereafter referred to as “Transcend”) carries no responsibility or liability for any errors or inaccuracies which this manual may contain. This includes references to products and software. In addition, the information and specifications are subject to change without prior notice.

Disclaimer

Transcend provides this manual “as is” without any warranty of any kind, either expressed or implied, including – but not limited to – the implied warranties, conditions of merchantability or fitness for a particular purpose. Transcend, its management, employees, distributors and agents are in no way liable for any indirect special, incidental or consequential damages, including loss of profits, loss of business, etc. This freedom from liability remains in effect even if Transcend has been advised of the possibility of such damages arising from any defect or error in this manual or product.

Trademarks

All brands, product names and trademarks mentioned in this document are the property of their respective owners or companies and are used solely for identification or explanation. It is Transcend policy to respect all product rights.

Copyright

This manual may not, in whole or in part, be photocopied, reproduced, transcribed, translated or transmitted, in whatever form or language, without the written consent of the manufacturer, except for copies retained by the purchaser for personal archiving purposes.

Manual Version: 1.1

Release Date: January 2001

Copyright © 2000 Transcend Information, Inc.

Table of Contents

CHAPTER 1 INTRODUCTION

1

1.1

Essential Handling Precautions .........................................................................

1

1.2

Package Contents ............................................................................................

2

1.3

Specifications and Features .............................................................................

2

CHAPTER 2 HARDWARE INSTALLATION

5

2.1

Transcend TS-ASP3 Motherboard ....................................................................

5

2.2 Layout of Transcend TS-ASP3 Motherboard ....................................................

6

2.3

Jumper Setup ...................................................................................................

7



2.3.1

66/100/133MHz System Configuration ..................................................

7



2.3.2

Using Jumper JP1 to clear CMOS.........................................................

8



2.3.3

Onboard Audio Setting ..........................................................................

9



2.3.4

Keyboard Wake Up .............................................................................

10



2.3.5

VCC3 Adjust ........................................................................................

11

2.4

Connector Description ....................................................................................

12



2.4.1

Primary/Secondary IDE Connectors ....................................................

12



2.4.2

Floppy Disk Drive Connector ...............................................................

13



2.4.3

Fan Power Connectors........................................................................

14



2.4.4

Memory Configuration .........................................................................

15



2.4.5

Panel Connectors ................................................................................

16



2.4.6

Wake-on-LAN Connector .....................................................................

18



2.4.7

Power Connector ................................................................................

19



2.4.8

IrDA-Compliant Infrared Module Connector.........................................

20



2.4.9

Internal Serial Port Connector COMB .................................................

21



2.4.10

Internal Audio Connector .....................................................................

22











2.4.11 USB 3/4 Connector ................................................................................

23

2.5

External Back Panel I/O Ports ............................................................................

24

CHAPTER 3 BIOS SETUP

25

3.1

BIOS Setup .......................................................................................................

2 5

3.2

The Main Menu ..................................................................................................

2 5

3.3

Standard CMOS Features .................................................................................

2 7

3.4

Advanced BIOS Features ..................................................................................

3 0

3.5

Advanced Chipset Features ..............................................................................

3 3

3.6

Integrated Peripherals.......................................................................................

3 5

3.7

Power Management Setup................................................................................

3 9

3.8

PnP/PCI Configuration Setup ............................................................................

4 2

3.9

PC Health Status ...............................................................................................

4 4

3.10

Frequency/Voltage Control ................................................................................

4 5

3.11

Load Fail-Safe Defaults ....................................................................................

4 7

3.12

Load Optimized Defaults ...................................................................................

4 7

3.13

Supervisor Password ........................................................................................

4 8

3.14

User Password .................................................................................................

4 9

3.15

Save & Exit Setup .............................................................................................

4 9

3.16

Exit Without Saving ...........................................................................................

5 0

CHAPTER 4 SOFTWARE SETUP

51

4.1

INF Update for 815EP Chipset ..........................................................................

5 1

4.2

Intel Security Controller Driver ..........................................................................

5 2

4.3

Audio Driver Setup ............................................................................................

5 3

CHAPTER 5 BIOS UPGRADE

56

5.1

How to Check Your BIOS File Name and Version .............................................

5 6

5.2

How to Download the Correct BIOS File from the Web ....................................

5 6

5.3

How to Update Your Motherboard BIOS ...........................................................

5 7

INTRODUCTION

1

CHAPTER 1 INTRODUCTION

1.1 Essential Handling Precautions

IMPORTANT. Read this page before unpacking your motherboard!

Power Supply

Be careful! Always ensure that the computer is disconnected from the power supply when working on the motherboard and its components.

Static Electricity

Static electricity may cause damage to the delicate integrated circuit chips on your motherboard. Before handling the motherboard outside of its protective packaging, ensure that there is no static electrical charge in your body. A static discharge sufficiently strong enough to damage computer components is not perceptible by a human. To avoid this risk, please observe these simple precautions while handling the motherboard and other computer components:

1.If possible, wear an anti-static wrist strap connected to a natural earth ground.

2.Touch a grounded or anti-static surface, or a metal fixture such as a pipe or the chassis of your system, before touching the motherboard.

3.When you have removed the motherboard from its anti-static packaging, try to hold it only by the edges, without touching any components.

4.Avoid contacting the components on add-on cards, motherboards, and modules with the gold-colored connectors which plug into the expansion slots.

5.It is safest to handle system components only by their mounting brackets.

6.Keep components which are not connected to the system in the anti-static packaging

whenever possible.

These precautions help to reduce the risk of static build-up and ensure any static discharge is harmless to your equipment.

Battery Replacement

The battery which holds the system settings memory (CMOS RAM) on your motherboard should not require replacement for at least five years, and probably much longer. In picture 2.2, it is located near the bottom right hand corner. Incorrect computer time and/or loss of time may indicate a weak motherboard batttery.

2

INTRODUCTION

Please replace your battery only with the same type, or a similar type recommended by the battery manufacturer. If the battery is replaced incorrectly, there is a risk of a short circuit or explosion. Used batteries should be disposed of in accordance with the manufacturer’s instructions and local environmental regulations.

Electric Screwdrivers

To reduce the risk of damage to the motherboard due to excessive torque, avoid setting electric screwdrivers above 7.5 kg/cm.

1.2 Package Contents

This motherboard package should contain the following items. Please check them as soon as you unpack. If you find any damaged or missing items, please contact your retailer.

-Motherboard

-1 X CD-ROM

-1 X FDD cable

-User’s Manual

-COM port cable x 1 (optional)

-Ultra DMA 66/100 cable x 1

-USB Cable x 1 (optional)

1.3 Specifications and Features

CPU

-Supports Intel® Pentium III/CeleronTM Series

Chipset

-TS-ASP3: Intel® 815EP (MCH, ICH2); FSB: 66/100/133 MHz

DRAM Memory

-Supports Synchronous DRAM

-3 X 168-pin DIMM module sockets on board

-8~512MB memory size

-8/16/32/64/128/256/512MB DIMM

-64 data bits structure only

INTRODUCTION

3

I/O Bus Slot

-6 X Master/Slave PCI Bus slots (PCI 2.2 compliant)

-1 X CNR (Communication and Networking Riser) slot

Award BIOS

-Supports PC99, Plug-and-Play

-Supports ACPI, APM, DMI, Green Feature

I/O Functions

-Supports PIO Mode 3, 4, 5 ATAPI devices and Ultra DMA/33/66/100

-Supports 2 high speed UART 16550 COM ports

-Supports SPP/EPP/ECP LPT port

-Supports 3 mode/1.44/2.88MB floppy drive

-Supports PS/2 Mouse and PS/2 Keyboard

-Supports IrDA port

-Supports 4 USB (Universal Serial Bus) ports

-Supports Line-out, Line-in and MIC-in jack

-Supports Game/MIDI port

Switching Voltage Regulator

-Intel VRM 8.4 compliant

4

INTRODUCTION

Other Features

-Year 2000 compliant

-Power failure resume

-FWH (Firmware Hub) supports security manageability

-BIOS Virus protection (warning)

-PS/2 Mouse and Keyboard Wake-Up

-Supports Wake-on-LAN function

-Remote Ring Wake-Up

-Time Wake-Up

-Board voltage monitors for CPU core, +3.3V, +/-5.0V, +/-12.0V, VTT, 3.3VSB/5VSB

-CPU overheat alarm

-CPU fan auto-off in sleep mode

PCB Dimensions

-ATX form factor, 4-layer PCB, 21.3 cm x 30.5 cm (8.4 inch x 12 inch)

HARDWARE INSTALLATION

5

CHAPTER 2 HARDWARE INSTALLATION

2.1 Transcend’s TS-ASP3 Motherboard

Back panel I/O ports

·Game/ MIDI port & Audio Jack (Line-out,Line-in,MIC-in)

·Parallel printer port

·2 x USB ports

·PS/2 KB & PS/2 Mouse ports

AC97 CODEC

CPU

Intel® FC-PGA Pentium III/

·Celeron T M Socket 370 Series (Coppermine Core)

IrDA Header





LPC Super I/O





Winbon d 8362 7 HF - AW





COM Connector



USB3/4 CONNECTOR

· Serial COM port B

WOL Header





Connector

·

Wak e o n LAN

Main Memory

·3x168-pin SDRAM DIMM

·Up to 512MB

Intel 815EP chipset

· TS-ASP3:Intel 815EP Chipset

FDD Connector

·Floppy Disk Drive Connector

PCI IDE Connector

·Bus Master

·PIO Mode 3/4/5

·DM A Mod e 2

·Ultra DMA/33/66/100

Expansion Slots

·1 x AGP Slot

·65 x PCI Slots

·1 x CNR Slot (Shared PCI)

System BIOS

·2 M Bits FWH Flash Memory

6 HARDWARE INSTALLATION

2.2 Layout of Transcend TS-ASP3 Motherboard

K B MOUSE









STBY-LED MEM - LED



J P 6



J P 2 8







USB













T:Port 1













B:Port 2













C O M A

F C - P G A



J P 4

Module)

Module)

Module)







168pin SDRAM

168pin SDRAM

168pin SDRAM

P R N





8 1 5 E P





M C H

Audio

CPU -Fan





DIMM1(64bit

DIMM2(64bit

DIMM3(64bit

+













Transcend







Game











A G P







F D C



Power-Fan



















PCI Slot1 (PCI1)









AUX













VIDEO











IDE2 IDE1

CD1

PCI Slot2 (PCI2)





















CD2













JP2

PCI Slot3 (PCI3)





















PCI Slot4 (PCI4)

ICH2







M O D E M









1



IrDA







J P















PCI Slot5 (PCI5)











W O L









Battery















PCI Slot6 (PCI6)

F W H





a n













F













C a s e

C O M B

C N R

USB3/4







Panel











HARDWARE INSTALLATION

7

2.3 Jumper Setup

2.3.1 66/100/133 MHz System Configuration

The JP4 Jumper allows you to set the FSB (Front Side Bus) to 66/100/133MHz configuration.

When the Jumper is set to “Auto”, the freqency range depends on your CPU type. When you set the FSB to 66MHz, you can select a system bus frequency from 66MHz to 99MHz through “CPU

Host/PCI Clock” of “Frequency/Voltage Control” in the BIOS Setup menu. When you set the

FSB to 100MHz, you can select a system bus frequency from 100MHz to 132MHz. When you set the FSB to 133MHz, you can select a system bus frequency from 133MHz to 166MHz.



JP4



B US _F r e q



A U T O

csnarT

1 3 3 M H z

dne

1 0 0 M H z





6 6 M H z

66/100/133MHz FSB Configuration Jumper

8 HARDWARE INSTALLATION

2.3.2 Using Jumper JP1 to clear CMOS

To clear the CMOS data, you should turn off your computer’s power and short pin1 and pin2 in JP1.



JP1



C M O S _ C L R



CLEAR

Transcend

N O R M A L



Clear COMS Jumper

HARDWARE INSTALLATION

9

2.3.3 Onboard Audio Setting (JP2 ON-BOARD AUDIO)

To use an external CNR card, the onboard audio CODEC can be enabled or disabled via this jumper. Please disable the onboard audio CODEC if you want to use a PCI Sound Card or an CNR Audio Card. When you install a CNR card, remember that the onboard audio CODEC uses the primary channel. Therefore, if you want the onboard CODEC to work, you must set the CNR to be secondary.





JP2



1

Audio



2



3



narT

1

Enable

cs

2



ne

3



d







1

Disable



2



3



Audio Selection Jumper

10 HARDWARE INSTALLATION

2.3.4 Keyboard Wake-Up (3-pin KB-AWK)

This function makes the Keyboard Power Up the system. Set this jumper to “Enable” if you’d like your Keyboard to Power Up your computer. Then, go to the”Power On Function” in the “Integrated Peripherals” in BIOS to choose the setting you prefer.



JP6



K B - A W K



Disable

narT

Enable

dnecs



Keyboard Wake Up

HARDWARE INSTALLATION

11

2.3.5 VCC3 Adjust

Keep this selection fixed unless you are familiar with the system. Default is “Medium”.



JP28



V C C 3



Low Load

T

Medium Load

csnar

High Load

dne



VCC3 Adjust

12 HARDWARE INSTALLATION

2.4 Connector Description

2.4.1 Primary/Secondary IDE Connectors (Two 40-pin IDE)

This motherboard supports two 40-pin IDE connectors marked as IDE1 (primary channel) and

IDE2 (secondary channel). Each channel supports two IDE devices for a total of four devices. Connect your Hard Disk Drive (the main hard disk drive (HDD) if you are using more than one) to the “Master” connector (at the end of the cable) and connect it to IDE1 (see important note below). If your HDD supports Ultra DMA/66, you must use an 80-wire cable, otherwise the HDD won’t be able to reach this speed.

If you intend to operate two IDE devices from the same channel, one device must be set to

“Master” mode, the other to “Slave” mode. A Hard Disk Drive, CD ROM or other IDE device can have either setting depending on the device’s jumper. Please refer to the device’s manual for more information.

NOTE: The Connectors must be attached to the IDE channels correctly. Make sure that the red stripe on one edge of the ribbon cable (this may be faint and could be a dotted line) is the nearest to PIN1 (on the left as the motherboard is shown in the picture below).

PIN1

IDE



Secondary IDE Connector



IDE2



IDE1

PIN1

Primary IDE Connector



dnecsnarT



IDE Connectors

HARDWARE INSTALLATION

13

2.4.2 Floppy Disk Drive Connector (34-pin FDC)

This connector supports the floppy disk drive ribbon cable which is one of the items in your motherboard package. After connecting the single end to the board, connect the two plugs at the other end to the floppy drive(s). Remember, as in the last section, the red stripe on the edge of the ribbon cable must be the nearest to PIN1 or your connection won’t work. PIN1 is on the left as shown below.



Floppy Disk Drive Connector

rT

F D C

dnecsna

PIN1

Floppy Disk Drive Connector

14 HARDWARE INSTALLATION

2.4.3 Fan Power Connectors

There are three fan power connectors on the motherboard: CPU-FAN, POWER-FAN, and CASE-

FAN. Each connector provides +12V power. The cables can only be attached a certain way. If you try to put them in the wrong way, they won’t fit. These connectors support cooling fans of 500 mA (6W) or less.

dnecsnarT

P O W E R - F A N

CPU-FAN

FAN

G N D

+12V

Rotation

CASE-FAN

Fan Power Connectors

HARDWARE INSTALLATION

15

2.4.4 Memory Configuration

This motherboard must be installed with PC100/PC133 SDRAM DIMM. You can install either single-sided or double-sided memory modules in any combination of memory capacities (listed below) in any socket, but never exceed 512MB total memory capacity.

NOTE: This motherboard supports memory modules with 8/16/32/64/128/256/512MB.

d n e c s n a r T

3.3V Position

Unbuffered Position

168-pin Unbuffered SDRAM Module (DIMM1)

168-pin Unbuffered SDRAM Module (DIMM2)

168-pin Unbuffered SDRAM Module (DIMM3)

168Pin Memory DIMM Sockets

16

HARDWARE INSTALLATION

2.4.5 Panel Connectors









2

1





+

+





S _ L E D







+

P O W E R L E D











H D D _ L E D





T

+

KE Y LOCK







ar

N C





ecsn



+



dn

R E S E T















S P E A K E R





S O F T _ O F F







20

19

Panel Connector

Power LED Lead (3-pin POWER LED)

This 3-pin connector attaches to the power LED.

Pin1 : +5V

Pin3 : NC

Pin5 : GND

Keylock Lead (2-pin KEYLOCK)

Use the keylock to enable or disable the Keyboard.

Pin7 : KEYLOCK

Pin9 : GND

Speaker Lead (4-pin SPEAKER)

This 4-pin connector connects to the case-mounted speaker.

Pin13 : +5V

Pin15 : GND

Pin17 : NC

Pin19 : SPK

HARDWARE INSTALLATION 17

Suspend Mode LED Lead (2-pin S_LED)

The S_LED will light when the system is in suspend mode.

Pin2 : +5V

Pin4 : GND

Hard Disk LED Lead (2-pin HDD_LED)

This 2-pin connector connects to the LED of the hard disk. The LED lights up when a HDD is

active.

Pin6 : +5V

Pin8 : GND

Reset Switch Lead (2-pin RESET)

This 2-pin connector connects to the case-mounted reset switch for rebooting your computer without turning on your power switch.

Pin14 & Pin16

Soft Power-Off Lead (2-pin SOFT_OFF)

Attach the SOFT_OFF switch of the panel to this connector. Use the switch to Power On/Off

your system.

Pin18 & Pin20

18 HARDWARE INSTALLATION

2.4.6 Wake-on-LAN Connector (3-pin WOL)

This connector connects to LAN cards with a Wake-on-LAN output. The system can be Powered

Up when a wake-up packet or signal is received from the LAN card.

NOTE: This function requires that the “Wake-Up by PCI & WOL” function in the “Power Management Setup” in BIOS is set to “Enabled” and that your system has an ATX power supply with at least 720mA +5V standby power.

W O L

P M E

G N D

+5V Standby

dnecsnarT

Wake-on-LAN Connector

HARDWARE INSTALLATION

19

2.4.7 Power Connector (20-pin PWR-CONN)

Make sure you plug the ATX power supply connector in properly. The pin definition is shown

below. Make sure that your ATX power supply can support at least 720mA +5V standby

power for the Advanced Configuration and Power Interface (ACPI) functions.

dnecsnarT

Power Connector

P W R - C O N N

+3.3V

+3.3V

-12.0V

+3.3V

G N D

G N D

PSON#

+5.0V

G N D

G N D

G N D

+5.0V

G N D

G N D

-5.0V

Power Good

+5.0V

+5.0V Standby

+5.0V

+12.0V

PSON# : Power Supply on

20 HARDWARE INSTALLATION

2.4.8 IrDA-Compliant Infrared Module Connector (10-pin IrDA)

The IrDA connector can be configured to support a wireless infrared module. With this module and application software such as Laplink or Win95 Direct Cable Connection, users can transfer files to or from laptops (notebooks), PDAs and printers. You must also configure the setting through “UART Mode Select” in “Integrated Peripherals” in BIOS to select “IrDA”. Connect the Standard IR (SIR) device to the onboard SIR connector according to the pin definitions. An optional Consumer Infrared (CIR) set connects to the CIR and SIR connectors simultaneously for both wireless transmitting and remote control functions through one external infrared module.

dnecsnarT



IrDA

SIR

CIR

1

2

+5V

N C

N C

CIRRX

IRRX

5VSB

G N D

N C

IRTX

N C

9

10

IrDA Connector

HARDWARE INSTALLATION

21

2.4.9 Internal Serial Port Connector COMB

You can use the provided serial port bracket to add a serial port for additional serial devices.

dnecsnarT

Internal Serial Port Connector COMB

C O M B



10

9

N C

G N D

RI

D T R

C T S

S O U T

R T S

SIN

D S R

D C D

2

1

22 HARDWARE INSTALLATION

2.4.10 Internal Audio Connector

These connectors allow you to receive stereo audio input from sound sources such as a CD-

ROM, TV tuner, or MPEG card. The MODEM connector allows the onboard audio to interface a voice modem card with a matched connector. It also allows the sharing of mono_in (such as a phone) and mono_out (such as a speaker) between the onboard audio and the voice modem card.



CD1



CD2

Transcend

VIDEO





A U X



MODEM

Internal Audio Connectors

Left Audio Channel

GND

Right Audio Channel

Right Audio Channel

GND

Left Audio Channel

Left Audio Channel

GND

Right Audio Channel

Right Audio Channel

GND

Left Audio Channel

Modem-Out

(Voice from Modem)

GND

Modem-In

(Voice to Modem)

HARDWARE INSTALLATION

23

2.4.11 USB 3/4 Connector

dnecsnarT

U S B

U S B

Power

Power

U S B P 2 -

U S B P 3 -

U S B P 2 +

U S B P 3 +

G N D

G N D



N C

USB 3/4 Connector

24 HARDWARE INSTALLATION

2.5 External Back Panel I/O Ports

There are 9 kinds of external connectors on the back panel of the motherboard.

The view in the drawing below is the back panel of the motherboard housing.

1.PS/2 Mouse Port (Green 6-pin MOUSE)

2.PS/2 Keyboard Port (Purple 6-pin KB)

3.USB (Universal Serial Bus) Ports 1 & 2 (Black two 4-pin USBs)

4.Parallel Port (Burgundy 25-pin PRN)

5.Serial Port COMA (Turquoise 9-pin COMA)

6.Game Port/MIDI Port (Gold 15-pin GAME)

7.Line_out (Lime Green 1/8” LINE_OUT)

8.Line_in (Light blue 1/8” LINE_IN)

9.MIC_in (Pink 1/8” MIC)

4. Parallel Port

1. PS/2 Mouse (Printer) 7. Game/MIDI Port

3. USB1

3. USB2

5. COMA

9. Line_in



2. PS/2 Keyboard



8. Line_out

10. MIC in





Back Panel I/O Ports

BIOS SETUP

25

CHAPTER 3 BIOS SETUP

3.1 BIOS Setup

Award BIOS has a built-in Setup program that allows users to modify the basic system configuration. This information is stored in CMOS RAM, so it can retain the Setup information when the power is turned off. When the battery for CMOS fails, it will cause the data to be lost. If that happens, please set up your configuration parameters again after replacing the battery. Please refer to Section 1.1, Essential Handling Precautions.

3.2 The Main Menu

As you turn on or reboot the system, the BIOS is immediately activated. It will read the system configuration information and check the system through the Power On Self Test (POST). During the POST process, press the [Del] key and you can enter the Award BIOS configuration system. The following screen will appear.

In the Award BIOS system you can use the arrows (











) to highlight an item and then











enter its sub-menu by pressing the [Enter] key. The following keys help you navigate in Setup.

[Esc]

Main Menu: Quit without saving changes into CMOS RAM



Other pages: Exit the current page and return to the Main Menu

[PgUp]

Increase the numeric value or make changes

[PgDn]

Decrease the numeric value or make changes





26

BIOS SETUP

[+]Increase the numeric value or make changes

[-]

Decrease the numeric value or make changes

[F1]

General help on Setup navigation keys

[F5]

Load previous values from CMOS

[F6]

Load the Fail-Safe Defaults from the BIOS default table

[F7]

Load the Optimized Defaults

[F10]

Save all the CMOS changes, and exit

The Following is a brief summary of each Setup category:

Standard CMOS Features

Options in the original PC AT-compatible BIOS

Advanced BIOS Features

Award enhanced BIOS options

Advanced Chipset Features

Available options specific to your system’s Chipset

Integrated Peripherals

I/O subsystems that depend on the integrated peripheral controllers in your system

Power Management Setup

Advanced Power Management (APM) and Advanced Configuration Power Interface (ACPI) options

PnP/PCI Configurations

Plug-and-Play standard and PCI Local Bus configuration options

PC Health Status

To display the fan status, CPU temperature, system temperature, etc., and provide the temperature monitoring option

Frequency/Voltage Control

To control the frequency and voltage of the CPU

Load Fail-Safe Defaults

To load the most basic BIOS default values required for your system to operate

Load Optimized Defaults

To load the BIOS default values that are factory settings for optimal system performance

BIOS SETUP

27

Set Supervisor/User Password

To change, set, or disable a password

Save & Exit Setup

To save settings in nonvolatile CMOS RAM and exit Setup

Exit Without Saving

To abandon all changes and exit Setup

3.3 Standard CMOS Features

Date (mm:dd:yy)/Time (hh:mm:ss)

Highlight the items and use [PageUp]/[PageDown] to change the value of Date/Time.

IDE Primary/Secondary Master/Slave

Press [Enter] to enter the sub-menu.

28

BIOS SETUP

IDE HDD Auto-Detection: Detect the HDD on this channel. If the detection is successful, it fills the remaining fields on this menu.

IDE Primary/Secondary Master/Slave: We recommand that you select “AUTO” for all drives. The BIOS can automatically detect the specifications during POST while the

system boots. You can also choose “Manual” to set the specifications yourself. “None” indicates that there is no device installed on this IDE channel.

Access Mode: “Normal”, “LBA”, “Large”, or “Auto”.

- Normal: Maximum number of cylinders, heads, and sectors supported are 1024, 16, and 63 respectively.

-LBA (Logical Block Addressing): During drive access, the IDE controller transforms the data address described by sector, head, and cylinder number into a physical

block address. This will significantly improve data transfer rates for drives with

more than 1024 cylinders.

-Large: For drives that do not support LBA and have more than 1024 cylinders.

-Auto: The BIOS automatically determines the optimal access mode.

Capacity: Disk drive capacity. Note that this size is slighty greater than the size of a formatted disk given by a disk-checking program.

Cylinder: Number of cylinders

Head: Number of heads

BIOS SETUP

29

Precomp: Write precompensation cylinder

Landing Zone: Landing zone

Sector: Number of sectors

Drive A/Drive B

Select the correct types of diskette drive(s) installed in the computer.

-None: No diskette drive installed

-360K, 5.25 in.: 5-1/4 inch standard drive; 360 kilobyte capacity

-1.2M, 5.25 in.: 5-1/4 inch high-density drive; 1.2 megabyte capacity

-720K, 3.5 in.: 3-1/2 inch double-sided drive; 720 kilobyte capacity

-1.44M, 3.5 in.: 3-1/2 inch double-sided drive; 1.44 megabyte capacity

-2.88M, 3.5 in.: 3-1/2 inch double-sided drive; 2.88 megabyte capacity

Floppy Mode 3 Support

Supports some particular Japanese floppy drives (3-1/2 inch drive with 1.2 megabyte capacity).

Video

Select the type of primary video subsystem in your computer. The BIOS will detect the correct video type automatically. The BIOS supports a secondary video subsystem, but do not select it in this Setup.

-EGA/VGA: Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SEGA, SVGA or PGA monitor adapters.

-CGA 40: Color Graphics Adapter, powers up in 40-column mode.

-CGA 80: Color Graphics Adapter, powers up in 80-column mode.

-MONO: Monochrome adapter, including high resolution.

Halt On

During POST, the computer stops if the BIOS detects a hardware error. You can set the BIOS to ignore certain errors during POST and continue the boot-up process. The following are the available selections.

-All Errors: If the BIOS detects any non-fatal errors, POST stops and prompts you to take corrective action.

-No Errors: POST does not stop for any error.

-All, But Keyboard: If the BIOS detects any non-fatal errors except keyboard, POST stops and prompts you to take corrective action.

30

BIOS SETUP

-All, But Diskette: If the BIOS detects any non-fatal error except floppy disk drive, POST stops and prompts you to take corrective action.

-All, But Disk/Key: If the BIOS detects any non-fatal error except floppy disk drive or keyboard, POST stops and prompts you to take corrective action.

3.4 Advanced BIOS Features

This “Advanced BIOS Features” option allows you to improve your system performance and setup system features according to your preferences.

Virus Warning

When this function is enabled, you will receive a warning message if a program (specifically, a virus) attempts to write to the boot sector or the partition table of the hard disk drive. You should then execute an anti-virus program. Keep in mind that this feature protects the boot sector only, not the entire hard drive.

NOTE: Many disk diagnostic programs that access the boot sector table can trigger the virus warning message. If you plan to run such a program, we recommend that you first disable this virus warning in BIOS.

BIOS SETUP

31

CPU Internal Cache/External Cache

Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type and higher contain internal cache memory. Most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory for even faster access by the CPU. The “External Cache” field may not appear if your system does not have external cache memory.

CPU L2 Cache ECC Checking

Select “Enabled” to start the ECC function for L2 Cache.

Processor Number Feature

Make the CPU Serial number function active. (Only for PIII CPUs)

Quick Power On Self Test

Select “Enabled” to reduce the amount of time required to run POST. The Quick POST skips certain steps. We recommend that you normally disable Quick POST. It is better to find a problem during POST than to lose data during your work.

First/Second/Third/Other Boot Device

The original IBM PCs loaded the DOS operating system from drive A (floppy disk). So, IBM

PC-compatible systems are designed to search for an operating system first on drive A, and then on drive C (hard disk). However, BIOS attempts to load the operating system from the devices in the sequence selected in this field. In addition to the traditional drives A (“Floppy”) and C (“HDD-0”), options include “HDD-1”, “HDD-2”, “HDD-3”, and “CD-ROM”; plus a “SCSI” hard drive, a “LS/ZIP” drive and a “LAN” drive. If your boot device is not included in the list, you can set the “Boot Other Device” field to “Enabled”, and let the system detect the drive automatically.

Swap Floppy Drive

This field is effective only in systems with two floppy drives. Selecting “Enabled” assigns physical drive B to logical drive A, and physical drive A to logical drive B.

Boot Up Floppy Seek

When you select “Enabled”, the BIOS tests (seeks) floppy drives to determine whether they have 40 or 80 tracks. Only 360-KB floppy drives have 40 tracks; drives with 720KB, 1.2MB, and 1.44MB capacity all have 80 tracks. Because very few modern PCs have 40-track floppy drives, we recommend that you set this field to “Disabled” to save time.

32

BIOS SETUP

Boot Up NumLock Status

Toggle between “On” and “Off” to control the state of the NumLock key when the system boots. When toggled “On”, the numeric keypad generates numbers instead of controlling cursor operations.

Gate A20 Option

Choose “Fast” (default) or “Normal”. “Fast” allows RAM access above 1MB to use the fast

Gate A20 line.

Typematic Rate Setting

When this function is disabled, the following two items (Typematic Rate and Typematic Delay) are irrelevant. Keystrokes repeat at a rate determined by the keyboard controller in your system. When this function is enabled, you can select a typematic rate and typematic delay.

Typematic Rate (Chars/Sec)

When the Typematic Rate setting is enabled, you can select a typematic rate (the rate at which a character repeats) when you hold down a key of “6”, “8”, “10”, “12”, “15”, “20”, “24” or

“30” characters per second.

Typematic Delay (Msec)

When the Typematic Delay setting is enabled, you can select a typematic delay (the delay before key strokes begin to repeat) of “250”, “500”, “750” or “1000” milliseconds.

Security Option

If you have set a password, you can select whether the password is required while the system boots, or only when you enter “Setup”.

OS Select for DRAM > 64MB

Select “OS2” only if you are running OS/2 operating system with more than 64 MB of RAM on your system.

Report No FDD For WIN 95

Select “Yes” to release IRQ6 when there is no floppy disk drive, for compatibility with WIN 95 logo certification.

Delay For HDD (Secs)

Generally, you can set this field as “0”, but for some old Hard Disk Drives, you may need to increase the delay time for BIOS to detect what type it is.

BIOS SETUP

33

3.5 Advanced Chipset Features

This option will change the values of the chipset registers and the system settings will alter. Do not change any values if you are unfamiliar with the chipset.

SDRAM CAS Latency Time

This controls the SDRAM performance: default is “AUTO”. BIOS will auto detect the SPD information of the Memory Module and choose the proper setting.

SDRAM Cycle Time Tras/Trc

Select the number of SDRAM clocks used per access cycle. Setting available is 7/9 or 5/7.

SDRAM RAS-to-CAS Delay

This controls the latency between SDRAM active command and the read/write command. Leave it on the default setting.

SDRAM RAS Precharge Time

This controls the idle clocks after issuing a precharge command to SDRAM. Leave it on the default setting.

System BIOS Cacheable

Selecting “Enabled” allows caching of the system BIOS. This action can increase system performance.

34

BIOS SETUP

Video BIOS Cacheable

Selecting “Enabled” allows caching of the video BIOS. This action can increase system performance.

Memory Hole at 15M-16M

Enabling this feature reserves memory address space (between 15 and 16MB) to ISA expansion cards that specifically require this setting. This makes between 15 and 16MB of memory unavailable to the system. Expansion cards can only access memory up to 16MB. The default setting is “Disabled”.

CPU Latency Timer

The option determines the way that 815 uses the deferrable processor cycle.

Delayed Transaction

PCI access speed is faster than ISA. So PCI will release the master bus to the ISA interface for accessing data. Then the master bus control will go back to PCI again.

AGP Graphics Aperture Size

The Aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Access to the aperture range is forwarded to AGP without any translation.

Available options are 64MB and 32MB.

System Memory Frequency

Default is “Auto”. When the CPU is 133MHz you can choose 100/133MHz, but when the

CPU is 100MHz, only the 100MHz selection functions.

On-Chip Video Window Size

You can select the size of mapped memory for the VGA/AGP driver to use. The choices are:

“64MB”, “32MB”, and “Disabled”.

BIOS SETUP

35

3.6 Integrated Peripherals

Choose this option and the following display appears.

On-Chip Primary/Secondary PCI IDE

The chipset contains a PCI IDE interface which supports two IDE channels. Select “Enabled” to activate the first and/or second IDE interface. Select “Disabled” to deactivate this interface, when you install a primary and/or secondary add-in IDE interface.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-5) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 5 provide successively increased performance. In “Auto” mode, the system automatically determines the best one for each device.

36

BIOS SETUP

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA/33/66/100 implementation is possible only if your IDE hard drive can support it,

and if the operating environment includes a DMA driver (Windows 95 OSR2 or higher or a

third-party IDE bus master driver). If both your hard disk drive and your system software can

support Ultra DMA/33/66/100, select “Auto” to enable BIOS support.

USB Controller

Select “Enabled” if your system contains a Universal Serial Bus (USB) controller and USB

peripheral(s).

USB Keyboard Support

Select “Enabled” if you use a USB Keyboard.

Init Display First

This item allows you to decide which to activate first: Lint Display First PCI/AGP.

AC97 Audio/Modem

If you select “Enabled”, BIOS will detect whether you are using any Audio/Modem devices.

When an Audio/Modem device is detected, the onboard Audio/Modem controller will be

enabled. If you want to use your own Audio/Modem card, set these fields to “Disabled”. If not,

set these fields to “Auto”.

IDE HDD Block Mode

Block Mode is also called Block Transfer, Multiple Commands, or Multiple Sector Read/

Write. If your IDE hard drive supports Block Mode (most new drives do), select “Enabled” for

automatic detection of the optimal number of Block Read/Write per sector the drive can

support.

Power On Function

-Password: Power On only if you key in the correct password.

-Hot Key: You can use the hot key to Power On the system.

-Mouse Left: Power On with the Mouse Left Button.

-Mouse Right: Power On with the Mouse Right Button.

BIOS SETUP

37

-Any Key: Press any key to Power On the system.

-Button only: Power On only by pushing the button on the case (Default).

-Keyboard 98: You can Power On system by pushing the [Power-On] key of Keyboard 98.

KB Power On Password

Enter the Power On Passward here. Activated only when “Password” item is selected in the Power On Function Menu.

NOTE: If you want to use this function, please make sure that the “KB-AWK” jumper is set to “Enabled”.

Hot Key Power On

Choose [CTRL] +[ F1] ~ [F12] as a hot key to Power On the system. Activated only when

“Hot Key” is selected on the Power On Function Menu.

Onboard FDC Controller

You can use this function to enable or disable the onboard FDC controller.

Onboard Serial Port 1/Port 2

Select an address and the corresponding interrupt for each of the first and second serial ports. The choices are: “Disabled”, “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2F8/IRQ3”, and “Auto”. The second serial port shares the resources (address and IRQ) with IrDA.

UART Mode Select

Choose the right type of infrared device:

-Normal: Normal operation

-IrDA: IrDA compliant serial infrared port

-ASKIR: Amplitude Shift Keyed Infrared Port

RxD, TxD Active

Consult your IR peripheral documentation to select the combination of RxD and TxD.

IR Transmission Delay

Consult your IR peripheral documentation to select “Enabled” or “Disabled” for the IR Transmission Delay.

UR2 Duplex Mode

This item allows you to select the IR half/full duplex function.

38

BIOS SETUP

Use IR Pins

This option selects IR transmission routing. Two choices are:

RxD2,TxD2 -> COMB Connector

IR-Rx2Tx2 -> IR Connector

Onboard Parallel Port

Select a logical LPT port name and matching address for the physical parallel (printer) port.

The choices are: “378/IRQ7”, “278/IRQ5”, “3BC/IRQ7” and “Disabled”.

Parallel Port Mode

This field allows you to set the operation mode of the parallel port.

-SPP: Allows normal-speed operation, but in one direction only.

-EPP: Allows bi-directional parallel port operation at maximum speed.

-ECP: Allows DMA and bi-directional operation. It is faster than EPP mode.

-ECP + EPP: Allows normal speed operation in two-way mode.

EPP Mode Select

Select EPP port type “1.7” or “1.9”.

ECP Mode Use DMA

Assign DMA channel “1” or “3” to the port for ECP mode operation.

PWR-ON After PWR-Fail

Choose if you want the system to automatically Power On after the power has failed.

-Off: Disable this function

-On: Enable this function

-Former-Sts: Not only Power On the system, but also to return it to its former status.

Game Port Address

Set Joystick Game Port Address. The choices are: “Disabled”, “201” and “209”.

Midi Port Address

Set Midi Port Address. The choices are: “Disabled”, “330”, “300” and ”290”.

Midi Port IRQ

Assign IRQ 5 or 10 to the Midi Port.

BIOS SETUP

39

3.7 Power Management Setup

The Power Management Setup allows you to configure your system to minimize energy consumption, according to your own style of computer use.

ACPI Function

This item allows you to enable/disable the Advanced Configuration and Power Interface (ACPI).

ACPI Suspend Type

Select the ACPI Suspend Type: “S1 (POS)” or “S3 (STR)”.

If your expansion cards do not support the STR function, you must leave this field on “S1 (POS)” setting. The STR (Suspend-to-RAM) is an energy-saving feature. It takes only a few seconds to wake up the system and return to the previous situation.

NOTE: This feature (STR) requires an ATX power supply with at least 720mA + 5V standby power for the Advanced Configuration and Power Interface (ACPI) functions. Otherwise, the system will fail to return from suspend mode.

Power Management

This category allows you to select the type (or degree) of power saving and is directly related

to the following modes:

40

BIOS SETUP

1.Suspend Mode

2.HDD Power Down

There are three selections for Power Management. Two of them have fixed mode settings.

1.Min. Power Saving:

Minimum power management mode. Inactivity period is defined below:

Suspend Mode = 1 hr.

HDD Power Down = 15 min.

2.Max. Power Saving:

Maximum power management mode. Inactivity period is defined below:

Suspend Mode = 1 min.

HDD Power Down = 1 min.

3.User Define:

Allows you to set each mode individually. Select the time-out period for each mode shown above.

Video Off Method

Defines the Video Off features. -Blank Screen:

Only blanks the screen. Use this for monitors without power management and “green” features.

-V/H SYNC+BLANK:

Blanks the screen and turns off vertical and horizontal scanning.

-DPMS:

The DPMS (Display Power Management System) feature allows the BIOS to control the video display card if it supports the DPMS feature.

VIDEO Off In Suspend

This determines the manner in which the monitor is blanked. Select “Yes” to blank the monitor when the system enters suspend mode.

Suspend Type

Select Suspend Type: “Stop Grant” or “PWR ON Suspend”.

MODEM Use IRQ

You can select one of the following interrupt resources for modem use: “N/A”, “3”, “4”, “5”,

“7”, “9”, ”10”, and “11”.

BIOS SETUP

41

Suspend Mode

After the selected period of system inactivity (1 minute to 1 hour), all devices except the CPU will be shut down.

HDD Power Down

After the selected period of system inactivity (1 to 15 minutes), the hard disk drive powers down while all other devices remain active. This feature doesn’t effect SCSI hard drives.

Soft-Off by PWR-BTTN

When set to “Instant-off”, the ATX switch can be used as a normal system Power Off button. When set to “Delay 4 seconds”, you need to press the Power Off button down for more than 4 seconds if you want to Power Off the system.

Wake-Up by PCI & WOL

Select “Enabled” if you want to Power On your system when a PCI or LAN event occurs.

Power On by Ring

Select “Enabled” to Power On your system when the external modem receives a call.

NOTE: This function requires an external modem which supports the Ring Wake-

Up function.

USB KB Wake-Up From S3

When your system is in S3 (Suspend to RAM) mode, you can wake-up the system by pressing the wake-up key on the USB Keyboard.

CPU Thermal-Throttling

Select the CPU Thermal-Throttling rate. If BIOS detects that the CPU temperature is too high, it will slow down the CPU’s speed according to this field. The choices are: “87.5%”, “75.0%”, “62.5%”, “50.0%”, “37.5%”, “25.0%” and “12.5%”.

Resume by Alarm

Select “Enabled” if you want to power up your system at a certain time on the same day every month, or at a certain time every day.

Date/Time

Set the Date and Time to Power On the system. Activated only when the “Resume by

Alarm” field is enabled.

Reload Global Timer Events

When “Enabled”, an event occurring on any device listed below restarts the global timer from Standby Mode, and Powers On the system.

42

BIOS SETUP

The settings in these fields enable or disable the detection of

Primary IDE 0

IDE, floppy, serial and parallel port activities for powering down

Primary IDE 1

state transition. Actually, it detects read/write to/from I/O ports.

Secondary IDE 0

Secondary IDE 1

FDD, COM, LPT Port

PCI PIRQ[A-D]#

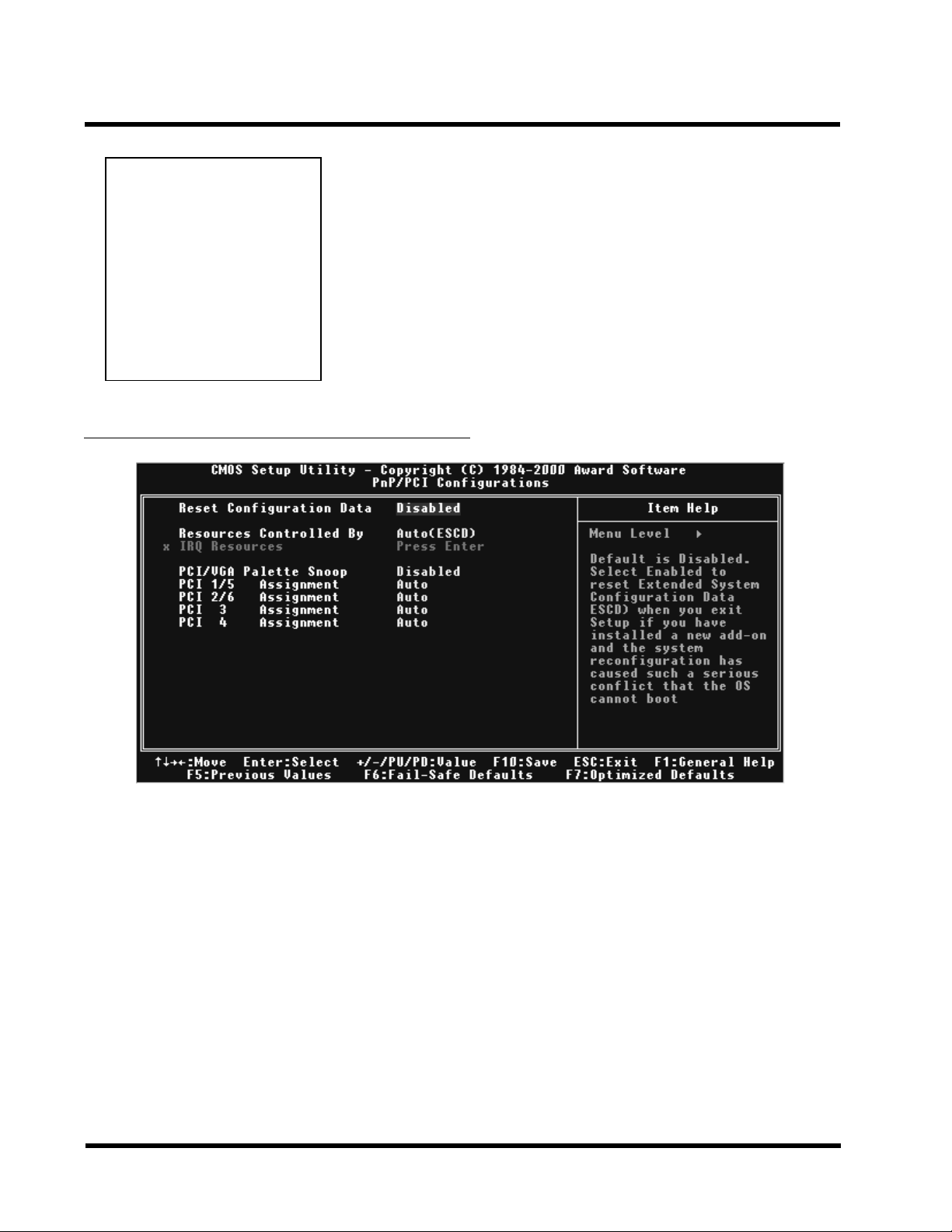

3.8 PnP/PCI Configuration Setup

Reset Configuration Data

Normally, you leave this field “Disabled”. Select “Enabled” to reset Extended System

Configuration Data (ESCD) if you have just installed a new add-on card and the system reconfiguration has caused such a serious conflict that the operating system cannot boot. The setting will automatically be set back to “Disabled” the next time the system reboots.

Resources Controlled by

The Award Plug-and-Play BIOS can automatically configure all the boot and Plug-and-Play (PnP) compatible devices. If you select “Auto”, all of the Interrupt Requests (IRQs) and DMA assignment fields will be activated as the BIOS automatically assigns them. The choices are: “Auto” and “Manual”.

BIOS SETUP

43

IRQ Resources

IRQ-n Assigned to

When the resources are controlled manually, assign each System Interrupt to one of the following, depending on which type of device is using the interrupt.

- Legacy ISA Devices requiring a specific interrupt (such as IRQ4 for serial port1), compliant with the original PC AT bus specification.

-PCI/ISA PnP devices, whether designed for PCI or ISA bus architecture, compliant with the Plug and Play standard.

PCI/VGA Palette Snoop

Some VGA cards, such as graphics accelerators or MPEG video cards, might not show colors properly. Select “Enabled” to correct this problem. If you don’t have such problems, leave this field at “Disabled”.

PCI n Assignment

Each PCI Slot can assign its own IRQ number. When you assign one and find out that the real IRQ is different from your assignment, the IRQ you assign must be taken over by another device like Printer, USB Controller, MIDI, etc.

44

BIOS SETUP

3.9 PC Health Status

This menu provides two thermo-protect functions (CPU warning temperature and shutdown temperature) and a hardware monitor center. These features let you know the health status of your PC.

CPU Warning Temperature

This field allows you to set the CPU warning temperature. You can choose from “50°C/

122°F” to “70°C/158°F” or even “Disabled” if you like.

Current CPU/System Temperature

These two fields display the CPU and the on-board system temperature.

Current CPU/Power/Case Fan Speed

These fields display the fan speeds of the CPU fan, Power fan and Case fan.

VCORE

This field displays the CPU working voltage.

VTT

This field displays the GTL bus voltage.

+5V/+12V/-12V/-5V

These fields show the power supply voltages.

3.3VSB/5VSB(V)

This field displays the 3.3V/5V standby power supplied to the CMOS battery.

BIOS SETUP

45

Shutdown Temperature

This field allows you to set the CPU shutdown temperature. The choices are: “60°C/140°F”,

“65°C/149°F”, “70°C/158°F” and “75°C/167°F”.

3.10 Frequency/Voltage Control

CPU Vcore Select

This option adjusts the CPU voltage. Available selections are Default /+0.05V/+0.1V/+0.2V/ +0.3V/+0.4V/-0.05V/-0.1V

Auto Detect DIMM/PCI Clk

“Enable” can stop the frequency output for unused DIMM/PCI slots.

Spread Spectrum

“Enable” provides spread Spectrum for better EMI solution.

Clock By Slight Adjust

This function allows you to set the FSB frequency of the CPU and the speed of the PCI bus. When JP4 is set to Auto, the frequency setting depends on your CPU type. When JP4 is set to 66MHz, you can select the system bus frequency from 66MHz to 99 MHz. When JP4 is set to 100MHz, you can select the system bus frequency from 100MHz to 132MHz. When JP4 is set to 133MHz, you can select the system bus frequency from 133MHz to 166MHz. When you overclock the CPU too much, some devices on the motherboard might not function well, like onboard CODEC. When this situation happens, reduce the frequency.

46

BIOS SETUP

CPU Clock Ratio

This function allows you to set the CPU internal frequency ratio. It determines the CPU internal frequency according to the following formula:

CPU internal frequency = frequency ratio x system bus frequency.*

* System bus frequency is set in the previous field (“CPU Host/PCI Clock”).

The choices are: “3”, “3.5”, “4”, “4.5”, “5”, “5.5”, “6”, “6.5”, “7”, “7.5”, and “8” or “8.5”, ”9”, ”10” “10.5”, ”11”, ”11.5”, ”12”. The two different tables depend on your CPU type.

NOTE: Because Intel has locked the frequency ratio for new CPU settings, this field to adjust the frequency ratio is usually useless. However, it is effective for older version CPUs.

BIOS SETUP

47

3.11 Load Fail-Safe Defaults

This option allows you to load the troubleshooting default values permanently stored in the BIOS

ROM. NOTE: These default settings are non-optimal and disable all high performance

features.

3.12 Load Optimized Defaults

This option allows you to load the default values to the system configuration fields. These default

values are the optimized configuration settings for the system.

48

BIOS SETUP

3.13 Supervisor Password

This option allows you to set a password to prevent others from changing the BIOS settings of your system.

The password prevents any unauthorized use of your computer. If you set a password, the system prompts for the correct password before you boot or access “Setup”.

To set a password:

1.At the prompt, type your password. Your password can be up to 8 alpha-numeric characters.

When you type the characters, they appear as asterisks (*) on the password screen box.

2.After typing the password, press [Enter] key.

3.At the next prompt, re-type your password and press [Enter] key again to confirm the new password. After the password entry, the screen automatically reverts to the main screen.

To disable the password, press [Enter] key when prompted to enter the password. The screen displays a message confirming that the password has been disabled.

Forget the password?

If you forget the password, you can clear it by erasing the CMOS Real Time Clock (RTC) RAM with the jumper 1 (CMOS_CLR). To erase the RTC RAM:

1.Unplug your computer.

2.Set the JP1 to “CMOS_CLR” for about 10 seconds, and then return to the default setting.

3.Turn on your computer.

4.Hold down [Delete] key during the POST process and enter BIOS setup to re-configure

BIOS settings.

BIOS SETUP

49

3.14 User Password

This option allows you to set a password to prevent others from changing the BIOS settings of your system. This operation is the same as Supervisor Password.

3.15 Save & Exit Setup

Save the settings and exit the BIOS utility.

50

BIOS SETUP

3.16 Exit Without Saving

Abort current changes and exit the BIOS utility.

SOFTWARE SETUP

51

CHAPTER 4 SOFTWARE SETUP

Insert the CD-ROM enclosed with your motherboard into the CD-ROM drive. After the Autorun program has executed, please check the model name shown on the screen. If the model name doesn’t match your motherboard, please select the correct one.

4.1 INF Update for 815EP Chipset

This section introduces INF files in Windows 95/98 for the following items: System and Graphics, LPS Interface, SM Bus, PCI Bridge, Bus master IDE, USB Host, and Controllers. Click INF Update Utility for Intel 81X chipset, and follow the figures as below.





Click here







Click here



1





2





















Click here







Click here







3





4







































52

SOFTWARE SETUP

6 Click here

5 Click here

4.2 Intel Security Controller Driver

This section helps you to install a security controller for Windows 95/98. Click Security Driver

Setup, and then follow the figures as below:





Click here







Click here



1





2















SOFTWARE SETUP

53



Click here







Click here

3





4













5 Click here

4.3 Audio Driver Setup

This section helps you to setup the onboard audio device. Click Audio Driver Setup, and choose the operating system you use.

A. Audio Driver for Windows 95/98/2000

The following figures are captured from Windows 98SE. You can setup the Audio CODEC in almost the same way in Windows 95 and Windows 2000.

54

SOFTWARE SETUP

1 Click here

2 Click here

3 Click here

4 Click here

5 Click here

SOFTWARE SETUP

55

B. Audio Driver for Windows NT

1 Click here

2 Click here

3 Click here

4 Click here

5 Click here

56

SOFTWARE SETUP



CHAPTER 5 BIOS UPGRADE

Caution!

Only users familiar with the upgrade procedure are recommended to update the BIOS of the motherboard and only when there is a need to do so. Please note that you have to download and install the right file for your motherboard. Otherwise, you might cause some serious system malfunctions.

5.1 How to Check Your BIOS File Name and Version

Please turn on PC first, the screen will display as follows (For example):

TRANSCEND MODULAR BIOS : ASP3-Ver.1.01 11/22/00.

You can see the BIOS description on the third line.

ASP3 - Ver 1.01 11/22/00

BIOS Generation Date

BIOS Version 1.01 (V11 for Version 1.1)

(You can upgrade to a newer version if your BIOS version is older than this version.)

BIOS File Name

(Make sure the first 5 charactors are exactly the same as your own

version if you want to upgrade your BIOS.)

5.2 How to Download the Correct BIOS File from the Web

Please enter the Transcend website on: http://www.transcendusa.com/

On the front page, click on the ”Motherboard” icon, which is the second one down. On the

Motherboard page, click on the “BIOS” icon near the top. The BIOS page contains important information: please take the time to read this page carefully. Go to the bottom of the BIOS page, click on “Slot 1” and choose your motherboard model.

Your BIOS file name must absolutely match the one shown on our web site. Then download the suitable version to your disk.

BIOS UPGRADE

57

Warning: Your system could be damaged if the wrong BIOS version is accidently used. If you are not sure what version you should choose, please contact us at: techsupport@transcend.com.tw

5.3 How to Upgrade Your Motherboard BIOS

Please follow the 5 steps listed below to upgrade your BIOS.

Step 1: Make a record of your original or existing BIOS Setup parameters.

-Press [Del] during the Power On Self Test to enter the BIOS Setup Program when you start your system.

-Write down the value of each parameter in order to re-configure your system after

BIOS updating.

Step 2: Make a System Disk

- Put a clean 3.5" disk in Drive A

MS-DOS: Key in Format A:/S and press [Enter].

Windows O/S: Select the My Computer icon.

Click [3.5" Floppy (A:)]

Select [File/Format] from Command Bar

Under Format 3.5 Floppy (A:) Menu select

Format type = Full item, and

Other Options = Copy system files

Click [Start] button

Step 3: Download the updated Bios.exe file from the web site to a floppy disk. (Ref 5.1 and 5.2)

Step 4: Type Bios.exe to decompress it.

Step 5: Please read the Readme.txt file carefully, and follow the instructions step by step.

Then you can finish the BIOS upgrade.
