FPC 5084
All-in-One
8.4” SVGA TFT Fanless Touch Panel
Computer with Intel® Atom
TM
N270
Processor Onboard
User’s Manual
Disclaimers
This manual has been carefully checked and believed to contain
accurate information. Acnodes Corporation assumes no responsibility
for any infringements of patents or any third party’s rights, and any
liability arising from such use.
ACNODES does not warrant or assume any legal liability or
responsibility for the accuracy, completeness or usefulness of any
information in this document. ACNODES does not make any
commitment to update the information in this manual.
ACNODES reserves the right to change or revise this document
and/or product at any time without notice.
No part of this document may be reproduced, stored in a retrieval
system, or transmitted, in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the prior
written permission of ACNODES Co., Ltd.
©
Copyright 2009 Acnodes
CorporationAll Rights
July 2009, Version A1
Printed in Taiwan
Reserved
ii
CE Marking
FCC Class A
FC C Compl iance
This equipment has been tested in compliance with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are meant to provide reasonable protection against harmful
interference in a residential installation. If not installed and used in
accordance with proper instructions, this equipment might generate or
radiate radio frequency energy and cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following methods:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment to another outlet of a circuit that
doesn’t connect with the receiver.
4. Consult the dealer or an experienced radio/TV technician for
help.
Shielded interface cables must be used in order to comply with the
emission limits.
Safety Approvals
iii
Safety Precautions
Before getting started, please read the following important safety
precautions.
1. The
2. Be sure to ground yourself to prevent static charge when
3. Disconnect the power cord from the
4. The brightness of the flat panel display will be getting weaker
5. Turn OFF the system power before cleaning. Clean the
6. Avoid using sharp objects to operate the touch screen.
7. The flat panel display is not susceptible to shock or vibration.
8. Do not open the system’s back cover. If opening the cover
FPC 5084
system. An operating system must be loaded first before
installing any software into the computer.
installing the internal components. Use a grounding wrist
strap and place all electronic components in any staticshielded devices. Most electronic components are sensitive
to static electrical charge.
installation. Be sure both the system and external devices
are turned OFF. A sudden surge of power could ruin
sensitive components that the
grounded.
as a result of frequent usage. However, the operating period
varies depending on the application environment.
system using a cloth only. Do not spray any liquid cleaner
directly onto the screen. The
w/o a touch screen. Although the touch screen is chemical
resistant, it is recommended that you spray the liquid cleaner
on a cloth first before wiping the screen. In case your system
comes without the touch screen, you must follow the same
procedure and not spray any cleaner on the flat panel
directly.
Scratches on the touch screen may cause malfunction or
internal failure to the touch screen.
When assembling the
securely installed.
for maintenance is a must, only a trained technician is
allowed to do so. Integrated circuits on computer boards are
sensitive to static electricity. To avoid damaging chips from
electrostatic discharge, observe the following precautions:
does not come equipped with an operating
FPC 5084
FPC 5084
FPC 5084
FPC 5084
, make sure it is
before any
must be properly
may come with or
iv
Before handling a board or integrated circuit, touch an
unpainted portion of the system unit chassis for a few
seconds. This will help to discharge any static
electricity on your body.
When handling boards and components, wear a wrist-
grounding strap, available from most electronic
component stores.
Trademarks Acknowledgments
ACNODES is a trademark of ACNODES Co., Ltd.
IBM, PC/AT, PS/2, VGA are trademarks of International
Business Machines Corporation.
Intel® and Atom™ are registered trademarks of Intel Corporation.
MS-DOS, Microsoft C and Quick BASIC are trademarks of Microsoft
Corporation.
VIA is a trademark of VIA Technologies, Inc.
SST is a trademark of Silicon Storage Technology, Inc.
UMC is a trademark of United Microelectronics Corporation.
Other brand names and trademarks are the properties and registered
brands of their respective owners.
v
Table of Contents
Disclaimers
Safety
Safety
CHAPTER 1 INTRODUCTION ....................................... 1
1.1 General Description ............................................ 1
1.2
1.2.1 Main CPU Board ......................................................... 2
1.2.2 I/O System .................................................................. 3
1.2.3 System Specification .................................................. 3
1.3 Dimensions ......................................................... 5
1.4 I/O
1.5 Packing List ........................................................ 8
CHAPTER 2 HARDWARE INSTALLATION .................. 9
2.1 CF card Installation............................................. 9
2.2 Serial Ports Interface ........................................ 11
2.3 Ethernet ............................................................ 13
2.4 Mountings – Panel/Wall/Desktop/VESA ........... 14
2.4.1 Panel Mounting ......................................................... 14
2.4.2 Wall-Mounting ........................................................... 15
2.4.3 Desktop-Mounting..................................................... 16
2.4.4 VESA-ARM Mounting ............................................... 18
2.5 DRAM Installation ............................................. 20
2.6 Wireless LAN Card Installation ......................... 22
CHAPTER 3 AMI BIOS SETUP UTILITY ..................... 25
3.1 Starting
3.2 Navigation
3.3 Main
3.4 Advanced
3.5 PCI PnP
3.6 Boot Menu ........................................................ 44
3.7 Security
3.8 Chipset Menu.................................................... 51
3.9 Exit
..........................................................................ii
Approvals................................................................. iii
Precautions..............................................................iv
Specifications...................................................... 2
Outlets........................................................... 7
............................................................. 25
Keys
................................................ 25
Menu
........................................................ 26
Menu
................................................ 27
Menu
.................................................. 41
Menu
................................................... 49
Menu
.......................................................... 56
vi
CHAPTER 4 DRIVERS INSTALLATION...................... 58
4.1
System .............................................................. 58
4.2 Touch Screen ................................................... 59
4.2.1 Specification.............................................................. 59
4.2.2 Driver Installation- Windows XP ............................... 59
4.3 Embedded O.S. ................................................ 62
4.3.1 Windows XP Embedded ........................................... 62
4.3.2 Windows CE.NET 6.0 ............................................... 63
vii
MEMO
viii
1
FPC 5084 User Manual
CHAPTER 1
INTRODUCTION
This chapter contains general information and detailed specifications
of the
FPC 5084
General Description
Specification
Dimensions
I/O Outlets
Package List
1.1 General Description
The FPC 5084 is a fan-less and compact-size touch panel computer,
equipped with a 8.4” TFT LCD display and low power consumption
○
R
Intel
533MHz. The FPC 5084 supports Windows
CE.NET and Windows® XP embedded. The panel computer is able to
install a CompactFlash™ card and provide a Mini card socket for
wireless module. Its excellent ID and friendly user interface make it a
professional yet easy-to-use panel computer. The FPC 5084 is an
ideal for space-limited applications in factory automation, machine
maker operating systems, building automation, and more.
Atom
Reliable and Stable Design
The FPC 5084 adopts a fanless cooling system and a
. Chapter 1 includes the following sections:
TM
N270 1.6GHz processor with FSB
®
XP, Windows
FPC 5084: 8.4” TFT SVGA Fanless Touch Panel
Computer
®
Introduction
FPC 5084
CompactFlash™ card, which makes it suitable for vibration
environments.
Embedded O.S. Supported
The FPC 5084 not only supports Windows
supports embedded OS, such as Windows® CE.NET, and
Windows
®
XP embedded. For storage device, the FPC 5084
®
XP, but also
830 supports CompactFlash™ card.
Industrial-grade Product Design
The FPC 5084 has an incredible design to be used in different
industrial environments.
The front bezel meets the IP65/NEMA4 standard.
For connecting other devices, the FPC 5084 also features
several interfaces: USB, Ethernet, and RS-232/422/485.
1.2 Specifications
1.2.1 Main CPU Board
CPU
○
R
Intel
Atom
TM
onboard
System Chipset
945GSE + ICH7M
BIOS
America Megatrends BIOS
System Memory
One 200-pin DDR2 SO-DIMM socket
Maximum memory up to 2GB
N270 1.6GHz processor with FSB 533MHz
2
Introduction
3
FPC 5084 User Manual
1.2.2 I/O System
Standard I/O
One RS-232 and one RS-232/422/485
Two USB 2.0
Ethernet
Audio
Expansion
Storage
Box-header
One RTL81111b Gigabit Ethernet
One Line-out
One Mini card
One socket for CF card
Two 2×5 box header for COM3, COM4
1.2.3 System Specification
8.4” TFT LCD
Heat Dispensing Design
Net Weight
1.3 Kgs (2.87 lb)
Dimension (Main Body Size)
251x205x 44.6mm
Operation Temperature
0 to 45
Relative Humidity
10% to 90% @ 40, Non-Condensing
Vibration
5 to 500 Hz, 2.0 G random for CF card
Introduction
FPC 5084
NOTE All specifications and images are subject to change
without notice.
NOTE If it is operated in high temperature environment, the
wide temperature DRAM is reommended.
4
Introduction
5
FPC 5084 User Manual
1.3 Dimensions
This diagram shows you dimensions and outlines of the
830
.
FPC 5084
Introduction
FPC 5084
6
Introduction
7
1.4 I/O Outlets
Please refer to the following illustration for I/O locations of the
FPC 5084 User Manual
FPC-5084
.
No
1 POWER SWITCH (AT X)
2 10-30VDC POWER Input
3 COM 1 (RS-232/422/485)
4 COM 2 (RS-232)
5 VGA
6 ETHERNET (RJ-45)
7 USB 2.0 X 2
8 AUDIO (LINE-OUT)
Function
Introduction
FPC 5084
1.5 Packing List
When you receive the
FPC 5084
, the bundled package should
contain the following items:
FPC 5084 x 1
Panel Mount Kit x 6
Driver CD x1
Wall-Mount Kit x1
Desktop Stand Kit (optional)
VESA ARM (optional)
Power Adapter (optional)
If you can not find the package or any items are missing, please
contact ACNODES distributors immediately.
8
Introduction
FPC 5084 User Manual
CHAPTER 2
The
FPC 5084
to meet different demand, for example, CF card. The chapter will
show you how to install the hardware. It includes:
CompactFlash™ Card
Serial Port
Ethernet
Mounting Way
Dram
Wireless LAN Card
2.1 CF card Installation
The
FPC 5084
CompactFlash™ card. Please refer to the following instructions for
installation:
Step 1
Turn off the system, and unplug the power cord.
HARDWARE INSTALLATION
provides rich I/O ports and flexible expansions for you
provides one CF socket for users to install
Hardware Installation
9
10
Step 2
FPC 5084
Find out the cover on the side of the system.
Step 3
Locate the CompactFlash
the socket.
TM
socket, and insert the card into
Hardware Installation
11
FPC 5084 User Manual
2.2 Serial Ports Interface
The
FPC 5084
422/ 485) and COM2 (RS-232).
The following table shows you the pin assignments of this connector:
Pin
1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR) 9 Ring Indicator (RI)
5 Ground (GND)
has two onboard serial ports, COM1 (RS-232/
Signal
Pin
6 Data Set Ready (DSR)
7 Request To Send (RTS)
8 Clear To Send (CTS)
Signal
In addition, COM1 can be set for RS-232/422/485 by jumper. The
jump setting is listed as below:
CO
M1
RS-232 (default) 3-5, 4-6
RS-422
RS-485
JP
11
1-3, 2-4
1-3, 2-4
JP
12
3-5, 4-6
1-3, 2-4 3-4, 7-8
1-3, 2-4 5-6, 7-8
JP
13
1-2
Hardware Installation
12
When COM1 is set to RS-422 or RS-485, the pin assignments are
listed below:
FPC 5084
Pin #
1
2
3
4
5
6
7
8
9
Signal Name
RS
-422
TX-
TX+
RX+
RX-
No connector
No connector
No connector
No connector
GND
RS
-485
DATA-
DATA+
No connector
No connector
No connector
No connector
No connector
No connector
GND
Hardware Installation
13
FPC 5084 User Manual
2.3 Ethernet
The
FPC 5084
Ethernet interface, full compliant with IEEE 802.3 standard, and can
be connected with a RJ-45 LAN connector.
Please refer to detailed pin assignment list below:
Pin
1
2
3
4
5
6
7
8
is equipped with a high performance Plug and Play
Signal
TX+ (Data transmission positive
TX- (Data transmission negative)
Rx+(Data reception positive)
RJ45 termination
RJ45 termination
Rx- (Data reception negative)
RJ45 termination
RJ45 termination
1 2 3 4 5 6 7 8
RJ-45
Hardware Installation
14
FPC 5084
2.4 Mountings – Panel/Wall/Desktop/VESA
There are several mounting ways for the FPC 5084, Panel, Wall,
Desktop and VESA mountings.
2.4.1 Panel Mounting
The
FPC 5084
standard mounting kit are bundled with the system package that you
can use it to mount the
is designed for panel mount application. A set of
FPC 5084
.
Hardware Installation
15
FPC 5084 User Manual
2.4.2 Wall-Mounting
The FPC 5084 is designed for Wall mounting application.
Please refer to the following steps:
Find out the screws as marked on the back side of chassis.
Hardware Installation
16
2.4.3 Desktop-Mounting
The FPC 5084 is designed for desktop mounting application.
Please refer to the following steps:
Step 1
FPC 5084
Find out the screws as marked on the back side of chassis.
Hardware Installation
17
FPC 5084 User Manual
Step 2
Assemble the desktop stand to the chassis, and fix the
screws.
Hardware Installation
18
2.4.4 VESA-ARM Mounting
Step 1
FPC 5084
Find out the screws as marked on the back side of chassis.
Step 2
Assemble the VESA-ARM to the back side of the chassis,
and fix the screws.
Hardware Installation
19
FPC 5084 User Manual
Step 3
VESA mounting Installation completed.
Hardware Installation
20
FPC 5084
Hardware Installation
21
FPC 5084 User Manual
2.5 DRAM Installation
The FPC 50 84 provides one 200- pin DDR2 SO-DI M M so cket
that support system memor y up to 2GB. Please follow steps
below to install the memory modules:
1. Unscrew six scre ws to rem ove the rear chassis .
2. Find t he SO-DIMM sock et on mainboard (SBC8 7830) .
Hardware Installation
22
FPC 5084
3. Push down latches on each side of the SO-DIMM socket.
4. Install the memory module into the socket and push it firmly down
until it is fully seated. The socket latches are levered upwards and
clipped on to the edges of the SO-DIMM socket.
Hardware Installation
23
FPC 5084 User Manual
2.6 Wireless LAN Card Installation
The FPC 5084 provides one Mini card socket for user to install
one wir eless LAN card. When installing the wireless L AN car d,
refer to the follo wing instr uct ions and illus trat ion:
1. Open the back cover and find mai nboard (SB C8783 0).
2. The socket latches are clipped on to the edges of the Mini card
socket. Install wireless LAN car d to the socke t.
Hardware Installation
24
FPC 5084
3. Find the built-in Anten na cable which is tie d with o t her
cables on the to p of the device. Connect antenn a cable to
MAIN
connector on wir eless LAN car d.
4. Ther e are two connectors on wireless LAN card. One is
MAIN, and the other is au xiliary. Connect ant enn a cable to
MAIN
connector on wir ele ss LA N card.
Hardware Installation
25
FPC 5084 User Manual
MEMO
Hardware Installation
25
FPC 5084 User Manual
CHAPTER 3
AMI BIOS SETUP UTILITY
This chapter provides users with detailed description how to set up
basic system configuration through the AMI BIOS setup utility.
3.1 Starting
To enter the setup screens, follow the steps below:
1. Turn on the computer and press the <Del> key immediately.
2. After you press the <Delete> key, the main BIOS setup menu
displays. You can access the other setup screens from the main
BIOS setup menu, such as the Chipset and Power menus.
3.2 Navigation Keys
The BIOS setup/utility uses a key-based navigation system called hot
keys. Most of the BIOS setup utility hot keys can be used at any time
during the setup navigation process.
These keys include <F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, and
so on.
Note Some of navigation keys differ from one screen to another.
Left/Right
Up/Down
+− Plus/Minus
Tab
F1
AMI BIOS Setup Utility
The Left and Right <Arrow> keys allow you to select
a setup screen.
The Up and Down <Arrow> keys allow you to select
a setup screen or sub-screen.
The Plus and Minus <Arrow> keys allow you to
change the field value of a particular setup item.
The <Tab> key allows you to select setup fields.
The <F1> key allows you to display the General
Help screen.
FPC 5084
The <F10> key allows you to save any changes you
F10
Esc
Enter
have made and exit Setup. Press the <F10> key to
save your changes.
The <Esc> key allows you to discard any changes
you have made and exit the Setup. Press the
<Esc> key to exit the setup without saving your
changes.
The <Enter> key allows you to display or change the
setup option listed for a particular setup item. The
<Enter> key can also allow you to display the setup
sub- screens.
3.3 Main Menu
When you first enter the Setup Utility, you will enter the Main setup
screen. You can always return to the Main setup screen by selecting
the Main tab. There are two Main Setup options. They are described in
this section. The Main BIOS Setup screen is shown below.
System Time/Date
Use this option to change the system time and date. Highlight
26
AMI BIOS Setup Utility
27
FPC 5084 User Manual
System Time or System Date using the <Arrow> keys. Enter new
values through the keyboard. Press the <Tab> key or the <Arrow>
keys to move between fields. The date must be entered in
MM/DD/YY format. The time is entered in HH:MM:SS format.
3.4 Advanced Menu

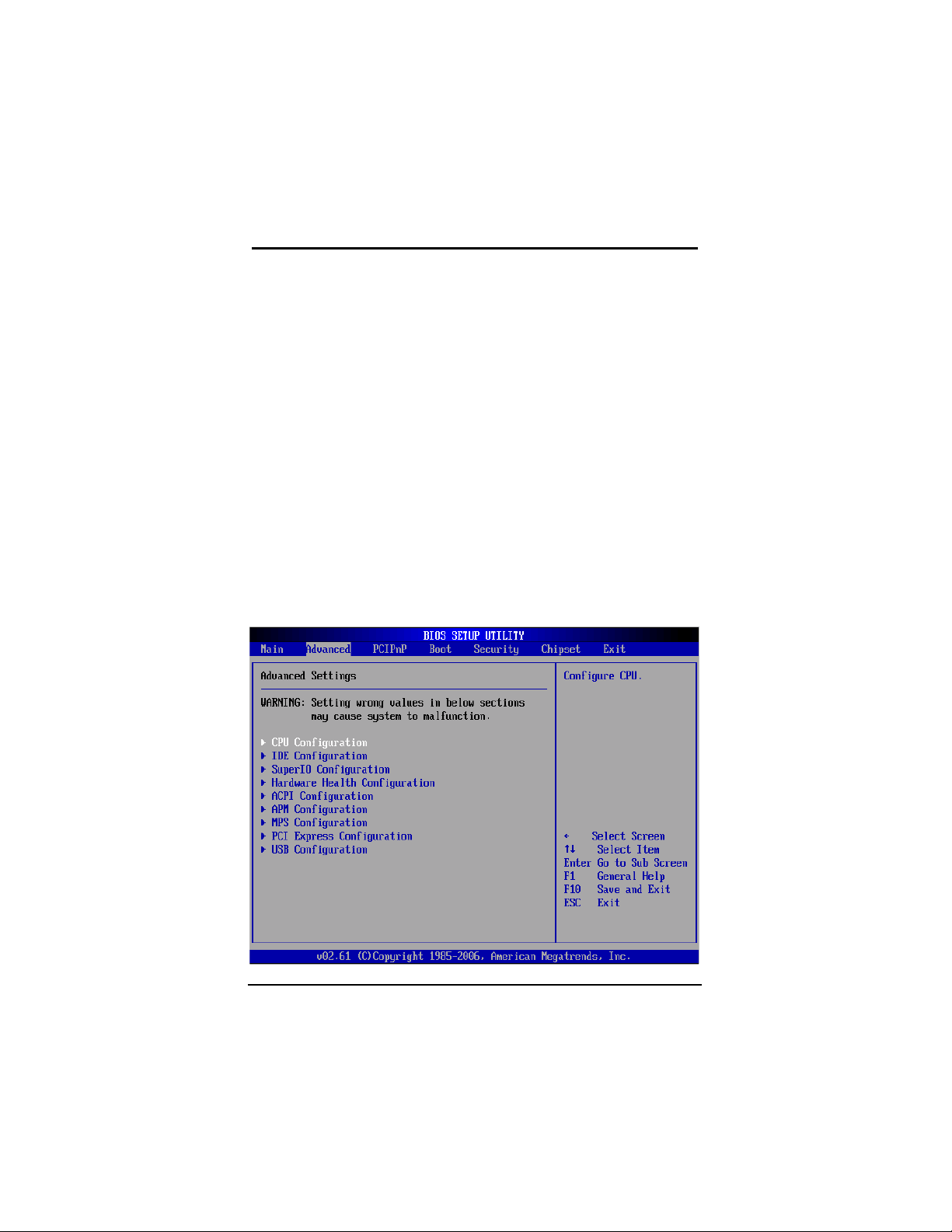

The Advanced menu allows users to set configuration of the CPU and
other system devices. You can select any of the items in the left frame
of the screen to go to the sub menus:
CPU Configuration
IDE Configuration
SuperIO Configuration
Hardware Health Configuration
ACPI Configuration
APM Configuration
MPS Configuration
PCI Express Configuration
USB Configuration
For items marked with “f”, please press <Enter> for more options.
AMI BIOS Setup Utility
FPC 5084
Configure advanced CPU settings
This screen shows the CPU Configuration, and you can change
the value of the selected option.
Max CPUID Value Limit
You can enable this item to let legacy operating systems
boot even without support for CPUs with extended CPU ID
functions.
Execute-Disable Bit Capability
This item helps you enable or disable the No-Execution
Page Protection Technology.
Hyper Threading Technology
Use this item to enable or disable Hyper-Threading
Technology, which makes a single physical processor
perform multi-tasking function as two logical ones.
Intel (R) SpeedStep (tm) tech
This item helps you enable or disable the Intel SpeedStep
Technology.
Intel (R) C-STATE tech
Use this item to enable or disable the C-State technology.
28
AMI BIOS Setup Utility
29
FPC 5084 User Manual
Enhanced C-States
This item allows you to enable or disable any available
enhanced C-states ( C1E, C2E, C3E, C4E and Hard C4E).
IDE Configuration
You can use this screen to select options for the IDE Configuration,
and change the value of the selected option. A description of the
selected item appears on the right side of the screen. For items
marked with “f”, please press <Enter> for more options.
Primary/Secondary/Third IDE Master/Slave
Select one of the hard disk drives to configure IDE devices
installed in the system by pressing <Enter> for more options.
SuperIO Configuration
You can use this screen to select options for the SuperIO Configuration,
and change the value of the selected option. A description of the
selected item appears on the right side of the screen.
AMI BIOS Setup Utility
FPC 5084
Serial Port1 Address
This item specifies the base I/O port address and Interrupt
Request address of serial port 1. The Optimal setting is
3F8/IRQ4. The Fail-Safe default setting is 3F8.
Serial Port1 IRQ
This item specifies the IRQ used by the serial port 1.
Serial Port2 Address
This item specifies the base I/O port address and Interrupt
Request address of serial port 2. The Optimal setting is
2F8/IRQ3. The Fail-Safe setting is 2F8.
Serial Port2 IRQ
This item specifies the IRQ used by the serial port 2.
Serial Port3 Address
This item specifies the base I/O port address and Interrupt
Request address of serial port 3.
Serial Port3 IRQ
This item specifies the IRQ used by the serial port 3.
30
AMI BIOS Setup Utility
31
FPC 5084 User Manual
Serial Port4 Address
This item specifies the base I/O port address and Interrupt
Request address of serial port 4.
Serial Port4 IRQ
This item specifies the IRQ used by the serial port 4.
AMI BIOS Setup Utility
FPC 5084

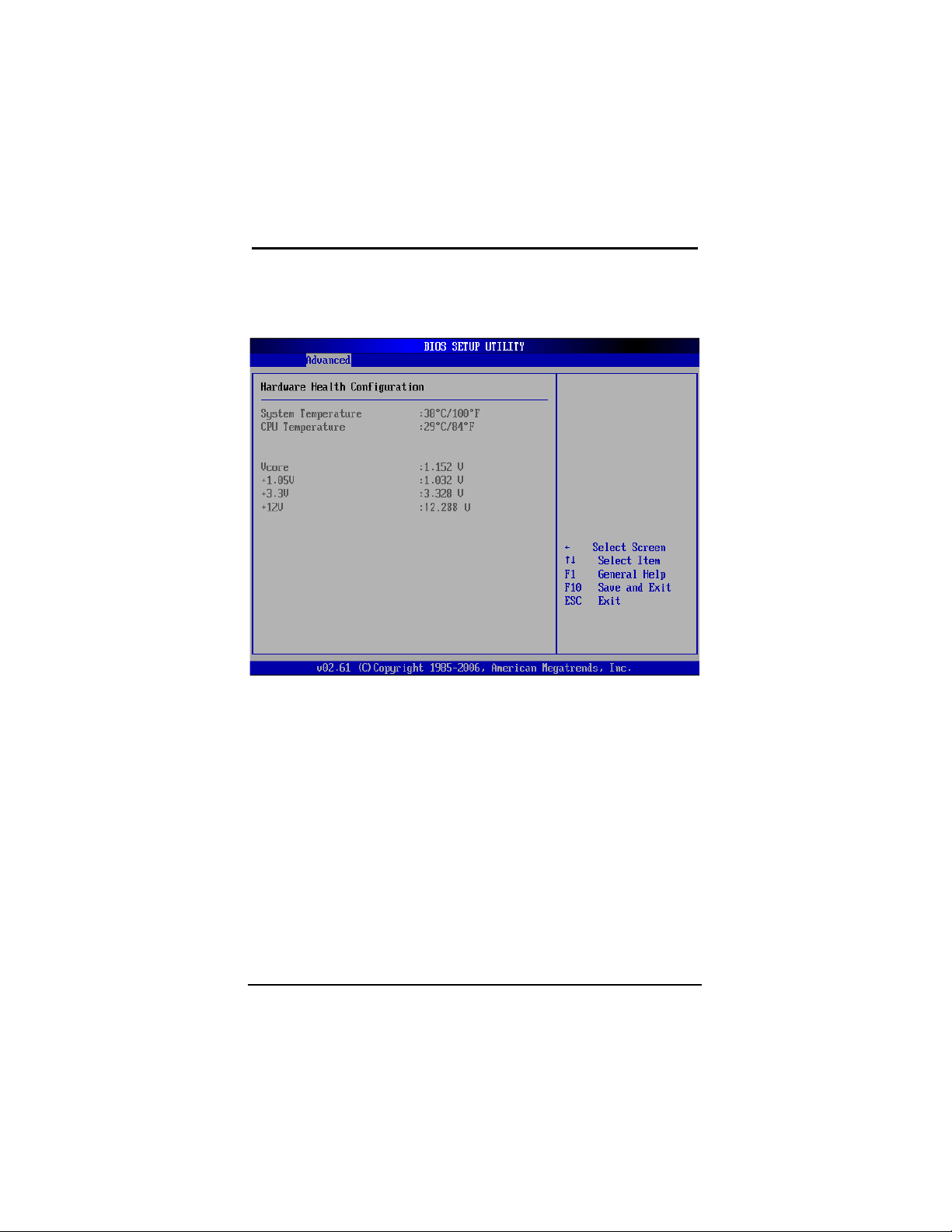

Hardware Health Configuration
This screen shows the Hardware Health Configuration, and a
description of the selected item appears on the right side of the
screen.
System Temperature/CPU Temperature
These items display the temperature of CPU and System,
Vcore, etc.
32
AMI BIOS Setup Utility
33
FPC 5084 User Manual
ACPI Settings
You can use this screen to select options for the ACPI Settings,
and change the value of the selected option. A description of the
selected item appears on the right side of the screen.
AMI BIOS Setup Utility
FPC 5084

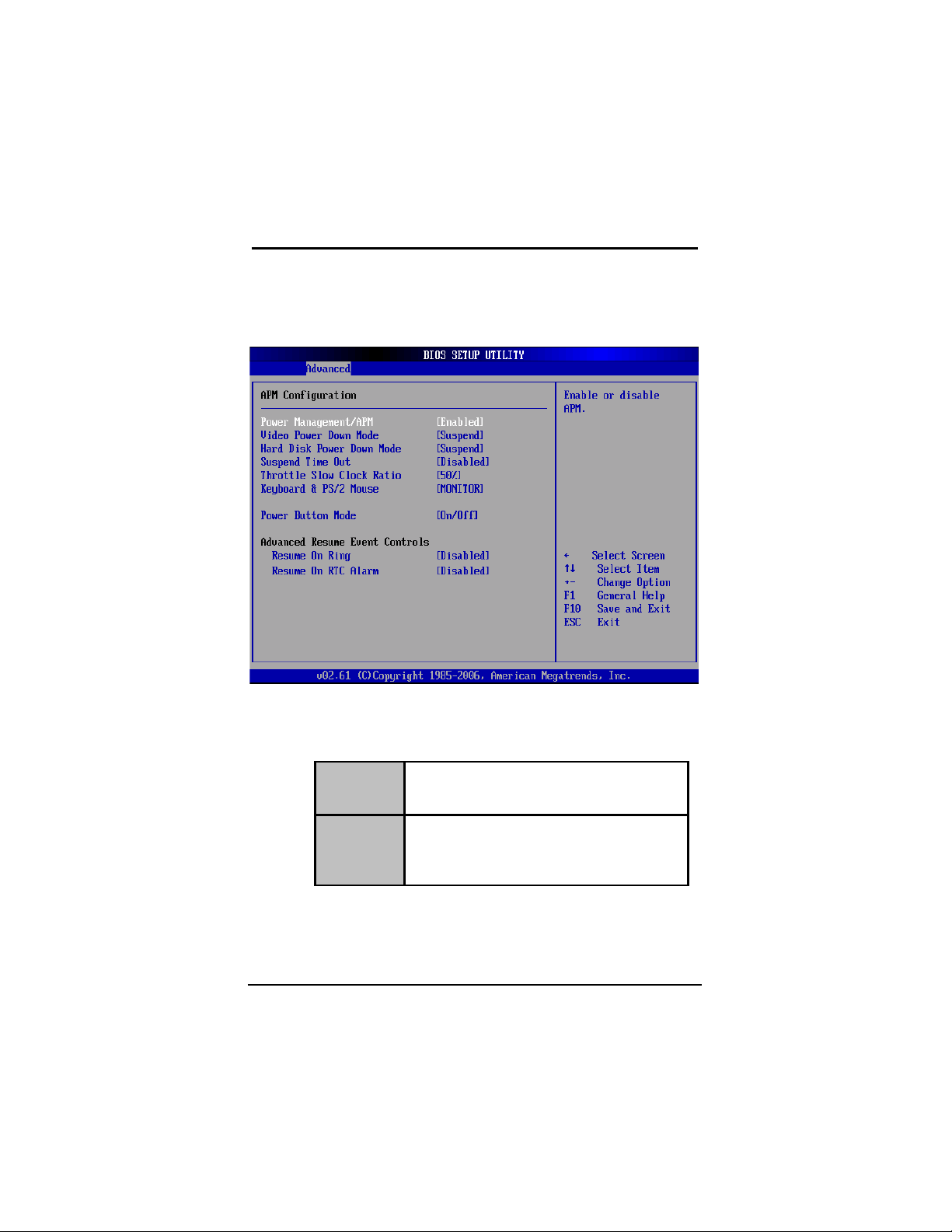

APM Configuration
You can use this screen to select options for the APM
Configuration, and change the value of the selected option. A
description of the selected item appears on the right side of the
screen.
Power Management/APM
Set this item to allow Power Management/APM support. The
default setting is Enabled.
Disabled
Enabled
Video Power Down Mode
This option specifies the Power State that the video
subsystem enters when the BIOS places it in a power saving
state after the specified period of display inactivity has
Set this item to prevent the chipset power
management and APM (Advanced Power
Management) features.
Set this item to allow the chipset power
management and APM (Advanced Power
Management) features. This is the default
setting.
34
AMI BIOS Setup Utility
35
FPC 5084 User Manual
expired. The default setting is Suspend.
This setting prevents the BIOS from initiating
Disabled
Suspend
any power saving modes concerned with the
video display or monitor.
This option places the monitor into suspend
mode after the specified period of display
inactivity has expired. This means the monitor is
not off. The screen will appear blacked out. The
standards do not cite specific power ratings
because they vary from monitor to monitor, but
this setting use less power than Standby mode.
This is the default setting.
Hard Disk Drive Power Down Mode
This option specifies the power conserving state that the
hard disk drive enters after the specified period of hard drive
inactivity has expired. The default setting is Suspend.
Disabled
Suspend
Suspend Time Out (Minute)
This setting prevents hard disk drive power
down mode.
This option cuts the power to the hard disk
drives during a system suspend. This is the
default setting.
This option specifies the length of time the system waits
before it enters suspend mode. The default setting is
Disabled.
Disabled
1
Min
4
Min
10
Min
This setting prevents the system from entering
suspend mode. This is the default setting.
Set this item to allow the computer system to enter
suspend mode after being inactive for 1 minute.
Set this item to allow the computer system to enter
suspend mode after being inactive for 4 minutes.
Set this item to allow the computer system to enter
suspend mode after being inactive for 10 minutes.
Throttle Slow Clock Ratio
Use this item to specify the speed of the system clock when
running the power saving states.
Power Button Mode
This option specifies how the externally mounted power
AMI BIOS Setup Utility
FPC 5084
button on the front of the computer chassis is used. The
default setting is On/Off.
Pushing the power button turns the computer
On/Off
Suspend
on or off. This is the default setting. This is the
default setting.
Pushing the power button places the computer
in Suspend mode or Full On power mode.
*** Advanced Resume Event Controls ***
Resume On Ring
This item enables or disables the function of Resume On
Ring that resumes the system through incoming calls.
Resume On RTC Alarm
You can set “Resume On RTC Alarm” item to enabled and
key in Data/time to power on system.
36
AMI BIOS Setup Utility
37
FPC 5084 User Manual
MPS Configuration
This screen shows the MPS (Multi Processor Specification)
Configuration, and you can change its value. A description of the
selected item appears on the right side of the screen.
MPS Revision
Use this item to select MPS (Multi Processor Specification)
Revision 1.1 or 1.4. The default setting is 1.4.
AMI BIOS Setup Utility
FPC 5084

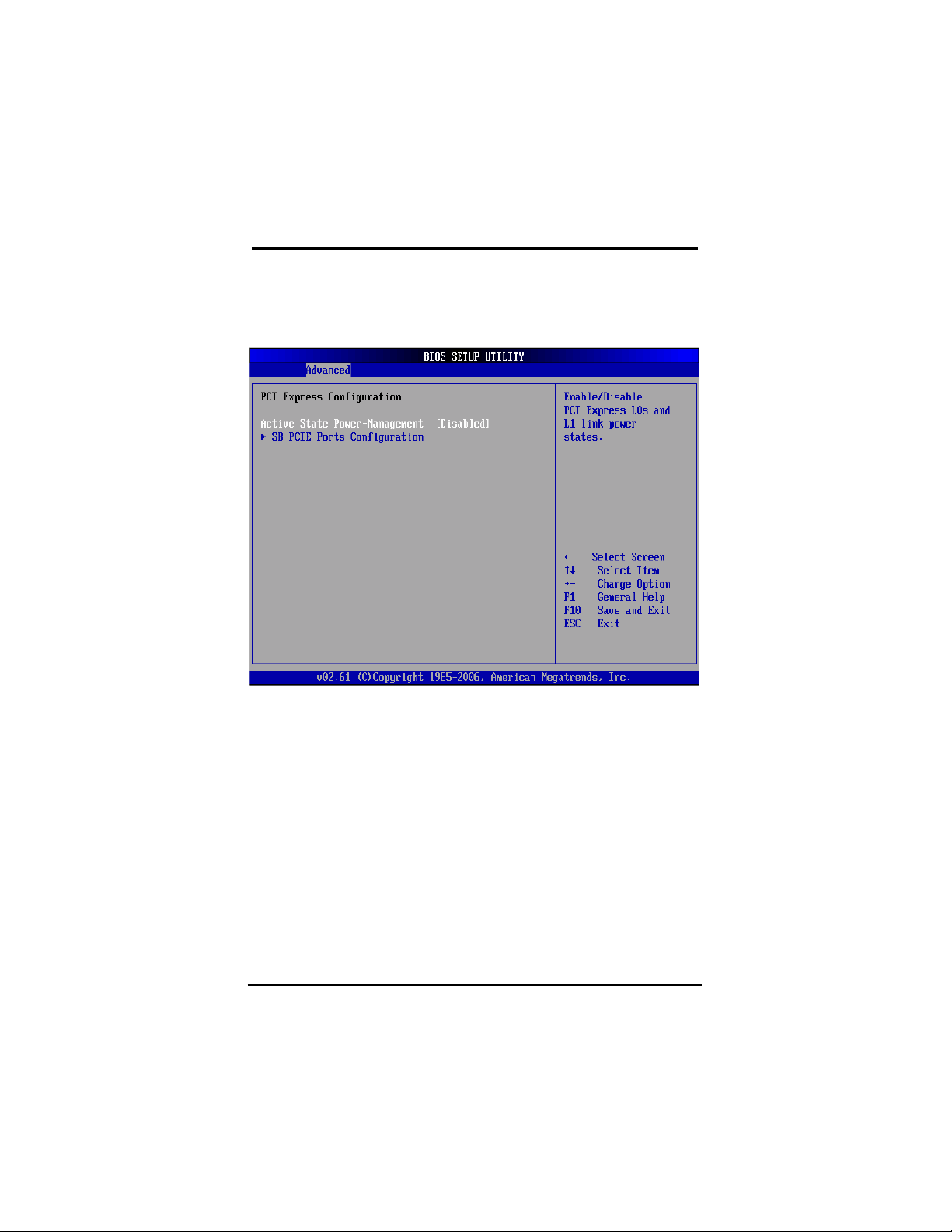

PCI Express Configuration
This screen shows the PCI Express Configuration, and you can
change its value. A description of the selected item appears on the
right side of the screen.
Active State Power-Management
Use this item to enable or disable the function of Active
State Power-Management to provide you with lower power
consumption. The default setting is Disabled.
38
AMI BIOS Setup Utility
39
FPC 5084 User Manual
SB PCIE Ports Configuration
Scroll to this item and press <Enter> to view the SB PCIE
Ports Configuration sub menu, which contains several
options for your configuration.
AMI BIOS Setup Utility
FPC 5084
USB Configuration
You can use this screen to select options for the USB
Configuration, and change the value of the selected option. A
description of the selected item appears on the right side of the
screen.
Legacy USB Support
Use this item to enable or disable support for USB device on
legacy operating system. The default setting is Enabled.
USB 2.0 Controller Mode
Use this item to configure the USB 2.0 controller. The
default setting is HiSpeed.
BIOS EHCI Hand-Off
Enabling this item provide the support for operating systems
without an EHCI hand-off feature. The default setting is
Enabled.
40
AMI BIOS Setup Utility
41
FPC 5084 User Manual

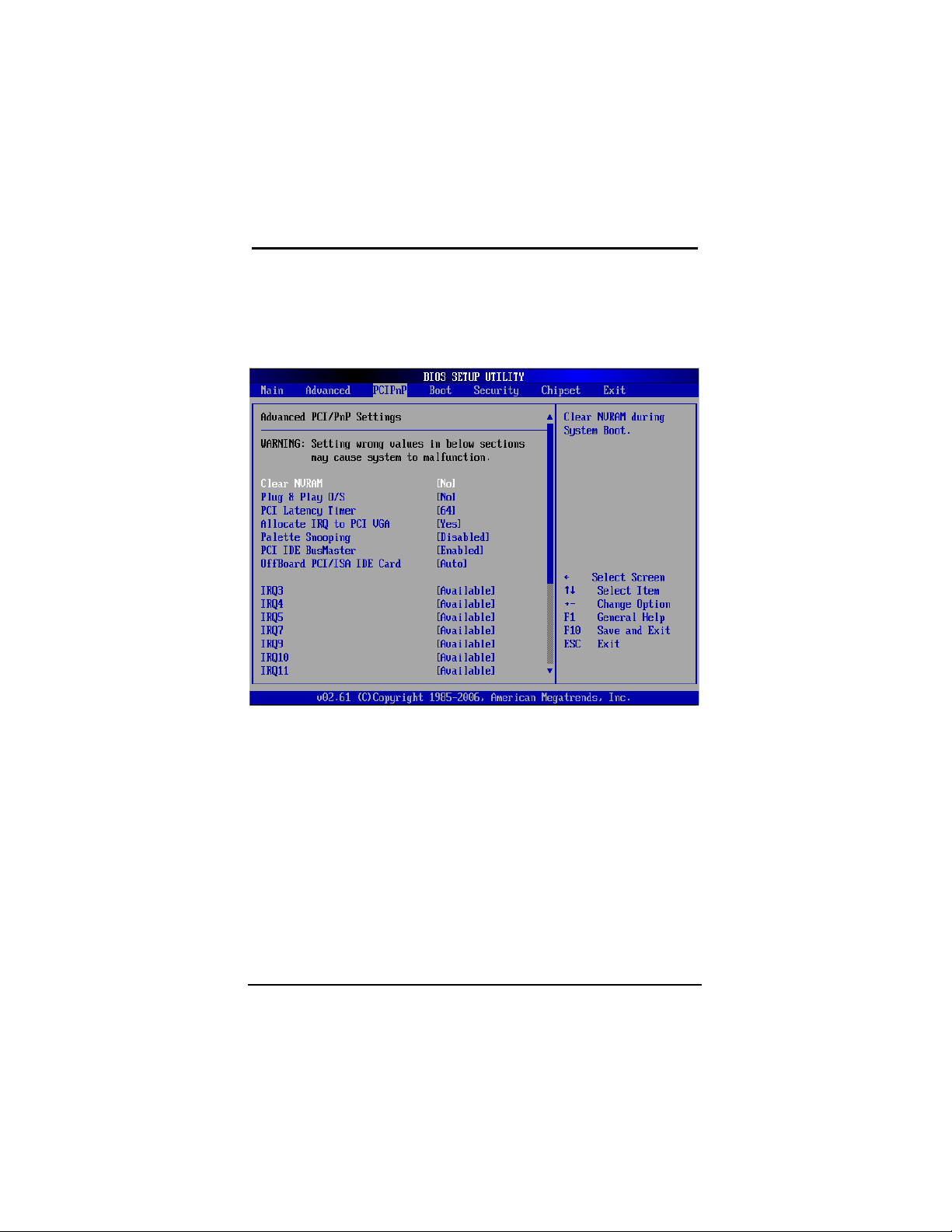

3.5 PCI PnP Menu
The PCI PnP menu allows users to change the advanced settings for
PCI/PnP devices.
(1)
AMI BIOS Setup Utility
FPC 5084
Clear NVRAM
Use this item to clear the data in the NVRAM (CMOS). Here
are the options for your selection, No and Yes.
Plug & Play O/S
When the setting is No, Use this item to configure all the
devices in the system. W hen the setting is Yes and if you
install a Plug and Play operating system, the operating
system configures the Plug and Play devices not required
for boot. The default setting is No.
PCI Latency Timer
This item controls how long a PCI device can hold the PCI
bus before another takes over. The longer the latency, the
longer the PCI device can retain control of the bus before
handing it over to another PCI device. There are several
options for your selection.
Allocate IRQ to PCI VGA
This item allows BIOS to choose an IRQ to assign for the
PCI VGA card. Here are the options for your selection, No
42
(2)
AMI BIOS Setup Utility
43
FPC 5084 User Manual
and Yes.
Palette Snooping
Some old graphic controllers need to “snoop” on the VGA
palette, and then map it to their display as a way to provide
boot information and VGA compatibility. This item allows
such snooping to take place. Here are the options for your
selection, Disabled and Enabled.
PCI IDE BusMaster
This item is a toggle for the built-in driver that allows the
onboard IDE controller to perform DMA (Direct Memory
Access) transfer. Here are the options for your selection,
Disabled and Enabled.
OffBoard PCI/ISA IDE Card
This item is for any other non-onboard PCI/ISA IDE
controller adapter. There are several options for your
selection.
IRQ3/4/5/7/9/10/11/14/15
These items will allow you to assign each system interrupt a
type, depending on the type of device using the interrupt.
The option “Available” means the IRQ is going to assign
automatically. Here are the options for your selection,
Available and Reserved.
DMA Channel 0/1/3/5/6/7
These items will allow you to assign each DMA channel a
type, depending on the type of device using the channel.
The option “Available” means the channel is going to assign
automatically. Here are the options for your selection,
Available and Reserved.
AMI BIOS Setup Utility
FPC 5084
3.6 Boot Menu
The Boot menu allows users to change boot options of the system. You
can select any of the items in the left frame of the screen to go to the
sub menus:
Boot Settings Configuration
Boot Device Priority
Removable Drives
Lan Boot Settings Configuration
For items marked with “f”, please press <Enter> for more options.
44
AMI BIOS Setup Utility
45
FPC 5084 User Manual

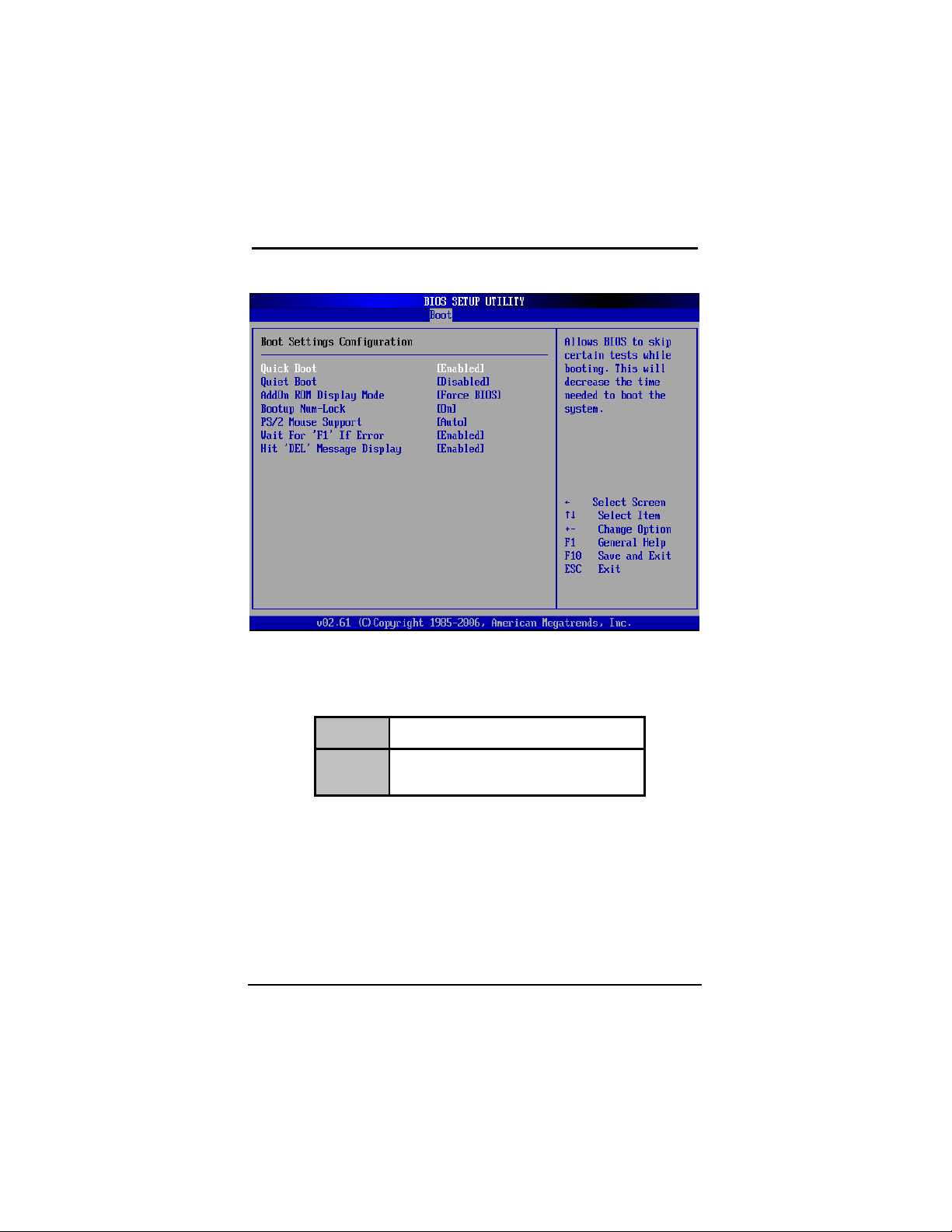

Boot Settings Configuration
Quick Boot
Enabling this item lets the BIOS skip some power on self
tests (POST). The default setting is Enabled.
Quiet Boot
Disabled
Enabled
AddOn ROM Display Mode
Set this item to allow the computer system
to display the POST messages.
Set this item to allow the computer system
to display the OEM logo. This is the
default setting.
This item selects the display mode for option ROM. The
default setting is Force BIOS.
Boot Num-Lock
Use this item to select the power-on state for the NumLock.
The default setting is On.
PS/2 Mouse Support
This item determines if the BIOS should reserve IRQ12 for
the PS/2 mouse or allow other devices to make use of this
AMI BIOS Setup Utility
FPC 5084
IRQ. Here are the options for your selection, Auto, Enabled
and Disabled.
Wait For ‘F1’ If Error
If this item is enabled, the system waits for the F1 key to be
pressed when error occurs. The default setting is Enabled.
Hit ‘DEL’ Message Display
If this item is enabled, the system displays the message
“Press DEL to run Setup” during POST. The default setting
is Enabled.
Boot Device Priority
The Boot Device Priority screen specifies the the boot device
priority sequence from the available devices.
46
AMI BIOS Setup Utility
47
FPC 5084 User Manual
Removable Drives
Use this screen to view the removable drives in the system. The
BIOS will attempt to arrange the removable drive boot sequence
automatically. You can also change the booting sequence.
AMI BIOS Setup Utility
FPC 5084
Lan Boot Settings Configuration
The Lan Boot Settings Configuration can enable or disable Lan
Boot ROM to allow the system boot on LAN.
48
AMI BIOS Setup Utility
49
FPC 5084 User Manual
3.7 Security Menu
The Security menu allows users to change the security settings for the
system.
Supervisor Password
This item indicates whether a supervisor password has been
set. If the password has been installed, Installed displays. If
not, Not Installed displays.
User Passw ord
This item indicates whether a user password has been set. If
the password has been installed, Installed displays. If not,
Not Installed displays.
Change Supervisor Password
Select this option and press <Enter> to access the sub
menu. You can use the sub menu to change the supervisor
password.
Change User Passw ord
Select this option and press <Enter> to access the sub
AMI BIOS Setup Utility
FPC 5084
menu. You can use the sub menu to change the user
password.
Boot Sector Virus Protection
This option is near the bottom of the Security Setup screen.
The default setting is Disabled.
Disabled
Enabled
Set this item to prevent the Boot Sector Virus
Protection. This is the default setting.
Select Enabled to enable boot sector protection.
It displays a warning when any program (or
virus) issues a Disk Format command or
attempts to write to the boot sector of the hard
disk drive. If enabled, the following appears
when a write is attempted to the boot sector.
You may have to type N several times to prevent
the boot sector write.
Boot Sector Write!
Possible VIRUS: Continue (Y/N)? _
The following appears after any attempt to
format any cylinder, head, or sector of any hard
disk drive via the BIOS INT 13 Hard disk drive
Service:
Format!!!
Possible VIRUS: Continue (Y/N)?
50
AMI BIOS Setup Utility
51
FPC 5084 User Manual
3.8 Chipset Menu
The Chipset menu allows users to change the advanced chipset
settings. You can select any of the items in the left frame of the screen
to go to the sub menus:
North Bridge Configuration
South Bridge Configuration
For items marked with “f”, please press <Enter> for more options.
AMI BIOS Setup Utility
FPC 5084
North Bridge Configuration
DRAM Frequency
This item allows you to control the Memory Clock.
Configure DRAM Timing by SPD
This item can enable or disable DRAM timing by SPD (Serial
Presence Detect) device, which is a small EEPROM chip on
the memory module, containing important information about
the module speed, size, addressing mode and various
parameters.
Boot Graphic Adapter Priority
This item allows you to select the graphics controller as the
primary boot device.
Internal Graphics Mode Select
This item allows you to select the amount of system memory
used by the internal graphics device.

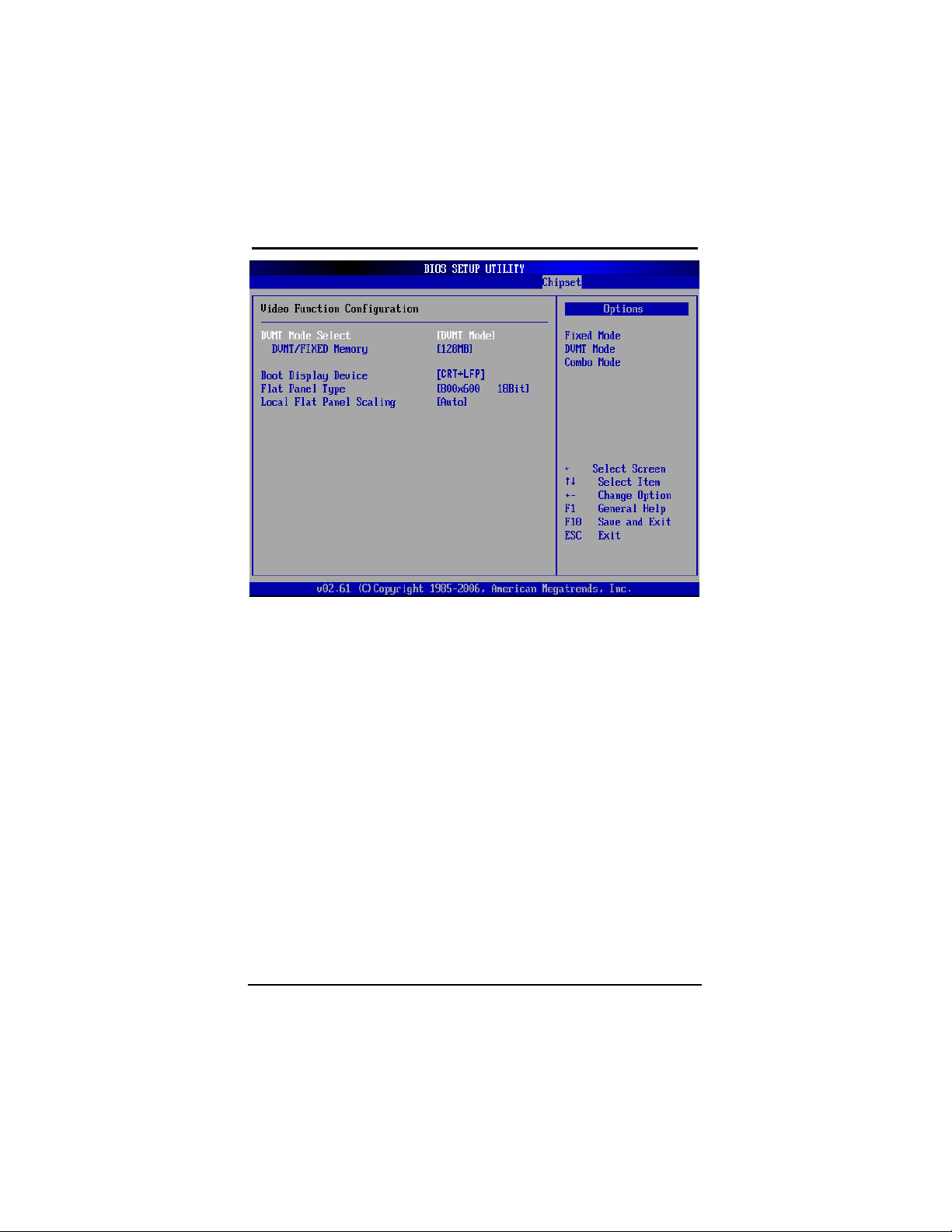

Video Function Configuration
Press <Enter> for the sub-menu for setting up video function.
52
AMI BIOS Setup Utility
53
FPC 5084 User Manual
AMI BIOS Setup Utility
FPC 5084
South Bridge Configuration
(1)
54
AMI BIOS Setup Utility
55
FPC 5084 User Manual
(2)
USB Function
This item allows you to enable or disable USB function.
USB 2.0 Controller
This item allows you to enable or disable the USB 2.0
controller.
Audio Controller
This item allows you to enable or disable the audio support.
SLP_S4# Min. Assertion Width
This item allows you to set the SLP_S4# Assertion Width.
Restore on AC Power Loss
This item can control how the PC will behave once power is
restored following a power outage, or other unexpected
shutdown.
PCIE Port Configuration
AMI BIOS Setup Utility
FPC 5084
This item allows you to set or disable the PCI Express Ports.
3.9 Exit Menu
The Exit menu allows users to load your system configuration with
optimal or failsafe default values.
Save Changes and Exit
When you have completed the system configuration
changes, select this option to leave Setup and reboot the
computer so the new system configuration parameters can
take effect. Select Save Changes and Exit from the Exit
menu and press <Enter>. Select Ok to save changes and
exit.
Discard Changes and Exit
Select this option to quit Setup without making any
permanent changes to the system configuration. Select
Discard Changes and Exit from the Exit menu and press
<Enter>. Select Ok to discard changes and exit.
Discard Changes
56
AMI BIOS Setup Utility
57
FPC 5084 User Manual
Use this item to abandon all changes.
Load Optimal Defaults
It automatically sets all Setup options to a complete set of
default settings when you select this option. The Optimal
settings are designed for maximum system performance, but
may not work best for all computer applications. In particular,
do not use the Optimal Setup options if your computer is
experiencing system configuration problems. Select Load
Optimal Defaults from the Exit menu and press <Enter>.
Load Fail-Safe Defaults
It automatically sets all Setup options to a complete set of
default settings when you select this option. The Fail-Safe
settings are designed for maximum system stability, but not
maximum performance. Select the Fail-Safe Setup options if
your computer is experiencing system configuration
problems.
Select Load Fail-Safe Defaults from the Exit menu and press
<Enter>. Select Ok to load Fail-Safe defaults.
AMI BIOS Setup Utility
FPC 5084
CHAPTER 4
DRIVERS INSTALLATION
4.1 System
FPC 5084 supports Windows 2000/XP. To facilitate the installation of
system driver, please carefully read the instructions in this chapter
before start installing.
1. Insert Driver CD and select the “\Drivers\XP”.
2. Select all files and follow the installing procedure.
58
Installation of Drivers
59
FPC 5084 User Manual
4.2 Touch Screen
The FPC 5084 uses the 5-wire analog re sistve. There are the
specification and driver inst allation which are listed be low.
4.2.1 Specification
Touch Scre
Touch Screen
Comm
Baud Rate
Res
olution
Power
Power
4.2.2 Driver Installation- Windows XP
The FPC 5084 provides a touch screen driver that users can install it
under the operating system Windows XP. To facilitate installation of
the touch screen driver, you should read the instructions in this chapter
carefully before you attempt installation.
1. Insert Driver CD and follow the path to select the
en
Controlle
unications
Input
Consumption
“\Drivers\XP\Step 5 - Touch”.
5-wire Analog Resistive type
r
PenMount 6000 USB
Touch Screen Controller IC
USB interface
19200 baud rate fixed
1024 x 1024 (10 bit A/D converter inside)
5V
Active: 24.6mA / Idle Mode: 13.4mA
2. Follow the installing procedure and press OK.
Installation of Drivers
3. Click Start menu and select “PenMount Utilities”; and then, a
FPC 5084
“PenMount Control Panel” pops out.
60
Installation of Drivers
61
FPC 5084 User Manual
4. Select the “Standard Calibrate” tab.
5. Calibration:
To adjust the display with touch panel, click “Calibration” and
follow the calibrate point to do calibration; there are five points on
screen for calibration.
6. Press OK.
Installation of Drivers
FPC 5084
4.3 Embedded O.S.
The GOT-5840T pr ovi des the W in dows XP Embedded and
Windo ws CE.Net 6.0 . The O.S. is suppor ted devices wh ich are
listed be low.
4.3.1 Windows XP Embedded
Here are supported onboard devices:
Onboard Multi I/O
USB
PS2 Keyboard and mouse
CRT/LCD display(Default 18bits Resolution 800x600)
10/100/1000 base-T Ethernet
Compact Flash
Onboard Audio
Touch Screen
PenMount Touch screen
Before you can use and calibrate it, here is what you should do:
1. Set up Penmount touch device driver by executing
C:\Penmount\ Windows 2000-XP V5.0\setup.exe. W hen the
installation is finished, an icon “PM” appears on the Taskbar.
2. Calibrate Penmount touch by clicking on the “PM” icon, and the
go on the calibration
3. Restart the computer.
62
Installation of Drivers
63
FPC 5084 User Manual
4.3.2 Windows CE.NET 6.0
Here are supported onboard devices:
Onboard Multi I/O
USB
PS2 Keyboard and mouse
CRT/LCD display
10/100/1000 base-T Ethernet
Compact Flash
Onboard Audio
Audio
Touch Screen
Calibration Touch screen
In this image we add PenMount Touch drivers and utilities. It is
customized for 800 x 600.
Calibration:
1. Click “Calibratyion” on desktop to calibrate touch screen.
2. In the start\programs menu, select “save registry”, thus
Calibration data will be saved and effective in next booting.
Installation of Drivers
Loading...
