Intel J2 650 User Manual
J2 650
Integrated Touchscreen Computer
System Manual
August 2008
Contents
Overview ............................................................................................................................ 5
Specification....................................................................................................................... 7
Unique Features ................................................................................................................ 9
Intel’s Desktop Processor Socket LGA 775 ................................................................... 9
Hot Swappable RAID/ Dual Hard Drives ....................................................................... 9
Green Mode / Fan less Operation ................................................................................... 9
Automatic LCD Brightness Control ............................................................................. 10
UPS ............................................................................................................................... 10
Printer Power Port ......................................................................................................... 10
Cooling System ............................................................................................................. 10
Versatility ...................................................................................................................... 10
System .............................................................................................................................. 11
Configurations............................................................................................................... 11
Processor Support ......................................................................................................... 11
Processors currently supported on the 650 ................................................................... 12
I/O Ports ........................................................................................................................ 13
Off / On Button ............................................................................................................. 13
Hard Disks .................................................................................................................... 14
Compact Flash .............................................................................................................. 15
Touch Screen ................................................................................................................ 15
System Board ................................................................................................................ 16
LCD Display ................................................................................................................. 16
Secondary Display Port................................................................................................. 17
PS/2 Keyboard port ....................................................................................................... 17
Serial ports .................................................................................................................... 18
Parallel Port ................................................................................................................... 19
USB ports ...................................................................................................................... 19
Ethernet Connection...................................................................................................... 20
Kensington Security Slot .............................................................................................. 20
Audio............................................................................................................................. 21
Printer Power Port ......................................................................................................... 21
Cash Drawer Ports ........................................................................................................ 22
Power Supply ................................................................................................................ 23
Service .............................................................................................................................. 24
Removing the Head from the Base ............................................................................... 24
Removing the Power Supply ........................................................................................ 25
Wall Mounting Bracket ................................................................................................. 26
VESA Mounting ........................................................................................................... 27
650 System Manual (Draft)
Version 0.4 August 20, 2008
2
Removing the Back Cover ............................................................................................ 28
Changing the System Board .......................................................................................... 29
Adding Memory ............................................................................................................ 31
Changing the Processor ................................................................................................. 31
Accessing the CF Card.................................................................................................. 32
Accessing the Hard Drives............................................................................................ 33
BIOS Setup ...................................................................................................................... 34
Entering the BIOS Setup ............................................................................................... 34
Main, System Overview................................................................................................ 34
Advanced Settings ........................................................................................................ 35
SATA Configuration ..................................................................................................... 35
Super I/O Configuration ............................................................................................... 37
USB Configuration ....................................................................................................... 38
Green Mode .................................................................................................................. 39
LCD Brightness Control Mode / Manual Mode ........................................................... 39
LCD Brightness Control Mode / Auto Mode ............................................................... 40
Restore on AC Power Loss ........................................................................................... 41
2nd Display D-SUB15 19V Out ................................................................................... 41
Run PXE ROM ............................................................................................................. 41
Display OEM Logo ....................................................................................................... 42
RTC Configuration ....................................................................................................... 42
Wake On LAN .............................................................................................................. 43
CMOS Clear.................................................................................................................. 43
Boot Settings ................................................................................................................. 43
Exit Options .................................................................................................................. 45
Driver Installation / Vista, XP ....................................................................................... 46
Chipset Driver Installation ............................................................................................ 46
Graphics Driver Installation .......................................................................................... 46
Audio Driver Installation .............................................................................................. 47
LAN Driver Installation ................................................................................................ 48
Touch Screen Driver Installation .................................................................................. 49
OPOS drivers ................................................................................................................ 53
J2 Health Monitor ........................................................................................................... 54
Overview ....................................................................................................................... 54
Hardware Supported ..................................................................................................... 54
Operating System Supported ........................................................................................ 54
Hardware/Software Requirements ................................................................................ 54
Installing Health Monitor .............................................................................................. 54
Running Health Monitor ............................................................................................... 55
Theory of Operation ...................................................................................................... 56
Values Monitored .......................................................................................................... 56
Registry Keys ................................................................................................................ 57
Refresh Interval ............................................................................................................. 58
650 System Manual (Draft)
3
Version 0.4 August 20, 2008
Applications .................................................................................................................. 58
RAID ................................................................................................................................ 59
RAID Overview ............................................................................................................ 59
AHCI ............................................................................................................................. 59
Enabling RAID in the BIOS ......................................................................................... 60
RAID Volume Creation ................................................................................................ 60
F6 Installation Method .................................................................................................. 60
Installing the Intel Matrix Storage Manager Software ................................................. 61
Hot Swapping RAID 1 drives ....................................................................................... 61
Packing List ..................................................................................................................... 64
Standard Items .............................................................................................................. 64
650 Optional Peripherals ................................................................................................ 65
MSR .................................................................................................................................. 65
Overview ....................................................................................................................... 65
Installing the 650 MSR ................................................................................................. 66
J2 650 MSR Utility ....................................................................................................... 68
MSR Utility, Basic Settings .......................................................................................... 68
Advanced Settings ........................................................................................................ 69
MSR Firmware Update ................................................................................................. 71
650 UPS ............................................................................................................................ 72
Specifications ................................................................................................................ 72
Hardware ....................................................................................................................... 72
Software Setup in XP .................................................................................................... 73
STATUS LED ............................................................................................................... 75
Customer Display ............................................................................................................ 76
Secondary Video Display ................................................................................................ 76
Fingerprint Reader / MSR ............................................................................................. 76
iButton / MSR .................................................................................................................. 77
RFID / MSR ..................................................................................................................... 77
Laser Scanner .................................................................................................................. 77
Contact Information ....................................................................................................... 78
650 System Manual (Draft)
4
Version 0.4 August 20, 2008
Overview
The 650 from J2 is the most high performance integrated Point of Sale computer
available to date. This amazingly versatile unit can be configured as either a low power
fan less thin client terminal; as a midrange thick client term inal; or even as a Dual Core
high speed server with RAID. Product versatility and reliability are the key strengths of
this 650 system.
This ingenious integrated touch screen computer has special “all in the head” design
built-in, which means it can be used as a counter top unit, a wall-mount or a polemounted computer. You will find that both the counter top base and VESA/ wall mount
brackets are supplied as standard equipment with the 650.
There are many processor variants available, the 650 comes standard with an Intel 1.6
GHz Celeron 420 Conroe Core processor. This system board uses the Intel LGA775
socket and it can be upgraded or ordered with a wide range of single or dual core
processors.
The 650 unit also has a very unique feature when using the 420 processor, this is called
the “Green Mode”. This mode is set by a simple BIOS setup item, and when the unit is in
this “Green Mode” the processor speed is reduced to 1GHz and fans are turned off.
This, in effect, turns the 650 into a fan less system for thin-client use and also reduces the
650 power consumption by 25%, thereby reducing the 650 carbon footprint which is
already very small.
Accessibility is key to machine maintenance and upgradeability, the following is a list of
important 650 features:
1. Upgrades to the memory modules can be easily done by simply removing two
screws on the back cover.
2. A complete motherboard upgrade can be carried out in less than 2 minutes.
3. The two quick change hard disk drives are easily accessible, housed on a slidein drive bay that allows the drives to be hot swappable.
4. The footprint of the J2 650 is particularly compact making it ideal for the space
conscious retailer.
The 650 offers thick or thin-client or server configurations which support standard
Microsoft operating systems Vista, XP, WePOS, CE.NET and XPe, further
demonstrating its versatility. The 650 is equally proficient with the many flavors of
Linux.
650 System Manual (Draft)
Version 0.4 August 20, 2008
5
650 System Manual (Draft)
Version 0.4 August 20, 2008
6
Specification
Main board
CPU Support
Chipset
System Memory 2 x 240-pin DDR2 DIMM 533/677/800 MHz sockets - up to 4 GB
Graphic memory Share system memory 8MB~256MB
BIOS AMI
LCD Touch Panel
LCD Size 15” TFT LCD
Brightness 250 nits, adjustable in 8 steps to 25nits, auto adjust mode
Resolution 1024 x 768
Touch Screen 650RT Resistive 5 wire, 650ST SAW
Tilt Angle
Storage
HDD Two 2.5 SATA HDD bay, RAID Support, Quick Change-hot swap
Flash Memory
Intel Desktop Processors LGA775, 1066 MHz FSB, 65W TDP max
Intel 1.6 GHz Celeron 420 Conroe Core, Standard
Intel Q965 North Bridge, Intel ICH8R South Bridge,
HD Audio VIA1708B, Ethernet Realtek 8111C
0゜~ 90゜
CF adapter Quick Change
Internal Expansion
USB 2.0 Two, one normally used for 802.11n wireless card
I/O Ports
USB Four x in cable well / 1 x on left side
Serial Three, DB9 ( COM 2 /COM 3 pin 9 with 12V by BIOS setting )
Parallel One, DB25 in cable well
LAN (10 /100/ 1000) One, RJ45 in cable well (Realtek 8111C)
2nd Display
Cash Drawer 2 x RJ 11 24V with status
DC In 1 Power in, 19VDC 7.1 amps
Audio Jack
Printer Power
Power LED Located under front panel logo - green for on, amber for standby
One, supports standard PC monitor or optional
(J2 provided) secondary customer side display
One headset, one microphone-in, left side (VIA1708B)
+24 V 2.5 amps, supports most 24V POS printers,
Power Cable included
650 System Manual (Draft)
Version 0.4 August 20, 2008
7
Power
Power Adapter 19VDC, 135W, 100-240 VAC,50~60Hz, 2.2A
Optional Peripheral
MSR 3 Track ( on PS2 port, wedge type )
iButton Dallas Key iButton ( on PS2 port, wedge type )
2-in-1 MSR MSR 3 track (PS2) / Finger Print (USB)
Second Display optional 8.4”, 10.4” or 12.1” 2nd display, with or without touch
Customer Display
Uninterruptable
Power Supply
Bar Code Scanner 1D and 2D hands-free scanner
Mounting
Standard Counter Top Base, Adjustable Viewing Angle 0-90°
Included Wall Mount / VESA Mount Bracket
Optional Pole Mount, Adjustable angle VESA, Swing-arm Mounts
Environment
Customer Side LCM display with 9mm 2 x20 characters,
Black on White Characters,
2 hour DC UPS, mounts in base of unit
EMC & Safety FCC, Class A, CE, LVD
Operating
Temperature
Storage
Temperature
Operating Humidity 20% ~ 80% RH non-condensing
Storage Humidity 20% ~ 85% RH non-condensing
Dimensions
(W x D x H)
Weight
OS Support
* This specification is subject to change without prior notice.
Microsoft Vista, Windows XP, WEPOS, XP Embedded,
Windows CE 6.0 and Linux
0 ~ 40℃
-20 ~ 55℃
370 x 250 x3 40mm
7.45kg
650 System Manual (Draft)
Version 0.4 August 20, 2008
8
Unique Features
The 650 truly has some unique features not hitherto seen on an integrated touch screen
computer before. These features allow for a great deal of versatility in how the 650 can
be configured and used. A quick list of unique features is as follows:
Intel’s Desktop Processor Socket LGA 775
By using the new generation of Intel’s green processors and chipsets, a very wide
range of processors can be used in the 650 system. From a Celeron single core
processor running fan less at 1 GHz to a 2.667GHz Core 2 Duo with 1GHz FSB
and 4MB cache, the performance range is truly unique.
Most POS computers use Intel’s Mobile processor and chipset to keep heat and
power down. This is fine but the performance is lower and the cost is higher for
Mobile processor solutions. By taking advantage of J2 company’s and partners’
vast experience with notebook, desktop, and POS computer designs, we are able
to combine features of all three for an optimal POS system design. The result is a
POS system that can utilize a desktop chipset that draws very little power and
generates a low amount of heat, similar to mobile chipsets and processors.
Notebook quality components are used in the processor, chipset, and power
supply circuit, which allow greatly for reduced heat generation and minimal
power usage. Additionally, the 650 takes full advantage of the low power
features built into the Intel processor and chipset to further reduce heat.
Hot Swappable RAID/ Dual Hard Drives
The 650 is the first integrated POS system on the market to offer a hot swappable
RAID feature. The two internal 2.5 inch SATA hard drives can be configured as a
RAID array which gives true fault tolerance
not been available on an integrated POS device before!
Green Mode / Fan less Operation
By changing one setting in the BIOS, the 650 can be configured to function as a
fan-less POS system. In this mode the standard 1.6GHz processor and chipset run
in a reduced power mode which means that the two fans are off and the 650 is
convection cooled. The system performance in green mode is greater than other
fan-less POS systems on the market, with the 650 benchmarking near the same
performance as a 1.3GHz Celeron M processor based system. This patent pending
feature is unique to J2.
650 System Manual (Draft)
Version 0.4 August 20, 2008
to the hard drive subsystem. This has
9
Automatic LCD Brightness Control
Another innovative feature of the 650 is its use of a light sensor to control the
LCD brightness. A light sensor is built into the unit and can detect when a room is
darkened. It will automatically dim the LCD so that it is not too bright. This
patent pending feature is also unique to J2.
UPS
Not your ordinary UPS, the J2 650 UPS is a DC, not an AC UPS. The UPS fits
conveniently into the base of the unit. Unlike an AC UPS the J2 UPS makes the
650 work more like a notebook computer. In addition to running the 650 for up to
two hours, the UPS will run all the POS peripherals attached to the 650, including
the printer. Because of the unique design of the J2 UPS and power supply, the
need for special AC power conditioning devices is eliminated.
Printer Power Port
The 24 volt Printer Power Port can power most POS printers on the market,
including the popular Epson line of printers. When used along with the J2 UPS, if
a power outage should occur, the POS terminal can still operate and print receipts
for up to two hours. Also, when the 650 is turned off the printer is turned off also.
This is very useful when the auto power on and off features of the 650 is used.
Cooling System
Great attention was paid to the thermal solution of the 650; it is truly a unique
feature. The 650 can run as a fan less or fan-cooled system. Because of the very
wide range of processors supported, thermal loads can range from 20 watts to as
high as 80 watts. The 650 was designed to handle these thermal loads while still
being super quiet. Two smart fans are used in conjunction with an Embedded
Controller (EC) to ensure that the fans run at the lowest possible speed while still
providing proper cooling. Fan speed changes are controlled to produce the
smallest acoustical signature possible. The 650 also includes a JAM-FAN mode.
If the fan does not spin up when it should, the fan turns on to full power to
dislodge any dust that may be jamming the fan! The 650 fans are the type used in
Blade Servers and have a speed range from 2500~13500rpm at very high torque.
Versatility
The word versatility is very much over used, but it is the correct word to describe
the most unique feature of the 650. The combination of all the 650 unique features
allows for the 650 to fit many roles. The 650 is not just one product, but a full
product range all in one system. From fan less thin client to Core 2 Duo RAID
Server - the 650 does it all.
650 System Manual (Draft)
Version 0.4 August 20, 2008
10
System
Configurations
The 650 can be ordered or upgraded to many possible configurations. Selecting the right
combination of memory, processor, hard drive(s) and software drivers can dramatically
change the performance of the 650 system. For a lot of users the standard 650 1.6GHz
processor and 512MB of memory is fine, but some applications require a lot more horse
power.
J2 will be happy to help you determine what you may require from the 650 in the most
cost effective way. More memory may be added to get the performance needed, or
sometimes a dual core processor and dual HDD with RAID are needed. The 650 can do it
all, low end to high end.
Processor Support
The 650 supports a very wide range of Intel processors. Each provides a different price
performance level. Celeron single core, Celeron dual core, Pentium dual core and Core 2
Duo with processor speeds from 1.6 GHz to 2.667 GHz are all supported by the 650.
The 650 comes standard with the Intel single core 1.6 GHz Celeron 420 Conroe Core
processor but can be ordered with a different processor type. The processor can be easily
upgraded by a qualified technician. The 650 uses the Intel defined LGA775 socket. Not
all LGA775 socket processors work in the 650 so please see the supported processor list
at the end of this section. Intel is constantly adding new processors so please check with
J2 for any additions since publication of this manual.

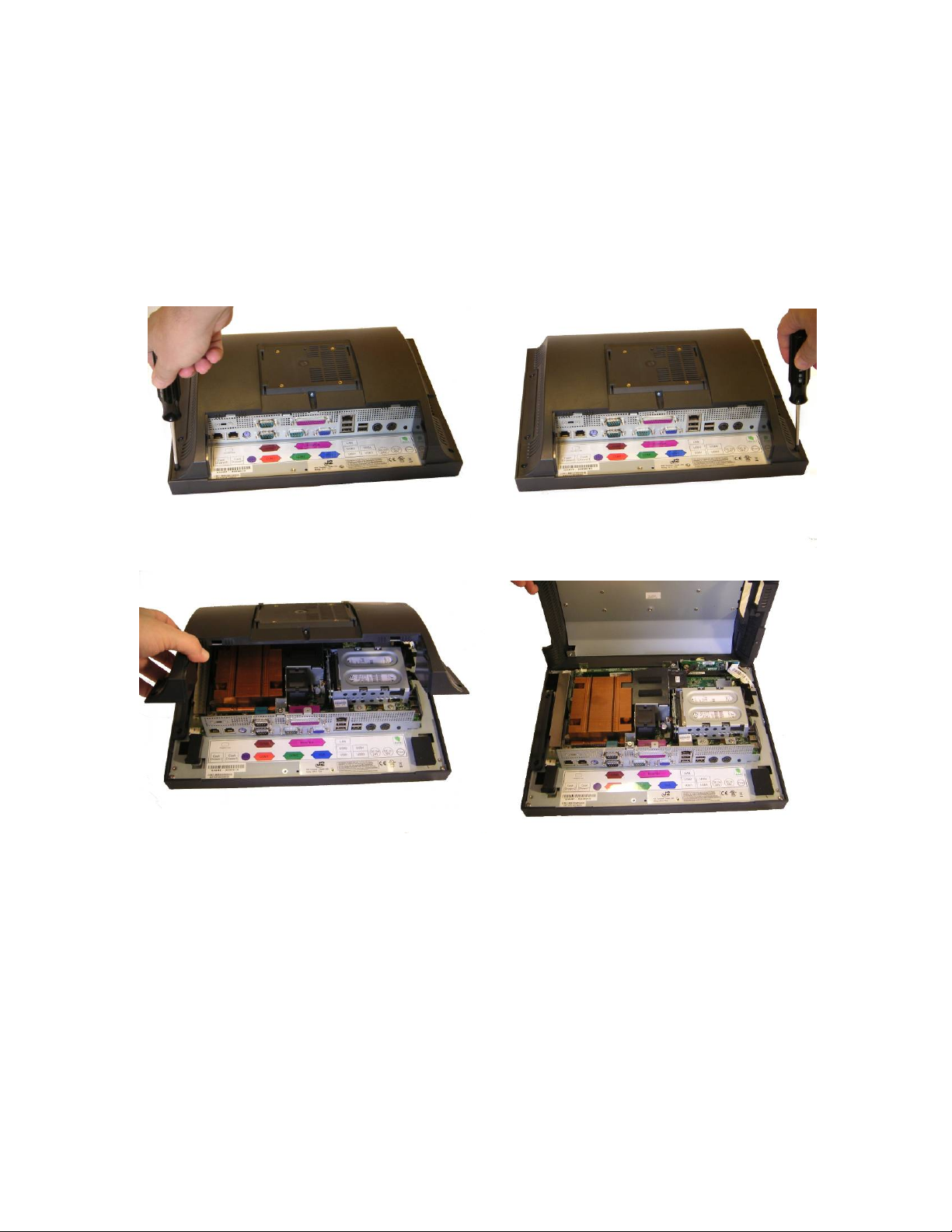

The copper heat sink, cooling fans, and fan controller (shown below) are designed to keep
everything running cool, quiet, and reliably with the supported processors.
System Board, back view
650 System Manual (Draft)
Version 0.4 August 20, 2008
11
Processors currently supported on the 650
CPU#
420 Celeron440Family 1 1.6GHz 800MHz 512KB 35W 65nm Conroe‐L No Standard 7‐Jun‐07
430 Celeron440Family 1 1.8GHz 800MHz 512KB 35W 65nm Conroe‐L No Good 7‐Jun‐07
440 Celeron440Family 1 2.0GHz 800MHz 512KB 35W 65nm Conroe‐L Yes Good 7‐Jun‐07
E1200 CeleronDualCore 2 1.6GHz 800MHz 512KB 65W 65nm Conroe No Good 20‐Jan‐08
E1400 CeleronDualCore 2 2.0GHz 800MHz 512KB 65W 65nm Conroe No Good 20‐Apr‐08
E2140 PentiumDualCore 2 1.6GHz 800MHz 1MB 65W 65nm Conroe‐1M No Poor 22‐Jul‐07
E2160 PentiumDualCore 2 1.8GHz 800MHz 1MB 65W 65nm Conroe‐1M Yes Good 22‐Jul‐07
E2180 PentiumDualCore 2 2.0GHz 800MHz 1MB 65W 65nm Conroe‐1M No Good 6‐Aug‐07
E2200 PentiumDualCore 2 2.2GHz 800MHz 1MB 65W 65nm Conroe‐1M No Good 2‐Dec‐07
E2220 PentiumDualCore 2 2.4GHz 800MHz 1MB 65W 65nm Conroe‐1M No Good 2‐Mar‐08
E2240 PentiumDualCore 2 2.6GHz 800MHz 1MB 65W 65nm Conroe‐1M No Poor 30‐Jun‐08
E4300 Core2Duo 2 1.8GHz 800MHz 2MB 65W 65nm Conroe Yes OEM 21‐Jan‐07
E4400 Core2Duo 2 2.0GHz 800MHz 2MB 65W 65nm Conroe No Poor 22‐Jul‐07
E4500 Core2Duo 2 2.2GHz 800MHz 2MB 65W 65nm Conroe No Good 22‐Jul‐07
E4600 Core2Duo 2 2.4GHz 800MHz 2MB 65W 65nm Conroe No Good 21‐Oct‐07
E4700 Core2Duo 2 2.6GHz 800MHz 2MB 65W 65nm Conroe No Good 2‐Mar‐08
E6300 Core2Duo 2 1.886GHz 1066MHz 2MB 65W 65nm Conroe No Poor 27‐Jul‐06
E6320 Core2Duo 2 1.886GHz 1066MHz 4MB 65W 65nm Conroe No Poor 22‐Apr‐07
E6400 Core2Duo 2 2.133GHz 1066MHz 2MB 65W 65nm Conroe Yes OEM 27‐Jul‐06
E6420 Core2Duo 2 2.133GHz 1066MHz 4MB 65W 65nm Conroe No Good 22‐Apr‐07
E6600 Core2Duo 2 2.4GHz 1066MHz 4MB 65W 65nm Conroe No Poor 27‐Jul‐06
E6700 Core2Duo 2 2.667GHz 1066MHz 4MB 65W 65nm Conroe No Poor 27‐Jul‐06
E7200 Core2Duo 2 2.53GHz 1066MHz 3MB 65W 45nm Wolfdale‐3M‐ Good 20‐Apr‐08
E7300 Core2Duo 2 2.667GHz 1066MHz 3MB 65W 45nm Wolfdale‐3M‐ Good 10‐Aug‐08
Description(allare
desktopprocessors)
Cores Speed FSB Cache TDP Type Family EB
Availability
July2008
Notes:
Processors in Red = Best price points performance
Availability = Good Means, normally available from retail outlets
EB = Intel’s embedded road map, available for seven years from release date.
Intel will include one of the E7X00 processors in the embedded road map but which one was not
announced at the writing of this manual.
Intel’s
Release
Date
650 System Manual (Draft)
Version 0.4 August 20, 2008
12
I/O Ports
The 650 is an integrated design with all the electronics in the head. Most I/O ports are
accessible in the cable well at the bottom of the unit. A cover plate is provided to cover
the cables.
I/O Panel
Off / On Button
The Off /On button is located in the cable well, as shown. This button is located near the
side to prevent accidental powering down by the user. The function of the button can be
controlled by the OS. If the 650 hangs for some reason it can always be powered off by
holding the Off / On button in for six seconds.
The 650 also supports the following: Restore on AC on power loss, Wake On LAN, and
Wake On RTC alarm features to control the system power up. Please see the BIOS setup
section of this manual and J2 white paper “Reducing Your Carbon Footprint in the POS
Environment” (September 2008).
Off / On button Location
650 System Manual (Draft)
Version 0.4 August 20, 2008
13
Hard Disks
Two 2.5 inch SATA hard drives (HDD) are supported. These drives can be configured as
standard hard drives or as a RAID array. The SATA interface can support data transfer
rates up to 3.0 Gb/s and supports AHCI and Hot Swapping of hard drives.
The HDDs can easily be accessed by removing a panel on the left side of the unit. HDDs
can be installed or removed in seconds by removing one screw. A carrying tray (two of
which are supplied with the 650) clips onto a new drive without tools. The drive can now
easily be slid into the drive bay. In a RAID 1 configuration a drive can be hot swapped,
removed, or inserted with the power on (see section on RAID setup).
HDD access panel HDD slide in-slide out drive bay
650 System Manual (Draft)
Version 0.4 August 20, 2008
14
Compact Flash
The 650 has one Type I/II Compact Flash (CF) memory slot. This slot is only for IDE
mode CF devices and is easily accessed on the left side of the unit. The CF card is
mapped to a SATA port and supports PIO Mode 0-4. The CF card is normally used for
thin client configurations using XPe, CE, WEPOS, or Linux operating systems.
Compact Flash access panel
Touch Screen
The 650RT uses a five-wire touch screen rated at 35 million touches per point. The
650RT touch screen was designed to easily be changed, normally in less than ten
minutes. The resistive technology is very responsive and is not affected by liquids, dirt,
or other foreign matter, unlike IR or SAW touch screens. As with all J2 designed
products using resistive touch screens, the 650 includes a water tight gasket for spill
resistance.
The 650ST unit uses a Surface Acoustic Wave (SAW) technology touch screen. The
SAW touch screen has no known failure mode-- it does not “wear out.” This screen is
tempered glass and does not reduce the brightness of the LCD panel. When operating in
a very high use environment, SAW is the recommended touch screen technology.
Depending on operating environment and usage, both the Resistive and SAW touch
screens have strengths and weaknesses. J2 offers both touch screen technologies on the
650.
650 System Manual (Draft)
Version 0.4 August 20, 2008
15
System Board
POS computers typically have a desired lifespan of 10 years or longer, therefore product
quality is of the utmost importance. The 650 electronics are built with high-end
components to ensure reliability and long lasting product performance.
The system board is designed for quick replacement and only has one connection, an
edge pin connector, to which all motherboard connections are made.
System board
LCD Display
The LCD display for the 650 is a 1024 x 768 resolution display with 16.2 Million colors.
The brightness is rated at 250cd/m2. The Intel controller allows for the display to be
rotated to 0, 90, 180 or 270 degrees without loss of performance.
The LCD brightness can be controlled in 8 steps, from 250 cd/m2 to 25 cd/m2. The
brightness can be controlled automatically by the 650 light sensor hardware or can be set
to a fixed level.
650 System Manual (Draft)
Version 0.4 August 20, 2008
16
Secondary Display Port
A secondary video display is supported on the 650 and can be set as the primary or
secondary display. Secondary video displays can be configured as a Twin, Intel Dual
Display Clone, or Extended Desktop. Most all monitor resolutions from 640 x 480 to
2560 x 2048 are supported via the Secondary Display Port. The secondary display can
also be rotated 90, 180 or 270 degrees. A number of additional features are supported
depending on the capabilities of the monitor.
The Secondary Display Port has an industry standard HD DB15 connector. When used
with some J2 monitors the display can be powered by the 650 through this connector.
Secondary Display Port
PS/2 Keyboard port
There is one PS/2 Keyboard port located in the connector well to support a PS/2 type
keyboard or other PS/2 type device, such as a Barcode Scanner. The 650 MSR and
iButton reader are also connected internally to a PS2 keyboard port and function as an
external wedge MSR.
PS/2 Keyboard port
650 System Manual (Draft)
Version 0.4 August 20, 2008
17
Serial ports
The 650 has three external RS232 serial ports, two of which can be powered COM2 and
COM3. The serial ports are standard PC RS232 ports with a DB9 male connector. The
serial ports, in a normal configuration, are mapped to COM 1-3.
COM ports 2 and 3 can supply power to an external device when required, like the
optional J2 Customer Display. Voltage, +12, is supplied on pin 9 (RI) of the DB9
connector. The maximum current is 500ma and is over-current protected. To enable the
voltage supply for either COM ports 2 or 3 the BIOS setup must be changed. This
function can be enabled in the Advanced Settings screen under Super I/O Configuration.
COM1 also supports RS422 and 485 signaling. This can be enabled in the Advanced
Settings screen under Super I/O Configuration in the BIOS setup screen.
DB9 pin out serial ports
Pin RS232 RS422 RS485
1 DCD TXD- D2 RD RXD+
3 TD TXD+ D+
4 DTR RXD-
5 GND GND
6 DSR
7 RTS
8 CTS
9 RI
Serial Port
650 System Manual (Draft)
Version 0.4 August 20, 2008
18
Parallel Port
The 650 has one Parallel Printer Port located in the connector well (shown below) which
supports SPP, ECP and EPP printer modes. The mode can be changed in the BIOS setup.
Parallel Port
USB ports
The 650 has five external and three internal USB 2.0 ports. Of the five external ports (see
below) four ports are located in the cable well and one is located on the left side of the
unit for easy access. The three internal USB ports are as follows: one can be used for the
optional Finger Print Reader and is located on the MSR connecting point. The second
internal USB port is used for the SAW touch screen controller in the 560ST unit; and the
third internal USB port is designed for an optional internal 802.11n Wireless LAN card.
USB port Cable Well USB port left side
650 System Manual (Draft)
Version 0.4 August 20, 2008
19
Ethernet Connection
The 650 uses the Realtek 8111C Gigabit Ethernet controller. The Ethernet connector is
located in the cable well, as shown below. The Ethernet controller supports Wake on
LAN, the BIOS supports a PXE boot ROM as well. There are two LEDs on the LAN
connector: the Green LED lights up when the LINK signal is present and the Amber
LED lights comes on when there is LAN activity.
Kensington Security Slot
There are two Kensington Security Slots (lock slots) on the 650. (Please see below).
One is located on the head in the cable well, and one is located on the inside of the base.
The Kensington locks are normally used as a deterrent to prevent opportunistic theft.
Most retail locks will work with the 650, however please check to see if a lock fits, as not
all do.
Kensington slot Cable Well Kensington slot Base
650 System Manual (Draft)
Version 0.4 August 20, 2008
20
Audio
The 650 uses the VIA1708B HD audio controller. There is one internal speaker.
Both a microphone jack and a headset jack are located on the left side of the 650, as seen
below, which allows for the connection of a microphone and headset or audio out to other
devices.
Audio Jack Location
Printer Power Port
The Printer Power Port allows an industry standard POS printer to be powered from the
650 and eliminates the need for a separate external power supply for the printer. Only one
AC power point will be needed to run the unit and the printer.
The Printer Power Port supplies 24 VDC 2.5 amps and 3.5amp surge current which will
run most POS printers on the market. The power cable for this port is supplied standard
with the 650 unit. The Printer Power Port will also supply power to a printer even when
running on the optional UPS. When the 650 is powered down, then power to the printer is
turned off. (photos below)
Printer Power Port Printer Power Port Cable
650 System Manual (Draft)
Version 0.4 August 20, 2008
21
Cash Drawer Ports
The 650 is equipped standard with two Cash Drawer ports. These ports are located in the
cable well and use the industry standard RJ-11 connector and pin out (illustrated below).
Cash Drawer Ports
Cash Drawer Pin Assignment
The application may address the Cash Drawer port in a number of ways. They are:
1) Using the J2 supplied OPOS drivers for Vista, XP, WEPOS and XP Embedded.
2) Using the J2 supplied Virtual COM port for CE.NET, XP, WEPOS and XPe.
3) Direct access to the I/O port that controls the firing of the cash drawer and the I/O port
for reading the drawer status.
The Virtual COM port driver is standard on Windows CE.NET and the cash drawer
appears as COM5.
To open Cash Drawer One: Send a bell character to the COM5 serial port. (The bell
character is the ASCII 07 hex character “Control G.”)
To open Cash Drawer Two: Send an ESC character, then a bell character to the COM5
serial port. The open/close status of the drawer may be obtained by reading the status
6
1
Pin Signal
1 GND
2 SOLENOID
3 STATUS
4 24V
5 NC
6 GND
650 System Manual (Draft)
Version 0.4 August 20, 2008
22
bits of COM5, and the drawer open/close status will be reflected on the CTS and RI bits,
either bit may be used. This virtual COM port driver is designed to work the same as
most serial cash drawers so that drivers for a serial cash drawer should work if mapped to
the correct COM port, normally COM5 in the 650 system.
The cash drawer can directly be accessed through two I/O ports, 280 hex and 281 hex.
Port 280 hex is an output only port and fires the cash drawer when toggled.
Port 281 hex is and input only port and read the status of the cash drawer.
Cash drawer I/O ports
Port Function Set to One Set to Zero
280 hex bit 4 Write Normal state Fire cash drawer 1 (once)
280 hex bit 5 Write Normal state Fire cash drawer 2 (once)
281 hex bit 0 Read Drawer 1 is closed Drawer 1 is open
281 hex bit 1 Red Drawer 2 is closed Drawer 2 is open
Power Supply
The 650 uses a notebook type power supply that is normally mounted in the base of the
unit. The power supply is rated with an output of 19 VDC 7.1 Amps and has an input
rating of 100-240VAC at 50~60Hz 2.2Amps maximum. The power supply typically has
an efficiency rating of 85% under light loads and 90% under heavy loading. The power
supply connector is a four pin locking type that plugs into the system’s power input
connector located in the cable well.
Power Input connector
650 System Manual (Draft)
Version 0.4 August 20, 2008
23
Service
Removing the Head from the Base
A countertop base is supplied standard with the unit. The base is easily attached to the
unit by sliding the unit onto the base’s mounting slots. One screw point is used to secure
the base to the unit and is accessed from the bottom of the 650. To remove the base from
the unit, first remove the Base Locking Screw at the bottom of the base as shown in the
picture.
Base Locking Screw
To remove the base, pull it towards the bottom of the unit as shown in the picture. The
unit will slide off its mount hooks. To reattach the base, align the mounting hooks and
locking tab to the plastic slots and push up until secure. Secure the base with the locking
screw.
Slide off towards bottom of unit
650 System Manual (Draft)
Version 0.4 August 20, 2008
24
Loading...
