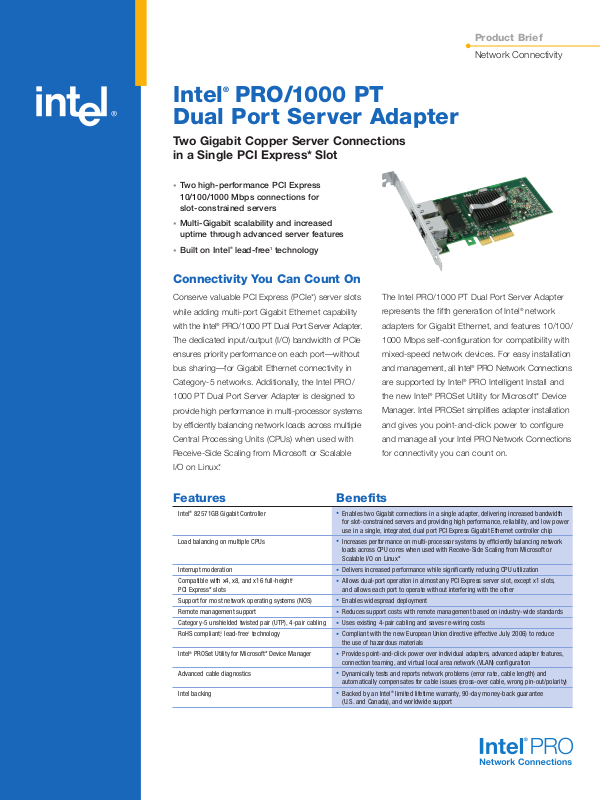

Intel EXPI9402PT User Manual
Intel®PRO/1000 PT
Dual Port Server Adapter
Two Gigabit Copper Server Connections
in a Single PCI Express* Slot
•
Two high-performance PCI Express
10/100/1000 Mbps connections for
slot-constrained servers
•
Multi-Gigabit scalability and increased
uptime through advanced server features
•
Built on Intel®lead-free1technology
Connectivity You Can Count On
Conserve valuable PCI Express (PCIe*) server slots
while adding multi-port Gigabit Ethernet capability
with the Intel
®
PRO/1000 PT Dual Port Server Adapter.
The dedicated input/output (I/O) bandwidth of PCIe
ensures priority performance on each port—without
bus sharing—for Gigabit Ethernet connectivity in
Category-5 networks. Additionally, the Intel PRO/
1000 PT Dual Port Server Adapter is designed to
provide high performance in multi-processor systems
by efficiently balancing network loads across multiple
Central Processing Units (CPUs) when used with
Receive-Side Scaling from Microsoft or Scalable
I/O on Linux*.
The Intel PRO/1000 PT Dual Port Server Adapter
represents the fifth generation of Intel
®
network
adapters for Gigabit Ethernet, and features 10/100/
1000 Mbps self-configuration for compatibility with
mixed-speed network devices. For easy installation
and management, all Intel
®
PRO Network Connections
are supported by Intel
®
PRO Intelligent Install and
the new Intel
®
PROSet Utility for Microsoft* Device
Manager. Intel PROSet simplifies adapter installation
and gives you point-and-click power to configure
and manage all your Intel PRO Network Connections
for connectivity you can count on.
Features Benefits
Intel®82571GB Gigabit Controller
•
Enables two Gigabit connections in a single adapter, delivering increased bandwidth
for slot-constrained servers and providing high performance, reliability, and low power
use in a single, integrated, dual port PCI Express Gigabit Ethernet controller chip
Load balancing on multiple CPUs
•
Increases performance on multi-processor systems by efficiently balancing network
loads across CPU cores when used with Receive-Side Scaling from Microsoft or
Scalable I/O on Linux*
Interrupt moderation
•
Delivers increased performance while significantly reducing CPU utilization
Compatible with x4, x8, and x16 full-height
2
•
Allows dual-port operation in almost any PCI Express server slot, except x1 slots,
PCI Express* slots and allows each port to operate without interfering with the other
Support for most network operating systems (NOS)
•
Enables widespread deployment
Remote management support
•
Reduces support costs with remote management based on industry-wide standards
Category-5 unshielded twisted pair (UTP), 4-pair cabling•Uses existing 4-pair cabling and saves re-wiring costs
RoHS compliant
3
, lead-free1technology
•
Compliant with the new European Union directive (effective July 2006) to reduce
the use of hazardous materials
Intel
®
PROSet Utility for Microsoft* Device Manager
•
Provides point-and-click power over individual adapters, advanced adapter features,
connection teaming, and virtual local area network (VLAN) configuration
Advanced cable diagnostics
•
Dynamically tests and reports network problems (error rate, cable length) and
automatically compensates for cable issues (cross-over cable, wrong pin-out/polarity)
Intel backing
•
Backed by an Intel®limited lifetime warranty, 90-day money-back guarantee
(U.S. and Canada), and worldwide support
Product Brief
Network Connectivity
Specifications: Intel®PRO/1000 PT Dual Port Server Adapter
General
Product code EXPI9402PT
4
Connectors Two RJ-45
IEEE standards/network topology 10BASE-T, 100BASE-TX, 1000BASE-T
Wiring Category-5, unshielded twisted pair (UTP), 4-pair
Adapter Product Features
Intel®PROSet Utility and Intel®PRO Intelligent Install for easy installation •
Intel®lead-free1technology •
Plug and play specification support Standard
Auto-negotiation, full-duplex capable •
Integrated media access control (MAC) and physical layer (PHY) •
Includes a full-height bracket •
Cable distance 100 m in Category-5 for 100/1000 Mbps; and Category-3 for 10 Mbps
Network Management
Wired for Management (WfM) baseline v2.0 enabled for servers •
DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable •
SMBus support
Remote Installation Services (RIS) •
Diagnostics (loopback, testability, PHY register access) •
Advanced configuration and power interface (ACPI) 1.0 power management •
Wake on LAN* support over PCI Express* •
PXE 2.0 enabled through boot read-only memory (ROM) •
Network Operating Systems (NOS) Software Support
Microsoft Windows* Server 2003, Enterprise, Datacenter (32- and 64-bit) •
Microsoft Windows 2000 •
Red Hat Linux* 2.4x or later (32- and 64-bit) •
FreeBSD 4.x or later •
Novell Netware* 5.x, 6.x •
Sun Solaris* x86, OS 8 and later •
SCO Open Server 5, OpenUNIX 8* •
Intel Backing
Limited lifetime warranty •
90-day, money-back guarantee (U.S. and Canada) •
Advanced Software Features
Adapter fault tolerance (AFT) •
Switch fault tolerance (SFT) •
Adaptive load balancing (ALB) •
Fast EtherChannel*5(FEC) •
Gigabit EtherChannel*5(GEC) •
Teaming support Scales up to 8 connections
Multiple teams Supports 4 separate teams, maximum
IEEE 802.3ad* (link aggregation control protocol)
5
•
Test switch configuration Tested with major switch original equipment manufacturers (OEMs)
PCIe Hot Plug*/Active peripheral component interconnect (PCI) •
IEEE 802.1Q* VLANs •
IEEE 802.3* (z, ab, u, x) flow control support •
TCP checksum offload — transmission control protocol (TCP), user datagram protocol (UDP), •
Internet protocol (IP)
IEEE 802.1p* •
TCP segmentation/large send offload •
Interrupt moderation •
