Intel EES-5716 User Manual

Quick Reference Guide

EES-5716

Intel Pentium M/Celeron M Processors Mini PC

1st Ed. - 10 June 2004

P/N: 2017571620

EES-5716

2

FCC STATEMENT

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINTST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

2 EES-5716 Quick Reference Guide

Quick Reference Guide

3

Notice:

This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.

Copyright Notice

Copyright  2001-2004, Evalue Technology Inc., ALL RIGHTS RESERVED.

No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective
owners.

Disclaimer

Evalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Evalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
mask work rights to these products, and makes no representations or warranties that these
products are free from patent, copyright, or mask work right infringement, unless otherwise
specified. Applications that are described in this manual are for illustra tion purposes only.
Evalue Technology Inc. makes no representation or warranty that such application will be
suitable for the specified use without further testing or modification.

EES-5716 Quick Reference Guide

EES-5716

4

Life Support Policy

Evalue Technology’s PRODUCTS ARE NOT FOR USE AS CRIT ICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Evalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labelling, can
be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to
perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.

A Message to the Customer

Evalue Customer Services

Each and every Evalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Evalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Evalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Evalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.

4 EES-5716 Quick Reference Guide

Quick Reference Guide

5

Technical Support

We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation . These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user ’s manual
first.

To receive the la test version of the user’s manual, please visit our Web site at:

http://www.evalue-tech.com/

If you still cannot find the answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our dealers are well traine d
and ready to give you the support you need to get the most from your Evalue’s products. In
fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Evalue’s engineers every business day.
We are always ready to give advice on application requirements or specific information on
the installation and operation of any of our products. Please do not hesitate to call or e-mail
us.

Headquarters

Evalue Technology Inc.

7F, 228, Lian-cheng Road,
Chung Ho City, Taipei,
Taiwan
Tel : [phone]
Fax : [phone]

http://www.evalue-tech.com

E-mail: [e-mail]

China Branch Office

Evalue Technology Shanghai Inc.

Room 909, 9F, Section B, No.900,
Yisan Road, Caohejing Hi-tech Park,
Shanghai 200233, China
Tel : [phone]
Fax : [phone]

http://www.evalue-tech.com

E-mail: [e-mail]

Europe Branch Office

Evalue Europe A/S

Nordre Strandvej 119C,
3150 Hellebaek,
Denmark
Tel : [phone]
Fax : [phone]

http://www.evalue-tech.com

E-mail: [e-mail]

US Branch Office

Evalue Technology Inc.

Suite 210, 200 Tornillo Way,
Tinton Falls, NJ 07712
USA
Tel: [phone]
Fax: [phone]

http://www.evalue-tech.com

E-mail: [e-mail]

EES-5716 Quick Reference Guide

EES-5716

6

Product Warranty

Evalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Evalue, or which have been subject to
misuse, abuse, accident or improper installation. Evalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Evalue’s high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Evalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU type and

speed, Evalue’s products model name, hardware & BIOS revision number, other
hardware and software used, etc.) Note anything abnormal and list any on-screen
messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any

helpful information available.

3. If your product is diagnosed as defective, obtain an RMA (return material authorization)

number from your dealer. This allows us to process your good return more quickly.

4. Carefully pack the defective product, a complete Repair and Replacement Order Card

and a photocopy proof of purchase date (such as your sales receipt) in a shippable
container. A product returned without proof of the purchase date is not eligible for
warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your

dealer.

6 EES-5716 Quick Reference Guide

Quick Reference Guide

7

Packing List

Before you begin installing your single board, please make sure that the following materials
have been shipped:

n 1 Hardware platform for EES-5716
n 1 Quick Installation Guide for ECM -5716
n 1 Quick Reference Guide for EES-5716
n 1 Support CD
n 1 CPU cooler
n 1 Cable for KB/Mouse
n 1 IDE Cable
n 4 Screw for fix HDD
n 1 Power Cord

If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

EES-5716 Quick Reference Guide

EES-5716

8

1. Safety Precautions

1.1 Warning!

Always completely disconnect the power cord from your chassis whenever
you work with the hardware. Do not make connections while the power is on.
Sensitive electronic components can be damaged by sudden power surges.
Only experienced elect ronics personnel should open the PC chassis.

1.2 Caution!

Always ground yourself to remove any static charge before touching the
CPU card. Modern electronic devices are very sensitive to static electric
charges. As a safety precaution, use a grounding wrist strap at all times.
Place all electronic components in a static-dissipative surface or

static-shielded bag when they are not in the chassis.

8 EES-5716 Quick Reference Guide

Quick Reference Guide

9

2. Specifications

2.1 General Introduction

EES-5716
Construction

Install Main Board ECM-5716 with Pentium-M 1.1/1.6G hz CPU (Socket type: FC-478)
System Memory One DDR SDRAM socket supports up to 1 Gbytes DDR 333/266/200

SDRAM
Driver Bay Holds one internal 3.5” HDD
SSD Bottom cover for install CF card
System Indicators 2 LED indicators show the status for Power and HDD
Controls Rear panel power switch
Expansion Slot PCI x 1; PCMCIA x 1
Safety Meets UL 1950 D3/CSA 22.2 No.234/ VDE EN60950 standards
EMI Meets CE, FCC standards

External Multi I/O

COM Port 2x DB -9 (1x RS-232; 1x RS-232/422/485)
LAN Port 2x RJ45
VGA / DVI Port 1x DB -15 / DVI 24-pin x 1 (optional)
LCD Interface LVDS interface with SCSI 32-pin/ connector (optional)
Audio Port Mic.-in, Line-in, Lin-out
USB Port 4x USB2.0
IEEE 1394 Port 1x 1394
Parallel Port 1x DB -25
Mouse & KB 1x PS/2

Environment & Mechanical

Power Supply 60W open frame ATX power supply
Operating Temp. 0~45 ℃
Storage Temp. -20~75 ℃
Dimension (W x H x D) 387 x 71 x 262 mm

Material Heavy-duty steel
Weight 4.6Kgs (10.12lbs )
Mounting Desktop

EES-5716 Quick Reference Guide

EES-5716

10

2.2 Product Photo

Front View

Rear View

10 EES-5716 Quick Reference Guide

11

Photo 1

Photo 2

Photo 1

Photo 2

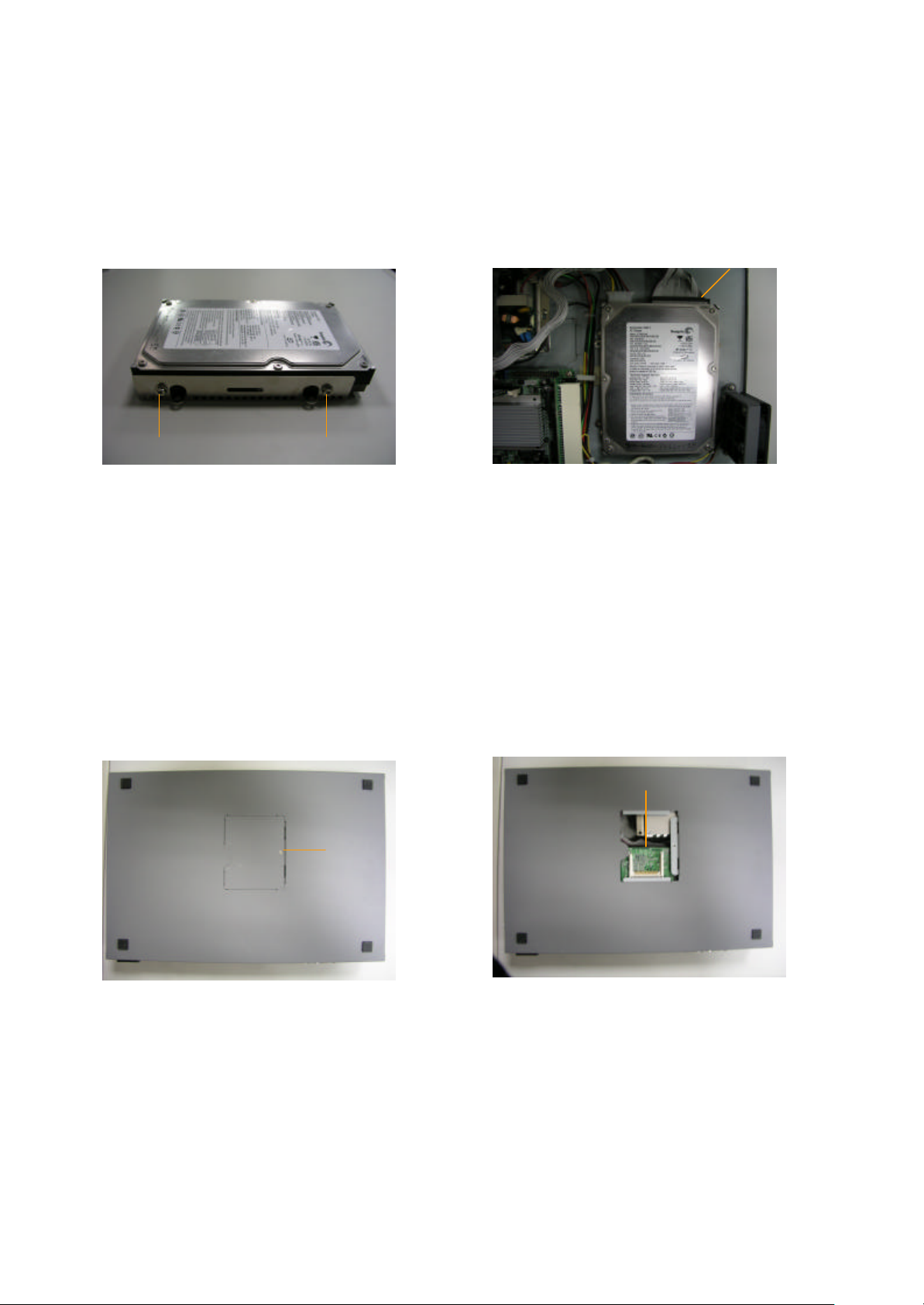

2.3 Installation Notice

2.3.1 Installing HDD

EES-5716 can be installed one 3.5” HDD as photos.

Quick Reference Guide

HDD Signal

1. Hard Disk combines with Rack (with 4-screw at left and right side), then fix the rack to chassis bottom as
photo 1 & 2.

2. Har d Disk signal pin position is as photo 2.

2.3.2 Installing PCI Card

The card of PCB size must be less 230 x 105 mm. The size excludes golden finger and external port.

2.3.3 Install CompactFlash Card

1. Remove the screw and open the cover as photo 1 & 2.

2. According the direction to Install CF card as photo 2.

EES-5716 Quick Reference Guide

EES-5716

12

2.4 Assemblage Drawing

12 EES-5716 Quick Reference Guide
